Simple network management protocol

Updated: April 10, 2026

Want to summarize with AI?

Log in

Describes a network protocol used for network management functionalities in URWB software.

Simple network management protocol (SNMP) is a network protocol that enables network management functionalities in URWB software.

SNMP communication process

The SNMP communication process involves the following steps:

  1. The SNMP client sends a request to the SNMP agent.

  2. The SNMP agent passes the request to the subagent.

  3. The subagent responds to the SNMP agent.

  4. The SNMP agent creates an SNMP response packet and sends it to the remote network management station that initiates the request.

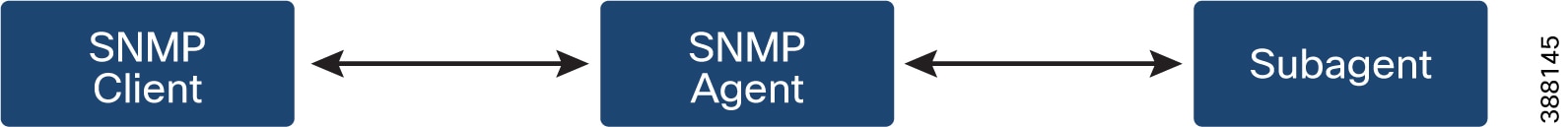

Figure 1. SNMP process
The SNMP process illustrates the communication flow between the SNMP client, agent, and subagent, detailing how requests and responses are exchanged in network management.

Configure SNMP from CLI

Configure SNMP to enable monitoring and management of network devices through network management systems.

SNMP configuration allows network management systems to monitor device status and receive trap notifications. Configure all parameters before enabling SNMP.

Note

  • Before enabling the SNMP feature using CLI, you must configure all SNMP parameters.

  • Disabling the SNMP feature automatically removes all related configurations.

Before you begin

Follow these steps to configure SNMP from CLI:

Procedure

1.

Use the configure snmp {v2c| v3} command to configure the SNMP protocol version.

Example:

Device# configure snmp version v2c
2.

Configure version-specific parameters.

  1. Use the configure snmp v2c community-id length command to configure the community ID for SNMP v2c.

    Example:

    Device# configure snmp v2c community-id 64

    Valid values for length ranges from 1 to 64.

  2. Use the configure snmp v3 username length command to configure the username for SNMP v3.

    Example:

    Device# configure snmp v3 username 32

    Valid values for length ranges from 1 to 32.

  3. Use the configure snmp v3 password length command to configure the user password for SNMP v3.

    Example:

    Device# configure snmp v3 password 8

    Valid values for length ranges from 8 to 64.

  4. Use the configure snmp auth-method {md5| sha} command to configure the authentication protocol for SNMP v3.

    Example:

    Device# configure snmp v3 password 8

    Valid values for length ranges from 8 to 64.

  5. Use the configure snmp encryption {des| aes| none} command to configure the encryption protocol for SNMP v3.

    Example:

    Device# configure snmp encryption aes

  6. Use the configure snmp secret length command to configure the encryption passphrase for SNMP v3.

    Example:

    Device# configure snmp v3 password 8

    Valid values for length ranges from 8 to 64.
3.

Use the configure snmp nms-hostname{hostname| ip-address} command to configure the SNMP hostname or IP address.

Example:

Device# configure snmp nms-hostname cisco.com
4.

Configure trap settings.

  1. Use the configure snmp periodic-trap {enable| disable} command to configure the periodic trap settings.

    Example:

    Device#configure snmp periodic-trap enable

  2. Use the configure snmp trap-period period command to configure the notification trap period for periodic SNMP traps.

    Example:

    Device#configure snmp trap-period 2147483647

    Valid values for period is from 1-2147483647.

    Notification value trap period measured in minutes.

  3. Use the configure snmp event-trap {enable| disable} command to configure event traps.

    Example:

    Device# configure snmp event-trap enable
5.

Use the configure snmp enable command to enable SNMP functionality.

Example:

Device# configure snmp enable

What to do next

Example configurations:

CLI for SNMP v2:

Device#configure snmp v2 community-id <length 1-64>
Device#configure snmp nms-hostname hostname/Ip Address
Device#configure snmp trap-period <1-2147483647>
Device#configure snmp periodic-trap enable/disable
Device#configure snmp event-trap enable/disable
Device#configure snmp version v2c
Device#configure snmp enabled

CLI for SNMP v3:

Device#configure snmp nms-hostname hostname/Ip Address
Device#configure snmp trap-period <1-2147483647>
Device#configure snmp v3 username <length 32>
Device#configure snmp v3 password <length 8-64>
Device#configure snmp auth-method <md5|sha>
Device#configure snmp encryption <aes|des|none>
Device#configure snmp secret <length 8-64>
Device#configure snmp periodic-trap enable/disable
Device#configure snmp event-trap enable/disable
Device#configure snmp version v3
Device#configure snmp enabled

To disable SNMP configuration:

Device#configure snmp disabled

Disabling SNMP clears all sensitive information, including credentials. To enable SNMP again, specify all required values

Validate SNMP from CLI

Use the show snmp command to validate the SNMP.

Device# show snmp
SNMP: enabled
Version: v3
Username: username
Password: password
Authentication method: SHA
Encryption: AES
Encryption Passphrase: passphrase
Engine ID: 0x8000000903c0f87fe5f314
Periodic Trap: enabled
Notification Period (minutes): 5
Event Trap: enabled
NMS hostname: 192.168.116.11
Device# show snmp
SNMP: enabled
Version: v2c
Community ID: test
Periodic Trap: enabled
Notification Period (minutes): 5
Event Trap: enabled
NMS hostname: 192.168.116.11
Device# show system status snmpd
Service Status
Service Name : snmpd
Loaded : loaded
Active : active (running)
Main ProcessID : 6437
Running Since : Mon 2022-09-19 14:45:27 UTC; 3h 34min ago
Service Restart : 0

Configure SNMP version v2c using GUI

This task enables SNMP version v2c on access points to allow network monitoring and management through SNMP operations and trap notifications.

By default, the access points are shipped from the factory with SNMP in disabled mode.

Before you begin

Follow these steps to change the access point's SNMP mode to version v2c and configure the access point:

Procedure

1.

Choose the version v2c from the SNMP mode drop-down list.

The SNMP window appears.

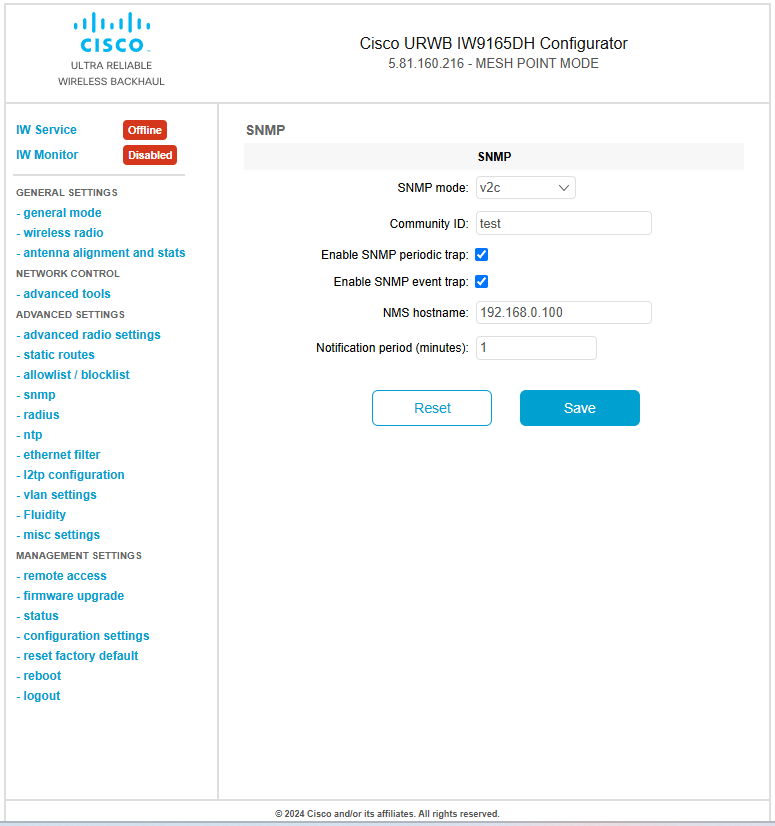

The image illustrates the graphical user interface for configuring SNMP version v2c on an access point, highlighting the necessary fields and options for setting the community identity value.
2.

Enter the community identity value in the Community ID field.

The same community identity value must be set for all the access points in the network.
3.

Check the Enable SNMP event trap check box to enable SNMP event traps for significant system-related events, and then enter the network management station (NMS) host name in the NMS hostname field.

The NMS host to which traps are sent must have an SNMP agent that is configured to collect SNMP v2c traps.
4.

Check the Enable SNMP periodic trap check box to enable periodic SNMP traps to send SNMP traps at defined periodic intervals and then enter the host name of NMS in the NMS hostname field. Enter the notification period (minutes) in the Notification period.
5.

Click Save.

Configure SNMP version v3 using GUI

Configure SNMP version v3 to enable secure network monitoring and management of access points.

By default, the access points are shipped from the factory with SNMP in disabled mode.

Procedure

1.

Choose the version v3 from the SNMP mode drop-down list.

The SNMP window appears.

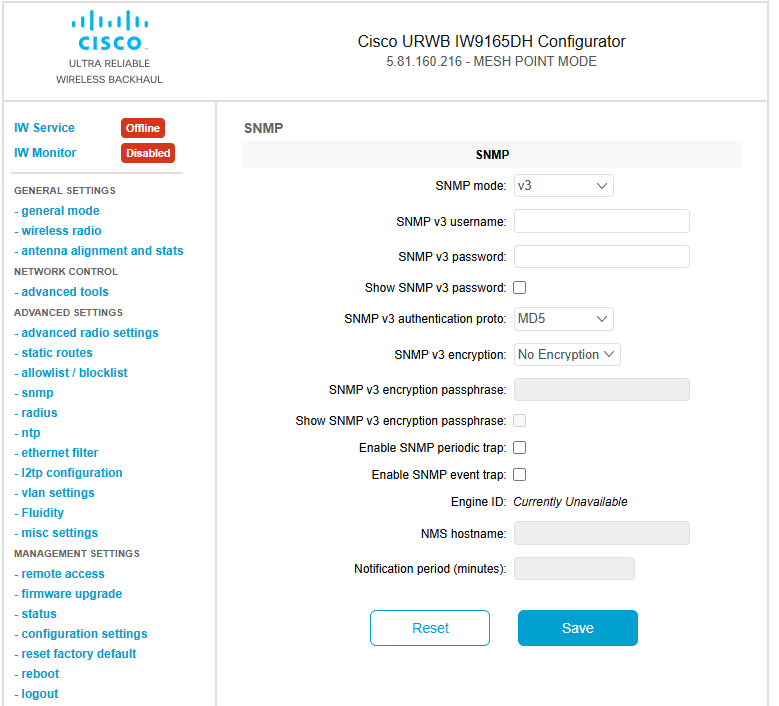

The configuration interface for SNMP version v3, showing options for setting up secure network monitoring and management of access points.
2.

Enter the SNMP v3 username in the SNMP v3 username field.

Note

The same SNMP v3 username must be set for all the access points in the network.
3.

To change the current SNMP v3 password, enter the new password in the SNMP v3 password field.
4.

Choose the authentication type from the SNMP v3 authentication proto drop-down list.

The available options are:

  • MD5

  • SHA

The same SNMP authentication protocol must be set for all the access points in the network.
5.

Choose the appropriate encryption protocol from the SNMP v3 encryption drop-down list.

The available options are:

  • No Encryption

  • DES (Data Encryption Standard)

  • AES (Advanced Encryption Standard)

Note

The same encryption protocol must be set for all the access points in the network.
6.

To change the encryption passphrase, enter a new passphrase in the SNMP v3 encryption passphrase field.
7.

Check the Enable SNMP periodic trap check box to enable the periodic SNMP traps to send SNMP traps at defined periodic intervals and then enter the host name of NMS in the NMS hostname field. Enter the notification period (minutes) in the Notification period.
8.

Check the Enable SNMP event trap check box to enable the SNMP event traps for significant system-related events and then enter the host name of NMS in the NMS hostname field.

Note

The NMS host to which traps are sent must have an SNMP agent configured to collect v3 traps.
9.

Click Save.

If you disable the SNMP, the following pop-up appears:

SNMP version v3 is successfully configured on the access point, showing the authentication and encryption settings used for the setup.
