Node Functional View

This chapter describes the Node Functional View (NFV) used in Cisco Optical Site Manager and its related tasks.

Table 1. Feature History

Feature Name

Release Information

Description

NFV Map View Enhancements

Cisco IOS XR Release 25.3.1

The NFV map view now features a clearer and more organized site optical diagram with updated icons, improved data flow representation, and streamlined functional block layout.

Omnidirectional blocks are grouped for efficient navigation, and the OXC view is always expanded horizontally for consistent data flow visualization.

Detailed View in NFV for Transponder and Muxponder Card on Third-party OLS Networks

Cisco IOS XR Release 24.2.1

The Node Functional View (NFV) has been enhanced to provide a detailed view of transponder and muxponder cards on NCS1014 deployed within networks utilizing third-party Optical Line Systems (OLS).

This detailed view provides a graphical representation of the connections between the trunk and client ports on the transponder and muxponder cards, thereby simplifying the visualization of the network's connection layout.

Detailed View in NFV for Transponder and Muxponder Cards on OLS Networks

Cisco IOS XR Release 24.1.1

You can now access a detailed graphical representation of the connections between the trunk and client ports of the transponder and muxponder cards on Optical Line System (OLS) NCS 1010 networks. This is available in the Map View of Node Functional View (NFV).

This view is based on the card mode configured on the cards. When you access the detailed view, the right-panel of the Node Functional View displays the card mode details and a list of ports and their settings.

Understanding Node Functional View

A Node Functional View (NFV) is a visual representation that provides details of a network rack, including the node and its associated components.

Using NFV, you can:

  • includes components such as cards and chassis.

  • switch between different views.

  • explore detailed maps of physical connections.

  • interact between the Map and Rack views, allowing you to highlight and zoom in on specific components and their connections, such as optical cross-connections and port details.

Figure 1. Node Functional View

Node Functional View panels

This table describes the NFV panels.

Table 2. Overview of NFV panels

UI element

Description

Use when you need to...

How to access

Rack view

Displays a visual representation of a rack, including the node and its cards.

  • Add chassis or passive units.

  • Open, delete, or view details of chassis and cards.

Click the Collapse Shoulder button to expand or collapse this view.

Map view

Displays a visual map of the components of the node connected by patch cords according to physical connections.

  • Toggle between node, side, card, circuit, port, and patch cord views.

  • Zoom or highlight a node or card in the rack view

  • See trunk-client port connections and internal patch cords (IPC) based on card mode.

This view is always visible.

Detail view

Displays all relevant information about nodes, sides, cards, circuits, ports, or patch cords.

  • Check optical degrees and their status

  • View and manage optical cross connections (OXC)

  • Run connection verification between components

  • View card mode configuration and details

  • List available ports and inspect individual port settings

Click the Collapse Shoulder button to expand or collapse this view.

NFV icons

This section provides an overview of the icons used across various panels in the Node Functional View.

NFV common icons

This table describes the action icons used in the NFV.

Table 3. NFV common icons

Icon

Description

Resets the zoomed view to normal view.

Refreshes the map view with current information.

Expands or collapses the rack or Detailed view.

Displays or hides the alarms icon in the map and detailed view.

  1. Click this button.

  2. Select or deselect the alarm icons in the drop-down list to display or hide the alarms icon in the map and detailed view.

Sets the user preferences.

For more details, see Customize NFV layout.

Zooms in the rack or map view.

Zooms out the rack or map view.

Navigates to the default view in the map view.

Navigates to the previous page in the map View.

Expands or collapses the bottom panel that contains the Alarms, OCM, or OTDR tabs.

Magnifies the selected area of the map view, providing a closer and more detailed view of that specific section.

Map view icons

This table describes the icons available on the Map view.

Table 4. Map view icons

Icon

Description

Remote site

PP mesh

TXP/MXP

amplifier

Amplifier with Raman

Omnidir

PSM

Roadm Raman amplifier

Roadm amplifier

Map view icon colors

Map view icon colors change according to the corresponding alarm severity levels.

Table 5. Map view icon severity

Color

Alarms Severity

Red

Critical

Orange

Major

Yellow

Minor

Blue

Default color

View node details

The details of a node can be viewed from the right-panel, including the list of nodes, active circuits, and physical connections.

Follow these steps to view the details of a node in the NFV.

Before you begin

Log into Cisco Optical Site Manager

Procedure

Step 1

Click Node Functional View in the left panel.

The Node Functional View page appears.

Note



The NVF page might take longer to load the first time you open it.

Step 2

Click Collapse Shoulder to expand the right-panel.

The following table describes the details of the sections on the right-panel.

Table 6. Node details

Section

Description

Side List

Displays a list of the nodes along with its details, such as span loss value, the IP address of the device it is connected to, and its degree.

OXC List

Displays a list of active circuits passing through a particular card.

For more details, see View active circuit list.

Connection Verification

Displays a list of the connections between the line cards and all passive modules.

For more details, see Connection verification.

View degree details for a OLS node

Follow these steps to view the details of the degree for a OLS node in NFV.

Before you begin

Log into Cisco Optical Site Manager

Procedure

Step 1

Click Node Functional View in the left panel.

The Node Functional View page appears.

Step 2

Perform any of these to view the details of a degree:

  • Right-click a side in the map view and choose View Details.
  • Click > next to the degree name in the right panel.

Step 3

(Optional) Click the vertical ellipsis icon and choose from any of the following options to sort the list of ports or OXC:

  • A-Z
  • Z-A
  • High Severity
  • Low Severity.
You can view these details in the right panel:

  • Overall alarm status as a colored label and an icon

  • (Optional) Span loss

  • (Optional) ORL of OTDR

  • (Optional) Fiber End of OTDR

  • (Optional) OSC power

  • (Optional) IP address of the node of its optional neighbor. To open the Cisco Optical Site Manager web UI of the neighbor node in a new browser tab, click the IP address of the neighbor node.

  • Degree of its optional neighbor

  • Card List tab - Displays the list of all the cards present in both sides. The shelf number and slot number are displayed with the card name. The trunk port number is also displayed for TXP cards.

  • Circuit List tab - Displays the list of all the circuits present in the side.

Optical Channel Monitoring

Optical Channel Monitoring (OCM) is a technology used to monitor the performance and health of optical signals (wavelengths) running through fiber networks. It enables operators to gain real-time visibility into the optical spectrum without disrupting traffic.

OCM improves network visibility, enables proactive maintenance, and provides signal assurance. These enhancements reduce downtime and operational complexity in large optical transport networks.

Key features of OCM

The Optical Channel Monitoring capabilities in the NCS 1010 provide the following essential functions for managing and troubleshooting optical networks:

  • Real-Time Spectrum Monitoring: OCM scans the optical C-band and visualizes the power levels of individual optical channels. This feature helps detect signal degradation, identify channel presence or absence, and recognize spectral interference.

  • Integration with NCS 1010 ROADM: The OCM integrated with the ROADM helps validate wavelength routing, power levels, and OSNR (Optical Signal to Noise Ratio).

  • Graphical Spectrum View: Cisco Optical Site Manager provides a visual representation of the spectrum with channel peaks, helping easily spot anomalies.

OCM tab icons and elements

The table describes the action icons available in the OCM tab.

UI Element/Icon

Description

Direction

 When graph view is enabled:

  • RX: Select to view the optical spectrum in the RX direction.

  • TX: Select to view the optical spectrum in the TX direction.

When table view is enabled:

  • C-band: Select to view the optical spectrum for the C band.

  • L-band:Select to view the optical spectrum for the L band.

Click this button to change to the table or graph view.

Expected channel missing or underpowered (useful for fault detection).

Reload the graph or table.

View Optical Channel Monitoring data

Optical Channel Monitoring (OCM) on Cisco NCS 1010 enables continuous monitoring of optical signal parameters for each individual wavelength on a fiber.

View power levels (in dBm) of individual wavelengths traveling through a fiber using OCM on Cisco NCS 1010.

Follow these steps to view the OCM for the receive (Rx) and transmit (Tx) directions.

Before you begin

Log into Cisco Optical Site Manager

Procedure

Step 1

Click Node Functional View in the left panel.

Step 2

Right-click an optical degree in the map view and select Open.

Step 3

Expand the panel at the bottom of the page.

Step 4

Click the OCM tab.

Step 5

Select RX or TX to view the OCM data for the receive or transmit direction in the spectrum graph.

For more details about the spectrum graph, see OCM spectrum graph.

Step 6

Click the Spectrum Occupancy Chart button to view the spectrum occupancy table.

For more details about the spectrum occupancy table, see OCM utilization table.

You can view the transmission or reception power levels for the optical degree you selected in the OCM data and spectrum occupancy graph and table.

OCM spectrum graph

The OCM spectrum graph displays the power spectral density (dBm per GHz) across the optical C-band in the RX or TX directions. This highlights the presence and consistency of carriers.

  • X-Axis (Frequency in THz): Represents optical frequencies that cover the C-band.

  • Y-Axis (Power Spectral Density): Displays signal power in dBm per GHz, indicating the strength of received signals at each frequency.

Figure 2. OCM spectrum graph

OCM spectrum graph color elements

The color coding in the OCM spectrum graph identifies the type of signal at each frequency:

Color

Elements

Description

Green

Carrier

Valid optical channel present at that frequency.

Grey

ASE

Amplified spontaneous emission that represents optical noise level.

Yellow

Missing Carrier

Expected channel missing or underpowered (useful for fault detection).

OCM utilization table

The OCM utilization table presents a frequency-slot grid showing how much of the optical spectrum is currently in use, with each cell representing a discrete frequency-time slot. This table helps network operators quickly assess spectrum occupancy and identify free or underutilized slots for provisioning.

Read and interpret the layout of the OCM table as described in these points:

  • Columns: The columns in the table represent discrete frequency slot positions, indexed using normalized values (e.g., 0.01250, 0.02500), and aligned with the C-band spectrum.

  • Rows: Each row shows a specific optical frequency in THz, arranged from higher to lower values.

Figure 3. OCM utilization table

OCM utilization table color elements

The color coding in the OCM table shows different spectral components:

Table 7. OCM utilization table color coding

Color

Element

Description

Green

Carrier

A green cell shows an active optical signal in that frequency slot and indicates live data traffic or a provisioned channel.

Light Gray

ASE

Light gray cells represent amplified spontaneous emission, which is optical noise.

Yellow

Missing Carrier

A yellow cell means the expected channel is not detected. This result can indicate signal loss, misalignment, or a transponder issue.

Dark Gray

Out of Scope

A dark gray cell shows a frequency region outside the monitoring scope of your current configuration.

Optical Time Domain Reflectometer

An Optical Time Domain Reflectometer (OTDR) is a built-in fiber diagnostic tool that

  • sends light pulses through the optical fiber,

  • measures the reflected signals to detect faults, measure span loss,

  • and locates events such as fiber cuts or high reflections.

OTDR benefits

Cisco Optical Site Manager allows you to access the OTDR functionality of the underlying device in a unified manner, regardless of potential device differences.

The OTDR feature offers several advantages for fiber management:

  • Assess fiber quality during system installation before activating traffic.

  • Measure real-time loss and back reflection for the fiber pair connected to the TX and RX ports.

  • Monitor the fiber during live system operation.

  • Inspect the fiber following cable cut and repair events

  • Detect fiber degradation due to aging and environmental factors by automatically monitoring span loss and ORL thresholds.

From Release 26.1.1, OTDR scan is supported on NCS 2000, in addition to the NCS 1000.

Provision OTDR for optical degree

OTDR is automatically provisioned by default when you onboard a device that already has OTDR configured. Use this task only when OTDR is not provisioned.

Before you begin

If the OTDR is not auto-provisioned or was manually unprovisioned, you can enable it by creating an optical degree. See Manage Optical Degrees.

Procedure

Step 1

Click Node Functional View in the left panel.

Step 2

Right-click an optical degree in the map view and click Open.

Step 3

Expand the panel at the bottom of the page.

Step 4

Click the OTDR tab.

Step 5

Click +Provision OTDR to activate monitoring and troubleshooting functionality.

Review the OTDR measurement data after activation to ensure proper monitoring.

OTDR icons

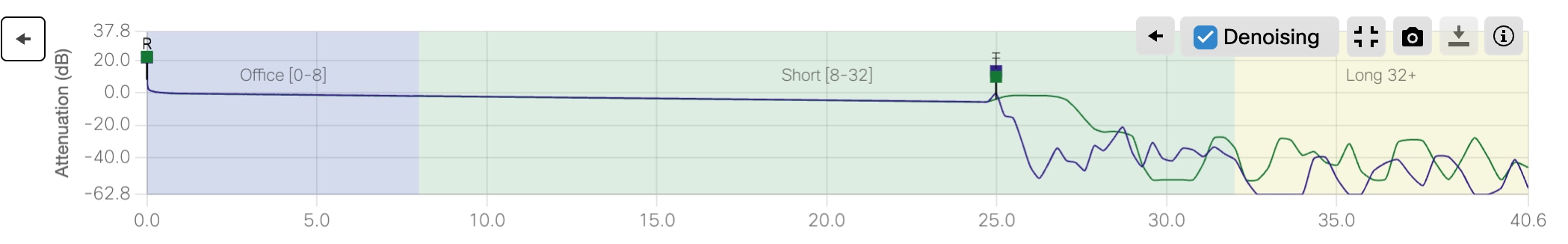

The OTDR tab displays the optical trace for the selected degree and direction, helping you analyze signal quality, detect faults, and verify fiber link health.


Note

When performing an OTDR scan on Cisco optical nodes, it is expected system behavior for the OTDR trace to display a long tail of noise extending beyond the fiber end or the configured scan range; this does not indicate a malfunction. In Auto mode, the system detects the actual fiber end, though a noise tail may still appear beyond this point. In Multi-Region and Expert modes , the scan range is determined exclusively by the configured "capture start" and "capture end" points (in km), rather than the span length configuration; consequently, a noise tail may appear beyond the configured capture end point.

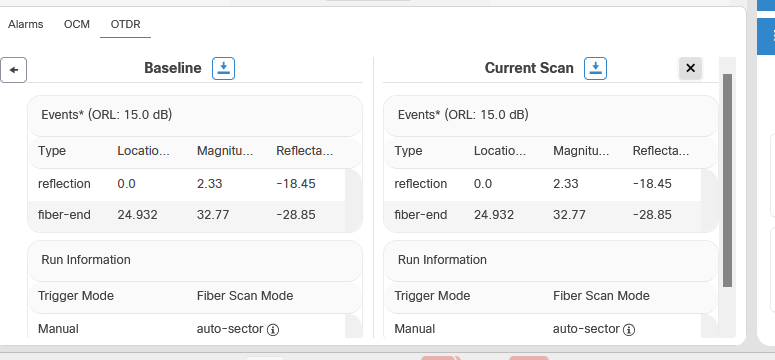

Check the Denoise check box available under the zoom icon, to remove the noise trace.

OTDR icon descriptions

The table provides an overview of the icons available on the OTDR tab, along with a description of each operation they perform.

Table 8. OTDR icon descriptions
Icon

Description

—

To zoom into a specific area, press Shift and drag to create a rectangle around the area you want to zoom into.

—

Scroll down to zoom out of the graph.

Resets the graph to its original zoom and position.

Download the graph as an image.

Download SOR file that contains the fiber trace details such as the distance, reflectance, loss, and fiber attenuation measurements.

Save the current OTDR scan results as a baseline.

Indicates the status of the last successful scan.

Unprovision OTDR, clear reflections, clear losses, and configure various OTDR parameters.

Trigger a fast Scan in Auto mode. This is visible when the scan is not running.

Stop the ongoing OTDR scan. Once an OTDR scan is triggered, the Play icon changes to a Stop icon.

Perform fast or hybrid OTDR scans across all sectors (Auto, Expert, and Multi-Region modes) in both TX and RX directions.

Indicates a failed scan and provides the reason for the last scan failure when you hover the mouse over it.

Open a single graph that combines the office, short, and long trace files from an NCS 1010 multi-region scan.

When multiple scan results are available, click the Previous Scan or Next Scan buttons to view the previous or next OTDR scans respectively.

Configure OTDR expert mode settings

Configure expert mode values before you run an expert mode OTDR scan. These settings help tune the capture range, signal behavior, and event detection thresholds for precise troubleshooting.

Expert mode parameters may vary based on your NCS 1000 device model. For parameter descriptions and platform support details, see OTDR settings parameter groups.

Before you begin

Log into Cisco Optical Site Manager

Follow these steps to configure OTDR expert mode settings.

Procedure

Step 1

Click Node Functional View in the left panel.

Step 2

Right-click an optical degree in the map view and click Open.

Step 3

Expand the panel at the bottom of the page and click the OTDR tab.

Step 4

Click the ellipsis icon and choose OTDR Settings.

The OTDR Configurations dialog box appears.

Step 5

Click Expert Mode - TX or Expert Mode - RX.

Select the tab based on the direction for which you want to configure expert mode scan values.

Step 6

Enter the expert mode scan values in the available fields.

The available expert mode fields vary by device. For parameter descriptions and platform support details, see OTDR settings parameter groups.

Step 7

Click Apply.

Cisco Optical Site Manager saves the expert mode settings for the selected direction.

What to do next

Run a manual OTDR scan in expert mode. For more information, see Run a manual OTDR scan in expert, multi-region, or auto-sector mode.

Run a manual OTDR scan in expert, multi-region, or auto-sector mode

Manually run an OTDR scan in expert, multi-region, or auto-sector mode during fiber installation or troubleshooting to verify link quality and locate faults.

Table 9. Feature History

Feature Name

Release Information

Description

Expert mode OTDR scan

Cisco Optical Site Manager Release 26.3.1

You can manually run an OTDR scan in expert mode on NCS 1010 and NCS 1001 devices. Before running the scan in expert mode, configure the expert mode parameters to fine-tune the scan for more precise troubleshooting under OTDR Settings.

After the scan is complete, you can view the baseline, current scan, run information, and expert mode parameter details in the scan details view.

Multi-region OTDR scan

Cisco NCS 2000 Release 26.1.1

Cisco Optical Site Manager Release 26.3.1

Perform an OTDR scan in multi-region mode by selecting one of the following options, each optimized for a specific region of the fiber span:

  • All

  • Closer (1 km)

  • Short (80 km)

  • Long (> 80 km)

This mode is supported only on NCS 1010. It generates separate SOR files with the corresponding region name included in each filename, making it useful for comprehensive analysis across varying span distances.

Before you begin

Follow these steps to manually run an OTDR scan.

Procedure

Step 1

Open the OTDR tab for an optical degree.

  1. Click Node Functional View in the left panel.

  2. Right-click an optical degree in the map view and click Open.

  3. Expand the panel at the bottom of the page.

  4. Click the OTDR tab.

Step 2

Scroll to the bottom of the panel and click the gear icon.

Step 3

In the Scan Options dialog box, select the scan options.

  1. From the Direction drop down menu, select rx or tx to run the OTDR scan in the RX or TX directions, respectively.

  2. From the Scan Mode drop down menu, select hybrid to run the scan for 1.5 hours or fast to run the OTDR scan in 20 minutes.

  3. From the Fiber Scan Mode drop down menu, select a fiber scan mode.

    Table 10. OTDR fiber scan modes

    Use

    To

    multi-region

    start the OTDR scan in the multi-region mode.

    auto-sector

    Automatically select the optimal values for OTDR.

    expert

    start the OTDR scan in the expert mode.

    Note



    Before running a scan in this mode, configure the expert mode parameters under OTDR Settings dialog box. For more details about configuring the expert mode parameters, see Configure OTDR expert mode settings.

    Note



    Multi-region scan is not supported on NCS 1001.

  4. From the Region drop-down list, select one of these options:

    Note



    This field is only enabled if Fiber Scan Mode is selected as multi-region.

    Table 11. OTDR scan multi-region options

    Region options

    Platform applicable for

    All

    NCS 1010

    closer (1 km)

    NCS 2000

    office - (25 km)

    NCS 2000

    Short (80 km)

    NCS 2000

    long (> 80 km)

    NCS 2000

Step 4

Click Start Scan button to start OTDR scan.

The OTDR-SCAN-IN-PROGRESS-RX alarm is raised and displayed on the Alarms tab of the Fault Monitoring menu.

The scan results are displayed in the graph.

What to do next

  1. (Optional) Click the merged multi-region view icon to view office, short, and long trace files in one graph. For more details about merged multi-region view, see Merged multi-region OTDR trace view.

    The icon is available for NCS 1010 multi-region scan results generated with the All region option.

  2. (Optional) Click Stop Scan icon to terminate the OTDR scan.

    An informational message appears indicating that the OTDR scan has been terminated.

  3. (Optional) In the right-side panel, click OTDR Data. This action displays a comprehensive list of OTDR events, including reflections and losses.

    To view detailed analysis data, click the Enhanced View radio-button.

  4. After the scan is completed, click the i icon to view the scan details and download the SOR files.

    Figure 4. OTDR detailed view

Enable Automatic OTDR Scan

Use this task to enable or disable automatic Optical Time Domain Reflectometer (OTDR) scans for supported optical cards.

  • Automatically trigger OTDR scans after specific network events.

  • Configure delay timers and threshold values for automatic scan execution.

In automatic mode, the system triggers an OTDR scan after events such as span faults, fiber restoration, device power cycles, line card reloads, or Raman turn-up completion (where supported).

Automatic OTDR scan options vary depending on the NCS 1000 or NCS 2000 card types.

Before you begin

Log into Cisco Optical Site Manager

Follow these steps to enable or disable automatic OTDR scans.

Procedure

Step 1

Click Node Functional View in the left panel.

Step 2

Right-click an optical degree in the map view and click Open.

Step 3

Expand the panel at the bottom of the page.

Step 4

Click the OTDR tab.

Step 5

Click the ellipsis icon and choose OTDR Settings.

The OTDR Configurations dialog box appears.

Step 6

Click the Global tab.

  1. Select the required check boxes in the Automatic OTDR Scans Settings section.

    Table 12. Automatic OTDR Scan Options

    If you want to enable automatic OTDR scan...

    Then select...

    After a system startup, fiber cut, or repair (supported on both NCS 1000 and NCS 2000 cards)

    System Start-up, Fiber Cut & Repair

    Supported for both NCS 1000 and NCS 2000 card types.

    When span loss increases (supported only on NCS 2000 cards)

    Span Loss Increase

    Supported only for NCS 2000 card types.

    When excessive ORL is detected from the span (supported only on NCS 2000 cards)

    Excessive ORL from span

    Supported only for NCS 2000 card types.

  2. Enter the delay time in minutes in the Start Delay (Osc/Loss) field.

    This option is supported only for NCS 2000 cards.

  3. Enter the threshold value in dB in the Span Loss Increase Threshold field.

    This option is supported only for NCS 2000 cards.

Step 7

Click Apply.

The system enables automatic OTDR scans based on the selected conditions and configured parameters.

Merged multi-region OTDR trace view

Use this reference to understand how Cisco Optical Site Manager displays merged multi-region OTDR scan data.

The merged multi-region view is available for NCS 1010 multi-region scans that run with the All region option. The view combines the office, short, and long scan files in a single graph so that you can compare region-specific trace data in one place.

Table 13. Merged multi-region view details

Item

Description

Notes

Merge Correlated SORs icon

Opens a single graph that combines the office, short, and long trace files from a multi-region scan.

The icon appears for NCS 1010 multi-region scan results that include all three region files.

Merged graph view

Displays the office, short, and long region traces in one graph.

The OTDR trace graph displays three color-coded fiber regions based on distance: Office [0–8], Short [8–32], and Long [32+]. Each region is shown with a different background color to distinguish the corresponding span range.

Note



This graph is displayed only when you click the Merge Correlated SORs icon.

Use the graph controls to inspect trace details and compare behavior across regions.
Figure 5. Merged graph view

OTDR settings parameter groups

Use this reference to identify the parameters in the OTDR Configurations dialog box before you configure OTDR scan settings.

The OTDR Configurations dialog box displays these OTDR settings parameter groups.

Table 14. OTDR settings parameter groups

Parameter group

Parameters and descriptions

Global

System Start-up, Fiber Cut & Repair

Automatically starts an OTDR scan after system start-up and a fiber cut or repair event.

This parameter is supported for both NCS 1000 and NCS 2000 card types.

Span Loss Increase

Automatically starts an OTDR scan when an increase in span loss is detected.

This parameter is supported only for NCS 2000 card types.

Excessive ORL from Span

Automatically starts an OTDR scan when excessive Optical Return Loss (ORL) is detected from the span.

This parameter is supported only for NCS 2000 card types.

Start Delay (Osc./Loss)

Specifies the delay before an automatic scan starts after an oscillation or loss event.

Valid range: 5–30 minutes.

This parameter is supported only for NCS 2000 card types.

Span Loss Increase Threshold

Specifies the increase in span loss that triggers an automatic OTDR scan.

Valid range: 0.1–30 dB.

This parameter is supported only for NCS 2000 card types.

Basic-TX/RX

Fiber Parameter

  • Backscatter: Sets the fiber backscatter value that the OTDR scan uses for trace analysis.

  • Refractive Index: Sets the refractive index value that the OTDR scan uses to calculate event distance.

Autosector Sensitivities

  • Loss Sensitivity: Sets the sensitivity for detecting loss events during an autosector scan.

  • Reflection Sensitivity: Sets the sensitivity for detecting reflection events during an autosector scan.

  • Fiber End Sensitivity: Sets the loss threshold used by the OTDR to detect fiber-end events.

Note



Fiber End Sensitivity only supported on NCS 1010. This parameter is not supported on the NCS 1001 device.

Absolute Thresholds

  • ORL: Sets the optical return loss threshold for the OTDR scan.

  • Loss: Sets the absolute loss threshold for identifying loss events.

  • Reflection: Sets the absolute reflection threshold for identifying reflection events.

Expert Mode - TX/RX

Capture Location

  • Capture Start: Sets the start point of the fiber section that the OTDR scan captures.

  • Capture End: Sets the end point of the fiber section that the OTDR scan captures.

Signal

  • Pulse Width: Sets the optical pulse width for the OTDR scan.

  • Measure Time: Sets the duration for collecting OTDR trace data.

  • Fiber Resolution: Sets the distance resolution for OTDR event detection.

  • Span Length: Sets the expected span length for the OTDR scan.

Note



Fiber Resolution and Span Length only supported on NCS 1001. These parameters are not supported on the NCS 1010 and NCS 2000 devices.

Sensitivities

  • Loss Sensitivity: Sets the sensitivity for detecting loss events in expert mode.

  • Reflection Sensitivity: Sets the sensitivity for detecting reflection events in expert mode.

  • Supported device: NCS 1001

  • Unsupported devices: NCS 1010 and NCS 2000

Thresholds

  • Reflection Relative Threshold: Sets the relative threshold for identifying reflection events.

  • Loss Reflection Threshold: Sets the threshold for identifying loss reflection events.

  • Supported device: NCS 1001

  • Unsupported devices: NCS 1010 and NCS 2000

Multi Region

  • Closer Region - Loss Sensitivity: Sets the loss sensitivity for the closer region in a multi-region scan.

    Valid range: 0.4 dB to 5 dB.

  • Closer Region - Reflection Sensitivity: Sets the reflection sensitivity for the closer region in a multi-region scan.

    Valid range: -40 dB to -14 dB.

  • Office Region - Loss Sensitivity: Sets the loss sensitivity for the office region in a multi-region scan.

    Valid range: 0.6 dB to 5 dB.

  • Office Region - Reflection Sensitivity: Sets the reflection sensitivity for the office region in a multi-region scan.

    Valid range: -40 dB to -14 dB.

  • Short Region - Loss Sensitivity: Sets the loss sensitivity for the short region in a multi-region scan.

    Valid range: 1.5 dB to 5 dB.

  • Short Region - Reflection Sensitivity: Sets the reflection sensitivity for the short region in a multi-region scan.

    Valid range: -40 dB to -14 dB.

  • Long Region - Loss Sensitivity: Sets the loss sensitivity for the long region in a multi-region scan.

    Valid range: 1.5 dB to 5 dB.

  • Long Region - Reflection Sensitivity: Sets the reflection sensitivity for the long region in a multi-region scan.

    Valid range: -40 dB to -14 dB.

Unprovision OTDR

Deletes the OTDR scan results for both directions.

View side details

Use this task to view the details of the side in NFV.

Before you begin

Log into Cisco Optical Site Manager

Procedure

Step 1

Click Node Functional View in the left panel.

The Node Functional View page appears.

Step 2

Right-click a side in the map view and choose View Details to view the details of the selected side along with the right shoulder.

Step 3

View the following information that is displayed in the right shoulder. Optional means that the information is displayed when available.

  • Name of the side

  • Overall alarm status as a colored label and an icon

  • (Optional) Span loss

  • (Optional) ORL of OTDR

  • (Optional) Fiber End of OTDR

  • (Optional) OSC power

  • (Optional) IP address of the node of its optional neighbor. To open the Cisco Optical Site Manager web UI of the neighbor node in a new browser tab, click the IP address of the neighbor node.

    Note



    In Cisco Optical Site Manager, the IP address of a neighbor node may persist after the node is deleted or deactivated. This persistence can cause a wrong discovery of neighbour before any new node insertion or when updating existing neighbor IP addresses. It is recommended to remove the configuration and system description from the device where COSM is deactivated using the no lldp system-description IOS XR command.

  • Degree of its optional neighbor

  • Card List tab - Displays the list of all the cards present in the side. The shelf number and slot number are displayed with the card name. The trunk port number is also displayed for TXP cards.

    To sort the list of cards, click the vertical ellipsis icon and choose A-Z, Z-A, High Severity, or Low Severity.

  • Circuit List tab - Displays the list of all the circuits present in the side.

    To sort the list of circuits, click the vertical ellipsis icon and choose A-Z, Z-A, High Severity, or Low Severity.

View side details for an OLS node

Use this task to view the details of the side for a node in NFV.

Before you begin

Log into Cisco Optical Site Manager

Procedure

Step 1

Click Node Functional View in the left panel.

The Node Functional View page appears.

Step 2

Right-click a side in the map view and choose View Details to view the details of the selected side along with the right shoulder.

Or

Click the arrow near the side name that is displayed inside the right shoulder.

Step 3

View Side 1 and Side 2 merged information that is displayed in the right shoulder. Optional means that the information is displayed when available.

  • Overall alarm status as a colored label and an icon

  • (Optional) Span loss

  • (Optional) ORL of OTDR

  • (Optional) Fiber End of OTDR

  • (Optional) OSC power

  • (Optional) IP address of the node of its optional neighbor. To open the Cisco Optical Site Manager web UI of the neighbor node in a new browser tab, click the IP address of the neighbor node.

  • Degree of its optional neighbor

  • Card List tab - Displays the list of all the cards present in both sides. The shelf number and slot number are displayed with the card name. The trunk port number is also displayed for TXP cards.

    To sort the list of cards, click the vertical ellipsis icon and choose A-Z, Z-A, High Severity, or Low Severity.

  • Circuit List tab - Displays the list of all the circuits present in the side.

    To sort the list of circuits, click the vertical ellipsis icon and choose A-Z, Z-A, High Severity, or Low Severity.

View card details

View card details, such as card name, location, port list, and optical cross-connections.

Follow these steps to view the details of the card in NFV.

Before you begin

Log into Cisco Optical Site Manager

Procedure

Step 1

Click Node Functional View in the left panel.

Step 2

Right-click a card in the map view and choose View Details.

Step 3

(Optional) Click the vertical ellipsis icon and choose from any of the following options to sort the list of ports or OXC:

  • A-Z
  • Z-A
  • High Severity
  • Low Severity.
You can view these card information in the right panel:

Section

Description

Name

Displays the name of the device.

Location

Displays the shelf, rack, or slot of the device.

Port list

Displays all the ports on the device.

OXC List

Displays the list of all the optical cross-connections.

View port details

Follow these steps to view the details of the port on a card.

Before you begin

Log into Cisco Optical Site Manager

Procedure

Step 1

Click Node Functional View in the left panel.

The Node Functional View page appears.

Step 2

Right-click a card in the map view and choose Open.

Step 3

Click the port on the device in the map view.

Step 4

(Optional) Click the vertical ellipsis icon and choose from any of the following options to sort the list of OXC:

  • A-Z
  • Z-A
  • High Severity
  • Low Severity.
You can view these port information in the right panel:

Section/Field

Description

Name

Displays the name of the port.

Location

Displays the shelf, rack, or slot of the card.

Powers

Displays the list of all the links with their aggregate power.

The aggregate power displays the current power in case of a single port. The aggregate power displays a list of all the different power levels in case of an MPO port or logical group.

OXC List

Displays the list of all the optical cross-connections.

View patch cord details

View patch cord details, such as patch cord name, ports that the patch cord connects, and optical cross-connections.

Follow these steps to view the details of a patch cord.

Before you begin

Log into Cisco Optical Site Manager

Procedure

Step 1

Click Node Functional View in the left panel.

Step 2

Right-click a degree and select Open.

Step 3

Click the patch cord connecting two devices in the map view.

You can view these patch cord information in the right panel:
Table 15. Patch cord details

Section/Field

Description

Name

Displays the name of the patch cord.

Connections

Displays the ports that the patch cord connects with their cards and the aggregate power.

Connection Verification

Displays a list of the connections between the line cards and all passive modules. For more details, see Connection verification.

View circuit details

View the logical connections established between optical ports or channels within a device.

Follow these steps to view the details of the optical cross connections (OXC) in NFV.

Before you begin

Log into Cisco Optical Site Manager

Procedure

Step 1

Click Node Functional View in the left panel.

Step 2

Click Collapse Shoulder to open the right panel.

Step 3

Click > against the circuit to view the details.

You can view these circuit information in the right panel:
Table 16. Patch cord details

Section/Field

Description
Circuit Info

Displays these details about the circuit:

  • Admin State

  • Service State

  • Frequency

  • Wavelength

Path

Displays these details:

  • Internal link: List of ports that are internally connected within the device.

  • PIn: Optical input power level received.

  • POut: Optical output power level.

Connection verification

Cisco Optical Site Manager offers a connection verification process that checks the cabling between the OLT-C line card and passive modules in an NCS 1010 device, helping prevent miscabling during node installation.

The connection verification process generates a specific probe signal from the Connection Verification Tunable Laser (CV-TL) located at COM-RX-2. This probe signal is then detected on the following components:

  • The same OLT-C line card.

  • Passive modules (Mux/Demux panel or breakout panel) connected to the OLT-C line card.

  • A different OLT-C line card or passive module belonging to the same near-end (NE) node.

  • An optical interface (router ports or transponders) connected to the line card.

Figure 6. Connection Verification

Connection verification status

This table describes the various connection verification status that are displayed in the Connection Check Result field of the right panel.

Status

Description

Connected

Cable or patchcord is connected.

Disconnected

Cable or patchcord is disconnected.

Connection-Not-Verified

Cable or patchcord is not tested for connection verification.

Verify connections

Verify physical connectivity between line cards and passive modules on an NCS 1010 device, ensuring correct cabling and preventing installation errors.

Follow these steps to verify connections.

Before you begin

Procedure

Step 1

Click Node Functional View in the left panel.

Step 2

Click the Expand shoulder icon to expand the right panel.

Step 3

Scroll to the Connection Verification section and click to expand it.

A list of available connections is displayed.

Step 4

Select the check boxes corresponding to the connections you want to verify.

Step 5

Click Run Verification.

Connection verification is initiated for the selected connections and an information message is displayed.

Step 6

Click OK.

The Connection Check Result field displays the status of the connection verification.

Customize NFV layout

Customize the layout, spacing, and visualization behavior of components in the NFV. These settings are stored in the local storage of the browser and are retained for that browser.

Use this task to customize the NFV layout.

Before you begin

Log into Cisco Optical Site Manager

Procedure

Step 1

Click Settings from the left panel.

Step 2

Click the Preferences tab.

Step 3

Perform these steps in the General section:

If you want to ...

then

Change date format

Select a format from the Date format drop-down list.

Change the channel

Select Frequency or Wavelength from the Configuration channel drop-down list.

Change the measurement unit of length

Select a unit from the Length measurement unit drop-down list.

Step 4

Select options from the drop-downs in the Right Shoulder section to set the default order of lists in the NFV right panel.

Step 5

Perform these steps in the Left Shoulder section:

If you want to ...

then

Set the default opacity factor in rack

Type a value in the Rack opacity factor field.

Valid range: 0 to 1 in increments of 0.1

Set the default left panel width

Type a value in pixels (px) in the Left shoulder width field.

Valid range: 400 px to 600 px

Display only visible cards in the rack

Select the Show only visible cards on the rack check box.

Step 6

Perform these steps in the NFV section:

If you want to ...

then

Set default space between items relative to the center point.

Type a value in the Degrees space from the center field.

Set the default vertical (or horizontal) distance between stacked layers.

Type a value in the Layers spacing field.

Set default space between adjacent columns in the layout

Type a value in the Column spacing field.

Set a default zoom level

Type a value in the Zoom scaling factor field.

Step 7

Click Apply.

Step 8

Refresh the browser to apply the configured settings.

View active circuit list

Use this task to view the total number of circuits passing through a degree and a selected card.

Before you begin

Log into Cisco Optical Site Manager

Procedure

Step 1

Click Node Functional View in the left panel.

The Node Functional View page appears.

Step 2

Right-click a Degree and click Open.

The OXC List in the right panel displays the the total number of connections passing through the degree.

Step 3

Right-click a card and click Open.

The Connections list in the right panel displays the the total number of connections passing through the degree.
