EDFA2 line card | MOLS 2.0 | Configuration Guide for Cisco NCS 1014, IOS XR Releases 26.x.x

This section provides the purpose, structure, and key features of EDFA2 line cards used for optical amplification in DWDM networks

The new EDFA2 line card is an optical amplifier that serves as an essential component of the line system solution. It functions as a DWDM optical terminal and includes a C-band bidirectional amplifier with channel power control capabilities

This card enhances optical signal amplification along with the integration support for the Optical Supervisory Channel (OSC), Optical Time Domain Reflectometer (OTDR), and QDD Coherent Probe pluggables.

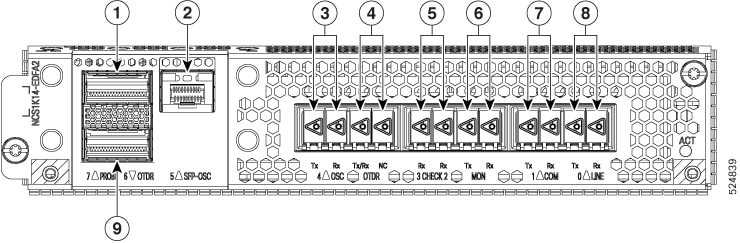

This image shows the EDFA2 optical amplifier line card.

Figure 1. NCS1K14-EDFA2 optical amplifier line card

Table 1. EDFA2 line card interfaces
Callout	Connector label	Connector type	Port name
1	PROBE	LC	Coherent probe 7
2	SFP-OSC	LC	OSC port 5
3	OSC	LC	OSC TX 4
3	OSC	LC	OSC RX 4
4	OTDR	LC	OTDR TX/RX
4	OTDR	LC	OTDR NC
5	CHECK	LC	CHECK RX 2
5	CHECK	LC	CHECK RX 3
6	MON	LC	MON TX
6	MON	LC	MON RX
7	COM	LC	COM TX 1
7	COM	LC	COM RX 1
8	LINE	LC	LINE TX 0
8	LINE	LC	LINE RX 0
9	OTDR	LC	OTDR port 6

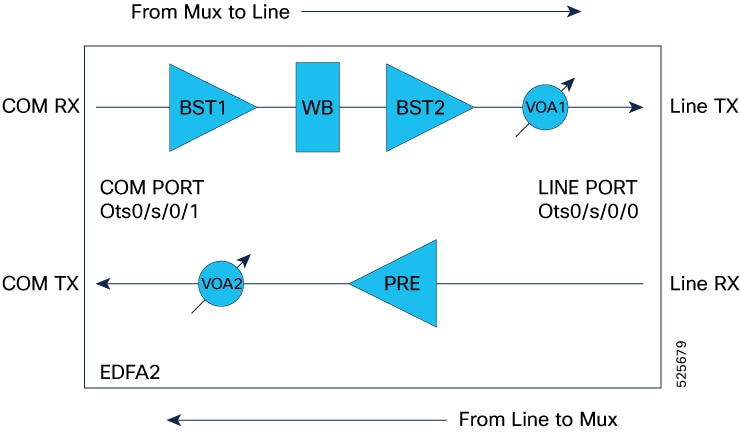

Figure 2. EDFA2 amplifier line card optical diagram

Table 2. Key components of the EDFA2 amplifier line card
Monodirectional transmitter section	Monodirectional receiver section
Path: From COM-RX port to LINE-TX port	Path: From LINE-RX port to COM-TX port
Components: Booster EDFA (BST1): Features two switchable fixed gains. Wavelength Blocker (WB): Offers flexible spectrum capability to equalize or block different sections of the C-band optical spectrum. Booster EDFA (BST2): Provides true variable gain. Variable Optical Attenuator (VOA1): Regulates signal power at the LINE-TX port.	Components: EDFA Preamplifier (PRE): Offers true variable gain with two programmable gain ranges. Variable Optical Attenuator (VOA2): Regulates signal power at the COM-TX port.

EDFA2 line card features

These are EDFA2 line card features:

The card comprises an optical module, pluggable cages for OTDR and OSC, and a DWDM trunk interface. It features integrated management for alarms, performance monitoring, and optical power level control.
The EDFA2 card consumes a maximum power of 60W excluding any optics.
The EDFA2 card consumes a maximum power of 82W including OSC, OTDR, and Coherent probe.
NCS1014 chassis with Single EDFA2 card and FAN-P module consumes a maximum power of 360W including OSC, OTDR, and Coherent probe.
For Release 25.1.1, only single-span point-to-point configurations are supported. This setup requires two nodes, each equipped with an EDFA2 card, with the span connected to their respective Line ports.

Supported modules and optical channel

The EDFA2 line card supports these modules and channel:

ONS-QSFP-OTDR — ONS OTDR pluggable module
DP01QSDD-ZT5-A1 — QDD coherent probe pluggable module
ONS-SC-PTP-1510 — SFP Optical Supervisory Channel

EDFA2 controllers

Table 3. Feature History
Feature Name	Release Information	Feature Description
NCS1K14-EDFA2 Port configurations	Cisco IOS XR Release 25.1.1	The NCS1K14-EDFA2 line card is an optical amplifier card that offers OTDR, coherent probe, and OSC support to NCS 1014 networks. This card has an OTDR QDD port for initiating OTDR scan and bidirectional OTDR LC ports to test the fiber health. The probe QDD port enables optical line verification towards the NCS1K-MD-32X-CE patch panel. This card supports different datapath controllers such as: OTS controller OTS-OCH controller OSC controller Optics controller This card provides up to 796 slices at 6.25GHz spacing. The card has an internal Wave Blocker that can attenuate the optical power of provisioned channels slice by slice at 6.25 GHz. You can set up this EDFA card in flex grid mode to adapt signal amplification on each channel.

There are four types of controllers for EDFA2 card. The controllers are the OTS, OTS-OCH, OSC, and Optics controllers.

Table 4. Controller types supported on EDFA2 card
Controller types	Description
Optical Transport Section (OTS)	The OTS controller holds all the optical parameters for the OTS optical interfaces.
OTS-OCH	The OTS-OCH controller is created on the channel of the EDFA2 card using the `hw-module` command in Flex-Grid configuration.
Optical Service Channel (OSC)	The OSC controller represents the optical layer of the OSC channel. Line ports host the OSC controller.
GiabitEthernet for OSC	The OSC controller represents SFP pluggable for Optical Supervisory Channel/Gigabit Ethernet Interface.
OTDR	The OTS controller is a function or component within a system that manages the operation of an OTDR device.
Optics	The Optics controller represents Coherent Probe and SFP pluggable for Optical Supervisory Channel/Gigabit Ethernet Interface.
CoherentDSP	The Optics controller represents the QSFP DD for Coherent Probe.

EDFA2 controllers parameters

Controllers holds all the optical parameters for the optical interfaces. The optical interface has different capabilities depending on its hardware components such as photodiode, VOA, amplifier, and OCM.

OTS controller:

The OTS controller is created by default when you bring up the EDFA2 line card. In the EDFA2 line card, the OTS controller is supported on the LINE and COM optical ports. OTS controllers associated to LINE and COM optical ports will be in the form of:

LINE: controller Ots 0/<slot-id>/0/0 where slot-id is 0…3
COM: controller Ots 0/<slot-id>/0/1 where slot-id is 0…3
CHECK:
- controller Ots 0/<slot-id>/0/2 where slot-id is 0…3
- controller Ots 0/<slot-id>/0/3 where slot-id is 0…3

OSC controller:

The EDFA2 card includes Optical Service Channel (OSC) ports, which enable the creation of a bidirectional communication channel to connect two nodes in a DWDM network.

controller Osc 0/<slot-id>/0/0 where slot-id is 0…3 (this represents the OSC channel towards LINE-TX)
controller Osc 0/<slot-id>/0/4 where slot-id is 0…3 (this represents the OSC physical port towards the OSC pluggable)

Optics:

controller optics 0/<slot-id>/0/5 where slot-id is 0…3
controller optics 0/<slot-id>/0/7 where slot-id is 0…3

The tables list the OTS controller parameters.

Table 5. Egress LINE and COM ports OTS parameters
Parameter	Description	Applicable modules	Value	Default
egress-ampli-mode	amplifier mode	amplifier	gain mode	gain mode
egress-ampli-gain-range	amplifier gain range	amplifier	normal and extended: on ots 0/<slot-id>/0/0 only normal is supported	normal
egress-ampli-gain	amplifier gain set point	amplifier	ots 0/<slot-id>/0/0 from 12 to 27 dB ots 0/<slot-id>/0/1 from 0 to 28 dB in normal ots 0/<slot-id>/0/1 from 20 to 39 dB in extended	on ots 0/x/0/0 default gain is 17 dB on ots 0/x/0/1 default gain is 5 dB
egress-ampli-tilt	amplifier tilt set point	amplifier	-5 to 5 dB	0 dB
egress-ampli-safety-control-mode	amplifier safety mode configuration	amplifier	auto and disabled	auto
egress-ampli-osri	amplifier optical safety remote interlock	amplifier	on and off	off
egress-ampli-force-apr	amplifier automatic power reduction configuration	amplifier	on and off	off
egress-ampli-br-high-threshold	amplifier threshold value for detection of high reflected power at the LINE TX port.	amplifier	-50 to 0 dB	-17 dB
tx-voa-attenuation	TX VOA attenuation set point	VOA	ots 0/<slot-id>/0/0 from 0 to 20 dB ots 0/<slot-id>/0/1 form 0 to 15 dB	0 dB
rx-low-threshold	threshold value for detection of power loss at the LINE and COM RX ports.	photodiode	ots 0/<slot-id>/0/0 -47 to 21 dBm ots 0/<slot-id>/0/1 -30 to 25 dBm	ots 0/x/0/0 -47 dBm ots 0/x/0/1 -30 dBm
tx-low-threshold	Threshold value for detection of power loss at the LINE and COM TX ports.	photodiode	ots 0/<slot-id>/0/0 -22 to 25 dBm ots 0/<slot-id>x/0/1 -20 to 25 dBm	-7 dBm

Table 6. LINE port OTS controller parameters
Parameter	Description	Applicable modules	Value	Default
egress-channel-slice	channel slice attenuation set point	wavelength blocker	0 to 15 dB attenuating signal 15.1 to 25 dB blocking signal	25 dB
egress-ampli-br-high-threshold	amplifier threshold value for detection of high reflected power at the LINE TX port.	amplifier	-50 to 0 dB	-17 dB

Table 7. Ingress COM port OTS controller parameters
Parameter	Description	Applicable modules	Value	Default
ingress-ampli-gain-range	amplifier gain range	amplifier	normal and extended	normal
ingress-ampli-gain	amplifier gain set point	amplifier	normal 5 to 11 dB extended 17 to 23 dB	normal 5 extended 17
ingress-ampli-osri	enable or disable OSRI at the LINE and COM ports	amplifier	on and off	off

Table 8. CHECK port OTS controller parameters
Parameter	Description	Applicable modules	Value	Default
rx-low-threshold	threshold value for detection of power loss at the CHECK 2 and 3 ports.	photodiode	-40 to 10 dBm	-37 dBm

Table 9. Optical ports OTS controller parameters
Parameter	Description	Applicable modules	Value
OTS controller Shutdown (LINE/COM Port)	turn off all the amplifiers on that port	amplifier	shutdown and no shutdown

OTS-OCH controller

OCH controllers associated to different Optical Channels are configured with the command.

controller Ots-Och 0/<slot-id>/0/<port-id>/<ch-id>


Parameter	Description
Ots-Och controller Shutdown (OCHs)	Wavelength Blocker will be set to Not Active for the Ots-Och specific slices in the LINE TX direction, to block the channel transmission

Configure the EDFA2 line cards

You can configure the EDFA2 grid mode, define channel properties, and manually set gain and attenuation parameters for various amplifier stages to achieve desired optical power levels.

The EDFA2 configuration comprises three distinct stages, each performing specific amplification and control functions:

Stage 1: Ingress (COM RX Port) This stage includes the EDFA2 Booster 1 (BST1) amplifier, which operates with a fixed gain. Tasks for this stage involve setting the gain value and configuring the gain range.
Stage 2: Egress (LINE Port) This stage incorporates the wavelength blocker (WB), EDFA2 Booster 2 (BST2) amplifier, and a Variable Optical Attenuator (VOA) on the LINE TX port. Tasks for this stage include setting the gain value, configuring attenuation for WB slices, setting the EDFA2 Egress gain, adjusting TX VOA attenuation, and performing tilt adjustments.
Stage 3: Egress (COM TX Port) This stage is associated with the Pre-amplifier (PRE) and a VOA on the COM TX ports. Tasks for this stage involve setting the gain value, configuring the gain range, and setting VOA attenuation.

Configure the EDFA2 grid mode and ingress amplifier settings

Use this task to configure the EDFA2 grid mode and ingress amplifier settings.

Procedure

Configure the EDFA2 to operate in flex grid mode and define its channel properties.

Example:


RP/0/RP0/CPU0:ios(config)
RP/0/RP0/CPU0:ios(config)#hw-module location 0/slot/NXR0 terminal-ampli grid-mode flex channel-id <channel_id> centre-freq <frequency_in_MHz> width <width_in_GHz>
RP/0/RP0/CPU0:ios(config)#commit
RP/0/RP0/CPU0:ios(config)#end

Set up the Ingress EDFA2 (Booster 1 amplifier) by configuring its gain range and gain value.

Example:

RP/0/RP0/CPU0:ios#config
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/1 ingress-ampli-gain-range <normal|extended>
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/1 ingress-ampli-gain <gain_value_in_tenths_of_dB>
RP/0/RP0/CPU0:ios(config)#commit

The EDFA2 is configured for flex grid mode with the specified channel properties, and the Ingress EDFA2 (Booster 1 amplifier) gain range and value are set.

Configure the wavelength blocker for egress EDFA gain and VOA

The NCS1K14-EDFA2 line card features a Wavelength Blocker (WB), an advanced optical component designed to provide precise and dynamic management of optical signals that selectively attenuates or blocks specific wavelengths within a fiber optic signal, providing dynamic control to manage individual channels in the amplified signal. The wavelength blocker enables the selective attenuation or blocking of specific wavelengths—or channels—within a fiber optic signal.

You can set the gain for the second-stage amplifier (BST2), define attenuation values for individual Wavelength Blocker (WB) slices, and configure the VOA attenuation for the LINE TX port.

The optical spectrum operates within the C-band, spanning a frequency range of 4.975 THz (from 191.200 THz to 196.175 THz). It is divided into individual 6.25 GHz slices, numbered from 0 to 796. Each slice can be assigned a specific attenuation value to customize the channel’s power profile as needed.

In Release 25.1.1, the attenuation for all slices within the channel must be set manually. In later releases, APC can be enabled to automatically manage slice attenuation, eliminating the need for manual configuration. The specific slices involved depend on the channel's center frequency and width. In release 25.1.1, manual channel configuration is required to activate the system.

Use this task to configure the wavelength blocker.

Before you begin

Ensure you know the channel's center frequency and width.

Procedure

Determine the width and number of slices by dividing the channel width (in GHz) by 6.25; for example, a 150 GHz channel width yields 24 slices (150 / 6.25 = 24), while a 50 GHz channel width yields 8 slices (50 / 6.25 = 8). channel width.

Locate the channel slice. The EDFA2 can operate over the C-band with a 4.975 THz frequency range (from 191.200 THz to 196.175 THz) and a 6.25 GHz granularity (where the first slice starts at 191.200 THz), the central slice corresponds to the channel's center frequency and determines its slice range; for example, a 191.375 THz center frequency corresponds to central slice 29, covering slices 17 to 40.

Use the command controller Ots0/slot/0/0 egress-channel-slice to manually configure the attenuation values for all slices covered by the channel.

Ensure that the attenuation values align with the desired channel profile.

Example:

RP/0/RP0/CPU0:ios#config
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/0 egress-channel-slice <slice_number> attn
<attenuation_value_in_tenths_of_dB>
RP/0/RP0/CPU0:ios#commit

If the channel width to be configured is..

Then..

150 GHz

Channel center frequency: 191.375 THz
Slices involved: 24 slices (150 / 6.25)
Central slice:Slice 29
Slice range: From slice 17 to slice 40

Commands


RP/0/RP0/CPU0:ios(config)#hw-module location 0/slot/NXR0 terminal-ampli grid-mode flex channel-id 1 centre-freq 191.375 width 150
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/0 egress-channel-slice 17 attn <attenuation_value>
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/0 egress-channel-slice 18 attn <attenuation_value>
...
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/0 egress-channel-slice 40 attn <attenuation_value>
RP/0/RP0/CPU0:ios(config)#commit

50 GHz

Channel center frequency: 191.375 THz
Slices involved: 8 slices (50 / 6.25)
Central slice: Slice 29
Slice range: From slice 25 to slice 32

Commands


RP/0/RP0/CPU0:ios(config)#hw-module location 0/slot/NXR0 terminal-ampli grid-mode flex channel-id 1 centre-freq 191.375 width 50
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/0 egress-channel-slice 25 attn <attenuation_value>RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/0 egress-channel-slice 26 attn <attenuation_value>
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/0 egress-channel-slice 27 attn <attenuation_value>
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/0 egress-channel-slice 28 attn <attenuation_value>
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/0 egress-channel-slice 29 attn <attenuation_value>
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/0 egress-channel-slice 30 attn <attenuation_value>
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/0 egress-channel-slice 31 attn <attenuation_value>
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/0 egress-channel-slice 32 attn <attenuation_value>
RP/0/RP0/CPU0:ios(config)#commit

Note

Configure all slices within the channel's range for proper attenuation.

Ensure alignment between the channel's physical parameters (center frequency and width) and the WB slice configuration.

Configure the pre-amplifier EDFA and VOA

Use this task to configure the pre-amplifier EDFA and VOA.

Procedure

Configure the pre-amplifier EDFA gain range, gain value, and VOA attenuation.

Example:


RP/0/RP0/CPU0:ios(config)
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/1 egress-ampli-gain-range <normal|extended>
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/1 egress-ampli-gain <gain_value_in_tenths_of_dB>
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/1 tx-voa-attenuation <attenuation_value_in_tenths_of_dB>
RP/0/RP0/CPU0:ios(config)#commit

(Optional) Configure the low threshold for the specified receiver port.

Example:


RP/0/RP0/CPU0:ios(config)
RP/0/RP0/CPU0:ios(config)#controller Ots0/slot/0/X rx-low-threshold <threshold_value_in_tenths_of_dBm>
RP/0/RP0/CPU0:ios(config)#commit

Verify EDFA2 configuration

Use this task to verify the EDFA2 configuration.

Procedure

Verify the ots controller parameters configured on LINE port.

Example:


 RP/0/RP0/CPU0:ios#sh controllers ots0/0/0/0
Wed Oct  2 16:47:19.278 UTC
  Controller State: Up
  Transport Admin State: In Service
  LED State: Green

         Alarm Status:
         -------------
         Detected Alarms: None

         Alarm Statistics:
         -----------------
         RX-LOS-P = 0
         RX-LOC = 0
         TX-POWER-FAIL-LOW = 0
         INGRESS-AUTO-LASER-SHUT = 0
         INGRESS-AUTO-POW-RED = 0
         INGRESS-AMPLI-GAIN-LOW = 0
         INGRESS-AMPLI-GAIN-HIGH = 0
         EGRESS-AUTO-LASER-SHUT = 0
         EGRESS-AUTO-POW-RED = 0
         EGRESS-AMPLI-GAIN-LOW = 0
         EGRESS-AMPLI-GAIN-HIGH = 0
         HIGH-TX-BR-PWR = 0
         HIGH-RX-BR-PWR = 0
         SPAN-TOO-SHORT-TX = 0
         SPAN-TOO-SHORT-RX = 0

         Parameter Statistics:
         ---------------------
         Total Rx Power = -4.95 dBm
         Total Tx Power = 1.97 dBm
         Rx Signal Power = -14.19 dBm
         Tx Signal Power = -5.00 dBm
         Tx Voa Attenuation = 10.0 dB

         Egress Ampli Mode = Power
         Egress Ampli Gain = 19.6 dB
         Egress Ampli Tilt = 0.0 dB

         Egress Ampli Safety Control mode = auto
         Egress Ampli OSRI = OFF
         Egress Ampli Force APR = OFF
         Egress Ampli BR Power = -36.90 dBm
         Egress Ampli BR Ratio = -31.90 dB

         Configured Parameters:
         -------------
         Tx Voa Attenuation = 10.0 dB

         Egress Ampli Mode = Gain
         Egress Ampli Gain = 20.0 dB
         Egress Ampli Power = -2.0 dBm
         Egress Ampli Tilt = 0.0 dB

         Egress Ampli Safety Control mode = auto
         Egress Ampli OSRI = OFF
         Egress Ampli Force APR = OFF
         BR High Threshold = -17.0 dBm

Verify the ots controller parameters configured on the COM port.

Example:


 RP/0/RP0/CPU0:ios#sh controllers ots0/0/0/1
Wed Oct  2 16:47:25.596 UTC

 Controller State: Up

 Transport Admin State: In Service

 LED State: Green

         Alarm Status:
         -------------
         Detected Alarms: None

         Alarm Statistics:
         -----------------
         RX-LOS-P = 0
         RX-LOC = 0
         TX-POWER-FAIL-LOW = 0
         INGRESS-AUTO-LASER-SHUT = 0
         INGRESS-AUTO-POW-RED = 0
         INGRESS-AMPLI-GAIN-LOW = 0
         INGRESS-AMPLI-GAIN-HIGH = 0
         EGRESS-AUTO-LASER-SHUT = 0
         EGRESS-AUTO-POW-RED = 0
         EGRESS-AMPLI-GAIN-LOW = 0
         EGRESS-AMPLI-GAIN-HIGH = 0
         HIGH-TX-BR-PWR = 0
         HIGH-RX-BR-PWR = 0
         SPAN-TOO-SHORT-TX = 0
         SPAN-TOO-SHORT-RX = 0

         Parameter Statistics:
         ---------------------
         Total Rx Power = -11.89 dBm
         Total Tx Power = 3.99 dBm


         Tx Voa Attenuation = 1.0 dB
         Ingress Ampli Mode = Gain
         Ingress Ampli Gain = 8.0 dB
         Ingress Ampli Gain Range = Normal
         Egress Ampli Mode = Power
         Egress Ampli Gain = 19.0 dB
         Egress Ampli Tilt = 0.0 dB
         Egress Ampli Gain Range = Normal
         Egress Ampli Safety Control mode = auto
         Egress Ampli OSRI = OFF
         Egress Ampli Force APR = OFF
         Egress Ampli BR Power = -20.20 dBm
         Egress Ampli BR Ratio = -24.20 dB

         Configured Parameters:
         -------------
         Tx Voa Attenuation = 1.0 dB
         Ingress Ampli Gain = 8.0 dB
         Ingress Ampli Gain Range = Normal
         Egress Ampli Mode = Gain
         Egress Ampli Gain = 21.0 dB
         Egress Ampli Power = -5.0 dBm
         Egress Ampli Tilt = 0.0 dB
         Egress Ampli Gain Range = Normal
         Egress Ampli Safety Control mode = auto
         Egress Ampli OSRI = OFF
         Egress Ampli Force APR = OFF
         BR High Threshold = -17.0 dBm

Performance monitoring for EDFA2 card

Service providers use performance monitoring (PM) parameters to gather performance data, store it, set thresholds, and report it. This helps with early detection of network issues.

You can configure and retrieve PM counters at intervals of 30 seconds, 15 minutes, or 24 hours. These parameters simplify troubleshooting operations and increase the amount of data that can be collected directly from the equipment.

The tables list the PM counters for the OTS, OTS-OCH, OSC, Optics, CoherentDSP, and OSC optical controllers.

Table 11. PM parameters supported on OTS controller
PM parameter	Description
OPT[dBm]	Total Tx power
OPR[dBm]	Total Rx power
OPT(S)[dBm]	Tx power
OPR(S)[dBm]	Rx power
OPBR[dBm]	Back reflection
OPBRR[dB]	Back Reflection Ratio
EAGN[dB]	Egress Amplifier Gain
EATL[dB]	Egress Amplifier Tilt
IAGN[dB]	Ingress Amplifier Gain
IATL[dB]	Ingress Amplifier Tilt

Table 12. PM parameters supported on OTS-OCH and OSC controllers
PM parameters	Description
OPT[dBm]	Total Tx power
OPR[dBm]	Total Rx power

Table 13. PM parameters supported on optics controller
PM parameter	Description
LBC[%]	Laser Bias Current
OPT[dBm]	Transmit Optical Power
OPR[dBm]	Receive Optical Power
DGD [ps]	Differential Group Delay
SOPMD[ps^2]	Second Order Polarization Mode Dispersion
OSNR[dB]	Optical Signal to Noise Ratio
PDL[dB]	Polarization Dependent Loss
PCR[rad/s]	Polarization Change Rate
RX_SIG[dBm]	Optical Signal Power
FREQ_OFF[MHz]	Frequency Offset
SNR[dB]	Signal to Noise Ratio

Table 14. PM parameters supported on CoherentDSP controller
PM parameter	Description
EC-BITS	Corrected Errored Bits
UC-WORDS	Uncorrected Codewords
PreFEC BER	PreFEC Bit Error Rate
PostFEC BER	PostFEC Bit Error Rate
Q[dB]	Q Factor
Q_Margin[dB]	Q Factor Margin

Table 15. PM parameters supported on OSC optical controller
PM parameters	Description
LBC[%]	Laser Bias Current
OPT[dBm]	Total Tx power
OPR[dBm]	Total Rx power

OSC controller

Table 16. Feature History
Feature Name	Release Information	Feature Description
OSC support on EDFA-2 card	Cisco IOS XR Release 25.1.1	The EDFA2 card includes Optical Service Channel (OSC) ports, which enable the creation of a bidirectional communication channel to connect two nodes in a DWDM network. It includes two OSC controllers: one representing the OSC channel towards LINE-TX and the other representing the OSC physical port towards the OSC pluggable. To establish an OSC channel between two nodes, you configure the Gigabit Ethernet interface, which serves as the packet layer for the OSC channel, along with the OSPF protocol on the nodes. The OSC channel is beneficial for: verifying fiber continuity between two nodes. enabling remote node management. discovering network topology. calculating span loss. CLI commands are: controller Osc R/S/I/P tx-low-threshold value controller Osc R/S/I/P rx-low-threshold value controller Osc R/S/I/P transmit-power value controller Osc R/S/I/P sec-admin-state { maintenance \| normal } controller Osc R/S/I/P shutdown

An Optical Service Channel (OSC) is a bidirectional communication channel that connects two nodes within a DWDM network. The OSC controller is responsible for representing the optical capabilities, configuration, and monitoring of the OSC laser. Its associated Gigabit Ethernet interface acts as the packet layer of an OSC channel representing Ethernet capabilities, configuration, and monitoring.

Functions of OSC

Key functions of the OSC include:

Providing a communication channel for traffic originating from a UDC port.
Acting as a channel probe to verify fiber continuity between two nodes.
Enabling remote node management.
Discovering topology
Calculating span loss

Operation frequency

The OSC is generated and terminated on each line side, operating at a frequency of 198.50 THz.

OSC controllers in EDFA2 card

The EDFA2 card has two OSC ports. The OSC controllers associated with the OSC optical port on the NCS1K14-EDFA2 line card are denoted as follows:

controller osc 0/<slot-id>/0/0 : This represents the OSC channel towards LINE-TX.
controller osc 0/<slot-id>/0/4 : This represents the OSC physical port towards the OSC pluggable.

Establish OSC link between two nodes

Use this task to bring up OSC link between two nodes.

Procedure

	1.	Configure the OSC controllers on ports 0 and 4. Use the controller OSC command to configure the OSC controllers on port 0 and 4. Example: Node 1: `RP/0/RP0/CPU0:ios#config t RP/0/RP0/CPU0:ios(config)#controller Osc 0/3/0/0 RP/0/RP0/CPU0:ios(config-Osc)#description osc_line_tx_ne RP/0/RP0/CPU0:ios(config-Osc)#commit RP/0/RP0/CPU0:ios(config-Osc)#exit RP/0/RP0/CPU0:ios(config)#controller osc 0/3/0/4 RP/0/RP0/CPU0:ios(config-Osc)#description osc_phy_ne RP/0/RP0/CPU0:ios(config-Osc)#no shutdown RP/0/RP0/CPU0:ios(config-Osc)#exit` Node 2: `RP/0/RP0/CPU0:ios#config t RP/0/RP0/CPU0:ios(config)#controller Osc 0/1/0/0 RP/0/RP0/CPU0:ios(config-Osc)#description osc_line_tx_fe RP/0/RP0/CPU0:ios(config-Osc)#commit RP/0/RP0/CPU0:ios(config-Osc)#exit RP/0/RP0/CPU0:ios(config)#controller osc 0/1/0/4 RP/0/RP0/CPU0:ios(config-Osc)#description osc_phy_ne RP/0/RP0/CPU0:ios(config-Osc)#no shutdown RP/0/RP0/CPU0:ios(config-Osc)#commit RP/0/RP0/CPU0:ios(config-Osc)#exit`
	2.	Configure the interfaces. Use the interface Gigabitethernet command to configure the Gigabit Ethernet interface for the OSC link. Example: Node 1: `RP/0/RP0/CPU0:ios#config t RP/0/RP0/CPU0:ios(config)#interface GigabitEthernet 0/3/0/5 RP/0/RP0/CPU0:ios(config-if)#description osc_ge_ne RP/0/RP0/CPU0:ios(config-if)#ipv4 address 192.0.2.1 255.255.255.0 RP/0/RP0/CPU0:ios(config-if)#no shutdown RP/0/RP0/CPU0:ios(config-if)#exit` Node 2: `RP/0/RP0/CPU0:ios#config t RP/0/RP0/CPU0:ios(config)#interface GigabitEthernet0/1/0/5 RP/0/RP0/CPU0:iso(config-if)#description osc_ge_fe RP/0/RP0/CPU0:iso(config-if)#ipv4 address 192.0.2.20 255.255.255.0 RP/0/RP0/CPU0:iso(config-if)#no shutdown RP/0/RP0/CPU0:iso(config-if)#commit RP/0/RP0/CPU0:ios(config-if)#exit`
	3.	Configure the OSPF process: Use the router ospf process-name to enable OSPF routing. Use the distribute link-state keyword to distribute OSPF link-state data. Use the segment-routing mpls keyword to enable MPLS-based segment routing for the OSPF process. This step is optional. Use the redistribute connected keyword to advertise directly connected networks into OSPF Use the network point-to-point keyword to configure an interface OSPF network type to point-to-point. Use the area keyword to configure an OSPF area. Example: Node 1 and 2: `RP/0/RP0/CPU0:iso(config)#router ospf 1 RP/0/RP0/CPU0:iso(config-ospf)#distribute link-state RP/0/RP0/CPU0:iso(config-ospf)#segment-routing mpls RP/0/RP0/CPU0:iso(config-ospf)#network point-to-point RP/0/RP0/CPU0:iso(config-ospf)#redistribute connected RP/0/RP0/CPU0:iso(config-ospf)#area 0`
	4.	Add the configured interfaces to the OSPF area. Example: Node 1: `RP/0/RP0/CPU0:ios(config-ospf-ar)#interface GigabitEthernet0/3/0/5 RP/0/RP0/CPU0:iso(config-ospf-ar)#no shutdown` Node 2: `RP/0/RP0/CPU0:ios(config-ospf-ar)#interface GigabitEthernet0/1/0/5 RP/0/RP0/CPU0:iso(config-ospf-ar)#no shutdown`
	5.	Exit the OSPF area configuration mode and commit your configuration. Example: Node 1 and 2: `RP/0/RP0/CPU0:ios(config-ospf-ar-if)#exit RP/0/RP0/CPU0:ios(config-ospf-ar)#exit RP/0/(config-ospf)#exit RP/0/RP0/CPU0:ios(config)#commit RP/0/RP0/CPU0:ios(config)#exit`
	6.	Verify OSC IP connectivity from both ends. Example: Node 1: `RP/0/RP0/CPU0:ios#ping 192.0.2.20 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.0.2.20 timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/4 ms` Node 2: `RP/0/RP0/CPU0:ios#ping 192.0.2.1 Mon Feb 17 15:11:29.433 IST Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.0.2.1 timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/4 ms`

Configure OSC controller parameters

There are multiple parameters for the OSC controllers. You can configure the parameters that are required for the different configuration for an OSC controller on the NCS1K14-EDFA2 line card.

The parameters are:

transmit-power
sec-admin-state
tx-low-threshold
rx-low-threshold
shutdown

Use this task to configure the OSC parameters:

Procedure

Use the controller osc R/S/I/P command to configure the OSC controller.

Use the transmit-power <value> keyword to specify the transmit-power value.

Example:

Line side OSC port:

RP/0/RP0/CPU0:ios#config
RP/0/RP0/CPU0:ios(config)#controller osc 0/3/0/0
RP/0/RP0/CPU0:ios(config-Osc)#transmit-power 20
Wed Feb 12 13:01:19.298 IST
WARNING! Changing TX power can impact traffic
RP/0/RP0/CPU0:ios(config-Osc)#commit

Pluggable side OSC port:

RP/0/RP0/CPU0:ios#config
RP/0/RP0/CPU0:ios(config)#controller osc 0/3/0/4
RP/0/RP0/CPU0:ios(config-Osc)#transmit-power -100
Wed Feb 12 13:02:16.123 IST
WARNING! Changing TX power can impact traffic
RP/0/RP0/CPU0:ios(config-Osc)#commit

Note

To ensure the protection of the OSC pluggable receiver, regardless of the configured transmit power on the OSC controller located at 0/slot-id/0/4, the maximum transmit power will be limited to -9 dBm.

Use the sec-admin-state { maintenance | normal } keyword to configure the administrative state of the controller as maintenance or normal.

Example:

Line side OSC port:

RP/0/RP0/CPU0:ios#config
RP/0/RP0/CPU0:ios(config)#controller osc 0/3/0/0
RP/0/RP0/CPU0:ios(config-Osc)#sec-admin-state normal
RP/0/RP0/CPU0:ios(config-Osc)#commit

Pluggable side OSC port:

RP/0/RP0/CPU0:ios#config
RP/0/RP0/CPU0:ios(config)#controller osc 0/3/0/4
RP/0/RP0/CPU0:ios(config-Osc)#sec-admin-state normal
RP/0/RP0/CPU0:ios(config-Osc)#commit

Use the tx-low-threshold <value> keyword to specify the low transmit power threshold value.

Example:

Line side OSC port:

RP/0/RP0/CPU0:ios#config
RP/0/RP0/CPU0:ios(config)#controller osc 0/3/0/0
RP/0/RP0/CPU0:ios(config-osc)#tx-low-threshold 20
RP/0/RP0/CPU0:ios(config)#commit

Pluggable side OSC port:

RP/0/RP0/CPU0:ios#config
RP/0/RP0/CPU0:ios(config)#controller osc 0/3/0/4
RP/0/RP0/CPU0:ios(config-osc)#tx-low-threshold 20
RP/0/RP0/CPU0:ios(config)#commit

Use the rx-low-threshold <value> keyword to specify the low receive power threshold value.

Example:

Line side OSC port:

RP/0/RP0/CPU0:ios#config
RP/0/RP0/CPU0:ios(config)#controller osc 0/3/0/0
RP/0/RP0/CPU0:ios(config-osc)#rx-low-threshold 50
RP/0/RP0/CPU0:ios(config)#commit

Pluggable side OSC port:

RP/0/RP0/CPU0:ios#config
RP/0/RP0/CPU0:ios(config)#controller osc 0/3/0/4
RP/0/RP0/CPU0:ios(config-osc)#rx-low-threshold 50
RP/0/RP0/CPU0:ios(config)#commit

If you want to disable the configuration of the controller, use the shutdown keyword.

Example:

Line side OSC port:

RP/0/RP0/CPU0:ios#config
RP/0/RP0/CPU0:ios(config)#controller osc 0/3/0/0 shutdown
RP/0/RP0/CPU0:ios(config)#commit

Pluggable side OSC port:

RP/0/RP0/CPU0:ios#config
RP/0/RP0/CPU0:ios(config)#controller osc 0/3/0/4 shutdown
RP/0/RP0/CPU0:ios(config)#commit

Verify OSC controller configurations

Use these steps to verify various OSC controller configurations:

Procedure

	1.	Use the show platform command to display node information for the NCS1K14-EDFA2 line card. Example: RP/0/RP0/CPU0:ios#show platform Wed Feb 12 12:58:00.592 IST Node Type State Config state -------------------------------------------------------------------------------- 0/RP0/CPU0 NCS1K14-CNTLR-K9(Active) IOS XR RUN NSHUT,NMON 0/PM0 NCS1K4-AC-PSU-2 OPERATIONAL NSHUT,NMON 0/PM1 NCS1K4-AC-PSU-2 OPERATIONAL NSHUT,NMON 0/FT0 NCS1K14-FAN OPERATIONAL NSHUT,NMON 0/FT1 NCS1K14-FAN OPERATIONAL NSHUT,NMON 0/FT2 NCS1K14-FAN OPERATIONAL NSHUT,NMON 0/0/NXR0 NCS1K14-BLANK PRESENT NSHUT,NMON 0/1/NXR0 NCS1K4-1.2T-K9 OPERATIONAL NSHUT,NMON 0/2/NXR0 NCS1K14-BLANK PRESENT NSHUT,NMON 0/3/NXR0 NCS1K14-EDFA2 OPERATIONAL NSHUT,NMON 0/4 NCS1K-MD-32O-CE OPERATIONAL NSHUT,NMON 0/5 NCS1K-MD-32E-CE OPERATIONAL NSHUT,NMON
	2.	Use the show inventory command to retrieve and display the physical inventory information of the NCS1K14-EDFA2 line card. Example: RP/0/RP0/CPU0:ios#sh inventory location 0/3/NXR0 Wed Feb 12 12:58:08.589 IST NAME: "0/3/NXR0", DESCR: "NCS 1014 EDFA terminal with equalization" PID: NCS1K14-EDFA2 , VID: V00, SN: FCB2831B1NY NAME: "Optics0/3/0/5", DESCR: "Cisco SFP GE 1510 OSC Pluggable Optics Module" PID: ONS-SC-PTP-1510 , VID: V01, SN: MZH2719009Z NAME: "Optics0/3/0/6", DESCR: "Cisco QSFP DD Pluggable Optical Time Domain Reflectometer" PID: ONS-QSFP-OTDR , VID: V00 , SN: IIF2814001B NAME: "Optics0/3/0/7", DESCR: "Cisco QSFP DD ZT5 Pluggable Optics Module" PID: DP01QSDD-ZT5-A1 , VID: V01 , SN: ACA282500L4
	3.	Use the show controllers description command to view the status of the OSC ports. Example: `RP/0/RP0/CPU0:ios#show controllers description \| In Osc Wed Feb 12 12:59:02.294 IST Osc0/3/0/0 up Osc0/3/0/4 up`
	4.	Use the show controllers osc R/S/I/P command to display the status and configuration information of the OSC controllers on the NCS1K14-EDFA2 card. Example: `sh controllers osc 0/3/0/0 Wed Feb 12 13:01:44.325 IST Controller State: Up Transport Admin State: In Service Laser State: On Last link flapped: 00:22:04 Alarm Status: ------------- Detected Alarms: None Alarm Statistics: ----------------- RX-LOS-P = 0 TX-POWER-FAIL-LOW = 0 Parameter Statistics: --------------------- Total Tx Power = 2.05 dBm Total Rx Power = -21.24 dBm OSNR = 42.40 dB Configured Parameters: -------------`
	5.	Use the command show interfaces gigabitEthernet R/S/I/P to view the parameters of the Gigabit Ethernet interface associated with the OSC channel. Example: RP/0/RP0/CPU0:ios#sh interfaces gigabitEthernet 0/3/0/5 Wed Feb 12 13:05:29.153 IST GigabitEthernet0/3/0/5 is up, line protocol is up Interface state transitions: 1 Hardware is GigabitEthernet, address is c4ab.4d1b.9380 (bia c4ab.4d1b.9380) Description: osc_ge_ne Internet address is 192.0.2.1/24 MTU 1514 bytes, BW 1000000 Kbit (Max: 1000000 Kbit) reliability 255/255, txload 0/255, rxload 0/255 Encapsulation ARPA, Full-duplex, 1000Mb/s, unknown, link type is force-up output flow control is off, input flow control is off loopback not set, Last link flapped 00:25:49 ARP type ARPA, ARP timeout 04:00:00 Last input Unknown, output Unknown Last clearing of "show interface" counters Unknown 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec
	6.	Use the command show ipv4 interface brief to view the IPv4 address of a Gigabit Ethernet interface. Example: `show ipv4 interface brief Wed Feb 12 13:05:41.784 IST Interface IP-Address Status Protocol Vrf-Name GigabitEthernet0/3/0/5 192.0.2.1 Up Up default MgmtEth0/RP0/CPU0/0 209.165.201.3 Up Up default PTP0/RP0/CPU0/0 unassigned Shutdown Down default MgmtEth0/RP0/CPU0/1 10.127.126.176 Up Up default` The Gigabit Ethernet interface must be in Up state for the OSC laser to turn up. When the node comes up, the Gigabit Ethernet interface turns to Down state. Run these commands on the Gigabit Ethernet interface to bring it up. `RP/0/RP0/CPU0:ios#config RP/0/RP0/CPU0:ios(config)#no interface gigabitEthernet 0/3/0/5 shutdown RP/0/RP0/CPU0:ios(config)#commit`
	7.	Use the commands show controllers switch summary and show controllers switch statistics to view the status OSC ports in the NCS1K14-EDFA2 line card. Example: RP/0/RP0/CPU0:ios#show controllers switch summary Wed Feb 12 13:06:07.130 IST Rack Card Switch Rack Serial Number ------------------------------------------- 0 RP0 RP-SW FCB2814B1HL Phys Admin Port Protocol Forward Port State State Speed State State Connects To ------------------------------------------------------------------------------- 0 Up Up 10-Gbps - Forwarding CPU0 1 Up Up 10-Gbps - Forwarding CPU1 2 Up Up 1-Gbps - Forwarding PTP1 3 Up Up 1-Gbps - Forwarding MGMT0 4 Up Up 1-Gbps - Forwarding MGMT1 5 Up Up 1-Gbps - Forwarding LC3_0 6 Down Up 1-Gbps - Forwarding PTP0 7 Down Up 1-Gbps - Forwarding LC3_1 8 Down Up 1-Gbps - Forwarding LC0_0 9 Down Down 1-Gbps - Forwarding PENNY 10 Down Up 1-Gbps - Forwarding LC2_1 11 Down Up 1-Gbps - Forwarding LC2_0 12 Up Up 1-Gbps - Forwarding LC1_0 13 Down Up 1-Gbps - Forwarding LC0_1 14 Up Up 1-Gbps - Forwarding LC1_1 15 Down Down 10-Mbps - Forwarding UnUsed 16 Down Up 1-Gbps - Forwarding LC0_OSC0 17 Down Up 1-Gbps - Forwarding LC0_OSC1 18 Down Down 1-Gbps - Forwarding LC0-OSC2 19 Down Down 1-Gbps - Forwarding LC0-OSC3 20 Down Up 1-Gbps - Forwarding LC1_OSC0 21 Down Up 1-Gbps - Forwarding LC1-OSC1 22 Down Down 1-Gbps - Forwarding LC1-OSC2 23 Down Down 1-Gbps - Forwarding LC1-OSC3 24 Down Up 1-Gbps - Forwarding LC2_OSC0 25 Down Up 1-Gbps - Forwarding LC2_OSC1 26 Down Down 1-Gbps - Forwarding LC2_OSC2 27 Down Down 1-Gbps - Forwarding LC2_OSC3 28 Up Up 1-Gbps - Forwarding LC3_OSC0 29 Up Up 1-Gbps - Forwarding LC3_OSC1 30 Up Down 1-Gbps - Forwarding LC3_OSC2 31 Up Down 1-Gbps - Forwarding LC3_OSC3 RP/0/RP0/CPU0:ios#show controllers switch statistics Wed Feb 12 13:06:38.410 IST Rack Card Switch Rack Serial Number ----------------------------------------- 0 RP0 RP-SW FCB2814B1HL Tx Rx Phys State Tx Rx Drops/ Drops/ Port State Changes Packets Packets Errors Errors Connects To 0 Up 1 559115 731932 0 0 CPU0 1 Up 1 2032 3495 0 0 CPU1 2 Up 4 1212451356 1352379301 0 0 PTP1 3 Up 2 138666 142720 0 0 MGMT0 4 Up 2 259633 124134 0 0 MGMT1 5 Up 12 219828 176664 0 0 LC3_0 6 Down 0 0 0 0 0 PTP0 7 Down 0 0 0 0 0 LC3_1 8 Down 0 0 0 0 0 LC0_0 9 Down 0 0 0 0 0 PENNY 10 Down 0 0 0 0 0 LC2_1 11 Down 0 0 0 0 0 LC2_0 12 Up 0 113660 116246 0 0 LC1_0 13 Down 0 0 0 0 0 LC0_1 14 Up 0 0 0 0 0 LC1_1 15 Down 0 0 0 0 0 UnUsed 16 Down 0 0 0 0 0 LC0_OSC0 17 Down 0 0 0 0 0 LC0_OSC1 18 Down 0 0 0 0 0 LC0-OSC2 19 Down 0 0 0 0 0 LC0-OSC3 20 Down 0 0 0 0 0 LC1_OSC0 21 Down 0 0 0 0 0 LC1-OSC1 22 Down 0 0 0 0 0 LC1-OSC2 23 Down 0 0 0 0 0 LC1-OSC3 24 Down 0 0 0 0 0 LC2_OSC0 25 Down 0 0 0 0 0 LC2_OSC1 26 Down 0 0 0 0 0 LC2_OSC2 27 Down 0 0 0 0 0 LC2_OSC3 28 Up 6 0 0 0 0 LC3_OSC0 29 Up 6 1264648150 1212466505 0 3 LC3_OSC1 30 Up 6 0 0 0 0 LC3_OSC2 31 Up 6 0 0 0 0 LC3_OSC3
	8.	Use the show controllers optics R/S/I/P command to display status and configuration information about the OSC optics controller. Example: RP/0/RP0/CPU0:ios#sh controllers optics 0/3/0/5 Wed Feb 12 13:06:56.528 IST Controller State: Up Transport Admin State: In Service Laser State: On LED State: Green Last link flapped: 00:27:16 Optics Status Optics Type: 1G SFP DWDM Alarm Status: ------------- Detected Alarms: None LOS/LOL/Fault Status: Alarm Statistics: ------------- HIGH-RX-PWR = 0 LOW-RX-PWR = 0 HIGH-TX-PWR = 0 LOW-TX-PWR = 0 HIGH-LBC = 0 HIGH-DGD = 0 OOR-CD = 0 OSNR = 0 WVL-OOL = 0 MEA = 0 IMPROPER-REM = 0 TX-POWER-PROV-MISMATCH = 0 Laser Bias Current = 53.1 % Actual TX Power = 4.63 dBm RX Power = -23.76 dBm Frequency Offset = 0 MHz Performance Monitoring: Enable THRESHOLD VALUES ---------------- Parameter High Alarm Low Alarm High Warning Low Warning ------------------------ ---------- --------- ------------ ----------- Rx Power Threshold(dBm) 5.0 -30.0 0.0 0.0 Tx Power Threshold(dBm) 8.0 0.0 0.0 0.0 LBC Threshold(mA) N/A N/A 0.00 0.00 LBC High Threshold = 98 % Polarization parameters not supported by optics Transceiver Vendor Details Form Factor : SFP Name : CISCO-MOLEX Part Number : 10-3548-01 Rev Number : 000 Serial Number : MZH2719009Z PID : ONS-SC-PTP-1510 VID : V01 Firmware Version : Major.Minor.Build Active : .0 Inactive : .0 Date Code(yy/mm/dd) : 23/05/30 Fiber Connector Type: LC Otn Application Code: Not Set Sonet Application Code: Not Set Ethernet Compliance Code: Not set Transceiver Temperature : 28 Celsius AINS Soak : None AINS Timer : 0h, 0m AINS remaining time : 0 seconds

UDC OSC connection

The OSC channel carries both UDC and OSC traffic. The EDFA2 card has a single OSC port that supports one OSC channel at a time. To carry UDC traffic over OSC channel, attach a UDC port to a specific OSC port on the EDFA2 card by using a CLI command.

The NCS 1014 chassis does not have dedicated UDC ports but includes two PTP ports. You can convert these PTP ports into UDC ports and connect them to the OSC channel using a CLI command. See Convert PTP ports to UDC ports.

Note

The NCS 1014 chassis has only two PTP ports, you can connect maximum 2 ports on two EDFA2 cards.

Convert PTP ports to UDC ports

Follow this step to convert the PTP ports available in the NCS 1014 controller into UDC ports and attach them to the Ethernet port corresponding to the OSC channel.

Procedure

	1.	Enter the command hw-module location to convert the PTP ports to UDC ports and attach them to the GigabitEthernet interface of the OSC. Example: The output shows the conversoin of two PTP ports into UDC ports. `RP/0/RP0/CPU0:ios(config)#hw-module location 0/RP0/CPU0 ptp 0 port-mode udc attach interface GigabitEthernet 0/0/0/5` `RP/0/RP0/CPU0:ios(config)#hw-module location 0/RP0/CPU0 ptp 1 port-mode udc attach interface GigabitEthernet 0/1/0/5`
	2.	Enter the command show controllers switch summary to verify the UDC ports information. After converting the PTP ports to UDC, check the link ports 2 and 6 for UDC information. Example: RP/0/RP0/CPU0:ios#show controllers switch summary Sat Mar 27 19:05:14.646 UTC Rack Card Switch Rack Serial Number ------------------------------------------- 0 RP0 RP-SW FCB2721B2VW Phys Admin Port Protocol Forward Port State State Speed State State Connects To ------------------------------------------------------------------------------- 0 Up Up 10-Gbps - Forwarding CPU0 1 Up Up 10-Gbps - Forwarding CPU1 2 Down Up 1-Gbps - Forwarding PTP1 3 Up Up 1-Gbps - Forwarding MGMT0 4 Down Up 1-Gbps - Forwarding MGMT1 5 Up Up 1-Gbps - Forwarding LC3_0 6 Down Up 1-Gbps - Forwarding PTP0 7 Up Up 1-Gbps - Forwarding LC3_1 8 Up Up 1-Gbps - Forwarding LC0_0 9 Down Down 1-Gbps - Forwarding PENNY 10 Down Up 1-Gbps - Forwarding LC2_1 . . output snipped . . 30 Down Down 10-Mbps - Forwarding UnUsed 31 Down Down 10-Mbps - Forwarding UnUsed
	3.	Enter the command show controllers switch statistics to verify the UDC ports information on ports 2 and 6. Example: RP/0/RP0/CPU0:ios#show controllers switch statistics detail location 0/RP0/CPU0 port 2 Sat Mar 27 19:14:14.621 UTC Phys Port Rack Card Switch Port State Speed Connects To ------------------------------------------------------------------------ 0 RP0 RP-SW 2 Down 1-Gbps PTP1 Rx Unicast Packets: 0 Rx Multicast Packets: 0 Rx Broadcast Packets: 0 Rx Flow Control: 0 Rx Good Octets: 0 Rx Bad Octets: 0 Rx FIFO Overrun: 0 Rx Undersize: 0 Rx Fragments: 0 Rx Oversize: 0 Rx Jabber: 0 Rx Errors: 0 Rx Bad CRC: 0 Rx Collisions: 0 Rx Policing Drops: 0 Tx Unicast Packets: 0 Tx Multicast Packets: 0 Tx Broadcast Packets: 0 Tx Flow Control: 0 Tx Good Octets: 0 Tx Deferred Packets: 0 Tx FIFO Underrun/CRC: 0 Tx Multiple Collisions: 0 Tx Excess Collisions: 0 Tx Late Collisions: 0 Tx Policing Drops: 0 Tx Queueing Drops: 0 RxTx Packets 64: 0 RxTx Packets 65-127: 0 RxTx Packets 128-255: 0 RxTx Packets 256-511: 0 RxTx Packets 512-1023: 0 RxTx Packets 1024-Max: 0
	4.	(Optional) Use the clear controller switch statistics location to reset the statistics information. Check for the applicable locations for controller statistics. Example: `RP/0/RP0/CPU0:ios#clear controller switch statistics location ? 0/0/NXR0 Fully qualified location specification 0/1/NXR0 Fully qualified location specification 0/2/NXR0 Fully qualified location specification 0/3/NXR0 Fully qualified location specification 0/RP0/CPU0 Fully qualified location specification WORD Fully qualified location specification` Use the controller location, 0/RP0/CPU0, to clear the switch statistics information for the UDC ports. Example: `RP/0/RP0/CPU0:ios#clear controller switch statistics location 0/RP0/CPU0 Mon Jul 21 13:26:31.913 IST Clear switch statistics ? [yes,no] Invalid option (edited)`

How OSC UDC connection works

The process involves these stages:

After you convert the PTP ports to UDC ports using CLI configuration, the NCS 1014 maps each UDC port to its OSC channel and sends packets from each UDC port through its channel.
The packets received on the CPU-OSC interface will be transmitted as "untagged" over the OSC channel, whereas UDC packets will be transmitted as "tagged".
When two OSC ports are directly connected between nodes, the NCS 1014 uses the same tagging method for both sent and received packets.

Note

Traffic will be interrupted during a controller cold reset or during a software upgrade when the controller undergoes a cold reset due to a BIOS or any other FPD upgrade. UDC traffic is not impacted during a controller warm reset.

OSC TX optical power automatic regulation

OSC TX optical power automatic regulation is an optical line control function that sets OSC transmit power according to the measured signal TX span loss.

OSC TX power regulation selects one of three OSC TX target power values from a span-loss lookup table.
OSC TX power regulation updates the OSC TX power when the Span Loss application reports a span-loss change greater than 0.2 dB.

Regulation behavior

Table 17. Feature history
Feature name	Release information	Description
OSC TX optical power automatic regulation	Cisco IOS XR Release 26.2.1	This feature automatically regulates OSC TX power from measured signal TX span loss and exposes CLI and OpenConfig controls for span mode, pause, and regulation state.

When OSC TX power regulation is enabled in span mode, the system uses the measured TX signal span loss to select the OSC TX target power. When regulation is disabled, the optical module restores the OSA configuration, including the OSC TX target power value for VOA.

An OSC link down event forces the OSC TX power to the maximum allowed value of 5 dBm. Neighbor not found and OSC link down events set the regulation state to blocked.

The feature is available through native CLI and OpenConfig. The OpenConfig model exposes configuration and state leaves for span mode, pause, status, blocking reason, span-loss input, correction time, and TX VOA attenuation.

Enable OSC TX power regulation

Enable OSC TX power regulation to let the system select the OSC TX target power from the measured TX signal span loss.

OSC TX power regulation is disabled by default. When you enable span mode, OSC TX power regulation updates the OSC TX target power when the Span Loss application reports a span-loss change greater than 0.2 dB.

Before you begin

Verify that the OSC controller is present and that the span-loss application reports a valid TX signal span loss.

Follow these steps to enable OSC Tx power regulation.

Procedure

	1.	Run the configure command to enter IOS XR configuration mode. Example: `RP/0/RP0/CPU0:kepler-1-1#configure`
	2.	Run the optical-line-control command to enter optical line control configuration mode. Example: `RP/0/RP0/CPU0:kepler-1-1(config)#optical-line-control`
	3.	Run the controller osc R/S/I/P command to configure the OSC controller. Example: `RP/0/RP0/CPU0:kepler-1-1(config-olc)#controller osc 0/3/0/0`
	4.	Run the osc-regulation span-mode command to enable OSC regulation in span mode. Example: `RP/0/RP0/CPU0:kepler-1-1(config-olc-osc)#osc-regulation span-mode`
	5.	Run the commit command to commit the configuration. Example: `RP/0/RP0/CPU0:kepler-1-1(config-olc-osc)#commit`
	6.	Run the show olc osc-regulation controller Osc0/3/0/0 regulation-info command to verify the regulation status for the OSC controller. Example: RP/0/RP0/CPU0:kepler-1-1#show olc osc-regulation controller Osc0/3/0/0 regulation-info Tue May 12 12:11:47.866 IST Controller : Osc0/3/0/0 Internal Status : IDLE Last Span-Loss Input : 10.64 dB Last Span-Loss Input Timestamp : 2026-05-12 09:59:41 Last Correction : 2026-05-07 21:29:59 Device Parameters Min Max Configuration Operational =============================================================================================== OSC Input Power (dBm) : - - - 4.66 OSC Output Power (dBm) : -10.00 5.00 -5.00 -5.04 ===============================================================================================
	7.	Run the show running-config optical-line-control controller osc command to verify that the running configuration includes span mode. Example: `RP/0/RP0/CPU0:kepler-1-1#show running-config optical-line-control controller osc 0/3/0/0 Tue May 12 12:11:41.451 IST optical-line-control controller Osc0/3/0/0 osc-regulation span-mode ! !`

OSC TX power regulation sets the OSC TX target power from the measured TX signal span loss and reports the configured and operational values in the regulation output.

Pause OSC TX power regulation

Pause OSC TX power regulation when you need to stop automatic OSC TX power adjustments for troubleshooting.

Pause OSC TX power regulation when you need to stop automatic OSC TX power adjustments to configure or check OSC TX power for troubleshooting.

Procedure

	1.	Run the configure command to enter IOS XR configuration mode. Example: `RP/0/RP0/CPU0:kepler-1-1#configure`
	2.	Run the optical-line-control command to enter optical line control configuration mode. Example: `RP/0/RP0/CPU0:kepler-1-1(config)#optical-line-control`
	3.	Run the controller osc R/S/I/P command to configure the OSC controller. Example: `RP/0/RP0/CPU0:kepler-1-1(config-olc)#controller osc 0/3/0/0`
	4.	Run the osc-regulation-pause command to pause OSC TX power regulation. Example: `RP/0/RP0/CPU0:kepler-1-1(config-olc-osc)#osc-regulation-pause`
	5.	Run the commit command to commit the configuration. Example: `RP/0/RP0/CPU0:kepler-1-1(config-olc-osc)#commit`
	6.	Run the show olc osc-regulation controller Osc0/3/0/0 regulation-info command to verify that the regulation status is paused. Example: This example shows the regulation status an near end: RP/0/RP0/CPU0:mols_176#show olc osc-regulation controller osc 0/3/0/0 regulation-info Mon Jun 8 15:18:29.271 IST Controller : Osc0/3/0/0 Internal Status : PAUSED Last Span-Loss Input : 10.65 dB Last Span-Loss Input Timestamp : 2026-06-08 13:14:11 Last Correction : 2026-06-05 18:24:14 Device Parameters Min Max Configuration Operational =============================================================================================== OSC Input Power (dBm) : - - - 4.63 OSC Output Power (dBm) : -10.00 5.00 -5.00 -4.97 =============================================================================================== Example: This example shows the regulation status an far end: RP/0/RP0/CPU0:mols_177#show olc osc-regulation controller osc 0/1/0/0 regulation-info Mon Jun 8 15:18:42.078 IST Controller : Osc0/1/0/0 Internal Status : IDLE Last Span-Loss Input : 10.27 dB Last Span-Loss Input Timestamp : 2026-06-07 07:17:05 Last Correction : 2026-06-05 18:24:41 Device Parameters Min Max Configuration Operational =============================================================================================== OSC Input Power (dBm) : - - - 3.79 OSC Output Power (dBm) : -10.00 5.00 -5.00 -5.01 ===============================================================================================
	7.	Resume OSC TX power regulation when troubleshooting is complete. Run the configure command to enter IOS XR configuration mode. Example: `RP/0/RP0/CPU0:kepler-1-1#configure` Run the optical-line-control command to enter optical line control configuration mode. Example: `RP/0/RP0/CPU0:kepler-1-1(config)#optical-line-control` Run the controller osc R/S/I/P command to configure the OSC controller. Example: `RP/0/RP0/CPU0:kepler-1-1(config-olc)#controller osc 0/3/0/0` Run the no osc-regulation-pause command to resume OSC TX power regulation. Example: `RP/0/RP0/CPU0:kepler-1-1(config-olc-osc)#no osc-regulation-pause` Run the commit command to commit the configuration. Example: `RP/0/RP0/CPU0:kepler-1-1(config-olc-osc)#commit`

OSC TX power regulation thresholds and status

Use this reference to interpret OSC regulation behavior, CLI output, alarms, and OpenConfig data for an NCS 1014 OSC controller.

OSC TX power regulation uses measured TX signal span loss to select one of three OSC TX target power values.

Table 18. OSC TX target power by span loss
TX signal span loss	OSC TX target power	Notes
Span loss <= 20 dB	-5 dBm	Applies to lower span-loss conditions.
20 dB < span loss <= 26 dB	1 dBm	Applies to mid span-loss conditions.
Span loss > 26 dB	5 dBm	An OSC link down event also forces the target power to 5 dBm.

Table 19. Regulation states
State	Description
`IDLE`	OSC TX power regulation is enabled but is not applying a correction.
`REGULATING`	OSC TX power regulation applies the OSC TX target power from the current span-loss value.
`BLOCKED`	OSC TX power regulation is blocked by a condition such as neighbor not found or OSC link down.
`PAUSED`	OSC TX power regulation is paused for troubleshooting and does not regulate OSC TX power.

Table 20. Alarms and blocking conditions
Condition	Blocking reason	Alarm
Neighbor not found	`PEER-CONNECTION-DOWN`	`OLC_APC_FM_OSC_REGULATION_BLOCKED_ALARM`
OSC link down	`OSC-LINK-DOWN`	`OLC_APC_FM_OSC_REGULATION_BLOCKED_ALARM`
OSC TX output power is outside the expected range.	Not applicable	`OLC_APC_FM_OSC_REGULATION_OOR_ALARM`
Blocked alarm is active.	Depends on the blocking condition.	`OLC_APC_FM_OSC_REGULATION_BLOCKED_ALARM`

Table 21. Regulation information fields
Field	Description
`Last Span-Loss Input`	Shows the TX signal span loss reported by the span-loss function.
`Last Span-Loss Input Timestamp`	Shows the last time for the TX signal span loss reported by the span-loss function.
`Last Correction`	Shows the last time that the OSC TX power target changed.
`OSC Input Power`	Shows the OSC receive power.
`OSC Output Power`	Shows the OSC transmit power. The supported range is -10 dBm to 5 dBm.
