Physical specifications

Updated: April 3, 2026

Want to summarize with AI?

Log in

Overview

Provides links to the physical specifications for the third-generation Catalyst Center appliances.

Click the appropriate link to view the physical specifications for your third-generation Catalyst Center appliance.

32-core and 56-core appliances

This table lists the physical specifications for the 32-core and 56-core third-generation Catalyst Center appliances.

Description

Specification

Height

1.7 in. (43.2 mm)

Width

16.9 in. (429.0 mm)

Depth (length)

Server only: 30 in. (762 mm)

Server with slide rail: 31.5 in (800.1 mm)

Weight

  • Maximum, fully configured with rail kit: 42.432 lb (19.25 kg)

  • Maximum, not configured, no rail kit: 22.32 lb (10.13 kg)

80-core appliance

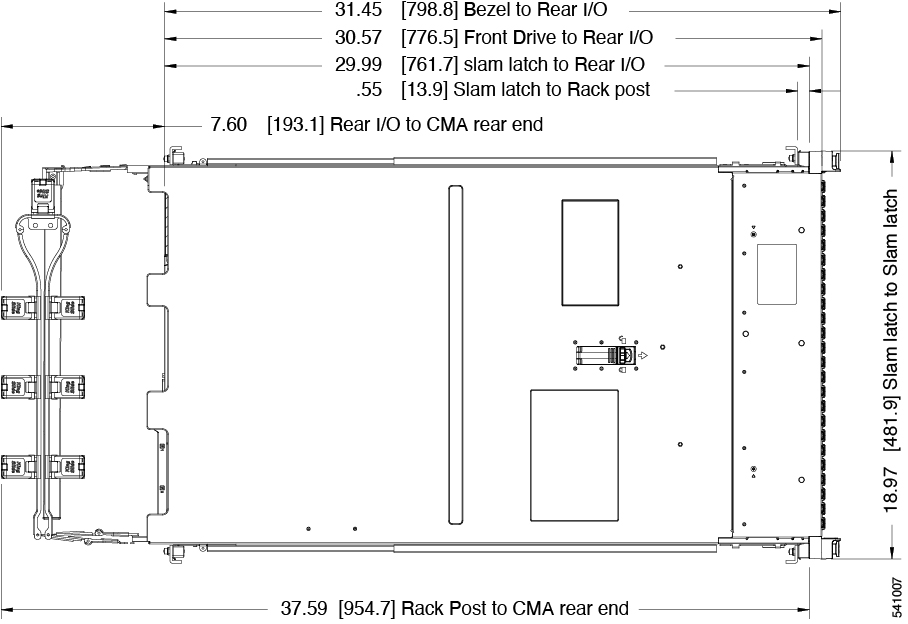

This figure shows the height, width, and depth of the chassis as measured to different locations.

This table lists additional physical specifications for appliance.

Description Specification

Server weight

  • SFF 12-drive server:

    • Maximum, fully configured with rail kit: 49.2 lb (20.28 kg)

    • Minimum, empty chassis, no rail kit: 35.7 lb (16.2 kg)

  • SFF 24-drive server:

    • Maximum, fully configured with rail kit: 61.7 lb (26.67 kg)

    • Minimum, empty chassis, no rail kit: 33.14 lb (15.03 kg)

  • LFF 12-drive server:

    • Maximum, fully configured with rail kit: 66.75 lb (28.0 kg)

    • Minimum, empty chassis, no rail kit: 39.13 lb (17.75 kg)

Front Clearance

3 in. (76 mm)

Side Clearance

1 in. (25 mm)

Rear Clearance

6 in. (152 mm)
