Cisco Security Cloud Control: Secure Firewall ASA Management

Troubleshoot a Secure Firewall ASA device

Updated: July 17, 2026

Want to summarize with AI?

Learn how to troubleshoot Secure Firewall ASA device issues including connectivity, configuration, synchronization, and deployment problems.

ASA Fails to Reconnect to Security Cloud Control After Reboot

If Security Cloud Control and your ASA do not connect after an ASA reboot, it may be because the ASA has fallen back to using an OpenSSL cipher suite that is not supported by Security Cloud Control's Secure Device Connector (SDC). This troubleshooting topic tests for that case and provides remediation steps.

Symptoms

ASA reboots and Security Cloud Control and the ASA fail to reconnect. Security Cloud Control displays the message, "Failed to reconnect."
When attempting to onboard an ASA, Security Cloud Control displays the message: Certificate could not be retrieved for <ASA_IP_Address>.

Cannot onboard ASA due to certificate error

Environment: ASA is configured with client-side certificate authentication.

Solution: Disable client-side certificate authentication.

Details: ASAs support credential-based authentication as well as client-side certificate authentication. Security Cloud Control cannot connect to ASAs that use client-side certificate authentication. Before onboarding your ASA to Security Cloud Control, make sure it does not have client-certificate authentication enabled by using this procedure:

Procedure

	1.	Open a terminal window and connect to the ASA using SSH.
	2.	Enter global configuration mode.
	3.	At the hostname (config)# prompt, enter this command: `no ssl certificate-authentication interfaceinterface-nameport 443` The interface name is the name of the interface Security Cloud Control connects to.

Determine the OpenSSL Cipher Suite Used by your ASA

Use this procedure to identify the OpenSSL cipher suite being used by your ASA. If the cipher suite named in the command output is not in the list of supported cipher suites, the SDC doesn't support that cipher suite and you will need to update the cipher suites on your ASA.

Procedure

	1.	Open a console window on a computer that can reach the SDC.
	2.	Connect to your SDC using SSH. You can log in as a regular user such as Security Cloud Control or SDC or some other user you created. You don't need to be logged in as root. Tip To find your SDC IP address: Open Security Cloud Control. From the user menu, select Secure Device Connectors. Click the SDC displayed in the table. The IP address of the SDC is displayed in the details pane for the device.
	3.	At the command prompt enter: openssl s_client -showcerts -connect ASA_IP_Address:443
	4.	Look for these lines in the command output. `New, TLSV1/SSLv3, Cipher is DES-CB3-SHA or SSL-Session: Protocol: TLSv1.2 Cipher: DES-CB3-SHA` In this example, the cipher suite being used by the ASA is `DES-CB3-SHA`.

Cipher Suites Supported by Security Cloud Control's Secure Device Connector

Security Cloud Control's Secure Device Connector uses node.js which only accepts the latest and most secure ciphers. As a result, Security Cloud Control's SDC only supports this list of ciphers:

ECDHE-RSA-AES128-GCM-SHA256
ECDHE-ECDSA-AES128-GCM-SHA256
ECDHE-RSA-AES256-GCM-SHA384
ECDHE-ECDSA-AES256-GCM-SHA384
DHE-RSA-AES128-GCM-SHA256
ECDHE-RSA-AES128-SHA256
DHE-RSA-AES128-SHA256
ECDHE-RSA-AES256-SHA384
DHE-RSA-AES256-SHA384
ECDHE-RSA-AES256-SHA256
DHE-RSA-AES256-SHA256

If the cipher suite you use on your ASA is not in this list, SDC does not support it and you will need to update the cipher suite on your ASA.

Updating your ASA's Cipher Suite

To update the TLS cipher suites on an ASA:

Procedure

	1.	Connect to the ASA using SSH.
	2.	Once connected to the ASA, elevate your privileges to global configuration mode. Your prompt should look like this: asaname(config)#
	3.	At the prompt, enter a command similar to this: `ssl cipher tlsv1.2 custom "ECDHE-RSA-AES128-GCM-SHA256 ECDHE-ECDSA-AES128-GCM-SHA256 ECDHE-RSA-AES256-GCM-SHA384 ECDHE-ECDSA-AES256-GCM-SHA384 DHE-RSA-AES128-GCM-SHA256 ECDHE-RSA-AES128-SHA256 DHE-RSA-AES128-SHA256 ECDHE-RSA-AES256-SHA384 DHE-RSA-AES256-SHA384 ECDHE-RSA-AES256-SHA256 DHE-RSA-AES256-SHA256"` Note The cipher suites this command configures your ASA to support are contained between quotes and after the word custom. In this command, the cipher suites specified begin with `ECDHE-RSA-AES128-GCM-SHA256` and end with `DHE-RSA-AES256-SHA256`. When you enter the command on your ASA, remove any cipher suites you know your ASA will not support.
	4.	After you submit the command, enter write memory at the prompt to save the local configuration. For example: `asaname(config)#write memory`

Troubleshoot ASA using CLI commands

This section discusses some of the important commands you may want to use to troubleshoot the ASA and test basic connectivity. See CLI Book 1: Cisco ASA Series General Operations CLI Configuration Guide to learn about other troubleshooting scenarios and CLI commands. In the 'System Administration' section, navigate to the 'Testing and Troubleshooting' chapter.

You can use the Security Cloud Control CLI interface available for each ASA device to execute these commands.

NAT Policy Settings

Some of the important commands to determine the NAT settings are as follows:

To determine NAT policy statistics, use show nat.
To determine the NAT pools, including the addresses and ports allocated, and how many times they were allocated, use show nat pool.

For more commands related to NAT, see CLI Book 2: Cisco ASA Series Firewall CLI Configuration Guide, and navigate to the 'Network Address Translation (NAT)' chapter.

Test Basic Connectivity: Pinging Addresses

You can ping the ASA device using the ping <IP address> command using the ASA CLI interface. To learn about

Display the Routing Table

Use the show route command to view the entries in the routing table.

ciscoasa# show route

Example output for a routing table of an ASA:

Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, V - VPN

i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2

ia - IS-IS inter area, * - candidate default, U - per-user static route

o - ODR, P - periodic downloaded static route, + - replicated route

SI - Static InterVRF

Gateway of last resort is 192.168.0.254 to network 0.0.0.0

S* 0.0.0.0 0.0.0.0 [1/0] via 192.168.0.254, management

C 10.0.0.0 255.0.0.0 is directly connected, Outside

L 10.10.10.1 255.255.255.255 is directly connected, Outside

C 192.168.0.0 255.255.255.0 is directly connected, management

L 192.168.0.118 255.255.255.255 is directly connected, management

Monitor Switch Ports

show interface

Displays interface statistics.
show interface ip brief

Displays interface IP addresses and status.
show arp

Shows dynamic, static, and proxy ARP entries. Dynamic ARP entries include the age of the ARP entry in seconds.

Example output of ARP entries:

management 10.10.32.129 0050.568a.977b 0

management 10.10.32.136 0050.568a.5387 21

LANFAIL 20.20.21.1 0050.568a.4d70 96

outsi 10.10.16.6 0050.568a.e6d3 3881

outsi 10.10.16.1 0050.568a.977b 5551

Troubleshoot ASA Remote Access VPN

This section discusses some of the troubleshooting issues that may occur when configuring remote access VPN on an ASA device.

Missing Information on the RA VPN Monitoring Page

This issue may occur if the outside interface is not enabled for Webvpn.

Resolution:

In the left pane, click Security Devices and then click the ASA tab.
Select the RA VPN headend ASA device that is having issues.
In the Management pane on the right, click Configuration.
Click Edit and search for ‘webvpn’.
Press Enter and add enable interface_name. Here, the interface_name is the name of the outside interface to which users connect when making the remote access VPN connection. Although this is normally the outside (internet-facing) interface, choose whichever interface is between the device and the end-users you are supporting with this connection profile.

For example:

webvpn

enable outside
Click Save.
Preview and deploy the configuration to the device.

ASA Real-time Logging

Use real-time logging to display the last 20 seconds of logged data or the last 10 KB of logged data, whichever limit is reached first. When Security Cloud Control retrieves the real-time data, it reviews the existing logging configuration on your ASDM, changes it to request debugging-level data, and then returns the logging configuration to your configuration. The logging Security Cloud Control displays reflects any logging filters you may have set in ASDM.

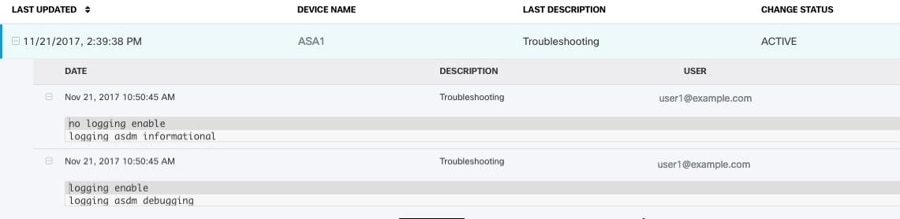

You can see the commands that Security Cloud Control sends to perform logging by reviewing the change log. Below is an example of a change log entry. The first entry (on the bottom) indicates that Security Cloud Control "turned on" logging with the logging enable command and changed the ASDM logging level to debugging. The second entry (on the top) shows that the logging configuration was returned to its previous state. Logging was "turned off" with the no logging enable command and the ASDM logging level was returned to informational.

View ASA Real-time Logs

Procedure

	1.	In the left pane, click Security Devices.
	2.	Click the appropriate device type tab and select the device for which you want to view real-time data.
	3.	Click Troubleshoot .
	4.	(Optional) Before clicking View Real-time Log, you can define a filter in the left pane to refine the results of your logging search.
	5.	Click View Real-time Log. Security Cloud Control retrieves the real-time logging data based on your filterin criteria and displays it.
	6.	To see an additional 20 seconds of logged data or the last 10 KB of logged data. click View Real-Time Log again.

ASA Packet Tracer

Packet tracer allows you to send a synthetic packet into the network and evaluate how the existing routing configuration, NAT rules, and policy configurations, affect that packet. Use this tool to troubleshoot these kinds of issues:

Users report that they cannot reach resources that they should be able to.
Users report that they can reach resources they should not be able to.
Test a policy to determine if it works as you expect.

Packet tracer can be used on a live, online, ASA device either physical or virtual. Packet Tracer does not work on ASA model devices. Packet tracer evaluates packets based on the saved configuration on the ASA. Staged changes on Security Cloud Control are not evaluated by packet tracer.

We consider it a best-practice to run packet tracer on an ASA that is in the synced state. Though packet tracer will run if the device is not synced, you could encounter some unexpected results. For example, if you deleted a rule in the staged configuration on Security Cloud Control, and this same rule was triggered on the ASA during packet tracing, Security Cloud Control won't be able to show you the result of the packet's interaction with that rule.

Troubleshooting with ASA Packet Tracer

As packet tracer sends the packet through the routing configuration, NAT rules, and security policies of your ASA, it displays the packet's status at each step. If the packet is allowed by the policy it receives a green checkmark . If a packet is denied and dropped, Security Cloud Control displays a red X .

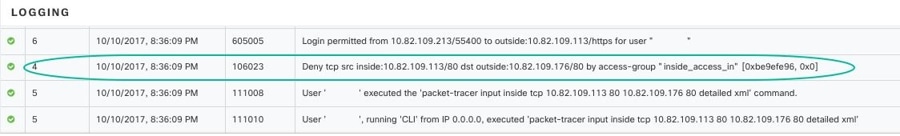

Packet tracer also displays a real time log of the result of the packet trace. In the example below, you can see where a rule denied a tcp packet.

Troubleshoot an ASA Device Security Policy

Procedure

	1.	In the left pane, click Security Devices.
	2.	Select your ASA and view troubleshooting details in the Troubleshooting pane.
	3.	In the pane, select the interface and packet type you want to send virtually through your ASA.
	4.	(Optional) If you want to trace a packet where the security group tag value is embedded in the Layer 2 CMD header (Trustsec), check SGT number and enter the security group tag number, 0-65535.
	5.	Specify the source and destination. You can specify IPv4 or IPv6 addresses, fully-qualified domain names (FQDN), or security group names or tags if you use Cisco Trustsec. For the source address, you can also specify a username in the format Domain\username.
	6.	Specify other protocol characteristics: ICMP-Enter the ICMP type, ICMP code (0-255), and optionally, the ICMP identifier. TCP/UDP/SCTP-Enter the source and destination ports by selecting them from the list or entering a value in the port combo box. IP-Enter the protocol number, 0-255.
	7.	Click Run Packet Tracer.
	8.	Continue with Analyze Packet Tracer Results.

Troubleshoot an Access Rule

Procedure

	1.	From the Security Cloud Control Home page, click Firewall.
	2.	In the left pane, click Policies > ASA > Access Policies.
	3.	Select a policy that is associated with your ASA.
	4.	Select a rule in the network policy to troubleshoot and click Troubleshoot in the details pane. Notice that in the values panel of the troubleshoot page, many of the fields are pre-populated with the attributes of the rule you chose.
	5.	Enter information in the remaining required fields. Once you have completed all the required fields the Run Packet Tracer button becomes active.
	6.	Click Run Packet Tracer.
	7.	Continue with Analyze Packet Tracer Results.

Troubleshoot a NAT Rule

Procedure

	1.	In the left pane, click Security Devices and then click the ASA tab.
	2.	Select your ASA, and click View NAT Rules in the Action pane.
	3.	Select the rule from the NAT Rules table that you want to troubleshoot and click Troubleshoot in the details pane. Notice that in the values panel of the Troubleshoot page, many of the fields are pre-populated with the attributes of the rule you chose.
	4.	Enter information in the remaining required fields. Once you have completed all the required fields the Run Packet Tracer becomes active.
	5.	Click Run Packet Tracer.
	6.	Continue with Analyze Packet Tracer Results.

Troubleshoot a Twice NAT Rule

Procedure

	1.	In left pane, click Security Devices.
	2.	Click the ASA tab, select your ASA, and click View NAT Rules in the Action pane.
	3.	Select the rule from the NAT Rules table that you want to troubleshoot and click Troubleshoot in the details pane. For a bi-directional Twice NAT rule, this opens a dropdown where you choose to troubleshoot the source packet translation or the destination packet translation.
	4.	Enter information in the remaining required fields. Once you have completed all the required fields the Run Packet Tracer becomes active.
	5.	Click Run Packet Tracer.

Analyze Packet Tracer Results

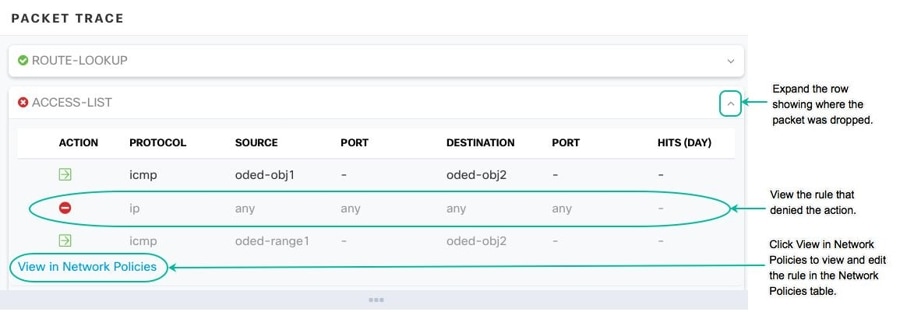

Whether the packet is dropped or allowed, you can learn why by expanding a row in the packet trace table and reading the rule or logging information related to that action. In the example below, packet tracer identified an access list policy that included a rule to deny an IP packet coming from any source and going to any destination. If this is not the action you want, you can click the View in Network Policies link and edit that rule immediately. After you edit the rule, be sure to deploy that configuration change to the ASA and then re-run packet tracer to ensure that you get the access results you expect.

Along with the packet tracer results, Security Cloud Control displays the real-time logs from the ASA.

Confirming ASA Running Configuration Size

To confirm the size of your running configuration file, follow this procedure:

Procedure

	1.	Access the ASA's command line interface in one of these ways: Open a terminal window and log into your ASA using SSH. Elevate your privilege to "privileged EXEC" mode so you see the prompt with `hostname`# . If you managed to get your ASA onboarded, open the Security Devices page, select the device you want to connect to, and click >_ Command Line Interface button in the Device Actions pane.
	2.	At the prompt type `copy running-config flash`
	3.	When prompted for the Source filename, don't type anything and press <Enter>
	4.	When prompted for the destination filename, enter a name for the output file. After ASA copies the running configuration the file you specified, it returns you to the privileged EXEC prompt.
	5.	At the prompt, type `show flash`
	6.	Look in the length column. If your file is over 4718592 bytes, it is larger than 4.5 MB. Here is a sample set of commands and output: `asa1# copy running-config flash Source filename [running-config]? Destination filename [running-config]? running-config-output Cryptochecksum: 725f4c1c 4adfb8a9 8b3e7a6d 49e3420d 23648 bytes copied in 1.380 secs (23648 bytes/sec) asa1# show flash --#-- --length-- -----date/time------ path 107 110325428 Feb 28 2019 15:41:42 asdm-8826067.bin 122 5018592 Apr 30 2019 21:00:59 running-config-output 111 102647808 Mar 12 2019 14:26:10 asa9-12-1-smp-k8.bin`

Large ASA Running Configuration Files

Behavior in Security Cloud Control

You may see behavior such as the ASA failing to onboard, Security Cloud Control not displaying all of the configuration defined in the ASA's running configuration file, or Security Cloud Control failing to write to the change log.

Possible Cause

The running configuration file of your ASA may be "too large" for Security Cloud Control.

When you an onboard an ASA to Security Cloud Control, Security Cloud Control stores a copy of the ASA's running configuration file in its database. Generally, if that running configuration file is too large (4.5 MB or larger), or it contains too many lines (approximately 22,000 lines), or there are too many access-list entries for a single access group, Security Cloud Control will not be able to predictably manage that device.

To confirm the size of your running configuration file, see Confirming ASA Running Configuration Size.

Workaround or Solution

Contact your Cisco account team for help safely reducing the size of your configuration file without disrupting your security policies.
