Learn how to configure ASA remote access VPN in Security Cloud Control, including new configurations and VPN settings discovered from onboarded ASA devices.

The ASA creates a remote access virtual private network (VPN) by creating a secure connection across a TCP/IP network (such as the Internet) that users see as a private connection. It can create single-user-to-LAN connections and LAN-to-LAN connections.

The secure connection is called a tunnel, and the ASA uses tunneling protocols to negotiate security parameters, create and manage tunnels, encapsulate packets, transmit or receive them through the tunnel, and unencapsulate them. The ASA functions as a bidirectional tunnel endpoint: it can receive plain packets, encapsulate them, and send them to the other end of the tunnel where they are unencapsulated and sent to their final destination. It can also receive encapsulated packets, unencapsulate them, and send them to their final destination.

Security Cloud Control provides an intuitive user interface for configuring a new remote access Virtual Private Network. It also allows you to quickly and easily configure remote access VPN connection for multiple Adaptive Security Appliance (ASA) devices onboarded in Security Cloud Control.

Security Cloud Control allows you to configure the remote access VPN configuration on ASA devices from scratch. It also allows you to manage the remote access VPN settings that have already been configured using another ASA management tool, such as the Adaptive Security Defense Manager (ASDM) or Cisco Security Manager (CSM). When you onboard an ASA device that already has remote access VPN settings, Security Cloud Control automatically creates a "Default remote access VPN Configuration" and associates the ASA device with this configuration. This default configuration can contain all the connection profile objects that are defined on the device. If you want to understand the RAVPN attributes that are read into Security Cloud Control, see the Read RA VPN Configuration of an Onboarded ASA Device section. Otherwise, you can start performing steps described in the "End-to-End Remote Access VPN Configuration Process for ASA" section.

End-to-End Remote Access VPN Configuration Process for ASA

This section provides the end-to-end procedure for configuring remote access VPN on an ASA device onboarded to Security Cloud Control.

To enable remote access VPN for your clients, you need to configure several separate items. The following procedure provides the end-to-end process.

Procedure

1.

Configure the identity source used for authenticating remote users.

You can use the following sources to authenticate users attempting to connect to your network using remote access VPN. Additionally, you can use client certificates for authentication, either alone or in conjunction with an identity source.

See Configure Identity Sources for ASA for more information.

  • Active Directory identity realm: As a primary authentication source. The user accounts are defined in your Active Directory (AD) server. See Configuring AD Identity Realms. See Create or Edit an ASA Active Directory Realm Object.

  • RADIUS server group: As a primary or secondary authentication source, and for authorization and accounting. See Create or Edit an ASA RADIUS Server Object or Group.

  • Local Identity Source (the local user database): As a primary or fallback source. You can define users directly on the device and not use an external server. If you use the local database as a fallback source, ensure that you define the same usernames/passwords as the ones described in the external server. Note: You can create user accounts directly on the ASA device only from the Adaptive Security Device Manager (ASDM). See the "Configure Local User Groups" section in the Objects for Access Control" chapter of the Cisco ASA Series Firewall ASDM Configuration Guide, X.Y.
2.

(optional) Create ASA RA VPN group policies. The group policy defines user-related attributes. You can configure group policies to provide differential access to resources based on group membership. Alternatively, use the default policy for all connections.
3.

Create ASA Remote Access VPN Configuration.
4.

Configure ASA Remote Access VPN Connection Profile.
5.

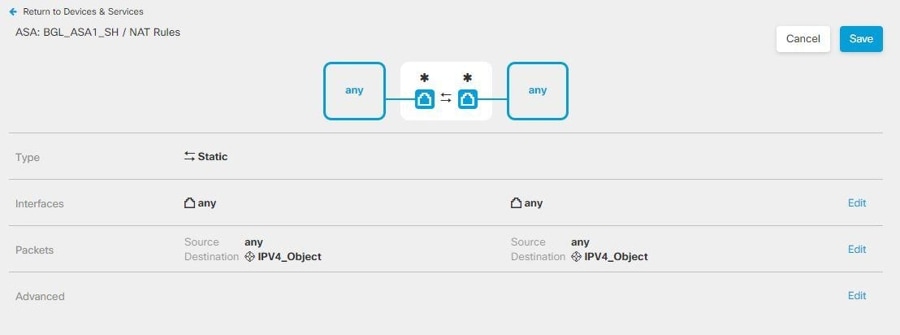

(optional) Exempt Remote Access VPN Traffic from NAT.
6.

Review and deploy configuration changes to the devices.

If you change the Remote Access VPN configuration by using a local manager like Adaptive Security Device Manager (ASDM), the Configuration Status of that device in Security Cloud Control shows "Conflict Detected". See Out-of-Band Changes on an ASA Device. You can Resolve Configuration Conflicts on this ASA.

Once the remote access VPN configuration is downloaded to the ASA devices, the users can connect to your network from a remote location using a computer or other supported iOS or Android device connected to the Internet. You can monitor live AnyConnect remote access VPN sessions from all onboarded ASA remote access VPN head-ends in your tenant.

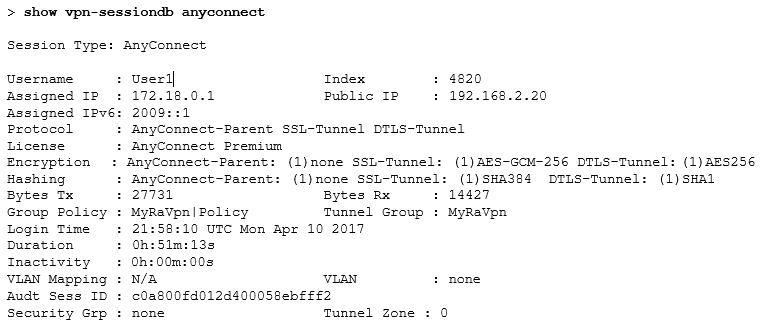

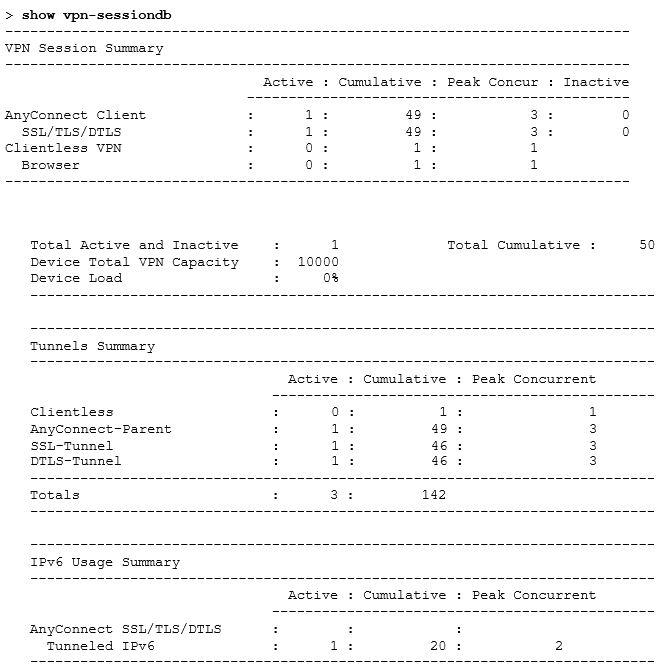

See Monitoring Remote Access Virtual Private Network.

Identity sources for ASA

Identity sources, such as Microsoft Active Directory (AD) realms and RADIUS Servers, are AAA servers and databases that define user accounts for the people in your organization. You can use this information in a variety of ways, such as providing the user identity associated with an IP address or authenticating remote access VPN connections or access to Security Cloud Control.

Click Objects, then click ()>Identity Source to create your sources. You would then use these objects when you configure the services that require an identity source. You can apply appropriate filters to search existing sources and manage them.

Determining the directory base DN

When you configure directory properties, you need to specify the common base distinguished name (DN) for users and groups. The base is defined in your directory server and differs from network to network. You must enter the correct bases for identity policies to work. If the base is wrong, the system cannot determine user or group names, and thus identity-based policies will be inoperable.

Note

To get the correct bases, consult the administrator who is responsible for the directory servers.

For an active directory, you can determine the correct bases by logging into the Active Directory server as a domain administrator, and using the dsquery command at a command prompt as follows to determine the bases:

User search base

Enter the dsquery user command with known username (partial or complete) to determine the base distinguished name. For example, the following command uses the partial name "John*" to return information for all users that start with "John."

C:\Users\Administrator>dsquery user -name "John*"

"CN=John Doe,CN=Users,DC=csc-lab,DC=example,DC=com"

The base DN would be "DC=csc-lab,DC=example,DC=com."

Group search base

Enter the dsquery group command with a known group name to determine the base distinguished name. For example, the following command uses the group name Employees to return the distinguished name:

C:\>dsquery group -name "Employees"

"CN=Employees,CN=Users,DC=csc-lab,DC=example,DC=com"

The group base DN would be "DC=csc-lab,DC=example,DC=com."

You can also use the ADSI Edit program to browse the Active Directory structure (Start > Run > adsiedit.msc). In ADSI Edit, right-click any object, such as an organizational unit (OU), group, or user, and choose Properties to view the distinguished name. You can then copy the string of DC values as the base.

To verify that you have the correct base:

Procedure

1.

Click the Test Connection button in the directory properties to verify connectivity. Resolve any problems, and save the directory properties.

2.

Commit changes to the device.

3.

Create an access rule, select the Users tab, and try to add known user and group names from the directory. You should see auto-complete suggestions as you type for matching users and groups in the realm that contains the directory. If these suggestions appear in a drop-down list, then the system was able to query the directory successfully. If you see no suggestions, and you are certain the string you typed should appear in a user or group name, you need to correct the corresponding search base. See Create or Edit an ASA Active Directory Realm Object for more information.

RADIUS servers and groups

You can use RADIUS servers to authenticate and authorize administration users. When you configure a feature to use RADIUS servers, you select a RADIUS group instead of individual servers. A RADIUS group is a collection of RADIUS servers that are copies of each other. If a group has more than one server, they form a chain of backup servers to provide redundancy in case one server becomes unavailable. But even if you have only one server, you must create a one-member group to configure RADIUS support for a feature.

You can use this source for the following purposes:

  • Remote Access VPN, as an identity source for authentication, and for authorization and accounting. You can use AD in conjunction with a RADIUS server.

  • Identity policy, as a passive identity source to collect user identity from remote access VPN logins.

See Create and Edit an Adaptive Security Appliance RADIUS Server Object or Group for more information.

Create an ASA Active Directory realm object

When you create or edit an identity source object such as an AD realm object, Security Cloud Control Firewall Management sends the configuration request to the ASA devices through the SDC. The ASA then communicates with the configured AD realm.

Use the following procedure to create an object:

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Objects.

3.

Click Create Object ()RA VPN Objects (ASA & FDM) > Identity Source.

4.

Enter an Object Name for the object.
5.

Select the Device Type as ASA.
6.

In the first part of the wizard, select Active Directory Realm as the Identity Source Type. Click Continue.
7.

Configure the basic realm properties.

  • Directory Username, Directory Password - The distinguished username and password for a user with appropriate rights to the user information you want to retrieve. For Active Directory, the user does not need elevated privileges. You can specify any user in the domain. The username must be fully qualified; for example, Administrator@example.com (not simply Administrator).

    Note

    The system generates ldap-login-dn and ldap-login-password from this information. For example, Administrator@example.com is translated as cn=administrator,cn=users,dc=example,dc=com. Note that cn=users is always part of this translation, so you must configure the user you specify here under the common name “users” folder.

  • Base Distinguished Name - The directory tree for searching or querying user and group information, that is, the common parent for users and groups. For example, cn=users,dc=example,dc=com.
8.

Configure the directory server properties.

  • Hostname/IP Address—The hostname or IP address of the directory server. If you use an encrypted connection to the server, you must enter the fully-qualified domain name, not the IP address.

  • Port—The port number used for communications with the server. The default is 389. Use port 636 if you select LDAPS as the encryption method.

  • Encryption—To use an encrypted connection for downloading user and group information, select LDAPS to use SSL to secure communications between the ASA and the LDAP server. It requires LDAP over SSL. Use port 636.

    The default is None, which means that user and group information is downloaded in clear text.
9.

(Optional) Use the Test button to validate the configuration.

10.

(Optional) Click Add another configuration to add multiple Active Directory (AD) servers to the AD realm. The AD servers need to be duplicates of each other and support the same AD domain. Therefore, the basic realm properties such as Directory name, Directory Password, and Base Distinguished Name must be the same across all AD servers associated with that AD realm.
11.

Click Add.

Edit an ASA Active Directory realm object

Note that you cannot change the Identity Source Type when editing an Identity source object. You must create a new object with the correct type.

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Objects.

3.

Locate the object you want to edit by using object filters and search field.
4.

Select the object you want to edit.
5.

Click the edit icon in the Actions pane of the details panel.
6.

Edit the values in the dialog box in the same fashion that you created in the procedures above. Expand the configuration bar listed below to edit or test the hostname/IP address or encryption information.

7.

Click Save.
8.

Security Cloud Control displays the policies that will be affected by the change. Click Confirm to finalize the change to the object and any policy affected by it.
9.

Review and deploy now the changes you made, or wait and deploy multiple changes at once.

Create an ASA RADIUS server object or group

When you create or edit an identity source object such as a RADIUS server object or a group of RADIUS server objects, Security Cloud Control sends the configuration request to ASA devices through the SDC.

Create an ASA RADIUS server object

RADIUS servers provide AAA (authentication, authorization, and accounting) services.

Use the following procedure to create an object:

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Objects.

3.

Click Create Object ()> RA VPN Objects (ASA & FDM) > Identity Source.

4.

Enter an Object name for the object.
5.

Select the Device Type as ASA.
6.

Select RADIUS Server as the Identity Source Type. Click Continue.
7.

Edit the Identity Source configuration with the following properties:

  • Server Name or IP Address - The fully-qualified host name (FQDN) or IP address of the server.

  • Authentication Port (Optional) - The port on which RADIUS authentication and authorization are performed. The default is 1812.

  • Timeout - The length of time, 1-300 seconds, that the system waits for a response from the server before sending the request to the next server. The default is 10 seconds.

  • Enter the Server Secret Key(Optional) - The shared secret that is used to encrypt data between the ASA device and the RADIUS server. The key is a case-sensitive, alphanumeric string of up to 64 characters, with no spaces. The key must start with an alphanumeric character or an underscore, and it can contain the special characters: $ & - _ . + @. The string must match the one configured on the RADIUS server. If you do not configure a secret key, the connection is not encrypted.

8.

Click Add.

9.

Review and deploy now the changes you made, or wait and deploy multiple changes at once.

Create an ASA RADIUS server group

A RADIUS server group contains one or more RADIUS server objects. Servers in the group must be copies of each other and form a backup chain.

Use the following procedure to create an object group:

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Objects.

3.

Click Create Object () RA VPN Objects (ASA & FDM) Identity Source.
4.

Enter an Object name for the object.
5.

Select the Device Type as ASA.
6.

Select RADIUS Server Group as the Identity Source Type. Click Continue.
7.

Edit the Identity Source configuration with the following properties:

  • Dead Time : Time to wait after the last server fails before reactivating all servers. Failed servers are reactivated only after all servers have failed.

  • Maximum Failed Attempts : Number of failed requests sent to a RADIUS server before the system tries the next server. When this number is exceeded, the system marks the server as failed.

  • Dynamic Authorization/Port Optional change of authorization (CoA) services. Enable only when this server group is used in RA VPN with Cisco ISE.
8.

Select an AD realm that supported the RADIUS server from the drop-down menu. If you have not already created an AD realm, click Create from inside the drop-down menu.
9.

Click the RADIUS SERVER Add button to add existing RADIUS server objects. Optionally, you can create a new RADIUS server object from this window is necessary.

Note

Add RADIUS server objects in priority order. The first server is used until it becomes unresponsive, and ASA then uses the next server in the list.
10.

Review and deploy now the changes you made, or wait and deploy multiple changes at once.

Edit an ASA Radius server object or group

Use the following procedure to edit a Radius server object or Radius server group:

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Objects.

3.

Locate the object you want to edit by using object filters and search field.
4.

Select the object you want to edit.
5.

Click the edit icon in the Actions pane of the details panel.
6.

Edit the values in the dialog box in the same fashion that you created them in the procedures above. To edit or test the hostname/IP address or encryption information, expand the configuration bar.

7.

Click Save.

8.

Security Cloud Control displays the policies that will be affected by the change. Click Confirm to finalize the change to the object and any policy affected by it.
9.

Review and deploy now the changes you made, or wait and deploy multiple changes at once.

Create ASA RA VPN group policies

A group policy is a set of user-oriented attribute/value pairs for remote access VPN connections. The connection profile uses a group policy that sets terms for user connections after the tunnel is established. Group policies let you apply whole sets of attributes to a user or a group of users, rather than having to specify each attribute individually for each user.

The system includes a default group policy named "DfltGrpPolicy". You can create additional group policies to provide the services you require.

Note

You cannot add inconsistent group policy objects to remote access VPN configuration. Resolve all inconsistencies before adding the group policy to the remote access VPN Configuration.

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Objects.
3.

Click > RA VPN Objects (ASA & FDM) > RA VPN Group Policy.

4.

Enter a name for the group policy. The name can be up to 64 characters and spaces are allowed.
5.

In the Device Type drop-down, select ASA.
6.

Do any of the following:

7.

Click Save to create the group policy.

ASA RA VPN group policy attributes

The section describes the attributes associated with the ASA remote access VPN group policy.

General Attributes

The general attributes of a group policy define the name of the group and some other basic settings.

  • DNS Server: Enter the IP address(s) of DNS servers for domain name resolution when connected to the VPN. You can separate the addresses using a comma.

  • Banner: The banner text, or welcome message, to present to users at login. The default is no banner. The length can be up to 496 characters. The AnyConnect client supports partial HTML. To ensure that the banner displays properly to remote users, use the <BR> tag to indicate line breaks.

  • Default Domain: The default domain name for users in the remote access VPN. For example, example.com. This domain is added to hostnames that are not fully-qualified, for example, serverA instead of serverA.example.com.

AnyConnect Client Profiles

This feature is supported on FTD running software version 6.7 or later versions.

Cisco AnyConnect VPN client offers enhanced security through various built-in modules. These modules provide services such as web security, network visibility into endpoint flows, and off-network roaming protection. Each client module includes a client profile that includes a group of custom configurations as per your requirement.

You can select the AnyConnect VPN profile object and AnyConnect modules to be downloaded to clients when the VPN user downloads the VPN AnyConnect client software.

  1. Choose or create an AnyConnect VPN profile object. See Upload RA VPN AnyConnect Client Profile. Except for DART and Start Before Login modules, the AnyConnect VPN profile object must be selected.

  2. Click Add Any Connect Client Module.

    The following AnyConnect modules are optional and you can configure these modules to be downloaded with VPN AnyConnect client software:

    • AMP Enabler — Deploys advanced malware protection (AMP) for endpoints.

    • DART — Captures a snapshot of system logs and other diagnostic information and creates a .zip file on your desktop so you can conveniently send troubleshooting information to Cisco TAC.

    • Feedback — Provides information about the features and modules customers have enabled and used.

    • ISE Posture — Uses the OPSWAT library to perform posture checks to assess an endpoint's compliance.

    • Network Access Manager — Provides 802.1X (Layer 2) and device authentication to access both wired and wireless networks.

    • Network Visibility — Enhances the enterprise administrator's ability to do capacity and service planning, auditing, compliance, and security analytics.

    • Start Before Login — Forces the user to connect to the enterprise infrastructure over a VPN connection before logging on to Windows by starting AnyConnect before the Windows login dialog box appears.

    • Umbrella Roaming Security — Provides DNS-layer security when no VPN is active.

    • Web Security — Analyzes the elements of a web page, allows acceptable content, and blocks malicious or unacceptable content based on a defined security policy.

  3. In the Client Module list, select an AnyConnect module.

  4. In the Profile list, choose or create a profile object containing an AnyConnect Client Profile.

  5. Select Enable Module Download to enable endpoints to download the client module along with the profile. If not selected, the endpoints can download only the client profile.

Session Setting Attributes

The session settings of a group policy control how long users can connect through the VPN and how many separate connections they can establish.

  • Maximum Connection Time: The maximum length of time, in minutes, that users can stay connected to the VPN without logging out and reconnecting, from 1- 4473924 or blank. The default is unlimited (blank), but the idle timeout still applies.

  • Connection Time Alert Interval: If you specify a maximum connection time, the alert interval defines the amount of time before the maximum time is reached to display a warning to the user about the upcoming automatic disconnect. The user can choose to end the connection and reconnect to restart the timer. The default is 1 minute. You can specify 1 to 30 minutes.

  • Idle Time: The length of time, in minutes, that the VPN connection can be idle before it is automatically closed, from 1-35791394. If there is no communication activity on the connection for this consecutive number of minutes, the system stops the connection. The default is 30 minutes.

  • Idle Time Alert Interval: The amount of time before the idle time is reached to display a warning to the user about the upcoming automatic disconnect due to an idle session. Any activity resets the timer. The default is 1 minute. You can specify 1 to 30 minutes.

  • Simultaneous Login Per User: The maximum number of simultaneous connections allowed for a user. The default is 3. You can specify 1 to 2147483647 connections. Allowing many simultaneous connections might compromise security and affect performance.

Address Assignment Attributes

The address assignment attributes of a group policy define the IP address pool for the group. The pool defined here overrides the pool defined in any connection profile that uses this group. Leave these settings blank if you want to use the pool defined in the connection profile.

  • IPv4 Address Pool, IPv6 Address Pool: These options define the address pools for the remote endpoints. Clients are assigned an address from these pools based on the IP version they use to make the VPN connection. Select the IP address pool that defines a subnet for each IP type you want to support. Leave the list empty if you do not want to support that IP version. For example, you could define an IPv4 pool as 10.100.10.0/24. The address pool cannot be on the same subnet as the IP address for the outside interface.

    To create a new IPv4 Address Pool or a new IPv6 Address Pool. You can specify a list of up to six address pools to use for local address allocation. The order in which you specify the pools is significant. The system allocates addresses from these pools in the order in which the pools appear. Note: You can configure both IPv4 and IPv6 address pools for the same group policy. If both versions of IP addresses are configured in the same group policy, clients configured for IPv4 will get an IPv4 address, clients configured for IPv6 will get an IPv6 address, and clients configured for both IPv4 and IPv6 addresses will get both an IPv4 and an IPv6 address.

  • DHCP Scope: If you configure DHCP servers for the address pool in the connection profile, the DHCP scope identifies the subnets to use for the pool for this group. The DHCP server must also have addresses in the same pool identified by the scope. The scope allows you to select a subset of the address pools defined in the DHCP server to use for this specific group. If you do not define a network scope, the DHCP server assigns IP addresses in the order of the address pools configured. It goes through the pools until it identifies an unassigned address. To specify a scope, enter the network object that contains the network number host address. For example, to tell the DHCP server to use addresses from the 192.168.5.0/24 subnet pool, enter a network object that specifies 192.168.5.0 as a host address. You can use DHCP for IPv4 addressing only.

Split Tunneling Attributes

The split tunneling attributes of a group policy define how the system should handle traffic meant for the internal network vs. externally-directed traffic. Split tunneling directs some network traffic through the VPN tunnel (encrypted) and the remaining network traffic outside the VPN tunnel (unencrypted or in clear text).

Typically, in remote access VPN, you might want the VPN users to access the Internet through your device. However, you can allow your VPN users to access an outside network while they are connected to an remote access VPN. This technique is called split tunneling or hair pinning. The split tunnel allows VPN connectivity to a remote network across a secure tunnel, and it also allows connectivity to a network outside the VPN tunnel. Split tunneling reduces the network load on the FTD devices and increases the bandwidth on the outside interface.

Before you begin

For creating a split tunnel policy for IPv4 networks and another for IPv6 networks, the access-list you specify is used for both protocols. So, the access-list should contain access control entries (ACEs) for both IPv4 and IPv6 traffic.

When an ASA device is onboarded to Security Cloud Control, it reads the extended ACLs associated with the device. See Split Tunnel Configuration for more information.

Note

Ensure that you specify the network intended for split tunneling as the source network in the ACL you are creating.

  • IPv4 Split Tunneling, IPv6 Split Tunneling: You can specify different options based on whether the traffic uses IPv4 or IPv6 addresses, but the options for each are the same. If you want to enable split tunneling, specify one of the options that require you to select network objects.

    • Allow all traffic over tunnel: Do no split tunneling. Once the user makes an remote access VPN connection, all the user's traffic goes through the protected tunnel. This is the default. It is also considered the most secure option.

    • Allow specified traffic over the tunnel: Select the extended access list that defines the source network. Any traffic from these sources goes through the protected tunnel. The client routes traffic from any other source to connections outside the tunnel (such as a local Wi-Fi or network connection).

    • Exclude networks specified below: Select the network objects that define the source network. The client routes any traffic from these sources to connections outside the tunnel. Traffic from any other source goes through the tunnel.

    • Network List: Select the extended ACL network that can have both IPv4 and IPv6 networks.

  • Split DNS: You can configure the system to send some DNS requests through the secure connection while allowing the client to send other DNS requests to the DNS servers configured on the client. You can configure the following DNS behavior:

    • Send DNS Request as per split tunnel policy: With this option, DNS requests are handled the same way as the split tunnel options are defined. If you enable split tunneling, DNS requests are sent based on the destination addresses. If you do not enable split tunneling, all DNS requests go over the protected connection.

    • Always send DNS requests over tunnel: Select this option if you enable split tunneling, but you want all DNS requests sent through the protected connection to the DNS servers defined for the group.

    • Send only specified domains over tunnel: Select this option if you want your protected DNS servers to resolve addresses for certain domains only. Then, specify those domains, separating domain names with commas. For example, example.com, example1.com. Use this option if you want your internal DNS servers to resolve names for internal domains, while external DNS servers handle all other Internet traffic.

AnyConnect Attributes

The AnyConnect attributes of a group policy define some SSL and connection settings used by the AnyConnect client for a remote access VPN connection.

  • SSL Settings

    • Enable Datagram Transport Layer Security (DTLS): Whether to allow the AnyConnect client to use two simultaneous tunnels: an SSL tunnel and a DTLS tunnel. Using DTLS avoids latency and bandwidth problems associated with some SSL connections and improves the performance of real-time applications that are sensitive to packet delays. If you do not enable DTLS, AnyConnect client users establishing SSL VPN connections connect with an SSL tunnel only.

    • DTLS Compression: Whether to compress Datagram Transport Layer Security (DTLS) connections for this group using LZS. DTLS Compression is disabled by default.

    • SSL Compression: Whether to enable data compression, and if so, the method of data compression to use, Deflate, or LZS. SSL Compression is Disabled by default. Data compression speeds up transmission rates but also increases the memory requirement and CPU usage for each user session. Therefore, SSL compression decreases the overall throughput of the device.

    • SSL Rekey Method, SSL Rekey Interval: The client can rekey the VPN connection, renegotiating the crypto keys and initialization vectors, to increase the security of the connection. Disable rekeying by selecting None. To enable rekey, select New Tunnel to create a new tunnel each time. (The Existing Tunnel option results in the same action as New Tunnel.) If you enable rekeying, also set the rekey interval, which is 4 minutes by default. You can set the interval to 4-10080 minutes (1 week).

  • Connection Settings

    • Ignore the DF (Don't Fragment) bit: Whether to ignore the Don't Fragment (DF) bit in packets that need fragmentation. Select this option to allow the forced fragmentation of packets that have the DF bit set, so that these packets can pass through the tunnel.

    • Client Bypass Protocol: Allows you to configure how the secure gateway manages IPv4 traffic (when it is expecting only IPv6 traffic), or how it manages IPv6 traffic (when it is expecting only IPv4 traffic).

      When the AnyConnect client makes a VPN connection to the headend, the headend assigns it an IPv4, IPv6, or both an IPv4 and IPv6 address. If the headend assigns the AnyConnect connection only an IPv4 address or only an IPv6 address, you can configure the Client Bypass Protocol to drop network traffic for which the headend did not assign an IP address (default, disabled, not checked), or allow that traffic to bypass the headend and be sent from the client unencrypted or "in the clear" (enabled, checked).

      For example, assume that the secure gateway assigns only an IPv4 address to an AnyConnect connection and the endpoint is dual-stacked. When the endpoint attempts to reach an IPv6 address, if Client Bypass Protocol is disabled, the IPv6 traffic is dropped; however, if Client Bypass Protocol is enabled, the IPv6 traffic is sent from the client in the clear.

    • MTU: The maximum transmission unit (MTU) size for SSL VPN connections established by the Cisco AnyConnect VPN Client. The default is 1406 bytes. The range is 576 to 1462 bytes.

      • Keepalive Messages Between AnyConnect and VPN Gateway: Whether to exchange keepalive messages between peers to demonstrate that they are available to send and receive data in the tunnel. Keepalive messages transmit at set intervals. The default interval is 20 seconds, and the valid range is 15 to 600 seconds.

      • DPD on Gateway Side Interval, DPD on Client Side Interval: Enable Dead Peer Detection (DPD) to ensure that the VPN gateway or VPN client quickly detects when the peer is no longer responding. You can separately enable gateway or client DPD. The default interval is 30 seconds for sending DPD messages. The interval can be 5-3600 seconds.

Traffic Filters Attributes

The traffic filter attributes of a group policy define restrictions you want to place on users assigned to the group. You can use these attributes instead of creating access control policy rules to restrict remote access VPN users to specific resources, based on host or subnet address and protocol, or VLAN. By default, remote access VPN users are not restricted by the group policy from accessing any destination on your protected network.

  • Access List Filter: Restrict access using an extended access control list (ACL). Select the Smart CLI Extended ACL object. The extended ACL lets you filter based on source address, a destination address, and protocol (such as IP or TCP). ACLs are evaluated on a top-down, first-match basis, so ensure that you place specific rules before more general rules. There is an implicit "deny any" at the end of the ACL, so if you intend to deny access to a few subnets while allowing all other access, ensure that you include a "permit any" rule at the end of the ACL. Because you cannot create network objects while editing an extended ACL Smart CLI object, you should create the ACL before editing the group policy. Otherwise, you might need to simply create the object, then go back later to create the network objects and then all the access control entries that you need. To create the ACL, log in to FDM, go to Device > Advanced Configuration > Smart CLI > Objects, create an object, and select Extended Access List as the object type.

  • Restrict VPN to VLAN: Also called "VLAN mapping," this attribute specifies the egress VLAN interface for sessions to which this group policy applies. The system forwards all traffic from this group to the selected VLAN. Use this attribute to assign a VLAN to the group policy to simplify access control. Assigning a value to this attribute is an alternative to using an ACL to filter traffic on a session. Ensure that you specify a VLAN number that is defined on a subinterface on the device. Values range from 1 to 4094.

Windows Browser Proxy Attributes

The Windows browser proxy attributes of a group policy determine how, and whether, a proxy defined on the user's browser operates.

You can select one of the following values for Browser Proxy During VPN Session:

  • No change in endpoint settings: Allow the user to configure (or not configure) a browser proxy for HTTP and use the proxy if it is configured.

  • Disable browser proxy: Do not use the proxy defined for the browser, if any. No browser connections will go through the proxy.

  • Auto detect settings: Enable the use of automatic proxy server detection in the browser for the client device.

  • Use custom settings: Define a proxy that should be used by all client devices for HTTP traffic. Configure the following settings:

    • Proxy Server IP or Hostname, Port: The IP address, or hostname, of the proxy server, and the port used for proxy connections by the proxy server. The host and port combined cannot exceed 100 characters.

    • Browser Proxy Exemption List: Connections to the hosts/ports in the exemption list do not go through the proxy. Add all the host/port values for destinations that should not use the proxy. For example, www.example.com port 80. Click Add proxy exemption to add items to the list. Click the trash can icon to delete items. The entire proxy exception list, combining all addresses and ports, cannot be longer than 255 characters.

Create ASA Remote Access VPN Configuration

Security Cloud Control allows you to add one or more Adaptive Security Appliance (ASA) devices to the remote access VPN configuration wizard and configure the VPN interfaces, access control, and NAT exemption settings associated with the devices. Therefore, each remote access VPN configuration can have connection profiles and group policies shared across multiple ASA devices that are associated with the remote access VPN configuration. Further, you can enhance the configuration by creating connection profiles and group policies.

You can either onboard an ASA device that has already been configured with remote access VPN settings or a new device without remote access VPN settings. See Onboard ASA device to Security Cloud Control Firewall Management. When you onboard an ASA device that already has remote access VPN settings, Security Cloud Control automatically creates a "Default remote access VPN Configuration" and associates the ASA device with this configuration. Also, this default configuration can contain all the connection profile objects that are defined on the device. See Read RA VPN Configuration of an Onboarded ASA Device for more information. Security Cloud Control allows you to delete the default configuration.

  • You are not allowed to add ASA and FTD in the same Remote Access VPN Configuration.

  • An ASA device cannot have more than one remote access VPN Configuration.

Before you begin

Before adding the ASA device to the remote access VPN configuration, the following prerequisites must be met on the ASA device:

  • License requirements.

    Device must be enabled for export-controlled functionality.

    To view the license summary of your ASA device, execute the show license summary command in the ASA command-line interface.

    • Example of export-controlled functionality enabled in the license summary :

    Registration: Status: REGISTERED Smart Account: Cisco SVS temp-request access licensing@cisco.com Export-Controlled Functionality: ALLOWED

    Last Renewal Attempt: None

    Next Renewal Attempt: Jun 08 2021 09:46:22 UTC

    The 'Export-Controlled Functionality' property must be in the 'Allowed' state for creating or editing the VPN configuration.

    If this property is in the 'Not Allowed' state, Security Cloud Control displays an error message ('remote access VPN cannot be configured for devices which are not export compliant.') when you are creating or modifying the VPN configuration and doesn't allow remote access VPN configuration on the device.

  • Device Identity Certificates.

    Certificates are required to authenticate connections between the clients and the ASA device. Before starting the VPN configuration, ensure that the identity certificate is already present on the ASA device.

    To determine whether or not the certificate is present on the device, execute the show crypto CA Certificates command in the ASA command-line interface.

    If the identity certificate is not present or you want to enroll in a new certificate, install them on ASA using Security Cloud Control. See ASA Certificate Management.

    The usage of digital certificates in remote access VPN context is explained in Remote Access VPN Certificate-Based Authentication.

  • Outside interfaces.

    The outside interfaces must be configured already on the ASA device. You need to use either ASDM or ASA CLI to configure interfaces. To know configure interfaces using ASDM, see the "Interfaces" book of the Cisco ASA Series General Operations CLI Configuration Guide, X.Y.

  • Download the AnyConnect packages and upload them to a remote server. Later, use the remote access VPN wizard or ASA File Management wizard to upload the AnyConnect software packages from the server to ASAs. See Manage AnyConnect Software Packages on an ASA Device for instructions.

  • There are no configuration deployments pending.

  • If you are using the local database for authentication Add user accounts to the local database using ASDM or ASA CLI.

    To add user accounts using ASDM, see the "Add a User Account to the Local Database" section in the "AAA Servers and the Local Database" book of the Cisco ASA Series VPN CLI Configuration Guide, X.Y.

    To add user accounts using ASA CLI, execute username[username] password [password] privilege [priv_level] command.

  • ASA changes are synchronized to Security Cloud Control.

    1. In the left pane, click Security Devices and search for one or more ASA devices to be synchronized.

    2. Select one or more devices and then click Check for changes. Security Cloud Control communicates with one or more FTD devices to synchronize the changes.

  • Remote access VPN configuration group policy objects are consistent.

Procedure

1.

Onboard ASA device to Security Cloud Control Firewall Management.
2.

From the Security Cloud Control Home page, click Firewall.
3.

In the left pane, click Secure Connections > End User Connections > Remote Access VPN > ASA & FDM.

4.

Click the blue plus button to create a new remote access VPN configuration.
5.

Enter a name for the Remote Access VPN configuration.
6.

Click the blue plus button to add ASA devices to the configuration.

You can add the device details and configure network traffic-related permissions that are associated with the device.

  1. Provide the following device details:

    • Device: Select an ASA device that you want to add and click Select. Important: You are not allowed to add ASA and FTD in the same Remote Access VPN Configuration.

    • Certificate of Device Identity: Select the internal certificate used for establishing the identity of the device. This establishes the device identity for AnyConnect clients when they make a connection to the device. Clients must accept this certificate to complete a secure VPN connection.

    • Outside Interface: Select the interface to which users connect when making the remote access VPN connection. Although this is normally the outside (internet-facing) interface, choose whichever interface is between the device and the end-users you are supporting with this connection profile.

      You cannot create or modify remote access VPN configuration for devices that are not export compliant. You must license the ASA device with export-controlled functionality enabled and try again.

  2. Click Continue to configure the traffic permissions.

    • Bypass Access Control policy for decrypted traffic (sysopt permit-vpn): Decrypted traffic is subjected to Access Control Policy inspection by default. Enabling this option bypasses the decrypted traffic option bypasses the access control policy inspection, but the VPN Filter ACL and the authorization ACL downloaded from the AAA server are still applied to VPN traffic.

      Note that if you select this option, the system configures the sysopt connection permit-vpn command, which is a global setting. This will also impact the behavior of site-to-site VPN connections.

      If you do not select this option, it might be possible for external users to spoof IP addresses in your remote access VPN address pool, and thus gain access to your network. This can happen because you will need to create access control rules that allow your address pool to have access to internal resources. If you use access control rules, consider using user specifications to control access, rather than source IP address alone.

      The downside of selecting this option is that the VPN traffic will not be inspected, which means that intrusion and file protection, URL filtering, or other advanced features will not be applied to the traffic. This also means that no connection events will be generated for the traffic, and thus statistical dashboards will not reflect VPN connections.

    • NAT Exempt: NAT exemption exempts addresses from translation and allows both translated and remote hosts to initiate connections with your protected hosts. Configure NAT Exempt to exempt traffic to and from the remote access VPN endpoints from NAT translation. See Exempt Remote Access VPN Traffic from NAT.

  3. Click OK.

    The AnyConnect Packages Detected shows the AnyConnect packages that are already available on the device.

    There are two options to upload AnyConnect package to ASA from remote access VPN wizard:

    • (Option 1): Select a package from Security Cloud Control's repository. The ASA must have access to the internet.

    • (Option 2): Specify the ftp/http/https/scp/smb/tftp URL location where the AnyConnect package is preloaded.

    See Upload new AnyConnect Software Packages for instructions.

    Note

    Note: If you want to replace an existing package, see Replace an Existing AnyConnect Package.
7.

Click OK.

The ASA VPN configuration is created.

Modify ASA Remote Access VPN Configuration

You can modify the name and the device details of an existing remote access VPN configuration.

Procedure

1.

Select the configuration to be modified and under Actions, click Edit.

  • Modify the name if required.

  • Click the blue plus button to add a new device

  • Click to perform the following on the ASA device.

    • Click Edit to modify the existing remote access VPN configuration.

    • Click Remove to remove the ASA device from the remote access VPN configuration. All connection profiles and remote access VPN settings associated with that device except the group policies are deleted. You can remove the group policies explicitly from the objects page.

      Note

      You cannot remove the ASA if that is the only device using the configuration. Alternatively, you can remove the remote access VPN configuration.
2.

Deploy Configuration Changes.

What to do next

You can also search for remote access VPN configuration by typing the name of the configuration or device.

Configure ASA Remote Access VPN Connection Profile

A Remote Access VPN connection profile defines the characteristics that allow external users to create a VPN connection to the system using the AnyConnect client. Each profile defines the AAA servers and certificates used for authenticating users, the address pools for assigning users IP addresses, and the group policies that define various user-oriented attributes.

You can create multiple profiles within the remote access VPN configuration if you need to provide variable services to different user groups, or if you have various authentication sources. For example, if your organization merges with a different organization that uses different authentication servers, you can create a profile for the new group that uses those authentication servers.

A remote access VPN connection profile allows your users to connect to your inside networks when they are on external networks, such as their home network. Create separate profiles to accommodate different authentication methods.

Before you begin

Create ASA Remote Access VPN Configuration.

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Secure Connections > End User Connections > Remote Access VPN > ASA & FDM. You can click a VPN configuration to view the summary information on how many connection profiles and group policies are currently configured.

Note

To know the group policies assigned to the device, in Actions, click Group Policies. Group Policies assigned to connection profiles are automatically added to the list and cannot be removed.

If the group policy you need does not yet exist, click and select from the list. You can create additional group policies to provide the services you require. See Create ASA RA VPN group policies.
3.

Click the connection profile and under Actions in the sidebar at the right, click Add Connection Profile.
4.

Configure the basic connection attributes.

  • Connection Profile Name: The name for this connection, up to 50 characters without spaces. For example, MainOffice.

    Note

    The name you enter here is what users will see in the connection list in the AnyConnect client. Choose a name that will make sense to your users.

  • Group Alias, Group URL: Aliases contain alternate names or URLs for a specific connection profile. VPN users can choose an alias name in the AnyConnect client in the list of connections when they connect to the ASA device. The connection profile name is automatically added as a group alias. You can also configure the list of group URLs, which your endpoints can select while initiating the Remote Access VPN connection. If users connect using the group URL, the system will automatically use the connection profile that matches the URL. This URL would be used by clients who do not yet have the AnyConnect client installed. Add as many group aliases and URLs as required. These aliases and URLs must be unique across all connection profiles defined on the device. Group URLs must start with https://.

  • For example, you might have the alias Contractor and the group URLhttps://ravpn.example.com/contractor. Once the AnyConnect client is installed, the user would simply select the group alias in the AnyConnect VPN drop-down list of connections.
5.

Configure the primary and optionally, secondary identity sources. These options determine how remote users authenticate to the device to enable the remote access VPN connection. The simplest approach is to use AAA only and then select an AD realm or use the LocalIdentitySource. You can use the following approaches for Authentication Type:

6.

Configure the address pool for clients. The address pool defines the IP addresses that the system can assign to remote clients when they establish a VPN connection. For more information, see Configure Client Address Pool Assignment.
7.

Click Continue.
8.

Select the Group Policy to use for this profile from the list and click Select.

The group policy sets terms for user connections after the tunnel is established. The system includes a default group policy named 'DfltGrpPolicy'. You can create additional group policies to provide the services you require. See Create ASA RA VPN group policies.

9.

Click Continue.
10.

Review the summary. First, verify that the summary is correct. You can see what end-users need to do to initially install the AnyConnect software and test that they can complete a VPN connection. Click to copy the instructions to the clipboard, and then distribute them to your users.
11.

Click Done.
12.

Perform step 5 of End-to-End Remote Access VPN Configuration Process for ASA.

Configure AAA for a Connection Profile

Authentication, Authorization, and Accounting (AAA) servers use username and password to determine if a user is allowed access to the remote access VPN. If you use RADIUS servers, you can distinguish authorization levels among authenticated users, to provide differential access to protected resources. You can also use RADIUS accounting services to keep track of usage.

When configuring AAA, you must configure a primary identity source. Secondary and fallback sources are optional. Use a secondary source if you want to implement dual authentication, for example, using RSA tokens or DUO.

Primary Identity Source Options

  • Primary Identity Source for User Authentication: Authentication provides a way to identify a user, typically by having the user enter a valid username and valid password before access is granted. The primary identity source used for authenticating remote users. End-users must be defined in this source or the optional fallback source to complete a VPN connection. Select one of the following:

    • An Active Directory (AD) identity realm.

    • A RADIUS server group.

    • LocalIdentitySource (the local user database): You can define users directly on the device and not use an external server.

      You can click Identity Source to create new identity sources.

  • Fallback Local Identity Source: If the primary source is an external server, you can select the LocalIdentitySource as a fallback in case the primary server is unavailable. If you use the local database as a fallback source, ensure that you define the same local usernames/passwords as the ones defined in the external server.

  • Strip options: A realm is an administrative domain. Enabling the following options allows the authentication to be based on the username alone. You can enable any combination of these options. However, you must select both check boxes if your server cannot parse delimiters.

    • Strip Identity Source Server from Username: Whether to remove the identity source name from the username before passing the username on to the AAA server. For example, if you select this option and the user enters domain\username as the username, the domain is stripped off from the username and sent to the AAA server for authentication. By default, this option is unchecked.

    • Strip Group from Username: Whether to remove the group name from the username before passing the username on to the AAA server. This option applies to names given in the username@domain format; the option strips the domain and @ sign. By default, this option is unchecked.

Secondary Identity Source

  • Secondary Identity Source for User Authorization: The optional second identity source. If the user successfully authenticates with the primary source, the user is prompted to authenticate with the secondary source. You can select an AD realm, RADIUS server group, or the local identity source.

  • Advanced options: Click the Advanced link and configure the following options:

    • Fallback Local Identity Source for Secondary: If the secondary source is an external server, you can select the LocalIdentitySource as a fallback in case the secondary server is unavailable. If you use the local database as a fallback source, ensure that you define the same local usernames/passwords as the ones defined in the secondary external server.

    • Use Primary Username for Secondary Login: By default, when using a secondary identity source, the system will prompt for both username and password for the secondary source. If you select this option, the system prompts for the secondary password only and uses the same username for the secondary source that was authenticated against the primary identity source. Select this option if you configure the same usernames in both the primary and secondary identity sources.

      • Username for Session Server: After successful authentication, the username is shown in events and statistical dashboards, is used for determining matches for a user- or group-based SSL decryption and access control rules and is used for accounting. Because you are using two authentication sources, you need to tell the system whether to use the Primary or Secondary username as the user identity. By default, the primary name is used.

      • Password Type: How to obtain the password for the secondary server. The default is Prompt, which means the user is asked to enter the password. Select Primary Identity Source Password to automatically use the password entered when the user authenticated to the primary server. Select Common Password to use the same password for every user, then enter that password in the Common Password field.

    • Authorization Server: The RADIUS server group that has been configured to authorize remote access, VPN users. After authentication is complete, authorization controls the services and commands available to each authenticated user. Authorization works by assembling a set of attributes that describe what the user is authorized to perform, their actual capabilities, and restrictions. Were you not to use authorization, authentication alone would provide the same access to all authenticated users.

      Note that if the system obtains authorization attributes from the RADIUS server that overlap those defined in the group policy, the RADIUS attributes override the group policy attributes.

      You can click Create RADIUS Server Group to create new server groups.

    • Accounting Server: (Optional.) The RADIUS server group to use to account for the remote access VPN session. Accounting tracks the services users are accessing as well as the number of network resources they are consuming. The ASA device reports user activity to the RADIUS server. Accounting information includes when sessions start and stop, usernames, the number of bytes that pass through the device for each session, the service used, and the duration of each session. You can then analyze the data for network management, client billing, or auditing. You can use accounting alone or together with authentication and authorization.

      You can click Create RADIUS Server Group to create new server groups.

Configure Certificate Authentication for a Connection Profile

Note

This section is not applicable for Authentication Type as AAA Only.

You can use certificates installed on the client device to authenticate remote access VPN connections.

When using client certificates, you can still configure a secondary identity source, fallback source, and authorization and accounting servers. These are AAA options; for details, see Configure ASA Remote Access VPN Connection Profile.

The following are the certificate-specific attributes. You can configure these attributes separately for primary and secondary identity sources. Configuring a secondary source is optional.

  • Username from Certificate: Select one of the following:

    • Map Specific Field: Use the certificate elements in the order of Primary Field and Secondary Field. The defaults are CN (Common Name) and OU (Organizational Unit). Select the options that work for your organization. The fields are combined to provide the username, and this is the name used in events, dashboards, and for matching purposes in SSL decryption and access control rules.

    • Use entire DN (distinguished name) as username: The system automatically derives the username from the DN fields.

  • Advanced options (not applicable for Authentication Type as Client Certificate Only): Click the Advanced link and configure the following options:

    • Prefill username from certificate on user login window: Whether to fill in the username field with the retrieved username when prompting the user to authenticate.

    • Hide username in login window: If you select the Prefill option, you can hide the username, which means the user cannot edit the username in the password prompt.

Configure Client Address Pool Assignment

There must be a way for the system to provide an IP address to endpoints that connect to the remote access VPN. The AAA server can provide these addresses, a DHCP server, an IP address pool configured in the group policy, or an IP address pool configured in the connection profile. The system tries these resources in that order and stops when it obtains an available address, which it then assigns to the client. Thus, you can configure multiple options to create a failsafe in case of an unusual number of concurrent connections.

Use one or more of the following methods to configure the address pool for a connection profile.

  • IPv4 Address Pool and IPv4 Address Pool: First, create up to six network objects that specify subnets. You can configure separate pools for IPv4 and IPv6. Then, select these objects in the IPv4 Address Pool and IPv6 Address Pool options, either in the group policy or in the connection profile. You do not need to configure both IPv4 and IPv6, configure the addressing scheme you want to support. You also do not need to configure the pool in both the group policy and the connection profile. The group policy overrides the connection profile settings, so if you configure the pools in the group policy, leave the options empty in the connection profile. Note that the pools are used in the order in which you list them.

    To create new IPv4 or IPV6 address pools, see Create IP Address Pool.

  • DHCP Servers: First, configure a DHCP server with one or more IPv4 address ranges for the remote access VPN (you cannot configure IPv6 pools using DHCP). Then, create a host network object with the IP address of the DHCP server. You can then select this object in the DHCP Servers attribute of the connection profile.

    You can configure more than one DHCP server. If the DHCP server has multiple address pools, you can use the DHCP Scope attribute in the group policy that you attach to the connection profile to select which pool to use. Create a host network object with the network address of the pool. For example, if the DHCP pool contains 192.168.15.0/24 and 192.168.16.0/24, setting the DHCP scope to 192.168.16.0 will ensure that an address from the 192.168.16.0/24 subnet will be selected.

Manage AnyConnect Software Packages on ASA Devices

You can perform one of the following steps to upload an AnyConnect package using the remote access VPN wizard:

  • Upload the package from the Security Cloud Control repository.

  • Upload the package from the server using HTTP, HTTPS, TFTP, FTP, SMB, or SCP protocols.

Upload an AnyConnect Package from Security Cloud Control Repository

The remote access VPN Configuration wizard presents AnyConnect packages per operating system from the Security Cloud Control repository, which you can select and upload to device. Make sure that the device has access to the internet and proper DNS configuration.

Note

If the desired package is unavailable in the presented list or the device has no access to the internet, you can upload the package using the server where the AnyConnect packages are preloaded.

Procedure

1.

Click on the field that corresponds to an operating system and select an AnyConnect package.
2.

Click to upload the package. If the checksum doesn't match, the AnyConnect package upload fails. You can see the device's workflow tab for more details about the failure.

Upload an AnyConnect Package to ASA from Server

Download the AnyConnect client software packages to your computer and upload them to a remote server accessible from ASAs. Later, use the RA VPN wizard or ASA File Management wizard to upload the AnyConnect software packages from that server to ASAs. DNS must be configured correctly on the device for URLs that use a domain name.

The ASA RA VPN wizard supports uploading packages using HTTP, HTTPS, TFTP, FTP, SMB, or SCP protocols.

The syntax of supported protocols for uploading the file:

Protocol

Syntax

Example
HTTP http://[[path/ ]filename] http://www.geonames.org/data-sources.html
HTTPS https://[[path/ ]filename] https://docs.aws.amazon.com/amazov/tagging.html
TFTP tftp://[[path/ ]filename] tftp://10.10.16.6/ftd/components.html
FTP ftp://[[user[:password]@]server[:port]/[path/ ]filename] ftp://'dlpuser:rNrKYTX9g7z3RgJRmxWuGHbeu'@ftp.dlptest.com/image0-000.jpg
SMB smb://[[path/ ]filename] smb://10.10.32.145//sambashare/hello.txt
SCP scp://[[user[:password]@]server[/path]/ filename] scp://root:cisco123@10.10.16.6//root/events_send.py

Before you begin

Make sure that you download the "AnyConnect Headend Deployment Package" for your desired operating systems. Always download the latest AnyConnect version to ensure that you have the latest features, bug fixes, and security patches. Regularly update the packages on the device.

If you choose to upload the package using the ASA File Management wizard, do not modify the package's name after downloading them.

Note

You can upload one AnyConnect package per Operating System (OS): Windows, Mac, and Linux. You cannot upload multiple versions for a given OS type.

Procedure

1.

Download the AnyConnect packages from https://software.cisco.com/download/home/283000185.

  • Make sure you accept the EULA and have K9 (encrypted image) privileges.

  • Select the "AnyConnect Headend Deployment Package" package for your operating system. The package name will be similar to "anyconnect-win-4.7.04056-webdeploy-k9.pkg." There are separate headend packages for Windows, macOS, and Linux.
2.

Upload the AnyConnect packages to a remote server. Ensure that there is a network route from the ASA device and the server.

The ASA RA VPN wizard supports uploading packages HTTP, HTTPS, TFTP, FTP, SMB, or SCP protocols.

If you are uploading the AnyConnect package to an HTTPS server, ensure that the following steps are performed:

  • Upload the trusted CA certificate of that server on the ASA device.

  • Install the trusted CA certificate on the HTTPS server.

3.

The remote server's URL must be a direct link without prompting for authentication. If the URL is pre-authenticated, you can download the file by specifying the RA VPN wizard's URL.
4.

If the remote server IP address is NATed, you have to provide the NATed public IP address of the remote server location.

Upload new AnyConnect Packages to ASA

You can either use the remote access VPN wizard or ASA File Management wizard to upload the AnyConnect software packages to ASAs.

Use the following procedure to upload new AnyConnect packages to an ASA device from an HTTP or HTTPS server:

Procedure

1.

In the AnyConnect Package Detected, you can upload separate packages for Windows, Mac, and Linux endpoints.

2.

In the corresponding platform field, specify the server's paths where the AnyConnect packages compatible for Windows, Mac, and Linux are pre-uploaded. Examples of server paths: 'http://<ip_address>:port_number/<folder_name>/anyconnect-win-4.8.01090-webdeploy-k9.pkg', 'https://<ip_address>:port_number/<folder_name>/anyconnect-linux64-4.7.03052-webdeploy-k9.pkg'.
3.

Click to upload the package. Security Cloud Control validates if the path is reachable and the specified filename is a valid package. When the validation is successful, the names of the AnyConnect packages appear. As you add more ASA devices to the remote access VPN configuration, you can upload the AnyConnect packages to them.

4.

Click OK. The AnyConnect packages are added to the remote access VPN configuration.
5.

Continue to Create an ASA RA VPN Configuration from step 5 onwards.

To complete a VPN connection, your users must install the AnyConnect client software on their workstation. For more information, see How Users Can Install the AnyConnect Client Software on ASA.

Upload AnyConnect Packages using File Management Wizard

Use the File Management wizard to upload AnyConnect packages to a single or multiple ASA devices from an HTTP, HTTPS, TFTP, FTP, SMB, or SCP server. When you want to push AnyConnect packages to multiple ASA devices simultaneously, the bulk upload comes in handy.

For more information, see ASA File Management.

If you choose to upload the package using the ASA File Management wizard, do not modify the package's name after downloading them.

Once the upload is complete, open the ASA RA VPN Configuration wizard and notice that the packages are auto-detected. If you upload multiple packages for an OS version, the wizard lists them in a drop-down allowing you to select one among them. Then, you can create the RA VPN configuration and deploy them to the devices.

Replace an AnyConnect Package

If the AnyConnect packages are already present on the devices, you can see them in the remote access VPN wizard. You can see all the available AnyConnect packages for an operating system in a drop-down list. You can select an existing package from the list and replace it with a new one but can't add a new package to the list.

Note

If you want to replace an existing package with a new one, ensure that the new AnyConnect package is uploaded already to a server on the network that the ASA can reach.

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Secure Connections > End User Connections > Remote Access VPN > ASA & FDM.

3.

Select the remote access VPN configuration to be modified, and under Actions, click Edit.

4.

In AnyConnect Packages Detected, click icon appearing beside the existing AnyConnect package. If there are multiple versions of AnyConnect package for an operating system, select the package you want to replace from the list and click Edit. The existing package disappears from the corresponding field.
5.

Specify the server's path where the new AnyConnect package is preloaded and click to upload the package.
6.

Click OK. The new AnyConnect package is added to the remote access VPN configuration.
7.

Continue to Create ASA Remote Access VPN Configuration from step 6 onwards.

Delete an AnyConnect Package

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Secure Connections > End User Connections > Remote Access VPN > ASA & FDM.
3.

Select the remote access VPN configuration to be modified, and under Actions, click Edit.

4.

In AnyConnect Packages Detected, click icon appearing beside the AnyConnect package that you want to delete. If there are multiple versions of AnyConnect package for an operating system, select the package you want to delete from the list. The existing package disappears from the corresponding field.

Note

Click Cancel to stop the delete operation and retain the existing package,

5.

Click OK. The device's Configuration Status is in 'Not Synced' state.

Note

If you want to undo the delete action at this stage, go to Security Devices page and click Discard Changes to retain the existing AnyConnect package.
6.

Review and deploy configuration changes to the devices.

Manage and Deploy Pre-existing ASA Remote Access VPN Configuration

When you onboard an ASDM managed ASA device that already has remote access VPN settings, it discovers and displays the existing remote access VPN configurations. Security Cloud Control automatically creates a "Default remote access VPN Configuration" and associates the ASA device with this configuration. There are some remote access VPN configurations that aren't read or supported in the Security Cloud Control but can be configured in the Security Cloud Control command-line interface.

Note

This section doesn't cover every supported or unsupported configuration in Security Cloud Control. Instead, it only describes the most commonly used ones.

To see the remote access VPN configurations from an onboarded ASA, perform the following steps:

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Secure Connections > End User Connections > Remote Access VPN > ASA & FDM.

3.

Click the remote access VPN configuration corresponding to the onboarded ASA device. Security Cloud Control automatically creates a "Default_RA_VPN_Configuration" and associates the ASA device with this configuration. You can delete the default configuration. The ASA remote access VPN configurations that are read in Security Cloud Control are classified as follows:

  • Device settings

  • Connection profiles

  • Group policies

Device Settings

The RA VPN configurations associated with the onboarded ASA device appear in Default_RA_VPN_Configuration. You need to click on this configuration to see the name of the ASA device (in the Devices pane on the right) associated with that configuration. You can also see the AnyConnect packages present in the ASA devices by clicking the edit button.

Connection Profile

Security Cloud Control supports and reads the connection profiles defined in "AnyConnect Client VPN Access" of the ASA device. It does not support the "Clientless SSL VPN Access" configuration.

To see the connection profile attributes, perform the following:

Procedure

1.

Expand Default_RA_VPN_Configuration.
2.

Click one of the connection profiles that you want and click Edit.

All the basic and advanced ASA RA VPN attributes can be seen in the Connection Profile name and details of the Security Cloud Control RA VPN configuration page.

Note

You can delete the default configuration (Select the default RA VPN configuration and in the Actions pane on the right, click Remove).

Primary Identity Source

  • Security Cloud Control reads the Connection Aliases and Group URLs attributes as Group Alias and Group URL.

    Note

    • The connection profiles configured with SAML, Multiple certificates and AAA, and Multiple certificates aren't read.

    • The authentication server group with the interface and server group is not supported.

  • Security Cloud Control supports the AnyConnect connection profiles configured with "AAA", "AAA and certificate", and "Certificate only" authentication methods in Primary Identity Source.

  • The AAA Server Group is read in Security Cloud Control as Primary Identity Source for User Authentication inPrimary Identity Source (You can see this attribute by selecting AAA or AAA and Client Certificate as the Authentication Type).

    • If the AAA Server Group has been configured something other than LOCAL, Security Cloud Control reads and displays this attribute in the Fallback Local Identity Source field under Primary Identity Source. (You can see this attribute by selecting AAA as the authentication type).

      To learn more about the server group attributes read in Security Cloud Control, see AAA Server Groups.

Secondary Identity Source

The Secondary Identity Source displays the secondary authentication attributes of the ASA device. To see these attributes, select AAA or AAA and Client Certificate as the authentication type, and click View Secondary Identity Source.

  • The Secondary Identity Source for User Authentication displays the secondary authentication Server Group attribute.

    • If the Server Group has been configured something other than LOCAL, Security Cloud Control reads and displays this attribute in the Fallback Local Identity Source for Secondaryfield under Secondary Identity Source.

  • Security Cloud Control doesn't support the Attribute Server and Interface-Specific Authorization Server Groups attributes.

To learn more about the server group attributes read in Security Cloud Control, see AAA Server Groups.

Authorization Server

  • The Authorization Server displays the authorization Server Group attribute.

  • Security Cloud Control doesn't support the authorization server group with interface and server group.

To learn more about the RADIUS server group attributes read in Security Cloud Control, see RADIUS Server Groups.

Accounting Server

The Accounting Server displays the accounting Server Group attribute. To learn more about the server group attributes read in Security Cloud Control, see RADIUS Server Groups.

Client Address Pool Assignment

Security Cloud Control reads the Client Address Assignment attributes (DHCP Servers, Client Address Pools, and Client IPv6 Address Pools) as objects. (You can see these attributes in Client Address Pool Assignment). The DHCP server details are read as literals.

Note

Security Cloud Control doesn't support the IP address pools assigned on specific interfaces. However, these attributes can be seen in the ASA command-line interface (CLI).

AAA Server Groups

Security Cloud Control represents an LDAP Server Group and its associated LDAP Servers as an Active Directory Realm object. For Active Directory (AD), a realm is equivalent to an Active Directory domain. Note that Security Cloud Control does read the AD password for AD realm objects that are already present.

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the navigation bar on the left, choose Objects.

3.

Apply the Active Directory Realms filter to see this object.

4.

Select the Active Directory Realm object that you want and click Edit to see its details.

What to do next

You can see that the AD realm contains the associated AD server and its configuration. If there are multiple Active Directory (AD) servers for the AD realm, the AD servers need to be duplicates of each other and support the same AD domain. Therefore, the basic realm properties such as Directory name, Directory Password, and Base Distinguished Name must be the same across all AD servers associated with that AD realm. Security Cloud Control displays a warning message in the Active Directory Realm object if these properties aren't the same. You have to correct these properties to make them consistent across the AD servers. If you continue without addressing this warning, Security Cloud Control uses one of the AD server properties and applies it to other servers in that realm object.

RADIUS Server Group

The AAA RADIUS Server Group attributes of the ASA device are read in Security Cloud Control as RADIUS Server Group objects.

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Objects.

3.

Apply the RADIUS Server Group filter to see this object.

4.

Select the object that you want and then click Edit to see its details.

  • The Enable dynamic authorization in ASA is read in Security Cloud Control as Dynamic Authorization (for RA VPN only).

  • The Depletion option in Reactivation Mode is read in Security Cloud Control, and therefore the Dead Time value associated with depletion time is read in Security Cloud Control. However, the Timed attribute is not read in Security Cloud Control.

  • Security Cloud Control doesn't support Accounting Mode, Timed, Enable interim accounting update, Enable interim accounting update, and Use authorization only mode.

RADIUS Server

When Security Cloud Control reads the Radius Servers from ASA, it creates a Radius server object specifies the name as "Name of the Radius server group_server name or IP address".

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Objects.

3.

Apply the RADIUS Server filter to see this object.

4.

Select the object that you want and then click Edit to see its details.

Group Policy

In the Group Policy section, click the drop-down to view the group policies associated with the device.

Security Cloud Control reads the group policies configured with tunneling protocol as SSL VPN Client.

Security Cloud Control reads most of the group policy attributes configured in ASA. The information is displayed across the tabs in the RA VPN Group policy wizard. To see the details of group policies read from the ASA device, you need to perform the following:

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Objects.

3.

Filter for RA VPN Group Policy.
4.

Select the group policy associated with that device and click Edit.

Note

Security Cloud Control doesn't support the Standard Access Control Lists (ACL) defined in the split tunneling in the ASA device. It supports the Extended Access Control Lists (ACL) and reads them as ACLs in the ASA policies.

For more information, see Split Tunneling Attributes.

To see the policies, on the navigation bar, you can click Policies > ASA Access Policies.

To select the extended ACLs, perform the following:

  • Click the Split Tunneling tab.

  • Based on whether the traffic in ASA uses IPv4 or IPv6 addresses, select "Allow specified traffic over tunnel" or "Exclude networks specified below" from the corresponding drop-down list. Select the extended ACLs that are imported from ASA.

Create an ASA IP address pool

ASA address pool objects define IPv4 or IPv6 address pools that ASA devices assign to remote VPN clients. If you configure more than one address pool for a connection profile or group policy, the ASA uses the pools in the order in which you added them.

To define an IPv4 address pool, provide the IP address range. For example, 10.10.147.100 - 10.10.147.177.

To define an IPv6 address pool, provide the starting IP address, prefix, and number of addresses in the pool. For example, 2001:DB8:1::1.

If you assign addresses from a nonlocal subnet, add pools that fall on subnet boundaries so that routes for these networks are easier to add.

Perform the following to create an IP address pool:

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Objects.
3.

Click the blue plus button and select ASA > Address Pool.
4.

In the Create IP Address Pool dialog box, enter this information:

  • Object Name: Enter the name of the address pool. It can be up to 64 characters

  • IPv4 address pool: Select this radio button to configure IPv4 address pools.

    • IPv4 Address Range: Enter the first IP address and the last IP address available in each configured pool. For example, 10.10.147.100 - 10.10.147.177.

    • Mask: Identifies the subnet on which this IP address pool resides.

  • IPv6 address pool: Select this radio button to configure IPv6 address pools.

    • IPv6 Address: Enter the first IP address available in the configured pool and prefix length in bits in <address>/<prefix> format. For example, 2001:DB8:1::1/3.

    • Number of Addresses: Identifies the number of IPv6 addresses, starting at the IP Address, that are in the pool.
5.

Click Save.

Remote Access VPN Certificate-Based Authentication

The remote access VPN uses digital certificates for authenticating secure gateways and AnyConnect clients (endpoints) in the following scenarios:

Security Cloud Control handles the installation of digital certificates on the VPN headends (ASA ). It does not handle the installation of certificates on the AnyConnect client device. The administrator of your organization must handle it.

  • Identify and authenticate the VPN headend device (ASA ):

    VPN headends require an identity certificate to identify and authenticate themselves when the AnyConnect client requests a VPN connection. Using Security Cloud Control, you must install the identity certificate on the device. See Installing an Identity Certificate Using PKCS12 or Certificate And Key. It is not mandatory to install the issuer's CA certificate on the AnyConnect client.

    While creating the Remote Access VPN configuration from Security Cloud Control, assign the enrolled identity certificate to the outside interface of the device and download the configuration to the device. The identity certificate becomes fully operational on the outside interface of the device.

    When the AnyConnect client attempts to connect to VPN, the device authenticates itself by presenting its identity certificate to the AnyConnect client. The AnyConnect client verifies this identity certificate with its trusted CA certificate and trusts the certificate and thereby the device. If the CA certificate isn’t installed on the AnyConnect client, the user must manually trust the device when prompted.

  • Identify and authenticate the AnyConnect client:

    Note

    This applies when you use "Client Certificate Only" or "AAA and Client Certificate" as the authentication method in the connection profile of remote access VPN configuration. It does not apply for "AAA Only".

    Once the device is trusted, the AnyConnect client needs to authenticate itself to complete the VPN connection. You must install an identity certificate on the AnyConnect client and using Security Cloud Control, install a trusted CA certificate on the device. These certificates must be issued from the same certificate authority. See Installing Trusted CA Certificate in ASA.

    The AnyConnect client presents its identity certificate and the device verifies this certificate with its trusted CA certificate and establishes the VPN connection.

Exempt Remote Access VPN Traffic from NAT

Configure NAT Exempt to exempt traffic to and from the remote access VPN endpoints from NAT translation. If you do not exempt VPN traffic from NAT, ensure that the existing NAT rules for the outside and inside interfaces do not apply to the remote access VPN pool of addresses. NAT exempt rules are manual static identity NAT rules for a given source/destination interface and network combination, but they are not reflected in the NAT policy, they are hidden. If you enable NAT Exempt, you must also configure the following.

  • Inside Interfaces: Select the interfaces for the internal networks remote users will be accessing. NAT rules are created for these interfaces.

  • Inside Networks: Select the network objects that represent internal networks remote users will be accessing. The networks list must contain the same IP types as the address pools you are supporting.

Before you begin

Create ASA network objects that match the configuration of the local IP address pools used in the connection profile and group policy of that device. These network objects must be assigned as the destination address and translated address when configuring the NAT rule.

See Create an ASA Network Object.

Procedure

1.

In the left pane, click Security Devices.
2.

Use the filter and search field to find the ASA device for which you want to create the NAT rule.
3.

In the Management area of the details panel, click NAT .
4.

Click > Twice NAT.

  1. In section 1, select Static. Click Continue.

  2. In section 2, select Source Interface = 'any' and Destination Interface = 'any'.Click Continue.

  3. In section 3, select Source Original Address = 'any' and Source Translated Address = 'any'.

  4. Select Use Destination.

    1. Destination Original Address and Source Translated Address: Click Choose in the drop-down and select the network objects that match the configuration of the local IP address pools. In the below example, 'IPV4_Object' is the network object with the same configuration as the IPv4 address pool object used in the connection profile and group policy settings of the ASA (BGL_ASA1_SH) device.

    2. Select Disable proxy ARP for incoming packets.

    3. Click Save.

    4. Repeat the process (from step 4) to create equivalent rules for each of the other network objects equivalent to IP address pools.
5.

Review and deploy configuration changes to the devices.

Install the AnyConnect Client Software on ASA

To complete a VPN connection, your users must install the AnyConnect client software. You can use your existing software distribution methods to install the software directly. Or, you can have users install the AnyConnect client directly from the ASA device.

Note

Users must have Administrator rights on their workstations to install the software.

If you decide to have users initially install the software from the ASA device, inform users to perform the following steps:

Note

Android and iOS users should download AnyConnect from the appropriate App Store.

Procedure

1.

Using a web browser, open https://ravpn-address, where ravpn-address is the IP address or hostname of the outside interface on which you are allowing VPN connections. You identify this interface when you configure the remote access VPN. The system prompts the user to log in.
2.

Log into the site. Users are authenticated using the directory server configured for the remote access VPN. Log in must be successful to continue. If the login is successful, the system determines if the user already has the required version of the AnyConnect client. If the AnyConnect client is absent from the user's computer or is down-level, the system automatically starts installing the AnyConnect software. When the installation is finished, AnyConnect completes the remote access VPN connection.

Modify ASA Remote Access VPN Configuration

When ASA devices are onboarded to Security Cloud Control, it discovers and displays the pre-existing remote access VPN configurations from onboarded ASA devices. For more information, see Manage and Deploy Pre-existing ASA Remote Access VPN Configuration.

You can modify these configurations and download the new configuration to the device.

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Secure Connections > End User Connections > Remote Access VPN > ASA & FDM.

3.

If you want to add or remove group policies to the VPN configuration, click the VPN configuration associated with the onboarded ASA device. In the Actions pane on the left, click Group Policies.

  1. Click the blue + icon and configure the selections and click Select.

  2. Click Save. You can also Create New ASA RA VPN Group Policies.
4.

Click the VPN configuration, and in the Actions pane, click Edit.

The wizard lists the ASA device associated with the configuration.

  1. You can modify the following details in the same fashion as it was created:

    • Change the name of the remote access VPN configuration.

    • Click the three dots appearing in the row that shows the device details and click Edit.

    For more information, see Create ASA Remote Access VPN Configuration
5.

Click OK.
6.

Preview and deploy configuration changes for all devices

Modify ASA Connection Profile

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, click Secure Connections > End User Connections > Remote Access VPN > ASA & FDM.

3.

Expand the VPN configuration associated with the onboarded ASA device, and select a connection profile.
4.

Under Actions, click Edit.
5.

Edit the values in the same fashion as it was created and click Done.

For more information, see Configure ASA Remote Access VPN Connection Profile
6.

Preview and deploy configuration changes for all devices

Upload RA VPN AnyConnect Client Profile

The Remote Access VPN AnyConnect Client Profile is a group of configuration parameters stored in a file. There are different AnyConnect client profiles containing configuration settings for the core client VPN functionality and for the optional client modules Network Access Manager, AMP Enabler, ISE posture, Network Visibility, Customer Feedback Experience profiles, Umbrella roaming security, and Web Security.

Security Cloud Control allows uploading of these profiles as objects which can be used in the group policy later.

  • AnyConnect VPN Profile — AnyConnect client profiles are downloaded to clients along with the VPN AnyConnect client software. These profiles define many client-related options, such as auto-connect on startup and auto-reconnect, and whether the end-user can change the option from the AnyConnect client preferences and advanced settings. Security Cloud Control supports the XML file format.

  • AMP Enabler Service Profile — The profile is used for the AnyConnect AMP Enabler. The AMP Enabler and this profile are pushed to the endpoints from FDM-managed device when a remote access VPN user connects to the VPN. Security Cloud Control supports XML and ASP file formats.

  • Feedback Profile — You can add a Customer Experience Feedback profile and select this type to receive information about the features and modules customers have enabled and used. Security Cloud Control supports the FSP file format.

  • ISE Posture Profile — Choose this option if you add a profile file for the AnyConnect ISE Posture module. Security Cloud Control supports XML and ISP file formats.

  • Network Access Manager Service Profile — Configure and add the NAM profile file using the Network Access Manager profile editor. Security Cloud Control supports XML and NSP file formats.

  • Network Visibility Service Profile — Profile file for AnyConnect Network Visibility module. You can create the profile using the NVM profile editor. Security Cloud Control supports XML and NVMSP file formats.

  • Umbrella Roaming Security Profile — You must select this file type if you deploy the Umbrella Roaming Security module. Security Cloud Control supports XML and JSON file formats.

  • Web Security Service Profile — Select this file type when you add a profile file for the Web security module. Security Cloud Control supports XML, WSO, and WSP file formats.

Before you begin

Use the suitable GUI-based AnyConnect profile editors to create the profiles you need. You can download the profile editors from Cisco Software Download Center in the AnyConnect Secure Mobility Client category and install the AnyConnect “Profile Editor - Windows / Standalone installer (MSI).” The profile editor installer contains stand-alone versions of the profile editors. The installation file is for Windows only and has the file name anyconnect-profileeditor-win-<version>-k9.msi, where <version> is the AnyConnect version. For example, anyconnect-profileeditor-win-4.3.04027-k9.msi. You must also install Java JRE 1.6 (or higher) before installing the profile editor.

Except for the Umbrella Roaming Security profile editor, this package contains all the profile editors required for creating the modules. For detailed information, see the AnyConnect Profile Editor chapter in the appropriate release of the Cisco AnyConnect Secure Mobility Client Administrator Guide for details. Download the Umbrella Roaming Security profile separately from the Umbrella dashboard. For detailed information, see the "Download the AnyConnect Roaming Security Profile from the Umbrella Dashboard" section of the "Umbrella Roaming Security" chapter in the Cisco Umbrella User Guide.

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, choose Objects.
3.

Click the blue plus button.
4.

Click RA VPN Objects (ASA & FDM) > AnyConnect Client Profile.
5.

In the Object Name field, enter a name for the AnyConnect client profile.
6.

Click Browse and select the file you created using the Profile Editor.
7.

Click Open to upload the profile.
8.

Click Add to add the object.

  • Associate the client modules with the AnyConnect VPN profile in the RA VPN group policies window. See Create New ASA RA VPN Group Policies .

    Note

    The client module association is supported by all ASA versions and FDM running software version 6.7 or later.

Verify ASA Remote Access VPN Configuration

After you configure the remote access VPN and deploy the configuration to the device, verify that you can make remote connections.

Procedure

1.

From an external network, establish a VPN connection using the AnyConnect client. Using a web browser, open https://ravpn-address, where ravpn-address is the IP address or hostname of the outside interface on which you are allowing VPN connections. If necessary, install the client software and complete the connection. See How Users Can Install the AnyConnect Client Software. If you configured group URLs, also try those URLs.

2.

In the Security Devices page, select the device (FTD or ASA) you want to verify and click Command Line Interface under Device Actions.
3.

Use the show vpn-sessiondb command to view summary information about current VPN sessions.
4.

The statistics should show your active AnyConnect Client session, and information on cumulative sessions, the peak concurrent number of sessions, and inactive sessions. Following is sample output from the command.

5.

Use the show vpn-sessiondb anyconnect command to view detailed information about current AnyConnect VPN sessions. Detailed information includes encryption used, bytes transmitted and received, and other statistics. If you use your VPN connection, you should see the bytes transmitted/received numbers change as you re-issue this command.
6.

Use the show vpn-sessiondb anyconnect command to view detailed information about current AnyConnect VPN sessions. Detailed information includes encryption used, bytes transmitted and received, and other statistics. If you use your VPN connection, you should see the bytes transmitted/received numbers change as you re-issue this command.

View ASA Remote Access VPN Configuration Details

Procedure

1.

From the Security Cloud Control Home page, click Firewall.
2.

In the left pane, choose Secure Connections > End User Connections > Remote Access VPN > ASA & FDM
3.

Click on a VPN configuration object present. The group shows summary information on how many connection profiles and group policies are currently configured.

  • Expand the remote access VPN configuration to view all connection profiles associated with them.

    • Click the add + button to add a new connection profile.

    • Click the view button ( ) to open a summary of the connection profile and connection instructions. Under Actions, you can click Edit to modify the changes.

  • You can click one of the following options under Actions to perform additional tasks:

    • Click Group Policies to assign/add group policies.

    • Click a configuration object or connection profile that you no longer need and click Remove to delete.
