Learn how to interpret change log entries created after deploying configuration changes to a Secure Firewall ASA, including how Security Cloud Control records completed deployments and tracks device updates.

A checkmark on the header indicates that the change log is complete. The change log displays the most recent entries first followed by the older entries below in a chronological order. You can sort these entries.

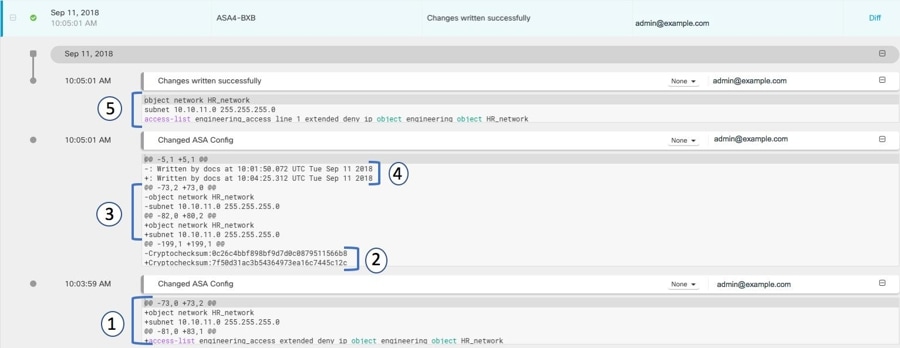

Click the Diff link in the change log entry row to view a side-by-side comparison of the changes in the context of the running configuration file.

The explanations for the different changes are shown below.

Number in illustration

Explanation

1

This is the change that admin@example.com made at 10:03:59 AM on September 11, 2018.

  1. The "HR_network" object was added.

  2. The initial network address (10.10.11.0) and subnet mask (255.255.255.0) were added to the HR_network object.

  3. A rule was added to the "engineering_access" network policy denying addresses in the "engineering" network from reaching the "HR_network"

2

The checksum of the running configuration file was recalculated by the ASA and changed. The old value was removed and the new value was added.

3

The ASA moves the object to a different location in the running configuration file than where Security Cloud Control placed it.

Note

You don't always see this kind of an entry.

4

The record of the last time the running configuration file was updated. The old timestamp is removed and the new timestamp is added. This change was made by the ASA.

5

These are the commands sent by Security Cloud Control to the ASA to make the configuration changes.
