Topology

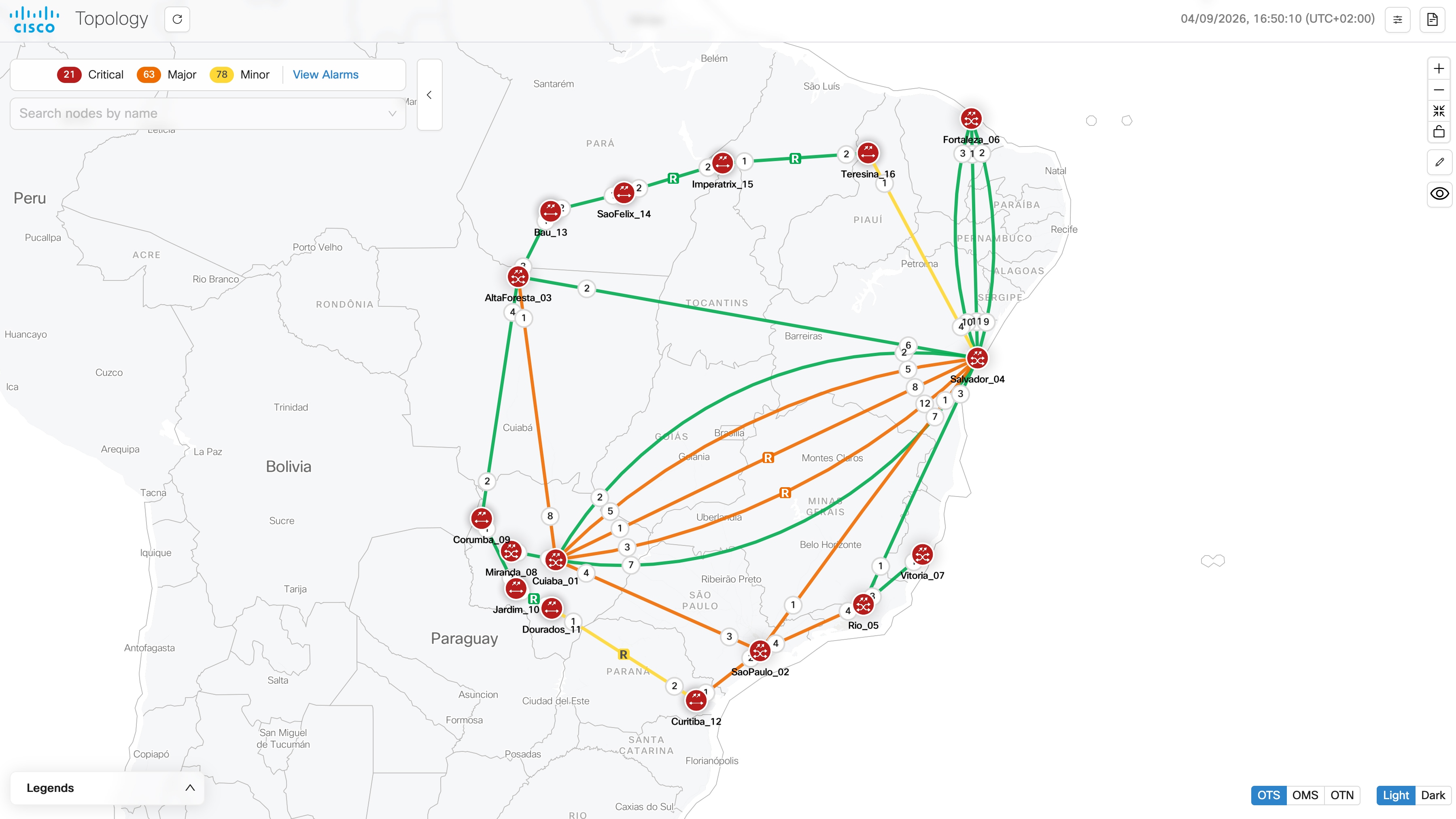

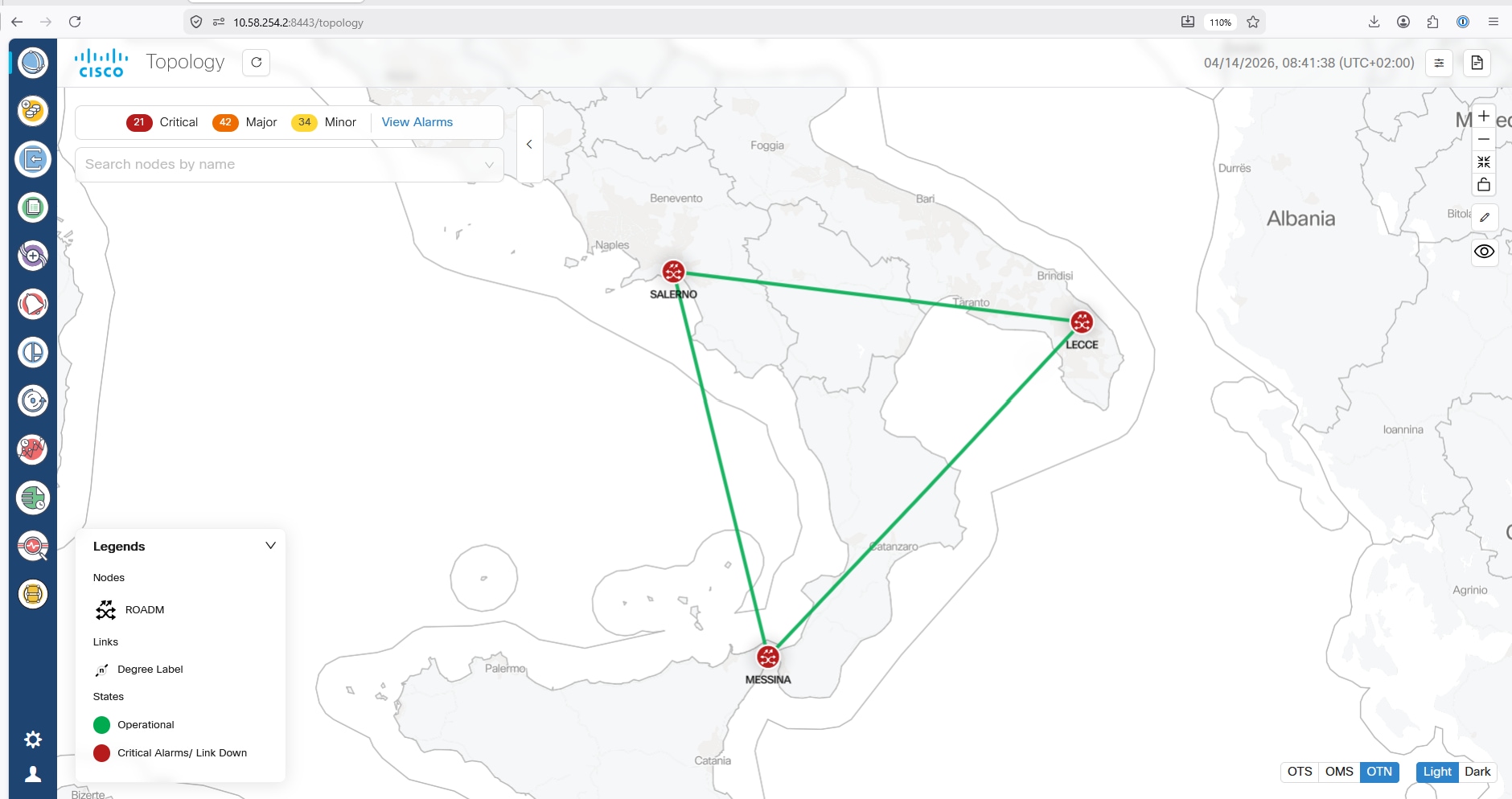

The Topology screen is an interactive screen which allows you to click on each node to fetch its information. The links between the nodes are the fiber links connecting each node. You can click on each fiber link to fetch its information when the OTS view is enabled. There can be multiple links connecting each node at any given point in time.

The Topology screen is responsible for maintaining and exposing the optical/OTN network topology for ONC, including:

Network devices (sites, nodes, interfaces).
Physical links (fiber spans, OMS/OTS/OTN links).
Optical protection groups.
OTDR configuration and SOR files.
Span-loss metrics and integration with PM flows.

Topology displays the network along with the nodes and the associated network links on a map. You can toggle between the Light and Dark modes to view this screen. You can zoom in zoom out the entire screen to view the network and its components. You can select the OTN, OMS or OTS layers as options in the display.

Layer segment buttons

The OTS option is used to show all fiber span between all type of nodes, OLT or ILA.

The OMS option is used to display only the ROADMs and the links between the ROADMs in the given network.

The OTN option is used to display the OTN links present between Transponders that support OTN, for example, NCS2K-400G-XP with card mode OTNXC.

Map control icons

Last time refreshed

The EDIT icon allows you to dynamically move any node to any Geo location on the screen. You can click on the RESET or SAVE button to reset or save the network status that is being displayed in the Topology screen anytime. Use the CENTER icon to position the map in the center.

The disconnected nodes are displayed with a cross mark. To cross launch to other related pages use the options appearing when you right click from anywhere on the map. You can click on the REFRESH button to refresh the Topology screen with the current status anytime.

Reload icon: This icon reloads the topology screen with the current status anytime.

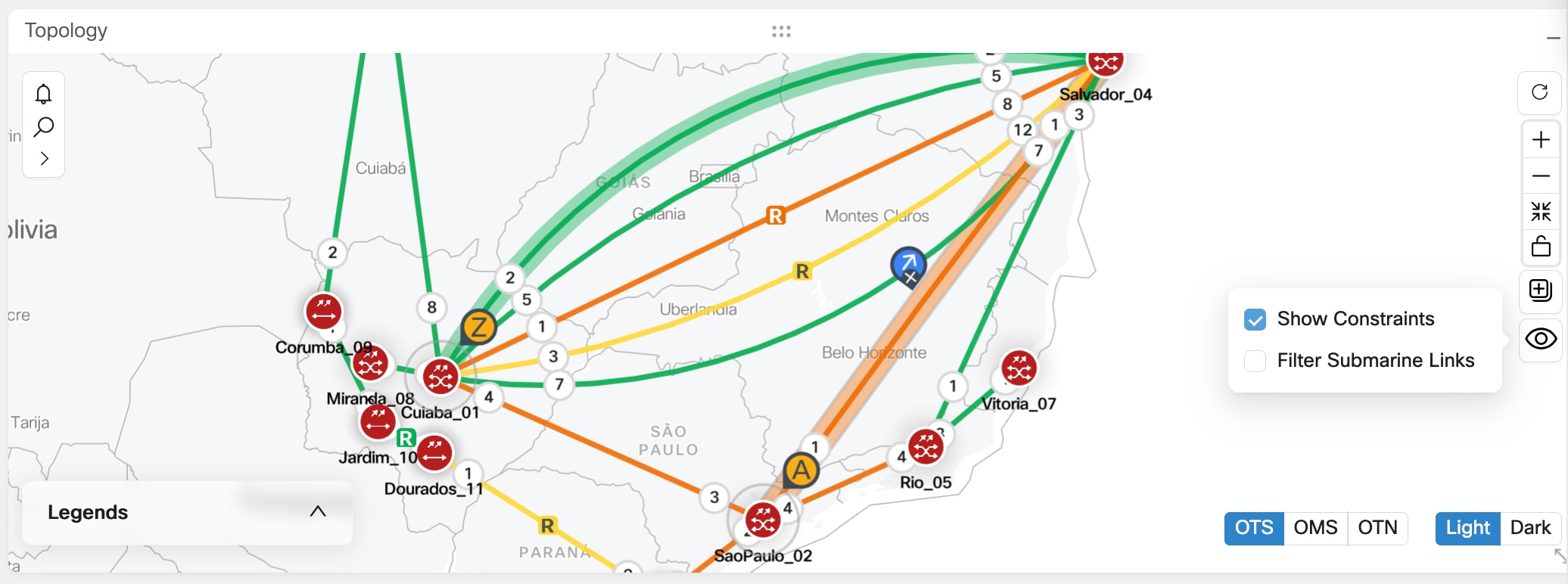

Configurations icon: This icon provides these toggle switches.

Mute Acknowledged Alarms: Enable to mute the alarms.
Display Degree Descriptions: Enable to display the first character of the degree description configured in COSM for every node degree. If the description is missing, the degree number will be shown. When you hover over the node, a pop up displays the full description of the degree. To add a degree description:
1. Right-click the required node and select View in Nodal UI to cross-launch COSM.

  COSM opens.
2. Select Optical Setup > Optical Configurations > Optical Degrees
3. Click Edit, change description and click Apply.

  The degree description changes reflects in the topology view after a refresh.

  For more information, see the Configuration Guide for Cisco Optical Site Manager.

Documentation icon: Opens the Cisco Optical Network Controller configuration guide.

Default view: The topology view zooms on the world map to show all the nodes by default. If you have a specific set of nodes that you are interested in, zoom and pan the map to the view that you want, and click Lock default view button to make it your default view. The default view persists across reloads and logins on the same browser. The default view shows the world map if there are no nodes. The topology view across Cisco Optical Network Controller shows the default view.

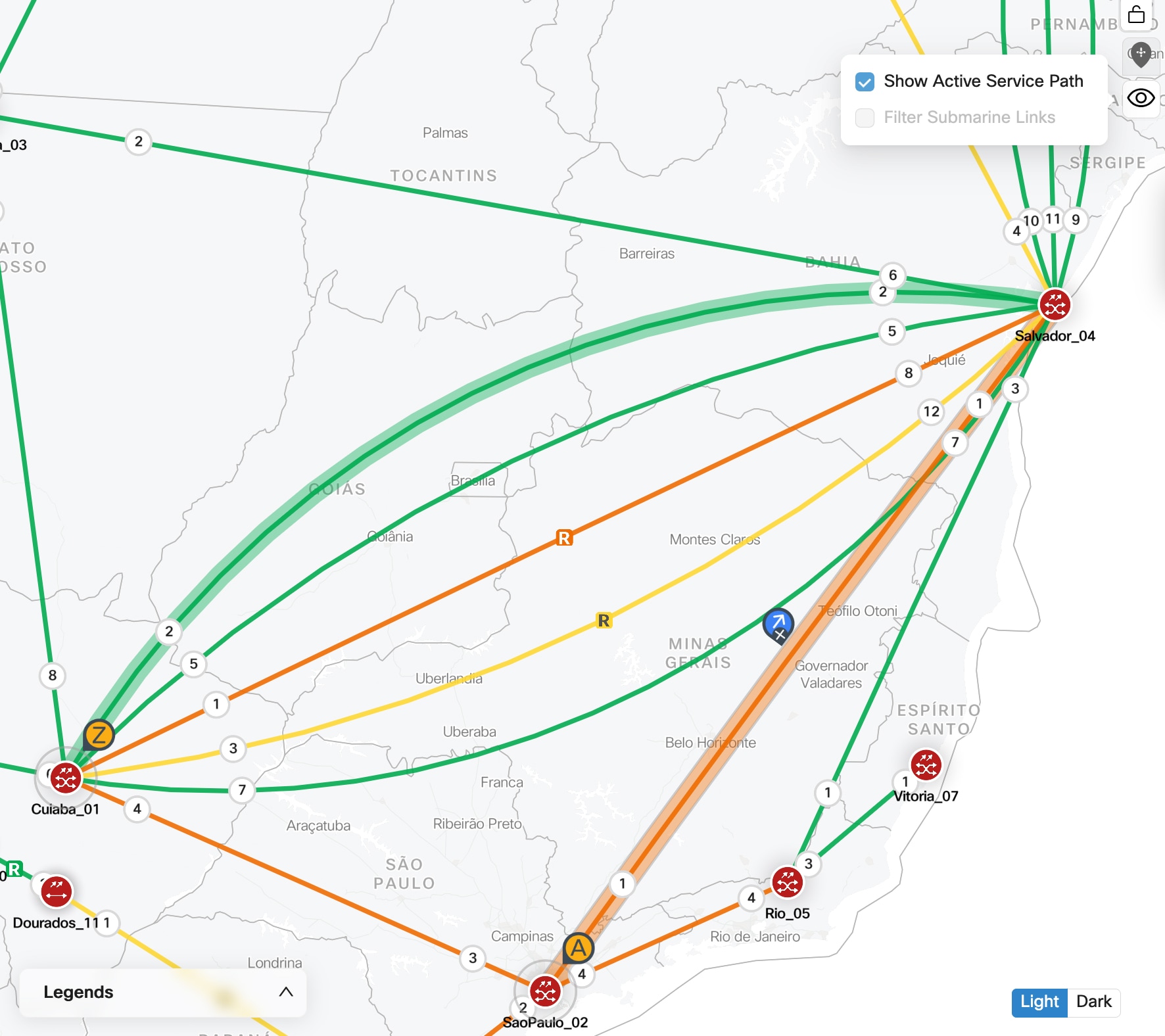

Eye icon: From R26.1.1, the topology view includes an eye icon that allows you to choose an SVO hosting map and submarine links map. This icon provide these check boxes.

Show SVO-LC Hosting Domain Groups: Displays the NCS 2000 nodes hosting SVO line cards. Click on the node to discover the domain groups associated to the same SVO line cards in HA. In the SVO domain groups view, the Domain Group Associations table appears displaying the Node Name, SVO-LC Name. In this map view, the Legends are updated with new icons such as circle (for nodes with one SVO line card) and pentagon (for nodes with more than one SVO line card).

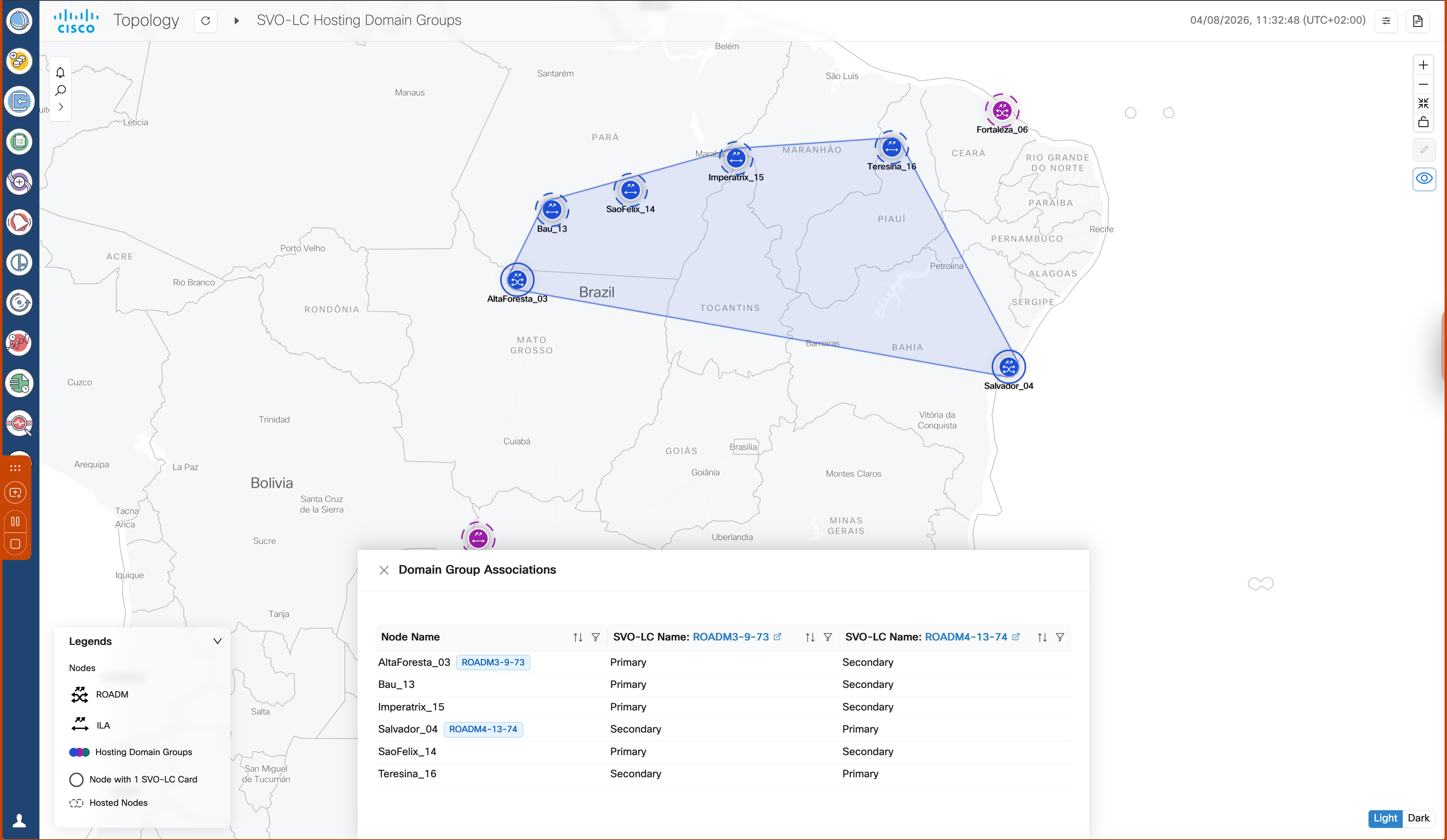

Figure 1. Domain Group Associations
Filter Submarine Links: Displays the submarine connections.

Alarm severity bar

On the top of this screen, there is an alarms bar for displaying the different alarm types and the count of each type of alarm that are part of the network. The View Alarm hyperlink opens the Alarm app. The alarm types are color coded based on the types of severity as seen in the table below.

Table 1. Alarm Severity
Alarm Type	Description
RED	Critical alarms are displayed in red color.
ORANGE	Major alarms are displayed in orange color.
YELLOW	Minor alarms are displayed in yellow color.

Note

Alarm severity type for any warning will appear as Warning and for cleared alarms they severity is displayed as Cleared.

Note

In the Topology screen, the alarms reported at the top left are related to only those nodes that have the Geo location defined. Due to this there can be a discrepancy between the alarms reported in the Topology and the Alarms screen related to these nodes.
In the Topology screen only the critical, major and minor count alarms are reported, unlike the Alarms screen which reports the warnings or cleared alarms.

Use the Search nodes by name search bar to search for nodes in the topology network. This will fetch and locate the exact node in the map.

Individual node pop-up options

You can get the node name along with the COSM site name it belongs to and its current state by hovering over each node in the Topology map anytime.

Hover over a node and right click on it.

The pop-up options appear.
Select of the options: Resync, View in Node UI and View Alarms options.

Table 2. Topology Node Options
Options	Description
Resync	Resync starts the resync of the selected node.
View in Node UI	This option takes you to the COSM site from where you can view the node details.
View Alarms	This option opens the Alarms application in a new tab, from where you can view all the alarms details.

You can also view the information related to the different nodes, links, and the states of each node in the network at any point in time by clicking the Legends option. To select any node in the network, use the drop-down box to select the node.

Note

The links between each node in the network in the Topology map displays the degree numbers which can be right clicked to navigate to the particular Node UI. The 'R' in the link refers to Rama Amplified. This is not visible when you select the OMS layer option to view the map.

Click Legends in the bottom of the Topology screen to view the various representations used in the map as shown below.
- Nodes: The different nodes that are part of the network at any given time.
- Links: The different links between nodes along with the amplifier and degree labels.
- States: The different states like operational, critical alarms, link down and minor alarms.
In the Topology map if two nodes have the same Geo location then they appear as a single node due to overlapping with each other which is a constraint.
If any node in the Topology screen does not have a Geo location specified, the button in the upper right corner which is used to enter the Geo location value displays an orange highlight or dot. This orange dot is used to represent that there is at least one node which does not have any Geo location specified. When you click this orange dot a pop-up menu appears displaying all such nodes that are lacking Geo locations. Click the Edit icon and then select any node to move it to any desired location om the map. This will add the Geo locations to the node. You can move the node and the Topology maps the Geo location automatically for these node based on the location.
Once the Geo location is selected, Cisco ONC displays a message to indicate that the Topology has been updated and to view the updated changes you must refresh the page by clicking the Refresh or Reload button.

From Cisco Optical Network Controller 24.3.1 release onwards, fiber information and span loss details are added newly to the Topology live PM tool tip. When you click on the fiber span link in the map, you will see the following details appearing in the tool tip information:

Fiber Type: The type of fiber link.
Length: The length of the fiber link.
Source Min Expected Spanloss: Source node's minimum expected span loss value.
Source Max Expected Spanloss: Source node's maximum expected span loss value.
Destination Min Expected Spanloss: Destination node's minimum expected span loss value.
Destination Max Expected Spanloss: Destination node's maximum expected span loss value.
Span Loss: Span loss table.

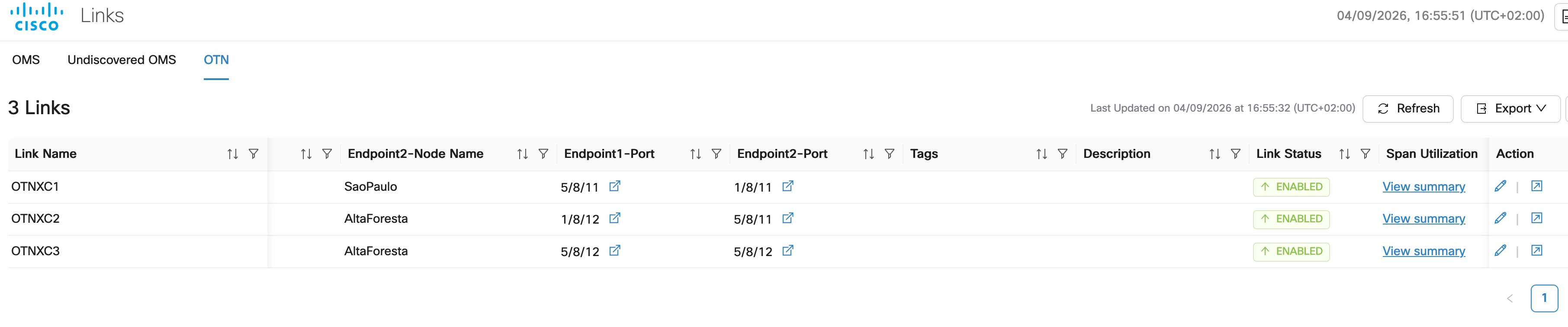

Check span utilization summary for OTN links

In the left panel, click the Links app.
Go to the OTN tab and click the required OTN link.

Figure 4. Links app

Click View summary to open Span Utilization Summary for the selected OTN link.

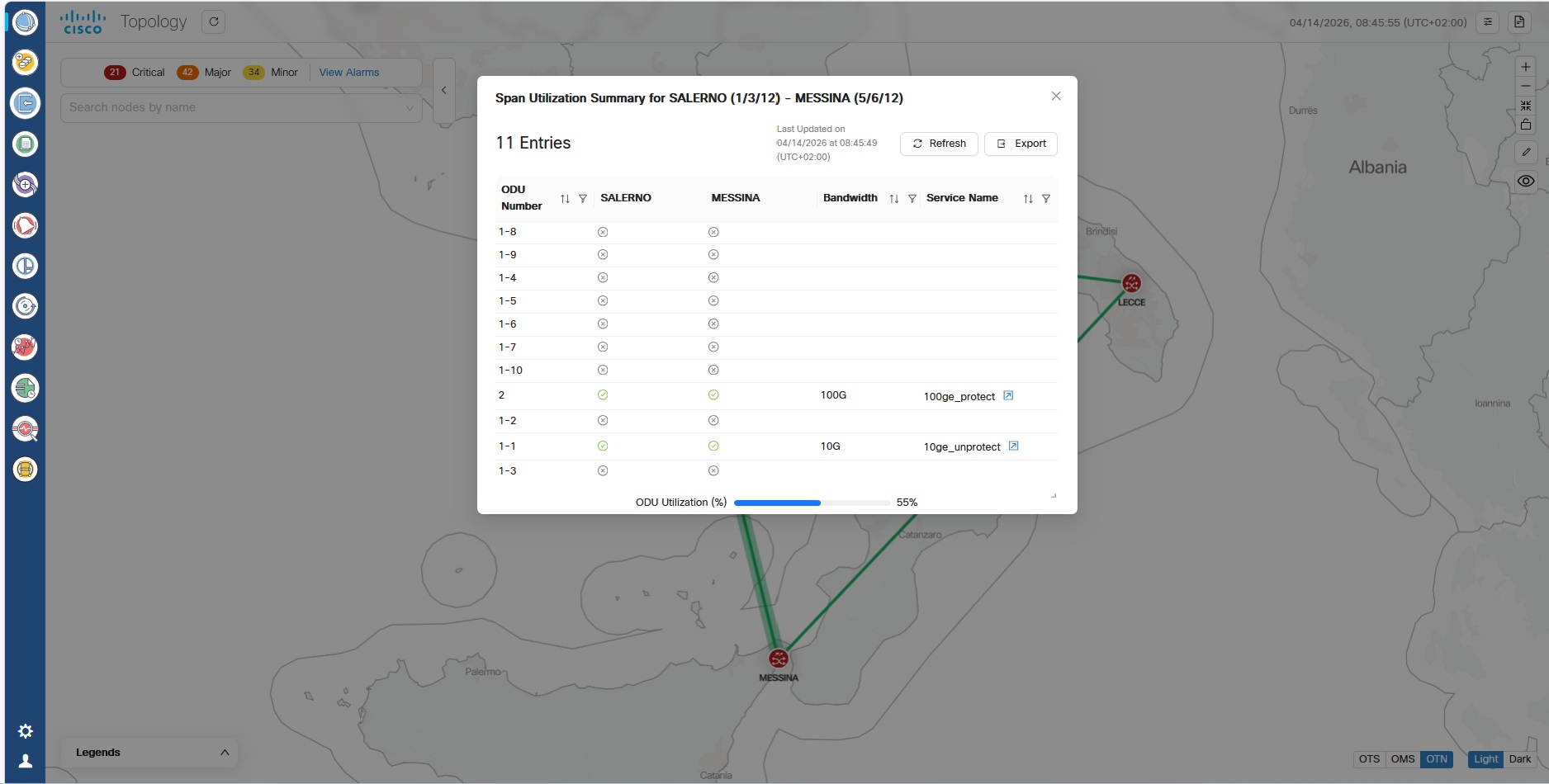

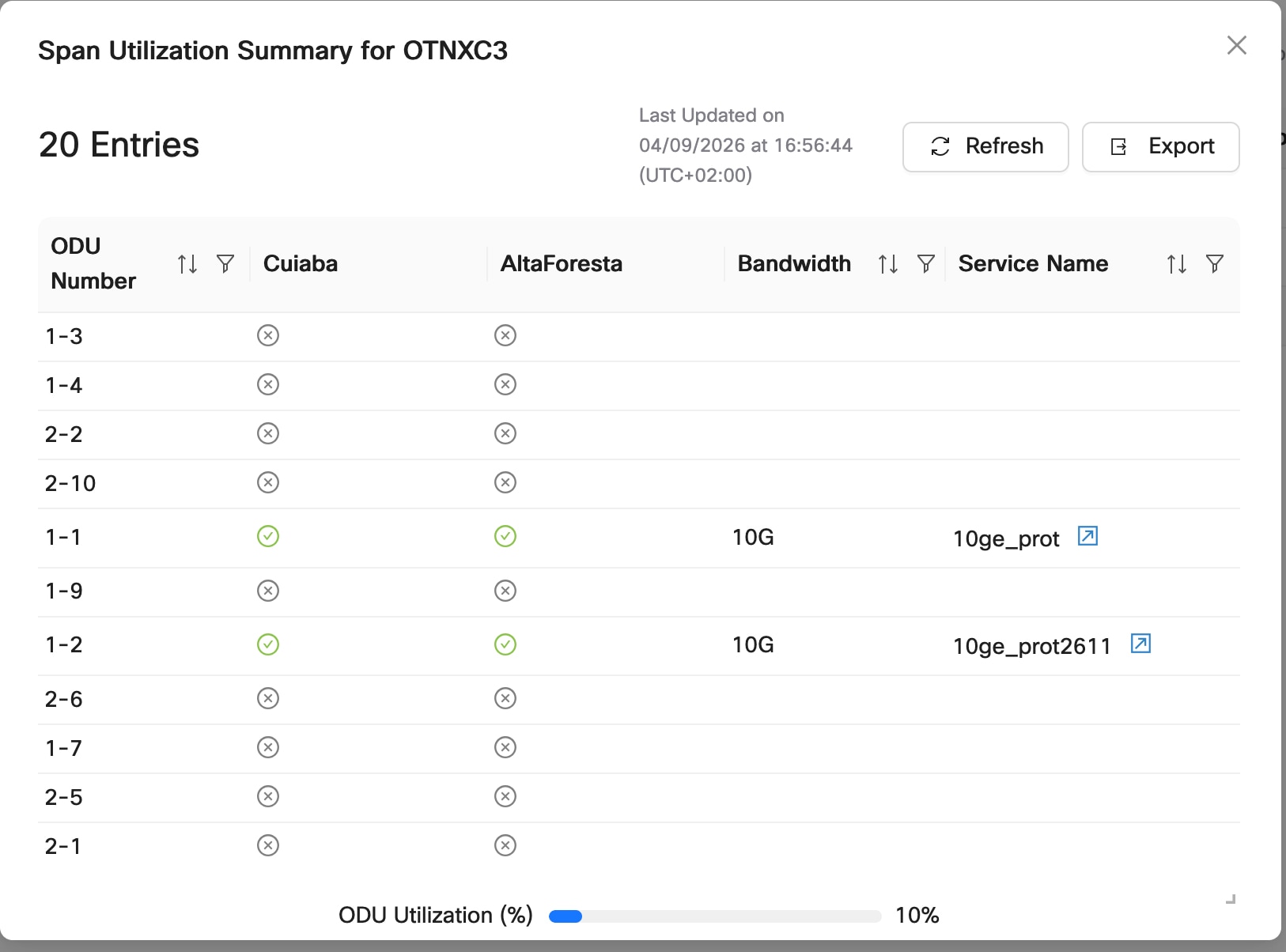

Figure 5. Span utilization summary in Topology screen

In this summary, these parameters appear:

Note

ODU Number
Source endpoint
Destination endpoint
Bandwidth
Service Name for all ODU connection present.

ODU Utilization (%) in percentage is also available with respect to total bandwidth available in OTN-link.

(Optional) Click Export to export the ODU span utilization table in an Excel.

Note

On Topology tool tip information, it is possible to add a description and save.

Screenshot of Topology Live PM — Figure 6. Topology Live PM

Screenshot of Tool Tip — Figure 7. Tool Tip

Troubleshooting in Topology

The most common problems encountered while using the Topology application is given below.

A pop-up message: Asking to reload the page appears in the following scenarios.
- New node onboarded or deleted
- Geo locations changed
In case the node, link or icons of the nodes are missing and not displayed in the Topology screen then refresh the page.

Nodes

A node refers to a device in the network. You can add a single node or a set of nodes in the form of a batch at any given point in time.

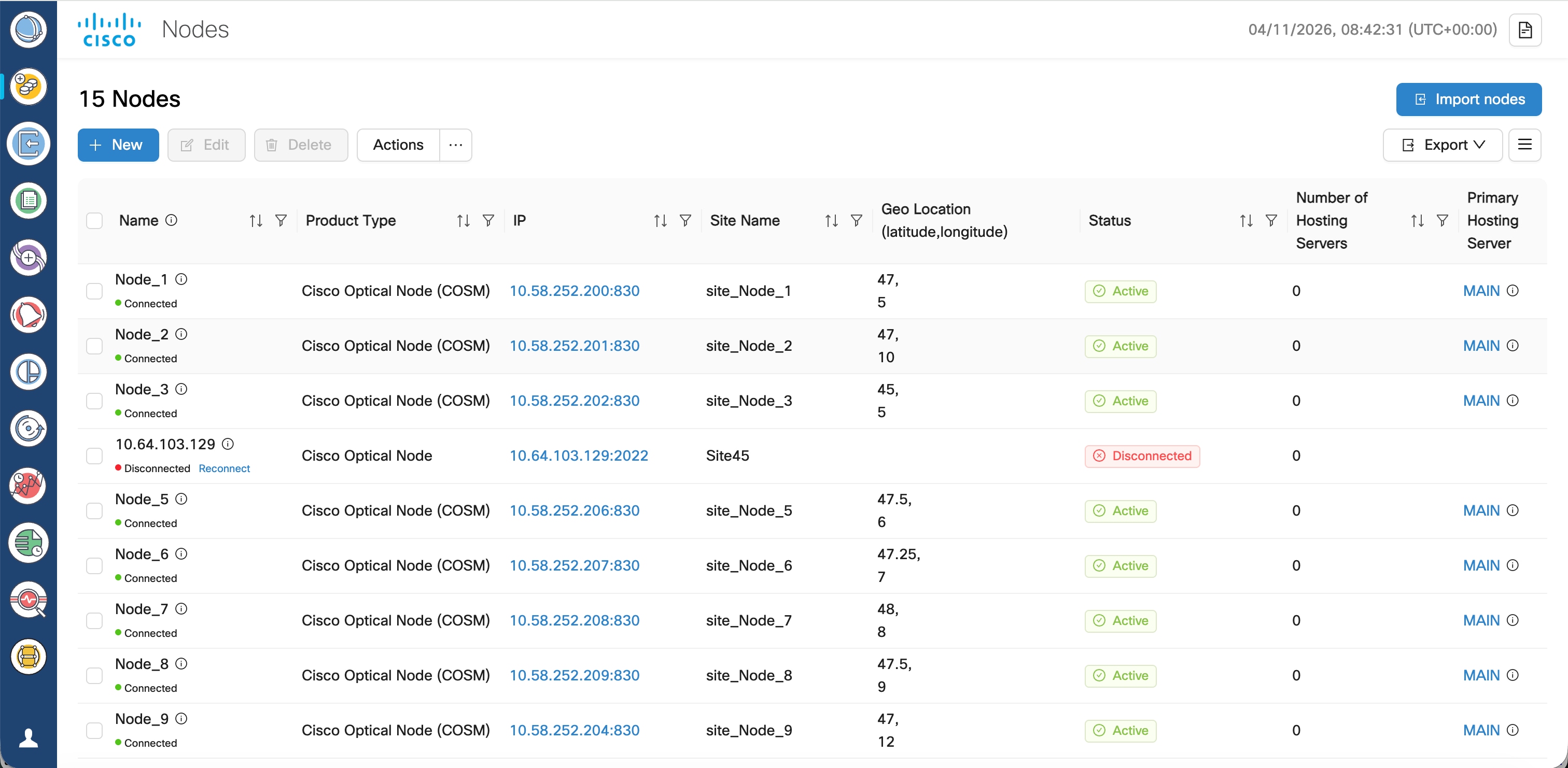

Use the Nodes screen to view the details of each node. The Nodes table displays the following details for each node:

Node Name: The name of the node. The node name provided by you must match the original node name used in Cisco Optical Site Manager. In case of any mismatch or discrepancy issues, user given name is configured on Cisco Optical Site Manager.
Product Type: The type of product the node belongs to. For example: Cisco Optical Site Manager.
IP: Port (NETCONF): The IP address of each node along with the port number.
Site Name: The location of the site that each node belongs to. For example: ROADM_Site_Bengaluru_33
Geo Location: The Geo location of each node in terms of the latitude and longitude values based on where exactly the node is situated in the world at any given time.
Status: The status of each node within the network to know whether it is active or disconnected.
Number of Hosting Servers: Define the number of SVO Line Cards present in the COSM NCS 2000 node.
Primary Hosting Server: Displays the active SVO line card hyperlink. Click the hyperlink to open the COSM admin plane for the hosting server.
Secondary Hosting Server: Displays the standby SVO line card hyperlink. Click the hyperlink to open the COSM admin plane for the hosting server.
Up Time: Displays the duration the COSM node is active.
Host Sync Error: Displays the sync error details.

Hover over the information (i) icon that appears along with each node in this Node Name column to view these additional details of a node:

Site Description: A brief description of the site associated with the node.

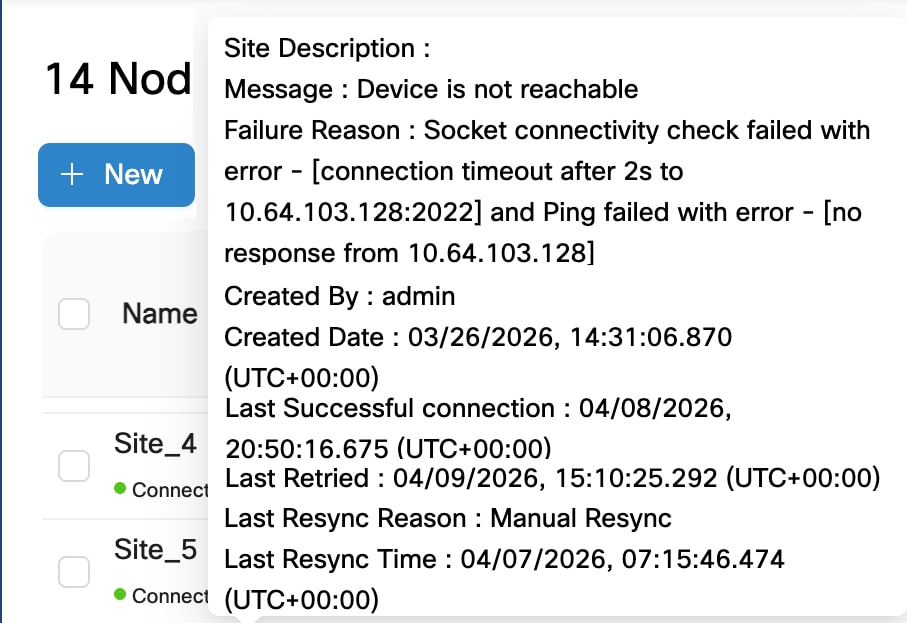

Message: Displays information about any error conditions related to the node.
Failure Reason: Indicates why the node cannot connect or is unreachable. This field is only visible when a node is in Waiting_for_connection state.

Here are example values for the field:
- Socket connectivity check failed with error - [dial tcp 10.20.30.40:2020: connect: connection refused] but Ping succeeded
- Socket connectivity check failed with error - [connection timeout after 2s to 10.20.30.40:22] and Ping failed with error - [no response from 10.20.30.40]
- Socket connectivity check failed with error - [dial tcp 10.20.30.40:22: connect: no route to host] but Ping succeeded
Created by: Displays the user id that added the node.
Created Date: Shows the date and time when the node was added.
Modified Date: Shows the date and time when the node details were last updated.
Last Successful connection: Shows the date and time when the node last connected successfully.
Last Retried: Shows the date and time when the last connection attempt was made for this node. This field is only visible when a node is in Waiting_for_connection state.
Last Resync Reason: Shows the reason for the most recent resync of the node.
Last Resync Time: Shows the date and time when the most recent resync of the node occurred.

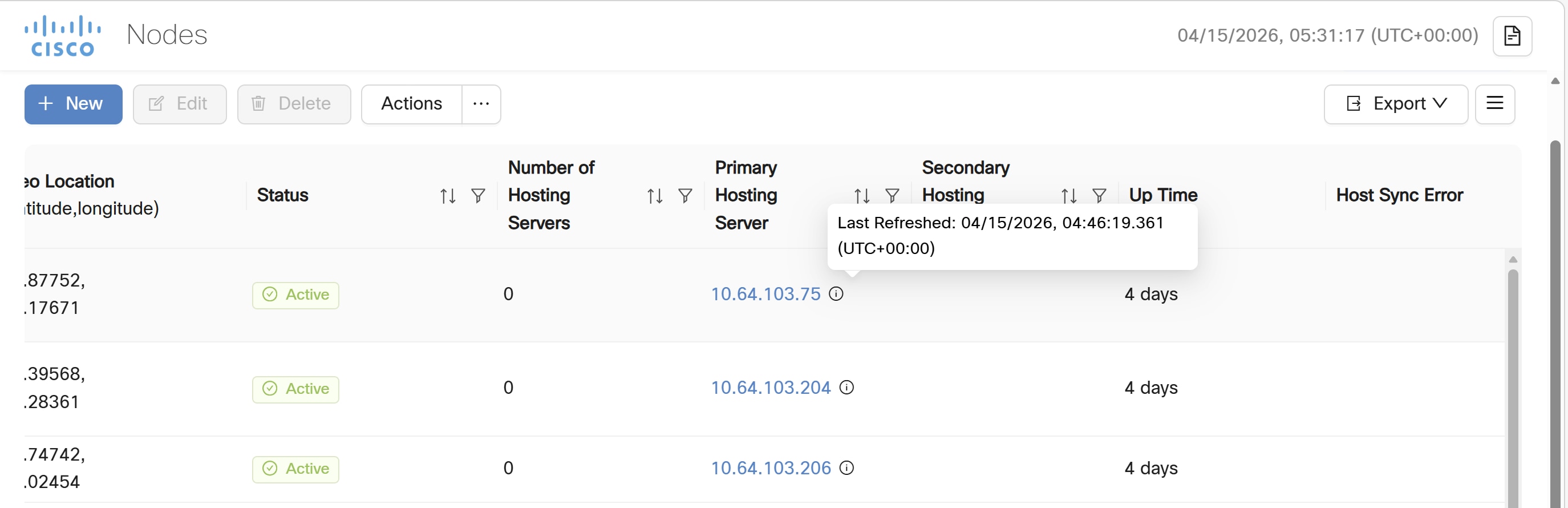

From release 26.1.1, the Nodes screen displays the last refreshed information for the primary hosting server. Hover over the i icon to get the latest refreshed information.

Use the sort or filter options to sort and filter values in the table. You can also cross launch to Cisco Optical Site Manager using the links provided in this table.

Use the Actions button for synchronizing and configuring the network sync along with reconnecting the various nodes present in the network. These are the available options.

ReSync: Used for resyncing any selected node in the network.
ReSync All: Used for resyncing all the nodes in the network.
Reconnect: Used to reconnect any or all the nodes.
Configure Network Sync: Used for Daily Network Full Sync. Enable or Disable this functionality.
Test Connection: Used for sending pings to the far end node.
Resync Host Details: Used for resyncing NCS 2000 node with SVO line cards.

Note

Latitude and longitude values can be set in both Cisco Optical Site Manager and Cisco Optical Network Controller. The following scenarios are possible:
- Geo location is set in both Cisco Optical Site Manager and Cisco Optical Network Controller: Cisco Optical Network Controller Geo location is used.
- Geo location is set only in Cisco Optical Site Manager: Cisco Optical Site Manager Geo location is used .
- Geo location is set only in Cisco Optical Network Controller: Cisco Optical Network Controller Geo location is used.
- Geo location is not set in either Cisco Optical Network Controller or Cisco Optical Site Manager: You will be prompted to add the node in Topology with the edit button.

  For all the cases mentioned above, Cisco Optical Network Controller latitude and longitude value has a higher priority over the Cisco Optical Site Manager latitude and longitude values during the onboarding process. In case the Cisco Optical Network Controller latitude and longitude values are not provided, only then the Cisco Optical Site Manager latitude and longitude values are used.
Even if the user updates the Geo location in Cisco Optical Network Controller, it does not get updated in the Cisco Optical Site Manager device.
If the Geo location values that are coming from Cisco Optical Site Manager in a pre-filled format has more than four digits, then the length of the Geo location value is truncated to only four digits.
Node names are synchronized between Cisco Optical Network Controller and the nodes it manages. During onboarding, node name provided in Cisco Optical Network Controller is pushed to the node if the node has a different name. Changes made on Cisco Optical Site Manager is reverted as Cisco Optical Network Controller pushes the original name to Cisco Optical Site Manager.

During a onboard and resync operation, Cisco Optical Network Controller pushes the current node name to the node, ensuring consistency even if changes were missed while the device was offline.

Reserved internal IP addresses and subnets

Cisco Optical Network Controller uses specific IP addresses and subnets for its internal network. These ranges are reserved and must not overlap with the IP addresses assigned to any nodes.

Before adding nodes to the Cisco Optical Network Controller, ensure their IP addresses are planned accordingly and do not fall within any of the reserved internal IP ranges in this list.

10.241.x.x/24
10.242.x.x/24
10.243.x.0/24
10.91.0.0/16
10.92.0.0/16
10.93.0.0/16
172.16.0.1/32

Note

Do not use the subnets configured for the control plane for any other purpose.

Add nodes on Cisco Optical Network Controller

You can add a single node or a set of nodes in the form of a batch use the procedure given below.

Before you begin

Verify these before addding to Cisco Optical Network Controller:

Verify the Cisco Optical Site Manager is reachable from Cisco Optical Network Controller server via DCN.
NETCONF port is enabled on the Cisco Optical Site Manager. .
The COSM1K (NCS 1000 series) nodes must be added using port number 2022.
All COSM2K (NCS 2000 series) nodes must be added using port number 830.
You must add only fully configured nodes. All passives and patchcords must already be created before you add a node.

Procedure

Step 1

Click Nodes in the left panel.

Step 2

Click New.

Step 3

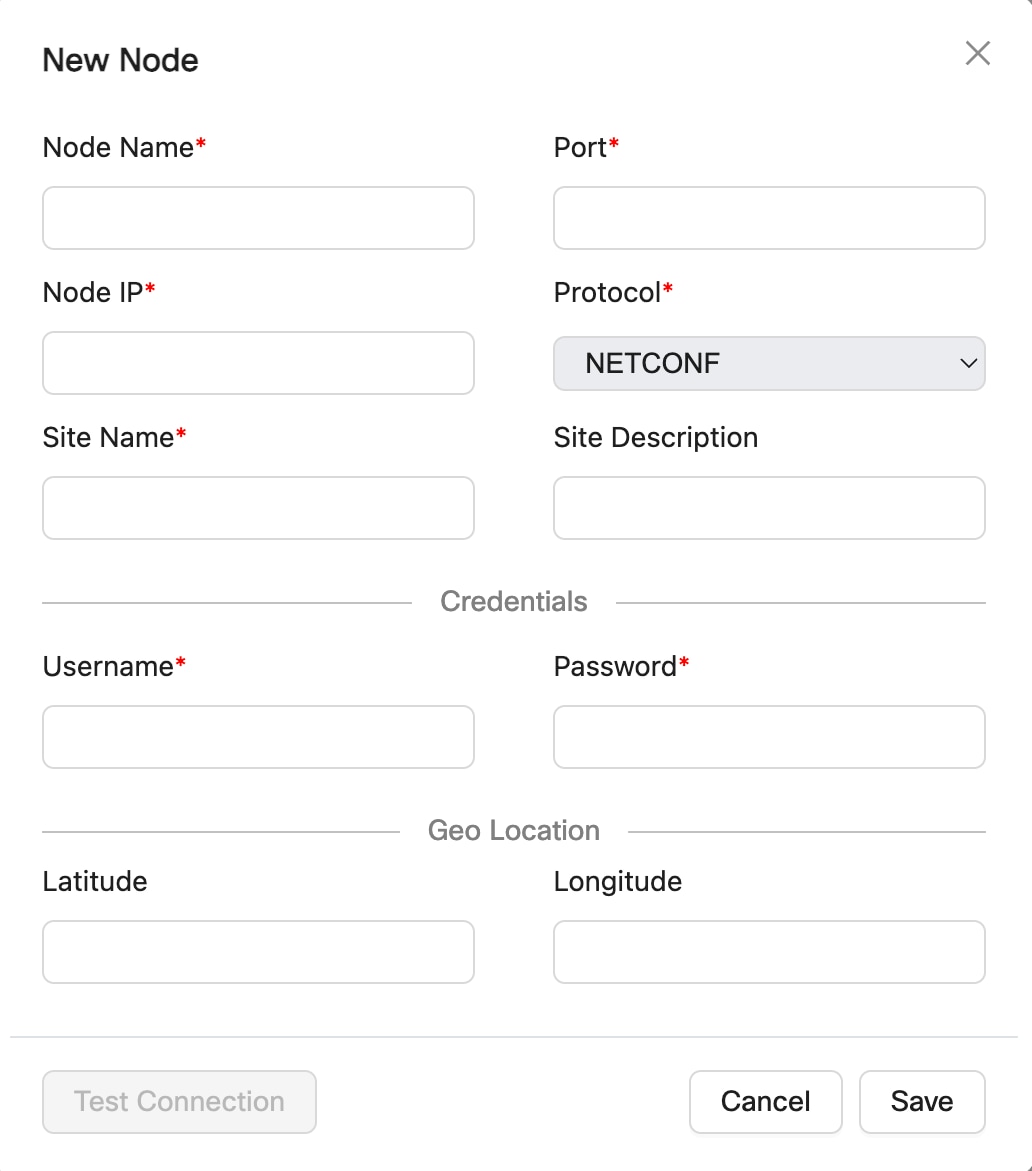

In the New Node dialog box, enter the device details necessary connect to the device as given in the table below.

Ensure that you enter valid a username and password of the device to enable Cisco Optical Network Controller to connect to the device. For details about field descriptions, see the Table 1 table.

Step 4

To test connectivity from Cisco Optical Network Controller to a Cisco Optical Site Manager node, perform these steps:

(Optional) Click Test Connection to test the connectivity to the node.

Note

The Test Connection button is enabled only if the Node Name, Port and Node IP fields are filled.

The Test Connection dialog opens for the selected node and shows the node name, node IP address, node port, connection status, and test duration..

Click Try Again if you want to rerun the connection test.
Click Ping if you want to verify node reachability from Cisco Optical Network Controller.

The ping result shows the reachability status and test duration for the selected Cisco Optical Site Manager node.

Step 5

Click Save.

The new node or device is onboarded successfully and added to the Nodes table.

Cisco Optical Network Controller onboards the devices.

Table 3. Add new node field descriptions
Field	Description	Mandatory
Name	Name of the new node you are adding	Yes
IP	IP address of the new node which you are adding.	Yes
Port	The port number of the new node which you are adding.	Yes
Protocol	The protocol used for the new node which you are adding.	Yes
Site Name	The name of the site to which the new node belongs.	Yes
Username	The username for accessing the new node.	Yes
Password	The password for accessing the new node.	Yes
Site Description	The description of the site to which the new node belongs.	No
Latitude	The Latitude co-ordinate value that you want to assign for the new node to set its location.	No
Longitude	The Longitude co-ordinate value that you want to assign for the new node to set its location.	No

Import multiple nodes into Cisco Optical Network Controller

Use this task to import multiple nodes into Cisco Optical Network Controller from a spreadsheet.

Use this task to import multiple nodes into Cisco Optical Network Controller by using a spreadsheet. The bulk import option enables you to add multiple nodes at the same time instead of adding them individually.

Cisco Optical Network Controller onboards nodes in batches:

XS profile: 2 nodes at a time
S and M profiles: 3 nodes at a time

Before you begin

Follow thes steps to import multiple nodes from any spreadsheet into Cisco Optical Network Controller.

Procedure

Step 1

Click Nodes in the left panel.

Step 2

Click Import nodes to import the nodes in bulk.

Step 3

Click Dowload to download the node bulk import file template.

Step 4

For each node you want to import, enter its information in the appropriate columns in the dowloaded Excel sheet.

Step 5

In the Import xlsx dialog box, select the Excel sheet.

Screenshot of Import nodes — Figure 12. Import nodes

The sample bulk import template file includes these fields that you must fill out before importing the Excel sheet:

Table 4. Bulk Import File Template

Name

Description

Node Name

Name of the host node.

Node IP

The IP address of the node you are adding.

Note

Ensure that this IP does not overlap the Reserved internal IP addresses and subnets.

User Name

The username for accessing the new node.

Password

The password for accessing the new node.

Connectivity Type

The type of the protocol used for connecting the node.

Default: NETCONF

Connectivity Port

The port number of the node.

Port number 2022 for NCS 1000 series nodes.

Port number 830 for NCS 2000 series nodes.

Site Name

The name of the site to which the new node belongs.

Site Description

The description of the site to which the new node belongs.

Product Type

Set it as Cisco Optical Node.

Latitude

Specify the latitude co-ordinate value you want to assign to the new node to set its location.

Longitude

Specify the longitude co-ordinate value you want to assign for the new node to set its location.

After you upload the file, Cisco Optical Network Controller validates the entries and displays the message Import in progress while the nodes are being onboarded.

The new nodes are onboarded and added to the Nodes table. Wait until all nodes have completed onboarding.

What to do next

On the Nodes page, verify the total node count displayed at the top and match it with the number of nodes listed in the Excel file to ensure onboarding is complete.

Export Nodes on Cisco Optical Network Controller

Before you begin

For exporting the node details from the table use the procedure given below.

Procedure

Step 1	Click Nodes in the left panel.
Step 2	Click Export to export the details to a spreadsheet file.

Edit Nodes on Cisco Optical Network Controller

Before you begin

Use the Edit option for editing the node details, use the procedure given below.

Procedure

Step 1

Click Nodes in the left panel.

Step 2

Click EDIT after selecting the node from the table.

In the edit mode the Cisco Optical Site Manager (COSM) geo location latitude and longitude values appear as separate values which can also be modified as required. Once the onboarding of the node or device is complete you can edit any selected node and modify its credentials using the EDIT option.

Delete nodes on Cisco Optical Network Controller

Use this task to delete one or more nodes from Cisco Optical Network Controller.

Cisco Optical Network Controller supports node deletion even if OXC circuits. This operation does not affect traffic and you can add the same node back later.

When a node is deleted, Cisco Optical Network Controller takes these actions for the delete node.

All alarms for the deleted node are removed from the Current Alarms tab and retained in the History Alarms tab.
Audit logs for the deleted node are retained
PM history for the deleted node is removed.

This table describes circuit behavior when a node is deleted:

Circuit type When the deleted node is... Service behavior in Service Manager app

CPCE A node through which the service passes. Service is deleted.

The terminal node of the service. Service is deleted.

A combination of terminal node and a node through which the service passes. Service is deleted.

GMPLS

A destination node or/and a node through which the service passes.

Service is not deleted and moves to the PARTIAL state.

Note

For the TAPI notification northbound interface, the service is marked as PENDING REMOVAL when the service is in the PARTIAL state.

The source node of the service. Service is deleted.

All nodes in the service. Service is deleted.

Follow these steps to delete nodes on Cisco Optical Network Controller.

Procedure

Step 1

Click Nodes in the left panel.

Step 2

Select the node or nodes that you want to delete.

Step 3

Click Delete.

The selected node is deleted from the table.

Note

Wait at least 2 minutes after device discovery completes before you delete the device.
Node deletion is not allowed when the node status is Resync In-Progress, regardless of whether the node has any services. In this case you will receive an error message for the Node Deletion Failure when the circuit is spanning through the node.
When an OXC is deleted from Cisco Optical Site Manager or the XR CLI, the Lifecycle State in the Service Manager application of the service connected to the OXC changes from INSTALLED to PARTIAL.

A warning message is displayed.

Step 4

Review the impacted services as described in the warning message.

Step 5

In the Delete Node dialog box and click Delete.

The selected nodes are deleted from Cisco Optical Network Controller.

Troubleshooting in Nodes

The most common problems encountered while adding new nodes are given below.

Bulk import failure

In this case you will get a text file describing the specific issues in the template.

Note

Cisco ONC does not allow deletion of a node which involved in the collection or resync process, or while it is a part of any circuit path

Nodes possible status

Node Status

Description

User Action

In Progress

Cisco ONC is collecting information about the onboarded device.

No action is needed, wait for the status to change.

Resync Pending

Cisco ONC has gone out of sync with device and is scheduled for a resync.

Either wait for scheduled resync or start the resync manually.

Resync In-progress

Cisco ONC is re-collecting information about the onboarded devices.

No action is needed, wait for the status to change.

Disconnected

Cisco ONC was unable to establish a session with COSM.

Attempt re-connect or resync. If the problem still persists contact Cisco TAC.

Active

All information has been collected from the device and it is ready for operations.

Note

It is recommended to wait for 60 secs once the device is turned to Active state which ensures the device is ready for accepting requests.

Nodes connection status


Connection State	Description	User Action
Connected	Cisco ONC has successfully established the session with the COSM device provided user/password information.	No action is needed.
Disconnected	Cisco ONC was unable to establish session with COSM.	Attempt re-connect or resync. If the problem still persists contact Cisco TAC.
Waiting for connection	Cisco ONC is attempting to establish connection with COSM.	No action is needed.
Resync_needed	Cisco ONC has gone out of sync with device and is scheduled for a resync.	Either wait for scheduled resync or start the resync manually.
Resync Failed	Cisco ONC was unable to resync after multiple retries.	Attempt Resync. If problem still persists contact Cisco TAC.
Discovery Failed	Cisco ONC was not able to collect information from the device as it might have timed out or failed.	Attempt Resync. If problem still persists contact Cisco TAC.
Errored	Cisco ONC was not able to collect information from the device even after 3 retries.	Attempt Resync. If problem still persists contact Cisco TAC.

De-boarding of a node fails
- Ensure no circuit is created involving this node.
- Retry deleting the node after sometime.
- In case the deletion fails even after you have retried it multiple times, contact Cisco TAC for further assistance.

Test connectivity from Cisco Optical Network Controller to a Cisco Optical Site Manager node

Validate reachability and NETCONF port connectivity between Cisco Optical Network Controller to a Cisco Optical Site Manager node.

Use Test Connection to verify NETCONF port connectivity.
Use Ping to verify that the node is reachable from Cisco Optical Network Controller.

You can run these diagnostics while you add a node or after the node is onboarded.

Before you begin

Follow these steps to test connectivity from Cisco Optical Network Controller to a Cisco Optical Site Manager node.

Procedure

Step 1	Open the connectivity test for the node. To test connectivity during adding a new node, in the Node Node dialog box, click Test Connection after adding the node details. For detailed steps, see Add nodes on Cisco Optical Network Controller. To test connectivity after onboarding, on the Nodes page, select the node, click Actions, and choose Test Connection. The Test Connection dialog opens for the selected node and shows the node name, node IP address, node port, connection status, and test duration.
Step 2	Click Try Again if you want to rerun the connection test.
Step 3	Click Ping if you want to verify node reachability from Cisco Optical Network Controller. The ping result shows the reachability status and test duration for the selected Cisco Optical Site Manager node.
Step 4	Click Try Again if you want to rerun the connection test.

Alien Import

Before you begin

To import and export the alien device data use the procedure given below.

Note

For more details on how to model an alien wavelength or transceiver, etc through Cisco Optical Network Planner (CONP) see CONP Manage Alien.

Screenshot of Alien Import — Figure 13. Alien Import

Procedure

Step 1

Click the Import icon on the top of the table.

Cisco Optical Network Controller imports and displays the information of all the alien devices from the XML file. After successful import, the alien device information is available for applications that use the Cisco Optical Network Controller TAPI and REST API.

Step 2

To export the alien device information in JSON or XML formats, click Export and choose the target format from the drop-down list.

Note

The XML file which is imported in Cisco ONC is generated by CONP and can have some third-party restrictions on it.

Step 3

Click the Refresh button to refresh the equipment status.

Step 4

Click on the Show or hide columns icon to select any columns to be displayed or hidden from the table view anytime.

Step 5

Use the page numbers and select the number of rows per page as required for the table display.

Step 6

Use the sort or filter options to sort and filter values in the table.

Network Inventory

Before you begin

This task describes how to view inventory details on Cisco Optical Network Controller. To view or export the inventory details, follow the procedure given below.

Screenshot of Network Inventory — Figure 14. Network Inventory

Procedure

Step 1

Click Network Inventory in the left panel.

Cisco Optical Network Controller displays the Inventory tab. This tab displays all the inventory at the selected site.

Step 2

Click the node that you want to view the details of.

There is an option for selecting cascading windows for each node to view the Common Cards and the Slot Cards.

Step 3

(Optional) To export inventory data into an excel file, click Export.

Step 4

Click the Refresh button to refresh the inventory status.

Step 5

Use the filter to search using Custom Search or Quick Search options.

Note

Custom Search: Use this option to filter the search based on any particular field from the table. By selecting from the drop down list, the rows that are specific to the selected field appear in the search result. You can custom search using any of these options: Admin State, Equipment Type, Software Revision, Equipment State, Actual Equipment Type, Serial No or Site Name.

Quick Search: Use this option to search based on any value or field by typing it in the search box to fetch the related rows from the table.

Service Manager

The Service Manager is an application within the Cisco Optical Network Controller that provides a centralized view and management of network services, particularly circuits. It enables users to visualize, provision, and monitor circuits, and perform actions such as editing and deleting them.

Supported Circuit Types

OCH-NC
OCH-Trail
OCH-CC

GMPLS Support

Supports OCH-CC with NCS1004 chassis with the following cards:
- NCS1K4-1.2T-K9
- NCS1K4-OTN-XP
- NCS1K4-2-QDD-C-K9
- NCS1K4-QXP-K9
Support OCH-CC with NCS1014 chassis with the following cards:
- NCS1K4-QXP-K9
- NCS1K14-2.4T-X-K9
Supports OCH-CC and OCH-TRAIL with the following NCS2K Transponder/Muxponder
- NCS2K-400G-XP (with card mode: MXP)
- 15454-M-10X10G-LC (with card mode: TXP-10G and MXP-10x10G)
- NCS2K-200G-CK-C (with card mode TXP-100G and MXP-10x10G)
Supports OCH-TRAIL with the following NCS2K Transponder/Muxponder
- NCS2K-400G-XP (with card mode: OTN-XP)
Supports OCH-NC with alien wavelength

Existing CPCE circuits

Existing circuits are circuits that are already existing on devices. The configuration of these circuits is done either outside of Cisco Optical Network Controller, using Site Manager or CLI. It can be configured through a different instance of Cisco Optical Network Controller as well which manages the same network. The existing circuit's service names have the following format: onc_<SourceNode-Name>_<Source-Port>_<DestinationNode-Name>_<Destination-Port>.

Resync services

You can select multiple services and use the resync option to resynchronize them.

Figure 15. Select multiple toggle

Figure 16. Resync option for GMPLS circuits
Resyncing can resolve lifecycle state issues, for example, when the circuit is in PARTIAL, where clients are not discovered properly or are in an ambiguous state.
When multiple services are selected, the More button is replaced with a Resync button.
Resyncing a trail service also resyncs all its embedded OCH-CC services.

Service Manager table view toggles

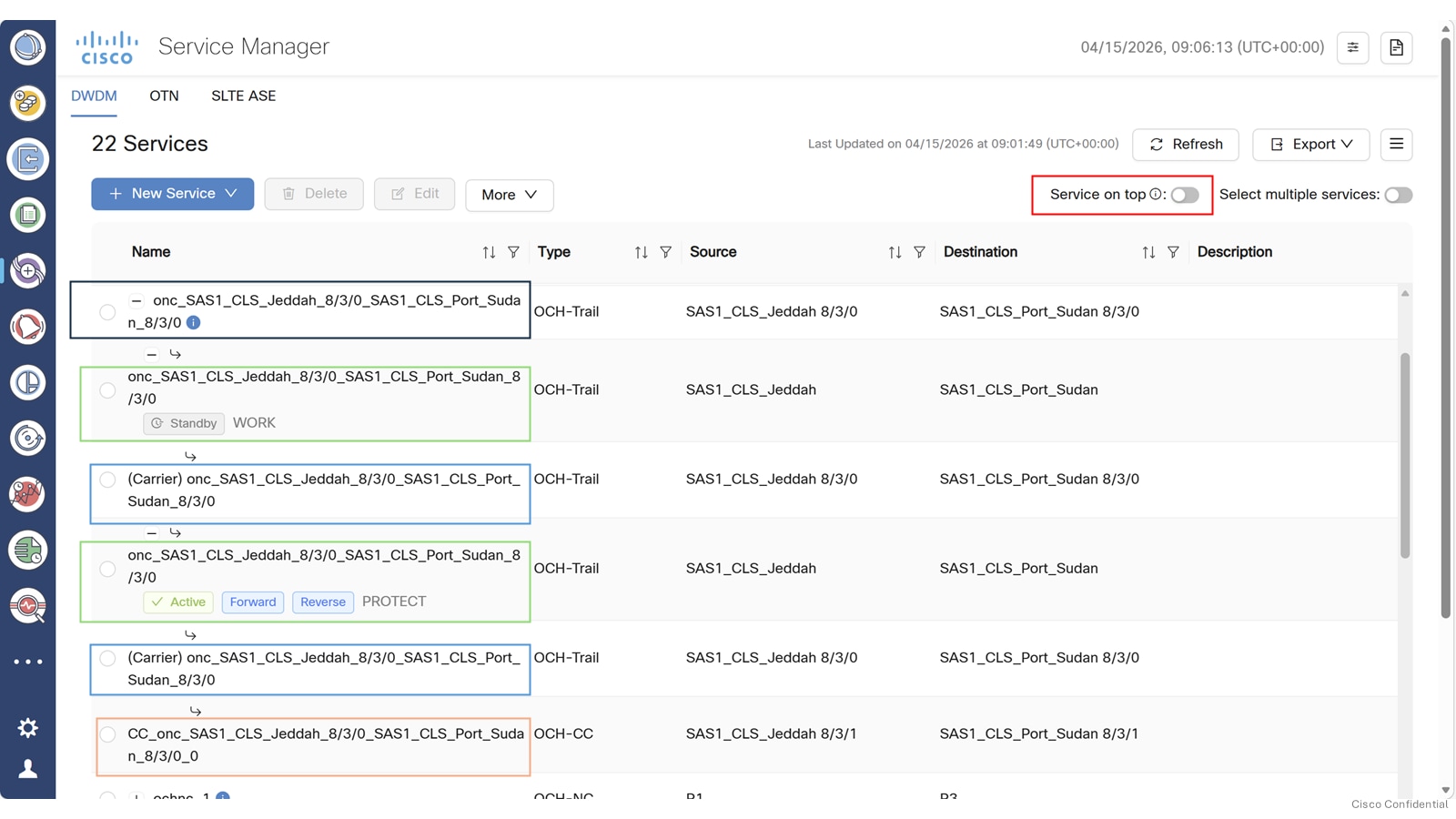

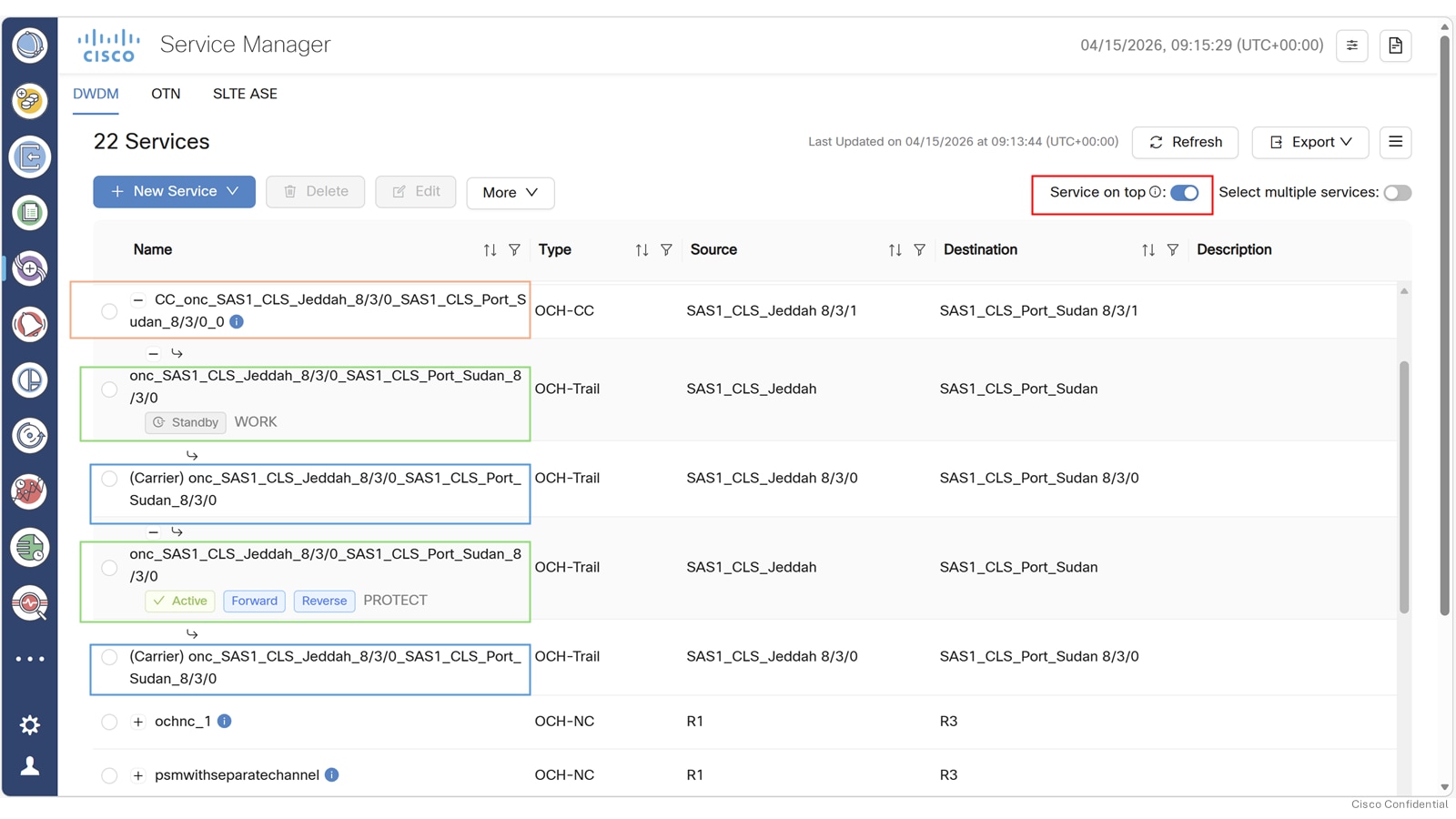

Click Service on top toggle to toggle the Service on top mode on or off. When Service on top is enabled, the OCH-CC circuit is the main entry and its associated trail appears nested under it. When disabled, the trail becomes the main entry and the OCH-CC circuit is shown nested under it.
Click Select multiple toggle to toggle multiple selection in the table on or off.

Figure 17. Service on top and Select multiple toggles

Service summary

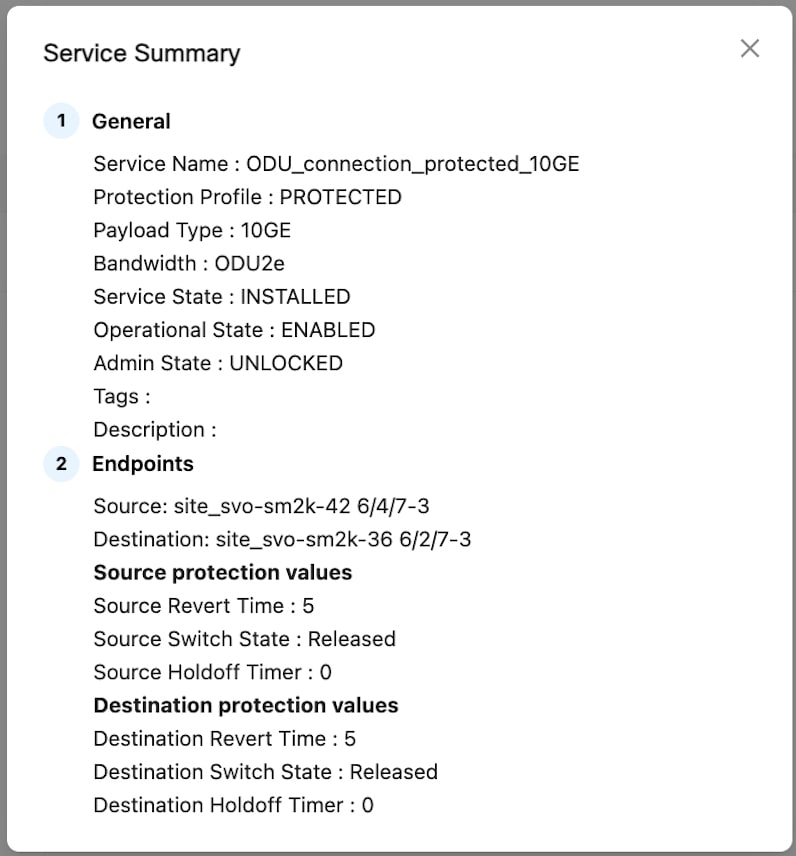

Click i next to the name of a service to view the Summary information for a circuit. This includes all the parameters set during circuit creation or edit.

Service manager table fields

Column

Values

Description

Name

Name of the service

Type

OCH-NC

Type of the service

OCH-Trail

OCH-CC

Source

—

Source Node and Port

Destination

—

Destination Node and Port

Control Plane

GMPLS

Control Plane Protocol

CPCE

Lifecycle State

INSTALLED

The circuit is fully provisioned and active in the network.

PLANNED

The circuit configuration is defined but not yet provisioned on the network.

PENDING_REMOVAL

The circuit is marked for deletion but the deletion process is not yet complete.

DELETION_IN_PROGRESS

The circuit deletion process is in progress.

DELETION_FAILED

The circuit deletion process failed to complete successfully.

PARTIAL

The circuit is in a partially provisioned state, possibly due to missing or undiscovered components.

GMPLS_ACTIVE

GMPLS circuit is successfully working, cross corrections are created, and path is available.

GMPLS_INACTIVE

There is no valid path for creating the circuits due to frequency not available, inconsistent constraints, optical validation failure, etc.

GMPLS_HANDOVER

The circuit is configured to be upgraded from non-GMPLS to GMPLS or GMPLS to non-GMPLS.

GMPLS_ACTIVATING

GMPLS circuit activation is in progress

GMPLS_DEACTIVATING

GMPLS circuit deactivation is in progress.

GMPLS_FAILED

GMPLS circuit failed (i.e. link down, node down).

GMPLS_DEGRADED

Circuit trail failed (i.e. PSM working or protected is down or fail).

GMPLS_RECOVERING

Temporary reboot status at circuit restart.

GMPLS_REPAIRING

Circuit repair is in progress (i.e. node IP changed)

GMPLS_RELEASING

A downgrade from GMPLS to non-GMPLS circuit has been requested and the action is running.

GMPLS_REPAIR_NEEDED

An IP address change is done on a node impacting the circuit, so the circuit must be repaired.

Note

Cisco Optical Network Controller does not support circuit repair in release 25.1.1.

GMPLS_SYNC_IN_PROGRESS

GMPLS controller has acceptedthe configuration, Cisco Optical Network Controller is getting the updated data from the GMPLS controller. When a circuit is discovered in a node that is onboarded to CONC , the Lifecycle state continues in this state until CONC fetches the circuit information from the GMPLS controller.

Operational State

ENABLED

The circuit is active and functioning normally.

DISABLED

The circuit is inactive and not functioning.

Admin State

UNLOCKED

The circuit is administratively enabled and available for use.

LOCKED

The circuit is administratively disabled and unavailable for use.

Frequency (THz)

Optical carrier frequency at which the circuit will operate within the DWDM spectrum.

Bandwidth (GHz)

Bandwidth used by the circuit

Protection profile

PROTECTED

OTN service has both active and standby path.

UNPROTECTED

For OTN service, only active path is present.

For PSM circuit, the circuit is configured with PSM OMS protection.

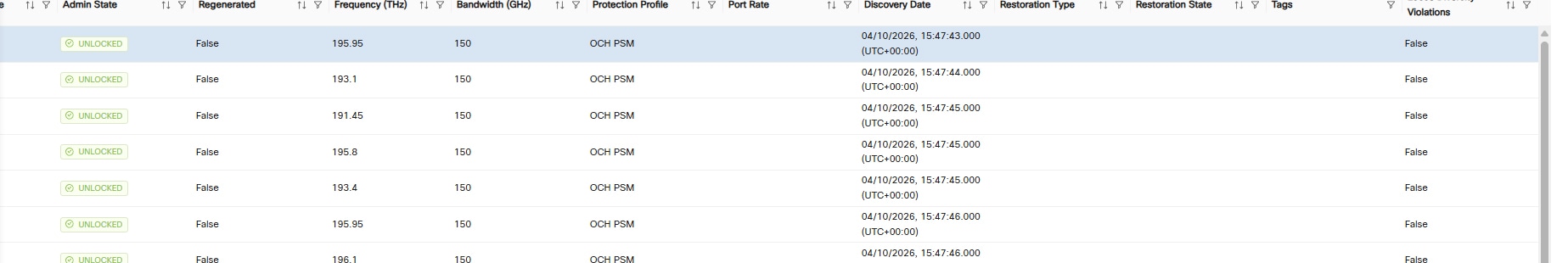

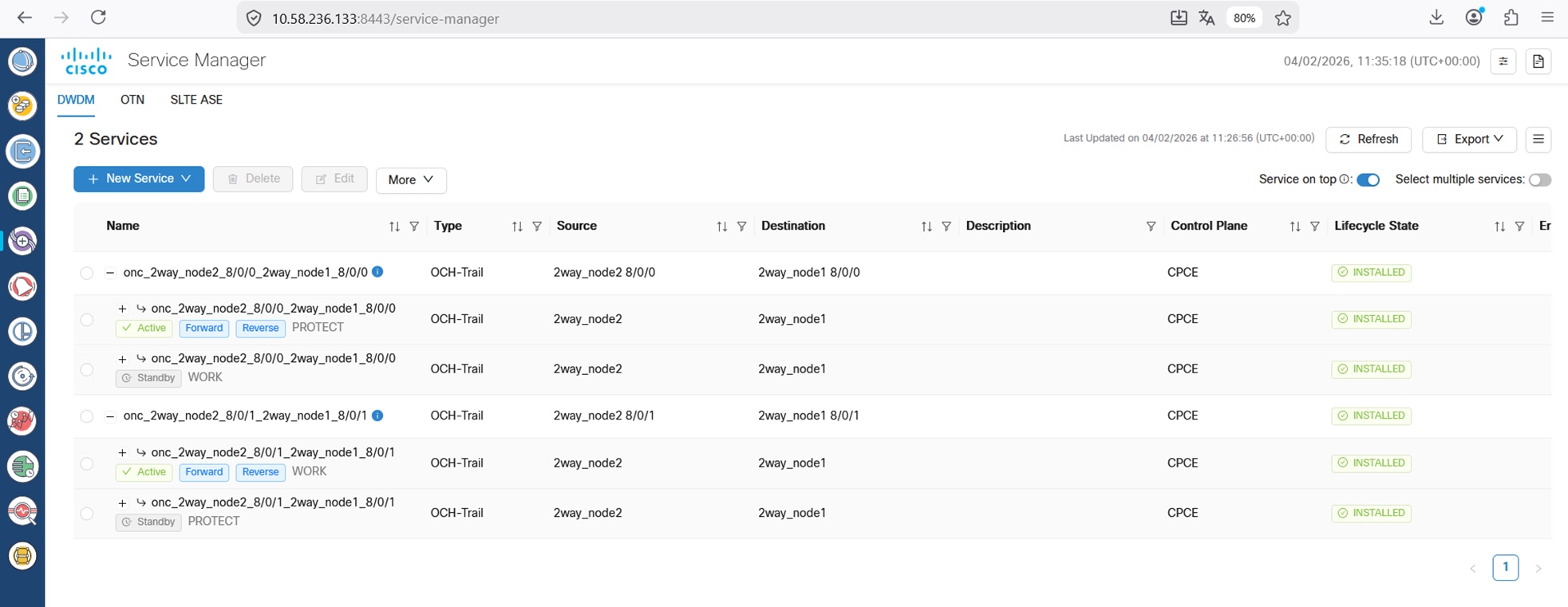

OCH-PSM

The circuit is configured with PSM wavelength protection to ensure service availability in case of failure.

Port Rate

10GE

Data rate

40GE

100GE

400GE

OTU2

OTU2E

OTU4

OC192/ STM-64

FC16

FC32

Discovery Date

—

Service discovery date

Restoration Type

None

No restoration is configured for the circuit.

Enabled

Restoration is enabled for the circuit, and the network will automatically attempt to restore the circuit upon failure by calculating restoration path based on restoration constraints.

Restorable Alternate

Restoration is enabled for the circuit, and the network will automatically attempt to restore the circuit upon failure by calculating restoration path based on restoration constraints and main path constraints alternatively.

Enabled and Revertive(Automatic)

Restoration is enabled, and the circuit will automatically revert to the original (home) path after the failure is resolved and unverified alarms are manually cleared from COSM.

Enabled and Revertive(Manual)

Restoration is enabled, and manual intervention is required to revert the circuit to the original (home) path after the failure is resolved.

Create and manage circuits

Consider these conditions when creating OCH-CC circuits.

The OCH-Trail must be in installed state before an OCH-CC circuit can be created.
When the corresponding trail is in planned state, no new OCH-CC circuits can be created.
The number of OCH-CC circuits that you can have per trail depends on the card mode configuration of the transponder card.
OCH-CC circuits inherit constraints from the parent trail.
Creating an OCH-CC circuit creates the associated OCH-Trail circuit automatically.

Follow these steps to create circuits in Cisco Optical Network Controller.

Before you begin

Note

After changing the card mode for NCS1K4-1.2T-K9, resync the nodes from the Nodes page to ensure that the client ports are correctly displayed.
If you do not see the ports on your target nodes during endpoint selection, we recommend you perform a resync of the nodes before creating a new service.
If a new NCS 2000 chassis with a TXP present is added to a node already present in COSM, you must perform a resync of the node to see the endpoints during circuit provisioning.

Procedure

Step 1

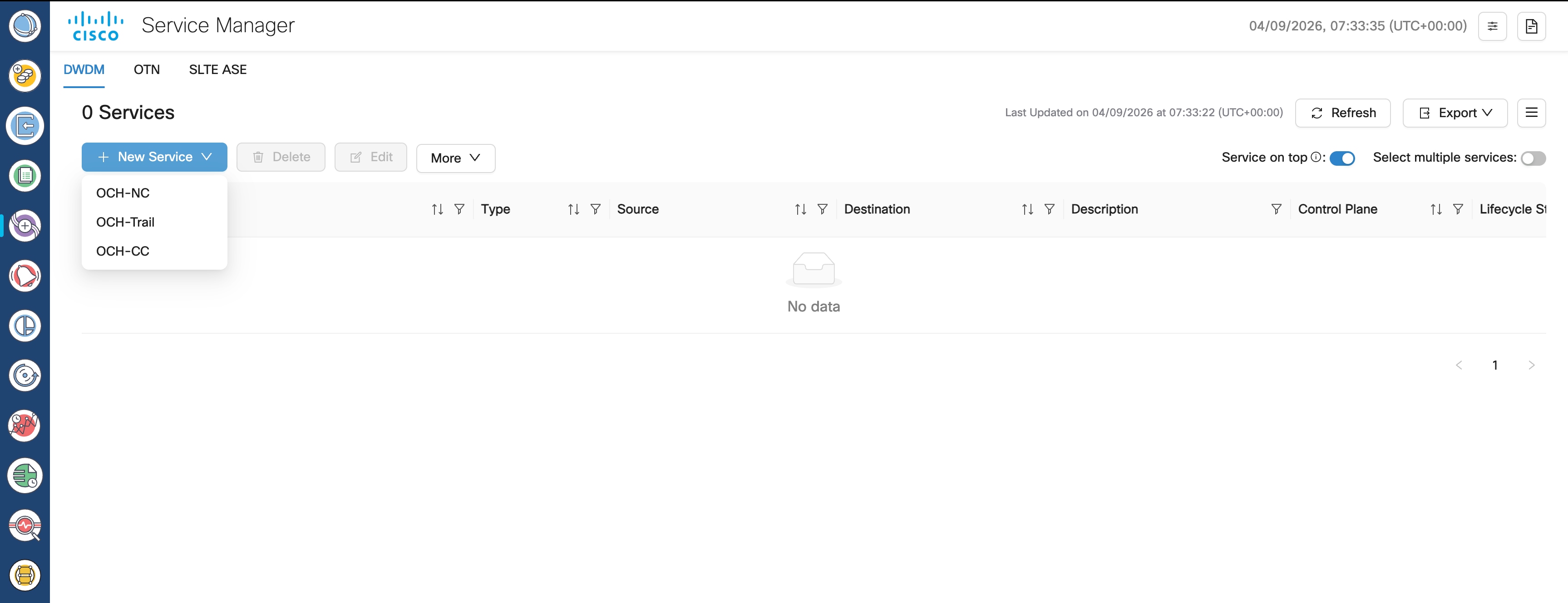

Click New Service and choose OCH-NC, OCH-Trail, or OCH-CC.

Step 2

Select OCH-NC, OCH-Trail, or OCH-CC.

Note

OCH-NC: An OCH-NC is a circuit established between add/drop ports on terminal OLTs (Optical Line Terminals) or ROADMs (Reconfigurable Optical Add-Drop Multiplexers). This type of circuit typically connects end-user equipment to the optical network.
OCH-Trail: An OCH-Trail is a circuit established between trunk ports of transponders or muxponders. This type of circuit typically transports aggregated traffic across the optical core network.
OCH-CC: An OCHCC circuit is an optical service type that extends the OCH-NC to create an optical connection from the source client port to the destination client port of the transponder or muxponder cards. It also represents the actual end-to-end client service passing through the DWDM system, and enables seamless client traffic transmission across the optical network.

Service Manager launches the new service wizard.

Step 3

Enter the details in the General tab and click Next.

Table 6. General Parameters
Field	Description	Values/restrictions
Name	The unique user defined name of the link.	(Allowed characters are a-z, A-Z, 0-9 and _. <Space not allowed>).
Control Plane	CPCE	—
Admin State	—	only ENABLED is supported
Tags	Tags can be attached to the Service for better management, to group them together	—

Note

Click + after entering a tag to add a tag. You can add multiple tags. if you click Next without clicking + the tag is not added to the service.

Step 4

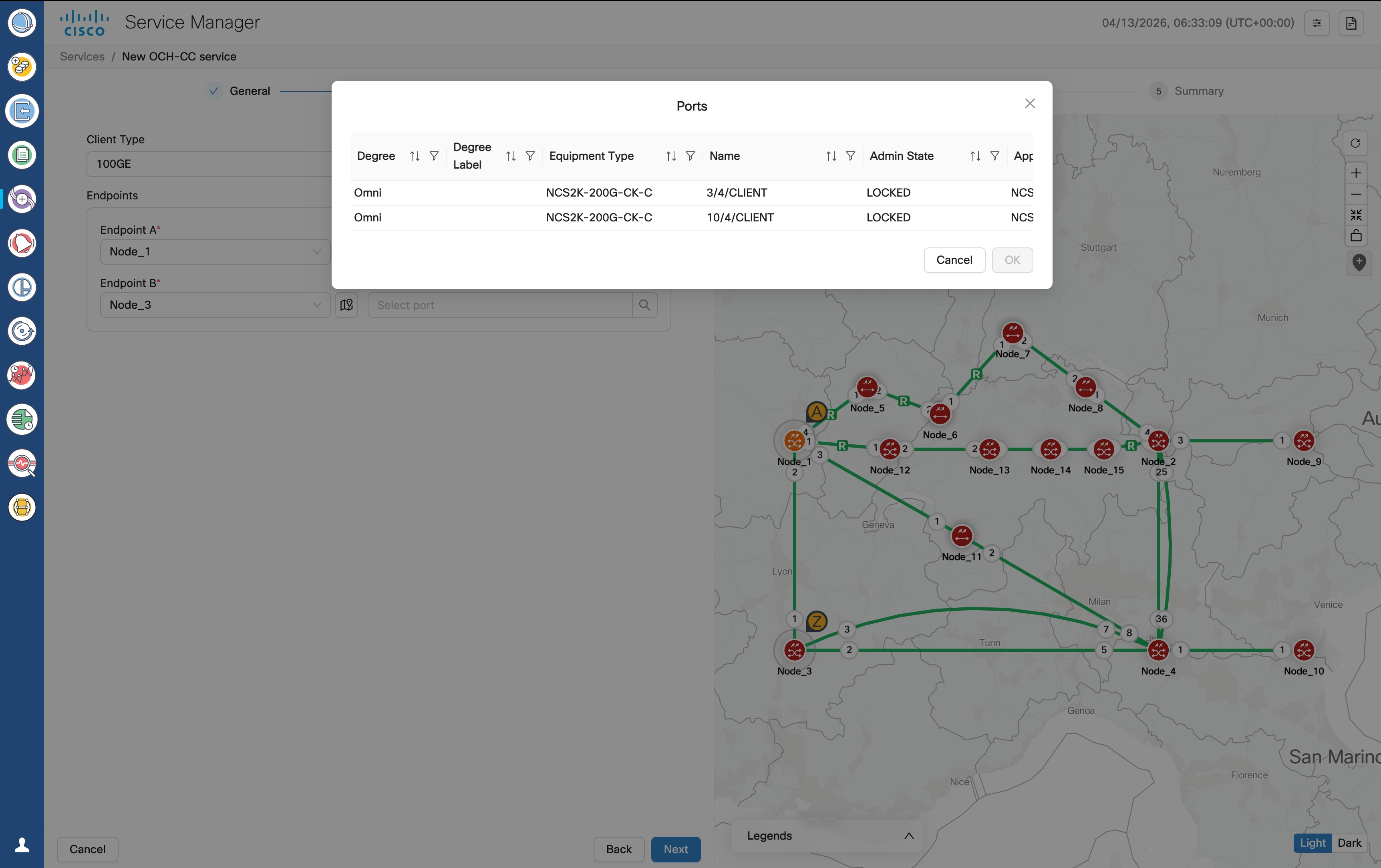

Choose a Carrier type and the endpoints of the circuit in the Endpoints tab, and click Next.

Table 7. Endpoints Parameters
Field	Description	Values/restrictions
Carrier Type
Single Carrier	Provision a service between 2 nodes with source and destination end points.	—
Multi-Carrier	Provision a service between 2 nodes with multiple source and destination end points.	Only for OCH-NC circuits
Endpoints
Endpoint A	Node and port of first endpoint	—
Endpoint B	Node and port of second endpoint	—

Note

Click and select any object from the map after clicking the map icon and that object's details gets added in the Endpoints automatically.
Click Add Endpoint to add additional endpoints to multicarrier services.
When you create a OCH-CC circuit for an existing trail, after selecting the first endpoint, the second endpoint is auto filled. The constraints and optical interface tabs are also skipped. You are taken directly to the summary tab. The preview option is not available.

Step 5

Choose the constraints in the Constraints tab, and click Next.

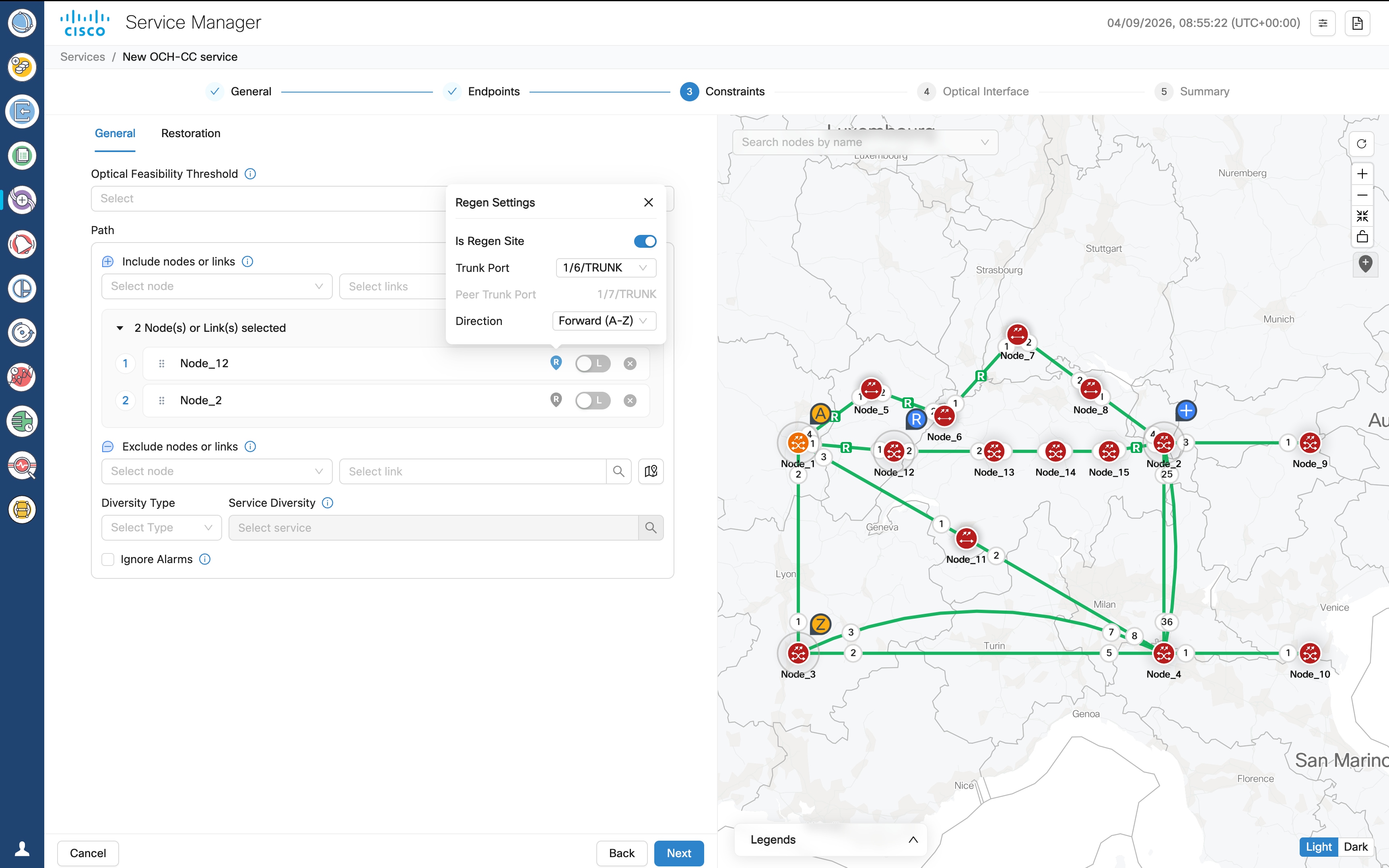

Table 8. Constraint parameters
Field	Description	Values/restrictions
Optical Feasibility Threshold	Indicates the optical feasibility of the link to ensure that the link is operational after provisioning.	Select RED, GREEN, YELLOW or ORANGE. GREEN = mean value YELLOW = +1 sigma ORANGE = +2 sigma RED = +3 sigma
Optimization Goal	Defines the mechanism for the control plane to compute optimum path depending on various criteria.	LENGTH (Max): Computation criteria based on minimizing the path LENGTH HOPS(Max): Computation criteria based on minimizing the number of HOPS OSNR(Min): Computation criteria based on maximizing the OSNR
Allow Auto Regeneration	Whether to allow auto regeneration	—
Path
Include nodes or links	select list of nodes & links that has to be included by the control plane during path computation.	—
Exclude nodes or links	select list of nodes & links that has to be excluded by the control plane during path computation.	—
Service Diversity	Select one or more existing services from the dropdownfor the control plane to exclude the resources that the services use during path computation.	—
Ignore Alarms	If true, Service manager ignores any alarms present on the path and continues to provision the service.	—

Note

Optical Feasibility Threshold assesses whether an optical channel is operational after provisioning based on its optical power and Optical Signal-to-Noise Ratio (OSNR). This assessment is represented by colors: RED, GREEN, YELLOW, or NONE.

Step 6

Choose the optical interface Parameters in the Optical Interface tab, and click Next.

Table 9. Optical interface parameters

Field

Description

Wavelength

Central Frequency (THz)

Choose a central frequency for the service.

Nyquist Spacing

Select Yes to allow channels to share spectral boundaries as long as the center frequency of one channel does not fall within the spectrum of another.

Note

This option is only enabled if central frequency is specified.

Customer Name

The Customer name

Product ID

The product ID This is the Product ID of either the pluggable optics for the TXP card with pluggable trunk or the TXP card for the TXP card with fixed trunk.

FEC

The FEC depending on the product, for example, CFEC or OFEC depending on the previous selection.

Data Rate

The Data rate supported by the selected product.

Baud rate

The Baud rate supported by the selected product.

Sub Mode

is may appear depending on the other settings

Note

Click Reload application code to reload the list of the Application codes available for OCHNC provisioning for an Alien wavelength recently imported using Alien Import.
Click Reset to reset all the fields.
For OCH-trail,Optical Interface fields are auto populated and non-editable.

Clicking next takes you to the Summary tab.

Step 7

Click Preview in the Summary tab to the preview the circuit in the topology before it is created.

Step 8

Click Finish to create the circuit.

Step 9

Click OK once the circuit is provisioned successfully.

The newly provisioned circuit appears in the Service List table once the provisioning is complete. The Lifecycle State for the new circuit appears as PLANNED initially and later changes to INSTALLED.

Step 10

Select a service and click Edit to edit the circuit.

Update the name.
Click Save.

Step 11

Select an OCH-Trail circuit and click More > Discover Clients to discover all OCH-CC circuits over the selected trail.

Step 12

Click Delete option to delete a selected service from the table.

Note

Delete each OCH-CC circuit associated with a service and then delete the OCH-Trail circuit.

Note

When cross-connect endpoints are extended or modified in Cisco Optical Site Manager or NCS 1000 topology, the existing service becomes outdated and its Lifecycle Statemoves to Pending Removal, while a new service with the updated endpoints is automatically rediscovered in Service Manager. After the new service is visible, the old pending-removal service can be safely deleted without affecting the network.

Step 13

Click + icon after selecting any service to expand the service and view its carriers.

Carriers can be of either single or multiple service types. Multiple carriers can have the same Endpoints over different channels.

Example

This table describes the supported cards and their modes that can be used to create and manage circuits.

Table 10. Supported transponder cards and modes
Card	Modes Supported
NCS1K4-2-QDD-C-K9	MXP-SLICE: 200G, 300G, 400G trunk and 100G and OTU4 client
NCS1K4-QXP-K9	MXP-SLICE: 400G trunk with 400G and 100G client
NCS1K4-OTN-XP	MXP: 4x100G TXP: 400G 400G trunk with 100G, 10G and OTU2 clients
NCS1K14-2.4T-X-K9	MXP-SLICE: 400G, 600G, 800G, 1T, 1.2T trunk with 100G and 400G clients
NCS1K4-1.2T-K9	MXP: 100G, 200G, 300G, 400G trunk with 100G and OTU4 client MXP-SLICE: 2 trunks with 100G, 200G, 300G, 400G bandwidth and 100G and OTU4 client Supports SD-FEC-27 and SD-FEC-15
NCS2K-400G-XP-LC	MXP: 400G trunk and 100G, 10G clients FEC Modes: SD_FEC_15_DE_OFF, SD_FEC_15_DE_ON, SD_FEC_25_DE_OFF, SD_FEC_25_DE_ON
NCS2K-200G-CK-C	TXP-100G: 100G trunk and client FEC Modes: HG_FEC_7, SD_FEC_20, SD_FEC_25_DE_OFF, SD_FEC_25_DE_ON
NCS2K-1.2T-MXP	TXPMXP: 400G Trunk and 100GE, 400GE, and OTU4 clients

This table summarizes the additional supported circuit provisioning options for the 400G-XP-LC cards across CPCE configurations.

Table 11. Supported circuit provisioning options for 400G-XP-LC cards
Configuration	OCH-CC	OCH-Trail	OCH-NC
NCS2000 400G-XP-LC with peered ONS 15454 10x10G-LC	Yes	Yes	Yes
10X10G with MPO cable connected to 400G-XP-LC	No	Yes	Yes

Troubleshoot CPCE Services

The most common problems encountered while using the Service Manager application is given below.

Some PCE error codes which you might encounter while provisioning the service are given below.

[PCE-PR00003] - Failed for waves selector: [PCE-EXC00002] - Carrier 1 source wave (XXXXXXXX-XXXXX (XXXX.XX)) and Destination one (XXXXXXXX-XXXXX (XXXX.XX)) differs
[PCE-WAL00048] - Requested central frequency XXX,XXX is out of supported range
[PCE-WAL00026] - No free spectrum available to allocate MCH with central frequency XXX.XXX.
[PCE-PR00001] - No routes available
[PCE-WAL00026] - No free spectrum available to allocate MCH with central frequency XXX.XXX.x
[PCE-PR00026] - Include constraint [Site uuid] not matched
[PCE-PR00018] - Optical validation failed: ZONE_RED worse than ZONE_GREEN
[PCE-PR00004] - Failed to evaluate optical path: [PCE-OV00016] - [Fiberspan UUID]: Invalid fiberType: [null value]

The probable scenarios in which the services can go to the Pending Removal State due to configuration failures and recovery steps are given below:


Failure Scenario	Cisco ONC Error	Recovery Step
Cisco Optical Site Manager Node gets disconnected as soon as a service is provisioned in CONC	Config Failure	Delete the circuit and reprovision from the CONC.
Cisco Optical Site Manager nodes are in sync state during CONC provisioning.	Config Failure	Check the Cisco Optical Site Manager node and wait for synchronisation to complete.
NCS 1010 Devices under Cisco Optical Site Manager Nodes are locked	Config Failure	Check Cisco Optical Site Manager and unlock the NCS 1010 device. Verify Cisco Optical Site Manager synchronisation status to be completed.
Cisco Optical Site Manager node Restart during provisioning	Config Failure	Wait for CONC to re-establish the connection successfully after restart and its status moved to Active in CONC.
Reload of the NCS 1010 device during provisioning from CONC	Config Failure	Wait for the reload to complete on NCS 1010 device. Verify the synchronisation is complete on Cisco Optical Site Manager Node. Wait for CONC to reestablish the connection successfully with Cisco Optical Site Manager Node and its status moved to Active.
Stale entries present in NCS 1010 while no cross connects present on Cisco Optical Site Manager Nodes	Config Failure	Clear the NCS1010 stale entries. Wait for Cisco Optical Site Manager node to complete the synchronisation.
Xcons Present in Cisco Optical Site Manager node along with NCS 1010	Config Failure	Clear the XCONS on Cisco Optical Site Manager and NCS 1010. Wait for Cisco Optical Site Manager node to complete the synchronisation and Active status.

Provision GMPLS services

Use the following procedure to create and manage circuits.

Before you begin

Table 12. Supported transponder cards and modes
Card	Modes Supported
NCS1K4-2-QDD-C-K9	MXP-SLICE: 200G, 300G, 400G trunk and 100G and OTU4 client
NCS1K4-QXP-K9	MXP-SLICE: 400G trunk with 400G and 100G client
NCS1K4-OTN-XP	MXP: 4x100G TXP: 400G 400G trunk with 100G, 10G and OTU2 clients
NCS1K14-2.4T-X-K9	MXP-SLICE: 400G, 600G, 800G, 1T, 1.2T trunk with 100G and 400G clients
NCS1K4-1.2T-K9	MXP: 100G, 200G, 300G, 400G trunk with 100G and OTU4 client MXP-SLICE: 2 trunks with 100G, 200G, 300G, 400G bandwidth and 100G and OTU4 client Supports SD-FEC-27 and SD-FEC-15
NCS2K-400G-XP-LC	MXP: 400G trunk and 100g, 10G clients FEC Modes: SD_FEC_15_DE_OFF, SD_FEC_15_DE_ON, SD_FEC_25_DE_OFF, SD_FEC_25_DE_ON MXP with backplane connection to 15454-M-10X10G-LC with slice 2 configured as OPM-PEER-ODU2 or OPM-PEER-ODU2E REGEN: 100G and 200G trunk regeneration for GMPLS OCH-Trail and OCH-CC circuits
NCS2K-200G-CK-C	TXP-100G: 100G trunk and client FEC Modes: HG_FEC_7, SD_FEC_20, SD_FEC_25_DE_OFF, SD_FEC_25_DE_ON RGN-100G: 100G trunk regeneration for GMPLS OCH-Trail and OCH-CC circuits
15454-M-10X10G-LC	MXP 10x10G (with backplane connection to NCS2k-200G-CK-C/15454-M-100G-LC-C/15454-M-100G-ME-C) 100G trunk and 10G, OTU2, OTU2e, and OC192/STM64 clients
15454-M-100G-LC-C and 15454-M-100G-ME-C	10x10G client card 100GE TXP mode: 100G trunk and 100GE/OTU4 clients

Note

From release 25.1.1, Cisco Optical Network Controller supports OCH-CC circuits between client ports that have the same client type and the same equipment type at both endpoints.

Note

From release 26.1.1, Cisco Optical Network Controller discovers the ODU connections and builds the end-to-end protected or unprotected OTN services. Cisco Optical Network Controller automatically discovers the full OTN service when the OCH-Trail for GMPLS circuits are discovered. Additional OTN services can be added via CTC.

In release 26.1.1, OTN services are supported in the OTN-XC card mode of the NCS2K-400G-XP-LC line card only.

Procedure

Step 1

Click New Service and choose OCH-NC, OCH-Trail, or OCH-CC.

Step 2

Select OCH-NC, OCH-Trail, or OCH-CC.

OCH-NC: An OCH-NC is a circuit established between add/drop ports on terminal OLTs (Optical Line Terminals) or ROADMs (Reconfigurable Optical Add-Drop Multiplexers). This type of circuit typically connects end-user equipment to the optical network.

Note

You must create an LMP from COSM GMPLS > LMP panel before creating an OCH-NC circuit.

OCH-Trail: An OCH-Trail is a circuit established between trunk ports of transponders or muxponders. This type of circuit typically transports aggregated traffic across the optical core network.
OCH-CC: An OCH-CC is a circuit established between cards within optical devices, such as transponders, muxponders, or ROADMs. This type of circuit facilitates internal cross-connections within the optical equipment.

Service Manager launches the new service wizard.

Step 3

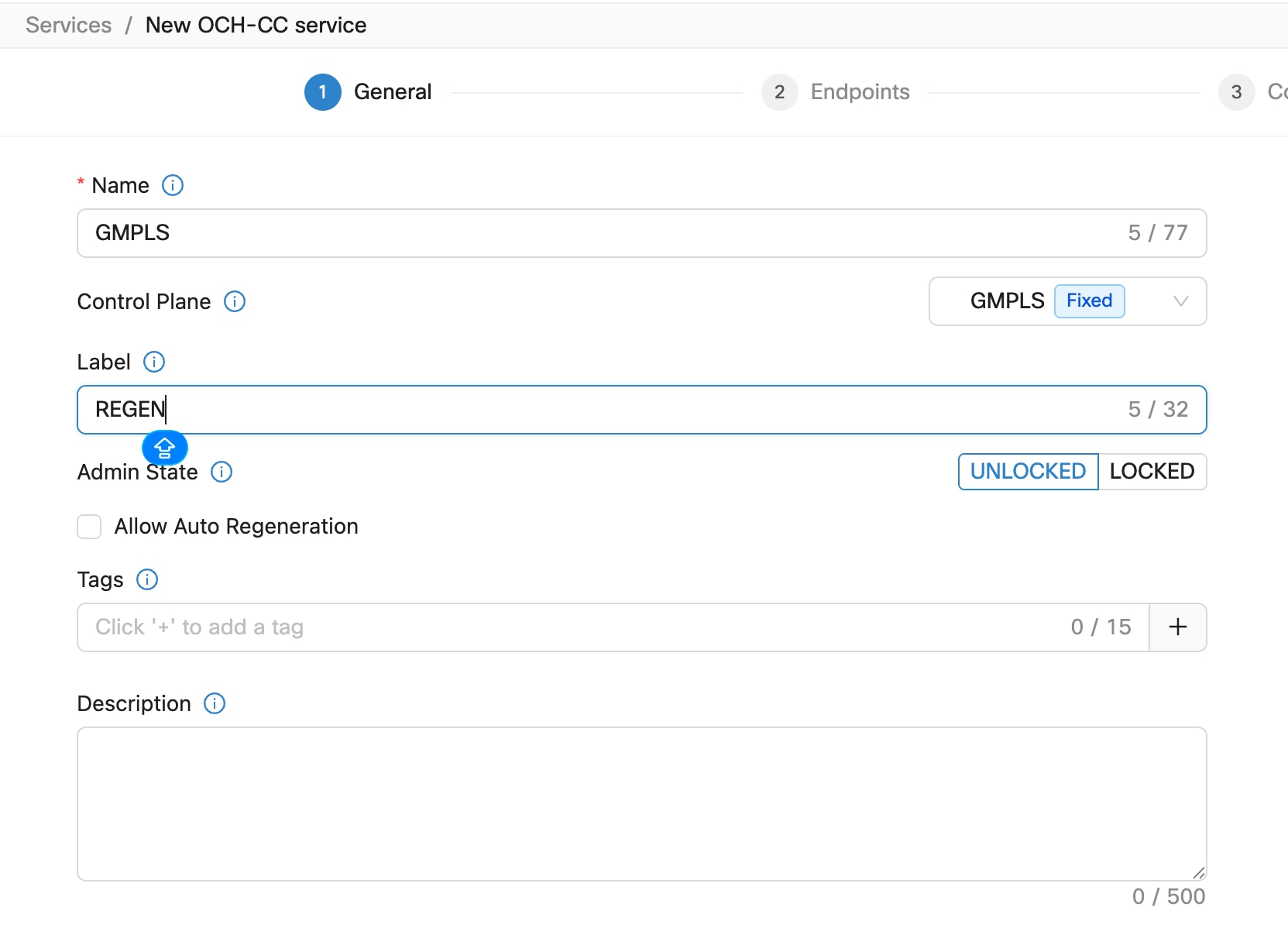

Enter the details in the General tab and click Next.

Field Description Values/restrictions

Name The unique user defined name of the link. (Allowed characters are a-z, A-Z, 0-9 and _. <Space not allowed>).

Control Plane

GMPLS Dwdm or GMPLS Flex

—

Label

This label is assigned to the NCS 2000 cross-connects.

A label is autogenerated if the field is left blank.

Admin State

The admin state of the service

UNLOCKED or LOCKED

Allow Auto Regeneration

Allows the control plane to find a regenerator deployed in the network when a single DWDM channel is not optically feasible end to end.

Note

This field is only displayed when GMPLS is selected in Control Plane.

Available for GMPLS OCH-Trail and OCH-CC circuits.

Tags Tags can be attached to a service for better management, to group them together. —

Description Add a description about the service. —

Step 4

Choose a client type and the endpoints of the circuit in the Endpoints tab, and click Next.

Table 14. Endpoints Parameters
Field	Description	Values/restrictions
Client Type	Select the client type	10GE, 40GE, 100GE, 400GE, OTU2, OTU2E, OTU4, OC192/STM64
Endpoints
Endpoint A	Node and port of first endpoint	—
Endpoint B	Node and port of second endpoint	—

Note

Click and select any object from the map after clicking the map icon and that object's details gets added in the Endpoints automatically.
The port selection list shows the ports matching the client type selection.

Step 5

Choose the constraints in the Constraints > General tab, and click Next.

Figure 27. Service Manager > Constraints > General

Table 15. General constraints field descriptions
Field	Description	Values/restrictions
Optical Feasibility Threshold	Indicates the optical feasibility of the link to ensure that the link is operational after provisioning.	Select RED, GREEN, YELLOW or ORANGE. GREEN = mean value YELLOW = +1 sigma ORANGE = +2 sigma RED = +3 sigma
Path
Include nodes or links	select list of nodes & links that has to be included by the control plane during path computation.	—
Regen (R) settings icon	Allows the control plane to include a regen node present in network to create an end-to-end circuit.	—
Regen Settings	Includes the selected node as a mandatory regen site in the working circuit path.	Use the R icon to open this dialog. Include as regen: Enable toggle button include node as regen. Trunk Port: (Optional) Select the trunk port. Direction: (Optional) Select the direction.
Exclude nodes or links	select list of nodes & links that has to be excluded by the control plane during path computation.	—
Diversity Type	Choose the type of service diversity	Node, link, or srlg
Service Diversity	Select one or more existing services from the dropdown for the control plane to exclude the resources that the services use during path computation.	—
Ignore Alarms	If true, Service manager ignores unverified alarms present on the path and continues to provision the service.	—

Note

Optical Feasibility Threshold assesses whether an optical channel is operational after provisioning based on its optical power and Optical Signal-to-Noise Ratio (OSNR). This assessment is represented by colors: RED, GREEN, YELLOW, or NONE.

For regenerated GMPLS OCH-Trail and OCH-CC circuits, add a node in the include constraint list and click the R icon

Alternatively, you can click the map icon or the blue inverted teardrop icon in the map and select a node from the map.
In the Regen Settings dialog, enable the Is Regen Site toggle button.
You can optionally select a Trunk Port and Direction for the regen site.

If the node is selected as general regen node, it appears with a blue inverted teardrop R icon in the topology and REGEN icon in the Detailed service path tab of Circuit Monitoring application.
If the node is a normal general node, it appears with a blue inverted teardrop + icon in the topology.
For each regen node circuits, when you expand a service in the Service Manager table, segments are displayed and the Regenerated column shows True.

Step 6

Choose the constraints in the Constraints > Restoration tab, and click Next.

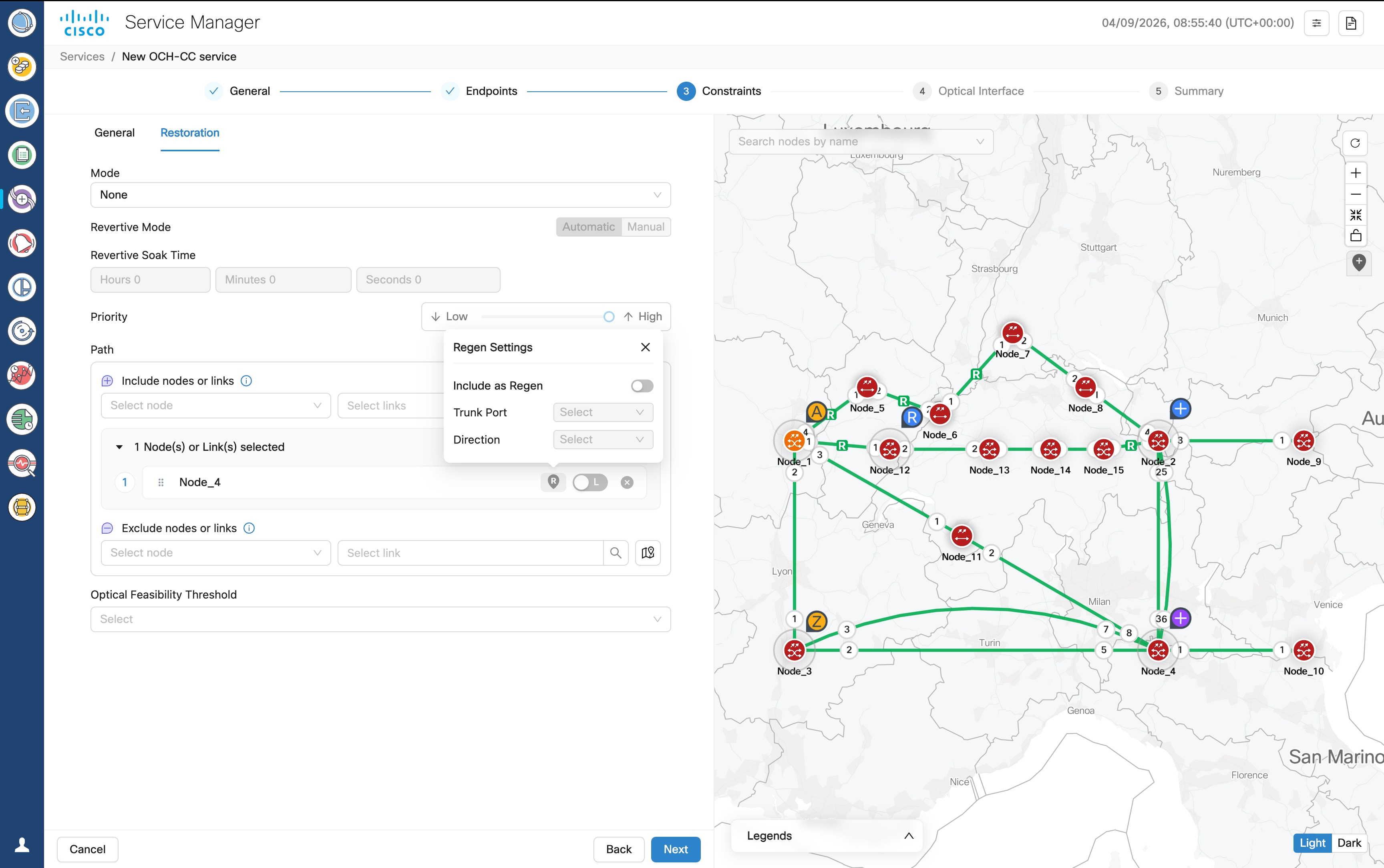

Figure 28. Service Manager > Constraints > Restoration

Table 16. Restoration constraints field descriptions
Field	Description	Values/restrictions
Mode	—	None, Enabled, Restorable Alternate, Enabled and Revertive
Revertive Mode	Specifies if the revert to main path after it up after a restoration should happen automatically or manually.	Automatic, Manual
Revertive Soak Time	Specifies the setup time for the restoration path. This parameter is only applicable for automatic restoration. It is the time in Hours, Minutes and Seconds for the network to switch to the restored path.	Up to 23 hours 59 minutes and 59 seconds
Priority	—	7—0 0 is the highest priority.
Path
Include nodes or links	Select list of nodes & links that has to be included by the control plane during path computation.
Regen (R) settings icon	Allows the control plane to include a regen node present in network to create an end-to-end circuit.	—
Regen Settings	Includes the selected node as a mandatory regen site in the working circuit path.	Click the R icon to open this dialog. Include as regen: Enable toggle button include node as regen. Trunk Port: (Optional) Select the trunk port. Direction: (Optional) Select the direction.
Exclude nodes or links	select list of nodes & links that has to be excluded by the control plane during path computation.
Optical Feasibility Threshold	Indicates the optical feasibility of the link to ensure that the link is operational after provisioning.	Select RED, GREEN, YELLOW or ORANGE. GREEN = mean value YELLOW = +1 sigma ORANGE = +2 sigma RED = +3 sigma

Note

Optical Feasibility Threshold assesses whether an optical channel is operational after provisioning based on its optical power and Optical Signal-to-Noise Ratio (OSNR). This assessment is represented by colors: RED, GREEN, YELLOW, or NONE.

For regenerated GMPLS OCH-Trail and OCH-CC circuits, add a node in the include constraint list and click the R icon

Alternatively, you can click the map icon or the blue inverted teardrop icon in the map and select a node from the map.
In the Regen Settings dialog, enable the Include as Regen toggle button.
You can optionally select a Trunk Port and Direction for the regen site.

If the node is selected as restoration regen node, it appears with a purple inverted teardrop R icon in the topology and REGEN icon in the Detailed service path tab of Circuit Monitoring application after regeneration is completed.
If the node is a normal restoration node, it appears with a purple inverted teardrop + icon in the topology.
For each regen node circuits, when you expand a service in the Service Manager table, segments are displayed and the Regenerated column shows True.

Step 7

Choose the optical interface Parameters in the Optical Interface tab, and click Next.

Table 17. Optical interface parameters

Field

Description

Wavelength

Central Frequency (THz)

Choose a central frequency for the service.

Nyquist Spacing

Select Yes to allow channels to share spectral boundaries as long as the center frequency of one channel does not fall within the spectrum of another.

Note

This option is only enabled if central frequency is specified.

Width

Bandwidth used by the circuit

Customer Name

The Customer name

Product ID

The product ID This is the Product ID of either the pluggable optics for the TXP card with pluggable trunk or the TXP card for the TXP card with fixed trunk.

FEC

The FEC depending on the product, for example, CFEC or OFEC depending on the previous selection.

Data Rate

The Data rate supported by the selected product.

Baud rate

The Baud rate supported by the selected product.

Sub Mode

May appear depending on the other selections

Note

For OCH-trail,Optical Interface fields are auto populated and non-editable.
For regenerated circuits, if a single wavelength is not feasible the first segment is selected and the subsequent segments use different wavelengths.

Clicking next takes you to the Summary tab.

In Release 26.1.1, Topology view in Service Manager reflects the topology screen with a modified Map View Options eye icon. Click the eye icon and then Show Active Service Path to see the current active service path in the network like in Circuit monitoring screen.

Step 8

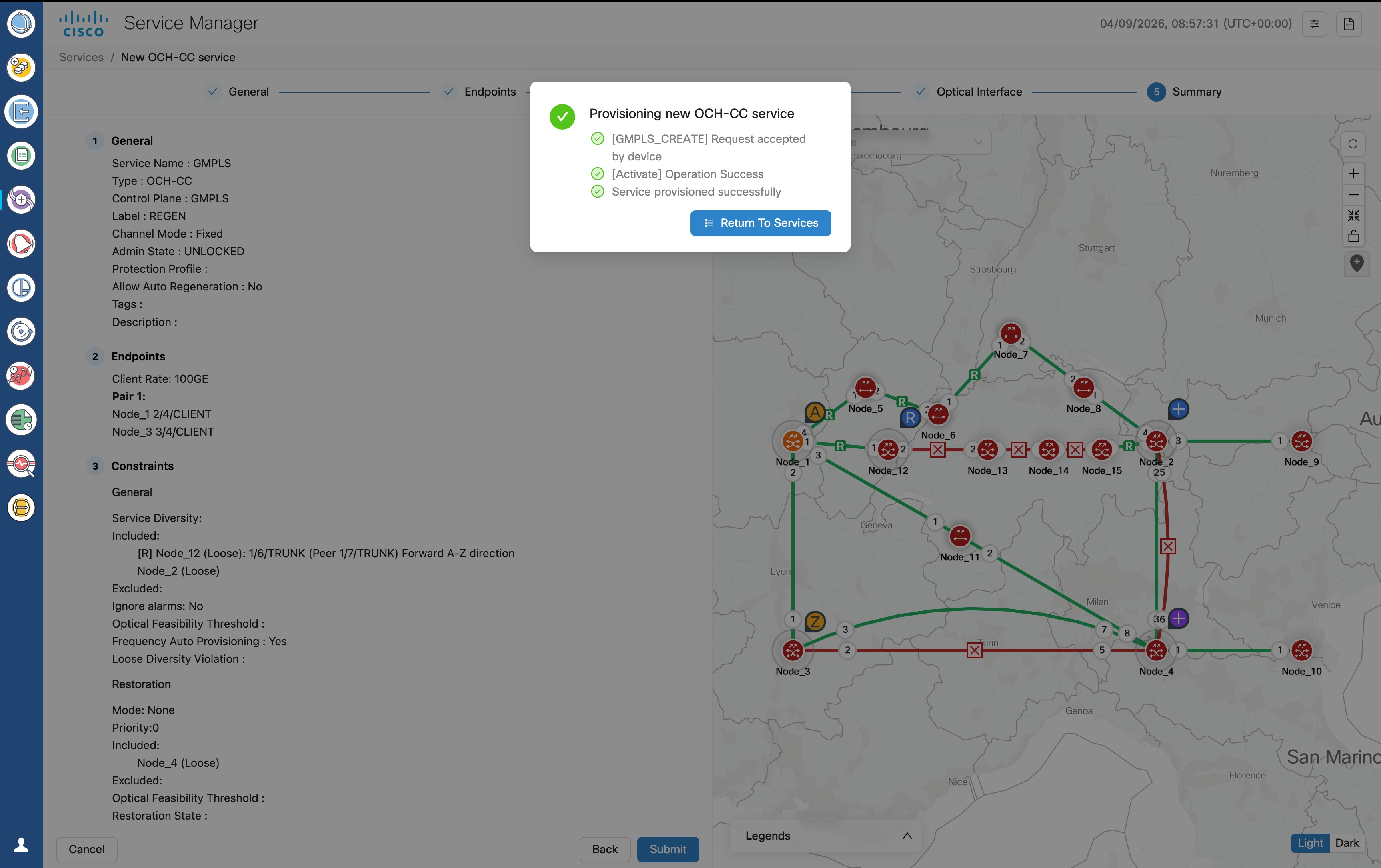

Click Finish to create the circuit.

Step 9

Click Return To Services after the circuit is provisioned successfully.

The newly provisioned circuit appears in the Service List table once the provisioning is complete. The Lifecycle State for the new circuit appears as PLANNED initially and later changes to INSTALLED.

For regenerated GMPLS OCH-Trail and OCH-CC circuits, the Regenerated column shows true. Circuit details display the service in segments, and regen sites are identified with R in the circuit view.

Step 10

Select a service and click Edit to edit the circuit.

Go to Constraints > General and update the constraints. Click Reroute after updating constraints to reroute the circuit.

A status pop-up appears showing the progress of the reroute process.
For regenerated GMPLS OCH-Trail and OCH-CC circuits, you can edit regen constraints and reroute the circuit to apply the updated regen path.
Go to Constraints > Restoration and update the constraints.

You can update regen constraints for the restoration path of a regenerated circuit.
Click Upgrade Restored to make a restored circuit path the main circuit path.
Click Revert Restored to revert to the main path when Revertive mode is Manual.

Clear unverified alarms from COSM before performing this step.
Go to Optical Interface, change the wavelength parameters, and click Retune to change the wavelength.

Figure 31. Service Manager > Optical Interface > Retune

Note

These options are available only for GMPLS Trails and OCH-NC circuits.

For OCH-CC circuits you can edit only the name and Admin state.

Step 11

Click Delete to delete a selected service from the table.

The Lifecycle state changes to DELETION_IN_PROGRESS and then the service is removed from the service list when deletion is complete.

Note

The service may go to PARTIAL state during the deletion. This is a transient state before the circuit is deleted.

The status may change to DELETION_FAILED if the operation fails. Delete operation may fail in the following scenarios:

Table 18. Deletion failure scenarios
Reason	Troubleshooting
Cross connect was deleted outside Cisco Optical Network Controller	Retry deleting the service Use the resync option in Service Manager and try again Perform an full network resync and try again Try deleting the service from Cisco Transport Controller
Node busy	Wait for any operations on the node to complete and retry
Node disconnected	Reestablish connectivity to the node
COSM lost connection to the subtended device	Reestablish COSM connectivity to the device and try again

Step 12

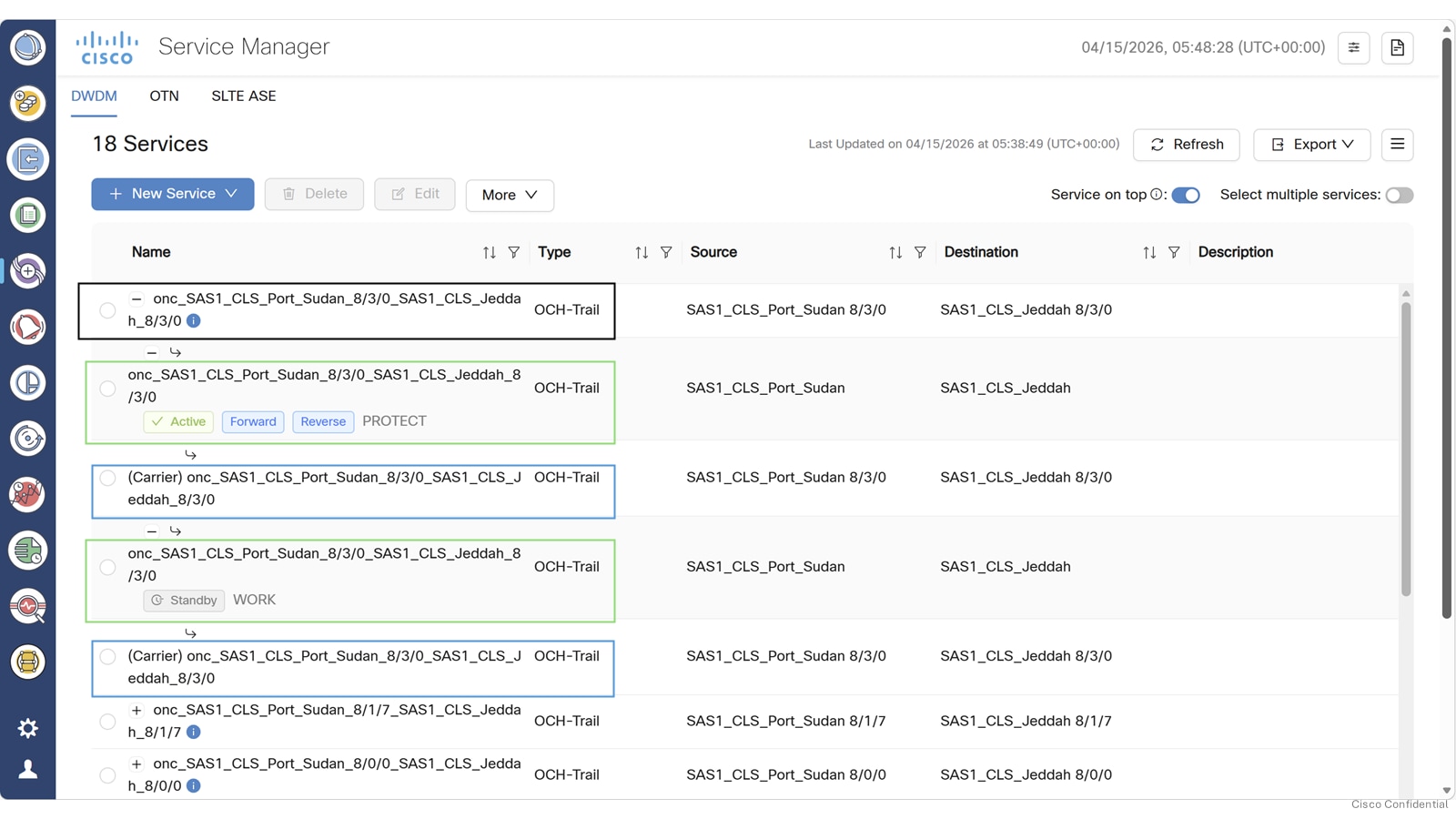

Click + icon after selecting any service to expand the service and view its carriers.

Carriers can be of either single or multiple service types. Multiple carriers can have the same Endpoints over different channels.

These are some errors you may come across when trying to provision a GMPLS circuit. Use the information to troubleshoot GMPLS errors.


Error	Description
No wavelength available on path	The optical path in the node terminates on a port not matching the requested protection mode.
Reroute Failed	The requested action can not be executed as the selected circuit is already in rolled state
Optical Validation	The partial path evaluated during route selection is outside the receiver OSNR threshold.
No client port available on trunk port	No available Client port matching the request constraints is found connected to the TXP Trunk port
No available optical path in node	No wavelength is available on the optical path.

Example

This table summarizes the additional supported circuit provisioning options for the NCS 2000 100G-LC-C and 400G-XP-LC cards across GMPLS configurations.

Table 19. Supported circuit provisioning options for 100G-LC-C/100G-ME-C and 400G-XP-LC cards
Configuration	OCH-CC	OCH-Trail	OCH-NC
NCS2000 100G-LC-C/100G-ME-C standalone	Yes	Yes	Yes
NCS2000 100G-LC-C/100G-ME-C with peered ONS 15454 10x10G-LC	Yes	Yes	Yes
NCS2000 400G-XP-LC with peered ONS 15454 10x10G-LC	Yes	Yes	Yes
10X10G with MPO cable connected to 400G-XP-LC	No	Yes	Yes

Alarms

The Alarms screen displays all the alarm details for each node based on the severity level. You can view both the active alarms and the previously active alarms in this screen.

For viewing the active alarms using AlarmsCurrent Alarms tab and the other for previous alarms using HistoryHistory Alarms tab.

Table 20. Alarm table field descriptions

Field Name

Description

Example/Values

Node Name

The name of the node where the alarm originated.

Node identifier/name (e.g., NODE-001)

Severity

The severity level of the alarm.

Critical, Major, Minor, Warning, Cleared

Alarm Type

The type of alarm.

LOSP, NODE-DISCONNECT

Time Stamp

The date and time when the alarm was raised.

YYYY-MM-DD HH:MM:SS.SSS

Object

The object associated with the alarm.

NODE: Node_1, SYSTEM, CHASSIS: 5

Description

A detailed description of the alarm.

Text describing alarm details

Alarm Category

The category of the alarm. See Alarm categories.

CONC_SYSTEM, SECURITY, EQUIPMENT

Service Affect

Indicates whether the alarm is service affecting or non-service affecting.

NSA, SA

Location

The physical location of the affected equipment.

Direction

The direction of the alarm.

Receive,

User Tag

User-defined tags for categorizing and filtering alarms.

Note

User tags propagate from parent to child components of a chassis by default. A user tag on a child component overrides the inherited tag from its parent.
User Tag information comes from Cisco Optical Site Manager. See User Tags.
User tags are not supported on system-level and device alarms.
User tags can apply CLLI (Common Language Location Identifier), a standardized 11-character code that uniquely identifies geographic locations and equipment for network sites, network support sites, and customer locations.

Custom tags/labels

User Notes

User-added notes or comments related to the alarm.

Free-form text

Acknowledge

Indicates whether the alarm has been acknowledged.

Acknowledged, Unacknowledged

UUID

Unique Universal Identifier for the alarm.

UUID string

Correlation Type

The type of correlation applied to the alarm.

Network Level, Node Level

Note

You can filter the alarms table based on the fields. You can filter alarms to show only network-level or node-level correlated alarms.

Procedure

Step 1

Click Alarms in the left panel.

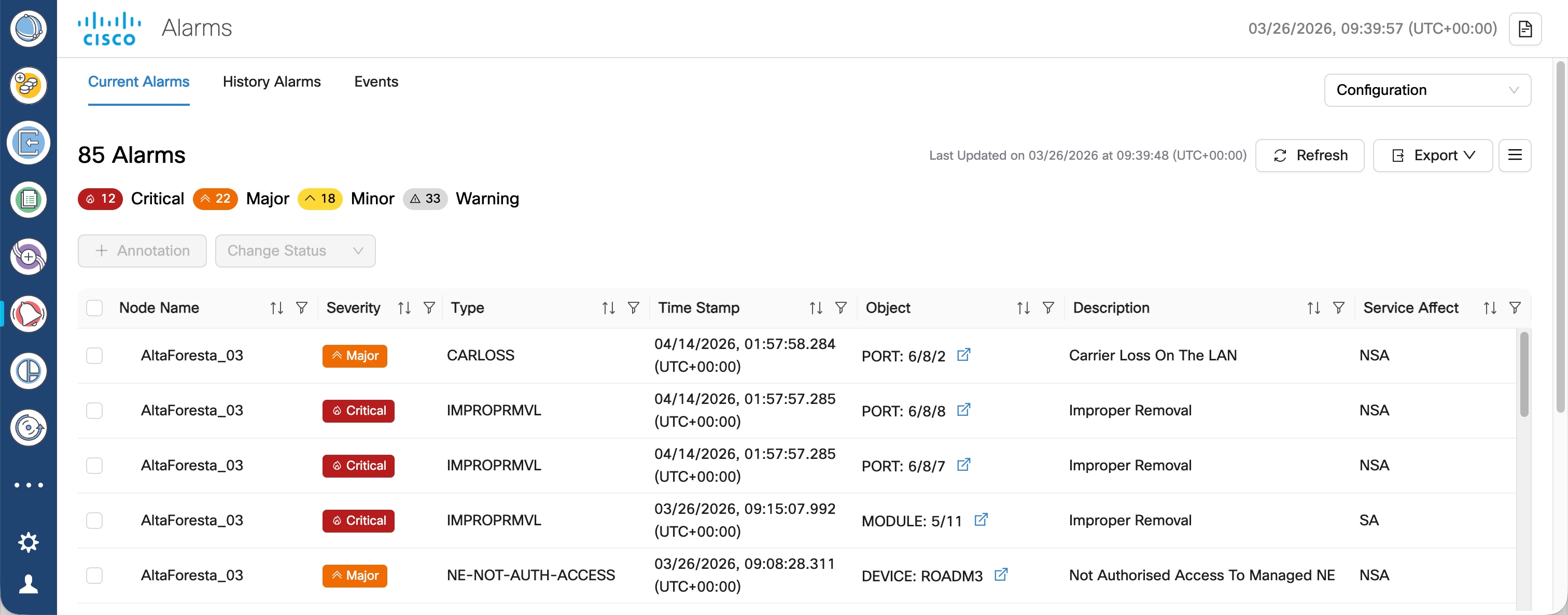

Step 2

Select the AlarmsCurrent Alarms tab to view the active alarms of each node.

Step 3

Select an alarm or multiple alarms and click Annotation to add user notes to any alarm

Enter the user notes and click Add.

Note

You can add a user note to up to 500 alarms at once. You can add multiple notes to multiple alarms in the form of a list.

This will send a notification for the alarm.

Step 4

Click Change Statusand choose an option from the dropdown list to acknowledge or unacknowledge alarms.

Step 5

Click HistoryHistory Alarms to view the inactive or previous alarms. The details of each alarm based on each node and alarm type are displayed in the form of a cascading list and tables. Use the Custom Date Range Custom Date Range drop down option to view the history alarms based on different dates or time periods.

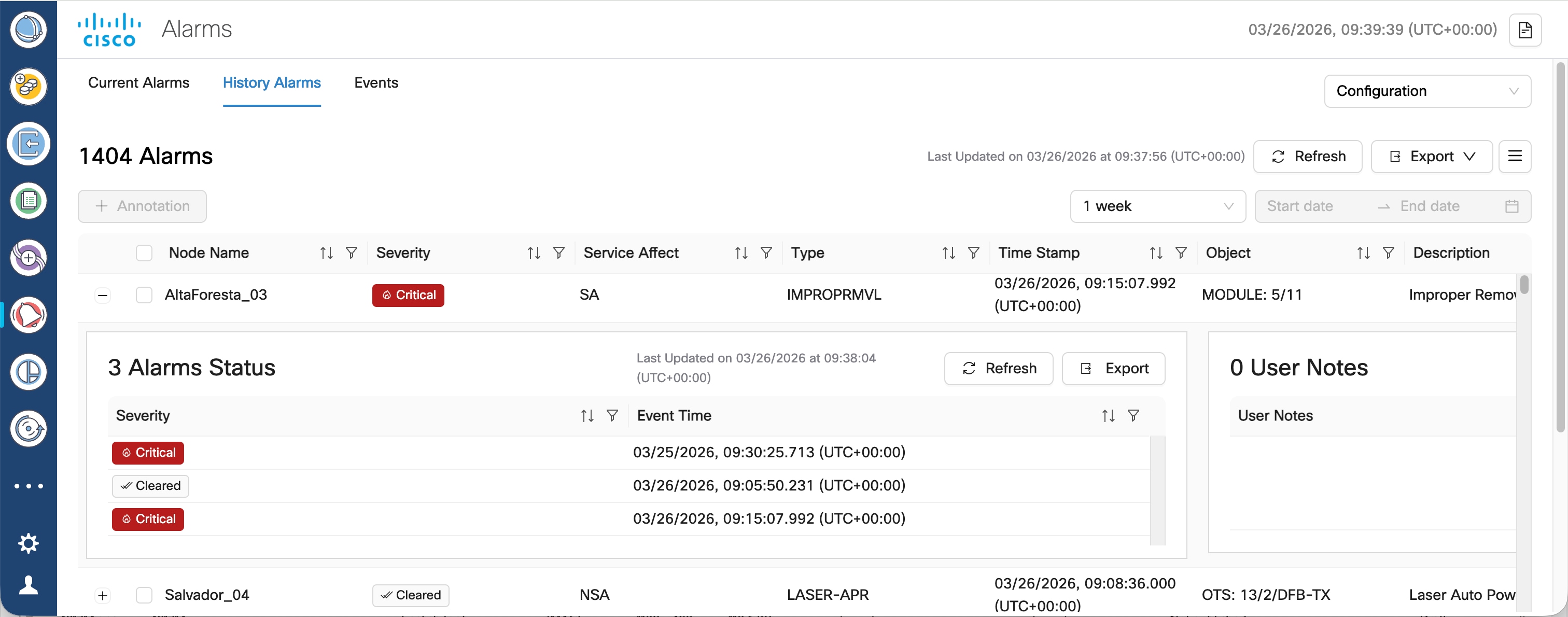

Screenshot of Alarm History Expanded View — Figure 33. Alarm History Expanded View

Choose a time period for which you want to view the alarm history from the Select Time period drop down list, or choose a custom date range.

The history displays both cleared and active alarms for the selected circuit within the specified time range.

Note

You can select any 3-month range from the past 78 weeks to retrieve alarm history data.
Alarm history queries are rate limited. You can query up to 5 alarms history in a minute.

Step 6

Click any cross-launch icon available under the Object column for any node to cross-launch to the corresponding Cisco Optical Site Manager panel.

Step 7

Click Export to export the alarms details.

Note

You can export the table content to an excel file using the Table View option which has only the visible portion of the table appearing in the file or export the entire table content at once.

Step 8

Click Refresh button to refresh the alarms status.

Note

If you apply a filter and click the Refresh button, the status is refreshed as per the filter you have applied.

Step 9

Use the Filter option by clicking on the filter icon appearing in each column.

Note

The filter option allows you to search the alarm details based on the selected filter.
When you apply any filter in the Alarms screen, the Critical, Major, Minor and Warning counters they do not update their values as per the individual status of the alarms but only the count of each type of alarm.

Step 10

Use the Sort option by clicking on the sort icon appearing in each column.

Note

The sort option allows you to sort the alarm details based on the order you have selected.

Step 11

Click on Critical, Major, Minor, Warning, and Cleared alarm types to filter and display the alarms belonging to each type.

Step 12

Use the Acknowledge column in the table to view the acknowledged or unacknowledged alarms.

Note

To acknowledge or unacknowledge any particular alarm, select the node from the table and then click on Change Status. From the drop down, select Acknowledge or Unacknowledge option to acknowledge or unacknowledge the alarm of the selected node.
If an alarm is acknowledged, it appears with a green check mark in the table.
Acknowledged alarms also display the date and time-stamp details.
Up to 500 alarms can be acknowledged or unacknowledged at once.

Step 13

Use the User Notes column in the table to view the user notes added by any user.

Note

To add a user note, select the node and click on Annotation option. Enter the user note details and click on Add. The newly added user note appears in the User Notes column in the table.
Multiple user notes can be added to the same node or alarm.
If you click on the user notes icon in the User Notes column, it will display all the user notes added for the selected node or alarm.

View events in the Alarms application

Review Cisco ONC events and notifications in the Alarms application. You can filter events and annotate them for Cisco Optical Network Controller only. Unlike alarms, events do not have a Cleared notification because events are informational records that indicate an event has occurred.

The Events tab displays events tracked separately from current alarms, such as user login, logout activity, and performance monitoring notifications. Unlike Current Alarms, events are informational entries and do not support acknowledge or unacknowledge actions.

Figure 35. Events tab in Alarms application

Before you begin

Ensure that you are logged in to Cisco Optical Network Controller.

Follow these steps to view and manage events in Alarms application.

Procedure

Step 1	Click Alarms in the left pane.
Step 2	Click the Events tab. The table shows the latest event for each node. Event types include user login, user logout, and performance monitoring notifications. For details about the table fields, see Table 1.
Step 3	To filter events by timeframe: Select `Custom Date Range` and specify the start and end dates to filter the events for the selected period. By default, `1 week` is selected to display events from the past 7 days. (Optional) Click the settings icon and enter the number of weeks in the Weeks to retain events data to define the default event data retention period. Valid range: 1 week to 12 weeks
Step 4	To add user notes to events, complete these steps. Select an alarm or multiple alarms and click Annotation. In the Add User Notes dialog box, enter the note text and click Add.
Step 5	Optional: Use the sort and filter controls in the column headers to find specific events.
Step 6	Click the + icon next to an event entry to view the event history and the associated user notes. The expanded view shows the recorded event status entries for the selected node and any user notes that were added to that event.
Step 7	Click the hamburger icon to show or hide columns.

You can review events separately from current alarms and use the available controls to filter, inspect, annotate, refresh, and export the event data.

Network Level Alarm Correlation

The Network Level Alarm Correlation (NLAC) in Cisco Optical Network Controller is designed to reduce alarm noise and improve troubleshooting efficiency by correlating related alarms and suppressing redundant ones. When a root cause alarm is identified at the network level, NLAC suppresses all subtending alarms associated with that root cause, providing a clearer view of the network's health and focusing operator attention on the most critical issues.

Note

The node or site level correlation is done by Cisco Optical Site Manager and the network level correlation is done by Cisco Optical Network Controller.
From Cisco Optical Network Controller release 25.1.1, NLAC works over a a single OMS domain. Alarm correlation does not cover alarms across multiple OMS domains.

Alarm Hierarchy Display

The alarm display presents a hierarchical view of correlated alarms.
The network level root cause alarm is displayed at the top level and is higlighted in blue color.
Subtending alarms are displayed as children of the root cause alarm, accessible by clicking a plus (+) icon.
Site-level correlated alarms are displayed at the second level of the hierarchy.
The site level root cause alarm is in the second level and is higlighted in red color.
Alarms correlated at the node level cannot be acknowledged or have user notes added in Cisco Optical Network Controller.

Screenshot of Alarms History — Figure 36. Alarms History

Alarm Correlation

Alarm correlation takes place at the network level and at the site level. Network level alarm correlation is performed by Cisco Optical Network Controller. Site level correlation is performed by COSM.

When a LOS alarm on Line is identified as the root cause, it suppresses the following alarms. This correlation is performed by Cisco Optical Network Controller. Site level correlation is independent of network level correlation. You can see site level root cause alarms and suppressed alarms without a network level root cause alarm.

Table 21. Alarms suppressed by LOS on line
Alarm	Object Type
LOS-P	LINE
LOS-P	OSC
ALS	LINE
PARTIAL-TOPOLOGY	LINE
APC-BLOCKED	LINE
NEIGHBOUR-MISSING	LINE
LOS-O	LINE
LOS-O	OSC

Note

Alarms that are the root cause display the + icon next to them and when you click this icon it displays all the suppressed alarms.
Links and nodes that have the suppressed alarms are not included in the summary and list of alarms in Workspaces, Service Assurance and Topology.
A link with suppressed alarms does not consider a suppressed alarm as its highest severity alarm.
You cannot acknowledge alarms that Cisco Optical Site Manager correlates from Cisco Optical Network Controller
Filters on the alarm table do not work for supppressed alarms. You cannot see suppressed alarms when you use a filter.

Benefits of Using NLAC

The benefits of using NLAC are:

Reduced Alarm Noise: NLAC significantly reduces the number of alarms displayed, making it easier for operators to identify and address critical issues.
Quick Fault Isolation: Helps in quickly identifying and isolating the root cause of network issues.
Improved Network Reliability: By correlating alarms effectively, it enhances the overall reliability and performance of the network.
Simplified Troubleshooting: Makes it easier for network administrators to troubleshoot and resolve issues by providing clear alarm correlations.

Acknowledged Alarm Mute

It is now possible to mute low priority alarms and disable them from appearing in the Topology, Service Assurance, Network Monitoring, and Circuit Monitoring screens.

Purpose of Acknowledged Alarm Mute

By enabling the Mute Acknowledged Alarms toggle switch option to True, you can hide the acknowledged alarms and disable them from appearing in the Workspaces, Service Assurance and Topology summaries and alarms lists, even if they are available in the Alarms application.

Benefits of Using Acknowledged Alarm Mute Option

The acknowledged alarm mute option allows you to have only the selected alarms appearing in the screen, instead of the entire set of all the acknowledged alarms. This helps in reducing unwanted clutter on the screen. As all the unnecessary acknowledged alarms that you do not want to be displayed can be hidden using this option.

Muting the Acknowledged Alarms

To mute the alarms on the screen:

Acknowledge the alarm from the Alarm screen.
Toggle the Mute Acknowledged Alarms button to True.

Note

Once an alarm is acknowledged, and the toggle switch button is set to True, the alarm will no longer be visible in the Topology, Service Assurance, Network Monitoring, and Circuit Monitoring screens.
Node and link colors take the color of the highest severity unacknowledged alarms on each node and link.

Notifications for Acknowledged Alarm Mute

Whenever the alarms are acknowledged and muted, related notifications are sent on the screen. The scenarios for the notifications are as given:

Notifications are sent to inform all users of any toggle changes, prompting them to refresh their pages to see updates.
When an alarm is acknowledged and the Mute Acknowledged Alarms button is set to True, notifications are sent updating device and link summaries. This occurs only if 10 or fewer alarms are acknowledged.
Whenever a new alarm is raised, cleared or updated new notifications are sent. But when an alarm is cleared, its acknowledgement status is lost due to which you must reset it back again.

Acknowledged alarms are excluded from the Topology, Service Assurance, Network Monitoring and Circuit Monitoring applications when the Mute Acknowledged Alarms toggle switch is set to True.

Note

A restriction is placed on the number of alarms that can be acknowledged at once. This is to ensure a single notification is sent, prompting users to refresh their pages.
When you select the circuit, the respective alarms in the circuit that are not acknowledged are displayed when the Mute Acknowledged Alarms is set to ON. In the Topology screen you will be able to view the count of such alarms. In the Circuit Monitoring screen you will be able to see these alarm details.
The Mute Acknowledged Alarms option can be used in the Network Monitoring application as well.
Only the admin user or the supervisor with admin access can mute the acknowledged alarms using the Mute Acknowledged Alarms toggle switch.

Screenshot of Mute Acknowledged Alarms in Topology — Figure 37. Mute Acknowledged Alarms in Topology

Screenshot of Mute Acknowledged Alarms in Circuit Monitoring — Figure 38. Mute Acknowledged Alarms in Circuit Monitoring

SNMP Traps and Alarm Filters

The SNMP tab under the alarms app, allows Cisco Optical Network Controller to send alarm traps to external SNMP managers. This enables integration with external monitoring systems and provides a mechanism for forwarding alarm information. Cisco Optical Network Controller supports both SNMP v2c and v3.

Alarms and Events

An event is a distinct incident that occurs at a specific point in time, such as a port status change, or a device becoming unreachable. Events can indicate an error, failure, or exceptional condition in the network. Events can also indicate the clearing of those errors, failures, or conditions. Events have associated severities which you can be adjusted.

An alarm is a response to one or more related events. Only certain events generate alarms. Alarms have a state (cleared or not cleared) and a severity (Critical, Major, Minor, and so forth). An alarm inherits the severity of its most recent event. Alarms remain open until a clearing event is generated (or if the alarm is manually cleared).

Note

Cisco Optical Network Controller does not support notification replay. Hierarchical controllers miss notifications when Cisco Optical Network Controller is down or not reachable.

SNMP manager configuration

Supports configuration of up to four SNMP managers.
Supports both UDP and TCP protocols for trap transmission.
Allows configuration of SNMP v2c and v3 managers.

Alarm filtering

Provides detailed filter configuration options to control which alarms are sent to each SNMP manager.
Supports filtering by alarm severity (Critical, Major, Minor, Warning).
Supports filtering by alarm type (e.g., Cisco Optical Network Controller generated alarms, circuit alarms, device alarms, restoration alarms).
Allows exclusion of specific alarm types to avoid overwhelming OSS systems.
Provides separate filtering for transient (events) and non-transient (alarms) conditions.

Set the Edit Host Name

The host name is used to identify the Cisco Optical Network Controller server sending the SNMP traps.

Before you begin

There is a character limit of 25 characters for the host name.
Only alphanumeric characters, underscores, and hyphens are allowed in the host name. Spaces are not allowed.
If you do not set a host name, the default value CONC is used.

Procedure

Step 1

Click Set/Edit Host Name.

Step 2

Enter the desired hostname.

Step 3

Click Save.

Step 4

(Optional) Click View Engine id

Note

The Engine ID remains the same for all SNMP managers.

The Engine ID is displayed and can be copied for use in the receiver application.

Configure SNMP managers

The alarms and events are filtered based on the criteria set by user and converted to traps and sent to the trap server using the alarm model in CISCO-EPM-NOTIFICATION-MIB. For more information, see MIB Definition For Cisco Optical Network Controller.

Procedure

Step 1

Navigate to Alarms > SNMP.

Step 2

Create a New SNMP Manager.

Enter the Server Name and IP Address.

Cisco Optical Network Controller supports only IPv4.
Enter the Port Number, and choose the SNMP Version.
If you choose the SNMP Version as v2c, enter the Community settings as required.
If you choose the SNMP Version as v3, enter the Username, Mode, Auth. Type, Auth. Password, Confirm Auth. Password, Privacy Type, Privacy Password, and Confirm Privacy Password.
Choose the Notification Type, TCP or UDP.
Choose the Trap Configuration, Send all traps or Set custom trap filters.

If you choose custom trap filters follow3.c

Step 3

Configure alarm filters.

Click Alarms > SNMP.
Select a manager and click Set/Edit Filters.

The custom trap filter configuration pop-up appears.
Select the desired Severity levels and alarm types.

Severity: Critical, Major, Minor, Warning, Cleared

Type: Service-affecting, Non Service-affecting
Choose the logical operator for the filter.

If you choose AND, you get notifications for only the alarms that match both the severity selection and Type selection.

If you choose OR, you get notifications for the alarms that match either the severity selection or type selection.
Use the transfer list to exclude specific alarms. Use filters in the table to find the specific alarms you want to exclude.
Click Apply.

The custom trap filter for the SNMP manager is created.

If traps are not being received, verify the SNMP manager configuration, including the IP address, port, protocol, and security settings.
Check the alarm filters to ensure that the desired alarms are not being excluded.
Verify that the Cisco Optical Network Controllerserver has network connectivity to the SNMP manager.

Alarm email forwarding

A alarm email forwarding is a notification capability that

sends alarm updates from Cisco Optical Network Controller to one or more email recipients based on subscription-specific filters,
allows each subscription to be uniquely named, include up to five email addresses, and specify filter criteria, and
restricts the creation, editing, or deletion of subscriptions to users with admin or supervisor roles.

How alarm email forwarding works

Use alarm email forwarding when you want Cisco Optical Network Controller to send selected alarm notifications to distribution lists or individual recipients.

You can create a maximum of 10 subscriptions for different recipient groups and filter criteria.
If the same email address is used in multiple subscriptions and an alarm matches the filter criteria for more than one subscription, Cisco Optical Network Controller sends only one email notification for that alarm to that recipient.

For example, if user 1 is configured in Subscription A and Subscription B, and the same alarm matches both subscriptions, use 1 receives only one email notification for that alarm.
The sender email address is fixed and is not user-configurable.
Read-only users cannot create, edit, or delete alarm subscriptions.
All notification emails are sent from the fixed sender address noreply-conc@cisco.com. This address cannot be changed by users.

SMTP server requirement

The system relies on a configured SMTP server to deliver email notifications and email notifications are not delivered until the SMTP server is configured and reachable.

SMTP settings can be configured from the Jobs tab of the PM History application. For more details, see Accessing PM History Report.
You can specify both a primary SMTP server and, optionally, a secondary SMTP server for failover. If the primary server becomes unavailable, the system automatically attempts to send notifications using the secondary SMTP server.
The email subscription page displays the current SMTP configuration status. If SMTP is not configured, a warning SMTP Server is not configured is displayed with a link to the PM Jobs configuration page.

Alarm types that trigger notifications

These alarm events trigger email notifications:


Alarm event	Description
Alarm Raised	A new alarm occurs or an existing alarm escalates in severity.
Alarm Cleared	An alarm condition is resolved.
Alarm Updated	An alarm severity changes (other than raised or cleared).
Alarm Acknowledged	A user acknowledges or unacknowledges an alarm.
Alarm User Note	A user adds an annotation to an alarm.

Alarm email forwarding subscription settings

Use this reference to understand the configuration values and behavior that apply to alarm email forwarding subscriptions.

Subscription settings

The alarm email forwarding page uses these settings.

Table 22. Alarm email forwarding settings
Setting	Description	Notes
Subscription name	Identifies the alarm email forwarding subscription.	Each subscription name must be unique and contain no more than 50 characters.
Email recipients	Lists the email addresses that receive forwarded alarms.	Each subscription supports up to five email addresses and validates the email address format.
Alarm filters	Controls which alarms Cisco Optical Network Controller forwards for the subscription.	The filtering model is similar to the filtering model used for SNMP alarm forwarding.
SMTP configuration	Provides the mail server settings that Cisco Optical Network Controller uses to send alarm emails.	A warning is displayed if SMTP server settings to send the notifications are not configured.
Export	Exports the subscription entries from the page.	Use export to review or share the current subscription list.

Alarm email notification format

This section describes the email format that Cisco Optical Network Controller sends for the alarm email notifications. The severity value appears in uppercase.

Alarm email subject line format

Cisco Optical Network Controller uses these upper-case severity values in the subject: CRITICAL, MAJOR, MINOR, WARNING, and CLEARED.

Table 23. Alarm email subject line format
Condition	Subject format	Example
Alarm name and device name present	[SEVERITY] Event Type - Alarm Name on Device Name	[CRITICAL] Alarm Raised - LOS on NCS2K-Shelf1
Only alarm name present	[SEVERITY] Event Type - Alarm Name	[MAJOR] Alarm Cleared - LOS
Only device name present	[SEVERITY] Event Type on Device Name	[MINOR] Alarm Updated on NCS2K-Shelf1
Neither present	[SEVERITY] Event Type	[WARNING] Alarm Raised

Email body format

The email body uses a plain-text format with a summary section and an alarm-details section.

Table 24. Alarm email summary fields
Field	Description
Subscription Name	Lists the matching subscription names for the recipient as a comma-separated list.
Alarm Name	Shows the name of the alarm condition when the alarm name is available.
Severity	Shows the alarm severity in uppercase when the severity value is available.
Device Name	Shows the name of the affected device when the device name is available.
Event Type	Shows one of these event types: Alarm Raised, Alarm Cleared, Alarm Updated, Alarm Acknowledged, or Alarm User Note.

Example alarm email summary:

------------------------------------------------------------
ALARM NOTIFICATION
------------------------------------------------------------
Subscription Name : Network-Ops-Team, Critical-Alerts
Alarm Name : LOS
Severity : CRITICAL
Device Name : NCS2K-Shelf1
Event Type : Alarm Raised

Sender details

Alarm notification emails always use the following sender information (these values cannot be changed):

Table 25. Alarm email sender details
Field	Value
From Address	noreply-conc@cisco.com

Configure alarm email forwarding subscriptions

Create an alarm email forwarding subscription and apply filters that control which alarm notifications are sent to the selected recipients.

Use different subscriptions for different recipient groups or alarm conditions.
Use filters to limit forwarded alarms to the required severities, alarm types, or other supported criteria.

The Alarms page shows the existing subscriptions and provides options to create, edit, filter, delete, refresh, and export subscription entries.

If the SMTP server is not configured, Cisco Optical Network Controller shows a message on the page.

Follow these steps to configure an alarm email forwarding subscription.

Procedure

Step 1

Click Alarms and from the Configuration drop-down list, select Email Configuration.

The subscription list opens.

Step 2

Click New Subscription.

The Add Email Configuration form is displayed.

Step 3

In the Subscription Name field, enter a unique name for the subscription.

Use a name that identifies the recipient group or the filter purpose.

Step 4

In the Email(s) field, type the email ID of the recipient and click + to add the email.

You can add up to five email addresses to a subscription.

Step 5

In the Alarms configuration section, perform these steps:

Select Send all alarms to send notification for all the alarms.
Select Set custom alarm filters to send notification for selected alarms based on the created filters.
Use the available filter controls to include or exclude alarms based on the supported filter criteria.

To create filters, click No filters set and proceed with the steps outlined in the Configure SNMP managers topic.

Step 6

Click Add to save the subscription.

The new subscription appears in the subscription list and Cisco Optical Network Controller uses it for future alarm emails.

Step 7

To manage the subscriptions, perform these optional steps:

To edit a subscription, select an existing subscription and click Edit Subscription.

Note

The alarm configuration option (Send all alarms / Set custom alarm filters) cannot be changed when editing a subscription. To modify filter criteria, use the Set/Edit Filters button.

To edit the filters, click Set/Edit Filters.
To delete a subscription, select a subscription and click Delete.
To export all subscription details, click Export.

The report is downloaded in a .xlsx file.

Note

Only one subscription can be selected at a time for editing, filtering, or deletion.

Cisco Optical Network Controller forwards matching alarms to the configured email recipients by using the active SMTP server settings.

Workspaces

Workspaces provide focused environments for specific monitoring and management tasks. They integrate data and functionality from multiple applications, presenting a unified view and streamlined workflow for users. This approach reduces the need to navigate between different applications, improving efficiency and user experience.

Note

From 25.1.1 release, you can acknowledge and unacknowledge alarms from the alarms tab in workspaces.

Note

From 26.1.1 release, Circuit workspaces support PM history for OTN services that include the PM of all the ODU ports in both working and protect paths.

Procedure

Step 1	Click Workspaces in the left panel.
Step 2	Select the workspace and click Launch.
Step 3	Click Save Layout to save the layout at any given point in time.
Step 4	Click Reset Layout to revert to the default layout.
Step 5	Some of the other options that are available on these panels are mentioned below. Hovering on the nodes displays the node name and the alarm severity. Hovering on the equipment displays the equipment name, service state as enabled or disabled and the count of the severity of the alarms. Hovering on the port which is displayed as a round icon on the panel displays the port name, service state, and the alarms severity counts. Connectivity between each equipment is highlighted with arrows. If you right click at the node level it will cross launch to the Nodal UI to verify OXC's. If you right click at the equipment level it will cross launch to View Nodal UI: Equipment. If you right click on any port it will cross launch to View Nodal UI: Port. Connectivity between the nodes are represented with arrows.

Circuit Monitoring workspace

This section describes the Circuit Monitoring workspace. This workspace focuses on individual circuits, displaying their path, associated alarms, and performance history.

Note

AR-MXP card is supported but OCH-CC and OCH-Trail circuits cannot start from this card.

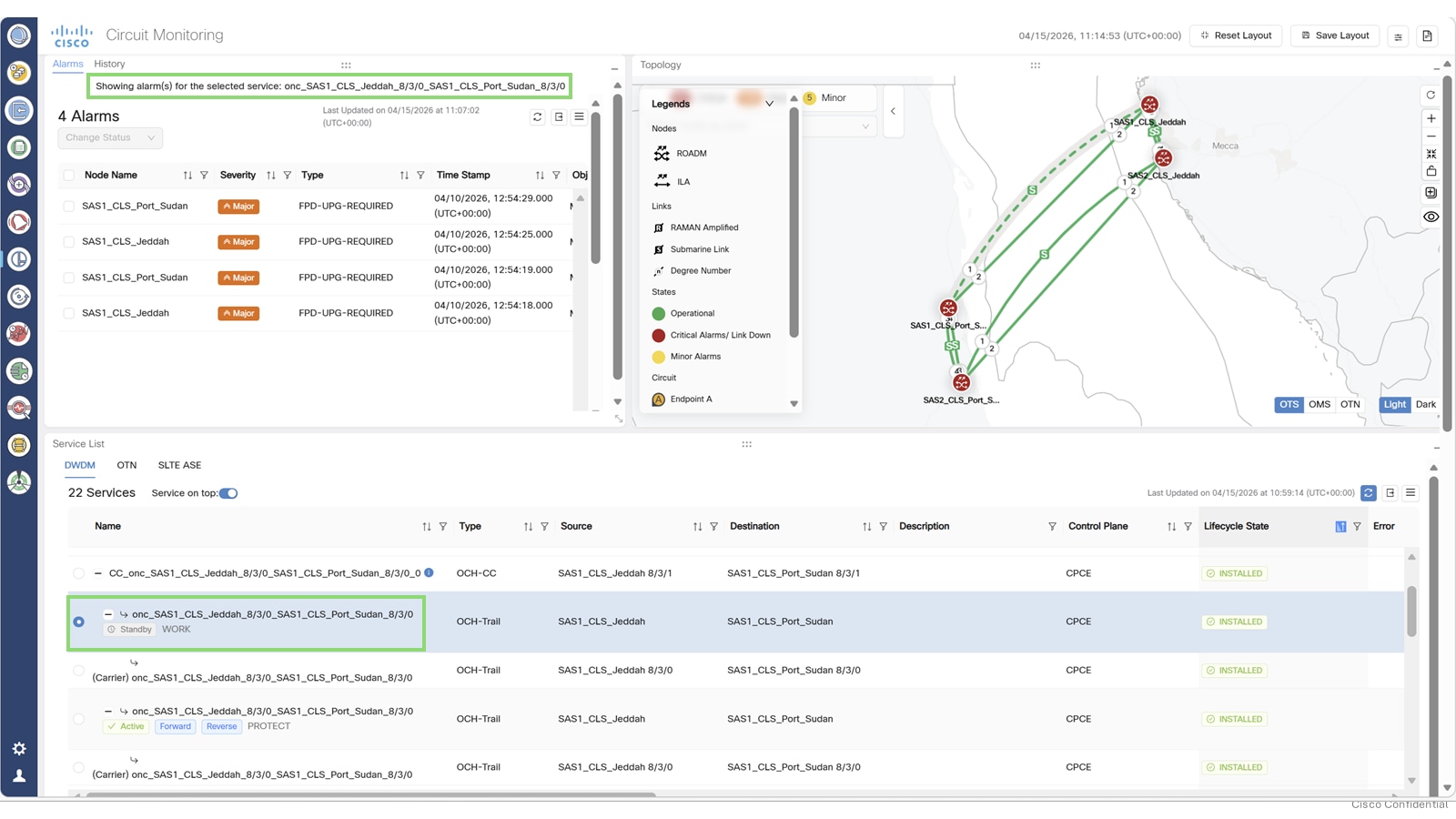

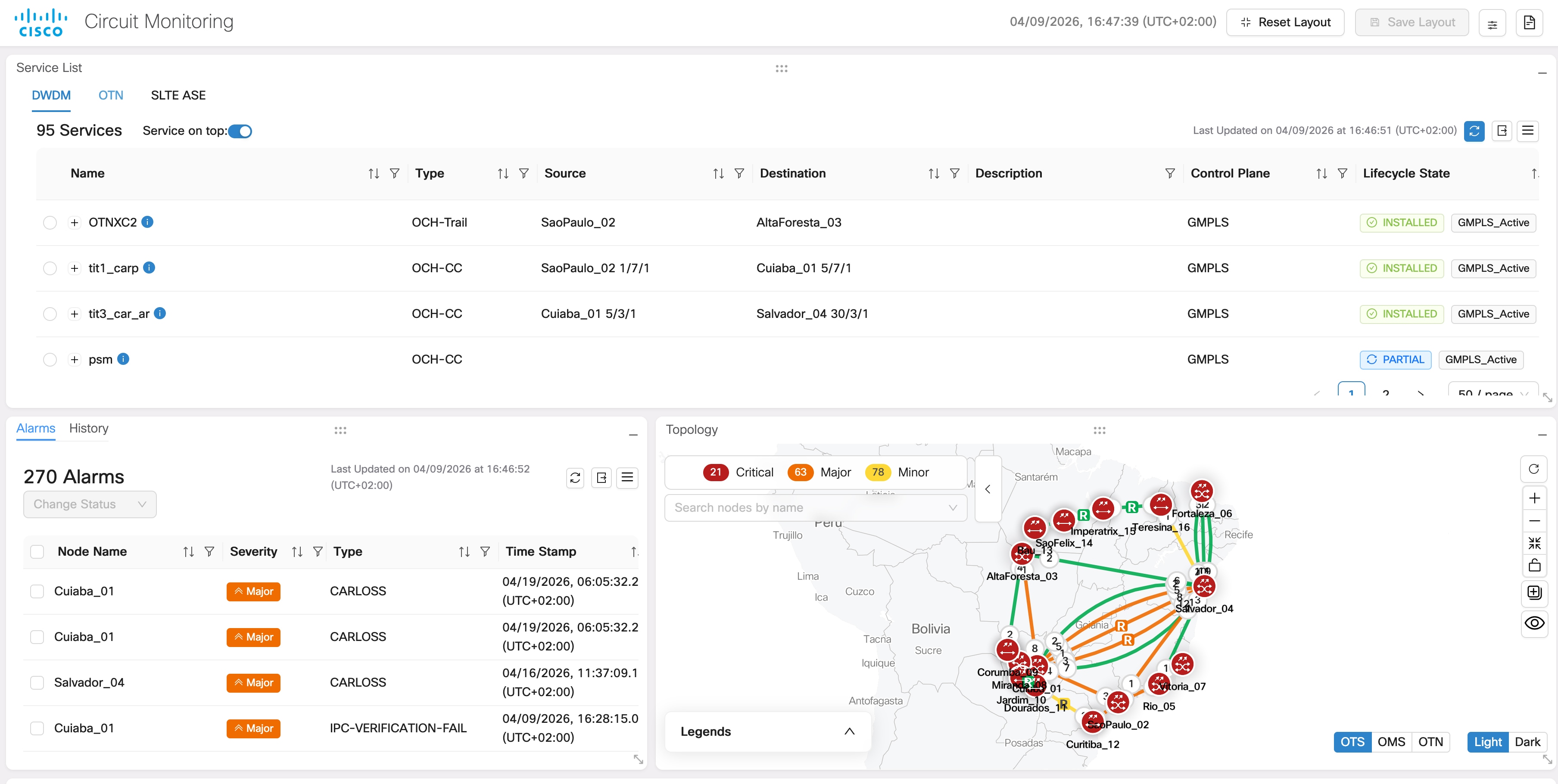

Screenshot of Workspace Circuit Monitoring — Figure 39. Circuit Monitoring

In Circuit Monitoring, the services list is primary. This list has these tabs

DWDM—DWDM circuit services
OTN—OTN circuit services
SLTE ASE—Submarine circuit services

Note

Each services table includes an info icon, Click to view complete summary, next to each service. Click the info icon to get the full summary of the circuit service.

OTN circuit table

The OTN circuit table provides the OTN circuit parameter information.

Table 26. OTN circuit parameter description
Parameter	Description
Name	Name of the OTN circuit
Source	Source node of the OTN circuit
Destination	Destination node of the OTN circuit
Lifecycle State	Lifecycle state of the discovered OTN service. supported states are Installed and Partial.
Operational State	Operational state of the node, whether enabled or disabled
Admin State	Administrative state of the node
Protection Profile	Protected for protected OTN service. Unprotected for unprotected OTN service.
Payload Type	OTN rate
Bandwidth	Bandwidth of the signal
Error	Error message
Discovery Date	Date and time of service discovery
Tags	User-defined tags
Description	Short description of the circuit

SLTE ASE table

Table 27. STLE ASE table
Parameter	Description
Name	Name of the service
Endpoint 1	Source endpoint
Endpoint 2	Destination endpoint
Frequency (THz)	Frequency of the circuit service in THz
Bandwidth (GHz)	Bandwidth of the circuit service in GHz
Discovery Date	Data and time when the service was discovered
Tags	User-defined tags
Source Attenuation	Signal attenuation at source node
Destination Attenuation	Signal attenuation at destination node

Alarms table

Use the Alarms table to view the existing alarms in the network.

In the Alarms screen, select any alarm and right click followed by Show DWDM Affected service(s), Show OTN Affected service(s), or Show SLTE ASE Affected service(s). This will display all the services related to the selected alarm in the services layout.

Table 28. Alarms table parameters
Parameters	Description
Node Name	Name of the node on which the alarm is raised
Device Object Name	Name of the device object
Severity	Severity of the alarm
Type	Type of alarm
Time Stamp	Time stamp of the alarm
Object	Logical object of the alarm
Description	Description of the alarm
Category	Alarm category
Service Affect	Marks the alarm as service affecting or non service affecting
Location	Location of the node where the alarm is raised
Direction	Direction of the alarm
User Tag	User-defined tags
User Notes	User-defined notes
Acknowledge	Acknowledge or unacknowledged the alarms
UUID	Unique ID of the device
Transient	Transient or non-transient alarm
Correlation Type	Correlation type
Ru Position	Rack unit position of the device
Rack ID	Rack ID of the device
Low Device Name	Low device name

History table

Use the History table in the Alarms pane to view the history of alarms in the network.

Table 29. Alarms history table parameters
Parameters	Description
Node Name	Name of the node the alarms was raised
Node State	State of the node
Device Object Name	Name of the device object
Severity	Severity of the alarm
Service Affect	Marks the alarm as service affecting or non service affecting
Type	Type of alarm
Time Stamp	Time stamp of the alarm
Object	Logical object of the alarm
Description	Description of the alarm
Category	Alarm category
Location	Location of the node where the alarm is raised
Direction	Direction of the alarm
User Tag	User-defined tags
UUID	Unique ID of the device
Transient	Transient or non-transient alarm
Ru Position	Rack unit position of the device
Rack ID	Rack ID of the device
Low Device Name	Low device name

Release-wise circuit workspace enhancements

From release 24.3.1, PM tab is available in the Circuit Monitoring workspace application.
From release 25.1.1, you can select multiple links or nodes in the topology.
1. Click Select node(s)/link(s)in topology.
2. Use the OTS/OMS/OTN toggle to select the segment type.
3. Click the nodes or links you want to select.

  You can select up to 20 entities at a time.
4. Click Show services.

  The service list shows affected services for the selected nodes and links. The list shows the services that are with paths through all the selected nodes and links.
5. Click Refresh data and reset the layout in Service List to reset the table to show all services.
From release 25.1.1, alarms history can be viewed for each circuit.
1. Select a service from the service list.
2. Click History in the Alarms tab.
3. Choose a time period for which you want to view the alarm history from the Select Time period drop down list, or choose a custom date range.

  The history tab displays both cleared and active alarms for the selected circuit within the specified time range.
  - The maximum time period is 3 months. If you select a time range more than 3 months using custom date range, Cisco Optical Network Controller throws an error.
  - Alarm history queries are rate limited. You can query up to 5 alarms history every minute.

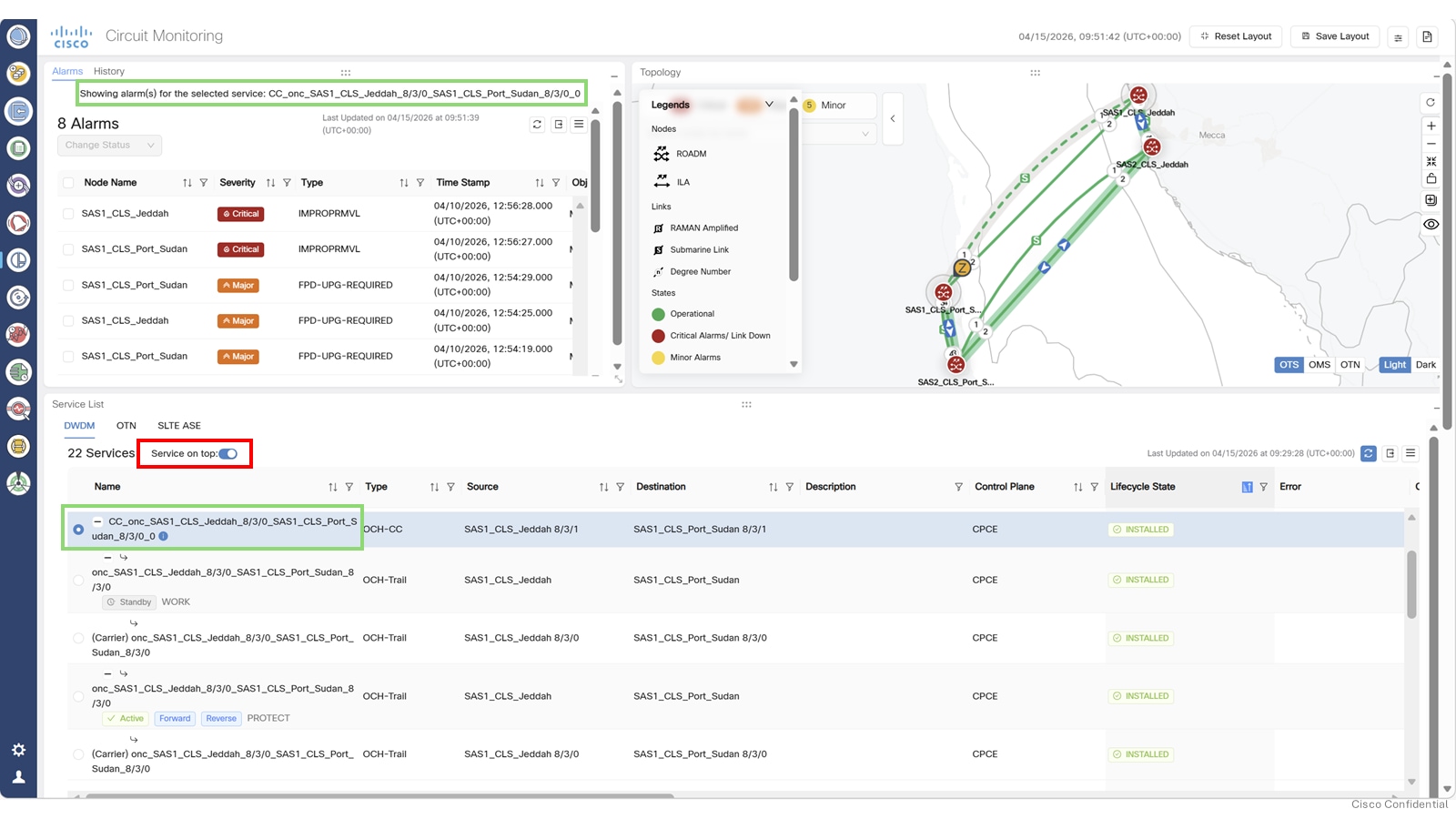

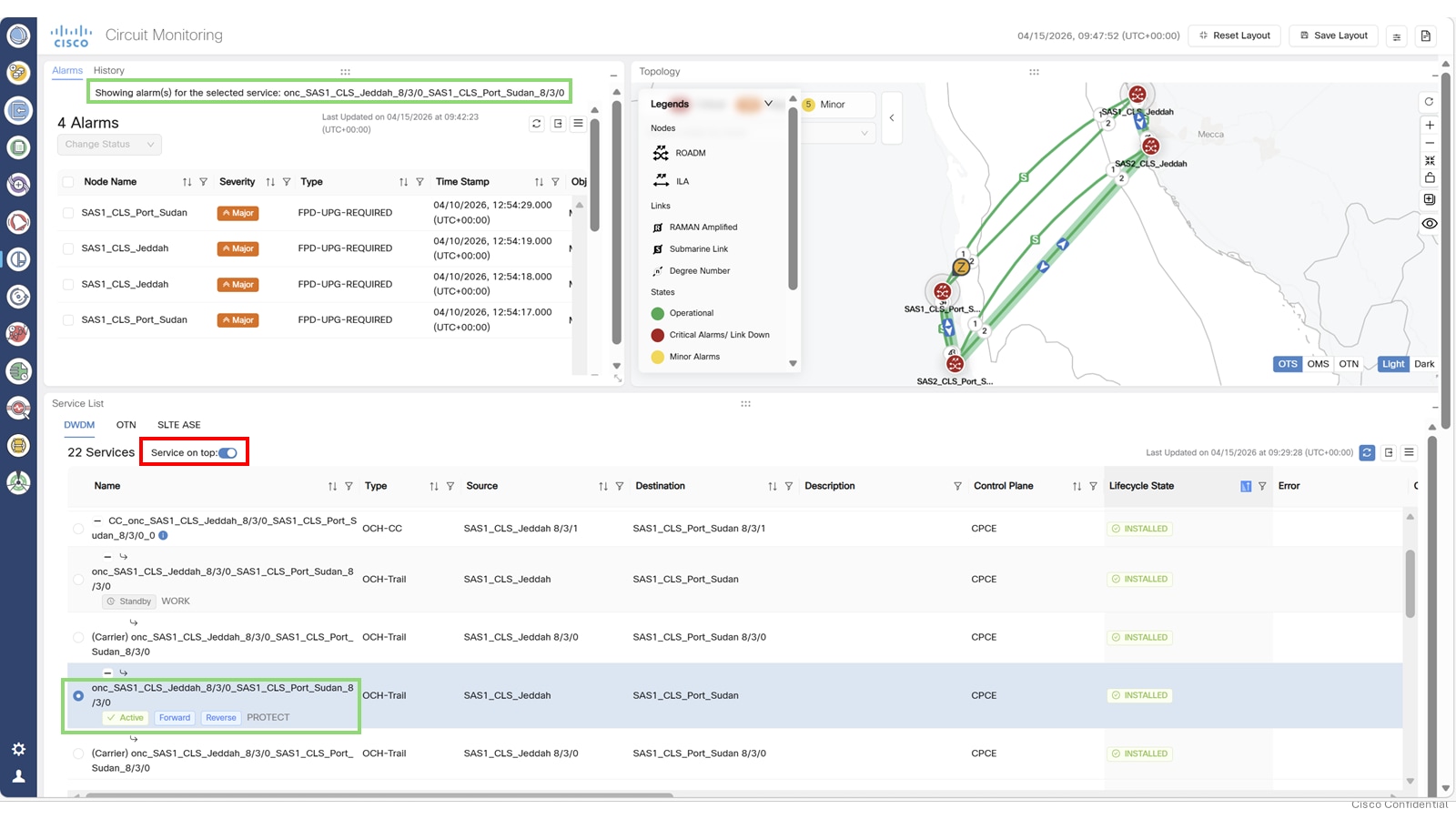

From release 26.1.1, the Circuit Monitoring workspace has these enhancements related to OTN.
- OTN tab—New tab in the Services List to check the protected and unprotected services.
- OTN toggle button—New toggle button in Topology pane enables OTN links of the transponder cards.

  Use the OTS/OMS/OTN toggle button to select the link type.
- The Circuit Monitoring workspace displays the detailed OTN service path including the OTN clients, OTN trunk, OTU links, and OTN-level alarms, for example, OTN interface alarms and service history specific to OTN service.
From release 26.1.1, the topology view highlights the constraints in the network.
1. Click the Map View Options eye icon.
2. Check the Show Constraints check box.

  The active circuit path with constraint is highlighted.

  Figure 42. Show Constraints
3. Expand the Legends bar to verify the configured legends. The constraints icons on the map are explained in the legends.

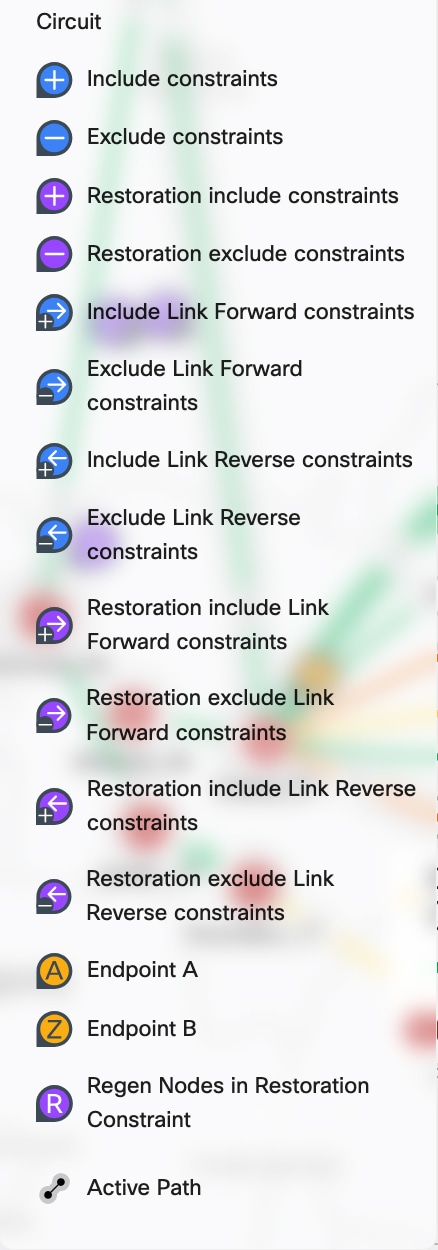

  Figure 43. Constraints Legends

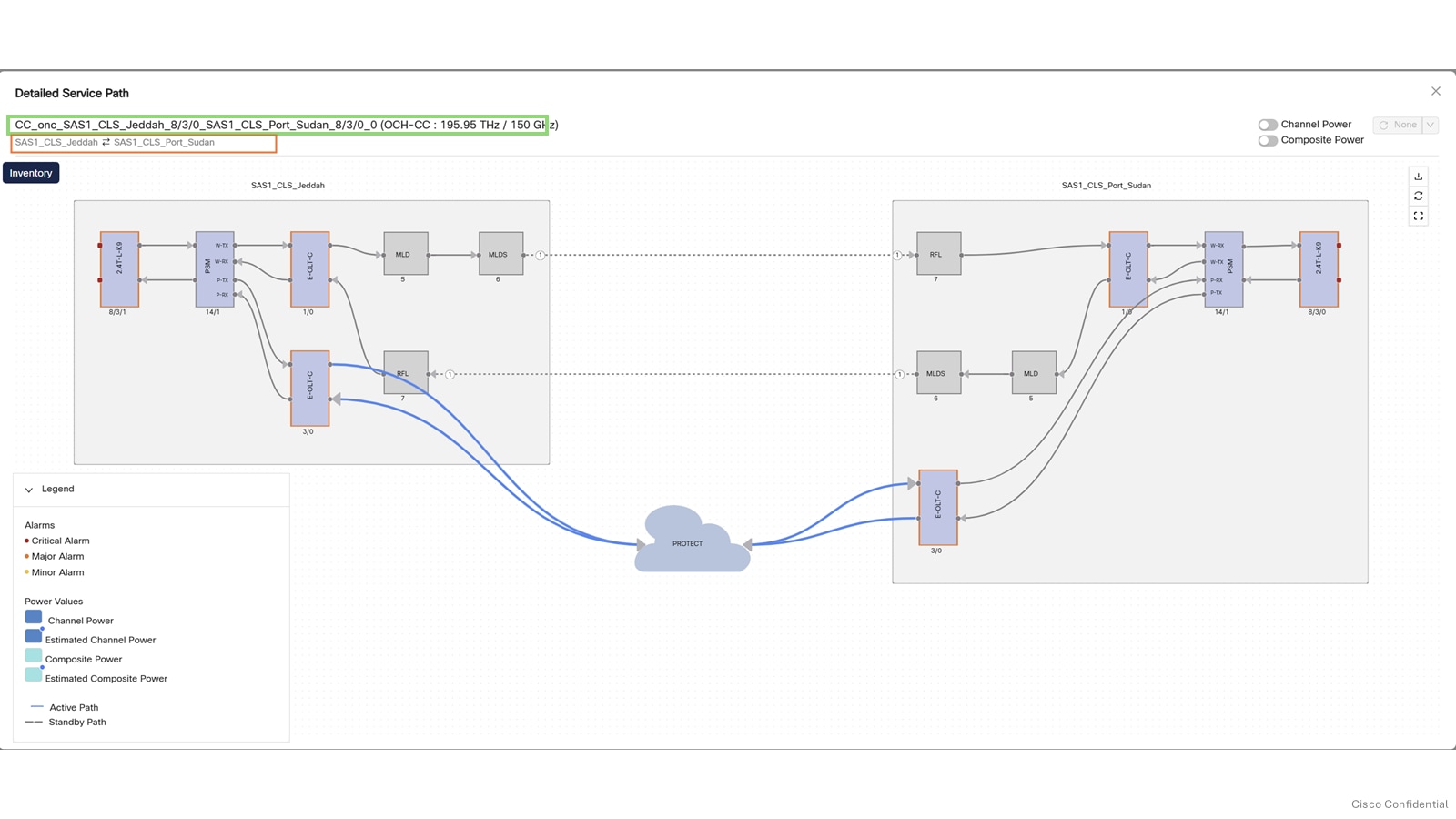

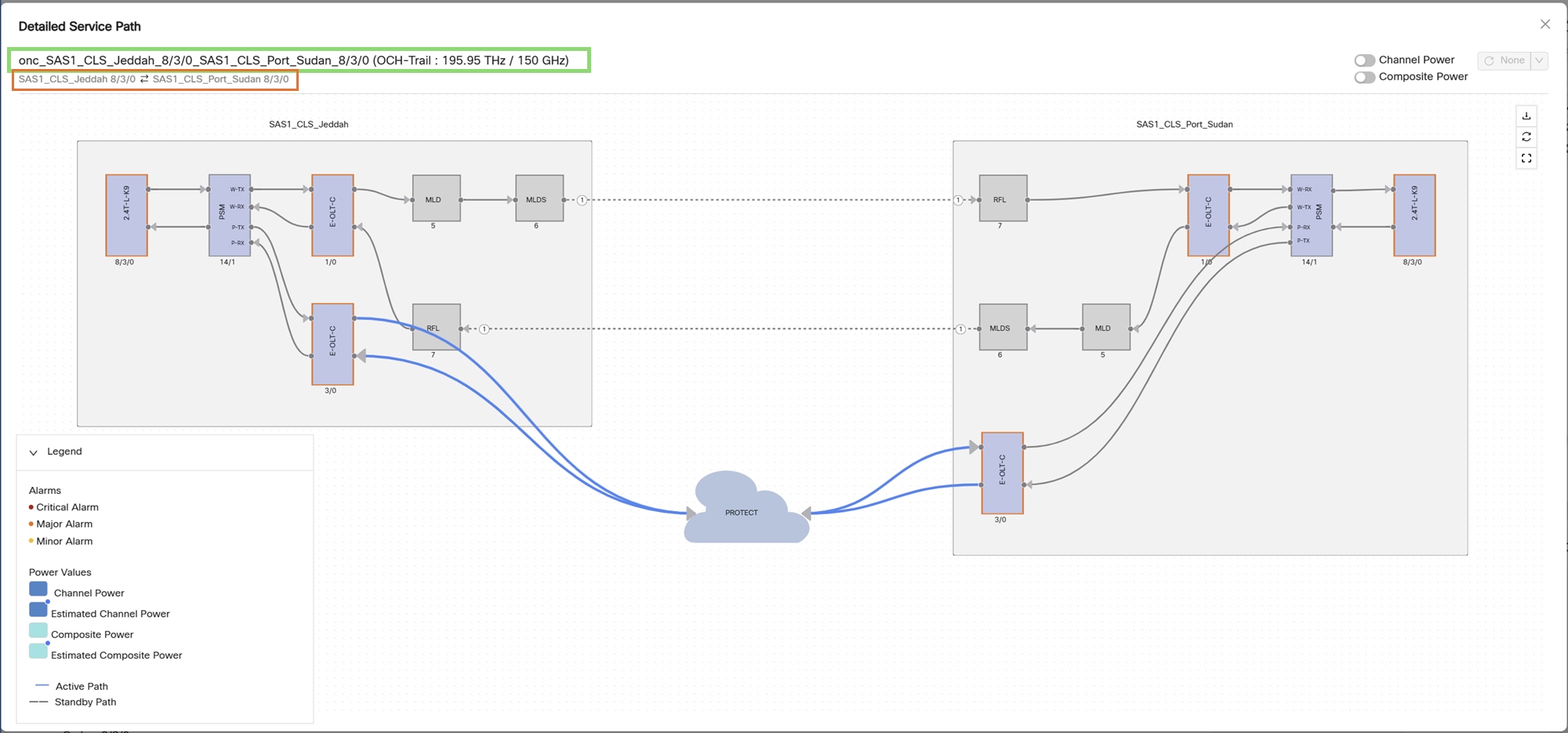

Detailed service path

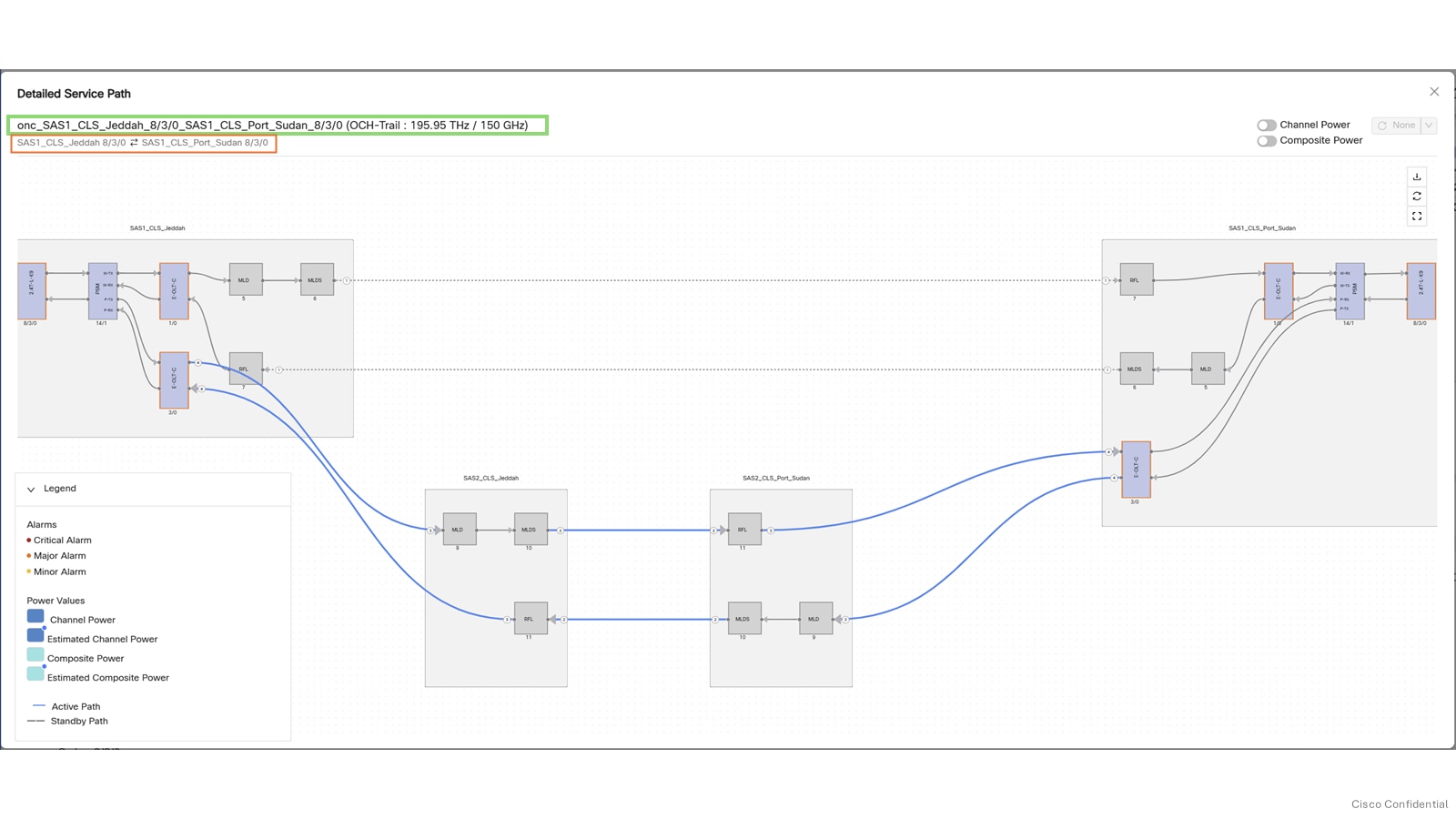

Select a service from the service list to view its detailed service path.
For DWDM circuits, use the Channel Power and Composite Power toggle switches to enable and disable the power display for all ports in the detailed service path.

For OTN circuits, use the Power toggle switch.

Power toggle switch shows the total power of relative ports for Working and Protect paths.

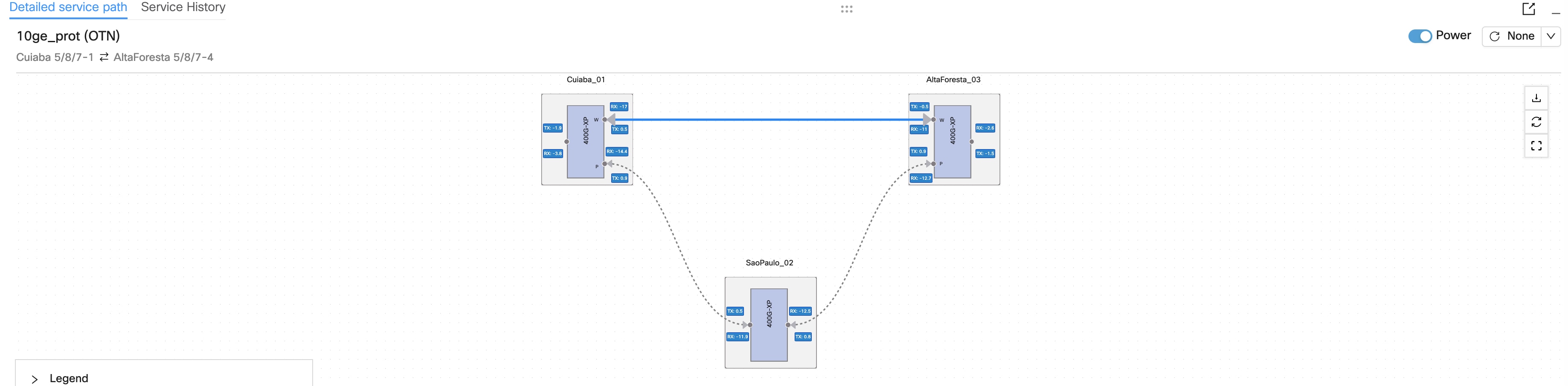

Figure 44. Power toggle switch
Hover over a port or equipment in the detailed service path to view a tooltip. The tooltip displays W and P that specify the working and protected path for protected OTN service and source and destination ODU port information.

Right click on a port to cross-launch Links tab and PM history from the service detailed path.
PM history
- Select a service from the service list.
- From detailed service path, right click a port and choose View PM history.

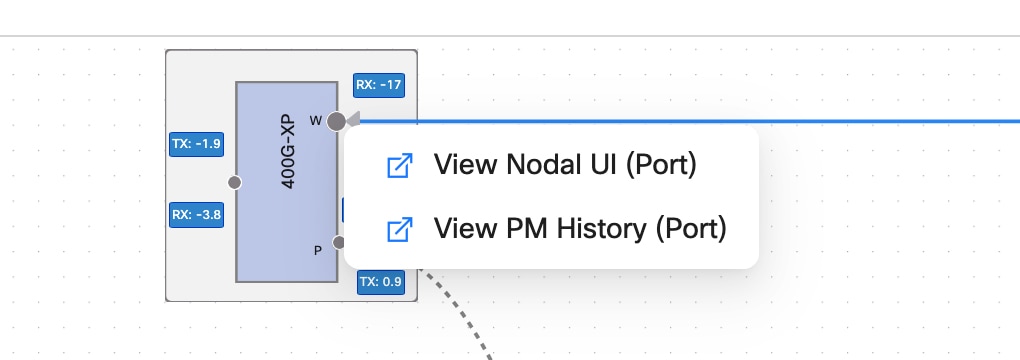

  Figure 45. Port pop-up options

  The PM History in Circuit monitoring appears.

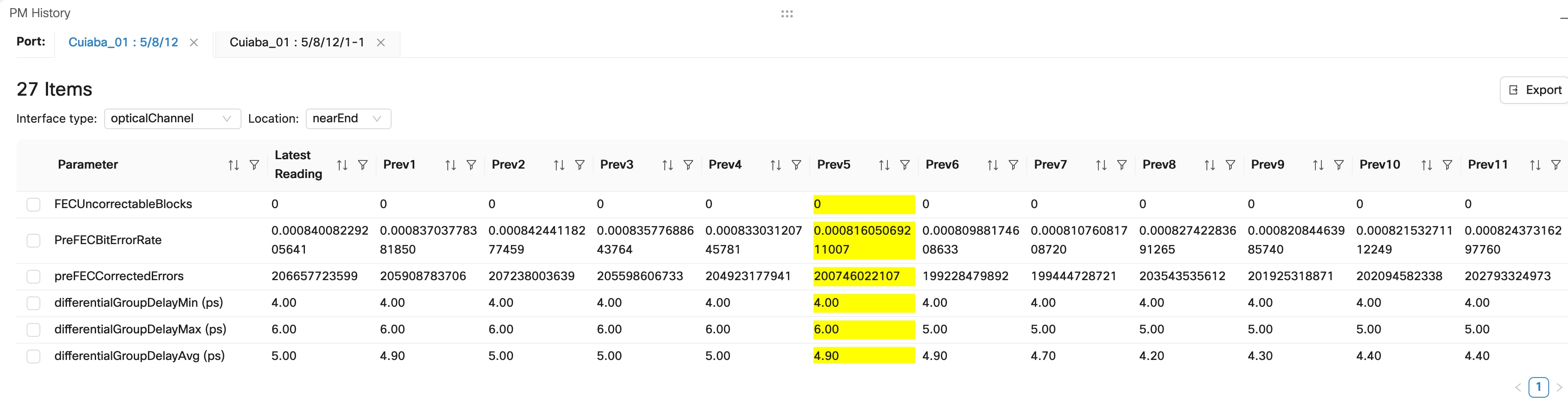

  Figure 46. PM History in Circuit workspace
- Interface type drop-down list: By default, only one interface type is used to generate the report for the selected port. However, if the port has multiple interface types, you can choose the interface type from the drop-down.
- Location drop-down list: You can choose to view the PM history report for up to two ports based on their location, nearEnd or farEnd.
- You can view PM history for up to two ports at a time.

Service History

Select an OTN service from the OTN tab and go to Service History tab to get events related to the selected OTN service.

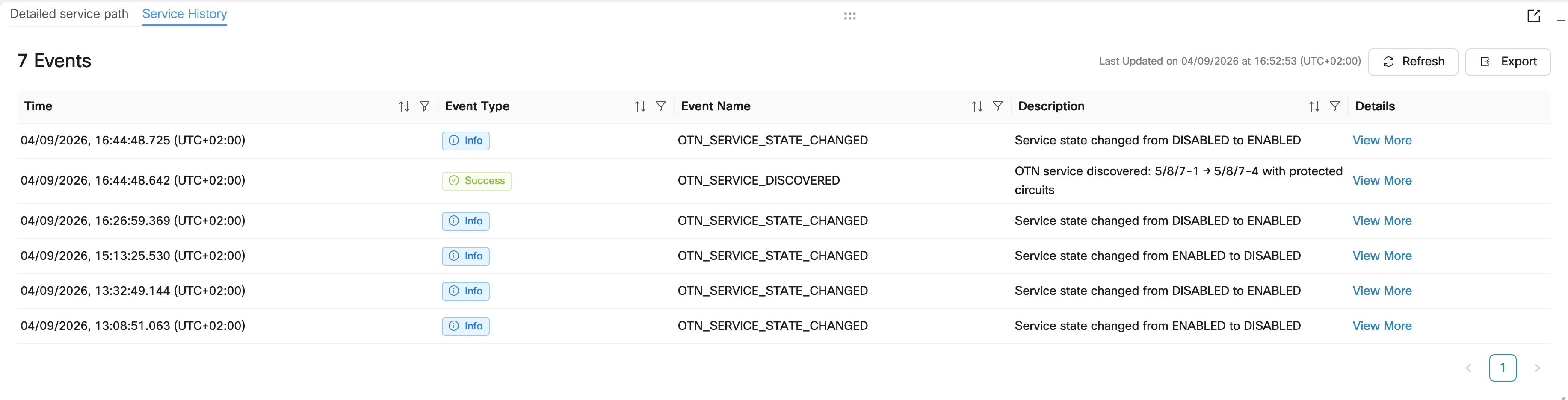

Figure 47. Service history table
- Offers a "view more" option to display detailed diagnostic logs related to the event.

Topology panel

The Topology panel reflects the topology screen with a modified Map View Options icon.

Map View Options—Provides Show Constraints and Filter Submarine Links options.

Link Monitoring workspace

This section describes the Link Monitoring Workspace. This workspace focuses on individual links, displaying their alarms, performance history, topology, and associated circuits.

Links monitoring workspace functionalities

The Links monitoring workspace has three tabs OTS, OMS, and OTN.
By selecting the link, its related alarms, span loss and links in topology are filtered and highlighted. The links table has a label above it specifying the current filter. For example, Showing Links for locationA 1/2/LINE-TX - locationB 1/2/LINE-RX.

In Links monitoring workspace, a selection is bidirectional. For example, the link you select from the Links table list is highlighted in the topology. The nodes and links you select in topology are filtered in the links table list.
In links table, click the pencil icon (edit link) in the action column to edit link details.
You can cross launch circuit monitoring for circuits using a link by clicking View in Circuit Monitoring in the action column.
In links table, you can select only forward/reverse OTS links.
You can select multiple links or nodes in the topology.
1. In Topology, click Select links icon.
2. Select the nodes or links you want to modify.

  You can select up to 20 entities at a time. Multiple selection is available only for OTS links.
3. Click Select Links.

  The links list shows the selected links.
4. Click the Refresh data and reset the hierarchy icon in Links table to reset the table to show all links.

OMS Links tab

Use the OMS Links table to view the OMS link parameters in the network.

Table 30. OMS Links table parameters
Parameters	Description
Link Name	User-defined name for the OMS link
Type	Type of the link
Deployment Type	Location of the link deployed
Endpoint1-Node Name	Source node of the link
Endpoint2-Node Name	Destination node of the link
Endpoint1-Port	Source port that transmits the link
Endpoint2-Port	Destination port that receives the link
Endpoint1-Degree	Degrees of the source node
Endpoint1-Degree Label	User-defined label for the source node
Endpoint2-Degree Label	User-defined label for the destination node
Tags	Tags added to the link
Description	Short sentence describing the link
Link Status	Status of the link
Fiber Type	Type of fiber used between the nodes
Fiber Length (km)	Length of the fiber cable between the nodes
Total Transmit Power Tx (dBm)	Total power transmitted in the link
Total Receiver Power Rx (dBm)	Total power received in the link
Span Loss(dB)	Link span loss between the source and destination node
Action	Pencil - Edit icon - Modify the link parameters Arrow - Open icon - View circuit monitoring for a link in circuit monitoring workspace

Link Monitoring workspace options

These action icons and button improve your interaction with the table

Collapse All button—Collapses the expands tables.
Refresh icon—Refreshes the table data.
Export icon—Exports the table view and network report in excel.
Column preferences icon—Enables display or removal of columns in the table.

OTN Links tab

Use the OTN Links table to view the OTN link parameters in the network.

Table 31. OMS Links table parameters
Parameters	Description
Link Name	User-defined name for the OTN link
Rate	Speed of the link
Endpoint1-Node Name	Source node of the link
Endpoint2-Node Name	Destination node of the link
Endpoint1-Port	Source port that transmits the link
Endpoint2-Port	Destination port that receives the link
Tags	Tags added to the link
Description	Short sentence describing the link
Link Status	Status of the link
Span Utilization	View summary hyperlink opens the span utilization summary table for each ODU port
Action	Pencil - Edit icon - Modify the link parameters Arrow - Open icon - View circuit monitoring for a link in circuit monitoring workspace

Alarms tab

Use the Alarms table to view the existing alarms in the network.

Table 32. Alarms table parameters
Parameters	Description
Node Name	Name of the node on which the alarm is raised
Device Object Name	Name of the device object
Severity	Severity of the alarm
Type	Type of alarm
Time Stamp	Time stamp of the alarm
Object	Logical object of the alarm
Description	Description of the alarm
Category	Alarm category
Service Affect	Marks the alarm as service affecting or non service affecting
Location	Location of the node where the alarm is raised
Direction	Direction of the alarm
User Tag	User-defined tags
User Notes	User-defined notes
Acknowledge	Acknowledge or unacknowledged the alarms
UUID	Unique ID of the device
Transient	Transient or non-transient alarm
Correlation Type	Correlation type
Ru Position	Rack unit position of the device
Rack ID	Rack ID of the device
Low Device Name	Low device name

Alarm history tab

Use the History table in the Alarms pane to view the history of alarms in the network.

Table 33. Alarms history table parameters
Parameters	Description
Node Name	Name of the node the alarms was raised
Node State	State of the node
Device Object Name	Name of the device object
Severity	Severity of the alarm
Service Affect	Marks the alarm as service affecting or non service affecting
Type	Type of alarm
Time Stamp	Time stamp of the alarm
Object	Logical object of the alarm
Description	Description of the alarm
Category	Alarm category
Location	Location of the node where the alarm is raised
Direction	Direction of the alarm
User Tag	User-defined tags
UUID	Unique ID of the device
Transient	Transient or non-transient alarm
Ru Position	Rack unit position of the device
Rack ID	Rack ID of the device
Low Device Name	Low device name

PM History pane

The PM History pane has these tabs.

Recent—List the recent PM data
History—List the PM history data

Table 34. PM history table parameters
Parameters	Description
Optical Link	Name of the optical link
Span Loss	Link span loss between the source and destination node
Measured By	Entity measured for PM data
Measured Time	PM data reported time

Topology pane

The Topology pane reflects the topology screen.

Light/Dark toggle buttons—Allows switching between light and dark themes.
Legends—Represents the Nodes, Links, States and Node Resync in a visual format
Map view icons—Allows zoom in, zoom out, reset and lock default view functions
Select links icon—Selects the discovered OMS links
Map view options icon—Pops up Filter Submarine Links check box to display submarine links only in the map.

Table 35. PM history table parameters
Parameters	Description
Optical Link	Name of the optical link
Span Loss	Link span loss between the source and destination node
Measured By	Entity measured for PM data
Measured Time	PM data reported time

Network Monitoring workspace

This section describes the Network Monitoring Workspace. This workspace provides a comprehensive view of the network, including node status, alarms, and performance metrics.

Screenshot of Workspaces Network Monitoring — Figure 49. Network monitoring workspace screen

Note

In the network monitoring workspace, the alarm details are displayed based on the node or link which is selected from topology.

OTN circuits

OTN circuits are discovered on pre-existing GMPLS OCH-Trails created out of NCS2K-400G-XP-LC card in OTN-XC card mode. The OTN circuits are displayed in Service Manager , Topology views, Circuit Monitoring workspace. It supports these circuit characteristics:

Protected circuits with an active working path and a standby protection path
Unprotected circuits with a single active path
GMPLS OCH-Trails

CONC supports brownfield discovery of OTN circuits that are already provisioned on the network using CTC or other tools.

Automatic discovery of OTN services in service manager page on the OTN tab
Circuit monitoring workspace with active route, protection status, and alarm visibility
OTN link utilization summary with export to Excel option
Service event history with event type classification and export to Excel option
Service detailed path

OTN circuit types and topology representation

An OTN circuit in CONC is a logical transport connection that carries client traffic over an OTN (Optical Transport Network) layer, which itself runs on GMPLS OCH-Trails. CONC discovers and displays OTN circuits with these key attributes:

Circuit type: protected or unprotected
Active working path and protection standby path (for protected circuits)
Underlying OCH trail and OTS physical route

OTN topology layers and circuit path visualization

CONC provides two main topology layers for OTN visibility:

OTN layer: Shows OTN circuits and their paths between endpoint transponder nodes. Inline amplifier sites (OLA/ILA) that are not terminated at the OTN level are not displayed in this layer.
OTS layer: Shows the full physical route including all nodes, links, and inline sites. OTN circuits are not directly highlighted in this layer.

The visual representation of OTN circuit paths in the circuit monitoring workspace uses these conventions:

Solid line: The active working path of a protected circuit, or the active path of an unprotected circuit
Dotted line: The standby protection path of a protected circuit

When a protection switch occurs, the topology highlight updates to reflect the new active route. The highlight always shows the currently active route, not the configured working route.

Note

In release 26.1.1, ILA (Inline Line Amplifier) and OLA (Optical Line Amplifier) inline sites that are not terminated at the OTN layer are not shown in the OTN topology map. To view the full physical route including inline sites, navigate to the underlying OCH trail and switch to the OTS layer.

The following table compares OTN and OTS topology layer visibility:

Table 36. OTN versus OTS topology layer comparison
Attribute	OTN layer	OTS layer
OTN circuit path highlighted	Yes	No
Inline sites (OLA/ILA) visible	No	Yes
OCH trail visible	No	Yes
Protection status shown	Yes	No

Monitor OTN circuits

Monitor OTN circuits to verify circuit health, active path routing, protection status, and any alarms affecting the circuit.

The circuit monitoring workspace provides a unified view of OTN circuits, including topology visualization, detailed service, and service history panels. The workspace displays both protected and unprotected circuits discovered from the network. You can navigate between the OTN layer and the OTS layer to correlate circuit path information with the physical network topology.

Before you begin

OTN circuits are provisioned using CTC or other tools and discovered and displayed in CONC under the OTN tab in service manager

Procedure

Step 1	Navigate to the circuit monitoring workspace. Go to Workspace > Circuit Monitoring > Launch. The circuit monitoring workspace appears displaying trails and OTN circuits in the topology panel. Trails are shown in the OTN layer and serve as the underlying transport on which OTN circuits are built.
Step 2	Click the OTN toggle button in the topology to display OTN circuits. The OTN topology shows the OTN links and circuits between endpoint nodes. You can switch between the OTS and OTN layers using the layer selector buttons in the topology panel.
Step 3	Select an OTN circuit to open the detailed service panel. For a protected circuit, the circuit detailed service panel shows: Active working path (solid line on topology) Standby protection path (dotted line on topology) Protection status for each path segment Link status pop-up when hovering over path segments The circuit detail panel opens, showing path information, protection status, and any active alarms for the selected circuit.
Step 4	To access device-level details, right-click a node or card in the CONC topology and select the View in Nodel UI option to open the component in COSM. CONC opens the COSM interface at the specific card location. From COSM, you can perform maintenance operations such as protection switching. Direct protection switching from the CONC web UI is not available in release 2611.
Step 5	To view performance monitoring (PM) graphs for a specific port, right-click a node or card in the CONC topology and select the View PM History (port) option Clicking the port link redirects to the interface PM view. Clicking directly on a port row in the PM view opens the historical PM graph for that interface. The PM view supports range filters (for example, 3 hours) to control the time window displayed in the graph. These PM data types are available on trunk ports: Optical channel PM (200G trunk only) OTU PM (trunk interfaces) ODU PM (all ODU containers)

The circuit monitoring workspace displays the selected OTN circuit with its active route highlighted in the topology and circuit details shown in the detail panel.

Monitor OTN link utilization

Monitor OTN link utilization to assess bandwidth consumption and capacity across the OTN links in your network.

The link utilization view in CONC displays current bandwidth usage for all OTN links associated with a circuit. Utilization is expressed as a percentage of total link capacity.

If a port has no allocated circuit (no cross-connect installed), its bandwidth row is not populated in the OTN link utilization table. When a circuit is added, the row appears and utilization updates accordingly.

Note

At least one OTN circuit must be discovered and visible.

Procedure

Step 1

Navigate to the link utilization view in the OTN link monitoring workspace or Links app.

For Link Monitoring workspace: Go to Workspace > Link Monitoring > Launch.

The link monitoring workspace appears displaying the all OMS links. Go to OTN links tab.

For Links app: In the left panel, click Links.

The link app opens displaying the all OMS tab. Go to OTN tab.

Step 2

In the Span Utilization column, click View summary.

Span utilization summary for an OTN circuit appears displaying ODU ports and their parameters.

ODU Utilization is shown as a percentage. For example, two 10G containers on a 200G link produce a 10% utilization figure.

This screenshot shows the complete span utilization summary. — Figure 50. Complete span utilization summary

Step 3

Review the utilization percentage for each OTN link.

The table displays these parameters for each link:

ODU port number
Bandwidth allocated
Service name
Utilization percentage

Unused ports or bandwidth that has no allocated circuit are shown with an empty bandwidth value.

You can view the current OTN link utilization percentages and export the data to Excel using Excel for offline analysis or reporting.

View OTN service event history

view the OTN service event history for a selected OTN circuit.

The service history for an OTN circuit displays a table of events associated with that circuit. Events are classified by event type: success, info. In release 2611, success events are generated only for initial discovery events (when the OTN service is first created). Protection switch events and state changes are reported as info events. The event table supports column resizing and export to Excel.

Note

The View more link in that column is shown only when additional event details are available.

Procedure

Step 1

In the circuit monitoring workspace, select an OTN circuit from the circuit list.

The circuit detailed service list panel opens, showing topology, path information, and available tabs including service history.

Step 2

Click the Service History tab to view the event log for the selected circuit.

The event table displays these columns:

Timestamp: The date and time of the event (displayed in UTC)
Event name: A description of the event, such as protection state change or successful discovery
Event type: Classifies the event as success, info, or neutral
More details: A link to additional event details, if available

You can resize columns by dragging the column header borders.

The service event history table loads, showing all events recorded for the selected OTN circuit.

Step 3

(Optional) Click the Export icon in the service history toolbar to export the event history.

The event history is exported to an Excel file containing all event records currently visible in the table.

Software Image Management and Upgrade

Table 37. Feature history
Feature Name	Release Information	Feature Description
Software Image Management and Upgrade (SWIMU) Enhancements	Release 26.1.1	SWIMU enhancements enables you to perform granular upgrades, allowing for the independent management of the Cisco Optical Software Manager (COSM) and its associated devices. Additionally, the Cisco Optical Network Controller (CONC) supports High Availability (HA) node upgrades, ensuring seamless transitions for redundant COSM instances.

The Software Image Management and Upgrade (SWIMU) is a Cisco Optical Network Controller application which provides a centralized interface for managing and orchestrating software upgrades across Cisco Optical Site Manager managing NCS1K and NCS2K devices. It streamlines the upgrade process, offering tools for image distribution, software activation, and commit operations.

The SWIMU app also provides you the option to backup and restore the nodes and Cisco Optical Network Controller database.

Components of SWIMU

The SWIMU App is divided into these tabs:

Backup and Restore:
- Node Backup and Restore: Manages node backups and restores, including on-demand backups, uploading images to nodes, and group management.
- CONC Database Backup and Restore: Manages CONC database backups and restores, allowing administrators to schedule backups, trigger on-demand backups, edit backup configuration, download backup files, and restore from backups.
Upgrade Orchestrator:
- Node Software Upgrade:
  - Software Image Distribution Groups: Create and manage groups for software image distribution.
  - Image Distribution Jobs: Schedule and monitor image distribution jobs to copy software images to nodes and subtended devices under those nodes.
  - Software Activation Groups: Create and manage groups for software activation.
  - Software Activation Jobs: Schedule and monitor software activation jobs to upgrade nodes and subtended devices .

Benefits of Using SWIMU

Using SWIMU you can backup the node configuration database and upload it to external or internal SFTP servers. Files can be distributed and saved to and from the Cisco Optical Site Manager devices while providing granularity to the underlying devices. It helps in:

Centralized Management: Provides a single interface for managing backups, restores, and upgrades.
Granular Control: Allows detailed configuration of nodes used while scheduling a backup job on top of a node.
Manage Tasks: It helps manage file storage, distribution, scheduling, and monitoring based tasks.
Efficiency: The distribution and scheduling prevent network overload and ensure efficient operations.
Flexibility: Supports ad hoc backups with detailed scheduling options.
Transparency: Allows to track the progress with notifications to keep users informed of task statuses.
Long-term Storage: Ensures backup files are stored for an extended period, with configurable storage options.

Note

Granularity happens at the node level but not at the device which is under the node level. Restore can be done at the device level through Cisco Optical Site Manager nodal UI using the cross-launch option in Cisco Optical Network Controller Nodes or SWIM applications.

SFTP Servers

There are two types of SFTP servers allowed for backup and restore purpose.

Internal SFTP server: It is the default SFTP server provided by Cisco Optical Network Controller itself which stores the backup DB in Cisco Optical Network Controller database.
External SFTP servers: You can configure for Cisco Optical Network Controller DB backup or restore as part of external server storage or upload.

Types of Backup

There are two types of backup:

Table 38. Backup Types
On-Demand Backup	Scheduled Backup
Immediate Backup	Regular Intervals
User-Initiated	Automated Process

Formula for Calculating External Backup Storage Size

To calculate the storage size required for backup for external and internal SFTP servers use the given formula:

External SFTP Server Storage Formula

Backup Storage Size = (Network Total Devices x Size of Device x Requested Archive Period) / Backup Reoccurrence

Table 39. External SFTP Server Storage Formula Parameters
Parameter	Description
Network Total Devices	The number of onboarded devices.
Size of the Device	The size of an individual device.
Requested Archive Period	The duration for which the backup files are stored in days
Backup Reoccurrence	The frequency of the backup collection for devices in days.

Internal SFTP Server Storage Formula

Backup Storage Size = ((Number of Small Nodes * 4.7 MB) + (Number of Medium Nodes * 4.85 MB) + (Number of Large Nodes * 5.1 MB) + (Number of XL Nodes * 5.4 MB)) * 5

Table 40. Internal SFTP Server Storage Formula Parameters
Parameter	Description
Small Nodes	Small device - 4.6 MB /4.8 MB.
Medium Nodes	(4 degree ROADM or (2x1010-OLT, 1x1014 - device) ) - 4.8 MB / 4.9 MB
Large Nodes	(6-degree ROADM) - 5.1 MB
XL (8-degree ROADM) Nodes	5.4 MB

Note

Minimum allowed job interval is hourly.

For an hourly job over a period of 10 hours, file retention is 5 per node.

((Number of small nodes * 4.7 MB) + (Number of medium nodes * 4.85 MB) + (Number of Large nodes * 5.1 MB) + (Number of XL nodes * 5.4 MB)) * 5

Cleanup of Storage

The cleanup of the storage in SFTP servers will be done based on the memory threshold value set by the user during the configuration of the SFTP server. The minimum threshold value is 50 and this is specific to external SFTP servers only.

Configure SFTP server

The Software Image Management and Upgrade (SWIMU) app relies on SFTP (Secure File Transfer Protocol) servers for storing and retrieving software images and backups. You can configure up to two external SFTP servers in addition to the default local SFTP server.

Before you begin

Before configuring an external SFTP server, ensure the following requirements are met:

Write Permissions: The remote path folder must have write permissions enabled, allowing the external user to perform uploads.
SSH Version Compatibility: The SFTP server SSH version must be either 7.x or 8.x. Backups and uploads fail if the SSH version is incompatible.
Router Static Settings: Configure router static settings for each node separately. See Configure Static Route on Peer Devices for detailed instructions.
Time Synchronization: The Cisco Optical Network Controller VM time must be synchronized with the device backend time.

Procedure

Step 1

Click the Configure SFTP Server in the SWIMU app.

The SFTP Servers configuration screen is displayed.

Step 2

On the SFTP Servers configuration screen, click Add.

The Add SFTP Server screen is displayed.

Step 3

Enter the information:

SFTP Server Name: A descriptive name for the SFTP server.
IP Address: The IP address of the SFTP server.
Username: The username for accessing the SFTP server.
Password: The password for the specified username.
Remote Path: The directory path on the SFTP server where software images and backups will be stored.
Disk memory space utilisation threshold for file overwrite(%): The percentage of memory threshold allowed for each SFTP server. The minimum threshold value is 50. Anything exceeding the threshold will be cleaned up.

Step 4

Click Check Connectivity Status.

Verify that the status displays Connection Successfully Established before saving the configuration.

Connectivity status check creates the directory in the remote path if it does not already exist.

Step 5

Click Save.

Step 6

Select the target SFTP server and click Edit to modify SFTP server details.

Modify the details.
Click Check Connectivity Status.
Click Save.

Note

Do not edit or delete an SFTP server while an active job is in progress using that server.

Step 7

Select the target SFTP server and click Delete to delete an SFTP server.

What to do next

After configuring the SFTP servers, allow a few seconds for the refresh process to complete. This delay is due to the SFTP server checking memory availability before connecting.

Backup and Restore Nodes

Node Backup and Restore enables administrators to create and manage backups of individual nodes in the network. This feature is crucial for disaster recovery and ensuring data integrity. It allows administrators to perform on-demand backups, upload images to nodes, and organize nodes into backup/restore groups.

Before you begin

For the backend upload to proceed you must configure the router static settings for each node separately. See Configure Static Route on Peer Devices for more details on how to configure the static routes of a node.
The Cisco Optical Network Controller time must be the same as the device time.
If a node backup fails, the NODE-BACKUP-FAILURE alarm is raised.

Procedure

Step 1

Create a nodes group

Click Backup, Restore and Group Management > Manage Groups > Create Group
Enter the Group Name and Description and click Save.
Select the nodes from the Nodes table.
Click Manage Groupsand click + next to the group name to add the nodes.

Note

You can also click and select any node from the Topology screen on the right and click the + icon appearing on top of the node and click Update. This will add these nodes to the group.
Before scheduling backup jobs, you need to create a node group using the Manage Groups option.

Step 2

Select a node and use options Upload to Node or create On-Demand Backup or Manage Groups and Remove from Groups by clicking each one of them.

Before restoring the nodes you can click on Upload to Node option for initiating file transfer of backup files from Cisco Optical Network Controller's internal or external storage. Cisco Optical Network Controller automatically selects files for that node, based on the file name.
You can cross launch to COSM nodal UI from any node in the Node table using the cross-launch option when you want to do the restoration.

For scheduling the On-Demand Backup jobs. Click On-Demand Backup after selecting the nodes.

This will schedule the on-demand jobs in the Backup -Jobs scheduler.
Click Remove from Groups after selecting the nodes that you want to remove from the group.

Step 3

Click Jobs to view the job summary and scheduler panel.

Click Schedule Backup to schedule backup jobs.

Enter the Job Name, SFTP Server, Groups, Start Date Time, Recurrence, and Description and click Schedule.

Note

Recurrence option allows you to repeat the job scheduling based on Hourly/Daily/Weekly/Monthly intervals. The scheduling can be done using the current time + five minutes after the first occurrence.

Click Edit to edit the schedule of the existing scheduled backup jobs.
Click Delete to delete the selected job from the backup scheduled job list.

Click Refresh to refresh the job scheduler table.

Note

You can track the status of each scheduled job in back up job list using the Status column in the table. The Status can be Not Started or In progress or Completed or Failed.

If a backup or restore job fails, review the error message in the Jobs section.
Ensure that the SFTP server is properly configured and accessible.
Verify that the node is online and reachable.

Backup and Restore Database

CONC Database Backup and Restore enables administrators to create and manage backups of the Cisco Optical Network Controller database. This feature is crucial for disaster recovery and ensuring data integrity. It allows administrators to schedule backups, trigger on-demand backups, edit backup configurations, download backup files, and restore from existing backups.

The CONC Database Backup and Restore tab contains these components:

Backup Table: Lists existing Cisco Optical Network Controller database backups with details such as:
- Name: A unique identifier for the backup.
- Creation Time (UTC): The date and time the backup was created.
- File Size: The compressed and uncompressed size of the backup file.
- Created By: The entity that initiated the backup (e.g., Controller system, internal).
- Download Status: Indicates whether the backup has been downloaded.
- Restore Status: Indicates whether a restore operation is in progress.
- Type: Indicates the type of backup (delta or full).
  - Full backup is a complete backup of the entire Cisco Optical Network Controller database. It is taken every 7 days or after a fresh or new installation.
  - Delta backup is an incremental backup that captures only the changes (the difference) made to the Cisco Optical Network Controller database since the last full backup. Delta backups are taken daily at 12 AM by default, and this time and recurrence is modifiable. Hourly Recurrence can be every 6 or 12 hours and Daily recurrence can be 1, 2, or 3 days.
Action Buttons: Provides the following actions:
- Edit configuration: Allows editing of backup settings or scheduling.
- On-demand backup: Manually triggers a new database backup.
- Download: Downloads a selected backup file to Cisco Optical Network Controller VM(disabled unless a backup is selected).
- Restore: Restores the Cisco Optical Network Controller database from a selected backup (disabled unless a backup is selected).
Scheduling Information: Displays the next scheduled backup time.

Before you begin

The Cisco Optical Network Controller Database Backup and Restore feature relies on a properly configured SFTP server.
Ensure that the SFTP server has sufficient storage space for the backups.
If a backup fails, the BACKUP-FAILURE alarm is raised.
If the upload of a backup to the SFTP server fails, the UPLOAD-FAILURE alarm is raised.

Procedure

Step 1

Perform an On-demand backup.

Navigate to Backup and Restore > CONC Database Backup and Restore.

Figure 52. Node Backup and Restore

Click On-demand backup and confirm by clicking OK.

Note

You can perform up to 10 On-demand backups per day.

A new database backup is created and the backups table is updated to show this new backup.

Step 2

Download the database

Navigate to Backup and Restore > CONC Database Backup and Restore.
Select the backup you want to download from the table.

Click Download.

Note

Cisco Optical Network Controller does not allow manual deletion of backups. Backups older than the retention period are automatically deleted.

Enter a prefix string to be part of the downloaded file name and click OK.

This prefix allows you to easily identify a backup file.
Access Cisco Optical Network Controller VM CLI using SSH.
Go to the path /data/local-path-provisioner/pvc-*conc-database-backup* to view the downloaded file.

Step 3

Restore the database

Navigate to Backup and Restore > CONC Database Backup and Restore.
Select the backup you want to restore from the table.
Click Restore and confirm the operation.

The Cisco Optical Network Controller database is restored from the selected backup.

Step 4

Edit the backup configuration

Click Edit configuration.
Choose your Preferred Backup Time (UTC) and Recurrence preferences.
Choose Backup file retention time (weeks) and set Password to secure backup files.

Cisco Optical Network Controller does not allow manual deletion of backups. Backups older than the retention period are automatically deleted.
Enable the check box if you want to Copy the backup files to SFTP server and enter the SFTP Server details.
- SFTP Server Name: A descriptive name for the SFTP server.
- IP Address: The IP address of the SFTP server.
- Username: The username for accessing the SFTP server.
- Password: The password for the specified username.
- Remote Path: The directory path on the SFTP server where software images and backups will be stored.
- Disk memory space utilisation threshold for file overwrite(%): The percentage of memory threshold allowed for each SFTP server. The minimum threshold value is 50. Anything exceeding the threshold will be cleaned up.
Click Apply.

Step 5

Upload a downloaded backup file bundle to another Cisco Optical Network Controller instance.

Extract the downloaded backup bundle using the following command.

tar -zvxf <downloaded_file_name>

Note

This step is not required if your backup file is copied from the external SFTP server.

This command extracts all the required delta and full backup files.

Run the following command to generate the decryption key using your password.
```
printf "user_password" | od -A n -t x1 | tr -d ' \n' | awk '{printf "%-64s", $0}' | sed 's/ /0/g'
```
Replace user_password with your actual password in the command.
This command generates a 64-character key required for decryption.
Decrypt the backup file using the generated key using the following command.
```
openssl enc -d -aes-256-ecb -in <encrypted_backup_file_name.tar.gz> -out <decrypted_backup_file_name.tar.gz> -K <key>
```
Replace the placeholders with actual file names and key.
This command generates the decrypted backup file.
Upload the decrypted backup file to the Cisco Optical Network Controller server using the following sedo command.
```
sedo backup upload <decrypted_backup_file_name.tar.gz>
```

Orchestrate Upgrades

Use the upgrade Orchestrator to distribute images to the nodes and activate the images on the nodes.

Cisco Optical Network Controller uses Software Image Distribution Groups and Software Activation Groups to distribute images and upgrade nodes in bulk.

Before you begin

For the backend upload to proceed you must configure the router static settings for each node separately. See Configure Static Route on Peer Devices for more details on how to configure the static routes of a node.
The Cisco Optical Network Controller time must be the same as the device time.
You must download the golden ISO from software.cisco.com and place it in the external SFTP server.
Image Authenticity: Cisco Optical Network Controller does not validate the authenticity of the Golden ISO image. It is your responsibility to ensure the image is valid and trustworthy.
Number of Images: There is no set limit to the number of images that can be uploaded to the local SFTP server. We recommend you store up to 5 iso images in the local sftp server.
Software Image Distribution Groups and Software Activation Groups tables display the current software version only if CONC was used to upgrade the software in the node.

Procedure

Step 1

Upload ISO Images to the Local SFTP Server.

Verify File Availability: To check if a file is available on the local SFTP server, use the following command:
```
sedo object-store list onc-sw-iso
```
Upload an ISO Image: To upload an ISO image to the local SFTP server, use the following command:
```
sedo object-store put <file> <destination> [flags]
```
- <file>: The path to the ISO image file on your local system.
- <destination>: The destination path on the SFTP server, including the bucket name and desired file name.
Example: sedo object-store put <image-name.giso> onc-sw-iso/<image-name.giso>
Delete a File: To delete a file from the local SFTP server, use the following command:
```
sedo object-store bucket delete onc-sw-iso/<file-name>
```
- <file-name>: The name of the file to delete.
Example: sedo object-store bucket delete onc-sw-iso/test.iso

Step 2

Create Image Distribution Groups.

Navigate to the Upgrade Orchestrator tab and select Node Software Upgrade > Software Image Distribution Groups

Figure 53. Upgrade Orchestrator
Click Actions and select Expand all to expand nodes in the table to view the subtended devices under the node.
Click Manage Groups and select New Group.

You can also Mange groups from the topology view in the Upgrade Orchestrator.
Enter a Group Name and Description.
Select the nodes to include in the group and click Manage Groups.
Click the + icon next to a group name to add the nodes to the group.
Select a node and click Remove from groups to remove the node from the group it is a member of.

Note

Groups for NCS 2000 nodes are autocreated by Cisco Optical Network Controller.

You cannot delete the autocreated NCS 2000 groups. You can edit the name and description of the autocreated NCS 2000 groups.

You cannot add the autocreated NCS 2000 nodes to NCS1000 groups or NCS1000 nodes to NCS 2000 autocreated groups.

Step 3

Create an Image Distribution Job.

Navigate to the Upgrade Orchestrator tab and select Node Software Upgrade > Image Distribution Jobs
Click Distribute Image.

Select the nodes or groups you want to distribute the images to.

Table 41. Select node(s) or group(s) options

UI options

Actions

Copy only to COSM radio button

Copies the image to Cisco Optical Site Manager only

Note

COSM NCS 1000 Series: Image is copied to hosting device(s) automatically.

COSM NCS 2000 Series: Image is copied to the COSM only.

Copy to COSM and device(s) under node radio button

Copies images to Cisco Optical Site Manager and sub-tended devices.

Group(s) or Node(s) search bar

Displays the list of node groups

Back

Goes back to the Orchestrator Upgrade tab.

Select an SFTP server from the drop-down list or give the details of the SFTP server.
Select the ISO image file to distribute.
Schedule the job to start immediately or later.
Click Schedule and choose a later time or schedule the job to run immediately.
Click the status for a device in the status column to view detailed status.
Select a job and click Stop to stop the job in the nodes in which the job has not started.

The job continues on the nodes on which it was in progress.
Select a job and click Edit to make changes to the job.

A job that is in progress cannot be edited.
Select a job and click Delete to delete a job that has completed or failed.

Note

The image distribution job table has an additional column Type to indicate the granular type of job.

Note

For NCS 2000 nodes, Image distribution takes place for all nodes in a group. You cannot select a subset of nodes to distribute images.

If a job status is PARTIAL, it means the job succeeded for some of the nodes, but failed for other nodes in the group of devices that the job was initiated for.

If a job fails, fix the issues in the failure status and click Re-Run.

Step 4

Create Software Activation Groups.

Navigate to the Upgrade Orchestrator tab and select Node Software Upgrade > Software Activation Groups

Figure 55. Upgrade Orchestrator

You can also Mange groups from the topology view in the Upgrade Orchestrator.
Click Actions and select Expand all to expand nodes in the table to view the individual devices.
Click Manage Groups and select New Group.
Enter a Group Name and Description.
Select the nodes or individual devices to include in the group and click Manage Groups.
Click the + icon next to a group name to add the nodes to the group.
Select a node and click Remove from groups to remove the node from the group it is a member of.

Note

Groups for NCS 2000 nodes are autocreated by Cisco Optical Network Controller.

You cannot delete the autocreated NCS 2000 groups. You can edit the name and description of the autocreated NCS 2000 groups.

You cannot add the autocreated NCS 2000 nodes to NCS1000 groups or NCS1000 nodes to NCS 2000 autocreated groups.

Step 5

(Optional) Copy a group to Software Activation Groups from Software Image Distribution Groups.

Click Software Image Distribution Groups > Manage Groups
Click the copy button next to a group name.
Click Software Activation Groups > Manage Groups
Click Paste at the top right corner.

Step 6

Create a Software Activation Job.

Navigate to the Upgrade Orchestrator tab and select Node Software Upgrade > Software Activation Jobs
Click Activate Software.

Select the target devices or groups.

Table 42. Select Groups or Nodes or Devices options

UI options

Actions

Activate only COSM radio button

Activates only Cisco Optical Site Manager

Note

COSM NCS 1000 Series: This activation job automatically performs an upgrade of hosting device(s) as well.

COSM NCS 2000 Series: Only COSM is activated.

Activate both COSM and Device(s) radio button

Activates both Cisco Optical Site Manager and the selected subtended device(s). The activation job upgrades Cisco Optical Site Manager and selected subtended device(s).

Note

COSM NCS 1000 Series: The NCS 1000 hosting device(s) will be auto-selected if you have not selected the hosting device(s).

COSM NCS 2000 Series: Activation of both Cisco Optical Site Manager and device(s) works based on the selected subtended device(s).

Activate only Device(s)

Activates only the selected subtended device(s). The activation job upgrades the subtended device(s) software version.

Note

COSM NCS 1000 Series: The NCS 1000 hosting device(s) will be auto-selected if you have not selected the hosting device(s).

COSM NCS 2000 Series: Activation of device(s) works based on the selected subtended device(s). If COSM is not upgraded to the same, this option first upgrades the COSM and then proceed with the subtended device(s).

Group(s) or Node(s) or Device(s) search bar

Displays the list of nodes, devices and groups

Back

Goes back to the Orchestrator Upgrade tab.

Note

After you click Next, based on the selection of the radio button related to activation target, an Information message appears explaining the goal of the job.

Choose the software package from the drop-down.
Schedule the job to start immediately or later.
Click Schedule and choose a later time or schedule the job to run immediately.
Click the status for a device in the status column to view detailed status.

Expand the jobs displayed in a hierarchical manner to find the device activation status for every node and respective subtended devices.
Select a job and click Stop to stop the job in the nodes in which the job has not started.

The job continues on the nodes on which it was in progress.
Select a job and click Edit to make changes to the job.

A job that is in progress cannot be edited.

Select a job and click Delete to delete a job that has completed or failed.

Note

The software activation jobs table has an additional column Type to inform about the Activation Type.

If a job status is PARTIAL, it means the job succeeded for some of the nodes, but failed for other nodes in the group of devices that the job was initiated for.

If a job fails, click Troubleshoot in the failure status to cross launch the site manager.

For NCS 2000 devices, the diagnostics page of site manager is launched. Use the logs to troubleshoot the failure.

For NCS 1000 devices, the devices tab is launched. Use the CLI to troubleshoot the failure.

Note

After troubleshooting the failure, click Re-Run.

PM History

Table 43. Feature history
Feature name	Release information	Feature description
PM history support for the AR-MXP cards	Release 26.1.1	PM history data collection is supported for the SONET and SDH interfaces type for the AR-MXP, AR-XP and AR-XPE cards. These UI enhancements are made to support the SONET and SDH interfaces of AR-MXP cards. PM browse: Added sonet and sdh interfaces in the Interface type drop-down list. PM jobs: To schedule PM jobs for AR cards, select Interfaces and enter AR in the Equipment, Shelves, Cards, and Port field.

The Cisco Optical Network Controller 24.3.1 release includes a new application called PM History. The PM history application is made available in Network Monitoring workspace and it interacts with Topology for links. It is also available in the Service Monitoring workspace interacting with the Detailed Service Path if circuits are available.

Purpose of Implementing PM History Application

The PM History application allows you to view and generate PM history data reports for interfaces that are part of the nodes. For the sequential selection of each parameters in the order of nodes, interval, selected date time range, interface types, port name and locations.

Benefits of Using PM History

The benefits of using PM History are given in the table.

Table 44. Benefits of PM History
Benefit	Description
Enhanced Data Visibility	You can now view detailed PM History reports with customizable options.
Improved Network Monitoring	New portlets and enhanced dashboards provide better insights into network performance.
Extended Data Retention	Archiving allows for long-term data analysis and historical reporting.
Automated Reporting	The PM job scheduler automates the generation and distribution of historical PM reports and helps improve the overall efficiency.
User-Friendly Interface	The standalone PM application and enhanced workspaces offer a more intuitive and responsive user experience.

Time Range for Fetching Data

You can pick the start date or time and the end date or time based on the data stored in Cisco Optical Network Controller, for active and archive data by using the date-time input picker. The different time range options available for fetching the data are listed in the table.


Options	Description
Interval	Choose 15-min or 24-hours PM data
Range	Choose the time range for the PM history collection data
Select Time	Set start and end date for PM history collection using date picker

Table 45. Time Range for Fetching Data

Time Range

Limit

PM Data Interval for 15 mins

Active data retention—2 days + current day

Archive data retention—29 days

Note

Archive data retention limit is on top of the active data retention limit, that is, 29 days before the active data retention days.

PM Data Interval for 24 hours

Active data retention—93 days + current day

Archive data retention—87 days

Note

Archive data retention limit is on top of the active data retention limit, that is, 87 days before the active data retention days.

Port Details

The Port Details area displays these drop-down lists.

From R26.1.1, the PM browser supports the SDH and SONET interface types.


Drop-down list	Description
Interface types	Type of interface on the ports. opticalTransport opticalChannel otnOtu otnOdu ethernetCsmacd sonet sdh zrPlus
Port Name	Port label
Location	Location of the node from where the PM is being collected. near-end: The current node and current port. far-end: The port to which the current port is connected to

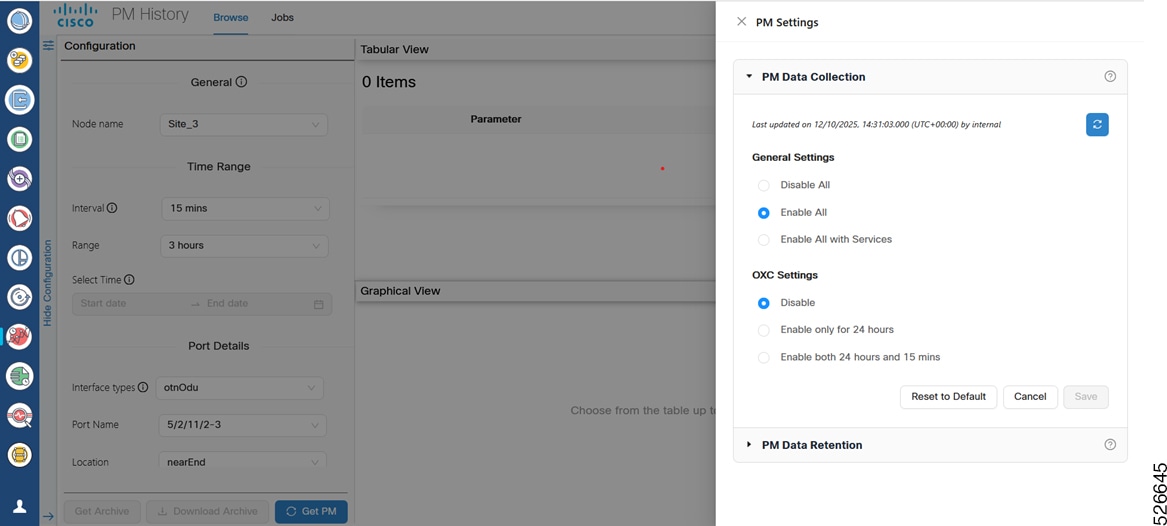

Data Collection and Storage

PM data will be collected in 15 minutes and 24 hours time intervals from the onboarded COSM nodes and stored in a database. The data and activity logs are stored in the form of storage bins. The data is fetched based on what you choose as the start or end date and time values. Any data which is more than three months old is archived. Use the Get Archive option to get the archived PM History data.

Types of PM History Reports

You can download the archived data in the form of 15-minute or 24-hour granularity report type. The PM History reports are of two types based on the different granularity levels and time intervals.

Table 46. Types of PM History Report
Type of PM History Report	Description
15-Minute Granularity PM Report	Availability: Real-time reports are accessible for up to one + current day, from the time the report is generated. Archiving: Data is archived and accessible for up to active ( current day - 2 ) up to (current day - 32). Overall data is available for 32 days.
24-Hour Granularity PM Report	Availability: Real-time reports are accessible for up to 31 days from the time the report is generated. Archiving: Data is archived and accessible for up to 93 days from the time the report was first generated.

Note

For both 15-Minute or 24-Hour granularity PM report, you can use the horizontal scroll bar to adjust the dates as per your need. For 15-Minute granularity archive data is available for download from 3 to 31 days and for 24 hours granularity from 31 to 93 days.
If the date range falls on archive data then you will receive a message to indicate the user has chosen a time range which coincides with the archived data time range.

Screenshot of 15-Minute Granularity PM Report — Figure 61. 15-Minute Granularity PM Report

Screenshot of 24-Hour Granularity PM Report — Figure 62. 24-Hour Granularity PM Report

Data Representation

The PM history data is also represented in a graphical format.

PM Job Scheduler

The PM job scheduler manages the PM tasks as given:

PM history.

It generates one-time, daily, weekly, and monthly historical PM reports based on the job criteria and Cisco Optical Network Controller entities like circuits or services, links, and ports.

Note

None: one time applicable for both 15 minutes and 24 hours.
Daily: is applicable only for 15 minutes.
Weekly and Monthly: are applicable only for 24 hours.

Reports are sent through email which is configured through SMTP server and which are not password protected.

PM History in Network Monitoring

The Network Monitoring workspace now includes a new tab for PM History span loss reports, featuring both graphical and table representations. The dashboard display updates based on selections made in the Topology application and the user selected time range.

Note

You must select the OTS link in the Topology application to view the spanloss values in the table.

Screenshot of PM History in Network Monitoring — Figure 63. PM History in Network Monitoring

PM History in Topology

In the Topology application, the PM history tab:

Interacts with the Topology application and its components.
Helps in viewing the span loss changes and information.

PM History in Circuit Monitoring

The Circuit Monitoring workspace will now feature a new dashboard in the detailed service path component, displaying PM History data. This new add-on dashboard has the Detailed Service Path component which displays the PM values based on selected port.

The historical data for a particular port from the Detailed Service Path can be seen for 15 minutes and 24 hours interval. You can also select the start and end date. PM values for ports are displayed in the tabular and graphical formats.

Note

Right click on the port on Detailed Service Path and use the option to launch PM History for that port. Also you can choose up to two ports.
PM and PM history is enabled only after circuits are created on a node.
Using Interval and Select Time, select the data range for Circuit Monitoring PM history data, based on the retention days.

Screenshot of PM History in Circuit Monitoring — Figure 64. PM History in Circuit Monitoring

Service Endpoint PM History Report

The PM History application jobs dashboard report in service endpoint helps in:

Calculating and presenting total availability or outage time and percentage.
Exporting to Excel and scheduling job options if available.

Graphical Representation within PM History Application

The linear graph displays ALL/VALID/PARTIAL PM values. Also, the NA values do not have any representation in the graph.

Note

Partial is represented in yellow.

Screenshot of NA Values in Linear Graph — Figure 65. NA Values in Linear Graph

PM Data Retention

The PM retention configuration settings allow users to customize the period for which Performance Management (PM) data is stored. You can increment or decrement retention values for both 15-minute and 24-hour bucket data. These settings affect data availability across PM browse, jobs, and workspace history.

The PM Data Retention pane has these PM buckets.

15 Mins (Max Range 31 days): PM data collected at 15-minute intervals.
- Days to retain active data: The number of days the system keeps the most recent, high-granularity data.
- Days to retain archive data: The number of days the system keeps historical data that has been moved to the archive.
24 hours (Max Range 180 days): PM data collected at daily (24-hour) intervals.
- Days to retain active data: The number of days the system keeps the daily aggregated active data.
- Days to retain archive data: The number of days the system keeps the daily aggregated archive data.

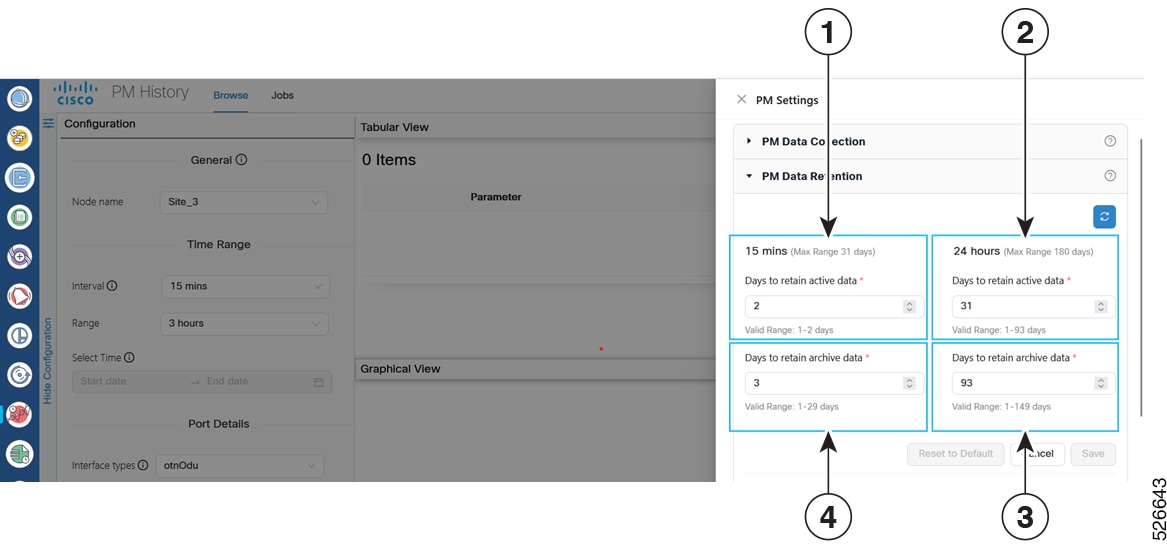

The umage shows the PM data retention pane. — Figure 66. PM Data Retention

Table 47.
Label	Setting Category	Data Type	Default Value	Valid Range
1	15 Mins Interval	Active Data	2 days	1–2 days
2	24 Hours Interval	Active Data	31 days	1–93 days
3	24 Hours Interval	Archive Data	93 days	1–149 days
4	15 Mins Interval	Archive Data	3 days	1–29 days

These are action buttons.

Reset to Default: Restores data collection settings to their default state.
Cancel: Discards any changes made to the PM data collection configuration.
Save: Saves all configuration changes.

Disk Space

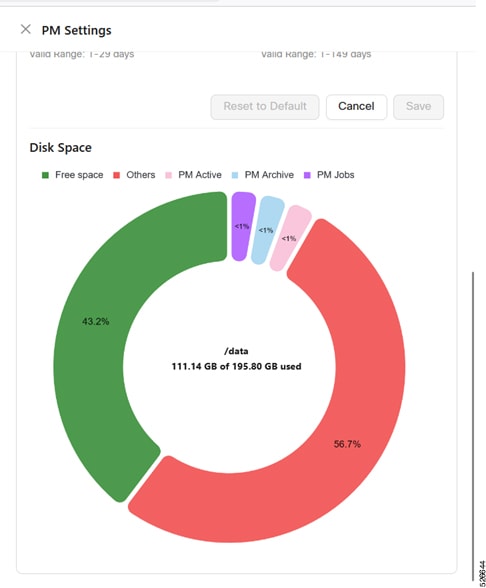

The Disk Space pane shows the disk space usage for VMs in a pie chart.

Free Space: Unused space is left in your VM.
Others: Space used by files or data in the ONC VM other than PM data.
PM Active: Space used by recent (active) PM data in Postgres.
PM Archive: Space used by old (archived) PM data in Postgres.
PM Jobs: Space used by PM job results and reports.

Charateresitics of PM data retention

These are the characteristis of PM data retention.

Decrease of retention: Reducing the retention period may cause existing jobs to fail. Jobs will move to the Paused state.
Increase of Retention: Increasing the retention period increases disk space usage. For example, with 55 nodes and a retention period of 2 days (15-min), 180 days (24-hour), storage usage is 3.29 GB. Extending the retention period to 10 days (15-min), 180 days (24-hour) raises estimated storage usage to around 3.4 GB.
Threshold warning: If the VM disk space utilization exceeds 80%, you cannot increase the retention period for performance metrics data. To extend retention, add storage or free up disk space.
PM Browse: You can retrieve 15-minute interval PM data for up to 31 days, and 24-hour interval data for up to 180 days.
PM Jobs: PM jobs update when you change the retention settings.
PM History Workspace: The calendar in the circuit or link workspace changes when retention settings change. Based on the active 15 mins retention days + current day, for example, PM History Active = 2 + Current Day.
Multi-user login: If user A updates retention values, user B in the same workspace receives a notification: "PM Data Retention has changed. Please refresh the page."

PM Data Collection

PM Data Collection is the PM option the allows you to control the collection of performance metrics (PM) from various interface types. This option provides flexibility to enable or disable data collection for general interfaces and Optical X Connection (OXC) interfaces separately.

Screenshot of PM History Data Collection — Figure 68. PM History Data Collection

General Settings

Disable All: Disables performance metric data collection for all general interfaces.
Enable All: Enables performance metric data collection for all general interfaces.
Enable All with Services: Enables data collection for all general interfaces except OXC and associated services.

Note

In General Settings, Enable All with Services is the default option.

Note

For the SONET/SDH PM data, it is not required to have circuits present. To view the PM counters, use the Enable All option in General Settings.

OXC Settings

Disable: Disables data collection for OXC interfaces.
Enable only for 24 hours: Enables OXC interface data collection for a 24-hour period.
Enable both 24 hours and 15 mins: Enables OXC interface data collection for both 24-hour and 15-minute intervals.

Note

In OXC Settings, Disable is the default option.

Note

If you select Disable for general settings and OXC setting, everything will be disabled with no selection in the interface type.

If you select Enable for general settings and OXC setting, everything will be available in the interface selection.

If you select Enable for general settings and the OXC setting is Disable, then everything will present except OpticalXConnection will be hidden in the interface type selection.

If you select Disable for general settings and the OXC setting is Enable, then everything except OpticalXConnection will be present in the interface type selection.

These are action buttons.

Reset to Default: Restores data collection settings to their default state.
Cancel: Discards any changes made to the PM data collection configuration.
Save: Saves all configuration changes.

Note

When you select Enable All in General Settings, then the Data Collection Confirmation message appears warning about disk space usage.

If the VM disk space usage exceeds 80%, youhave to add storage or free up disk space.

Accessing PM History Report

To access the PM History tab follow the steps:

Procedure

Step 1

Click PM History option from the left panel.

To browse or view the general PM History details follow the steps given:

Click Browse tab.
Enter Node name and Interval. time range.
Select Time. Select Start date and End date.

Enter Port Details followed by Interface types, Port Name and Location.

Note

The browse tab will open the Configuration screen where you can fetch the general PM History details in the tabular and graphical forms. You can choose to show or hide the configuration to see the expanded graphical and tabular view.
Choose the required options for the PM History data collection using the PM History Data Collection option.
To know more details about the PM History Data Collection click on the i icon. There are three options available here which are Enable, Disable and Default.

To browse or view the job scheduling details follow the steps given:

Click Jobs tab.

This will display the Configuration and Summary tabs from where you can schedule jobs and use them for generating the reports.

Step 2

Click Configure SMTP in the Jobs screen. Enter the primary and secondary mail server details and click Save.

Screenshot of Configure SMTP — Figure 70. Configure SMTP

Step 3

Enter the job scheduling details and click Submit.

To schedule the jobs follow the steps given:

Use Select Object from Services Endpoint for OCH-Trail circuit or Detailed Service for OCH CC, OCH NC and OCH-Trail circuits or Interfaces to select site, equipments, shelves, cards, ports and layers or Fiber Links.

Note

With Services Endpoint report, you can choose one or more than one services but with Detailed Service report, you can choose only one service.

Note

From release 26.1.1, you can schedule PM jobs for AR-MXP cards. Select Interfaces radio button and type AR in the Equipments, Shelves, Cards, and Ports field.

Enter Job Name.
Enter Start Time.
Enter Interval which can be 15 mins or 24 Hours.
Enter Recurrence which can be either None, Daily, Weekly or Monthly.
Enter End Time.
Enter Description.
Enter E-mail address.

Note

To configure Jobs, you need to configure the SMTP optionally. From the mail server configuration screen, you must enter the mandatory fields host name/IP, port and then save.

Note

To view the PM History values you must wait for a minimum of 15 minutes after onboarding.
For 15 minutes interval, you must wait for 20 minutes post on-boarding.
For 24 hours interval, you must wait for 15 mins past 12 A.M post on-boarding.

Logs

Cisco Optical Network Controller supports two sets of logs:

The Audit logs.
The developer or Debug logs.

Both these logs can be viewed online, using the Logs application's Audit and Debug tabs. These logs are archived every week on Monday around midnight by default. The archived logs are in the .tgz format. You can also schedule different day and time values as the archive scheduler time. These archives can be downloaded and deleted using the Archive tab.

Audit Logs

The Audit logs option helps in:

Auditing all the Cisco Optical Network Controller operations which include circuit operations, Cisco Optical Network Controller and COSM user login or logout procedures and traffic related operations that are done on COSM or node.

The logs can be used to learn about all the changes that have occurred as a result of external notifications that come from connected nodes.

Note

Audit logs are not added for configurations which are done on the devices before the device discovery.

Display Features

Pagination and filter options are available for Audit logs.
Filter option is set to All by default.

Categorization of Audit Logs

Audit logs are categorized into:

Table 48. Audit Logs Category
Category Field	Description
System	The events that are part of this category are: Login. Logout. Create user. Delete user. CONC database backup and restore
Inventory	The events that are part of this category are: Card create/delete/state update. Physical port and logical port create/delete/state update. Interfaces create/delete/state update. Chassis create/delete. IPC add and delete. Degree add and delete. Passive unit add/delete Port Frequency
Node	The events that are part of this category are: Device add/delete/resync/reconnect. Device state for discovered and disconnected status. Connection loss or reconnect audit logs status.
Service	The events that are part of this category are: Circuit add/delete/edit/update or state change. Link up and down.
Topology	The events of this category include the OMS and OTS interfaces.
Site_Audit	The events that are part of this category are: COSM login/logout/login failed. COSM devices version. All COSM provisions, notifications which are traffic impacting and audited under site audit category. COSM backup/Restore
Alarm	All the events related to Alarms.
Alien_Import	All the events related to Alien_Import.
SNMP	Add SNMP Manager Delete SNMP Manager Update SNMP Manager

Note

Only admin or internal users can view logs, collect techdump, download or delete archive files and schedule archive.
Only users with read-only permission and the supervisor users can view the archived files and collect techdump.
The user names are based on the type of user.
The User Name field is marked as [Unknown] for a few scenarios. For example: when the user login authentication fails, because of incorrect credentials you get this message: User failed while logging in due to invalid CSRF token.

Debug Logs

Under Debug logs, all the developer logs are displayed with filters and pagination. There is also an option to enable and disable debugging of all services. Also, similar to the Audit logs, the Debug logs have the logs active for up to seven days. After seven days these logs get archived, from where they can also be downloaded.

Note

Debug logs that are older than one month are cleared, as they are retained only for a month.

Retention and Archiving and Archive Logs

The Audit logs can be retained and saved as given.

Audit logs are retained for up to seven days which can be viewed online using the Logs application.
Logs beyond seven days are archived and kept in the Cisco Optical Network Controller storage. The Archive logs are maintained for three months and are deleted later.
The archived logs can be downloaded any time by using the Archive tab in the Logs application.
The Audit logs archiving can be scheduled weekly using the Audit log scheduler.
The active Audit logs are visible in the Audit log table for up to seven days after which they are moved to the Archive logs.
The archived logs can be retrieved anytime and are available in the archive tab. Archived logs which are more than three months old are deleted by Cisco Optical Network Controller by default.
You can download or delete the archived logs anytime. You can also suspend or resume archiving of logs anytime.

Archive Logs

The Archive logs allow you to schedule the logs. It consists of two schedulers:

Audit logs job scheduler: Refers to all the archived audit logs.

Debug logs job scheduler: Refers to all the archived developer logs.

Note

Techdump: It collects the data base (DB) snapshots for all the services. You can collect or download and also delete these logs from the table.

Note

The Archive logs are saved as tar zip files.
The Suspend and Modify options can be used to suspend, resume or modify the archived logs. The Modify option works on a weekly basis and you can also set any day as the value as per your requirement.
The archived audit logs are stored for up to three months where as the developer logs are stored for one month.
When one archive collection is proceeding, it is recommended to not change the scheduler time as otherwise it can lead to generation of multiple In Progress tasks.

Sedo Commands

For any issues with the logs, you can collect the techdump data and use the sedo command logs and report them.

The sedo commands are as given:

Step 1:

Use sedo diagnostics archive-logs /tmp/logs to collect all service 7 days logs. It collects logs and stores them in the /tmp/logs directory with the file name nxfos-logs-xxxxxxx.tar.gz.
Step 2:

Use the scp command to copy nxfos-logs-xxxxxxxx.tar.gz file to the local system.

Download of developer archive logs will time-out when logs are too huge, then it is recommended to use the sedo commands to download:

Step 1:

Use the command sedo object-store list onc-torch-service-dev-log-data-archives which lists all archived files under the developer logs.

For example:

Ex : root@abrageor-nxf:~# sedo object-store list onc-torch-service-dev-log-data-archives
┌─────────────────────────────┬──────────────┬───────────────────────────────┐
│ OBJECT                      │ SIZE (BYTES) │ LAST MODIFIED                 │
├─────────────────────────────┼──────────────┼───────────────────────────────┤
│ devlogs_2024-09-20T12_40_00 │     13606281 │ Fri, 20 Sep 2024 12:47:01 UTC │
│ devlogs_2024-09-22T07_31_00 │    175939085 │ Sun, 22 Sep 2024 08:58:12 UTC │
└─────────────────────────────┴──────────────┴───────────────────────────────┘

Step 2:

Use the command sedo object-store get onc-torch-service-dev-log-data-archives/devlogs_2024-09-20T12_40_00 to download from the current directory. devlogs_2024-09-20T12_40_00 is the file name list taken from the Step 1 output.
Step 3:

You can download the file to the local system.

Screenshot of Audit Logs — Figure 72. **Audit Logs**

Screenshot of Archive Logs — Figure 73. **Archive Logs**

Screenshot of Scheduling Audit Logs Jobs — Figure 74. **Scheduling Audit Logs Job**

Screenshot of Debug Logs — Figure 75. **Debug Logs**

Benefits of Logs Enhancement

Log enhancements help in:

Table 49. Benefit of Log Enhancements
Benefit	Description
Organized Log Management	Clear categorization and sub tab structure for easy navigation.
Enhanced Usability	Pagination, filters, and export options improve user experience.
Efficient Retention	Automated scheduling and archiving ensure logs are retained and managed effectively.
User Access Control	Different permissions for admin or internal users and readonly or supervisor users enhance security and control.
Comprehensive Logging	Detailed logging for various operations ensures thorough tracking and auditing.

Accessing Logs

To access the Logs, tab follow the steps:

Procedure

Step 1	Click Logs from the left panel. The Logs screen is displayed.
Step 2	Click Audit tab. The Audit table is visible which has the following fields: Time: The time of audit log creation. Category: The category type of the audit log. It can be one of the following types based on your selection: System Node Inventory Topology Service Alarm Alien_Import Site_Audit Identifier: The names of unique Cisco Optical Network Controller identifiers like circuit names or device names, circuit tags or degree names which can be used to filter the Audit log table. Username: The user names based on type of user. Client IP: The IP address of the device or node. It can also have the Cisco Optical Network Controller IP address used for login or also appear as blank. Message: Messages are information pertaining to each log that are part of the Audit.
Step 3	Click Refresh to refresh the Audit log table content anytime.
Step 4	Click Export to export the entire Audit log table content to an *.xls file.
Step 5	Click Archives tab to view the archived data. This will display the archives table along with the Audit logs job scheduler, Debug logs job scheduler and Techdump options. For more information on each of these options you can click i the information icon, provided on top of each of these options.
Step 6	Click Debug tab to view the developer logs. The Debug table has the following filter options which you can select: Namespace Microservice Container Log Level Time Range Search There is also an Enable Detailed Logs option which allows you to fetch detailed log information from this table for debugging purpose. By default, this option is disabled and must be enabled only when required.

Generate and download tech dump logs

Tech dump logs on Cisco Optical Network Controller are diagnostic data bundles. They collect detailed system information, logs, and state files to help with troubleshooting and support.

From R26.1.1, you can collect, download, and delete tech dump logs from the Tech Dump tab of Logs.

When you generate a tech dump, Cisco Optical Network Controller compiles logs, configuration files, and operational data into a single archive file.

Before you begin

Ensure that there is sufficient space on the VM hosting the Cisco Optical Network Controller.

Follow these steps to generate and download the tech dump logs:

Procedure

Step 1

Click Logs.

Step 2

Click Tech Dump tab.

For details about the field descriptions on this tab, see Table 1.

Step 3

Click the Collect button to initiate the log collection.

A confirmation message appears, stating that starting a new log collection will delete the existing log file.

Step 4

Click the Collect the DB dump check box if you also want to collect information about CONC databases.

Note

Selecting this check box does not collect any sensitive information, including device credentials.

Step 5

Click Collect on the dialog box.

Collected log files remain local to the current active VM. If a switchover occurs, these files are not available on the new active VM.

Wait for the log collection to finish.

Step 6

Click Download to download the logs or Delete to remove them.

Warning

Do not log out during the download, as it can cause the file download to fail.

A file named in the tech_dump_<timestamp>.tar.gz format is downloaded.

The Tech Dump tab displays these fields:

Table 50. Tech dump tab field descriptions

Field

Description

File Name

Displays the name of the generated tech-dump file, including timestamp and timezone.

Status

Shows the current state of the tech-dump file generation. A green check mark indicates successful completion.

File Size

Indicates the size of the generated tech-dump archive in MB.

Triggered By

Shows the user ID that triggered the tech-dump collection.

Triggered On

Shows the exact timestamp (date and time with timezone) when the tech-dump creation started.

Action

Provides available operations for the generated file:

Download: Download the collected logs.
Delete: Delete the collected logs.

Note

These options are not displayed when the log collection is in progress.

Monitoring

Detailed Node Resources: You can monitor the CPU, memory or disk consumption of the host.
Pod Monitoring: You can monitor the CPU, memory or disk consumption of the microservices within the kubernetes cluster.

Before you begin

Use this app to view the log messages and other related details.

Procedure

Click to view each option separately.

Links

The Links App is a new application in the Cisco Optical Network Controller. It provides a centralized location for managing and monitoring network links. It offers enhanced filtering and sorting capabilities compared to the topology view, allowing you to easily differentiate between discovered and undiscovered OMS links.

Key features of the Links app

The Links app has two tabs, OMS and Undiscovered OMS:

OMS tab: Lists the discovered optical links in a hierarchical, tree-structured table. The parent row shows OMS links, which, when expanded, reveal the underlying OTS links in forward and reverse directions.
Undiscovered OMS tab: Lists undiscovered OMS links, which are considered partial links. In this tab, the parent row is an OTS link.
OTN Links tab: Lists the OTN links for the tranponsder networks.

Click the View summary in Span Utilization to open the Span Utilization table.

Links table

The table includes these columns:

Link Name
Type (OMS or OTS or OTN)
Endpoint information
- Endpoint 1 – Node Name
- Endpoint 2 – Node Name
- Endpoint 1 – Port
- Endpoint 2 – Port
- Endpoint 1 – Degree
- Endpoint 2 – Degree
Tags
Description
Link Status
Fiber Type
OTS-specific information
- Fiber Length [km]
- Tx [dBm]
- Rx [dBm]
- Fiber Loss [dB]
Action

The table contains these interactive options:

Action Column: Provides the following actions:
- Edit: Allows users to edit the Link Name, Tags, and Description.
- View Circuit Monitoring: Cross-launches to the Circuit Monitoring page, filtering for circuits related to the selected link. This option is available only in the OMS tab and not in Undiscovered OMS tab.
PM History: A small arrow icon for each OTS link provides access to PM history data.
OCM and OTDR Cross-Launch: Each endpoint has a cross-launch icon to navigate to the relevant Cisco Optical Site Manager OCM (Optical Channel Monitoring) and OTDR (Optical Time Domain Reflectometer) measures. If OTDR is not supported, it navigates to alarms.

Note

From release 26.1.1, the Links Monitoring table supports the OTN links and features a new Span Utilization column that provides an overview of the ODU resource utilization summary and details.

Link monitoring workspace

Link monitoring in workspace integrates links table, topology, alarms and PM history, enabling cross-application interaction. You can select a link in the Topology App and highlight it in the Links App and vice versa.

Use the Links Application

This task describes the different actions that you can perform from the Links app.

Procedure

Step 1

Open the Links app from the sidebar.

Step 2

Edit Link Attributes.

Select a link in the OMS or Undiscovered OMS tab.

Note

From release 26.1.1, for OTN networks, the Links application displays OMS Links and OTN Links attributes only.

Click the edit (pencil) icon in the Action column.
Modify the Link Name, Tags, or Description.
Click Save to apply the changes.

Step 3

View the Circuit Monitoring workspace for a link.

Select a link in the OMS or Undiscovered OMS tab.

Note

From release 26.1.1, for OTN networks, the Links application displays OMS Links and OTN Links attributes only.

Click the circuit monitoring icon in the Action column.

The Circuit Monitoring page opens, filtered to display circuits related to the selected link.

Step 4

View PM History for a link.

In the OMS tab, expand an OMS link to view its OTS links.
Click the arrow icon next to an OTS link to view its PM history.

Figure 78. Links App
Select an interval and predefined time range or choose a custom range.

The PM history table is displayed.
Select up to 4 parameters to view on the graph.

Step 5

Cross-Launch to OCM/OTDR in Cisco Optical Site Manager.

In the OMS tab, expand an OMS link to view its OTS links.
Click the cross-launch icon in the Endpoint1-Port or Endpoint2-Port.

Figure 79. Links App
Click OCM or OTDR to cross-launch the OCM or OTDR tab in Cisco Optical Site Manager for the selected endpoint.

If OTDR is not supported, it navigates to alarms.

Step 6

Export Links data.

Click Export.
(Optional) Select Table View and click Export to export and download the data currently displayed in the table.
Select Network Links to export all network links.
Click Generate.
After the file is generated, click Export to download the XLS file.

Note

After expanding links, wait for up to 60 seconds for the Total Transmit Power Tx(dBm) and Total Receiver Power Rx(dBm) values to be fetched. If you export or Generate a full report before all the values are fetched, the report contains only the power values for the links for which the values were fetched.

SLTE links and ASE services in Cisco Optical Network Controller

An Submarine Line Terminal Equipment (SLTE) link is an optical link type that Cisco Optical Network Controller automaticllly discovers from Cisco Optical Site Manager configuration. This allows the different applications, such as Links, Topology, and Service Manager to distinguish submarine behavior from terrestrial behavior.

Cisco Optical Network Controller shows SLTE links with the Submarine deployment type in Links app.
Service Manager shows discovered ASE channels in a dedicated SLTE ASE tab.

For details

How Cisco Optical Network Controller handles SLTE links and ASE services

Use the SLTE link and ASE service views to verify discovery results and to manage the transition between discovered ASE channels and provisioned user channels.

The submarine deployment type is discovered from Cisco Optical Site Manager and can be overridden in Cisco Optical Network Controller when the discovered topology needs correction for a custom deployment.
The link override is applied at the OTS link level, even when the Links app groups the view under an OMS link.
The SLTE ASE tab lists the ASE services with frequency, bandwidth, and endpoint information.
Upgrading an ASE service converts the selected ASE channel into a user channel. Deleting that user channel adds the ASE channel back so that the spectrum remains filled.
Cisco Optical Network Controller discovers an ASE service even when only one endpoint is available. If no matching OXC with the same frequency and bandwidth is present at the far end of the fiber, Cisco Optical Network Controller displays the ASE service as a partial discovery result with a single endpoint.
When Cisco Optical Network Controller later discovers a matching endpoint with the same frequency and bandwidth at the other end of the fiber, it completes the ASE discovery and updates the service to show both endpoints.

Change the SLTE link deployment type

Override the deployment type on a discovered OTS link when the automatic link type does not match the actual deployment topology.

Use this task for custom topologies where the submarine type is not derived correctly from discovery.
Use the updated deployment type to align the Links app and related topology views with the actual link behavior.

Use this task in custom topologies where the submarine type is not correctly derived from link discovery. Updating the deployment type aligns the Links app and topology views with the real-world link behavior.

Before you begin

Configure the ASE channels on the submarine nodes by using XR CLI before onboarding the nodes in Cisco Optical Network Controller. For more details on configuring SLTE using XR CLI, see Sub-sea Configuration.
Ensure that the SLTE nodes and their links are already discovered in Cisco Optical Network Controller.

Follow these steps to change an SLTE link deployment type.

Procedure

Step 1	Click Links and then click the OMS tab.
Step 2	Locate the required OMS link and expand the entry to show the underlying OTS links. The Deployment Type can be configured on the OTS link.
Step 3	For the required OTS link, click Edit action.
Step 4	In the Edit Link dialog box, select select Submarine or Terrestrial from the Deployment Type drop-down list. Select Submarine when the link is part of an SLTE deployment and the discovered type must be corrected.
Step 5	Save the change. Cisco Optical Network Controller updates the OTS link deployment type.
Step 6	Click Refresh and verify the updated deployment type in the link list.

The selected OTS link uses the deployment type that you specified, and Cisco Optical Network Controller reflects the updated deployment type in the Topology.
To filter submarine links in the Topology application, select OTS or OMS links, click the eye icon on the right side and select the Filter Submarine Links check box.

Convert SLTE ASE channel to user channel

Convert a discovered SLTE ASE channel into a user service by selecting the required service name and endpoint.

Whether you create a new user channel or upgrade an ASE channel to a user channel, you must tune the attenuation settings based on live network conditions to ensure that traffic flows correctly.

The SLTE ASE tab in Service Manager displays discovered ASE services with their endpoint, frequency, and bandwidth based on SLTE configuration.

During this upgrade, constraints used by other service types are not applicable to the SLTE ASE workflow.

The configuration is rejected in these cases:
- The ASE channel central frequency and channel width exactly match the user-provided central frequency and channel width for the user channel. Remove the hardware module for the ASE channel and configure the end-to-end circuit from Cisco Optical Network Controller.
- The user channel extends beyond the ASE channel into empty spectrum. Remove the ASE channel and configure an end-to-end circuit from Cisco Optical Network Controller.
- The user channel has a narrower width than the ASE channel but uses the same central frequency. Remove the ASE channel and configure the end-to-end circuit from Cisco Optical Network Controller.
Cisco Optical Network Controller provisions the required user circuit when a new user channel on the same add/drop port overlaps an existing user channel, provided that only frequency slices overlap and the payloads do not overlap.
When a submarine channel is created, CPCE performs no optical validation except for central frequency and channel width.

Before you begin

Ensure that the SLTE nodes are onboarded and that the required ASE services are already discovered.

Follow these steps to convert an SLTE ASE channel to a user channel.

Procedure

Step 1	Click Service Manager and then click the SLTE ASE tab. The list of discovered ASE services is displayed.
Step 2	Select the endpoint of the actual user channel service that you want to convert. Review the endpoint, frequency, and bandwidth columns to confirm that you selected the correct ASE channel.
Step 3	Click Upgrade and select a service.
Step 4	Complete the steps in the Create and manage circuits task to finish converting the selected ASE channel to a user channel.

The selected ASE channel is converted to a user channel in Cisco Optical Network Controller, and the new user service is shown in Service Manager.

Note

Deleting the user channel restores the ASE channel, ensuring the spectrum is filled.

General Troubleshooting

These are some generic troubleshooting points to consider which are common across the different applications within Cisco ONC.

TAC case: In order to raise a TAC case, collect the sedo diagnostic logs with the command:
```
sudo sedo diagnostics archive-logs /data
```
Collect it along with the Grafana view.

Unmanaged Equipment Support

Unmanaged devices are third party devices that can be included in the Cisco Optical Network Controller circuit trails connected to transponders.

Cisco Optical Network Controller supports the unmanaged device MXD65-ADVA-FSP-3000-METRO-DCI-OLS in:

Topology,
Service Assurance,
Network Monitoring Workspace and
Circuit Monitoring Workspace applications.

Note

The MXD65-ADVA-FSP-3000-METRO-DCI-OLS unmanaged device appears as 3LS in the circuit link.
In case a degree between the ADVA devices is deleted and recreated, then a resync of the COSM nodes is mandatory.
This is pre-provisioned equipment in COSM, the link status is not known since Cisco Optical Network Controller has no access to real HW.
Alarms and PM are supported only for NCS 1014 and TXP cards.
Power levels are reported only on the TXP card endpoint of the service, and not on the UME side.
There is no support for automatic degree detection. The neighbouring nodes have to be configured manually through NETCONF RPC.

Screenshot of Unmanaged Equipment Support in Topology — Figure 80. Unmanaged Equipment Support in Topology

Screenshot of Unmanaged Equipment Support in Service Assurance — Figure 81. Unmanaged Equipment Support in Service Assurance

PSM OMS Protection

Protection Switching Module (PSM) is a Cisco Optical Network Controller feature that protects the Optical Multiplex Section (OMS) segment in the optical network. It ensures the continuity of signal transmission by automatically switching circuit paths in case of any fiber cut.

Note

Cisco Optical Network Controller supports only brownfield network.
Cisco Optical Network Controller does not support greenfield networks. From Cisco Optical Network Controller, you cannot create new PSM services.
PSM module is supported by Cisco Optical Network Controller only on the NCS 1001 chassis.
NCS 1001 is supported only if it is managed by a COSM instance running over a NCS 1014 chassis.

Configuration in PSM Circuits

PSM supports two-way configurations and can be manually configured. Out of the two paths one will be active and the other will be a standby path. Whenever the active path fails due to fiber cut then the standby path is used for receiving the signal. This is because both the active and standby paths are always used in the TX direction for transmitting the signal, but only one of them can be used to receive the signal at a time.

Note

PSM supports both automatic and manual path switching. Once you cross launch to COSM, there is also a manual switch option provided there for you to select any path and use it as the active path in the PSM circuit.

Benefits of PSM

The benefits of using PSM are:

Enhanced network reliability and protection through PSM OMS protection.
Improved network management and monitoring with clear visualization of active and standby paths in the circuits.
Flexibility in network design with support for various connection scenarios for PSM.
Comprehensive event logging and user-driven OAM for better operational control. See Configuration Guide for Cisco NCS 1001.
Being multiplexer-agnostic ensures compatibility with various network components.

Note

Protection switching in optical circuits with NCS 1010 ILA modules between NCS 1010 OLT nodes.

Additional PSM Functions

PSM generates alarms and performs automatic path switching with minimal data loss. PSM is integral to circuit creation and can be deployed in any network segment for protection. Additionally, it includes features for monitoring channel power and composite power.

PSM Circuit in Service Manager

In the Service Manager application, the PSM circuit is created like any other circuit using the Provision Circuit option. Once the PSM circuit is installed and it appears in the Services screen it can be visualized in the Service Assurance and the Workspace applications.

Limitations of PSM OMS protection

Cisco Optical Network Controller does not support 3-way PSM Protection switching.
The W-RX and P-RX thresholds for the NCS 1001 PSM must be set carefully based on the number of channels. If the number of channels is lower, a significant power drop from one channel going off may cause the PSM to switch, leading to traffic hits on other channels. See Configuration Guide for Cisco NCS 1001
Cisco Optical Network Controller does not display the Reason for switchover.
Cisco Optical Network Controller supports only configurations with amplifiers positioned after the PSM module. OMS protection is not supported.
You must perform a resync if you onboard devices, add or modify IPCs, or add or remove degrees to the network after onboarding the PSM.
If the same network is being managed by two separate active Cisco Optical Network Controller instances, the same connection service, either a discovered service in both instances, or a service provisioned in one and discovered in the other, must be deleted on both instances for all types of connection services.

PSM Circuit in Workspace Screen

To view the selected PSM circuit follow the steps:

Procedure

Step 1

Click Workspace option on the left panel.

Step 2

In Circuit Monitoring, click Launch.

Step 3

Select the PSM circuit.

This will display the PSM circuit on the Topology screen where you can see the active PSM circuit path displayed with a blue colored arrow.

Note

The Detailed Service Path displays all the equipments crossed by the circuit. The active path appears in blue and the standby path in grey color.
The blue arrows indicate the RX direction of the light for a given PSM.

Note

From Release 26.1.1, the NCS 1001 PSM Circuit Workspace has these UI enhancements.
The Detailed Service Path.
- Highlights the active path between the NCS 1001 PSM nodes.
- Displays the equipment between the NCS 1010 OLT nodes as a cloud.
From R26.1.1, service history is now enabled for PSM service to show discovery events, operation state changes, and switch events.
In the Service List pane, the OCH-Trail services for NCS 1001 PSM cover the carrier (wavelength) information and add these new labels to each provisioned channel.
- Work—Channel passing through nominal Work port of PSM.
- Protect—Channel passing through nominal Protect port of PSM.
- Forward—Traffic flow from node A to Node Z ,where Node A is the Source Node.
- Reverse—Traffic flow from node Z to Node A ,where Node Z is the Source Node.
- Active—This label is added before the Forward/Reverse labels to indicate that the channel is carrying traffic in that Forward/Reverse direction.
- Standby—Channel that is not carrying any traffic

Screenshot of PSM Circuit in Workspace — Figure 82. PSM Circuit in Workspace

Unidirection service states are supported and displayed at channel level.
If only one of the channel is discovered, work or protect, then the controller marks the service as PARTIAL. When that channel and carrier is INSTALLED, then the service moves to INSTALLED when other channel is discovered.
If a path is standby in both directions, then it will show up as dotted line in topology in Circuit monitoring workspace.
If different paths are active in different directions, then we will not see dotted line.

PSM wavelength protection

Table 51. Feature History
Feature Name	Release Information	Feature Description
Two-way PSM wavelength protection	Release 26.1.1	PSM wavelength protection is connecting the NCS 1001 PSM module COM port with the transponder trunk port. PSM wavelength protection supports two-way protection switching in optical circuits with NCS 1010 ILA modules between NCS 1010 OLT nodes. PSM wavelength protection does not support three-way and four-way switching. The Circuit Monitoring workspace UI is improved with for the PSM wavelength protection. Only brownfield circuit discovery is supported. In Services List pane, OCH-Trail services are added if an IPC between transponders and NCS 1001 PSM COM port is present. If IPC is not present, then PSM services are discovered as OCH-NC. Onboard the node containing the PSM through Cisco Optical Network Controller to discover the circuit present in Cisco Optical Site Manager device. In Services List pane, new labels are added to indicate the work and protect channels. The new labels are Work, Protect, Forward direction, Reverse direction, Active, Standby. In Topology pane, the equipment connected between two NCS 1010 OLT nodes are represented as a cloud for a concise view. You can expand the cloud to check the equipment added between the two NCS 1010 OLT nodes.

PSM wavelength protection is connecting the NCS 1001 PSM module COM port with the transponder trunk port.

Characteristics of PSM wavelength protection

Note

Cisco Optical Network Controller supports only brownfield network. You can only discover the PSM wavelength protection services as OCH-NC and OCH-Trail. To discover or add nodes to the PSM wavelength protection services, see Discover the PSM wavelength protection.
Cisco Optical Network Controller does not support greenfield circuits, that is, circuit creation by selecting two endpoints in the circuit creation wizard in CONC service manager. From Cisco Optical Network Controller, you cannot create new PSM services.
Create cross-connect between PSM COM port and LINE port using CLI and onboard them to COSM, then onboard all these nodes to CONC.
Service discovery - Once your onboard all the COSM nodes with cross connects, then the CONC discovers the PSM services and displays in the service list.
The listed services are tagged with Active, Standby, Protect, Work, Forward and Reverse.
PSM switching is unidirectional and bidirectional, CONC will show both unidirectional and bidirectional services based on the Active and Standby labels.
PSM switching supports only Centralized control plane circuits (CPCE) circuits. CPCE circuits are service-level circuits managed by Cisco Optical Network Controller using PCE for path computation and provisioning.
In Circuit Monitoring workspace, you can check the service, detailed service path, and service history.
PSM module is supported by Cisco Optical Network Controller only on the NCS 1001 chassis.
NCS 1001 is supported only if it is managed by a COSM instance running over a NCS 1014 chassis.

Discover the PSM wavelength protection

Before discovering the PSM wavelength circuits, do these actions.

Create cross-connect between PSM COM port and LINE port of NCS 1010 or NCS1K-MD-32O/E-C patch panel mux/demux using CLI commands.
Onboard the nodes to COSM, then onboard all these COSM nodes to CONC.

PSM Circuit in Service Manager Screen

This section describes the PSM circuit in the Service Manager screen.

The Service Manager screen displays the details of PSM circuits in a format similar to the Service List in the Circuit Monitoring workspace. For NCS 1001 PSM, OCH-Trail services include information about the carrier (wavelength). In this view, the wavelength is nested under the channel that carries it, and the channel is nested under the OCH-Trail of the PSM circuit.

These images show the PSM circuit in service manager screen.

Screenshot of the PSM circuit in the Service Manager screen. — Figure 83. PSM Circuit in Service Manager screen

PSM wavelength protection switching services

In this example, black highlight is the service, green highlight is the channel and the blue highlight is the wavelength. In short, hierarchy of PSM service in the service list is Service > Channel > Carrier.

Only channels display specific labels that indicate their status and role.

Work—Channel passing through nominal Work port of PSM.
Protect—Channel passing through nominal Protect port of PSM.
Forward—Traffic flow from node A to Node Z ,where Node A is the Source Node.
Reverse—Traffic flow from node Z to Node A ,where Node Z is the Source Node.
Active—This label is added before the Forward/Reverse labels to indicate that the channel is carrying traffic in that Forward/Reverse direction.
Standby—Channel that is not carrying any traffic

Figure 85. PSM Circuit in Service Manager screen with Service on Top disabled

Figure 86. PSM Circuit in Service Manager screen with service on top enabled

This screenshot shows the OCH-PSM circuit for PSM wavelength — Figure 87. OCH-PSM circuit for PSM wavelength

Trail Discovery and Upgrade Process with Transponder Connection

After creating the services, upgrading to a trail will not work unless the transponder is connected beforehand.

Once the transponder is connected, the trail can be discovered and subsequently upgraded.

Note

If you are discovering a Network Channel (NC), there is no automatic way to upgrade it to a trail. Therefore, connect the transponders and create the Inter-Process Communication (IPC) before onboarding, so that the trail can be discovered.

Automatic conversion from Optical Channel Network Channel (OCH-NC) to trail is not supported. To upgrade, delete the OCH-NC and then create the trail manually.

After creating the IPC, the trail will be discovered, and then upgrade the trail to a Circuit Channel (CC).
However, creating the IPC between the transponder trunk and the PSM component does not automatically trigger trail discovery. You must delete the existing NC and create the trail again.
To avoid this manual step, it is recommended that the transponder is inserted and IPCs are created before onboarding the COSM into the CONC.
After the trail is discovered, click "Discover CC," and the CONC will discover and display the OCH-CC.

PSM Wavelength Circuit in Workspace Screen

To view the selected PSM wavelength circuit follow the steps:

Procedure

Step 1

Click Workspace option on the left panel.

Step 2

In Circuit Monitoring, click Launch.

Step 3

Select the PSM wavelength circuit.

Selecting the PSM wavelength circuit shows the channel path with a blue colored arrow in theTopology panel and detailed service path with equipment patchcords in Detailed Service Path tab.

In the Service List pane, the OCH-Trail services for NCS 1001 PSM cover the carrier (wavelength) information and include these new labels to each discovered channel.
- Work—Channel passing through nominal Work port of PSM.
- Protect—Channel passing through nominal Protect port of PSM.
- Forward—Traffic flow from node A to Node Z, where Node A is the Source Node.
- Reverse—Traffic flow from node Z to Node A, where Node Z is the Source Node.
- Active—This label is added before the Forward/Reverse labels to indicate that the channel is carrying traffic in Forward/Reverse direction.
- Standby—Channel that is not carrying any traffic.

Step 4

In the Alarms tab, alarms are reported for both the paths. In topology panel, you can see the Active and Standby paths and direction of the traffic flow indicated by the arrows.

Screenshot of the PSM wavelength circuit topology with Work path as active — Figure 88. Alarms and topology for PSM wavelength service

When you select the protect path, you can see the alarms for the Protect channel only and topology highlights only that protect channel.

When you select the Work path, you can see the alarms for work channel only and topology highlights only the Work channel.

Step 5

In the Detailed Service Path tab, check the selected PSM wavelength circuit.

Note

The Detailed Service Path displays all the equipments crossed by the circuit. The active path appears in blue and the standby path in Grey color.
The blue arrows indicate the RX direction of the light for a given PSM.

Note

From Release 26.1.1, the NCS 1001 PSM Wavelength Circuit Workspace has these UI enhancements.
The Detailed Service Path.
- Highlights the active path between the NCS 1001 PSM nodes.
- Displays the equipment between the NCS 1010 OLT nodes as a cloud.

Step 6

In the Service History tab, check the change of events in the PSM wavelength circuit.

From R26.1.1, service history is now enabled for PSM service to show discovery events, operation state changes, and switch events.

Unidirection service states are supported and displayed at channel level.
If only one of the channel is discovered, work or protect, then the controller marks the service as PARTIAL. When that channel and carrier is INSTALLED, then the service moves to INSTALLED when other channel is discovered.
If a path is standby in both directions, then it will show up as dotted line in topology in Circuit monitoring workspace.
If different paths are active in different directions, then we will not see dotted line.

Forwarding Syslogs

The syslog forwarding feature help in:

Storing logs from the client VMs in the server VM.
Allowing multiple client VMs to send logs to the same server VM.
Server installation is done only once.
The server's database stores all logs.

You need to run the commands from the client VMs to configure the server using the script provided.

Install Syslog on Server

To install syslog feature on the server run the CLI commands given in the example:

Create the rsyslog server using steps provided in below website
		https://www.makeuseof.com/set-up-linux-remote-logging-using-rsyslog/

To create the folder structure
		AUDIT logs here → /var/log/<host-ip>/audit.log
		ONC service logs here → /var/log/<host-ip>/service_logs/

Add the below lines in the rsyslog.conf file
		$ModLoad imudp
		$UDPServerRun 514

		Input (type="imudp" port="514" ruleset="rs1")

		template (name="ServLogLoc" type="string" string="/var/log/%FROMHOST-IP%/service_logs/%syslogtag%.log")
		template (name="AuditLogLoc" type="string" string="/var/log/%FROMHOST-IP%/audit.log")

		Ruleset (name="rs1") {
		:msg, contains, "audit" ?AuditLogLoc
		*.* ?ServLogLoc
		}

Restart syslog server using command,
		systemctl restart rsyslog

Check if rsyslog service is active and running using command,
		systemctl status rsyslog

Install Syslog on Client

To install syslog server forwarding in client run the CLI commands in the example:

sedo syslog server create <IP> <PROTOCOL> <IP> <PORT>
         IP is the address of the syslog server.
         Protocol to be used - udp or tcp.
         Port on which syslog server is listening to (default is 514)

To create a syslog query to forward the apllication logs of a particular Cisco Optical Network Controller app:



	sedo syslog query create '{namespace="onc", app="<app_name>", container="app"}' LOG_INFO LOG_USER <app_name> <IP>

Note

The query inside single quotes is Grafana Loki's logQL, it can be tweaked according to user needs

To list all syslog queries:


	sedo syslog query list

To list all syslog servers:


	sedo syslog server list

To delete a syslog query:


	sedo syslog query delete <QUERY_ID>

To delete a syslog server:


	sedo syslog server delete <IP>

Bias-Free Language

Results

Chapter: Use Cisco Optical Network Controller

Use Cisco Optical Network Controller

Before you begin

Procedure

Topology

Layer segment buttons

Map control icons

Alarm severity bar

Individual node pop-up options

Check span utilization summary for OTN links

Troubleshooting in Topology

Nodes

Reserved internal IP addresses and subnets

Add nodes on Cisco Optical Network Controller

Before you begin

Procedure

Import multiple nodes into Cisco Optical Network Controller

Before you begin

Procedure

What to do next

Export Nodes on Cisco Optical Network Controller

Before you begin

Procedure

Edit Nodes on Cisco Optical Network Controller

Before you begin

Procedure

Delete nodes on Cisco Optical Network Controller

Procedure

Troubleshooting in Nodes

Test connectivity from Cisco Optical Network Controller to a Cisco Optical Site Manager node

Before you begin

Procedure

Alien Import

Before you begin

Procedure

Network Inventory

Before you begin

Procedure

Service Manager

Supported Circuit Types

GMPLS Support

Existing CPCE circuits

Resync services

Service Manager table view toggles

Service summary

Service manager table fields

Create and manage circuits

Before you begin

Procedure

Example

Troubleshoot CPCE Services

Provision GMPLS services

Before you begin

Procedure

Example

Alarms

Procedure

View events in the Alarms application

Before you begin

Procedure

Network Level Alarm Correlation

Alarm Hierarchy Display

Alarm Correlation

Benefits of Using NLAC

Acknowledged Alarm Mute

Purpose of Acknowledged Alarm Mute

Benefits of Using Acknowledged Alarm Mute Option

Muting the Acknowledged Alarms

Notifications for Acknowledged Alarm Mute

SNMP Traps and Alarm Filters

Alarms and Events

SNMP manager configuration

Alarm filtering

Set the Edit Host Name

Before you begin

Procedure

Configure SNMP managers
