L2VPN services over segment routing traffic engineering tunnel

Updated: June 10, 2026

Want to summarize with AI?

Log in

Introduces L2VPN services utilizing segment routing traffic engineering tunnels, highlighting path selection, segment encoding in packet headers, and traffic engineering through source-specified tunn

Segment routing is a source routing technology that

  • enables the source device to select a path and encode it in the packet header as an ordered list of segments

  • uses segments as identifiers for various instructions, and

  • supports traffic engineering by creating tunnels between source and destination pairs where the source specifies the path for the packet to follow.

Segment routing for traffic engineering and preferred tunnel path

Segment routing for traffic engineering (SR-TE) establishes a tunnel between a source and destination pair using source routing. The source calculates the path and encodes it as segments in the packet header. Each segment represents an end-to-end path that directs routers in the provider core network to follow the specified route instead of the shortest path determined by the IGP. The destination remains unaware of the tunnel's existence.

Using segment routing to transport MPLS L2VPN services enhances network resilience and convergence compared to MPLS LDP. Segment routing integrates directly with the MPLS architecture without modifying the forwarding plane. In an MPLS data plane segment-routing network, label distribution is handled by the IGP, eliminating the need for LDP or other signaling protocols. This simplification reduces protocol interactions, making the network more robust and stable. Additionally, segment routing optimizes bandwidth usage and reduces latency compared to traditional MPLS networks.

Preferred tunnel path functionality enables mapping pseudowires to specific traffic-engineering tunnel paths. Attachment circuits connect to designated SR traffic engineering tunnel interfaces rather than remote PE router IP addresses reachable via IGP or LDP. The traffic engineering tunnel then transports traffic from the source to destination PE routers. An SR Policy selects a path when it is valid and has the highest preference value among all candidate paths.

These are the supported services:

  • L2VPN preferred path

  • VPWS over SR-TE policy

  • Decoupled mode for L2VPN and EVPN VPWS services

  • VPWS PW over preferred SR-TE using statically configured SR policy

  • EVPN PW over preferred SR-TE using On-Demand Nexthop SR policy

  • Call admission control for L2VPN point-to-point services over circuit-style SR-TE policies

L2VPN preferred path

L2VPN preferred-path allows you to steer PW traffic over an SR-TE tunnel at the granularity of per PW level. It is recommended to use preferred-path configuration together with statically configured SR policy. EVPN ODN configuration allows you to steer PW traffic over an SR-TE tunnel at the granularity of per EVPN instance (EVI) level. When both the preferred-path and EVPN ODN configurations are used on a PW, preferred-path configuration takes precedence.

EVPN VPLS preferred path over SR-TE policies

EVPN VPLS preferred path over SR-TE policy is a traffic engineering feature that

  • explicitly sets a specific path for EVPN VPLS pseudowire traffic based on a SR-TE policy

  • ensures traffic follows the defined route between service PE routers for EVPN VPLS services, and

  • allows selection of the preferred path on a per EVPN instance (EVI) basis.

Table 1. Feature History Table

Feature Name

Release Information

Feature Description

EVPN VPLS preferred path over SR-TE policies

 Release 25.4.1

Introduced in this release on: Fixed Systems (8100 [ASIC: Q200], 8200 [ASIC: Q200, P100], 8700 [ASIC: P100, K100], 8010 [ASIC: A100]); Centralized Systems (8600 [ASIC: Q200]); Modular Systems (8800 [LC ASIC: Q200, P100])

You can now control Layer 2 VPN traffic paths by leveraging SR-TE policies, ensuring optimized and deterministic traffic flows in the network using EVPN VPLS preferred path over SR-TE policy. This feature allows you to bind an EVPN VPLS pseudowire to an SR-TE tunnel interface, overriding the default IGP shortest path.

EVPN VPLS pseudowire path selection with SR-TE policy

EVPN VPLS pseudowire path selection can be explicitly controlled by binding the pseudowire to an SR-TE policy rather than relying on default IGP-based routing between PE routers. This capability allows precise steering of pseudowire traffic through a predefined SR-TE tunnel.

Key highlights:

  • Explicit path steering: Traffic for EVPN VPLS pseudowires is directed according to a specific segment-list, enabling precise control over the route through the network.

  • Resource reservation: The SR-TE policy can reserve bandwidth and enforce latency or other service-level requirements to guarantee quality for EVPN VPLS services.

  • Stable and predictable paths: The selected path for the pseudowire remains consistent, even during IGP metric changes or topology modifications, improving service stability.

How EVPN VPLS preferred paths over SR-TE policies work

This process applies to routers where EVPN VPLS services are deployed with SR-TE policies and enables explicit routing of L2 VPN traffic over a preferred MPLS path rather than the default shortest path.

Summary

The key components involved in the process are:

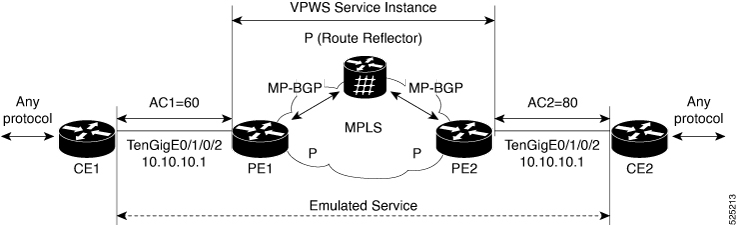

  • PE routers (PE1 and PE2): Configure EVPN VPLS instances to signal MAC and IP reachability and establish pseudowires. PE1 also defines and enforces the SR-TE policy.

  • CE devices (CE1 and CE2): Source and destination of Ethernet frames carried over the EVPN VPLS service.

  • P routers: Forward labeled packets through the MPLS core based on segment routing labels, adhering to the SR-TE policy.

EVPN VPLS traffic between CE1 and CE2 is explicitly routed over the MPLS core according to the SR-TE policy on PE1. This provides precise traffic engineering control, ensuring L2 VPN traffic follows the operator’s preferred path instead of the default shortest path.

Workflow

These stages describe how EVPN VPLS preferred paths over SR-TE policies work.

  1. PE1 and PE2 configure EVPN VPLS instances to enable BGP EVPN signaling of MAC and IP reachability and to establish pseudowires between them.
  2. PE1 defines an SR-TE policy with the destination set to PE2’s loopback interface, specifying an explicit MPLS forwarding path through the provider (P) routers.
  3. PE1 maps incoming traffic from CE1 to the EVPN VPLS service.
  4. PE1 steers pseudowire traffic into the SR-TE tunnel, ensuring packets follow the explicit path defined by the SR-TE policy.
  5. PE1 encapsulates each Ethernet frame from CE1 with a service label for EVPN VPLS and a stack of SR labels representing the SR-TE path.
  6. P routers forward the labeled packets through the MPLS core based solely on the segment routing labels, strictly following the SR-TE policy.
  7. Upon arrival at PE2, the SR labels are removed, and the EVPN VPLS service label is used to forward the original Ethernet frame to CE2.

Configure EVPN VPLS preferred path over SR-TE policy

Configure EVPN VPLS preferred paths using SR-TE policies to control traffic forwarding on PE routers.

This task applies when you want to define explicit SR-TE paths for EVPN VPLS services by configuring Prefix-SIDs, Adjacency-SIDs, segment lists, and SR-TE policies on PE routers.

Before you begin

Ensure IS-IS routing protocol is enabled and operational on PE routers PE1, PE2, and PE3.

Procedure

1.

Configure prefix-SID on PE1, PE2, and PE3.

  1. Configure prefix-SID on PE1.

    Example:

    Router# configure
Route(config)# router isis core
Route(config-isis)# is-type level-2-only
Route(config-isis)# net 49.0002.0330.2000.0031.00
Route(config-isis)# nsr
Route(config-isis)# nsf ietf
Route(config-isis)# log adjacency changes
Route(config-isis)# address-family ipv4 unicast
Route(config-isis-af)# metric-style wide level 2
Route(config-isis-af)# mpls traffic-eng level-2-only
Route(config-isis-af)# mpls traffic-eng router-id loopback0
Route(config-isis-af)# segment-routing mpls sr-prefer
Route(config-isis-af)# segment-routing prefix-sid-map advertise-local
Route(config-isis-af)# exit
Route(config-isis)# interface loopback 0
Route(config-isis-if)# address-family ipv4 unicast
Route(config-isis-af)# prefix-sid index 16100
Route(config-isis-af)# commit

  2. Configure prefix-SID on PE2.

    Example:

    Router# configure
Route(config)# router isis core
Route(config-isis)# is-type level-2-only
Route(config-isis)# net 49.0002.0330.2000.0021.00
Route(config-isis)# nsr
Route(config-isis)# nsf ietf
Route(config-isis)# log adjacency changes
Route(config-isis)# address-family ipv4 unicast
Route(config-isis-af)# metric-style wide level 2
Route(config-isis-af)# mpls traffic-eng level-2-only
Route(config-isis-af)# mpls traffic-eng router-id loopback0
Route(config-isis-af)# segment-routing mpls sr-prefer
Route(config-isis-af)# segment-routing prefix-sid-map advertise-local
Route(config-isis-af)# exit
Route(config-isis)# interface loopback 0
Route(config-isis-if)# address-family ipv4 unicast
Route(config-isis-af)# prefix-sid index 16200
Route(config-isis-af)# commit

  3. Configure prefix-SID on PE3.

    Example:

    Router# configure
Route(config)# router isis core
Route(config-isis)# is-type level-2-only
Route(config-isis)# net 49.0002.0330.2000.3030.0030.0035.00
Route(config-isis)# address-family ipv4 unicast
Route(config-isis-af)# metric-style wide level 2
Route(config-isis-af)# mpls traffic-eng level-2-only
Route(config-isis-af)# mpls traffic-eng router-id loopback0
Route(config-isis-af)# segment-routing mpls sr-prefer
Route(config-isis-af)# segment-routing prefix-sid-map advertise-local
Route(config-isis-af)# exit
Route(config-isis)# interface loopback 0
Route(config-isis-if)# address-family ipv4 unicast
Route(config-isis-af)# prefix-sid index 16300
Route(config-isis-af)# commit
2.

Configure adjacency-SID on IS-IS interfaces on PE1, PE2, and PE3.

  1. Configure adjacency-SID on IS-IS interfaces on PE1.

    Example:

    Router# configure
Route(config)# router isis core
Route(config-isis)# interface Bundle-Ether121
Route(config-isis-if)# circuit-type level-2-only
Route(config-isis-if)# point-to-point
Route(config-isis-if)# hello-padding disable
Route(config-isis-if)# address-family ipv4 unicast
Route(config-isis-if-af)# adjacency-sid absolute 15100
Route(config-isis-if-af)# exit
Router# configure
Route(config)# router isis core
Route(config-isis)# interface HundredGigE 0/0/0/24
Route(config-isis-if)# circuit-type level-2-only
Route(config-isis-if)# point-to-point
Route(config-isis-if)# hello-padding disable
Route(config-isis-if)# address-family ipv4 unicast
Route(config-isis-if-af)# adjacency-sid absolute 15101
Route(config-isis-if-af)# exit
Router# configure
Route(config)# router isis core
Route(config-isis)# interface HundredGigE 0/0/0/23
Route(config-isis-if)# circuit-type level-2-only
Route(config-isis-if)# point-to-point
Route(config-isis-if)# hello-padding disable
Route(config-isis-if)# address-family ipv4 unicast
Route(config-isis-if-af)# adjacency-sid absolute 15102
Route(config-isis-if-af)# commit

  2. Configure adjacency-SID on IS-IS interfaces on PE2.

    Example:

    Router# configure
Route(config)# router isis core
Route(config-isis)# interface Bundle-Ether121
Route(config-isis-if)# circuit-type level-2-only
Route(config-isis-if)# point-to-point
Route(config-isis-if)# hello-padding disable
Route(config-isis-if)# address-family ipv4 unicast
Route(config-isis-if-af)# adjacency-sid absolute 15200
Route(config-isis-if-af)# exit
Router# configure
Route(config)# router isis core
Route(config-isis)# interface HundredGigE 0/0/0/22
Route(config-isis-if)# circuit-type level-2-only
Route(config-isis-if)# point-to-point
Route(config-isis-if)# hello-padding disable
Route(config-isis-if)# address-family ipv4 unicast
Route(config-isis-if-af)# adjacency-sid absolute 15201
Route(config-isis-if-af)# exit
Router# configure
Route(config)# router isis core
Route(config-isis)# interface HundredGigE 0/0/0/21
Route(config-isis-if)# circuit-type level-2-only
Route(config-isis-if)# point-to-point
Route(config-isis-if)# hello-padding disable
Route(config-isis-if)# address-family ipv4 unicast
Route(config-isis-if-af)# adjacency-sid absolute 15202
Route(config-isis-if-af)# commit

  3. Configure adjacency-SID on IS-IS interfaces on PE3.

    Example:

    Router# configure
Route(config)# router isis core
Route(config-isis)# interface HundredGigE 0/0/0/20
Route(config-isis-if)# circuit-type level-2-only
Route(config-isis-if)# point-to-point
Route(config-isis-if)# hello-padding disable
Route(config-isis-if)# address-family ipv4 unicast
Route(config-isis-if-af)# adjacency-sid absolute 15301
Route(config-isis-if-af)# exit
Router# configure
Route(config)# router isis core
Route(config-isis)# interface HundredGigE 0/0/0/19
Route(config-isis-if)# circuit-type level-2-only
Route(config-isis-if)# point-to-point
Route(config-isis-if)# hello-padding disable
Route(config-isis-if)# address-family ipv4 unicast
Route(config-isis-if-af)# adjacency-sid absolute 15302
Route(config-isis-if-af)# commit
3.

Create segment lists that specify the order of segment traversal for preferred paths.

  1. Configure segment-list on PE1.

    Example:

    Router# configure
Router(config)# segment-routing
Router(config-sr)# global-block 16000 23999
Router(config-sr)# local-block 15000 15999
Router(config-sr)# traffic-eng
Router(config-sr-te)# segment-list segment-list name PE1-PE2
Router(config-sr-te-sl)# index 1 mpls label 16200
Router(config-sr-te-sl)# exit
Router(config-sr-te)# segment-list segment-list name PE1-PE3
Router(config-sr-te-sl)# index 1 mpls label 16300
Router(config-sr-te-sl)# exit
Router(config-sr-te)# segment-list segment-list name PE1-PE2-PE3
Router(config-sr-te-sl)# index 1 mpls label 16200
Router(config-sr-te-sl)# index 2 mpls label 16300
Router(config-sr-te-sl)# exit
Router(config-sr-te)# segment-list segment-list name PE1-PE3-PE2
Router(config-sr-te-sl)# index 1 mpls label 16300
Router(config-sr-te-sl)# index 2 mpls label 16200
Router(config-sr-te-sl)# exit
Router(config-sr-te)# segment-list segment-list name PE1-PE2_BE121
Router(config-sr-te-sl)# index 1 mpls label 15100
Router(config-sr-te-sl)# exit
Router(config-sr-te)# segment-list segment-list name PE1-PE3-PE2_link
Router(config-sr-te-sl)# index 1 mpls label 15101
Router(config-sr-te-sl)# index 2 mpls label 15302
Router(config-sr-te-sl)# exit
Router(config-sr-te)# segment-list segment-list name PE1-PE3-PE2-t0016
Router(config-sr-te-sl)# index 1 mpls label 15101
Router(config-sr-te-sl)# index 2 mpls label 16200
Router(config-sr-te-sl)# commit

  2. Configure segment-list on PE2.

    Example:

    on PE2
    Router# configure
Router(config)# segment-routing
Router(config-sr)# global-block 16000 23999
Router(config-sr)# local-block 15000 15999
Router(config-sr)# traffic-eng
Router(config-sr-te)# segment-list segment-list name PE2-PE1
Router(config-sr-te-sl)# index 1 mpls label 16100
Router(config-sr-te-sl)# exit
Router(config-sr-te)# segment-list segment-list name PE2-PE3-PE1
Router(config-sr-te-sl)# index 1 mpls label 16300
Router(config-sr-te-sl)# index 2 mpls label 16100
Router(config-sr-te-sl)# commit

  3. Configure segment-list on PE3.

    Example:

    Router# configure
Router(config)# segment-routing
Router(config-sr)# global-block 16000 23999
Router(config-sr)# local-block 15000 15999
Router(config-sr)# traffic-eng
Router(config-sr-te)# segment-list segment-list name PE3-PE1
Router(config-sr-te-sl)# index 1 mpls label 16100
Router(config-sr-te-sl)# exit
Router(config-sr-te)# segment-list segment-list name PE3-PE2-PE1
Router(config-sr-te-sl)# index 1 mpls label 16200
Router(config-sr-te-sl)# index 2 mpls label 16100
Router(config-sr-te-sl)# commit
4.

Configure SR-TE policies on each PE router with candidate paths and set preference values to control policy selection.

Example:

on PE1
Router# configure
Router(config)# segment-routing
Router(config-sr)# traffic-eng
Router(config-sr-te)# policy 100
Router(config-sr-te-policy)# color 1 end-point ipv4 2.2.2.2
Router(config-sr-te-policy)# candidate-paths
Router(config-sr-te-policy)# preference 400
Router(config-sr-te-pp-info)# explicit segment-list PE1-PE3-PE2
Router(config-sr-te-pp-info)# exit
Router(config-sr-te-policy)# preference 500 <-----------------largest number takes the precedence
Router(config-sr-te-pp-info)# explicit segment-list PE1-PE2
Router(config-sr-te-pp-info)# commit
Router(config-sr-te-pp-info)# exit
Router# configure
Router(config)# segment-routing
Router(config-sr)# traffic-eng
Router(config-sr-te)# policy 1013
Router(config-sr-te-policy)# color 1013 end-point ipv4 2.2.2.2
Router(config-sr-te-policy)# candidate-paths
Router(config-sr-te-policy)# preference 100
Router(config-sr-te-pp-info)# explicit segment-list PE1-PE2_BE121
Router(config-sr-te-pp-info)# exit
Router(config-sr-te-policy)# preference 200
Router(config-sr-te-pp-info)# explicit segment-list PE1-PE3-PE2-t0016
Router(config-sr-te-pp-info)# exit
Router(config-sr-te-policy)# preference 500
Router(config-sr-te-pp-info)# explicit segment-list PE1-PE2
Router(config-sr-te-pp-info)# exit
Router(config-sr-te-policy)# preference 600
Router(config-sr-te-pp-info)# explicit segment-list PE1-PE3-PE2
Router(config-sr-te-pp-info)# exit
Router(config-sr-te-policy)# preference 700
Router(config-sr-te-pp-info)# explicit segment-list PE1-PE3-PE2_link
Router(config-sr-te-pp-info)# commit
Router# configure
Router(config)# segment-routing
Router(config-sr)# traffic-eng
Router(config-sr-te)# policy 1300
Router(config-sr-te-policy)# color 1300 end-point ipv4 3.3.3.3
Router(config-sr-te-policy)# candidate-paths
Router(config-sr-te-policy)# preference 100
Router(config-sr-te-pp-info)# explicit segment-list PE1-PE3
Router(config-sr-te-pp-info)# commit
5.

Configure EVPN VPLS over SR-TE Policy.

Example:


Router(config)# extcommunity-set opaque color_500
Router(config-ext)# 500
Router(config-ext)# end-set

Define the color in the extended community.

Example:

Router(config)# route-policy RPL_color_500
Router(config-rpl)# if evpn-route-type is 1 or evpn-route-type is 3 then
Router(config-rpl-if)# set extcommunity color color_500
Router(config-rpl-elseif)# endif
Router(config-rpl)# end-policy

The evpn-route-type 3 needs to be colored, as it provides the label to carry the BUM traffic, when BUM traffic must be sent to a remote PE3 from PE1to be sent through SR-TE policy color 500.

For unicast traffic, the unicast label for a MAC is advertised by route type 2, but when route type 2 is colored using RPL, an error message is observed:

UTC: l2vpn_mgr[1291]: %L2-EVPN-4-ODN_ON_UNSUPPORTED_ROUTE : EVPN: ODN/AS Nexthop received on unsupported Route-Type 2 (MAC/IP Advertisement), SR-TE BSID tunnel, bridge domain EVPN_ELAN, ESI 0000.0000.0000.0000.0000.

Associating the access interface (even for single-homing) with an ESI and coloring per EAD/EVI route to steer the traffic through the SR-TE policy:

Example:

Router(config)# evpn
Router(config-evpn)# evi 500
Router(config-evpn-evi)# bgp
Router(config-evpn-evi-bgp)# route-policy export RPL_color_500
Router(config-evpn-evi-bgp-rpl)# exit
Router(config-evpn-evi)# advertise-mac
Router(config-evpn-evi)# root
Router(config)# l2vpn
Router(config-l2vpn)# bridge group EVPN-ELAN-500
Router(config-l2vpn-bg)# bridge-domain EVPN-ELAN-500
Router(config-l2vpn-bg-bd)# interface Bundle-Ether3.2
Router(config-l2vpn-bg-bd-ac)# exit
Router(config-l2vpn-bg-bd)# evpn
Router(config-l2vpn-bg-bd-evpn)# evi 500
6.

Verify the EVPN VPLS preferred path over SR-TE policy configuration.

The prefix-SID and adjacency-SID must be in the SR topology.

Example:

PE1# show segment-routing traffic-eng ipv4 topology | inc Prefix
  Prefix SID:
    Prefix 1.1.1.1, label 16100 (regular)
  Prefix SID:
    Prefix 3.3.3.3, label 16300 (regular)
  Prefix SID:
    Prefix 2.2.2.2, label 16200 (regular)

Example:

PE1# show segment-routing traffic-eng ipv4 topology | inc Adj SID
Adj SID: 61025 (unprotected) 15102 (unprotected)
    Adj SID: 61023 (unprotected) 15101 (unprotected)
    Adj SID: 65051 (unprotected) 15100 (unprotected)
    Adj SID: 41516 (unprotected) 15301 (unprotected)
    Adj SID: 41519 (unprotected) 15302 (unprotected)
    Adj SID: 46660 (unprotected) 15201 (unprotected)
    Adj SID: 24003 (unprotected) 15202 (unprotected)
    Adj SID: 46675 (unprotected) 15200 (unprotected)

Example:

PE1# show segment-routing traffic-eng policy candidate-path name 100

SR-TE policy database
---------------------

Color: 100, End-point: 2.2.2.2
 Name: srte_c_1_ep_2.2.2.2

Example:

PE1# show segment-routing traffic-eng policy name 100
SR-TE policy database
---------------------

Name: 100 (Color: 1, End-point: 2.2.2.2)
  Status:
    Admin: up  Operational: up for 05:44:25 (since Feb  1 17:32:34.434)
  Candidate-paths:
    Preference 500:
      Explicit: segment-list PE1-PE2 (active)
        Weight: 0, Metric Type: IGP
          16200 [Prefix-SID, 2.2.2.2]
    Preference 400:
      Explicit: segment-list PE1-PE3-PE2 (inactive)
      Inactive Reason: unresolved first label
        Weight: 0, Metric Type: IGP
  Attributes:
    Binding SID: 27498
      Allocation mode: dynamic
      State: Programmed
      Policy selected: yes
    Forward Class: 0

Example:

PE1# show segment-routing traffic-eng forwarding policy name 100

Policy        Segment         Outgoing    Outgoing            Next Hop        Bytes
Name          List            Label       Interface                           Switched
------------- --------------- ----------- ------------------- --------------- ------------
100           PE1-PE2         Pop        HundredGigE 0/0/0/23 12.1.9.2        0
                              Pop         BE121               121.1.0.2       0

EVPN ELAN services with SR-TE ODN, RT1, and RT3

EVPN ELAN services with SR-TE ODN, RT1, and RT3 are networking services that

  • manage customer MAC addresses as routable entities distributed over a BGP core using EVPN

  • leverage SR-TE for flexible, scalable source routing, and

  • enable dynamic, policy-based traffic steering for BUM and unicast traffic using route coloring and multihoming scenarios.

Table 2. Feature History Table

Feature Name

Release Information

Feature Description

EVPN ELAN services with SR-TE ODN, RT1, and RT3

 Release 25.4.1

Introduced in this release on: Fixed Systems (8100 [ASIC: Q200], 8200 [ASIC: Q200, P100], 8700 [ASIC: P100, K100], 8010 [ASIC: A100]); Centralized Systems (8600 [ASIC: Q200]); Modular Systems (8800 [LC ASIC: Q200, P100])

You can now enable dynamic traffic steering through SR-TE policy, improving traffic management by directing BUM and unicast traffic over optimized SR-TE paths. This capability is achieved by coloring route type 1 (RT1) and route type 3 (RT3) routes with a non-zero extended community color, which triggers traffic to follow the SR-TE policy path instead of the default IGP path.

Key aspects of policy-based dynamic traffic steering for EVPN ELAN ODN

This feature integrates EVPN's MAC mobility and multihoming with SR-TE's traffic engineering capabilities and enables policy-based dynamic traffic steering to BGP next hops using the SR color extended community value.

Key aspects include:

  • The service head-end calculates the segment-list path for traffic steering.

  • Dynamically created SR paths are maintained as B-SIDs in the Forwarding Information Base (FIB).

  • Path selection is based on matching attribute fields and Network Layer Reachability Information (NLRI) fields on EVPN route types RT1 and RT3.

  • Supports selective path steering for BUM traffic, whether colored or non-colored.

  • Dynamic steering paths are created to aliasing endpoints in the case of all-active preferred (AApF) designated headend (DHD).

  • The service head-end dynamically optimizes paths to all endpoints (designated forwarder and non-designated forwarders) reachable to known T-MAC addresses for all-active redundancy (RT1 Ethernet auto-discovery per EVI).

  • Failover of egress PE endpoints does not disrupt forwarding through dynamic steering paths. Receiving a MAC mass withdraw or detecting an egress PE down triggers failover on the ingress PE.

  • Traffic continues to flow on remaining endpoints (all-active preferred standby, AApS) with load balancing or switches to a new active endpoint (AApF).

  • A single MAC withdraw does not break forwarding; the association of the last MAC in a policy to the dynamic steering path is removed correctly. The ingress PE forwards subsequent traffic as BUM until the MAC is relearned through EVPN RT 2.

Benefits of EVPN ELAN services with SR-TE ODN, RT1, and RT3

  • Optimized path selection: Dynamically steers traffic to preferred paths using SR color extended communities.

  • Enhanced resilience: Supports rapid failover and convergence in multihomed environments.

  • Simplified operations: Automates path creation and traffic steering, reducing manual intervention.

  • Scalability: Leverages Segment Routing's inherent scalability for large-scale deployments.

  • Policy-driven control: Allows granular control over traffic flow based on EVPN route types and BGP policies.

How EVPN ELAN services with SR-TE ODN, RT1, and RT3 work

EVPN ELAN ODN and AS services integrate EVPN ELAN with SR-TE to provide policy-based dynamic traffic steering for customer MAC addresses over a BGP core. It uses EVPN route types 1 and 3, along with SR color extended communities, to establish and manage optimized paths, particularly in multihoming scenarios. A non-zero ESI is required for proper operation.

Summary

The key components involved in the process are:

  • EVPN ELAN: Manages customer MACs as routable addresses and distributes them over a BGP core.

  • SR-TE: Provides flexible and scalable source routing with paths defined by segment lists.

  • BGP Core: Distributes EVPN routes and SR-TE policies.

  • Service head-end (ingress PE): Calculates and initiates SR-TE paths, applies policies.

  • Egress PE (end-points): Receives traffic, handles MACs, and participates in multihoming.

  • SR color extended community: Used for policy-based dynamic traffic steering.

  • EVPN route type 1 (RT1): Ethernet A-D per ES route, used for all-active redundancy and MAC mass-withdraw.

  • EVPN route type 3 (RT3): Inclusive Multicast Ethernet Tag route, used for BUM traffic.

  • Ethernet Segment Identifier (ESI): A non-zero identifier for multihoming.

This process enables highly resilient, policy-driven traffic engineering for EVPN ELAN services, optimizing path selection and ensuring rapid convergence during failures in multihomed environments.

Workflow

These stages describe how EVPN ELAN services with SR-TE ODN and auto-steering RT1 and RT3 work.

  1. EVPN ELAN configuration: Network administrators configure EVPN ELAN features, including bridge groups, bridge domains, and EVPN EVI instances, ensuring a non-zero ESI for multihoming.
  2. SR-TE infrastructure setup: The SR global block is configured, and SR-TE policies are defined, including on-demand color policies and explicit segment lists that specify preferred paths.
  3. BGP EVPN Integration: BGP is configured to carry L2VPN EVPN routes. Route policies are applied to import and export EVPN routes, specifically setting SR color extended communities based on EVPN Route Type 1 or 3.
  4. Path calculation and encoding: The service head-end (ingress PE) calculates dynamic optimized paths based on the configured SR-TE policies and EVPN routes. These paths are encoded into packet headers as segments.
  5. Traffic steering: Traffic is steered dynamically to the BGP next-hop based on the SR color extended community value. SR-TE ensures that traffic follows the specified segment list paths instead of the shortest IGP path.
  6. Multihoming and redundancy: In multihoming scenarios, the system uses EVPN RT1 to manage all-active redundancy. BGP policy routing can prefer one path over another or maintain equal preference for a given MAC.
  7. BUM traffic handling: EVPN RT3 is used to handle BUM traffic, which can be selectively steered over colored or non-colored paths.
  8. Failover and convergence: Upon a MAC mass-withdraw or detection of an egress PE failure, the ingress PE triggers a failover. Traffic is then redirected to remaining active end-points (AApS) with load balancing or to a new active end-point (AApF) until MACs are re-learned through EVPN RT2.

Configure EVPN ELAN services with SR-TE ODN, RT1, and RT3

Configure EVPN ELAN services with SR-TE ODN and auto-steering RT1 and RT3.

This task applies when you want to leverage PCE-based path computation and dynamic SR-TE policies to optimize EVPN ELAN services.

Procedure

1.

Configure SR in IS-IS and configure interfaces BE2, BE3, BE4, and BE5.

  1. Enable SR in IS-IS.

    Example:

    Router(config)# router isis isp
Router(config-isis)# net 01.0000.0000.0001.00
Router(config-isis)# distribute instance-id 32 level 2 throttle 5
Router(config-isis)# address-family ipv4 unicast
Router(config-isis-af)# metric-style wide
Router(config-isis-af)# mpls traffic-eng level-1
Router(config-isis-af)# mpls traffic-eng router-id 1.2.3.4
Router(config-isis-af)# segment-routing mpls sr-prefer
Router(config-isis-af)# segment-routing prefix-sid-map advertise-local
Router(config-isis-af)# exit

  2. Configure interface BE2.

    Example:

    Router(config-isis)# interface Bundle-Ether2
Router(config-isis-if)# point-to-point
Router(config-isis-if)# address-family ipv4 unicast
Router(config-isis-if-af)# exit
Router(config-isis-if)# exit

  3. Configure interface BE3.

    Example:

    Router(config-isis)# interface Bundle-Ether3
Router(config-isis-if)# point-to-point
Router(config-isis-if)# address-family ipv4 unicast
Router(config-isis-if-af)# exit
Router(config-isis-if)# exit

  4. Configure interface BE4.

    Example:

    Router(config-isis)# interface Bundle-Ether4
Router(config-isis-if)# point-to-point
Router(config-isis-if)# address-family ipv4 unicast
Router(config-isis-if-af)# exit

  5. Configure interface BE5.

    Example:

    Router(config-isis)# interface Bundle-Ether5
Router(config-isis-if)# point-to-point
Router(config-isis-if)# address-family ipv4 unicast
Router(config-isis-if-af)# exit

  6. Configure Loopback interface.

    Example:

    Router(config-isis)# interface Loopback0
Router(config-isis-if)# passive
Router(config-isis-if)# address-family ipv4 unicast
2.

Configure SR-TE policy.

Example:


Router(config)# segment-routing
Router(config-sr)# traffic-eng
Router(config-sr-te)# on-demand color 1
Router(config-sr-te-color)# dynamic
Router(config-sr-te-color-dyn)# pcep
Router(config-sr-te-color-dyn-pce)# exit
Router(config-sr-te-color-dyn)# metric type igp
Router(config-sr-te-color-dyn)# exit
Router(config-sr-te-color)# exit
Router(config-sr-te)# on-demand color 2
Router(config-sr-te-color)# dynamic
Router(config-sr-te-color-dyn)# pcep
Router(config-sr-te-color-dyn-pce)# exit
Router(config-sr-te-color-dyn)# metric type igp
Router(config-sr-te-color-dyn)# exit
Router(config-sr-te-color)# exit
3.

Configure PCE and PCC.

  1. Configure PCC on R1.

    Example:

    Router(config)# segment-routing
Router(config-sr)# traffic-eng
Router(config-sr-te)# pcc
Router(config-sr-te-pcc)# source-address ipv4 1.2.3.4 >>>>> This is the node address
Router(config-sr-te-pcc)# pce address ipv4 3.4.5.6 >>>>> This is the PCE server address
Router(config-sr-te-pcc)# commit

  2. Configure PCE on R3.

    Example:

    Router(config)# segment-routing
Router(config-sr)# traffic-eng
Router(config-sr-te)# exit
Router(config)# pce
Router(config-pce)# address ipv4 3.4.5.6 >>>>> Configure the address only on a PCE server
Router(config-pce)# commit
4.

Configure BGP.

Configure BGP on the routers to establish neighborship with EVPN. When you enable an SR policy on R1, use the nexthop validation color-extcomm sr-policy command to instruct BGP that, instead of nexthop reachability validation of BGP routes, the validation is done for SR policy-installed color nexthop addresses. When the nexthop address of such a route is reachable, the route is added to the routing table.

Example:


Router(config)# router bgp 100
Router(config-bgp)# bgp router-id 1.2.3.4
Router(config-bgp)# nexthop validation color-extcomm sr-policy
Router(config-bgp)# address-family l2vpn evpn
Router(config-bgp-af)# exit
Router(config-bgp)# neighbor 2.3.4.5
Router(config-bgp-nbr)# remote-as 100
Router(config-bgp-nbr)# update-source Loopback0
Router(config-bgp-nbr)# address-family l2vpn evpn
Router(config-bgp-af)# exit
Router(config-bgp)# neighbor 3.4.5.6
Router(config-bgp-nbr)# remote-as 100
Router(config-bgp-nbr)# update-source Loopback0
Router(config-bgp-nbr)# address-family l2vpn evpn
Router(config-bgp-af)# exit
!
5.

Configure SR color.

Example:


Router(config)# extcommunity-set opaque color1
Router(config-ext)# 1
Router(config-ext)# end-set
Router(config)# extcommunity-set opaque color2
Router(config-ext)# 2
Router(config-ext)# end-set
Router(config)# extcommunity-set opaque color3
Router(config-ext)# 3
Router(config-ext)# end-set
Router(config)# extcommunity-set opaque color4
Router(config-ext)# 4
Router(config-ext)# end-set
6.

Configure EVPN route policy.

Example:

Router(config)# route-policy route_policy_1
Router(config-rpl)# if evpn-route-type is 1 then
Router(config-rpl-if)# set extcommunity color color1
Router(config-rpl-if)# elseif evpn-route-type is 3 then
Router(config-rpl-elseif)# set extcommunity color3
Router(config-rpl-elseif)# endif
Router(config-rpl)# pass
Router(config-rpl)# end-policy
Router(config)# route-policy route_policy_2
Router(config-rpl)# if evpn-route-type is 1 then
Router(config-rpl-if)# set extcommunity color color2
Router(config-rpl-if)# elseif evpn-route-type is 3 then
Router(config-rpl-elseif)# set extcommunity color4
Router(config-rpl-elseif)# endif
Router(config-rpl)# pass
Router(config-rpl)# end-policy

Configure EVPN route policy for tail-end coloring by exporting EVPN policy to color EVPN type 1 or 3 route. At the head-end, ODN uses color advertised by tail-end to create SR-TE tunnel.

Example:

Router(config)# evpn
Router(config-evpn)# evi 1
Router(config-evpn-evi)# bgp
Router(config-evpn-evi-bgp)# route-policy export route_policy_1

Configure EVPN route policy for head-end coloring by importing EVPN policy to color EVPN type 1 or 3 route at the head-end. ODN uses color configured by head-end to create SR-TE tunnel.

Example:

Router(config)# evpn
Router(config-evpn)# evi 2
Router(config-evpn-evi)# bgp
Router(config-evpn-evi-bgp)# route-policy import route_policy_2

Example:
7.

Configure EVPN ELAN over SR-TE policy.

Example:

Router# configure
Router(config)# l2vpn
Router(config-l2vpn)# bridge group BG1
Router(config-l2vpn-bg)# bridge-domain BD1
Router(config-l2vpn-bg-bd)# interface Bundle-Ether3.1
Router (config-l2vpn-bg-bd-ac)# exit
Router (config-l2vpn-bg-bd)# evi 1
Router (config-l2vpn-bg-bd-evi)# exit
Router (config-l2vpn-bg-bd)# exit
Router (config-l2vpn-bg)# exit
Router(config-l2vpn)# bridge group BG2
Router(config-l2vpn-bg)# bridge-domain BD2
Router(config-l2vpn-bg-bd)# interface Bundle-Ether4.1
Router (config-l2vpn-bg-bd-ac)# exit
Router (config-l2vpn-bg-bd)# evi 2
Router (config-l2vpn-bg-bd-evi)# commit
8.

Use these show commands to verify EVPN ELAN over SR-TE using ODN configuration.

  1. View PCE topology on R3.

    Example:

    Router# show pce ipv4 topology summary
Wed Jul 27 22:00:37.109 UTC

PCE's topology database summary:
--------------------------------

Topology nodes:                3
Prefixes:                      3
Prefix SIDs:
  Total:                       0
  Regular:                     0
  Strict:                      0
Links:
  Total:                      12
  EPE:                         0
Adjacency SIDs:
  Total:                      12
  Unprotected:                12
  Protected:                   0
  EPE:                         0

Private Information:
Lookup Nodes                   0
Consistent                    no

Update Stats (from IGP and/or BGP):
  Nodes added:                 7
  Nodes deleted:               0
  Links added:                32
  Links deleted:               0
  Prefix added:               47
  Prefix deleted:              0

Topology Ready Summary:
  Ready:                     yes
  PCEP allowed:              yes
  Last HA case:        migration
  Timer value (sec):          40
  Timer:
    Running: no   >>>>> Check if the timer is running.

  2. View PCE configuration on R3.

    This show command works only on the PCE server.

    Example:

    Router# show pce ipv4 peer
Wed Jul 27 22:02:00.421 UTC

PCE's peer database:
--------------------
Peer address: 1.2.3.4
  State: Up
  Capabilities: Stateful, Segment-Routing, Update, Instantiation, SRv6

Peer address: 3.4.5.6
  State: Up
  Capabilities: Stateful, Segment-Routing, Update, Instantiation, SRv6

  3. View PCC configuration on both R1 and R3.

    Example:

    Router# show segment-routing traffic-eng pcc ipv4 peer
Wed Jul 27 22:01:47.566 UTC

PCC's peer database:
--------------------

Peer address: 3.4.5.6,
  Precedence: 255, (best PCE)
  State up
  Capabilities: Stateful, Update, Segment-Routing, Instantiation, SRv6


Router# show segment-routing traffic-eng policy
Wed Jul 27 22:03:47.253 UTC

SR-TE policy database
---------------------

Color: 1, End-point: 3.4.5.6
  Name: srte_c_1_ep_3.4.5.6
  Status:
    Admin: up  Operational: up for 00:31:53 (since Jul 27 21:31:54.148)
  Candidate-paths:
.........
    Preference: 100 (BGP ODN) (active)
      Requested BSID: dynamic
.........
      Dynamic (pce 3.4.5.6) (valid)
        Metric Type: IGP,   Path Accumulated Metric: 10
          24005 [Adjacency-SID, 42.0.0.2 - 42.0.0.1]
  Attributes:
    Binding SID: 24021
    Forward Class: Not Configured
    Steering labeled-services disabled: no
    Steering BGP disabled: no
    IPv6 caps enable: yes
    Invalidation drop enabled: no
    Max Install Standby Candidate Paths: 0


Router# show segment-routing traffic-eng forwarding policy color 1 endpoint ipv4 3.4.5.6 detail
Wed Jul 27 22:08:09.961 UTC

SR-TE Policy Forwarding database
--------------------------------

Color: 1, End-point: 3.4.5.6
  Name: srte_c_1_ep_3.4.5.6
  Binding SID: 24021
  Active LSP:
    Candidate path:
      Preference: 100 (BGP ODN)
    Local label: 24020
    Segment lists:
      SL[0]:
        Name: dynamic
        Switched Packets/Bytes: 0/0
        Paths:
          Path[0]:
            Outgoing Label: Pop
            Outgoing Interfaces: Bundle-Ether3
            Next Hop: 42.0.0.1
            Switched Packets/Bytes: 0/0
            FRR Pure Backup: No
            ECMP/LFA Backup: No
            Internal Recursive Label: Unlabelled (recursive)
            Label Stack (Top -> Bottom): { Pop }
            Path-id: 1, Weight: 1

  Policy Packets/Bytes Switched: 0/0

EVPN ELAN automated steering to flex-algorithms

EVPN ELAN automated steering to flex-algorithms is a networking capability that

  • integrates EVPN ELAN with SR-TE

  • applies automated steering policies to direct EVPN traffic, and

  • utilizes Segment Routing flex-algorithm paths for constraint-based path computation.

Table 3. Feature History Table

Feature Name

Release Information

Feature Description

EVPN ELAN automated steering to flex-algorithms

 Release 25.4.1

Introduced in this release on: Fixed Systems (8100 [ASIC: Q200], 8200 [ASIC: Q200, P100], 8700 [ASIC: P100, K100], 8010 [ASIC: A100]); Centralized Systems (8600 [ASIC: Q200]); Modular Systems (8800 [LC ASIC: Q200, P100])

You can now automatically steer EVPN ELAN traffic onto paths computed by Segment Routing flex-algorithms. Flex-algorithms enable the definition of custom routing computations in the IGP (IS-IS or OSPF) based on specific network constraints, such as minimizing latency or maximizing bandwidth. Automated steering then applies policies to classify EVPN traffic and direct it to the appropriate flex-algorithm path, ensuring that different types of EVPN services can utilize network resources optimally according to their requirements.

EVPN ELAN integration with SR-TE automated steering

This feature integrates EVPN ELAN, a Layer 2 VPN service, with SR-TE using automated steering to optimize traffic routing. This capability enables automated, policy-based classification of EVPN ELAN traffic and directs it onto specific SR-TE paths computed by flex-algorithms.

Core functionality includes:

  • Automated traffic steering: EVPN ELAN traffic is classified based on configured policies and automatically steered onto designated SR-TE paths.

  • Flex-algorithm integration: Flex-algorithms compute paths using user-defined constraints such as low latency, high bandwidth, or path disjointness.

  • EVPN ELAN support: These steering capabilities apply directly to EVPN ELAN services, improving service differentiation and resource utilization.

Key features:

  • Constraint-based routing: Flex-algorithms allow multiple independent shortest path first (SPF) computations within the IGP (IS-IS or OSPF), each with unique constraints.

  • Policy-driven steering: Automated steering policies classify EVPN traffic by criteria like EVI, MAC address, or IP prefix and map it to specific flex-algorithm IDs.

  • Dynamic path selection: Paths are dynamically computed and updated by the IGP based on Flex-algorithm definitions and real-time network topology.

  • Network slicing: Supports creation of virtual network slices with distinct routing behaviors tailored for different EVPN services.

Benefits of EVPN ELAN automated steering to flex-algorithms

  • Optimized resource utilization: Ensures that critical EVPN services use paths that meet their specific requirements, for example, latency-sensitive traffic on low-latency paths.

  • Enhanced service differentiation: Provides a powerful mechanism to offer differentiated services within the same network infrastructure.

  • Simplified traffic engineering: Automates complex traffic engineering decisions, reducing manual configuration and operational overhead.

  • Increased network agility: Allows for rapid adaptation to changing network conditions and service demands.

  • Scalability: Leverages the inherent scalability of Segment Routing for managing a large number of paths and services.

How EVPN ELAN automated steering to flex-algorithms works

EVPN ELAN automated steering to flex-algorithms enables the dynamic routing of EVPN traffic over paths computed by Segment Routing flex-algorithms, allowing for constraint-based traffic engineering and optimized resource utilization based on service requirements.

Summary

The key components involved in the process are:

  • EVPN ELAN: Provides Layer 2 VPN services, including MAC/IP route advertisement and forwarding.

  • SR-TE: The underlying technology for source routing, enabling explicit path control.

  • Flex-algorithm (flex-algo): A Segment Routing extension that allows the definition and advertisement of multiple constraint-based shortest path computations within the IGP.

  • Automated steering (AS): A policy-driven mechanism to classify traffic and automatically direct it onto specific SR-TE paths, including flex-algo paths.

  • IGP (IS-IS/OSPF): Advertises flex-algorithm definitions, topology, and flex-algo Segment Identifiers (SIDs).

  • BGP EVPN: Distributes EVPN routes (MAC/IP routes) and can carry information relevant for steering.

  • Ingress PE router: Classifies incoming EVPN traffic and applies the automated-steering policy to select the appropriate flex-algo path.

This process ensures that EVPN ELAN traffic is automatically and dynamically routed over paths that meet specific performance or resource utilization requirements, leading to optimized network resource allocation, enhanced service differentiation, and improved operational efficiency.

Workflow

These stages describe how EVPN ELAN automated steering to flex-algorithms works.

  1. Flex-algorithm definition and advertisement: Network administrators define one or more flex-algorithms within the IGP (IS-IS or OSPF). Each flex-algorithm includes specific constraints such as, metric type, excluded SIDs, and affinity bits. The IGP then advertises these flex-algorithm definitions and computes corresponding flex-algo SIDs across the network.
  2. EVPN route distribution: BGP EVPN distributes EVPN routes throughout the network, providing reachability information for EVPN endpoints.
  3. Automated steering policy configuration: On the ingress PE router, automated steering policies are configured. These policies define criteria for classifying EVPN ELAN traffic, for example, based on EVI, MAC address, source/destination IP address and map the classified traffic to a specific flex-algorithm ID.
  4. Path computation and SID stack generation: When EVPN ELAN traffic arrives at the ingress PE and matches an automated steering policy, the ingress PE identifies the target flex-algorithm, and then computes the path to the destination based on the selected flex-algorithm's constraints and generates the corresponding SR-TE SID stack.
  5. Traffic forwarding: The EVPN ELAN traffic is encapsulated with the computed flex-algo SID stack and forwarded along the constraint-based path. The intermediate Segment Routing-enabled routers forward the traffic purely based on the SIDs in the stack.
  6. Dynamic adaptation: If network conditions change, for example, link failures, congestion or the IGP re-computes flex-algorithm paths, the ingress PE dynamically adapts the SID stack for affected traffic flows, ensuring continuous adherence to the steering policy and flex-algorithm constraints.

Configure EVPN ELAN automated steering to flex-algorithms

Demonstrate and implement automated EVPN traffic steering by associating an Ethernet Virtual Instance (EVI) with flex-algo-based SR-MPLS policies using IS-IS and color extended communities.

Automated steering to flex-algo-based SR policies leverages the color extcommunity, so when EVPN routes are imported with a color matching an on-demand SR policy, the SR policy using flex-algo is automatically selected for that flow.

Procedure

1.

Configure IS-IS with SR-MPLS and flex-algorithms.

Example:

Router# configure
Router(config)# router isis 100
Router(config-isis)# address-family ipv4 unicast
Router(config-isis-af)# net 49.0001.0000.0001.00
Router(config-isis)# instance 100
Router(config-isis)# flex-algo 128
Router(config-isis-flex-algo)# metric-type te! Use TE metric for algorithm 128
Router(config-isis-flex-algo)# prefix-metric ! Advertise prefix-SIDs for algo 128
Router(config-isis-flex-algo)# advertise-definition ! Advertise flex-algo definition
2.

Configure SR-TE with on-demand policy for flex-algorithms.

Example:

Router(config)# segment-routing
Router(config-sr)# traffic-eng
Router(config-sr-te)# on-demand color 128
Router(config-sr-te-color)# dynamic
Router(config-sr-te-color-dyn)# exit
Router(config-sr-te-color)# constraints
Router(config-sr-te-color-const)# segments
Router(config-sr-te-color-const-seg)# sid-algorithm 128
Router(config-sr-te-color-const-seg)# commit
3.

Define color (Extcommunity) and route policy for EVPN.

Example:

Router(config)# extcommunity-set opaque color-128
Router(config-ext)# 128
Router(config-ext)# end-set
Router(config)# route-policy SET-EVPN-COLOR
Router(config-rpl)# if evpn-route-type is 2 then
Router(config-rpl-if)# set extcommunity color color-128
Router(config-rpl-if)# endif
Router(config-rpl)# end-policy
4.

Configure BGP EVPN and apply the route policy.

Example:

Router(config)# router bgp 65000
Router(config-bgp)# address-family l2vpn evpn
Router(config-bgp-af)# neighbor 10.0.0.2
Router(config-bgp-nbr)# remote-as 65000
Router(config-bgp-nbr)# route-policy SET-EVPN-COLOR out ! Apply color when advertising EVPN routes
5.

Enable EVPN ELAN service.

Example:

Router# configure
Router(config)# l2vpn
Router(config-l2vpn)# bridge group BG1
Router(config-l2vpn-bg)# bridge-domain BD1
Router(config-l2vpn-bg-bd)# interface Bundle-Ether3
Router (config-l2vpn-bg-bd-ac)# exit
Router (config-l2vpn-bg-bd)# evi 2
Router (config-l2vpn-bg-bd-evi)# root
Router(config)# evpn
Router(config-evpn)# evi 2

VPWS over SR-TE policy

A virtual private wire service (VPWS) is a Layer 2 VPN service that

  • connects two locations through a PW

  • encapsulates PW traffic within an MPLS label stack used for routing, and

  • uses SR-TE policies to control the path the PW takes through the network instead of relying on Label Distribution Protocol (LDP).

For more information on SR-TE policy, see the Configure SR-TE Policies section in the Segment Routing Configuration Guide for Cisco 8000 Series Routers, IOS XR.

Table 4. Feature History Table

Feature Name

Release Information

Feature Description

VPWS over SR-TE Policy

 Release 26.2.1

Introduced in this release on: Modular Systems (8800 [LC ASIC: K100])(select variants only*);

*This feature is supported on Cisco 88-LC1-48Y8H-EM line cards.

VPWS over SR-TE Policy

Release 24.4.1

Introduced in this release on: Fixed Systems (8700) (select variants only*)

*The VPWS over SR-TE policy functionality is now extended to the Cisco 8712-MOD-M routers.

VPWS over SR-TE Policy

Release 24.3.1

Introduced in this release on: Fixed Systems (8200, 8700); Modular Systems (8800 [LC ASIC: P100]) (select variants only*)

*The VPWS over SR-TE policy functionality is now extended to:

  • 8212-48FH-M

  • 8711-32FH-M

  • 88-LC1-52Y8H-EM

  • 88-LC1-12TH24FH-E

VPWS over SR-TE Policy

Release 24.2.11

Introduced in this release on: Modular Systems (8800 [LC ASIC: P100]) (select variants only*)

*The VPWS over SR-TE policy functionality is now extended to routers with the 88-LC1-36EH line cards.

VPWS over SR-TE Policy

Release 7.7.1

Using the SR-TE policy, you can now set the preferred path between two endpoints for Virtual Private Wire Service (VPWS). This gives you the advantage of a reduced number of dedicated networks to provision IP and VPN services across SR-TE tunnels.

The VPWS is a method to provide Ethernet-based point to point communication over MPLS or IP networks.

VPWS preferred path using SR-TE policy

Using SR-TE policies, you can set a preferred path between two endpoints for VPWS. This approach reduces the need to provision multiple dedicated networks for IP and VPN services across SR-TE tunnels, simplifying network management and improving efficiency.

VPWS provides Ethernet-based point-to-point communication over MPLS or IP networks. Cisco 8000 series routers support VPWS implementation through these methods:

  • EVPN VPWS

  • LDP VPWS

  • EVPN VPWS On-Demand nexthop

How segment routing traffic engineering steers pseudowire traffic

Summary

The key components involved in the process are:

  • Pseudowire (PW): A virtual point-to-point connection between routers that carries encapsulated traffic.

  • Routers R1, R2, and R3: Network devices where R1 and R3 are endpoints of the PW, and R2 is an intermediate router.

  • Segment Routing Traffic Engineering (SR-TE) policy: A routing policy that defines a preferred path for traffic steering.

SR-TE steers pseudowire traffic by enforcing a preferred path through an intermediate router instead of the default direct route. This approach improves network resource utilization and traffic control.

Workflow

These stages describe how SR-TE steers pseudowire traffic.

  1. By default, the PW between routers R1 and R3 takes the direct path from R1 to R3.
  2. You configure an SR-TE policy with a preferred path that specifies traffic should be steered through router R2.
  3. The SR-TE policy enforces the traffic to follow the defined path, steering the PW traffic from R1 to R3 via R2 instead of the direct route.

Result

This process enables controlled traffic engineering by steering pseudowire traffic along a preferred path, improving network resource utilization and traffic management.

Decoupled mode for L2VPN and EVPN VPWS services

Decoupled mode is a network capability in L2VPN and EVPN VPWS that

  • improves network reliability and resilience

  • enables PW to function independently from the AC, maintaining PW traffic continuity despite AC failure, and

  • employs the xconnect, a virtual connection that links the AC and PW segments, to efficiently manage state transitions.

Table 5. Feature History Table

Feature Name

Release Information

Feature Description

Decoupled mode for L2VPN and EVPN VPWS services

Release 25.4.1

Introduced in this release on: Fixed Systems (8010 [ASIC: A100], 8700 [ASIC: K100])(select variants only*)

*This feature is supported on:

  • 8011-32Y8L2H2FH

  • 8011-12G12X4Y-A/D

  • 8711-48Z-M

Decoupled mode for L2VPN and EVPN VPWS services

Release 25.2.1

Introduced in this release on: Fixed Systems (8200, 8700, (8010 [ASIC: A100])(select variants only*)); Centralized Systems (8600); Modular Systems (8800 [LC ASIC: Q100, Q200, P100, K100])

Decoupled mode improves fault tolerance by allowing the PE router to maintain the PW in an active state independently of the AC status. Unlike the traditional coupled mode, which requires both AC and PW to be active for traffic flow, decoupled mode ensures uninterrupted PW traffic even during AC failures.

*This feature is now supported on the Cisco 8011-4G24Y4H-I routers.

The feature introduces these changes:

CLI:

YANG Data Model:

  • Cisco-IOS-XR-l2vpn-cfg.yang

  • Cisco-IOS-XR-l2vpn-oper.yang

(see GitHub, YANG Data Models Navigator)

Decoupled mode states

Decoupled mode uses the XTC to manage traffic flow dynamically by transitioning between states based on the operational status of the AC and PW:

  • Bound state: Both AC and PW segments are operational. The XC is bound, allowing traffic to flow seamlessly between the AC and PW segments.

  • Unbound state: Either the AC or PW segment fails. The XC enters an unbound state and drops any pending data on the AC. If the AC fails, the PE router brings down the PW connection, stopping traffic flow or rerouting it through alternative paths. If the PW fails, the XC brings down the AC connection and stops traffic flow.

  • Bound down state: When the AC segment fails, the XC keeps the PW active, maintaining PW traffic flow between PE routers. If the PW segment fails, the XC enters an unbound state, brings down the AC segment, and stops traffic flow.

Before Release 25.2.1, the default configuration for VPWS was the coupled mode, which supported only bound and unbound XC states. For more information, see the VPWS over SR-TE policy.

From Release 25.2.1, you can configure the decoupled mode in addition to the existing coupled mode. Decoupled mode allows PW traffic to continue forwarding even when the AC experiences a failure, enhancing service resilience.

Limitations for decoupled mode

The router does not support decoupled mode for these configurations:

  • PWHE AC segment

  • Multi-segment PW

  • Local switching between AC

  • BGP auto-discovery for PW

  • Multihoming EVPN circuits

How decoupled mode works

Summary

The key components involved in the process are:

  • Customer edge device (CE1 and CE2): End devices connected to the provider network.

  • Provider edge router (PE1 and PE2): Network devices managing PW and AC connections.

  • Route reflector: Facilitates routing information exchange between PE1 and PE2.

Decoupled Mode improves network resilience by enabling PE routers to independently manage PW and AC connections. This separation ensures continuous PW traffic and dynamic fault management between CE devices and PE routers.

Workflow

These stages describe how the decoupled mode works.

The stages described here are not sequential. They illustrate different aspects of how the decoupled mode works, and may occur independently or in varying order depending on the scenario.

  1. Scenario 1: Both AC and PW are active
    • CE1 sends a packet to PE1 via the active AC.
    • PE1 looks up the packet destination and forwards it over the active PW to PE2.
    • PE1 encapsulates and transmits the packet to PE2.
    • PE2 receives the packet, determines the next hop, and forwards it to CE2 via the active AC.
    • CE2 successfully receives the packet.
  2. Scenario 2: AC experiences a failure
    • CE1 sends a packet to PE1.
    • PE1 detects the AC failure but keeps the PW operational without signaling it inactive.
    • The cross-connect (XC) transitions to a bound-down state, allowing PW traffic to continue.
    • PE1 forwards the packet over the active PW to PE2.
    • PE2 forwards the packet to CE2 via the active AC.
    • CE2 successfully receives the packet.
  3. Scenario 3: PW experiences a failure
    • CE1 sends a packet to PE1 via the active AC.
    • PE1 detects the PW failure and signals the AC to become inactive.
    • The route reflector updates PE2 about the AC state change.
    • PE2 blocks traffic from CE2, and PE1 blocks traffic from CE1.
    • The XC drops any pending data on the AC, stopping all traffic flow.

Result

This process ensures network resilience by maintaining PW traffic independently of AC status, allowing dynamic fault handling and uninterrupted communication between CE devices through PE routers.

Configure decoupled mode for L2VPN and EVPN VPWS services

Enable decoupled mode on PE routers to maintain PW activity even if the AC fails, ensuring continuous Layer 2 VPN service.

Decoupled mode allows a point-to-point pseudowire service to extend a Layer 2 network over a Layer 3 IP and MPLS infrastructure, improving service resilience.

Procedure

1.

Enable L2VPN services and create a point-to-point pseudowire service.

Enable L2VPN services and configure a p2p pseudowire service that extends a Layer 2 network across a Layer 3 IP and MPLS network.

Example:

Router# configuration
Router(config)# l2vpn
Router(config-l2vpn)# xconnect group g1
Router(config-l2vpn-xc)# p2p xc1
2.

Enable decoupled mode on the point-to-point pseudowire service.

Enable decoupled mode within p2p services, which keeps the PW active even if the AC experiences a failure.

Example:

Router(config-l2vpn-xc-p2p)# decoupled-mode
3.

Configure the interface and establish the pseudowire with the appropriate neighbor and service ID.

Enable interface and configure PW, ipv4 , EVPN or MPLS services for establishing the required L2VPN service over a network.

Example:

Router(config-l2vpn-xc-p2p)# interface TenGigE0/1/0/2
Router(config-l2vpn-xc-p2p)# neighbor evpn evi 1 service-id 10011
Router(config-l2vpn-xc-p2p)# commit
4.

Use the show l2vpn command to verify the XC, AC, and PW states.

Example:

In this example, both the AC and PW are in the bound state, and the XC is in the up state.

Router# show l2vpn xconnect group g1 xc-name p1 detail
Group g1, XC p1, state is up; Interworking none
Decoupled mode: Enabled
  AC: GigabitEthernet0/0/0/2.1, state is up
    Type VLAN; Num Ranges: 1
    Rewrite Tags: []
    VLAN ranges: [1, 1]
    MTU 1504; XC ID 0x1; interworking none
    Statistics:
      packets: received 0, sent 0
      bytes: received 0, sent 0
      drops: illegal VLAN 0, illegal length 0
  PW: neighbor 1.1.1.1, PW ID 1, state is up ( established )
    PW class not set, XC ID 0xfff80013
    Encapsulation MPLS, protocol LDP
    Source address 2.2.2.2
    PW type Ethernet, control word disabled, interworking none
    PW backup disable delay 0 sec
    Sequencing not set
    Ignore MTU mismatch: Disabled
    Transmit MTU zero: Disabled
    LSP : Up
    Nexthop type: IPV4 1.1.1.1

Example:

In this example, due to a local AC fault, the AC is in the down state and the PW is in the up state.

Router# show l2vpn xconnect group g1 xc-name p1 detail

Group g1, XC p1, state is down; Interworking none
Decoupled mode: Enabled
  AC: GigabitEthernet0/0/0/2.1, state is down (Admin)
    Type VLAN; Num Ranges: 1
    Rewrite Tags: []
    VLAN ranges: [1, 1]
    MTU 1504; XC ID 0x1; interworking none
    Statistics:
      packets: received 0, sent 0
      bytes: received 0, sent 0
      drops: illegal VLAN 0, illegal length 0
  PW: neighbor 1.1.1.1, PW ID 1, state is up ( established )
    PW class not set, XC ID 0xfff80013
    Encapsulation MPLS, protocol LDP
    Source address 2.2.2.2
    PW type Ethernet, control word disabled, interworking none
    PW backup disable delay 0 sec
    Sequencing not set
    Ignore MTU mismatch: Disabled
    Transmit MTU zero: Disabled
    LSP : Up
    Nexthop type: IPV4 1.1.1.1
5.

Use the show l2vpn forwarding xconnect <xc-id> detail location <location> command to verify the xconnect and PW binding state.

Example:

In this example, the XC is in the down state, both AC and PW are in a bound state, and the segment can still carry traffic across the PW despite the AC failure.

Router# show l2vpn forwarding xconnect 0x1 detail location 0/0/CPU0

Local interface: GigabitEthernet0/0/0/2.1, Xconnect id: 0x1, Status: down
  Segment 1
    AC, GigabitEthernet0/0/0/2.1, status: Bound
    Statistics:
      packets: received 0, sent 0
      bytes: received 0, sent 0
  Segment 2
    MPLS, Destination address: 1.1.1.1, pw-id: 1, status: Bound
    Pseudowire label: 24014
    Control word disabled
    Statistics:
      packets: received 0, sent 0
      bytes: received 0, sent 0
    PD System Data:  0x00000000, 0x00000000, 0x00000000, 0x01000000, 0x22000000,
                    0x00000000, 0x00000000

Example:

In this example, the XC is in the up state and both AC and PW are in bound state.

Router# show l2vpn forwarding xconnect 0x1 detail location 0/0/CPU0

Local interface: GigabitEthernet0/0/0/2.1, Xconnect id: 0x1, Status: up
  Segment 1
    AC, GigabitEthernet0/0/0/2.1, status: Bound
    Statistics:
      packets: received 0, sent 0
      bytes: received 0, sent 0
  Segment 2
    MPLS, Destination address: 1.1.1.1, pw-id: 1, status: Bound
    Pseudowire label: 24014
    Control word disabled

VPWS PW over preferred SR-TE using statically configured SR policy

A preferred path configuration is a feature that

  • allows setting the preferred path between two endpoints for EVPN VPWS PW or LDP VPWS PW using a statically configured policy

  • supports both bundle AC and physical AC, and

  • enables control over the forwarding path to optimize network performance and reliability.

Restrictions for VPWS PW over preferred SR-TE using statically configured SR policy

  • EVPN VPWS SR policy is not supported on EVPN VPWS dual homing.

  • EVPN validates if the route is for a single home nexthop, otherwise it issues an error message about a dangling SR TE policy, and continues to set up EVPN-VPWS without it. EVPN relies on ESI value being zero to determine if this is a single home or not. If the AC is a Bundle-Ether interface running LACP then you must manually configure the ESI value to zero to overwrite the auto-sense ESI as EVPN VPWS multihoming is not supported.

    To disable EVPN dual homing, configure bundle-Ether AC with ESI value set to zero.

evpn
interface Bundle-Ether12
  ethernet-segment
   identifier type 0 00.00.00.00.00.00.00.00.00
/* Or globally */
evpn
 ethernet-segment type 1 auto-generation-disable

Configure VPWS pseudowire over preferred SR-TE using statically configured SR policy

Ensure successful configuration of VPWS PW over a preferred SR-TE path using a statically configured SR policy for both EVPN VPWS and LDP VPWS.

This task applies when you want to leverage statically configured SR-TE policies to control the preferred path for VPWS pseudowires in your network, enhancing traffic engineering and path selection.

Before you begin

  • Confirm that IS-IS is running as the IGP.

  • Ensure MPLS and SR features are supported and enabled on your devices.

  • For LDP VPWS, configure MPLS LDP as a baseline for label distribution.

Procedure

1.

Configure SR in IS-IS, adjacency-SID, and prefix-SID.

Enable SR in IS-IS and configure adjacency-SID on BE2, BE3, BE4, and BE5.

  1. Enable SR in IS-IS

    Example:

    Router(config)# router isis isp
Router(config-isis)# net 01.0000.0000.0001.00
Router(config-isis)# distribute link-state instance-id 32 level 2 throttle 5
Router(config-isis)# address-family ipv4 unicast
Router(config-isis-af)# metric-style wide
Router(config-isis-af)# mpls traffic-eng level-1
Router(config-isis-af)# mpls traffic-eng router-id 1.2.3.4
Router(config-isis-af)# segment-routing mpls sr-prefer
Router(config-isis-af)# segment-routing prefix-sid-map advertise-local

  2. Configure adjacency-SID on BE2.

    Example:

    Router(config)# router isis isp
Router(config-isis)# interface Bundle-Ether2
Router(config-isis-if)# point-to-point
Router(config-isis-if)# address-family ipv4 unicast
Router(config-isis-if-af)# adjacency-sid index 11
Router(config-isis-if-af)# adjacency-sid absolute 15011

  3. Configure adjacency-SID on BE3.

    Example:

    Router(config)# router isis isp
Router(config-isis)# interface Bundle-Ether3
Router(config-isis-if)# point-to-point
Router(config-isis-if)# address-family ipv4 unicast
Router(config-isis-if-af)# adjacency-sid index 16
Router(config-isis-if-af)# adjacency-sid absolute 15016

  4. Configure adjacency-SID on BE4.

    Example:

    Router(config)# router isis isp
Router(config-isis)# interface Bundle-Ether4
Router(config-isis-if)# point-to-point
Router(config-isis-if)# address-family ipv4 unicast
Router(config-isis-if-af)# adjacency-sid index 17
Router(config-isis-if-af)# adjacency-sid absolute 15017

  5. Configure adjacency-SID on BE5.

    Example:

    Router(config)# router isis isp
Router(config-isis)# interface Bundle-Ether5
Router(config-isis-if)# point-to-point
Router(config-isis-if)# address-family ipv4 unicast
Router(config-isis-if-af)# adjacency-sid index 22
Router(config-isis-if-af)# adjacency-sid absolute 15022

  6. Configure prefix-SID.

    Example:

    Router(config)# router isis isp
Router(config-isis)# interface Loopback0
Router(config-isis-if)# passive
Router(config-isis-if)# address-family ipv4 unicast
Router(config-isis-if-af)# prefix-sid index 1001
2.

Configure SR on interfaces.

Configure SR on BE2, BE3, BE4, and BE5.

Example:

Router(config)# segment-routing
Router(config-sr)# adjacency-sid
Router(config-sr)# exit
Router(config)# interface Bundle-Ether2
Router(config-if)# address-family ipv4 unicast
Router(config-if-af)# l2-adjacency-sid absolute 15011 next-hop 0.0.0.0
Router(config)# interface Bundle-Ether3
Router(config-if)# address-family ipv4 unicast
Router(config-if-af)# l2-adjacency-sid absolute 15016 next-hop 0.0.0.0
Router(config)# interface Bundle-Ether4
Router(config-if)# address-family ipv4 unicast
Router(config-if-af)# l2-adjacency-sid absolute 15017 next-hop 0.0.0.0
Router(config)# interface Bundle-Ether5
Router(config-if)# address-family ipv4 unicast
Router(config-if-af)# l2-adjacency-sid absolute 15022 next-hop 0.0.0.0
3.

Define segment lists for adjacency-SIDs

Example:

Router(config)# segment-routing
Router(config-sr)# traffic-eng
Router(config-sr-te)# segment-list segment_list_r3_1
Router(config-sr-te-sl)# index 10 mpls label 15011
Router(config-sr-te-sl)# index 20 mpls label 15013
Router(config-sr-te-sl)# exit
Router(config-sr-te)# segment-list segment_list_r3_2
Router(config-sr-te-sl)# index 10 mpls label 15011
Router(config-sr-te-sl)# index 20 mpls label 15019
Router(config-sr-te-sl)# exit
Router(config-sr-te)# segment-list segment_list_r3_3
Router(config-sr-te-sl)# index 10 mpls label 15017
Router(config-sr-te-sl)# index 20 mpls label 15013
Router(config-sr-te-sl)# exit
Router(config-sr-te)# segment-list segment_list_r3_4
Router(config-sr-te-sl)# index 10 mpls label 15017
Router(config-sr-te-sl)# index 20 mpls label 15019
Router(config-sr-te-sl)# exit
4.

Configure static SR-TE policy.

Example:


Router(config)# segment-routing
Router(config-sr)# traffic-eng
Router(config-sr-te)# policy policy_r3_1
Router(config-sr-te-policy)# color 10 end-point ipv4 3.4.5.6
Router(config-sr-te-policy)# candidate-paths
Router(config-sr-te-policy-path)# preference 100
Router(config-sr-te-pp-info)# explicit segment-list segment_list_r3_1
Router(config-sr-te-pp-info)# weight 10

Router(config-sr-te-pp-info)# explicit segment-list segment_list_r3_2
Router(config-sr-te-pp-info)# weight 10

Router(config-sr-te-pp-info)# explicit segment-list segment_list_r3_3
Router(config-sr-te-pp-info)# weight 10

Router(config-sr-te-pp-info)# explicit segment-list segment_list_r3_4
Router(config-sr-te-pp-info)# weight 10
5.

Configure EVPN VPWS over the statically configured SR-TE policy.

Example:

Note
Use the auto-generated SR-TE policy name to attach the policy to the L2VPN instance. The auto-generated policy name is based on the policy color and end-point. Use the show segment-routing traffic-eng policy candidate-path name policy_name command to get the auto-generated policy name.
Router# show segment-routing traffic-eng policy candidate-path name policy_r3_1

SR-TE policy database
---------------------
Color: 10, End-point: 3.4.5.6
 Name: sr-te policy srte_c_10_ep_3.4.5.6

Set the preferred path with the SR-TE policy name.


Router(config)# l2vpn
Router(config-l2vpn)# pw-class c1
Router(config-l2vpn-pwc)# encapsulation mpls
Router(config-l2vpn-pwc-mpls)# preferred-path sr-te policy srte_c_10_ep_3.4.5.6
Router(config-l2vpn-pwc-mpls)# root
Router(config)# l2vpn
Router(config-l2vpn)# xconnect group xg
Router(config-l2vpn-xc)# p2p xc200
Router(config-l2vpn-xc-p2p)# interface Bundle-Ether1.200
Router(config-l2vpn-xc-p2p)# neighbor evpn evi 2 target 3 source 4
Router(config-l2vpn-xc-p2p-pw)# pw-class c1
!
6.

Configure LDP VPWS over statically configured policy.

It is recommended to configure MPLS LDP as the baseline setup to ensure proper label distribution and network stability, particularly when handling scenarios involving unconfiguration and reconfiguration of loopback interfaces.

Example:

Router(config)# mpls ldp
Router(config-ldp)# router-id 1.2.3.4

Attach the policy to the L2VPN instance.

Note
Use the auto-generated SR-TE policy name to attach the policy to the L2VPN instance. The auto-generated policy name is based on the policy color and end-point. Use the show segment-routing traffic-eng policy candidate-path name policy_name command to get the auto-generated policy name.
Router# show segment-routing traffic-eng policy candidate-path name policy_r3_1

SR-TE policy database
---------------------
Color: 10, End-point: 3.4.5.6
 Name: sr-te policy srte_c_10_ep_3.4.5.6

Set the preferred path with the SR-TE policy name.

Router(config)# l2vpn
Router(config-l2vpn)# pw-class c
Router(config-l2vpn-pwc)# encapsulation mpls
Router(config-l2vpn-pwc-mpls)# preferred-path sr-te policy srte_c_10_ep_3.4.5.6
Router(config-l2vpn-pwc-mpls)# commit
Router(config-l2vpn-pwc-mpls)# root
Router(config)# l2vpn
Router(config-l2vpn)# xconnect group xg
Router(config-l2vpn-xc)# p2p xc100
Router(config-l2vpn-xc-p2p)# interface Bundle-Ether1.100
Router(config-l2vpn-xc-p2p)# neighbor ipv4 3.4.5.6 pw-id 100
Router(config-l2vpn-xc-p2p-pw)# pw-class c
7.

Use these show commands to verify the VPWS PW over preferred SR-TE using statically configured SR policy.

These commands help confirm the status and forwarding path of the VPWS pseudowire, ensuring it follows the intended static policy for optimized network performance and reliability.

  • show l2vpn xconnect interface Bundle-Ether 1.100 detail

  • show segment-routing traffic-eng policy color 10 endpoint ipv4 3.4.5.6 detail

  • show segment-routing traffic-eng forwarding policy color 10 endpoint ipv4 3.4.5.6 detail

Example:

Router# show l2vpn xconnect interface Bundle-Ether 1.100 detail
Mon May 16 14:19:42.833 UTC

Group xg, XC xc100, state is up; Interworking none
  AC: Bundle-Ether1.100, state is up
  PW: neighbor 3.4.5.6, PW ID 100, state is up ( established )
    PW class c, XC ID 0xa0000001
    Encapsulation MPLS, protocol LDP
    Source address 1.2.3.4
    PW type Ethernet, control word disabled, interworking none
    PW backup disable delay 0 sec
    Sequencing not set
    Preferred path Active : SR TE srte_c_10_ep_3.4.5.6 (BSID:24011, IFH:0xf000014), Statically configured, fallback enabled
    Ignore MTU mismatch: Disabled
    Transmit MTU zero: Disabled
    Tunnel : Up


Router# show segment-routing traffic-eng policy color 10 endpoint ipv4 3.4.5.6 detail
Mon May 16 14:02:16.550 UTC

SR-TE policy database
---------------------

Color: 10, End-point: 3.4.5.6
  Name: srte_c_10_ep_3.4.5.6
  Status:
    Admin: up  Operational: up for 00:05:09 (since May 16 13:57:06.627)

Router# show segment-routing traffic-eng forwarding policy color 10 endpoint ipv4 3.4.5.6 detail
Mon May 16 14:04:49.061 UTC

SR-TE Policy Forwarding database
--------------------------------

 Color: 10, End-point: 3.4.5.6
  Name: srte_c_10_ep_3.4.5.6
  Binding SID: 24011
  Active LSP:
    Candidate path:
      Preference: 100 (configuration)
      Name: policy_r3_1
    Local label: 24021
    Segment lists:
      SL[0]:
       Name: segment_list_r3_1
        Switched Packets/Bytes: 0/0
        Paths:
          Path[0]:
            Outgoing Label: 15013
            Outgoing Interfaces: Bundle-Ether2
  .........

      SL[1]:
        Name: segment_list_r3_2
        Switched Packets/Bytes: 0/0
        Paths:
          Path[0]:
            Outgoing Label: 15019
            Outgoing Interfaces: Bundle-Ether2
  .........

      SL[2]:
        Name: segment_list_r3_3
        Switched Packets/Bytes: 0/0
        Paths:
          Path[0]:
            Outgoing Label: 15013
            Outgoing Interfaces: Bundle-Ether4
  .........

      SL[3]:
        Name: segment_list_r3_4
        Switched Packets/Bytes: 0/0
        Paths:
          Path[0]:
            Outgoing Label: 15019
            Outgoing Interfaces: Bundle-Ether4

  .........
  Policy Packets/Bytes Switched: 0/0

EVPN PW over preferred SR-TE using on-demand nexthop SR policy

An EVPN PW over preferred SR-TE using On-Demand Nexthop (ODN) SR policy is a network feature that

  • enables dynamic selection of the optimal path for traffic forwarding from source to destination in point-to-point services

  • leverages IOS XR Traffic Controller (XTC) for path computation and control, and

  • supports both EVPN E-LAN and EVPN E-Line service types.

Multi-domain service provisioning with on-demand nexthop and segment routing traffic engineering

Provisioning multi-domain services such as Layer 2 VPN and Layer 3 VPN across routing domains introduces complexity and scalability challenges. The ODN feature with SR-TE addresses these challenges by delegating the computation of an end-to-end Label Switched Path (LSP) to a Path Computation Element (PCE). This approach avoids route redistribution by incorporating constraints and policies directly within the PCE.

ODN uses BGP dynamic SR-TE capabilities to add the computed path to the PCE. The PCE dynamically discovers and downloads the optimal end-to-end path based on specified requirements. ODN triggers an SR-TE auto-tunnel according to the configured BGP policy. The PCE maintains an up-to-date view of the network by learning real-time topology information through BGP and/or IGP, enabling precise and adaptive path computation for multi-domain services.

Note

The maximum number of supported auto-provisioned SR-TE policies is 1000.

IOS XR Traffic Controller

The PCE defines a set of procedures that enable a path computation client (PCC) to delegate control of head-end tunnels it sources to a PCE peer. This delegation allows the PCE peer to request updates and modifications to the parameters of label-switched paths (LSPs) controlled by the PCC. Additionally, the PCE can initiate path computations and perform network-wide orchestration to optimize traffic engineering.

Key aspects include:

  • The PCC reports and delegates control of its head-end tunnels to the PCE peer.

  • The PCE peer requests the PCC to update and modify LSP parameters.

  • The PCC permits the PCE to initiate path computations.

  • The PCE performs network-wide orchestration based on the delegated control.

Configure EVPN VPWS PW over preferred SR-TE using ODN SR policy

Configure EVPN VPWS pseudowires over a preferred SR-TE path using ODN SR policy.

This task applies when you want to leverage PCE-based path computation and dynamic SR-TE policies to optimize EVPN VPWS pseudowire forwarding.

Procedure

1.

Configure SR in IS-IS and configure interfaces BE2, BE3, BE4, and BE5.

  1. Enable SR in IS-IS.

    Example:

    Router(config)# router isis isp
Router(config-isis)# net 01.0000.0000.0001.00
Router(config-isis)# distribute instance-id 32 level 2 throttle 5
Router(config-isis)# address-family ipv4 unicast
Router(config-isis-af)# metric-style wide
Router(config-isis-af)# mpls traffic-eng level-1
Router(config-isis-af)# mpls traffic-eng router-id 1.2.3.4
Router(config-isis-af)# segment-routing mpls sr-prefer
Router(config-isis-af)# segment-routing prefix-sid-map advertise-local
Router(config-isis-af)# exit

  2. Configure interface BE2.

    Example:

    Router(config-isis)# interface Bundle-Ether2
Router(config-isis-if)# point-to-point
Router(config-isis-if)# address-family ipv4 unicast
Router(config-isis-if-af)# exit
Router(config-isis-if)# exit

  3. Configure interface BE3.

    Example:

    Router(config-isis)# interface Bundle-Ether3
Router(config-isis-if)# point-to-point
Router(config-isis-if)# address-family ipv4 unicast
Router(config-isis-if-af)# exit
Router(config-isis-if)# exit

  4. Configure interface BE4.

    Example:

    Router(config-isis)# interface Bundle-Ether4
Router(config-isis-if)# point-to-point
Router(config-isis-if)# address-family ipv4 unicast
Router(config-isis-if-af)# exit

  5. Configure interface BE5.

    Example:

    Router(config-isis)# interface Bundle-Ether5
Router(config-isis-if)# point-to-point
Router(config-isis-if)# address-family ipv4 unicast
Router(config-isis-if-af)# exit

  6. Configure Loopback interface.

    Example:

    Router(config-isis)# interface Loopback0
Router(config-isis-if)# passive
Router(config-isis-if)# address-family ipv4 unicast
2.

Configure SR-TE policy.

Example:


Router(config)# segment-routing
Router(config-sr)# traffic-eng
Router(config-sr-te)# on-demand color 1
Router(config-sr-te-color)# dynamic
Router(config-sr-te-color-dyn)# pcep
Router(config-sr-te-color-dyn-pce)# exit
Router(config-sr-te-color-dyn)# metric type igp
Router(config-sr-te-color-dyn)# exit
Router(config-sr-te-color)# exit
Router(config-sr-te)# on-demand color 2
Router(config-sr-te-color)# dynamic
Router(config-sr-te-color-dyn)# pcep
Router(config-sr-te-color-dyn-pce)# exit
Router(config-sr-te-color-dyn)# metric type igp
Router(config-sr-te-color-dyn)# exit
Router(config-sr-te-color)# exit
3.

Configure PCE and PCC.

  1. Configure PCC on R1.

    Example:

    Router(config)# segment-routing
Router(config-sr)# traffic-eng
Router(config-sr-te)# pcc
Router(config-sr-te-pcc)# source-address ipv4 1.2.3.4 >>>>> This is the node address
Router(config-sr-te-pcc)# pce address ipv4 3.4.5.6 >>>>> This is the PCE server address
Router(config-sr-te-pcc)# commit

  2. Configure PCE on R3.

    Example:

    Router(config)# segment-routing
Router(config-sr)# traffic-eng
Router(config-sr-te)# exit
Router(config)# pce
Router(config-pce)# address ipv4 3.4.5.6 >>>>> Configure the address only on a PCE server
Router(config-pce)# commit
4.

Configure BGP.

Configure BGP on the routers to establish neighborship with EVPN. When you enable an SR policy on R1, use the nexthop validation color-extcomm sr-policy command to instruct BGP that, instead of nexthop reachability validation of BGP routes, the validation is done for SR policy-installed color nexthop addresses. When the nexthop address of such a route is reachable, the route is added to the routing table.

Example:


Router(config)# router bgp 100
Router(config-bgp)# bgp router-id 1.2.3.4
Router(config-bgp)# nexthop validation color-extcomm sr-policy
Router(config-bgp)# address-family l2vpn evpn
Router(config-bgp-af)# exit
Router(config-bgp)# neighbor 2.3.4.5
Router(config-bgp-nbr)# remote-as 100
Router(config-bgp-nbr)# update-source Loopback0
Router(config-bgp-nbr)# address-family l2vpn evpn
Router(config-bgp-af)# exit
Router(config-bgp)# neighbor 3.4.5.6
Router(config-bgp-nbr)# remote-as 100
Router(config-bgp-nbr)# update-source Loopback0
Router(config-bgp-nbr)# address-family l2vpn evpn
Router(config-bgp-af)# exit
!
5.

Configure SR color.

Example:


Router(config)# extcommunity-set opaque color1
Router(config-ext)# 1
Router(config-ext)# end-set
Router(config)# extcommunity-set opaque color2
Router(config-ext)# 2
Router(config-ext)# end-set
6.

Configure EVPN route policy.

Example:

Router(config)# route-policy route_policy_1
Router(config-rpl)# if evpn-route-type is 1 then
Router(config-rpl-if)# set extcommunity color color1
Router(config-rpl-if)# endif
Router(config-rpl)# pass
Router(config-rpl)# end-policy
Router(config)# route-policy route_policy_2
Router(config-rpl)# if evpn-route-type is 1 then
Router(config-rpl-if)# set extcommunity color color2
Router(config-rpl-if)# endif
Router(config-rpl)# pass
Router(config-rpl)# end-policy

Configure EVPN route policy for tail-end coloring by exporting EVPN policy to color EVPN type 1 route. At the head-end, ODN uses color advertised by tail-end to create SR-TE tunnel.

Example:

Router(config)# evpn
Router(config-evpn)# evi 1
Router(config-evpn-evi)# bgp
Router(config-evpn-evi-bgp)# route-policy export route_policy_1

Configure EVPN route policy for head-end coloring by importing EVPN policy to color EVPN type 1 route at the head-end. ODN uses color configured by head-end to create SR-TE tunnel.

Example:

Router(config)# evpn
Router(config-evpn)# evi 2
Router(config-evpn-evi)# bgp
Router(config-evpn-evi-bgp)# route-policy import route_policy_2
7.

Configure EVPN VPWS over SR-TE policy.

Example:

Router(config)# l2vpn
Router(config-l2vpn)# xconnect group xg
Router(config-l2vpn-xc)# p2p xc100
Router(config-l2vpn-xc-p2p)# interface Bundle-Ether1.100
Router(config-l2vpn-xc-p2p)# neighbor evpn evi 1 target 1 source 2
Router(config-l2vpn-xc-p2p-pw)# exit
Router(config-l2vpn-xc-p2p)# exit
Router(config-l2vpn-xc)# p2p xc200
Router(config-l2vpn-xc-p2p)# interface Bundle-Ether1.200
Router(config-l2vpn-xc-p2p)# neighbor evpn evi 2 target 3 source 4
8.

Use these show commands to verify EVPN VPWS PW over SR-TE using ODN configuration.

  1. View PCE topology on R3.

    Example:

    Router# show pce ipv4 topology summary
Wed Jul 27 22:00:37.109 UTC

PCE's topology database summary:
--------------------------------

Topology nodes:                3
Prefixes:                      3
Prefix SIDs:
  Total:                       0
  Regular:                     0
  Strict:                      0
Links:
  Total:                      12
  EPE:                         0
Adjacency SIDs:
  Total:                      12
  Unprotected:                12
  Protected:                   0
  EPE:                         0

Private Information:
Lookup Nodes                   0
Consistent                    no

Update Stats (from IGP and/or BGP):
  Nodes added:                 7
  Nodes deleted:               0
  Links added:                32
  Links deleted:               0
  Prefix added:               47
  Prefix deleted:              0

Topology Ready Summary:
  Ready:                     yes
  PCEP allowed:              yes
  Last HA case:        migration
  Timer value (sec):          40
  Timer:
    Running: no   >>>>> Check if the timer is running.

  2. View PCE configuration on R3.

    This show command works only on the PCE server.

    Example:

    Router# show pce ipv4 peer
Wed Jul 27 22:02:00.421 UTC

PCE's peer database:
--------------------
Peer address: 1.2.3.4
  State: Up
  Capabilities: Stateful, Segment-Routing, Update, Instantiation, SRv6

Peer address: 3.4.5.6
  State: Up
  Capabilities: Stateful, Segment-Routing, Update, Instantiation, SRv6

  3. View PCC configuration on both R1 and R3.

    Example:

    Router# show segment-routing traffic-eng pcc ipv4 peer
Wed Jul 27 22:01:47.566 UTC

PCC's peer database:
--------------------

Peer address: 3.4.5.6,
  Precedence: 255, (best PCE)
  State up
  Capabilities: Stateful, Update, Segment-Routing, Instantiation, SRv6


Router# show l2vpn xconnect interface Bundle-Ether 1.100 detail
Mon Jul 25 19:19:01.443 UTC

Group xg, XC xc100, state is up; Interworking none
  AC: Bundle-Ether1.100, state is up
  EVPN: neighbor 3.4.5.6, PW ID: evi 1, ac-id 1, state is up ( established )
    XC ID 0xa0000002
    Encapsulation MPLS
    Encap type Ethernet, control word enabled
    Sequencing not set
    Preferred path Active : SR TE srte_c_1_ep_3.4.5.6 (BSID:24021, IFH:0xf000054), On-Demand, fallback enabled
    Ignore MTU mismatch: Enabled
    Transmit MTU zero: Enabled
    Tunnel : Up

Router# show segment-routing traffic-eng policy
Wed Jul 27 22:03:47.253 UTC

SR-TE policy database
---------------------

Color: 1, End-point: 3.4.5.6
  Name: srte_c_1_ep_3.4.5.6
  Status:
    Admin: up  Operational: up for 00:31:53 (since Jul 27 21:31:54.148)
  Candidate-paths:
.........
    Preference: 100 (BGP ODN) (active)
      Requested BSID: dynamic
.........
      Dynamic (pce 3.4.5.6) (valid)
        Metric Type: IGP,   Path Accumulated Metric: 10
          24005 [Adjacency-SID, 42.0.0.2 - 42.0.0.1]
  Attributes:
    Binding SID: 24021
    Forward Class: Not Configured
    Steering labeled-services disabled: no
    Steering BGP disabled: no
    IPv6 caps enable: yes
    Invalidation drop enabled: no
    Max Install Standby Candidate Paths: 0


Router# show segment-routing traffic-eng forwarding policy color 1 endpoint ipv4 3.4.5.6 detail
Wed Jul 27 22:08:09.961 UTC

SR-TE Policy Forwarding database
--------------------------------

Color: 1, End-point: 3.4.5.6
  Name: srte_c_1_ep_3.4.5.6
  Binding SID: 24021
  Active LSP:
    Candidate path:
      Preference: 100 (BGP ODN)
    Local label: 24020
    Segment lists:
      SL[0]:
        Name: dynamic
        Switched Packets/Bytes: 0/0
        Paths:
          Path[0]:
            Outgoing Label: Pop
            Outgoing Interfaces: Bundle-Ether3
            Next Hop: 42.0.0.1
            Switched Packets/Bytes: 0/0
            FRR Pure Backup: No
            ECMP/LFA Backup: No
            Internal Recursive Label: Unlabelled (recursive)
            Label Stack (Top -> Bottom): { Pop }
            Path-id: 1, Weight: 1

  Policy Packets/Bytes Switched: 0/0

Call admission control for L2VPN P2P services over circuit-style SR-TE policies

Call Admission Control (CAC) is a network control method that

  • ensures available bandwidth and network resources are not overloaded by excessive traffic

  • regulates traffic admission in L2VPN point-to-point (P2P) services, and

  • operates specifically within circuit-style SR-TE policies.

Table 6. Feature History Table

Feature Name

Release Information

Feature Description

Call Admission Control for L2VPN P2P Services over Circuit-Style SR-TE Policies

 Release 26.2.1

Introduced in this release on: Modular Systems (8800 [LC ASIC: K100])(select variants only*);

*This feature is supported on Cisco 88-LC1-48Y8H-EM line cards.

Call Admission Control for L2VPN P2P Services over Circuit-Style SR-TE Policies

 Release 25.4.1

Introduced in this release on: Fixed Systems (8010 [ASIC: A100])(select variants only*)

*This feature is now supported on:

  • 8011-32Y8L2H2FH

  • 8011-12G12X4Y-A

  • 8011-12G12X4Y-D

Call Admission Control for L2VPN P2P Services over Circuit-Style SR-TE Policies

Release 25.1.1

Introduced in this release on: Fixed Systems (8700 [ASIC: K100])(select variants only*)

* This feature is now supported on Cisco 8712-MOD-M routers.

Call Admission Control for L2VPN P2P Services over Circuit-Style SR-TE Policies

Release 24.4.1

Introduced in this release on: Fixed Systems(8200, 8700);Modular Systems (8800 [ASIC: P100]) (select variants only*)

*This feature is now supported on:

  • 8212-32FH-M

  • 8711-32FH-M

  • 88-LC1-12TH24FH-E

  • 88-LC1-52Y8H-EM

  • 88-LC1-36EH

Call Admission Control for L2VPN P2P Services over Circuit-Style SR-TE Policies

 Release 7.9.1

This feature allows you to configure guaranteed bandwidth for Layer 2 point-to-point (P2P) services steered over Circuit-Style SR-TE policies.

This guaranteed bandwidth ensures that a Circuit-Style SR-TE policy has sufficient bandwidth to accommodate a Layer 2 P2P service. At the same time, it prevents a Layer 2 P2P service from being steered over a Circuit-Style SR-TE policy when there is insufficient available bandwidth.

Circuit-style SR-TE policies and CAC in L2VPN P2P services

Circuit-style SR-TE policies steer traffic along designated network paths tailored to the requirements of each L2VPN P2P service. Concurrently CAC manages the aggregate bandwidth demand of all active L2VPN P2P services to ensure it does not exceed the available capacity of network links.

By integrating CAC with circuit-style SR-TE policies, network administrators can optimize traffic routing while maintaining network capacity within limits. This combination enables efficient traffic management and prevents oversubscription of network resources, ensuring service quality and network stability.

For information about circuit-style SR-TE policies, refer to Circuit-Style SR-TE Policies in the Segment Routing Configuration Guide for for Cisco 8000 Series Series Routers.

Call admission control in circuit-style SR-TE policies

CAC prevents resource oversubscription in a network by allocating and reserving the necessary resources before enabling a service. CAC ensures that a aircuit-style SR-TE policy has sufficient bandwidth to support a Layer 2 P2P service.

CAC manages bandwidth by:

  • Tracking the total bandwidth assigned to a Circuit-Style SR-TE policy.

  • Monitoring the available bandwidth on the policy, considering all Layer 2 P2P services currently steered over it.

  • Evaluating the bandwidth requested by a new Layer 2 P2P service seeking admission.

CAC prevents steering a Layer 2 P2P service over a circuit-style SR-TE policy if there is insufficient available bandwidth, thereby maintaining network resource integrity and service quality.

Limitations of CAC for L2VPN P2P services over circuit-style SR-TE policies

  • LDP-signaled L2 P2P services and EVPN VPWS L2 P2P services are supported.

  • If a PW is configured with a bandwidth value but is not configured with a preferred path, then the PW stays down with the "admitted bandwidth" set to 0. See L2VPN preferred path.

Configure CAC for L2VPN P2P services over circuit-style SR-TE policies

Configure CAC to manage bandwidth for L2VPN P2P services using circuit-style SR-TE policies.

CAC ensures that bandwidth is reserved and controlled for pseudowires (PWs) in EVPN VPWS and LDP-signaled L2 P2P services to maintain service quality and prevent oversubscription.

Procedure

1.

Configure CAC for EVPN VPWS L2 P2P services.

To configure CAC for EVPN VPWS L2 P2P services, use the admission-control bandwidth bandwidth command. The range for bandwidth is from 1 to 4294967295 kbps.

Example:

Router(config)# l2vpn
Router(config-l2vpn)# xconnect group evpn_vpws
Router(config-l2vpn-xc)# p2p evpn_vpws_1001
Router(config-l2vpn-xc-p2p)# interface TenGigE0/1/0/1.1001
Router(config-l2vpn-xc-p2p)# neighbor evpn evi 1001 target 10001 source 20001
Router(config-l2vpn-xc-p2p-pw)# admission-control bandwidth 24000
2.

Running configuration of CAC for EVPN VPWS L2 P2P services.

Example:

l2vpn
 xconnect group evpn_vpws
  p2p evpn_vpws_1001
   interface TenGigE0/1/0/1.1001
   neighbor evpn evi 1001 target 10001 source 20001
    admission-control bandwidth 24000
   !
  !
 !
!
3.

Use the show l2vpn cac-db command to display the total bandwidth of the policy, the available bandwidth, and the reserved bandwidth.

Example:

Router# show l2vpn cac-db

Policy Name: sr-srte_c_100_ep_3.3.3.3
  Total Bandwidth: 24000
  Available Bandwidth: 11000
  Reserved Bandwidth: 13000
  Service count: 1
  Pseudowire info:
  EVPN/AToM  VPN ID     AC ID      Reqd BW(kbps)   Alloc BW(kbps)  State
  ------------------------------------------------------------------------
  EVPN     1          1          13000              13000             NOT CONF
