The enhanced policy-based multipath selection in BGP operates now at the default Virtual Routing and Forwarding (VRF) level for variations of BGP, such as iBGP, eBGP, and eiBGP. To improve this functionality, the policy-based multipath selection is now extended to include iBGP, eBGP, and eiBGP by utilizing communities as the underlying mechanism. By utilizing communities, the selection of multiple paths based on specific policy criteria becomes more elaborate. It enables better control over the routing decisions within the BGP network.

eiBGP traditionally implements the unequal-cost mutipath (UCMP) capability to enable the use of both iBGP and eBGP paths. This feature, utilizing the equal-cost multipath option (ECMP), ensures that the nexthop IGP metric remains consistent across the chosen iBGP paths. Hence the metric evaluation is not performed between eBGP and iBGP paths because they have distinct path types.

Example topology and behavior

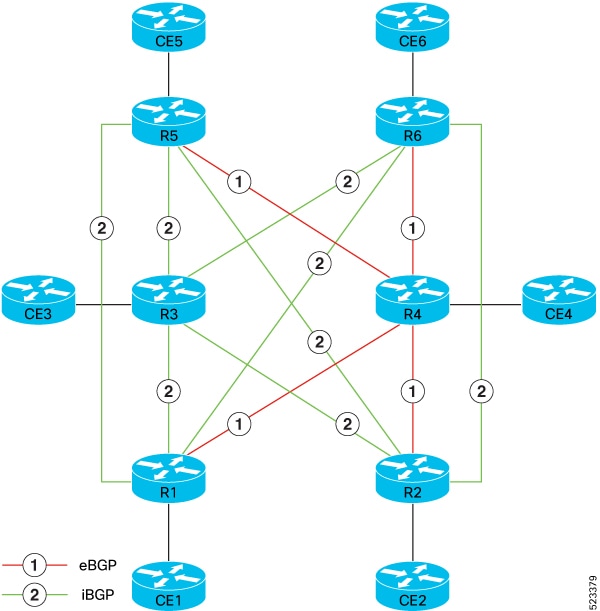

This topology illustrates a network comprising BGP peers denoted as R1 through R6.

Consider a scenario where there is a specific need to transition from using eBGP multipaths to iBGP multipaths. Throughout this transition, you require the simultaneous operation of both eBGP and iBGP to facilitate a seamless migration.

This topology showcases distinct path types, where eBGP paths are visually depicted using a red-colored line labeled as 1, and the iBGP paths are visually illustrated using a green-colored line labeled as 2.

In the context of CE routers, CEI to CE6, the preferred path for prefixes will be from eBGP, specifically from the R4 router. The selection of best paths prioritizes eBGP multipaths from R4, although paths might exist from R5 and R6 routers and also from RI and R2 routers through iBGP. This is the classic behavior. In classic eiBGP, unequal cost paths are employed, leading to the disregard of metrics. However, you rely on the IGP metric for optimal performance.

The iBGP paths with the shortest AS-PATH length are chosen for R5 and R6. The same iBGP multipath selection process applies to paths from R1 and R2. As a result, R1 and R2 establish iBGP peering sessions with R3. This setup creates a combination of eBGP and iBGP paths, called eiBGP, which are available for prefixes advertised to hosts beyond the CE devices. The CE routers must balance prefixes between R3 and R4, and you should exclude paths from R5, R6, R1, and R2. To do this, configure the additive community attribute on R1 and R2 for routes advertised toward R5 and R6.

With this topology, you can run both eBGP and iBGP, allowing a smooth transition between eBGP and iBGP multipaths. Include the default VRF in policy-based multipath selection to apply route policies that control how your network distributes traffic. Use BGP attributes such as communities, next hops, and path types in these policies to select paths. For example, use BGP communities to prioritize routes or change next hops to direct traffic over specific paths. This approach helps you optimize routing decisions, control traffic distribution, and improve load balancing across all BGP types in your network.

Enable ECMP to distribute traffic evenly across multiple equal-cost paths. This prevents overloading any single path and improves load balancing. With the ECMP option in eiBGP, the router can use multiple iBGP paths with equal cost for traffic distribution.

Benefits of EIBGP policy-based multipath with ECMP

• Optimizes traffic distribution and network utilization across iBGP, eBGP, and eiBGP sessions.

• Enables seamless migration between eBGP and iBGP multipath scenarios.

• Provides granular control over path selection using communities, nexthops, and path types.

• Ensures efficient load balancing and prevents single-path overload by leveraging ECMP.
