Hardware Installation Guide for Cisco 8400 Series Secure Routers

Chassis views for C8455-G2 Secure Router

Want to summarize with AI?

Log in

Outlines chassis perspectives for the C8455-G2 Router, detailing router LEDs and offering a summary of the platform for enhanced hardware understanding.

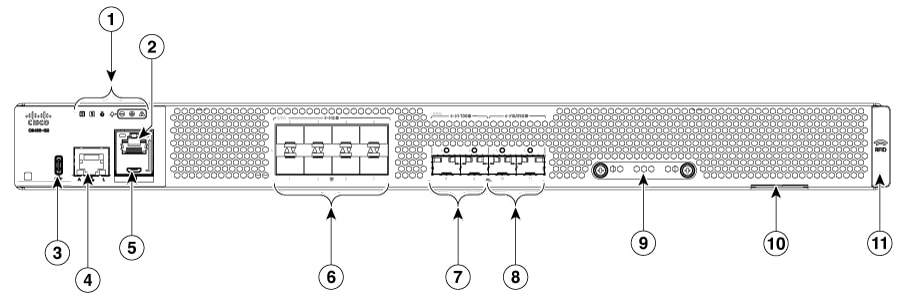

Figure 1. C8455-G2 Chassis - I/O Side
Table 1. I/O Side

1

Status indicator LEDs

2

RJ45 console port

3

USB type C port

4

GigabitEthernet management port

5

Micro-USB console

6

SFP ports (0/0/0-0/0/7)

7

SFP+ ports (0/0/8-0/0/9)

8

SFP28 ports (0/0/10-0/0/11)

9

M.2 USB/NVMe card slot

10

Device label tray

11

RFID (Provisionable)


LEDs for C8455-G2 Secure Router

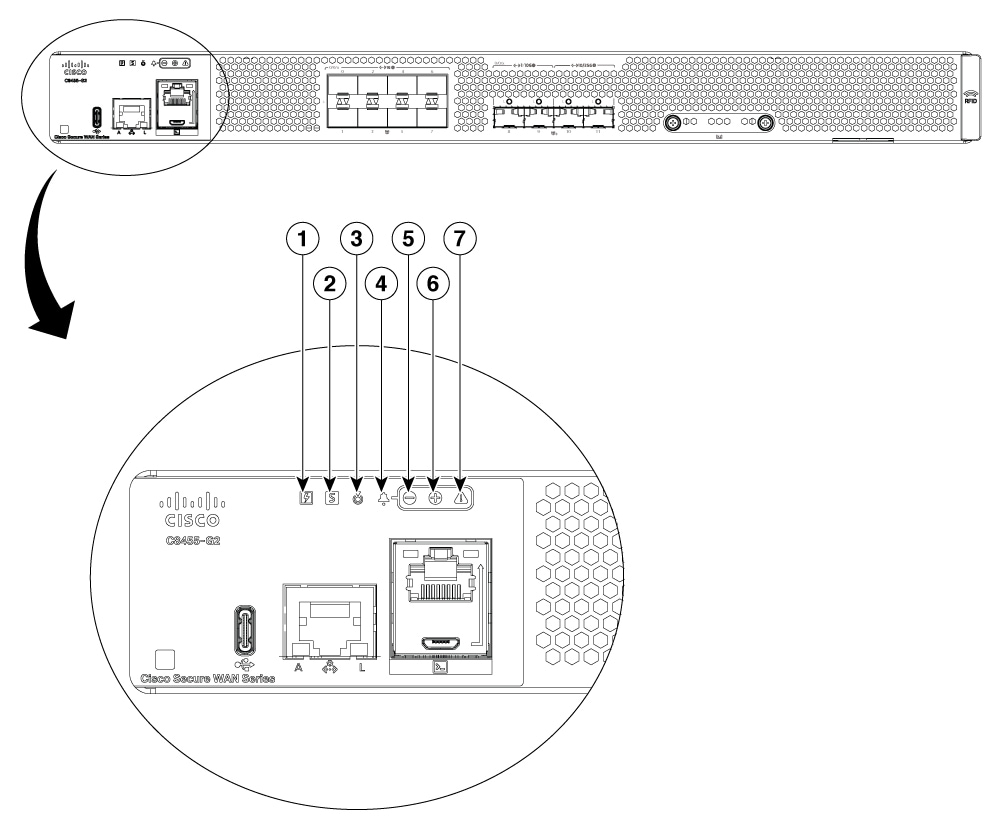

Figure 2. LEDs for C8455-G2 Secure Router

1

Power

2

Status

3

Blue Beacon

4

Alarm icon (not lit)

5

Minor Alarm

6

Major Alarm

7

Critical Alarm

Table 2. LED indicators

LED

Color

Description

PSU

Green/Amber

Power Supply Status

Off: The system is powered off.

Amber: A power supply has malfunctioned (or is not installed).

Green: Both installed power supplies are operating correctly.

STATUS

Green/Amber/Red

System Status

Blinking Amber: The system is booting ROMMON.

Amber: System is at ROMMON prompt or booting platform software.

Green: Normal System Operation.

Blinking Red: The system has failed a hardware integrity check.

BEACON

Blue

Beacon LED

Blinking Blue: Beacon requested.

MINOR ALARM

Amber

Minor Alarm

Off: No Minor Alarm.

Amber: Minor Alarm Asserted.

MAJOR ALARM

Red

Major Alarm

Off: No Major Alarm.

Red: Major Alarm Asserted.

CRITICAL ALARM

Red

Critical Alarm

Off: No Critical Alarm.

Red: Critical Alarm Asserted.

LINK

Green

RJ-45 Management Ethernet Link LED

Off: No link.

Green: Ethernet cable present and link established with other side.

ACTIVITY

Green

RJ-45 Management Ethernet Activity LED

Blinking Green: Ethernet activity detected.

USB CON

Green

USB Console Active

Green: indicates that the active console port is USB.

When this is “On” the SER CON LED will be “Off”.

SER CON

Green

Serial Console Active

Green: indicates that the active console port is RJ-45.

When this is “On” the USB CON LED will be “Off”.

SFP

Green/Amber

SFP port 0/1 Link LED

Off: SFP not present or port not configured (i.e., admin down).

Amber: Link down / Loss of Signal.

Green: Link established.


C8455-G2 summary

The figure below shows the internal view of with parts and module locations.

Figure 3. Summary of C8455-G2

1

DIMMs

2

Fan tray
