Location Service

Compatibility Matrix for Cisco Spaces: Connector: Location service

This section covers the following:

Location Service (Non-FIPS)

Table 1. Location Service (Non-FIPS)

Hardware or Application Name

Support for Cisco Spaces: Connector
Cisco Catalyst 9800 Series Wireless Controllers

  • Supported on 17.6.8 and later releases.

Note


Cisco AireOS Wireless Controller

Note



Cisco Embedded Wireless Controller on Cisco Catalyst Access Points (Cisco EWC-AP)

 Supported versions are:

  • 17.6.1

Note



Supported access points are:

  • Cisco Catalyst 9115 Series Access Points

  • Cisco Catalyst 9117 Series Access Points

  • Cisco Catalyst 9120 Series Access Points

  • Cisco Catalyst 9130 Series Access Points

Cisco Catalyst 9300 and 9400 Series Switches

 Supported versions are 17.3.3 and later

Cisco Prime Infrastructure

 Supported
Catalyst Center Supported

Supported wireless controllers for Cisco FastLocate

  • Supported on all releases of Cisco Catalyst 9800 Series Wireless Controllers

Supported wireless controllers for Cisco Hyperlocation

  • Supported on Cisco Catalyst 9800 Series Wireless Controllers

Connector Active-Active Mode

  • Not supported on Cisco Embedded Wireless Controller on Cisco Catalyst Access Points (Cisco EWC-AP)

  • Supported on Cisco Catalyst 9800 Series Wireless Controllers

  • Supported on Cisco AireOS Wireless Controller

Tested VMware Environments

  • VMware vSphere Client Version 7.0.x and 8.0

  • VMware vCenter Server Appliance 7.0.x and 8.0

Tested Proxies

  • Squid proxy

    • Forward-only mode (SSL tunneling)

    • Squid-in-the-middle mode (SSL tunneling with intercept capabilities)

  • McAfee

  • Cisco web security appliance

Tested Access Points for Cisco FastLocate

  • Cisco Aironet 2800 Series Access Points

  • Cisco Aironet 3800 Series Access Points

  • Cisco Aironet 4800 Series Access Points

Tested Access Points for Cisco FastLocate (Wi-Fi 7)

  • Cisco Wireless 9178 Series Access Points

  • Cisco Wireless 9176 Series Access Points

Tested Access Points for Cisco FastLocate (Wi-Fi 6)

  • Cisco Catalyst 9120 Series Access Points

  • Cisco Catalyst 9130 Series Access Points

  • Cisco Catalyst 9164 Series Access Points

  • Cisco Catalyst 9166 (I/D1) Series Access Points

  • Cisco Catalyst IW9167I Heavy Duty Access Points

Tested Access Points for Cisco Hyperlocation

  • Cisco Aironet 4800 Series Access Point

Tested Access Points

  • Cisco Catalyst 9105AX (I/W) Series Access Points

  • Cisco Catalyst 9115AX (I/E) Series Access Points

  • Cisco Catalyst 9117AX (I) Series Access Points

  • Cisco Catalyst 9136 (I) Series Access Points

  • Cisco Catalyst 9162 (I) Series Access Points

  • Cisco Catalyst 9164 (I) Series Access Points

  • Cisco Catalyst 9166 (I/D1) Series Access Points

  • Cisco Catalyst IW9167 (E/I) Heavy Duty Series Access Points

  • Cisco Catalyst IW9165D Heavy Duty Access Points

  • Cisco Catalyst IW9165E Rugged Access Points

  • Cisco Wireless 9172 Series Access Points

Location Service (FIPS)

Table 2. Location Service (FIPS)

Hardware or Application Name

Support for Cisco Spaces: Connector
Cisco Catalyst 9800 Series Wireless Controllers

  • 17.15.3

  • 17.12.6

Note



Use the latest software version or maintenance release for each listed release.  See Recommended Cisco IOS XE Releases for Catalyst 9800 Wireless LAN Controllers.

Tested Access Points for Cisco FastLocate (Wi-Fi 7)

  • Cisco Wireless 9178 Series Access Points

  • Cisco Wireless 9176 Series Access Points

Tested Access Points for Cisco FastLocate (Wi-Fi 6)

  • Cisco Catalyst 9120 Series Access Points

  • Cisco Catalyst 9130 Series Access Points

  • Cisco Catalyst 9164 Series Access Points

  • Cisco Catalyst 9166 (I/D1) Series Access Points

  • Cisco Catalyst IW9167I Heavy Duty Access Points

Tested Access Points

  • Cisco Catalyst 9105AX (I/W) Series Access Points

  • Cisco Catalyst 9115AX (I/E) Series Access Points

  • Cisco Catalyst 9117AX (I) Series Access Points

  • Cisco Catalyst 9136 (I) Series Access Points

  • Cisco Catalyst 9162 (I) Series Access Points

  • Cisco Catalyst 9164 (I) Series Access Points

  • Cisco Catalyst 9166 (I/D1) Series Access Points

  • Cisco Catalyst IW9167 (E/I) Heavy Duty Series Access Points

  • Cisco Catalyst IW9165D Heavy Duty Access Points

  • Cisco Catalyst IW9165E Rugged Access Points

  • Cisco Wireless 9172 Series Access Points

Open Ports for Location Service

This section lists the connector ports that must be open for the proper functioning of location service.

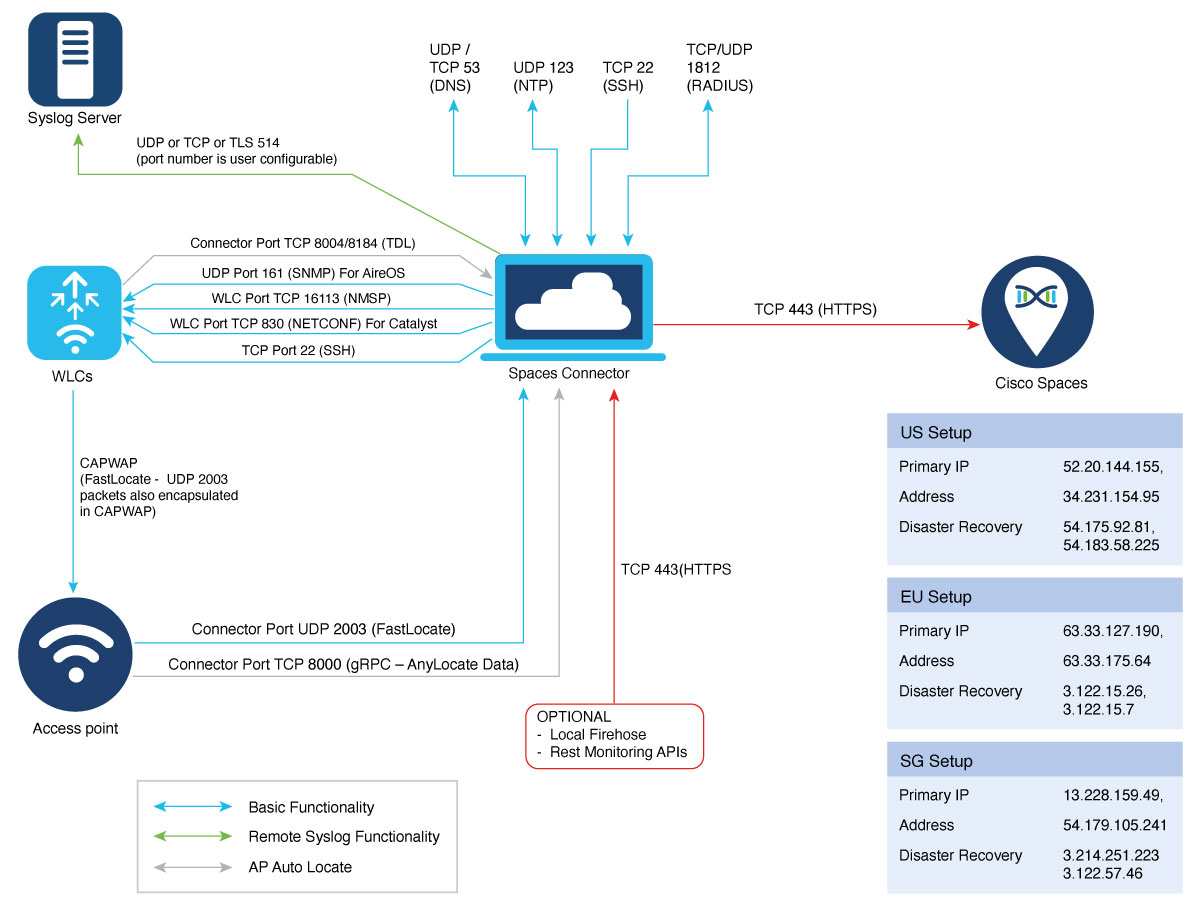

Figure 1. Open Ports for Location Service
Primary IP Address Disaster Recovery
US Setup

  • 52.20.144.155

  • 34.231.154.95

  • 54.175.92.81

  • 54.183.58.225
EU Setup

  • 63.33.127.190

  • 63.33.175.64

  • 3.122.15.26

  • 3.122.15.7
Singapore Setup

  • 13.228.159.49

  • 54.179.105.241

  • 3.214.251.223

  • 3.122.57.46

Test the connectivity between the connector and the wireless controller.  See Configure and Test Connectivity between the Connector 3 and AireOS controller or Configure and Test the Connectivity between a Connector 3 and a Catalyst 9800 controller.
