The power supply specification for the Cisco C9610 switch.
These sections describe the 2000W AC, 2000W DC, and 3000W AC power supply specifications and the supported AC power cords.
2000W AC-input power supply specifications
This section describes the specifications of C9600-PWR-2KWAC.
Table 1. 2000W AC-input power supply specifications
Specification
Description
AC-input type
Wide-ranging input with power factor correction.
Note
Power factor correction is a standard feature on AC-input power supplies. Power factor correction reduces the reactive component in the source AC current, allowing higher power factors and lower harmonic current components.
AC-input voltage
Low-line (115 VAC nominal)—90 VAC (min) to 140 VAC (max)
High-line (230 VAC nominal)—180 VAC (min) to 264 VAC (max)
AC-input current
12A at 115 VAC
10A at 230 VAC
AC-input frequency
50/60Hz nominal (47 to 63Hz full range)
Branch circuit requirement
Each chassis power supply should have its own dedicated, fused-branch circuit:
North America—15 A.
International—Circuits sized to local and national codes.
All AC power supply inputs are fully isolated.
Source AC can be out-of-phase between multiple power supplies in the same chassis, which means that PS1 can be operating from phase A and PS2 can be operating from phase B.
For high-line operation, the power supply operates with the line conductor wired to a source AC phase, and the neutral conductor wired either to a neutral, single-phase power system, or to another source AC phase as long as the net input voltage is in the range of 180 to 264 VAC.
Power supply output
100 to 120 VAC operation
12V output—1050W
200 to 240 VAC operation
12V output—2000W
Output holdup time
20 ms minimum with 1200W output
kVA rating (kilovolt-amperes is the measure of apparent power in electrical systems, indicating the total power output.) 1
2 kVA maximum (total output power)
Heat dissipation (in British Thermal Units [BTU])
683 BTU per hour
Weight
2.60 lb (1.18 kg)
1 The kVA rating listed for the power supply should be used as the sizing criteria for both UPS outputs as well as standard circuits and transformers to power a switch
AC power cords for 2000W AC power supply units
This table lists the specifications for the AC power cords that are available for the 2000W AC-input power supply. The table also includes references to power cord illustrations.
Note
All 2000W AC power supply power cord
Lengths range from 9.84 to 14 feet (3.0 to 4.293 meters); with most cord lengths between 13 and 14 feet (4.013 and 4.293 meters)
Have an IEC60320/C15 appliance connector at one end.
Figure 1. IEC60320/C15 appliance connector
Table 1. AC power cords for 2000W AC PSUs
Locale
Part number
Cordset rating
Length in meters
AC source plug type
Argentina
CAB-TA-AR
125 VAC, 12 A
2.5 m
Figure 2. CAB-TA-AR= (Argentina)
Australia
CAB-TA-AP
125 VAC, 12 A
2.5 m

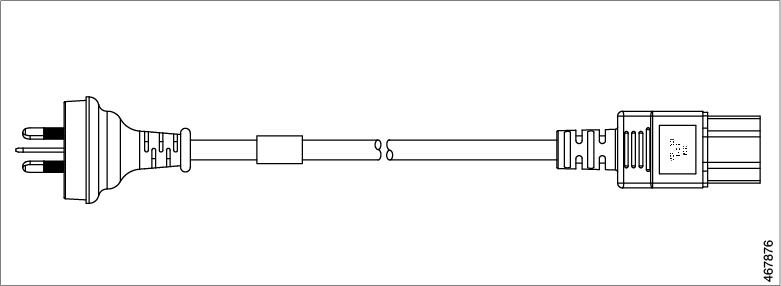

Figure 3. CAB-TA-AP= (Australia)
Brazil
CAB-ACBZ-12A
125 VAC, 12 A
2.5 m

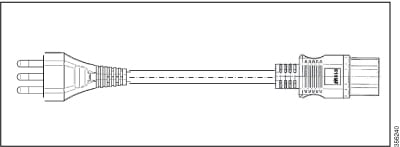

Figure 4. CAB-ACBZ-12A= (Brazil)
China
CAB-TA-CN
250 VAC, 10 A
2.5 m
Figure 5. CAB-TA-CN= (China)
Denmark
CAB-TA-DN
250 VAC, 10 A
2.5 m

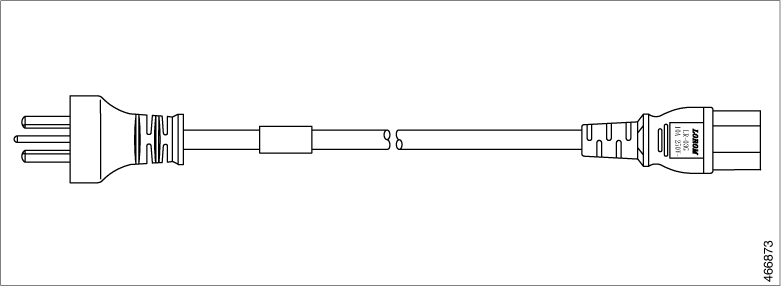

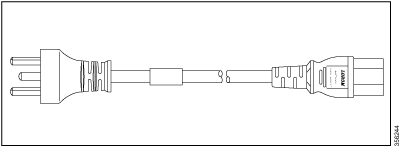

Figure 6. CAB-TA-DN= (Denmark)
Europe
CAB-TA-EU
250 VAC, 10 A
2.5 m

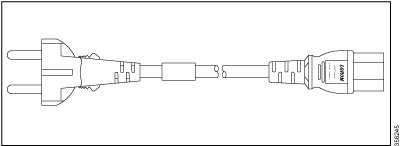

Figure 7. CAB-TA-EU= (Europe)
India
CAB-TA-IN
250 VAC, 10 A
2.5 m
Figure 8. CAB-TA-IN= (India)
Israel
CAB-TA-IS
250 VAC, 16 A
2.5 m
Figure 9. CAB-TA-IS= (Israel)
Italy
CAB-TA-IT
250 VAC, 10 A
2.5 m

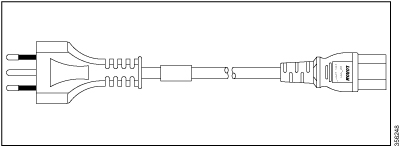

Figure 10. CAB-TA-IT= (Italy)
Japan
CAB-C15-CBN-JP
250 VAC, 12 A
3.05 m
Figure 11. CAB-C15-CBN-JP=(Japan)
Japan
CAB-TA-250V-JP
250 VAC, 15 A
2.5 m
Figure 12. CAB-TA-250V-JP= (Japan)
Japan
CAB-TA-JP
125 VAC, 12 A
2.5 m
Figure 13. CAB-TA-JP= (Japan)
North America
CAB-AC-2KW-CBL
250 VAC, 13 A
4.25 m
Figure 14. CAB-AC-2KW-CBL= (North America)

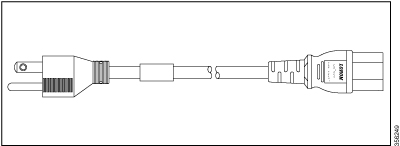

North America
CAB-TA-NA
125 VAC, 15 A
2.5 m
Figure 15. CAB-TA-NA= (North America)
Switzerland
CAB-TA-SW
250 VAC, 10 A
2.5 m

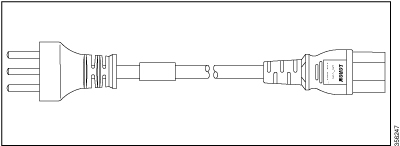

Figure 16. CAB-TA-SW= (Switzerland)
United Kingdom
CAB-TA-UK
250 VAC, 10 A
2.5 m

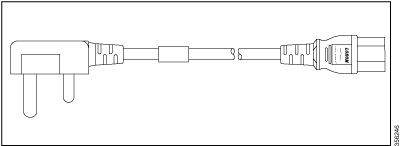

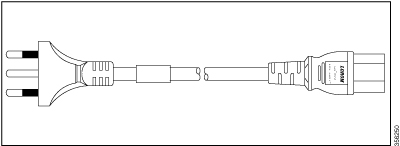

Figure 17. CAB-TA-UK= (United Kingdom)
Cabinet jumper power cord; supported in all countries except Japan
CAB-C15-CBN
250 VAC, 13 A
1.22 m

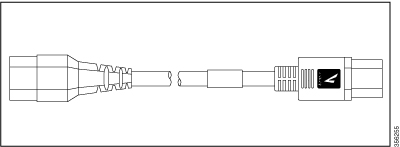

Figure 18. CAB-C15-CBN=
2000W DC-input power supply specifications
This table lists the specifications for C9600-PWR-2KWDC.
Table 1. 2000W DC-input power supply specifications
Specification
Description
DC-input voltage
-40 to -60 VDC, with extended range to -72 VDC
DC-input current
Maximum: 60A
Power supply output capacity
For 12 VDC output—2000W
Output holdup time
5ms with 1200W output
Heat dissipation (in British Thermal Units [BTU])
750 BTU per hour
Weight
2.82 lb (1.28 kg)
DC power cords for 2000W DC power supply units
When you order the DC power supply units, you have the option to order the DC power cord (part number 71-100992-01). The length of all 2000W DC power supply cords range from 9.84 to 14 feet (3.0 to 4.293 meters); with most cord lengths between 13 and 14 feet (4.013 and 4.293 meters)
Figure 1. 2000W DC power supply cord
1
Appliance connector (C10-638974-000)
5
6 AWG ultra flex cable or equivalent (red in color)
2
Plug housing (C10-638978)
6
Label
3
Socket contact
7
2x shrink wrap
4
6 AWG ultra flex cable or equivalent (black in color)
-
-
These power cords have a C10-638974-000 appliance connector at one end.

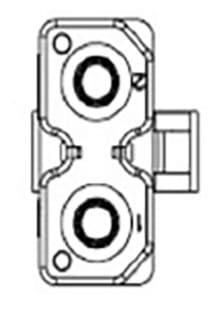

Figure 2. C10-638974-000 appliance connector
3000W AC-input power supply specifications
This table lists specifications for C9600-PWR-3KWAC.
Table 1. 3000W AC-input power supply specifications
Specification
Description
AC-input type
Wide-ranging input with power factor correction.
Note
Power factor correction is a standard feature on AC-input power supplies. Power factor correction reduces the reactive component in the source AC current, allowing higher power factors and lower harmonic current components.
AC-input voltage
Low-line (115 VAC nominal)—90 VAC (min) to 140 VAC (max)
High-line (230 VAC nominal)—180 VAC (min) to 264 VAC (max)
AC-input current
16A at 115 VAC
16A at 230 VAC
AC-input frequency
50/60Hz nominal (47 to 63Hz full range)
Branch circuit requirement
Each chassis power supply should have its own dedicated, fused-branch circuit:
North America—20 A.
International—Circuits sized to local and national codes.
All AC power supply inputs are fully isolated.
Source AC can be out of phase between multiple power supplies in the same chassis, which means that PS1 can be operating from phase A and PS2 can be operating from phase B.
For high-line operation, the power supply operates with the line conductor wired to a source AC phase, and the neutral conductor wired either to a neutral, single-phase power system, or to another source AC phase as long as the net input voltage is in the range of 180 to 264 VAC.
Power supply output
90 to 140 VAC operation
12V output—1500W
180 to 264 VAC operation
12V output—3000W
Output holdup time
20 ms minimum with 1800W output at high line input
kVA rating (kilovolt-amperes is the measure of apparent power in electrical systems, indicating the total power output.) 1
3 kVA maximum (total output power)
Heat dissipation (in British Thermal Units [BTU])
655 BTU per hour
Weight
3.09 lb (1.48 kg)
1 The kVA rating listed for the power supply should be used as the sizing criteria for both UPS outputs as well as standard circuits and transformers to power a switch
AC power cords for 3000W AC power supply units
This table lists the specifications for the AC power cords that are available for the 3000W AC-input power supply. The table also includes references to power cord illustrations.
Table 1. AC power cords for 3000W AC PSUs
Locale
Part number
Cordset rating
Length
AC source plug type
Australia
CAB-9K16A-AUS
250 VAC,16 A
4.26 m
Figure 1. CAB-9K16A-AUS= (Australia)
China
CAB-9K16A-CH
250 VAC, 16 A
4.27 m
Figure 2. CAB-9K16A-CH= (China)
Europe
CAB-9K16A-EU
250 VAC, 16 A
2.5 m

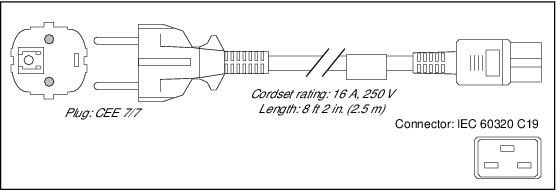

Figure 3. CAB-9K16A-EU= (Europe)
India
CAB-C19-C20-IND
250 VAC, 16 A
2.74 m
Figure 4. CAB-C19-C20-IND= (India)
International
CAB-I309-C19-INTL
250 VAC, 16 A
3.96 m
Figure 5. CAB-I309-C19-INTL= (International
International
CAB-9K16A-INT
250 VAC, 16 A
4.14 m

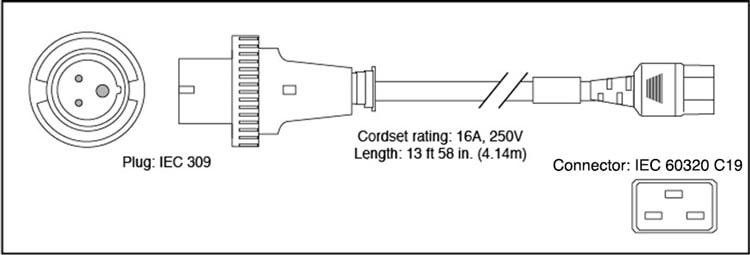

Figure 6. CAB-9K16A-INT= (International)
North America and Japan
CAB-9K20A-NA
125 VAC, 20 A,
4.26 m

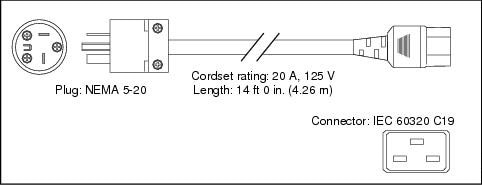

Figure 7. CAB-9K20A-NA= (North America and Japan)

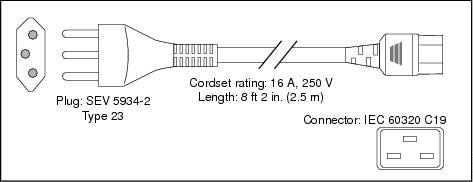

Switzerland
CAB-9K16A-SW
250 VAC, 16 A
2.5 m
Figure 8. CAB-9K16A-SW= (Switzerland)

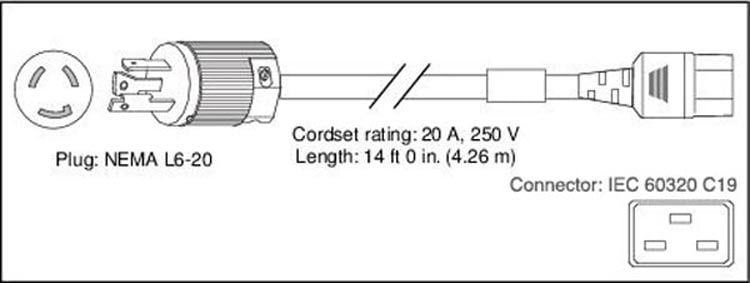

US and Japan
CAB-9K16A-US2
250 VAC, 20 A
4.26 m
Figure 9. CAB-9K16A-US2= (US/Japan)
Cabinet jumper power cord
CAB-C19-CBN
250 VAC, 16 A
2.74 m

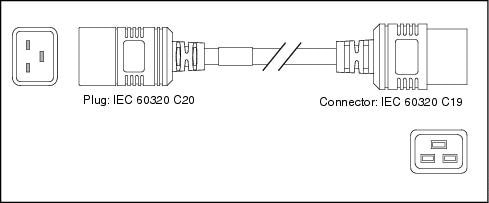

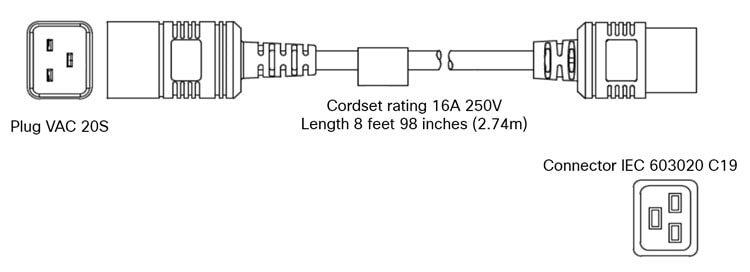

Figure 10. CAB-C19-CBN=(Cabinet Jumper Power Cord)
