Lists the port pinouts, module and cable connectors.
This section describes the connectors supported by Cisco C9350 series smart switches.
10/100/1000 Ports
This illustrations shows all 10/100/1000 ports including the PoE ports that use standard RJ-45 connectors and Ethernet pinouts

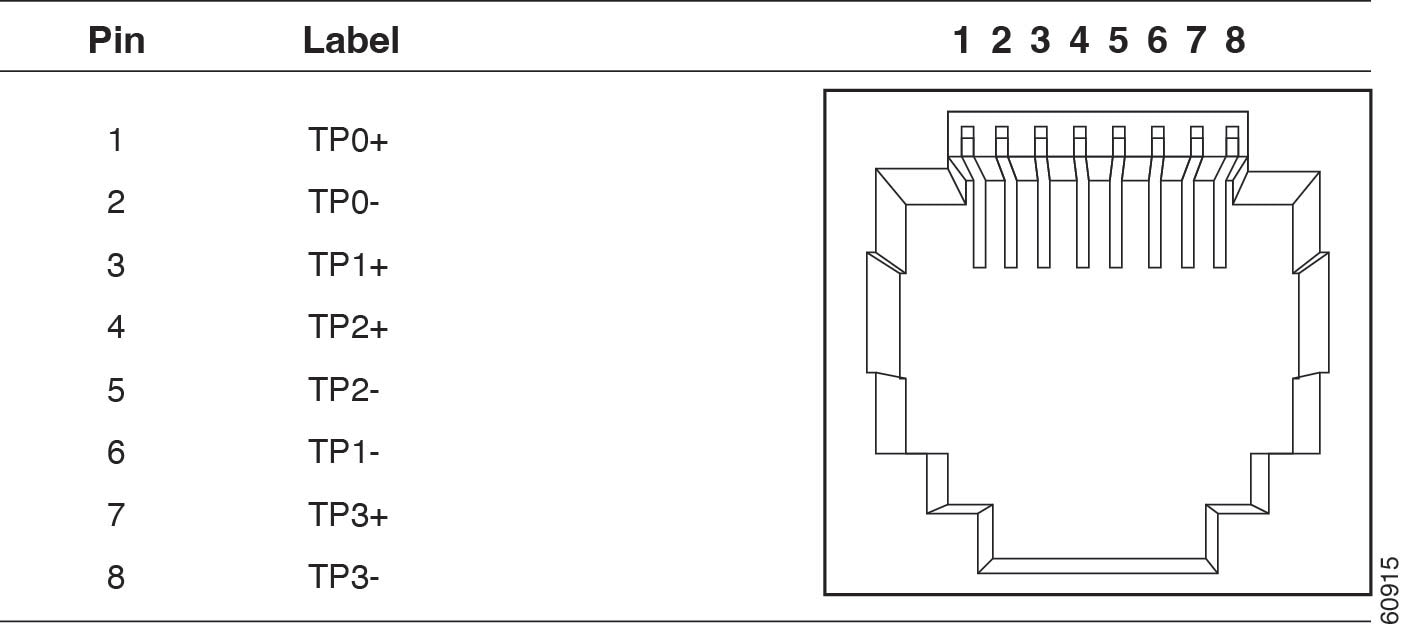

Figure 1. 10/100/1000 port pinouts
Module connectors
This section describes the different SFP/QSFP/QSFP-DD module connectors used on various ports on the Cisco C9350 series smart switches.

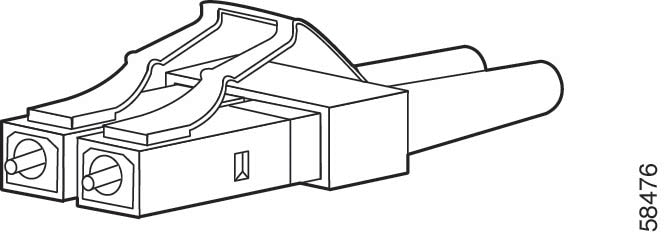

Figure 2. Duplex LC cable connector

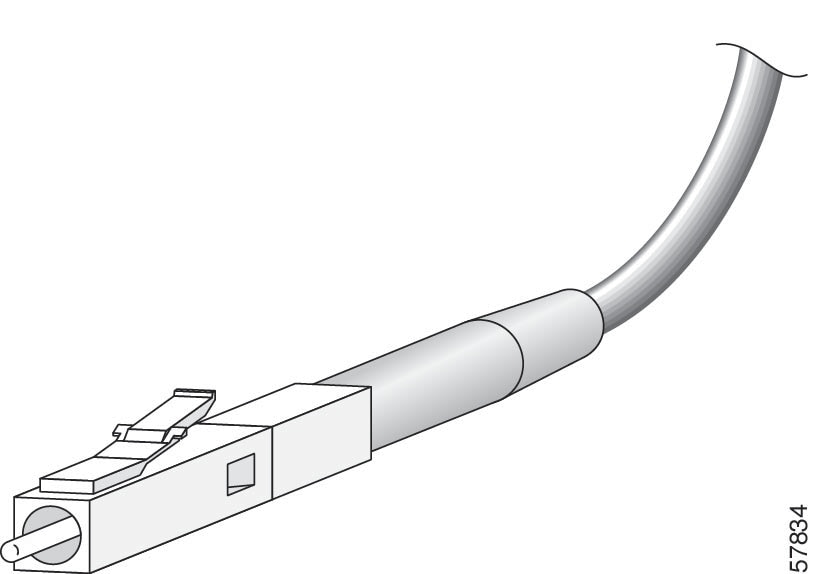

Figure 3. Simplex LC cable connector
Figure 4. Copper SFP module LC connector
MPO-12 connectors
The multi-fiber push on (MPO) connector is used in high-density fiber optic networks. An MPO-12 connector has 12 fiber strands in a single connector that enables high-speed data transmission and efficient cable management. Its footprint is similar to the SC simplex connector. The MPO connector conforms to the TIA/EIA-604-5 intermateability standard. It is used for establishing 40G and 100G optical parallel connections.
The MPO connector conforms to the TIA/EIA-604-5 intermateability standard. It is used for establishing 40G and 100G optical parallel connections.
Key characteristics of MPO-12 connectors include
compatibility with various transceivers: Many Cisco transceivers use MPO-12 connectors for data transmission.
breakout cable support: MPO-12 connectors can be used in breakout cables.
Figure 5. MPO-12 fiber-optic connector
Cable pinouts
A cable pinout refers to the specific arrangement of wires within a cable connector. Pinouts define how each pin is connected between the two ends of a cable.

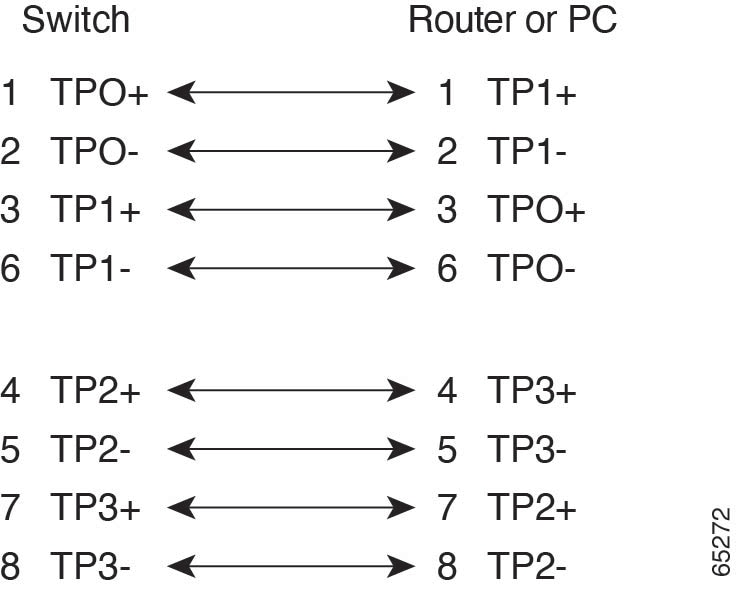

Figure 6. Four twisted-pair straight-through cable schematic

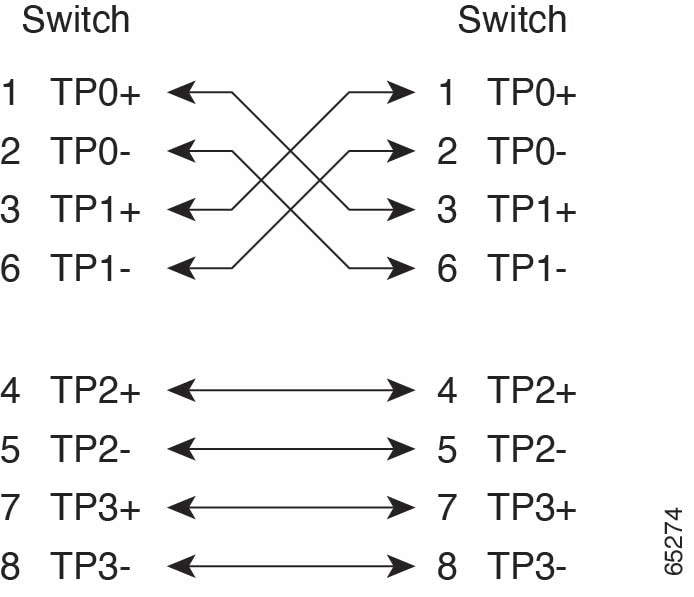

Figure 7. Four twisted-pair semi-cross cable schematic

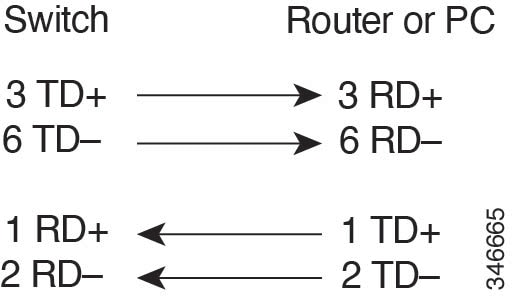

Figure 8. Two twisted-pair straight-through cable schematic

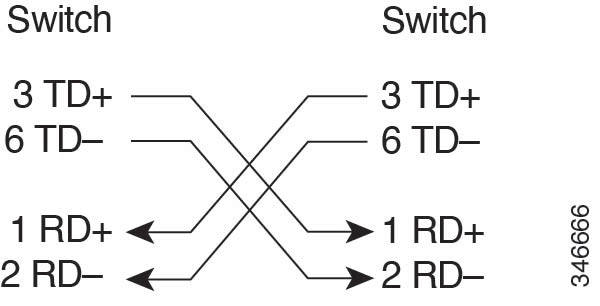

Figure 9. Two twisted-pair crossover cable schematic
Identify crossover cables
To identify a crossover cable, compare the two modular ends of the cable. Hold the cable ends side-by-side, with the tab at the back. The wire connected to the pin on the outside of the left plug should be a different color from the wire connected to the pin on the inside of the right plug.

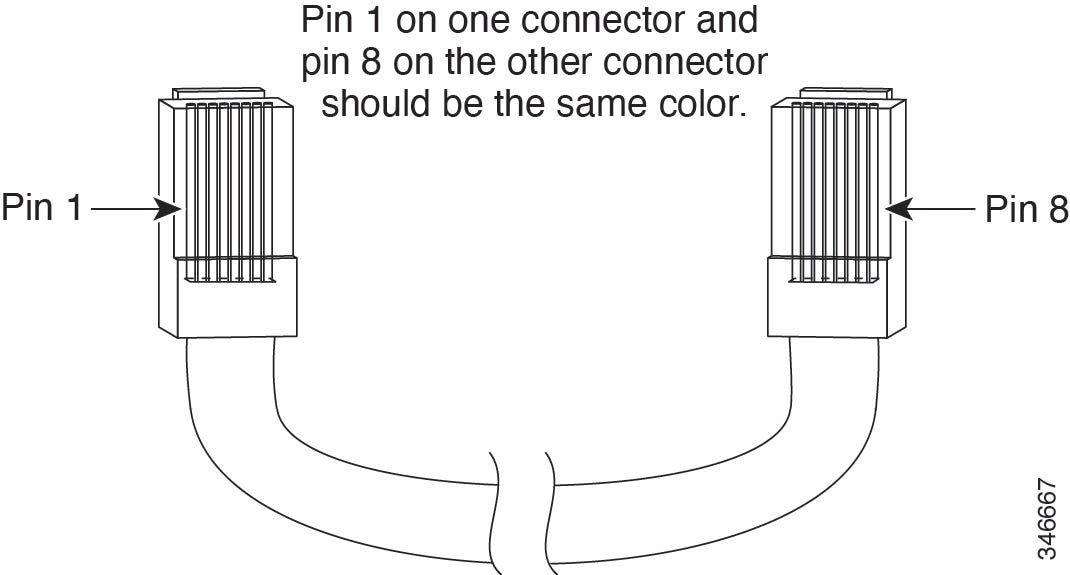

Figure 10. Identify a crossover cable
Console port adapter pinouts
Use an RJ-45-to-DB-9 adapter cable to connect the switch console port to a console PC. You need to provide a RJ-45-to-DB-25 female DTE adapter to connect the switch console port to a terminal.
Table 1. Console port signaling with a DB-9 adapter
Switch console port (DTE)
RJ-45-to-DB-9 terminal adapter
Console device
Signal
DB-9 Pin
Signal
TxD
2
RxD
GND
5
GND
GND
5
GND
RxD
3
TxD
Table 2. Console port signaling with a DB-25 adapter
