Overview

Provides a reference network design to support scalable EVPN multihoming and fabric core network.

This section provides a reference network design and configuration to implement end-to-end Layer 2 flood-free DAG routed overlay fabric network.

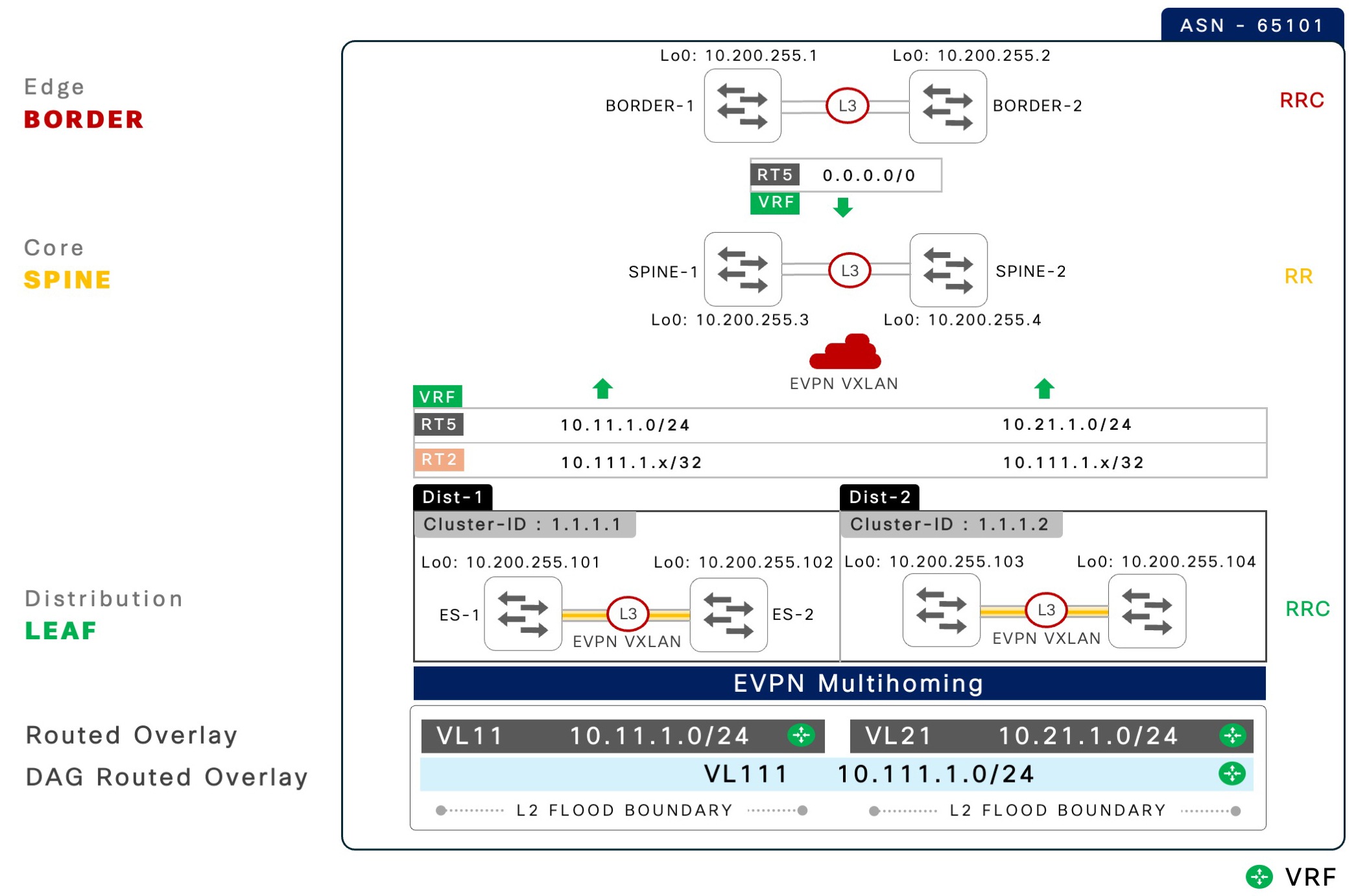

This following figure illustrates a reference network design to support scalable EVPN multihoming and fabric core with hierarchical BGP peering, control-plane peering, and selective stretching of an IP subnet between a pair of Cisco Catalyst 9000 series switches deployed in the distribution block with overlay fabric network.

Figure 1. EVPN multihoming: DAG routed overlay fabric network

DAG routed overlay fabric network

This reference configuration shows a three-step process, from the initial network setup to the successful fabric deployment. Network administrators can follow these steps sequentially for initial deployment and to increment the overlay network configuration as the network demands increase.

Layer 2 EVPN multihoming

The base configuration to build a fabric begins with Layer 2 campus networks using EVPN multihoming technology. This section provides the step-by-step configuration on a pair of Cisco Catalyst 9000 series switches to successfully build a non-blocking all-active Layer 2 network with EVPN multihoming.

Step

ES-1 and ES-2

ES-3 and ES-4

1: Inter-ES Layer 3 EtherChannel


ES-1
!
interface Port-Channel 128
 description CONNECTED TO EVPN MH SW-2
 no switchport
 ip address 10.0.0.0 255.255.255.254
 ip ospf network point-to-point
 ip ospf multi-area 0
 ip ospf 100 area 101
 ip ospf cost 10
 carrier-delay msec 0
 hold-queue 4094 in
 hold-queue 4094 out
 evpn multihoming core-tracking
!
ES-2
!
interface Port-Channel 128
 description CONNECTED TO EVPN MH SW-2
 no switchport
 ip address 10.0.0.1 255.255.255.254
 ip ospf network point-to-point
 ip ospf multi-area 0
 ip ospf 100 area 101
 ip ospf cost 10
 carrier-delay msec 0
 hold-queue 4094 in
 hold-queue 4094 out
 evpn multihoming core-tracking
!


ES-3
!
interface Port-Channel 128
 description CONNECTED TO EVPN MH SW-1
 no switchport
 ip address 10.0.0.2 255.255.255.254
 ip ospf network point-to-point
 ip ospf multi-area 0
 ip ospf 100 area 102
 ip ospf cost 10
 carrier-delay msec 0
 hold-queue 4094 in
 hold-queue 4094 out
 evpn multihoming core-tracking
!
ES-4
!
interface Port-Channel 128
 description CONNECTED TO EVPN MH SW-1
 no switchport
 ip address 10.0.0.3 255.255.255.254
 ip ospf network point-to-point
 ip ospf multi-area 0
 ip ospf 100 area 102
 ip ospf cost 10
 carrier-delay msec 0
 hold-queue 4094 in
 hold-queue 4094 out
 evpn multihoming core-tracking
!

2: IGP routing and core interface


ES-1
!
router ospf 100
 router-id 10.200.255.101
 max-metric router-lsa include-stub summary-lsa
    external-lsa on-startup wait-for-bgp
 nsf cisco
 fast-reroute per-prefix enable prefix-priority
    low
 area 101 stub no-summary
 passive-interface default
 no passive-interface Port-Channel 128
 no passive-interface HundredGig1/0/49
 no passive-interface HundredGig1/0/50
!
interface Loopback 0
 ip address 10.100.255.101 255.255.255.255
 ip ospf 100 area 0
!
ES-2
!
router ospf 100
 router-id 10.200.255.102
 max-metric router-lsa include-stub summary-lsa
    external-lsa on-startup wait-for-bgp
 nsf cisco
 fast-reroute per-prefix enable prefix-priority
   low
 area 101 stub no-summary
 passive-interface default
 no passive-interface Port-Channel 128
 no passive-interface HundredGig1/0/49
 no passive-interface HundredGig1/0/50
!
interface Loopback 0
 ip address 10.100.255.102 255.255.255.255
 ip ospf 100 area 0
!


ES-3
!
router ospf 100
 router-id 10.200.255.103
 max-metric router-lsa include-stub summary-lsa
    external-lsa on-startup wait-for-bgp
 nsf cisco
 fast-reroute per-prefix enable prefix-priority
   low
 area 102 stub no-summary
 passive-interface default
 no passive-interface Port-Channel 128
 no passive-interface HundredGig1/0/49
 no passive-interface HundredGig1/0/50
!
interface Loopback 0
 ip address 10.100.255.103 255.255.255.255
 ip ospf 100 area 0
!
ES-4
!
router ospf 100
 router-id 10.200.255.104
 max-metric router-lsa include-stub summary-lsa
   external-lsa on-startup wait-for-bgp
 nsf cisco
 fast-reroute per-prefix enable prefix-priority
   low
 area 102 stub no-summary
 passive-interface default
 no passive-interface Port-Channel 128
 no passive-interface HundredGig1/0/49
 no passive-interface HundredGig1/0/50
!
interface Loopback 0
 ip address 10.100.255.104 255.255.255.255
 ip ospf 100 area 0
!

3: iBGP routing


ES-1
!
router bgp 65101
 template peer-policy ES-PEER-POLICY
  send-community both
 !
 template peer-session ES-PEER-SESSION-POLICY
  remote-as 65101
  description EVPN-MH-DIST-2-PEER
  update-source Loopback0
  fall-over host-route
 !
 bgp router-id interface Loopback0
 bgp log-neighbor-changes
 bgp graceful-restart
 no bgp default ipv4-unicast
 neighbor 10.100.255.102 inherit peer-session
    ES-PEER-SESSION-POLICY
 !
 address-family l2vpn evpn
  bgp nexthop trigger critical-delay 0
  neighbor 10.100.255.102 activate
  neighbor 10.100.255.102 send-community both
  neighbor 10.100.255.102 inherit peer-policy
    ES-PEER-POLICY
 !
ES-2
!
router bgp 65101
 template peer-policy ES-PEER-POLICY
  send-community both
 !
 template peer-session ES-PEER-SESSION-POLICY
  remote-as 65101
  description EVPN-MH-DIST-2-PEER
  update-source Loopback0
  fall-over host-route
 !
 bgp router-id interface Loopback0
 bgp log-neighbor-changes
 bgp graceful-restart
 no bgp default ipv4-unicast
 neighbor 10.100.255.101 inherit peer-session
    ES-PEER-SESSION-POLICY
 !
 address-family l2vpn evpn
  bgp nexthop trigger critical-delay 0
  neighbor 10.100.255.101 activate
  neighbor 10.100.255.101 send-community both
  neighbor 10.100.255.101 inherit peer-policy
    ES-PEER-POLICY
 !


ES-3
!
router bgp 65101
 template peer-policy ES-PEER-POLICY
  send-community both
 !
 template peer-session ES-PEER-SESSION-POLICY
  remote-as 65101
  description EVPN-MH-DIST-1-PEER
  update-source Loopback0
  fall-over host-route
 !
 bgp router-id interface Loopback0
 bgp log-neighbor-changes
 bgp graceful-restart
 no bgp default ipv4-unicast
 neighbor 10.100.255.104 inherit peer-session
    ES-PEER-SESSION-POLICY
 !
 address-family l2vpn evpn
  bgp nexthop trigger critical-delay 0
  neighbor 10.100.255.104 activate
  neighbor 10.100.255.104 send-community both
  neighbor 10.100.255.104 inherit peer-policy
    ES-PEER-POLICY
 !
ES-4
!
router bgp 65101
 template peer-policy ES-PEER-POLICY
  send-community both
 !
 template peer-session ES-PEER-SESSION-POLICY
  remote-as 65101
  description EVPN-MH-DIST-1-PEER
  update-source Loopback0
  fall-over host-route
 !
 bgp router-id interface Loopback0
 bgp log-neighbor-changes
 bgp graceful-restart
 no bgp default ipv4-unicast
 neighbor 10.100.255.103 inherit peer-session
    ES-PEER-SESSION-POLICY
 !
 address-family l2vpn evpn
  bgp nexthop trigger critical-delay 0
  neighbor 10.100.255.103 activate
  neighbor 10.100.255.103 send-community both
  neighbor 10.100.255.103 inherit peer-policy
    ES-PEER-POLICY
 !

4: Global L2VPN


!
l2vpn evpn
advertise mac disable
anycast-gateway mac auto
multicast advertise sync-only
multihoming aliasing disable
multihoming peering adjacent
replication-type ingress
router-id Loopback 0
!


!
l2vpn evpn
advertise mac disable
anycast-gateway mac auto
multicast advertise sync-only
multihoming aliasing disable
multihoming peering adjacent
replication-type ingress
router-id Loopback 0
!

5: Routed VLAN and MAC VRF


!
vlan 11
 name ROUTED_DATA_VLAN
!
l2vpn evpn instance 11 vlan-based
 encapsulation vxlan
!
vlan configuration 11
 member evpn-instance 11 vni 11011
!
 interface nve 1
 source-interface Loopback 0
 host-reachability protocol bgp
 member vni 11011 ingress-replication
!


!
vlan 11
 name ROUTED_DATA_VLAN
!
l2vpn evpn instance 11 vlan-based
 encapsulation vxlan
!
vlan configuration 11
 member evpn-instance 11 vni 11011
!
 interface nve 1
 source-interface Loopback 0
 host-reachability protocol bgp
 member vni 11011 ingress-replication
!

6: DAG-routed VLAN and MAC VRF


!
vlan 111
 name DAG_ROUTED_DATA_VLAN
!
l2vpn evpn instance 111 vlan-based
 encapsulation vxlan
 route-target 1.1.1.1:111
 no auto-route-target
!
vlan configuration 111
 member evpn-instance 111 vni 11111
!
 interface nve 1
 member vni 11111 ingress-replication
!


!
vlan 111
 name DAG_ROUTED_DATA_VLAN
!
l2vpn evpn instance 111 vlan-based
 encapsulation vxlan
 route-target 1.1.1.1:111
 no auto-route-target
!
vlan configuration 111
 member evpn-instance 111 vni 11111
!
 interface nve 1
 member vni 11111 ingress-replication
!

7: ES EtherChannel


!
interface Port-Channel 1
 description CONNECTED TO L2 ACCESS
 switchport trunk allowed vlan 11,111
 evpn ethernet-segment auto lacp
   df-election wait-time 1
!


!
interface Port-Channel 1
 description CONNECTED TO L2 ACCESS
 switchport trunk allowed vlan 11,111
 evpn ethernet-segment auto lacp
   df-election wait-time 1
!

Underlay: fabric core and BGP peering

Enterprise campus core networks with solid underlay network foundation are the key for highly scalable, resilient BGP EVPN VXLAN fabric networks. This section is the second step to build a reliable underlay core network for fabric and hierarchical BGP peering on targeted network devices with specific roles.

Note

The table is subdivided into two fabric roles with each step either sharing common configuration or a unique per-device with a common role.

Step

ES-1, ES-2, ES-3 and ES-4

Spine-1 and Spine-2

Border-1 and Border-2

1: Global best practices


!
system mtu 9100
!
port-channel load-balance
   vlan-src-dst-mixed-ip-port
ip cef load-sharing algorithm
   include-ports
 source destination protocol
!
ip tcp mss 8000
ip tcp window-size 262144
ip tcp path-mtu-discovery
!


!
system mtu 9100
!
port-channel load-balance
  vlan-src-dst-mixed-ip-port
ip cef load-sharing algorithm
   include-ports
 source destination protocol
!
ip tcp mss 8000
ip tcp window-size 262144
ip tcp path-mtu-discovery
!


!
system mtu 9100
!
port-channel load-balance
  vlan-src-dst-mixed-ip-port
ip cef load-sharing algorithm
  include-ports
 source destination protocol
!
ip tcp mss 8000
ip tcp window-size 262144
ip tcp path-mtu-discovery
!

2: Underlay interface configuration and best practices


!
interface range
   HundredGig1/0/49-50
 description CONNECTED TO SPINE
 ip ospf 100 area 0
 ip ospf network point-to-point
 carrier-delay msec 0
 hold-queue 4094 in
 hold-queue 4094 out
 evpn multihoming core-tracking
!


!
interface range HundredGig1/0/1-4
 description CONNECTED TO CAMPUS
   CORE NETWORK
 ip ospf 100 area 0
 ip ospf network point-to-point
 carrier-delay msec 0
 hold-queue 4094 in
 hold-queue 4094 out
!


!
interface range
   HundredGig1/0/49-50
 description CONNECTED TO SPINE
 ip ospf 100 area 0
 ip ospf network point-to-point
 carrier-delay msec 0
 hold-queue 4094 in
 hold-queue 4094 out
!

3: OSPF routing configuration and best practices


ES-1 and ES-2
!
router ospf 100
 max-metric router-lsa include-stub
   summary-lsa external-lsa on-startup
    wait-for-bgp
 nsf cisco
 fast-reroute per-prefix enable
   prefix-priority low
 area 101 stub no-summary
 passive-interface default
 no passive-interface Port-Channel 128
 no passive-interface HundredGig1/0/49
 no passive-interface HundredGig1/0/50
!


ES-3 and ES-4
!
router ospf 100
 max-metric router-lsa include-stub
    summary-lsa external-lsa on-startup
    wait-for-bgp
 nsf cisco
 fast-reroute per-prefix enable
    prefix-priority low
 area 102 stub no-summary
 passive-interface default
 no passive-interface Port-Channel 128
 no passive-interface HundredGig1/0/49
 no passive-interface HundredGig1/0/50
!


SPINE-1
!
router ospf 100
 router-id 10.200.255.3
 max-metric router-lsa include-stub
   summary-lsa external-lsa on-startup
   wait-for-bgp
 nsf cisco
 fast-reroute per-prefix enable
   prefix-priority low
passive-interface default
 no passive-interface HundredGig1/0/1
 no passive-interface HundredGig1/0/2
no passive-interface HundredGig1/0/3
 no passive-interface HundredGig1/0/4
!


SPINE-2
!
router ospf 100
 router-id 10.200.255.4
 max-metric router-lsa include-stub
    summary-lsa external-lsa on-startup
    wait-for-bgp
 nsf cisco
 fast-reroute per-prefix enable
   prefix-priority low
 passive-interface default
 no passive-interface HundredGig1/0/1
 no passive-interface HundredGig1/0/2
no passive-interface HundredGig1/0/3
 no passive-interface HundredGig1/0/4
!


BORDER-1
!
router ospf 100
 router-id 10.200.255.1
 max-metric router-lsa include-stub
    summary-lsa external-lsa on-startup
    wait-for-bgp
 nsf cisco
 fast-reroute per-prefix enable
    prefix-priority low
passive-interface default
 no passive-interface HundredGig1/0/49
 no passive-interface HundredGig1/0/50
!


BORDER-2
!
router ospf 100
 router-id 10.200.255.2
 max-metric router-lsa include-stub
    summary-lsa external-lsa on-startup
    wait-for-bgp
 nsf cisco
 fast-reroute per-prefix enable
     prefix-priority low
 passive-interface default
 no passive-interface HundredGig1/0/49
 no passive-interface HundredGig1/0/50
!

4:BGP routing configuration and best practices


!
router bgp 65101
!
bgp router-id interface Loopback0
bgp log-neighbor-changes
bgp graceful-restart
no bgp default ipv4-unicast
!


!
router bgp 65101
!
bgp router-id interface Loopback0
bgp log-neighbor-changes
bgp graceful-restart
no bgp default ipv4-unicast
!


!
router bgp 65101
!
bgp router-id interface Loopback0
bgp log-neighbor-changes
bgp graceful-restart
no bgp default ipv4-unicast
!

5: Peer-session and peer-policy templates and parameters for leaf switches

!
template peer-session
   EVPN-SPINE-PEER-SESSION-POLICY
  remote-as 65101
  description EVPN-SPINE-PEER
  log-neighbor-changes
  update-source Loopback0
  fall-over host-route
 !
template peer-policy
    EVPN-SPINE-PEER-POLICY
  send-community both
!


!
template peer-session
   EVPN-LEAF-PEER-SESSION-POLICY
  remote-as 65101
  description EVPN-LEAF-PEER
  log-neighbor-changes
  update-source Loopback0
  fall-over host-route
!
template peer-policy
   EVPN-LEAF-PEER-POLICY
  route-reflector-client
  send-community both
 !

6: Peer-session and policy templates and parameters for border switches

!
template peer-session
   EVPN-BORDER-PEER-SESSION-POLICY
  remote-as 65101
  description EVPN-BORDER-PEER
  log-neighbor-changes
  update-source Loopback0
  fall-over host-route
 !
template peer-policy
   EVPN-BORDER-PEER-POLICY
  route-reflector-client
  send-community both
 !


!
template peer-session
    EVPN-SPINE-PEER-SESSION-POLICY
  remote-as 65101
  description EVPN-SPINE-PEER
  log-neighbor-changes
  update-source Loopback0
  fall-over host-route
 !
template peer-policy
    EVPN-SPINE-PEER-POLICY
  send-community both
!

7: Disable intra-cluster EVPN multihome leaf reflection

!
no bgp client-to-client reflection
   intra-cluster cluster-id any

8: Border-spine iBGP peering

!
neighbor 10.200.255.1 inherit
   peer-session EVPN-BORDER-PEER-SESSION-POLICY
!
 neighbor 10.200.255.2 inherit
   peer-session EVPN-BORDER-PEER-SESSION-POLICY
 !


!
neighbor 10.200.255.3 inherit
   peer-session EVPN-SPINE-PEER-SESSION-POLICY
!
 neighbor 10.200.255.4 inherit
    peer-session EVPN-SPINE-PEER-SESSION-POLICY
!

9: Leaf iBGP peering


!
neighbor 10.200.255.3
   inherit peer-session
   EVPN-SPINE-PEER-SESSION-POLICY
!
 neighbor 10.200.255.4
   inherit peer-session
   EVPN-SPINE-PEER-SESSION-POLICY
!


!
neighbor 10.200.255.101
    inherit peer-session
    EVPN-LEAF-PEER-SESSION-POLICY
 neighbor 10.200.255.101
    cluster-id 1.1.1.1
!
 neighbor 10.200.255.102
    inherit peer-session
    EVPN-LEAF-PEER-SESSION-POLICY
 neighbor 10.200.255.102
    cluster-id 1.1.1.1
 !
neighbor 10.200.255.103
    inherit peer-session
    EVPN-LEAF-PEER-SESSION-POLICY
 neighbor 10.200.255.101
    cluster-id 1.1.1.2
!
 neighbor 10.200.255.104
    inherit peer-session
    EVPN-LEAF-PEER-SESSION-POLICY
 neighbor 10.200.255.102
    cluster-id 1.1.1.2
 !

10: Activate leaf and border iBGP peering under L2VPN EVPN address family

!
address-family l2vpn evpn
  bgp nexthop trigger critical-delay 0
  neighbor 10.200.255.3 activate
  neighbor 10.200.255.3
    send-community both
  neighbor 10.200.255.3
    inherit peer-policy
    EVPN-SPINE-PEER-POLICY
  neighbor 10.200.255.4 activate
  neighbor 10.200.255.4
    send-community both
  neighbor 10.200.255.4 inherit
    peer-policy EVPN-SPINE-PEER-POLICY
!


!
address-family l2vpn evpn
  bgp nexthop trigger
     critical-delay 0
  neighbor 10.200.255.1 activate
  neighbor 10.200.255.1
     send-community both
  neighbor 10.200.255.1
     inherit peer-policy
     EVPN-BORDER-PEER-POLICY
  neighbor 10.200.255.2 activate
  neighbor 10.200.255.2
     send-community both
  neighbor 10.200.255.2 inherit
     peer-policy
     EVPN-BORDER-PEER-POLICY
!
  neighbor 10.200.255.101 activate
  neighbor 10.200.255.101
     send-community both
  neighbor 10.200.255.101
     inherit peer-policy
     EVPN-LEAF-PEER-POLICY
  neighbor 10.200.255.102 activate
  neighbor 10.200.255.102
     send-community both
  neighbor 10.200.255.102 inherit
     peer-policy EVPN-LEAF-PEER-POLICY
!
  neighbor 10.200.255.103 activate
  neighbor 10.200.255.103
     send-community both
  neighbor 10.200.255.103
     inherit peer-policy
     EVPN-LEAF-PEER-POLICY
  neighbor 10.200.255.104 activate
  neighbor 10.200.255.104
     send-community both
  neighbor 10.200.255.104 inherit
     peer-policy EVPN-LEAF-PEER-POLICY
!


!
address-family l2vpn evpn
  bgp nexthop trigger
     critical-delay 0
  neighbor 10.200.255.3 activate
  neighbor 10.200.255.3
    send-community both
  neighbor 10.200.255.3
     inherit peer-policy
     EVPN-SPINE-PEER-POLICY
  neighbor 10.200.255.4 activate
  neighbor 10.200.255.4
     send-community both
  neighbor 10.200.255.4
     inherit peer-policy
     EVPN-SPINE-PEER-POLICY
!

Overlay: DAG routed networks

The overlay network configuration is the final step to enable a fabric in the enterprise campus. This section provides step-by-step configuration procedures on VTEPs involved in a DAG routed overlay network that exchanges IP prefixes between external and internal network domains.

Step

ES-1, ES-2, ES-3 and ES-4

Border-1 and Border-2

1: IP VRF configuration


ES-1
!
vrf definition green
 rd 10.200.255.101:101
 address-family ipv4 unicast
 route-target 65101:101
 route-target 65101:101 stitching
!
ES-2
!
vrf definition green
 rd 10.200.255.102:101
 address-family ipv4 unicast
 route-target 65101:101
 route-target 65101:101 stitching
!
ES-3
!
vrf definition green
 rd 10.200.255.103:101
 address-family ipv4 unicast
 route-target 65101:101
 route-target 65101:101 stitching
!
ES-4
!
vrf definition green
 rd 10.200.255.104:101
 address-family ipv4 unicast
 route-target 65101:101
 route-target 65101:101 stitching
!


BORDER-1
!
vrf definition green
 rd 10.200.255.1:101
 address-family ipv4 unicast
 route-target 65101:101
 route-target 65101:101 stitching
!
BORDER-2
!
vrf definition green
 rd 10.200.255.2:101
 address-family ipv4 unicast
 route-target 65101:101
 route-target 65101:101 stitching
!

2: IP VRF core VLAN configuration


!
vlan 101
  name VRF_GREEN_CORE_VLAN
!
vlan configuration 101
 member vni 10011
!
interface vlan 101
 description CORE VLAN
    – VRF GREEN
 vrf forwarding green
 ip unnumbered Loopback0
 no autostate
 !


!
vlan 101
  name VRF_GREEN_CORE_VLAN
!
vlan configuration 101
 member vni 10011
!
interface vlan 101
 description CORE VLAN
   – VRF GREEN
 vrf forwarding green
 ip unnumbered Loopback0
 no autostate
 !

3: IP VRF L3VNI to NVE interface binding


!
interface nve 1
 member vni 10011 vrf green
!


!
interface nve 1
 member vni 10011 vrf green
!

4: Network edge to access or external domain.

ES-1 and ES-2
!
interface Vlan 11
 description ROUTED DATA VLAN
    – VRF GREEN
 vrf forwarding green
 ip address 10.11.1.254
     255.255.255.0
!
interface Vlan 111
 description DAG ROUTED DATA
      VLAN – VRF GREEN
 vrf forwarding green
 ip address 10.111.1.254
     255.255.255.0
!

ES-3 and ES-4
!
interface Vlan 21
 description ROUTED DATA
     VLAN – VRF GREEN
 vrf forwarding green
 ip address 10.21.1.254
     255.255.255.0
!
interface Vlan 111
 description DAG ROUTED
     DATA VLAN – VRF GREEN
 vrf forwarding green
 ip address 10.111.1.254
     255.255.255.0
!


BORDER-1
!
interface Vlan 2001
 description FIREWALL
     HANDOFF – VRF GREEN
 vrf forwarding green
 ip address 21.1.1.0
     255.255.255.254
!
BORDER-2
!
interface Vlan 2002
 description FIREWALL
     HANDOFF – VRF GREEN
 vrf forwarding green
 ip address 21.1.1.2
     255.255.255.254
!

5: Route-map policy


!
route-map SPINE-ROUTE-POLICY-OUT
   permit 10
 description ROUTED OVERLAY
    NETWORK POLICY
 match evpn route-type 5
!
route-map SPINE-ROUTE-POLICY-OUT
    permit 20
 description DAG ROUTED
    OVERLAY NETWORK POLICY
 match evpn route-type 2-mac-ip
!

6: Apply spine policy to BGP template


!
router bgp 65101
!
template peer-policy
   EVPN-SPINE-PEER-POLICY
 route-map SPINE-ROUTE-POLICY-OUT out
!

7: IP routing


!
router bgp 65101
!
address-family ipv4 vrf green
 advertise l2vpn evpn
 redistribute connected
 maximum-paths ibgp 2
!


BORDER-1
!
router bgp 65101
!
address-family ipv4 vrf green
 advertise l2vpn evpn
 neighbor 21.1.1.1 remote-as 65001
 neighbor 21.1.1.1 activate
 maximum-paths ibgp 2
!
BORDER-2
!
router bgp 65101
!
address-family ipv4 vrf green
 advertise l2vpn evpn
 neighbor 21.1.1.3 remote-as 65001
 neighbor 21.1.1.3 activate
 maximum-paths ibgp 2
!
