Overview
Specifications for the 1400W AC and 2000W DC power supply modules.
These sections describe the 1400W AC and 2000W DC power supply specifications and the supported AC and DC power cords.
1400-W AC-input power supply specifications
This section describes the specifications of NXA-PAC-1400W-PI and NXA-PAC-1400W-PE.
| Property | Specification |
|---|---|
| Input voltage range |
100 VAC to 127 VAC 200 VAC to 240 VAC |
| Input frequency |
50 to 60 Hz |
| Efficiency |
90% or greater (20 to 100% load) |
| Output power |
1,000 W/36 W 100-127 VAC 1,400 W/36 W 200-240 VAC |
| Redundancy modes |
1 +1 |
| RoHS compliance |
Yes |
| Hot swappable |
Yes |
AC power cords for 1400W AC power supply units
This table lists the specifications for the AC power cords that are available for the 1400W AC-input power supply.
| Power Supply |
Region |
Power Cord Part Number |
Cord Set Description |
|---|---|---|---|
| NXA-PAC-1400W-PI and NXA-PAC-1400W-PE |
North American |
CAB-AC-10A-NA |
Power cord 10A NEMA 5-15P plug for North America |
| European |
CAB-AC-10A-EU |
Power cord 10A CEE 7/7 plug for Europe |
|
| Italy |
CAB-AC-10A-ITA |
Power cord 10A CEI 23-16/7 for Italy |
|
| Britain |
CAB-AC-10A-GRB |
Power cord 10A BS1363 plug for Britain |
|
| Australia and New Zealand |
CAB-AC-10A-ANZ |
Power cord 10A AS3112 plug for Australia and New Zealand |
|
| Japan |
CAB-AC-10A-JPN1 |
Power cord 10A JIS C8303 plug for Japan |
|
| Japan |
CAB-AC-10A-JPN2 |
Power cord 10A JIS C8303 plug 2 Pin non-polarized for Japan |
|
| Japan |
CAB-C13-C14-2M-JP |
Power cord C13-C14, 2M/6.5ft Japan PSE mark |
|
| Switzland |
CAB-AC-10A-CHE |
Power cord 10A SEV 1011 for Switzerland |
|
| Denmark |
CAB-AC-10A-DEN |
Power cord 10A DK2-5A plug for Denmark |
|
| China |
CAB-AC-10A-CHN |
Power cord 10A GB1002 plug |
|
| Brazil |
CAB-AC-10A-BRZ |
Power cord 10A NBR 14136 plug 3 pins for Brazil |
|
| Korea |
CAB-AC-10A-KOR |
Power cord 10A KSC8305 plug for Korea |
|
| CAB-C13-C14-2M |
Power cord jumper, C13-C14 connectors, 2 meters length |
||
| India |
CAB-IND-10A |
10A Power cable for India |
|
| India |
CAB-C13-C14-IN |
Power cord jumper, C13-C14 connectors,1.4 meters length, India |
|
| India |
CAB-C13-C14-3M-IN |
Power cord jumper, C13-C14 connectors, 3 meters length, India |
|
| CAB-C13-CBN |
Cabinet jumper power cord, 250 VAC 10A, C14-C13 connectors |
||
| NXA-PDC-2KW-PI |
NO-POWER-CORD |
No power cord included with the switch |
|
| PWR-2KW-DC-CBL |
Power cord - 2KW DC |
2000-W DC-input power supply specifications
This section describes the specifications of NXA-PDC-2KW-PI.
| Property | Specification |
|---|---|
| Power |
2000 W |
| Input voltage range | Nominal: -48 to -60 VDC |
| Frequency |
- |
| Efficiency |
90% or greater (20 to 100% load) |
| Output power |
2000W (36W standby) |
| Redundancy modes |
1+1 |
| RoHS compliance |
Yes |
| Hot swappable |
Yes |
DC power cords for 2000W DC power supply units
This table lists the specifications for the DC power cords that are available for the 2000W DC-input power supply.
| Part ID Number |
Description |
Illustration |
|---|---|---|

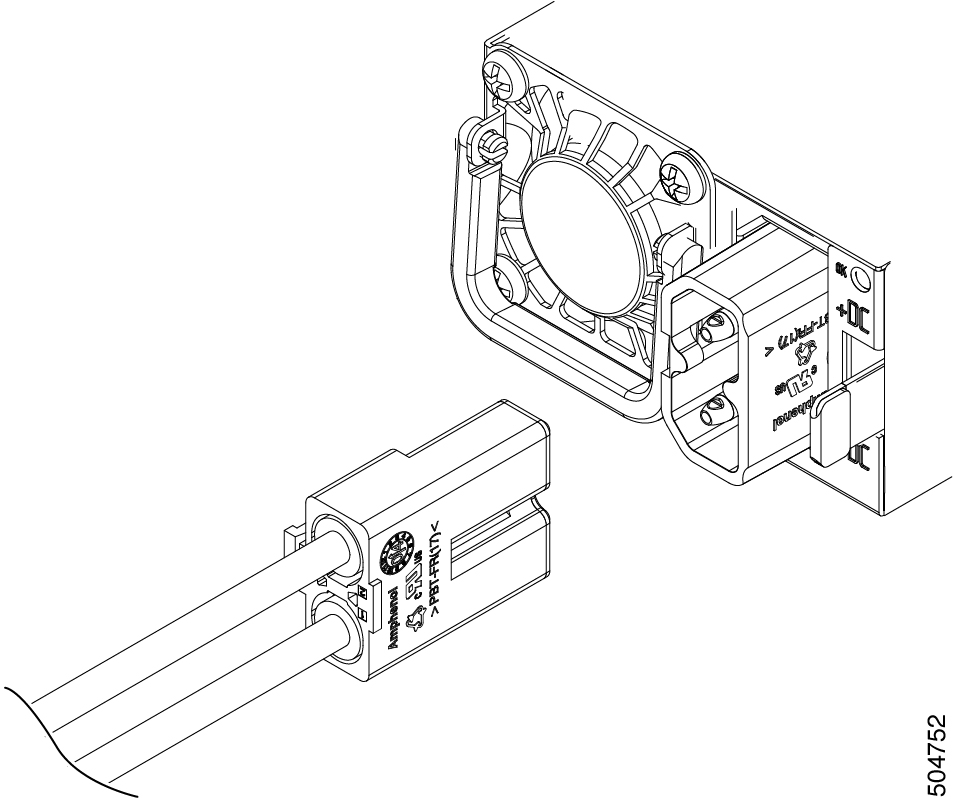

| NXA-PDC-2KW-PI |
The 2000W DC power supply (NXA-PDC-2KW-PI) is not shipped with a connector. You must purchase the cable (PWR-2KW-DC-CBL) separately. |
|
