Monitoring MToP Services

The following topics describe Mobile Transport over Packet (MToP) services and the properties available in Cisco Prime Network Vision (Prime Network Vision):

•User Roles Required to Work with MToP

•Viewing SAToP Pseudowire Type in Logical Inventory

•Viewing CESoPSN Pseudowire Type in Logical Inventory

•Viewing Virtual Connection Properties

•Viewing IMA Group Properties

•Viewing TDM Properties

•Viewing Channelization Properties

•Viewing MLPPP Properties

•Viewing MLPPP Link Properties

•Viewing MPLS Pseudowire over GRE Properties

•Network Clock Service Overview

•Viewing CEM and Virtual CEM Properties

•Configuring SONET

•Configuring Clock

•Configuring TDM and Channelization

•Configuring Automatic Protection Switching (APS )

User Roles Required to Work with MToP

This topic identifies the roles that are required to work with MToP in Prime Network Vision. Prime Network determines whether you are authorized to perform a task as follows:

•For GUI-based tasks (tasks that do not affect elements), authorization is based on the default permission that is assigned to your user account.

•For element-based tasks (tasks that do affect elements), authorization is based on the default permission that is assigned to your account. That is, whether the element is in one of your assigned scopes and whether you meet the minimum security level for that scope.

For more information on user authorization, see the Cisco Prime Network 3.10 Administrator Guide.

The following tables identify the tasks that you can perform:

•Table 21-1 identifies the tasks that you can perform if a selected element is not in one of your assigned scopes.

•Table 21-2 identifies the tasks that you can perform if a selected element is in one of your assigned scopes.

By default, users with the Administrator role have access to all managed elements. To change the Administrator user scope, see the topic on device scopes in the Cisco Prime Network 3.10 Administrator Guide.

Table 21-1 Default Permission/Security Level Required for Viewing MToP Properties - Element Not in User's Scope

Task
Viewer
Operator
OperatorPlus
Configurator
Administrator

View MToP properties

—

—

—

—

X

Using SONET Configure, Clear, and Show Commands

—

—

—

X

X


Table 21-2 Default Permission/Security Level Required for Viewing MToP Properties - Element in User's Scope

Task
Viewer
Operator
OperatorPlus
Configurator
Administrator

View MToP properties

X

X

X

X

X

Using SONET Configure, Clear, and Show Commands

—

—

—

X

X


Viewing SAToP Pseudowire Type in Logical Inventory

Structure-Agnostic Time Division Multiplexing (TDM) over Packet (SAToP) enables the encapsulation of TDM bit-streams (T1, E1, T3, or E3) as pseudowires over PSNs. As a structure-agnostic protocol, SAToP disregards any structure that might be imposed on the signals and TDM framing is not allowed.

To view the SAToP pseudowire type in logical inventory:

Step 1 In Prime Network Vision, right-click the device on which SAToP is configured, then choose Inventory.

Step 2 In the inventory window, choose Logical Inventory > Pseudowires.

Step 3 In the Tunnel Edges table, select the required entry and scroll horizontally until you see the Pseudowire Type column. See Figure 21-1.

Note You can also view this information by right-clicking the entry in the table and choosing Properties.

Figure 21-1 SAToP Pseudowire Type in Logical Inventory

Step 4 To view the physical inventory for the port, click the hypertext port link.

Viewing CESoPSN Pseudowire Type in Logical Inventory

Circuit Emulation Services over PSN (CESoPSN) is a method for encapsulating structured (NxDS0) TDM signals as pseudowires over packet-switching networks, complementary to SAToP. By emulating NxDS0 circuits, CESoPSN:

•Saves PSN bandwidth.

•Supports DS0-level grooming and distributed cross-connect applications.

To view TDM properties for Circuit Emulation (CEM) groups in Prime Network Vision:

Step 1 In Prime Network Vision, right-click the device on which CESoPSN is configured, then choose Inventory.

Step 2 In the inventory window, choose Logical Inventory > Pseudowires.

Step 3 In the Tunnel Edges table, select the required entry and scroll horizontally until you see the Pseudowire Type column. See Figure 21-2.

Note You can also view this information by right-clicking the entry in the table and choosing Properties.

Figure 21-2 CESoPSN Pseudowire Type in Logical Inventory

Step 4 To view the physical inventory for the port, click the hypertext port link.

Viewing Virtual Connection Properties

The following topics describe how to view properties related to virtual connections:

•Viewing ATM Virtual Connection Cross-Connects

•Viewing ATM VPI and VCI Properties

•Viewing Encapsulation Information

Buttons for viewing these properties are available at the top of the physical inventory window for the selected interface, as shown in Figure 21-3.

Figure 21-3 ATM-Related Properties Available in Physical Inventory

1

Poll Now button

Polls the VNE for updated status.

2

Show VC Table button

Displays virtual circuit (VC) information for the selected port.

For more information, see Viewing ATM VPI and VCI Properties.

3

Show Cross Connect button

Displays cross-connect information for incoming and outgoing ports.

For more information, see Viewing ATM Virtual Connection Cross-Connects.

4

Show Encapsulation button

Displays encapsulation information for incoming and outgoing traffic for the selected item.

For more information, see Viewing Encapsulation Information.

5

Disable/Enable Sending Alarms button

Enables you to manage the alarms on a port.

For more information, see Working with Ports.

6

Port Utilization Graph button

Displays the selected port traffic statistics: Rx/Tx Rate and Rx/Tx Rate History.

For more information, see Generating the Port Utilization Graph.

—

Show DLCI Table button
(not displayed)

Displays data-link connection identifier (DCLI) information for the selected port.


Viewing ATM Virtual Connection Cross-Connects

ATM networks are based on virtual connections over a high-bandwidth medium. By using cross-connects to interconnect virtual path or virtual channel links, it is possible to build an end-to-end virtual connection.

An ATM cross-connect can be mapped at either of the following levels:

•Virtual path—Cross-connecting two virtual paths maps one Virtual Path Identifier (VPI) on one port to another VPI on the same port or a different port.

•Virtual channel—Cross-connecting at the virtual channel level maps a Virtual Channel Identifier (VCI) of one virtual channel to another VCI on the same virtual path or a different virtual path.

Cross-connect tables translate the VPI and VCI connection identifiers in incoming ATM cells to the VPI and VCI combinations in outgoing ATM cells. For information about viewing VPI and VCI properties, see Viewing ATM VPI and VCI Properties.

To view ATM virtual connection cross-connects:

Step 1 In Prime Network Vision, right-click the required device, then choose Inventory.

Step 2 Open the VC Cross Connect table in either of the following ways:

•In the inventory window, choose Logical Inventory > VC Switching Entities > VC Switching Entity. The Cross-Connect Table is displayed in the content pane as shown in Figure 21-4.

•In the inventory window:

a.  Choose Physical Inventory > Chassis > Slot > Subslot > Port.

b.  Click the Show Cross Connect button.

The VC Cross Connections window is displayed and contains the same information as the Cross-Connect Table in logical inventory.

Step 3 Select an entry and scroll horizontally until you see the required information.

Figure 21-4 ATM Virtual Connection Cross-Connect Properties

Table 21-3 identifies the properties that are displayed for ATM VC cross-connects.

Table 21-3 ATM Virtual Connection Cross-Connect Properties

Field
Description

In Port

Incoming port for the cross-connect.

In VC

Incoming virtual connection for the cross-connect.

You can view additional details about the virtual connection in the following ways:

•Click the hyperlinked entry to view the VC table.

•Right-click the entry, then choose Properties to view information about the incoming and outgoing VCIs, VPI, service category, and traffic descriptors.

Out Port

Outgoing port for the cross-connect.

Out VC

Outgoing virtual connection for the cross-connect.

You can view additional details about the virtual connection in the following ways:

•Click the hyperlinked entry to view the VC table.

•Right-click the entry, then choose Properties to view information about the incoming and outgoing VCIs, VPI, service category, and traffic descriptors.

In VC Ingress Traffic Descriptor

ATM traffic parameters and service categories for the incoming traffic on the incoming VC cross-connect.

For information on VC traffic descriptors, see Table 21-4.

In VC Egress Traffic Descriptor

ATM traffic parameters and service categories for the outgoing traffic on the incoming VC cross-connect.

For information on VC traffic descriptors, see Table 21-4.

Out VC Egress Traffic Descriptor

ATM traffic parameters and service categories for the outgoing traffic on the outgoing VC cross-connect.

For information on VC traffic descriptors, see Table 21-4.

Out VC Ingress Traffic Descriptor

ATM traffic parameters and service categories for the incoming traffic on the outgoing VC cross-connect.

For information on VC traffic descriptors, see Table 21-4.


Table 21-4 Virtual Connection Traffic Descriptors

Value
Description

ABR

Available bit rate (ABR) supports nonreal-time applications that tolerate high cell delay, and can adapt cell rates according to changing network resource availability to prevent cell loss.

CBR

Constant bit rate (CBR) supports real-time applications that request a static amount of bandwidth that is continuously available for the duration of the connection.

CDVT

Cell Delay Variation Tolerance (CDVT) specifies an acceptable deviation in cell times for a PVC that is transmitting above the PCR. For a given cell interarrival time expected by the ATM switch, CDVT allows for some variance in the transmission rate.

CLP

Cell loss priority (CLP) indicates the likelihood of a cell being dropped to ease network congestion.

MBS

Maximum Burst Size (MBS) specifies the number of cells that the edge device can transmit up to the PCR for a limited period of time without penalty for violation of the traffic contract.

MCR

Minimum Cell Rate (MCR) specifies the cell rate (cells per second) at which the edge device is always allowed to transmit.

PCR

Peak Cell Rate (PCR) specifies the cell rate (cells per second) that the edge device cannot exceed.

PDR CLP0+1: 1536

Packet delivery ratio (PDR) for all cells (both CLP1 and CLP0 cells) on the circuit.

SCR

Sustainable Cell Rate (SCR) specifies the upper boundary for the average rate at which the edge device can transmit cells without loss.

UBR

Unspecified Bit Rate (UBR) supports nonreal-time applications that tolerate both high cell delay and cell loss on the network.

UBR+

Unspecified bit rate plus (UBR+) supports nonreal-time applications that tolerate both high cell delay and cell loss on the network, but request a minimum guaranteed cell rate.

nrt-VBR

Nonreal-time variable bit rate (nrt-VBR) supports nonreal-time applications with bursty transmission characteristics that tolerate high cell delay, but require low cell loss.

rt-VBR

rt-VBR—Real-time variable bit rate (rt-VBR) supports real-time applications that have bursty transmission characteristics.


Viewing ATM VPI and VCI Properties

If you know the interface or link configured for virtual connection cross-connects, you can view ATM VPI and VCI properties from the physical inventory window or from the link properties window.

To view ATM VPI and VCI properties, open the VC Table window in either of the following ways:

•To open the VC Table window from physical inventory:

a. In the map view, double-click the element configured for virtual connection cross-connects.

b. In the inventory window, choose Physical Inventory > Chassis > Slot > Subslot > Port.

c. Click Show VC Table.

•To view the VC Table window from the link properties window:

a. In the map or links view, right-click the required ATM link and choose Properties.

b. In the link properties window, click Calculate VCs.

c. After the screen refreshes, click either Show Configured or Show Misconfigured to view the virtual connection cross-connects.

The VC Table window is displayed, as shown in Figure 21-5.

Figure 21-5 VC Table

Table 21-5 describes the information displayed in the VC Table window.

Table 21-5 VC Table Properties

Field
Description

VPI

Virtual Path Identifier for the selected port.

VCI

Virtual Channel Identifier for the selected port.

Admin Status

Administrative state of the connection: Up, Down, or Unknown.

Oper Status

Operational state of the connection: Up, Down, or Unknown.

Ingress Traffic Descriptor

Traffic parameters and service categories for the incoming traffic.

For information on VC traffic descriptors, see Table 21-4.

Egress Traffic Descriptor

Traffic parameters and service categories for the outgoing traffic.

For information on VC traffic descriptors, see Table 21-4.

Shaping Profile

Traffic shape profile used for the virtual connection.

Type

ATM traffic descriptor type for the virtual connection.

Interface Name

Interface name, such as ATM1/1/16.


Viewing Encapsulation Information

To view virtual connection encapsulation information:

Step 1 In Prime Network Vision, double-click the element configured for virtual connection encapsulation.

Step 2 In the inventory window, choose Physical Inventory > Chassis > Slot > Subslot > Port.

Step 3 Click the Show Encapsulation button.

The VC Encapsulation window is displayed as shown in Figure 21-6.

Figure 21-6 VC Encapsulation Properties

Table 21-6 describes the information displayed in the VC Encapsulation window.

Table 21-6 VC Encapsulation Properties

Field
Description

VC

Virtual connection identifier, such as VC:7/4.

Type

Type of encapsulation, such as Point-to-Point Protocol (PPP) over ATM (PPPoA) or ATM adaption layer Type 5 (AAL5).

Binding Information

Information tied to the virtual connection, such as a username.

Binding Status

Binding state: Bound or Unbound.

VC Egress Traffic Descriptor

Traffic parameters and service categories for the outgoing traffic.

For information on VC traffic descriptors, see Table 21-4.

VC Ingress Traffic Descriptor

Traffic parameters and service categories for the incoming traffic.

For information on VC traffic descriptors, see Table 21-4.

Discovery Protocols

Discovery protocol used for the VC.


Viewing IMA Group Properties

To view IMA group properties:

Step 1 In Prime Network Vision, double-click the required device.

Step 2 In the inventory window, choose Logical Inventory > IMA Groups > group. IMA group properties and the IMA Members table are displayed in the content pane as shown in Figure 21-7.

Figure 21-7 IMA Group Properties

Table 21-7 describes the information displayed for the IMA group.

Table 21-7 IMA Group Properties

Field
Description

Active Bandwidth

Active bandwidth of the IMA group.

Admin Status

Administrative status of the IMA group.

Clock Mode

Clock mode the IMA group is using:

•Common—Common transmit clocking (CTC).

•Independent—Independent transmit clocking (ITC).

Configured Bandwidth

Total bandwidth of the IMA group, which is the sum of all individual links in the group.

Description

IMA group interface name.

Frame Length

Length of the IMA group transmit frames, in the number of cells: 32, 64, 128, or 256.

A small frame length causes more overhead but loses less data if a problem occurs. We recommend a frame length of 128 cells.

Group Number

IMA group number.

Group State

IMA group status, in the order of usual appearance:

•Startup—The near end is waiting to receive indication that the far end is in Startup. The IMA group moves to the Startup-Ack state when it can communicate with the far end and has recorded IMA identifier, group symmetry, and other IMA group parameters.

•Startup ACK—Both sides of the link are enabled.

•Config Aborted—The far end has unacceptable configuration parameters, such as an unsupported IMA frame size, an incompatible group symmetry, or an unsupported IMA version.

•Insufficient Links—The near end has accepted the far end group parameters, but the far end does not have sufficient links to move into the Operational state.

•Operational—The group is not inhibited and has sufficient links in both directions. The IMA interface can receive ATM layer cells and pass them from the IMA sublayer to the ATM layer.

•Blocked—The group is blocked, even though sufficient links are active in both directions.

IMA Version

IMA version configured, either 1.0 or 1.1.

Minimum Number of Rx Links

Minimum number of Rx links needed for the IMA group to be operational.

Minimum Number of Tx Links

Minimum number of Tx links needed for the IMA group to be operational.

Number of Active Links

Number of DS1 (E1 or T1) links that are active in the group.

Number of Configured Links

Number of DS1 (E1 or T1) links that are configured in the IMA group.

Oper Status

Operational state of the IMA group interface:

•Dormant—The interface is dormant.

•Down—The interface is down.

•Not Present—An interface component is missing.

•Testing—The interface is in test mode.

•Unknown—The interface has an unknown operational status.

•Up—The interface is up.

Port Type

Type of port, such as ATM IMA.


Table 21-8 describes the information displayed in the IMA Members table.

Table 21-8 IMA Members Table

Column
Description

Admin Status

Administrative status of the IMA member.

Channelization

Channelization that occurs through the path, such as STS1-> VTG-> VT15.

Information is displayed in this field only if the T1 or E1 path was channelized. If the line was not channelized, this field is not displayed. For example, if the IMA group is configured on a T1 or E1 card, this field is not displayed.

Clocking

Source of the clocking mechanism: Internal or Line.

Description

Type of channelization, such as Synchronous Transport Signal 1 (STS-1) or Synchronous Transport Module level 1 (STM-1).

Oper Status

Operational state of the IMA member:

Physical Port

Hyperlinked entry to the port in physical inventory.

Port Type

Type of port, such as E1 or T1.


Step 3 In the IMA Members table, click a hyperlinked port entry to view the port properties in physical inventory. See Figure 21-8.

The information that is displayed for the port in physical inventory depends on the type of connection, such as SONET or ATM.

Figure 21-8 ATM IMA Port in Physical Inventory

Viewing TDM Properties

TDM is a mechanism for combining two or more slower-speed data streams into a single high-speed communication channel. In this model, data from multiple sources is divided into segments that are transmitted in a defined sequence. Each incoming data stream is allocated a timeslot of a fixed length, and the data from each stream is transmitted in turn. For example, data from data stream 1 is transmitted during timeslot 1, data from data stream 2 is transmitted during timeslot 2, and so on. After each incoming stream has transmitted data, the cycle begins again with data stream 1. The transmission order is maintained so that the input streams can be reassembled at the destination.

MToP encapsulates TDM streams for delivery over packet-switching networks (PSNs) using the following methods:

•SAToP—A method for encapsulating TDM bit-streams (T1, E1, T3, or E3) as pseudowires over PSNs.

•CESoPSN—A method for encapsulating structured (NxDS0) TDM signals as pseudowires over PSNs.

For T1 or E1 entries, the TDM properties presented in Table 21-9 are displayed in physical inventory in addition to the existing T1 or E1 properties.

Table 21-9 TDM-Specific Properties for DS1 (T1 or E1) in Physical Interfaces

Field
Description

International Bit

Whether or not the international bit is used by the controller:

•0—The international bit is not used.

•1—The international bit is used.

This property applies only to E1.

National Bits

Whether or not the national reserve bits (sa4, sa5, sa6, sa7, and sa8) are used by the controller:

•0—The national reserve bits are not used.

•1—The national reserve bits are used.

This property applies only to E1.

Line Code

Line encoding method for the DS1 link:

•For E1, the options are Alternate Mark Inversion (AMI) and high-density bipolar of order 3 (HDB3).

•For T1, the options are AMI and bipolar with 8 zero substitution (B8ZS).

Cable Length

For T1 ports in short-haul mode, the length of the cable in feet.


Viewing Channelization Properties

Prime Network Vision supports the channelization of SONET/SDH and T3 lines. When a line is channelized, it is logically divided into smaller bandwidth channels called paths. These paths (referred to as high order paths or HOPs) can, in turn, contain low order paths, or LOPs. The sum of the bandwidth on all paths cannot exceed the line bandwidth.

For SONET show and configuration commands, see Configuring SONET.

The following topics describe how to view channelization properties for SONET/SDH and T3 lines:

•Viewing SONET/SDH Channelization Properties

•Viewing T3 DS1 and DS3 Channelization Properties

Viewing SONET/SDH Channelization Properties

SONET and SDH use the same concepts for channelization, but the terminology differs. Table 21-10 describes the equivalent terms for SONET and SDH channelization. The information displayed in Prime Network Vision reflects whether SONET or SDH is configured on the interface.

Table 21-10 SONET and SDH Channelization Terminology

Concept
SONET Term
SDH Term

Frame

Synchronous Transport Signal level N (STS-N)

Synchronous Transport Module level N (STM-N)

HOP channel

STS-1

Administrative Unit (AU-n)

Lower-order channels

Virtual Tributary (VT)

Tributary Unit Group (TUG)

LOP payloads

DS1, DS3, or E1


To view SONET/SDH channelization properties:

Step 1 In Prime Network Vision, right-click the required device, then choose Inventory.

Step 2 Choose Physical Inventory > Chassis > slot > subslot > SONET/SDH-interface. The properties for SONET/SDH and OC-3 are displayed in the content pane. See Figure 21-9.

Figure 21-9 SONET/SDH Interface in Physical Inventory

Table 21-11 describes the information that is displayed for SONET/SDH and OC3 in the content pane.

Table 21-11 SONET/SDH and OC3 Properties

Field
Description
SONET/SDH High Order Path (HOP) Area

Description

SONET/SDH path description including the interface and high order path. Double-click an entry to view additional details about the path.

Channelization

Type of channelization, such as STS-1 or STM-1.

Admin Status

Administrative status of the HOP.

Oper Status

Operational status of the HOP.

OC3 Area

Admin Status

Administrative status of the OC-3 line.

Oper Status

Operational status of the OC-3 line.

Port Type

Type of port.

Last Changed

Date and time of the last status change of the line.

Scrambling

Any scrambling that has been applied to the SONET payload.

Maximum Speed

Maximum bandwidth for the line.

Loopback

Loopback setting configured on the line.

Port Description

Description of the port defined by the user.

Clocking

Clocking configured on the line.

Specific Type

Specific type of line; in this case, OC3.

Internal Port

Whether or not the line includes an internal port: True or False.

Ss Ctps Table Size

Size of the SONET/SDH Connection Termination Point (CTP) table.


Step 3 To view additional information about a channelized path, double-click the required entry in the Description column. The SONET/SDH High Order Path Properties window is displayed as shown in Figure 21-10.

Figure 21-10 SONET/SDH High Order Path Properties Window

Table 21-12 describes the information displayed in SONET/SDH High Order Path Properties window.

Table 21-12 SONET/SDH High Order Path Properties

Field
Description

Description

SONET/SDH path description including the interface and high order path. Double-click an entry to view additional details about the path.

Channelization

Type of channelization, such as Synchronous Transport Signal 1 (STS-1) or Synchronous Transport Module level 1 (STM-1).

Admin Status

Administrative status of the HOP.

Oper Status

Operational status of the HOP.

Port Type

Type of port.

Last Changed

Date and time of the last status change of the path.

Maximum Speed

Maximum bandwidth for the line.

MTU

MTU for the path.

Applique Type

Sub-STS-1 facility applied to this path. In this example, the facility applied is Virtual Tributary 1.5 (VT1.5).

Sending Alarms

Whether or not the path is sending alarms: True or False.

Low Order Path Tab

Description

Description of the low order path down to the T1 level, including the channel types (such as STS-1, VTG, or VT) and channel allocated.

Physical Port

Hyperlinked entry to the port in physical inventory.

Channelization

Channelization that occurs through the path, such as STS1-> VTG-> VT15.

Admin Status

Administrative status of the path.

Oper Status

Operational status of the path.

Clocking

Source of the clocking mechanism: Internal or Line.

Supported Alarms Tab

Name

Supported alarm.

Enable

Whether the alarm is enabled or disabled.


Viewing T3 DS1 and DS3 Channelization Properties

To view T3 DS1 and DS3 channelization properties:

Step 1 In Prime Network Vision, right-click the required device, then choose Inventory.

Step 2 Choose Physical Inventory > Chassis > slot > subslot > T3-interface.

Figure 21-11 shows DS1 channelization properties for T3 in physical inventory.

Figure 21-11 T3 DS1 Channelization Properties in Physical Inventory

Table 21-13 describes the information that is displayed for Channelized DS1 and DS3 in the content pane.

Table 21-13 Channelized DS1 and DS3 Properties

Field
Description
Channelized DS1 Table

Description

Path description including the physical interface and the channel number. Double-click an entry to view additional details about the path.

Physical Port

Physical port for the channelized line.

Channelization

Type of channelization, such as channelized T3 (CT3) to T1.

Admin Status

Administrative status of the channelized line.

Oper Status

Operational status of the channelized line.

VDC

For devices with multiple virtual contexts, the context associated with the channelized line.

Clocking

Clocking configured on the line: Internal or Line.

DS3 Area

Admin Status

Administrative status of the DS3 line.

Oper Status

Operational status of the DS3 line.

Port Type

Type of port.

Last Changed

Date and time of the last status change of the line.

Maximum Speed

Maximum bandwidth for the line.

Port Description

Description of the port configured on the interface.

Recovered Clocking ID

Recovered clock identifier, if known.

Scrambling

Any scrambling that has been applied to the SONET payload.

Framing

Type of framing applied to the line.

Loopback

Loopback setting configured on the line.

Clocking

Clocking configured on the line: Internal or Line.

Alarm State

Alarm state of the DS3 line:

•Clear—The alarm state is clear.

•AIS—Alarm Indication Signal (AIS).

•LOS—Loss of signal (LOS) alarm.

•AIS_LOS—AIS loss of signal alarm.

•LOF—Loss of frame (LOF) alarm.

•AIS_LOF—AIS loss of frame alarm.

•LOS_LOF—Loss of signal and loss of frame alarm.

•AIS_LOS_LOF—AIS loss of signal and loss of frame alarm.

•Unknown—Unknown alarm.

Internal Port

Whether or not the line includes an internal port: True or False.

Line Code

Line coding applied to the line.


Step 3 To view additional information about a DS1channelized path, double-click the required entry in the Channelized DS1 table. Figure 21-12 shows the information that is displayed in the Channelized DS1 PDH Properties window.

Figure 21-12 Channelized DS1 PDH Properties Window

Table 21-14 describes the information that is displayed in the Channelized DS1 PDH Properties window.

Table 21-14 Channelized DS1 PDH Properties Window

Field
Description
Location Area

Description

Path description including the physical interface and the channel number.

Channelization

Type of channelization used on the line, such as CT3-> T1.

Admin Status

Administrative status of the channelized line.

Oper Status

Operational status of the channelized line.

Alarm State

Alarm state of the DS1 line:

•Clear—The alarm state is clear.

•AIS—Alarm Indication Signal (AIS).

•LOS—Loss of signal (LOS) alarm.

•AIS_LOS—AIS loss of signal alarm.

•LOF—Loss of frame (LOF) alarm.

•AIS_LOF—AIS loss of frame alarm.

•LOS_LOF—Loss of signal and loss of frame alarm.

•AIS_LOS_LOF—AIS loss of signal and loss of frame alarm.

•Unknown—Unknown alarm.

Sending Alarms

Whether or not the line is sending alarms: True or False.

Maximum Speed

Maximum bandwidth for the line.

Framing

Type of framing applied to the line.

Line Code

Line coding applied to the line.

Loopback

Loopback setting configured on the line.

Clocking

Clocking configured on the line: Internal or Line.

Recovered Clock ID

Recovered clock identifier, if known.

Group Table

This table appears only if a DS0 bundle is configured on a channelized DS1 line. The properties that are displayed pertain to the DS0 bundle.

Group

Name of the DS0 bundle.

Time Slots

Range of timeslots (DS0 channels) allotted to the group.

Oper Status

Operational status of the group.

Encapsulation

Type of encapsulation used, such as High-Level Data Link Control (HDLC).

Admin Status

Administrative status of the group.

ID

DS0 bundle identifier.


Viewing MLPPP Properties

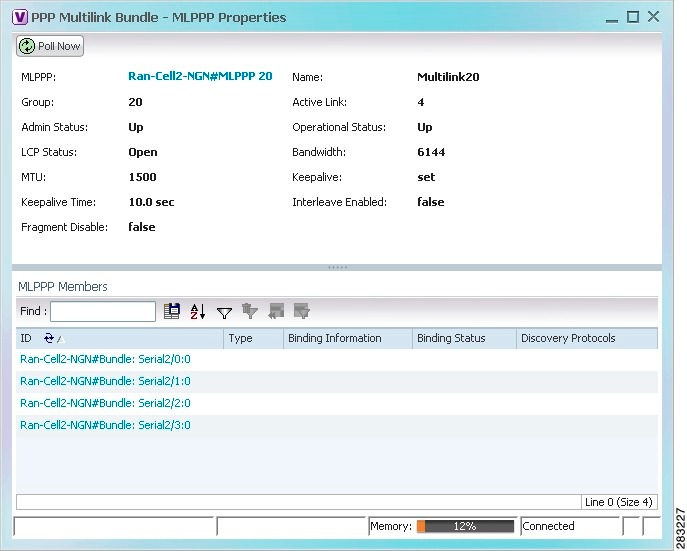

Multilink PPP (MLPPP) is a protocol that connects multiple links between two systems as needed to provide bandwidth when needed. MLPPP packets are fragmented, and the fragments are sent at the same time over multiple point-to-point links to the same remote address. MLPPP provides bandwidth on demand and reduces transmission latency across WAN links.

To view MLPPP properties:

Step 1 In Prime Network Vision, right-click the required device, then choose Inventory.

Step 2 In the inventory window, choose Logical Inventory > MLPPP. See Figure 21-13.

Figure 21-13 MLPPP Properties in Logical Inventory

Table 21-15 describes the information that is displayed for MLPPP.

Table 21-15 MLPPP Properties

Field
Description

Type

Type of properties; in this case, MLPPP.

MLPPP Bundle Table

MLPPP

MLPPP bundle name, hyperlinked to the MLPPP Properties window.

Name

MLPPP interface name.

Group

MLPPP group to which the bundle belongs.

Active Link

Number of active interfaces participating in MLPPP.

Admin Status

Administrative status of the MLPPP bundle: Up or Down.

Operational Status

Administrative status of the MLPPP bundle: Up or Down.

LCP Status

Link Control Protocol (LCP) status of the MLPPP bundle: Closed, Open, Started, or Unknown.


Step 3 To view properties for individual MLPPP bundles, double-click the hyperlinked entry in the MLPPP Bundle table.

The MLPPP Properties window is displayed as shown in Figure 21-14.

Figure 21-14 MLPPP Bundle Properties Window

Table 21-16 describes the information that is displayed in the MLPPP Properties window.

Table 21-16 MLPPP Bundle and Member Properties

Field
Description

MLPPP

MLPPP bundle name, hyperlinked to MLPPP in logical inventory.

Name

MLPPP interface name.

Group

Group to which the MLPPP bundle belongs.

Active Link

Number of active interfaces participating in MLPPP.

Admin Status

Administrative status of the MLPPP bundle: Up or Down.

Operational Status

Operational status of the MLPPP bundle: Up or Down.

LCP Status

Link Control Protocol (LCP) status of the MLPPP bundle: Closed, Open, Started, or Unknown.

Minimum Configured Link

Minimum number of configured links for an MLPPP bundle.

Maximum Configured Link

Maximum number of configured links for an MLPPP bundle.

Bandwidth

Bandwidth allocated to the MLPPP bundle.

MTU

Size of the Maximum Transmission Unit (MTU), from 1 to 2147483647 bytes.

Keepalive

Status of the keepalive function: Set, Not Set, or Unknown.

Keepalive Time

If keepalive is enabled, the amount of time, in seconds, to wait before sending a keepalive message.

Interleave Enabled

Whether or not interleaving of small fragments is enabled.

Fragment Disable

Whether fragmentation is enabled or disabled: True or False.

Fragment Delay

Maximum size, in units of time, for packet fragments on an MLPPP bundle. Values range from 1 to 999.

Fragment Maximum

Maximum number of MLPPP bundle fragments.

Keepalive Retry

Number of times that the device sends keepalive packets without response before closing the MLPPP bundle protocol. Values range from 2 to 254.

Load Threshold

Minimum load threshold for the MLPPP bundle. If the traffic load falls below the threshold, the link is removed.

MLPPP Members Table

ID

MLPPP bundle member identifier, hyperlinked to the interface in physical inventory.

Type

No value is displayed in this field.

Binding Information

Binding information to which the interface is associated. The value is null.

Binding Status

No value is displayed in this field.

Discovery Protocols

Discovery protocol used on the interface.


Step 4 To view the interface properties in physical inventory, double-click the required entry in the ID column.

Viewing MLPPP Link Properties

An MLPPP link is a link that connects two MLPPP devices.

To view MLPPP link properties:

Step 1 In the Prime Network Vision map view, select a link connected to two MLPPP devices and open the link quick view window as shown in Figure 21-15.

Figure 21-15 MLPPP Link in Link Quick View

Step 2 In the link quick view window, click Properties.

Step 3 In the link properties window, select the MLPPP link. The link properties are displayed as shown in Figure 21-16.

Figure 21-16 MLPPP Link Properties

Table 21-17 describes the information that is displayed for the MLPPP link.

Table 21-17 MLPPP Link Properties

Field
Description
General Properties

Link Type

Link protocol. In this case, MLPPP.

Type

Type of link: Dynamic or Static.

Bi Directional

Whether the link is bidirectional: True or False.

MLPPP Properties

Properties are displayed for both ends of the MLPPP link.

MLPPP

Interface configured for MLPPP, hyperlinked to the entry in physical inventory.

Group

MLPPP group to which the interface belongs.

Active Link

Number of active interfaces participating in the MLPPP link for each device.

Admin Status

Administrative status of the interface: Up or Down.

Operational Status

Operational status of the interface: Up or Down.

LCP Status

LCP status of the MLPPP interface: Closed, Open, Started, or Unknown.


Viewing MPLS Pseudowire over GRE Properties

Generic routing encapsulation (GRE) is a tunneling protocol, originated by Cisco Systems and standardized in RFC 2784. GRE encapsulates a variety of network layer packets inside IP tunneling packets, creating a virtual point-to-point link to devices at remote points over an IP network. GRE encapsulates the entire original packet with a standard IP header and GRE header before the IPsec process. GRE can carry multicast and broadcast traffic, making it possible to configure a routing protocol for virtual GRE tunnels.

In RAN backhaul networks, GRE is used to transport cell site traffic across IP networks (nonMPLS). In addition, GRE tunnels can be used to transport TDM traffic (TDMoMPLSoGRE) as part of the connectivity among cell site-facing Cisco 7600 routers and base station controller (BSC) site-facing Cisco 7600 routers, or between a Cisco Mobile Wireless Router (MWR) device and a BSC site-facing Cisco 7600 router.

Using GRE tunnels to transport Any Traffic over MPLS (AToM) enables mobile service providers to deploy AToM pseudowires in a network where MPLS availability is discontinuous; for example, in networks where the pseudowire endpoints are located in MPLS edge routers with a plain IP core network, or where two separate MPLS networks are connected by a transit network with plain IP forwarding.

To view the properties for MPLS pseudowire over GRE:

Step 1 In Prime Network Vision, right-click the required device, then choose Inventory.

Step 2 In the inventory window, choose Logical Inventory > Pseudowires. The Tunnel Edges table is displayed in the content pane as shown in Figure 21-17.

Step 3 Select the required entry and scroll horizontally until you see the required information.

Figure 21-17 MPLS Pseudowire Tunnels over GRE Properties

Table 21-18 describes the information included in the Tunnel Edges table specifically for MPLS pseudowire tunnels over GRE.

Table 21-18 MPLS Pseudowire over GRE Properties

Field
Description

Pseudowire Type

Type of pseudowire relevant to MToP:

•ATM AAL5 SDU—ATM with ATM Adaptation Layer 5 (AAL5) service data units.

•ATM n-to-one VCC—ATM with n-to-one virtual channel connection (VCC).

•ATM n-to-one VPC—ATM with n-to-one virtual path connection (VPC).

•CESoPSN Basic—CESoPSN basic services with CAS.

•SAToP E1—SAToP on an E1 interface.

Local MTU

Size, in bytes, of the MTU on the local interface.

Remote MTU

Size, in bytes, of the MTU on the remote interface.

Preferred Path Tunnel

Path to be used for MPLS pseudowire traffic.

Click the hyperlinked entry to view the tunnel details in logical inventory.


Step 4 To view GRE Tunnel properties, choose Logical Inventory > GRE Tunnels.

Figure 21-18 shows the Tunnel Edges table that is displayed for GRE tunnels.

Figure 21-18 GRE Tunnel Properties in Logical Inventory

Table 21-19 describes the information that is displayed for GRE tunnels in logical inventory.

Table 21-19 GRE Tunnel Properties in Logical Inventory

Field
Description

Name

Tunnel name.

IP Address

Tunnel IP address.

Source

IP address local to the device.

Destination

IP address of the remote router.

State

State of the tunnel: Up or Down.

Keepalive Time

If keepalive is enabled, the amount of time, in seconds, to wait before sending a keepalive message.

Type

Tunnel type.

Keepalive

Status of the keepalive function: Set, Not Set, or Unknown.

Keepalive Retry

Number times that the device continues to send keepalive packets without response before bringing the tunnel interface protocol down. Values range from 2 to 254, with a default of 3.


Network Clock Service Overview

Network clock service refers to the means by which a clock signal is generated or derived and distributed through a network and its individual nodes for the purpose of ensuring synchronized network operation. Network clocking is particularly important for mobile service providers to ensure proper transport of cellular traffic from cell sites to Base Station Control (BSC) sites.

Note In Prime Network Vision, clock service refers to network clock service.

The following topics describe how to use Prime Network Vision to monitor clock service:

•Monitoring Clock Service

•Monitoring PTP Service

•Viewing Pseudowire Clock Recovery Properties

•Viewing SyncE Properties

•Applying a Network Clock Service Overlay

•Viewing CEM and Virtual CEM Properties

Monitoring Clock Service

To monitor clock service:

Step 1 In Prime Network Vision, right-click the required device, then choose Inventory.

Step 2 In the inventory window, choose Logical Inventory > Clock. Clock service information is displayed in the content pane as shown in Figure 21-19.

Figure 21-19 Clock Service Properties

Table 21-20 describes the information displayed for clocking service.

Table 21-20 Clock Service Properties

Field
Description

Clock Service Mode

This field is not populated.

Network Clock Select Mode

Action to take if the master device fails:

•Non-revert—Do not use the master device again after it recovers from the failure.

•Revert—Use the master device again after it recovers and functions correctly for a specified amount of time.

•Unknown—The network clock selection mode is unknown.

Service Status

Status of the system service:

•Initializing—The service is starting up.

•Down—The service is down.

•Reset—The service has been reset.

•Running—The service is running.

•Other—A status other than those listed.

Active Clock Source

Current active clock source used by the device.

Hold Timeout

How long the device waits before reevaluating the network clock entry. Values can be from 0-86400 seconds, Not Set, or infinite.

Service Type

Type of system service, such as Clock or Cisco Discovery Protocol.

Use Stratum4

Quality of the clock source:

•True—Use Stratum 4, the lowest level of clocking quality.

•False—(Default) Use Stratum 3, a higher level of clocking quality than Stratum 4.

Clock Source Table

This table is displayed only if there are active clock sources.

Clock Source

Current active clock source used by the device.

Network Clock Priority

Priority of the clock source with 1 being the highest priority.

Source Type

Method by which clocking information is provided:

•BITS—Timing is supplied by a Building Integrated Timing Supply (BITS) port clock.

•E1/T1—Clocking is provided via an E1 or T1 interface.

•Packet-Timing—Clocking is provided over a packet-based network.

•Synchronous Ethernet—Clocking is provided by Synchronous Ethernet.

•Others—Clocking is provided by a source other than the above.

Valid Source

Validity of the clock source:

•True—The clock source is valid and operational.

•False—The clock source is not valid or is not operational.


Monitoring PTP Service

In networks that employ TDM, periodic synchronization of device clocks is required to ensure that the receiving device knows which channel is which for accurate reassembly of the data stream. The Precision Time Protocol (PTP) standard:

•Specifies a clock synchronization protocol that enables this synchronization.

•Applies to distributed systems that consist of one or more nodes communicating over a network.

Defined by IEEE 1588-2008, PTP Version 2 (PTPv2) allows device synchronization at the nanosecond level.

PTP uses the concept of master and slave devices to achieve precise clock synchronization. Using PTP, the master device periodically starts a message exchange with the slave devices. After noting the times at which the messages are sent and received, each slave device calculates the difference between its system time and the system time of the master device. The slave device then adjusts its clock so that it is synchronized with the master device. When the master device initiates the next message exchange, the slave device again calculates the difference and adjusts its clock. This repetitive synchronization ensures that device clocks are coordinated and that data stream reassembly is accurate. For configuring PTP, see Configuring SONET.

To monitor PTP service:

Step 1 In Prime Network Vision, right-click the required device, then choose Inventory.

Step 2 In the inventory window, choose Logical Inventory > Clock > PTP Service. The PTP service properties are displayed in the content pane as shown in Figure 21-20.

Figure 21-20 PTP Service Properties

Table 21-21 describes the properties that are displayed for PTP service.

Table 21-21 PTP Service Properties

Field
Description

PTP Mode

Mode of PTP operation:

•Boundary—Boundary clock mode.

•E2E Transparent—End-to-end transparent clock mode.

•Ordinary—Ordinary clock mode.

•P2P Transparent—Peer-to-peer transparent clock mode.

•Unknown—The clock mode is unknown.

Note Cisco MWR-2941 routers support Ordinary mode only.

PTP Clock ID

Clock identifier derived from the device interface.

PTP Domain

Number of the domain used for PTP traffic. A single network can contain multiple separate domains.

Priority 1

First value checked for clock selection. The clock with the lowest priority takes precedence.

Priority 2

If two or more clocks have the same value in the Priority 1 field, the value in this field is used for clock selection.

Port State

Clock state according to the PTP engine:

•Freerun—The slave clock is not locked to a master clock.

•Holdover—The slave device is locked to a master device, but communication with the master is lost or the timestamps in the PTP packet are incorrect.

•Acquiring—The slave device is receiving packets from a master and is trying to acquire a clock.

•Freq locked—The slave device is locked to the master device with respect to frequency, but is not aligned with respect to phase.

•Phase aligned—The slave device is locked to the master device with respect to both frequency and phase.

PTP Interface List Table

Interface Name

Interface identifier.

PTP Version

Version of PTP used. The default value is 2, indicating PTPv2.

Port Name

Name of the PTP port clock.

Port Role

PTP role of the clock: Master or Slave.

PTP Slave Mode

For an interface defined as a slave device, the mode used for PTP clocking:

•Not Set—The slave mode is not used.

•Multicast—The interface uses multicast mode for PTP clocking.

•Unicast—The interface uses unicast mode for PTP clocking.

•Unicast with Negotiation—The interface uses unicast mode with negotiation for PTP clocking.

Clock Source Addresses

IP addresses of the clock source.

Delay Request Interval (log mean value)

When the interface is in PTP master mode, the interval specified to member devices for delay request messages. The intervals use base 2 values, as follows:

•4—1 packet every 16 seconds.

•3—1 packet every 8 seconds.

•2—1 packet every 4 seconds.

•1—1 packet every 2 seconds.

•0—1 packet every second.

•-1—1 packet every 1/2 second, or 2 packets per second.

•-2—1 packet every 1/4 second, or 4 packets per second.

•-3—1 packet every 1/8 second, or 8 packets per second.

•-4—1 packet every 1/16 seconds, or 16 packets per second.

•-5—1 packet every 1/32 seconds, or 32 packets per second.

•-6—1 packet every 1/64 seconds, or 64 packets per second.

Announce Interval (log mean value)

Interval value for PTP announcement packets:

•4—1 packet every 16 seconds.

•3—1 packet every 8 seconds.

•2—1 packet every 4 seconds.

•1—1 packet every 2 seconds.

•0—1 packet every second.

•-1—1 packet every 1/2 second, or 2 packets per second.

•-2—1 packet every 1/4 second, or 4 packets per second.

•-3—1 packet every 1/8 second, or 8 packets per second.

•-4—1 packet every 1/16 seconds, or 16 packets per second.

•-5—1 packet every 1/32 seconds, or 32 packets per second.

•-6—1 packet every 1/64 seconds, or 64 packets per second.

Announce Timeout

Number of PTP announcement intervals before the session times out. Values are 2-10.

Sync Interval (log mean value)

Interval for sending PTP synchronization messages:

•4—1 packet every 16 seconds.

•3—1 packet every 8 seconds.

•2—1 packet every 4 seconds.

•1—1 packet every 2 seconds.

•0—1 packet every second.

•-1—1 packet every 1/2 second, or 2 packets per second.

•-2—1 packet every 1/4 second, or 4 packets per second.

•-3—1 packet every 1/8 second, or 8 packets per second.

•-4—1 packet every 1/16 seconds, or 16 packets per second.

•-5—1 packet every 1/32 seconds, or 32 packets per second.

•-6—1 packet every 1/64 seconds, or 64 packets per second.

Sync Limit (nanoseconds)

Maximum clock offset value, in nanoseconds, before PTP attempts to resynchronize.

Interface

Physical interface identifier, hyperlinked to the routing information for the interface.

PTP Master Mode

For an interface defined as a master device, the mode used for PTP clocking:

•Not Set—The master mode is not used.

•Multicast—The interface uses multicast mode for PTP clocking.

•Unicast—The interface uses unicast mode for PTP clocking. This mode allows a single destination.

•Unicast with Negotiation—The interface uses unicast mode with negotiation for PTP clocking. This mode allows up to 128 destinations.

Clock Destination Addresses

IP addresses of the clock destinations. This field contains IP addresses only when Master mode is enabled.

Domain

Clocking domain.


Viewing Pseudowire Clock Recovery Properties

To view pseudowire clock recovery properties:

Step 1 Choose Logical Inventory > Clock > Pseudowire Clock Recovery. Prime Network Vision displays the Virtual CEM information by default. See Figure 21-21.

Figure 21-21 Pseudowire Clock Recovery - Virtual CEM Tab

Step 2 To view more information about a virtual CEM, right-click the virtual CEM, then choose Properties. The Virtual CEM Properties window is displayed.

The information that is displayed in the Virtual CEM Properties window depends on whether or not the virtual CEM belongs to a group:

•If a CEM group is not configured on the virtual CEM, the Virtual CEM Properties window contains only the CEM interface name.

•If a CEM group is configured on the virtual CEM, the Virtual CEM Properties window contains the information described in Table 21-22.

Table 21-22 Virtual CEM Group Properties

Field
Description

CEM Interface Name

CEM interface name.

CEM Group Table

CEM Group

Name of the virtual CEM group.

Framing

Framing mode used for the CEM channel:

•Framed—Specifies the channels used for the controller, such as Channels: (1-8), (10-14). The channels that are available depend on the type of controller: T1, E1, T3, or E3.

•Unframed—Indicates that a single CEM channel is used for all T1/E1 timeslots. SAToP uses the unframed mode.

Pseudowire

Name of the pseudowire configured on the CEM interface, hyperlinked to the pseudowire properties in logical inventory.

Oper Status

Operational status of the CEM interface:

•Dormant—The interface is dormant.

•Down—The interface is down.

•Not Present—An interface component is missing.

•Testing—The interface is in test mode.

•Unknown—The interface has an unknown operational status.

•Up—The interface is up.

Admin Status

Administrative status of the CEM interface:

•Down—The CEM interface is administratively down.

•Testing—The administrator is testing the CEM interface.

•Unknown—The administrative status is unknown.

•Up—The CEM interface is administratively up.


Step 3 To view additional CEM group properties, double-click the required CEM group.

Table 21-23 describes the information displayed in the CEM Group Properties window.

Table 21-23 CEM Group Properties

Field
Description

Oper Status

Operational status of the CEM interface:

•Dormant—The interface is dormant.

•Down—The interface is down.

•Not Present—An interface component is missing.

•Testing—The interface is in test mode.

•Unknown—The interface has an unknown operational status.

•Up—The interface is up.

Idle Pattern

Eight-bit hexadecimal number that is transmitted on a T1 or E1 line when missing packets are detected on the pseudowire (PW) circuit.

Type

Type of CEM group. This is always DS0 Bundle.

Idle CAS Pattern

When CAS is used, the 8-bit hexadecimal signal that is sent when the CEM interface is identified as idle.

Bundle Location

Associated card and slot for the virtual CEM, using the virtual CEM port 24; for example virtual-cem/8/3/24:0.

Dejitter

Size of the dejitter buffer in milliseconds (ms). The range is 4 to 500 ms with a default of 4 ms.

RTP Hdr Compression

Whether RTP header compression is enabled or disabled.

RTP Enabled

Whether RTP compression is enabled or disabled.

Admin Status

Administrative status of the CEM interface:

•Down—The CEM interface is administratively down.

•Testing—The administrator is testing the CEM interface.

•Unknown—The administrative status is unknown.

•Up—The CEM interface is administratively up.

ID

DS0 bundle CEM group identifier.

Payload Size

Size of the payload for packets on the CEM interface. The range is 32 to 1312 bytes.


Step 4 To view recovered clock entries, click the Recovered Clock Entries tab. See Figure 21-22.

If no recovered clock entries exist, this tab is not displayed.

Figure 21-22 Pseudowire Clock Recovery - Recovered Clock Entries Tab

Table 21-24 describes the information displayed for pseudowire clock recovery.

Table 21-24 Pseudowire Clock Recovery Properties

Field
Description

Recovered Clock Source

Interface (slot/subslot) in which clock recovery occurred.

Click the hyperlinked entry to view its properties in physical inventory.

Recovered Clock Mode

Recovered clock mode:

•Adaptive—The devices do not have a common clock source. The recovered clock is derived from packet arrival.

•Differential—The edge devices have a common clock source, and the recovered clock is derived from timing information in packets and the related difference from the common clock.

•Synchronous—A GPS or BITS clock source externally synchronizes both end devices. This method is extremely accurate, but is rarely available for all network devices.

Virtual CEM Tab

CEM Interface Name

Virtual CEM interface associated with the clock.

Recovered Clock Entries Tab

This tab appears if recovered entries exist.

Transfer Type

•In-band—The clocking information is sent over the same pseudowire as the bearer traffic.

•Out-of-band—The clocking information is sent over a dedicated pseudowire between the sending and receiving SPAs.

Clock ID

Clock identifier, if known.

Clock Mode

Clock mode of the recovered clock:

•Adaptive—The recovered clock was obtained using ACR.

•Primary—The recovered clock was obtained from a clock with the highest priority.

•Secondary—The recovered clock was obtained from a clock with a lower priority than the primary clock.

Clock Status

Status of the clock:

•Acquiring—The clock is obtaining clocking information.

•Acquired—The clock has obtained the required clocking information.

•Holdover—The current primary clock is invalid and a holdover timer has started to check whether or not the clock becomes valid within the specified holdover time.

CEM Group

CEM group associated with the clock.

CEM Group ID

Identifier of the CEM group associated with the clock.

CEM Interface Name

Virtual CEM interface associated with the clock.

Frequency Offset

Offset to the clock frequency, in Hz.


Viewing SyncE Properties

With Ethernet equipment gradually replacing SONET and SDH equipment in service-provider networks, frequency synchronization is required to provide high-quality clock synchronization over Ethernet ports. Synchronous Ethernet (SyncE), a recently adopted standard, provides the required synchronization at the physical level.

In SyncE, Ethernet links are synchronized by timing their bit clocks from high-quality, stratum-1-traceable clock signals in the same manner as SONET/SDH. Operations messages maintain SyncE links, and ensure a node always derives timing from the most reliable source.

For configuring SyncE, see Configuring SONET.

To view SyncE properties, choose Logical Inventory > Clock > SyncE. (See Figure 21-23.)

Figure 21-23 SyncE Properties in Logical Inventory

Table 21-25 describes the information that is displayed for SyncE.

Table 21-25 SyncE Properties

Field
Description

Synchronous Mode

Status of the automatic synchronization selection process: Enabled or Disable.

Equipment Clock

Ethernet Equipment Clock (EEC) options: EEC-Option I or EEC-Option II.

Clock Mode

Whether the clock is enabled or disabled for the Quality Level (QL) function: QL-Enabled or QL-Disabled.

ESMC

Ethernet Synchronization Message Channel (ESMC) status: Enabled or Disabled.

SSM Option

Synchronization Status Message (SSM) option being used:

•ITU-T Option I

•ITU-T Option II Generation 1

•ITU-T Option II Generation 2

Hold-off (global)

Length of time (in milliseconds) to wait before issuing a protection response to a failure event.

Wait-to-restore (global)

Length of time (in seconds) to wait after a failure is fixed before the span returns to its original state.

Revertive

Whether the network clock is to use revertive mode: Yes or No.

SyncE Interfaces Table

Interface Name

Name of the Gigabit or 10 Gigabit interface associated with SyncE.

If SyncE is not associated with a Gigabit or 10 Gigabit interface, this field contains Internal.

Interface

Hyperlinked entry to the interface routing information in the Routing Entity Controller window. For more information, see Viewing Routing Entities.

This field does not apply for Internal interfaces.

Mode

Whether the interface is enabled or disabled for the QL function: QL-Enabled or QL-Disabled.

Timing Port Priority

Value used for selecting a SyncE interface for clocking if more than one interface is configured. Values are from 1 to 250, with 1 being the highest priority.

QL Tx Actual

Actual type of outgoing quality level information, depending on the globally configured SSM option:

•ITU-T Option I—Available values are QL-PRC, QL-SSU-A, QL-SSU-B, QL-SEC, and QL-DNU.

•ITU-T Option II Generation 1—Available values are QL-PRS, QL-STU, QL-ST2, QL-SMC, QL-ST4, and QL-DUS.

•ITU-T Option II Generation 2—Available values are QL-PRS, QL-STU, QL-ST2, QL-TNC, QL-ST3, QL-SMC, QL-ST4, and QL-DUS.

QL Tx Configured

Configured type of outgoing quality level information, depending on the globally configured SSM option.

See QL Tx Actual for the available values.

QL Rx Actual

Actual type of incoming quality level information, depending on the globally configured SSM option.

See QL Tx Actual for the available values.

QL Rx Configured

Configured type of incoming quality level information, depending on the globally configured SSM option.

See QL Tx Actual for the available values.

Hold-Off Timer (msecs)

Length of time (in milliseconds) to wait after a clock source goes down before removing the source.

Wait-to-Restore (secs)

Length of time (in seconds) to wait after a failure is fixed before the interface returns to its original state.

ESMC Tx

Whether ESMC is enabled for outgoing QL information on the interface: Enabled, Disabled, or NA (Not Available).

ESMC Rx

Whether ESMC is enabled for incoming QL information on the interface: Enabled, Disabled, or NA (Not Available).

SSM Tx

Whether SSM is enabled for outgoing QL information on the interface: Enabled, Disabled, or NA (Not Available).

SSM Rx

Whether SSM is enabled for incoming QL information on the interface: Enabled, Disabled, or NA (Not Available).


Applying a Network Clock Service Overlay

A service overlay allows you to isolate the parts of a network that are being used by a particular service. This information can then be used for troubleshooting. For example, the overlay can highlight configuration or design problems when bottlenecks occur and all the site interlinks use the same link.

To apply a network clock overlay:

Step 1 In Prime Network Vision, display the network map on which you want to apply an overlay.

Step 2 From the main toolbar, click Choose Overlay Type and choose Network Clock.

The Select Network Clock Service Overlay dialog box is displayed.

Step 3 Do one of the following:

•Choose a search category, enter a search string, then click Go to narrow the search results to a range of network clock services or a specific network clock service. Search categories include:

–Description

–Name

The search condition is "contains." Search strings are case-insensitive. For example, if you choose the Name category and enter "net," Prime Network Vision displays network clock services that have "net" in their names whether net appears at the beginning of the name, the middle, or at the end: for example, Ethernet.

•Choose Show All to display all network clock services.

Step 4 Select the network clock service overlay that you want to apply to the map.

The elements and links used by the selected network clock are highlighted in the map, and the overlay name is displayed in the title of the window. (See Figure 21-24.)

Figure 21-24 Network Clock Service Overlay Example

In addition, the elements configured for clocking service display a clock service icon as in the following example:

Note An overlay is a snapshot taken at a specific point in time and does not reflect changes that occur in the service. As a result, the information in an overlay can become stale. To update the overlay, click Refresh Overlay in the main toolbar.

Viewing CEM and Virtual CEM Properties

The following topics describe how to view CEM and virtual CEM properties and interfaces:

•Viewing CEM Interfaces

•Viewing Virtual CEMs

•Viewing CEM Groups

Viewing CEM Interfaces

To view CEM interfaces:

Step 1 In Prime Network Vision, double-click the required device.

Step 2 In the inventory window, choose Physical Inventory > Chassis > slot > subslot > interface. The CEM interface name is displayed in the content pane as shown in Figure 21-25.

Figure 21-25 CEM Interface

Viewing Virtual CEMs

To view virtual CEMs, choose Logical Inventory > Clock > Pseudowire Clock Recovery.

The virtual CEM interfaces are listed in the Virtual CEM tab.

Viewing CEM Groups

CEM groups can be configured on physical or virtual CEM interfaces. The underlying interface determines where you view CEM group properties in Prime Network Vision:

•Viewing CEM Groups on Physical Interfaces

•Viewing CEM Groups on Virtual CEM Interfaces

Viewing CEM Groups on Physical Interfaces

When you configure a CEM group on a physical interface, the CEM group properties are displayed in physical inventory for that interface.

To view CEM groups configured on physical interfaces:

Step 1 In Prime Network Vision, double-click the required device.

Step 2 In the inventory window, choose Physical Inventory > Chassis > slot > subslot > interface.

The CEM group information is displayed in the content pane with other interface properties (Figure 21-26).

Figure 21-26 CEM Group Information

See Table 21-22 for a description of the properties displayed for CEM groups in the content pane.

Step 3 To view additional information, double-click the required group.

The CEM Group Properties window is displayed as shown in Figure 21-27.

Figure 21-27 CEM Group Properties Window

See Table 19-27 for the properties displayed in the Pseudowire table in the CEM Group Properties window.

Viewing CEM Groups on Virtual CEM Interfaces

When you configure a CEM group on a virtual CEM, the CEM group information is displayed below the virtual CEM in logical inventory.

To view CEM groups on virtual CEM interfaces:

Step 1 In Prime Network Vision, right-click the required device, then choose Inventory.

Step 2 In the inventory window, choose Logical Inventory > Clock > Pseudowire Clock Recovery.

Step 3 In the Virtual CEM tab, right-click the CEM interface name and choose Properties. The CEM group properties are displayed in a separate window (Figure 21-28). If a pseudowire is configured on the CEM group for out-of-band clocking, the pseudowire VCID is also shown.

Figure 21-28 CEM Group Properties

Step 4 To view additional CEM group properties, double-click the required CEM group.

Table 21-23 describes the information displayed in the CEM Group Properties window.

Configuring SONET

These commands help in configuring the SONET device and in viewing device details.

The table below lists the SONET commands can be launched from the inventory by right-clicking a SONET port and selecting Commands > SONET.

To run the these commands, the software on the network element must support the technology. Before executing any commands, you can preview them and view the results. For details on the software versions Prime Network supports for the listed supported network elements, see Cisco Prime Network 3.10 Supported Cisco VNEs.

You might be prompted to enter your device access credentials while executing a command. Once you have entered them, these credentials will be used for every subsequent execution of a command in the same GUI client session. If you want to change the credentials, click Edit Credentials. The Edit Credentials button will not be available for SNMP commands or if the command is scheduled for a later time.

Command
Navigation
Description
Supported on:

BER Threshold

Right-click on SONET port and select Commands > SONET > Show >

Performed from command launch point

•Cisco 7600 Series Routers

•Cisco CRS Carrier Routing System

•Cisco CRS series includes Cisco CRS-1 and Cisco CRS-3 Carrier Routing Systems.

•Cisco IOS 12000 Series GSR

Controller Data

TCA Threshold

SDH Counters

Clear > SONET >

N/A; performed from command launch point

BER Threshold

Right-click on SONET port and select Commands > SONET > Configure >

BER threshold:

•sf-ber—Sets the signal failure BER threshold. Value in the range from 3 to 9. The default value is 6

•sd-ber—Sets the signal degrade BER threshold. Value in the range from 3 through 9. The default value is 3

Bit error rate: 3-9, or default. The default for sf-ber is 3, and the default for sd-ber is 9.

Line Counters

Right-click on SONET port and select Commands > SONET > Show > PM

Line type: farendline, farendline-history, line, or line-history

History interval: 1-96; to view all, enter 0

Medium Counters

N/A; performed from command launch point

Path type: farendpath, farendpath-history, path, path-history

Path Counters

Channelized path index: 1-48 (for a particular channel) or 0 (for all channels)

History interval: 1-96; to view all, enter 0

Section Counters

Right-click on SONET port and select Commands > SONET > Show > PM

Section type: section or section-history

History interval: 1-96; to view all, enter 0

•Cisco 7600 Series Routers

•Cisco CRS Carrier Routing System

•Cisco CRS series includes Cisco CRS-1 and Cisco CRS-3 Carrier Routing Systems.

•Cisco IOS 12000 Series GSR

Trace Details

Card location (for example, 0/5/CPU0)

Note The device must be managed by Prime Network with device admin privileges.

Clock Source

Right-click on SONET port and select Commands > SONET > Configure >

Clock source of sent signal on SONET ports:

•internal—Controller will clock its sent data using internal clock.

•line—Controller will clock its sent data using the clock recovered from the line's receive data stream.

•default—Cancels any clock source setting.

TCA Threshold

TCA threshold:

•b1-tca—Threshold for B1 BER TCA, between 3-9 (default is 6).

•b2-tca—Threshold for B2 BER TCA, between 3-9 (default is 6).

Bit error rate: Value from 3-9 (10 to the negative x), or default.


Configuring Clock

With Ethernet equipment gradually replacing SONET and SDH equipment in service-provider networks, frequency synchronization is required to provide high-quality clock synchronization over Ethernet ports. SyncE and PTP are two widely used clock synchronization protocol used in ethernet based networks.

Clocking configuration commands allows you to configure SyncE and PTP clock configuration on Cisco router. SyncE and PTP clocking configuration is predominantly used in RAN Backhaul (or MToP) network where TDM traffic carried from cell site router to central office via packet switched network.

These commands can be launched from the logical inventory by right-clicking on Clock node. Before executing any commands, you can preview them and view the results.

To run the these commands, the software on the network element must support the technology. Before executing any commands, you can preview them and view the results. For details on the software versions Prime Network supports for the listed supported network elements, see Cisco Prime Network 3.10 Supported Cisco VNEs.

You might be prompted to enter your device access credentials while executing a command. Once you have entered them, these credentials will be used for every subsequent execution of a command in the same GUI client session. If you want to change the credentials, click Edit Credentials. The Edit Credentials button will not be available for SNMP commands or if the command is scheduled for a later time.

The table below lists the PTP and SyncE configuration commands and its supported network elements.

Command
Navigation
Description
Supported on:

Create PTP Clock Global

(For ASR 901/903)

Right-click Clock node > Commands > Configuration >

(For ASR 9000)

Right-click Clock node > Commands > Configuration > PTP >

Identify the clock in the network with the highest priority. The clock with the highest priority is referred to as the master clock. All the other devices on the network synchronize their clocks with the master and are referred to as members. Constantly exchanged timing messages between master and members ensure continued synchronization.

The PTP clock port commands are used to modify PTP on individual interfaces.

•Cisco ASR 9000 Series Routers

•Cisco ASR 901 Series Routers

•Cisco ASR903 Series Routers

Modify PTP Clock Global

(For ASR 901/903)

Expand Clock node > right-click PTP Service> Commands > Configuration >

(For ASR 9000)

Right-click Clock node > Commands > Configuration > PTP >

Delete PTP Clock Global

Expand Clock node > right-click PTP Service> Commands > Configuration >

•Cisco ASR 901 Series Routers

•Cisco ASR903 Series Routers

Create PTP Clock Port

Expand Clock node > right-click PTP Service> Commands > Configuration >

Show PTP Clock Global

Expand Clock node > right-click PTP Service> Commands > Show >

Modify PTP Clock Port

Delete PTP Clock Port

Expand Clock node > select PTP node > right-click on the selected PTP interface > Commands > Configuration >

Create PTP Interface

Modify PTP Interface

Physical inventory > Chassis > Slot > Select an interface > Commands > Configuration  > PTP



•Cisco ASR 9000 Series Routers

Create SyncE Global

Right-click Clock node > Commands > Configuration >

Configure clock properties at the global level such as hold-off time, wait to restore, force switch, and so on, that helps routers to synchronize to the best available clock source.

Configure SyncE at the interface level using the SyncE interface commands.

•Cisco ASR 9000 Series Routers

•Cisco ASR 901 Series Routers

•Cisco ASR903 Series Routers

Modify SyncE Global

(For ASR901, ASR903):

Expand Clock node > right-click SyncE> Commands > Configuration >

(For ASR9000):

Right-click Clock node > Commands > Configuration >

Create SyncE Interface

Modify SyncE Interface

(For ASR901, ASR903):

Expand Clock node > right-click SyncE> Commands > Configuration >

(For ASR9000):

Physical inventory > Chassis > Slot > Select an interface > Commands > Configuration  > SyncE

Create ESMC Global

Modify ESMC Global

Expand Clock node > right-click SyncE> Commands > Configuration >

Configure ESMC for synchronous Ethernet (SyncE) clock synchronization.

Only ASR 9003 series router supports the Synchronization Status Message (SSM) and the Ethernet Synchronization Message Channel (ESMC) for synchronous Ethernet (SyncE) clock synchronization.

Configure ESMC for synchronous Ethernet (SyncE) clock synchronization on an interface using the ESMC interface commands.

•Cisco ASR903 Series Routers

•Cisco ASR 901 Series Routers

•Cisco ASR903 Series Routers

Create ESMC Interface

Disable ESMC Interface

Expand Clock node > select SyncE > right-click on a SyncE Interface from the content pane > Commands > Configuration >

•Cisco ASR 901 Series Routers

Modify ESMC Interface


Configuring TDM and Channelization

The table below lists the TDM and SONET/SDH channelization configuration commands , supported network elements, and navigation for the commands. These commands can be launched from the physical inventory.

To run the these commands, the software on the network element must support the technology. Before executing any commands, you can preview them and view the results. For details on the software versions Prime Network supports for the listed supported network elements, see Cisco Prime Network 3.10 Supported Cisco VNEs.

You might be prompted to enter your device access credentials while executing a command. Once you have entered them, these credentials will be used for every subsequent execution of a command in the same GUI client session. If you want to change the credentials, click Edit Credentials. The Edit Credentials button will not be available for SNMP commands or if the command is scheduled for a later time.

Command
Navigation
Description
Supported on:
TDM Commands

Configure Card Type

Right-click the device > Commands > Configuration >

•For ASR9000, configure the card type as SONET/SDH an specify the chassis, slot or the subslot number.

•For ASR 903 and 901, configure the card type as E1, T1, and specify the location using slot and bay number.

•Cisco ASR 9000 Series Routers

•Cisco ASR 901 Series Routers

•Cisco ASR903 Series Routers

Modify E1 Controller

Modify T1 Controller

(For ASR901, ASR903):

Physical Inventory > Chassis > Slot > right-click on E1 or T1 > Commands > Configuration > E1T1 >

or

(For ASR9000, ASR903):

Physical Inventory > Chassis > Slot > click on SONET > double-click on a SONET/SDH High Order Path (HOP) > right-click LOP > Commands > Configuration > E1T1 >

•In ASR 9000, E1 and T1 controller is configured as part of the channelization, when configuring the low order path (LOP) for the SONET controller.

•For ASR 903, you can configure E1 or T1 controller in either of the following ways:

–While configuring the card type

or

–During the channelization when configuring the low order path (LOP) for the SONET.

•For ASR 901, configure the card type to configure E1 or T1 controller.

Channelization Commands for SONET/SDH

Note Channelization commands also include the TDM commands discussed above. Read the description to understand the scenario applicable to your device.

Configure Framing

Configure AUG Mapping

Physical Inventory > Chassis > Slot > Subslot > right-click on SONET/SDH-interface > Commands > Configuration > SONET >

Configure SDH/SONET framing type using this command.

Cisco ASR903 Series Routers

Configuring framing as SDH, configures AU4 by default, but if you want to change the mode of operation as AU3, use the AUG Mapping command.

Configure Controller

Physical Inventory > Chassis > Slot > Subslot > right-click on SONET interface > Commands > Configuration > SONET >

After configuring SONET/SDH type, configure the controller using additional parameters, like specifying the clock source.

•Cisco ASR 9000 Series Routers

•Cisco ASR903 Series Routers

Configure AU3

Physical Inventory > Chassis > Slot > Subslot > click on SONET- interface > right-click on a SONET/SDH HOP > Commands > Configuration >

Using these commands, you can configure the parameters for the SDH channelization.

When you are configuring the channelized E1/T1 line card for SDH framing, configure AU-3 or AU-4 as the mode of operation.

For SDH, both AU-3 and AU-4 AUG mappings are supported.

•Cisco ASR 9000 Series Routers

•Cisco ASR903 Series Routers

Delete AU3

•Cisco ASR 9000 Series Routers

Configure AU4

•Cisco ASR 9000 Series Routers

•Cisco ASR903 Series Routers

Delete AU4

If the AUG mapping is configured to be AU-4, then the following mapping will be used:

TUG-3 <--> AU-4 <--> AUG

If the mapping is configured to be AU-3, then the following mapping will be used:

AU-3 <--> AUG

•Cisco ASR 9000 Series Routers

Configure TUG3

Delete TUG3

Physical Inventory > Chassis > Slot > Subslot > click on SONET- interface > double-click on a SONET/SDH High Order Path (HOP) > right-click LOP > Commands > Configuration >

Delete STS

Configure STS

Physical Inventory > Chassis > Slot > Subslot > click on SONET- interface > right-click on a SONET/SDH HOP > Commands > Configuration >

Using these commands, you can configure the STS path attributes for the SONET channelization mode.


Configuring Automatic Protection Switching (APS )

APS refers to the mechanism of using a protect interface in the SONET network as the backup for working interface. When the working interface fails, the protect interface quickly assumes its traffic load. The working interfaces and their protect interfaces make up an APS group. SONET APS offers recovery from fiber (external) or equipment (interface and internal) failures at the SONET line layer.

The table below lists the APS configuration commands , supported network elements, and navigation for the commands.

To run the these commands, the software on the network element must support the technology. Before executing any commands, you can preview them and view the results. For details on the software versions Prime Network supports for the listed supported network elements, see Cisco Prime Network 3.10 Supported Cisco VNEs.

You might be prompted to enter your device access credentials while executing a command. Once you have entered them, these credentials will be used for every subsequent execution of a command in the same GUI client session. If you want to change the credentials, click Edit Credentials. The Edit Credentials button will not be available for SNMP commands or if the command is scheduled for a later time.

Command
Navigation
Description
Supported on:

Create APS

Physical Inventory > Chassis > slot > subslot > SONET interface > Commands > Configuration > APS >

Adds an APS group with a specified number and assign a channel for the APS group. 0 designates a protect channel, and 1 designates a working channel.

•Cisco ASR 9000 Series Routers

•Cisco ASR903 Series Routers

Modify APS
