Tracking Faults Using Prime Network Events
The following topics describe how to use Cisco Prime Network Events (Prime Network Events) to track faults:
•User Roles Required to Work with Prime Network Events
•Viewing Events and Tickets in Cisco Prime Network Events
•Viewing 3.6.x Tabs
•Working with Cisco Prime Network Events
User Roles Required to Work with Prime Network Events
This topic identifies the roles that are required to work with Prime Network Events. Prime Network determines whether you are authorized to perform a task as follows:
•For GUI-based tasks (tasks that do not affect elements), authorization is based on the default permission that is assigned to your user account.
•For element-based tasks (tasks that do affect elements), authorization is based on the default permission that is assigned to your account. That is, whether the element is in one of your assigned scopes and whether you meet the minimum security level for that scope.
For more information on user authorization, see the topic on device scopes in the Cisco Prime Network 3.10 Administrator Guide.
Only users with the Administrator role can log into Cisco Prime Network Events, as shown in Table 9-1.
Table 9-1 Default Permission/Security Level Required for Cisco Prime Network Events
|
|
|
|
|
|
Viewing events and tickets |
— |
— |
— |
— |
X |
Viewing events and ticket properties |
— |
— |
— |
— |
X |
Refreshing information displayed in tables |
— |
— |
— |
— |
X |
Filtering events and tickets |
— |
— |
— |
— |
X |
Exporting displayed data |
— |
— |
— |
— |
X |
Viewing Events and Tickets in Cisco Prime Network Events
Events are displayed according to event categories, which are represented by tabs in the Cisco Prime Network Events window. Each tab displays an events list log that provides event information for the specific event category. Events can be of system type or network type.
Note Cisco Prime Network Events shows events only from the fault database and not from the event archive. Use Report Manager to view events from the event archive. For more information, see Chapter 11 "Working with Reports."
The Ticket tab displays the tickets that have been generated for correlated events.
Events and tickets are sorted by date, with the latest item displayed first and the oldest item displayed last.
Note Prime Network stores events in the database in Greenwich Mean Time (GMT) format. The Prime Network client converts events to the time zone that is configured on the client workstation. The times displayed in the Cisco Prime Network Events GUI reflect the time according to the client workstation.
By using the Cisco Prime Network Events Options dialog box, you can define a filter to be used or the number of items to be displayed in the list. Each tab displays the specified number of entries per page as defined in the Cisco Prime Network Events Options dialog box.
For more information, see Adjusting the Prime Network Events GUI Client Settings.

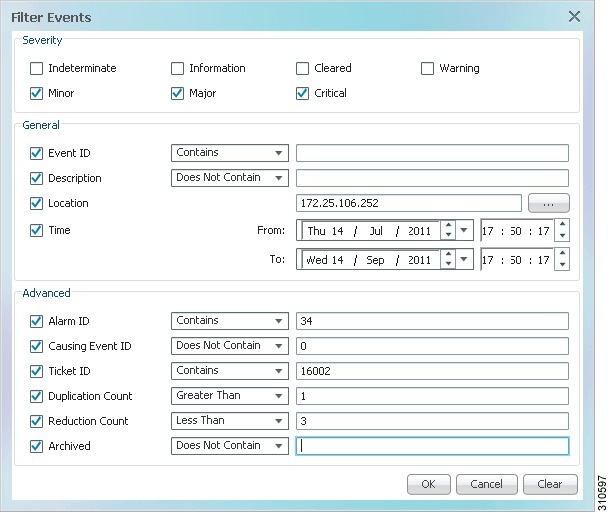

Because the lists of events and tickets can be lengthy, you can use the left and right arrows on the navigation to move through the records. You can also use the submenus that are available from View > Go To in the main menu.
All Tab
The All tab displays information about all events. Additional information specific to the event category can be viewed in the Event Properties window or individual category tabs.
When you launch Cisco Prime Network Events, the All tab is not displayed. You can view this tab by choosing File > Open All Tab.
Note When you open the All tab, it might take some time to retrieve information from the Prime Network database for all category events.
You can disable the All tab by following the instructions provided in the Cisco Prime Network 3.10 Installation Guide.
Table 9-2 describes the information that is displayed in the All tab.
Table 9-2 All Tab
|
|
Severity |
Icon indicating the severity of the alarm on the event (the color and type of alarm are displayed in the Properties window Severity field). See Event Status Indicators. |
Event ID |
Event identifier, assigned sequentially. |
Time |
Date and time when the event occurred and was logged and recorded. |
Description |
Description of the event. |
Location |
Entity that triggered the event. |
Event Type |
Type of event: Audit, Provisioning, Security, Service, Syslog, System, V1 Trap, V2 Trap, or V3 Trap. |
System Event Tabs
The following tabs in the Cisco Prime Network Events window display the system events:
•Audit Tab
•Provisioning Tab
•Security Tab
•System Tab
Audit Tab
The Audit tab displays all events generated for each command or request in Prime Network; for example, opening Cisco Prime Network Events displays the Get command as shown in Figure 9-1.

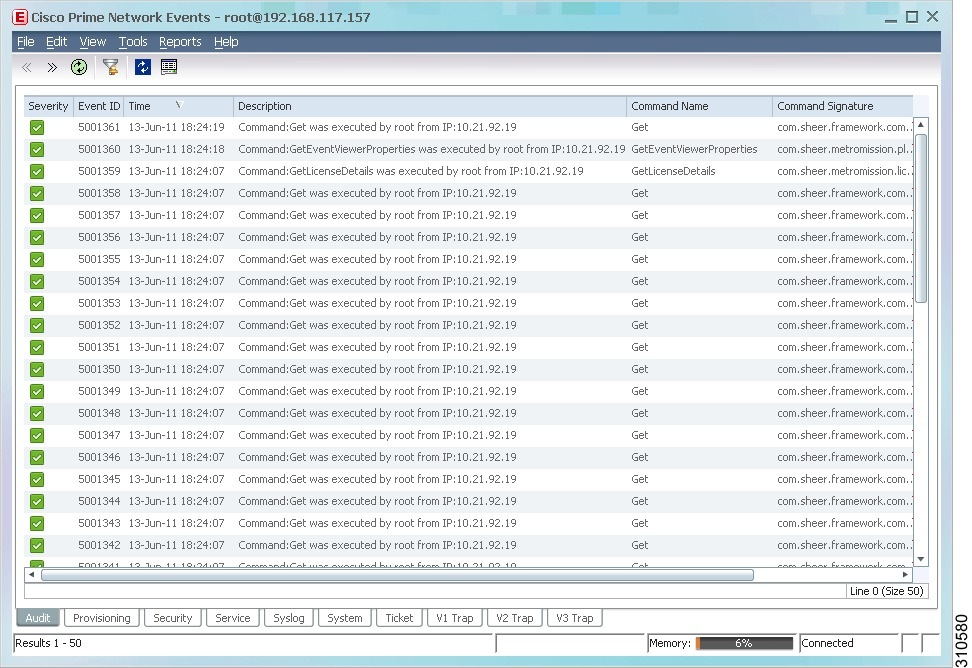

Figure 9-1 Audit Tab
Table 9-3 describes the information that is displayed in the Audit tab.
Table 9-3 Audit Tab
|
|
Severity |
Icon indicating the severity of the alarm on the event (the color and type of alarm are displayed in the Properties window Severity field). See Event Status Indicators. |
Event ID |
Identifier of the event, assign sequentially. |
Time |
Date and time when the event happened and was logged and recorded. |
Description |
Aggregation of portions of the same fields in the Audit Command fields. |
Command Name |
Audit-specific command name, prefaced by, for example, Get, Update, or Find. |
Command Signature |
Actual command run by Prime Network, such as GetEventViewerProperties. |
Command Parameters |
Command parameters issued with the command identified in the Command Name column. |
Originating IP |
IP address of the client that issued the command |
User Name |
Name of the user who initiated the command. |
The audit service enables you to audit all the commands executed in the system; for example, the Get command can be audited. The Audit tab then displays this information.
Provisioning Tab
Events displayed in the Provisioning tab are events triggered during the configuration of a device. Prime Network sends an event explaining the configuration operation, such as configuring the cross-connect table in a device. The Provisioning tab displays detailed information specific to this event category. It contains events from Prime Network Command Builder, Prime Network Activation, and Prime Network Workflow Editor1 .
Additional information specific to this event category can be viewed in the Event Properties window.
If a provisioning event is the result of an activation script, the provisioning event can include an extremely long description. This description is displayed in the Event Properties window in the Details field. If the description exceeds the size of the Details field, Prime Network truncates the description in the database and Details field, and displays the following line to indicate that the description has been truncated:
=====CONTENT TRUNCATED BY CISCO PRIME NETWORK=====
Table 9-4 describes the information that is displayed in the Provisioning tab.
Table 9-4 Provisioning Tab
|
|
Severity |
Icon indicating the severity of the alarm on the event (the color and type of alarm are displayed in the Properties window Severity field). See Event Status Indicators. |
Event ID |
Identifier of the event, assigned sequentially. |
Time |
Date and time when the event happened and was logged and recorded. |
Description |
Description of the event, such as "Script Show has failed." |
Location |
Entity that triggered the event. |
Prime Login Username |
Username of the logged in user. |
VNE Login Username |
Username, which was used to access the device. This field is updated only for events generated by command scripts in Prime Network. For all other commands, this field shows `From VNE Login.' |
Status |
Status, such as Success or Fail. |
Security Tab
The Security tab displays detailed information specific to this event category. Security events are related to client login and user activity when managing the system and the environment. Additional information specific to this event category can be viewed in the Event Properties window.
Table 9-5 describes the information that is displayed in the Security tab.
Table 9-5 Security Tab
|
|
Severity |
Icon indicating the severity of the alarm on the event (the color and type of alarm are displayed in the Properties window Severity field). See Event Status Indicators. |
Event ID |
Identifier of the event, assigned sequentially. |
Time |
Date and time when the event happened and was logged and recorded. |
Description |
Description of the event, such as "Invalid password. Couldn't authenticate user root." |
Location |
Entity that triggered the event. |
Username |
Name of the user who triggered the event. |
Originating IP |
IP address of the client where the event was triggered. |
For more information about the system security events displayed in this tab, see Cisco Prime Network Supported System and Security Events.
System Tab
The System tab displays all the system events related to the everyday working of the internal system and its components. These events can be related to Prime Network and Prime Network gateway resources, representing the system log. Additional information specific to this event category can be viewed in the Event Properties window.
Table 9-6 describes the information that is displayed in the System tab.
Table 9-6 System Tab
|
|
Severity |
Icon indicating the severity of the alarm on the event (the color and type of alarm are displayed in the Properties window Severity field). See Event Status Indicators. |
Event ID |
Identifier of the event, assigned sequentially. |
Time |
Date and time when the event happened and was logged and recorded. |
Description |
Description of the event, such as "AVM 77 is shutting down. Unit = 11.22.33.444." |
Location |
Entity that triggered the event. |
For more information about the system error and event messages displayed in this tab, see Cisco Prime Network 3.10 Supported System and Security Events.
Network Event Tabs
The following topics describe the information displayed in Prime Network Events for network events:
•Service Tab
•Syslog Tab
•Ticket Tab
•V1 Trap Tab
•V2 Trap Tab
•V3 Trap Tab
Service Tab
The Service tab displays all the events generated by Prime Network, such as Link Down. Service events are related to the alarms that are generated by the Prime Network system. Additional information specific to this event category can be viewed in the Event Properties window.
Table 9-7 describes the information that is displayed in the Service tab.
Table 9-7 Service Tab
|
|
Severity |
Icon indicating the severity of the alarm on the event (the color and type of alarm are displayed in the Properties window Severity field). See Event Status Indicators. |
Event ID |
Calculated correlation identifier. |
Time |
Date and time when the event happened and was logged and recorded. |
Description |
Description of the event, such as "Port down due to oper." |
Location |
Hyperlink to the entity that triggered the event. |
Alarm ID |
Hyperlinked identifier of the alarm associated with the event. Click the link to view the Ticket Properties window. |
Ticket ID |
Hyperlinked identifier of the ticket associated with the event. Click the link to view the Ticket Properties window. |
Causing Event ID |
Identifier of the causing event. |
Duplication Count |
For network events, the duplication count is calculated by the VNE and pertains only to flapping events. The duplication count represents the number of noncleared events aggregated by the flapping event. |
Reduction Count |
For network events, the reduction count is calculated by the VNE and pertains only to flapping events. The reduction count represents the number of events that are aggregated by the flapping event. |
For more information about the service alarms that are displayed in this tab, see Cisco Prime Network 3.11 Supported Service Alarms.
Syslog Tab
The Syslog tab displays all the syslog events. These events are related to the predefined set of syslogs received from the devices by the VNEs, which are used to generate the syslog events. Additional information specific to this event category can be viewed in the Event Properties window.
Table 9-8 describes the information that is displayed in the Syslog tab.
Table 9-8 Syslog Tab
|
|
Severity |
Icon indicating the severity of the alarm on the event (the color and type of alarm are displayed in the Properties window Severity field). See Event Status Indicators. |
Event ID |
Calculated correlation identifier. |
Time |
Date and time when the event happened and was logged and recorded. |
Description |
Description of the event, such as "Device configuration changed." |
Location |
Hyperlink to the entity that triggered the event. |
Alarm ID |
Identifier of the alarm associated with the event. |
Ticket ID |
Identifier of the ticket associated with the event. |
Causing Event ID |
Identifier of the causing event. |
Duplication Count |
For network events, the duplication count is calculated by the VNE and pertains only to flapping events. The duplication count represents the number of noncleared events aggregated by the flapping event. |
Reduction Count |
For network events, the reduction count is calculated by the VNE and pertains only to flapping events. The reduction count represents the number of events that are aggregated by the flapping event. |
Ticket Tab
The Ticket tab displays detailed information specific to tickets. A ticket contains a single root alarm (the root cause alarm can be of any alarm type, such as syslog or service), and all its subsequent correlated alarms. Additional information specific to tickets can be viewed in the Ticket Properties window.
A Tickets capacity overflow, red threshold reached system alarm is generated when the maximum number of tickets is exceeded. The alarm severity is defined as critical.
Table 9-9 describes the information that is displayed in the Ticket tab.
Table 9-9 Ticket Tab
|
|
Severity |
Icon indicating the severity of the alarm on the ticket (the color and type of alarm are displayed in the Ticket Properties window Severity field). See Event Status Indicators. |
Ticket ID |
Sequentially assigned identifier of the ticket, hyperlinked to the Ticket Properties window. |
Notes |
An icon in this column indicates that a note has been added for the ticket. Click on the icon to read the note and add your own note, if necessary. |
Last Modification Time |
Date and time (per the database) that the ticket was last updated. Updates can result from either manual or automatic operations. |
Root Event Time |
Date and time that the event that created the root cause alarm of the ticket was detected. |
Description |
Description of the event, such as "Layer 2 tunnel down." |
Location |
Hyperlink to the entity that triggered the event. |
Acknowledged |
Whether the ticket is acknowledged or has been modified: Yes, No, or Modified. |
Creation Time |
Date and time that the ticket was created. |
Event Count |
Number of events associated with the ticket. |
Affected Devices Count |
Number of devices affected by the ticket (the sources of the alarm and their subsequent alarms). |
Duplication Count |
For tickets, the duplication count is the sum of the duplication counts of all events that are associated with the root alarm. |
Reduction Count |
Ticket reduction count is the sum of reduction counts of all the events that are associated to the ticket. The History tab in the Ticket Properties window displays one reduction count for each event listed. For more information, see Chapter 10 "Working with Tickets in Cisco Prime Network Vision." |
Alarm Count |
Total number of alarms associated with the ticket, including the root alarm. |

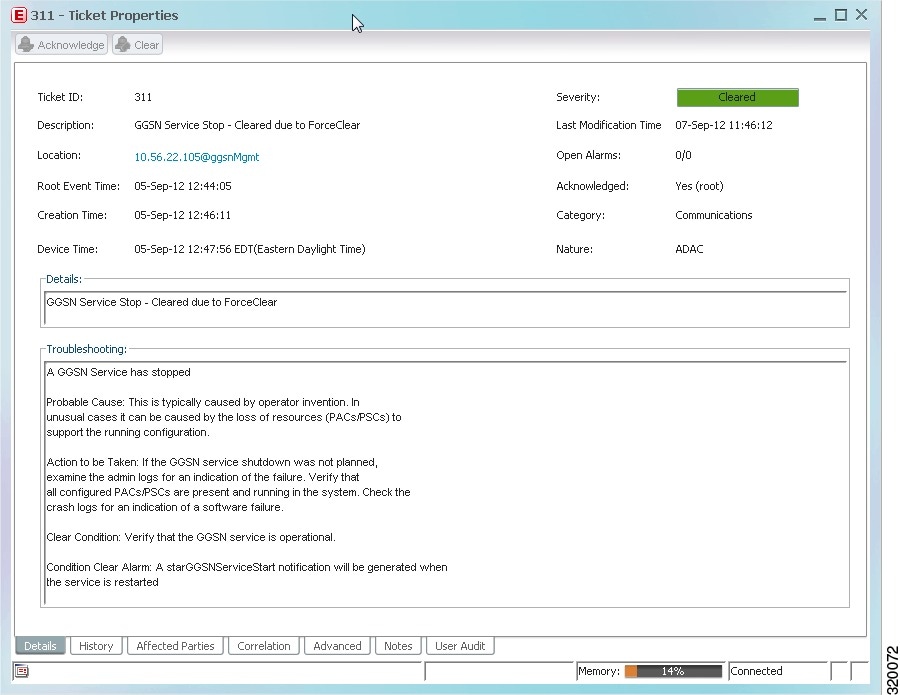

For information about viewing ticket properties, see Viewing Ticket Properties.
V1 Trap Tab
This event is triggered when the network element sends a trap message to Prime Network because of a network event, such as Link Down. The V1 Trap tab displays detailed information specific to this category. Additional information specific to each event category can be viewed in the Event Properties window.
Table 9-10 describes the information that is displayed in the V1 Trap tab.
Table 9-10 V1 Trap Tab
|
|
Severity |
Icon indicating the severity of the alarm on the event (the color and type of alarm are displayed in the Properties window Severity field). See Event Status Indicators. |
Event ID |
Calculated correlation identifier. |
Time |
Date and time when the event happened and was logged and recorded. |
Description |
Description of the event, such as "Enterprise generic trap." |
Location |
Hyperlink to the entity that triggered the trap. |
Alarm ID |
Identifier of the alarm associated with the event, hyperlinked to the Alarm Properties window. |
Ticket ID |
Hyperlinked sequential identifier of the ticket. Click the link to view the Ticket Properties window. |
Causing Event ID |
Identifier of the causing event, hyperlinked to the Network Event Properties window. |
Duplication Count |
For network events, the duplication count is calculated by the VNE and pertains only to flapping events. The duplication count represents the number of noncleared events aggregated by the flapping event. |
Reduction Count |
For network events, the reduction count is calculated by the VNE and pertains only to flapping events. The reduction count represents the number of events that are aggregated by the flapping event. |
For more information about the Cisco IOS and Cisco IOX traps displayed in one of these tabs, see Cisco Prime Network Supported Traps.
V2 Trap Tab
This event is triggered when the network element sends a trap message to Prime Network because of a network event. The V2 Trap tab displays detailed information specific to this category. Additional information specific to each event category can be viewed in the Event Properties window.
Table 9-11 describes the information that is displayed in the V2 Trap tab.
Table 9-11 V2 Trap Tab
|
|
Severity |
Icon indicating the severity of the alarm on the event (the color and type of alarm are displayed in the Properties window Severity field). See Event Status Indicators. |
Event ID |
Calculated correlation identifier. |
Time |
Date and time when the event happened and was logged and recorded. |
Description |
Description of the event, such as "SNMP authentication failure." |
Location |
Hyperlink to the entity that triggered the trap. |
Alarm ID |
Identifier of the alarm associated with the event, hyperlinked to the Alarm Properties window. |
Ticket ID |
Sequential identifier of the ticket, hyperlinked to the Ticket Properties window. |
Causing Event ID |
Identifier of the causing event, hyperlinked to the Network Event Properties window. |
Duplication Count |
For network events, the duplication count is calculated by the VNE and pertains only to flapping events. The duplication count represents the number of noncleared events aggregated by the flapping event. |
Reduction Count |
For network events, the reduction count is calculated by the VNE and pertains only to flapping events. The reduction count represents the number of events that are aggregated by the flapping event. |
Trap Type OID |
Trap object identifier. |
Translated Enterprise |
Translation of the OID using the MIB. For example, an enterprise OID of .1.3.6.1.2.1.88.2 is displayed in this column as .iso.org.dod.internet.mgmt.mib-2.dismanEventMIB.dismanEventMIBNotificationPrefix. |
Enterprise |
Enterprise OID for the trap, representing the company or organization that is associated with the trap. |
For more information about the Cisco IOS and Cisco IOX traps displayed in this tab, see Cisco Prime Network Supported Traps.
V3 Trap Tab
This event is triggered when the network element sends a trap message to Prime Network because of a network event. The V3 Trap tab displays detailed information specific to this category. Additional information specific to each event category can be viewed in the Event Properties window.
Table 9-12 describes the information that is displayed in the V3 Trap tab.
Table 9-12 V3 Trap Tab
|
|
Severity |
Icon indicating the severity of the alarm on the event (the color and type of alarm are displayed in the Properties window Severity field). See Event Status Indicators. |
Event ID |
Calculated correlation identifier. |
Time |
Date and time when the event happened and was logged and recorded. |
Description |
Description of the event, such as "Enterprise generic trap." |
Location |
Hyperlink to the entity that triggered the trap. |
Alarm ID |
Identifier of the alarm associated with the event, hyperlinked to the Alarm Properties window. |
Ticket ID |
Sequential identifier of the ticket, hyperlinked to the Ticket Properties window. |
Causing Event ID |
Identifier of the causing event, hyperlinked to the Network Event Properties window. |
Duplication Count |
For network events, the duplication count is calculated by the VNE and pertains only to flapping events. The duplication count represents the number of noncleared events aggregated by the flapping event. |
Reduction Count |
For network events, the reduction count is calculated by the VNE and pertains only to flapping events. The reduction count represents the number of events that are aggregated by the flapping event. |
Trap Type OID |
Trap object identifier. |
Translated Enterprise |
Translation of the OID using the MIB. For example, an enterprise OID of .1.3.6.1.2.1.88.2 is displayed in this column as .iso.org.dod.internet.mgmt.mib-2.dismanEventMIB.dismanEventMIBNotificationPrefix. |
Enterprise |
Enterprise OID for the trap, representing the company or organization that is associated with the trap. |
For more information about the Cisco IOS and Cisco IOX traps displayed in this tab, see Cisco Prime Network 3.11 Supported Traps.
Viewing 3.6.x Tabs
If you upgrade to Prime Network 3.11 from Cisco ANA 3.6.x, you can view the following tabs by choosing File > Open 3.6.x Tabs:
•3.6.x Ticket
•3.6.x Service
•3.6.x Syslog
•3.6.x V1 Trap
•3.6.x V2-V3 Trap
Table 9-13 describes the information that is displayed in each of the 3.6.x tabs.
Table 9-13 3.6.x Tab Contents in Events
|
|
|
Severity |
Icon of a bell, colored according to the severity of the alarm on the ticket. For more information, see Event Status Indicators. |
Ticket ID |
Sequentially assigned identifier of the ticket. |
Short Description |
Description of the event. |
Location |
Hyperlink to the entity that triggered the event. |
Last Modification Time |
Date and time (per the database) that the ticket was last updated. Updates can result from either manual or automatic operations. |
Time |
Date and time recorded when the first event happened. |
Acknowledged |
Status of the ticket: Acknowledged, Not Acknowledged, or Modified. |
Affected Devices Count |
Number of devices affected by the ticket (the sources of the alarm and their subsequent alarms). |
Correlation Count |
Number of correlated alarms included in the ticket. |
Reduction Count |
Ticket reduction count is the sum of reduction counts of all the events that are associated to the ticket. The History tab in the Ticket Properties window displays one reduction count for each event listed. For more information, see Chapter 10 "Working with Tickets in Cisco Prime Network Vision." |
Duplication Count |
For tickets, the duplication count is the sum of the duplication counts of all events that are associated with the root alarm. |
|
Severity |
Icon of a bell, colored according to the severity of the alarm. For more information, see Event Status Indicators. |
Alarm ID |
Sequentially assigned identifier of the alarm. |
Short Description |
Description of the event. |
Location |
Hyperlink to the entity that triggered the event. |
Time |
Date and time recorded when the first event happened. |
|
Severity |
Icon of a bell, colored according to the severity of the alarm. For more information, see Event Status Indicators. |
Alarm ID |
Sequentially assigned identifier of the alarm. |
Short Description |
Description of the event. |
Location |
Hyperlink to the entity that triggered the event. |
Time |
Date and time recorded when the first event happened. |
|
Severity |
Icon of a bell, colored according to the severity of the alarm. For more information, see Event Status Indicators. |
Alarm ID |
Sequentially assigned identifier of the alarm. |
Short Description |
Description of the event. |
Location |
Hyperlink to the entity that triggered the event. |
Time |
Date and time recorded when the first event happened. |
Suppress Display |
Whether or not the display of the alarm is suppressed. |
|
Severity |
Icon of a bell, colored according to the severity of the alarm. For more information, see Event Status Indicators. |
Alarm ID |
Sequentially assigned identifier of the alarm. |
Short Description |
Description of the event. |
Location |
Hyperlink to the entity that triggered the event. |
Time |
Date and time recorded when the first event happened. |
Suppress Display |
Whether or not the display of the alarm is suppressed. |
Working with Cisco Prime Network Events
The following topics describe how to view, filter, and display the properties of specific events and tickets, and how to refresh and export events:
•Viewing Event Properties
•Viewing Ticket Properties
•Refreshing Cisco Prime Network Events Information
•Filtering Events
•Exporting Displayed Data
Viewing Event Properties
Cisco Prime Network Events enables you to view the properties of a specific event type. The Event Properties window displays detailed information about the event; for example, the severity and the number of affected parties.
Tip Clicking the Details tab on the Event Properties window displays the properties of the selected ticket or event in the Properties pane.
To view event properties:
Step 1 Select the required tab for the specific event type.
Step 2 Select an event and choose View > Properties from the main menu. The event properties are displayed for the selected event, either in the lower portion of the Cisco Prime Network Events window or in a separate window as shown in Figure 9-2. The Details tab is displayed by default.

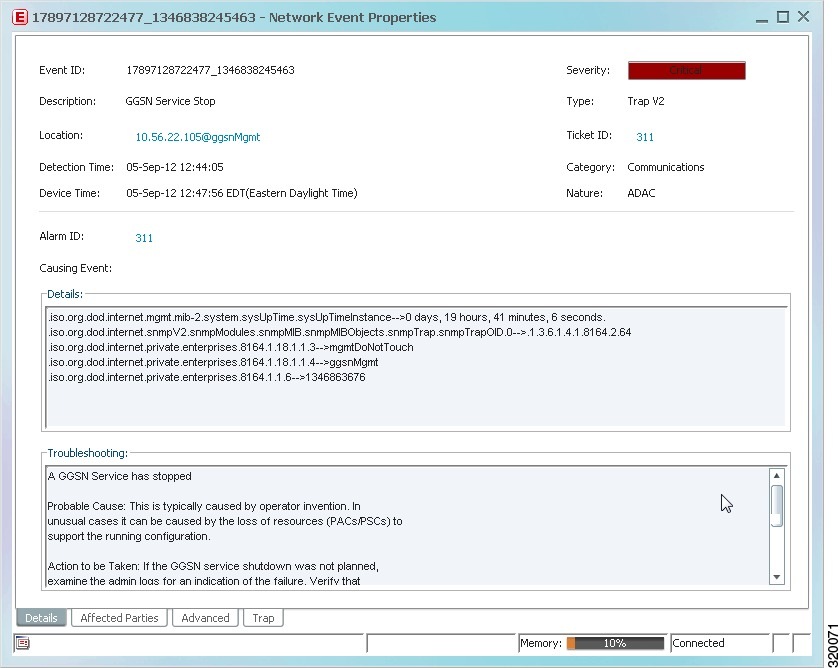

Figure 9-2 Network Event Properties Window - Details Tab
Table 9-14 describes the information that is displayed in the Details tab in the Event Properties window.
Table 9-14 Details Tab for Events
|
|
Event ID |
Unique identifier for the selected event. |
Severity |
Severity of the event, indicated by color and text label. |
Description |
Description of the event. |
Type |
Type of event, such as Security or Service. |
Location |
Entity that triggered the event, hyperlinked to its entry in inventory. |
Ticket ID |
This field is displayed only for network events. Sequential identifier of the ticket, hyperlinked to the Ticket Properties window. |
Detection Time |
Date and time when the event happened and was logged and recorded. |
Device Time |
The time zone of the device. Note This information is available only for Cisco ASR5000 devices. |
Category |
The category of the fault, which can be any one of the following: •Communications—Associated with procedures and/or processes required to convey information from one point to another. •Quality of Service—Associated with a degradation in the quality of service. •Processing error—Associated with a software or processing fault equipment. •Environmental—Associated with a condition relating to an enclosure in which the equipment resides. •Equipment—Associated with an equipment fault. •Undetermined—Not categorized. |
Nature |
The nature of the fault, which can be one of the following: •ADAC (Automatically Detected Automatically Cleared)—When the clearing is automatically detected and cleared by Element Management System (EMS). For example, Link Down. •ADMC (Automatically Detected Manually Cleared)—When clearing requires manual intervention. For example, DWDM Fatal Error syslog. |
Alarm ID |
This field is displayed only for network events. Alarm identifier, hyperlinked to the Ticket Properties window or the Alarm Properties window. |
Causing Event |
This field is displayed only for network events. The identifier of the causing event. |
Details |
Detailed description of the event. |
Troubleshooting |
The probable cause of the event, action to be taken to rectify the problem, and the clearing condition. Note This information is available only for Cisco ASR5000 traps. |
Step 3 You can view additional properties in the following tabs:
•Advanced tab—See Table 9-15.
•Affected Parties tab—See Table 10-12.
•Audit tab—See Table 9-16.
•Provisioning tab—See Table 9-17.
•Security tab—See Table 9-18.
•Trap tab—See Table 9-19.
The tabs that are displayed depend on the type of event, such as a Service event or a Provisioning event.
Table 9-15 Advanced Tab
|
|
Duplication Count |
For network events, the duplication count is calculated by the VNE and pertains only to flapping events. The duplication count represents the number of noncleared events aggregated by the flapping event. |
Reduction Count |
For network events, the reduction count is calculated by the VNE and pertains only to flapping events. The reduction count represents the number of events that are aggregated by the flapping event. |
Affected Devices |
The number of devices affected by the ticket. |
Alarm Count |
The total number of alarms associated with the ticket, including the root alarm. |
Table 9-16 Audit Tab
|
|
User Name |
Name of user who initiated the command. |
Result |
Command result, if available. |
Originating IP |
IP address of the client that issued the command. |
Command Signature |
Actual command run by Prime Network, such as GetEventViewerProperties. |
Command Parameters |
Parameters applied to the command. |
Table 9-17 Provisioning Tab
|
|
User Name |
Name of the user who performed the provisioning operation. |
Status |
Status of the operation: Success or Fail. |
Table 9-18 Security Tab
|
|
User Name |
Name of the user who triggered the event. |
Client Type |
Client that triggered the event: Cisco Prime Network Vision, Cisco Prime Network Administration, Cisco Prime Network Events, or Unknown. |
Originating IP |
IP address of the client where the event was triggered. |
Table 9-19 Trap Tab
|
|
Version |
SNMP version: version-1, version-2c, or version-3. |
Community String |
Community that the device sends in the Protocol Data Unit (PDU). |
Error Status |
Error status: No Error, Too Big, No Such Name, Bad Value, Read Only, and Gen Err. |
|
Translated OID |
String representation of the OID. For example, 1.3.6 is translated into iso.org.dod where: •1 represents iso. •3 represents org. •6 represents dod. |
Translated Value |
String representation of the OID value. For example, 1.3 is translated to iso(1).org.10, or a specific value, such as "down" or "4 days, 20 hours, 32 minutes, 11 seconds." |
OID |
OID that is not translated. It is a dot notation representation of the OID, such as 1.3.6.1.4.1.9. |
Value |
Value that is not translated. |
The properties of a selected ticket can be viewed in the Ticket Properties window. For a detailed description of the Ticket tab properties, see Viewing Ticket Properties.
Viewing Ticket Properties
You can view the properties of a selected ticket in Cisco Prime Network Events by displaying the Ticket Properties window.
To view ticket properties in Cisco Prime Network Events:
Step 1 In the Ticket tab in the Cisco Prime Network Events window, select the required ticket.
Step 2 Choose View > Properties from the main menu. The properties are displayed for the selected ticket, either in the lower portion of the Cisco Prime Network Events window or in a separate window as shown in Figure 9-3.
Figure 9-3 Ticket Properties Window - Details Tab
Table 9-20 describes the information that is displayed in the Details tab in the Ticket Properties window.
Table 9-20 Ticket Properties Window - Details Tab
|
|
|
Acknowledge |
Acknowledges that the ticket is being handled. The status of the ticket is displayed as true in the ticket pane and in the Ticket Properties dialog box. For more information, see Acknowledged Ticket. If a ticket is acknowledged, and events are correlated to it after correlation, the ticket is considered to have not been acknowledged. This button is enabled only if the ticket is not acknowledged. |
Clear |
Requests the Prime Network system to remove the faulty network element from the Prime Network networking inventory. In addition, it sets the ticket to Cleared severity or status and automatically changes the acknowledged status of the ticket to Yes. For more information, see Cleared Ticket. This button is enabled only if the severity of the alarm is higher than Cleared or Normal. |
|
Ticket ID |
Sequentially assigned identifier of the ticket. |
Severity |
Severity of the ticket, indicated by color and text label. |
Description |
Description of the ticket. |
Last Modification Time |
Date and time (per the database) that the ticket was last updated. Updates can result from either manual or automatic operations. |
Location |
Hyperlink to the entity that triggered the event. Note If the entity that triggered the event is outside your scope, a message is displayed that states you do not have permission to access the selected item. |
Open Alarms |
Number of open alarms out of all alarms, such as 3/4. |
Root Event Time |
Date and time that the event that created the root cause alarm of the ticket was detected. |
Acknowledged |
Whether or not the ticket has been acknowledged: Yes or No. |
Creation Time |
Date and time when the ticket was created. |
Device Time |
The time zone of the device. Note This information is available only for Cisco ASR5000 devices. |
Category |
The category of the fault, which can be any one of the following: •Communications—Associated with procedures and/or processes required to convey information from one point to another. •Quality of Service—Associated with a degradation in the quality of service. •Processing error—Associated with a software or processing fault equipment. •Environmental—Associated with a condition relating to an enclosure in which the equipment resides. •Equipment—Associated with an equipment fault. •Undetermined—Not categorized. |
Nature |
The nature of the fault, which can be one of the following: •ADAC (Automatically Detected Automatically Cleared)—When the clearing is automatically detected and cleared by Element Management System (EMS). For example, Link Down. •ADMC (Automatically Detected Manually Cleared)—When clearing requires manual intervention. For example, DWDM Fatal Error syslog. |
Details |
Detailed description of the ticket. |
Troubleshooting |
The probable cause of the event, action to be taken to rectify the problem and the clearing condition. Note This information is available only for Cisco ASR5000 traps. |
Step 3 As required, review additional properties for the ticket.
Table 9-21 identifies the additional tabs that are displayed in the Ticket Properties window and links to the relevant information.
Table 9-21 Ticket Properties Window - Additional Tabs
|
|
History |
Contains the history of the ticket, including all the events. For more information, see History Tab. |
Affected Parties |
The services (affected pairs) that are potentially affected (potential impact analysis) by the ticket. For more information, see Affected Parties Tab. |
Correlation |
Displays all alarms that are correlated to the selected ticket. For more information, see Correlation Tab. |
Advanced |
The number of affected devices, correlations, duplications, and reductions for the selected ticket. In addition, it provides any other additional information available about the ticket. For more information, see Advanced Tab. |
Notes |
Enables you to add and save notes for the selected ticket. The Notes tab is not available for tickets that have been archived. For more information, see Notes Tab. |
User Audit |
Enables you to see which ticket-related actions were carried out by which users, and when the action took place. For more information, see User Audit Tab. |
Refreshing Cisco Prime Network Events Information
Cisco Prime Network Events displays current information in lists in each tab. While you view a list, the information is not updated unless you manually refresh the list or activate autorefresh. The default autorefresh setting is 60 seconds and can be adjusted (see Adjusting the Prime Network Events GUI Client Settings). Your filter settings remain intact.
Table 9-22 shows the refresh buttons.
Table 9-22 Cisco Prime Network Events Refresh Buttons
|
|
|
|
Refresh Now |
Manually refreshes the events list. |
|
Auto Refresh |
Automatically refreshes the events list. The Auto Refresh icon toggles to indicate whether auto refresh is on or off. This icon indicates auto refresh is on. |
To manually refresh a list, choose View > Refresh from the main menu.
To automatically refresh a list, click Auto Refresh in the toolbar.
Filtering Events
The Filter Events dialog box allows you to filter events according to a number of criteria including severity, identifier, time stamp, description, location, and category-specific information.
You may also use the filter to search for information in the database.
The Filter icon toggles to indicate that a filter has been applied.
The following settings in the Cisco Prime Network Events Options dialog box also affect your filters:
•If you check the Keep Last Filter check box, the currently defined filter settings are saved in the registry and are displayed the next time you log in, but are not applied.
•If you check the Open Using Filter check box, the events are continuously filtered according to the defined settings, even when you log out of and back into the application.
For more information, see Adjusting the Prime Network Events GUI Client Settings.
See the following topics for more information about filtering events:
•Defining Filters
•Removing Filters
For information about filtering tickets, see Filtering Tickets by Criteria.
Defining Filters
To define a filter:
Step 1 Choose Edit > Filter from the main menu. The criteria that you can use for filtering differs for events and tickets. For example, Figure 9-4 shows the Filter Events dialog box for service events. For an example of the Ticket Filter dialog box, see Figure 10-2.
Figure 9-4 Filter Events Dialog Box - Service Events
Step 2 Specify the filter criteria by using the following steps and the information in Table 9-23:
a. Check the check box for each criterion to use for filtering.
b. As needed, choose the operator for the filter, such as Contains or Does Not Contain.
c. Supply the specific information to apply to the filter, such as the time, a string, or one or more IP addresses.
Table 9-23 Cisco Prime Network Events Filter Events Options
|
|
Severity |
Severities to be included in the filter. |
|
Event ID |
Event identifier to apply to the filter. |
Description |
String to include or exclude. |
Location |
Network elements to include. This field is not displayed for Audit events. |
Time |
Beginning and ending dates and times to apply to the filter. |
Network Events Advanced Options
|
Alarm ID |
Alarm identifier to apply to the filter. |
Causing Event ID |
Identifier of the causing event to apply to the filter. |
Ticket ID |
Ticket identifier to apply to the filter. |
Duplication Count |
Duplication count value to use for filtering. |
Reduction Count |
Reduction count value to use for filtering. |
Archived |
Archive status to use for filtering: True or False. |
System Events Advanced Options
|
Command Name |
String in the command name to use for filtering. |
Command Signature |
String in the command signature to use for filtering. |
Command Parameters |
String in a command parameter to use for filtering. |
Originating IP |
Originating IP address to include or exclude from filtering. |
Status |
Status to use for filtering: Configuring, Fail, Success, or Unknown. |
User Name |
String in the username to use for filtering. |
Step 3 Click OK to save your filter settings and apply the filter. The filtered entries are displayed in the list according to the defined criteria.
Removing Filters
To remove a filter:
Step 1 Click Filter in the main toolbar.
Step 2 In the Filter Events dialog box, click Clear. The selected options in the Filter Events dialog box are cleared.
Step 3 Click OK. All events are displayed in the list.
Exporting Displayed Data
Cisco Prime Network Events enables you to export the currently displayed data from the Cisco Prime Network Events table according to the criteria defined in the Cisco Prime Network Events Options dialog box. You can then import and view at a later time.
To export a table to a file:
Step 1 Choose File > Export.
Step 2 In the Export Table to File dialog box, browse to the directory where you want to save the list.
Step 3 In the File name field, enter a name for the list.
Step 4 Click Save. The displayed events list or rows are saved in the selected directory.
1 The Workflow Editor is based on LiquidBPM by Autonomy, Inc.
