Monitoring MPLS VPN Performance
Accessing the VPNSC Data Query Tools
Setting Up NetFlow Accounting on the Service Provider Network
Configuring the NetFlow Collector Device
Configuring NetFlow Accounting in VPN Solutions Center
Specifying the NetFlow Collector Devices in the Network
Retrieving Accounting Data with the XML Data Query Tool
Monitoring Performance Through Service Level Agreements
About the Service Assurance Agent Feature
Retrieving SA Agent Data with the XML Data Query Tool
Before You Create SLAs in VPN Solutions Center Software
Verifying SA Agent Targets and IP Addresses in the Repository
Configuring VPN Solutions Center to Collect SA Agent Data for an SLA
Retrieving SLA Data with the XML Data Query Tool
Setting Up the Service Provider Network for CAR
Platform and Cisco IOS Support
Simple CAR Configuration Example
Setting Up CAR Data Collection in VPN Solutions Center
Populating Interface Information to the Device Inventory Repository
Retrieving CAR MIB Data with the XML Data Query Tool
Retrieving Interface Statistics with the XML Data Query Tool
Collecting Only Changed Configuration Files
Populating Router Interface Information to the Repository
Registering for Changed Configuration File Traps
Deregistering for Changed Configuration File Traps
Monitoring MPLS VPN Performance
This chapter provides an overview of performance monitoring and data collection tasks. VPN Solutions Center provides three types of performance monitoring:
•
Monitoring Performance Through Service Level Agreements
Accessing the VPNSC Data Query Tools
The VPN Solutions Center software periodically collects performance data such as Service Assurance Agent (SA Agent) data, Accounting data, and Committed Access Rate (CAR) MIB data; the application then places this data in the Repository. You can access this data through web-based data query tools, as well as through customized reports or through CORBA APIs. The performance data retrieved by the web-based data query tools is saved to a file in XML format.
VPNSC provides the following data query tools:
•
•
•
•
To access the VPNSC Data Query Tools, follow these steps:
Step 1
The first time you access the web browser from the VPNSC software, you must log in.
Step 2

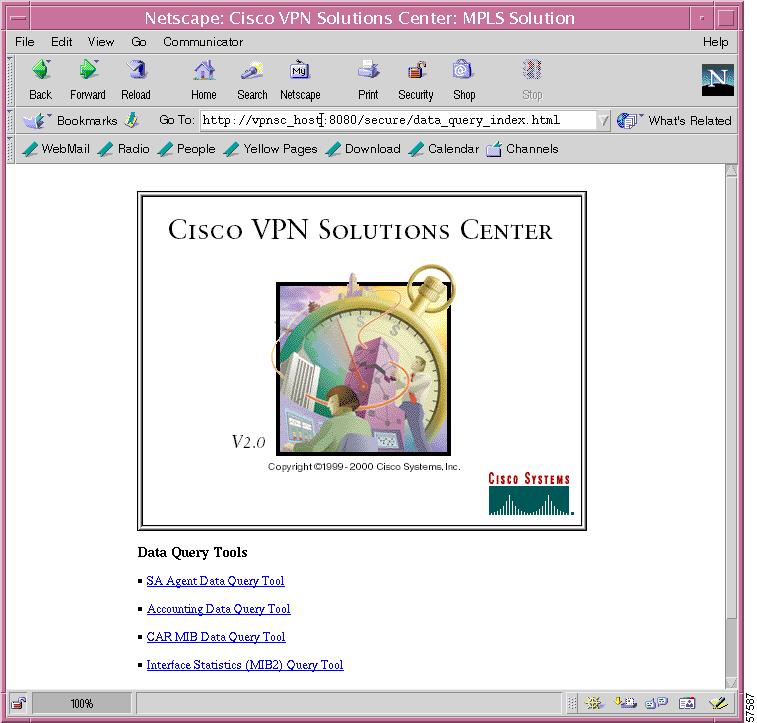

The VPN Solutions Center Data Query Tools page appears (see Figure 5-1).
Figure 5-1 MPLS Solution Data Query Tools Page
•
•
•
•
For additional details, refer to "XML Data Query Tool" in Chapter 8 of the Cisco VPN Solutions Center: MPLS Solution User Reference.
MPLS VPN NetFlow Accounting
In the VPN Solutions Center software, accounting data is collected to provide end-to-end usage information on VPN-based network traffic and to provide a complete billing solution. Collected accounting data is used by the Accounting server for various levels of aggregation for accounting reports and API accounting information.
NetFlow Collector (NFC) is the software that gathers flow statistics from Cisco IOS devices. It is used for data collection, filtering and aggregation. The NetFlow data is stored on the NetFlow workstations in binary flat files. Because NetFlow sends data from the router in User Datagram Protocol (UDP) packets, Cisco recommends that the NetFlow Collector 3.0 device be located on a LAN connected directly to the PE or the Management PE (MPE) device.
VPN Solutions Center makes NetFlow "MPLS-aware." Thus, different service provider Customers can use the same IP address space, and VPN Solutions Center can track the traffic flows for each individual VPN and Customer.
To use NetFlow and VPN Solutions Center software to gather flow statistics, you must complete the following tasks:
•
•
•
Setting Up NetFlow Accounting on the Service Provider Network
Before you can use VPN Solutions Center software to provide NetFlow accounting data, complete the following tasks in the service provider network:
1.
2.
ip flow-export version 5
ip flow-export destination
ip_address port
Note
3.
4.
ip route-cache flow
5.
show ip cache flow
The output for this command shows the size of the packets, types of traffic, which interfaces the traffic enters and exits, as well as the source and destination addresses.
6.
ip flow-cache entries #
The ip flow-cache entries command is a global command executed on the PE.
The default size of the NetFlow cache is usually adequate. However, you can increase or decrease the number of entries maintained in the cache to meet the needs of your flow traffic rates. For environments with a high amount of flow traffic (such as an Internet core router), a larger value such as 131072 (128K) is recommended. To obtain information on your flow traffic, use the show ip cache flow command.
The default is 64K flow cache entries. Each cache entry is approximately 64 bytes of storage. Assuming a cache with the default number of entries, approximately 4 MB of DRAM would be required. Each time a new flow is taken from the free flow queue, the number of free flows is checked. If there are only a few free flows remaining, NetFlow attempts to age 30 flows using an accelerated timeout. If there is only one free flow remaining, NetFlow automatically ages 30 flows regardless of their age. The intent is to ensure free flow entries are always available.
Caution
Configuring the NetFlow Collector Device
Complete the following tasks on each NetFlow Collector device in the service provider network:
1.
2.
•
#Set format to Comma Separated for VPNSC:CSV_FORMAT yes#Use long file names with dates:LONG_OUTPUTFILE_SUFFIX yes•
#Use the Detail Call Record aggregation scheme for VPNSC:Thread DETCALLRECAggregation DetailCallRecordPeriod 30Port 9996State ActiveDataSetPath /opt/CSCOnfc/DataBinary YesCompression NoMax Usage 100
Note
Configuring NetFlow Accounting in VPN Solutions Center
When NetFlow is set up in the service provider network and the NFC devices themselves, you can then configure NetFlow accounting in VPN Solutions Center software. To do so, you must add the NFC devices to the network definition and enable NetFlow accounting.
1.
2.
Specifying the NetFlow Collector Devices in the Network
This procedure allows you to specify the NetFlow Collector devices in the network from which you want VPN Solutions Center to collect accounting data. You also define the data collection schedule. This collection procedure assumes that the NetFlow Collector devices are configured in the network and have already collected data from the network.
Tips
To collect VPN accounting data, follow these steps:
Step 1
The VPN Console Monitoring menu shown in Figure 5-2 provides the menu options from which you can access the performance collection tasks and their corresponding reports.
Figure 5-2 Monitoring Menu
Step 2

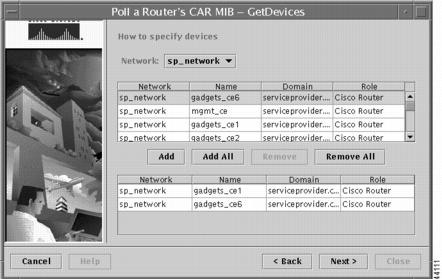

The Get Devices dialog box allows you to specify the NetFlow Collector devices from which you wish VPN Solutions Center to collect accounting information.
Step 3
The upper panel displays all the available NetFlow Collector devices in the specified network.
Step 4
The active list of NetFlow Collector devices is displayed in the lower panel.
If you need to remove some of NetFlow Collector devices from the active list, select the appropriate device and click Remove to remove a specific device; or click Remove All to remove all the NetFlow Collector devices from the active list.
When you are ready to choose the NetFlow Collector devices in the lower panel, click Next.
Step 5
The task name you enter here is listed in the Task Manager window and the Task Logs.
Defining the Data Collection Schedule
Step 6
Note
Step 7
Step 8
Note
Step 9
Step 10
•
•
For detailed information about scheduling, refer to Chapter 12, "Scheduling," in the Cisco VPN Solutions Center: MPLS Solutions User Reference, Release 2.0.
Step 11
You are informed that all the steps are done.
Step 12
Now that you have collected data for accounting, you can view this data as directed in the next section "Viewing Accounting Reports."
Note
Viewing Accounting Reports
NetFlow data is periodically procured from the NetFlow Collector workstations. VPN Solutions Center analyzes the data to create the accounting reports:
Accounting reports, which are based on processed accounting data, provide network usage and planning information. Billing systems can get the traffic usage from the Accounting Server, which leverages collected accounting data and provides complete billing services to customers.

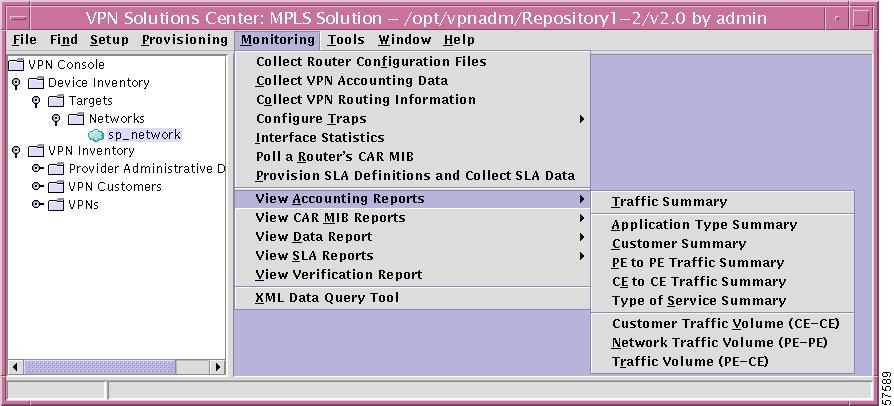

After collecting VPN accounting data, choose Monitoring > View Accounting Reports, then select the specific type of report you require (as shown in Figure 5-3).
Figure 5-3 Accounting Reports Menu
The accounting reports are as follows:
•
Displays total packets and total KB for traffic that can be mapped to the VPN (VPN Traffic) and otherwise to Unmappable Traffic.
•
Provides total packets and total K bytes for each application type.
•
Provides total packets and total KB for each customer plus additional reports for customer site and application type.
•
Reports on all traffic between PE to PE, plus additional reports for the following: 1) PE to connected CE, 2) PE to remote CE, 3) PE traffic, and 4) PE to CE.
•
Reports on all traffic between CE to CE.
•
Provides total packets and total KB for each type of service.
•
Provides information on all traffic volume for a specific customer between CE to CE in packets or KB (by type of service).
•
Provides information on all traffic volume between PE to PE in packets or KB (by type of service).
•
Provides information on all traffic between PE to CE (by TOS).
Note
Retrieving Accounting Data with the XML Data Query Tool
VPN Solutions Center periodically collects Accounting performance data and places this data in the Repository. You can access the Accounting data through web-based data query tools, as well as through customized reports or through CORBA APIs. The performance data retrieved by the web-based data query tools is saved to a file in XML format that includes a Document Type Definition (DTD).
The Accounting data query can specify the exact time period and time interval for the data. With the Advanced query, you can organize the data by application type or service request; you can also retrieve the Accounting data for a specific application or class of service.
You can retrieve Accounting statistics by specifying the source and destination of the traffic. The source and destination can be any one of the following network elements: PE, CE, Customer, or Customer Site. To query the traffic traversing between two CEs requires that both CEs belong to the same Customer; likewise, to query the traffic traversing between two sites requires that both sites belong to the same Customer.
To access the Accounting Data Query Tools, follow these steps:
Step 1
The first time you access the web browser from the VPNSC software, you must log in.
Step 2
The VPN Solutions Center Data Query Tools page appears.
Step 3
Step 4
Figure 5-4 Accounting Data Query Page
Step 5
a.
b.
c.
d.
e.
f.
Step 6
Step 7
You have the option of proceeding with the data query by clicking the Query button or adding additional criteria to the data query by clicking the Advanced Query button.
Step 8
Step 9
You receive the following message:
Accounting Data Query is starting; it may take some time. Do you really want to continue?Step 10
To cancel the query, click Cancel.
If you click OK, the page shown in Figure 5-5 appears
Figure 5-5 Choosing the Accounting Query Options
This page provides the following options:
•
•
•
Step 11
Monitoring Performance Through Service Level Agreements
VPN Solutions Center software monitors performance through the service-level agreement (SLA) server. An SLA defines a service provided by a service provider to any customer. VPN Solutions Center monitors the service related performance criteria by provisioning and monitoring SLAs on routers that support the Service Assurance Agent (SA Agent) management information base (MIB). To provision the SLAs and to collect statistics for each SLA, the process of creating an SLA and collecting the data requires some user input, as described in this section.
The SLA server collects the relevant performance data, stores it persistently, and presents useful reports. The SLA server is based on the Service Assurance Agent (SA Agent) MIB. The MPLS VPN Solution software leverages the SA Agent MIB to monitor SLA performance. Service providers can monitor network traffic using any of the following protocols:
•
•
•
•
•
•
•
About the Service Assurance Agent Feature
The Service Assurance Agent (SA Agent) feature allows you to monitor network performance, network resources, and applications by measuring response times and availability. With this feature you can perform troubleshooting, problem notifications, and preventive analysis based on Service Assurance Agent statistics.
The SA Agent router uses the Cisco Round Trip Time Monitor (RTTMON) MIB. For more information on the RTTMON MIB, refer to the Cisco MIB User Quick Reference.
You can use the Service Assurance Agent feature to troubleshoot problems by checking the time delays between devices (such as between two CEs in a VPN) and the time delays on the path from the source device to the destination device at the protocol level.
You can use this feature to perform preventive analysis by scheduling the Service Assurance Agent and collecting the results as history and accumulated statistics. You can then use the statistics to model and predict future network topologies.
About SA Agent Traps
You can configure SA Agent traps per SLA probe. SA Agent can send three types of traps:
•
•
•
The traps configuration encapsulates all three types of SA Agent traps.
In VPN Solutions Center, you can set traps per SLA either when you create an SLA or on an actively running SLA probe. When you configure traps during SLA creation, the traps are set before the SLA operation activates. In this case, VPNSC sends a trap in the event of a connection loss, a timeout, or threshold violation. When you configure a trap on an SLA probe that is already running, VPNSC does not send a trap after the first operation that triggers the trap until it sends the resolution trap.
An indication as to whether traps are sent on each SLA is recorded in the Repository. When a router reboots, VPNSC recreates the SLA and configures the traps according the data in the Repository.
Retrieving SA Agent Data with the XML Data Query Tool
VPN Solutions Center periodically collects Service Assurance Agent (SA Agent) performance data and places this data in the Repository. You can access the SA Agent data through web-based data query tools, as well as through customized reports or through CORBA APIs. The performance data retrieved by the web-based data query tools is saved to a file in XML format.
For related information regarding the retrieval of SLA definitions on SA Agent routers, see the "Retrieving SLA Data with the XML Data Query Tool" section.
To access the SA Agent Data Query Tools, follow these steps:
Step 1
The Netscape browser comes up. The first time you access the web browser from the VPNSC software, you must log in.
Step 2
The VPN Solutions Center Data Query Tools page appears.
Step 3

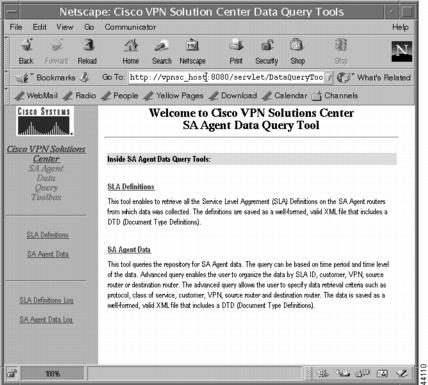

Figure 5-6 SA Agent Data Query Tool Page
Step 4
The SA Agent Data Query page appears (see Figure 5-7).
Figure 5-7 SA Agent Data Query Page
Step 5
a.
b.
c.
d.
e.
f.
Step 6
Step 7
You have the option of proceeding with the data query by clicking the Query button or adding additional criteria to the data query by clicking the Advanced Query button.
Step 8
You receive the following message:
SA Agent Data Query is starting; it may take some time. Do you really want to continue?
Step 9
To cancel the query, click Cancel.
If you click OK, the another page appears that provides the following options:
•
•
•
Step 10
Before You Create SLAs in VPN Solutions Center Software
Before you create SLAs in VPN Solutions Center software, you must enter some configuration changes on each CE and PE from which you want to collect performance data. To set up the CEs for SLAs, make sure the following conditions are met:
1.
2.
Note
To enable the rtr responder software, enter the following command on each CE router that is running the SA Agent:
rtr responder
3.
service udp-small-servers
4.
5.
Verifying SA Agent Targets and IP Addresses in the Repository
You must verify that the targets are assigned and the IP addresses are populated into the Device Inventory Repository for each target that is a source or destination for an SLA probe.
Tips
To verify router targets and IP addresses in the Device Inventory Repository, follow these steps:
Step 1
The Network window is displayed, as shown in Figure 5-8.
Figure 5-8 Network Window
Step 2
Step 3
Step 4
A complete list of all currently populated IP addresses for the selected target (router) is displayed.
Populating IP Address Information to the Device Inventory Repository
If all IP addresses are not listed, you must populate the IP addresses in the Device Inventory Repository database as follows:
Step 1
Step 2
This wizard sets up a scheduled task that polls for information about router interfaces. It extracts the interface name, index number, and IP address and subnet mask for each interface. The collected interface information is stored with each router definition.
Step 3
Refer to "Adding a New Router to the Network" section for the steps to do this.
Creating an SLA
Each Service Level Agreement (SLA) is associated with a customer, the source and destination addresses on the target CEs, the protocol used for the SA Agent probe, and the threshold for delay. Before you can create an SLA, the SA Agent CE router must be:
•
•
When you create an SLA, VPN Solutions Center software creates an SA Agent probe on the target CE router. To create an SLA, follow these steps:
Step 1
Step 2
The Specify SLA Operation dialog box appears (see Figure 5-9).
Figure 5-9 Specifying the SLA Operation

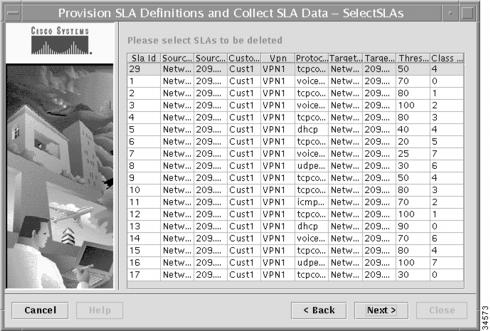

As shown in Figure 5-9, you can create an SLA, delete an SLA, or collect data for SLA monitoring.
You can also enable or disable traps. For more information, see "About SA Agent Traps" section.
For information on creating, selecting, and deleting SLAs for APIs by using the command line interface, see the Cisco VPN Solutions Center: MPLS Solution API Programmer Guide.
Step 3

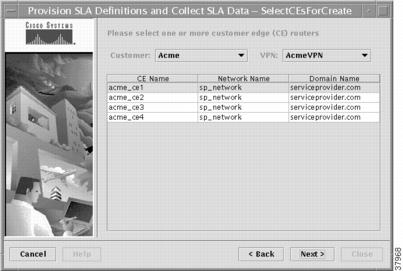

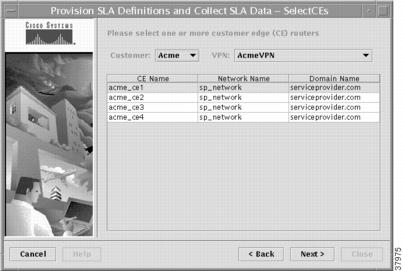

The dialog box shown in Figure 5-10 directs you to select the source CE (or CEs)—that is, the CE you select here sends the SLA probe.
Figure 5-10 Selecting the Source CE(s) for the SLA Probe
Step 4
a.
b.
c.
To select multiple CEs from the list, hold down the Ctrl key, then click the additional router names.

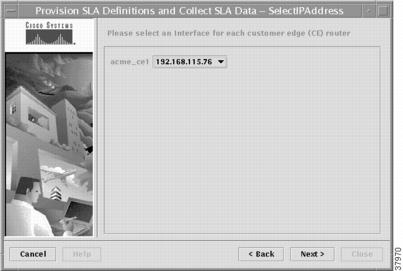

The next dialog box directs you to indicate the source IP address for the source CE.
Figure 5-11 Select Source IP Address for SLA Probe
Step 5
When finished, click Next.
The next dialog box directs you to specify the common parameters for the SLA.
Figure 5-12 Specify SLA Common Parameters
Step 6
The fields in the SLA Common Parameters dialog box are as follows:
•
•
•
•
•
Step 7
a.
The VPN Solutions Center history table records the round trip time (that is, the delay) of operations in milliseconds. The history table does not apply to the jitter and http SLA probes.
The statistics table, which is unrelated to the history table, records the sum of the round trip times, calculates averages, and records the minimum and maximum delay values.
When you set the Keep History parameter to True, it configures the SLA probe to keep both the history table and statistics table.
b.
The Numbered Buckets parameter determines the number of samples saved for each operation. This parameter indicates the number of history delay values retained in the history table.
c.
When you set Enable Traps for a new SLA probe, the traps are set before the SLA operation activates. VPN Solutions Center sends a trap in the event of a timeout, a connection loss, or threshold violation (see also "About SA Agent Traps" section).
d.
If you enable traps for the SLA, you must specify the Falling Threshold value, which triggers a threshold resolution trap. The default is 3000 milliseconds.
The next dialog box (see Figure 5-13) directs you to specify the type of SLA protocol and set its corresponding parameters.
Figure 5-13 Select SLA Protocol Data Parameters
Step 8
•
•
•
•
•
•
•
Step 9
You can add additional protocols as desired.
Step 10
For details on the parameters and values for each SLA protocol listed here, refer to "Provision SLA Definitions and Collect SLA Data" in Chapter 9 of the Cisco VPN Solutions Center: MPLS Solution User Reference.
The dialog box shown in Figure 5-14 directs you to select the SNMP security level for the SLA.
Figure 5-14 Specifying the SNMP Security Level
Step 11
•
•
•
When you have selected the SNMP security level for this SLA, click Next.
Step 12
To help you specify a unique task name, the Task Name drop-down list shows the list of existing task names.
The dialog box shown in Figure 5-15 asks if and when you want to schedule the task.
Figure 5-15 Specifying When to Run the Task
You have three options:
•
•
•
Step 13
Step 14
The SLA is added to the Schedule List (and displayed in the upper pane).
Step 15
Configuring VPN Solutions Center to Collect SA Agent Data for an SLA
When you collect data for SLA monitoring, VPN Solutions Center software downloads SLA statistics collected over the last hour from one or more specified routers. The specified routers must have the SA Agent probes configured on them. For information on defining a CE as a router running SA Agent, see the "Defining the Customer Sites" section.
Note
To collect SA Agent data for SLAs, follow these steps:
Step 1
Step 2
The Specify SLA Operation dialog box is displayed. From this dialog box, you can choose to create an SLA, delete an SLA, or collect data for SLA monitoring.
Step 3
The dialog box shown in Figure 5-16 appears and directs you to select the source CE for the SLA probe (or CEs). The CE you select here sends the SLA probe to the routers that have SA Agent enabled.
Figure 5-16 Select Source CE for SLA Probe
a.
b.
c.
Step 4
To help you specify a unique task name, the Task Name drop-down list shows the list of existing task names.
The next dialog box asks if and when you want to schedule the task. You have three options:
•
•
•
Step 5
Step 6
The SLA is added to the Schedule List (and displayed in the upper pane).
For detailed information about scheduling, refer to Chapter 13, "Scheduling," in the Cisco VPN Solutions Center: MPLS Solutions User Reference.
Step 7
If you chose to schedule the SA Agent collection task, that will also occur.
You are informed that all steps are done.
Step 8
When you have collected data for SLAs, you can view the data (see the "Viewing SLA Reports" section).
Deleting an SLA
Deleting an SLA from VPN Solutions Center deletes an SA Agent probe from the source CE router.
Step 1
Step 2
The Specify SLA Operation dialog box is displayed (as shown in Figure 5-9).
Step 3
The dialog box shown in Figure 5-17 appears.
Figure 5-17 Select Source CE of SLA
Step 4
The CE pane lists all the CEs in the selected VPN that are running SA Agent.
Step 5
The next dialog box directs you to select the SLA you want to delete.
Figure 5-18 Select SLAs to Delete
Step 6
To select multiple items, hold down the Ctrl key and click each item you want to add.
Step 7
Step 8
Step 9
The SLA deletion request is added to the Schedule List (and displayed in the upper pane).
Step 10
Viewing SLA Reports
After collecting SA Agent data for SLA, choose Monitoring > View SLA Reports, then select the specific type of report you require.
Note
The specific report types are as follows:
•
These reports are time-based reports that show the following parameters: Connectivity as a percentage, Maximum Delay in milliseconds, and Threshold Violation as a percentage. These parameters are available in annual, monthly, weekly, daily, and hourly reports. For each parameter, you can generate detailed reports that show more related parameters. The reports can be organized by source router (the source CE of the SLA), SLA identifier, customer name, or VPN name.
•
Displays statistics that are measured only by Voice Jitter SLAs originated in a selected router. The reports are time-based. They show hourly, daily, weekly, monthly, and annual data and can be organized by SLA ID, destination router, VPN, Customer, or Unspecified.
•
Displays statistics that are measured only by HTTP SLAs. The reports are time-based, and they show data in the following time increments: hourly, daily, weekly, monthly, and annually. Data can be organized by SLA ID, source router, VPN, or Customer.
The Summary HTTP Report displays the connectivity, maximum delay, and threshold violation (as in the Summary Report). The Stages HTTP Report displays the round trip time, timeouts, and the error distribution among different HTTP stages: DNS lookup, TCP connect, and Transaction.
•
Shows the packet drop percentage among CEs of a specific customer. This information is measured only for the SLAs with the jitter protocol. The reports are organized by class of service. The reports are annually, monthly, weekly, daily, and hourly. You can navigate along the time scale.
•
Shows the maximum, minimum, and average round-trip time (in milliseconds) among the CEs of a specific customer. The statistics are for all the probe types. The reports are organized by class of service. The reports are annually, monthly, weekly, daily, and hourly. You can navigate along the time scale.
•
Shows the packet drop percentage among all the shadow SA Agent CEs in the network. The network packet drop between PEs is measured by the shadow SA Agent CEs that are connected to the PEs. This information is measured only for the SLAs with the jitter protocol. The reports are organized by class of service. The reports are annually, monthly, weekly, daily, and hourly. You can navigate along the time scale.
•
Shows the maximum, minimum, and average round-trip time among shadow SA Agent CEs in the network. The statistics are for all the probe types. The reports are aggregated by class of service. The reports are annually, monthly, weekly, daily, and hourly. The user can navigate along the time scale.
•
Shows all the SLAs on the SA Agent routers from which data was collected. The SLA Definition report shows the SLA ID given to each SLA. SLAs in the report may have been deleted but are kept in the SLA Definition to match the old collected data.
Retrieving SLA Data with the XML Data Query Tool
VPN Solutions Center allows you to retrieve Service Level Agreement (SLA) definitions on the Service Assurance Agent (SA Agent) routers from which data has been collected. You can either retrieve all the SLA definitions on the SA Agent routers, or only the SLA definitions that are currently active.
You can access the SLA data through web-based data query tools, as well as through customized reports or through CORBA APIs. The data retrieved by the web-based data query tools is saved to a file in XML format that includes a Document Type Definition (DTD).
To access the interface statistics Data Query Tools, follow these steps:
Step 1
The first time you access the web browser from the VPNSC software, you must log in.
Step 2
The VPN Solutions Center Data Query Tools page appears.
Step 3
The SA Agent Query Tools page appears. This page provides two options: SLA Definitions and SA Agent Data.
Step 4
The SLA Definitions Query page appears (see Figure 5-19).
Figure 5-19 SLA Definitions Query Page
Step 5
•
•
Step 6
You receive the following message:
SLA Definitions Data Query is starting. Do you really want to continue?
Step 7
To cancel the query, click Cancel.
The next page that appears gives you the following options:
•
•
Step 8
Using CAR to Monitor Data
Committed Access Rate (CAR) is the underlying software base for both packet classification and access rate-limiting functionality. CAR provides the status for each interface on each router configured with CAR. CAR controls IP traffic transmission rates into the network during periods of network congestion. CAR achieves this control through rate limiting (with burst capabilities), and classifies and marks packets using IP precedence and QoS group settings.
CAR provides several fundamental capabilities:
•
CAR can identify traffic of interest for limiting access rate or setting the precedence (or both). Rate policies can be associated with one of the following:
–
–
–
–
–
•
CAR utilizes a token bucket measurement mechanism. Tokens are inserted into the bucket at the committed rate. The depth of the bucket is the burst size. When traffic arrives at the bucket, if sufficient tokens are available, the traffic is said to conform and the corresponding number of tokens are removed from the bucket. If sufficient tokens are not available, the traffic is said to exceed. Note that unlike leaky bucket implementations, the token bucket does not delay the traffic.
•
The network operator can specify policies to be executed for traffic, which either conforms to or exceeds a specified rate limit.
Rate-Limiting Functionality
CAR's rate-limiting functionality provides the network operator with the means to define Layer 3 aggregate or granular access or egress bandwidth rate limits and to specify traffic handling policies when the traffic either conforms to or exceeds the specified rate limits. Aggregate access means matching all of the packets on an interface or subinterface. Granular access means matching a particular type of traffic based on precedence, MAC address, or other parameters.
You can specify CAR rate-limiting policies based on criteria including physical port, packet classification, IP address, MAC address, application flow, or other criteria specifiable by access lists or extended access lists. CAR rate limits can be implemented either on input or output interfaces or subinterfaces including frame relay and ATM subinterfaces.
CAR utilizes a token bucket; thus CAR can pass temporary bursts that exceed the rate limit as long as tokens are available. CAR does not smooth or shape the traffic and thus does no buffering (and adds no delay). CAR provides managed discard between the excess burst and extended excess burst parameters and CAR is highly optimized to run on high-speed links.
CAR also includes a new set of algorithms that provide highly efficient execution of aggregate rate limits (matching all traffic on an interface or subinterface), as well as rate limits that match specific IP precedence values and MAC addresses.
Setting Up the Service Provider Network for CAR
Setting up the service provider network in preparation for generating and collecting CAR data requires the following steps:
1.
2.
This task is performed in VPN Solutions Center software.
3.
This task is performed in VPN Solutions Center software.
Platform and Cisco IOS Support
CAR does not run on all Cisco routers. At this time, CAR is supported on the following platforms:
•
•
•
•
•
CAR requires Cisco IOS 12.0(7) or later.
Distributed CAR (DCAR) is supported on Cisco 7000 series routers with a route switch processor-based RSP7000 interface processor or a Cisco 7500 series router with a Versatile Interface Processor-based VIP2-40 or greater interface processor.
CAR and DCAR can be configured on an interface or subinterface. However, CAR and DCAR are not supported on Fast EtherChannel, tunnel, or PRI interfaces, nor on any interface that does not support Cisco Express Forwarding (CEF). CEF must be enabled on the interface before configuring CAR or DCAR.
Note
CAR reports are organized by both the Network and the Customer. You can generate Customer reports only if CAR is configured the CEs and data has been collected from the CEs. To generate Customer-based reports, CEs collecting CAR data must be managed CEs.
Simple CAR Configuration Example
The following configuration example illustrates how to configure a basic CAR policy that allows all IP traffic.
In the example, assume the network operator delivered a physical T3 link to the customer, but offered a less expensive 20 MBPS subrate service. The customer pays only for the subrate bandwidth, which can be upgraded with additional access bandwidth.
The CAR policy configured here limits the traffic rate available to the customer and delivered to the network to the agreed upon rate limit, plus providing the ability to briefly burst over the limit.
interface hssi 0/0/0rate-limit output 200000000 24000 3200 conform-action transmit exceed-action dropip address 209.165.200.225 255.255.255.0To verify the configuration and monitor CAR statistics, use the show interfaces rate-limit command:
Router#show interfaces hssi 0/0/0 rate-limitSetting Up CAR Data Collection in VPN Solutions Center
To gather and view CAR data in VPN Solutions Center software, you must complete two tasks:
•
•
Populating Interface Information to the Device Inventory Repository
Prior to polling a router's CAR MIB, you must populate the router interfaces.
To populate the interface information for all managed devices in the Device Inventory Repository, follow these steps:
Step 1
Step 2
This wizard sets up a scheduled task that polls for information about router interfaces. It extracts the interface name, index number, and IP address and subnet mask for each interface. The collected interface information is stored with each router definition.
Polling a Router's CAR MIB
To poll a router's CAR MIB, follow these steps:
Step 1
This wizard creates a task to poll the selected Cisco routers for data from the CAR MIB.
Step 2
The next dialog box (see Figure 5-20) allows you to specify which devices to poll for CAR information.
Figure 5-20 Specifying CAR Devices
Step 3
This dialog box has two panels. The upper panel displays the routers in the selected network. The lower panel will display the routers you want to be polled for CAR data.
Step 4
•
•
When you click Add or Add All, the selected routers are displayed in the lower panel.
If you need to remove any of the routers from the lower panel, click Remove to remove individual routers; or click Remove All to remove the entire list from the lower panel.
Step 5
Step 6
Step 7
Step 8
Tips
Note
The polling request is added to the Schedule List (displayed in the upper pane).
Step 9
Viewing CAR MIB Reports
The CAR MIB status data is collected in the Repository. The report data is organized first by Customer and Network. Each of these reports can be generated on an hourly, daily, weekly, monthly, and yearly basis.
Step 1
Step 2
•
•
For detailed information on these reports, refer to "View CAR MIB Reports" in Chapter 9 of the Cisco VPN Solutions Center: MPLS Solution User Reference, Release 2.0.
Retrieving CAR MIB Data with the XML Data Query Tool
VPN Solutions Center periodically collects CAR MIB performance data and places this data in the Repository. You can access the CAR MIB data through web-based data query tools, as well as through customized reports. The performance data retrieved by the web-based data query tools is saved to a file in XML format.
The CAR MIB Data Query Tool queries the Repository for CAR MIB status data. The data is saved in an XML file that includes a Document Type Definition (DTD). CAR MIBs provide the status for the token bucket parameters and their associated access list. You can retrieve the status data for the following categories:
•
•
•
•
To access the CAR MIB Data Query Tools, follow these steps:
Step 1
The first time you access the web browser from the VPNSC software, you must log in.
Step 2
The VPN Solutions Center Data Query Tools page appears.
Step 3
Step 4
The CAR MIB Data Query page appears (see Figure 5-21).

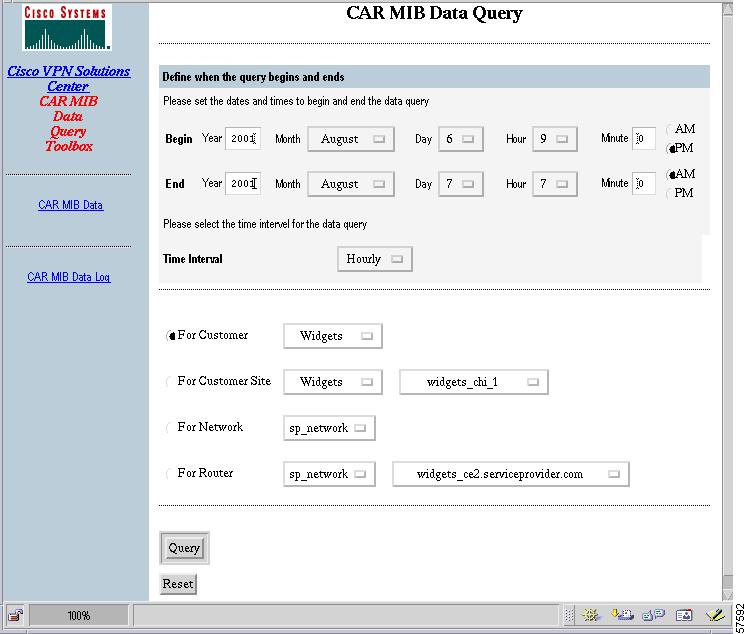

Figure 5-21 CAR MIB Data Query Page
Step 5
a.
b.
c.
d.
e.
f.
Step 6
Step 7
Step 8
You receive the following message:
CAR MIB Data Query is starting; it may take some time. Do you really want to continue?
Step 9
To cancel the query, click Cancel.
If you click OK to start the query, the next page that appears gives you the following options:
•
•
•
Step 10
Retrieving Interface Statistics with the XML Data Query Tool
VPN Solutions Center periodically collects interface statistics data and places this data in the Repository. You can access the interface statistics data through web-based data query tools. The data retrieved by the web-based data query tools is saved to a file in XML format that includes a Document Type Definition (DTD).
The data query tool collects and saves the interface statistics by router. The statistics include packet counters for router interfaces. You must identify the interfaces by index number, which is a unique and constant number, at least from one initialization of the router's network management system to another. The counters are wrapped around numbers with a maximum value of 2 to the power of 32 minus 1.
To access the interface statistics Data Query Tools, follow these steps:
Step 1
The first time you access the web browser from the VPNSC software, you must log in.
Step 2
The VPN Solutions Center Data Query Tools page appears.
Step 3
The Interface Stats (MIB2) Query Tool page appears.
Step 4
The Interface Statistics Query page appears (see Figure 5-22).
Figure 5-22 Interface Statistics Query Page
Step 5
a.
b.
c.
d.
e.
f.
Step 6
Step 7
Step 8
•
•
Step 9
You receive the following message:
Interface Statistics Query is starting; it may take some time. Do you really want to continue?
Step 10
To cancel the query, click Cancel.
If you click OK, the next page that appears gives you the following options:
•
•
•
Step 11
Collecting Only Changed Configuration Files
Router configuration files are usually collected at regular intervals and then examined for changes that affect the way the routers function. While the routers whose configuration files have changed are the only ones that need to be collected, the normal collection process does not separate the routers whose configuration files have changed from the routers whose configuration files have not. SmartCollector finds the routers whose configuration files have changed and puts them in a group to have their configuration files collected.
With SmartCollector, VPN Solutions Center creates a task and schedules it to be run once. When the task executes, all the targeted routers are instructed to advise the VPN Solutions Center software that uses the Simple Network Management Protocol (SNMP) of any change to their configuration files. MPLS VPN Solution, through the trapcatcher daemon, notes these traps and keeps track of the routers whose configuration files have changed, and thus need to be collected. The purpose of configuring traps (through SmartCollector) is to efficiently collect router configuration files from a set of routers that can belong to more than one network.
An example of the potential substantial savings is a scenario in which a network has 200 routers, but the configuration files for only 20 of the routers have changed. In this example, SmartCollector collects only the configuration files for the 20 that have changed rather than for all 200 routers. If only 10 percent of the routers have their configuration files changed between scheduled collections, each SmartCollection takes only 10 percent of the resources of a full collection.
Note that periodically (as determined by the cycle_t variable in the csm.properties file), the scheduler ignores the reduced target list and collects from all routers in the original target list. Thus even those routers whose traps failed to reach the MPLS VPN Solution are collected periodically.
•
•
To determine whether SNMP is enabled and the SNMP community strings are set on a router, see the "Setting Up SNMPv1 and SNMPv2 on the Routers in the Service Provider Network" section and the "Setting the SNMPv3 Parameters on the Routers in the Service Provider Network" section.
Populating Router Interface Information to the Repository
Prior to registering the configuration file change traps, you must populate the router interface information in the Repository, as follows:
Step 1
Step 2
This wizard sets up a scheduled task that polls for information about router interfaces. It extracts the interface name, index number, and IP address and subnet mask for each interface. The collected interface information is stored with each router definition.
This information is used to create the various accounting reports and to map the "config-change" traps to the appropriate routers.
Registering for Changed Configuration File Traps
This section explains how to register traps for changed configuration files, which indicates the routers for which data will be collected only if the routers have changed.
Step 1
This wizard configures selected Cisco routers to send "config-change" traps to the current VPN Solutions Center workstation. This enables SmartCollection, through which configuration files are collected only from those routers whose configuration files have changed.
Note
Step 2
Deregistering for Changed Configuration File Traps
This section explains how to deregister the traps for changed configuration files.
Step 1
This wizard configures selected Cisco routers to stop sending "config-change" traps to the current VPN Solutions Center workstation. The selected routers will no longer be part of SmartCollection, through which configuration files are collected only from those routers whose configuration files have changed.
Step 2
Feedback
