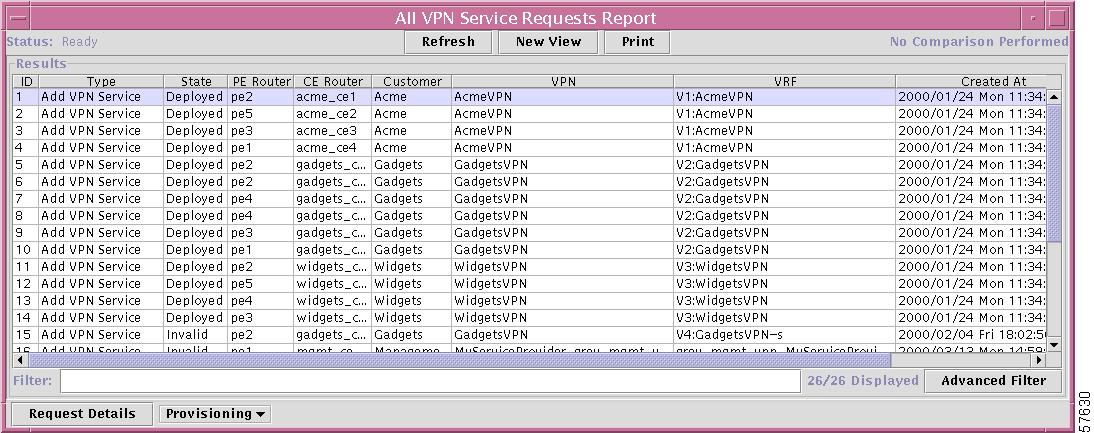

Generating a Service Request Audit

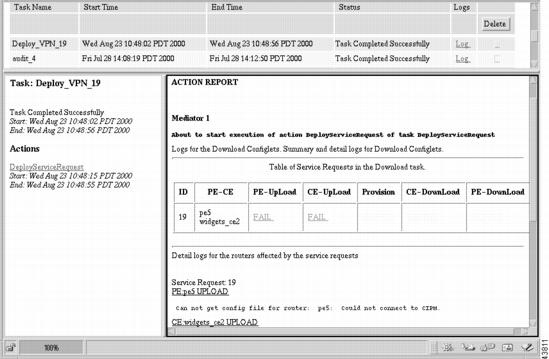

Checking Service Request Deployment Details

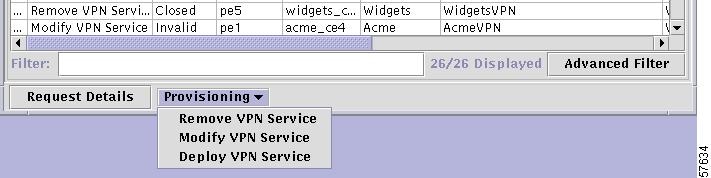

Creating a Remove VPN Service Request

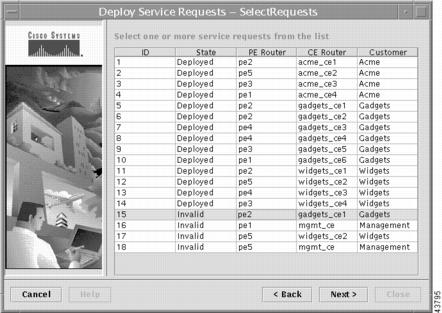

Deploying the Remove VPN Service Request
Auditing the Remove VPN Service Request
Purging a Closed Service from the Repository
Closing Service Requests Manually
Enabling Manual Closure of Service Requests
Performing a Customized Service Request Deployment
Setting Up Routers for Collecting Configuration Files
Setting the csm.properties File for Customized Router Prompt
Setting Up the Domain Name Server
Configuring the SNMP Settings on the PEs and CEs
Updating Router Configuration Files
Updating Configuration Information by Collecting From Targets
Updating Configuration Information by Importing From Files on the VPNSC Workstation
Running IOS Commands from the VPN Console
Modifying a Router's Configuration From the VPN Console
Retrieving a Previous Version of a Configuration File
Using the Download Console to Modify a Configuration
Provisioning MPLS VPN Service Requests
The focus of the VPN Solutions Center product is the service provided for a customer on the link between the customer's CE and the provider's PE. This chapter describes how you create a service request in the VPN Solutions Center software, as well as how to modify and delete service requests. Finally, this chapter tells you how to check on a service request's status and find out what went wrong if the request failed.
The main topics presented in this chapter are as follows:
•
Adding a Service for a PE-CE Link
•
•
•
•
•
•
•
Service Request Summary
The service model is the centerpiece of service provisioning. With the service model, the VPN Solutions Center software can capture the specified VPN service provisioning request, analyze the validity of the request, and audit the provisioning results.
The service provider operators take all service request information from their customers. VPN Solutions Center can assist the operator in making entries because the product has customer information such as the VPN information, the list of the assigned PEs and CEs, and so forth.
The VPN Console steps the operator through the process and simplifies the task of provisioning the CE and PE by automating most of the tasks required to set up an MPLS VPN.
Figure 4-1 shows a high-level diagram of the relationships and movement among VPN Solutions Center service request states.
Figure 4-1 Service Request States: Movement and Relationships
The sections below describe each of the service request states and their transition sequences.
Definitions of VPN Solutions Center Service Request States
Table 4-1 describes the functions of each VPN Solutions Center service request state. They are listed in alphabetical order.
Service Request State Transition Sequences
Table 4-2 and Table 4-3 show the state transition paths for VPN Solutions Center service requests. The beginning state of a service request is listed in the first column; the states that service requests transition to are displayed in the heading row.
For example, to use Table 4-2 to trace the state of a Pending service request to Functional, find "Pending" in the first column and move to your right until you find "Functional" in the heading. You can see that for a service request to move from Pending to Functional, a successful routing audit must take place.
Table 4-2 shows the service request transitions from Requested to Lost.
Table 4-3 shows the service request transitions from Broken to Closed.
Overview of Service Request Definition Process
Provisioning a VPN provides a method to build a service for site-to-site connectivity between a provider edge router and a customer edge router. It includes the following steps:
1.
2.
3.
The first step in provisioning a VPN is to define a service request. A service request defines through whom (the provider edge router) and to whom (the customer edge router) the service is provided. In this procedure, you determine the specifics of the link between the PE and CE.
The important elements of the process are as follows:
1.
A CE Routing Community describes how CEs in a VPN communicate with each other. The most common examples are hub-and-spoke and full mesh topologies.
For more information on CERCs, see the "CE Routing Communities" section.
2.
3.
Within a VPN (or extranet), all IP addresses must be unique. Customer IP addresses are not allowed to overlap with provider IP addresses. Overlap is possible only when two devices cannot see each other; that is, they are in isolated, non-extranet VPNs.
The VPN Solutions Center software assumes that it has an IP address pool to draw addresses from. The only way to guarantee that the product can use these addresses freely is if they are provider IP addresses.
Predefining a unique section (or sections) of IP address space for the PE-CE links is the only way to ensure stable security. Thus, because of the security and maintenance issues, Cisco does not recommend using customer IP addresses on the PE-CE link.
Adding a Service for a PE-CE Link
A service request is an instance of service contract between a customer edge router (CE) and a provider edge router (PE). The service request wizard asks you to enter several parameters, including the specific interfaces on the CE and PE routers, routing protocol information, and IP addressing information.
You can also integrate a VPN Solutions Center template with a service request. You can associate one or more templates to the CE and the PE.
To add VPN service between a PE and CE, follow these steps:
Step 1
The introductory panel in the Add VPN Service to CE wizard appears. It is informational only.
Step 2
Selecting a Customer Edge Router (CE)
Step 1

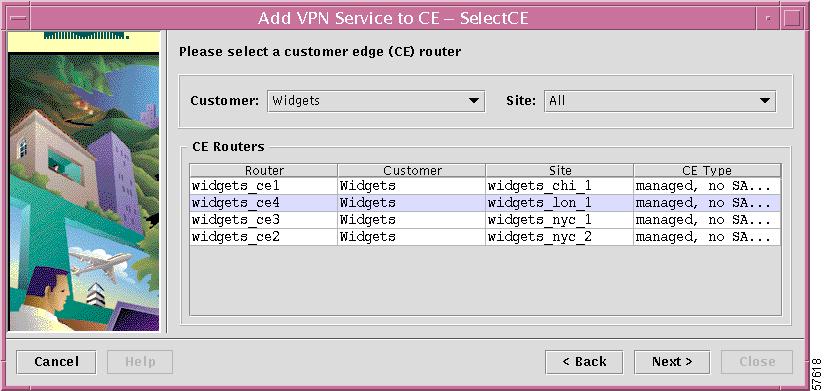

Figure 4-2 The Select CE Dialog Box
Step 2
Step 3
Step 4
Note
The Select PE dialog box appears (see Figure 4-3).
Selecting the Provider Edge Router (PE)
Step 1
Figure 4-3 Select PE Dialog Box
Step 2
Step 3
Step 4
The Select VPN: CERC Memberships dialog box appears (see Figure 4-4).
Defining CERC Membership and Joining the Management VPN
Step 1
Figure 4-4 Select VPN: CERC Memberships Dialog Box
The most common types of VPNs are hub-and-spoke and full mesh. These two basic types of VPNs—full mesh and hub and spoke—can be represented with a single CERC.
For additional information on CE routing communities, see the "CE Routing Communities" section and the "Defining CE Routing Communities" section.
Step 2
•
•
Step 3
Extranet provisioning provides a way to create multiple VPN connectivity to a single VRF.
Step 4
When you use the VPN Solutions Center software to define a management VPN, the software automatically generates an export route map for the management VPN.
Step 5
The Select Routing Policy dialog box appears (see Figure 4-5).
Choosing the Routing Protocol for the Link
The Select Routing Policy dialog box appears. The first routing protocol option is Static routing. Figure 4-5 shows the options available when you choose to use a Static protocol.
Figure 4-5 The Static Protocol Routing Policy Options
Step 1
The routing protocol you choose must run on both the PE and the CE.
•
•
Step 2
Proceed to "Specifying Redistributed Protocols on the Link" section.
Static Routes Options
Step 1
The Static Routes dialog box provides the following options:
•
When using the Give only default routes to CE option with static route provisioning on the PE-CE link, the product creates a default route on the CE that points to the PE. The VRF static route to the CE's site is redistributed into BGP to other sites in the VPN.
When you select the Give only default routes to CE option, the default route (0.0.0.0/32) is filled in for you; the site contains no Internet feed or any other requirement for a default route. When it encounters a packet that does not route locally, it can send the packet to the VPN.
•
When you check Redistribute Connected, the connected routes (that is, the routes to the directly connected PEs or CEs) are distributed to all the other CEs in that particular VPN.
Note
Step 2
•
•
That is, the product informs the PE what the CE needs to know, and informs the CE what the VPN (via the PE) needs to know.
Figure 4-6 Specifying the Static Routes on the PE-CE Link
Step 3

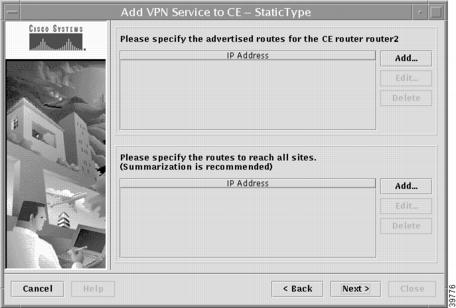

Figure 4-7 Specifying the Advertised Routes to Put on the PE
Step 4
The specified advertised route is displayed in the field.
Step 5
Step 6
Figure 4-8 Specifying the Static Routes to Reach All Sites in the VPN
Step 7
The specified static route is displayed in the field.
Step 8

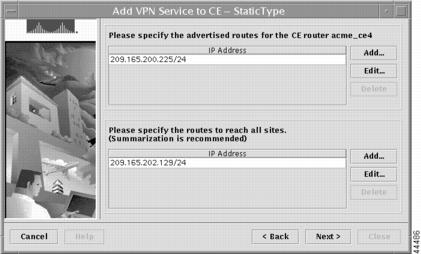

Figure 4-9 Static Routes Displayed
Step 9
The Redistribution dialog box appears, which specifies the protocols to be redistributed on the link (see the "Specifying Redistributed Protocols on the Link" section).
OSPF Protocol Options
When you choose the OSPF radio button, VPN Solutions Center displays the dialog box shown in Figure 4-10:

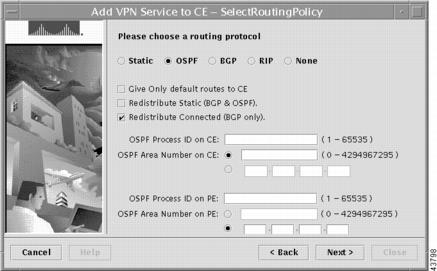

Figure 4-10 The OSPF Protocol Routing Policy Options
•
When you enable the Give only default routes to CE option, you indicate whether the site needs full routing or default routing. Full routing is when the site must know specifically which other routes are present in the VPN. Default routing is when it is sufficient to send all packets that are not specifically for your site to the VPN.
A device can only have one default route. Therefore, the VPN can use a default route, but only on condition that the customer site does not already have a different one. The most common reason to already have a default route is that the site has an Internet feed that is independent of the VPN.
If the CE site already has Internet service, the CE can either 1) route all packets to unknown destinations to the Internet, or 2) learn all the routes in the Internet. The obvious choice is to route all packets to unknown destinations to the Internet. If a site has an Internet feed, it may already have a default route. Under such conditions, setting the VPN as the default route is incorrect; the VPN should only route packets meant for other VPN sites.
•
When you enable the Redistribute Static option for OSPF, the software redistributes the static routes into the core network (running BGP) and to the CE (running OSPF).
•
When you enable the Redistribute Connected option for OSPF, the software redistributes the connected routes (that is, the routes to the directly connected PEs or CEs) to all the other CEs in that particular VPN.
•
The OSPF process ID is a unique value assigned for each OSPF routing process within a single router—this ID is internal to the CE only. You can enter this number either as any decimal number from 1 to 65535 or a number in dotted decimal notation.
•
An area in OSPF terms is a grouping of contiguous OSPF networks and hosts. OSPF areas are logical subdivisions of OSPF autonomous systems. The topology of each area is invisible to entities in other areas, and each maintains its own topological database.
You can enter the OSPF area number for the CE either as any decimal number in the range specified or a number in dotted decimal notation.
•
The OSPF process ID is a unique value assigned for each OSPF routing process within a single router—this ID is internal to the PE only.
•
You can enter the OSPF area number for the PE either as any decimal number in the range specified or a number in dotted decimal notation.
BGP Protocol Options
When you choose the BGP radio button, VPN Solutions Center displays the dialog box shown in Figure 4-11:

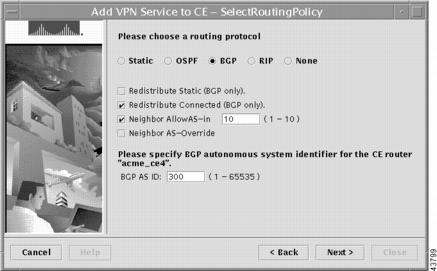

Figure 4-11 The BGP Protocol Routing Policy Options
•
When you enable the Redistribute Static option for BGP, the software redistributes the static routes into the core network and to the CE, both of which are running BGP in this configuration.
•
When you enable the Redistribute Connected option for BGP, the software redistributes the connected routes (that is, the routes to the directly connected PEs or CEs) to all the other CEs in that particular VPN.
•
When you check the Neighbor AllowAs-in option, you can specify a maximum number of times (up to 10) that the service provider autonomous system (AS) number can occur in the autonomous system path.
•
When you check the Neighbor AS-Override option, you configure VPN Solutions Center to reuse the same AS number on all the VPN's sites.
•
Enter the BGP autonomous system number for the CE (that is, the customer's BGP network). The number assigned here is different from the BGP AS number for the service provider's core network.
Proceed to "Specifying Redistributed Protocols on the Link" section.
RIP Protocol Options
When you choose the RIP radio button, VPN Solutions Center displays the dialog box shown in Figure 4-12:

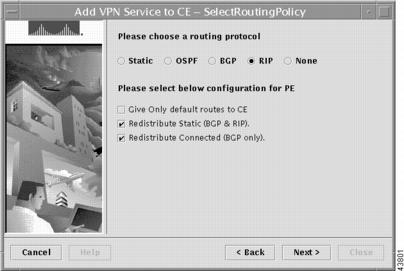

Figure 4-12 The RIP Protocol Routing Policy Options
•
When you enable the Give only default route to CE option for RIP, the product creates a default RIP route on the PE; the default RIP route points to the PE and is sent to the CE. The provisioning request gives you the option of redistributing any other routing protocols in the customer network into the CE's RIP routing protocol. The RIP routes on the PE to the CE's site are redistributed into BGP to other VPN sites.
When you choose the Give only default route to CE option for RIP routing, the PE instructs the CE to send any traffic it cannot route any other way to the PE. This option should not be used if the CE's site needs a default route for any reason, such as having a separate Internet feed.
•
When you enable the Redistribute Static option for RIP, the software redistributes the static routes into the core network (running BGP) and to the CE (running RIP).
•
When you enable the Redistribute Connected option for BGP, the software redistributes the connected routes (that is, the routes to the directly connected PEs or CEs) to all the other CEs in that particular VPN.
Proceed to "Specifying Redistributed Protocols on the Link" section.
The None Protocol Options (for Cable Service)
The None option in the Routing Policy dialog box indicates that you do not want to run a routing protocol on the selected PE-CE link. This option is provided to allow for configuring service over a cable link. For details, see "Provisioning the Cable Maintenance Subinterface" section.
When you choose the None radio button, VPN Solutions Center displays the dialog box shown in Figure 4-13:

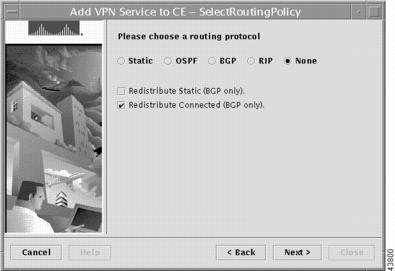

Figure 4-13 The Routing Policy Options for None (Cable Services)
•
When you enable the Redistribute Static option for None, the software redistributes the static routes into the core network (running BGP).
•
When you enable the Redistribute Connected option for None, the software redistributes the connected routes (that is, the routes to the directly connected PEs or CEs) to all the other CEs in that particular VPN.
Note
Specifying Redistributed Protocols on the Link
When you complete the Routing Policy wizard and click Next, the Redistribution dialog box appears (see Figure 4-14).
Step 1
Step 2
Step 3
The Redistributed Protocols dialog box appears (see Figure 4-14).
Figure 4-14 Redistributing Routing Protocols
Step 4
Step 5
Step 6
Step 7
Step 8
Defining the Interfaces on the PE-CE Link
Step 1

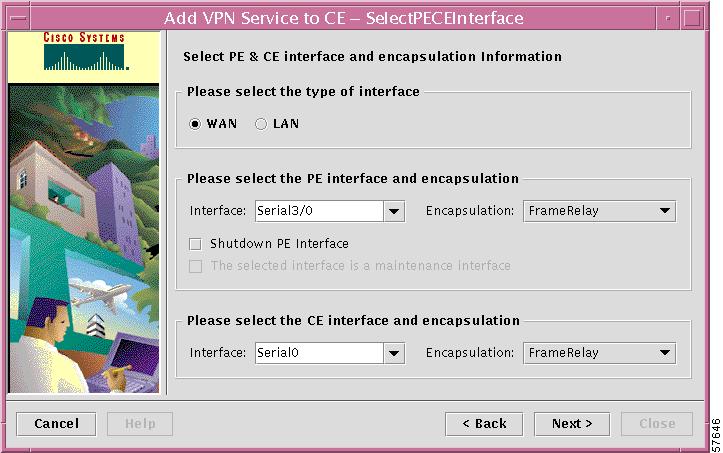

Figure 4-15 The Select PE-CE Interfaces Dialog Box
Step 2
a.
b.
Step 3
•
•
Step 4
•
•
Checking this option provisions the cable maintenance interface; this interface is always configured as subinterface 1 (for example, if the selected cable interface is 3/0, the maintenance subinterface is 3/0.1). For details, see the "Provisioning the Cable Maintenance Subinterface" section.
Step 5
a.
The dialog box shown in Figure 4-16 is displayed only for serial interfaces and Frame Relay encapsulation.

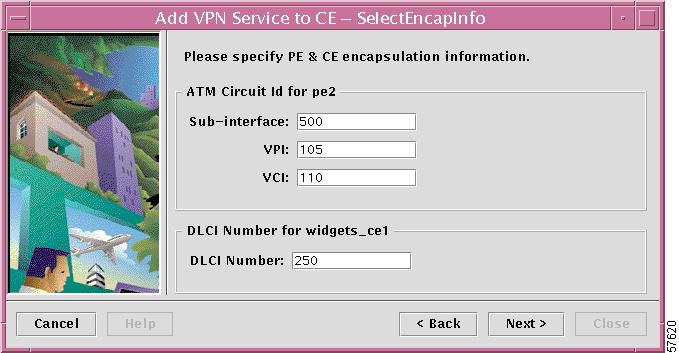

Figure 4-16 Protocol Encapsulation Information
If you specified LAN interfaces, the wizard displays the dialog box shown in Figure 4-17.

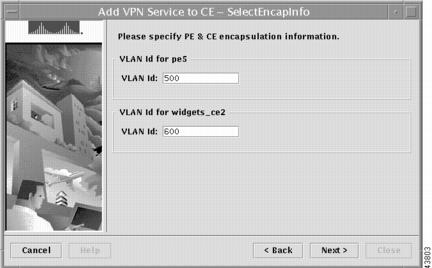

Figure 4-17 Specifying VLAN IDs for the PE and CE
Step 6
The valid values are any integer from 1 to 1000.
Choosing an IP Addressing Scheme
The next dialog box in the Add VPN Service to the CE wizard (see Figure 4-18) provides a way to define the IP addressing scheme that is appropriate for this PE-CE link.
A point-to-point link between two routers can be either a numbered IP address or an unnumbered IP address. The service provider must determine whether to use numbered or unnumbered IP addresses for the PE-CE link. Defining the link to use unnumbered addresses can save precious IP addresses because many interfaces can borrow the same IP address.

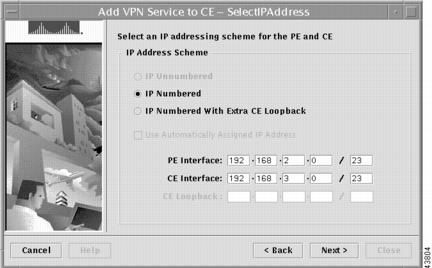

Figure 4-18 IP Addressing Scheme Dialog Box
Step 1
You can choose among four options:
•
IP addresses are drawn from the loopback IP address pool. An unnumbered IP address means that each interface "borrows" its address from another interface on the router (usually the loopback interface). Unnumbered addresses can only be used on point-to-point WAN links (such as Serial, Frame, and ATM), not on LAN links (such as Ethernet). If using IP unnumbered, then both the PE and CE must use the same IP unnumbered addressing scheme. When you choose IP unnumbered, VPN Solutions Center creates a static route for the PE-CE link.
When you choose IP unnumbered, VPN Solutions Center software automatically creates a loopback interface (unless a loopback interface already exists with the correct attributes). For related information, see the next section, "Using an Existing Loopback Interface Number."
If you select IP unnumbered and choose to not use automatically assigned IP addresses, you can enter the IP addresses for the PE interface and CE interface in the fields provided. Entering the IP addresses in these fields forces the MPLS VPN software to use the indicated addresses.
•
If you select IP numbered and choose to not use automatically assigned IP addresses, you can enter the IP addresses for the PE interface and CE interface in the fields provided. Entering the IP addresses in these fields forces the MPLS VPN software to use the indicated addresses.
•
Even though a numbered IP address does not require a loopback address, VPN Solutions Center software provides the option to specify IP numbered with extra CE loopback. This option places an IP address on a CE router that is not tied to any physical interface.
If you select IP numbered with extra CE loopback, you can enter the addresses for the PE and CE interfaces, plus the CE loopback address.
•
If you choose IP unnumbered and also check the Use Automatically Assigned IP Address check box, VPN Solutions Center picks two IP addresses from a /32 subnet point-to-point IP address pool.
If you choose IP numbered and also check the Use Automatically Assigned IP Address check box, VPN Solutions Center picks IP addresses from a /30 subnet point-to-point IP address pool.
Step 2
Using an Existing Loopback Interface Number
On each PE, there is one loopback interface number per VRF for interfaces using IP unnumbered addresses. By default, VPN Solutions Center software assigns a loopback number associated with a particular loopback address.
However, if a service provider wants VPN Solutions Center to use an existing loopback interface number (for example, Loopback0), the service provider must modify the loopback interface description line in the configuration files for the pertinent routers (PE or CE).
To use the existing loopback interface number, you must modify the loopback interface description line so that it includes the keyword VPN-SC, as shown in this example of a router configuration file:
interface Loopback0description Provisioned by VPN-SCip address 209.165.202.129 255.255.255.224Specifying VRF Parameters
The Specify VRF Parameters dialog box lets you set values for import and export maps, maximum routes into the VRF table, and enable NetFlow accounting.

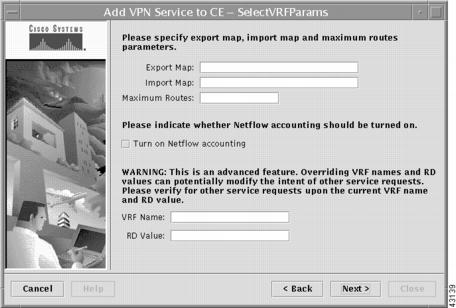

Figure 4-19 Specify VRF Parameters Dialog Box
Step 1
The Export Map field is the name of an existing export route map on the PE.
Note
When you use the VPN Solutions Center software to define a management VPN (see the "Defining CERC Membership and Joining the Management VPN" section), the software automatically generates an export route map for the management VPN. Because the Cisco IOS supports only one export route map per VRF and that route map is reserved for the management VPN, the Export Map field is not available if the VRF is part of the management VPN (as shown in Figure 4-19).
An export route map does not apply a filter; it can be used to override the default set of route targets associated with a route.
For information on the route-map command, refer to the Cisco IOS documentation on IP routing protocol-independent commands.
Step 2
The Import Map field is the name of an existing import route map on the PE.
Note
An import route map does apply a filter. Therefore, if you want to exclude a particular route from the VRF on this PE, you can either set an export route map on the sending router to make sure it does not have any route targets that can be imported into the current VRF, or create an import route map on this PE to exclude the route.
For command reference details on the import map command, see the "import map" section.
Step 3
Step 4
For more information, see the "NetFlow Collector and VPN Solutions Center Software" section and the "MPLS VPN NetFlow Accounting" section.
Step 5
Overriding the Default VRF Name and Route Distinguisher Values
When you enable the VRF-RD Override property in the csm.properties file, the Select VRF Parameters dialog box presents options that allow you to override the default VRF name and Route Distinguisher (RD) values.
Caution
To override the default VRF name or the default RD values, follow these steps.
Step 1
Step 2
Step 3
Step 4
# Override VRF names and RD values.# WARNING: This is an advanced feature. Overriding VRF names and RD values# can potentially modify the intent of other service requests.netsys.srvc.VRFRDOverride.unix=falseStep 5
Step 6
When the Select VRF Parameters dialog box appears, it now displays fields for the VRF name and the RD value (see Figure 4-20).
Figure 4-20 VRF Name and RD Override Options
Step 7
The maximum number of characters for the VRF name is 32.
Step 8
Step 9
Selecting a Class of Service Profile for the PE-CE Link
Step 1
You can create a Class of Service (CoS) profile when you define the Provider Administrative Domain. For information on creating a CoS Profile, see the "Defining a Class of Service Profile" section. For a discussion on the Class of Service feature, see the "Quality of Service and Class of Service" section.
Class of Service profiles are applied to the Provider Edge Router (PE), but the CoS definition is enforced across the PE-CE link on both the PE and CE.
Step 2

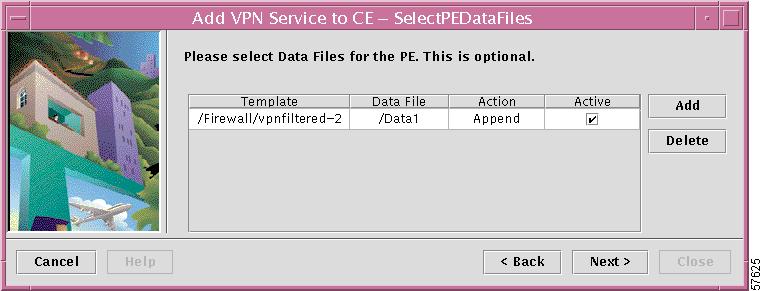

The next dialog box lets you integrate a VPN Solutions Center template with the current service request definition.

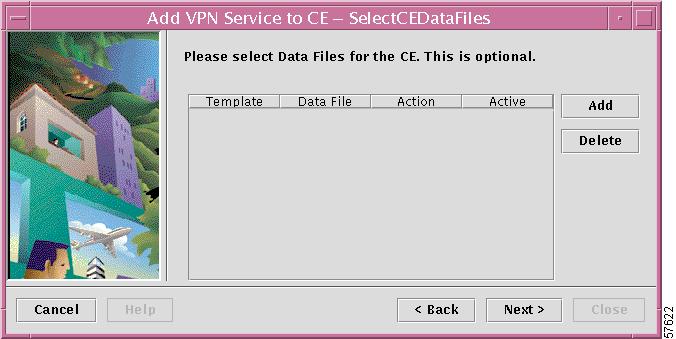

Integrating VPN Solutions Center Templates with a Service Request
VPN Solutions Center provides a way to integrate a template with VPN Solutions Center configlets. For information on creating and employing VPN Solutions Center templates, see "Provisioning with the VPN Solutions Center Template Manager."
Tips
netsys.vpn.serviceRequest.showTemplates=false
For a given customer edge router, you specify the following:
•
•
•
•
The template data files are tightly linked with its corresponding template. You can use a data file and its associated template to create a template configuration file. The template configuration file is merged with (either appended to or prepended to) the VPN Solutions Center configlet. VPN Solutions Center downloads the combined VPN Solutions Center configlet and template configuration file to the edge device router.
•
•
Specifying a Template for the Customer Edge Router
Figure 4-21 shows the initial template integration dialog box. You first specify which template data file you want associated with the CE in the current link.
Figure 4-21 Initial Dialog Box for Integrating a Template
Step 1
The Template/Data File Chooser dialog box appears (see Figure 4-22).

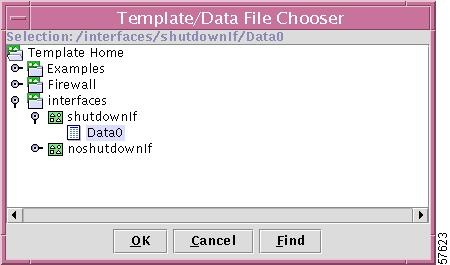

Figure 4-22 The Template/Data File Chooser Dialog Box
Step 2
The template data files are tightly associated with its corresponding template. You can use a data file and its associated template to create a template configuration file. The template configuration file is merged with (either appended to or prepended to) the VPN Solutions Center configlet. VPN Solutions Center downloads the combined configlet to the customer edge router.
Step 3
You return to the Select CE Data Files dialog box (see Figure 4-23).
Determining the Placement and Active Status of the CE Template Data File

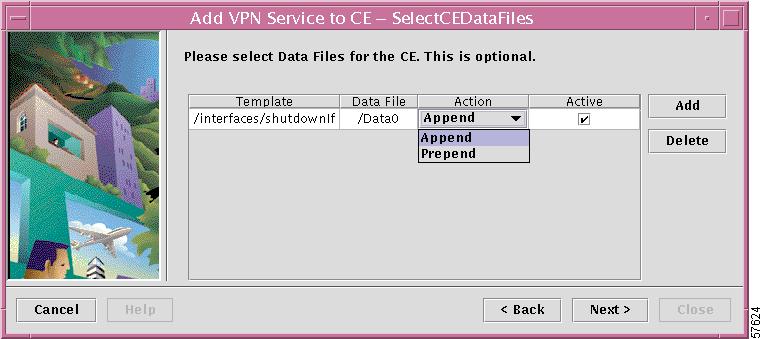

Figure 4-23 CE Data Files Dialog Box After Selecting a Template Data File
The Action column in the dialog box lets you specify where the template configuration file is placed in the VPN Solutions Center configlet—either prepended or appended.
The Active column lets you determine whether you want the template configuration file to be merged with the VPN Solutions Center configlet and downloaded to the target router.
Step 4
•
•
Step 5
•
•
Step 6
Step 7
Specifying a Template for the Provider Edge Router
The Select PE Data Files dialog box appears. You can now specify a template to be integrated into the PE's configuration file.
Step 1
The Template/Data File Chooser dialog box appears.
Step 2
The template data files are tightly associated with its corresponding template. You can use a data file and its associated template to create a template configuration file. The template configuration file is merged with (either appended to or prepended to) the VPN Solutions Center configlet. VPN Solutions Center downloads the combined configlet to the provider edge router.
Step 3
You return to the Select PE Data Files dialog box.
Determining the Placement and Active Status of the PE Template Data File
Figure 4-24 PE Data Files Dialog Box After Selecting a Template Data File
The Action column in the dialog box lets you specify where the template configuration file is placed in the VPN Solutions Center configlet—either prepended or appended.
The Active column lets you determine whether you want the template configuration file to be merged with the VPN Solutions Center configlet and downloaded to the target router.
Step 4
•
•
Step 5
•
•
Step 6
Step 7
Confirming the VPN Service Settings
VPN Solutions Center displays a summary of all the service settings defined for this VPN, including the information on template provisioning for the CE and PE (see Figure 4-25).
Figure 4-25 Confirm VPN Service Information Window
Step 1
Step 2
Step 3
The wizard displays the following message:
Your request to "Add VPN Service to CE" has been submitted with ID number n. This service request can be deployed by using the "Deploy Service Requests" wizard or by using the "Deploy VPN Service" item under the "Provisioning" option of a VPN service request report.
Step 4
You have now queued a service request. It is entered into the VPN Solutions Center Repository and placed in the initial "Requested" state.
Deploying a VPN Service
When you have queued a service request, you can then deploy it using the following method. This method automatically generates an Audit New Service Request type of audit. This audit passes the service request into an operational state.
Step 1
The Deploy Service Requests wizard begins. The introductory window provides the following information:
This wizard sets up a scheduled task that deploys service requests to the appropriate routers. This involves computing the configlets for each service request, downloading the configlets to the routers, and running audit reports to determine whether the service was successfully deployed.
Click Next.
Step 2
•
For all service requests that are in the Requested state, this option initiates the process of uploading the configuration files from the PEs and managed CEs in the VPN, generates configlets, and downloads the configlets to the PEs and managed CEs.
•
This option deploys the selected service requests regardless of which state they are in.
If you choose this option, the dialog box shown in Figure 4-26 appears.
Figure 4-26 Selecting a Specific Service Request for Deployment
Step 3
The Select Audit Options dialog box appears. It presents two options:
•
•
Running audit reports is the only way that service requests can progress from the Requested state to an operational state, such as Deployed. You have the option to not generate audit reports, but this option is not recommended.
Step 4

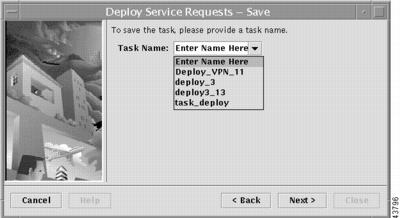

Figure 4-27 The Save Task Dialog Box
To help you enter a unique task name, the Save Task dialog box provides a list of up to 30 existing task names for the appropriate task type.
Step 5
The next screen asks if you want to create a schedule for the task Now, in the Future, or No.
•
•
•
Step 6
a.
b.
c.
d.
Step 7
The service request is added to the Schedule List, displayed in the upper area of the dialog box.
Step 8
Generating a Service Request Audit
When you initiate VPN Solutions Center service request audit, the audit tests each link in the VPN. The service request is promoted to the Deployed state only when all the links have passed the audit.
When a service request moves beyond the control of the Provisioning system, the Auditor for VPN Solutions Center takes control. The Auditor is a mechanism that monitors and reports the current state of a VPN service request over its lifetime. The lifetime of a VPN service request spans from the Requested state to the Closed state (see the "Service Request Summary" section). The Auditor also provides the reasons why the service request is in its current state. The Auditor saves the state transition (if any) into the VPN Inventory Repository.
To audit the service requests for an MPLS VPN, follow these steps:
Step 1
Step 2
Step 3
Step 4
The dialog box shown in Figure 4-28 appears.
Figure 4-28 Choosing Which Service Requests to Audit
Step 5
•
•
•
Step 6
A table showing the service requests from which you can select is displayed (see Figure 4-29).

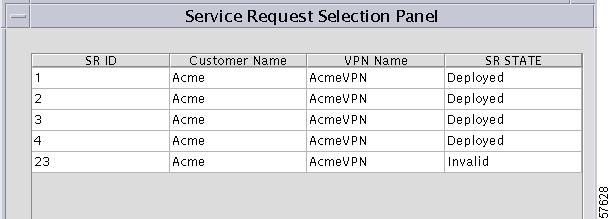

Figure 4-29 List of Service Requests to Choose From
a.
b.
You return to the Audit Options dialog box shown in Figure 4-28.
Step 7
If you do not want to collect the latest router configuration files before the audit begins, click No.
Step 8

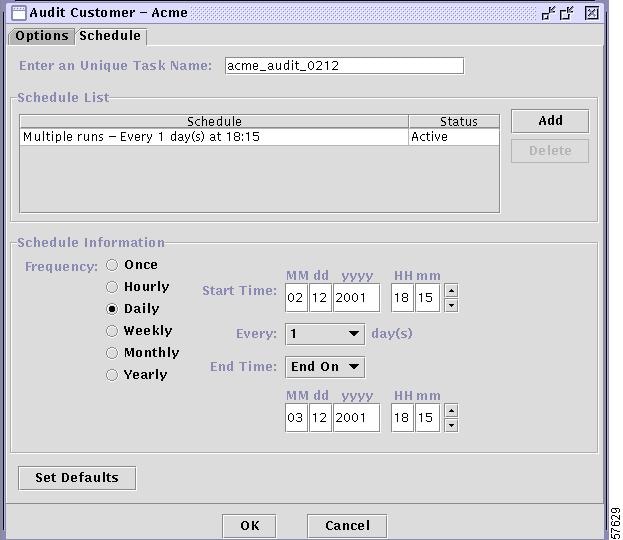

The Audit Schedule dialog box appears (see Figure 4-30).

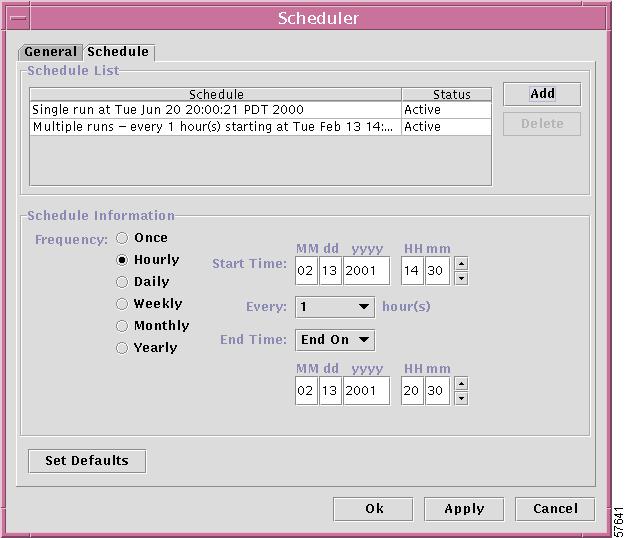

Figure 4-30 Scheduling the Audit
Step 9
a.
b.
c.
d.
Step 10
The audit is added to the Schedule List, displayed in the upper area of the dialog box (as shown in Figure 4-30).
Step 11
You return to the VPN Console.
Viewing Audit Reports
Before you view audit reports, you must first generate an audit as described in the previous section. To view audit reports, follow these steps:
Step 1
The All VPN Service Requests Report appears (see Figure 4-31).
Figure 4-31 All VPN Service Requests Report
Step 2
The Service Request Details Report appears (see Figure 4-34).
Step 3
The Service Request Audit Report appears (see Figure 4-32).
Figure 4-32 Audit Details Report
Those items that the audit discovered problems with are highlighted in yellow.
Checking Service Request Deployment Details
Once you have created and queued a service request, you can discover the details about its deployment. You can view the configlet generated for the service request. If the service request failed, you can discover why it failed by using the Service Request Audit report.
Step 1
The All VPN Service Requests Report appears (see Figure 4-33).
Figure 4-33 All VPN Service Requests Report
This report provides the following information:
•
•
•
If the current state is either Deployed or Functional, the service request is deployed.
•
•
•
•
•
•
Step 2
Step 3
The Service Request Details Report appears (see Figure 4-34).

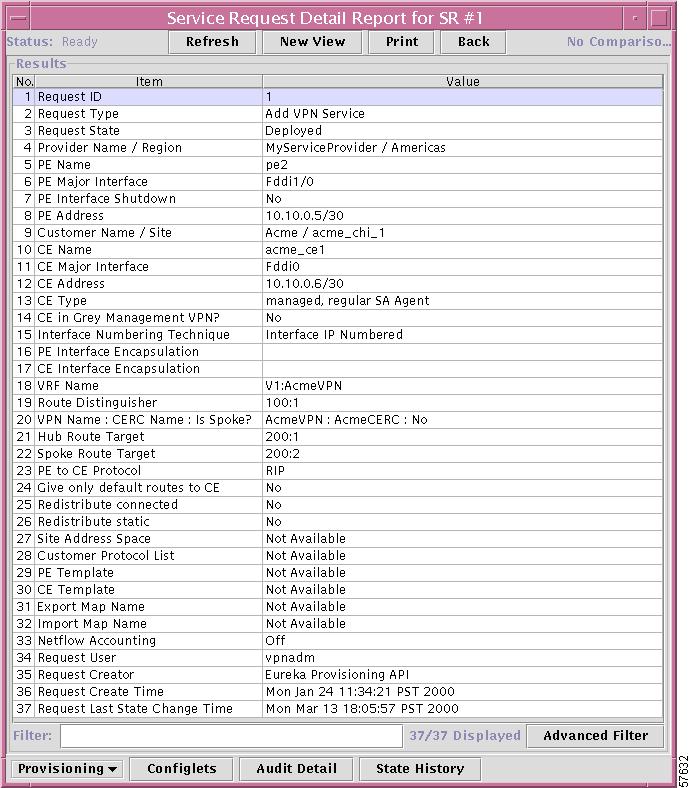

Figure 4-34 Service Request Details Report
Step 4
The report shown in Figure 4-35 appears.
Figure 4-35 Service Request Configlets Report
To return to the Service Request Detail Report, click Back.
Modifying an Existing Service
A service request is an instance of service contract between a CE and a PE. You can modify this service by creating a new service request. When you do so, VPN Solutions Center creates a new service request with a new ID. (The service request ID is displayed in the first column in the All VPN Service Requests Report as shown in Figure 4-33). The new service request subsumes the earlier one and becomes the current service request.
When you modify a service request, you can modify the settings for the PE-CE link, except for the CE and the PE themselves. This procedure takes through the same wizard as described in the "Adding a Service for a PE-CE Link" section, except that the settings are based on the service request's current values.
To modify a service, follow these steps:
Step 1
The All VPN Service Requests Report appears.
Step 2
Step 3
Figure 4-36 Service Request Provisioning Menu
Step 4
The Modify Existing VPN Service wizard appears. The first window provides a message like this:
This wizard submits a new service request to modify the VPN service between the PE "PE_name" and the CE "CE_name" (specified in service request ID_number). The new service request replaces service request ID_number.
Click Next.
Step 5
The routing protocol you choose must run on both the PE and the CE. For details on each of the options for the routing protocols, see the "Choosing the Routing Protocol for the Link" section.
Step 6
For details, see the "Specifying Redistributed Protocols on the Link" section.
Step 7
For details, see the "Defining the Interfaces on the PE-CE Link" section.
Step 8
For details, see the "Choosing an IP Addressing Scheme" section.
When finished, click Next.
Step 9
Class of Service profiles are applied to the Provider Edge Router (PE), but the CoS definition is enforced across the PE-CE link on both the PE and CE.
create a Class of Service (CoS) profile when you define the Provider Administrative Domain. For information on creating a CoS Profile, see the "Defining a Class of Service Profile" section. For a discussion on the Class of Service feature, see the "Quality of Service and Class of Service" section.
Step 10
For details, see the "Integrating VPN Solutions Center Templates with a Service Request" section.
VPN Solutions Center software displays a summary of all the service settings defined for this VPN.
Step 11
For details, see the "Integrating VPN Solutions Center Templates with a Service Request" section.
Step 12
The wizard displays the following message:
Your request to "Modify Existing VPN Service" has been submitted with ID number n. This replaces existing service request. This service request can be deployed by using the "Deploy VPN Service Requests" wizard or by using the "Deploy VPN Service" item under the "Provisioning" option of a VPN service request report.
Step 13
You have now queued a service request. It is entered into the product database and is in the state "Requested."
Decommissioning a Service
Decommissioning a service request from VPN Solutions Center is a four-task process:
•
When you decommission a VPN service, VPN Solutions Center replaces the old service request with a new one whose purpose is to remove the pertinent commands from the PE and CE router configuration files.
•
The new remove VPN service request will be in Requested state, and you should deploy it as you do any other service request.
Deploying a "Remove VPN Service" request deletes individual commands from the PE and CE configuration files, which were put there by the original provisioning request, and are not in use by any other service or feature in the router configuration.
To ensure that the service removal is safe requires that not all commands that were provisioned are removed. In cases where VPN Solutions Center cannot know whether a provisioned command is being used for some other purpose, the command is not removed. Examples of router commands not removed for a "Remove VPN Service" request include routing protocols created during service provisioning, such as BGP or RIP. These are not removed from the router's configuration file, although some of their subcommands are removed when they support only the original service request.
•
The auditing process uploads the revised configuration file into VPN Solutions Center and checks to confirm that the appropriate commands have been removed from the file. If the audit is successful, the remove VPN service is moved to the Closed state. Though this step is not required, it is highly recommended.
•
To delete the remove VPN service request from the Repository, you must purge the service request.
To remove a service, follow these steps:
Creating a Remove VPN Service Request
To create a service request to decommission a specified VPN service, follow these steps:
Step 1
The All VPN Service Requests Report appears.
Step 2
Step 3
Figure 4-37 Service Request Provisioning Menu
Step 4
You receive this warning message:
This will submit a new service request to remove the VPN service between the PE and CE. New configlets will be generated with the appropriate "no" commands to remove the VPN service. Service Request n to Add VPN Service will no longer be active. Do you want to continue?
Step 5
If you click Yes, you receive the following message:
A new service request has been submitted to remove the VPN service specified in service request n.
Step 6
Deploying the Remove VPN Service Request
To deploy a remove VPN service request, follow these steps:
Step 1
The All VPN Service Requests Report appears.
Step 2
Step 3
Step 4
The following message is displayed:
This will deploy the selected VPN service request now. Do you want to continue?
Step 5
The selected service request is Deployed and placed in the Pending state.
Auditing the Remove VPN Service Request
The auditing process uploads the revised configuration file into VPN Solutions Center and checks to confirm that the appropriate commands have been removed from the file. If the audit is successful, VPNSC sets the remove VPN service to the Closed state.
Note
To audit the remove VPN service, follow these steps:
Step 1
Step 2
Step 3
Step 4
The Audit Customer dialog box appears.
Step 5
A table showing the service requests from which you can select is displayed.
Step 6
You return to the Audit Options dialog box.
Step 7
If you do not want to collect the latest router configuration files before the audit begins, click No.
Step 8
The Audit Schedule dialog box appears.
Step 9
a.
b.
c.
d.
Step 10
The audit is added to the Schedule List, displayed in the upper area of the dialog box.
Step 11
You return to the VPN Console.
Purging a Closed Service from the Repository
The final task in removing a VPN service is to purge the service from the Repository. VPN Solutions Center software does not automatically remove closed service requests from the Repository (in case you need them for your records). But keeping closed service requests can be a waste of disk space, therefore, the VPN Solutions Center software provides a way to purge obsolete request data from the Repository.
To purge closed service requests from the Repository, follow these steps:
Step 1
Step 2
You receive the following Delete Confirmation prompt:
All closed service requests will be removed from the database.
Do you want to purge closed requests now?
Step 3
Closing Service Requests Manually
When you manually close a service request, VPN Solutions Center changes the state of the service to Closed in the Repository. VPN Solutions Center does not make any modifications to the router's configuration file when you close a service request. You cannot remove a service request from the Repository until it is closed.
Enabling Manual Closure of Service Requests
Before you can manually close a service request, you must enable a certain property in the csm.properties file. Changing this value in the csm.properties file provides a new option in the VPN Console that allows you to remove service requests in any state.
Step 1
Step 2
Step 3
Step 4
Step 5
netsys.close.sr.option.unix = OffStep 6
netsys.close.sr.option.unix = OnStep 7
Step 8
Closing a Service Request
To manually close a service request, follow these steps:
Step 1
The All VPN Service Requests Report appears (see Figure 4-38).
A new option for closing service requests—Close Request—is displayed on the menu bar at the bottom of the All VPN Service Requests Report.
Figure 4-38 Close Service Request Option Enabled
Step 2
Step 3
You receive the following confirmation prompt:
Are you sure you want to close the selected service request(s)?
Step 4
To cancel the close operation, click No.
VPN Solutions Center changes the state of the selected services to Closed in the Repository.
Performing a Customized Service Request Deployment
The procedure to perform a customized service request deployment deploys the service request immediately. This customized deployment does not perform an audit, nor does it allow you to schedule the audit.
Step 1
The All VPN Service Requests Report appears (see Figure 4-39).
Figure 4-39 All VPN Service Requests Report
Step 2
Step 3
The Service Request Provisioning drop-down menu appears.
Figure 4-40 Service Request Provisioning Menu
Step 4
The following message is displayed:
This will deploy the selected VPN service request now. Do you want to continue?
Step 5
The selected service request is Deployed and placed in the Pending state.
Performing a Customized Audit
VPN Solutions Center software performs a basic audit (Audit New Service Request) by default each time you deploy a service request as described in the "Deploying a VPN Service" section. You need only schedule the audit separately as described in this section if you want to run it more frequently or if you customized audits.
When a service request moves beyond the control of the Provisioning system, the Auditor for VPN Solutions Center takes control. The Auditor is a mechanism that monitors and reports the current state of a VPN service request over its lifetime. The lifetime of a VPN service request spans from the Requested state to the Closed state. The Auditor also provides the reasons why the service request is in its current state. The Auditor saves the state transition (if any) into the VPN Inventory Repository.
After you populate targets (PEs and CEs) and the Repository, prior to any other steps, you must collect router configuration files to audit the services provisioned by MPLS VPN Solution.
Setting Up Routers for Collecting Configuration Files
The basic audit (Audit New Service Requests) does collect the configuration files. You need only set up the routers as described in this section if you are performing a customized audit procedure. This ensures that you have the most current version of the configuration files for the audit procedure.
To set up routers for collecting router configuration files, be sure to implement the following requirements:
•
The csm.properties file is in the /opt/vpnadm/vpn/etc directory.
•
Setting the csm.properties File for Customized Router Prompt
When setting up configuration file collection from routers, be sure that all the routers have the same prompts as in the csm.properties file for netsys.router.loginprompt and netsys.router.passwordprompt. The default values match the default values on Cisco routers. They are as follows:
netsys.router.loginprompt = Username:
netsys.router.passwordprompt = Password:If you use nonstandard router prompts in the csm.properties file, be sure you set the same values for all the routers from which you collect information.
Setting Up the Domain Name Server
For the collection module of MPLS VPN Solution, enable or disable the Domain Name Server (DNS) on the routers. If DNS is not properly configured on the routers, collections fail due to a time-out.
Note
Enabling DNS
To enable DNS, enter the following commands on the router:
ip domain-lookup
ip name-server a.b.c.d
where a.b.c.d is a valid Domain Name server.
Disabling DNS
To disable DNS, it is important to enter the following command on all routers:
no ip domain-lookup
Configuring the SNMP Settings on the PEs and CEs
To determine whether SNMP is enabled and set the SNMP community strings, execute the following steps for each PE and CE in the service provider network:
Updating Router Configuration Files
This procedure sets up a scheduled task that allows you to update Cisco router configuration files in two ways:
•
•
You can collect additional information, including router types, Frame Relay/ATM PVC information, and IP unnumbered connectivity information.
To update router configuration files, follow these steps:
Step 1
The first panel provides introductory information.
Click Next.

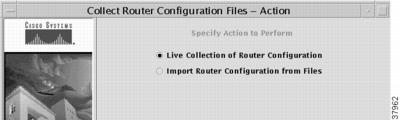

Figure 4-41 Specifying Configuration File Collection Method
Step 2
•
This task performs a Telnet operation to the routers to collect the running configuration of each selected router.
•
This task imports collected configuration files that exist in a directory on the VPN Solutions Center workstation. All the files in the directory must be configuration files.
Updating Configuration Information by Collecting From Targets
To update router configuration files by collecting the information from existing targets, follow these steps:
Step 1
The Get Devices dialog box appears.
Step 2

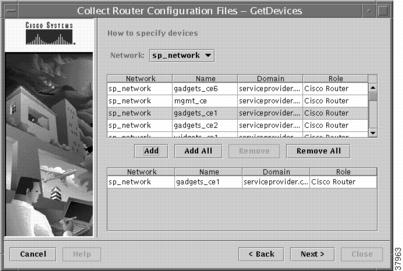

As shown in Figure 4-42, all the router names in this network appear in the upper pane. If you want to sort the information, click on the column header for which you want to sort.
Figure 4-42 Updating Router Configuration Files from Selected Targets
a.
You can also select all the routers listed by clicking Add All.
Your selections appear in the lower pane.
Note
b.
Step 3
Step 4
The next screen asks if you want to create a schedule for the task Now, in the Future, or No.
•
•
•
Step 5
a.
b.
c.
d.
Step 6
The collection task is added to the Schedule List, displayed in the upper area of the dialog box.
Step 7
Updating Configuration Information by Importing From Files on the VPNSC Workstation
This task imports the configuration files that exist in a specified directory on the VPN Solutions Center workstation.
Tips
The default convention for naming configuration files is:
device_name.domain.com
To update router configuration information by importing the configurations from files on the VPN Solutions Center workstation, follow these steps:
Step 1
The first panel provides introductory information.
Click Next. The dialog box shown in Figure 4-43 appears.

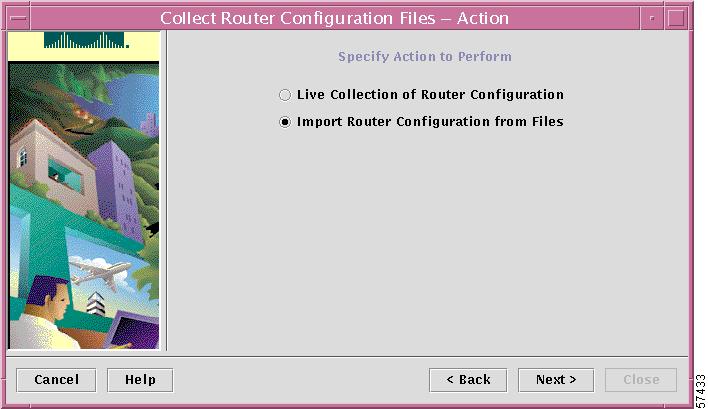

Figure 4-43 Specifying Configuration File Update Method
Step 2
Step 3
The Select Directory dialog box appears (see Figure 4-44).

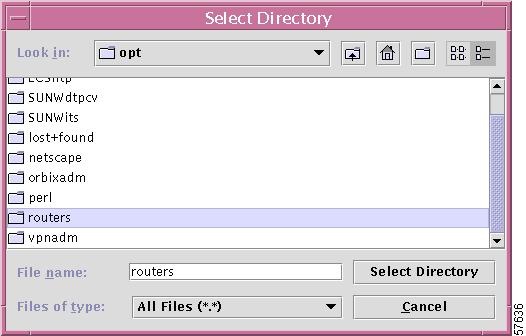

Figure 4-44 Selecting the Directory to Import Configuration Files From
a.
Note
b.
The selected directory path is now displayed in the Get Directory field.
Step 4
Step 5
The next screen asks if you want to create a schedule for the task Now, in the Future, or No.
•
•
•
Step 6
a.
b.
c.
d.
Step 7
The service request is added to the Schedule List, displayed in the upper area of the dialog box.
Step 8
Running IOS Commands from the VPN Console
You can run Cisco IOS commands on a router's command line by using VPN Solutions Center's Exec Command feature. This feature makes it easy to run commands on multiple routers at once. The Exec Command Console puts you in Enable mode, thus you can run any IOS commands that are executable in Enable mode.
Executing commands in this way does not change the router's configuration file. VPN Solutions Center simply runs the commands you enter and returns the command's response, just as it does when communicating with a router through a console.
To execute an IOS command on a router, follow these steps:
Step 1
The Cisco VPN Solutions Center browser appears. If the browser is not already running, you must log in.
Step 2

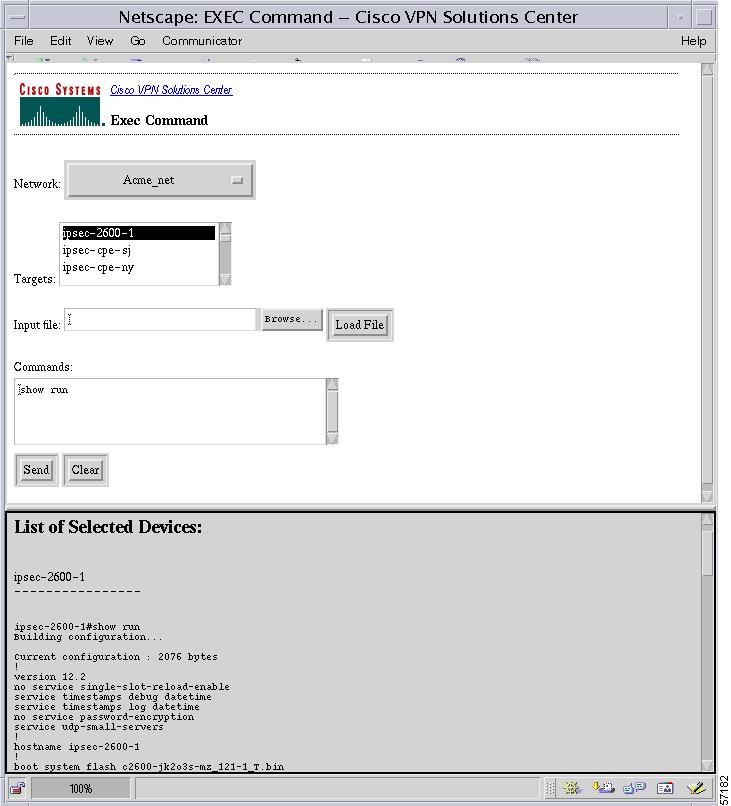

The VPN Solutions Center Exec Command Console page appears (see Figure 4-45).
Figure 4-45 The Exec Command Console
You can run commands in the Exec Command Console in either of two ways:
•
The command input file must be a text file. There is no practical limit to the number of commands that be included in a command input file.
•
Step 3
The routers in the selected network are displayed in the window below the Network field.
Step 4
Step 5
a.
You can also specify the name and path for the command input file by clicking Browse and selecting the file in its directory.
b.
c.
Step 6
If you need to erase the contents of the Commands pane, click Clear. Then reenter the commands as needed.
The lower pane displays the output from the command you entered for each device you selected.
Modifying a Router's Configuration From the VPN Console
VPN Solutions Center provides a mechanism called the Download Console that allows you to download configuration files—or any set of IOS commands—to one or more routers. The Download Console adds the IOS commands to the router's existing configuration file. By default, VPN Solutions Center sets the modified configuration file as the running configuration.
The following procedure describes a typical scenario in which you need to download a previous version of a router's configuration file to one or more routers. To do that, you must first use the Version Console to retrieve a previous version of the configuration file, and then use the Download Console to download the configuration file to the selected routers.
Retrieving a Previous Version of a Configuration File
To retrieve a previous version of a configuration file stored on the VPN Solutions Center workstation, follow these steps:
Step 1

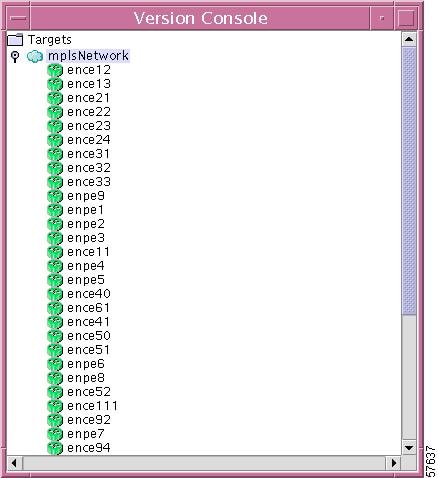

The Version Console appears (see Figure 4-46).
Figure 4-46 The Version Console
The Version Console organizes the configuration files by networks and their associated routers.
Step 2
Step 3
Step 4

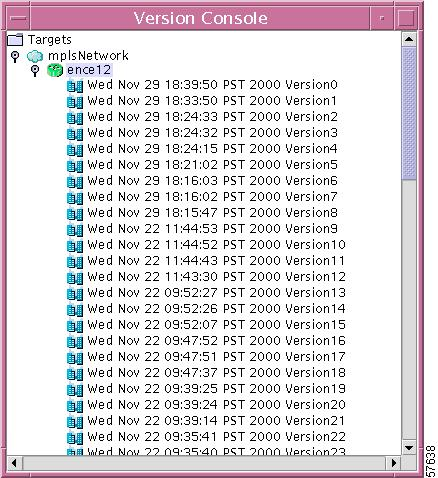

As shown in Figure 4-47, the Version Console displays the version list for the selected router. The versions are displayed according to the dates and times the configuration files were collected, and organized with the most recent version listed first, the next most recent second, and so on.
Figure 4-47 List of Configuration File Versions
Step 5
Step 6

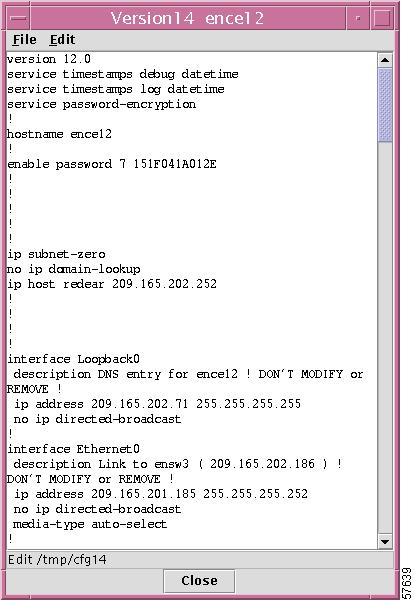

The Version window appears, displaying the selected version of the configuration file (see Figure 4-48). The version number and hostname of the router are displayed in the title bar.
Figure 4-48 Previous Configuration File Displayed
Step 7

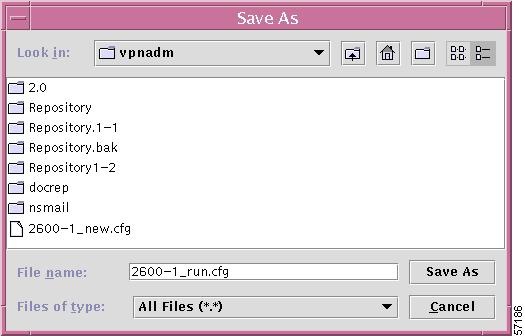

The Save As dialog box appears (see Figure 4-49).
Figure 4-49 Saving a Configuration File
Step 8
You return to the Version window.
Step 9
Using the Download Console to Modify a Configuration
The Download Console downloads the IOS commands to the selected routers.You can download an actual IOS configuration file, or a file that contains a desired set of IOS commands. By default, VPN Solutions Center sets the modified configuration file as the running configuration.
To download a set of IOS commands to one or more routers, follow these steps:
Step 1
The Download Console dialog box appears.
Step 2

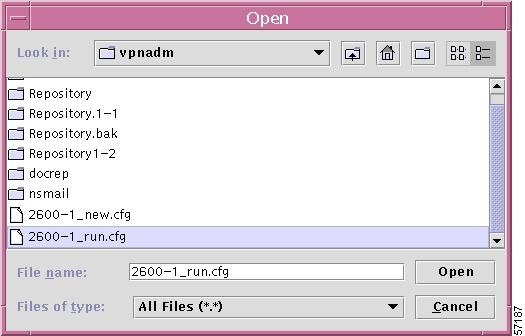

Figure 4-50 Opening the IOS Commands File
Step 3
The contents of the selected file are displayed in the Edit Commands pane, as shown in Figure 4-51.The upper right pane displays the list of target routers in the Target Routers pane. The lower right pane is the Download Status pane.

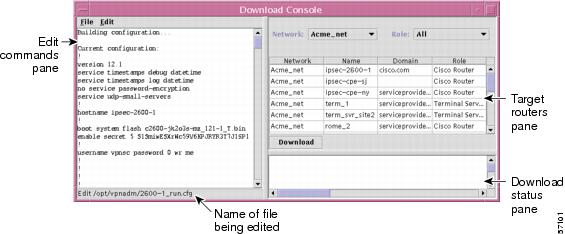

Figure 4-51 The IOS Commands File Displayed in the Download Console
Step 4
Step 5
a.
The list of network devices in the selected network are displayed.
b.
The list of Cisco routers in the selected network are displayed.
c.
Step 6
You receive the following message:
Are you sure you wish to download the configlet to the selected routers?
Step 7
To cancel the IOS commands download operation, click No.
VPN Solutions Center downloads the commands displayed in the Edit Commands pane to the selected routers. These commands are added to the existing configuration on the selected routers.

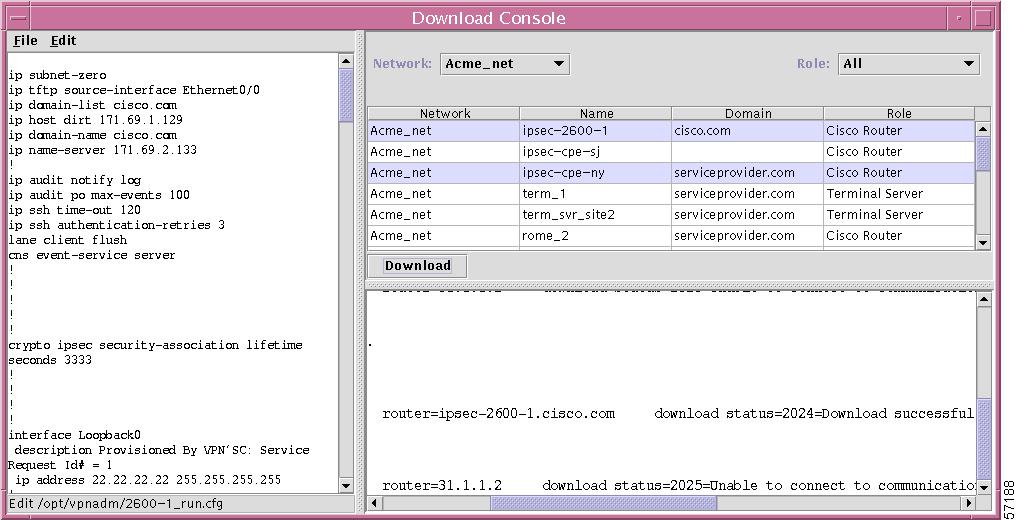

Figure 4-52 shows the Download Console as it appears when the IOS command download operation is complete. The status of the download operation is displayed in the Download Status pane.
Figure 4-52 IOS Command File Download Operation Complete
Use the scroll bar in the Download Status pane to view the status information that the routers return in response to the downloaded IOS commands.
Step 8
Using the Task Manager
VPN Solutions Center provides a Task Manager that allows you to view pertinent information about both current and expired provisioning tasks, as well as create and schedule tasks, delete specified tasks, and delete the expired tasks.
To bring up the Task Manager, choose Tools > Tasks from the VPN Console menu.
The Task Manager window appears (see Figure 4-53).

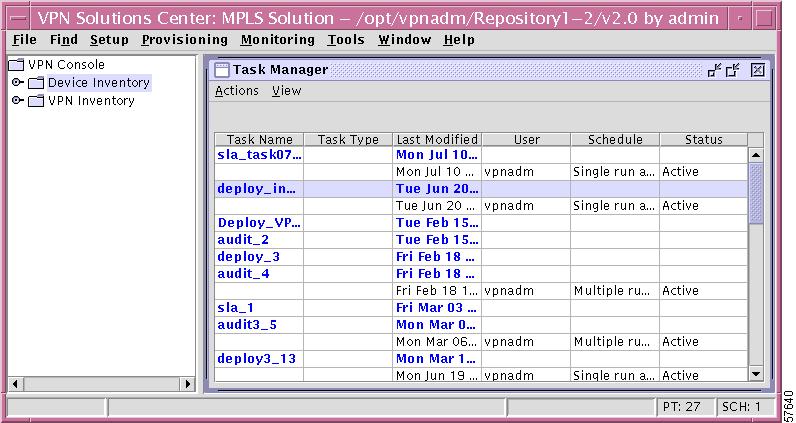

Figure 4-53 The Task Manager Window
The Task Manager window provides information on each task by name, including the task type, the date when the task was last modified, the VPN Solutions Center username, schedule summary information, and its current status—expired or active.
From the Actions menu (shown in Figure 4-54), you can execute all the necessary task-related functions:

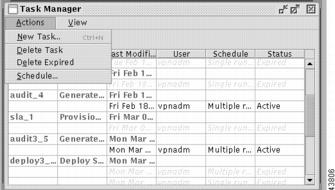

Figure 4-54 The Task Manager Actions Menu
Creating a New Task
Step 1
Step 2
The Task Chooser appears (see Figure 4-55).
Figure 4-55 The Task Chooser
Step 3
Step 4
Deleting a Task
When you delete a task through the Task Manager, you delete both the persistent and the scheduled tasks.VPN Solutions Center removes the task from the Task Repository and updates the task logs (see also the "Deleting Task Logs" section).
To delete one or more tasks, do the following:
Step 1
Step 2
Step 3
You are asked to confirm the deletion request:
You have selected to deletentask(s) from the Repository. Do you want to continue?Step 4
You can also cancel the operation at this point by clicking Cancel.
VPN Solutions Center deletes the selected tasks and redisplays the current list of tasks in the Task Manager window.
Deleting Expired Tasks
To delete tasks that have expired, follow these steps:
Step 1
Step 2
You are asked to confirm the deletion request:
You have selected to delete the expired tasks from the Repository. Do you want to continue?
Step 3
You can also cancel the operation at this point by clicking Cancel.
VPN Solutions Center deletes the expired tasks and redisplays the current list of tasks in the Task Manager window.
Scheduling a Task
The VPN Solutions Center Task Manager allows you to schedule a selected task. To schedule a task, follow these steps:
Step 1
Step 2
Step 3
The Scheduler dialog box appears (see Figure 4-56).
Figure 4-56 The Scheduler Dialog Box
Step 4
a.
b.
c.
d.
Step 5
The task is added to the Schedule List, displayed in the upper area of the dialog box (as shown in Figure 4-56).
Step 6
You return to the VPN Console. The task is added to the VPN Solutions Center task queue; it will begin executing on the date and time specified.
Using the Task Logs
To access the VPN Solutions Center task logs, do the following:
Step 1
VPN Solutions Center starts the browser and displays the Task Logs window.
If Netscape has not already started, the Netscape Password dialog box appears (see Figure 4-57).
Figure 4-57 Logging in to the VPN Solutions Center Browser
Step 2

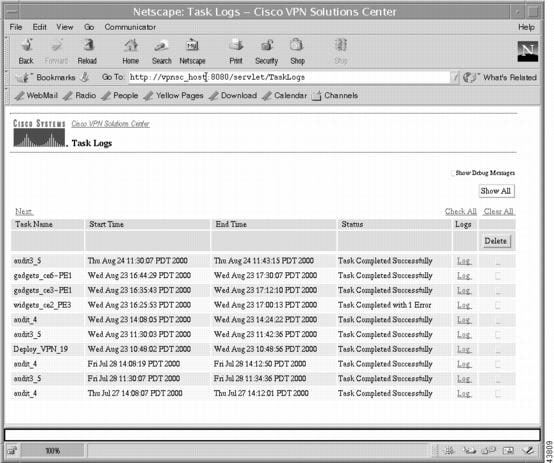

The tasks are listed in order of the task start time; the task with the latest start time is listed at the top of list, and the task with the earliest start time is listed at the bottom of the list.
Notice the Logs column in Figure 4-58, which provides a Log link for every task listed.
Figure 4-58 Viewing the List of Tasks
The task logs are displayed in sets of 10 logs per page. To jump to the next page of task logs, click the Next link (in the upper left corner of the task logs table).
The next page of task logs provides a Previous link so you can jump to the previous page of task logs, as shown in Figure 4-59.
Figure 4-59 Jumping to the Next and Previous Pages of Task Logs
When there are task log pages above and below the current position, the task logs page provides both Next and Previous links so you can navigate efficiently through multiple pages.
Step 3
The status report for the selected task appears in the lower left pane, as shown in Figure 4-60.

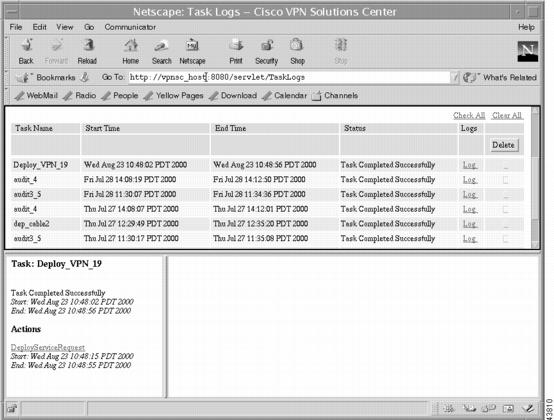

Figure 4-60 Displaying the Task Status
The status pane shows the following information for the selected task:
•
The possible task status summary states can be any one of the following: Task Completed Successfully, Running, Task Terminated, or Task Completed with n Errors.
•
•
•
•
Viewing a Task Action Log
Step 4
The Action log appears in the lower right pane (see Figure 4-61).
For example, for the task shown, Deploy_VPN_19, there is only one action—"Deploy Service Request." (Some tasks have more than one action listed.)
To view the action report for the action "Deploy Service Request" for task "Deploy_VPN_19," click the DeployServiceRequest link.
Figure 4-61 The Task Action Report
Viewing the Standard Output/Standard Error Log
Step 5
The Standard Output and Error log appears in the lower right pane (see Figure 4-62).
Figure 4-62 Standard Output and Error Logs
Viewing the Task Log Error Report
Step 6
The Task Log Error Report appears in the lower right pane (see Figure 4-63).

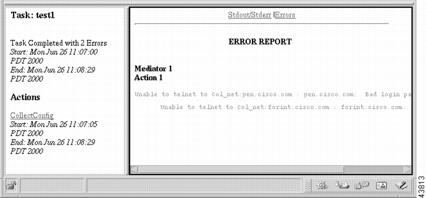

Figure 4-63 Task Log Error Report
Viewing Debug Messages
When you check the Show Debug Messages checkbox, you can view in the task logs any debug messages that were generated.
Deleting Task Logs
To save disk space, you can delete task logs when they become obsolete. When you delete a task from the task logs, you delete the run-time task and the logs associated with the task.
Tips
When you have a large number of tasks and would like to delete the oldest logs, you may find it more convenient to click the Show All button. Show All displays all the tasks in one page, so if you have a large number of tasks in the Repository, the browser often takes a long time to display all of the tasks. But the advantage to this procedure is that you can delete the oldest logs (which would be the last set of tasks in the list), rather than having to click Next many times to reach the last page of logs.
To delete task logs, follow these steps:
Step 1
VPN Solutions Center starts the browser and displays the Task Logs window. Notice the Delete column (the rightmost column in the Task Logs window) as shown in Figure 4-64.
The tasks are listed in order of the task start time; the task with the latest start time is listed at the top of list, and the task with the earliest start time is listed at the bottom of the list.

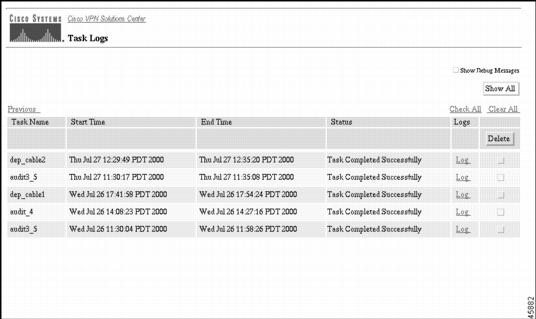

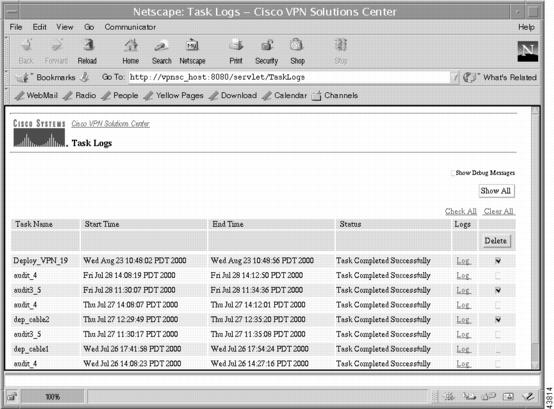

Figure 4-64 The Task Logs Window
Step 2
a.
When you click Check All, all the tasks on the current page are checked—not all the tasks in the Repository. Thus, when you click Check All, then click Delete, the application deletes only the tasks in the current page.
b.
Step 3
The VPN Solutions Center software deletes the selected task logs and redisplays the Task Logs window.
Feedback
