Solution Overview
Cisco MSX is a service creation and delivery platform that enables fast deployment of cloud-based and on-premise networking services for customers. Operators can deliver customizable network services using a subscription-based and pay-as-you-go model from a solution which allows them to rapidly and profitably deliver service offerings to market.
Cisco MSX also integrates with existing customer premise equipment, allowing operators to build upon and utilize the existing infrastructure. Cisco MSX provides a complete self-service user experience that allows operators and end-users to select, create, customize, and activate services on-demand in minutes from a simple, intuitive portal.
The Cisco MSX solution shifts the deployment of managed services away from the manual configuration of the latest network devices to the creation of an abstracted model representing the service definition. This approach allows the service intent of the user to be realized by using service models to automate the creation and customization of network services. Depending on the capabilities of the domain being configured, these services are instantiated either through Cisco MSX embedded Cisco Network Services Orchestrator (NSO) instance or a domain specific controller.
Through the combination of the Cisco MSX platform and service packs, the Cisco MSX solution offers a complete platform that enables Operators to offer next-generation network services.
The following are some key highlights of the Cisco MSX solution:
-
Automated end-to-end, cloud-based, and on-premise services managed from public or private clouds.
-
Secure multi-tenant cloud managed platform, simplified orchestration, and tenant self-service.
-
Auto onboarding of devices with Zero Touch Provisioning.
-
Rapidly create new monetizable services, and modify existing services instantly from the cloud.
-
Perfect solution for distributed customers looking for lower cost and self-managed services.
-
Open multi-vendor services catalog.
-
Supports Cisco and third-party physical devices and Virtual Network Functions (VNFs).
-
Develop your own service or adapt existing services.
-
Can be integrated with existing OSS and BSS systems.
The chapter has the following section:

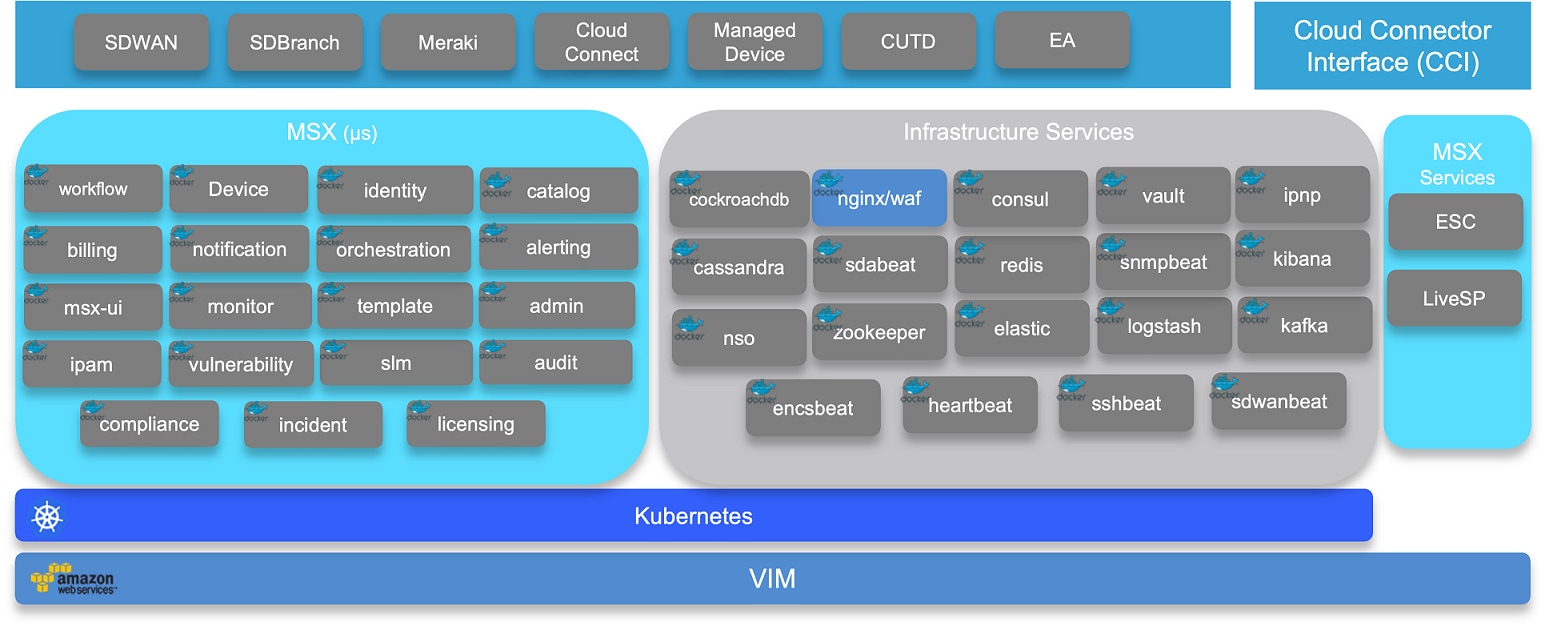

Cisco MSX Platform
Cisco MSX is a service creation platform, implementing the different functions that are required to instantiate and provision virtual and physical elements in order to construct end-to-end managed services for Service Provider and Enterprise customers. The Cisco MSX solution uses Software-Defined Networking (SDN), Network Functions Virtualization (NFV), Open APIs, and advanced orchestration capabilities to deliver a suite of business services from the cloud (public or private), over existing network infrastructure.
The Cisco MSX platform is comprised of layers,each of which abstract the layer below it and scaled horizontally. A layered abstraction approach, with well documented API contracts between the layers, allows for modularization, a key tenet of the Cisco MSX platform. The modularization allows for the separation of concerns, independent scaling, development velocity, and ultimately component replacement, if necessary.
Microservices
The Service Interface Function (SIF) and integrations are enabled as microservices that contain the logic to consume the functionality exposed by the platform. There is a standard set of microservices that expose the core platform functionality that is required to operate the platform.
Each use case can also provide one or more microservices for any use-case-specific functionality that needs to be enabled.
The following primary core microservices exist in Cisco MSX platform:
-
Identity Management (IDM)—Provides user management capabilities, tenant management (tenant and tenant group), manages identity providers, user roles, permissions, secrets, password policies, and so on. Upon login, fetches the user profile and stores it in the common cache so other microservices can use it. Also provides SAML 2.0 and OAuth 2.0 capabilities for Single Sign On (SSO), authentication, and authorization capabilities.
-
Catalog—Provides the capability to create services, service offers, price plans, define terms and conditions of a service, submit an order, and upgrade or downgrade a service.
-
Manage—Provides the service management capabilities, such as managing customer subscriptions and device data.
-
Monitor—Communicates with the service assurance components for device and service status and displays the statistics on the Portal.
-
Orchestration—Communicates with NSO to process the request to create or upgrade a service chain, add or delete a device, register device serial numbers, and advanced device configurations.
-
Notification—Cisco MSX provides support to trigger notifications when certain events occur. Both REST and email notifications are supported for all the events.
-
Administration—Manages global activities and settings. Activities include importing bulk device settings, obtaining component versions, scheduling tasks, managing provider contacts, and user interface themes.
-
Process Automation—Provides the capability to manage and execute service-oriented workflows
-
Billing—Provides the capability to collect and expose billing related events.
-
Incident—Enables you to integrate the Cisco MSX platform with an incident tracking system specially ServiceNow. Using this API, you can create, update, cancel, close, and delete an incident using the access token.
-
Service Configuration—Manages configuration templates, track the assignment and application of those templates to a tenant.

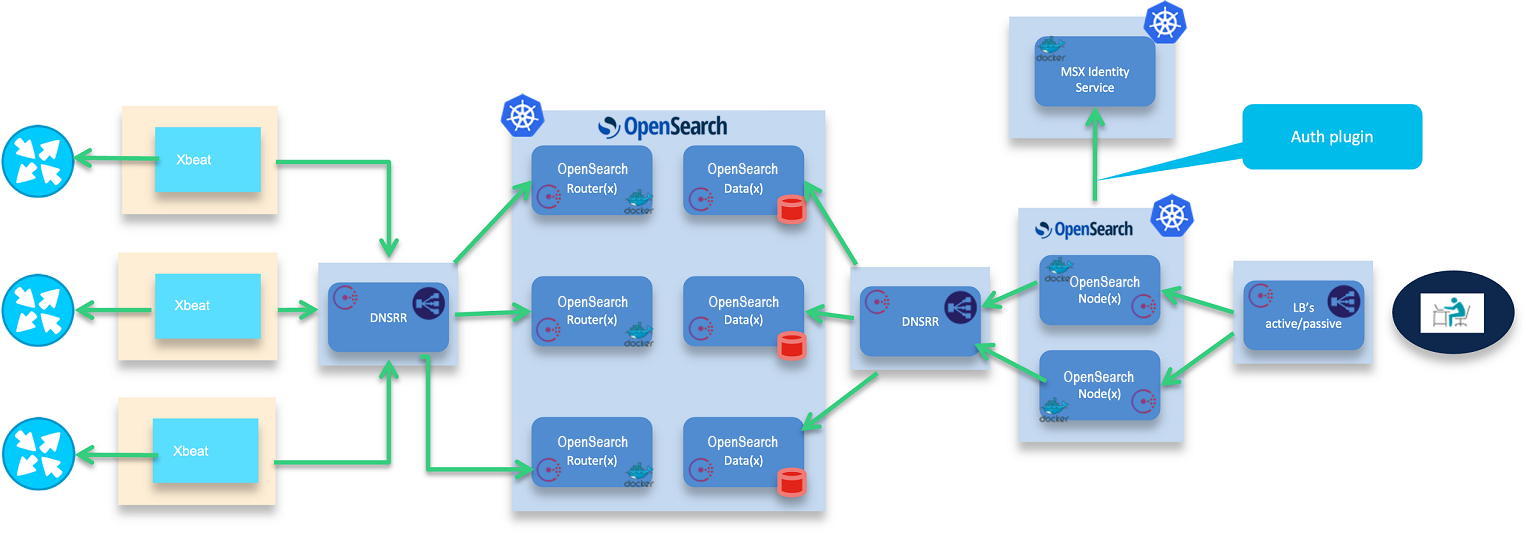

Data Platform
The data platform interface is the mechanism by which the data platform component interacts with the other platform components and applications. The major function that is performed by the data platform component is the collection of data from the platform, service packs, controllers, and devices. The collection interface provides a platform component or application the ability to instruct the data platform which data to collect, the frequency with which to collect, and how to store and correlate the data. This is to enable other platform components or external systems to augment the collection that is enabled by provisioning. For example, the instantiation of a typical service chain programs the devices participating in the chain to send data (e.g. Syslog/SNMP) to the data platform.
There are several actions that must be supported by the data platform component, and thus exposed via the service interface. The actions include, but are not limited to:
-
Data Retrieval (Pull)
-
Configurable Collection
-
Data Subscription/Streaming (Triggers/Events)
The data platform component of the architecture is broken down into the following major sub-functions, as shown in the following illustration.
Terminology
The following table provides an alphabetical listing of Cisco MSX acronyms.
Acronym |
Definition |
---|---|
AAA | Authentication, Authorization, and Accounting |
ACL | Access List |
API | Application Programmable Interface |
ARPU | Average Revenue Per User |
ASAv | Adaptive Security Appliance - vFW VNF |
BGP | Border Gateway Protocol |
BSS | Business Support System |
CDB | Configuration Database |
CFS | Consumer Facing Service |
CLI | Configuration Line Interface |
CMSP | Cisco Cloud and Managed Service Program |
CPE | Customer Premise Equipment (ISR-G2) |
CRUD | Create, Read, Update, and Delete orchestration operations |
CSR | Cloud Service Router - vRouter VNF |
cURL | Client URL |
DC | Data Center |
DCI | Data Center Interconnect |
DEST | Destination IP Address |
DHCP | Dynamic Host Configuration Protocol |
DMVPN | Dynamic Multi-Point Virtual Private Network |
DMZ | Demilitarized Zone (Networking private to public) |
DNS | Domain Name System |
DST | Destination IP Address |
EIGRP | Enhanced Interior Gateway Routing Protocol |
ESC | Elastic Services Controller |
ETS | European Telecommunications Standards |
ETSI | European Telecommunications Standards Institute |
EzVPN | Easy Virtual Private Network |
FW | Firewall |
GraphDB | Graph Data Base |
GuestOS | Guest Operating System |
HA | High Availability is |
HDR | Header |
HTTP | Hypertext Transfer Protocol |
I2RS | Interface to Routing System (diagram format) |
IKEv2 | Internet Key Exchange version 2 |
IO | Input/Output |
Intrusion Detection | Generally refers to the process of passively analyzing network traffic for potential intrusions and storing attack data for security analysis. |
Intrusion Prevention | Includes the concept of intrusion detection, but adds the ability to block or alter malicious traffic as it travels across your network |
iOS | Cisco Operating System |
IP | Internet Protocol |
IPSec | Internet Protocol Secure |
ISR | Integrated Service Router |
IT | Information Technology |
KVM | Kernel-based Virtual Machine |
LAN | Local Area Network |
ML2 | Modular Layer 2 |
MPLS | Multiprotocol Label Switching |
MSX | Managed Services Accelerator |
NAT | Network Address Translation |
NAT44 | Network Address Translation IPv4-to-IPv4 |
NED | Network Element Driver |
NEDs | Network Element Drivers |
NETCONF | Network Configuration protocol |
NFV | Network Functions Virtualization |
NH | Next Hope |
NIC | Network Interface Card |
NICs | Network Interface Cards |
NSO | Network Service Orchestrator |
ODL | Open Daylight |
OS | Operating System |
OSPF | Open Shortest Path First |
OSS | Operations Support System |
OVS | Open Virtual Switch |
PE | Provider Edge |
PnP | Plug-N-Play |
QEMU | Quick Emulator |
QoS | Quality of Service |
RA | Remote Access |
REST | Representation State Transfer |
RFC | Request For Comments |
RFS | Resource Facing Service |
ROI | Return on Investment |
SA | Source Address |
SDN | Solution uses software-defined networking |
SLA | Service Level Agreement |
SMB | Small Medium Business |
SNMP | Simple Network Management Protocol |
SP | Service Provider |
SRC | Source IP Address |
SSH | Secure Shell |
SSL | Secure Sockets layer |
SUDI | Secure Unique Device Identifier |
TCO | Total Cost of Ownership |
TP | Termination Point |
UCS | Unified Computing System |
vFW | Virtual Firewall |
VIM | Virtual Interface Manager |
VirtIO | Virtual Input/Output |
VLAN | Virtual Local Area Network |
VM | Virtual Machine |
VMs | Virtual Machines |
VNF | Virtual Network Function |
VNFs | Virtual Network Functions |
VNIC | Virtual Network Interface |
VPN | Virtual Private Network |
VPP | Vector Packet Parsing |
VR | Virtual Router |
VRF | Virtual Route Forwarding |
VRRP | Virtual Registry Registrar Protocol |
WAN | Wide Area Network |
WCCPv2 | Web Cache Communications Protocol |
WSA | Web Security Appliance |
WSAv | Web Security Appliance virtualized |
XML | eXtensible Marking Language |
YANG | Yet Another Next Generation (data modeling) |
ZTD | Zero Touch Deployment |
About this Content
This section provides information about related documentation of Cisco MSX and trademarks used in this content.
Related Documentation
You can access Cisco MSX 4.3.0 content at Cisco MSX End User Documentation.
The documents listed here are available for additional reference. To access API documentation on the Swagger GUI, log in to the Cisco MSX GUI and navigate to My Profile > Swagger API.
Cisco MSX SDK documentation is available at https://developer.cisco.com/site/msx/.
Document |
Description |
---|---|
Cisco Managed Services Accelerator (MSX) 4.3 Release Notes Documentation |
This documentation provides information about the new features in Cisco MSX 4.3. |
Cisco Managed Services Accelerator (MSX) 4.3 Administration Documentation |
This documentation covers the post-install configuration information that is required to set up Cisco MSX. |
Cisco Managed Services Accelerator (MSX) 4.3 Platform and Service Pack Permissions Addendum |
This addendum covers all the permissions that are required to operate Cisco MSX and the service packs. |
Cisco Managed Services Accelerator (MSX) 4.3 SD-WAN Service Pack Documentation |
This documentation includes details that are related to deploying, managing, configuring the Cisco MSX SD-WAN service pack, and troubleshooting service errors. |
Cisco Managed Services Accelerator (MSX) 4.3 SD-WAN Out-of-the-Box Applications Addendum |
This document is an addendum to the Cisco MSX SD-WAN Service Pack content. It has details about the out-of-the-box applications of Cisco MSX 4.3 and the comparison of applications in older releases with applications in Cisco MSX 4.3 based on possible application mapping. |
Cisco Managed Services Accelerator (MSX) 4.3 Enterprise Access Service Pack Documentation |
This documentation includes details that are related to deploying, managing, configuring the Cisco MSX Enterprise Access service pack, and troubleshooting service errors. |
Cisco Managed Services Accelerator (MSX) 4.3 Managed Device Service Pack Documentation |
This documentation includes details related to subscribing the Cisco MSX Managed Device service pack, configuring the service, and troubleshooting service errors. |
Cisco Managed Services Accelerator (MSX) 4.3 Solution Overview Documentation |
This documentation provides a comprehensive explanation of the design of the Cisco MSX solution that enables service providers to offer flexible and extensible services to their business customers. |
Open Source Used in Cisco MSX and Service Packs Documentation |
This documentation contains licenses and notices for Open Source software that is used in this product. |
