    The following topics describe how you can use the Vision client to monitor Carrier Ethernet services. If you cannot perform an operation that is described in these topics, you may not have sufficient permissions; see Permissions for Managing Carrier Ethernet.

    Viewing CDP Properties

    Cisco Discovery Protocol (CDP) is primarily used to obtain protocol addresses of neighboring devices and discover the platform of those devices.

    In Logical Inventory

    To view CDP properties:


    Step 1blank.gif In the Vision client, double-click the device whose CDP properties you want to view.

    Step 2blank.gif In the Inventory window, click Logical Inventory > Cisco Discovery Protocol.

    The CDP properties are displayed in logical inventory as shown in Figure 18-1.

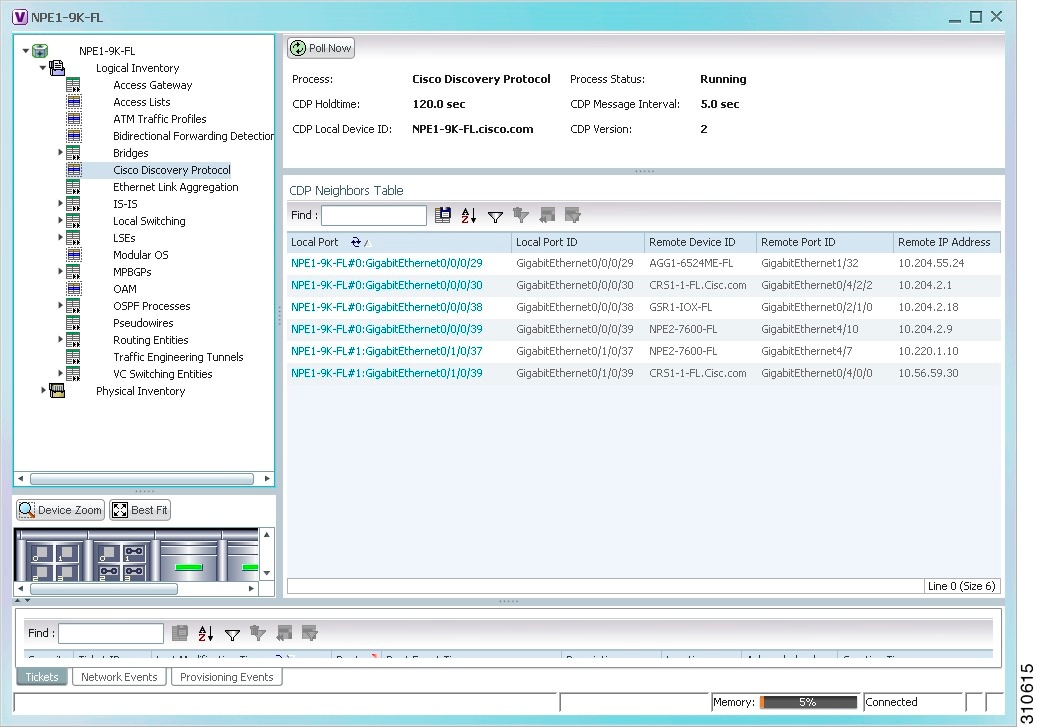

    Figure 18-1 CDP in Logical Inventory



    310615.tif

    Table 18-1 describes the CDP instance properties that are displayed.



    Table 18-1 CDP Properties in Logical Inventory

    Field
    Description

    Process

    Process name; in this case, Cisco Discovery Protocol

    Process Status

    Process status: Running or Disabled.

    CDP Holdtime

    Specifies the amount of time a receiving device should hold the information sent by a device before discarding it.

    CDP Message Interval

    Interval between CDP advertisement transmissions.

    CDP Local Device ID

    Local device identifier.

    CDP Version

    CDP version: 1 or 2.

    CDP Neighbors Table

    Local Port

    Local port name.

    Local Port ID

    Local port identifier.

    Remote Device ID

    Remote device identifier.

    Remote Port ID

    Remote port identifier.

    Remote IP Address

    Remote IP address.




    In Physical Inventory

    To view CDP on a Layer 2 port:


    Step 1blank.gif In the Vision client, double-click the device with the Layer 2 port with the CDP information you want to view.

    Step 2blank.gif In the Inventory window, select the required port under Physical Inventory.

    The CDP information is displayed in the Discovery Protocols area in the Vision client content pane:

      • Discovery Protocol Type—CDP
      • Info—Up or Down

    Viewing Link Layer Discovery Protocol Properties

    Link Layer Discovery Protocol (LLDP) stores and maintains the local device information, including a list of devices directly connected to the device.

    In Logical Inventory

    To view LLDP properties:


    Step 1blank.gif In the Vision client, double-click the device with the LLDP information you want to view.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > Link Layer Discovery Protocol.

    The LLDP properties are displayed in logical inventory as shown in Figure 18-2.

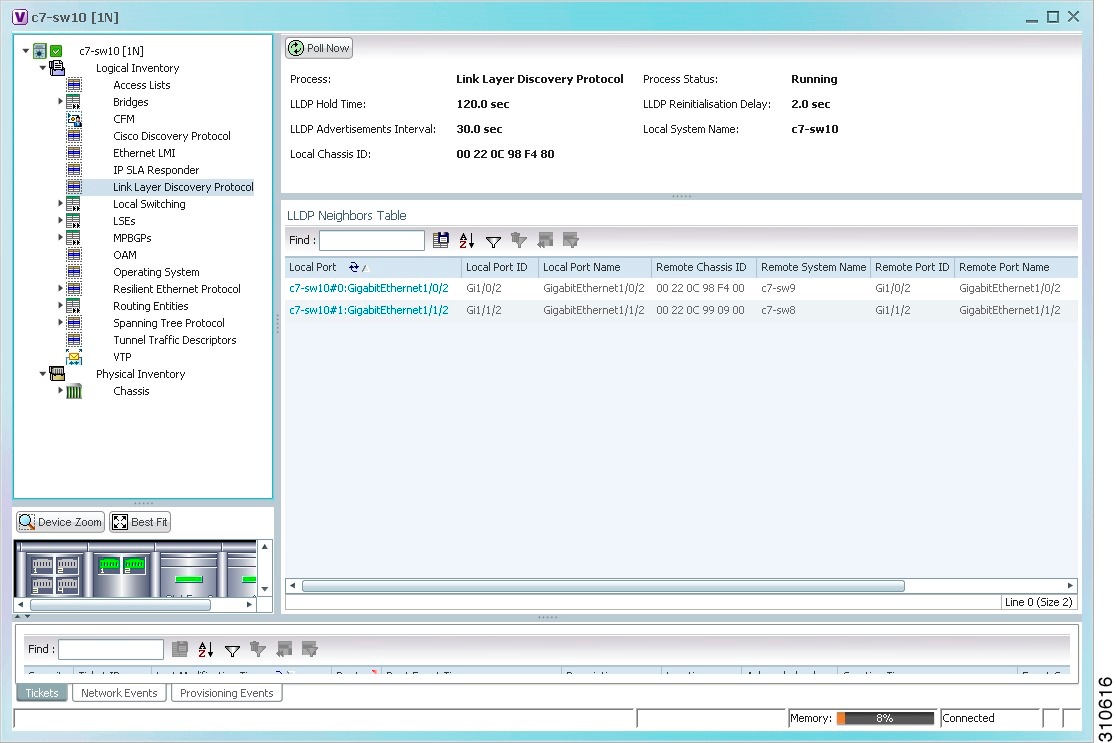

    Figure 18-2 LLDP in Logical Inventory



    310616.tif

    Table 18-2 describes the properties that are displayed for LLDP.



    Table 18-2 Link Layer Discovery Protocol Properties

    Field
    Description

    Process

    Process; in this case, Link Layer Discovery Protocol

    Process Status

    Process status: Running or Disabled.

    LLDP Hold Time

    LLDP advertised hold time in seconds.

    LLDP Reinitialization Delay

    LLDP interface reinitialization delay in seconds

    LLDP Advertisements Interval

    LLDP advertisements interval in seconds.

    Local System Name

    Local system name.

    Local Chassis ID

    Local chassis identifier.

    LLDP Neighbors Table

    Local Port

    Local port.

    Local Port ID

    Local port identifier.

    Local Port Name

    Local port name.

    Remote System Name

    Remote system name.

    Remote Chassis ID

    Remote chassis identifier.

    Remote Port ID

    Remote port identifier.

    Remote Port Name

    Remote port name.

    Remote Management IP

    Remote management IP address.




    In Physical Inventory

    To view LLDP on a Layer 2 port:


    Step 1blank.gif In the Vision client, double-click the device with the Layer 2 port with LLDP information you want to view.

    Step 2blank.gif In the Inventory window, select the required port under Physical Inventory.

    The LLDP information is displayed in the Discovery Protocols area in the Vision client content pane:

      • Discovery Protocol Type—LLDP
      • Info—Tx (Enabled or Disabled), Rx (Enabled or Disabled).

    Noteblank.gif If the LLDP transmit is disabled on the interface using CLI and you click the Poll Now button, the LLDP Info-Tx field is disabled.





    Viewing Spanning Tree Protocol Properties

    Spanning Tree Protocol (STP) is a link management protocol that provides path redundancy while preventing undesirable loops in the network.

    To view Spanning Tree properties:


    Step 1blank.gif In the Vision client, double-click the element whose STP properties you want to view.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > Spanning Tree Protocol.

    Step 3blank.gif STP properties are displayed in logical inventory as shown in Figure 18-3.

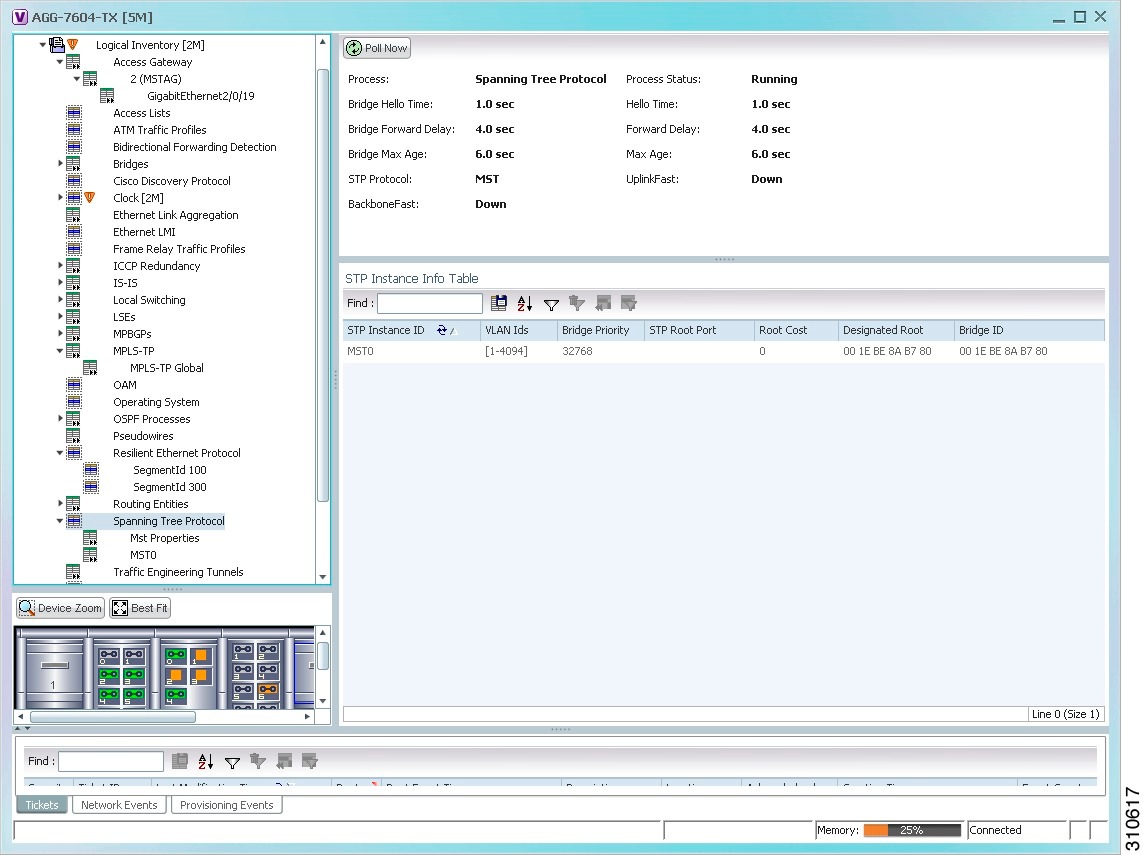

    Figure 18-3 STP in Logical Inventory



    310617.tif

    Table 18-3 describes the properties that are displayed for STP.



    Table 18-3 STP Properties

    Field
    Description

    Process

    Process; in this case, Spanning Tree Protocol.

    Process Status

    Process status: Running or Disabled.

    Bridge Hello Time

    Hello message keepalive interval (in seconds) when the port is the root.

    Hello Time

    Current hello time (in seconds).

    Bridge Forward Delay

    When the port is the root and in listening or learning state, amount of time to wait (in seconds) before proceeding to the forwarding state.

    Forward Delay

    Current bridge forward delay (in seconds).

    Bridge Max Age

    When the port is the root, maximum age of learned Spanning Tree Protocol port information (in seconds).

    Max Age

    Current maximum age (in seconds).

    STP Protocol

    STP version: MST, RSTP, PVSTP, MSTP, or RPVST.

    UplinkFast

    PVSTP Uplink Fast function status: Up or Down.

    BackboneFast

    PVSTP BackboneFast function status: Up or Down.

    STP Instance Info Table

    STP Instance ID

    STP instance name.

    VLAN ID

    VLAN identifiers.

    Bridge Priority

    Bridge priority.

    STP Root Port

    Hyperlinked entry to the STP port in logical or physical inventory.

    Root Cost

    Root cost value for this bridge.

    Designated Root

    MAC address of the designated root.

    Bridge ID

    Bridge identifier (MAC address).

    Bridge Hello Time

    Hello message keepalive interval (in seconds) when the port is the root.

    Hello Time

    Current hello time (in seconds).

    Bridge Forward Delay

    When the port is the root and in the listening or learning state, amount of time to wait (in seconds) before proceeding to the forwarding state.

    Forward Delay

    Current bridge forward delay (in seconds).

    Bridge Max Age

    When the port is the root, maximum age of learned Spanning Tree Protocol port information (in seconds).

    Max Age

    Current maximum age (in seconds).

    Step 4blank.gif To view the properties of an STP instance, do one of the following:

      • Double-click the required instance.
      • Click the required entry in logical inventory under the Spanning Tree Protocol branch.

    Table 18-4 describes the information that is displayed in the STP Instance Information Properties window.



    Table 18-4 STP Instance Information Properties

    Field
    Description

    STP Instance ID

    STP instance identifier.

    VLAN ID

    VLAN identifier.

    Bridge Priority

    Bridge priority.

    Bridge ID

    Bridge identifier (MAC address).

    Root Cost

    Root cost value for this bridge.

    Designated Root

    MAC address of the designated root.

    Bridge Hello Time

    Hello message keepalive interval (in seconds) when the port is the root.

    Hello Time

    Current hello time (in seconds).

    Bridge Forward Delay

    When the port is the root and in listening or learning state, amount of time to wait (in seconds) before proceeding to the forwarding state.

    Forward Delay

    Current bridge forward delay (in seconds).

    Bridge Max Age

    When the port is the root, the maximum age of learned Spanning Tree Protocol port information (in seconds).

    Max Age

    Current maximum age (in seconds).

    STP Protocol Specification

    Specific STP protocol type or variant used for this instance, such as Rapid PvSTP.

    Is Root

    Whether or not the port is the root: True or False.

    Ports Info Table

    STP Port

    Hyperlinked entry to the STP port in physical inventory.

    Port State

    STP port state: Disabled, Blocking, Listening, Learning, or Forwarding,

    Port Role

    Port role: Unknown, Backup, Alternative, Designated, Root, or Boundary.

    Port Priority

    Default 802.1p priority assigned to untagged packets arriving at the port.

    Port Path Cost

    Port path cost, which represents the media speed for this port.

    Point To Point Port

    Whether or not the port is linked to a point-to-point link: True or False.

    Edge Port

    Whether or not the port is an edge port; that is, whether it is connected to a nonbridging device: True or False.

    MST Port Hello Time

    This field is displayed in the Ports Info Table only for MST.

    In seconds, the interval between hello BPDUs sent by root switch configuration messages. The range is 1 to 10 seconds.

    Port Identifier

    STP port identifier.

    Portfast

    Whether or not STP PortFast is enabled on the port: Up or Down.

    Designated Port Identifier

    Designated STP port identifier.

    Designated Bridge

    STP designated bridge.

    BPDU Filter

    BPDU Filter status: Up or Down.

    BPDU Guard

    BPDU Guard status: Up or Down.

    Step 5blank.gif To view MSTP properties, choose the required MSTP entry in logical inventory under Spanning Tree Protocol.

    Table 18-5 describes the information that is displayed for MSTP.



    Table 18-5 MSTP Properties in Logical Inventory

    Field
    Description

    MST Force Version

    Force version used: MST, PVSTP, RSTP, STP, or Unknown.

    MST Cfg ID Rev Level

    Revision level used by the selected device and negotiated with other devices.

    MST Cfg ID Name

    MSTP instance name.

    MST Max Instances

    Maximum number of MSTP instances.

    MST Cfg ID Fmt Sel

    Configuration format used by this device and negotiated with other devices.

    MST External Root Cost

    External root cost of the MSTP instance.




    The following topics describe how to view STP properties related to:

    Viewing Resilient Ethernet Protocol Properties (REP)

    Cisco Resilient Ethernet Protocol (REP) technology is implemented on Cisco Carrier Ethernet switches and intelligent service edge routers. REP is a segment protocol, and a REP segment is a chain of ports connected to each other and configured with the same segment identifier. Each end of a segment terminates on an edge switch. The port where the segment terminates is called the edge port.

    Prime Network discovers and displays REP Segments (identified by a REP segment identifier that is locally configured on the network element) along with Global REP configuration details.

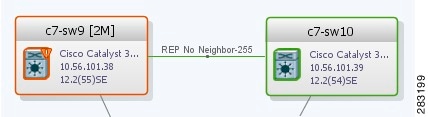

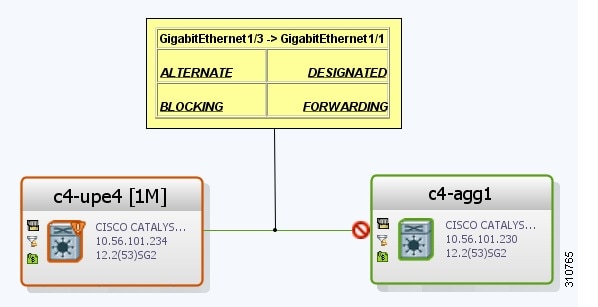

    You can also view the REP port roles (open, alternate, and failed) in the Vision client map. The REP port role is displayed as a tool-tip between the REP enabled trunk ports in the Ethernet links. Using the Vision client, you can identify if the segment is open or closed.

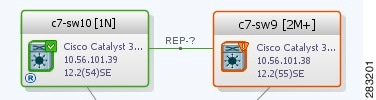

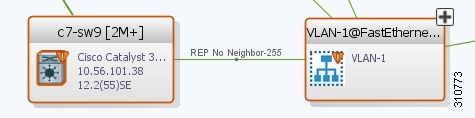

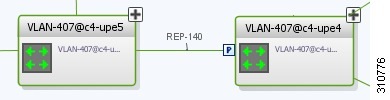

    The map displays the forwarding direction (REP port roles) along the Physical links within VLAN overlays. It also displays the forwarding direction along the VLAN links among the switching elements within the VLAN logical domain topology.

    REP implementation supports the following faults:

    • A REP Port Role change to Failed service event will be generated when a REP port role is change from Alternate or Open to Failed.
    • A REP Port Role change to OK clearing service event will be generated when a REP port role is change from Failed to Alternate or Open.

    Correlation to these service events to physical layer events (for example Link down or Port down) is also performed.

    You can view REP properties in logical inventory.


    Step 1blank.gif In the Vision client, double-click the device configured for REP.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > Resilient Ethernet Protocol.

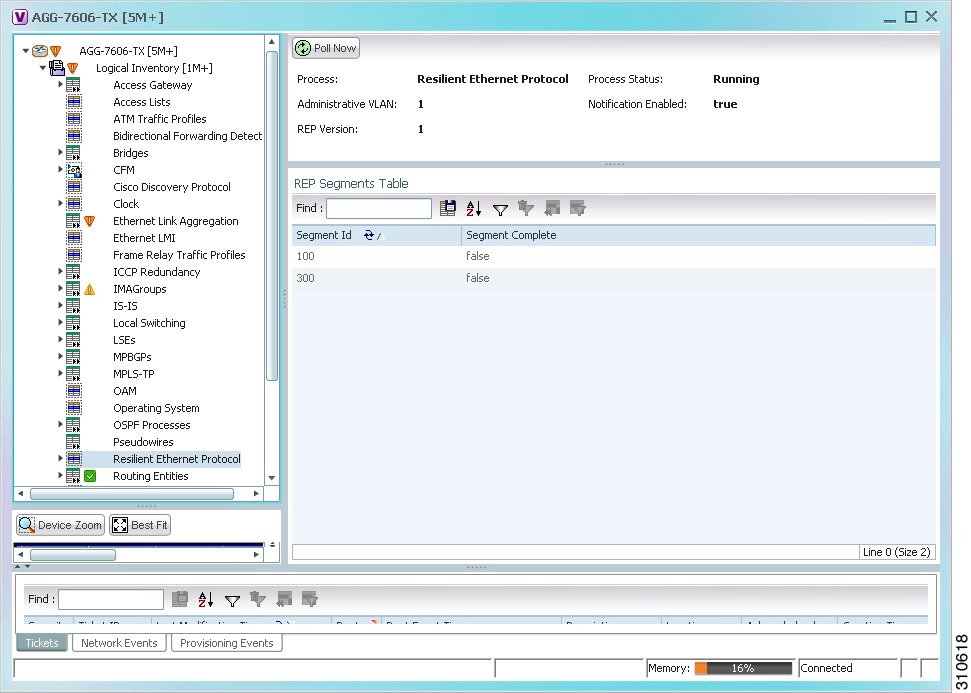

    Figure 18-4 shows an example of REP in logical inventory.

    Figure 18-4 REP in Logical Inventory



    310618.tif

    Table 18-6 describes the information that is displayed for REP.



    Table 18-6 REP Properties

    Field
    Description

    Process

    Process name; in this case, Resilient Ethernet Protocol.

    Process Status

    State of the REP process, such as Running or Down.

    Administrative VLAN

    Administrative VLAN used by REP to transmit its hardware flooding layer messages. Values range from 1 to 4094.

    Notification Enabled

    Whether or not notification is enabled: True or False.

    REP Version

    Version of REP being used.

    REP Segments Table

    Segment ID

    Segment identifier.

    Segment Complete

    Whether the segment is complete; that is, that no port in the segment is in a failed state: True or False.

    Step 3blank.gif To view REP segment properties, double-click the required entry in the REP Segments table.

    Figure 18-5 shows an example of REP segment properties in logical inventory.

    Figure 18-5 REP Segment Properties



    310619.tif

    Table 18-7 describes the information that is displayed for REP segments.



    Table 18-7 REP Segment Properties

    Field
    Description

    Segment ID

    Segment identifier.

    Segment Complete

    Whether the segment is complete; that is, that no port in the segment is in a failed state: True or False.

    Segment Ports Table

    Port

    Hyperlinked entry to the port in physical inventory.

    Port State

    Current operational link state of the REP port: None, Init Down, No Neighbor, One Way, Two Way, Flapping, Wait, or Unknown.

    Port Type

    Port type: Primary Edge, Secondary Edge, or Intermediate.

    Port Role

    Role or state of the REP port depending on its link status and whether it is forwarding or blocking traffic: Failed, Alternate, or Open.

    Remote Device Name

    Name of the neighbor device that this port is connected to on this segment. This value can be null.

    Remote Port Name

    Name of the neighbor port on the neighbor bridge that this port is connected to on this segment. This value can be null.

    Blocked VLANs

    VLANs that are blocked on this port.

    Configured Load Balancing Blocked VLANs

    List of VLANs configured to be blocked at this port for REP VLAN load balancing.

    Preemptive Timer

    Amount of time, in seconds, that REP waits before triggering preemption after the segment is complete. The entry can range from 0 to 300, or be Disabled.

    The value Disabled indicates that no time delay is configured, and that the preemption occurs manually.

    This property applies only to REP primary edge ports.

    LSL Ageout Timer

    Using the Link Status Layer (LSL) age-out timer, the amount of time, in milliseconds, that the REP interface remains up without receiving a hello from a neighbor.

    Remote Device MAC

    MAC address of the neighbor bridge that this port is connected to on this segment. This value can be null.




    The following topics describe how to view REP properties related to VLANs:

    Viewing HSRP Properties

    Hot Standby Router Protocol (HSRP) is a protocol that provides backup to a router in case of failure. Using HSRP, several routers are connected to the same Ethernet network segment and work together to present the appearance of a single virtual router. The routers share the same IP and MAC addresses; therefore in the event of failure of one router, the hosts on the LAN will be able to continue forwarding packets to a consistent IP and MAC address.

    HSRP groups are configured on IP interfaces. An IP interface is modeled by the VNE through the IPInterface DC. The IPInterface DC maintains the HSRP related information by the use of HSRP group entries. Ethernet DCs, which are used to model Ethernet ports, maintain MAC addresses of the HSRP groups.

    To view HSRP properties:


    Step 1blank.gif Double-click the required element in the Vision client.

    Step 2blank.gif In logical inventory, choose Logical Inventory > Routing Entities > Routing Entity.

    Step 3blank.gif In the IP Interfaces tab, double-click the required interface to view the IP interface properties. If HSRP is configured on the IP interface, the HSRP Group tab is displayed as shown in Figure 18-6.

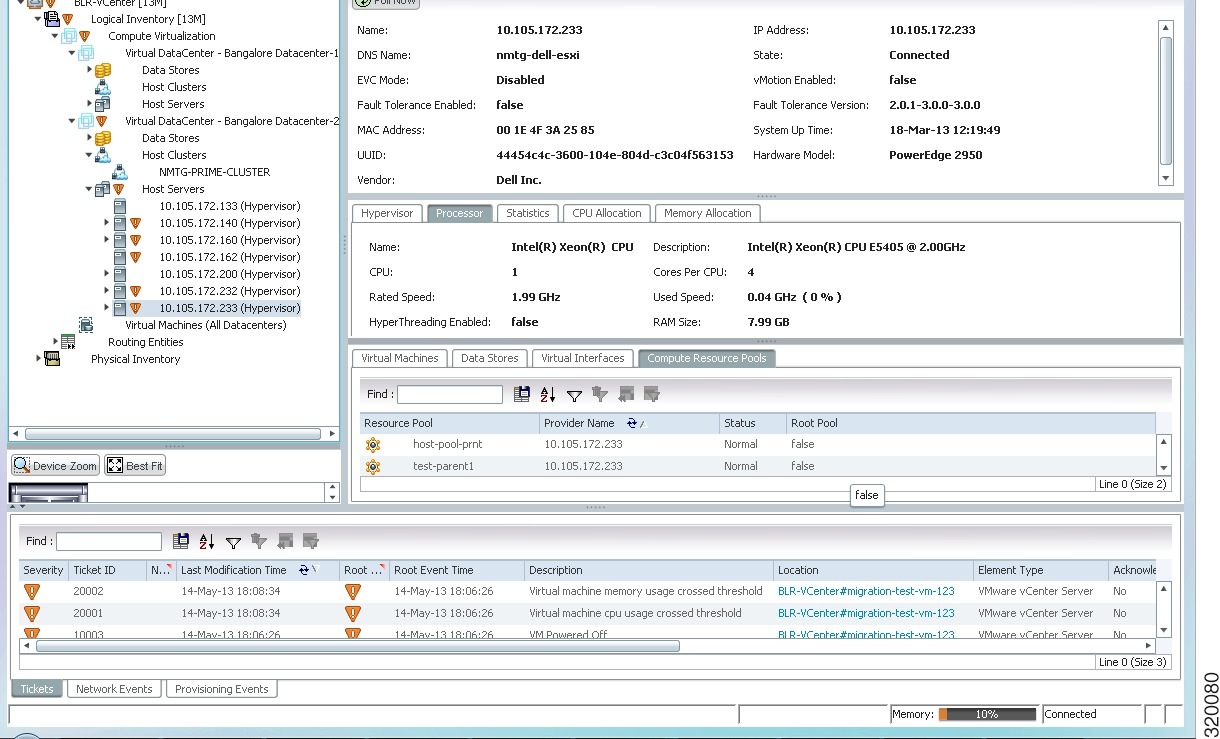

    Figure 18-6 HSRP Group Information



    320080.tif

    Table 18-8 describes the information in the HSRP Group tab.



    Table 18-8 HSRP Group Properties

    Field
    Description

    Group Number

    Number of the HSRP group associated with the interface.

    Version

    Version of the HSRP group.

    Port Name

    Port on which the HSRP is configured.

    Priority

    Value that determines the role each HSRP router plays.

    Values are 1 through 254, with higher numbers having priority over lower numbers.

    Coupled Router

    The partnet router.

    State

    State of the HSRP group: Active or Standby.

    Virtual IP Address

    Virtual IP address assigned to the active router.

    Virtual MAC Address

    Virtual MAC address assigned to the active router.




    Viewing Access Gateway Properties

    In an access network, an access gateway configuration ensures loop-free connectivity in the event of various failures by sending statically configured bridge protocol data units (BPDUs) toward the access network. Using statically configured BPDUs enables the gateway device to act appropriately when notified of the following topology changes:

    • Failure of a link in the access network.
    • Failure of a link between the access network and the gateway device.
    • Failure of an access device.
    • Failure of a gateway device.

    To view access gateway properties:


    Step 1blank.gif Double-click the element configured for access gateway.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > Access Gateway > access-gateway. The group name is appended by either MSTAG or REPAG, indicating the group type Multiple Spanning Tree Access Gateway or Resilient Ethernet Protocol Access Gateway.

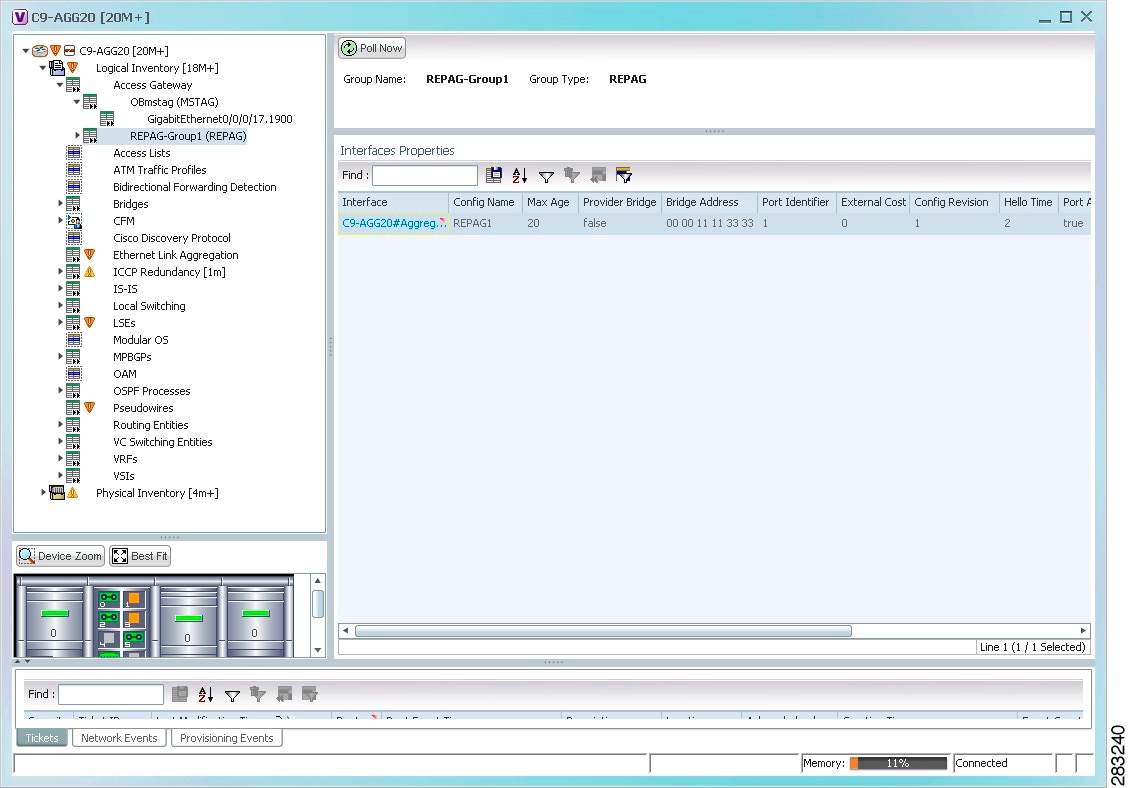

    Figure 18-7 shows an example of an access gateway entry in logical inventory.

    Figure 18-7 Access Gateway in Logical Inventory



    283240.tif

    Table 18-9 describes the information that is displayed for an access gateway.



    Table 18-9 Access Gateway Properties in Logical Inventory

    Field
    Description

    Group Name

    Access gateway group name.

    Group Type

    Group type: MSTAG or REPAG.

    Interface Properties

    Interface

    Hyperlink to the interface in physical inventory on which access gateway is configured.

    Config Name

    Name of the MSTP region.

    The default value is the MAC address of the switch, formatted as a text string using the hexadecimal representation specified in IEEE Standard 802.

    Max Age

    In seconds, the maximum age for the bridge.

    Values range from 6 to 40 seconds.

    Provider Bridge

    Whether the current instance of the protocol is in 802.1ad mode: True or False.

    Bridge Address

    Bridge identifier for the interface.

    Port Identifier

    Port identifier for the interface.

    External Cost

    External path cost on the current port.

    Values range from 1 to 200000000.

    Config Revision

    Number of the configuration revision.

    Hello Time

    Current hello time (in seconds)

    Port Active

    Whether or not the port is active: True or False.

    BPDUs Sent

    Number of BPDUs sent.

    Reversion Control Enabled

    Whether reversion control is enabled: True or False.

    Step 3blank.gif Choose an access gateway instance to view instance properties.

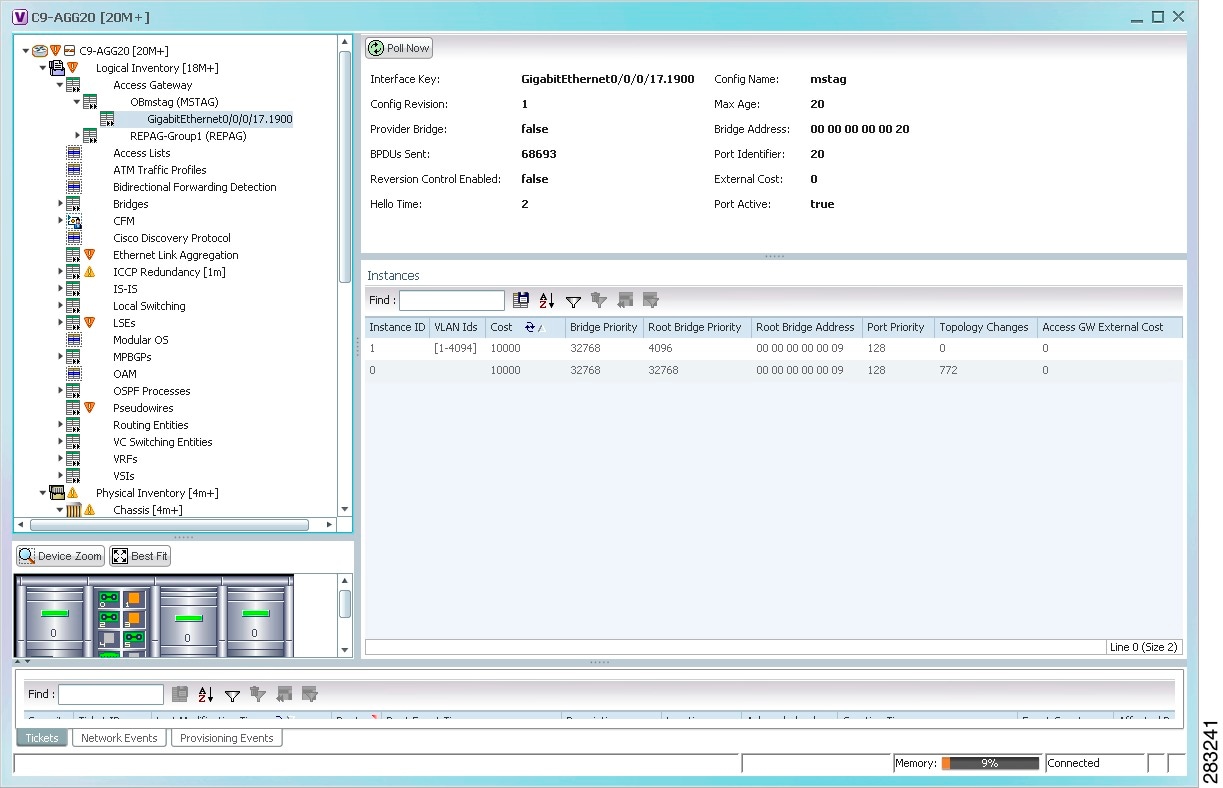

    Figure 18-8 shows an example of the information displayed for an access gateway instance.

    Figure 18-8 Access Gateway Instance in Logical Inventory



    283241.tif

    Table 18-10 describes the information that is displayed for an access gateway instance.



    Table 18-10 Access Gateway Instance Properties

    Field
    Description

    Interface Key

    Hyperlink to the interface in physical inventory on which access gateway is configured.

    Config Name

    Name of the MSTP region.

    The default value is the MAC address of the switch, formatted as a text string using the hexadecimal representation specified in IEEE Standard 802.

    Config Revision

    Number of the configuration revision.

    Max Age

    In seconds, the maximum age for the bridge.

    Values range from 6 to 40 seconds.

    Provider Bridge

    Whether the current instance of the protocol is in 802.1ad mode: True or False.

    Bridge Address

    Bridge identifier for the current switch.

    BPDUs Sent

    Number of BPDUs sent.

    Port Identifier

    Port identifier for the interface.

    Reversion Control Enabled

    Whether reversion control is enabled: True or False.

    External Cost

    External path cost on the current port.

    Values range from 1 to 200000000.

    Hello Time

    Current hello time (in seconds)

    Port Active

    Whether or not the port is active: True or False.

    Instances Table

    Instance ID

    Access gateway instance identifier.

    VLAN ID

    VLAN identifiers.

    Cost

    Path cost for this instance.

    Bridge Priority

    Priority associated with current bridge.

    Root Bridge Priority

    Priority associated with the root bridge.

    Root Bridge Address

    Address of the root bridge.

    Port Priority

    Priority of the interface for this instance.

    Topology Changes

    Number of times the topology has changed for this instance.

    Access GW External Cost

    External root cost of this instance.




    Working with Ethernet Link Aggregation Groups

    Ethernet link aggregation groups (LAGs) provide the ability to treat multiple switch ports as one switch port. The port groups act as a single logical port for high-bandwidth connections between two network elements. A single link aggregation group balances the traffic load across the links in the channel.

    LAG links are discovered automatically for devices that support LAG technology and use VNEs that model Link Aggregation Control Protocol (LACP) attributes.

    You can create static links between Ethernet LAGs by choosing a LAG and the desired port channel for the A or Z side as described in Adding a Static Link When a Network Link is Missing.

    If a physical link within the link aggregation group fails, the following actions occur:

    • Traffic that was previously carried over the failed link is moved to the remaining links.

    Most protocols operate over single ports or aggregated switch ports and do not recognize the physical ports within the port group.

    • An aggregation service alarm is generated.

    The aggregation service alarm indicates the percentage of links within the aggregation that have failed. For example, if an Ethernet link aggregation group contains four Ethernet links and one fails, the aggregation service alarm indicates that 25% of the links are down.

    Viewing Ethernet LAG Properties

    To view a device’s Ethernet LAG properties, the device must be configured to receive SNMP traps as described in the Cisco Prime Network 5.2 Administrator Guide. To view properties for Ethernet link aggregation groups:


    Step 1blank.gif In the Vision client, double-click the device with the link aggregation group you want to view.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > Ethernet Link Aggregation.

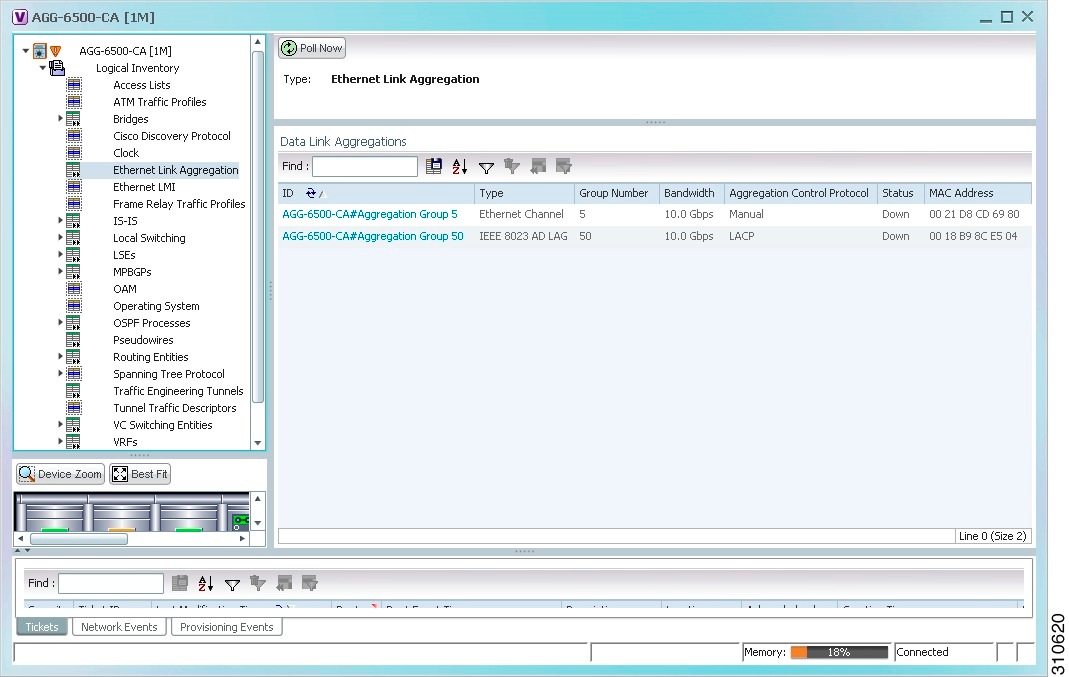

    The link aggregation properties are displayed as shown in Figure 18-9.

    Figure 18-9 Ethernet Link Aggregation in Logical Inventory



    310620.tif

    Table 18-11 describes the aggregation group properties that are displayed in the Data Link Aggregations table.



    Table 18-11 Data Link Aggregations Table

    Field
    Description

    ID

    Aggregation identifier. Double-click the entry to view the properties for that aggregation.

    Type

    Aggregation group type: Ethernet Channel or IEEE 802.3 AD LAG.

    Group Number

    Aggregation group number.

    Bandwidth

    Aggregation bandwidth.

    Aggregation Control Protocol

    Aggregation control protocol: Manual, Link Aggregation Control Protocol (LACP), or Port Aggregation Protocol (PagP).

    Status

    Aggregation status: Up or Down.

    MAC Address

    Aggregation MAC address.

    Link Type

    The type of ethernet bundle link, namely ICL and transport.

    • ICL link type represents the ethernet link bundle between Cisco ASR 9000 device and satellite chassis or between two satellite chassis.
    • Transport link type represents the ethernet link bundle between two Cisco ASR 9000 devices.

    Non Revertive

    Specifies the currently active but a lower priority port to remain active port even after a higher priority port is capable of being operational (if non revertive is enabled).

    By default, non revertive is disabled.

    Load Balance

    Load balance type which uses Source and Destination MAC address, Source IP address, or Destination IP address.

    Step 3blank.gif To view properties for a specific aggregation, double-click the group identifier.

    The information that is displayed depends on the type of aggregation:



    Table 18-12 LAG Ethernet Channel Properties

    Field
    Description

    Group Number

    Aggregation group number.

    Bandwidth

    Aggregation bandwidth in b/s.

    Control Protocol

    Aggregation control protocol: Manual, Link Aggregation Control Protocol (LACP), or Port Aggregation Protocol (PagP).

    MAC Address

    Aggregation MAC address.

    Administrative State

    Aggregation administrative status: Up or Down.

    Operational State

    Aggregation operational status: Up or Down.

    Adjacent

    Adjacent group, hyperlinked to the group in logical inventory.

    mLACP Properties

    mLACP properties are displayed if the aggregation group is associated with an ICCP redundancy group.

    ICCP Redundancy Group

    ICCP redundancy group associated with this aggregation group, hyperlinked to the relevant entry in logical inventory.

    mLACP Role

    Role of the LAG in the redundancy group: Active or Standby.

    mLACP Operational System MAC

    MAC address used in a dual-homed environment that is selected by ICCP from one of the configured system MAC addresses for one of the points of attachment (PoAs).

    mLACP Operational System Priority

    Priority used in a dual-homed environment that is selected by ICCP from the configured system priority on one of the PoAs.

    mLACP Failover Option

    Configured mLACP failover mode: Revertive or Nonrevertive.

    mLACP Max Bundle

    Maximum number of links allowed per bundle.

    Aggregated Ports Table

    ID

    Aggregated port identifier, hyperlinked to the interface in physical inventory.

    Type

    Aggregation type, such as Layer 2 VLAN.

    Mode

    VLAN mode, such as Trunk.

    Native VLAN ID

    VLAN identifier (VID) associated with this VLAN. The range of VLANs is 1 to 4067.

    VLAN Encapsulation Type

    Type of encapsulation configured on the VLAN, such as IEEE 802.1Q.

    Allowed VLANs

    List of VLANs allowed on this interface.

    VLAN Encapsulation Admin Type

    VLAN administration encapsulation type, such as IEEE 802.1Q.

    Subinterfaces Table

    Address

    IP address of the subinterface.

    Mask

    Subnet mask applied to the IP address.

    VLAN Type

    Type of VLAN, such as Bridge or IEEE 802.1Q.

    Operational State

    Operational state of the subinterface: Up or Down.

    VLAN ID

    VLAN identifier.

    Inner VLAN

    CE-VLAN identifier.

    IP Interface

    IP interface configured as part of the subinterface, hyperlinked to the routing entity or VRF in logical inventory.

    VRF Name

    VRF associated with the subinterface.

    Is MPLS

    Whether the subinterface is enabled for MPLS: True or False.

    This column is displayed when at least one interface is MPLS-enabled.

    Tunnel Edge

    Whether this is a tunnel edge: True or False.

    VC

    Virtual circuit identifier, hyperlinked to the VC Table when the subinterface is configured for ATM VC.

    Binding

    Hyperlinked entry to the specific bridge in logical inventory.

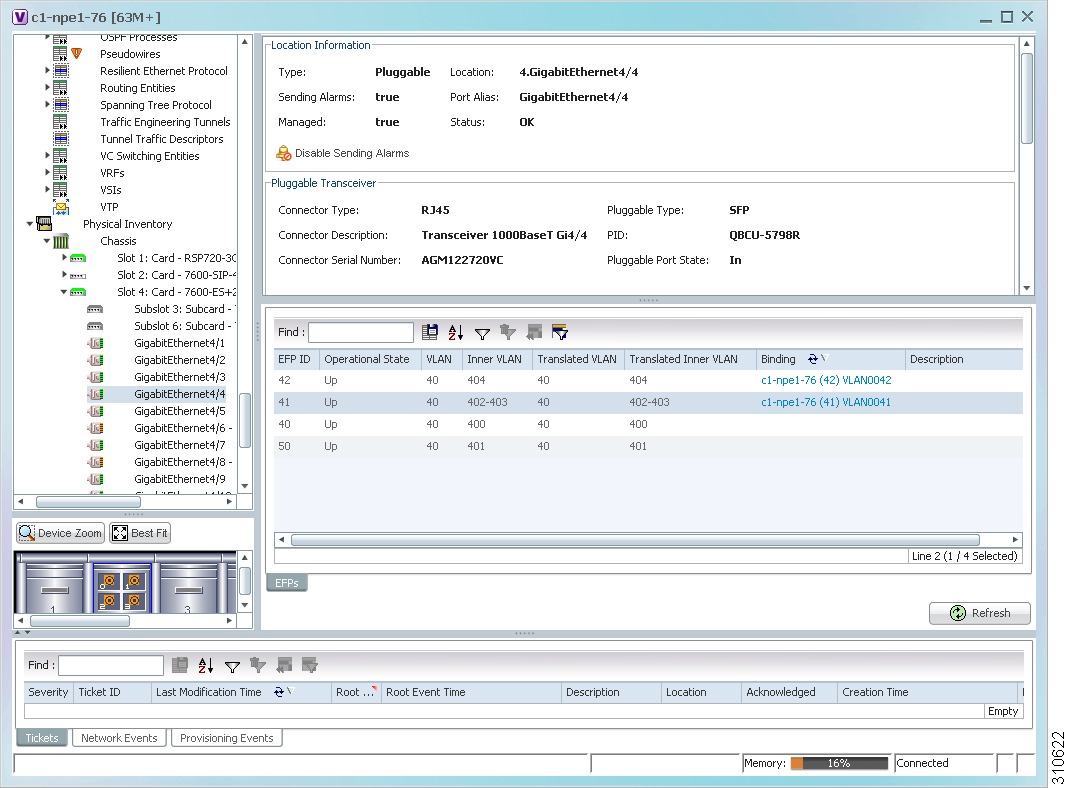

    EFPs Table

    EFP ID

    EFP identifier.

    Operational State

    EFP operational state: Up or Down.

    VLAN

    VLAN associated with this EFP.

    Inner VLAN

    CE-VLAN identifier.

    Translated VLAN

    Translated, or mapped, VLAN identifier.

    Translated Inner VLAN

    Translated, or mapped, inner VLAN identifier.

    Binding

    Hyperlinked entry to the specific bridge in logical inventory.

    Description

    Description for the EFP.



    Table 18-13 LAG IEEE 802.3 AD Properties

    Field
    Description

    Group Number

    Aggregation group number.

    Bandwidth

    Aggregation bandwidth.

    Control Protocol

    Aggregation control protocol: Manual, Link Aggregation Control Protocol (LACP), or Port Aggregation Protocol (PagP).

    MAC Address

    Aggregation MAC address.

    Administrative State

    Aggregation administrative status: Up or Down.

    Operational State

    Aggregation operational status: Up or Down.

    Dot3ad Agg Partner System Priority

    Priority of the partner system.

    Dot3ad Agg MAC Address

    Aggregation MAC address.

    Adjacent

    Displays the adjacent ethernet link aggregation for the selected Data Link Aggregation ID.

    Dot3ad Agg Actor Admin Key

    Actor administrative key.

    Dot3ad Agg Actor System Priority

    Actor system priority.

    Dot3ad Agg Partner Oper Key

    Partner operational key.

    Dot3ad Agg Actor Oper Key

    Actor operational key.

    Dot3ad Agg Collector Max Delay

    Maximum delay (in microseconds) for either delivering or discarding a received frame by the frame collector.

    Dot3ad Agg Actor System ID

    Actor system identifier, in the form of a MAC address.

    Dot3ad Agg Partner System ID

    Partner system identifier, in the form of a MAC address.

    mLACP Properties

    mLACP properties are displayed if the aggregation group is associated with an ICCP redundancy group.

    ICCP Redundancy Group

    ICCP redundancy group associated with this aggregation group, hyperlinked to the relevant entry in logical inventory.

    mLACP Role

    Role of the LAG in the redundancy group: Active or Standby.

    mLACP Operational System MAC

    MAC address used in a dual-homed environment that is selected by ICCP from one of the configured system MAC addresses for one of the points of attachment (PoAs).

    mLACP Operational System Priority

    Priority used in a dual-homed environment that is selected by ICCP from the configured system priority on one of the PoAs.

    mLACP Failover Option

    Configured mLACP failover mode: Revertive or Nonrevertive.

    mLACP Max Bundle

    Maximum number of links allowed per bundle.

    Aggregated Ports Table

    ID

    Port identifier, hyperlinked to the interface in physical inventory.

    Type

    Type of VLAN, such as Layer 2 VLAN.

    Discovery Protocols

    Discovery protocols used on this port.

    Subinterfaces Table

    Address

    IP address of the subinterface.

    Mask

    Subnet mask applied to the IP address.

    VLAN Type

    Type of VLAN, such as Bridge or IEEE 802.1Q.

    Operational State

    Operational state of the subinterface: Up or Down.

    VLAN ID

    VLAN identifier.

    Inner VLAN

    CE-VLAN identifier.

    IP Interface

    IP interface configured as part of the subinterface, hyperlinked to the routing entity or VRF in logical inventory.

    VRF Name

    VRF associated with the subinterface.

    VC

    Virtual circuit identifier, hyperlinked to the VC Table when the subinterface is configured for ATM VC.

    Binding

    Hyperlinked entry to the specific bridge in logical inventory.

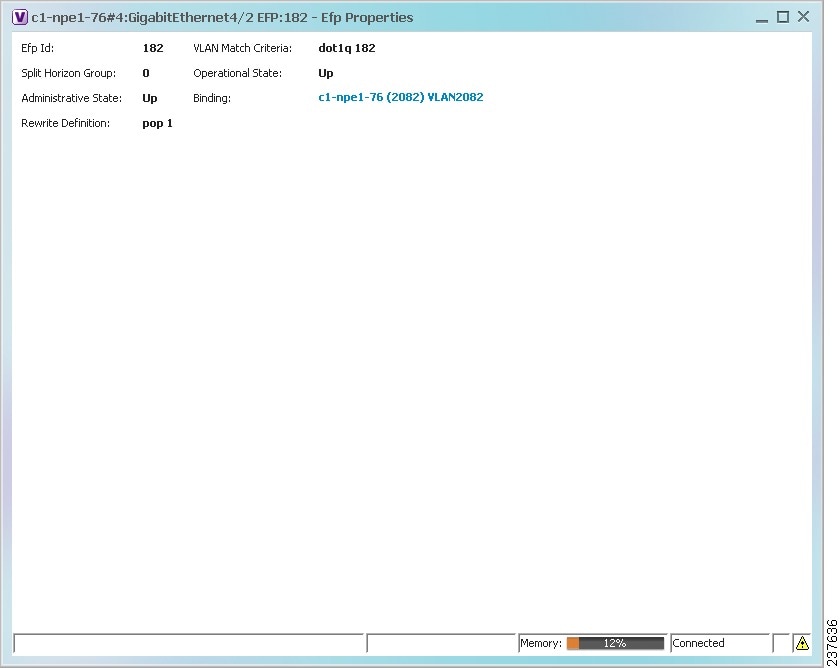

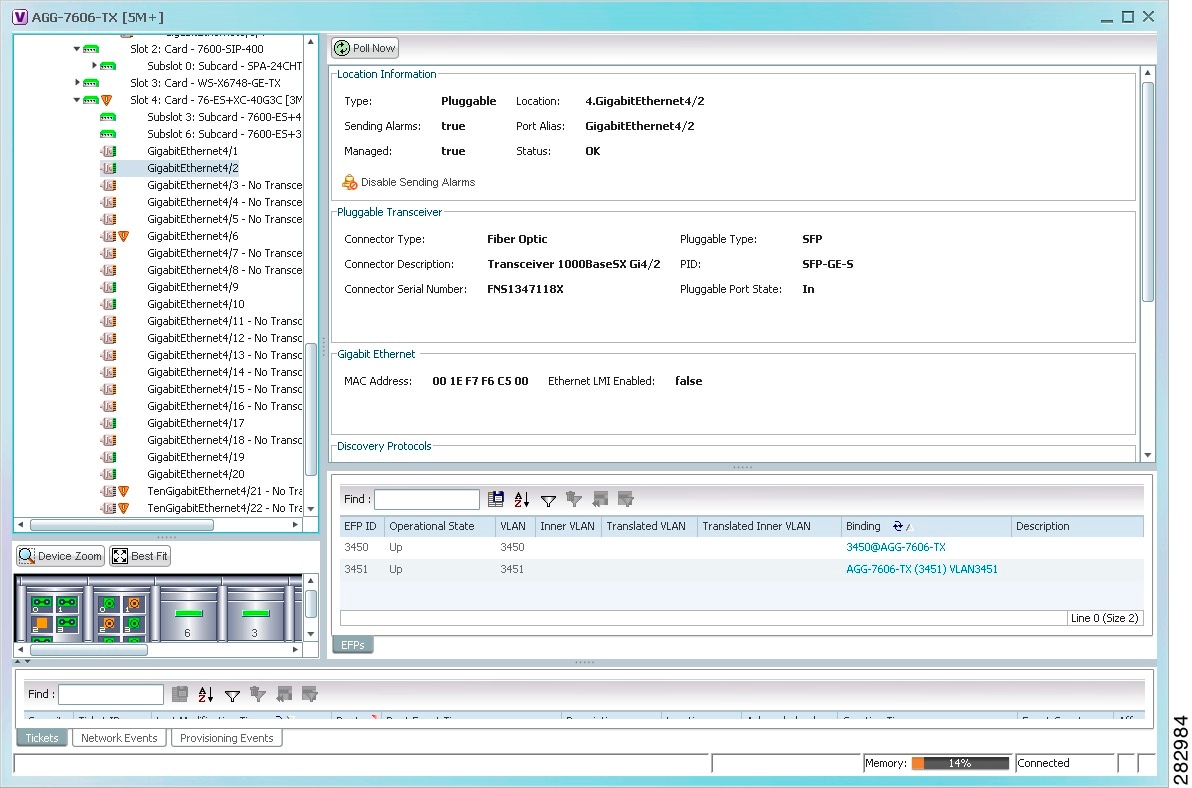

    EFPs Table

    EFP ID

    EFP identifier.

    Operational State

    EFP operational state: Up or Down.

    VLAN

    VLAN associated with this EFP.

    Inner VLAN

    CE-VLAN identifier.

    Translated VLAN

    Translated, or mapped, VLAN identifier.

    Translated Inner VLAN

    Translated, or mapped, inner VLAN identifier.

    Binding

    Hyperlinked entry to the specific bridge in logical inventory.

    Description

    Description for the EFP.

    LACP Port Entries

    Aggregated Port

    Port on which the aggregation is configured, hyperlinked to the entry in physical inventory.

    Dot3ad Agg Port Partner Admin Port Priority

    Administrative port priority for the partner.

    Dot3ad Agg Port Partner Admin Key

    Administrative key for the partner port.

    Dot3ad Agg Port Partner Oper Port Priority

    Priority assigned to the aggregation port by the partner.

    Dot3ad Agg Port Actor Oper State

    Local operational state for the port.

    Dot3ad Agg Port Actor Admin State

    Local administrative state as transmitted by the local system in LACP data units (LACPDUs).

    Dot3ad Agg Port Selected Agg ID

    Selected identifier for the aggregation port.

    Dot3ad Agg Port Partner Oper Key

    Operational key for the partner port.

    Dot3ad Agg Port Partner Admin State

    Partner administrative state.

    Dot3ad Agg Port Actor Port Priority

    Priority assigned to the local aggregation port.

    Dot3ad Agg Port Partner Oper State

    Partner administrative state as transmitted by the partner in the most recently transmitted LAPCDU.

    Dot3ad Agg Port Attached Agg ID

    Identifier of the aggregator that the port is attached to.

    Dot3ad Agg Port Actor Admin Key

    Administrative key for the local port.

    Dot3ad Agg Port Actor Port

    Number assigned to the local aggregation port.

    Dot3ad Agg Port Partner Oper Port

    Number assigned to the aggregation port by the partner.

    Dot3ad Agg Port Actor Oper Key

    Operational for the local port.

    Dot3ad Agg Port Partner Admin Port

    Administrative value of the port for the partner.




    Viewing mLACP Properties

    The Vision client supports the discovery of Multichassis LACP (mLACP) configurations on devices configured for them, and displays mLACP configuration information, such as redundancy groups and properties, in inventory.

    To view mLACP properties:


    Step 1blank.gif In the Vision client, double-click the element configured for mLACP.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > ICCP Redundancy.

    In response, the Vision client lists the Inter-Chassis Communication Protocol (ICCP) redundancy groups configured on the device as shown in Figure 18-10.

    Figure 18-10 ICCP Redundancy in Logical Inventory



    310518.tif

    Table 18-14 describes the information displayed in the ICCP Redundancy Groups table.



    Table 18-14 ICCP Redundancy Groups in Logical Inventory

    Field
    Description

    Group Number

    ICCP group identifier.

    Peer Monitoring Option

    Method used to monitor the peer: BFD or IP Reachability Monitoring.

    Member IP Address

    IP address of the neighbor PoA device.

    Member Device Name

    Name of the neighbor PoA device.

    mLACP Node ID

    Identifier used by this member of the mLACP redundancy group.

    mLACP Configured System MAC

    System MAC address of the redundancy group advertised to other members of the mLACP redundancy group and used for arbitration.

    mLACP Configured System Priority

    System priority advertised to other mLACP members of the redundancy group.

    Step 3blank.gif To view additional information about an ICCP redundancy group, do either of the following:

      • In the logical inventory window navigation pane, choose Logical Inventory ICCP Redundancy > ICCP-group.
      • In the logical inventory content pane, right-click the required group in the ICCP Redundancy Groups table and choose Properties.

    The ICCP Redundancy Group Properties window is displayed with the Backbone Interfaces and Data Link Aggregations tabs as shown in Figure 18-11.

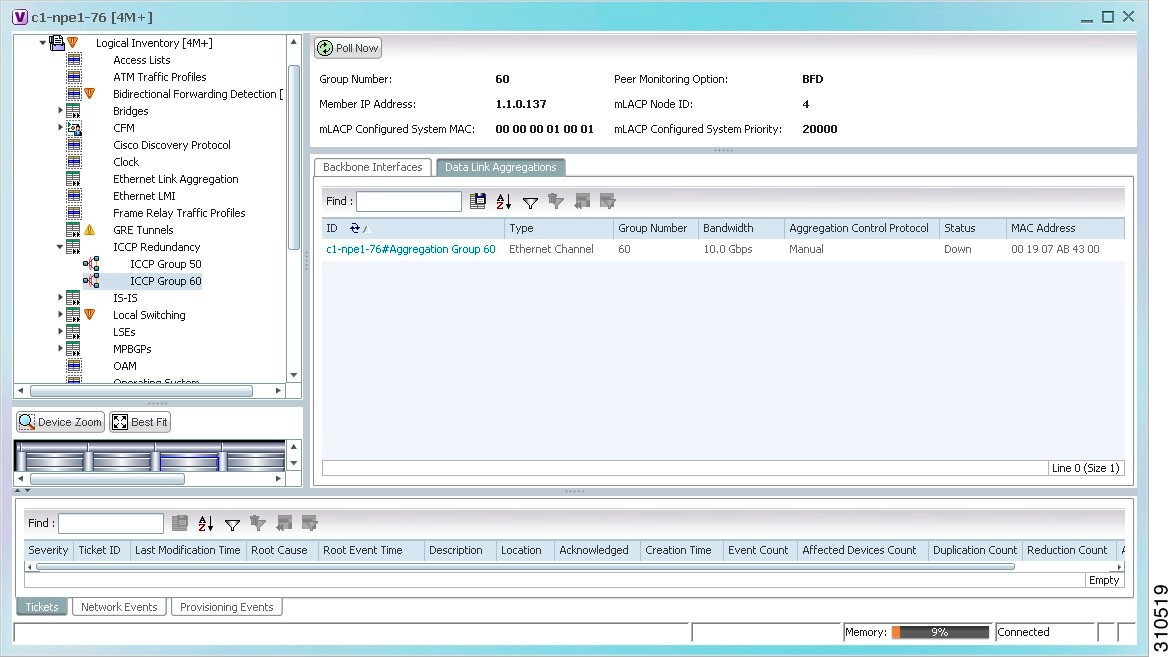

    Figure 18-11 ICCP Redundancy Group Properties Window



    310519.tif

    Table 18-15 describes the information available in the ICCP Redundancy Group Properties window.



    Table 18-15 ICCP Redundancy Group Properties Window

    Field
    Description

    Group Number

    ICCP group identifier.

    Peer Monitoring Option

    Method used to monitor the peer: BFD or IP Reachability Monitoring.

    Member IP Address

    IP address of the neighbor PoA device.

    Member device name

    Name of the neighbor PoA device.

    mLACP Node ID

    Identifier used by this member of the mLACP redundancy group.

    mLACP Configured System MAC

    System MAC address of the redundancy group advertised to other members of the mLACP redundancy group and used for arbitration.

    mLACP Configured System Priority

    System priority advertised to other mLACP members of the redundancy group.

    Backbone Interfaces Tab

    ID

    Backbone interface defined for the redundancy group, hyperlinked to the relevant entry in logical inventory.

    Status

    Status of the backbone interface: Up, Down, or Unknown.

    Data Link Aggregations Tab

    ID

    Link aggregation group associated with the redundancy group, hyperlinked to the relevant entry in logical inventory.

    Type

    Aggregation group type: Ethernet Channel or IEEE 802.3 AD LAG.

    Group Number

    Aggregation group number.

    Bandwidth

    Aggregation bandwidth.

    Aggregation Control Protocol

    Aggregation control protocol: Manual, LACP, or PAgP.

    Status

    Aggregation status: Up or Down.

    MAC Address

    Aggregation MAC address.

    Step 4blank.gif To view additional mLACP properties, double-click the entry for the required link aggregation group in the Data Link Aggregations tab.

    mLACP information is displayed in the Link Aggregation Group Properties window, as described in the following tables:




    Monitoring Provider Backbone Bridges

    The Provider Backbone Bridge (PBB) specified by IEEE 802.1ah-2008, provide a way to increase the number of service provider supported Layer 2 service instances beyond the number supported by QinQ and VPLS. PBB adds a backbone VLAN tag and backbone destination and source MAC addresses to encapsulate customer Ethernet frames and create a MAC tunnel across core switches.

    The PBB network comprises of a set of architecture and protocols for routing over a provider’s network. The PBB network interconnects multiple provider bridge networks without losing each customer’s individual VLANs. The PBB network encapsulates and decapsulates end-user traffic on a Backbone Edge Bridge (BEB) at the edge of the Provider Backbone Bridged Network (PBBN). A Backbone Core Bridge (BCB)-based network provides internal transport of the IEEE 802.1ah encapsulated frames within the PBBN.

    Figure 18-12 shows a typical provider backbone network topology.

    Figure 18-12 Provider Backbone Network Topology

    278091.eps



    BFD Templates Support

    BFD (Bidirectional Forwarding Detection Templates) are the new features added in CPT devices. Prime Network uses Telnet Command to get the BFD templates in existing CPT devices.

    Telnet /CLI Command for listing the BFD template

    Show running-config|section bfd-template

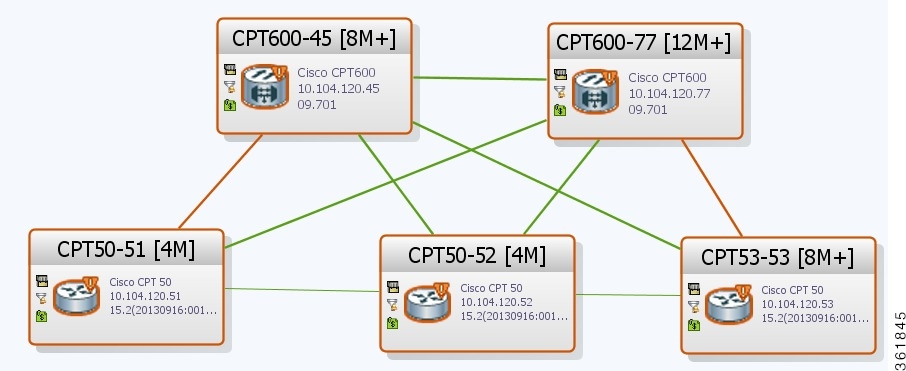

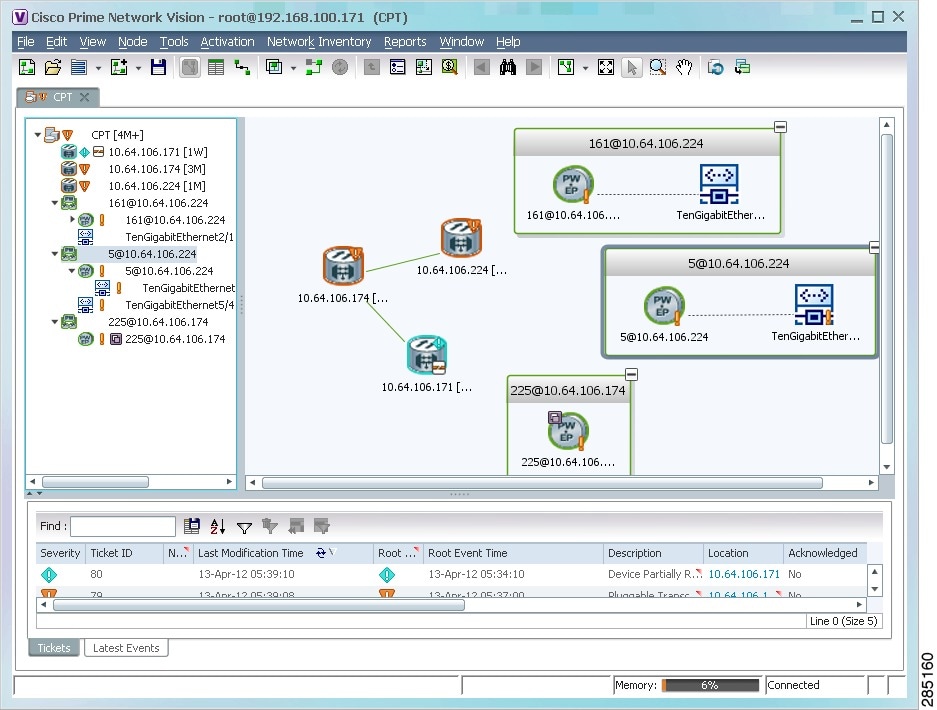

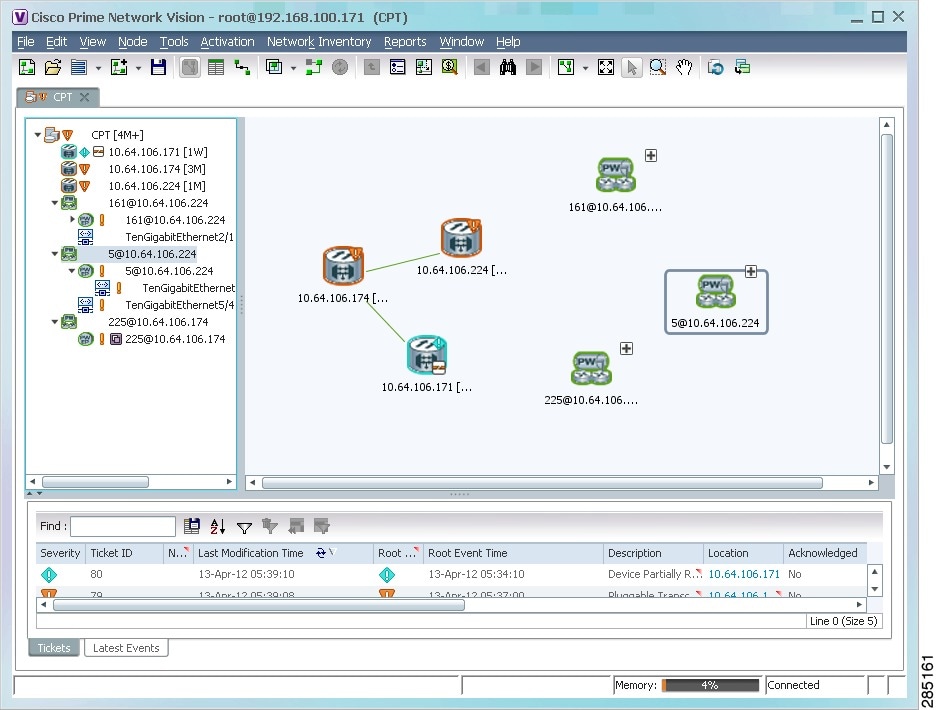

    Cerent Trap Support

    Cerent trap alarms are supported for CPT devices. There are 170 traps supported.

    Change Settings in CTC (Cisco Transport Controller)

    Any configurations settings made in CPT should be done through CTC. To receive traps in a particular server, that server IP needs to be entered in the device through CTC. Most of the traps are on device dependencies.

    Link and Port Parameters

    Configuration of Ethernet loopback is used to add and remove loopback. Link and Port parameters have been used for Prime Network configuration scripts in both TLI and Telnet. The link and port parameters are supported for the following: Ethernet Parameter Configuration

    • MTU
    • Link State
    • Expected Speed
    • Expected Duplex
    • Operating Flow Control
    • Carrier Delays
    • Auto Negotiation

    Port Parameter Configuration

    • Port Name
    • Admin State
    • AINS Soak
    • Reach
    • Wavelength

    L2 Parameter Configuration

    • CDP
    • DOTIX
    • DTP
    • LACP
    • PAGP
    • VTP
    • STP

    The following are the configuration scripts supported,

    • Add Loopback
    • Remove Loopback
    • Configure CDP
    • Configure Ethernet
    • Configure L2 Control Protocol
    • Configure Port Parameters
    • Show Ethernet Parameters
    • Show L2 Control Parameters
    • Show Port Parameters

    This chapter describes the following topics:

    Working with PBB-EVPN

    Ethernet Virtual Private Network (EVPN) is a solution for secure and private connectivity of multiple sites within an organization. The EVPN service extends the benefits of Ethernet technology to the WAN. This service is delivered over Multiprotocol Label Switching (MPLS) networks.

    EVPN allows you to manage routing over a virtual private network, providing complete control and security. EVPN introduces a solution for multipoint L2VPN services with advanced multi-homing capabilities, using BGP for distributing customer or client MAC address reachability information over the MPLS/IP network. EVPN advertises each customer MAC address as BGP routes, therefore allowing BGP policy control over MAC addresses.

    The PBB-EVPN solution combines Ethernet Provider Backbone Bridging (PBB - IEEE 802.1ah) with Ethernet VPN, where provider edges (PEs) perform as PBB Backbone Edge Bridge (BEB). The PEs receive 802.1Q Ethernet frames from their attachment circuits. These frames are encapsulated in the PBB header and forwarded over the Internet Protocol / Multi-protocol label switching (IP/MPLS) core. On the egress side (EVPN PE), the PBB header is removed after MPLS disposition, and the original 802.1Q Ethernet frame is delivered to the customer equipment.

    The PE routers perform these functions:

    • Learns customer or client MAC addresses (C-MACs) over the attachment circuits in the data-plane, per normal bridge operation.
    • Learns remote C-MAC to backbone MAC (B-MAC) bindings in the data-plane from traffic ingress from the core.
    • Advertises local B-MAC address reachability information in BGP to all other PE nodes in the same set of service instances. Note that every PE has a set of local B-MAC addresses that uniquely identify the device.
    • Builds a forwarding table from the received remote BGP advertisements, associating remote B-MAC addresses with remote PE IP addresses.

    PBB-EVPN scales well for large network with millions of customer MAC addresses by constraining customer MAC address in access. Only B-MAC addresses are advertised in core, making the number of BGP routes exchanged manageable.

    This section describes the following topics:

    EVPN Instance

    E-VPN Instance (EVI) identifies a VPN in the MPLS/IP network. There can only be one EVI per core bridge.

    Ethernet Segment

    Ethernet Segment is a site connected to one or more PEs. The Ethernet Segment can be a single device like a Customer Edge (CE) or an entire network, such as:

    • Single-Homed Device (SHD)
    • Multi-Homed Device (MHD) using Ethernet Multi-chassis Link Aggregation Group
    • Single-Homed Network (SHN)
    • Multi-Homed Network (MHN)

    The Ethernet segment is uniquely identified by a 10-byte global Ethernet Segment Identifier (ESI).

    You can view the following properties in the PBB-EVPN network:

    Viewing PBB-EVPN Core Bridge Properties

    To view the PBB-EVPN core bridge properties:


    Step 1blank.gif Double-click the required device in the Vision client.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > Bridges to view the list of bridges.

    Step 3blank.gif Select a PBB-EVPN bridge to view the properties.

    Table 18-16 describes the information displayed for PBB-EVPN bridge properties.

    Table 18-16 PBB-EVPN Core Bridge Properties

    Field
    Description

    Name

    PBB bridge name.

    Type

    Specifies the type of bridge. There can be two types of bridges:

    • I-Bridge—Interfaces with the customer edge.
    • B-bridge—Interfaces with the core network.

    The PBB-EVPN core bridge is a B-bridge

    VLAN ID

    VLAN identifier configured for the subscriber.

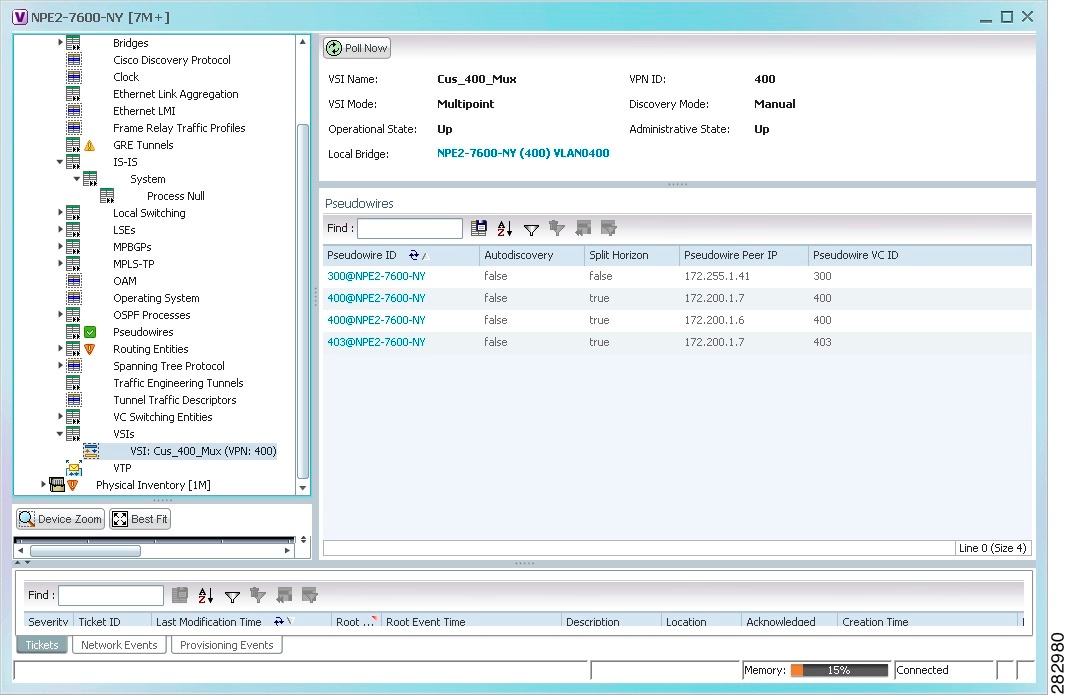

    VSI

    VSI information, hyperlinked to the VSI entry in logical inventory.

    Evi

    Specifies an unique route distinguisher per customer. There can only be one Evi per core bridge.

    MMRP Enabled

    Denotes Multiple MAC Registration Protocol (MMRP). It allows multicast traffic in bridged LANs.


    Noteblank.gif The MMRP is disabled by default in the EVPN network.

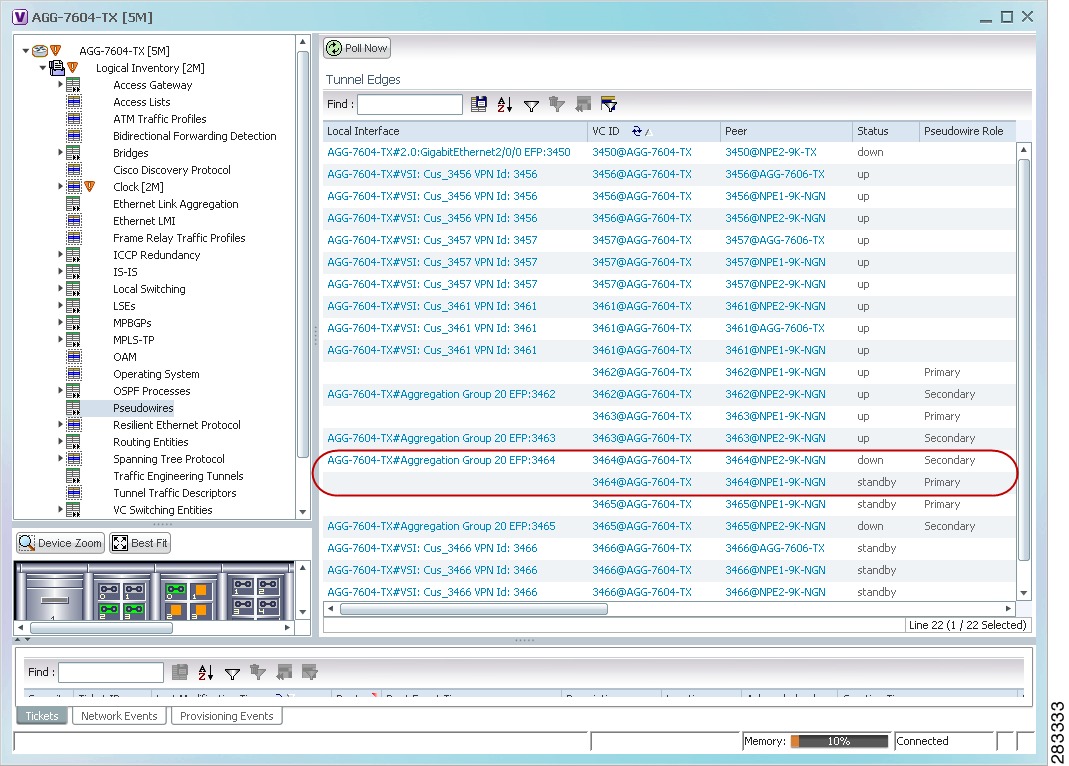

    Pseudowires Tab

    ID

    Pseudowire identifier, hyperlinked to the VLAN entry in Bridges in logical inventory.

    Peer

    Identifier of the pseudowire peer, hyperlinked to the entry in the Pseudowire Tunnel Edges table in logical inventory.

    SAII

    Specifies the Source Access Individual Identifier (SAII) of the tunnel.


    Noteblank.gif The SAII attribute can be configured only if the Pseudowire type is FEC129 TYPE II.


    Tunnel Status

    Operational state of the tunnel: Up or Down.

    TAII

    Specifies the Target Attachment Individual Identifier (TAII) of the tunnel.


    Noteblank.gif The TAII can be configured only if the Pseudowire type is FEC129 TYPE II.


    Peer Router IP

    IP Address of the peer router for this pseudowire.

    Pseudowire Type

    Type of pseudowire, such as Ethernet, Ethernet Tagged, CESoPSN Basic, PPP, SAToP or FEC129 TYPE II.

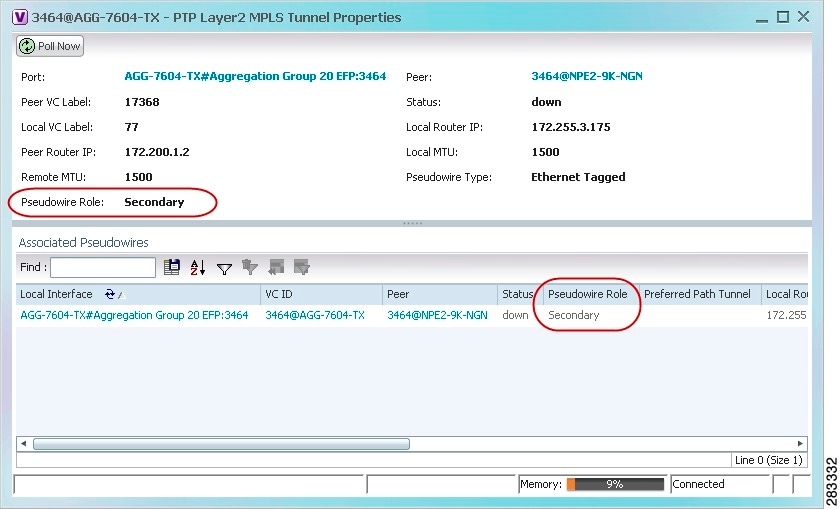

    Pseudowire Role

    If the pseudowire is in a redundancy configuration, then the pseudowire role indicates whether its a primary pseudowire or a secondary pseudowire in the configuration.

    If the pseudowire is not configured for redundancy, the field is blank.

    Preferred Path Tunnel

    Specifies the path that has to be used for MPLS pseudowire traffic.

    Local Router IP

    Specifies the IP address of the tunnel edge, which is used as the router identifier.

    Local MTU

    Specifies the byte size of the MTU on the local interface.

    Remote MTU

    Specifies the byte size of the MTU on the remote interface.

    Local VC Label

    Specifies the MPLS label that is used by the local router to identify or access the tunnel. It is inserted in the MPLS label stack by the local router.

    Peer VC Label

    Specifies the MPLS label that is used by the peer router to identify or access the tunnel. It is inserted in the MPLS label stack by the peer router.

    Signaling Protocol

    Specifies the protocol that is used to build the tunnel, such as the LDP or TDP.

    Peer Status

    Specifies the status of the peer link.

    Associated EVC Name

    Specifies the name of the associated Ethernet Virtual Circuits (EVC).

    I-Bridge Associations Tab

    I-SID

    Specifies a 24-bit identifier that represents the backbone service instance.

    I-Bridge

    Specifies the exchange identification (XID) in the I-Bridge component. The XID is hyperlinked to the relevant bridge in the logical inventory.




    Viewing PBB-EVPN Customer Bridge Properties

    To view the PBB-EVPN customer bridge properties:


    Step 1blank.gif Double-click the required device in the Vision client.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > Bridges to view the list of bridges.

    Step 3blank.gif Select a PBB-EVPN customer bridge to view the properties.

    Table 18-17 describes the information displayed for PBB-EVPN customer bridge properties.

    Table 18-17 PBB-EVPN Customer Bridge Properties

    Field
    Description

    Name

    PBB bridge name.

    Type

    Specifies the type of bridge. The PBB-EVPN customer bridge is an I-bridge

    VLAN ID

    VLAN identifier configured for the subscriber.

    I-SID

    Specifies a 24-bit identifier that represents the backbone service instance.

    B-Bridge

    Specifies the XID of the B-Bridge component. The XID is hyperlinked to the relevant bridge in logical inventory.

    Pseudowires Tab

    ID

    Pseudowire identifier, hyperlinked to the VLAN entry in Bridges in logical inventory.

    Peer

    Identifier of the pseudowire peer, hyperlinked to the entry in the Pseudowire Tunnel Edges table in logical inventory.

    SAII

    Specifies the Source Access Individual Identifier (SAII) of the tunnel.


    Noteblank.gif The SAII attribute can be configured only if the Pseudowire type is FEC129 TYPE II.


    Tunnel Status

    Operational state of the tunnel: Up or Down.

    TAII

    Specifies the Target Attachment Individual Identifier (TAII) of the tunnel.


    Noteblank.gif The TAII can be configured only if the Pseudowire type is FEC129 TYPE II.


    Peer Router IP

    IP address of the peer router for this pseudowire.

    Pseudowire Type

    Type of pseudowire, such as Ethernet, Ethernet Tagged, CESoPSN Basic, PPP, SAToP or FEC129 TYPE II.

    Pseudowire Role

    If the pseudowire is in a redundancy configuration, then the pseudowire role indicates whether its a primary pseudowire or a secondary pseudowire in the configuration.

    If the pseudowire is not configured for redundancy, the field is blank.

    Preferred Path Tunnel

    Specifies the path that has to be used for MPLS pseudowire traffic.

    Local Router IP

    Specifies the IP address of the tunnel edge, which is used as the router identifier.

    Local MTU

    Specifies the byte size of the MTU on the local interface.

    Remote MTU

    Specifies the byte size of the MTU on the remote interface.

    Local VC Label

    Specifies the MPLS label that is used by the local router to identify or access the tunnel. It is inserted in the MPLS label stack by the local router.

    Peer VC Label

    Specifies the MPLS label that is used by the peer router to identify or access the tunnel. It is inserted in the MPLS label stack by the peer router.

    Signaling Protocol

    Specifies the protocol that is used to build the tunnel, such as the LDP or TDP.

    Peer Status

    Specifies the status of the peer link.

    Associated EVC Name

    Specifies the name of the associated EVC.

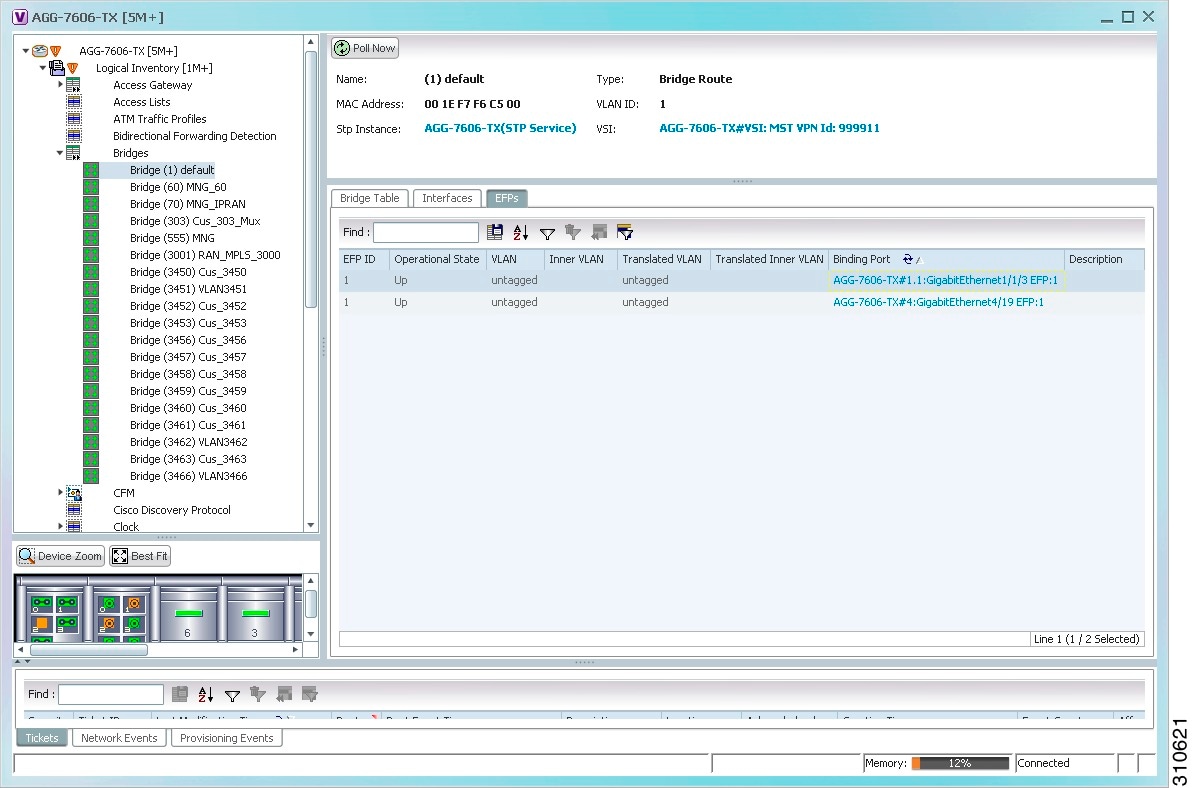

    EFPs Tab

    EFP ID

    EFP identifier.

    Operational State

    EFP operational state.

    VLAN

    VLAN identifier.

    Inner VLAN

    CE-VLAN identifier.

    Translated VLAN

    Translated VLAN identifier.

    Translated Inner VLAN

    Translated CE-VLAN identifier.

    Binding Port

    Hyperlinked entry to the port in physical inventory.

    Description

    Brief description of the EFP.

    Ingress Policy

    The name of the ingress service policy associated with the subscriber template. This field is applicable only for IP Subscriber and Service templates.

    Egress Policy

    The name of the egress service policy associated with the subscriber template. This field is applicable only for IP Subscriber and Service templates.

    Service Control Policy

    Specifies the policy for a port or operation.

    MMRP Participants

    Associated MMRP Participant

    Specifies an entry that is hyperlinked to an associated MMRP service for that bridge.

    Viewing EVPN Container Properties

    To view the EVPN container properties:


    Step 1blank.gif Right-click the required device in the Vision client and choose Inventory.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > EVPN to view the EVPN container properties.

    Table 18-18 describes the information displayed for the EVPN container properties.

    Table 18-18 EVPN Container Properties

    Field
    Description

    EVI

    The EVI identifies a VPN (Virtual Private Network) in the MPLS/IP network. There can only be one EVI per core bridge.

    Bridge Domain

    Maintains a forwarding database of MAC addresses from packets received from its interfaces. The bridge domain is hyperlinked to the relevant core bridge in the logical inventory.

    EVPN Type

    Specifies the type of bridges.There can be two types of bridges:

      • PBB-EVPN
      • BD

    Route Distinguisher

    Creates a unique 96-bit VPNv4 address to distinguish routes within a single internet service provider's (ISP) MPLS network.

    Multicast Label

    Specifies a 20-bit multicast label in the MPLS packet to make forwarding decisions and to pre-establish a path for switch-labeled packets at the Layer 2.

    Unicast Label

    Specifies a 20-bit unicast label in MPLS packet to make forwarding decisions and to pre-establish a path for switch-labeled packets at the Layer 2.

    Route Distinguisher (Auto)

    The Route Distinguisher (Auto) is generated by default as a combination of Loopback IP Address and EVI.

    Route Target (Auto)

    Communicates the VPN route to the PE routers.




    Viewing EVPN Properties

    To view the EVPN properties:


    Step 1blank.gif Right-click the required device in the Vision client and choose Inventory.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > EVPN to display the EVPN container properties.

    Step 3blank.gif Double-click an EVI to view its EVPN properties.

    Table 18-19 describes the information displayed for EVPN properties.

    Table 18-19 EVPN Properties

    Field
    Description

    EVI

    The EVI identifies a VPN in the MPLS/IP network. There can only be one EVI per core bridge.

    Bridge Domain

    Maintains a forwarding database of MAC addresses from packets received from its interfaces. The bridge domain is hyperlinked to the relevant core bridge in the logical inventory.

    EVPN Type

    Specifies the type of bridges. There can be two types of bridges:

      • PBB-EVPN
      • BD

    Route Distinguisher

    Creates a unique 96-bit VPNv4 address to distinguish routes within a single ISP-MPLS network.

    Multicast Label

    Specifies a 20-bit multicast label in MPLS packet to make forwarding decisions and to pre-establish a path for switch-labeled packets at the Layer 2.

    Unicast Label

    Specifies a 20-bit unicast label in MPLS packet to make forwarding decisions and to pre-establish a path for switch-labeled packets at the Layer 2.

    Route Distinguisher (Auto)

    The Route Distinguisher (Auto) is generated by default as a combination of Loopback IP Address and EVI.

    Route Target (Auto)

    Communicates the VPN route to the PE routers.

    EVPN BMAC Address Entries Tab

    MAC Address

    It is an unique identifier of the bridge clients in a PE router for an EVPN instance.

    Next HOP

    Specifies the peer router associated to each EVPN instance.

    MPLS Label

    Enables the MPLS network data packets to make packet forwarding decisions. This allows the data packets to create end-to-end circuits across any type of transport medium, using any protocol.

    Import Route Targets Tab

    Route Target

    The PE imports routes with specific prefixes or subnet masks based on the Route Target.

    Export Route Targets Tab

    Route Target

    The Route Target attribute defines the prefixes that are exported on the PE routers.




    Viewing Ethernet Segment Container Properties

    The Ethernet segment is a site that is connected to one or more Provider Edge Switches (PEs). The Ethernet segment can be a single device such as a customer edge or an entire network. The Ethernet segment in a network can be of the following types:

    • Single-homed device (SHD)
    • Multi-homed device (MHD)
    • Single-homed network (SHN)
    • Multi-homed network (MHN)

    The Ethernet segment is unique and identified by a 10-byte global Ethernet Segment Identifier (ESI).

    To view the Ethernet segment container properties:


    Step 1blank.gif Right-click the required device in the Vision client and choose Inventory.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > Ethernet Segments to view the Ethernet segment container properties.

    Table 18-20 describes the information displayed for PBBe VPN Ethernet segment container properties.

    Table 18-20 Ethernet Segment Container Properties

    Field
    Description

    Interface Name

    Name of the interface that is connected to the Ethernet segment.

    Associated Interface

    Associated Name of the interface that is connected to the Ethernet segment.

    ES ID

    The Ethernet Segment Identifier (ES ID) is a 10-byte field. It identifies the unique Ethernet segment in the core network of the PE routers.

    Source MAC Address

    Specifies the Ethernet Segment MAC Address.

    Access Topology Mode

    Specifies one of the following network types:

      • Single Home Device (SH)
      • Single Home Network (SHN)
      • Dual Home Device (DHD)
      • Dual Home Network (DHN)
      • Multi Home Network (MHN)

    The default value is MHN.

    Access Topology Flow Mode

    Specifies the flow of traffic in a network. The flow mode can be one of the following options:

      • Active/Active per-flow
      • Active/Active per-service

    I-SID Primary Services

    Specifies the type of primary customer service interfaces provided by the I-Bridge Backbone Edge Bridge (IB-BEB). The primary customer service interfaces can be one of the following types:

      • Port based
      • S-tagged
      • I-tagged

    I-SID Secondary Services

    Specifies the type of secondary customer service interfaces provided by the IB-BEB bridge. The secondary customer service interfaces can be one of the following types:

      • Port based
      • S-tagged
      • I-tagged

    Total I-SID Count

    Specifies the total number of elected and non-elected ports.

    Elected I-SIDs

    Specifies the Elected Service Identifiers (I-SID) list.

    Non-Elected I-SIDs

    Specifies the Non-Elected Service Identifiers (I-SID) list.

    MAC Flushing Mode

    Specifies the MAC flush over Multiple VLAN Registration Protocol (MVRP). The possible values in the MAC Flushing Mode field can be one of the following:

      • Spanning Tree Protocol - Topology Change Notification (STP-TCN)
      • MVRP

    The default value is STP-TCN.

    Peering Timer

    Specifies the interface-specific peering timer in seconds. The default value is 45 seconds.

    Recovery Timer

    Specifies the interface-specific recovery timer in seconds. The range is 20 to 3600 seconds. The default value is 20 seconds.

    Flush Again Timer

    Specifies the interface-specific MAC flush again timer in seconds. The range is 0 to 120 seconds. The default value is 60 seconds.

    Viewing Ethernet Segment Properties

    To view the Ethernet segment properties:


    Step 1blank.gif Right-click the required device in the Vision client and choose Inventory.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > Ethernet Segments to view the Ethernet segment container properties.

    Step 3blank.gif Double-click an interface to view its PBBe VPN Ethernet segment properties.

    Table 18-21 describes the information displayed for PBBe VPN Ethernet segment properties.

    Table 18-21 Ethernet Segment Properties

    Field
    Description

    Interface Name

    Name of the interface that is connected to the Ethernet segment.

    Associated Interface

    Associated Name of the interface that is connected to the Ethernet segment.

    ES ID

    The Ethernet Segment Identifier (ES ID) is a 10-byte field. It identifies the unique Ethernet segment in the core network of the PE routers.

    Source MAC Address

    Specifies the Ethernet Segment MAC Address.

    Access Topology Mode

    Specifies one of the following network types:

      • Single Home Device (SH)
      • Single Home Network (SHN)
      • Dual Home Device (DHD)
      • Dual Home Network (DHN)
      • Multi Home Network (MHN)

    The default value is MHN.

    Access Topology Flow Mode

    Specifies the flow of traffic in a network. The flow mode can be one of the following options:

      • Active/Active per-flow
      • Active/Active per-service

    I-SID Primary Services

    Specifies the type of primary customer service interfaces provided by the IB-BEB bridge. The primary customer service interfaces can be one of the following types:

      • Port based
      • S-tagged
      • I-tagged

    I-SID Secondary Services

    Specifies the type of secondary customer service interfaces provided by the IB-BEB bridge. The secondary customer service interfaces can be one of the following types:

      • Port based
      • S-tagged
      • I-tagged

    Total I-SID Count

    Specifies the total number of elected and non-elected ports.

    Elected I-SIDs

    Specifies the Elected Service Identifiers (I-SID) list.

    Non-Elected I-SIDs

    Specifies the Non-Elected Service Identifiers (I-SID) list.

    MAC Flushing Mode

    Specifies the MAC flush over MVRP. The possible values in the MAC Flushing Mode field can be one of the following:

      • STP-TCN
      • MVRP

    The default value is STP-TCN.

    Peering Timer

    Specifies the interface-specific peering timer in seconds. The default value is 45 seconds.

    Recovery Timer

    Specifies the interface-specific recovery timer in seconds. The range is 20 to 3600 seconds. The default value is 20 seconds.

    Flush Again Timer

    Specifies the interface-specific MAC flush again timer in seconds. The range is 0 to120 seconds. The default value is 60 seconds.

    Redundancy Group Entries

    IP Address

    Identifies the redundancy group IP address that is associated to an Ethernet segment.

    Is Self

    Specifies whether the redundancy group IP Address belongs to a local border gateway protocol (BGP).




    Working with PBB-VPLS

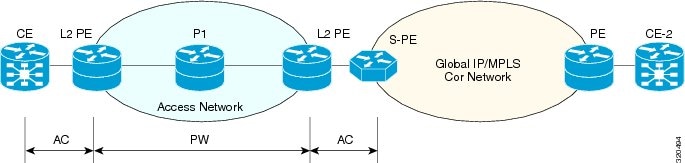

    The Virtual Private LAN service (VPLS) is a class of VPN that supports the connection of multiple sites in a single bridged domain over a managed MPLS network. The VPLS is a multipoint service and it can also transport non-IP traffic. All customer premises at a VPLS instance appear to be on the same local area network regardless of their actual locations. The VPLS uses an Ethernet interface to the customer.

    A VPLS network consists of the following three main components.

    • Customer Edges
    • Provider Edges
    • IP/MPLS core network

    This section consists of the following topics:

    Viewing PBB-VPLS Core Bridge Properties

    To view the PBB-VPLS bridge properties:


    Step 1blank.gif Double-click the required device in the Vision client.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > Bridges to view the list of bridges.

    Step 3blank.gif Select a PBB-VPLS bridge to view the properties.

    Table 18-22 describes the information displayed for PBB-VPLS bridge properties.

    Table 18-22 PBB-VPLS Bridge Properties

    Field
    Description

    Name

    PBB bridge name.

    Type

    Specifies the type of bridge. There can be two types of bridges:

    I-Bridge—Interfaces with the customer edge.

    B-bridge—Interfaces with the core network.

    VLAN ID

    Specifies the VLAN identifier of the subscriber.

    VSI

    VSI information, hyperlinked to the VSI entry in logical inventory.

    Evi

    Specifies a unique route distinguisher per customer. There can only be one EVI per core bridge.

    MMRP Enabled

    Denotes Multiple MAC Registration Protocol (MMRP). It allows multicast traffic in bridged LANs.


    Noteblank.gif The MMRP is enabled in the VPLS network.


    Pseudowires Tab

    ID

    Pseudowire identifier, hyperlinked to the VLAN entry in Bridges in logical inventory.

    Peer

    Identifier of the pseudowire peer, hyperlinked to the entry in the Pseudowire Tunnel Edges table in logical inventory.

    SAII

    Specifies the Source Access Individual Identifier (SAII) of the tunnel.


    Noteblank.gif The SAII attribute can be configured only if the Pseudowire type is FEC129 TYPE II.


    Tunnel Status

    Operational state of the tunnel: Up or Down.

    TAII

    Specifies the Target Attachment Individual Identifier (TAII) of the tunnel.


    Noteblank.gif The TAII can be configured only if the Pseudowire type is FEC129 TYPE II.


    Peer Router IP

    IP address of the peer router for this pseudowire.

    Pseudowire Type

    Type of pseudowire, such as Ethernet, Ethernet Tagged, CESoPSN Basic, PPP, SAToP or FEC129 TYPE II.

    Pseudowire Role

    If the pseudowire is in a redundancy configuration, then the pseudowire role indicates whether its a primary pseudowire or a secondary pseudowire in the configuration.

    If the pseudowire is not configured for redundancy, the field is blank.

    Preferred Path Tunnel

    Specifies the path that has to be used for MPLS pseudowire traffic.

    Local Router IP

    Specifies the IP address of the tunnel edge, which is used as the router identifier.

    Local MTU

    Specifies the byte size of the MTU on the local interface.

    Remote MTU

    Specifies the byte size of the MTU on the remote interface.

    Local VC Label

    Specifies the MPLS label that is used by the local router to identify or access the tunnel. It is inserted in the MPLS label stack by the local router.

    Peer VC Label

    Specifies the MPLS label that is used by the peer router to identify or access the tunnel. It is inserted in the MPLS label stack by the peer router.

    Signaling Protocol

    Specifies the protocol that is used to build the tunnel, such as the LDP or TDP.

    Peer Status

    Specifies the status of the peer link.

    Associated EVC Name

    Specifies the name of the associated EVC.

    VPLS I-Bridge Associations Tab

    I-SID

    Specifies a 24-bit identifier that represents the backbone service instance.

    I-Bridge

    Specifies the exchange identification (XID) in the I-Bridge component. The XID is hyperlinked to the relevant bridge in the logical inventory.




    Viewing PBB-VPLS Customer Bridge Properties

    The PBB-VPLS customer bridges communicates directly with the customer edge. Multiple customer bridges can communicate with the core bridge.

    To view the PBB-VPLS customer bridge properties:


    Step 1blank.gif Double-click the required device in the Vision client.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > Bridges.

    Step 3blank.gif Select a PBB-VPLS customer bridge to view the properties.

    Table 18-22 describes the information displayed for PBB-VPLS bridge properties.

    Table 18-23 PBB-VPLS Customer Bridge Properties

    Field
    Description

    Name

    PBB customer bridge name.

    Type

    Specifies the type of bridge. There can be two types of bridges:

    I-Bridge—Interfaces with the customer edge.

    B-bridge—Interfaces with the core network.

    VLAN ID

    Specifies the VLAN identifier of the subscriber.

    I-SID

    Specifies a 24-bit identifier that represents the backbone service instance.

    B-Bridge

    Specifies the XID of the B-Bridge component. The XID is hyperlinked to the relevant bridge in logical inventory.

    Pseudowires Tab

    ID

    Pseudowire identifier, hyperlinked to the VLAN entry in Bridges in logical inventory.

    Peer

    Identifier of the pseudowire peer, hyperlinked to the entry in the Pseudowire Tunnel Edges table in logical inventory.

    SAII

    Specifies the Source Access Individual Identifier (SAII) of the tunnel.


    Noteblank.gif The SAII attribute can be configured only if the Pseudowire type is FEC129 TYPE II.


    Tunnel Status

    Operational state of the tunnel: Up or Down.

    TAII

    Specifies the Target Attachment Individual Identifier (TAII) of the tunnel.


    Noteblank.gif The TAII can be configured only if the Pseudowire type is FEC129 TYPE II.


    Peer Router IP

    IP address of the peer router for this pseudowire.

    Pseudowire Type

    Type of pseudowire, such as Ethernet, Ethernet Tagged, CESoPSN Basic, PPP, SAToP or FEC129 TYPE II.

    Pseudowire Role

    If the pseudowire is in a redundancy configuration, then the pseudowire role indicates whether its a primary pseudowire or a secondary pseudowire in the configuration.

    If the pseudowire is not configured for redundancy, the field is blank.

    Preferred Path Tunnel

    Specifies the path that has to be used for MPLS pseudowire traffic.

    Local Router IP

    Specifies the IP address of the tunnel edge, which is used as the router identifier.

    Local MTU

    Specifies the byte size of the MTU on the local interface.

    Remote MTU

    Specifies the byte size of the MTU on the remote interface.

    Local VC Label

    Specifies the MPLS label that is used by the local router to identify or access the tunnel. It is inserted in the MPLS label stack by the local router.

    Peer VC Label

    Specifies the MPLS label that is used by the peer router to identify or access the tunnel. It is inserted in the MPLS label stack by the peer router.

    Signaling Protocol

    Specifies the protocol that is used to build the tunnel, such as the LDP or TDP.

    Peer Status

    Specifies the status of the peer link.

    Associated EVC Name

    Specifies the name of the associated EVC.

    EFPs Tab

    EFP ID

    EFP identifier.

    Operational State

    EFP operational state.

    VLAN

    VLAN identifier.

    Inner VLAN

    CE-VLAN identifier.

    Translated VLAN

    Translated VLAN identifier.

    Translated Inner VLAN

    Translated CE-VLAN identifier.

    Binding Port

    Hyperlinked entry to the port in physical inventory.

    Description

    Brief description of the EFP.

    Ingress Policy

    The name of the ingress service policy associated with the subscriber template. This field is applicable only for IP Subscriber and Service templates.

    Egress Policy

    The name of the egress service policy associated with the subscriber template. This field is applicable only for IP Subscriber and Service templates.

    Service Control Policy

    Specifies the policy for a port or operation.

    MMRP Participants Tab

    Associated MMRP Participant

    Specifies an entry that is hyperlinked to an associated MMRP service for that bridge.




    Working with PBB-MMRP

    Multiple MAC registration protocol (MMRP) is a data link layer 2 protocol that registers group MAC addresses on multiple switches. The MMRP allows multicast traffic in bridged LANs and provides a mechanism to achieve the following:

    • Register or unregister group membership information across the bridges attached to the same LAN.
    • Register or unregister individual MAC address information across the bridges attached to the same LAN.
    • Communicate the registration information across all the bridges that support extended filtering services in the bridged network.

    MMRP operates on the services provided by the Multiple Registration Protocol (MRP). It allows bridges, switches or other similar devices to register or unregister attribute values such as VLAN identifiers and multicast the group membership information across a large LAN.

    You can view the following properties in the PBB-MMRP network:

    Viewing MMRP Container Properties

    To view MMRP container properties:


    Step 1blank.gif Right-click the required device in the Vision client and choose Inventory.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > MMRP to view the container properties.

    Table 18-24 describes the information displayed for the MMRP container properties.

    Table 18-24 MMRP Container Properties

    Field
    Description

    Flood Time

    Specifies the flood time to enable the flooding of traffic for the whole core bridge when the MMRP feature is first enabled on the core bridge. The range is 3 to 600 seconds.

    Leave All Time

    Specifies the minimum time in seconds for the Leave All timer parameter to check how often Leave All messages are sent for all the active ports. The range is 5 to 30 seconds.

    The default value is 10 seconds.

    Leave Time

    Specifies the leave time for all the active ports. The range is 1 to 90 seconds.

    The default value is 30 seconds.

    Join Time

    Specifies the maximum time for controlling the interval between transmit opportunities that are applied to the applicant state machine for all active ports.

    Periodic Transmit

    Specifies the periodic transmit interval of Multiple MAC Registration Protocol Data Units (MMRPDU) on all active ports. The range is 2 to10 seconds.

    MMRP Participants Tab

    Peer IP Address

    Specifies the neighbor Peer IP address.

    PW ID

    Specifies the associated Pseudowire ID.

    Bridge Domain

    Specifies the associated B-Bridge domain.

    Participant Type

    Specifies the node participating in MMRP. In PBB-MMRP, each IB-PE router in B-domain is a participant. The possible value is FULL.

    Flood Optimization

    Specifies if the flood optimization is enabled between two point-to-point peers. The possible value is Yes.

    Participant State

    Specifies the state of the Participant. The possible value is Normal.

    Registrar State

    Specifies the state of the Registrar. The Registrar listens to the MRPDUs and registers the applicants. The possible value is Normal.

    Leave State

    Specifies the state of one or more remote IB-PE routers that must leave the group B-MAC address flooding tree.

    Join State

    Specifies the state of one or more remote IB-PE routers that must join the group B-MAC address flooding tree.

    Last Peer

    Specifies the last peer.

    Failed Registrations

    Specifies the number of failed registrations when the PE bridges join the network.

    Viewing MMRP Registration Properties

    To view the MMRP registration properties:


    Step 1blank.gif Right-click the required device in the Vision client and choose Inventory.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > MMRP to view the container properties.

    Step 3blank.gif Double-click any row to view its registration properties.

    Table 18-25 describes the information displayed for MMRP registration properties.

    Table 18-25 MMRP Registration Properties

    Field
    Description

    Peer IP Address

    Specifies the neighbor peer IP address.

    PW ID

    Specifies the associated pseudowire ID.

    Bridge Domain

    Specifies the associated B-Bridge domain

    Participant Type

    Specifies the participating node in MMRP. In PBB-MMRP, each IB-PE router in B-domain is a participant. The possible value is FULL.

    Point To Point

    Specifies if flood optimization is enabled between two point-to-point peers. The possible value is Yes.

    Applicant State

    Announces the group B-MAC address and triggers MRPDU propagation. The possible values can be one of the following:

    • Normal
    • Quiet Active

    Registrar State

    Specifies the state of the Registrar. The Registrar listens to the MRPDUs and registers the applicants. The possible value is Normal.

    Leave

    Specifies the state of one or more remote IB-PE routers that must leave the group B-MAC address flooding tree.

    Join

    Specifies the state of one or more remote IB-PE routers that must join the group B-MAC address flooding tree.

    Last Peer

    Specifies the last peer.

    Failed Registrations

    Specifies the number of failed registrations when the PE bridges join the network.

    Registered Neighbours Tab

    I-SID

    Specifies a 24-bit identifier that represents the backbone service instance.

    B-MAC

    Specifies the bridge MAC Address.

    Participant State

    Specifies the state of the Participant. The default value is Normal.

    Registrar State

    Specifies the state of the Registrar. The Registrar listens to the MRPDUs and registers the applicants. The possible value is In.




    Monitoring PBB-based Support Service Discovery

    The Cisco Prime Network delivers PBB-based discovery for various support services over VLAN, VPLS, EVC, and pseudowires.

    The Cisco Prime Network supports the following service discoveries:

    • VLAN Discovery—Discovers bridges domains such as I-Bridges, B-Bridges, and regular bridges that are unassociated.
    • VPLS Discovery—Discovers VFIs and their associations between I-Bridges and B-Bridges.
    • Pseudowire Discovery—Discovers pseudowires and their associations between I-Bridges and B-Bridges.
    • EVC Discovery—Creates an end-to-end complex circuit representing the network associations in the core network of the above discovered elements.

    The PBB specified by IEEE 802.1ah-2008, provides a way to increase the number of service provider supported Layer 2 service instances beyond the number supported by QinQ and VPLS. PBB adds a backbone VLAN tag, and backbone destination and source MAC addresses to encapsulate customer Ethernet frames and create a MAC tunnel across core switches. The PBB network interconnects multiple provider bridge networks without losing each customer’s individual VLANs.

    The Prime Network PBB-based support service discovery recognizes service entities in the network. Service discovery are either network data discovered by Prime Network VNEs or other underlying services discovered by other service discoveries. The network data is stored and cached (in memory) in Snapshots on the Prime Network gateway machine. After which, the data is transformed into service data, and then stored in the Prime Network database.

    The Prime Network PBB-based support services can be discovered either by using a full discovery mode or a notification-based discovery mode.

    The Prime Network supports the following PBB-based support services:

    PBB-based VLAN Discovery

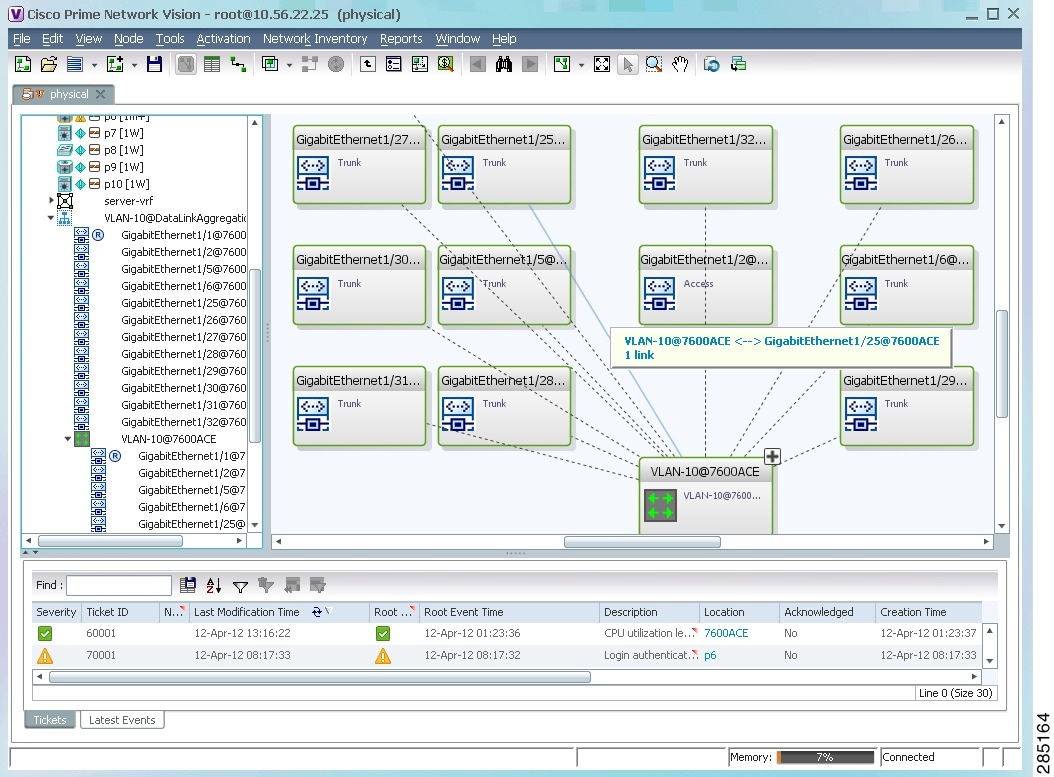

    Prime Network discovers and allows you to display maps with a network-level view of VLANs.

    A VLAN entity consists of one or more bridges and the corresponding EFP elements. When the VLAN discovery is initiated, it identifies VLANs that are considered as part of a switching entity.

    Associated and Unassociated Bridges

    Generally, all the bridges are categorized as associated or unassociated based on their association with the type of switching entities such as pseudowire and VPLS. In the Provider Backbone configuration, the VLANs identified by VLAN discovery are considered as a part of associated bridges and the VLANs that are not identified are considered as a part of unassociated bridges. For example, if a regular bridge is associated with a pseudowire or a VPLS, then it is classified as an associated bridge. Otherwise, it is classified as an unassociated bridge. However, the I-Bridges and B-Bridges are always considered as a part of unassociated bridges irrespective of their association with the switching entities.

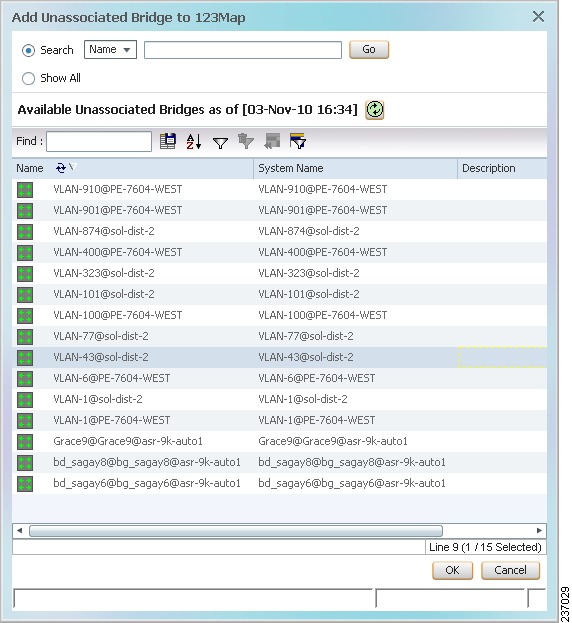

    Discovering Unassociated Domains

    To discover the VLAN service configured in a network, a component called VLAN data plug-in collects information related to VLAN from various devices. The data plug-in holds all the data related to the bridges in a centralized location. To discover an unassociated bridge, for example, an I-bridge or a B-bridge, it is essential to verify whether the plug-in has information related to the I-bridge or the B-bridge, or any other additional I-bridge PBB information. To verify, see Verifying Bridge domains. Based on the information collected, a discovery plug-in is created, and the plug-in receives the necessary data from the VLAN plug-in to create the VLAN instances.

    Verifying Bridge domains

    To verify the bridge domains, follow the steps provided below:


    Step 1blank.gif Create a new map in the Vision client. For example, VLAN.

    Step 2blank.gif Add bridges to the map.

    Step 3blank.gif Right-click one of the bridges and choose Inventory.

    Step 4blank.gif Verify the bridge type in the Inventory window.

    Step 5blank.gif Open the Add Bridge Domain dialog box in one of the following ways:

    • Choose File Add to Map > Bridge Domain.
    • In the toolbar, click Add to Map and choose Bridge Domain.

    Step 6blank.gif In the Add Bridge Domain dialog box, select Show All to display the list of bridge domains.

    Step 7blank.gif Verify whether the bridge that you identified in the Inventory window is listed in the Bridge Domain list.


    Noteblank.gif The bridges of type I-Bridges or B-Bridges are considered as the bridge domains. These I-Bridges or B-Bridges are added in the Bridge Domain list.


    PBB-based EVC Discovery

    PBB-based EVC discovery is dependent on the following discovery processes:

    • VPLS Discovery
    • Network VLAN Discovery
    • Network Pseudowire Discovery
    • Bridge Domain Discovery

    EVC discovery plug-in is responsible for handling Carrier Ethernet technologies such as VPLS, VLAN, bridge domains, cross connect, and pseudowires. This plug-in connects all the domains together in a map from the Vision client.

    For more information on the Ethernet services, refer to Working with Ethernet Services in the Cisco Prime Network 5.2 User Guide.

    PBB-based EVC Multiplexing

    Every EVC should be created with the following rules:

    • Every network element, for example, I-Bridge, B-Bridge, pseudowire, or VPLS that is discovered in the inventory should definitely be part of at least one EVC.
    • If a network element is associated with the I-Bridge, EVC is created for each I-SID (I-Bridge unique identifier).
    • If no I-Bridges are associated, then the EVC is created based on the association between the B-Bridge and VPLS.
    • EVC creation for regular bridges works in the same way as that of Prime Network 5.2.

    Prime Network supports EVC multiplexing to create an EVC. EVC creation involves the following processes:

    • Discovers all dependent discoveries such as VLAN, VPLS, or pseudowires.
    • Notifications for each discovery are received by related processors and the Information Model Objects (IMOs) are processed to loaders for creating building blocks based on the associations between the network elements.
    • Segmenter collects building blocks from all the above mentioned discoveries and creates segments based on the associations.
    • Every segment created is processed based on the rules specified above and creates a complex virtual circuit.

    Discovering PBB-links Between I-Bridge and B-Bridge

    The PBB I-Bridge interfaces with the customer edge and the B-bridge interfaces with the core network.

    To discover the link between the I-Bridge and the B-Bridge, follow the steps provided below:


    Step 1blank.gif Create a new map in the Vision client. For example, VLAN.

    Step 2blank.gif Open the Add Bridge Domain dialog box in one of the following ways:

    • Choose File Add to Map > Bridge Domain.
    • In the toolbar, click Add to Map and choose Bridge Domain.

    Step 3blank.gif In the Add Bridge Domain dialog box, select Show All to display the list of bridge domains.

    Step 4blank.gif From the bridge domains, select an I-Bridge and a B-Bridge and click OK.

    Step 5blank.gif Add the selected bridges to the map. The map displays the PBB links between the newly added bridges.

    PBB-based Pseudowire Discovery

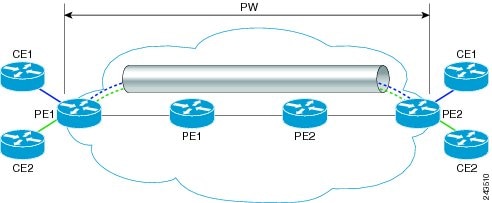

    A pseudowire is a point-to-point connection between pairs of provider edge (PE) routers.

    Discovering PBB-links Between Pseudowire and I-Bridge/B-Bridge

    To discover the link between the pseudowire and the I-Bridge or B-Bridge, follow the steps provided below:


    Step 1blank.gif Create a new map in the Vision client. For example, Pseudowire.

    Step 2blank.gif Open the Add Bridge Domain to domain dialog box in one of the following ways:

    • Choose File Add to Map > Bridge Domain.
    • In the toolbar, click Add to Map and choose Bridge Domain.

    Step 3blank.gif In the Add Bridge Domain dialog box, select Show All to display the list of bridge domains.

    Step 4blank.gif From the bridge domains, select an I-Bridge and a B-Bridge and click OK to add the selected bridges to the map.

    Step 5blank.gif Choose Add to Map > Pseudowire to open the Add Pseudowire to map dialog box.

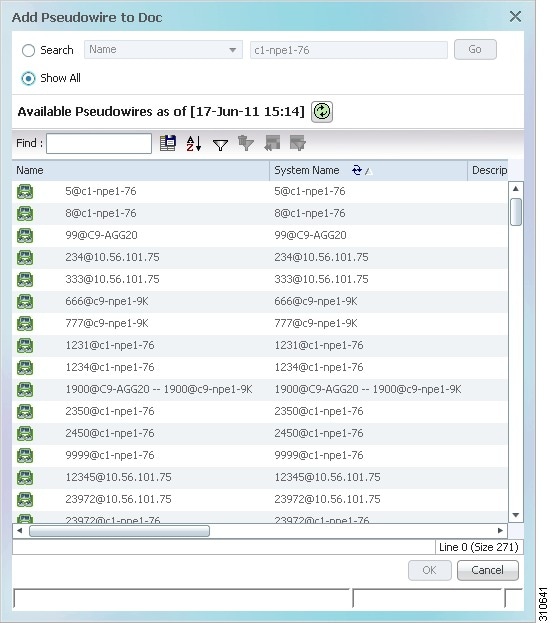

    Step 6blank.gif In the Add Pseudowire to map dialog box, select Show All to display the list of pseudowires.

    Step 7blank.gif Add any pseudowire from the list to the map.

    Step 8blank.gif The map displays the link between the pseudowires and the bridge domains.

    PBB-based VPLS Discovery

    Prime Network provides Virtual Private LAN Service (VPLS) plug-in to gather VPLS relevant information in a network.

    The VPLS plug-in gathers VPLS relevant information from all the VNEs, including the VFIs or VSIs, to create a VPLS service. A VPLS instance representing the VPLS configuration is created on the network. The VPLS snapshot finds out VNEs that are running to retrieve potential VFIs and VSIs. The bridge domains that are connected to the VSIs are attached to VPLS instances to create connection between the VPLS and the Network VLANs.

    Based on data gathered, the VPLS discovery constructs the VPLS instances. This discovery can be viewed from the client GUI. A map in the GUI represents VPLS instances in addition to regular VNEs. Thereby, the bridges connected to VSI or VFI are discovered and connected. The VPLS container sends notifications when an VPLS instance is added, modified, or deleted.

    Discovering PBB-links Between VPLS and I-Bridge/B-Bridge

    To discover the link between the VPLS and the I-Bridge or B-Bridge, follow the steps provided below:


    Step 1blank.gif Create a new map in the Vision client. For example, VPLS.

    Step 2blank.gif Open the Add Bridge Domain to domain dialog box in one of the following ways:

    • Choose File Add to Map > Bridge Domain.
    • In the toolbar, click Add to Map and choose Bridge Domain.

    Step 3blank.gif In the Add Bridge Domain dialog box, select Show All to display the list of bridge domains.

    Step 4blank.gif From the bridge domains, select an I-Bridge and a B-Bridge and click OK to add the selected bridges to the map.

    Step 5blank.gif Choose Add to Map > VPLS to open the Add Vpls Instance to map dialog box.

    Step 6blank.gif In the Add Vpls Instance to map dialog box, select Show All to display the list of VPLS instances.

    Step 7blank.gif Add a VPLS instance from the VPLS instances list.

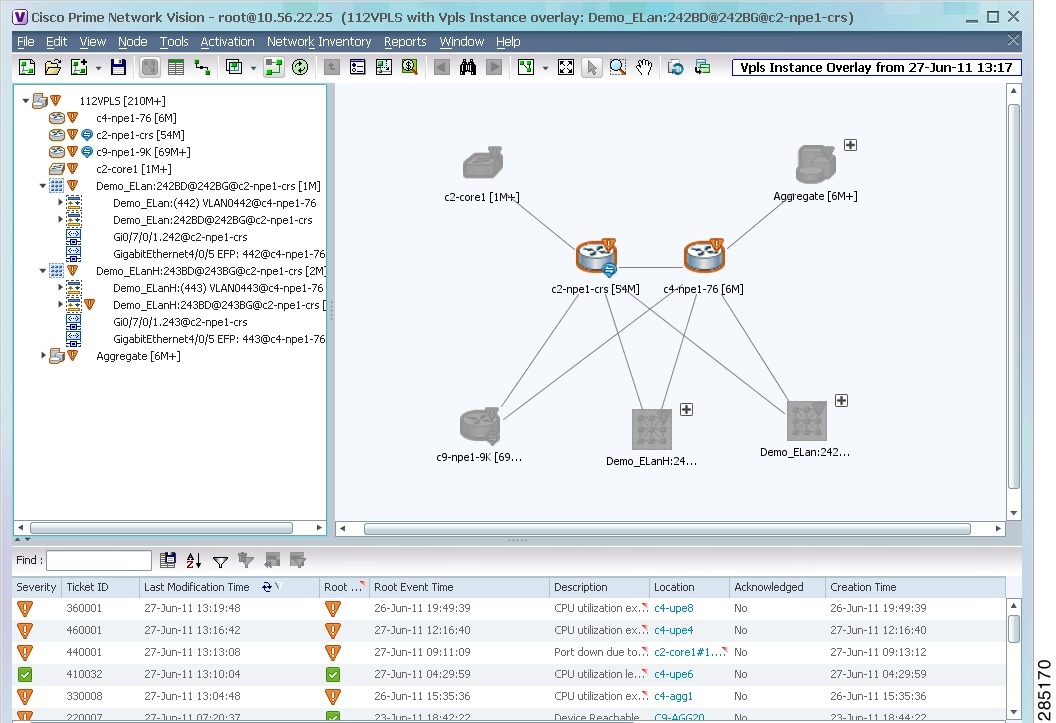

    The map displays the link between the VPLS instance and bridge domains.

    Viewing EFP Properties

    The Vision client provides information about EFPs in a number of ways. For example:

    • EFP names displayed in Vision client maps add EFP and the managed element name to the interface name, such as GigabitEthernet4/0/1 EFP: 123@c4-npe5-67.
    • If you select an EFP in the navigation pane in the Vision client and then click Show List View, an Ethernet Flow Points table lists the network element, port, and network VLAN associated with the EFP.

    To view additional EFP properties:


    Step 1blank.gif In the Vision client map view, select the required EFP in the navigation pane or in the map pane and then do either of the following:

      • Right-click the EFP and choose Properties.
      • Choose Node > Properties.

    Figure 18-13 shows an example of the EFP Properties window.

    Figure 18-13 EFP Properties Window



    237636.tif

    Table 18-26 describes the information displayed in the EFP Properties window.



    Table 18-26 EFP Properties Window

    Field
    Description

    EFP ID

    Identifier for the EFP.

    VLAN Match Criteria

    Match criteria configured on the EFP for forwarding decisions.

    Split Horizon Group

    Split horizon group to which the EFP is associated.

    If no split horizon group is defined, the value is null.

    If only one split horizon group exists and it is enabled for the EFP, the value is the default group 0.

    Operational State

    Operational status of the EFP: Up or Down.

    Administrative State

    Administrative status of the EFP: Up or Down.

    Binding

    Hyperlinked entry to the relevant item in logical inventory, such as a pseudowire or bridge.

    Rewrite Definition

    Rewrite command configured on the EFP: pop, push, or translate.

    Step 2blank.gif Click the hyperlink entry in the Binding field to view the related properties in logical inventory.

    In this example, clicking the hyperlink displays the relevant bridge in logical inventory, as shown in Figure 18-14.

    Figure 18-14 Bridge Associated with EFP in Logical Inventory



    310621.tif

    Table 18-27 describes the information displayed for an EFP associated with a bridge.

    Table 18-27 EFP Associated with a Bridge in Logical Inventory

    Field
    Description

    Name

    VLAN bridge name.

    Type

    VLAN bridge type.

    MAC Address

    VLAN bridge MAC address.

    VLAN ID

    VLAN bridge VLAN identifier.

    STP Instance

    STP instance information, hyperlinked to the STP entry in logical inventory.

    VSI

    VSI information, hyperlinked to the VSI entry in logical inventory.

    EFPs Table

    EFP ID

    EFP identifier.

    Operational State

    EFP operational state: Up or Down.

    VLAN

    VLAN associated with this EFP.

    Inner VLAN

    CE-VLAN identifier.

    Translated VLAN

    Translated, or mapped, VLAN identifier.

    Translated Inner VLAN

    Translated, or mapped, inner VLAN identifier.

    Binding

    Hyperlinked entry to the specific interface and EFP entry in physical inventory.

    Description

    Description for the EFP.

    Step 3blank.gif To view EFP properties in physical inventory, navigate to the required interface in one of the following ways:

      • In the bridge entry in logical inventory, click the hyperlinked entry in the Binding field.
      • Use the procedure described in Viewing and Renaming Ethernet Flow Domains to navigate to the individual interface.
      • In physical inventory, navigate to and then select the required interface.

    The EFPs tab is displayed in the content pane next to the Subinterfaces tab as shown in Figure 18-15.

    Figure 18-15 EFPs Tab in Physical Inventory



    310622.tif

    Table 18-28 describes the information displayed in the EFPs tab.



    Table 18-28 EFPs Tab

    Field
    Description

    EFP ID

    EFP identifier.

    Operational State

    EFP operational state.

    VLAN

    VLAN identifier.

    Inner VLAN

    CE-VLAN identifier.

    Translated VLAN

    Translated VLAN identifier.

    Translated Inner VLAN

    Translated CE-VLAN identifier.

    Binding

    Hyperlinked entry to the specific bridge or pseudowire in logical inventory.

    Description

    Configured description for the EFP.




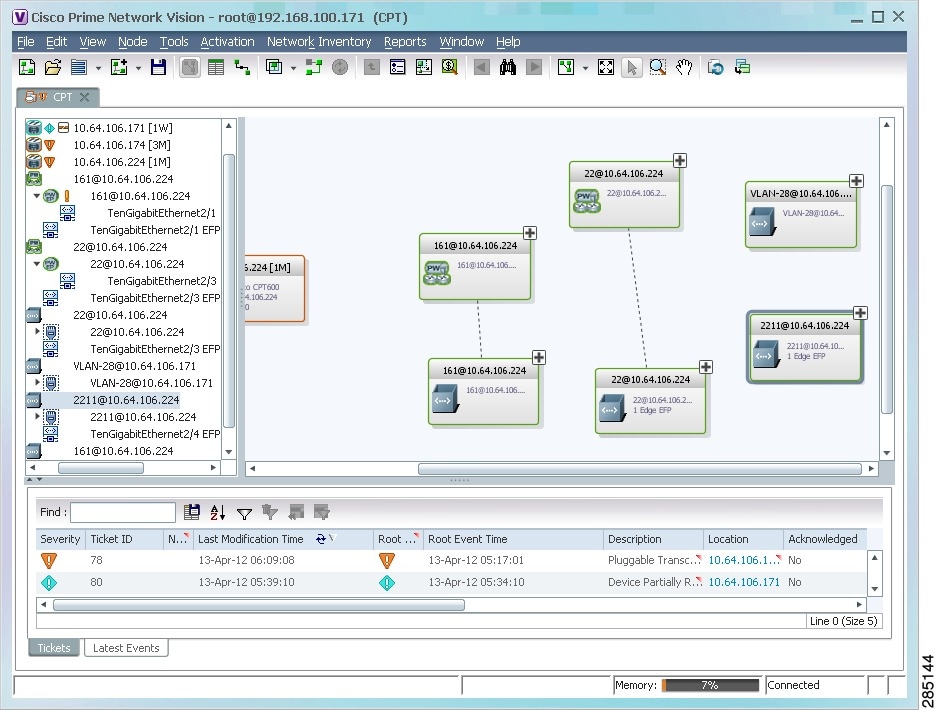

    Connecting a Network Element to an EFP

    You can add and connect network elements to an EFP under an existing aggregation for VLAN, VPLS, Pseudowire, and Ethernet Service.

    To connect network elements to an EFP:


    Step 1blank.gif Select an EFP node under the VLAN/VPLS/Pseudowire/Ethernet Service aggregation node and choose File > Add to Map > Network Element.

    Step 2blank.gif In the Add Network Element dialog box, search for the desired network elements and choose the network element that you want to add.

    The selected network element appears under the aggregation node in the navigation pane.

    Step 3blank.gif Right-click the EFP node and choose Topology > Connect CE Device.

    Step 4blank.gif Right-click the network element that you added and choose Topology > Connect to EFP.

    The map view displays a link between the EFP and the added network element. If required, you can remove the link, by right-clicking the link and choosing Remove Link.

    Step 5blank.gif To hide or show the connected network elements, right-click the EFP node and choose Hide Connected Devices or Show CE device.




    Understanding EFP Severity and Ticket Badges

    Severity and ticket badges are displayed on EFP icons as follows:

    • If the VLAN EFP element represents a configuration, such as a service instance on a Cisco 7600 device or an enhanced port on a Cisco ASR 9000 device, and is associated directly with a network VLAN or a bridge domain switching entity, the severity and ticket badges are based on the underlying service instance or enhanced port configuration.

    Figure 18-16 shows an example of a ticket badge based on a service instance.

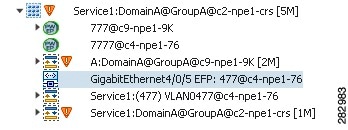

    Figure 18-16 EFP Severity and Ticket Badges Based on Underlying Service Instance



    283648.tif
    • If the Ethernet flow point element represents a VLAN interface for a regular switch port, the severity and ticket badges are based on the corresponding port, as shown in Figure 18-17.

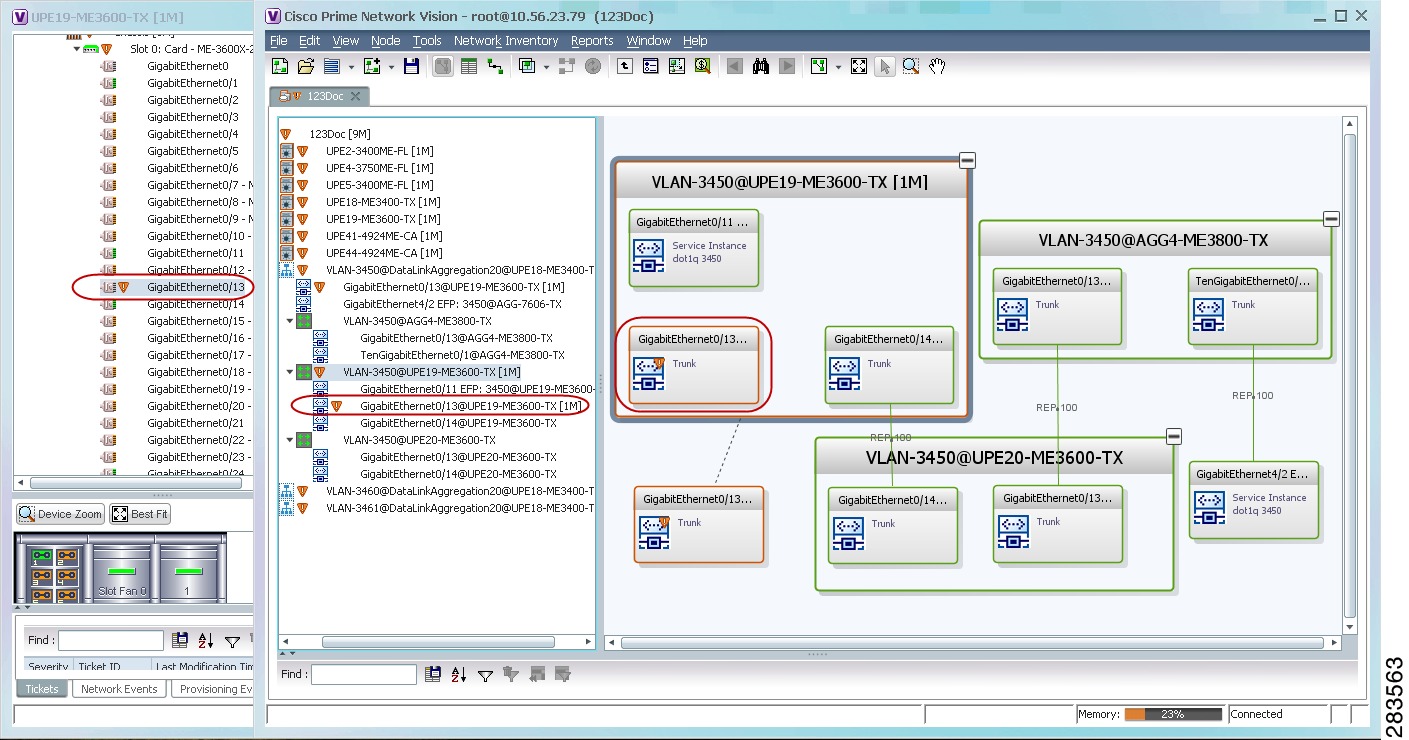

    Figure 18-17 EFP Severity and Ticket Badges Based on Corresponding Port



    283563.tif

    Viewing EVC Service Properties

    Certain EVC service properties are configured as port attributes. These attributes determine the degree of service transparency and protect the service provider’s network from protocol control traffic. For information on the devices for which Prime Network discovers and models these key EVC service properties, refer to Cisco Prime Network 4.1 Supported VNEs.

    Shared Switching Entities and EVC Service View

    Some switching entities that the Vision client discovers are concurrently part of a network VLAN and VPLS/EoMPLS instance. These switching entities are referred to as shared switching entities.

    The Vision client displays the switching entity information for shared switching entities only under the VPLS instances in the EVC service view.

    To view EVC port-related properties for the supported devices and software versions:


    Step 1blank.gif In the Vision client, double-click the required device.

    Step 2blank.gif In the Inventory window, choose Physical Inventory > Chassis > module > port.

    Figure 18-18 shows an example of a port in physical inventory configured with these EVC properties.

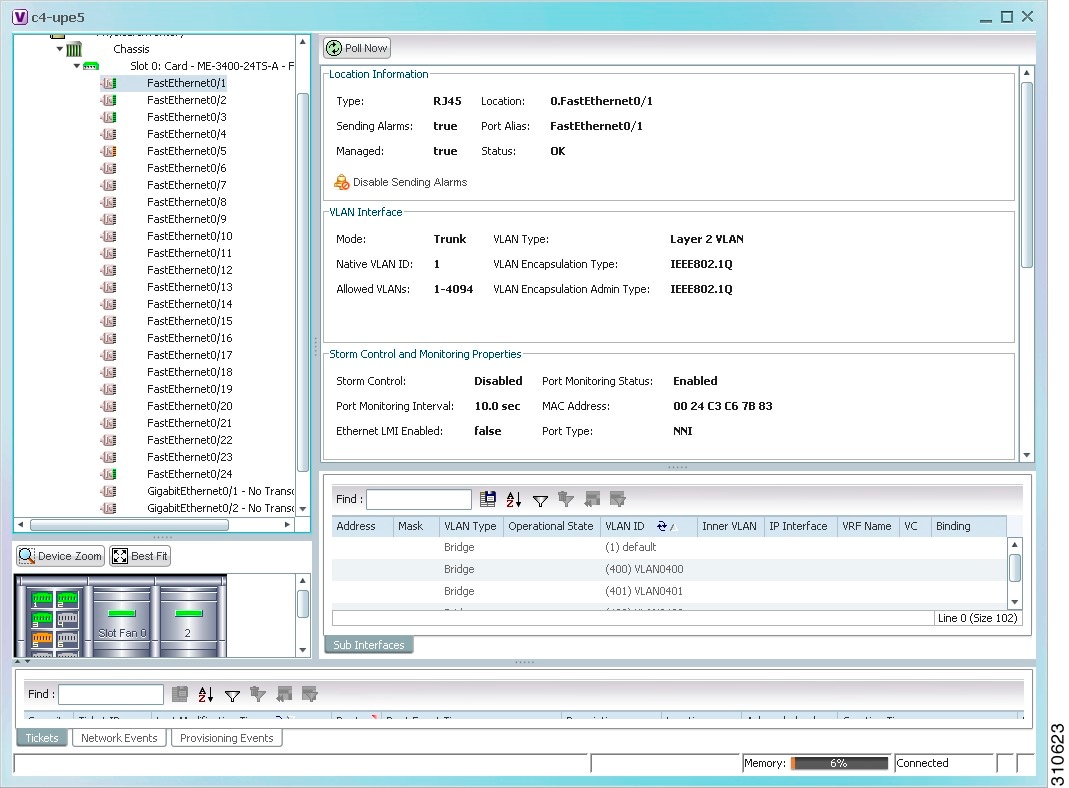

    Figure 18-18 EVC Port Properties in Physical Inventory

    310623.tif

    Table 18-29 describes the information displayed for these properties.



    Table 18-29 EVC Port Properties in Physical Inventory

    Field
    Description
    Storm Control and Monitoring Properties Area

    Storm Control

    Status of storm control on the port: Enabled or Disabled.

    Port Monitoring Status

    Status of port monitoring:

    • Enabled—The switch sends keepalive messages on user network interfaces (UNIs) and enhanced network interfaces (ENIs) and does not send keep alive messages on network node interfaces (NNIs).
    • Disabled—The switch does not send keepalive messages.

    Port Monitoring Interval

    Keepalive interval in seconds. The default value is ten seconds.

    Storm Control Level

    Representing a percentage of the total available bandwidth of the port, the threshold at which additional traffic of the specified type is suppressed until the incoming traffic falls below the threshold.

    Storm Control Type

    Type of storm the port is configured for protection from: Broadcast, Multicast, or Unicast.

    Security Properties Areas

    Port Security

    Status of security on the port: Enabled or Disabled.

    MAC Address Limit

    Maximum number of MAC addresses allowed on the interface.

    Aging Type

    Type of aging used for automatically learned addresses on a secure port:

    • Absolute—Times out the MAC address after the specified age-time has been exceeded, regardless of the traffic pattern. This is the default for any secured port, and the age-time value is set to 0.
    • Inactivity—Times out the MAC address only after the specified age-time of inactivity from the corresponding host has been exceeded.

    Aging Time

    Length of time, in minutes, that a MAC address can remain on the port security table.

    Violation Mode

    Action that occurs when a new device connects to a port or when a new device connects to a port after the maximum number of devices are connected:

    • Protect—Drops packets with unknown source addresses until a sufficient number of secure MAC addresses are removed to drop below the maximum value
    • Restrict—Drops packets with unknown source addresses until a sufficient number of secure MAC addresses are removed to drop below the maximum value and causes the Security Violation counter to increment.
    • Shutdown—Puts the interface into the error-disabled state immediately and sends an SNMP trap notification.




    Viewing the Virtual Connections for a Port

    In Prime Network, you can view the related virtual connections for an ethernet port or LAG port. In other words, you can view a list of Ethernet Virtual Connections (EVCs) to which the selected port is linked to. The virtual connections can be of type L2 (if the virtual connection is a L2 service) or L3 (if the virtual connection is an L3 service or combination of L2 and L3 service).

    To view the related virtual connections for an ethernet port:


    Step 1blank.gif Right-click on the required device and choose the Inventory option.

    Step 2blank.gif In the Inventory window, choose Physical Inventory > Chassis > slot > port.

    Step 3blank.gif Right-click on the selected port and choose Get Virtual Connections. The Virtual Connections window is displayed as shown in Figure 18-19.

    Figure 18-19 Virtual Connections

    361842.TIF

    Noteblank.gif If no related virtual connections are available for a port, then a message indicating that there are no virtual connections for the port is displayed.


    Step 4blank.gif In the Virtual Connections window, select the relevant connections and click OK. A temporary map that contains the selected connections is created and displayed in the Prime Network Vision window.

    You can also view the virtual connections for an ethernet link aggregation.

    To view the related virtual connections for an ethernet link aggregation:


    Step 1blank.gif Right-click on the required device and choose the Inventory option.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > Ethernet Link Aggregation. The link aggregation details are displayed in the content pane.

    Step 3blank.gif In the Data Link Aggregations section, Right-click the ID and select Get Virtual Connections. The Virtual Connections window is displayed.

    Step 4blank.gif Select the relevant connections and click OK to create a temporary map for the connections.




    Viewing and Renaming Ethernet Flow Domains

    An Ethernet flow domain represents an Ethernet access domain. The Ethernet flow domain holds all network elements between the CE (inclusive, if managed by the SP), up to the SP core (exclusive). This includes CE, access, aggregation, and distribution network elements.

    An Ethernet flow domain can have no N-PEs (flat VLAN) or one or more N-PEs (N-PE redundancy configuration). The Ethernet flow domain is defined using physical connectivity at the port level, and not at the network element level. STP is used to mark the root bridge, root or blocked ports, and blocked VLAN links.

    To view Ethernet flow domains:


    Step 1blank.gif In the Vision client, choose Network Inventory > Ethernet Flow Domains.

    The Ethernet Flow Domain List window is displayed with the domain name, the system-defined domain name, and a brief description for each Ethernet flow domain as shown in Figure 18-20.

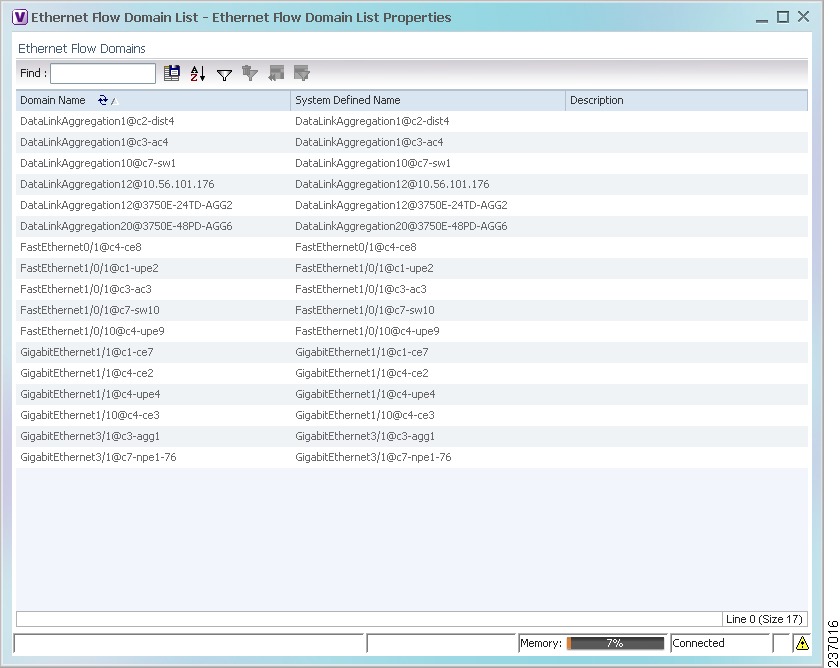

    Figure 18-20 Ethernet Flow Domain List Properties Window



    237016.tif

    Step 2blank.gif To rename an Ethernet flow domain:

    a.blank.gif Right-click the required domain, then choose Rename.

    b.blank.gif In the Rename Node dialog box, enter a new name for the domain.

    c.blank.gif Click OK.

    The window is refreshed, and the new name is displayed.

    Step 3blank.gif To view Ethernet flow domain properties, do either of the following:

      • Right-click the required domain, then choose Properties.
      • Double-click the required domain.

    The Ethernet Flow Domain Properties window is displayed as shown in Figure 18-21.

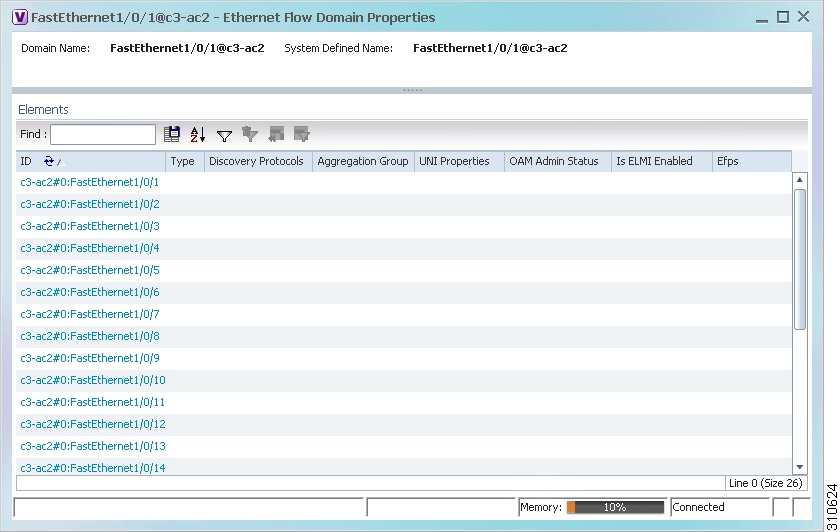

    Figure 18-21 Ethernet Flow Domain Properties Window



    310624.tif

    Table 18-30 describes the information displayed in the Ethernet Flow Domain Properties window.


    Noteblank.gif Not all fields are available in all tables. The table contents depend on the domain type, such as FastEthernet.




    Table 18-30 Ethernet Flow Domain Properties Window

    Field
    Description

    Domain Name

    Name of the selected domain.

    System Defined Name

    Domain name as identified by the most dominant device and its lowest port name lexicographically.

    Elements Table

    ID

    Interface identifier, hyperlinked to the interface in physical inventory.

    Type

    Aggregation group type: Ethernet Channel (EtherChannel), or IEEE 802.3 AD LAG (IEEE 802.3 link aggregation group).

    Discovery Protocols

    Discovery protocols used on the interface.

    Is ELMI Enabled

    Whether or not Ethernet LMI is enabled on the interface: True or False.

    Step 4blank.gif To navigate to the individual interface or link aggregation group, click an interface identifier or group.

    The interface or link aggregation group properties are displayed in the inventory window.




    Working with VLANs

    The following topics provide information and procedures for working with VLANs. The Vision GUI client supports a VLAN overlay which, when applied, highlights the network elements and links that a VLAN (and its associated VLANs) traverse. The overlay displays STP and REP link and port information. Using overlays is described in Displaying VLANs By Applying VLAN Overlays to a Map.

    Understanding VLAN and EFD Discovery

    When you start the Prime Network gateway the first time, the Prime Network waits for two topology cycles to complete before discovering new VLANs, VLAN associations, and EFDs. The default configured time for two topology cycles to complete is one hour, but might be configured for longer periods of time on large setups. This delay allows the system to stabilize, and provides the time needed to model devices and discover links.

    During this delay, Prime Network does not add VNEs or apply updates to existing VLANs or EFDs.

    After the initial delay has passed, Prime Network discovers new VLANs, VLAN associations, and EFDs, applies updates to existing VLANs, VLAN associations, and EFDs, and updates the database accordingly.

    When you restart the gateway, Prime Network uses the persisted topology information instead of waiting two topology cycles, thus improving the discovery time for new VLANs, VLAN associations, and EFDs.

    Understanding VLAN Elements

    The following concepts are important to understand when working with the representation of edge EFPs inside VLANs:

    VLAN Elements in the Vision Client

    Table 18-31 describes the icons that the Vision client uses to represent VLAN elements.



    Table 18-31 VLAN Elements and Icons in the Vision Window

    Element
    Associated Network Element
    Icon

    Network VLAN

    None



    253434.tif

    Switching entity

    Bridge



    253441.tif

    Ethernet Flow Point (EFP)

    Ethernet port



    196235.tif

    VLANs

    Prime Network discovers and allows you to display maps with a network-level view of VLANs.

    In Prime Network, a VLAN entity consists of one or more switching entities and the corresponding EFP elements.

    A network VLAN represents the virtual LAN. The network VLAN holds its contained switching entities and can be associated to a customer. The network VLAN also holds the Ethernet flow points that are part of the network VLAN but not part of any switching entity. For example, a port that tags ingress flows after which the flow moves to a different VLAN.

    Switching Entities

    A switching entity represents a device-level Layer 2 forwarding entity (such as a VLAN or bridge domain) that participates in a network VLAN. A switching entity is associated to a network VLAN according to its relationship to the same Ethernet Flow Domain (EFD) and the VLAN identifier.

    If you right-click a switching entity in the Vision client and then choose Inventory, the inventory window is displayed with the corresponding bridge selected in Logical Inventory.

    A switching entity typically contains EFP elements.

    Ethernet Flow Points

    An Ethernet flow point (EFP) can represent a port that is configured for participation in a specific VLAN.

    If you right-click an EFP in the Vision client and then choose Inventory, the inventory window is displayed with the corresponding port selected in Physical Inventory.

    EFPs that are located in a switching entity represent Ethernet ports that are configured as switch ports (in either Access, Trunk, or Dot1Q tunnel mode).

    Figure 18-22 shows an example of EFPs configured as switch ports in the Vision client.

    Figure 18-22 EFPs Configured as Switch Ports



    285154.tif

    EFPs that are located directly inside a VLAN represent one of the following:

    • Termination point EFPs—Ethernet ports that are at the edge of a Layer 2 domain flow, such as a VLAN, on which traffic enters a Layer 3 domain or a different Layer 2 domain, such as EoMPLS (for example, in Cisco 7600 series, Cisco GSR, and Cisco ASR 9000 series devices).

    These EFPs are typically connected to a switching entity inside the VLAN by a VLAN link, as shown in Figure 18-23.

    Figure 18-23 Termination Point EFP Inside a VLAN



    285164.tif
    • Edge EFPs—A subset of EFPs that exist inside a switching entity but that are not connected to other EFPs and that represent edge EFPs in the context of the VLAN.

    In the Vision client, edge EFPs are displayed directly under the VLAN at the same level as their switching entities and are connected to their corresponding switching entities by a dotted link, as shown in Figure 18-24.

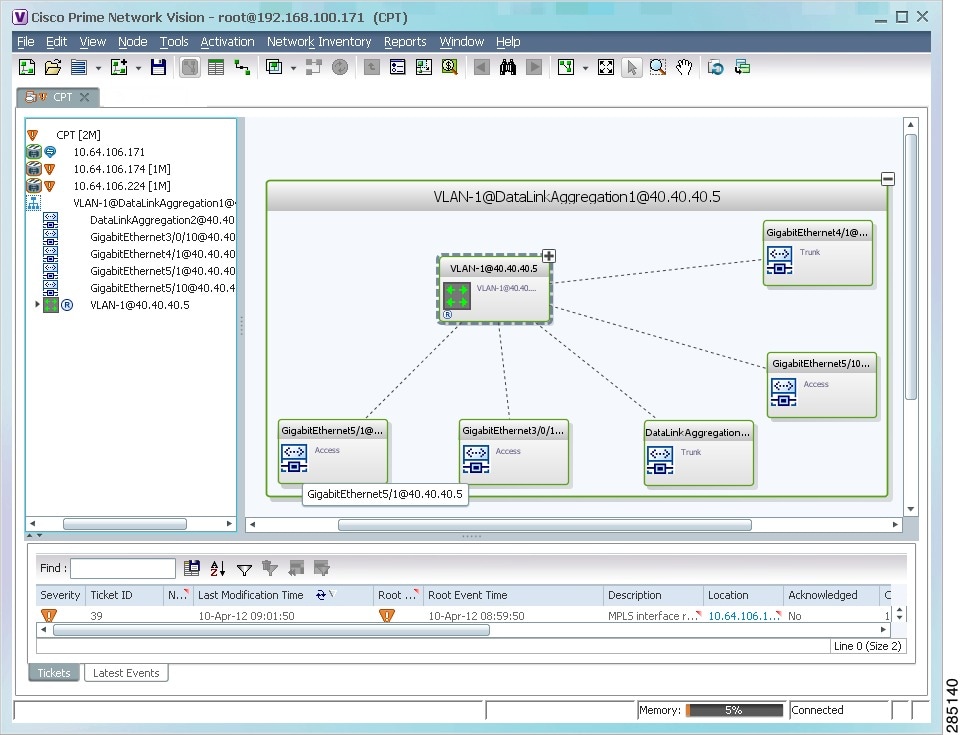

    Figure 18-24 Edge EFP Inside a VLAN



    285140.tif

    An edge EFP can be displayed both inside and outside of its switching entity, as shown (highlighted with a red outline) in Figure 18-25:

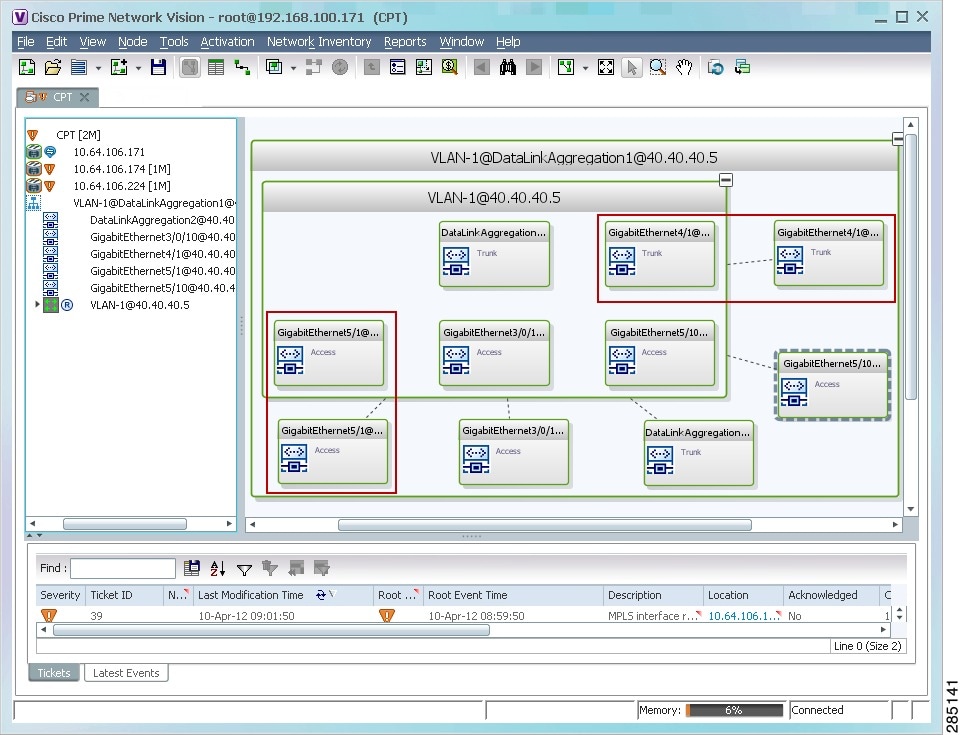

    Figure 18-25 Edge EFPs Displayed Inside and Outside of Switching Entities



    285141.tif

    You can delete EFPs and switching entities that have a reconciliation icon by right-clicking them and choosing Delete. After all switching entities and EFPs are deleted from a network VLAN, the empty network VLAN is automatically deleted from the Vision client after a few minutes.

    Switching Entities Containing Termination Points

    For certain devices (for example, the Cisco 7600 series, Cisco GSR series, and Cisco ASR 9000 series devices), the related switching entities can contain Ethernet flow point elements that serve as termination points on different network VLANs. If a single map contains both the switching entities and the network VLANs, a link is displayed between them.

    Adding and Removing VLANs from a Map

    Adding VLANs to a Map

    You can add VLANs to a map if the VLANs were previously discovered by Prime Network and are not currently displayed in the map.


    Noteblank.gif Adding VLANs affects other users if they are working with the same map.


    To add VLANs to a map:


    Step 1blank.gif In the Vision client, display the map to which you want to add the VLANs.

    Step 2blank.gif Choose File > Add to Map > VLAN. The Add VLAN to map dialog box is displayed as shown in Figure 18-26.

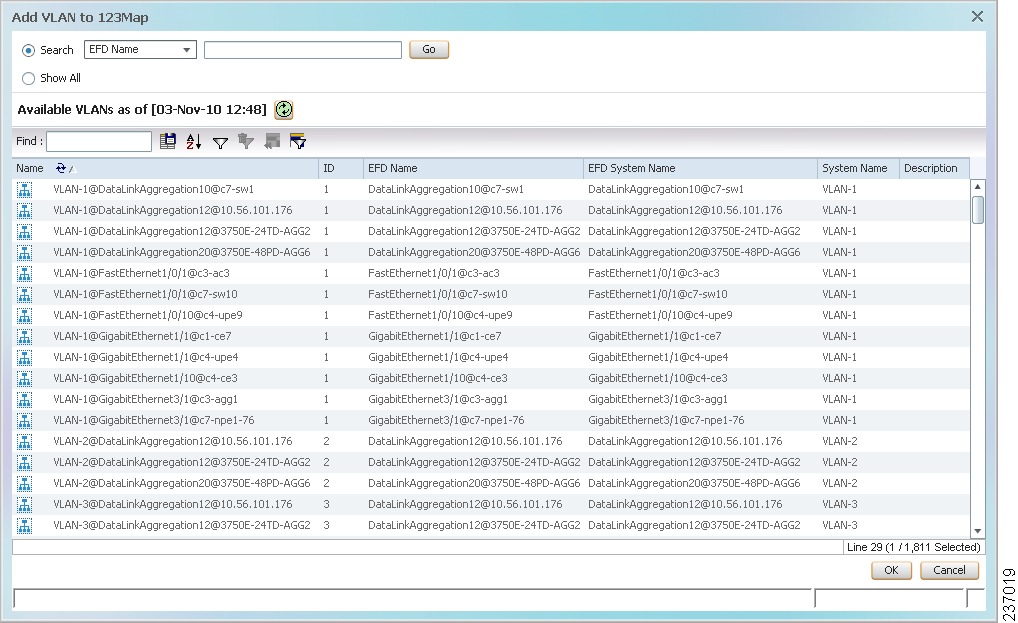

    Figure 18-26 Add VLAN Dialog Box



    237019.tif

    Step 3blank.gif In the Add VLAN dialog box, do either of the following:

      • Choose a search category, enter a search string, then click Go to narrow the VLAN display to a range of VLANs or a specific VLAN.

    The search condition is “contains.” Search strings are case-insensitive. For example, if you choose the Name category and enter “net,” the Vision client displays VPNs “net” and “NET” in the names whether net appears at the beginning, middle, or at the end of the name: for example, Ethernet.

      • Choose Show All to display all the VLANs.

    Step 4blank.gif Select the VLANs that you want to add to the map.


    Tip Press Shift or Ctrl to choose multiple adjoining or nonconsecutive VLANs.


    Step 5blank.gif Click OK.

    The VLANs are displayed in the Vision client content pane as shown in Figure 18-27.

    Any tickets that apply to the VLANs are displayed in the ticket pane.

    Figure 18-27 VLANs in Map View



    285168.tif




    After you add a VLAN to a map, you can use the Vision client to view its switching entities and Ethernet flow points. For more information, see:

    You can view additional information about REP and STP in logical inventory, VLAN domain views, and VLAN overlays.

    For REP, see:

    For STP, see:

    Removing VLANs From a Map

    You can remove one or more VLANs from the current map. This change does not affect other maps. Removing a VLAN from a map does not remove it from the Prime Network database. You can add the VLAN to the map at any time.

    When removing VLANs from maps, keep the following in mind:

    • Removing a VLAN affects other users who are working with the same map view.
    • This option does not change the business configuration or database.
    • You cannot remove virtual routers or sites from the map without removing the VLAN.

    To remove a VLAN, in the Vision client navigation pane or map view, right-click the VLAN and choose Remove from Map.

    The VLAN is removed from the navigation pane and map view along with all VLAN elements such as connected CE devices. Remote VLANs (extranets) are not removed.

    Viewing VLAN Mappings

    VLAN mapping, or VLAN ID translation, is used to map customer VLANs to service provider VLANs. VLAN mapping is configured on the ports that are connected to the service provider network. VLAN mapping acts as a filter on these ports without affecting the internal operation of the switch or the customer VLANs.

    If a customer wants to use a VLAN number in a reserved range, VLAN mapping can be used to overlap customer VLANs by encapsulating the customer traffic in IEEE 802.1Q tunnels.

    To view VLAN mappings:


    Step 1blank.gif In the Vision client, double-click the device with VLAN mappings configured.

    Step 2blank.gif In the Inventory window, choose Physical Inventory > Chassis > slot > port.

    Step 3blank.gif Click VLAN Mappings next to the Subinterfaces tab in the lower portion of the content pane.

    The VLAN Mappings tab is displayed as shown in Figure 18-28.

    Figure 18-28 VLAN Mappings Tab in Physical Inventory



    310631.tif

    Table 18-32 describes the information that is displayed in the VLAN Mappings table.



    Table 18-32 VLAN Mappings Table

    Field
    Description

    Direction

    Whether the VLAN mapping is defined in the incoming or outgoing direction: In or Out.

    VLAN

    Customer-side VLAN identifier.

    Inner VLAN

    Used for two-to-one mappings, the customer-side inner VLAN identifier.

    Translated VLAN

    Translated, or mapped, service-provider side VLAN identifier.

    Translated Inner VLAN

    Translated, or mapped, service-provider side inner VLAN identifier.

    Action

    Action taken if the VLAN traffic meets the specified mapping: Translate or Drop.




    Working with Associated VLANs

    Prime Network discovers associations between network VLANs and displays the information in the Vision client. Network VLAN associations are represented by VLAN service links, and can be any of the tag manipulation types described in Table 18-33 .



    Table 18-33 Types of Tag Manipulations in VLAN Associations

    VLAN Tag Manipulation
    Description
    Example

    One-to-one

    One VLAN tag is translated to another VLAN tag.

    VLAN tag 100 > VLAN tag 200

    Two-to-two

    • Two VLAN tags exist and both are translated to other tags.
    • Two VLAN tags exist, but tag manipulation is applied only to the outer tag.
    • Inner tag 100, Outer tag 101 > Inner tag 200, Outer tag 201
    • Inner tag 100, Outer tag 101 > Inner tag 100, Outer tag 201

    One-to-two

    One VLAN tag exists and an additional tag is inserted into the packet.

    VLAN tag 100 > Inner tag 100, Outer tag 101



    When working with VLANs, you can:

    Adding an Associated VLAN

    To add an associated VLAN to an existing VLAN in a map:


    Step 1blank.gif In the Vision client, select the required VLAN in the map view.

    Step 2blank.gif Right-click the VLAN and choose Add Associated VLAN.

    The Add Associated VLAN table is displayed as shown in Figure 18-29.

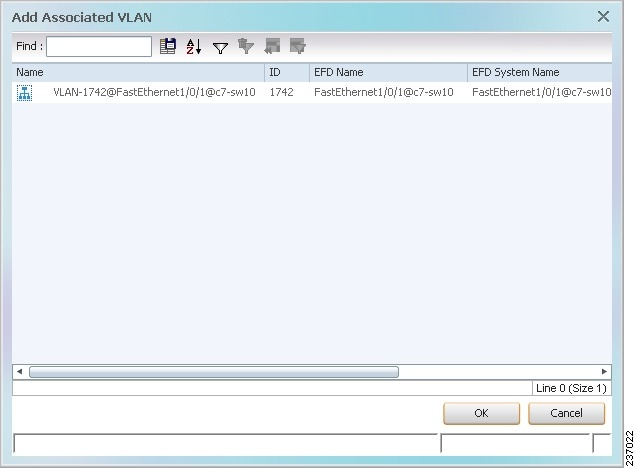

    Figure 18-29 Add Associated VLAN Window



    237022.tif

    In this example, the selected network VLAN has one associated VLAN: VLAN-1742.

    Table 18-34 describes the information displayed in the Add Associated VLAN table.



    Table 18-34 Add Associated VLAN Table

    Field
    Description

    Name

    Name of the VLAN.

    ID

    VLAN identifier.

    EFD Name

    Name of the Ethernet flow domain.

    EFD System Name

    Name that Prime Network assigns to the EFD.

    System Name

    Name that Prime Network assigns to the VLAN.

    Description

    Brief description of the VLAN.

    Step 3blank.gif Select the required VLAN in the Add Associated VLAN table, then click OK.

    The associated network VLAN is added to the map in the Vision client.




    Viewing Associated Network VLAN Service Links and VLAN Mapping Properties

    After you add an associated network VLAN, you can:

    • View the associated network VLAN service links in the Vision client in the thumbnail view.
    • View VLAN mapping properties in the Link Properties window.

    To view associated network VLAN service links and VLAN mapping properties:


    Step 1blank.gif Select the required network VLAN in the map view.

    Step 2blank.gif Right-click the VLAN, then choose Show Thumbnail.

    Figure 18-30 shows an example of a network VLAN in a thumbnail.

    The VLAN service links are displayed as 5.2 between the associated network VLANs. The links represent the connections between the Ethernet flow points that are part of each network VLAN.

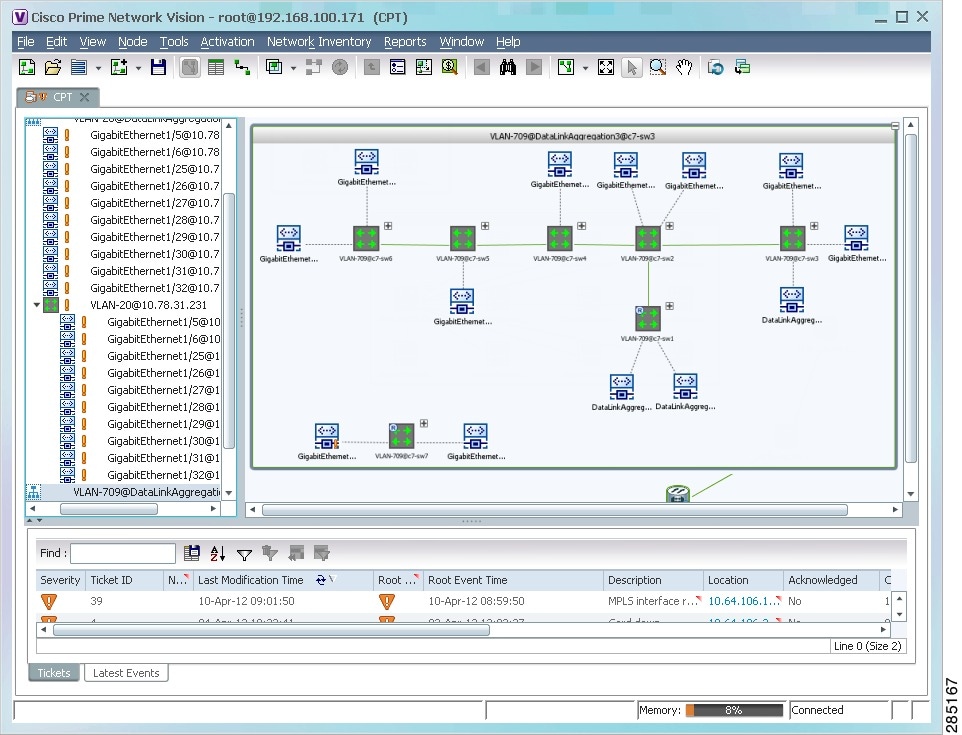

    Figure 18-30 VLAN Service Links Between Associated Network VLANs



    285167.tif

    Step 3blank.gif To view additional information, right-click a link, and choose Properties.

    The Link Properties window is displayed as shown in Figure 18-31.

    If VLAN tag manipulation is configured on the link, the VLAN Mapping Properties area in the Link Properties window displays the relevant information. For example, in Figure 18-31, the VLAN Mapping Properties area shows that a one-to-one VLAN mapping for VLAN tag 1709 to VLAN tag 709 is configured on GigabitEthernet1/1/1 on c7-sw8 on the egress direction.

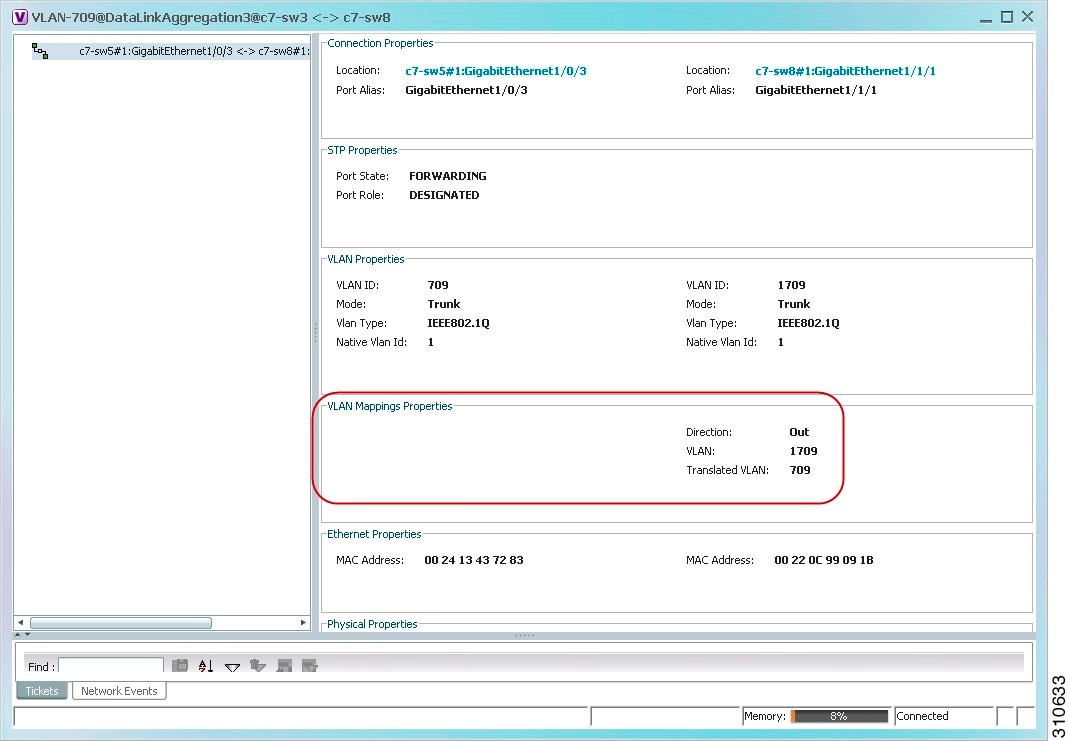

    Figure 18-31 VLAN Mapping Properties in Link Properties Window



    310633.tif




    For additional information about viewing network VLAN service link properties, see:

    Viewing VLAN Links Between VLAN Elements and Devices

    If a Vision client map contains a VLAN and the network element on which the VLAN is configured, along with EFPs, switching entities, or network VLANs, you might see what appear to be multiple associations between the logical and physical entities. Actually, however, you are seeing other views of the original VLAN link.

    For example, assume that you have the following situation, as shown in Figure 18-32 and described in the following paragraphs.

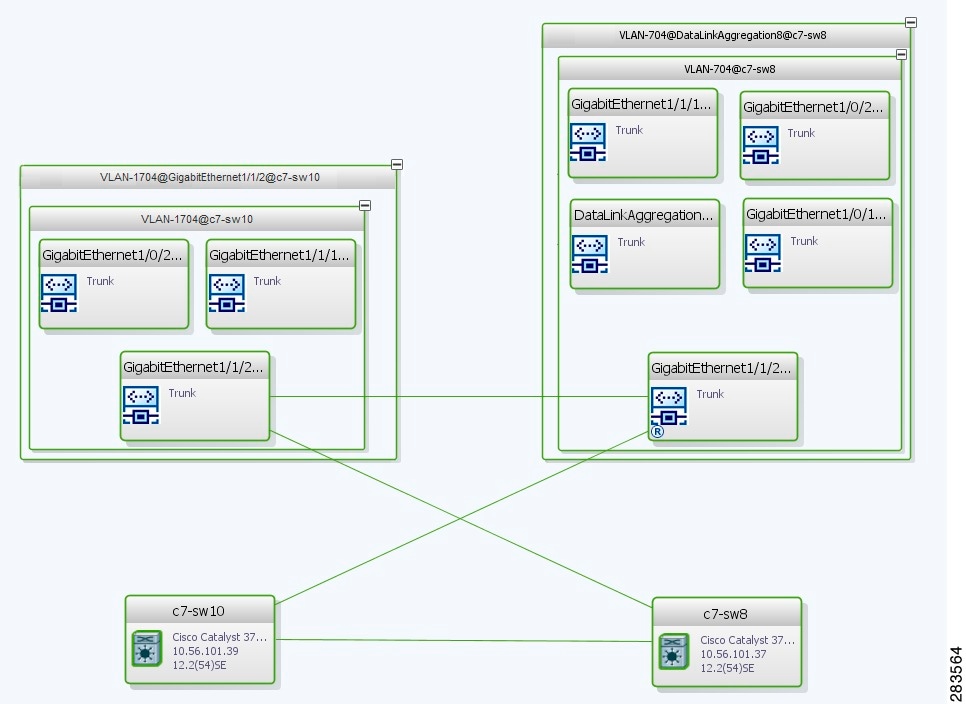

    Figure 18-32 VLAN Elements and Devices in the Vision Window



    283564.tif

    The elements are configured as follows:

    • Port GigabitEthernet1/1/2 on element c7-sw10 is connected to port GigabitEthernet1/1/2 on element c7-sw8 by an Ethernet topology link.
    • Port GigabitEthernet1/1/2 on element c7-sw10 is a trunk port associated with VLAN-1704 which is configured on element c7-sw10.
    • Port GigabitEthernet1/1/2 on element c7-sw8 is a trunk port associated with VLAN-704 which is configured on element c7-sw8.
    • Port GigabitEthernet1/1/2 on element c7-sw8 has a VLAN mapping to tunnel VLAN-1704 (C-VLAN) in VLAN-704 (SP-VLAN).

    In this example, VLAN discovery identified two network VLANs: VLAN-1704 and VLAN-704. Each of these network VLANs contains a switching entity and an EFP that represent the connected ports, GigabitEthernet1/1/2@c7-sw10 and GigabitEthernet1/1/2@c7-sw8, respectively.

    The four links in the map are identified in Figure 18-33 and described in the following table.

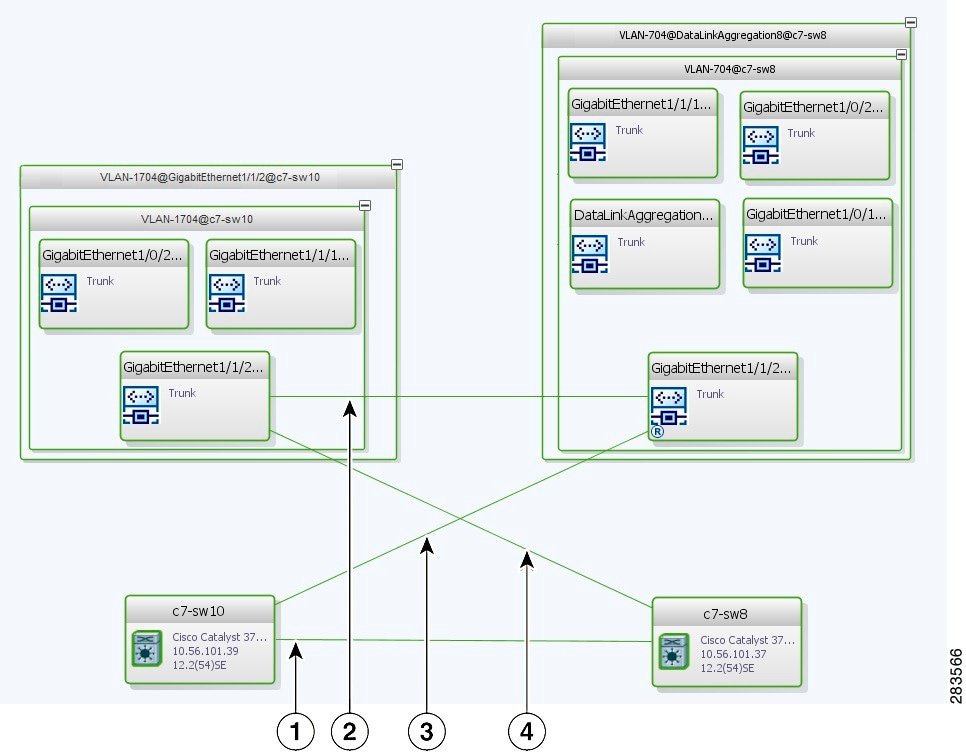

    Figure 18-33 Links Between VLAN Elements and Devices



    283566.tif



    1

    The Ethernet topological link between port GigabitEthernet1/1/2 on VNE c7-sw10 and GigabitEthernet1/1/2 on VNE c7-sw8.

    2

    The VLAN link between GigabitEthernet1/1/2@c7-sw10 EFP and GigabitEthernet1/1/2@c7-sw8 EFP.

    3

    Another view of the VLAN link (link 2), shown as a link between GigabitEthernet1/1/2@c7-sw10 EFP and GigabitEthernet1/1/2@c7-sw8 EFP.

    4

    Another view of the VLAN link (link 2), shown as a link between GigabitEthernet1/1/2@c7-sw10 EFP and GigabitEthernet1/1/2@c7-sw8 EFP.

    The key point is that a link between a VNE and EFP, switching entity, or network VLAN does not represent an association between the VNE and the logical element. Such a link is simply another view of the VLAN link.

    If the thumbnail view is closed, instead of a link between the VNE and EFP, you will see a link between the VNE and the switching entity or network VLAN.

    Displaying VLANs By Applying VLAN Overlays to a Map

    You can create an overlay of a specific VLAN on top of the physical network elements displayed in a map view. The overlay highlights the network elements and links that the selected VLAN and its associated VLANs traverse. Network elements and links that are not part of the VLAN are dimmed in the map view.

    The VLAN overlay is a snapshot of the network to help you visualize the network elements and links connected to a VLAN. The overlay displays STP and REP link and port information.

    If you select a network VLAN that is associated with other VLANs, the associated VLANs are included in the overlay.

    The VLAN service overlay allows you to isolate the parts of a network that are being used by a particular service. This information can then be used for troubleshooting. For example, the overlay can highlight configuration or design problems when bottlenecks occur and all site interconnections use the same link.

    Adding a VLAN Overlay

    To add a VLAN overlay:


    Step 1blank.gif Display the network map for which you want to create an overlay in the Vision client.

    Step 2blank.gif In the toolbar, choose Choose Overlay Type > VLAN.

    Step 3blank.gif In the Select VLAN Overlay dialog box, do either of the following:

      • Choose a search category, enter a search string, then click Go to narrow the selection to a set of overlays or a specific overlay.

    The search condition is “contains.” Search strings are case-insensitive. For example, if you choose the Name category and enter “net,” the Vision client displays overlays that have “net” in their names. The string “net” can be at the beginning, middle, or end of the name, such as Ethernet.

      • Choose Show All to view all overlays.

    Step 4blank.gif Select an overlay, then click OK.

    The network elements and physical links used by the selected VLAN overlay are highlighted in the network map. All other network elements and links are dimmed. The VLAN name is displayed in the title of the window. See Figure 18-34.

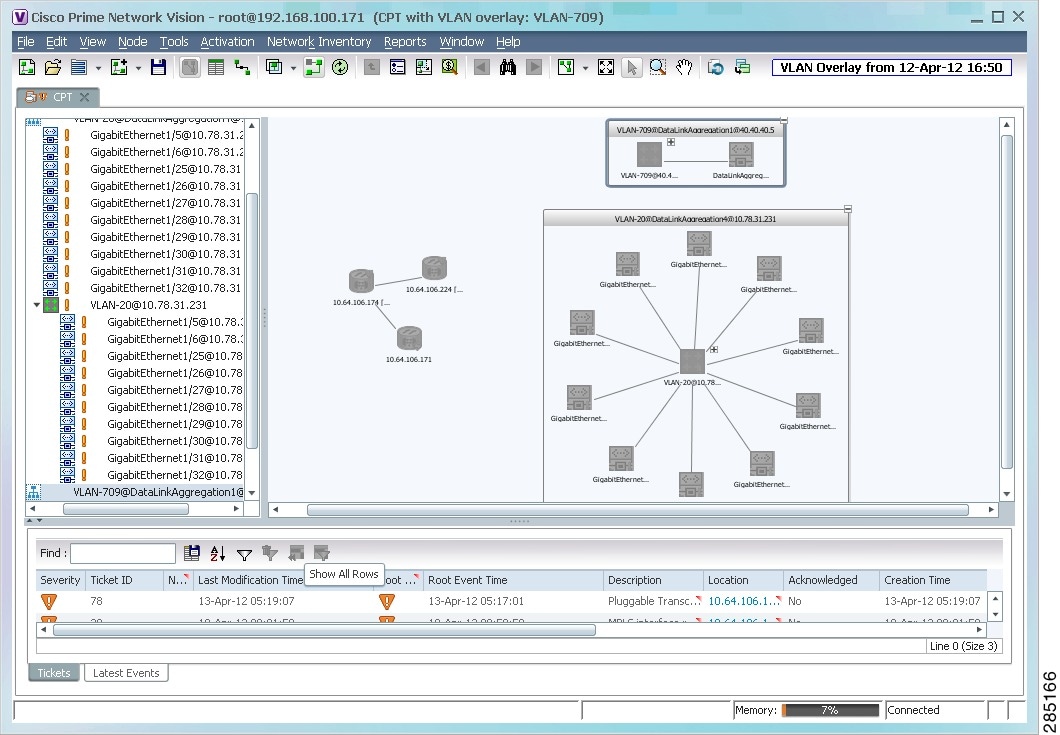

    Figure 18-34 VLAN Overlay Example



    285166.tif

    Noteblank.gif The overlay is a snapshot taken at a specific point in time. As a result, the information in the overlay might become stale. To update the overlay, click Refresh the Last Selected Overlay in the toolbar.


    The VLAN overlay service also supports multi-chassis devices. If a network element in the overlay is dimmed, then all the hosts of the network element along with the Inter Rack Links (IRL) and the Inter Chassis Links (ICL) used for transportation will also be dimmed. Apart from these, the chassis that holds the configured port will also be dimmed.

    Displaying or Hiding VLAN Overlays

    After you create a VLAN overlay, you can hide it by clicking Hide Overlay in the toolbar. All previously dimmed network elements and links are displayed. To display the overlay, click Show Overlay.


    Noteblank.gif The Overlay icon toggles between Show Overlay and Hide Overlay. When selected, the VLAN overlay is displayed and the Hide Overlay tool is active. When deselected, the VLAN overlay is hidden and the Show Overlay tool is active.


    Removing a VLAN Overlay

    To remove a VLAN overlay from a map, choose Choose Overlay Type > None in the toolbar. The overlay is removed from the map, and the Show Overlay/Hide Overlay icon is dimmed.

    Viewing VLAN Service Link Properties

    See the following topics for information on viewing VLAN service link properties:

    Viewing REP Information in VLAN Domain Views and VLAN Overlays

    You can view REP segment and port information in the Vision client in the map view. The icons displayed depend on whether you view the REP information in the VLAN domain view or in a VLAN overlay. Table 18-35 describes the icons and badges used to represent REP segment and port information.



    Table 18-35 REP Icons and Badges in VLAN Domain Views and Overlays

    Item
    Description
    VLAN Domain View
    VLAN Overlay



    310719.tif

    REP identifier—Uses the format REP- id where id represents the REP segment identifier.



    310771.tif

    The REP identifier is displayed in the domain view if the visual link represents only one link.

    f the visual link represents more than one link, no REP identifier is displayed.



    310772.tif

    The REP identifier is displayed in a VLAN overlay view if all the links represented by the visual link are from the same source to the same destination.



    310669.tif

    REP No Neighbor segment — Indicates that the specified segment has no neighbor.



    310773.tif



    283199.tif




    REP identifier for incorrect configuration—Indicates that the two sides of the link are configured differently or incorrectly.



    283200.tif



    283201.tif



    199072.tif

    Multiple links with badges icon—Indicates that one or more link is represented by the visual link and at least one of the links contains a badge.



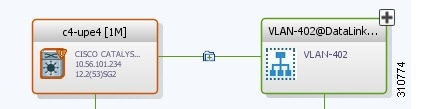

    310774.tif

    The multiple links icon is displayed in the domain view if more than one link is represented by the visual link and at least one of the links contains a badge.



    310775.tif

    The multiple links icon is displayed in a VLAN overlay view if either of the following is true:

    • More than one link is represented by the visual link and the links have different sources or destinations.
    • A badge or REP identifier exists on a sublink.



    199098.tif

    REP primary badge—Indicates a REP primary port.



    310776.tif



    310777.tif



    199073.tif

    Blocking badge—Indicates a REP alternate port.



    310778.tif



    310779.tif



    199527.tif

    Primary and blocking badge—Indicates a REP primary port that is also blocking.





    310780.tif

    Viewing REP Properties for VLAN Service Links

    To view REP properties for a VLAN service link, open the Link Properties window in either of the following ways:

    • Double-click the VLAN service link.
    • Right-click the VLAN service link, and choose Properties.

    Figure 18-35 shows an example of the Link Properties window with REP information.

    Figure 18-35 VLAN Service Link Properties Window with REP Information



    310635.tif

    Table 18-36 describes the information that is displayed for REP for each end of the link.



    Table 18-36 REP Properties in VLAN Service Link Properties Window

    Field
    Description

    Segment ID

    REP segment identifier.

    Port Type

    Port type: Primary Edge, Secondary Edge, or Intermediate.

    Port Role

    Role or state of the REP port depending on its link status and whether it is forwarding or blocking traffic: Failed, Alternate, or Open.

    Port Status

    Operational link state of the REP port: None, Init Down, No Neighbor, One Way, Two Way, Flapping, Wait, or Unknown.

    Viewing STP Information in VLAN Domain Views and VLAN Overlays

    You can view STP segment and port information in the Vision client in the map view. The icons displayed depend on whether you view the STP information in the VLAN domain view or in a VLAN overlay. Table 18-37 describes the icons and badges used to represent STP link and port information.



    Table 18-37 STP Information in VLAN Domain Views and Overlays

    Item
    Description
    VLAN Domain View
    VLAN Overlay



    196239.tif

    The STP root bridge, or root of the STP tree, is indicated by an uppercase R.



    310671.tif



    310672.tif



    310673.tif

    An STP root port is the port at the root of the STP tree. Each switching entity in the network VLAN should have a port designated as the root port.

    The STP root port is indicated by an uppercase R on the Ethernet flow point that is designated the root port.



    310674.tif



    310121.tif



    199073.tif

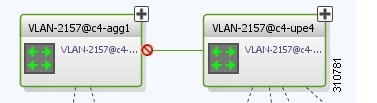

    STP blocks some VLAN ports to ensure a loop-free topology. The blocked port is marked with a red deny badge on the side on which traffic is denied.



    310781.tif



    310782.tif

    To view additional STP information in a VLAN overlay, right-click an STP link and choose Show Callouts. The following STP port information is displayed as shown in Figure 18-36:

    • Port name
    • Port role
    • Port state

    Figure 18-36 STP Link Information in a VLAN Overlay



    310765.tif

    Viewing STP Properties for VLAN Service Links

    To view STP properties for a VLAN service link, open the Link Properties window in one of the following ways:

    • Double-click the VLAN service link.
    • Right-click the VLAN service link, and choose Properties.

    Figure 18-37 shows an example of the Link Properties window with STP information.

    Figure 18-37 STP Properties in VLAN Service Link Properties Window



    310636.tif

    Table 18-38 describes the information that is displayed for STP for the VLAN service link.



    Table 18-38 STP Properties in VLAN Service Link Properties Window

    Field
    Description

    Port State

    STP port state: Disabled, Blocking, Listening, Learning, or Forwarding,

    Port Role

    STP port role: Unknown, Backup, Alternative, Designated, Root, or Boundary.

    Viewing VLAN Trunk Group Properties

    VTP is a Layer 2 multicast messaging protocol that manages the addition, deletion, and renaming of VLANs on a switched network-wide basis.

    The Vision client displays VTP information in the logical inventory. VTP information is shown only for Cisco devices that support VTP, and support is provided only for VTP Version 1 and 2. Support for Version 3 is limited to the additional attributes that are supported by the version, such as primary and secondary server. No support is provided for the display of VTP information at the port (trunk) level.

    The Vision client shows all VTP modes: Server, Client, Transparent, and Off. For each mode, the Vision client displays the relevant mode information such as VTP domain, VTP mode, VTP version, VLAN trunks, and the trunk encapsulation. The Vision client also displays VTP domain information in a view that includes a list of all switches that are related to these domains, their roles (server, client, and so on), and their VTP properties.

    To view VTP properties:


    Step 1blank.gif In the Vision client, choose Network Inventory > VTP Domains.

    Step 2blank.gif Double-click the VTP domain you want to view.

    The VTP Domain Properties window is displayed as shown in Figure 18-38.

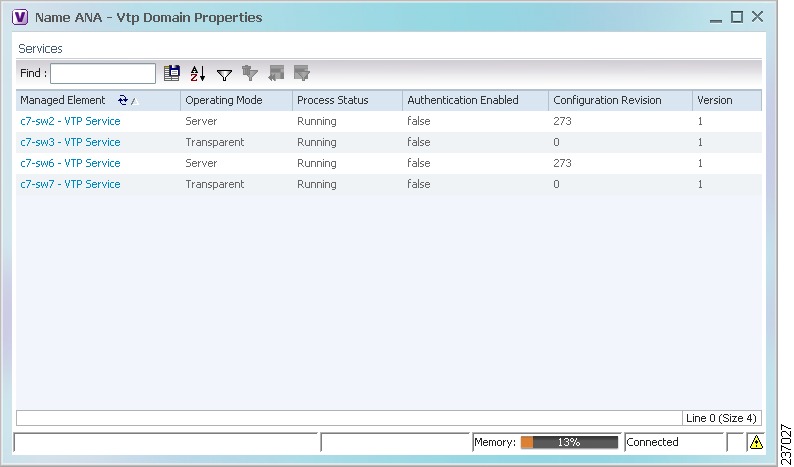

    Figure 18-38 VTP Domain Properties Window in Logical Inventory



    237027.tif

    Table 18-39 describes the information that is displayed in the VTP Domain Properties window.



    Table 18-39 VTP Domain Properties Window

    Field
    Description

    Managed Element

    Managed element name, hyperlinked to VTP in logical inventory.

    Operating Mode

    VTP operating mode:

    • Server—Allows VLAN creation, modification, and deletion, and specification of other configuration parameters for the entire VTP domain. Server is the default mode.
    • Client—Same behavior as VTP server, except VLANs cannot be created, changed, or deleted.
    • Transparent—The device does not participate in the VTP. The device does not advertise its VLAN configuration and does not synchronize its VLAN configuration based on received advertisements.

    However, the device forwards received VTP advertisements out of their trunk ports in VTP Version 2.

    • Off—The device does not participate in VTP and does not forward VTP advertisements.

    Process Status

    Status of the VTP process: Running or Disabled.

    Authentication Enabled

    Whether or not VTP authentication is enabled: True or False.

    Authentication ensures authentication and integrity of switch-to-switch VTP messages. VTP Version 3 introduces an additional mechanism to authenticate the primary VTP server as the only device allowed to change the VLAN configuration on a network-wide basis.

    Configuration Revision

    32-bit number that indicates the level of revision for a VTP packet.

    Each VTP device tracks the VTP configuration revision number that is assigned to it. Most VTP packets contain the VTP configuration revision number of the sender.

    Version

    VTP version: 1, 2, or 3.

    Step 3blank.gif To view the VTP properties at the device, double-click the VTP domain.

    Table 18-40 describes the VTP information that is displayed in the inventory window content pane.



    Table 18-40 VTP Properties in Inventory

    Field
    Description

    Operating Mode

    VTP operating mode: Server, Client, Transparent, or Off.

    Domain Name

    VTP domain name.

    Version

    VTP version: 1, 2, or 3.

    Pruning

    Whether or not VTP pruning is enabled: True or False.

    VTP pruning increases available bandwidth by restricting flooded traffic to those trunk links that the traffic must use to access the appropriate network devices.

    Configuration Revision

    32-bit number that indicates the level of revision for a VTP packet.

    Authentication

    Whether or not VTP authentication is enabled: True or False.

    Step 4blank.gif When finished, press Ctrl + F4 to close each VTP properties window.




    Viewing VLAN Bridge Properties

    You can view VLAN bridges provisioned on a device by displaying the device in the Vision client inventory window and choosing Bridges in logical inventory.

    To view VLAN bridge properties:


    Step 1blank.gif In the Vision client, double-click the device containing the VLAN bridges you want to view.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > Bridges > bridge.

    VLAN bridge properties are displayed as shown in Figure 18-39.

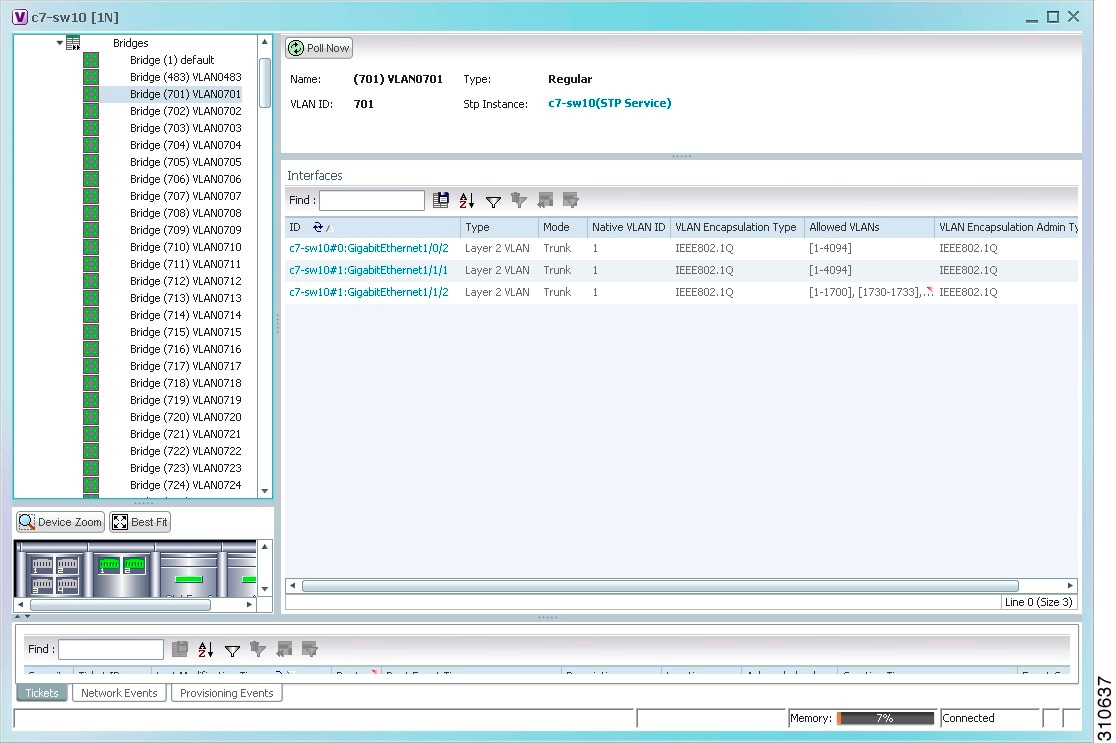

    Figure 18-39 VLAN Bridge Properties in Logical Inventory



    310637.tif

    Table 18-41 describes the information that is displayed. Depending on the bridge configuration, any of the tabs might be displayed for the selected bridge.



    Table 18-41 VLAN Bridge Properties

    Field
    Description

    Name

    VLAN bridge name.

    Type

    VLAN bridge type.

    MAC Address

    VLAN bridge MAC address.

    VLAN ID

    VLAN bridge VLAN identifier.

    STP Instance

    STP instance information, hyperlinked to the STP entry in logical inventory.

    Bridge Table Tab

    MAC Address

    Bridge MAC address.

    Port

    Port associated with the bridge, hyperlinked to the interface in physical inventory.

    Interfaces Tab

    ID

    VLAN interface identifier, hyperlinked to the interface in physical inventory.

    Type

    VLAN interface type, such as Layer 2 VLAN.

    Mode

    VLAN interface configuration mode:

    • Unknown—The interface is not VLAN aware.
    • Access—Puts the interface into permanent nontrunking mode and negotiates to convert the link into a nontrunk link. The interface becomes nontrunking.
    • Dynamic Auto—The interface can convert the link to a trunk link. The interface becomes a trunk if the neighbor interface is set to Trunk or Dynamic Desirable mode.
    • Dynamic Desirable—The interface actively attempts to convert the link to a trunk link. The interface becomes a trunk if the neighboring interface is set to Trunk, Dynamic Desirable, or Dynamic Auto mode. Dynamic Desirable is the default mode for all Ethernet interfaces.
    • Trunk—Puts the interface into permanent trunking mode and negotiates to convert the link into a trunk link. The interface becomes a trunk interface even if the neighbor interface is not a trunk interface.
    • Dot1Q Tunnel—Configures the interface as a tunnel (nontrunking) port to be connected in an asymmetric link with an 802.1Q trunk port. 802.1Q tunneling is used to maintain customer VLAN integrity across a service provider network.

    Native VLAN ID

    VLAN Identifier (VID) associated with this VLAN. The range of the VLAN ID is 1 to 4067.

    VLAN Encapsulation Type

    Type of encapsulation configured on the VLAN, such as IEEE 802.1Q.

    Allowed VLANs

    List of the VLANs allowed on this VLAN interface.

    VLAN Encapsulation Admin Type

    VLAN administration encapsulation type, such as IEEE 802.1Q.

    EFPs Tab

    EFP ID

    EFP identifier.

    Operational State

    EFP operational state.

    VLAN

    VLAN identifier.

    Inner VLAN

    CE-VLAN identifier.

    Translated VLAN

    Translated VLAN identifier.

    Translated Inner VLAN

    Translated CE-VLAN identifier.

    Binding Port

    Hyperlinked entry to the port in physical inventory.

    Description

    Brief description of the EFP.

    Pseudowires Tab

    ID

    Pseudowire identifier, hyperlinked to the VLAN entry in Bridges in logical inventory.

    Peer

    Identifier of the pseudowire peer, hyperlinked to the entry in the Pseudowire Tunnel Edges table in logical inventory.

    Tunnel ID

    Tunnel identifier.

    Tunnel Status

    Status of the tunnel: Up or Down.

    Peer Router IP

    IP address of the peer router for this pseudowire.

    Sub Interfaces Tab

    BER

    VLAN bit error rate.

    Interface Name

    Interface on which the VLAN is configured.

    VLAN Type

    Type of VLAN, such as Bridge or IEEE 802.1Q.

    Operational State

    Subinterface operational state.

    VLAN ID

    VLAN identifier.

    Inner VLAN

    CE-VLAN identifier.

    Step 3blank.gif When finished, press Ctrl + F4 to close each VLAN Bridge properties window.




    Using Commands to Work With VLANs

    The following commands can be launched from the physical inventory by right-clicking an Ethernet slot and choosing Commands > Configuration. Your permissions determine whether you can run these commands (see Permissions for Managing Carrier Ethernet). To find out if a device supports these commands, see the Cisco Prime Network 5.2 Supported Cisco VNEs.



    Table 18-42 VLAN Commands

    Command
    Inputs Required and Notes

    Create VLAN

    VLAN ID, VLAN Context Name, Bind Interface Name, Status

    Modify VLAN

    VLAN ID, Delete Bind Interface, Context Name, Bind Interface Name, Status

    Delete VLAN

    VLAN ID

    Working with VXLANs

    The following topics provide information and properties for working with VXLANs.

    Understanding Virtual Extensible LAN (VXLAN) and BGP EVPN Address Family

    Viewing VXLAN Properties

    Understanding Virtual Extensible LAN (VXLAN) and BGP EVPN Address Family

    Virtual Extensible LAN (VXLAN) is an overlay virtual network technology that is built on top of existing network Layer 2 and Layer 3 technologies to support elastic compute architectures.VXLAN uses VXLAN Identifier (VNI) that is similar to a VLAN ID to identify a user. VNI is a 24 bit ID which enables scalability of up to 16 million VNIs. Also, it is interchangeable with VXLAN Segment ID.

    VXLAN architecture consists of following devices.

    • Spine Devices— Spine devices are responsible for learning infrastructure routes and end-host subnet routes. Leaf devices communicate with their peers through Spine devices. Spine layer is the backbone of the network and is responsible for interconnecting all leaf switches fabric.
    • Access Leaf Devices—Consists of access switches that connect to Ethernet devices such as servers (host interfaces)
    • Border Leaf Devices—Connects to external network devices or services like router ports.

    Noteblank.gif VXLAN is enabled only on Leaf devices and not on Spine devices. BGP is used as an underlay protocol in Spine devices.


    Prime Network 5.2 supports VXLAN and BGP EVPN Address Family in inventory and fault. You can find associated VNIs information in logical inventory.

    VXLAN Architecture

    Figure 18-40 VXLAN Architecture



    429520.tif

    Viewing VXLAN Properties

    To view VXLAN information:


    Step 1blank.gif Right-click the required device in the Vision client and choose Inventory.

    Step 2blank.gif In the logical inventory window, choose Logical Inventory > VXLANs > VXLAN.

    Table 18-43 describes the information that is displayed for VXLAN.



    Table 18-43 VXLAN Information in Logical Inventory

    Field
    Description

    Name

    Name of the VXLAN.

    VNI Details Tab

    VNI

    VXLAN identifier used to identify a user.

    NVE Interface

    The name of the endpoint interface.

    Multicast Group

    The IP address of the multicast group.

    State

    The state of the VNI.

    Mode

    The mode of the VNI (For example, Control Plane or Data Plane)

    Layer Type

    The type of the layer of the VNI. For example, L2 for a bridge/VLAN and L3 for a VRF.

    Associated VLAN

    The link to the associated entity, which when clicked will highlight the associated Bridges record under the Bridges node.

    Associated VRF

    The link to the associated entity, which when clicked will highlight the Associated VRF record under the VRF node.

    Flags

    Displays the flag information pertaining to the VNI.

    VNI Neighbors Tab

    NVE Interface

    The name of the endpoint interface.

    Peer IP

    Remote peer IP address.

    Peer State

    State of the remote peer. For example, Up or Down.

    Learn Type

    The learn type of the peer (For example, Control or Data Plane).

    Peer UP Time

    The amount of time the interface has been active.

    Router MAC Address

    MAC address of the router.

    Mapping Associated VNI to Bridges

    To view the VXLAN ID associated with a bridge:

    1.blank.gif Double-click the required device in the Vision client.

    2.blank.gif In the Logical Inventory window, choose Logical Inventory > Context > Bridges > Bridge.

    3.blank.gif Click the required bridge. The Associated VNI field in the content pane displays the VXLAN ID associated with the bridge or VLAN. You can click the link to go to the corresponding VNI row in the VNI Details pane.


    Noteblank.gif The Associated VNI field is not visible in the content pane if there is no VNI associated with the bridge.





    Understanding Unassociated Bridges

    Some switching entities might not belong to a flow domain, such as a network VLAN, a VPLS instance, or a network pseudowire. These switching entities are referred to as unassociated bridges.

    In addition, a switching entity that belongs to a network VLAN is considered an unassociated bridge if it meets both of the following criteria:

    • The network VLAN contains a null Ethernet flow domain (EFD).
    • The switching entity contains no switch ports.

    Unassociated bridge switching entities can hold Ethernet flow points that serve as termination points on different network VLANs. If these switching entities are added to a map with the relevant VLANs, the links are displayed in the Vision client map.

    Adding Unassociated Bridges

    The Vision client enables you to add unassociated bridges to maps and to view their properties.

    To add an unassociated bridge to a map:


    Step 1blank.gif In the Vision client, select the required map or domain.

    Step 2blank.gif Open the Add Unassociated Bridge dialog box in one of the following ways:

      • Choose File Add to Map > Unassociated Bridge.
      • In the toolbar, click Add to Map and choose Unassociated Bridge.

    Figure 18-41 shows an example of the Add Unassociated Bridge dialog box.

    Figure 18-41 Add Unassociated Bridge Dialog Box



    237029.tif

    Step 3blank.gif In the Add Unassigned Bridge to domain dialog box, select the required bridge and click OK.

    The map is refreshed and displays the newly added bridge as shown in Figure 18-42.

    Figure 18-42 Unassociated Bridge in the Vision Window



    285165.tif




    Working with Ethernet Flow Point Cross-Connects

    Prime Network automatically discovers Ethernet flow point (EFP) cross-connects, also known as locally switched EFPs. Prime Network also identifies changes in already identified EFP cross-connects, such as cross-connect deletions or changes. Cross-connect changes can occur when one side of the cross-connect is removed or replaced.

    Prime Network also associates the VLANs that contain the EFPs that are part of the cross-connects. If the cross-connect contains a range EFP, which represents a range of VLANs, and you add the related VLANs to a map, the Vision client displays the links between them and the cross-connect as well.

    The Vision client enables you to add EFP cross-connects to maps and to view their properties in inventory, as described in the following topics:

    Adding EFP Cross-Connects

    To add an EFP cross-connect to a map:


    Step 1blank.gif In the Vision client, select the map to which you wish to add the cross-connect.

    Step 2blank.gif Open the Add EFP Cross-Connect dialog box in one of the following ways:

      • Choose File Add to Map > Cross Connect.
      • In the toolbar, click Add to Map and choose Cross Connect.

    Step 3blank.gif In the Add EFP Cross Connect to domain dialog box, select the required EFP cross-connect and click OK.

    The map is refreshed and displays the newly added EFP cross-connect.




    Viewing EFP Cross-Connect Properties

    To view EFP cross-connect properties in the Vision client, do either of the following:

    • Select the EFP cross-connect with the properties you want to view, and choose Node > Properties.
    • Double-click the device configured with an EFP cross-connect and, in the inventory window, choose Logical Inventory > Local Switching > Local Switching Entity.

    The information that is displayed for EFP cross-connects is the same in both the Local Switching Entry Properties window and in the Local Switching Table in logical inventory (as shown in Figure 18-43).

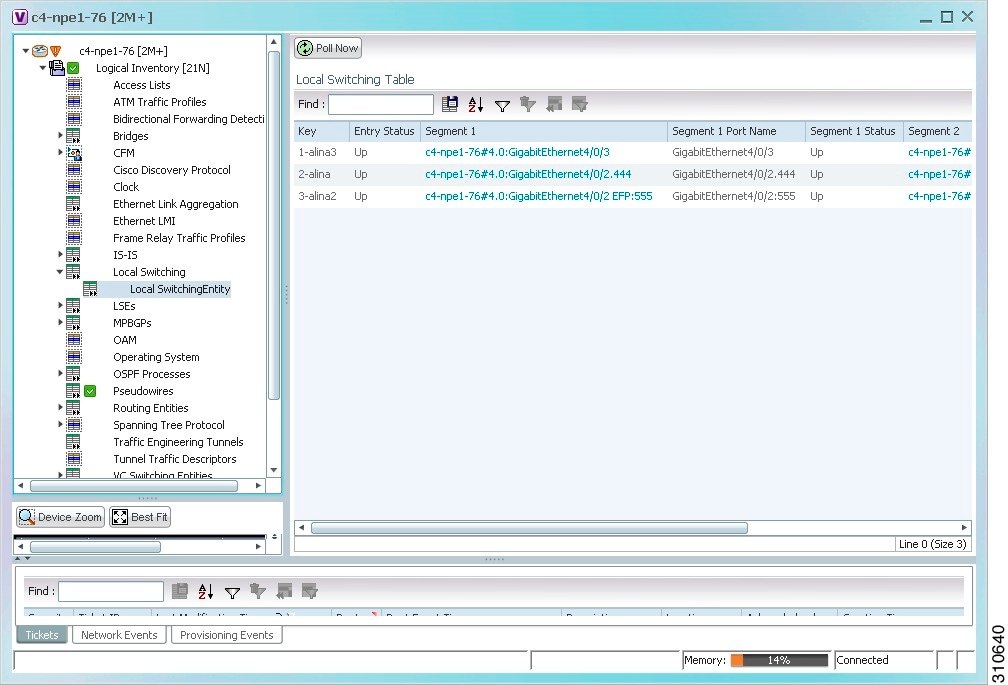

    Figure 18-43 Local Switching Table in Logical Inventory



    310640.tif

    Table 18-44 describes the information displayed for the EFP cross-connects in the Local Switching Table.



    Table 18-44 EFP Cross-Connect Properties in Local Switching Table

    Field
    Description

    Key

    Entry key for the cross-connect group.

    Entry Status

    Status of the cross-connect: Down, Unresolved, or Up.

    Segment 1

    Identifier of the first cross-connect segment, hyperlinked to the relevant entry in physical inventory.

    Segment 1 Port Name

    Identifier of the first cross-connect segment port.

    Segment 1 Status

    Status of the first cross-connect segment, such as Admin Up, Admin Down, Oper Down, or Up.

    Segment 2

    Identifier of the second cross-connect segment, hyperlinked to the relevant entry in physical inventory.

    Segment 2 Port Name

    Identifier of the second cross-connect segment port.

    Segment 2 Status

    Status of the second cross-connect segment, such as Admin Up, Admin Down, Oper Down, or Up.




    Working with VPLS and H-VPLS Instances

    Virtual Private LAN Service (VPLS) is a Layer 2 VPN technology that provides Ethernet-based multipoint-to-multipoint communication over MPLS networks. VPLS allows geographically dispersed sites to share an Ethernet broadcast domain by connecting sites through pseudowires. The network emulates a LAN switch or bridge by connecting customer LAN segments to create a single bridged Ethernet LAN.

    Hierarchical VPLS (H-VPLS) partitions the network into several edge domains that are interconnected using an MPLS core. The edge devices learn only of their local N-PE devices and therefore do not need large routing table support. The H-VPLS architecture provides a flexible architectural model that enables Ethernet multipoint and point-to-point Layer 2 VPN services, as well as Ethernet access to Layer 3 VPN services, enabling service providers to offer multiple services across a single high-speed architecture.

    Prime Network discovers the following VPLS-related information from the network and constructs VPLS instances:

    • VSIs
    • Pseudowires
    • EFPs
    • Switching entities

    The Vision client enables you to:

    blank.gif Viewing VPLS Instance Properties

    blank.gif Viewing Virtual Switching Instance Properties

    blank.gif Viewing VPLS Core or Access Pseudowire Endpoint Properties

    blank.gif Viewing VPLS Access Ethernet Flow Point Properties

    You can delete a VPLS forward from the Vision client if it is displayed with the reconciliation icon.

    Adding VPLS Instances to a Map

    You can add the VPLS instances that Prime Network discovers to maps as required.

    To add a VPLS instance to a map:


    Step 1blank.gif In the Vision client, select the required map or domain.

    Step 2blank.gif Open the Add VPLS Instance to map dialog box in either of the following ways:

      • In the toolbar, choose Add to Map > VPLS.
      • In the menu bar, choose File > Add to Map > VPLS.

    Step 3blank.gif In the Add VPLS Instance dialog box, do either of the following:

      • To search for specific elements:

    a. Choose Search.

    b. To narrow the display to a range of VPLS instances or a group of VPLS instances, enter a search string in the search field.

    c. Click Go.

    For example, if you enter VPLS1, the VPLS instances that have names containing the string VPLS1 are displayed.

      • To view all available VPLS instances, choose Show All and click Go.

    The VPLS instances that meet the specified search criteria are displayed in the Add VPLS Instance dialog box in table format. The dialog box also displays the date and time at which the list was generated. To update the list, click Refresh.


    Noteblank.gif If an element is not included in your scope, it is displayed with the locked device icon.


    For information about sorting and filtering the table contents, see Viewing a Table of NEs and Their Properties (List View).

    Step 4blank.gif In the Add VPLS Instance dialog box, select the instances that you want to add. You can select and add multiple instances by pressing Ctrl while selecting individual instances or by pressing Ctrl +Shift to select a group of instances.

    Step 5blank.gif Click OK.

    The VPLS instance is displayed in the navigation pane and in the content area. In addition, any associated tickets are displayed in the ticket pane.

    The VPLS instance information is saved with the map in the Prime Network database.




    Applying VPLS Instance Overlays

    An VPLS instance overlay allows you to isolate the parts of a network that are being used by a specific VPLS instance.

    To apply a VPLS instance overlay:


    Step 1blank.gif In the Vision client, choose the map in which you want to apply an overlay.

    Step 2blank.gif From the toolbar, choose Choose Overlay Type > VPLS.

    Figure 18-44 shows an example of the Select VPLS Instance Overlay for map dialog box.

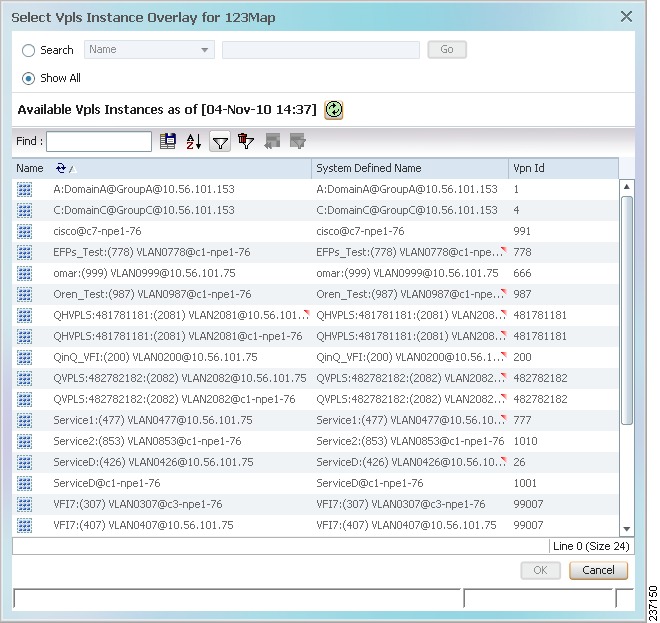

    Figure 18-44 Select VPLS Instance Overlay Dialog Box



    237150.tif

    Step 3blank.gif Select the required VPLS instance for the overlay.

    Step 4blank.gif Click OK.

    The elements being used by the selected VPLS instance are highlighted in the map while the other elements are dimmed, as shown in Figure 18-45.

    Figure 18-45 VPLS Instance Overlay in Vision Window



    285170.tif

    Step 5blank.gif To hide and view the overlay, click Hide Overlay/Show Overlay in the toolbar. The button toggles depending on whether the overlay is currently displayed or hidden.

    Step 6blank.gif To remove the overlay, choose Choose Overlay Type > None.




    Viewing Pseudowire Tunnel Links in VPLS Overlays

    When a VPLS overlay is applied to a map in the Vision client, you can view the details of the pseudowires that are interconnected through selected links.

    To view unidirectional or bidirectional pseudowire traffic links when a VPLS overlay is applied to a map:


    Step 1blank.gif Right-click the required link in the overlay, and choose Show Callouts. The link must be visible (not dimmed) in the map.

    Link information is displayed as shown in Figure 18-46.

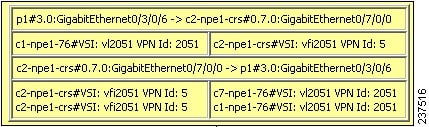

    Figure 18-46 Link Callout Window for a VPLS Overlay



    237516.tif

    The callout window displays the following information for each link represented by the selected link:

      • Link details and direction.
      • Details of the sites using the link and the interlinks.

    Step 2blank.gif To view the pseudowire link details, double-click the yellow callout window.

    The details about the link are displayed in the Link Details window as shown in Figure 18-47.

    Figure 18-47 Link Details Window for a VPLS Overlay



    285148.tif

    The Link Details window provides the following information:



    1

    Link details and direction. In this example, the link is from p1 to p2.

    3

    Link details and direction. In this example, the link is from p2 to p1.

    2 and 4

    Details of the pseudowire tunnel traversing this link.

    Step 3blank.gif Click OK to close the Link Details window.

    Step 4blank.gif To close the link callout window, right-click the selected link, then choose Hide Callouts.




    Viewing VPLS-Related Properties

    The Vision client enables you to view the properties of the following VPLS-related elements:

    Viewing VPLS Instance Properties

    To view the properties of a VPLS instance in the Vision client, open the VPLS Instance Properties window in either of the following ways:

    • In the navigation pane or the map pane, right-click the VPLS instance and choose Properties.
    • In the navigation pane or the map pane, select the VPLS instance and choose Node > Properties.

    Figure 18-48 shows an example of the VPLS Instance Properties window.

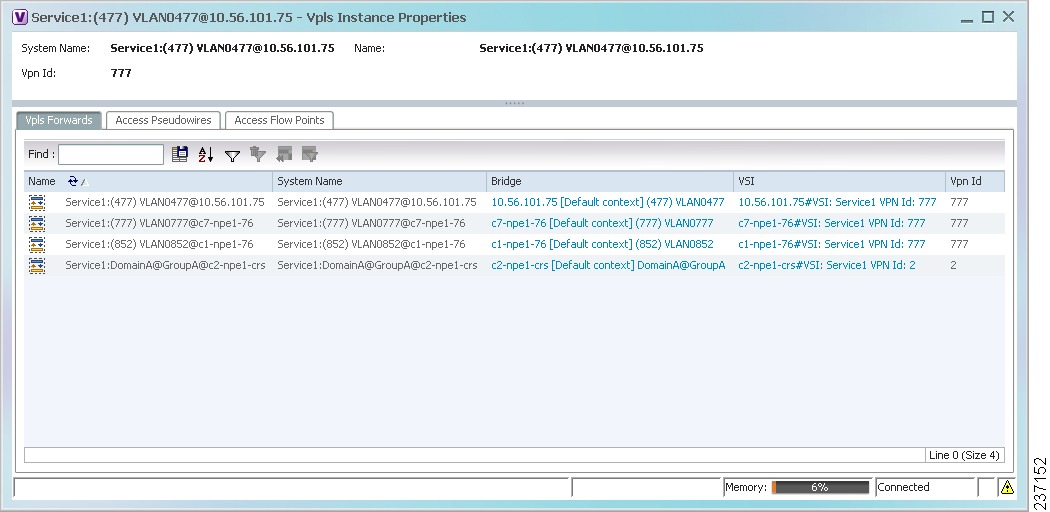

    Figure 18-48 VPLS Instance Properties Window



    237152.tif

    Table 18-45 describes the information that is displayed for VPLS instance properties.

    The tabs that appear in the window depend on the VPLS instance and its configuration.



    Table 18-45 VPLS Instance Properties

    Field
    Description

    System Name

    Name that Prime Network assigns to the VPLS instance.

    Name

    User-defined name of the VPLS instance.

    When the VPLS instance is created, the system name and this name are the same. If you change the name of the VPLS instance (right-click, then choose Rename), the changed name appears in this field whereas the system name retains the original name.

    VPN ID

    VPN identifier used in an MPLS network to distinguish between different VPLS traffic.

    VPLS Forwards Tab

    Name

    User-defined name of the VPLS forward.

    System Name

    Name that Prime Network assigns to the VPLS forward.

    Bridge

    Bridge that the VSI is configured to use, hyperlinked to the bridge table in logical inventory.

    VSI

    VSI hyperlinked to the relevant entry in logical inventory.

    VPN ID

    VPN identifier for the VSI.

    Access Pseudowires Tab

    Name

    Pseudowire name.

    Port

    VSI on which the pseudowire is configured, hyperlinked to the entry in logical inventory.

    Local Router IP

    Local router IP address on which the pseudowire is configured.

    Tunnel ID

    Virtual circuit identifier of the pseudowire.

    PTP Tunnel

    Hyperlinked entry to the pseudowire properties in logical inventory.

    Peer Router IP

    Peer router IP address on which the pseudowire is configured.

    Peer OID

    Hyperlinked entry to the pseudowire properties of the peer.

    Pseudowire Type

    Type of pseudowire, such as Ethernet, Ethernet Tagged, CESoPSN Basic, PPP, or SAToP.

    Pseudowire Edge Binding Type

    Pseudowire endpoint association:

    • 0—Unknown
    • 1—Connection termination point
    • 2—Ethernet flow point
    • 3—Switching entity
    • 4—Pseudowire switching entity
    • 5—VPLS forward
    Access Flow Points Tab

    Name

    Access flow point name. Double-click to view port connector properties.

    Port

    Interface configured as a flow point, hyperlinked to the interface in physical inventory.

    Viewing Virtual Switching Instance Properties

    To view VSI properties in the Vision client, open the VSI properties window in either of the following ways:

    • Double-click the required device and, in the Inventory window, choose Logical Inventory > VSIs > vsi.
    • In the navigation pane, expand the VPLS instance, right-click the required VPLS forward, and choose Inventory or Properties. (See Figure 18-49.)

    Figure 18-49 VPLS Forward in Vision Window Navigation Pane



    282979.tif

    If you right-click the VPLS forward and choose Inventory, the inventory window is displayed. If you right-click the VPLS forward and choose Properties, the VSI Properties window is displayed. The information displayed is the same for both options.

    VSI properties are displayed as shown in Figure 18-50.

    Figure 18-50 VSI Properties in Logical Inventory



    282980.tif

    Table 18-46 describes the information that is displayed for the selected VSI.



    Table 18-46 VSI Properties in Logical Inventory

    Field
    Description

    VSI Name

    VSI name.

    VPN ID

    VPN identifier used in an MPLS network to distinguish between different VPLS traffic.

    VSI Mode

    VSI mode: Point-to-Point (default) or Multipoint.

    Discovery Mode

    VSI discovery mode: Manual, BGP, LDP, RADIUS, DNS, MSS/OSS, or Unknown.

    Operational State

    VSI operational status: Up or Down.

    Administrative State

    VSI administrative status: Up or Down.

    Local Bridge

    Local bridge, hyperlinked to the bridge in logical inventory.

    Pseudowires Table

    Pseudowire ID

    Pseudowire identifier, hyperlinked to the Tunnel Edges table under Pseudowires in logical inventory.

    Autodiscovery

    Whether the pseudowire was automatically discovered: True or False.

    Split Horizon

    SSH pseudowire policy that indicates whether or not packets are forwarded to the MPLS core: True or False.

    Pseudowire Peer IP

    IP address of the pseudowire peer.

    Pseudowire VC ID

    Pseudowire virtual circuit identifier.

    Viewing VPLS Core or Access Pseudowire Endpoint Properties

    Pseudowire endpoints are displayed under VPLS Instance (Access) or VPLS Forward (Core) in the Vision client navigation pane.

    To view pseudowire endpoint properties for a VPLS instance, right-click the required pseudowire endpoint in the navigation pane, and choose Properties. (See Figure 18-51.)

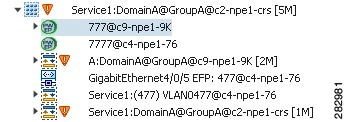

    Figure 18-51 VPLS Pseudowire in Vision Window Navigation Pane



    282981.tif

    Figure 18-52 shows an example of the Tunnel Properties window that is displayed.

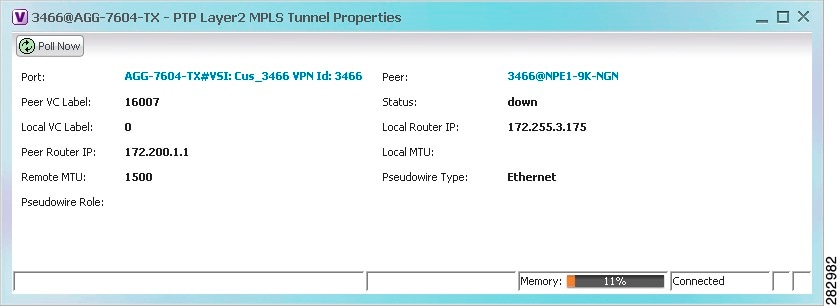

    Figure 18-52 VPLS Tunnel Properties Window



    282982.tif

    Table 18-47 describes the information that is displayed for pseudowire endpoint properties.



    Table 18-47 Tunnel Properties Window

    Field
    Description

    Port

    VSI on which the pseudowire is configured, hyperlinked to the VSI in logical inventory.

    Peer

    Hyperlinked entry to the pseudowire endpoint peer pseudowires in logical inventory.

    Peer VC Label

    MPLS label that is used by this router to identify or access the tunnel. It is inserted into the MPLS label stack by the peer router.

    Tunnel Status

    Operational state of the tunnel: Up or Down.

    Local VC Label

    MPLS label that is used to identify or access the tunnel. It is inserted into the MPLS label stack by the local router.

    Local Router IP

    IP address of this tunnel edge, which is used as the MPLS router identifier.

    Tunnel ID

    Identifier that, along with the router IP addresses of the two pseudowire endpoints, identifies the PWE3 tunnel.

    Peer Router IP

    IP address of the peer tunnel edge, which is used as the MPLS router identifier.

    Local MTU

    Size, in bytes, of the MTU on the local interface.

    Remote MTU

    Size, in bytes, of the MTU on the remote interface.

    Signaling Protocol

    Protocol used by MPLS to build the tunnel, such as LDP or TDP.

    Pseudowire Type

    Type of pseudowire, such as Ethernet, Ethernet Tagged, CESoPSN Basic, PPP, or SAToP.

    Viewing VPLS Access Ethernet Flow Point Properties

    The ports that represent the attachment circuits to VPLS instances are displayed under VPLS instances in the Vision client navigation pane.

    To view the properties for the Access Ethernet Flow Points configured for a VPLS instance, right-click the required interface in the navigation pane, and choose Inventory. (See Figure 18-53.)

    Figure 18-53 VPLS Interface in Vision Window Navigation Pane



    282983.tif

    Figure 18-54 shows an example of the information displayed for the interface in physical inventory.

    Figure 18-54 EFP Properties in Physical Inventory



    282984.tif

    The information displayed in this window is the same as that displayed when the interface is selected in physical inventory.

    The following information is displayed, depending on the interface and its configuration:

    Configuring VFI Autodiscovery and Signaling

    The following commands enable you to configure VFI autodiscovery and signalling at the device level or at the VSI Level. To find out if a device supports these commands, see the Cisco Prime Network 5.2 Supported Cisco VNEs.

    Command
    Navigation
    Description

    Configure VFI Autodiscovery and Signaling

    Logical Inventory > right-click the VSI > Commands > Configuration > Configure VFI Autodiscovery and Signaling

    Use this command to configure Autodiscovery and Signaling at the VFI level.

    Right-click the ASR 9000 series device > Commands > Configuration > Configure VFI Autodiscovery and Signaling

    Use this command to configure Autodiscovery and Signaling at the device level.

    Working with Pseudowires

    Prime Network supports the discovery and modeling of Any Transport over MPLS (AToM) and Ethernet over MPLS (EoMPLS) domains that span multisegment pseudowires. After discovery is complete, you can add any of the pseudowires to a map, view their properties in logical inventory, or view their redundancy status. For information on the devices that support pseudowire technology, refer to Cisco Prime Network 5.2 Supported Cisco VNEs.

    The following topics describe the options available to you for working with pseudowires in Prime Network:

    Adding Pseudowires to a Map

    You can add a pseudowire that Prime Network discovers to maps as required.

    To add a pseudowire to a map:


    Step 1blank.gif In the Vision client, select the required map or domain.

    Step 2blank.gif Open the Add Pseudowire to map dialog box in either of the following ways:

      • In the toolbar, choose Add to Map > Pseudowire.
      • In the menu bar, choose File > Add to Map > Pseudowire.

    Figure 18-55 shows an example of the Add Pseudowire dialog box.

    Figure 18-55 Add Pseudowire Dialog Box



    310641.tif

    Step 3blank.gif In the Add Pseudowire dialog box, do either of the following:

      • To search for specific elements:

    a. Choose Search.

    b. To narrow the display to a range of pseudowire or a group of pseudowires, enter a search string in the search field.

    c. Click Go.

    For example, if you enter pseudo1, the pseudowires that have names containing the string “pseudo1” are displayed.

      • To view all available pseudowires, choose Show All and click Go.

    The pseudowires that meet the specified search criteria are displayed in the Add Pseudowire dialog box in table format. The dialog box also displays the date and time at which the list was generated. To update the list, click Refresh.


    Noteblank.gif If an element is not included in your scope, it is displayed with the locked device icon.


    For information about sorting and filtering the table contents, see Viewing a Table of NEs and Their Properties (List View).

    Step 4blank.gif In the Add Pseudowire dialog box, select the pseudowires that you want to add. You can select and add multiple pseudowires by pressing Ctrl while selecting individual pseudowires or by pressing Ctrl +Shift to select a group of pseudowires.

    Step 5blank.gif Click OK.

    The pseudowire is displayed in the navigation pane and in the content area. In addition, any associated tickets are displayed in the ticket pane. See Figure 18-56.

    Figure 18-56 Pseudowire in Vision Map



    285161.tif

    Step 6blank.gif Click the pseudowire in the navigation pane or double-click the pseudowire in the map pane to view the pseudowire components, such as pseudowire endpoints, pseudowire switching entities, and terminating interfaces.

    Figure 18-57 shows an example of an expanded pseudowire in the Vision client.

    Figure 18-57 Pseudowire Components in Vision Maps



    285160.tif




    The pseudowire information is saved with the map in the Prime Network database.

    Pseudowire discovery

    As explained earlier, a pseudowire is a point-to-point connection between pairs of provider edge (PE) routers.

    In a PW-HE configuration, the network PseudoWire service will include pseudowire edges. One of these edges will be connected to a dedicated ethernet flow point that will represent the pseudowire headend port.

    Viewing Pseudowire Properties

    To view pseudowire properties:


    Step 1blank.gif In the Vision client, select the required map or domain.

    Step 2blank.gif To view pseudowire endpoint properties configured on an element:

    a.blank.gif In the navigation or map pane, right-click the required element and then choose Inventory.

    b.blank.gif In the Inventory window, choose Logical Inventory > Pseudowires.

    The Tunnel Edges table is displayed, listing the pseudowire endpoints configured on the selected element. For a description of the information contained in the Pseudowires Tunnel Edges table, see Table 17-29 .

    Step 3blank.gif To view the properties of a pseudowire that you added to a map, do either of the following:

      • If the pseudowire icon is of the largest size, click the Properties button.
      • Right-click the element, and then choose Properties.

    The Pseudowire Properties window is displayed as shown in Figure 18-58.

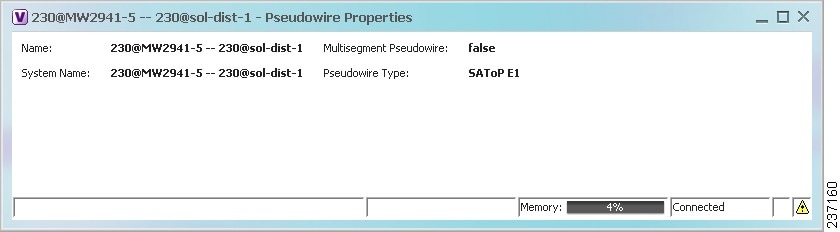

    Figure 18-58 Pseudowire Properties Window



    237160.tif

    Table 18-48 describes the information presented in the Pseudowire Properties window.



    Table 18-48 Pseudowire Properties Window

    Field
    Description

    Name

    Name of the pseudowire.

    Multisegment Pseudowire

    Whether or not the pseudowire is multisegment: True or False.

    System Name

    Internal or system-generated name of the pseudowire.

    Pseudowire Type

    Type of pseudowire, such as Ethernet, Ethernet Tagged, CESoPSN Basic, PPP, or SAToP.

    Step 4blank.gif To view the properties of a pseudowire endpoint associated with a pseudowire, right-click the required pseudowire endpoint, and then choose Properties.

    The Tunnel Properties window containing the pseudowire endpoint properties is displayed as shown in Figure 18-52 and described in Table 18-47 .

    Step 5blank.gif To view the properties of a pseudowire switching entity associated with the pseudowire, select the switching entity, and then choose Node > Inventory.

    The Local Switching table is displayed as shown in Figure 18-43.

    Table 18-44 describes the information displayed in the Local Switching table.

    Step 6blank.gif To view the properties of the pseudowire endpoint that terminates on the subinterface, right-click the required interface, and then choose Properties.


    Noteblank.gif The selected port must be an Ethernet subinterface for the Contained Current CTPs table to be displayed.


    Table 18-49 describes the information displayed in the Contained Current CTPs table.



    Table 18-49 Contained Current CTPs Table

    Field
    Description

    Local Interface

    The name of the subinterface or port, hyperlinked to the interface in physical inventory.

    ID

    The tunnel identifier, hyperlinked to Pseudowires Tunnel Edges table in logical inventory.

    Peer

    The peer tunnel identifier, hyperlinked to the peer pseudowire tunnel in logical inventory.

    Tunnel ID

    The identifier that, along with the router IP addresses of the two tunnel edges, identifies the tunnel.

    Tunnel Status

    The operational state of the tunnel: Up or Down.

    Local Router IP

    The IP address of this tunnel edge, which is used as the router identifier.

    Peer Router IP

    The IP address of the peer tunnel edge, which is used as the router identifier.

    Pseudowire Type

    Type of pseudowire, such as Ethernet, Ethernet Tagged, CESoPSN Basic, PPP, or SAToP.

    Local MTU

    The size, in bytes, of the MTU on the local interface.

    Remote MTU

    The size, in bytes, of the MTU on the remote interface.

    Local VC Label

    The MPLS label that is used by this router to identify or access the tunnel. It is inserted in the MPLS label stack by the local router.

    Peer VC Label

    The MPLS label that is used by this router to identify or access the tunnel. It is inserted in the MPLS label stack by the peer router.

    Signaling Protocol

    The protocol used to build the tunnel, such as LDP or TDP.

    Preferred Path Tunnel

    The path to be used for pseudowire traffic.

    Step 7blank.gif To view the properties of an Ethernet flow point associated with the pseudowire, right-click the EFP and then choose Properties.

    See Viewing EFP Properties for the information that is displayed for EFPs.




    Displaying Pseudowire Information

    Use the following procedure to view Virtual Circuit Connectivity Verification (VCCV) and Control Channel (CC) information for a pseudowire endpoint. Your permissions determine whether you can run these commands (see Permissions for Managing Carrier Ethernet). To find out if a device supports these commands, see the Cisco Prime Network 5.2 Supported Cisco VNEs.


    Step 1blank.gif In the require map, double-click the required device configured for pseudowire.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > Pseudowire.

    Step 3blank.gif In the Tunnel Edges table, right-click the required interface and choose Commands > Show > Display Pseudowire.

    Step 4blank.gif In the Display Pseudowire dialog box, preview or execute the command. The following information is displayed:

      • The element name.
      • The command issued.
      • The results, including:

    blank.gif VCCV: CC Type—The types of CC processing that are supported. The number indicates the position of the bit that was set in the received octet. The available values are:

    - CW [1]—Control Word

    - RA [2]—Router Alert

    - TTL [3]—Time to Live

    - Unkn [x]—Unknown

    blank.gif Elapsed time—The elapsed time, in seconds.

    Step 5blank.gif Click Close to close the Display Pseudowire dialog box.




    Viewing Pseudowire Redundancy Service Properties

    If a pseudowire is configured for redundancy service, a redundancy service badge is applied to the secondary (backup) pseudowire in the navigation and map panes in the Vision client. Additional redundancy service details are provided in the inventory window for the device on which the pseudowire is configured.

    To view redundancy service properties for pseudowires:


    Step 1blank.gif To determine if a pseudowire is configured for redundancy service, expand the required pseudowire in the navigation or map pane.

    If the pseudowire is configured for redundancy service, the redundancy service badge appears in the navigation and map panes as shown in Figure 18-59.

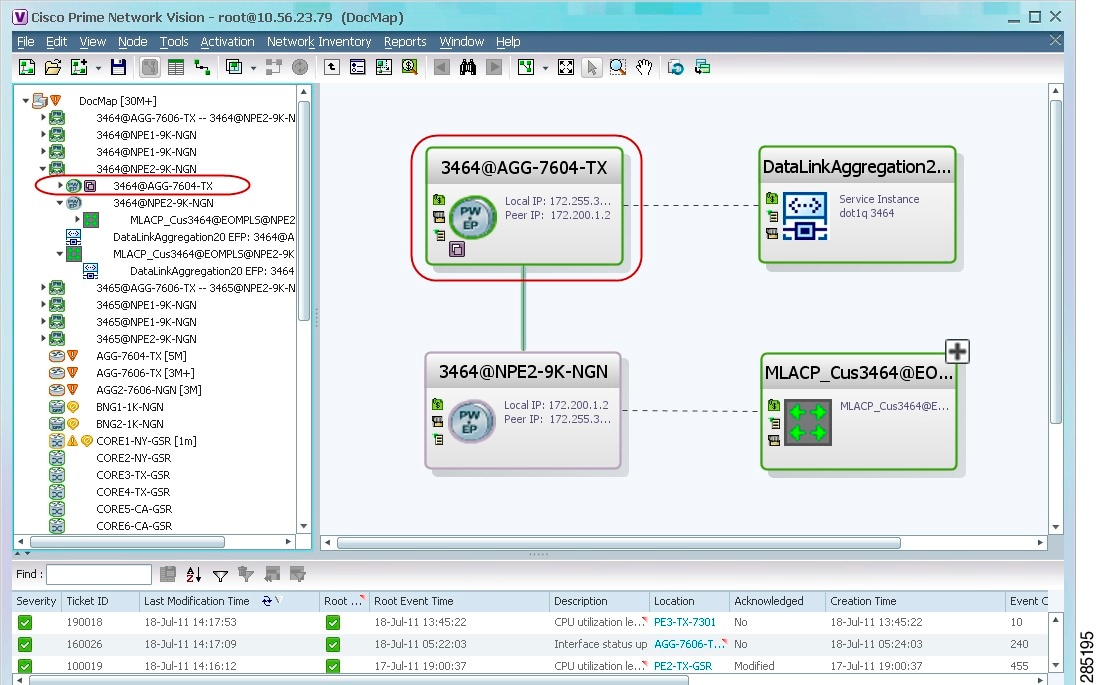

    Figure 18-59 Pseudowire Redundancy Service Badge in a Map



    285195.tif

    Step 2blank.gif To view additional details, in the map, double-click the element with the redundancy service badge.

    The PTP Layer 2 MPLS Tunnel Properties window is displayed as shown in Figure 18-60 and shows that the selected pseudowire has a Secondary role in a redundancy service.

    Figure 18-60 Layer 2 MPLS Tunnel Properties for Pseudowire Redundancy Service



    283332.tif

    Step 3blank.gif In the PTP Layer 2 MPLS Tunnel Properties window, click the VC ID hyperlink.

    The Tunnel Edges table in logical inventory is displayed, with the local interface selected in the table. (See Figure 18-61.)

    Figure 18-61 Pseudowire Redundancy Service in Logical Inventory



    283333.tif

    The entries indicate that the selected tunnel edge has a Secondary role in the first VC and a Primary role in the second VC.

    For more information about the Pseudowires Tunnel Edges table, see Table 17-29 .




    Applying Pseudowire Overlays

    A pseudowire overlay allows you to isolate the parts of a network that are used by a specific pseudowire.

    To apply a pseudowire overlay:


    Step 1blank.gif In the Vision client, choose the map in which you want to apply an overlay.

    Step 2blank.gif From the toolbar, choose Choose Overlay Type > Pseudowire.

    Figure 18-62 shows an example of the Select Pseudowire Overlay for map dialog box.

    Figure 18-62 Select Pseudowire Overlay Dialog Box



    310731.tif

    Step 3blank.gif Select the required pseudowire for the overlay.

    Step 4blank.gif Click OK.

    The elements being used by the selected pseudowire are highlighted in the map while the other elements are dimmed, as shown in Figure 18-63.

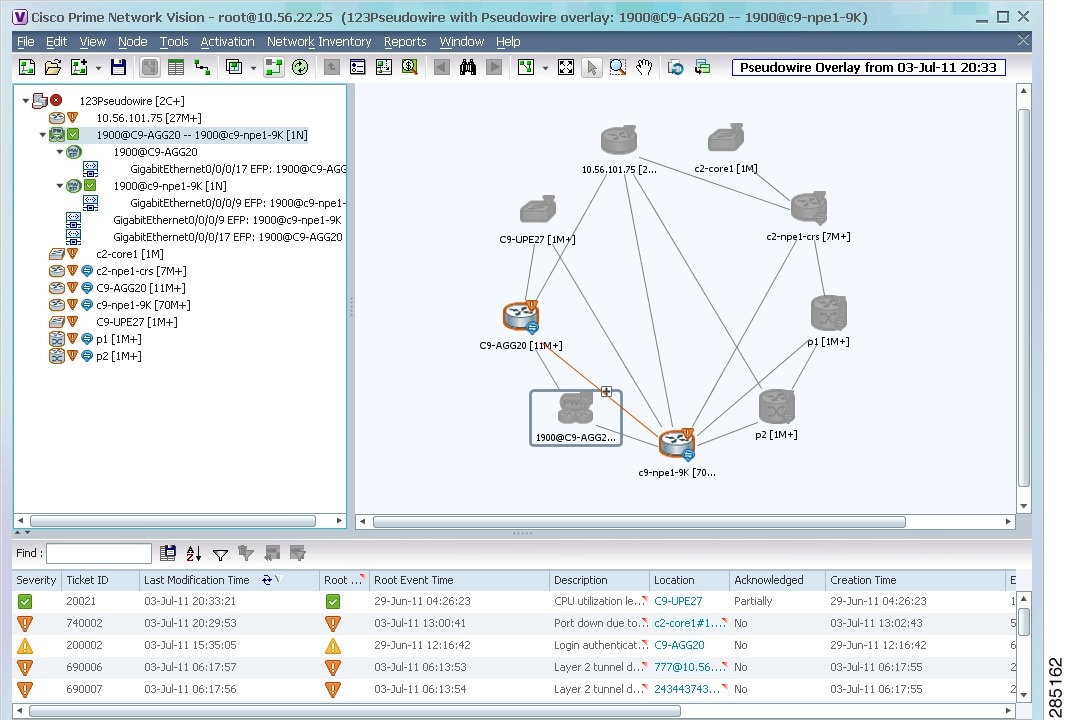

    Figure 18-63 Pseudowire Overlay in Vision Window



    285162.tif

    Step 5blank.gif To hide and view the overlay, click Hide Overlay/Show Overlay in the toolbar. The button toggles depending on whether the overlay is currently displayed or hidden.

    Step 6blank.gif To remove the overlay, choose Choose Overlay Type > None.




    Monitoring the Pseudowire Headend

    A pseudowire (PW) is an emulation of a point-to-point connection over a packet-switching network (PSN). It operates over a uniform packet-based access/aggregation network. The composite L2 AC and the PW segment together form a point-to-point virtual CE-PE link that functions like a traditional CE-PE link technology.

    Figure 18-64 displays a typical pseudowire deployment over core network and Figure 18-65 displays a pseudowire deployment over access network.

    Figure 18-64 Pseudowire Deployment Over Core Network



    320488.eps

    Figure 18-65 Pseudowire Deployment Over Access Network



    320494.eps

    A pseudowire headend (PW-HE) virtual interface originates as a PW on an access node and terminates on a Layer 3 service instance on the service provider router. For example, a PWHE can originate on the Layer 2 PW feeder node and terminate on a VRF instance on the Cisco CRS Router. You can configure all ingress and egress QoS function on the PW-HE interface, including policing, shaping, queuing, and hierarchical policies.

    In other words, the PW-HE is a technology that allows termination of access or aggregation pseudowires into an L2 or L3 domain. It allows us to replace a 2-node solution with a 1-node solution. Without a PW-HE, a L2 PE node must terminate a PW and then handoff the data to a S-PE via an Access Circuit.

    The following figure displays the PW-HE interface:

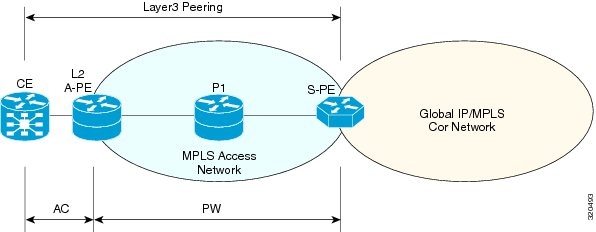

    Figure 18-66 PW-HE Interface



    320493.eps

    The PW-HE interface is treated like any existing L3 interface and operates on one of the following nodes:

    • Bridged interworking (VC type 5 or 4) node—PW will carry customer Ethernet frames with IP payload. The S-PE device must perform ARP resolution for customer IP addresses learnt over PW-HE, which acts as a broadcast interface.
    • IP interworking node (VC type 11)—The PW-HE acts as a point-to-point interface. Hence, there will be two types of PW-HE interface-PW-Ether and PW-IW. These PW’s can terminate into a VRF or the IP global table on SP-E.

    Viewing the PW-HE configuration

    To view the PW-HE configuration:


    Step 1blank.gif Right-click the required device in the Vision client and choose Inventory.

    Step 2blank.gif In the logical inventory window, choose Logical Inventory > PW-HE. The list of PW-HE interfaces configured in Prime Network are displayed in the content pane.

    Step 3blank.gif From the PW-HE node, choose a PW-HE interface. The PW-HE interface details are displayed in the content pane as shown in Figure 18-67.

    Figure 18-67 PW-HE Configuration Details



    320486.tif

    Table 18-50 displays the PW-HE interface details.



    Table 18-50 PW-HE Interface Details

    Field
    Description

    Interface Name

    The unique name to identify the PW-HE interface.

    Admin State

    The administrative state of the PW-HE, which can be any one of the following:

    • Up
    • Down

    Oper State

    The operational state of the PW-HE, which can be any one of the following:

    • Up
    • Down

    IP Interface

    The IP interface for the PW-HE, which when clicked will take you either to the associated VRF interface site under the VRF node or the associated IP Interface under the Routing Entity node.

    Pseudowire

    The pseudowire to which the PW-HE is associated with, which when clicked will take you to the Pseudowire node.

    Generic Interface List

    The generic interface list linked to the PW-HE, which when clicked will take you to the relevant node under the PW-HE Generic Interfaces Lists node.

    MTU

    The maximum number of transmission units (in bytes) for the PW-HE interface.

    Bandwidth

    The bandwidth (in kbits) for the PW-HE interface.

    MAC Address

    The MAC address specified for the PW-HE interface, which is generally in the xxx.xxx.xxx format.

    Label

    The MPLS label for the PW-HE interface.

    L2 Overhead

    The layer 2 overhead (in bytes) configured on the PW-HE interface, which can be any value between 0 and 64. This field defaults to 0.




    You can also view the following configuration details for a PW-HE interface:

    Viewing PW-HE Configured as a Local Interface under Pseudowire

    To view the local interface details:


    Step 1blank.gif Right-click the required device in the Vision client and choose Inventory.

    Step 2blank.gif In the logical inventory window, choose Logical Inventory > Pseudowire. The list of Pseudowire interfaces configured in Prime Network are displayed in the content pane. For more information on Pseudowire properties, see Viewing Pseudowire Properties.

    Viewing PW-HE L2 Sub-Interface Properties

    To view the L2 Sub-Interface details:


    Step 1blank.gif Right-click the required device in the Vision client and choose Inventory.

    Step 2blank.gif In the logical inventory window, choose Logical Inventory > PW HE > PW-Ether interface . The list of PW-HE interfaces configured in Prime Network are displayed in the content pane.

    Step 3blank.gif Choose the EFPs tab of an interface to view the details.

    Table 18-51 displays the PW-HE L2 Sub-Interface details.



    Table 18-51 PW-HE L2 Sub-Interface Details

    Field
    Description

    EFPs tab

    EFP ID

    EFP identifier.

    Operational State

    EFP operational state: Up or Down.

    VLAN

    VLAN associated with this EFP.

    Inner VLAN

    CE-VLAN identifier.

    Translated VLAN

    Translated, or mapped, VLAN identifier.

    Translated Inner VLAN

    Translated, or mapped, inner VLAN identifier.

    Binding

    Hyperlinked entry to the specific bridge in logical inventory.

    Description

    Description for the EFP.

    Ingress Policy

    The name of the ingress service policy associated with the subscriber template. This field is applicable only for IP Subscriber and Service templates.

    Egress Policy

    The name of the egress service policy associated with the subscriber template. This field is applicable only for IP Subscriber and Service templates.

    Service Control Policy

    Specifies the policy for a port or operation.

    Viewing PW-HE L3 Sub-interface Properties

    To view the L3 Sub-Interface details:


    Step 1blank.gif Right-click the required device in the Vision client and choose Inventory.

    Step 2blank.gif In the logical inventory window, choose Logical Inventory > PW HE > PW-Ether interface . The list of PW-HE interfaces configured in Prime Network are displayed in the content pane.

    Step 3blank.gif Choose the Sub Interfaces tab of an interface to view the details.

    Table 18-52 displays the PW-HE L3 Sub-Interface details.



    Table 18-52 PW-HE L3 Sub-Interface Details

    Field
    Description

    Sub Interfaces tab

    Address

    EFP identifier.

    Mask

    The mask of the specific network.

    VLAN Type

    The VLAN interface type, such as Layer 2 VLAN.

    Operational State

    EFP operational state: Up or Down.

    VLAN ID

    VLAN identifier.

    Inner VLAN

    CE-VLAN identifier.

    IP Interface

    IP interface, hyperlinked to the VRF properties in the inventory window.

    VRF Name

    Virtual Routing and Forwarding (VRF) name, if the pool belongs to a VRF.

    VC

    Virtual connection identifier.

    Binding

    Hyperlinked entry to the specific bridge in logical inventory.

    Description

    Description for the EFP.

    Ingress Policy

    The name of the ingress service policy associated with the subscriber template. This field is applicable only for IP Subscriber and Service templates.

    Egress Policy

    The name of the egress service policy associated with the subscriber template. This field is applicable only for IP Subscriber and Service templates.

    Service Control Policy

    Specifies the policy for a port or operation.

    Viewing PW-HE Generic Interface List

    To view the PW-HE generic interface list:


    Step 1blank.gif Right-click the required device in the Vision client and choose Inventory.

    Step 2blank.gif In the logical inventory window, choose Logical Inventory > PW-HE Generic Interface List. The list of generic interfaces configured in Prime Network are displayed in the content pane.

    Step 3blank.gif From the PW-HE Generic Interface List node, choose a generic interface list. The interface details are displayed in the content pane.

    Table 18-53 displays the PW-HE Generic Interface List details.



    Table 18-53 PW-HE Generic Interface List Details

    Field
    Description

    Generic Interface

    The name of the generic interface list.

    Interfaces tab

    Interface

    The Ethernet Link Aggregation Group (LAG) for the PW-HE service, which when clicked will take you to the LAG node.




    Viewing PW-HE as an Associated Entity for a Routing Entity

    To view the routing entity details for a PW-HE:


    Step 1blank.gif Right-click the required device in the Vision client and choose Inventory.

    Step 2blank.gif In the logical inventory window, choose Logical Inventory > Routing Entities > Routing Entity. The routing entity details for the PW-HE is displayed in the content pane. For more information on Routing entity details, see Viewing Routing Entities.




    Viewing PW-HE as an Associated Entity for a VRF

    To view the VRF details for a PW-HE:


    Step 1blank.gif Right-click the required device in the Vision client and choose Inventory.

    Step 2blank.gif In the logical inventory window, choose Logical Inventory > VRF > PW-HE node. The VRF details for the PW-HE is displayed in the content pane. For more information on VRF details, see Viewing VRF Properties.




    Working with Ethernet Services

    Ethernet services are created when the following business elements are linked to one another:

    • Network VLAN and bridge domain are linked through a shared EFP.
    • Network VLAN and VPLS instance are linked through either of the following:

    blank.gif A shared, standalone EFP.

    blank.gif A shared switching entity.

    • Network VLAN and network pseudowire (single or multi-segment) are linked through either of the following:

    blank.gif A shared, standalone EFP.

    blank.gif A shared switching entity.

    • VPLS-EoMPLS connected via a shared access pseudowire endpoint.
    • Network VLAN and cross-connect are connected by a shared EFP.
    • Network VLAN and service link are connected by a shared EFP.

    If a VPLS, network pseudowire, cross-connect, or network VLAN object is not connected to another business element, it resides alone in an Ethernet service.

    In releases prior to Prime Network 3.8, EVC multiplex was discovered by means of Ethernet flow point associations. Beginning with Prime Network 3.9, multiplex capabilities were enhanced to distinguish multiplexed services based on the Customer VLAN ID; that is, Prime Network 3.9 is Inner Tag-aware.

    As a result, in environments in which service providers have customers with multiplexed services, an EVC can distinguish each service and create its own EVC representation.

    Prime Network discovers Ethernet services and enables you to add them to maps, apply overlays, and view their properties. See the following topics for more information:

    Adding Virtual Connections to a Map

    You can add the virtual connections that Prime Network discovers to maps as required.

    To add a virtual connection to a map:


    Step 1blank.gif In the Vision client, select the required map or domain.

    Step 2blank.gif Open the Add Ethernet Service to map dialog box in either of the following ways:

      • In the toolbar, choose Add to Map > Virtual Connection.
      • In the menu bar, choose File > Add to Map > Virtual Connection.

    Step 3blank.gif In the Add Virtual Connection dialog box, do either of the following:

      • To search for specific elements:

    a. Choose Search, and then choose a search category: EVC Terminating EFPs, Name, or System Name.

    b. To narrow the display to a range of virtual connection or a group of virtual connections, enter a search string in the search field.

    c. Click Go.

    For example, if you choose Name and enter EFP1, the network elements that have names beginning with EFP1 are displayed.

      • To view all available virtual connections, choose Show All and click Go.

    The available elements that meet the specified search criteria are displayed in the Add Virtual Connections dialog box in table format. The dialog box also displays the date and time at which the list was generated. To update the list, click Refresh.


    Noteblank.gif If an element is not included in your scope, it is displayed with the locked device icon.


    For information about sorting and filtering the table contents, seeViewing a Table of NEs and Their Properties (List View).

    Step 4blank.gif In the Add Virtual Connections dialog box, select the elements that you want to add. You can select and add multiple elements by pressing Ctrl while selecting individual elements or by pressing Ctrl +Shift to select a group of elements.

    Step 5blank.gif Click OK.

    The virtual connection is displayed in the navigation pane and in the content area. In addition, any associated tickets are displayed in the ticket pane. See Figure 18-68.

    Figure 18-68 Ethernet Service in Prime Vision Window



    285144.tif




    The Ethernet service information is saved with the map in the Prime Network database.

    Applying Ethernet Service Overlays

    An Ethernet service overlay allows you to isolate the parts of a network that are being used by a specific Ethernet service.

    To apply an Ethernet service overlay:


    Step 1blank.gif In the Vision client, choose the map in which you want to apply an overlay.

    Step 2blank.gif From the toolbar, choose Choose Overlay Type > Ethernet Service.

    Figure 18-69 shows an example of the Select Ethernet Service Overlay for map dialog box.

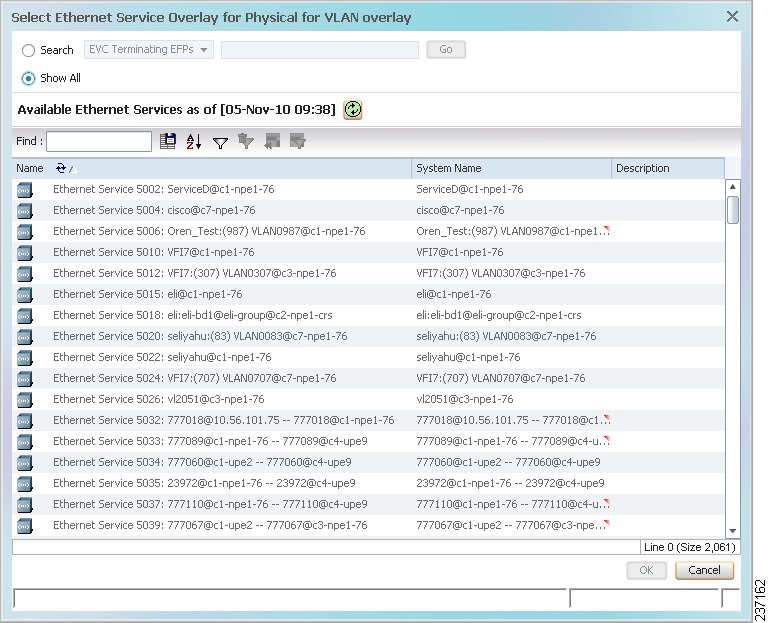

    Figure 18-69 Select Ethernet Service Overlay Dialog Box



    237162.tif

    Step 3blank.gif Select the required Ethernet Service for the overlay.

    Step 4blank.gif Click OK.

    The elements being used by the selected Ethernet service are highlighted in the map while the other elements are dimmed, as shown in Figure 18-70.

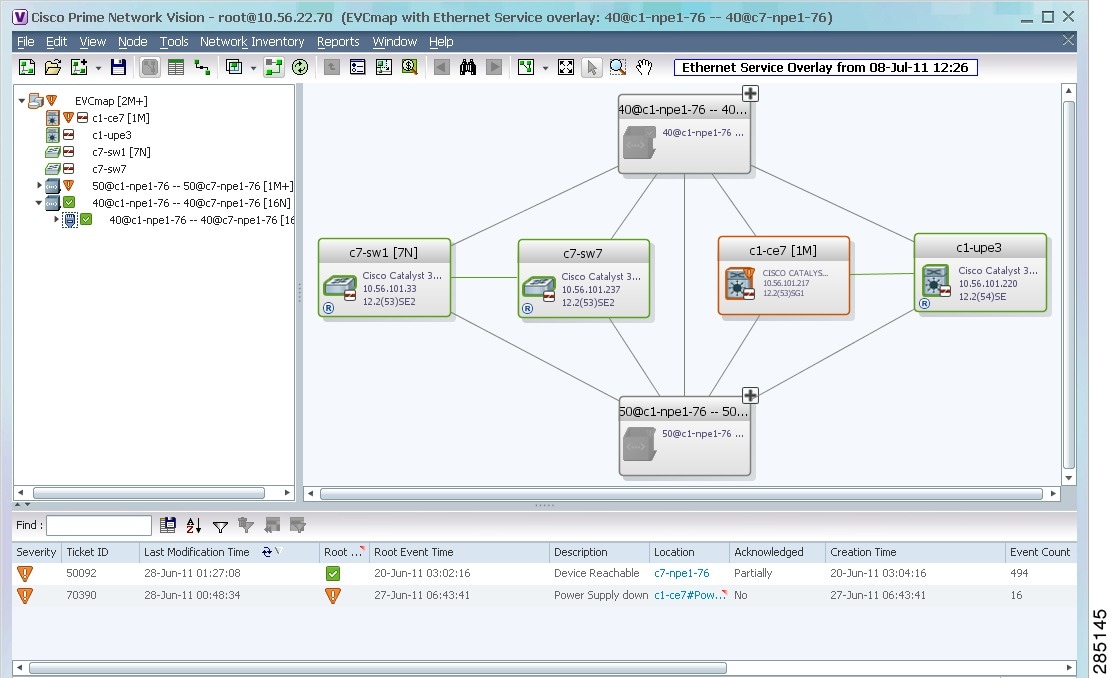

    Figure 18-70 Ethernet Service Overlay in Vision Window



    285145.tif

    Step 5blank.gif To hide and view the overlay, click Hide Overlay/Show Overlay in the toolbar. The button toggles depending on whether the overlay is currently displayed or hidden.

    Step 6blank.gif To remove the overlay, choose Choose Overlay Type > None.




    Viewing Ethernet Service Properties

    To view Ethernet service properties:


    Step 1blank.gif In the Vision client, select the map containing the required Ethernet service.

    Step 2blank.gif In the navigation or map pane, right-click the Ethernet service and choose Properties.

    Figure 18-71 shows an example of an Ethernet Service Properties window with the EVC Terminating table. Depending on the types of service in the EVC, tabs might be displayed. For example, if the EVC contains two network VLANs and a VPLS, tabs are displayed for the following:

      • EVC Terminating table
      • Network VLANs
      • VPLS

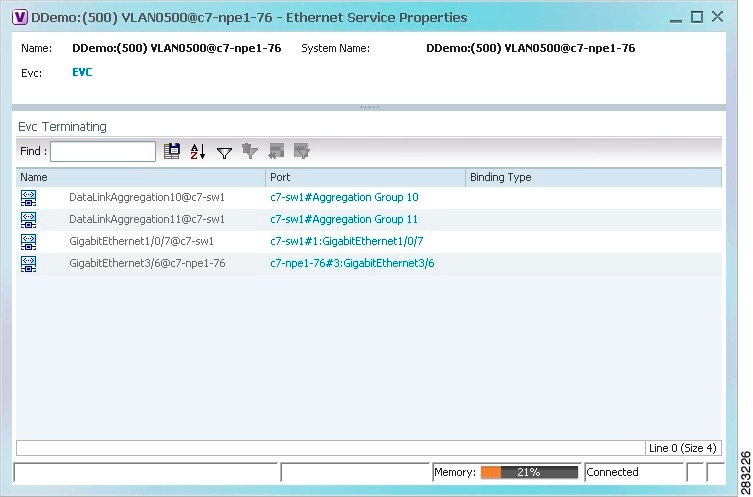

    Figure 18-71 Ethernet Service Properties Window



    283226.tif

    Table 18-54 describes the information that is displayed for an Ethernet service.



    Table 18-54 Ethernet Service Properties Window

    Field
    Description

    Name

    Ethernet service name.

    System Name

    Name that Prime Network assigns to the Ethernet service.

    EVC

    Name of the EVC associated with the Ethernet service, hyperlinked to the EVC Properties window.

    EVC Terminating Table

    Name

    EVC name, represented by the interface name, EFP, and the EFP name.

    Network Element

    Hyperlinked entry to the specific interface and EFP in physical inventory.

    Port

    Hyperlinked entry to the specific interface in physical inventory.

    Step 3blank.gif To view the EVC Properties window, click the hyperlink in the EVC field.

    Figure 18-72 shows an example of the EVC Properties window.

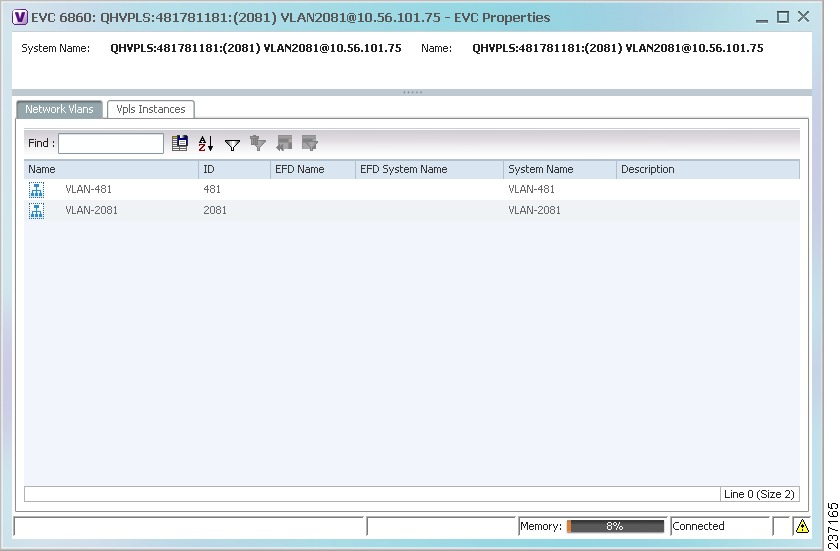

    Figure 18-72 EVC Properties Window



    237165.tif

    Table 18-55 describes the information that is displayed in the EVC Properties window. The tabs that are displayed depend on the services included in the EVC. For example, if the EVC contains two network VLANs and a VPLS, tabs are displayed for the following:

      • EVC Terminating table
      • Network VLANs
      • VPLS



    Table 18-55 EVC Properties Window

    Field
    Description

    System Name

    Name of the system on which the EVC is configured.

    Name

    EVC name.

    Cross-Connects Table

    Name

    Cross-connect name.

    Segment 1

    Identifier of the first cross-connect endpoint.

    Segment 2

    Identifier of the second cross-connect endpoint.

    System Name

    Cross-connect system name.

    Network VLANs Tab

    Name

    VLAN name.

    ID

    VLAN identifier.

    EFD Name

    Name of the Ethernet flow domain.

    EFD System Name

    Name that Prime Network assigns to the EFD.

    System Name

    VLAN system name.

    Description

    Brief description of the VLAN.

    Network Pseudowires Tab

    Name

    Pseudowire name.

    System Name

    System on which the pseudowire is configured.

    Description

    Brief description of the pseudowire.

    Pseudowire Type

    Type of pseudowire.

    Is Multisegment Pseudowire

    Whether or not the pseudowire is multisegment: True or False.

    VPLS Instances Tab

    Name

    VPLS instance name.

    System Defined Name

    Name that Prime Network assigns to the VPLS instance.

    VPN ID

    Identifier of associated VPN.




    Viewing IP SLA Responder Service Properties

    Cisco IOS Service Level Agreements (SLAs) software allows you to analyze IP service levels for IP applications and services by using active traffic monitoring to measure network performance.

    The IP SLA responder is a component embedded in the destination Cisco device that allows the system to anticipate and respond to IP SLAs request packets. The responder provides accurate measurements without requiring dedicated probes. The responder uses the Cisco IOS IP SLAs Control Protocol to provide a mechanism through which it can be notified on which port it should listen and respond.

    Two-Way Active Measurement Protocol (TWAMP) defines a standard for measuring round-trip network performance between any two devices that support the protocol.

    For information on the devices that support IP SLA Responders, refer to Cisco Prime Network 4.1 Supported VNEs.

    To view IP SLA Responder service properties:


    Step 1blank.gif In the Vision client, double-click the device configured for IP SLA Responder service.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > IP SLA Responder.

    IP SLA Responder properties are displayed as shown in Figure 18-73.

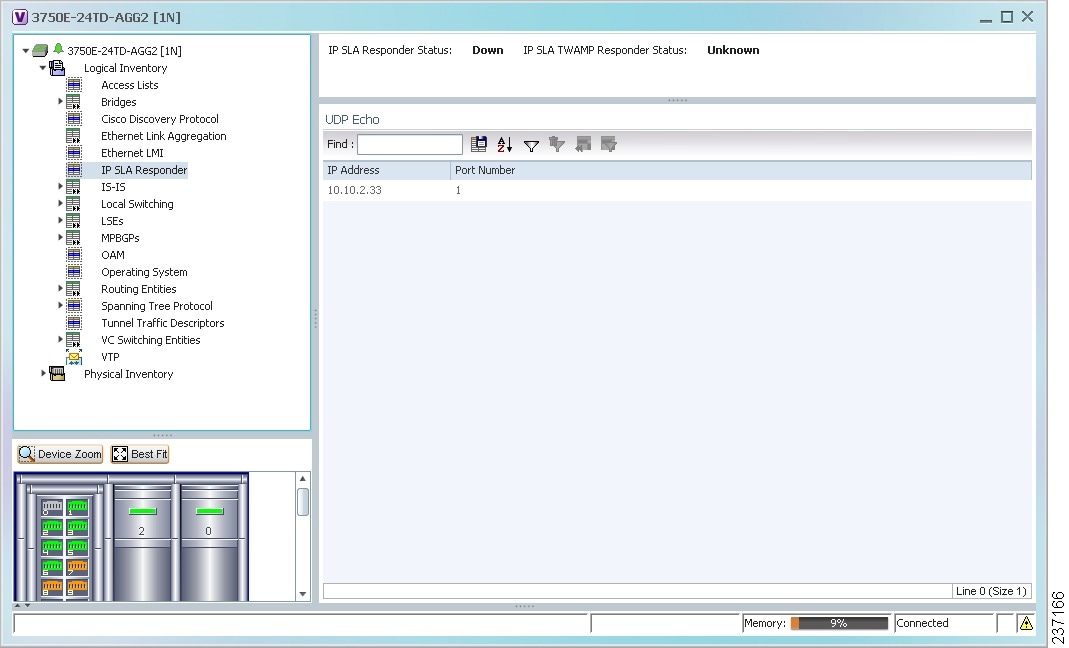

    Figure 18-73 IP SLA Responder in Logical Inventory



    237166.tif

    Table 18-56 describes the properties displayed for IP SLA Responder service.



    Table 18-56 IP SLA Responder Properties in Logical Inventory

    Field
    Description

    IP SLA Responder Status

    Status of the IP SLA Responder: Up or Down.

    IP SLA TWAMP Responder Status

    Status of the IP SLA TWAMP responder: Up or Down.

    UDP Echo Tab

    IP Address

    Destination IP address used for the UDP echo operation.

    Port Number

    Destination port number used for the UDP echo operation.

    TCP Connect Tab

    IP Address

    Destination IP address used for the TCP connect operation.

    Port Number

    Destination port number used for the TCP connect operation.




    Viewing IS-IS Properties

    Intermediate System-to-Intermediate System (IS-IS) protocol is a routing protocol developed by the ISO. It is a link-state protocol where IS routers exchange routing information based on a single metric to determine network topology. It behaves in a manner similar to OSPF in the TCP/IP network.

    IS-IS networks contain end systems, intermediate systems, areas, and domains. End systems are user devices. Intermediate systems are routers. Routers are organized into local groups called areas, and areas are grouped into a domain. For configuring IS-IS, see Configuring IS-IS.

    To view IS-IS properties:


    Step 1blank.gif In the Vision client, double-click the device configured for IS-IS.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > IS-IS > System.

    Figure 18-74 shows an example of the IS-IS window with the Process table in logical inventory.

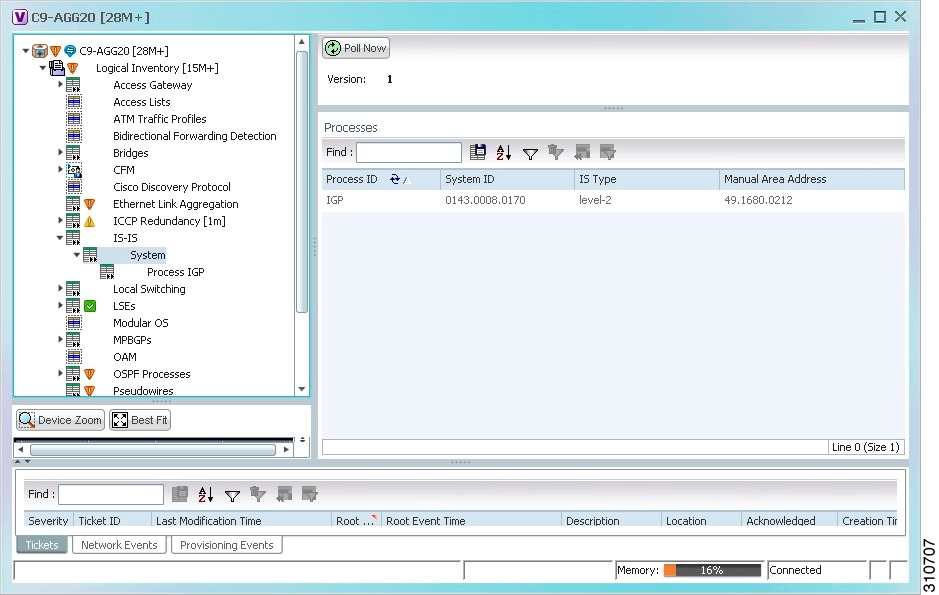

    Figure 18-74 IS-IS Window in Logical Inventory



    310707.tif

    Table 18-57 describes the information that is displayed in this window and the Processes table.



    Table 18-57 IS-IS Properties in Logical Inventory - Processes Table

    Field
    Description

    Version

    Version of IS-IS that is implemented.

    Processes Table

    Process ID

    Identifier for the IS-IS process.

    System ID

    Identifier for this Intermediate System.

    IS Type

    Level at which the Intermediate System is running: Level 1, Level 2, or Level 1-2.

    Manual Area Address

    Address assigned to the area.

    Step 3blank.gif To view IS-IS process information, choose Logical Inventory > IS-IS > Process nnn.

    Figure 18-75 shows an example of the information that is displayed for the IS-IS process.

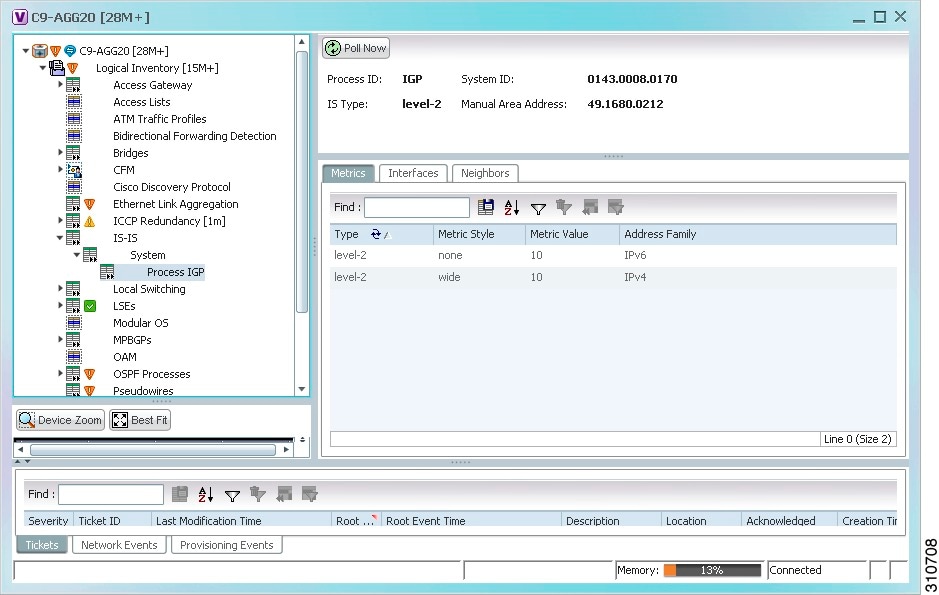

    Figure 18-75 IS-IS Process Properties in Logical Inventory



    310708.tif

    Table 18-58 describes the information that is displayed for the selected IS-IS process.



    Table 18-58 IS-IS Process Properties in Logical Inventory

    Field
    Description

    Process

    Unique identifier for the IS-IS process.

    System ID

    Identifier for this Intermediate System.

    IS Type

    Level at which the Intermediate System process is running: Level 1, Level 2, or Level 1-2.

    Manual Area Address

    Address assigned to the area.

    Metrics Tab

    IS Type

    Level at which the Intermediate System is running: Level 1, Level 2, or Level 1-2.

    Metric Style

    Metric style used: Narrow, Transient, or Wide.

    Metric Value

    Metric value assigned to the link. This value is used to calculate the path cost via the links to destinations. This value is available for Level 1 or Level 2 routing only.

    If the metric style is Wide, the value can range from 1 to 16777214. If the metric style is Narrow, the value can range from 1 to 63.

    The default value for active IS-IS interfaces is 10, and the default value for inactive IS-IS interfaces is 0.

    Address Family

    IP address type used: IPv4 or IPv6.

    Interfaces Tab

    Interface Name

    Interface name.

    Neighbors Tab

    System ID

    Identifier for the neighbor system.

    Interface

    Neighbor interface name.

    IP Address

    Neighbor IP address.

    Type

    IS type for the neighbor: Level 1, Level 2, or Level 1-2.

    SNPA

    Subnetwork point of attachment (SNPA) for the neighbor.

    Hold Time

    Holding time, in seconds, for this adjacency. The value is based on received IS-to-IS Hello (IIH) PDUs and the elapsed time since receipt.

    State

    Administrative status of the neighbor system: Up or Down.

    Address Family

    IP address type used by the neighbor: IPv4 or IPv6.




    Viewing OSPF Properties

    Open Shortest Path First (OSPF) is a link-state routing protocol for IP networks. It uses a link state routing algorithm and falls into the group of interior routing protocols, operating within a single autonomous system (AS). It uses the Shortest Path First (SPF) algorithm to calculate the best path for a given destination. OSPF is perhaps the most widely used interior gateway protocol (IGP) in large enterprise networks.

    The OSPF topology is a multilink topology, i.e. there can be multiple links from the same OSPF process. It is also a single layer and dynamic topology.

    Prime Network supports the following versions of OSPF:

    • OSPFv2
    • OSPFv3

    Using the Vision client you can view OSPF properties for:

    • OSPF processes, including the process identifier and OSPF version.
    • OSPF network interfaces, such as the area identifier, network type, and status.
    • OSPF neighbors, including the neighbor identifier, neighbor interface address, and status.

    You can view the OSPF topological links for neighbors whose status is Full or Two Way.

    To view OSPF properties:


    Step 1blank.gif In the Vision client, double-click the device configured for OSPF.

    Step 2blank.gif To view OSPF processes, choose Logical Inventory > OSPF Processes > OSPF Process (v n ) ID where v n represents the OSPF version and ID is the OSPF process identifier.

    For example, in Figure 18-76, the entry in the navigation tree is OSPF Process (v2) 10.

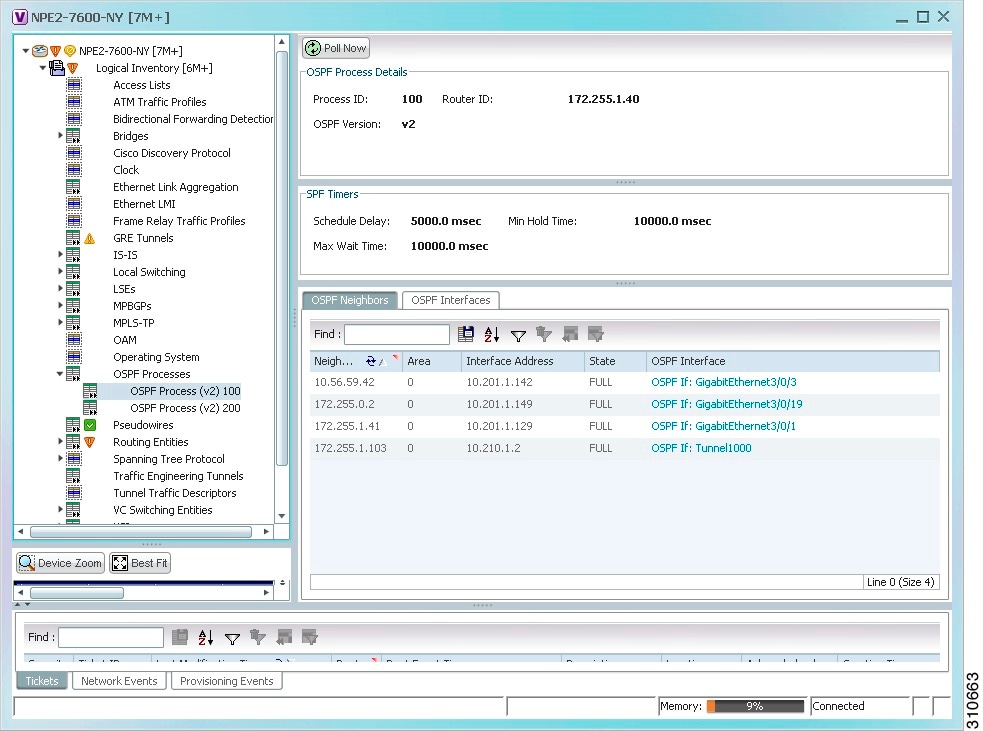

    Figure 18-76 OSPF Processes in Logical Inventory



    310663.tif

    Table 18-59 describes the information that is displayed for OSPF processes.



    Table 18-59 OSPF Processes in Logical Inventory

    Field
    Description
    OSPF Process Details

    Process ID

    Unique process identifier.

    Router ID

    Router IP address.

    OSPF Version

    OSPF version: v1, v2, or v3.

    SPF Timers

    Schedule Delay

    Number of milliseconds to wait after a change before calculating the shortest path first (SPF).

    Min Hold Time

    Minimum number of milliseconds to wait between two consecutive SPF calculations.

    Max Wait Time

    Maximum number of milliseconds to wait between two consecutive SPF calculations.

    OSPF Neighbors Table

    Neighbor ID

    OSPF neighbor IP address.

    Area

    OSPF area identifier.

    Interface Address

    IP Address of the interface on the neighbor configured for OSPF.

    State

    State of the communication with the neighbor: Down, Attempt, Init, 2-Way, Exstart, Exchange, Loading, and Full.

    OSPF Interface

    Hyperlinked entry to the OSPF Interface Properties window.

    The OSPF Interfaces window displays the same information as the OSPF Interfaces Table below.

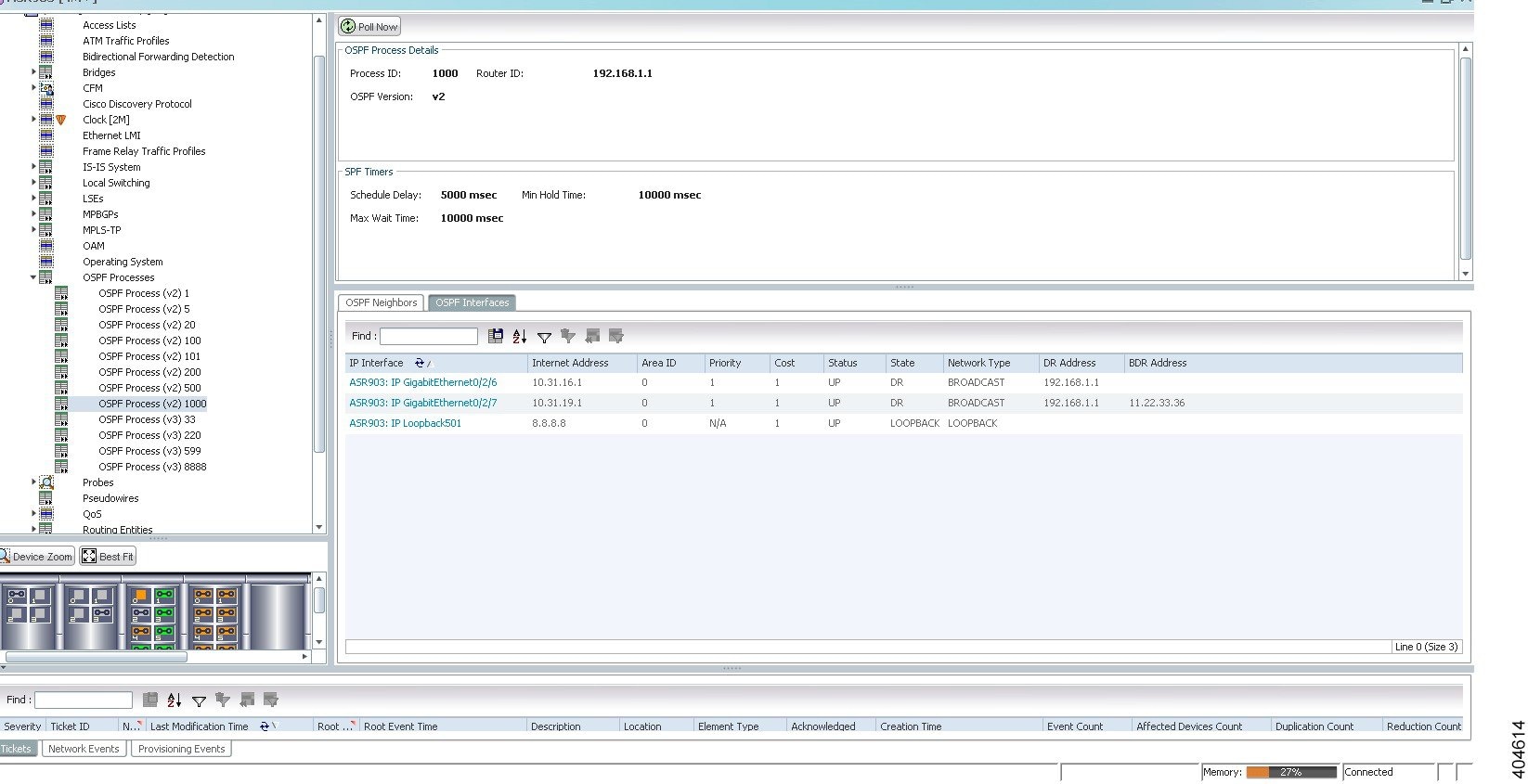

    Figure 18-77 Viewing OSPF Interface

    404614.tif

    Table 18-60 OSPF Processes in Logical Inventory (continued)

    OSPF Interfaces Table

    IP Interface

    OSPF interface, hyperlinked to the relevant entry in the routing entity IP Interfaces table in logical inventory.

    For more information about the IP Interfaces table, see Table 17-8 .

    Internet Address

    OSPF interface IP address.

    Area ID

    OSPF area identifier.

    Priority

    Eight-bit unsigned integer that specifies the priority of the interface. Values range from 0 to 255. Of two routers, the one with the higher priority takes precedence.

    Cost

    Specified cost of sending a packet on the interface, expressed as a metric. Values range from 1 to 65535.

    Status

    State of the interface: Up or Down.

    State

    The displayed OSPF state will be either BDR, DR, DR-Other, or LOOPBACK.

    Network Type

    Type of OSPF network: Broadcast, Nonbroadcast Multiple Access (NBMA), Point-to-Multipoint, Point-to-Point, or Loopback.

    DR Address

    Designated router IP address.

    BDR Address

    Backup designated router IP address.




    OSPF Topology

    In OSPF topology, the links will be formed among the OSPF Process Device Components even though the link signifies the neighborship among them. The OSPF is a multilink topology, thus enabling the creation of multiple links from the same OSPF process. From Prime Network 5.1, the OSPF topology will be added along with the existing support.

    The various types of topologies that can be formed under OSPF are

    • Single layer topology
    • Dynamic topology

    The OSPF topological links are shown for the neighbors which has the Neighbor State as either FULL or TWOWAY. For neighbors with TWOWAY state, the OSPF interface's network type should be either BROADCAST or NBMA.

    404615.tif

    Viewing OSPF Link Properties

    To view the OSPF link properties:


    Step 1blank.gif In the Vision client, right-click on the link between the devices and select Properties to view the link properties.

    Step 2blank.gif In the link properties window, the left pane displays the selected link and the right pane displays the link properties.

    Figure 18-78 Viewing OSPF Link Properties



    404616.tif

    Table 18-61 describes the information that is displayed in link properties window.



    Table 18-61 OSPF Link Properties window

    Field
    Description

    Link Type

    The link protocol, which is OSPF in this instance.

    Type

    The type of link, which is Dynamic.

    Bi Directional

    Indicates whether the link is bidirectional.

    OSPF Information tab

    OSPF Process ID

    The unique code to identify the OSPF process.

    OSPF Router ID

    The IP address of the OSPF router.

    OSPF Version

    The OSPF version, which can be v1, v2, or v3.

    Neighbor State

    The status of the OSPF neighbor, which can be Full and Two-Way.

    Neighbor

    Provides IP address of the OSPF Neighbor

    OSPF Interface

    The link to the OSPF interface.

    Service Alarms

    As part of the topological link support, two new service alarms OSPF link down and OSPF link up are introduced. These alarms are generated on the OSPF links in cases such as misconfigurations, shutting down of physical interfaces or any other scenario that might break the OSPF neighborship.

    Correlation

    The OSPF link down alarm is a ticketable event. It also can be correlated under the physical link alarms. If OSPF configured interface goes down, the OSPF link also goes down. For e.g, In case of interface shut down, the OSPF link down alarm is generated and correlated to the Link down due to admin service alarm.

    Monitoring the CPT 50 Ring Support

    The Cisco Carrier Packet Transport (CPT) Product Family with CPT600, CPT200 and CPT50 Series sets the industry benchmark as a compact carrier-class converged access and aggregation platform for Unified Packet Transport architectures.

    The CPT 50 is a compact and operationally simple, yet highly scalable and flexible platform optimized for delivering TDM like Ethernet Private 5.2 as well as multipoint capabilities for Business, Residential, Mobile Backhaul, Data Center, and Video Services. Its unique satellite architecture is designed to scale, simplify and enhance the operational and deployment aspects of service-delivery networks.

    The CPT system also provides the ability to operate CPT 50 in a physical ring homed back to a single CPT 600 or CPT 200 chassis. This feature provides the flexibility of connecting CPT 50 in a closed-ended ring or an open-ended ring. As a result, the failure of a line or uplink card does not impact the traffic in a ring. CPT 50 in a ring works like a route processor and each CPT 50 interacts with Transport Node Controller (TNC) directly.

    CPT 50 supports the following types of rings:

    • Single Homed—A ring that is subtending from a single CPT-600 or CPT 200. There are two types of single home rings:

    blank.gif Open Ended Ring—Connects to the CPT-600 or CPT-200 through one interface only. Hence, there is only one unprotected path available to the traffic on the ring.

    blank.gif Closed—Connects to the CPT-600/200 through two interfaces. Hence there is a protected path available for the traffic either through the east or west interface on the ring.

    • Dual Homed —A ring whose east port exists on one CPT 200 or CPT 600 (Working Ring Controller) and west port exists on another CPT 200 or CPT 600 (Protected Ring Controller). If WRC fails, this type of ring provides access to all the CPT 50s in the ring by switching the traffic to the other controller.

    The following figure depicts the CPT 50 dual homed in Prime Network:

    361845.TIF

    In the above figure, the dual ring home starts in one CPT 600 device and ends in another CPT 600 device. The CPT 600 device from which the dual ring starts is the Working Ring Controller (WRC) and the other CPT 600 device is the Protected Ring Controller (PRC).


    Noteblank.gif To view more details about the device, right-click the device and choose Inventory to view the inventory details. The Node Role field in the content pane denotes whether the CPT device is WRC or PRC.


    Configuring CPT

    The following commands can be launched from the inventory by right-clicking the appropriate node and choosing Commands > Configuration. Your permissions determine whether you can run these commands. To find out if a device supports these commands, see the Cisco Prime Network 5.2 Supported Cisco VNEs.



    Command
    Navigation
    Description

    Configure L2 Control Protocol

    Physical Inventory > Chassis > Backplane > slot > right-click on the Ethernet card > Commands > Configuration

    Use this command to configure the L2 Control Protocol.

    Show L2 Control Protocol

    Physical Inventory > Chassis > Backplane > slot > right-click on the Ethernet card > Commands > Show

    Use this command to view details of the L2 Control protocol parameters configured for the selected port.

    Add Loopback

    Physical Inventory > Chassis > Backplane > slot > right-click on the Ethernet card > Commands > Configuration

    Use these commands to add and remove a loop-back respectively.


    Noteblank.gif Loop-back refers to the process of routing electronic signals or digital data streams, back to their source with processing or modifying it.


    Remove Loopback

    Configure CDP

    Physical Inventory > Chassis > Backplane > slot > right-click on the Ethernet card > Commands > Configuration

    Use this command to configure CDP.


    Noteblank.gif Cisco Discovery Protocol (CDP) is used to obtain protocol addresses of neighboring devices and discover the platform of those devices. It can also be used to show information about the interfaces your router uses.


    Configure Ethernet

    Use this command to configure Ethernet parameters.

    Show Ethernet Parameters

    Physical Inventory > Chassis > Backplane > slot > right-click on the Ethernet card > Commands > Show

    Use this command to view details of the Ethernet parameters configured for the selected Ethernet port.

    Configure Port Parameters

    Physical Inventory > Chassis > Backplane > slot > right-click on the Ethernet card > Commands > Configuration

    Use this command to configure port parameters.

    Show Port Parameters

    Physical Inventory > Chassis > Backplane > slot > right-click on the Ethernet card > Commands > Show

    Use this command to view the port parameters configured for the selected port.

    Viewing the G8032 ERPS Configuration

    Ethernet Ring Protection Switching is an effort at ITU-T under G.8032 Recommendation to provide sub-50ms protection and recovery switching for Ethernet traffic in a ring topology and at the same time ensuring that there are no loops formed at the Ethernet layer.

    Ring Protection Switching Architecture works based on the following fundamentals:

    • Principle of Loop Avoidance—Loop avoidance is achieved by guaranteeing that traffic flows on all but one of the ring links at any point of time. The one ring link from which traffic does not flow is called the Ring Protection Link (RPL), which is generally blocked. A designated Ethernet ring node—the RPL owner node—is responsible for blocking traffic at one end of the RPL. In the event of an Ethernet ring failure, the RPL owner node must unblock its end of the RPL and allow the RPL to be used for traffic.
    • Utilization of learning, forwarding, and filtering database mechanisms defined in the Ethernet Flow Forwarding Function—Failure of Ethernet ring results in protection switching of traffic, which is controlled by the Ethernet Flow Forwarding Function. An APS protocol is used to coordinate the protection action over the ring, which transmits Ring Automatic Protection Switching (R-APS) messages.

    Ethernet rings also supports multi ring/ladder network that consists of conjoined Ethernet rings by one or more interconnection points. The protection switching mechanisms and protocol are also applicable for multi ring/ladder network on adherence of certain principles.

    The G8032 technology also supports multiple ERP instances over a ring. An ERP instance is an entity that is responsible for the protection of subset of VLANs carried over the physical ring and it should configure its own R-APS channel, RPL, RPL Owner and RPL Neighbor nodes.

    Ring protection switching process also occurs based on the detection of defects on the transport entity on the ring link, and the transport entity can have a failed or non-failed condition. To monitor these defects, Ethernet ring protection may use any one of the following methods:

    • Inherent—The fault condition status of each link connection is derived from the status of the underlying server layer trail.
    • Sub-layer—Each ring link is monitored using Tandem Connection Monitoring (TCM).
    • Test trail—An extra test trail is used to detect defects, which is setup along each ring link.

    In Prime Network, the G8032 Ethernet Ring Protection Switching configuration can be viewed in the following nodes:

    • Profile—This node displays the G8032 profile details. Each G8032 ring is associated to a profile, which consists of several timers. The timer displays details of the time frame the ring needs to wait before, during and after performing an action to avoid race conditions and unnecessary switching operations. If a ring is not associated to a profile, the default profile is automatically associated to it.
    • Ring—This node displays the properties of the ring as well as the properties that are shared across all ERP instances

    To view the G8032 Ethernet Ring Protection Switching Profile configuration:


    Step 1blank.gif Right-click on the required device and choose the Inventory option.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > G8032 > Profiles. A list of all the G8032 profiles are displayed in the content pane.

    Step 3blank.gif In the content pane, right-click on the profile name to view the G8032 Profile Properties window.

    Table 18-62 describes the information displayed in the G8032 Profile Properties window.



    Table 18-62 G8032 Profile Properties

    Field
    Description

    Profile Name

    The unique name of the profile associated to the G8032 ring.

    WTR Interval

    The Wait-to-Restore interval (in minutes) applicable to the G8032 ring. This interval refers to the duration before traffic is restored to the state, when it is found that a failure is no longer occurring. This interval also avoids toggling protection states in case of intermittent defects. This field defaults to 5 minutes.

    Guard Interval

    The Guard Interval (in milliseconds) that denotes the duration the node waits before performing a node state transition. This is done to block outdated R-APS messages from causing unnecessary node state changes. This field defaults to 500.

    Holdoff Timer

    The duration (in seconds) applicable for the G8032 ring. The node waits for the specified duration to expire before reporting faults to the ring protection mechanism.

    Mode Type

    The operating mode applicable for the G8032 ring, which can be any one of the following:

    • Revertive—In case the condition causing the switch is cleared, the traffic channel is restored to the working transport entity.
    • Non revertive—In case the condition causing the switch is cleared, the traffic channel continues to use the RPL.

    This field defaults to Revertive.

    To view the G8032 Ethernet Ring Protection Switching Ring configuration:


    Step 1blank.gif Right-click on the required device and choose the Inventory option.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > G8032 > Ring > ring name. The details of the ring are displayed in the content pane.

    Table 18-63 describes the Ring properties.



    Table 18-63 G8032 Ring Properties

    Field
    Description

    Ring Name

    The name of the ring.

    Ring Type

    The ring type, which can be any one of the following:

    • Open—When the ring is terminated by an Ethernet access such as VPLS.
    • Closed—When the arcs or links in the ring are simple Ethernet links.

    Excluded VLAN ID

    The range of VLAN ID that are excluded by the ring. In other words, the VLAN ID included in this range are not serviced by the ring and not blocked by the ring switching mechanism.

    Untagged in Excluded VLANs

    Indicates whether untagged Ethernet traffic is also blocked by the VLAN exclusion list.

    Ring Ports Entries tab

    Port Number

    The port number associated to the ring.

    Local Port

    The link to the local physical port that is used for this ring port.

    Monitor Interface

    The link to the interface that is used as the monitor interface. A monitor interface is used to monitor the ring port and detect ring failures.

    Blocked VLAN IDs

    The range of VLAN IDs that are blocked by the ring port.

    Untagged in Blocked VLANs

    Indicates whether untagged traffic is blocked by the ring port.

    Unblocked VLAN IDs

    The list of VLAN IDs that are not blocked by the ring port.

    Untagged in Unblocked VLANs

    Indicates whether untagged traffic is unblocked by the ring port.

    Ring Instance Entries tab

    Instance

    The unique code assigned to the instance.

    Node Type

    The node type that determines the node’s responsibility towards the instance. This can be Normal, Owner, Neighbor, or Next Neighbor.

    Node State

    The state of the node for a specific instance, which can be any one of the following: Idle, Pending, Protection, Forced Switch, and Manual Switch. This state is configured by the administrator or determined by the APS as part of the G8032 protection protocol.

    Port 0 State

    The status of the port that is configured as Port 0, which can be N/A, RPL-Link, Faulty, Blocked, Local Forced Switch, or Local Manual Switch.

    Port 1 State

    The status of the port that is configured as Port 1, which can be N/A, RPL-Link, Faulty, Blocked, Local Forced Switch, or Local Manual Switch.

    Instances tab

    ID

    The unique code assigned to the instance.

    Instance Description

    The description of the instance.

    Profile

    The link to the ring profile associated to the instance.

    Included VLAN IDs

    The list of VLAN IDs included or served by this instance, which includes all VLANs associated with the ring instance.

    RPL Port Role

    The Ring Protection Link (RPL) port in charge of the RPL, which enables it to turn the RPL on or off according to the ring instance functionality. This port can be Port 0 or Port 1.

    APS Channel Level

    The APS Channel Level for the ring instance, which can be any value between 0 and 7. This value is defined by the Maintenance Entity group Level (MEL) and is used to differentiate various Ethernet problems and to signal them.

    Configuration State

    The configuration status of the ring instance, which can be Resolved or Unresolved.

    Unresolved Reason

    The feedback to the configurator that explains the reason for the unresolved configuration state.

    Viewing Ring Topology Properties from Topology View

    An Ethernet ring consists of multiple Ethernet ring nodes. Each Ethernet ring node is connected to adjacent Ethernet ring nodes using two independent ring links. A ring link prohibits formation of loops that affect the network. The Ethernet ring uses a specific link to protect the entire Ethernet ring. This specific link is called the Ring Protection Link (RPL). A ring link is bound by two adjacent Ethernet ring nodes and a port for a ring link (also known as a ring port). There must be at least two Ethernet ring nodes in an Ethernet ring.

    Prime Network uses the following color and pattern conventions to denote the types of links based on their ring type, ring state, and link state:

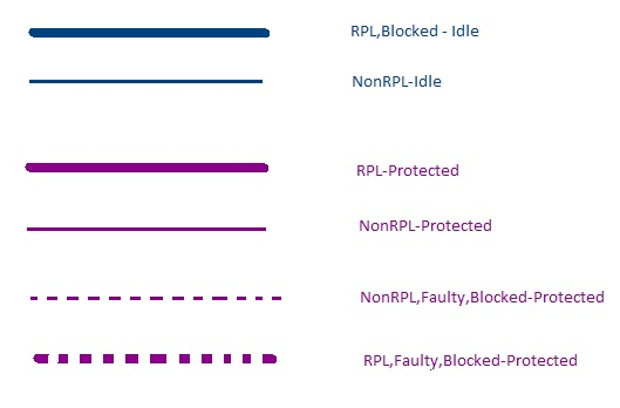

    435580.tiff

    Links are displayed in the map based on the following propagation priority rules:

    1.blank.gif The critical events have first priority and are displayed in the map with corresponding color and pattern of the link (refer Image below) between the devices.

    2.blank.gif If there are no critical events, then faulty events are prioritized.

    3.blank.gif If there are no critical, faulty, or major events, then events with RPL Link color and pattern are prioritized.

    4.blank.gif If there are no RPL links, then the Non RPL link are prioritized.

    5.blank.gif RPL-Protected and Non RPL-Protected are prioritized over RPL,Blocked-Idle and Non RPL-Idle respectively.

    Viewing Ring Link Properties

    To view link properties:


    Step 1blank.gif In the Vision client map view, hover your mouse cursor over the link to display the link tool tip.

    435581.tiff

    Step 2blank.gif Click the tooltip. The Link Quick View opens.

    435582.tiff

    The Link Quick View provides the following information:

    1

    Number of links represented by the ring link in the map (in this example, two links).

    2

    Link endpoints.

    3

    List of all links represented by the ring link, including the link type, detail, and alarm status (color).

    4

    Opens the Manage MPLS-TP tunnels commands dialog box.

    5

    Opens the topological link properties window.

    6

    Ring information - ring type, ring state, and link state


    Noteblank.gif The propagation priority rules of map mentioned above are applicable to Link Quick View too in case of two instances of same interface.


    Step 3blank.gif Click Properties at the bottom of the Link Quick View. The Topological Link Properties window opens.

    435583.tiff

    Table 18-64 describes the information that is displayed in the above window for the ring topology instances:



    Table 18-64 Ring Instance properties

    Field
    Description
    Gigabit Ethernet

    Ring Instance 1

    Link to the Logical Inventory listing of the first ring instance

    Ring Type

    Type of the ring link of the first ring instance:

    • RPL
    • Non RPL

    Ring State

    State of the ring link of the first ring instance:

    • Protection
    • Idle

    Link State

    State of the link of the first ring instance:

    • Blocked
    • Unblocked
    • Faulty, blocked

    Interface

    Link to the Physical Inventory listing of the first ring instance

    Ring Instance 2

    Link to the Logical Inventory listing of the second ring instance

    Ring Type

    Type of the ring link of the second ring instance:

    • RPL
    • Non RPL

    Ring State

    State of the ring link of the second ring instance:

    • Protection
    • Idle

    Link State

    State of the link of the second ring instance:

    • Blocked
    • Unblocked
    • Faulty, blocked

    Interface

    Link to the Physical Inventory listing of the second ring instance


    Noteblank.gif If there is only one ring instance in a ring topology, the properties of the second ring instance are not displayed.


    Configuring REP and mLACP

    The following commands can be launched from the inventory by right-clicking the appropriate node and choosing Commands > Configuration. Your permissions determine whether you can run these commands (see Permissions for Managing Carrier Ethernet). To find out if a device supports these commands, see the Cisco Prime Network 5.2 Supported Cisco VNEs.

    Command
    Navigation
    Description
    REP Command

    Show REP Segment Information

    Commands > Show

    This action performed at the command launch point.

    mLACP Commands

    Show Group
    Show MPLS LDP
    Show Channel
    Show LACP Internal

    Commands > Show

    These actions are performed at the command launch point.

    Viewing the Remote Loop Free Alternate Configurations

    When a link or router in the network fails, there is loss of data during the time it takes for the routers to converge after a topology change. Since it takes hundreds of milliseconds for the router to converge, the application traffic is sensitive to losses especially in the case of interactive multimedia services such as VoIP and pseudowires.

    The Loop Free Alternate Fast ReRoute (LFA-FRR) technology helps reduce the packet loss that happens in the event of link or router failure. It reduces the failure reaction time to tens of milliseconds. This is achieved by using a pre-computed alternate next-hop. If the currently selected primary next-hop fails, then the alternate next-hop is used in the event of failure. A network that is configured with the LFA-FRR experiences less traffic loss and micro-looping of packets when compared to a network without LFA-FRR.

    The Remote LFA-FRR technology is an extension of LFA that covers all topologies. It can dynamically compute its LFA node and forward traffic around a failed node to a remote LFA that is more than one hop away. After a node dynamically determines an alternate node (which is not directly connected to it), it establishes a directed Label Distribution Protocol (LDP) session to the alternate node. The directed LDP session exchanges labels for the particular forward error correction (FEC). When the network experiences link failure, the node manages to forward the data to the destination by using label stacking.

    By configuring Remote LFA-FRR on your network, you can eliminate additional traffic engineering protocols, simplify operations with minimum configuration, prevent hair-pinning that occurs in TE-FRR, and compute node dynamically without manual provision.

    In Prime Network, Remote LFA-FRR is configured using IS-IS and OSPF configurations.

    To view the OSPF Remote LFA configuration:


    Step 1blank.gif Right-click on the required device and choose the Inventory option.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > OSPF Processes > OSPF Process (version) ID. The OSPF process details are displayed in the content pane. For more information, see Viewing IS-IS Properties.

    Step 3blank.gif In the content pane, click the RLFA Tunnels tab as shown in Figure 18-79.

    Figure 18-79 RLFA Tunnels tab

    361841.TIF

    Table 18-65 describes the information that is displayed in the RLFA Tunnels tab.



    Table 18-65 OSPF Processes - RLFA Tunnels tab

    Field
    Description

    Tunnel Name

    The name of the RLFA tunnel.

    Out-Interface

    The outgoing interface of the tunnel, which is used to reach the end point. Clicking this link will take you to the relevant entry in the physical inventory node.

    Next Hop

    The IP address of the next hop in the path.

    End Point

    The end point of the RLFA tunnel.

    Protected Interface

    The interface protected by the Remote RLFA tunnel.

    Protected Interface IP Address

    The IP Address of the interface protected by the Remote RLFA tunnel.

    To view the IS-IS Remote LFA configuration:


    Step 1blank.gif Right-click on the required device and choose the Inventory option.

    Step 2blank.gif In the Inventory window, choose Logical Inventory > IS-IS > Process. The IS-IS process details are displayed in the content pane. For more information, see Viewing IS-IS Properties.

    Step 3blank.gif In the content pane, click the RLFA Tunnels tab. For more information, see Table 18-65 .




    Tie-Breaking Rules for Remote LFA

    A primary path can have multiple LFAs. A routing protocol is used to implement tie-breaking rules. When the primary path fails, then these rules help to eliminate multiple candidate LFAs, select one LFA per primary path, and distribute the traffic over multiple LFAs.


    Noteblank.gif The tie-breaking rule has certain conditions and attributes based on which multiple candidate LFAs are eliminated. If a rule eliminates all candidate LFAs, then the rule is omitted.


    Configuring OSPF and ISIS with Remote LFA

    The following can be launched from the inventory by right-clicking on the appropriate node and choosing Commands > Configuration. Your permissions determine whether you can run these commands (see Permissions for Managing Carrier Ethernet). To find out if a device supports these commands, see the Cisco Prime Network 5.2 Supported Cisco VNEs.

    Command
    Navigation
    Description

    Create OSPF Process

    In the Inventory window, right-click on the device > Commands > Configuration > OSPF.

    Create a new OSPF process. The new OSPF process created here will be available under the OSPF Processes node in the Logical Inventory.

    Show OSPF Database

    View the OSPF database details.

    Create OSPF Network

    Logical Inventory > OSPF Processes > OSPF Process. Right-click on the process and choose Commands > Configuration.

    Create one or more of the following OSPF Networks—Broadcast, Non-broadcast, Point-to-multipoint, and Point-to-point.

    Delete OSPF Network

    Delete an OSPF Network created using the Create OSPF Network command.

    Delete OSPF Process

    Delete an OSPF process created using the Create OSPF Process command.

    Modify OSPF Process

    Modify details of the OSPF process created using the Create OSPF Process command.

    Create OSPF Passive Interface

    Create a passive interface for an OSPF process.

    Delete OSPF Passive Interface

    Delete a passive interface for an OSPF process.

    Show OSPF Neighbor

    Logical Inventory > OSPF Processes > OSPF process. Right-click and choose Commands > Show.

    Logical Inventory > OSPF Processes > OSPF process. Right-click and choose Commands > Show

    View the OSPF neighbor details.


    Noteblank.gif This command is available only for ASR 9000 devices.


    Show OSPF Process

    View the OSPF process details.

    Create OSPF on Interface

    Logical Inventory > Routing Entities > Routing Entity. In the content pane, right-click the name in the IP Interfaces tab and choose Commands > Configuration.

    Create a new IP interface on an existing OSPF process. The new interface details can be viewed under the OSPF Interfaces section in the content pane on selection of an OSPF process.

    Modify OSPF on Interface

    Logical Inventory > OSPF Processes > OSPF process. In the OSPF Interfaces section in the content pane, right-click the IP Interface > Commands > Configuration.

    Modify the OSPF interface details for a selected OSPF process.


    Noteblank.gif This command is available only for ASR 9000 devices.


    Delete OSPF from Interface

    Delete the OSPF interface details for a selected OSPF process.


    Noteblank.gif This command is available only for ASR 9000 devices.


    Show OSPF On Interface

    Logical Inventory > Routing Entities > Routing Entity. In the content pane, Right-click the name in the IP Interfaces tab and choose Commands > Configuration.

    View the OSPF interface details.

    Create ISIS Router

    Logical Inventory > IS-IS > System. Right-click and choose Commands > Configuration.

    Create a new ISIS process.

    Create ISIS Address Family

    Logical Inventory > IS-IS. In the content pane, Right-click the process and choose Commands > Configuration.

    Create an Address Family (IPV4 or IPV6)for a selected ISIS process.

    Create ISIS Interface

    Create an ISIS interface for the selected process.

    Delete ISIS Address Family

    Delete the Address Family (IPV4 or IPV6) created for the selected ISIS process.

    Delete ISIS Router

    Delete the ISIS process.

    Modify ISIS Address Family

    Modify the Address Family (IPV4 or IPV6) details created for the ISIS process.

    Modify ISIS Router

    Modify the ISIS process details.

    Create ISIS Interface Address Family

    Create an Address Family for an ISIS interface.


    Noteblank.gif This command is applicable only for ASR 9000.


    Modify ISIS Interface Address Family

    Modify the Address Family details created for an ISIS interface.


    Noteblank.gif This command is applicable only for ASR 9000 devices.


    Delete ISIS Interface Address Family

    Delete the Address Family details created for an ISIS interface.


    Noteblank.gif This command is applicable only for ASR 9000 devices.


    Using Pseudowire Ping and Show Commands

    The following commands can be launched from the inventory by right-clicking the appropriate node and choosing Commands > Configuration. Your permissions determine whether you can run these commands (see Permissions for Managing Carrier Ethernet). To find out if a device supports these commands, see the Cisco Prime Network 5.2 Supported Cisco VNEs.



    Command
    Navigation
    Description

    Ping Pseudowire

    Logical Inventory > Pseudowires > right-click the interface > Commands > Configure >

    Pings the peer router with a tunnel ID from a single or multisegment pseudowire. This command can be used to verify connectivity between any set of PE routers in the pseudowire path. For a multisegment pseudowire this command can be used to verify that all the segments of the multisegment pseudowire are operating. You can use this command to verify connectivity at the following pseudowire points:

    • From one end of the pseudowire to the other
    • From one of the pseudowires to a specific segment
    • The segment between two adjacent PE routers

    You can choose to ping the peer router by default or provide the IP of the required destination router to ping.

    Display Pseudowire

    Logical Inventory > Pseudowire > right-click the required interface > Commands > Show > Display Pseudowire

    Shows the MPLS Layer 2 (L2) transport binding using tunnel identifier. MPLS L2 transport binding allows you to identify the VC label binding information. This command can be used to display information about the pseudowire switching point.

    Configuring IS-IS

    In order to enable IS-IS for IP on a Cisco router and have it exchange routing information with other IS-IS enabled routers, you must perform these two tasks:

    • Enable the IS-IS process and assign area
    • Enable IS-IS for IP routing on an interface

    You can configure the router to act as a Level 1 (intra-area) router, as Level 1-2 (both a Level 1 router and a Level 2 router), or as Level 2 (an inter-area router only).

    The following IS-IS commands can be launched from the inventory by right-clicking on the appropriate node and choosing Commands > Configuration. Your permissions determine whether you can run these commands (see Permissions for Managing Carrier Ethernet). To find out if a device supports these commands, see the Cisco Prime Network 5.2 Supported Cisco VNEs.



    Command
    Navigation
    Description

    Create ISIS Router

    ISIS > right-click System > Commands > Configuration

    Creates an IS-IS routing process and specify the area for each instance of the IS-IS routing process. An appropriate Network Entity Title (NET) must be configured to specify the area address for the IS-IS area and system ID of the router.Up to eight processes are configurable. A maximum of five IS-IS instances on a system are supported.

    Modify ISIS Router
    Delete ISIS Router

    ISIS > System > right-click Process ID in content pane > Commands > Configuration

    Modifies or deletes an existing IS-IS routing configuration for the specified routing process.

    Create ISIS Interface

    ISIS > System > right-click Process ID in content pane > Commands > Configuration

    Creates or modifies an IS-IS routing process and assign it to a specific interface, rather than to a network.

    Modify ISIS Interface
    Delete ISIS Interface

    ISIS > expand System > select a Process > select Interfaces tab > right-click the Interface Name > Commands > Configuration

    Create ISIS Address Family
    Modify ISIS Address Family
    Delete ISIS Address Family

    ISIS > System > right-click Process ID in content pane > Commands > Configuration

    Configure or modify IS-IS routing to use standard IP Version 4 (IPv4) and IP Version 6 (IPv6) address prefixes.
