Service Manager
To access Service management tasks, log into the system (see “Logging In” section). Then, from the Home page, click the
Tools
tab. The Tools page appears.
From the Tools Page, click Service Manager. The Service Manager page appears showing:
-
Edit Service Properties
-
Edit IMGW Device and Hop Types
Editing Service Properties
Step 1 From the Service Manager Functional Overview page, click
Edit Service Properties
. The Edit Service Properties page appears (see Figure 15-1).

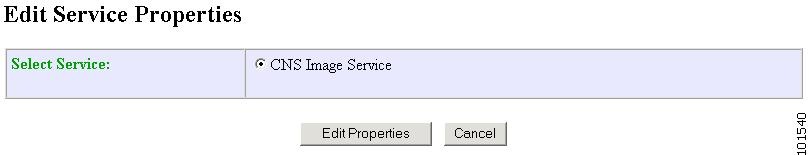

Figure 15-1 Edit Service Properties
Step 2 From the Edit Service Properties page, select Image Service by clicking the associated radio button.
The service properties page for Image Service appears (see Figure 15-2).

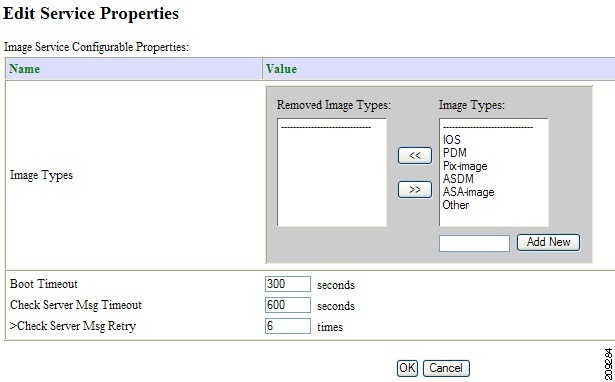

Figure 15-2 Image Service Properties
Step 3 To Edit Image Types: Click the move button (<<) to move an image type to the Removed Image Types column.
Step 4 To Edit Boot Timeout: Enter a new value in the text box.
Step 5 To Edit Check Server Msg Timeout: Enter a new value in the text box.
Step 6 To Edit Check Server Msg Retry: Enter a new value in the text box.
Step 7 To cancel this task, click Cancel.
Step 8 To submit the changes, click OK.
Editing IMGW Device and Hop Types
Step 1 From the Service Manager Functional Overview page, click
Edit IMGW Device and Hop Types
.
The IMGW Device and Hop Types page appears (see Figure 15-3).

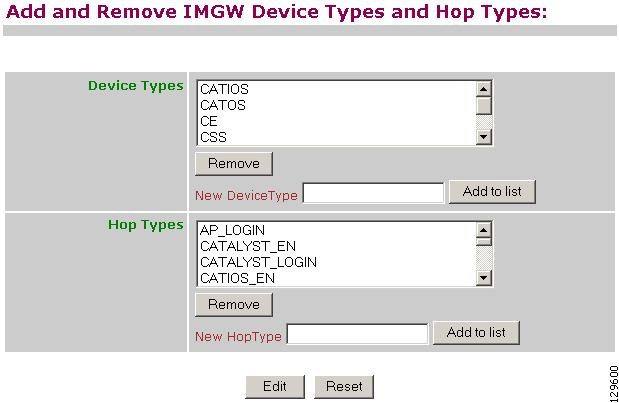

Figure 15-3 IMGW Device and Hop Types
Step 2 To remove a Device Type or Hop Type, click the item, then click
Remove
.
Step 3 To add a new Device Type or Hop Type, enter the item in the dialog box, then click
Add to list
.
Step 4 When complete, so save your changes, click
Edit
.
