Install Crosswork Data Gateway on VMware vCenter

This chapter contains the following topics:

Crosswork Data Gateway Workflows

Crosswork Data Gateway is installed as a base VM that contains only enough software to register itself with Cisco Crosswork.

Installation workflow

Follow these steps to install a Data Gateway VM for use with Crosswork Network Controller:

  1. Choose the deployment profile for the Crosswork Data Gateway VM. See Crosswork Data Gateway VM requirements.

  2. Review the installation parameters at Crosswork Data Gateway Parameters and Deployment Scenarios and make sure that you have all the required information to install Data Gateway using the preferred deployment scenario.

  3. Install Data Gateway using a preferred method:

    Table 1. Crosswork Data Gateway installation options

    VMware

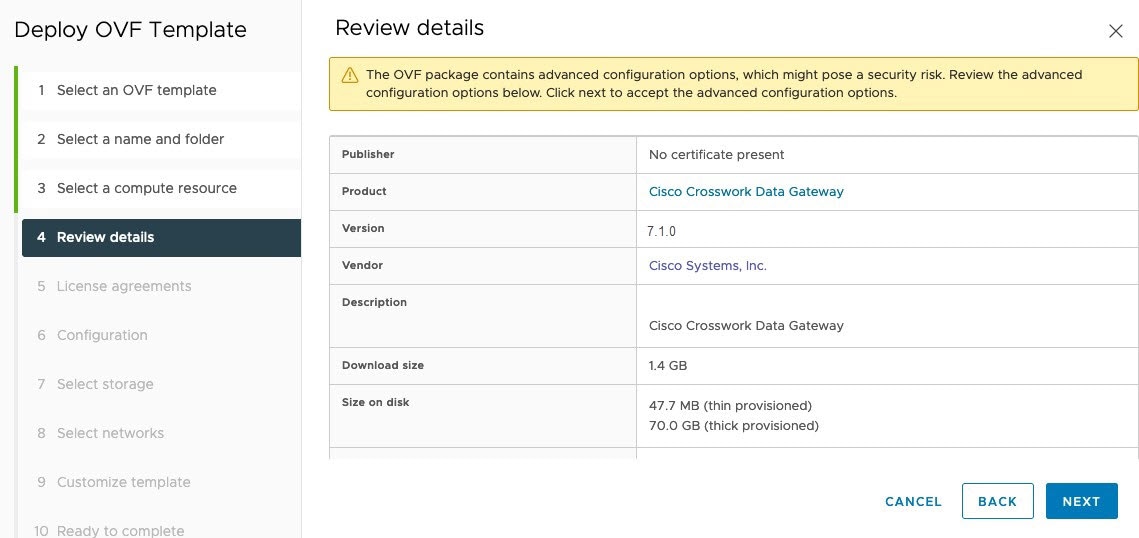

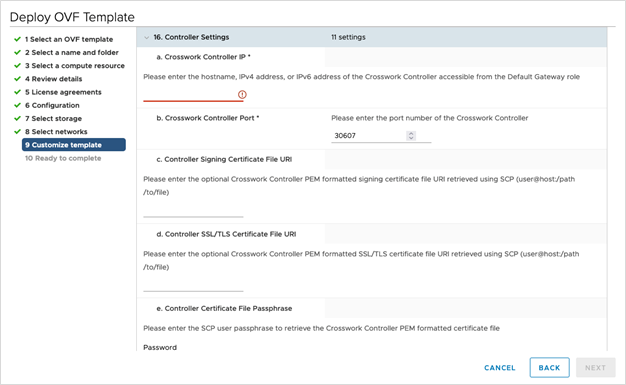

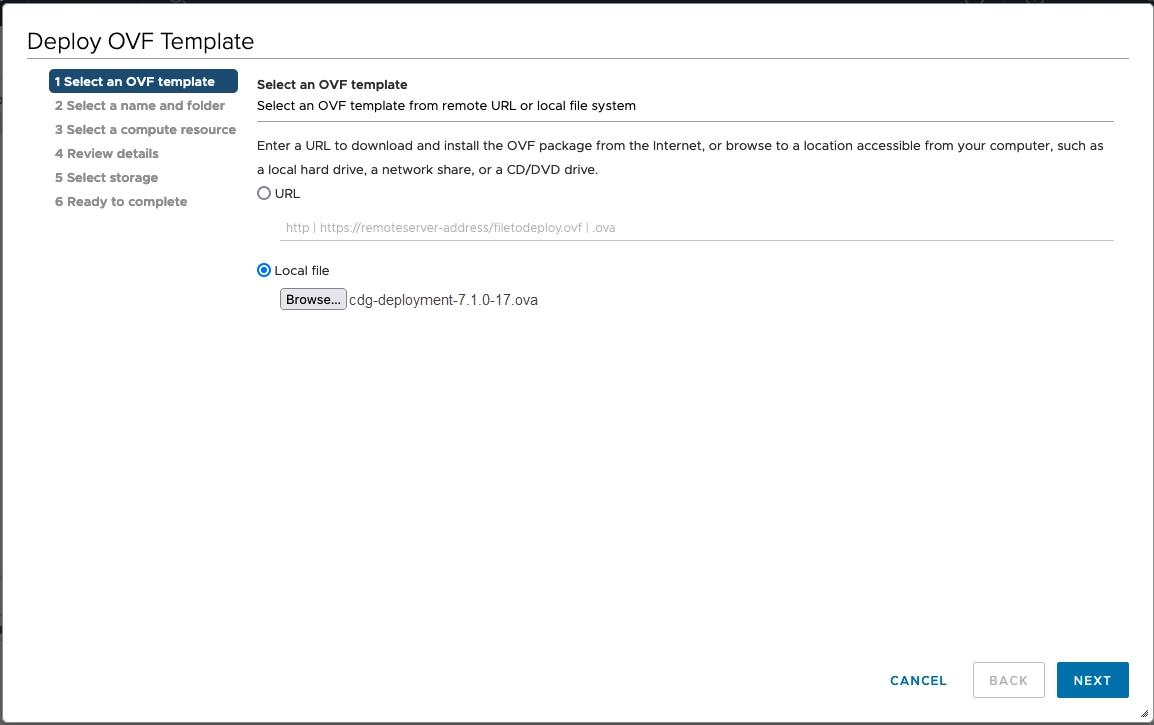

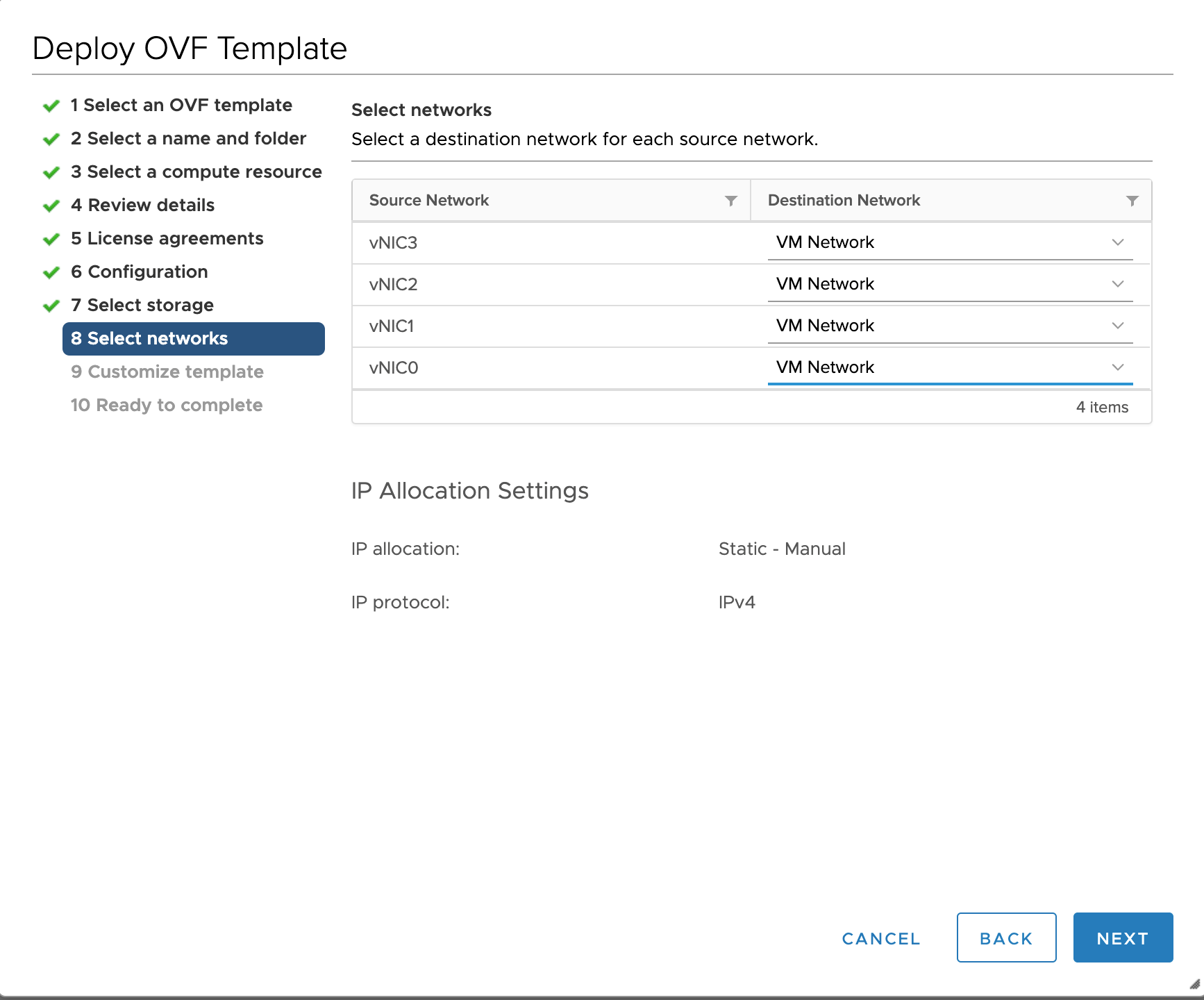

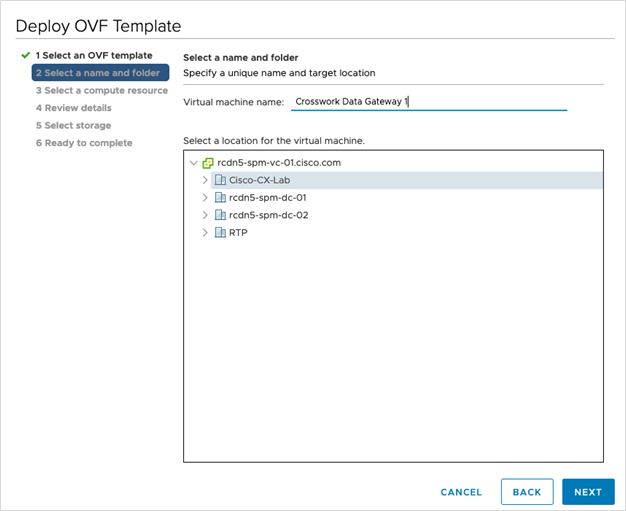

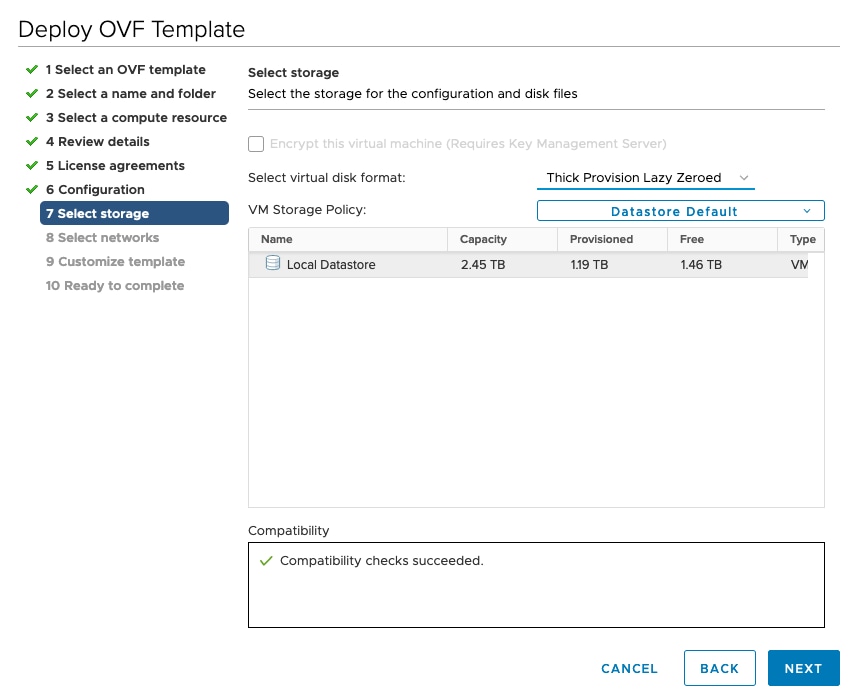

    Install Crosswork Data Gateway using vCenter vSphere Client

    Install Crosswork Data Gateway via the OVF Tool

    Note

    If you plan to install multiple Crosswork Data Gateway VMs due to load or scale requirements or you wish to leverage Crosswork Data Gateway High Availability, we recommend that you install all the Data Gateway VMs first and then proceed with adding them to a Data Gateway pool.

  4. Complete the post-installation tasks mentioned in the section Crosswork Data Gateway Post-installation Tasks.

  5. Verify that the Data Gateway VM has enrolled successfully with Crosswork Network Controller. For information on how to verify the enrollment process, see Crosswork Data Gateway Authentication and Enrollment.

    After the Data Gateway VM has enrolled successfully with Cisco Crosswork, set up the data collection by creating a Data Gateway pool. For more information, see the Create a Crosswork Data Gateway Pool section in the Cisco Crosswork Network Controller 7.1 Administration Guide.

Upgrade workflow

The upgrade procedure is required only for the Data Gateway Base VM upgrade. Upgrade of other components, such as collectors, is performed by Cisco Crosswork.

Follow these steps to upgrade a Data Gateway VM for use with Crosswork Network Controller:

  1. Shut down and delete the existing Data Gateway VMs. For detailed instructions, see Delete Crosswork Data Gateway VM from Cisco Crosswork.

  2. Install new Data Gateway VMs with the same number of VMs as the old configuration. Also, configure the new VMs with identical settings, including the Management interface. For detailed installation instructions, see Installation workflow.

  3. Verify that the newly installed Data Gateway VMs are enrolled with Cisco Crosswork.

    On the Data Gateway Management page, confirm that Data Gateway status has the status as:

    • Admin State is in the Up state.

    • Operational State is in the Not Ready state.

    For information on how to verify the enrollment process, see Crosswork Data Gateway Authentication and Enrollment.

  4. Complete all required post-installation tasks, such as configuring network settings. For more information, see Crosswork Data Gateway Post-installation Tasks.

  5. Verify that devices are attached to the data gateways in the Cisco Crosswork UI.

    For detailed information on upgrading the Data Gateway VM, see Upgrade Cisco Crosswork Network Controller.

Crosswork Data Gateway Parameters and Deployment Scenarios

Before you begin installing Crosswork Data Gateway, read through this section to understand the deployment parameters and possible deployment scenarios.

During installation, Crosswork Data Gateway creates the following user accounts:

  • Crosswork Data Gateway administrator, with the username, dg-admin, and the password set during installation. The administrator uses this ID to log in and troubleshoot the Data Gateway.

  • Crosswork Data Gateway operator, with the username, dg-oper and the password set during installation. The dg-oper user has permissions to perform all ‘read’ operations and limited ‘action’ commands.

    To know what operations an admin and operator can perform, see the Supported User Roles topic in the Cisco Crosswork Network Controller 7.1 Administration Guide.

  • Crosswork Data Gateway technical assistance center, with the username, dg-tac. The password for this user is set when one of the other users of the Data Gateways enables this account.

The dg-admin, dg-oper, and dg-tac user accounts are reserved usernames and cannot be changed. You can change the passwords for the dg-admin and dg-oper accounts through the Crosswork Data Gateway user interface. The dg-tac account is inactive by default. It can be temporarily activated by an authorized user who enables the account and sets a password.


Note

Activating the dg-tac account requires a token that only Cisco can provide. If CLI access to the Data Gateway system is required for troubleshooting, Cisco Customer Experience (CX) will assist you in enabling the dg-tac account.

For more information, see the Change Passphrase section in the Cisco Crosswork Network Controller 7.1 Administration Guide. In case of lost or forgotten passwords, destroy the current VM, you have to create a new VM, and re-enroll the new VM with Cisco Crosswork.

The following table provides the label and key values of deployment parameters. Labels represent the parameters that can be configured in the VMware UI and Keys corresponds to field values in the OVF script that match your configuration.

In the following table:

* Denotes the mandatory parameters. Parameters without this mark are optional. You can choose them based on your deployment scenario. Deployment scenarios are explained (wherever applicable) in the Additional Information column.

** Denotes parameters that you can enter during install or address later using additional procedures.


Note

When entering the parameters for deployment, ensure that you add the correct parameters. If the parameter values are incorrect, you have to destroy the current Data Gateway VM, create a new VM, and re-enroll the new VM with Cisco Crosswork.

Table 2. Crosswork Data Gateway Deployment Parameters and Scenarios

Label

Key

Description

Additional information
DeploymentOption DeploymentOption

Parameter conveys the VM resource profile. For an on-premise installation, choose either:

  • onpremise-standard

  • onpremise-extended

This parameter is applicable only for the OVF tool.

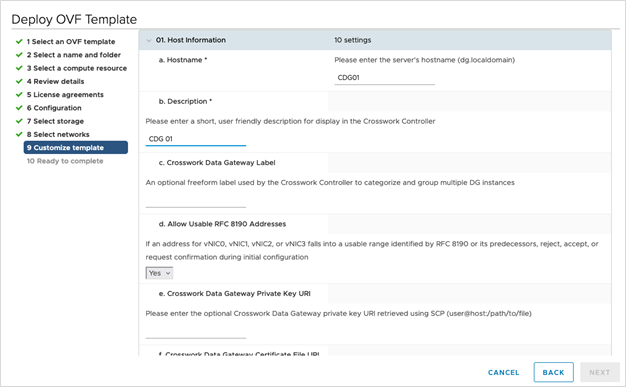

Host Information

Hostname*

 Hostname

Name of the Data Gateway VM specified as a fully qualified domain name (FQDN).

In larger systems, you are likely to have more than one Data Gateway VM. The hostname must, therefore, be unique and created in a way that makes identifying a specific VM easy.

Description*

 Description

A detailed description of the Data Gateway.

Crosswork Data Gateway Label

 Label

Label used by Cisco Crosswork to categorize and group multiple Data Gateway VMs.

Allow Usable RFC 8190 Addresses*

 AllowRFC8190

Choose how to validate interface addresses that fall in a usable RFC 8190 range. Options are: Yes, No, or Ask, where the initial configuration script prompts for confirmation.

The default value is Yes.

The default value is Yes to automatically allow interface addresses in an RFC 8190 range.

Crosswork Data Gateway Private Key URI

 DGCertKey

SCP URI to private key file for session key signing. You can retrieve this using SCP (user@host:path/to/file).

Cisco Crosswork uses self-signed certificates for handshake with Crosswork Data Gateway. These certificates are generated at installation.

However, if you want to use third party or your own certificate files, then enter these parameters.

Certificate chains override any preset or generated certificates in the Data Gateway VM and are given as an SCP URI (user:host:/path/to/file).

The host with the URI files must be reachable on the network (from the vNIC0 interface via SCP) and the files must be present at the time of install.

Crosswork Data Gateway Certificate File and Key Passphrase

 DGCertChainPwd

Passphrase of the SCP user to retrieve the Crosswork Data Gateway PEM formatted certificate file and private key.

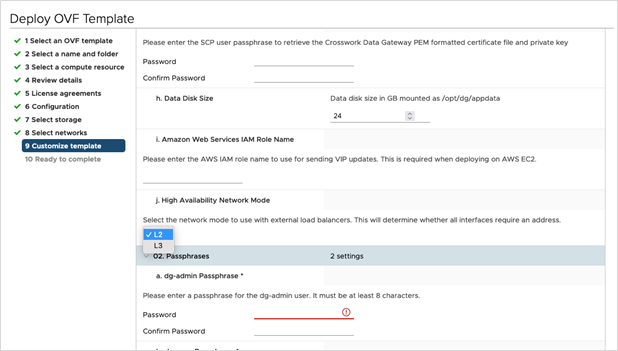

Data Disk Size

 DGAppdataDisk

Indicates the size in GB of a second data disk. The default value of this parameter in each profile is:

  • 20 GB for Standard.

  • 520 GB for Extended.

Do not change the default value without consulting a Cisco representative.

High Availability Network Mode*

HANetworkMode

Indicates the mode for the high-availability network.

Options are:

  • L2

  • L3

The default value is L2.

When deploying on VMware, set the network to L2.

Passphrase

dg-admin Passphrase*

 dg-adminPassword

The password you have chosen for the dg-admin user.

Password must be 8–64 characters.

dg-oper Passphrase*

 dg-operPassword

The password you have chosen for the dg-oper user.

Password must be 8–64 characters.

Interfaces

In a 3-NIC deployment, you must provide an IP address for Management Traffic (vNIC0) and Control or Data Traffic (vNIC1). The IP address for Device Access Traffic (vNIC2) is assigned during Data Gateway pool creation as explained in the Create a Crosswork Data Gateway Pool section in the Cisco Crosswork Network Controller 7.1 Administration Guide.

Note



  • Selecting None in both the IPv4 Method and the IPv6 Method fields of the vNIC results in a nonfunctional deployment.

  • Although the IP address is assigned when the Data Gateway is added to a pool, you must configure network connectivity for the third interface in VMware either during installation or before adding the Data Gateway to the pool.

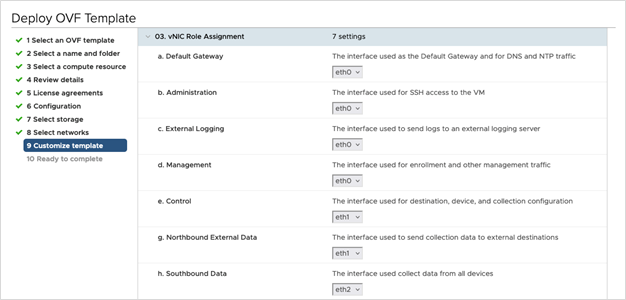

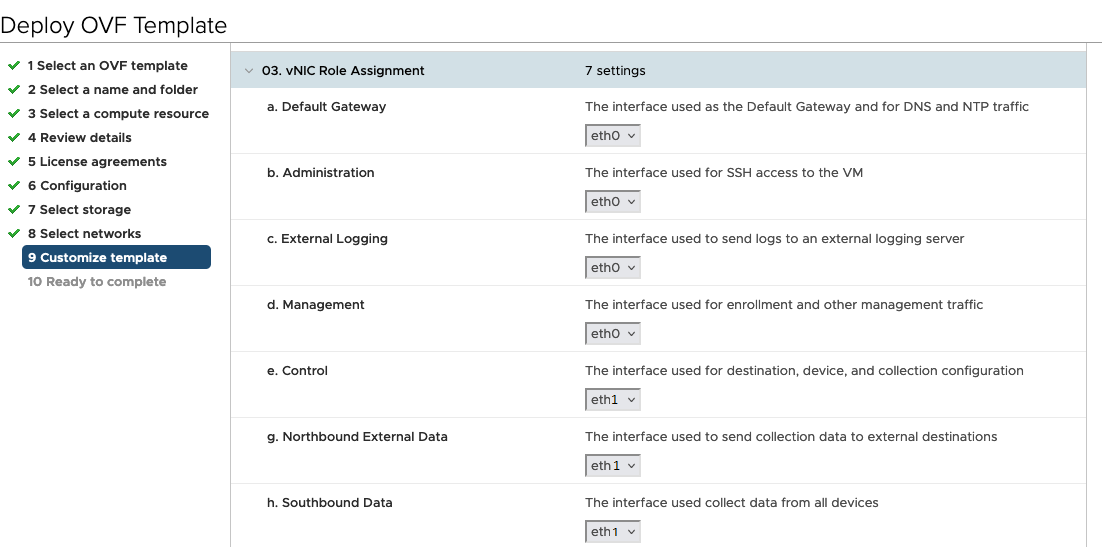

vNIC Role Assignment

Role assignment allows you to control the traffic that an interface must handle. If your use case is not supported by the preassigned roles, you can manually assign roles to the interfaces.

Each parameter has a predefined role. The parameter accepts the interface value as eth0, eth1, or eth2, which refer to vNIC0, vNIC1, or vNIC2 respectively.

Default Gateway*

NicDefaultGateway

The interface used as the Default Gateway for processing the DNS and NTP traffic.

Options are eth0, eth1, or eth2. The default value is eth0.

For information on the type of roles that you must assign to the vNICs, see Table 3.

Administration*

NicAdministration

The interface used to access the VM through the SSH access.

Options are eth0, eth1, or eth2. The default value is eth0.

External Logging*

NicExternalLogging

The interface used to send logs to an external logging server.

Options are eth0, eth1, or eth2. The default value is eth0.

Management*

NicManagement

The interface used to send the enrollment and other management traffic.

Options are eth0, eth1, or eth2. The default value is eth0.

Control*

NicControl

The interface used to send the destination, device, and collection configuration.

Options are eth0, eth1, or eth2. The default value is eth1.

Northbound System Data*

NicNBSystemData

The interface used to send collection data to the system destination.

As the system destinations share the same IP as the interface that allows connection to the collection service, the northbound data for system destinations uses the Control role's interface.

Options are eth0, eth1, eth2or eth3.

Northbound External Data*

NicNBExternalData

The interface used to send the collection data to the external destinations configured by the user.

Options are eth0, eth1, or eth2. The default value is eth1.

Southbound Data*

NicSBData

The interface used to collect data from the devices.

If the interface only has the NicSBData role, it doesn't need an IP during the deployment.

Options are eth0, eth1, or eth2. The default value is eth2.

vNIC IPv4 Address (vNIC0, vNIC1, and vNIC2 based on the number of interfaces you choose to use)

Important



When using two or three NICs both vNIC0 and vNIC1 must be assigned static IPv4 or IPv6 addresses.

All unused vNICs (IPv4 or IPv6) should be left set to Method "None" with the other fields left at the default.

vNIC IPv4 Method*

Vnic0IPv4Method

Vnic1IPv4Method

Vnic2IPv4Method

Method in which the interface is assigned an IPv4 address - None or Static.

The default value is None.

  • If you're using IPv4, change the value from none to static, then configure these fields:

    • vNIC IPv4 Address

    • vNIC IPv4 Netmask

    • vNIC IPv4 Skip Gateway

    • vNIC IPv4 Gateway

  • If you are using IPv6, leave the value set to none and retain the default IPv4 settings.

vNIC IPv4 Address

Vnic0IPv4Address

Vnic1IPv4Address

Vnic2IPv4Address

IPv4 address of the interface.

vNIC IPv4 Netmask

Vnic0IPv4Netmask

Vnic1IPv4Netmask

Vnic2IPv4Netmask

IPv4 netmask of the interface in dotted quad format.

vNIC IPv4 Skip Gateway

Vnic0IPv4SkipGateway

Vnic1IPv4SkipGateway

Vnic2IPv4SkipGateway

The default value is False.

Setting this to True skips configuring a gateway.

vNIC IPv4 Gateway

Vnic0IPv4Gateway

Vnic1IPv4Gateway

Vnic2IPv4Gateway

IPv4 address of the vNIC gateway.

vNIC IPv6 Address (vNIC0, vNIC1, and vNIC2 based on the number of interfaces you choose to use)

vNIC IPv6 Method*

Vnic0IPv6Method

Vnic1IPv6Method

Vnic2IPv6Method

Method in which the vNIC interface is assigned an IPv6 address - None, Static, or SLAAC.

The default value is None.

If you're using IPv6, change the value from none to static, then configure these fields:

  • vNIC IPv6 Address

  • vNIC IPv6 Netmask

  • vNIC IPv6 Skip Gateway

  • vNIC IPv6 Gateway

vNIC IPv6 Address

Vnic0IPv6Address

Vnic1IPv6Address

Vnic2IPv6Address

IPv6 address of the interface.

vNIC IPv6 Netmask

Vnic0IPv6Netmask

Vnic1IPv6Netmask

Vnic2IPv6Netmask

IPv6 prefix of the interface.

vNIC IPv6 Skip Gateway

Vnic0IPv6SkipGateway

Vnic1IPv6SkipGateway

Vnic2IPv6SkipGateway

Options are True or False.

Selecting True skips configuring a gateway.

vNIC IPv6 Gateway

Vnic0IPv6Gateway

Vnic1IPv6Gateway

Vnic2IPv6Gateway

IPv6 address of the vNIC gateway.

DNS Servers

DNS Address*

 DNS

Space delimited list of IPv4 or IPv6 addresses of the DNS servers accessible from the management interface.

DNS Search Domain*

 Domain

DNS search domain. The default value is localdomain.

DNS Security Extensions

*		 DNSSEC

Options are False, True, or Allow-Downgrade.

The default value is False

Select True to use DNS security extensions.

DNS over TLS*

 DNSTLS

Options are False, True, and Opportunistic.

The default value is False.

Select True to use DNS over TLS.

Multicast DNS*

 mDNS

Options are False, True, and Resolve. Select True to use multicast DNS.

The default value is False.

If you choose Resolve, only resolution support is enabled. Responding is disabled.

Link-Local Multicast Name Resolution*

 LLMNR

Options are False, True, Opportunistic, or Resolve.

The default value is False.

If you choose Resolve, only resolution support is enabled. Responding is disabled.

Select True to use link-local multicast name resolution.

NTPv4 Servers

NTPv4 Servers*

 NTP

Space-delimited list of IPv4, IPv6 addresses, or hostnames of the NTPv4 servers accessible in the management interface.

You must enter value here, such as pool.ntp.org. NTP server is critical for time synchronization between the Data Gateway VM, Crosswork, and devices. Using a nonfunctional or dummy address may cause issues when Cisco Crosswork and Crosswork Data Gateway try to communicate with each other. If you are not using an NTP server, ensure that time gap between Crosswork Data Gateway and Crosswork is not more than 10 minutes. Else, Data Gateway fails to connect.

NTPv4 Authentication

 NTPAuth

Select True to use NTPv4 authentication.

The default value is False.

NTPv4 Keys

 NTPKey

Key IDs to map to the server list. Enter a space-delimited list of Key IDs.

NTPv4 Key File URI

 NTPKeyFile

SCP URI to the chrony key file.

NTPv4 Key File Passphrase

 NTPKeyFilePwd

Password of SCP URI to the chrony key file.

Remote Syslog Server
Remote Syslog Server* UseRemoteSyslog Options are True and False. Select True to send Syslog messages to a remote host.

The default value is False.

Configuring an external syslog server sends service events (CLI/MDT/SNMP/gNMI) to the external syslog server. Otherwise, they are logged only to the Crosswork Data Gateway VM.

If you want to use an external syslog server, specify the following settings:

  • Use Remote Syslog Server

  • Syslog Server Address

  • Syslog Server Port

  • Syslog Server Protocol

Syslog Server Addresses

SyslogAddress

Hostname, IPv4, or IPv6 address of a syslog server accessible in the management interface.

Syslog Server Port

 SyslogPort

Port number of the syslog server.

The default port number is 514.

Syslog Server Protocol

 SyslogProtocol

Options are UDP, RELP, or TCP to send the syslog.

The default value is UDP.

Syslog Multiserver Mode

SyslogMultiserverMode

Multiple servers in the failover or simultaneous mode. This parameter is applicable only when the protocol is set to a non-UDP value. UDP must use the simultaneous mode.

Options are Simultaneous or Failover.

The default value is Simultaneous.

Syslog over TLS

 SyslogTLS

Select True to use TLS to encrypt syslog traffic.

The default value is False.

Syslog TLS Peer Name

 SyslogPeerName

Syslog server hostname exactly as entered in the server certificate SubjectAltName or subject common name.

Syslog Root Certificate File URI

SyslogCertChain

PEM formatted root cert of syslog server retrieved using SCP.

The host with the URI files must be reachable on the network (from vNIC0 interface via SCP) and the files must be present at the time of install.

Syslog Certificate File Passphrase

SyslogCertChainPwd

Password of SCP user to retrieve Syslog certificate chain.

Remote Auditd Server

Remote auditd Server*

 UseRemoteAuditd Options are True and False. The default value is False.Select True to send auditd messages to a remote host.

If desired, you can configure an external Auditd server. Crosswork Data Gateway sends audit notifications to the Auditd server when configured and present on the network.

Specify these three settings to use an external Auditd server.

Auditd Server Address

 AuditdAddress

Hostname, IPv4, or IPv6 address of an optional Auditd server.

Auditd Server Port

 AuditdPort

Port number of an optional Auditd server.

The default port is 60.

Controller and Proxy Settings

Crosswork Controller IP*

 ControllerIP

The Virtual IP address or the hostname of the Cisco Crosswork cluster.

Note



If you are using an IPv6 address, it must be surrounded by square brackets ([1::1]).

For ControllerIP in geo redundancy enabled environment, see Table 2.

This is required so that the Data Gateway can enroll with the Crosswork server during the installation and initial start up. Excluding this step requires you to manually ingest the certificate. For more information, see Import Controller Signing Certificate File.

Crosswork Controller Port*

 ControllerPort

Port of the Cisco Crosswork controller.

The default port is 30607.

Controller Signing Certificate File URI*

 ControllerSignCertChain

PEM formatted root cert of Cisco Crosswork to validate signing certs retrieved using SCP. Cisco Crosswork generates the PEM file and is available at cw-admin@<Crosswork_VM_management_VIP_address>:/home/cw-admin/controller.pem .

The certificate is in the format.

prop:"ControllerSignCertChain=cw-admin@${ControllerIP}:/home/cw-admin/controller.pem

Note



If you are using an IPv6 address, it must be surrounded by square brackets ([1::1]).

For ControllerSignCertChain in geo redundancy enabled environment, see Table 2.

Crosswork Data Gateway requires the Controller Signing Certificate File to enroll automatically with Cisco Crosswork.

If you specify these parameters during the installation, the certificate file is imported once Data Gateway boots up for the first time.

If you do not specify these parameters during installation, then import the certificate file manually by following the procedure Import Controller Signing Certificate File.

Controller SSL/TLS Certificate File URI

 ControllerTlsCertChain

Cisco Crosswork Controller PEM formatted SSL/TLS certificate file retrieved using SCP.

Controller Certificate File Passphrase*

 ControllerCertChainPwd

Password of SCP user (cw-admin) to retrieve Cisco Crosswork certificate chain.

Proxy Server URL

ProxyURL

URL of the HTTP proxy server.

The proxy parameters apply to the Crosswork Data Gateway cloud deployment.

The Data Gateway must connect to the Internet via TLS, and a proxy server may be required if it is not present in your environment.

If you want to use a proxy server, specify these parameters.

Proxy Server Bypass List

 ProxyBypass

Comma-delimited list of addresses and hostnames that will not use the proxy server.

Authenticated Proxy Username

 ProxyUsername

Username for authenticated proxy servers.

Authenticated Proxy Passphrase

 ProxyPassphrase

Passphrase for authenticated proxy servers.

HTTPS Proxy SSL/TLS Certificate File URI

 ProxyCertChain

HTTPS proxy PEM formatted SSL/TLS certificate file retrieved using SCP.

HTTPS Proxy SSL/TLS Certificate File Passphrase

 ProxyCertChainPwd

Password of SCP user to retrieve proxy certificate chain.
Table 3. Geo redundancy parameters

Label

Key

Description

Additional information

Crosswork Controller IP*

 ControllerIP

Use FQDN as the unified endpoint. For more information, see Unified Endpoint Requirements.

Controller Signing Certificate File URI*

 ControllerSignCertChain

PEM formatted root certificate of Cisco Crosswork to validate signing certs retrieved using SCP.

Cisco Crosswork generates the PEM file and is available at admin@<Crosswork_VM_ management_fqdn_address>:/home/cw-admin/controller.pem .

The certificate is in the prop:"ControllerSignCertChain=cw-admin@${ControllerIP}:/home/cw-admin/controller.pem format.

Crosswork Data Gateway requires the Controller Signing Certificate File to enroll automatically with Cisco Crosswork.

If you specify these parameters during the installation, the certificate file is imported once Data Gateway boots up for the first time.

If you do not specify these parameters during installation, then import the certificate file manually by following the procedure Import Controller Signing Certificate File.

Install Crosswork Data Gateway using vCenter vSphere Client

Follow these steps to install Crosswork Data Gateway using vCenter vSphere Client:

Note

  • We have included sample images of Crosswork Data Gateway on-premise Standard deployment in the procedure.

  • Depending on the vCenter version, the layout and order of fields on the vCenter vSphere screens can vary.

  • Leave values blank or use the default unless they are required by the installer (indicated with an asterisk *) or specific to your environment, such as certificates.

Before you begin


Warning

The default VMware vCenter deployment timeout is 15 minutes. If the time taken to fill the OVF template exceeds 15 minutes, vCenter times out and you have to start over again. To prevent this behavior, it is recommended that you plan for the installation by having the necessary parameters and requirements ready. Refer to the Table 1 for list of mandatory and optional parameters.

Procedure

Step 1

Download the Crosswork Data Gateway UEFI OVA image file from cisco.com (*.ova). For the 7.1 release, download cdg-deployment-7.1.0-17.ova.

Step 2

Connect to vCenter vSphere Client and select Actions > Deploy OVF Template.

Step 3

The VMware Deploy OVF Template wizard appears and highlights the first step, 1 Select template.

  1. Click Browse to navigate to the location where you downloaded the OVA image file and select it.

    Once selected, the filename is displayed in the window.

Figure 1. OVF template selection

Step 4

Click Next to go to 2 Select a name and folder, as shown in the following figure.

  1. Enter a unique name for the VM that you are creating.

  2. In the Select a location for the virtual machine list, choose the data center under which the VM resides.

    Figure 2. Name and folder selection
    Deploy OVF Template - Name and Folder Selection Window

Step 5

Click Next to go to 3 Select a computer resource. Choose the VM’s host or cluster.

Figure 3. Computer resource
Deploy OVF Template - Select a computer resource Window

Step 6

Click Next. The VMware vCenter Server validates the OVA. Network speed determines how long validation takes. When the validation is complete, the wizard moves to 4 Review details.

Take a moment to review the OVF template to make sure it matches the version that you want to install and click Next.

Note



This information is gathered from the OVF and cannot be modified.
Figure 4. Review details
Deploy OVF Template - Review details Window

Step 7

Click Next to go to 5 License agreements. Review the end-user license agreement, and then click Accept if you agree with the conditions. Contact your Cisco representative if you do not agree with the conditions.

Step 8

Click Next to go to 6 Configuration, as shown in the following figure. Select Crosswork On-Premise Standard or Crosswork On-Premise Extended. See Crosswork Data Gateway deployment type for more information.

Figure 5. Deployment configuration
Deploy OVF Template - Configuration Window

Note



Crosswork Network Controller deployments do not support the Crosswork On-Premise Standard with the extra resources option or any Crosswork Cloud configurations.

Step 9

Click Next to go to 7 Select storage, as shown in the following figure.

  1. Cisco recommends that you select Thick provision lazy zeroed from the Select virtual disk format drop-down list.

  2. From the Datastores table, choose the data store you want to use and review its properties to ensure that there is enough available storage. For Crosswork On-Premise Standard deployment, the storage requirement is 70 GB and for Crosswork On-Premise Extended, it is 570 GB.

Figure 6. Storage selection

Step 10

Click Next to go to 8 Select networks, as shown in the following figure. From the drop-down, select the network for each vNIC you plan to use. Leave any unused VNICs configured for the default value. For example,

  • 2 NIC: Select the appropriate Destination Network for vNIC0 and vNIC1.

  • 3 NIC: Select the appropriate Destination Network for vNIC0, vNIC1, and vNIC2.

  • Crosswork does not support the vNIC3 network.

    Note



    Leave the vNIC3 set to the default value as it is unused.
Figure 7. Network selection
Deploy OVF Template - Select networks Window

Step 11

Click Next to go to 9 Customize template, with the Host information already expanded. Enter the information for the parameters as explained in Table 1.

Note



For larger systems, it is likely that you have more than one Data Gateway VMs. The Data Gateway hostname should, therefore, be unique and created in a way that makes identifying a specific VM easy.

Depending on the NIC deployment, note the following:

  • For 2 NIC deployments, configure the IP, subnet, and gateway values for vNIC0 and vNIC1. After the Data Gateway pool is created, the VIP address is assigned as a secondary address on vNIC1.

  • For the 3 NIC deployments, configure the IP, subnet, and gateway values for vNIC0 and vNIC1. The VIP address will be assigned to vNIC2 once the Data Gateway is added to a pool.

Note



There are three types of configuration settings:

  1. Required settings: Mandatory values like IP addresses and hostnames.

  2. Optional settings: Use case–dependent fields such as certificates or syslog server details.

  3. Reserved settings: Fields that should remain blank unless explicitly instructed by the Customer Experience team.

    Ensure only required and relevant optional settings are configured. Do not modify reserved fields unless directed. For more information, see Crosswork Data Gateway Parameters and Deployment Scenarios.

Figure 8. Host information

For creating pools in the VMware environment, select L2 and specify IP addresses for creating the HA pool.

Figure 9. High availability network details
Deploy OVF Template - Customize template > Host information Window > High Availability Network Mode

  1. Configure the vNIC Role Assignment based on the number of NICs that you have decided to use.

    Based on the number of NICs, refer to the following to use the customized template configuration:

    Note



    The default configuration is for 3 NIC deployment.
Figure 10. Customize Template for 2 vNICs deployment

For 3 vNIC deployments, you can leave the settings with the default values.

Figure 11. Customize template for 3 vNICs deployment
Figure 12. Controller settings

Step 12

Click Next to go to 10 Ready to complete. Review your settings and then click Finish.

Figure 13. Review the configuration details
Deploy OVF Template - Ready to complete Window

Step 13

Once the deployment status is 100%, power on the VM to complete the deployment process. Expand the host’s entry so you can click the VM and then choose Actions > Power > Power On, as shown in the following figure:

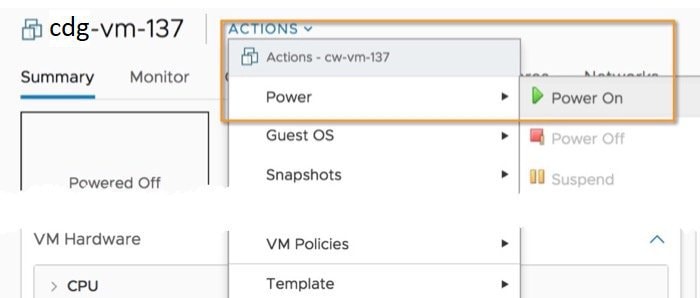

Figure 14. Power on VM

Wait for at least 5 minutes for the VM to come up and then log in via vCenter or SSH.

Warning



Changing the VM's network settings in vCenter may have significant unintended consequences, including but not limited to the loss of static routes and connectivity. The settings have been validated to provide the best network performance. Change these settings at your own risk.

What to do next

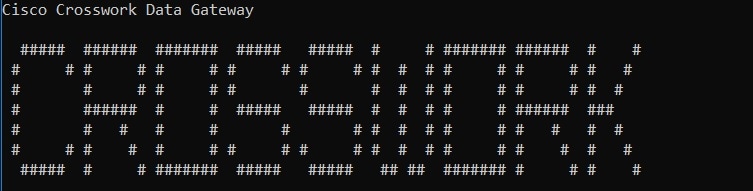

  • After you log in, the Data Gateway present you with the welcome screen and options menu indicating that the installation was completed successfully. For information on how to log in, see Log in and Log out of the Data Gateway VM.

    Log out and proceed with the post-installation tasks that are documented in the Cisco Crosswork Network Controller 7.1 Administration Guide.

  • Ensure that each Data Gateway is successfully installed and validated before proceeding to the next. Do not begin creating pools until all Data Gateways are confirmed to be built correctly.

Return to the installation workflow: Install Cisco Crosswork Network Controller on VMware vCenter

Install Crosswork Data Gateway via the OVF Tool

Modify the list of mandatory and optional parameters in the script as per your requirements and run the OVF Tool. Refer to Table 1 for the list of installation parameters and their default values.


Note

The filenames mentioned in this topic are sample names and may differ from the actual filenames on cisco.com.

Follow these steps to log in to the Data Gateway VM from SSH:

Before you begin

  • In your vCenter data center, go to Host > Configure > Networking > Virtual Switches and select the virtual switch.

  • In the virtual switch, select Edit > Security, and ensure that the following DVS port group properties are as shown:

    • Set Promiscuous mode as Reject

    • Set MAC address changes as Reject

    Confirm the settings and repeat the process for each virtual switch that is used by Crosswork Data Gateway.

Procedure

Step 1

On the machine where you have the OVFtool installed, use the following command to confirm that you have OVFtool version 4.4:

ovftTool --version

Step 2

Download the OVA and the sample script files from cisco.com. For these instructions, we use the filename as cdg-deployment-7.1.0-17.ova.

Step 3

Use the following command to extract the files from the tar bundle:

tar -xvzf cdg-7.1.0-sample-install-scripts.tar.gz

The file bundle is extracted. It includes the cdg-7.1.0-sample-install-scripts.tar.gzfile and scripts for validating the samples install scripts.

Step 4

Use the following command to extract the install scripts from the tar bundle:

tar -xvzf cdg-7.1.0-sample-install-scripts.tar.gz

Step 5

Review the contents of the README file to understand the components that are in the package and how they are validated.

Step 6

Choose the sample script that corresponds to the deployment you plan to use. Cisco provides sample scripts for 1, 2, and 3 vNIC deployments, which you may optimize to meet your needs.

Sample scripts for 3 vNIC deployments. Customize the script for the type of deployment that you have planned. For more information, see the sample scripts:

Step 7

Use the following command to make the script executable:

chmod +x {filename}

Step 8

Use the following command to execute the script from the directory where the OVA and script files are stored:

./{script name} {path and ova file name}

For example:

./<script name> <Absolute path to cdg-deployment-7.1.0-17.ova>

Step 9

If the values provided in the script are valid, provide the vCenter user’s password when you are prompted.

If the script fails due to invalid values, a message like the following is displayed:

admin@nso-576-tsdn-410-aio:~/CDG_Install$ ./three-nic /home/admin/CDG_Install/cdg-deployment-7.1.0-17.ova
Opening OVA source: /home/admin/CDG_Install/cdg-deployment-7.1.0-17.ova
The manifest does not validate
Warning:
- Line -1: Unsupported value 'firmware' for attribute 'key' on element 'ExtraConfig'.
- Line -1: Unsupported value 'uefi.secureBoot.enabled' for attribute 'key' on element 'ExtraConfig'.
Enter login information for target vi://rcdn5-spm-vc-01.cisco.com/
Username: johndoe
Password: ******

After entering the password, monitor the screen or the vCenter console to review the installation progress. For example,

Opening VI target: vi://johndoe@rcdn5-spm-vc-01.cisco.com:443/Cisco-sample-sample/host/10.10.100.10
Warning:
- Line 146: Unable to parse 'enableMPTSupport' for attribute 'key' on element 'Config'.
- Line 229: Unable to parse 'vmxnet3.noOprom' for attribute 'key' on element 'Config'.
Deploying to VI: vi://johndoe@rcdn5-spm-vc-01.cisco.com:443/Cisco-sample-sample/host/10.10.100.10
Disk progress: 65%

When the installation is complete, the Data Gateway VM is powered on, is automatically configured based on the settings that you have provided in the script, and registers with the Crosswork cluster.

What to do next

Log in to the VM. For more information, see Log in and Log out of the Data Gateway VM. After you log in, the Data Gateway should present you with the welcome screen, and options menu indicating that the installation is complete. Log out and proceed with the postinstallation tasks explained in Crosswork Data Gateway Post-installation Tasks.

Log in and Log out of the Data Gateway VM

You can log in to the Data Gateway VM in one of the following ways:

To log out from the Data Gateway VM, see Log Out of Crosswork Data Gateway VM.

Access Crosswork Data Gateway VM from SSH

The SSH process is protected from brute force attacks by blocking the client IP after a number of login failures. Failures such as incorrect username or password, connection disconnect, or algorithm mismatch are counted against the IP. Up to 4 failures within a 20 minute window causes the client IP to be blocked for at least 7 minutes. Continuing to accumulate failures cause the blocked time to be increased. Each client IP is tracked separately.

Follow these steps to log in to the Cisco Crosswork Data Gateway VM from SSH:

Procedure

Step 1

From your work station with network access to the Cisco Crosswork Data Gateway management IP, run the following command:

ssh <username>@<ManagementNetworkIP>

where ManagementNetworkIP is the management network IP address.

For example,

To login as administrator user: ssh dg-admin@<ManagementNetworkIP>

To login as operator user: ssh dg-oper@<ManagementNetworkIP>

Step 2

Provide the corresponding password, which was created during installation process, and press Enter.

The Crosswork Data Gateway flash screen opens prompting for password.

Figure 15. Crosswork screen

If you are unable to access the Cisco Crosswork Data Gateway VM, there is an issue with your network configuration settings. From the console, check the network settings. If they are incorrect, it is best to delete the Cisco Crosswork Data Gateway VM and reinstall with the correct network settings.

Access Crosswork Data Gateway through vCenter

Follow these steps to log in via vCenter:

Procedure

Step 1

Locate the VM in vCenter and then right-click and select Open Console.

The Crosswork Data Gateway console comes up.

Step 2

Enter username (dg-admin or dg-oper as per the role assigned to you) and the corresponding password (the one that you created during the installation process) and press Enter.

The Crosswork Data Gateway flash screen opens prompting for password.

Figure 16. Crosswork screen

Log Out of Crosswork Data Gateway VM

To log out, select option l Logout from the Main Menu and press Enter or click OK.

Crosswork Data Gateway Authentication and Enrollment

Once the Crosswork Data Gateway is installed, it identifies itself and enrolls with Cisco Crosswork automatically. Cisco Crosswork then instantiates a new Data Gateway instance in its database and waits for a "first-sign-of-life" from the Data Gateway VM.

After the connectivity is established, the Data Gateway instance confirms the identity of the controller application (Cisco Crosswork) and offers its own proof of identity via signed certificates. Crosswork Data Gateway then downloads the configuration files and functional images (collection profiles) from Cisco Crosswork.

To verify if the Data Gateway VM has enrolled successfully with Cisco Crosswork:

  1. Log in to the Cisco Crosswork UI. See Log into the Cisco Crosswork UI.

  2. Navigate to Administration > Data Gateway Management.

  3. Click on the Data Gateway Instances tab.

    All the Data Gateway VMs that have successfully enrolled with Cisco Crosswork are displayed here.

The initial Operational State of Data Gateway VMs is Unknown. During the handshake and image download, the status is Degraded. After the handshake is complete, the status is Not Ready. While it depends on the bandwidth between the Data Gateway VMs and Cisco Crosswork, this operation typically takes between 5 to 10 minutes. If it takes longer than the stipulated duration, contact Cisco Customer Experience team for assistance.

For information about the different operational states of the VMs, see the Overview of Cisco Crosswork Data Gateway section in the Cisco Crosswork Network Controller 7.1 Administration Guide.


Note

The Data Gateway VMs that have the Role as Unassigned must be assigned to a pool before they can be used. A Data Gateway VM is your physical Data Gateway. You cannot attach or detach devices to it. Devices can be attached only to a Data Gateway pool.

What to do next:

Return to the installation workflow: Install Cisco Crosswork Network Controller on VMware vCenter

Crosswork Data Gateway Post-installation Tasks

After installing Crosswork Data Gateway, configure the timezone of the Data Gateway VM.

What to do next:

Return to the installation workflow: Install Cisco Crosswork Network Controller on VMware vCenter

Configure the timezone of the Crosswork Data Gateway VM

By default, the Crosswork Data Gateway VM launches with the UTC timezone. To ensure that all Data Gateway processes (including Showtech logs) reflect the correct timestamp for your location, update the timezone to match your geographical area.

Procedure

Step 1

Log in to the Crosswork Data Gateway VM.

Step 2

In the Crosswork Data Gateway VM interactive menu, select 3 Change Current System Settings.

Step 3

From the menu, select 9 Timezone.

Step 4

Select the geographical area in which you are located.

Figure 17. Geographic area selection
Timezone Settings - Geographic Area Selection

Step 5

Select the city or region that corresponds to your timezone.

Figure 18. Region selection
Timezone Settings - Region Selection

Step 6

Select OK to save the settings.

Step 7

Reboot the Crosswork Data Gateway VM to apply the new timezone to all processes.

Step 8

Log out of the Crosswork Data Gateway VM.

Troubleshoot Crosswork Data Gateway Installation and Enrollment

If Crosswork Data Gateway fails to autoenroll with Crosswork Network Controller, you can collect Crosswork Data Gateway show-tech (Main menu > 5 Troubleshooting > 2 Run show-tech) and check for the reason in controller-gateway logs.

For more information on how to collect show-tech logs, see the Collect show-tech logs from the Interactive Console section in the Cisco Crosswork Network Controller 7.1 Administration Guide. If there are session establishment or certificate-related issues, ensure that the controller.pem certificate is uploaded using the Interactive Console.


Important

When using an IPv6 address, it must be surrounded by square brackets ([1::1]).

The following table lists common problems that might be experienced while installing or enrolling a Data Gateway, and provides approaches to identifying the source of the problem and solving it.

Table 4. Troubleshooting the Installation or Enrollment

Issue

Action

Crosswork Data Gateway cannot be enrolled with Crosswork Network Controller due to an NTP issue, that is, there is a clock-drift between the two.

The clock-drift might be with either Crosswork Data Gateway or Crosswork Network Controller.

Also, on the NTP servers for Crosswork Network Controller and Crosswork Data Gateway, the initial time is set to the ESXi server. For this reason, the ESXi server must also have NTP configured.

Sync the clock time on the host and retry.

1. Log in to the Data Gateway VM.

2. From the main menu, select 5 Troubleshooting > 2 Run show-tech.

Enter the destination to save the tarball containing logs and vitals and click OK.

The show-tech is now encrypted with a file extension ending with .tar.xz.

3. Run the following command to decrypt the show-tech file.

openssl enc -d -AES-256-CBC -pbkdf2 -md sha512 -iter 100000 -in <showtech file> -out <decrypted filename> -pass pass:<encrypt string>

In the show-tech logs (in file session.log at location /opt/dg/log/controller-gateway/session.log), if you see the error UNAUTHENTICATED:invalid certificate. reason: x509: certificate has expired or is not yet valid, then there is a clock-drift between Crosswork Data Gateway and Crosswork Network Controller.

3. From the main menu, go to 3 Change Current System Settings > 1 Configure NTP.

Configure NTP to sync with the clock time on the Crosswork Network Controller server and try reenrolling Crosswork Data Gateway.

Crosswork Data Gateway remains in degraded state for more than 10 minutes with reason stated as "Could not collect vitals" due to certificate errors.

1. Log in to the Data Gateway VM.

2. From the main menu, select 5 Troubleshooting > 2 Run show-tech.

Enter the destination to save the tarball containing logs and vitals and click OK.

The show-tech is now encrypted with a file extension ending with .tar.xz.

3. Run the following command to decrypt the show-tech file.

openssl enc -d -AES-256-CBC -pbkdf2 -md sha512 -iter 100000 -in <showtech file> -out <decrypted filename> -pass pass:<encrypt string>

In the show-tech logs (in file gateway.log at location /opt/dg/log/controller-gateway/gateway.log), if you see certificate errors, then reupload the Controller Signing Certificate, as explained in the following steps:

1. From the main menu, select 3 Change Current System Settings > 7 Import Certificate.

2. From the Import Certificates menu, select 1 Controller Signing Certificate File and click OK.

3. Enter the SCP URI for the certificate file and click OK.

Crosswork Data Gateway remains in degraded state for more than 10 minutes with reason stated as "gRPC connection cannot be established" due to certificate errors.

1. Reupload the certificate file using the following steps:

a. From the main menu, select 3 Change Current System Settings > 7 Import Certificate.

b. From the Import Certificates menu, select 1 Controller Signing Certificate File and click OK.

c. Enter the SCP URI for the certificate file and click OK.

2. Reboot the Data Gateway VM:

a. From the main menu, select 5 Troubleshooting and click OK.

b. From the Troubleshooting menu, select 4 Reboot VM and click OK.

c. When the reboot is complete, check if the Data Gateway's operational status is Up.

Crosswork Data Gateway goes into Error state

Crosswork Data Gateway deploys Standard profile instead of Extended profile

Check the Deployment parameter in the OVF template in case of vCenter. If Deployment parameter mismatches or does not exist for an Extended profile, then Crosswork Data Gateway deploys the Standard profile by default.

During a Crosswork upgrade, some of the Crosswork Data Gateways may not get upgraded or reenrolled leading to logging multiple error messages in the dg-manager logs.

Reenroll or redeploy the Crosswork Data Gateways. For more information, see the Redeploy a Crosswork Data Gateway Instance and Re-enroll Crosswork Data Gateway sections in the Cisco Crosswork Network Controller 7.1 Administration Guide.

If a Crosswork Data Gateway instance that was previously attached to Crosswork is now reattached to a different Crosswork version 4.x or 5.0, the operational state of the instance may be Degraded with the robot-astack-influxdb error.

1. Log in to the Crosswork UI from the SSH.

2. Run the Docker executive commands to access the robot-astack-influxdb pod.

3. In the pod, navigate to the following directory and delete it:

/mnt/datafs/influxdb

4. Restart the service using the following command:

supervisorctl restart all
If a Data Gateway is redeployed without moving the gateway to the Maintenance mode, Crosswork enrollment will be unsuccessful and errors will be logged in the dg-manager and controller-gateway logs.

Move the Data Gateway to the Maintenance mode or manually reenroll the gateway. For more information, see the Re-enroll Crosswork Data Gateway section in the Cisco Crosswork Network Controller 7.1 Administration Guide.

Crosswork Data Gateway fails to enroll with Cisco Crosswork when the Data Gateway is deployed on a single stack while Crosswork is deployed on dual stack.

Redeploy the Data Gateway on dual stack.

For more information, see the Redeploy a Crosswork Data Gateway Instance and Re-enroll Crosswork Data Gateway sections in the Cisco Crosswork Network Controller 7.1 Administration Guide.

Import Controller Signing Certificate File

The Controller Certificate file is automatically imported after the VM boots. If there is an import failure, the Data Gateway VM makes several attempts to import the certificate while giving you the option to manually import it.

  • You have not specified the Controller Signing Certificate File URI under the Controller Settings during installation.

  • Cisco Crosswork was upgraded or reinstalled and you need to authenticate and enroll Crosswork Data Gateway with Cisco Crosswork.

  • Cisco Crosswork configuration is in-progress when Crosswork Data Gateway tries to import the Controller Certificate file.

  • The Cisco Crosswork Controller IP address in unreachable or incorrect.

  • The Cisco Crosswork username or password is incorrect.

Follow these steps to import the controller signing certificate file:

Procedure

Step 1

From the Data Gateway VM's Interactive Menu, select 3 Change Current System Settings.

The Change System Settings menu opens.

Step 2

Select 7 Import Certificate.

Step 3

From the Import Certificates menu, select 1 Controller Signing Certificate File.

Step 4

Enter the SCP URI for the certificate file.

An example URI is given below:

cw-admin@{server ip}:/home/cw-admin/controller.pem

Step 5

Enter the SCP passphrase (the SCP user password).

The certificate file is imported.

Step 6

Verify that the certificate was installed successfully. See View the Controller Signing Certificate File.

View the Controller Signing Certificate File

Follow these steps to view the signing certificate:

Procedure

Step 1

From the Data Gateway VM's interactive menu, select 2 Show System Settings.

Step 2

From the Show Current System Settings menu, select 7 Certificates.

Step 3

Select 2 Controller Signing Certificate File.

Crosswork Data Gateway displays the default certificate if no new certificate has been imported. Otherwise, it displays the new certificate if it was successfully imported.
