Overview

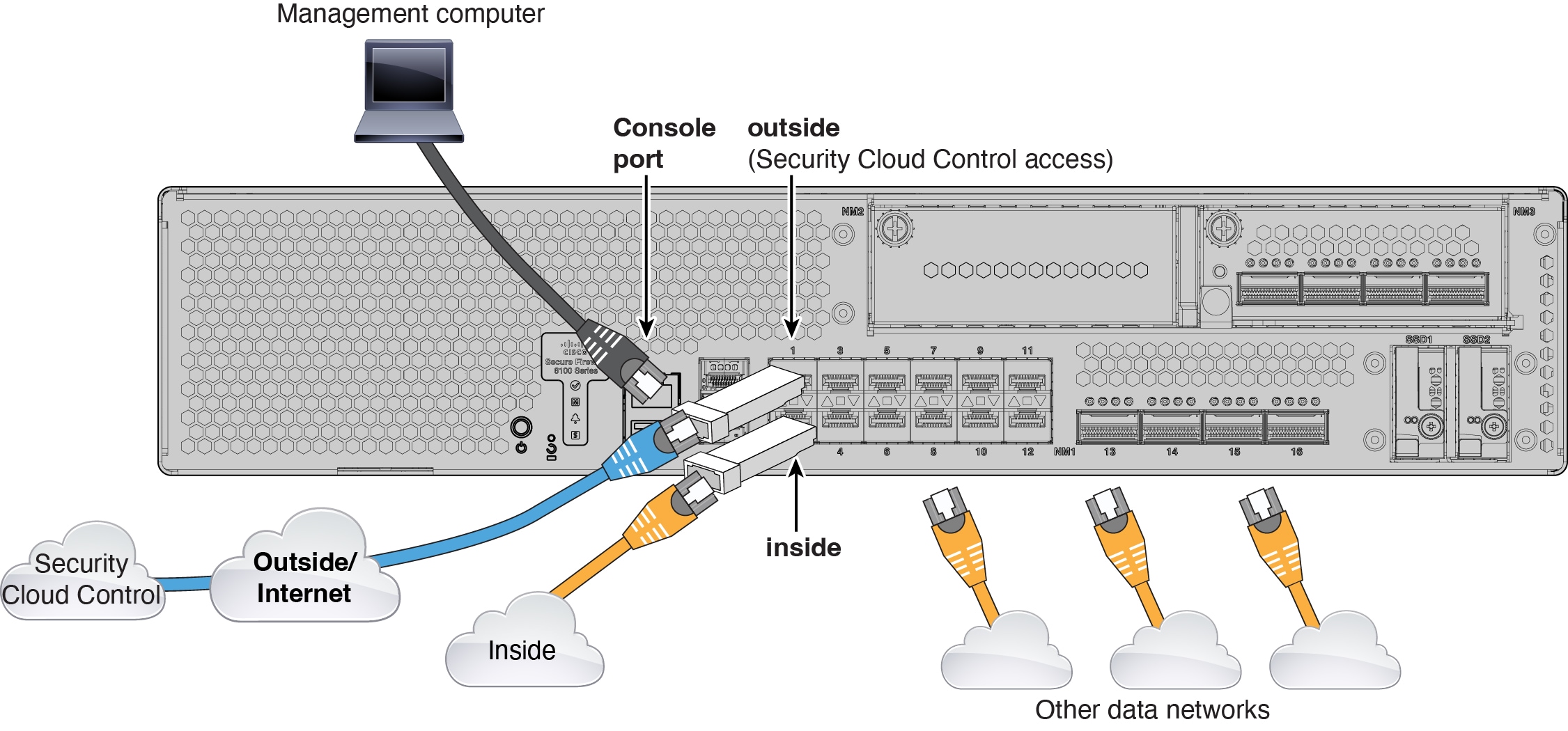

Learn how to cable the Secure Firewall 6100 so you can complete the initial hardware setup and prepare required ports for network connectivity before configuration.
-
Obtain a console cable—The firewall does not ship with a console cable by default, so you will need to buy a third-party USB-to-RJ-45 serial cable, for example.
-
Install SFPs into the data interface ports—Ethernet 1/1 to 1/12 fixed ports are 1/10/25/50-Gbps SFP28 ports that require SFP/SFP+/SFP28 modules; Ethernet 1/13 through 1/16 are 1/10/25/50-Gbps QSFP28 ports that require SFP/SFP+/QSFP+/SFP28/QSFP28 modules.
-
See the hardware installation guide for more information.
