Configuration Examples: WPA2-PSK and Open Authentication

The Configuration Examples: WPA2-PSK and Open Authentication document describes the benefits of using Wi-Fi Protected Access 2 (WPA2) in a Wireless LAN (WLAN). The document also provides the following configuration examples for implementing WPA2 on a WLAN:

  • Configuring WPA2 Pre-Shared Key (PSK)

  • Configuring Open Authentication

Prerequisites

We recommend that you have knowledge about the following topics:

  • Wireless Protected Access (WPA)

  • WLAN Security Solutions

Supported Platforms and Releases

The information in this document is based on the following software and hardware versions:

  • Cisco Aironet 3600 Series Lightweight Access Point

  • Microsoft Windows 7 native wireless supplicant


Note

The information in this document is based on the devices used in a specific lab environment. The devices used in this document started with a default configuration. If your network is live, make sure that you understand the potential impact of the commands.

WPA2 PSK and Open Authentication

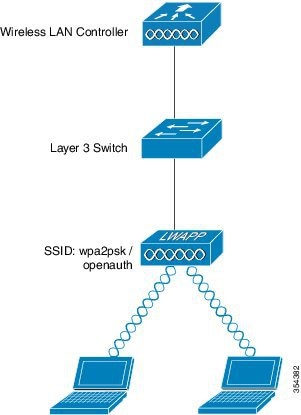

The following figure displays the network diagram for WPA2 PSK and Open Authentication:

Figure 1. Network Diagram



Configuring WPA2-PSK Configuration using CLI

The following example describes the procedure to configure DHCP snooping for the VLANs that are used for the clients. In this example, VLAN20 is used for clients and the pool is configured on the same WLC.

TheTenGigabitEthernet1/0/1 interface is connected to the uplink switch. If the DHCP server is configured on the server apart from the WLC or an external DHCP server, you must trust the DHCP snooping and relay information.
ip device tracking
ip dhcp snooping vlan 12,20,30,40
ip dhcp snooping
!
ip dhcp pool vlan20
 network 192.0.2.0 255.255.255.0
 default-router 192.0.2.1

interface Vlan20
 ip address 192.0.2.1 255.255.255.0

interface TenGigabitEthernet1/0/1
 switchport trunk native vlan 12
 switchport mode trunk
 ip dhcp relay information trusted
 ip dhcp snooping trust

wlan wpa2psk 1 wpa2psk
 client vlan 20
 no security wpa akm dot1x
 security wpa akm psk set-key ascii 0 Cisco123
 no shutdown

Configuring WPA2-PSK Configuration using GUI

Perform the following steps to configure a WPA2 PSK on the WLC GUI:

    Step 1

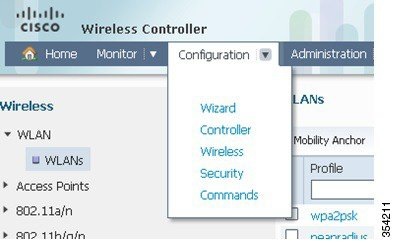

    To create a new WLAN, navigate to Configuration > Wireless > WLAN > WLANs.

    Figure 2. Wireless Controller Page



    Step 2

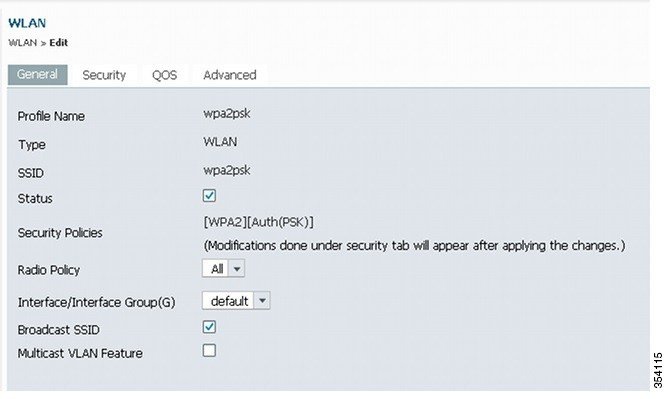

    To enable WPA2, check the Status check box and then map WPA2 to the relevant interface.

    Figure 3. WLAN Page



    Step 3

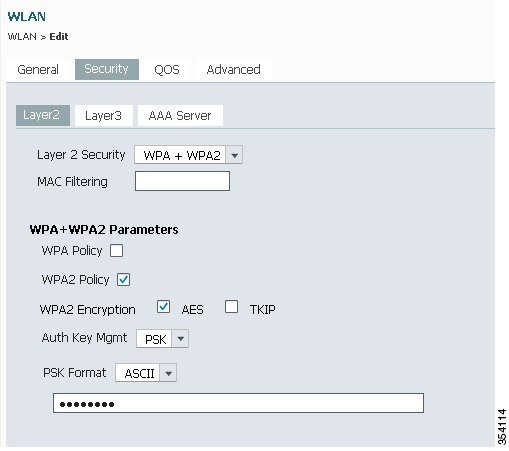

    Click the Security tab, check the WPA2 Policy check box and the AES check box. From the Auth Key Mgmt drop-down list, choose PSK and then enter the PSK value that the client needs to connect.

    Figure 4. WLAN Page



    Configuring Open Authentication using CLI

    The following example describes how to configure DHCP snooping for the VLANs that are used for clients. In the following example, VLAN20 is used for clients and the pool is configured on the same WLC.

    The TenGigabitEthernet1/0/1 interface is connected to the uplink switch. If you have the DHCP server configured on the server apart from the WLC or an external DHCP server, you must trust DHCP snooping and relay information.
    ip device tracking
ip dhcp snooping vlan 12,20,30,40
ip dhcp snooping
!
ip dhcp pool vlan20
 network 192.0.2.0 255.255.255.0
 default-router 20.20.20.1

interface Vlan20
 ip address 192.0.2.1 255.255.255.0

interface TenGigabitEthernet1/0/1
 switchport trunk native vlan 12
 switchport mode trunk
 ip dhcp relay information trusted
 ip dhcp snooping trust

wlan open 5 open
 client vlan VLAN0020
 no security wpa
 no security wpa akm dot1x
 no security wpa wpa2
 no security wpa wpa2 ciphers aes
 session-timeout 1800
 no shutdown

    Configuring Open Authentication using GUI

    Perform the following steps to configure an open authentication in the WLC GUI:

      Step 1
      To create a new WLAN navigate to Configuration > Wireless > WLAN > WLANs.
      Figure 5. Wireless Controller

      Step 2
      Click the Security tab. Set the Layer2 tab and Layer3 tab to none. The following figure displays the configuration results:
      Figure 6. WLAN Page



      Verifying WPA2-PSK and Open Authentication Configuration

      Perform the following to verify the WPA2-PSK and Open Authentication configuration:

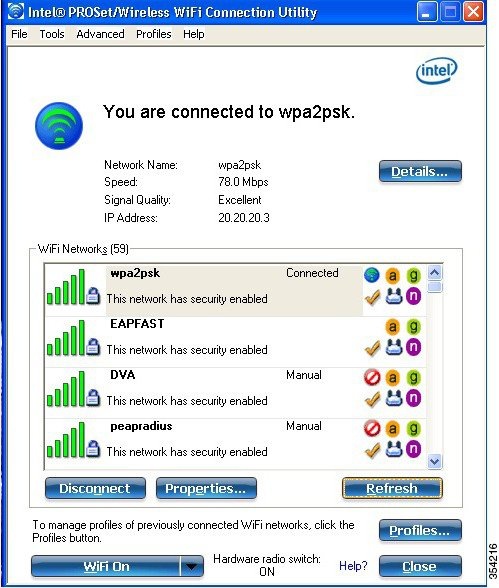

      Check and confirm that the WPA2-PSK client is connected as displayed in the following figure:
      Figure 7. WPA2-PSK Client Connection

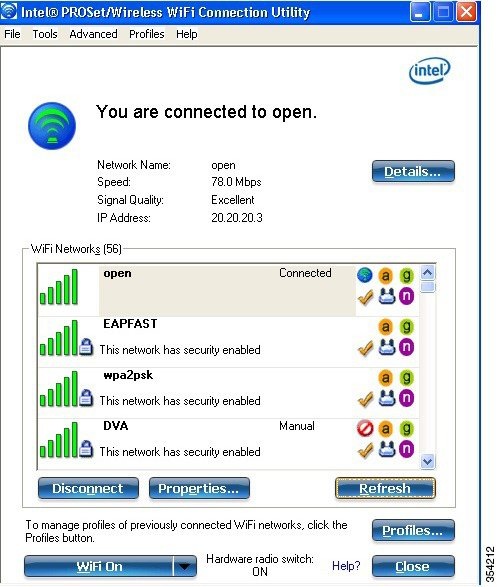

      Check and confirm that the client is connected to Open Authentication as displayed in the following figure:
      Figure 8. Open Authentication Client Connection



      Troubleshooting WPA2-PSK and Open Authentication Configuration Issues

      The following is a sample output using the debug and trace commands:
      debug client mac XXXX.XXXX.XXXX

Device# show debugging

    dot11/state debugging is on
    pem/events debugging is on
    client/mac-addr debugging is on
    dot11/detail debugging is on
    mac/ filters[string 0021.5c8c.c761] debugging is on
    dot11/error debugging is on
    dot11/mobile debugging is on
    pem/state debugging is on

   set trace group-wireless-client filter mac XXXX.XXXX.XXXX
   set trace wcm-dot1x event filter mac XXXX.XXXX.XXXX
   set trace wcm-dot1x aaa filter mac XXXX.XXXX.XXXX
   set trace aaa wireless events filter mac XXXX.XXXX.XXXX
   set trace access-session core sm filter mac XXXX.XXXX.XXXX
   set trace access-session method dot1x filter XXXX.XXXX.XXXX

*Sep  1 05:55:01.321: 0021.5C8C.C761 Association received from mobile on AP
   C8F9.F983.4260  1 wcm: i.D^Iw for client
*Sep  1 05:55:01.321: 0021.5C8C.C761 qos upstream policy is unknown and
   downstream policy is unknown 1 wcm: r client
*Sep  1 05:55:01.321: 0021.5C8C.C761 apChanged 0 wlanChanged 1 mscb ipAddr
   20.20.20.3, apf RadiusOverride 0x0, numIPv6Addr=0 1 wcm: nJ^Iwy_status 0
   attr len^G$8\227v^K
*Sep  1 05:55:01.321: 0021.5C8C.C761 Applying WLAN policy on MSCB. 1 wcm:
   ipAddr 20.20.20.3, apf RadiusOverride 0x0, numIPv6Addr=0
*Sep  1 05:55:01.321: 0021.5C8C.C761 Scheduling deletion of Mobile Station: 1
   wcm:   (callerId: 50) in 1 seconds
*Sep  1 05:55:01.321: 0021.5C8C.C761 Disconnecting client due to switch of
   WLANs from 6(wep) to 5(open) 1 wcm:
*Sep  1 05:55:02.193: 0021.5C8C.C761 apfMsExpireCallback (apf_ms.c: 1 wcm: 664)
   Expiring Mobile!
*Sep  1 05:55:02.193: 0021.5C8C.C761 apfMsExpireMobileStation (apf_ms.c: 1 wcm:
   6953) Changing state for mobile  0021.5C8C.C761  on AP  C8F9.F983.4260  from
   Associated to Disassociated
*Sep  1 05:55:02.193: 0021.5C8C.C761 Sent Deauthenticate to mobile on BSSID
   C8F9.F983.4260  slot 1(caller apf_ms.c: 1 wcm: 7036)
*Sep  1 05:55:02.193: 0021.5C8C.C761 apfMsExpireMobileStation (apf_ms.c: 1 wcm:
   7092) Changing state for mobile  0021.5C8C.C761  on AP  C8F9.F983.4260  from
   Disassociated to Idle
*Sep  1 05:55:02.193:  0021.5C8C.C761  20.20.20.3 RUN (20) Deleted mobile LWAPP
   rule on AP [ C8F9.F983.4260 ] 1 wcm: 5C8C.C761  on AP  C8F9.F983.4260  from
   Disassociated to Idle
*Sep  1 05:55:02.193:  0021.5C8C.C761  20.20.20.3 RUN (20) FastSSID for the
   client [ C8F9.F983.4260 ] NOTENABLED 1 wcm: C.C761  on AP  C8F9.F983.4260
   from Disassociated to Idle
*Sep  1 05:55:02.193: 0021.5C8C.C761 Incrementing the Reassociation Count 1 for
   client (of interface VLAN0020) 1 wcm: D
*Sep  1 05:55:02.193: 0021.5C8C.C761 Clearing Address 20.20.20.3 on mobile  1
   wcm: for client (of interface VLAN0020)
*Sep  1 05:55:02.193: PEM recv processing msg Del SCB(4)  1 wcm: 0.20.3 on
   mobile
*Sep  1 05:55:02.193:  0021.5C8C.C761  20.20.20.3 RUN (20) Skipping TMP rule
   add 1 wcm: lient (of interface VLAN0020)
*Sep  1 05:55:02.193:  0021.5C8C.C761  20.20.20.3 RUN (20) Change state to
   DHCP_REQD (7) last state RUN (20) 1 wcm:
*Sep  1 05:55:02.193: 0021.5C8C.C761 WCDB_CHANGE: 1 wcm:  Client 1 m_vlan 20
   Radio iif id 0xbfcdc00000003a bssid iif id 0x8959800000004a, bssid
   C8F9.F983.4260
*Sep  1 05:55:02.193: 0021.5C8C.C761 WCDB_AUTH: 1 wcm:  Adding opt82 len 0
*Sep  1 05:55:02.193: 0021.5C8C.C761 WCDB_CHANGE: 1 wcm:  Suppressing SPI
   (client pending deletion) pemstate 7 state LEARN_IP(2) vlan 20 client_id
   0xac70800000004b mob=Local(1) ackflag 2 dropd 0, delete 1
*Sep  1 05:55:02.193: 0021.5C8C.C761 Sending SPI spi_epm_epm_terminate_session
   successfull 1 wcm:  pemstate 7 state LEARN_IP(2) vlan 20 client_id
   0xac70800000004b mob=Local(1) ackflag 2 dropd 0, delete 1
*Sep  1 05:55:02.194: 0021.5C8C.C761 Sending SPI spi_epm_epm_terminate_session
   successfull 1 wcm:  pemstate 7 state LEARN_IP(2) vlan 20 client_id
   0xac70800000004b mob=Local(1) ackflag 2 dropd 0, delete 1
*Sep  1 05:55:02.194: 0021.5C8C.C761 Deleting wireless client; Reason code 0,
   Preset 1, AAA cause 1 1 wcm:  7 state LEARN_IP(2) vlan 20 client_id
   0xac70800000004b mob=Local(1) ackflag 2 dropd 0, delete 1
*Sep  1 05:55:02.194: 0021.5C8C.C761 WCDB_DEL: 1 wcm:  Successfully sent
*Sep  1 05:55:02.194: 0021.5C8C.C761  Expiring mobile state delete 1 wcm: on
   code 0, Preset 1, AAA cause 1
*Sep  1 05:55:02.194:  0021.5C8C.C761  0.0.0.0 DHCP_REQD (7) Handling pemDelScb
   Event skipping delete 1 wcm:  state LEARN_IP(2) vlan 20 client_id
   0xac70800000004b mob=Local(1) ackflag 2 dropd 0, delete 1
*Sep  1 05:55:02.197: 0021.5C8C.C761 WCDB SPI response msg handler client code
   1 mob state 1 1 wcm: g delete
*Sep  1 05:55:02.197: 0021.5C8C.C761 apfProcessWcdbClientDelete: 1 wcm:  Delete
   ACK from WCDB.
*Sep  1 05:55:02.197: 0021.5C8C.C761 WCDB_DELACK: 1 wcm:  wcdbAckRecvdFlag
   updated
*Sep  1 05:55:02.197: 0021.5C8C.C761 WCDB_DELACK: 1 wcm:  Client IIF Id dealloc
   SUCCESS w/ 0xac70800000004b.
*Sep  1 05:55:02.197: 0021.5C8C.C761 Invoked platform delete and cleared handle
   1 wcm: w/ 0xac70800000004b.
*Sep  1 05:55:02.197: 0021.5C8C.C761 Deleting mobile on AP  C8F9.F983.4260 (1)
   1 wcm: w/ 0xac70800000004b.
*Sep  1 05:55:02.197: 0021.5C8C.C761 Unlinked and freed mscb 1 wcm:
   8F9.F983.4260 (1)
*Sep  1 05:55:02.197: WCDB_IIF: 1 wcm:  Ack Message ID: 0xac70800000004b code
   1003
*Sep  1 05:55:02.379: 0021.5C8C.C761 Adding mobile on LWAPP AP  C8F9.F983.4260
   (1)  1 wcm: xac7080000.D^Iwb.
*Sep  1 05:55:02.379: 0021.5C8C.C761  Creating WL station entry for client -
   rc 0 1 wcm:
*Sep  1 05:55:02.379: 0021.5C8C.C761 Association received from mobile on AP
   C8F9.F983.4260  1 wcm: 0.D^Iwb.
*Sep  1 05:55:02.379: 0021.5C8C.C761 qos upstream policy is unknown and
   downstream policy is unknown 1 wcm:
*Sep  1 05:55:02.379: 0021.5C8C.C761 apChanged 0 wlanChanged 0 mscb ipAddr
   0.0.0.0, apf RadiusOverride 0x0, numIPv6Addr=0 1 wcm: \2105HnJ^Iwlient_id
   0xac708000^G$8\227v^K
*Sep  1 05:55:02.379: 0021.5C8C.C761 Applying WLAN policy on MSCB. 1 wcm:
   ipAddr 0.0.0.0, apf RadiusOverride 0x0, numIPv6Addr=0
*Sep  1 05:55:02.379: 0021.5C8C.C761 Applying WLAN ACL policies to client 1
   wcm:  0.0.0.0, apf RadiusOverride 0x0, numIPv6Addr=0
*Sep  1 05:55:02.379: 0021.5C8C.C761 No Interface ACL used for Wireless client
   in WCM(NGWC) 1 wcm: usOverride 0x0, numIPv6Addr=0
*Sep  1 05:55:02.379: 0021.5C8C.C761 Applying site-specific IPv6 override for
   station  0021.5C8C.C761  - vapId 5, site 'default-group', interface
   'VLAN0020' 1 wcm:
*Sep  1 05:55:02.379: 0021.5C8C.C761 Applying local bridging Interface Policy
   for station  0021.5C8C.C761  - vlan 20, interface 'VLAN0020' 1 wcm: erface
   'VLAN0020'
*Sep  1 05:55:02.379: 0021.5C8C.C761 STA - rates (8): 1 wcm:
   140 18 152 36 176 72 96 108 0 0 0 0 0 0 0 0
*Sep  1 05:55:02.379: 0021.5C8C.C761 new capwap_wtp_iif_id b6818000000038,
   sm capwap_wtp_iif_id 0 1 wcm: 8C.C761  - vlan 20, interface 'VLAN0020'
*Sep  1 05:55:02.379: 0021.5C8C.C761 WCDB_ADD: 1 wcm:  Radio IIFID
   0xbfcdc00000003a, BSSID IIF Id 0xbb30c000000046, COS 4
*Sep  1 05:55:02.379: Load Balancer: 1 wcm:  Success, Resource allocated are:
   Active Switch number: 1, Active Asic number : 0, Reserve Switch number 0
   Reserve Asic number 0. AP Asic num 0
*Sep  1 05:55:02.379: 0021.5C8C.C761 WCDB_ADD: 1 wcm:  Anchor Sw  1, Doppler 0
*Sep  1 05:55:02.380: 0021.5C8C.C761 WCDB_ALLOCATE: 1 wcm:  Client IIF Id alloc
   SUCCESS w/ client 8e7bc00000004d (state 0).
*Sep  1 05:55:02.380: 0021.5C8C.C761 iifid Clearing Ack flag 1 wcm: F Id alloc
   SUCCESS w/ client 8e7bc00000004d (state 0).
*Sep  1 05:55:02.380: 0021.5C8C.C761 WCDB_ADD: 1 wcm:  Adding opt82 len 0
*Sep  1 05:55:02.380: 0021.5C8C.C761 WCDB_ADD: 1 wcm:  Cleaering Ack flag
*Sep  1 05:55:02.380: 0021.5C8C.C761 WCDB_ADD: 1 wcm:  ssid open bssid
   C8F9.F983.4260 vlan 20 auth=ASSOCIATION(0) wlan(ap-group/global) 5/5
   client 0 assoc 1 mob=Unassoc(0) radio 1 m_vlan 20 ip 0.0.0.0 src
   0xb6818000000038 dst 0x0 cid 0x8e7bc00000004d glob rsc id 14dhcpsrv
   0.0.0.0  ty
*Sep  1 05:55:02.380: 0021.5C8C.C761 WCDB_ADD: 1 wcm:  mscb iifid
   0x8e7bc00000004d msinfo iifid 0x0
*Sep  1 05:55:02.380:  0021.5C8C.C761  0.0.0.0 START (0) Initializing policy 1
   wcm: info iifid 0x0
*Sep  1 05:55:02.380:  0021.5C8C.C761  0.0.0.0 START (0) Change state to
   AUTHCHECK (2) last state AUTHCHECK (2) 1 wcm: -group/global) 5/5 client 0
   assoc 1 mob=Unassoc(0) radio 1 m_vlan 20 ip 0.0.0.0 src 0xb6818000000038
   dst 0x0 cid 0x8e7bc00000004d glob rsc id 14dhcpsrv  0.0.0.0  ty
*Sep  1 05:55:02.380:  0021.5C8C.C761  0.0.0.0 AUTHCHECK (2) Change state to
   L2AUTHCOMPLETE (4) last state L2AUTHCOMPLETE (4) 1 wcm:  5/5 client 0 assoc
   1 mob=Unassoc(0) radio 1 m_vlan 20 ip 0.0.0.0 src 0xb6818000000038 dst 0x0
   cid 0x8e7bc00000004d glob rsc id 14dhcpsrv  0.0.0.0 ty
*Sep  1 05:55:02.380: 0021.5C8C.C761 WCDB_CHANGE: 1 wcm:  Client 1 m_vlan 20
   Radio iif id 0xbfcdc00000003a bssid iif id 0xbb30c000000046, bssid
   C8F9.F983.4260
*Sep  1 05:55:02.380: 0021.5C8C.C761 WCDB_AUTH: 1 wcm:  Adding opt82 len 0
*Sep  1 05:55:02.380: 0021.5C8C.C761 WCDB_LLM: 1 wcm:  NoRun Prev Mob 0, Curr
   Mob 0 llmReq 1, return False
*Sep  1 05:55:02.380: 0021.5C8C.C761 auth state 1 mob state 0 setWme 0 wme 1
   roam_sent 0 1 wcm: rn False
*Sep  1 05:55:02.380: 0021.5C8C.C761 WCDB_CHANGE: 1 wcm:  auth=L2_AUTH(1) vlan
   20 radio 1 client_id 0x8e7bc00000004d mobility=Unassoc(0) src_int
   0xb6818000000038 dst_int 0x0 ackflag 0 reassoc_client 0 llm_notif 0 ip
   0.0.0.0 ip_learn_type UNKNOWN
*Sep  1 05:55:02.380: 0021.5C8C.C761 WCDB_CHANGE: 1 wcm:  In L2 auth but l2ack
   waiting lfag not set,so set
*Sep  1 05:55:02.380:  0021.5C8C.C761  0.0.0.0 L2AUTHCOMPLETE (4) DHCP Not
   required on AP  C8F9.F983.4260  vapId 5 apVapId 5for this client 1 wcm:
   6818000000038 dst_int 0x0 ackflag 0 reassoc_client 0 llm_notif 0 i$=6v.0.0.0
   it^_Dv^\7HnP6v^D6Hl5Ht^_Dv$6H8^ r^D6H>&5v8^ r^D6H>&5v^D6Ht^M^Lw^\7H8^ r
*Sep  1 05:55:02.380: WCDB_IIF: 1 wcm:  Ack Message ID: 0x8e7bc00000004d code
   1001
*Sep  1 05:55:02.380: 0021.5C8C.C761 Not Using WMM Compliance code qosCap 00 1
   wcm: quired on AP  C8F9.F983.4260  vapId 5 apVapId 5for this client
*Sep  1 05:55:02.380:  0021.5C8C.C761  0.0.0.0 L2AUTHCOMPLETE (4) Plumbed
   mobile LWAPP rule on AP  C8F9.F983.4260  vapId 5 apVapId 5 1 wcm: client
*Sep  1 05:55:02.380:  0021.5C8C.C761  0.0.0.0 L2AUTHCOMPLETE (4) Change state
   to DHCP_REQD (7) last state DHCP_REQD (7) 1 wcm:  apVapId 5
*Sep  1 05:55:02.380: 0021.5C8C.C761 WCDB_CHANGE: 1 wcm:  Client 1 m_vlan 20
   Radio iif id 0xbfcdc00000003a bssid iif id 0xbb30c000000046, bssid
   C8F9.F983.4260
*Sep  1 05:55:02.380: 0021.5C8C.C761 WCDB_AUTH: 1 wcm:  Adding opt82 len 0
*Sep  1 05:55:02.380: 0021.5C8C.C761 WCDB_CHANGE: 1 wcm:  Suppressing SPI
   (Mobility state not known) pemstate 7 state LEARN_IP(2) vlan 20 client_id
   0x8e7bc00000004d mob=Unassoc(0) ackflag 1 dropd 0
*Sep  1 05:55:02.380: 0021.5C8C.C761 Incrementing the Reassociation Count 1 for
   client (of interface VLAN0020) 1 wcm: EARN_IP(2) vlan 20 client_id
   0x8e7bc00000004d mob=Unassoc(0) ackflag 1 dropd 0
*Sep  1 05:55:02.380: 0021.5C8C.C761 apfPemAddUser2 (apf_policy.c: 1 wcm: 161)
   Changing state for mobile  0021.5C8C.C761  on AP  C8F9.F983.4260  from Idle
   to Associated
*Sep  1 05:55:02.380: 0021.5C8C.C761 Scheduling deletion of Mobile Station: 1
   wcm:   (callerId: 49) in 1800 seconds
*Sep  1 05:55:02.380: 0021.5C8C.C761 Ms Timeout = 1800, Session Timeout = 1800
   1 wcm: llerId: 49) in 1800 seconds
*Sep  1 05:55:02.381: 0021.5C8C.C761 Sending Assoc Response to station on BSSID
   C8F9.F983.4260  (status 0) ApVapId 5 Slot 1 1 wcm: .F983.4260  from Idle to
   Associated
*Sep  1 05:55:02.381: 0021.5C8C.C761 apfProcessAssocReq (apf_80211.c: 1 wcm:
   5260) Changing state for mobile  0021.5C8C.C761  on AP  C8F9.F983.4260
   from Associated to Associated
*Sep  1 05:55:02.381:  0021.5C8C.C761  0.0.0.0 DHCP_REQD (7) pemAdvanceState2:
   1 wcm:  MOBILITY-INCOMPLETE with state 7.
*Sep  1 05:55:02.381:  0021.5C8C.C761  0.0.0.0 DHCP_REQD (7) pemAdvanceState2:
   1 wcm:  MOBILITY-INCOMPLETE with state 7.
*Sep  1 05:55:02.381:  0021.5C8C.C761  0.0.0.0 DHCP_REQD (7) pemAdvanceState2:
   1 wcm:  MOBILITY-COMPLETE with state 7.
*Sep  1 05:55:02.381:  0021.5C8C.C761  0.0.0.0 DHCP_REQD (7) State Update from
   Mobility-Incomplete to Mobility-Complete, mobility role=Local, client
   state=APF_MS_STATE_ASSOCIATED 1 wcm:  1 dropd 0
*Sep  1 05:55:02.381:  0021.5C8C.C761  0.0.0.0 DHCP_REQD (7) pemAdvanceState2
   3611, Adding TMP rule 1 wcm: o Mobility-Complete, mobility role=Local,
   client state=APF_MS_STATE_ASSOCIATED
*Sep  1 05:55:02.381:  0021.5C8C.C761  0.0.0.0 DHCP_REQD (7) Adding Fast Path
   rule on AP  C8F9.F983.4260 , slot 1 802.1P = 0 1 wcm: role=Local, client
   state=APF_MS_STATE_ASSOCIATED
*Sep  1 05:55:02.381:  0021.5C8C.C761  0.0.0.0 DHCP_REQD (7) Successfully
   plumbed mobile rule  1 wcm: F9.F983.4260 , slot 1 802.1P = 0^M
*Sep  1 05:55:02.381: 0021.5C8C.C761 WCDB_CHANGE: 1 wcm:  Client 1 m_vlan 20
   Radio iif id 0xbfcdc00000003a bssid iif id 0xbb30c000000046, bssid
   C8F9.F983.4260
*Sep  1 05:55:02.381: 0021.5C8C.C761 WCDB_AUTH: 1 wcm:  Adding opt82 len 0
*Sep  1 05:55:02.381: 0021.5C8C.C761 WCDB_LLM: 1 wcm:  NoRun Prev Mob 0, Curr
   Mob 1 llmReq 1, return False
*Sep  1 05:55:02.381: 0021.5C8C.C761 WCDB_CHANGE: 1 wcm:  Suppressing SPI (ACK
   message not recvd) pemstate 7 state LEARN_IP(2) vlan 20 client_id
   0x8e7bc00000004d mob=Local(1) ackflag 1 dropd 1
*Sep  1 05:55:02.381: 0021.5C8C.C761 Error updating wcdb on mobility complete
   1 wcm: not recvd) pemstate 7 state LEARN_IP(2) vlan 20 client_id
   0x8e7bc00000004d mob=Local(1) ackflag 1 dropd 1
*Sep  1 05:55:02.381: PEM recv processing msg Epm spi response(12)  1 wcm:
   complete
*Sep  1 05:55:02.381: 0021.5C8C.C761 aaa attribute list length is 79 1 wcm:
   complete
*Sep  1 05:55:02.381: 0021.5C8C.C761 Sending SPI spi_epm_epm_session_create
   successfull 1 wcm: ) pemstate 7 state LEARN_IP(2) vlan 20 client_id
   0x8e7bc00000004d mob=Local(1) ackflag 1 dropd 1
*Sep  1 05:55:02.381: PEM recv processing msg Add SCB(3)  1 wcm:
   pm_session_create successfull
*Sep  1 05:55:02.381: 0021.5C8C.C761 0.0.0.0, auth_state 7 mmRole Local !!! 1
   wcm: successfull
*Sep  1 05:55:02.381: 0021.5C8C.C761 0.0.0.0, auth_state 7 mmRole Local,
   updating wcdb not needed 1 wcm:  7 state LEARN_IP(2) vlan 20 client_id
   0x8e7bc00000004d mob=Local(1) ackflag 1 dropd 1
*Sep  1 05:55:02.381: 0021.5C8C.C761 Tclas Plumb needed: 1 wcm:  0
*Sep  1 05:55:02.384: EPM: 1 wcm:  Session create resp - client handle
   8e7bc00000004d session b8000020
*Sep  1 05:55:02.384: EPM: 1 wcm:  Netflow session create resp - client handle
   8e7bc00000004d sess b8000020
*Sep  1 05:55:02.384: PEM recv processing msg Epm spi response(12)  1 wcm:
   le 8e7bc00000004d sess b8000020
*Sep  1 05:55:02.384: 0021.5C8C.C761 Received session_create_response for
   client handle 40105511256850509 1 wcm:  LEARN_IP(2) vlan 20 client_id
   0x8e7bc00000004d mob=Local(1) ackflag 1 dropd 1
*Sep  1 05:55:02.384: 0021.5C8C.C761 Received session_create_response with EPM
   session handle 3087007776 1 wcm:
*Sep  1 05:55:02.384: 0021.5C8C.C761 Send request to EPM 1 wcm: ate_response
   with EPM session handle 3087007776
*Sep  1 05:55:02.384: 0021.5C8C.C761 aaa attribute list length is 5 1 wcm: e
   with EPM session handle 3087007776
*Sep  1 05:55:02.384: 0021.5C8C.C761 Sending Activate request for session
   handle 3087007776 successful 1 wcm: 6
*Sep  1 05:55:02.384: 0021.5C8C.C761 Post-auth policy request sent! Now wait
   for post-auth policy ACK from EPM 1 wcm: N_IP(2) vlan 20 client_id
   0x8e7bc00000004d mob=Local(1) ackflag 1 dropd 1
*Sep  1 05:55:02.384: 0021.5C8C.C761 WCDB SPI response msg handler client code
   0 mob state 0 1 wcm: licy ACK from EPM
*Sep  1 05:55:02.384: 0021.5C8C.C761 WcdbClientUpdate: 1 wcm:  L2 Auth ACK from
   WCDB
*Sep  1 05:55:02.384: 0021.5C8C.C761 WCDB_L2ACK: 1 wcm:  wcdbAckRecvdFlag
   updated
*Sep  1 05:55:02.384: 0021.5C8C.C761 WCDB_CHANGE: 1 wcm:  Client 1 m_vlan 20
   Radio iif id 0xbfcdc00000003a bssid iif id 0xbb30c000000046, bssid
   C8F9.F983.4260
*Sep  1 05:55:02.384: 0021.5C8C.C761 WCDB_AUTH: 1 wcm:  Adding opt82 len 0
*Sep  1 05:55:02.384: 0021.5C8C.C761 WCDB_LLM: 1 wcm:  NoRun Prev Mob 0, Curr
   Mob 1 llmReq 1, return False
*Sep  1 05:55:02.385: 0021.5C8C.C761 auth state 2 mob state 1 setWme 0 wme 1
   roam_sent 0 1 wcm: rn False
*Sep  1 05:55:02.385: 0021.5C8C.C761 WCDB_CHANGE: 1 wcm:  auth=LEARN_IP(2) vlan
   20 radio 1 client_id 0x8e7bc00000004d mobility=Local(1) src_int
   0xb6818000000038 dst_int 0x0 ackflag 2 reassoc_client 0 llm_notif 0 ip
   0.0.0.0 ip_learn_type UNKNOWN
*Sep  1 05:55:02.385: EPM: 1 wcm:  Init feature, client handle 8e7bc00000004d
   session b8000020 authz ec00000e
*Sep  1 05:55:02.385: EPM: 1 wcm:  Activate feature client handle
   8e7bc00000004d sess b8000020 authz ec00000e
*Sep  1 05:55:02.385: PEM recv processing msg Epm spi response(12)  1 wcm: 004d
   sess b8000020 authz ec00000e
*Sep  1 05:55:02.385: 0021.5C8C.C761 Received activate_features_resp for client
   handle 40105511256850509 1 wcm: 004d mobility=Local(1) src_int
   0xb6818000000038 dst_int 0x0 ackflag 2 reassoc_client 0 llm_notif 0
   ip$=6v0.0.0 ipt^_Dv^\7HnP6v^D6Hl5Ht^_Dv$6H8^ r^D6H>&5v8^
   r^D6H>&5v^D6Ht^M^Lw^\7H8^ r
*Sep  1 05:55:02.385: 0021.5C8C.C761 Received activate_features_resp for EPM
   session handle 3087007776 1 wcm: 9
*Sep  1 05:55:02.385: EPM: 1 wcm:  Policy enforcement -  client handle
   8e7bc00000004d session 2800000e authz ec00000e
*Sep  1 05:55:02.385: EPM: 1 wcm:  Netflow policy enforcement - client handle
   8e7bc00000004d sess 2800000e authz ec00000e msg_type 0 policy_status 0 attr
   len 0
*Sep  1 05:55:02.385: PEM recv processing msg Epm spi response(12)  1 wcm: e
   8e7bc00000004d sess 2800000e authz ec00000e msg_type 0 policy_status 0 attr
   len 0
*Sep  1 05:55:02.385: 0021.5C8C.C761 Received policy_enforcement_response for
   client handle 40105511256850509 1 wcm: 00e msg_type 0 policy_status 0 attr
   len 0
*Sep  1 05:55:02.385: 0021.5C8C.C761 Received policy_enforcement_response for
   EPM session handle 671088654 1 wcm: 09
*Sep  1 05:55:02.385: 0021.5C8C.C761 Received response for
   _EPM_SPI_ACTIVATE_FEATURES request sent for client 1 wcm: 00e msg_type 0
   policy_status 0 attr len 0
*Sep  1 05:55:02.385: 0021.5C8C.C761 Received _EPM_SPI_STATUS_SUCCESS for
   request sent for client 1 wcm:  for client
*Sep  1 05:55:02.385: 0021.5C8C.C761 Post-auth policy ACK recvd from EPM, unset
   flag on MSCB 1 wcm: ient
*Sep  1 05:55:02.400: 0021.5C8C.C761 WCDB_IP_BIND: 1 wcm:  w/ IPv4 20.20.20.3
   ip_learn_type DHCP add_delete 1,options_length 0
*Sep  1 05:55:02.400: 0021.5C8C.C761 WcdbClientUpdate: 1 wcm:  IP Binding from
   WCDB ip_learn_type 1, add_or_delete 1
*Sep  1 05:55:02.400: 0021.5C8C.C761 IPv4 Addr: 1 wcm:  20:20:20:3
*Sep  1 05:55:02.400: 0021.5C8C.C761 MS got the IP, resetting the Reassociation
   Count 0 for client 1 wcm: _delete 1
*Sep  1 05:55:02.400:  0021.5C8C.C761  20.20.20.3 DHCP_REQD (7) Change state to
   RUN (20) last state RUN (20) 1 wcm: length 0
*Sep  1 05:55:02.400: 0021.5C8C.C761 WCDB_CHANGE: 1 wcm:  Client 1 m_vlan 20
   Radio iif id 0xbfcdc00000003a bssid iif id 0xbb30c000000046, bssid
   C8F9.F983.4260
*Sep  1 05:55:02.400: 0021.5C8C.C761 WCDB_AUTH: 1 wcm:  Adding opt82 len 0
*Sep  1 05:55:02.401: 0021.5C8C.C761 WCDB_LLM: 1 wcm:  prev Mob state 1 curr
   Mob State 1 llReq flag 0
*Sep  1 05:55:02.401: 0021.5C8C.C761 auth state 4 mob state 1 setWme 0 wme 1
   roam_sent 0 1 wcm: g 0
*Sep  1 05:55:02.401: 0021.5C8C.C761 WCDB_CHANGE: 1 wcm:  auth=RUN(4) vlan 20
   radio 1 client_id 0x8e7bc00000004d mobility=Local(1) src_int
   0xb6818000000038 dst_int 0x0 ackflag 2 reassoc_client 0 llm_notif 0 ip
   20.20.20.3 ip_learn_type DHCP
*Sep  1 05:55:02.401:  0021.5C8C.C761  20.20.20.3 RUN (20) Reached
   PLUMBFASTPATH: 1 wcm:  from line 4430
*Sep  1 05:55:02.401:  0021.5C8C.C761  20.20.20.3 RUN (20) Replacing Fast Path
   rule on AP  C8F9.F983.4260 , slot 1 802.1P = 0
 1 wcm: 0xb6818000000038 dst_int 0x0 ackflag 2 reassoc_client 0 llm_notif 0 ip
   20.$=6v0.3 ip_lt^_Dv^\7HnP6v^D6Hl5Ht^_Dv$6H8^ r^D6H>&5v8^
   r^D6H>&5v^D6Ht^M^Lw^\7H8^ r
*Sep  1 05:55:02.401:  0021.5C8C.C761  20.20.20.3 RUN (20) Successfully plumbed
   mobile rule  1 wcm:  C8F9.F983.4260 , slot 1 802.1P = 0^M
*Sep  1 05:55:02.401: 0021.5C8C.C761
 Sending IPv4 update to Controller 10.105.135.176 1 wcm: e
*Sep  1 05:55:02.401: 0021.5C8C.C761 Assigning Address 20.20.20.3 to mobile  1
   wcm: 05.135.176
*Sep  1 05:55:02.401: PEM recv processing msg Add SCB(3)  1 wcm: 20.20.3 to
   mobile
*Sep  1 05:55:02.401: 0021.5C8C.C761 20.20.20.3, auth_state 20 mmRole Local !!!
   1 wcm: 135.176
*Sep  1 05:55:02.401: 0021.5C8C.C761 20.20.20.3, auth_state 20 mmRole Local,
   updating wcdb not needed 1 wcm: 3.4260 , slot 1 802.1P = 0^M
*Sep  1 05:55:02.401: 0021.5C8C.C761 Tclas Plumb needed: 1 wcm:  0
*Sep  1 05:55:20.083: 0021.5C8C.C761
Client stats update: 1 wcm:  Time now in sec 1378014920, Last Acct Msg Sent at
   1378014902 sec
