Enabling Central Web Authentication on ISE

The document describes the procedure to enable Central Web Authentication (CWA) on Identity Services Engine (ISE).

Enabling CWA on ISE through Global Configuration Commands

Use the following commands to enable CWA on ISE to work with Converged Access controllers:

Command or Action

Description/Purpose/Example

show run aaa

Displays the Authorization, Authentication, and Accounting (AAA) related configurations.

aaa authentication login ext_ise group rad_ise

Defines the 'exe ise' login method list which points to the ISE server 'rad_ise'.

aaa authorization network cwa_mac group rad_ise

The authorization method 'cwa_mac' is the mac filter list name which is called under the WLAN configuration. It points to the ISE server 'rad_ise' for authorization.

radius server ise

address ipv4 192.0.2.1 auth-port 1812 acct-port 1813

key Cisco123

Displays the RADIUS server definition for the 'ise' server.

aaa group server radius rad_ise

server name ise

The 'rad_ise' AAA group server points to the server 'ise'.

aaa server radius dynamic-author

client 192.0.2.1 server-key Cisco123

auth-type any

Required for Change of Authorization (CoA). For more information on CoA, refer to Dynamic Authorization Commands.

Enabling External Policy Server using Dynamic Authorization Commands

Use the following dynamic authorization commands to enable an external policy server to dynamically send updates to a device:

Command or Action Description/Purpose/Example

radius-server attribute 31 send nas -port-detail mac-only

Or,

radius-server attribute 31 send nas-port-detail

Sends the calling station ID for MAC.

Sends calling station ID for all operating systems other than MAC.

ip access-list extended ACL-REDIRECT

This is a url-redirect-acl. To redirect the guest portal, the Identity Services Engine (ISE) returns an AAA override and the redirect URL. The url-redirect-acl is a punt ACL which is a reverse ACL that is used for unified architecture. You need to block access to DHCP, DHCP Server, DNS, DNS server, and ISE server and allow www, 443 port, or the 8443 port as required. The ISE guest portal uses port 8443 and the redirection works with the following ACL:

10 deny udp any eq bootps any

20 deny udp any any eq bootpc

30 deny udp any eq bootpc any

40 deny ip any host 192.0.2.1

50 deny ip any host 192.0.2.2

60 permit tcp any any eq www

mac access-list extended

cwa_mac permit any

any

The access list is defined based on the MAC Authentication Bypass (MAB) rule.

Related Commands

The following table displays the commands that are associated with dynamic authorization:

Command or Action

Description/Purpose/Example

auth-type (ISO)

Specifies the server authorization type.

Client

Specifies a RADIUS client from which a device accepts CoA and disconnects requests.

Default

Sets the RADIUS application command to default domain and then specifies the username domain options.

Ignore

Overrides a behavior to ignore the parameters that are specified.

Port

Specifies a port on which local RADIUS server listens to.

server-key

Specifies the encryption key shared with the RADIUS clients.

Configuring WLAN Commands

The following example describes the WLAN configuration:

wlan cwa_guest 11 cwa_guest
aaa-override
client vlan 263
mac-filtering cwa_mac ----> mac filter pointing to authorization on ISE server
nac
no security wpa
no security wpa akm dot1x
no security wpa wpa2
no security wpa wpa2 ciphers aes
no shutdown

Authentication Flow on ISE

The ISE logs shown in the following figure displays the authentication flow on the ISE:

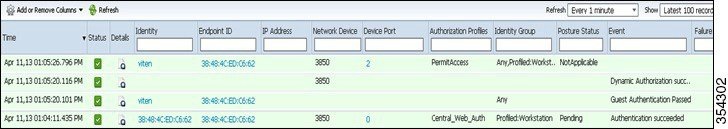

The following figure displays the authentication Flow based on the ISE logs:
Figure 1. Authentication Flow

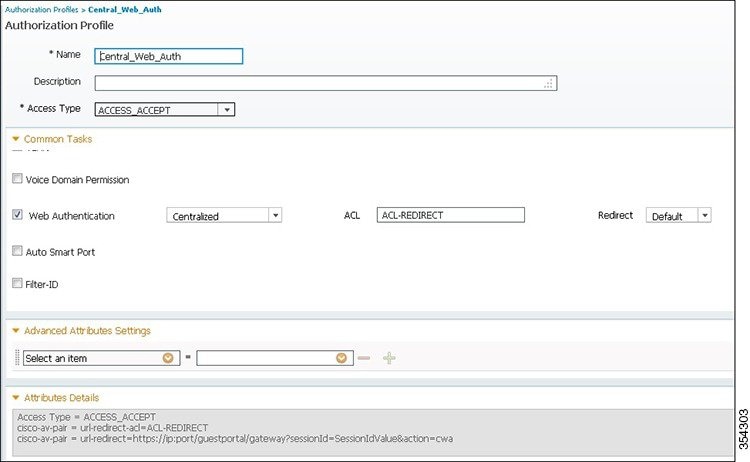

The following figure displays the authorization profile details for CWA:
Figure 2. Authorization Profile

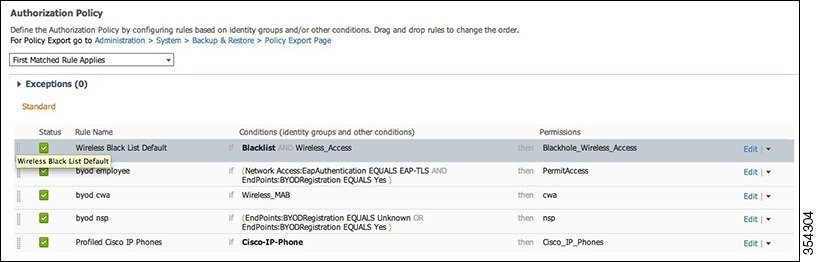

The following illustration displays the authorization policy on ISE to redirect Mobile Devices to CWA:
Figure 3. Authorization Policy




Note

  • To integrate ISE into the design, the foreign controller is the only Network Access Device (NAD) that interacts with the ISE.

    The foreign controller that is configured for Layer 2 MAC filtering, where the guests access the Wireless MAB, continue the authentication rule on ISE.

  • In a static anchor setup that uses controllers and Access Control Server (ACS), if AAA override is enabled to dynamically assign VLAN and QoS, the foreign controller updates the anchor controller with the right VLAN after a Layer 2 authentication (802.1x).

    For Layer 3 RADIUS authentication, the RADIUS requests for authentication are sent by the anchor controller.

For more information, refer to the 'Information About Mobility' chapter in the Cisco Wireless LAN Controller Configuration Guide, Release 7.4.
