Service Traffic Deflection

Updated: August 23, 2026

Want to summarize with AI?

Log in

Describes that when high availability is configured, if the firewall service subsystem is not ready to process traffic despite the networking infrastructure being fully operational, traffic is deflected to the HA peer that is ready, to minimize traffic loss.

When high availability is configured, if the firewall service subsystem is not ready to process traffic despite the networking infrastructure being fully operational, traffic is deflected to the HA peer that is ready, to minimize traffic loss. This deflection is also necessary during system initialization, and when the firewall is not in service. NX-OS manages this deflection for both routed and bridged traffic that is configured for traffic inspection.

Additionally, when the configured HA peers are detected as having mismatched software versions, incompatible platforms, differences in DPU load-balance mechanisms, or if the DPU pairs are unable to establish steady connectivity to each other, one of the HA peers having a fully functional firewall service takes-over all traffic as a firewall service that is ready and the other peer yields and transitions to a firewall service that is not-ready. Traffic is then deflected in a similar manner towards the ready firewall service.

Routed Traffic Deflection

Deflection of routed traffic to the HA peer is handled in the following ways:

  • VRF contexts configured for routed-traffic inspection are isolated when the local service firewall is not ready.

    • This allows for routing protocols such as BGP, OSPF to withdraw routes or advertise routes with higher metrics than the HA peer, to the upstream devices.

    • Traffic arriving from the Layer 3 fabric is thereby deflected towards the HA peer.

    • On HA peers configured with HSRP, the HSRP groups in the isolated VRF transition gracefully to INIT, when the local service firewall is not ready. This allows the other peer to entirely take over the traffic for the HSRP gateway.

  • On HA peers that are part of a vPC domain, the vPCs handling traffic for any VLANs, whose SVIs pertain to VRFs configured for service firewall are suspended, if the local service firewall is not ready, while the peer is ready.

    • This vPC suspension mechanism is conducted independent of the vPC role and is entirely based on the service firewall readiness.

    • vPC peers support active-active forwarding for first hop redundancy protocols such as HSRP, VRRP, and for anycast gateway in VXLAN. When a vPC is suspended, the traffic from dually homed hosts is directed only to the ready firewall service.

    • In a VXLAN fabric, type-5 routes for VRFs configured for routed-traffic inspection are always advertised with the PIP by the vPC leaf switches, regardless of the advertise-pip configuration. When VRF isolation takes effect, traffic is deflected to the ready HA peer, as only a single preferred path is available.

    • When HA state is ready/ready, the EVPN route is advertised with VIP from both peers. However, when one of the peer is put in maintenance mode (no-inservice) the peer switch advertises the routes with PIP. When the peer switch is put back to in-service mode, the routes are again advertised with VIP. These transitions from VIP to PIP or PIP to VIP can cause momentary traffic loss on the box which actively forwards traffic. PIP is only advertised when the HA state is ready/not ready.

    • In a VXLAN fabric, type-2 routes for VPC hosts in VRFs configured for routed-traffic inspection are advertised with the VIP when both HA peers are ready. These routes are withdrawn by the HA peer that is not ready and will be advertised with the PIP of the ready peer.

Bridged Traffic Deflection

Deflection of bridged traffic to the HA peer is handled in these ways:

  • On HA peers that are part of a VPC domain, the VPCs handling traffic for any VLANs that are configured for bridged traffic inspection, are suspended when the local service firewall is not ready, and the peer is ready.

  • In a VXLAN fabric, MAC routes and Type-3 Inclusive Multicast Ethernet Tag (IMET) routes in the VLANs configured for bridged-traffic inspection are advertised with the VIP when both HA peers are ready. These routes are withdrawn by the HA peer that is not ready and are advertised with the PIP of the ready peer.

Show commands

The output of the show service-acceleration status details command can show the VLANs in forwarding ready state when bridged traffic in those VLANs can be successfully redirected to the DPUs for inspection. When high-availability is configured and HA peering is successfully established, bridged traffic from vPCs or VXLAN fabric can arrive at the Smart Switch only when the firewall service state for the Smart Switch is ready.

Smart Switches deployed as vPC peers

Smart Switches can be deployed as vPC peers. Users must ensure configuration consistency for the feature service-acceleration and service firewall configuration across the two vPC peers.

Users must ensure firewall policies to permit traffic are available for all the interface IPs used by the individual vPC peers, when VPC peer-gateway is enabled and the VRFs pertaining to these interface IPs are enabled for service firewall. Traffic that is destined to interface IPs of a vPC peer, that hashes to the other peer when peer gateway feature is enabled, is inspected by the DPU on the other peer, before being sent over the peer link.

Configure vPC delay-restore timers of 300s and vPC auto-recovery reload-delay timers of 360s to ensure that the HA peers are able to detect each other during switch reloads, before the vPCs are recovered.

Traffic loss may occur if vPCs are down on the smart switch with the firewall service that is ready and vPCs are suspended on the non-ready HA peer.

If the vPCs carry traffic associated with VRFs or VLANs that are not configured for firewall inspection, such traffic may be impacted or deflected when the traffic deflection mechanisms take effect.

If HA is configured on vPC peers, traffic deflection for hosts that are singly homed or connected through orphan ports to only one vPC peer is not supported. When the firewall is not in-service, traffic from orphan hosts can drop. In other failover scenarios of peer incompatibility, where the firewall is in-service on both peers, traffic from orphan hosts can be independently inspected, without flow-sync taking effect.

Traffic deflection topologies

This section discusses three scenarios of Smart Switches with high-availability configured:

  • Smart Switches as transit routers

  • Smart Switches as Active/Standby HSRP GW

  • Smart Switches as vPC peers

Smart Switches as transit routers

The diagram illustrates a High Availability (HA) topology where two peer devices (Peer 1 and Peer 2) act as transit routers between customer networks (Network A and Network B) and the broader infrastructure. The devices are connected through a Layer 3 Port Channel (L3 PO), which serves as the HA peer link for state synchronization and control signaling.

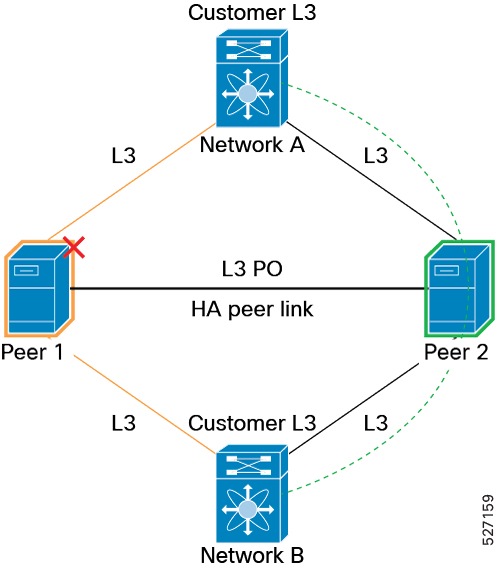

Figure 1. Topology for Smart Switches as transit routers
Topology for Smart-switches as transit routers

In this topology, VRF isolation influences route advertisements and deflects traffic towards Peer 2.

This topology uses VRF-aware routing to ensure that traffic is always directed to the healthy node. By isolating the routing tables, the network can perform graceful traffic redirection, ensuring that even if one transit router (Peer 1) goes offline, the other (Peer 2) seamlessly assumes the routing responsibility without disrupting the customer networks.

Smart Switches as Active/Standby HSRP GW

This diagram illustrates a High Availability (HA) Gateway deployment, typically used in enterprise networks to ensure continuous connectivity for hosts. The setup consists of two peers, Peer 1 and Peer 2, connected through a Layer 3 Port Channel (L3 PO), which acts as the HA peer link.

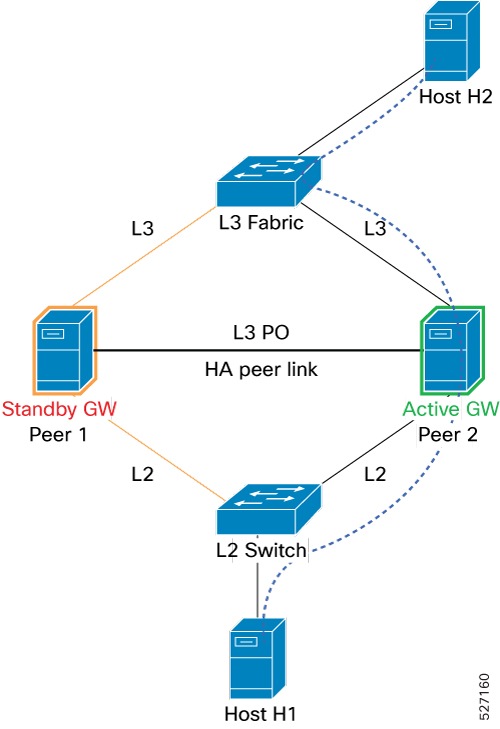

Figure 2. Topology for Smart Switches as Active/Standby HSRP GW

In this topology, HSRP moves to INIT on Peer 1 and all traffic is deflected to Peer 2. VRF isolation deflects the traffic from Layer 3 fabric to Peer 2.

This architecture ensures that even if one peer becomes unavailable, the network intelligence—driven by HSRP and VRF isolation—seamlessly reroutes traffic to the active peer, maintaining uninterrupted communication for the connected hosts.

Smart Switches as vPC peers

This diagram illustrates a network maintenance or failure scenario in a Virtual Port Channel (vPC) environment. The setup features two peers, Peer 1 and Peer 2, connected to a common Layer 3 Fabric and various hosts (H3, VH1, VH2, H4), all operating within VLAN 100.

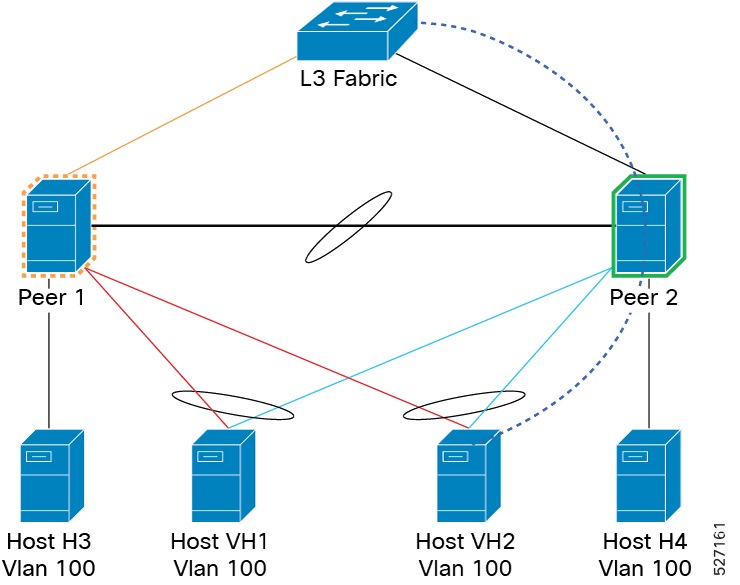

Figure 3. Topology for Smart Switches as vPC peers
Topology for Smart-switches as vPC peers

In this topology, vPCs on Peer 1 are suspended to deflect traffic from hosts to Peer 2 and VRF isolation deflects the traffic from Layer 3 fabric to Peer 2.

The combination of suspending vPCs on the inactive peer and leveraging VRF isolation to redirect traffic from the L3 fabric ensures that all communication—both from the hosts and from the core network—is seamlessly shifted to Peer 2. This allows for the graceful isolation of Peer 1 without disrupting the connectivity of the hosts in VLAN 100.
