Micro-segmentation for VXLAN Fabrics Using Group Policy Option (GPO)

Overview

Network administrators can use micro-segmentation to logically group network resources based on specific criteria such as application attributes. You can use micro-segmentation with Security Groups (SGs) and Security Group ACLs (SGACLs) to create and enforce tailored application centric security policies between security groups regardless of network topology.

In traditional data center environments, the application or workload security is often implemented at the perimeter or the north-south boundary where users from outside the data center fabric enter. This is often implemented using perimeter firewalls and other security inspection devices. However, this approach is not effective against the advanced nature of the latest attacks. The attack surface spans the entire data center including the east-west and north-south flows.

Using micro-segmentation with security groups and security group ACLs, this feature can provide an effective security solution to the users of NX-OS platforms. Micro-segmentation provides more flexibility and lower complexity than traditional general purpose Access Control Lists (ACLs). With micro-segmentation, organizations can provide specific policies that dictate how the application workloads communicate regardless of where these applications reside within the network.

GPO

Group Policy Option (GPO) is a backward-compatible extension to VXLAN that adds a Security Group Tag (SGT) to the VXLAN header for security policy enforcement purposes.

Figure 1. Security Group Tags on VXLAN Header

In a GPO enabled VXLAN network, you can create Security Groups in the VXLAN EVPN fabrics to define segmentation. By defining smaller, isolated application segments, you can deploy micro-segmentation policies that allow for better control over the flow of network traffic among the application tiers and across applications. Micro-segmentation ensures that security policies are applied only where they are needed, improving application and workload security, thereby improving the security posture.

You can classify network resources to a Security Group tag based on multiple attributes. Traffic between Security Groups can be controlled by Security Group Access Control Lists (SGACLs) also known as Security Contracts, which match source and destination Security Groups using Security Group tags.

Terminology

Security Group (SG)

A Security Group is a logical entity that contains a collection of physical or virtual network endpoints that are classified based on attributes or selectors.

Source Security Group Tags (S-SGT)

Tags derived from source attributes are called Source Security Group Tags.

Destination Security Group Tags (D-SGT)

Tags derived from destination attributes are called Destination Security Group Tags.

Security Group Access Control List (SGACL)

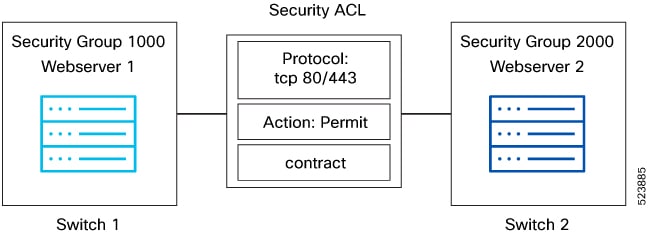

An SGACL uses Security Tags for enforcing specific security rules (L4 filters) between different Security Groups. The Tags are derived from IP, VLAN, and VM Attributes. SGACL allows to enforce security policies between SGs. An SGACL is also known as a Contract. In some parts of the document, SGACL is referred to as contract.

VRF Level Enforcement

The security group selectors define which endpoints and external IPs belong to the Security Group. Security Groups can contain endpoints, which are part of different VRFs. If endpoints part of different VRFs are associated to the same SG, communication between them would be possible only after applying the required VRF route-leaking configuration.

By default, a newly defined Tenant VRF has policy enforcement set to Unenforced. This means that even if classification criteria and SGACLs between secure groups were to be provisioned, no policy enforcement would be possible. To enable SGACL enforcement in the VRF, the VRF needs to be explicitly configured in Enforced mode.

When you configure the VRF in enforced mode, you can define the default behavior to be either of the following:

  • Deny: All unicast traffic flows are dropped unless permitted by an Allowlist.

  • Permit: All unicast traffic flows are allowed unless denied by a Denylist.

Hosts within a SG can communicate freely without explicit SGACLs. SGACLs create security rules, only.

Guidelines and Limitations

GPO has the following guidelines and limitations:

  • All supported N9000 platforms require a minimum system memory of 24GB to support this feature.

  • Beginning with Cisco NX-OS Release 10.4(3)F, GPO is supported on the following platforms:

    • 9300-FX3

    • 9300-GX

    • 9300-GX2

  • Beginning with Cisco NX-OS Release 10.5(1)F, GPO is supported on Cisco Nexus 9408 switch.

  • Beginning with Cisco NX-OS Release 10.5(1)F, GPO supports VLAN range match.

  • Beginning with Cisco NX-OS Release 10.5(1)F, analytics support for GPO packets is added.

  • Beginning with Cisco NX-OS Release 10.5(1)F, service-redirection with GPO is supported.

  • Beginning with Cisco NX-OS Release 10.5(2)F, GPO is supported on the following platforms:

    • 9300-FX

    • 9300-FX2

    • 9300-HX

  • SGACLs are supported only in the context of a VXLAN EVPN deployment. SGACL cannot be deployed on non-VXLAN enabled VRFs.

  • SGACLs are not applicable to BUM and multicast traffic. System generated default permit policies exist for BUM and multicast traffic.

  • You cannot configure VLAN-based Security Group selectors with a VLAN part of system reserved-vlan-range values.

  • If VLAN-based Security Group selectors are already configured, system-reserved-vlan-range cannot be modified to include VLAN values used in the SG selectors.

  • GPO is not supported on a site that has policy-aware and policy-unaware nodes. GPO is supported on policy-aware sites or a mix of policy-aware and policy-unaware sites.

  • Unicast Reverse Path Forwarding (URPF) is not supported with routing profile template-security-groups (system routing template-security-groups ).

  • For the adjacencies learned on Layer 3 connected interfaces, if the matching ESG selector (connected endpoints) is configured on the switch, the host routes are installed with admin distance of 205.

  • Beginning with Cisco NX-OS Release 10.5(3)F, users can enforce SGACL on an EVPN-VXLAN fabric for traffic flows to and from external endpoints reachable through an SR-MPLS based Layer-3 VPN.

    • ACL Permit logging action for the SGACL Policy shall not work for MPLS terminated flows.

    • On the BGW or BL, the SGACL based service redirection is not supported for flows destined towards MPLS Core

    • This feature is only supported on Virtual MCT BL and is not supported on Physical MCT BGW/BL.

    • SR-MPLS L3VPN interworking is supported on BLs and Anycast BGWs.

    • When this feature is enabled on Cisco Nexus 9300 FX2 platform switches, MPLS-SR LSR functionality is not supported.

    • Non-disruptive ISSU for MPLS features is only supported with BGP labelled unicast in the MPLS core. This limitation will be applicable for this feature also.

    • Beginning with Cisco NX-OS Release 10.5(3)F, users can select a combination of external-subnet IP prefix and next-hop IP address to create groups and enforce SGACL policy. Users can also use next-hop IP address with encapsulation type option to specify the next-hop address used in the VPN address family. In this release, this feature is supported only on BGP and static routes.

      • The next-hop qualifier in the selector can be a recursive next-hop or a connected next-hop for the protocol or client.

      • If the user specifies IP along with next-hop selector match for only a subset of expected next-hops of a route but not all, then

        • The ESG lookup with IP and next-hop for the other next-hops may yield a less specific tag (say based on IP). That tag is installed for such next-hops.

        • Details on the SGT returned to the protocol learned prefixes are as follows:

          • Longest prefix match (LPM) first, then the next-hop match. If LPM matches, but the next-hop doesn’t match, then the protocol will look for the next better LPM (lower mask length).

          • If an IP selector does not have any next-hop specified, then it would be treated as a match against any next-hop. Following is an example.

            • For the below config:

              SGT:100 -> 10.1.1.0/24+NH:1.1.1.1

              SGT:300 -> 10.1.1.0/24+NH:1.1.1.2

              SGT:500 -> 10.1.0.0/16
            • When the protocol learns 10.1.1.0/25 with NH:1.1.1.1, then the traffic against this prefix will get SGT 100.

            • When the protocol learns 10.1.1.0/20 with NH:1.1.1.1, then the traffic against this prefix will get SGT 500.

      • It would be a misconfiguration to have mismatch of SGTs among next-hop of a route when the paths may become ECMP.

        • In such a case, traffic could get dropped if the tag selected by RIB/FIB for installation if from a NH with tag 0, or not forwarded/processed correctly.

      • The next-hop is expected to be of the same address family as the route prefix.

        • For the VPN case, the next-hop could be of IPv4 address family, even if the route’s prefix is of IPv6 address family.

      • The VRF of next-hop in the IP with next-hop selector should be in the VRF configured for the IP.

      • For IPv6, next-hops can be link-local (since they will be unique across different neighbor devices).

      • Unlike IP selector, route-Injection for IP with next-hop selector is not supported from Cisco NX-OS Release 10.5(3)F.


        Note


        Route-Injection for IP selector was introduced from 10.5(2)F


    • Beginning with Cisco NX-OS Release 10.5(3)F, users can select VLAN along with MAC address to create a security group. VLAN and VLAN along with MAC address selector both can coexist in the same security group.

    • Beginning with Cisco NX-OS Release 10.5(3)F, support for ISSU is added for all the SGACL features along with service redirection for multi-node and multisite fabrics.

Configuring Micro-segmentation using GPO

Enabling GPO

Perform the following steps to enable the micro-segmentation feature. The first time you enable the feature, the routing template should be configured to system routing template-security-groups.


Warning


  • This routing template is required for feature security-group. Ensure the feature is enabled after applying the template mode.

  • This routing template requires extended SSD re-partitioning. This can be achieved by executing the copy running-config startup-config and system flash sda resize extended commands.



Note


We recommend backing up contents within bootflash, logflash, and running configuration prior to proceeding. For more information see Cisco Nexus 9000 Series NX-OS Fundamentals Configuration Guide, Release 10.4(x).


Subsequent disabling and re-enabling of the feature security-group can be done without requiring a switchreload.

SUMMARY STEPS

  1. configure terminal
  2. system routing template-security-groups
  3. copy running-config startup-config
  4. system flash sda resize extended
  5. [no] feature security-group
  6. show nve peers detail

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal


Enters global configuration mode.

Step 2

system routing template-security-groups

Example:

switch(config-if)# system routing template-security-groups


Changes the switch routing profile.

Note



The routing template should be configured to system routing template-security-groups. Routing template requires extended SSD partitioning executed through system flash sda resize which will initiate a reload.

Step 3

copy running-config startup-config

Example:

switch(config-if)# copy running-config startup-config


Copies the running configuration to the startup configuration.

Step 4

system flash sda resize extended

Example:

switch(config-if)# system flash sda resize extended
!!!! WARNING !!!!

      Attempts will be made to preserve drive contents during
      the resize operation, but risk of data loss does exist.
      Backing up of bootflash, logflash, and running configuration
      is recommended prior to proceeding.

!!!! WARNING !!!!


current scheme is
sda           8:0    0 119.2G  0 disk
|-sda1        8:1    0   512M  0 part
|-sda2        8:2    0    32M  0 part /mnt/plog
|-sda3        8:3    0   128M  0 part /mnt/pss
|-sda4        8:4    0 110.5G  0 part /bootflash
|-sda5        8:5    0    64M  0 part /mnt/cfg/0
|-sda6        8:6    0    64M  0 part /mnt/cfg/1
`-sda7        8:7    0     8G  0 part /logflash


 target scheme is
sda           8:0    0 120GB|250GB  0 disk
|-sda1        8:1    0   512M       0 part
|-sda2        8:2    0    32M       0 part /mnt/plog
|-sda3        8:3    0   128M       0 part /mnt/pss
|-sda4        8:4    0    rem       0 part /bootflash
|-sda5        8:5    0   1.0G       0 part /mnt/cfg/0
|-sda6        8:6    0   1.0G       0 part /mnt/cfg/1
|_sda7        8:7    0    39G       0 part /logflash

Continue? (y/n)  [n] y
  A module reload is required for the resize operation to proceed
  Please, do not power off the module during this process.

Increases storage space.

Step 5

[no] feature security-group

Example:

switch(config-if)# feature security-group

Enables the group policy option (GPO) feature. Use the 'no' prefix to disable the feature. The GPO feature can be disabled or enabled in runtime.

Step 6

show nve peers detail

Example:

switch(config-if)# show nve peers detail
Details of nve Peers:
----------------------------------------
Peer-Ip: 1.1.1.1
    NVE Interface       : nve1
    Peer State          : Up
    Peer Uptime         : 1d12h
    Router-Mac          : 5292.ca60.1b08
    Peer First VNI      : 101
    Time since Create   : 1d12h
    Configured VNIs     : 100-101,200-201
    Provision State     : peer-add-complete
    Learnt CP VNIs      : 100-101,200-201
    vni assignment mode : SYMMETRIC
    Peer Location       : FABRIC
    Group policy option : yes
----------------------------------------

Verifies that the group policy option is enabled for peer device.

Creating a Security Group

Perform the following steps to create or update a Security Group and to configure member selection criteria. To select group members, you can specify any combination of the following attributes:

  • IPv4 address or subnet for connected-endpoints and external-subnets.

  • IPv6 address or subnet for connected-endpoints and external-subnets.

  • Match VLAN at the switch level.

SUMMARY STEPS

  1. configure terminal
  2. security-group sg-id name sg-name
  3. [no] match {connected-endpoints | external-subnets} vrf vrf-name [ipv4|ipv6] ip-prefix
  4. [no] match external-subnets vrf name {ipv4 | ipv6} prefix nexthop ipv4 ip-address encap-type mpls-vpn
  5. [no] match external-subnets vrf name {ipv4 | ipv6} prefix nexthop {ipv4 | ipv6} ip-address
  6. [no] match vlan vlan-id [mac mac-addr]
  7. [no] match vlan <list of vlan-ranges>
  8. type layer4-7
  9. match interface interface
  10. show security-group id sg-id

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal
switch(config)#

Enters global configuration mode.

Step 2

security-group sg-id name sg-name

Example:

switch(config)# security-group 100 name webservers
switch(config-security-group)#

Creates (or selects an existing) security group whose unique ID is sg-id and whose name is sg-name.

Step 3

[no] match {connected-endpoints | external-subnets} vrf vrf-name [ipv4|ipv6] ip-prefix

Example:

switch(config-security-group)# match connected-endpoints vrf vrf_blue ipv4 61.1.1.141/32
switch(config-security-group)# match external-subnets vrf vrf_blue ipv4 10.0.0.0/8
switch(config-security-group)# match connected-endpoints vrf vrf_blue ipv6 61:1:1:2:1::141/128
switch(config-security-group)# match external-subnets vrf vrf_blue ipv6 10:11:12:13::/64

This command is an IPv4-VRF or IPv6-VRF selector for a host (connected-endpoints) or external (external-subnets) resource.

Use the 'no' prefix to disable the specific classification.

Step 4

[no] match external-subnets vrf name {ipv4 | ipv6} prefix nexthop ipv4 ip-address encap-type mpls-vpn

Example:

switch(config-security-group)# match external-subnets vrf vrf_blue ipv4 10.0.0.0/8 nexthop ipv4 100.0.1.1 encap-type mpls-vpn

switch(config-security-group)# match external-subnets vrf tenant-5 ipv6 78:1:1:1::/64 nexthop ipv4 100.0.1.1 encap-type mpls-vpn

Configures VRF selector using external subnet, next-hop IP address, and encapsulation type. This step is applicable for route learned against SR-MPLS.

Step 5

[no] match external-subnets vrf name {ipv4 | ipv6} prefix nexthop {ipv4 | ipv6} ip-address

Example:

switch(config-security-group)# match external-subnets vrf vrf_blue ipv4 10.0.0.0/8 nexthop ipv4 100.0.1.1

Configures VRF selector using external subnet and next-hop IP address.

Step 6

[no] match vlan vlan-id [mac mac-addr]

Example:

switch(config-security-group)# match vlan 10
switch(config-security-group)# match vlan 10 mac 001b.6384.45e6

Configures VLAN selector at the switch level.

Users can select VLAN along with MAC address to create a security group. VLAN and VLAN along with MAC address selector both can coexist in the same security group.

Step 7

[no] match vlan <list of vlan-ranges>

Example:

switch(config-security-group)# match vlan 10-20, 30, 35, 40-45

Configures VLAN with range selector.

Note



VLAN based ESG selectors cannot be configured with a VLAN inside system-reserved-vlan-range values. If vlan-based ESG selectors are already configured, system-reserved-vlan-range cannot be changed to VLAN values used in the ESG selectors.

Step 8

type layer4-7

Example:

switch(config-security-group)# type layer4-7

Creates special ESG for service attachment. Any selector type can be configured under this security-group. Layer4-7 attribute applies only to interface selector, results in hardware programming to tag all incoming traffic on the interface. Configuration of layer4-7 type for an ESG need be consistent on all the leaf. Configuration of same layer4-7 security-group without layer4-7 type on a different leaf causes misconfiguration.

Note



This is applicable for service redirection. See Cisco Nexus 9000 Series NX-OS ePBR Configuration Guide, Release 10.5(x), chapter Configuring ePBR for Micro-segmentation.

Step 9

match interface interface

Example:

switch(config-security-group)# match interface vlan10

Configures interface. In Release 10.5(1)F, only SVI interface is supported as a service interface. Type layer4-7 attribute applies only to interface selector. In Release 10.5(1)F, match interface <> without type layer4-7 attribute configured under the security-group is not supported.

Note



This is applicable for service redirection. See Cisco Nexus 9000 Series NX-OS ePBR Configuration Guide, Release 10.5(x), chapter Configuring ePBR for Micro-segmentation.

Step 10

show security-group id sg-id

Example:

switch(config-if)# show security-group id all
Security Group ID 100 , Name webservers, Type Layer4-7 Service
  Selector Type : External IPv4 Subnets
    VRF-Name                            IPv4-Address/mask-len
    vrf_blue                            10.0.0.0/8
  Selector Type : Connected IPv4 Endpoints
    VRF-Name                            IPv4-Address/mask-len
    vrf_blue                            61.1.1.141/32
  Selector Type : External IPv6 Subnets
    VRF-Name                            IPv6-Address/mask-len
    vrf_blue                            10:11:12:13::/64
  Selector Type : Connected IPv6 Endpoints
    VRF-Name                            IPv6-Address/mask-len
    vrf_blue                            61:1:1:2:1::141/128
  Selector Type : Vlan
    VLAN-Id
    Vlan10
    Vlan11
    Vlan12
    Vlan13
    Vlan14
    Vlan15
    Vlan16
    Vlan17
    Vlan18
    Vlan19
    Vlan20
    Vlan30
    Vlan35
    Vlan40
    Vlan41
    Vlan42
    Vlan43
    Vlan44
    Vlan45
  Selector Type : Interface
    Interface
    Vlan10

Verifies the group policy selectors.

Creating a Security Class-Map

A Class-Map classifies network traffic based on various match criteria configured within a class map. Perform the following steps to create a Security Class-Map to define the filters identifying specific traffic flows.

SUMMARY STEPS

  1. configure terminal
  2. class-map type security match-any web-class
  3. match [default | ip | ipv4 | ipv6]

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal
switch(config)#

Enters global configuration mode.

Step 2

class-map type security match-any web-class

Example:

switch(config)# class-map type security match-any web-class2

Create a security class-map to identify specific traffic flows.

Step 3

match [default | ip | ipv4 | ipv6]

Example:

switch(config-cmap-sec)# match ipv4 udp sport 399 to 402 dport 400 to 403
switch(config-cmap-sec)# match ipv6 udp sport 399 to 402 dport 400 to 403

Configures the security class by matching based on traffic type.

Creating a Security Policy-Map

A policy map defines a policy stating what happens to traffic that is classified using class maps and ACLs. Perform the following steps to create a Security Policy-Map to define the action (permit, deny, log) traffic flows identified by the previously created security class-map.

SUMMARY STEPS

  1. configure terminal
  2. policy-map type security policy-map
  3. class web-class
  4. [no] [permit | deny | log]
  5. [no] service-chain <svc-chain>

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal
switch(config)#

Enters global configuration mode.

Step 2

policy-map type security policy-map

Creates a security policy-map.

Step 3

class web-class

Specifies a security class-map to be associated with the policy-map to define the traffic the rule will be applied to.

Step 4

[no] [permit | deny | log]

Defines action to be taken on matching traffic.

  • Deny: Deny the matching traffic.

  • Log: Log the matching traffic.

  • Permit: Permit the matching traffic.

Permit is the default action if none specified. Log action can be set with permit or deny. Matching traffic is logged under show logging ip access-list cache [detail].

Step 5

[no] service-chain <svc-chain>

Configure service-chain for match class-maps to enable service redirection for the contract. SGACL with service-chain can only be enabled with permit action. This is applicable for service redirection. For more details about service redirection, see Cisco Nexus 9000 Series NX-OS ePBR Configuration Guide.

Configuring Security contracts between Security Groups

This procedure creates an SGACL (contract) to enforce a security policy between Security Groups.

Before you begin

  • Creating a Security Group

  • Creating a Security Class-Map

  • Creating a Security Policy-Map

SUMMARY STEPS

  1. configure terminal
  2. vrf context vrf-name
  3. security enforce tag sg-id default [permit | deny]
  4. security contract source [sg-id | any] destination [sg-id | any] policy policy-map-name [ bidir | unidir]

DETAILED STEPS

  Command or Action Purpose

Step 1

configure terminal

Example:

switch# configure terminal

Enters global configuration mode.

Step 2

vrf context vrf-name

Example:

switch(config)# vrf context blue

Enters configuration mode for the specified VRF.

Step 3

security enforce tag sg-id default [permit | deny]

Example:

switch(config-vrf)# security enforce tag 100 default deny

Moves the VRF to enforced mode.

  • sg-id: defines the security group tag for the tenant VRF on which the default options are added.

  • default deny: Denies all traffic within the VRF without explicit security contracts.

  • default permit: Allows all traffic within the VRF without explicit security contracts.

Step 4

security contract source [sg-id | any] destination [sg-id | any] policy policy-map-name [ bidir | unidir]

Example:

switch(config-vrf)# security contract source 100 destination 200 policy policyMap1 bidir

Applies the previously defined security policy map, with the corresponding action, between the specified security groups.

The default option is bidir if no direction is specified. Default option bidir applies the SGACL to traffic in both direction (in example, 100 to 200 and 200 to 100).

For example, if you create a security rule between SG 100 and SG 200 with a filter that specifies destination port 80, the use of bidir ensures that a rule is also applied for communication between SG 200 and SG 100 with source port 80 so that the two-ways communication can be successfully established.

Configuration Examples for GPO

Figure 2. Creating Security Group

Step 1: Enabling GPO.

Switch1# configure terminal
Switch1(config)# system routing template-security-groups
Switch1(config)#feature security-group

Switch2# configure terminal
Switch2(config)# system routing template-security-groups
Switch2(config)#feature security-group

Step 2: Creating a security class-map to identify specific traffic flows.

Switch1(config)#class-map type security match-any web-class
match ipv4 tcp dport 443
match ipv4 tcp dport 80

Switch2(config)#class-map type security match-any web-class
match ipv4 tcp dport 443
match ipv4 tcp dport 80

Step 3: Creating a security policy map


Switch1(config)#policy-map type security policyMap1
class web-class
permit
Switch2(config)#policy-map type security policyMap1
class web-class
permit

Step 4: Creating security group.

switch1(config)security-group 1000 name webserver1
switch1(config-security-group)# match connected-endpoints vrf vrf_blue ipv4 61.1.1.141/32
switch1(config-security-group)# match external-subnets vrf vrf_blue ipv4 10.0.0.0/8
switch1(config-security-group)# match connected-endpoints vrf vrf_blue ipv6 61:1:1:2:1::141/128
switch1(config-security-group)# match external-subnets vrf vrf_blue ipv6 10:11:12:13::/64
switch1(config-security-group)# match connected-endpoints vrf vrf_red ipv4 100.5.150.125/32
switch1(config-security-group)# match connected-endpoints vrf vrf_red ipv6 100:1:1:495::125/128
switch1(config-security-group)# match external-subnets vrf vrf_red ipv4 11.0.0.0/8
switch1(config-security-group)# match vlan 10

switch2(config)security-group 2000 name webserver2
switch2(config-security-group)# match connected-endpoints vrf vrf_blue ipv4 61.1.1.142/32
switch2(config-security-group)# match external-subnets vrf vrf_blue ipv4 20.0.0.0/8
switch2(config-security-group)# match connected-endpoints vrf vrf_blue ipv6 61:1:1:2:1::142/128
switch2(config-security-group)# match external-subnets vrf vrf_blue ipv6 20:11:12:14::/64
switch2(config-security-group)# match connected-endpoints vrf vrf_red ipv4 100.5.150.126/32
switch2(config-security-group)# match connected-endpoints vrf vrf_red ipv6 100:1:1:495::126/128
switch2(config-security-group)# match external-subnets vrf vrf_red ipv4 21.0.0.0/8
switch2(config-security-group)# match vlan 10

Step 5: Moving VRF to enforce mode

switch1(config)# vrf context vrf_blue
switch1(config-vrf)# security enforce tag 100 default deny
switch2(config)# vrf context vrf_red
switch2(config-vrf)# security enforce tag 101 default deny

Step 6: Apply contract

switch1(config-vrf-blue)# security contract source 1000 destination 2000 policy policyMap1
switch1(config-vrf-red)# security contract source 1000 destination 2000 policy policyMap1

switch2(config-vrf-blue)# security contract source 1000 destination 2000 policy policyMap1
switch2(config-vrf-red)# security contract source 1000 destination 2000 policy policyMap1

Verifying GPO

Following are the show commands associated with GPO configuration:

show contracts

Displays all the contracts applied in the switch for all the vrfs.

switch(config)# show contracts

VRF              SGT   DGT   Policy           Dir    Stats        Class            Action       OperSt
--------------------------------------------------------------------------------------------------------
vrf_blue             1000   2000 policyMap1        bidir  350370       web-class        permit,log   enabled
vrf_red              1000   2000 policyMap1        bidir  373270       web-class        permit,log   enabled
show run security-group

Displays all the security-group related configurations in the switch.

switch1(config)# show run security-group
!Command: show running-config security-group
!Running configuration last done at: Fri Dec  8 12:23:52 2023
!Time: Fri Dec  8 12:27:09 2023
version 10.4(2) Bios:version 05.50
feature security-group
security-group 1000 name webserver1
match connected-endpoints vrf vrf_blue ipv4 61.1.1.141/32
match external-subnets vrf vrf_blue ipv4 10.0.0.0/8
match connected-endpoints vrf vrf_blue ipv6 61:1:1:2:1::141/128
match external-subnets vrf vrf_blue ipv6 10:11:12:13::/64
match connected-endpoints vrf vrf_red ipv4 100.5.150.125/32
match connected-endpoints vrf vrf_red ipv6 100:1:1:495::125/128
match external-subnets vrf vrf_red ipv4 11.0.0.0/8
match vlan 10

class-map type security match-any web-class
  match ip udp
  match ip tcp

policy-map type security policyMap1
  class web-class

vrf context vrf_blue
  security contract source 1000 destination 2000 policy policyMap1
  security enforce tag 100 default deny

vrf context vrf_red
  security contract source 1000 destination 2000 policy policyMap1
  security enforce tag 101 default deny
show contracts detail

Displays all the contracts details applied in the switch includes class-map and policy-map details.

switch1(config)# show contracts detail

VRF: vrf_blue
  Contract source group any dest group 2000
    Policy: policyMap1 Direction: bidir
      Stats: 350370
      Class: web-class
        match ip udp
        match ip tcp
      Action: permit,log
      OperSt: enabled

VRF: vrf_red
  Contract source group any dest group 2000
    Policy: policyMap1 Direction: bidir
      Stats: 373270
      Class: web-class
        match ip udp
        match ip tcp
      Action: permit,log
      OperSt: enabled
show contracts policy policyMap1

Displays contracts based on policy name.

Switch1(config)show contracts policy policyMap1
VRF              SGT   DGT   Policy           Dir    Stats        Class            Action       OperSt

--------------------------------------------------------------------------------------------------------

vrf_blue             1000  2000   policyMap1       bidir  0            web-class       permit       enabled
vrf_red              1000  2000   policyMap1       bidir  0            web-class       permit       enabled
show contracts vrf vrf_blue

Displays contracts based on vrf.

switch1(config)show contracts vrf vrf_blue
VRF              SGT   DGT   Policy           Dir    Stats        Class            Action       OperSt
--------------------------------------------------------------------------------------------------------
vrf_blue         1000  2000   policyMap1       bidir  0            web-class       permit       enabled
show contracts sgt 1000

Displays contract based on a given SGT.

switch1(config)# show contracts sgt 1000

VRF              SGT   DGT   Policy           Dir    Stats        Class            Action       OperSt
--------------------------------------------------------------------------------------------------------
vrf_blue     1000  2000  policyMap1        bidir  0            web-class          permit,log   enabled
vrf_red      1000  2000  policyMap1        bidir  0            web-class          permit,log   enabled
show contracts dgt 2000

Displays contract based on a given DGT.

switch1(config)# show contracts dgt 2000

VRF              SGT   DGT   Policy           Dir    Stats        Class            Action       OperSt
--------------------------------------------------------------------------------------------------------
vrf_blue     1000  2000  policyMap1        bidir  0            web-class         permit,log   enabled
vrf_red      1000  2000  policyMap1        bidir  0            web-class         permit,log   enabled
show contracts sgt 1000 dgt 2000

Displays contract based on a given SGT and DGT.

switch1(config)# show contracts sgt 1000 dgt 2000

VRF              SGT   DGT   Policy           Dir    Stats        Class            Action       OperSt
--------------------------------------------------------------------------------------------------------
vrf_blue     1000  2000  policyMap1        bidir  0            web-class         permit,log   enabled
vrf_red      1000  2000  policyMap1        bidir  0            web-class         permit,log   enabled

Use the Following show commands to see the contracts with service-redirection.

switch1(config)# show contracts policy ipv4tcp
VRF     SGT   DGT     Policy   Dir   Stats   Class    Action   OperSt
--------------------------------------------------------------------------------------------------------
ixia    2004  3004   ipv4tcp   bidir   0    ipv4tcp   redir    enabled

switch1(config)# show contracts policy ipv4tcp detail
VRF: ixia
  Contract source group 2004 dest group 3004
   Policy: ipv4tcp Direction: bidir
     Stats: 0
     Class: ipv4tcp
       match ipv4 tcp
     Action: redir-1node2arm
     OperSt: enabled

switch1(config)# show contracts sgt 2004 dgt 3004
VRF    SGT    DGT    Policy    Dir    Stats   Class     Action   OperSt
--------------------------------------------------------------------------------------------------------
ixia   2004   3004   ipv4tcp   bidir   0      ipv4tcp   redir    enabled

Checking Consistency of GPO

Beginning with Cisco NX-OS Release 10.5(1)F, use the following show command to check the consistency of contracts and polices.

Command or Action

Purpose

show consistency-checker contract vrf < all | vrf-name > | rule < rule-id >

switch1(config)# show consistency-checker contract vrf all
Contract CC: Starting for vrf= all
Contract CC: Checking if SGT feature is enabled
Contract CC: Checking DME & Policy-Mgr programming inconsistencies
Contract CC: Processing configuration data...
Contract CC: Starting validation for 15 rules
Contract CC: Fetching PT Tiles, TCAM entries from the Hardware
Contract CC: Retrieved Tile Entries 0 Tcam Entries 130
Contract CC: Examining SG-Agent and HW policy programming inconsistencies


Contract CC: Final Status = SUCCESS

Displays the software and hardware programming status of contracts and polices.

<all> - allows users to execute a consistency check for all contracts under all VRFs.

<vrf-name> - allows users to execute a consistency check for all contracts under a specific VRF.

<rule> - allows users to execute a consistency check for a specific rule by its identifier.

VXLAN Multi-Site and GPO Interoperability

Beginning with Cisco NX-OS Release 10.4(3)F, SG and SGACLs are supported on VXLAN EVPN fabrics part of the same Multi-Site domain. Policy aware and policy-unaware fabrics can be deployed as part of the same Multi-Site domain.

Anycast Border Gateways (BGWs) and vPC BGWs are supported with SGACL feature. Border-Gateway nodes in a policy-aware site can establish Multi-Site EVPN connectivity with policy-aware sites as well as policy-unaware sites. SGACLs can be applied between SGs locally defined on separate fabrics. Additionally, it is possible to stretch a SG across multiple fabrics.

All the EVPN routes from policy-unaware sites are distributed into policy-aware sites and installed with a reserved security group tag value 15. To allow workload communication between policy unaware to policy aware sites, the user must create explicit contracts with tag 15 and the intended destination tag.

When a remote prefix is learned with multiple next-hops belonging to a mix of policy-unaware and policy-aware fabrics, the next-hop(s) of policy-aware fabrics are preferred. If multiple next-hops all belong to policy-unaware fabrics, then the received prefix route is installed and re-originated inside the policy-aware fabric with policy-unaware tag.

Figure 3. Policy-Aware and Policy-Unaware Tag Next-Hop Preference

In the figure, BGW 1 and BGW 2 are part of policy aware sites and BGW 3 belongs to a policy unaware site. External network 10.1.1.0/24 is advertised from Site 3 and Site 2 to Site 1. Since Site-2 is policy-aware, Route 10.1.1.0/24 is advertised with “TagY”, which is configured on Site2. Site-3 is policy-unaware, so the route advertised from BGW3 would not carry any policy information and would be locally assigned to have the default Policy-unaware tag which is ‘15’ when received by BGW1.

On BGW1, the Route would have overlay ECMP of BGW2 and BGW3 with tags of TagY and, ‘15’ respectively. However, since TagY is a valid tag from the policy-aware site, 10.1.1.0/24 is programmed with Tag ‘TagY’. Similarly, when BGW1 re-originates the route to a leaf in Site-1, it adds the tag ‘TagY’ to the route.

In a typical Anycast BGW setup, there are no SVI configurations for L2VNIs. However, to support GPO for L2 Bridged IP traffic, you need to configure an SVI for the L2VNIs on the Anycast BGWs. The SVI configuration does not need an IP Address or the “ip forward” command. The only requirement is to be configured under the Tenant VRF. This is needed to derive the Tenant VRF information for Host-IP lookup of the endpoints connected to the L2VNI segment and provide the SGT & DGT tags necessary to enforce the security policy.

Policy Aware Fabrics in a Multi-Site Domain

This section describes how the route advertisement and packet movement happens between 2 hosts in a policy aware Multi-Site domain.

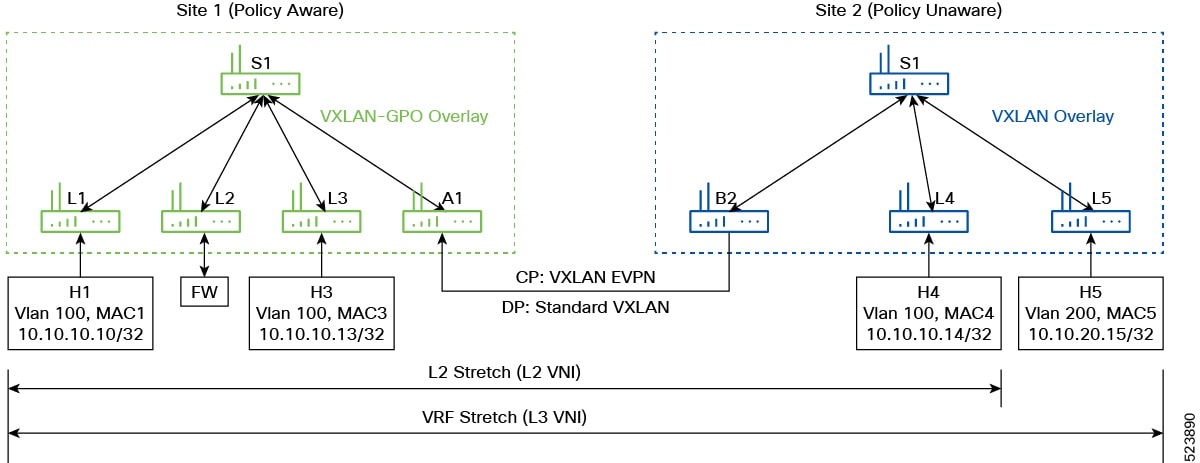

Figure 4. Policy-Aware Multi-site

In the above topology, site 1 and site 2 are policy aware.

Route-advertisement of Host H1 from Leaf L1 to Leaf L5

When a host route H1 is advertised from L1, site 1 to L5 site 2, the route advertisement flow is as follows:

  1. Next-hop Router L1 advertises the route with L1 next-hop and source group tag (TagX) as configured by the policy on router L1.

  2. Router A1, which is the BGW in the Site-1, re-originates the route with the Multi-Site VIP of the BGW as next-hop, however, retains the SGT tag (TagX) received from L1.

  3. Similarly, router B2 (BGW in Site-2) re-originates the route H1 inside the local fabric with the Multi-Site VIP of B2 BGW as next-hop and the same SGT tag (TagX).

  4. L5 receives the route from router B2 and installs it in the forwarding table with the associated security tag “TagX”. This way, the tag from the originator leaf is retained across the entire multi-site domain.

Refer to the following figure to know about the learned endpoint information on the various nodes.

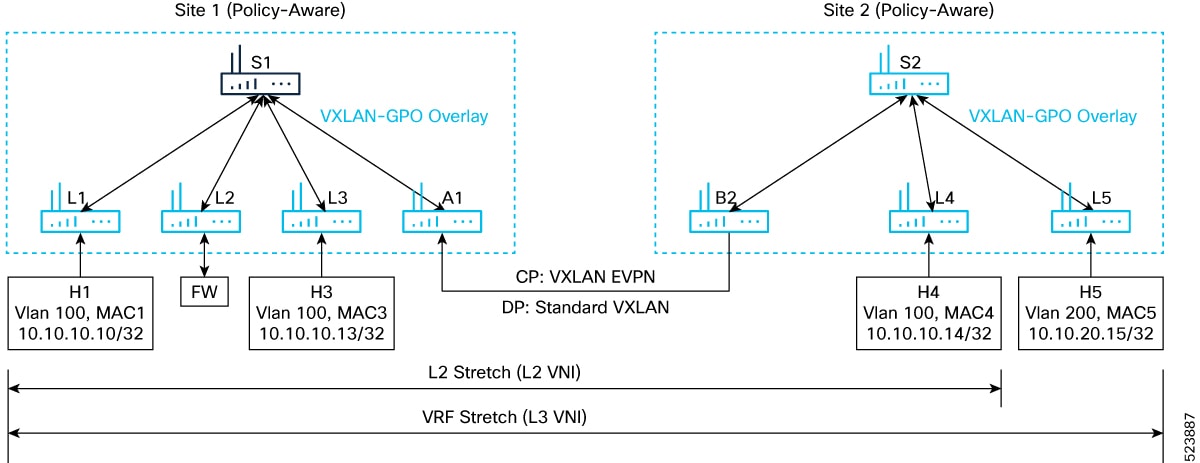

Figure 5. Route Advertisement in a Policy Aware Multi-Site

Packet-Flow from Host H5 to Host H1

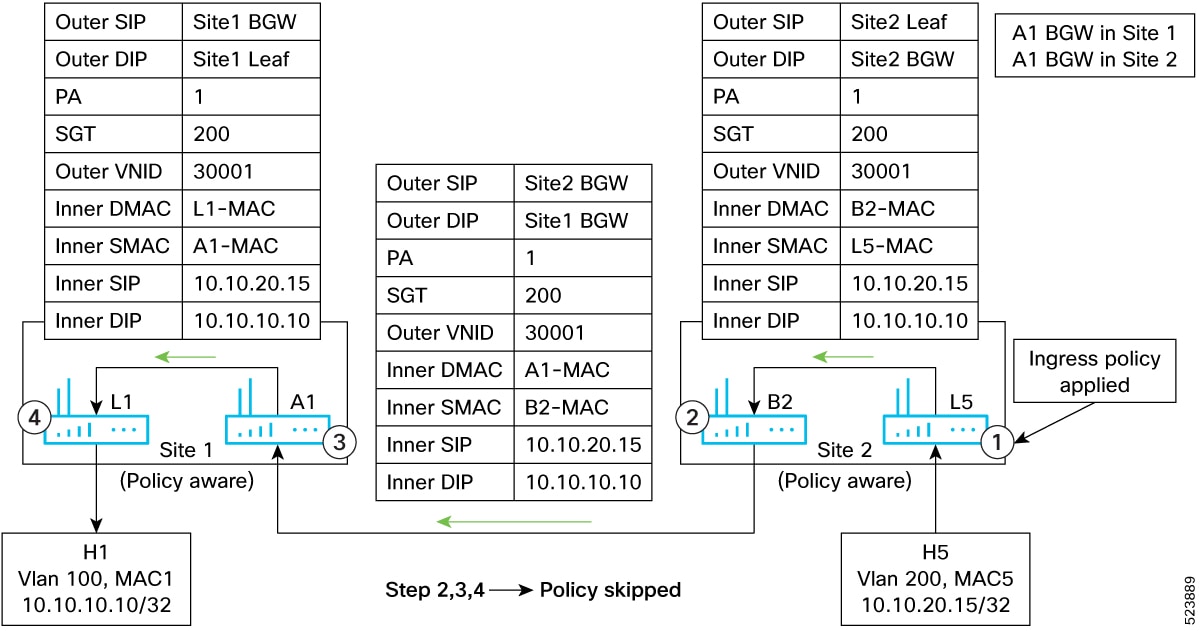

Figure 6. Packet-Flow from Host H5 to Host H1

The packet flow between the hosts H5 and H1 would be as follows.

  1. Router L5 receives the traffic from the host H5. Since both SRC and DST tags are available, L5 would locally apply the security policy. If the policy-action is permitted, it would set the policy-applied (PA) bit in the VXLAN-GPO header and send the traffic to BGW router B2, representing the next-hop to reach the destination host H1.

  2. Along with this, the PA bit setting is retained in the VXLAN GPO header B2, on seeing the PA bit set in the VXLAN header, would not reapply the policy, and just decapsulate and re-encapsulate the traffic sending it to the BGW A1, site 1, representing the next-hop to reach the destination host H1. Along with this, the PA bit setting is retained in the VXLAN GPO header.

  3. BGW A1 would take a similar action as BGW B2 and forward the traffic to router L1.

  4. Router L1 would not apply Policy as well because of the PA bit set and would forward the traffic to the destination host H1.

Policy Aware and Policy Unaware Fabrics in a Multi-Site Domain

Figure 7. Policy-Aware Policy Unaware Multi-Site

In the above picture, Site-1 is a policy aware site and Site-2 is a policy unaware site.

Route advertisement of Host H1 from Router L1 to Router L5

The route advertisement of Host H1 from router L1 to router L5 would be as follows.

  1. Router L1 advertises the route H1 with next-hop as L1 and SGT Tag (TagY) based on the configuration on L1.

  2. Router A1 locally installs the route with next-hop L1 (and associated tag TagY) and re-originates the route to the remote BGW B2 with next-hop as A1 Multi-Site VIP and the same SGT Tag (TagY).

  3. The BGW B2, upon receiving the route with SGT Tag (TagY), locally installs the route with A1 as next-hop and ignores the SGT Tag as it is policy unaware. It then re-originates the route to router L5 with next-hop as B2 Multi-Site VIP.

  4. Router L5 installs the route H1.

Route advertisement of Host H5 from Router L5 to Router L1

The route advertisement of Host H5 from router L5 to router L1 would be as follows.

  1. Router L5 advertises the route for host H5 with next-hop as L5.

  2. BGW B2 locally installs the route with L5 as next-hop and re-originates the prefix with next-hop as B2 Multi-Site VIP.

  3. Since A1 is in a policy aware site, and received the route from a policy unaware fabric, A1 installs the route with the Default Tag for Policy unaware sites, Tag ‘15’.

  4. BGW router A1 re-originates the route to L1 with next-hop as A1 Multi-Site VIP and Tag 15.

  5. Router L1 installs the route with SGT TAG 15 and next-hop as A1 Multi-Site VIP.

Refer to the following figure to know about the learned endpoint information on the various nodes.

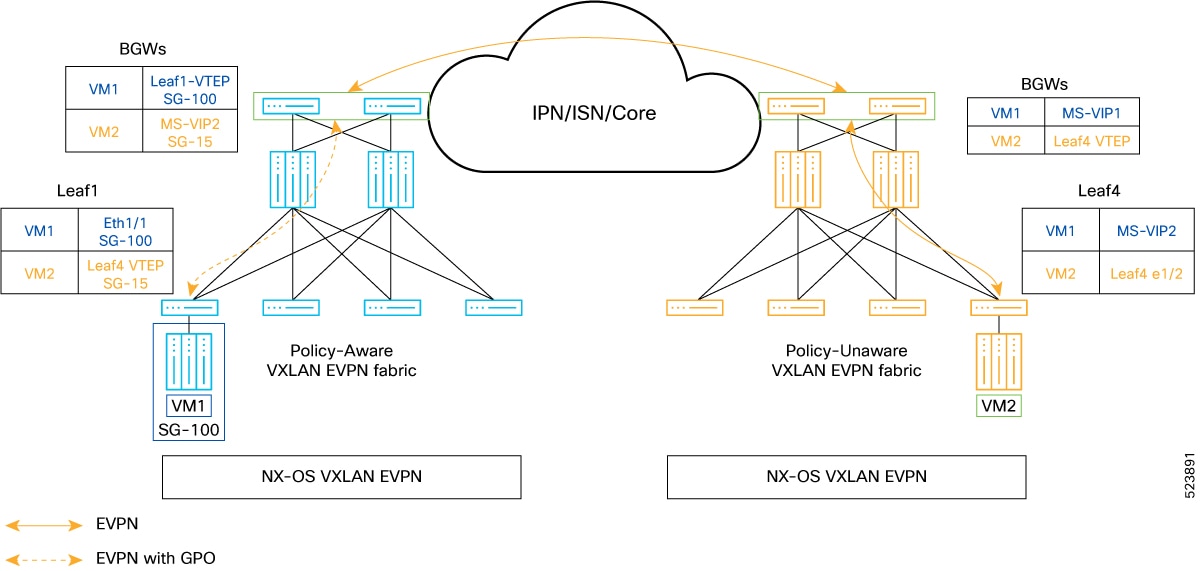

Figure 8. Route Advertisement from a Policy Unaware to Aware Site

Packet flow from Host H5 to Host H1

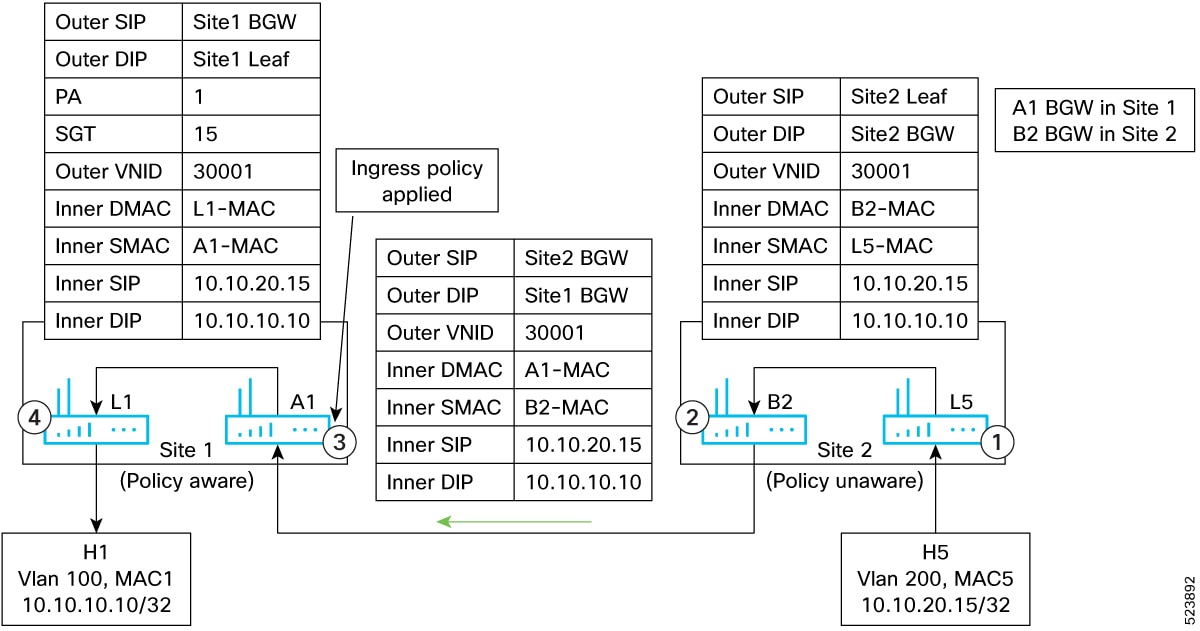

Figure 9. Packet flow from Host H5 to Host H1

The packet flow between the hosts H5 and H1 would be as follows.

  1. Router L5 receives the traffic from the host H5 and routes the traffic to B2 with standard VXLAN header.

  2. B2 decapsulates and re-capsulates in a standard VXLAN header.

  3. A1 decapsulates the traffic, applies the policy based on source Tag “15” and destination “Tag Y”. Based on the policy, traffic is forward to L1 with VXLAN GPO tunnel and policy-applied bit set.

  4. L1 decapsulates the traffic and since PA bit is set, policy is not applied again and forwarded to H1.

Packet flow from Host H1 to Host H5

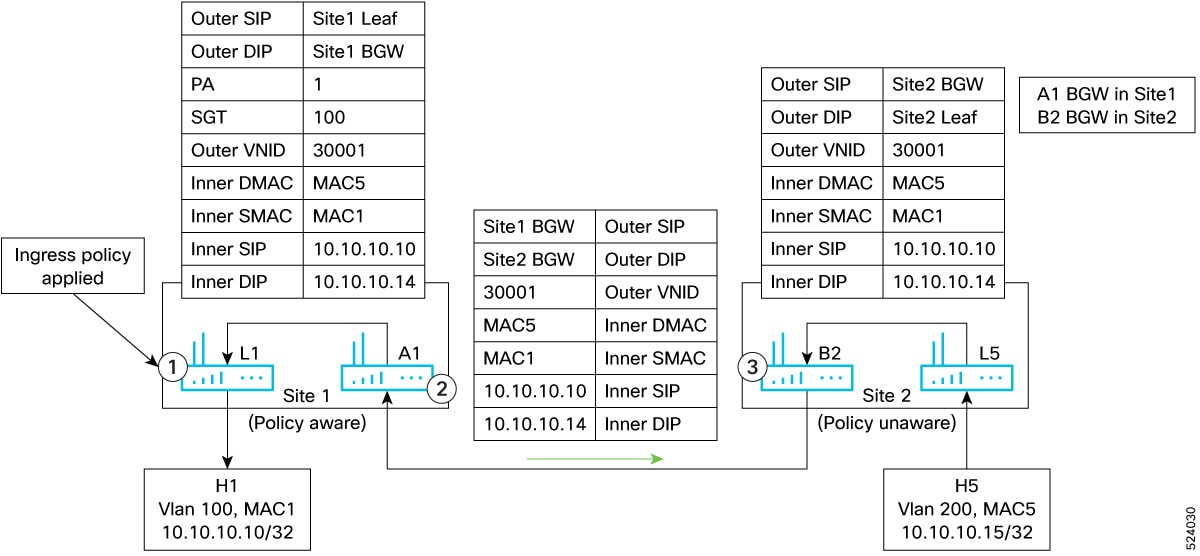

Figure 10. Packet flow from Host H1 to Host H5

Packet flow from host H1 to host H5 would be as follows.

  1. Router L1 receives the traffic from H1, applies the policy based on the source Tag ‘TagY’, destination Tag ‘15’. Based on the policy result, L1 routes the traffic to A1 with VXLAN GPO Tunnel with policy-applied (PA) bit set.

  2. A1 decapsulates and since PA bit is set, it does not reapply the policy and forwards the traffic to B2 in a standard VXLAN Tunnel.

  3. Traffic flow from B2 to H5 is similar to any Multi-Site deployment.

With the help of micro-segmentation and GPO, NX-OS users can create smaller and isolated segments within a network and enforce security policies. This allows users to have better control over the traffic flow and apply security policies only where they are needed.

Related Documents

https://www.cisco.com/c/en/us/td/docs/dcn/nx-os/nexus9000/104x/configuration/scalability/cisco-nexus-9000-series-nx-os-verified-scalability-guide-1043.html

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/nx-os/licensing/guide/cisco-nexus-nx-os-smart-licensing-using-policy-user-guide.html

https://www.cisco.com/c/dam/en/us/td/docs/Website/datacenter/platform/platform.html

https://developer.cisco.com/docs/cisco-nexus-3000-and-9000-series-nx-api-rest-sdk-user-guide-and-api-reference-release-10-4-x/
