Release Notes for Cisco SD-WAN Control Components, Cisco Catalyst SD-WAN Control Components Release 20.12.x


Note


To achieve simplification and consistency, the Cisco SD-WAN solution has been rebranded as Cisco Catalyst SD-WAN. In addition, from Cisco IOS XE SD-WAN Release 17.12.1a and Cisco Catalyst SD-WAN Release 20.12.1, the following component changes are applicable: Cisco vManage to Cisco Catalyst SD-WAN Manager, Cisco vAnalytics to Cisco Catalyst SD-WAN Analytics, Cisco vBond to Cisco Catalyst SD-WAN Validator, Cisco vSmart to Cisco Catalyst SD-WAN Controller, and Cisco Controllers to Cisco Catalyst SD-WAN Control Components. See the latest Release Notes for a comprehensive list of all the component brand name changes. While we transition to the new names, some inconsistencies might be present in the documentation set because of a phased approach to the user interface updates of the software product.

These release notes accompany the Cisco Catalyst SD-WAN Control Components, Release 20.12.x, which provides Cisco Catalyst SD-WAN capabilities. They include release-specific information for Cisco Catalyst SD-WAN Controllers, Cisco Catalyst SD-WAN Validators, Cisco SD-WAN Manager as applicable to Cisco Catalyst SD-WAN.

Related Releases

For release information about Cisco IOS XE Catalyst SD-WAN devices, refer to Release Notes for Cisco IOS XE Catalyst SD-WAN device, Cisco IOS XE Release 17.12.x.

What's New for Cisco Catalyst SD-WAN Control Components Release 20.12.x

Cisco is constantly enhancing the Cisco Catalyst SD-WAN solution with every release and we try and keep the content in line with the latest enhancements. The following table lists new and modified features we documented in the Configuration, Command Reference, and Hardware Installation guides.

Table 1. Cisco IOS XE Catalyst SD-WAN Release 17.12.1a
Feature Description

Cisco Catalyst SD-WAN Getting Started Guide

Support for Certificates Without the Organizational Unit Field

Enterprise certificates that you install on devices do not require the Organizational Unit (OU) field to be defined. Earlier, this field was used as part of the authentication of a device.

However, if a signed certificate includes the OU field, the field must match the organization name configured on the device.

Cisco Catalyst SD-WAN Systems and Interfaces

Cisco Catalyst SD-WAN Remote Access Configuration in SSL-VPN Mode

This feature enables you to configure the following Cisco Catalyst SD-WAN Remote Access features for a device in SSL-VPN mode, using Cisco SD-WAN Manager:

— Private IP Pool

— Authentication

— AAA Policy

Configuration Groups and Feature Profiles (Phase IV)

The following new features are introduced to the feature profiles:

— In the System Profile: Flexible Port Speed.

— In the Transport Profile: OSPFv3 IPv4 Routing, OSPFv3 IPv6 Routing, T1/E1 Controller

— Subfeatures for transport VPN: OSPFv3 IPv4 Routing, OSPFv3 IPv6 Routing, T1/E1 Serial, DSL PPPoE, DSL PPPoA, DSL IPoE, Ethernet PPPoE

— In the Service Profile: OSPFv3 IPv4 Routing, OSPFv3 IPv6 Routing, EIGRP Routing, Object Tracker, Object Tracker Group

— Subfeatures for service VPN: OSPFv3 IPv4 Routing, OSPFv3 IPv6 Routing, EIGRP Routing, Multilink Controller, Object Tracker, Object Tracker Group

— The Route leak to Global VPN option is added to the Route Leak parameter in the service VPN.

Support for Dual Device Site Configuration

This feature supports dual devices site configuration using configuration groups, for redundancy.

Enhancements to User-Defined Device Tagging

Device tagging has the following new functionalities:

— When you add devices to a configuration group using rules, you can choose Match All or Match Any.

— You can use Starts With and Ends With operator conditions when you add devices to a configuration group using rules.

— In addition, the button formerly called Add New Tag is now Create New Tag.

VFR (Virtual Fragmentation Reassembly) and Underlay Fragmentation

The VFR mechanism reassembles fragmented packets in Cisco Catalyst SD-WAN networks. The packets are fragmented for better transportion and are fragmented while they are travelling through a VFR enabled Cisco IOS XE Catalyst SD-WAN device.

Underlay fragmentation fragments packets in the underlying layer of a network. Underlay fragmentation is introduced to easily transport larger packets that exceed the (MTU).

Enhanced Cisco Catalyst SD-WAN Manager Dashboard for Multitenancy

This feature is enhanced to support consistent user experience in tenant and service providers dashboard.

The Cisco Catalyst SD-WAN Manager dashboard provides visibility into the available resources on shared devices.

RADIUS/TACAS Support for Multitenancy

This feature enables support for Remote Authentication Dial-In User Service (RADIUS) and Terminal Access Controller Access Control System (TACACS) authentication in a multitenant deployment on WAN edge devices.

Enhanced Multitenant Tier Definition to include NAT Limits

This feature is enhanced to support NAT to enforce per tenant maximum limit on the translations.

From this release Tier is called Resource Profile in Cisco SD-WAN Manager.

Cisco Catalyst SD-WAN Routing Configuration Guide

Transport Gateways

A transport gateway operates as the hub in a hub-and-spoke routing topology. It offers the advantage of achieving this topology without requiring complex routing policy configuration. The following are some uses of a transport gateway:

  • Providing connectivity to routers in disjoint underlay networks

  • Serving as a gateway (hub) for all traffic in one discrete network to reach another discrete network, such as directing all local network traffic to a cloud gateway

Hub-and-Spoke Configuration

Hub-and-spoke configuration simplifies the process of configuring a hub-and-spoke topology, making complex centralized control policy unnecessary. Instead, the configuration requires only a few simple configurations: a single command each on (a) the Cisco SD-WAN Controllers serving a network, (b) a router that serves as a hub, and (c) the routers that operate as spokes.

Symmetric Routing

You can use affinity groups, affinity group preference, and translation of RIB metrics to ensure symmetric routing of traffic flows across devices in a network. Symmetric routing accommodates various network topologies, including Multi-Region Fabric.

To support symmetric routing beyond the overlay network, transport gateways can translate RIB metrics to control plane protocols such as BGP and OSPF. This extends the path preference configuration to routers outside of the overlay network, such as routers in a data center LAN.

Cisco Catalyst SD-WAN Policies

WAN Insight Policy Automation

With this feature, you can apply the recommendations that are available on vAnalytics to Cisco SD-WAN Manager AAR policy and view the applied recommendations on Cisco SD-WAN Manager.

Flow Telemetry Enhancement When Using Loopbacks as TLOCs.

When you configure a loopback interface as an ingress or egress transport interface, this feature enables you to collect loopback interface reports in FNF records and is supported for IPv4 and IPv6.

A show command is enhanced on the device to display the binding relationship between the loopback and physical interfaces.

Lawful Intercept 2.0 Enhancements

This feature lets you configure intercepts in the Cisco Catalyst SD-WAN multitenancy mode, and also provides support for Cisco Catalyst SD-WAN Manager clusters.

Enhancements to Flexible NetFlow for vAnalytics

This feature introduces logging enhancements to Cisco Flexible NetFlow for Cisco SD-WAN Analytics.

The output of the show flow record command has been enhanced for IPv4 and IPv6 flow records.

Enhanced Application-Aware Routing

Without enhanced application-aware routing enabled, Cisco IOS XE Catalyst SD-WAN device require several minutes to switch traffic from one network path to another to meet SLA requirements when the loss, latency, and jitter exceed specific threshold values.

Enabling enhanced application-aware routing speeds the detection of tunnel performance issues. This enables Cisco IOS XE Catalyst SD-WAN devices to redirect traffic away from tunnels that do not meet SLA requirements.

Cisco Catalyst SD-WAN Security

Snort Engine Version Upgrade

This feature adds support for Snort engine version 3, which is an upgrade from version 2.

IPv6 GRE or IPsec Tunnels Between Cisco Catalyst SD-WAN and Third-Party Devices

This feature allows you to configure an IPv6 GRE or IPSEC tunnel from a Cisco IOS XE Catalyst SD-WAN device device to a third-party device over a service VPN.

Enabling MACsec using Cisco SD-WAN Manager

This feature adds support for enabling MACsec using Cisco SD-WAN Manager for Cisco Catalyst SD-WAN devices on the service side.

With MACsec enabled using Cisco SD-WAN Manager, communication between devices in the service VPN is protected, thus enhancing security for the service VPN.

OMP Prefixes for IP-SGT Binding

The OMP routes are typically present in the IOS RIB. The OMP routes aren't present in the IOS FIB containing entries that map destination IP addresses to next-hop IP addresses. The IOS FIB operates independently of the control plane, receiving the forwarding instructions from a centralized Cisco SD-WAN Controller instead of consuming the OMP routes from the IOS RIB. Starting from Cisco IOS XE Catalyst SD-WAN Release 17.12.1a, the OMP prefixes get added to the IOS FIB which improves IP-SGT binding.

Cisco Catalyst SD-WAN Cloud OnRamp

AWS Cloud WAN Integration

AWS Cloud WAN is a managed wide-area network (WAN) service. This feature enables you to easily connect and route remote sites, regions and cloud applications over the AWS global network. You can build and operate the wide-area networks using simple network policies and get a complete view of the global network.

Added an Azure Instance Type

For the Microsoft Azure West Central US and Australia East regions, added the Standard_D16_v5 Azure instance type, which includes 16 CPU cores and 64 GB of memory. You can deploy this type of instance for SKU scale values of 20, 40, 60, and 80.

Cisco Catalyst 8000V Edge Software Support

You can deploy a Cisco Catalyst 8000v Edge Software as the Interconnect Gateway in the Equinix fabric and connect an Cisco Catalyst SD-WAN branch location to the Interconnect Gateway.

Addition of VPC and VNet Tags to SDCI Connections

You can add or modify additional properties of Virtual Private Cloud (VPC) and Virtual Networks (VNets) tags that are associated with a connection.

Audit Management in Equinix

You can identify the gaps or disconnects between Cisco SD-WAN Manager intent and what is realized in the cloud. The audit management helps in understanding if the interconnect cloud and provider states are in sync with the Cisco SD-WAN Manager state.

Cisco Catalyst SD-WAN Policy Groups

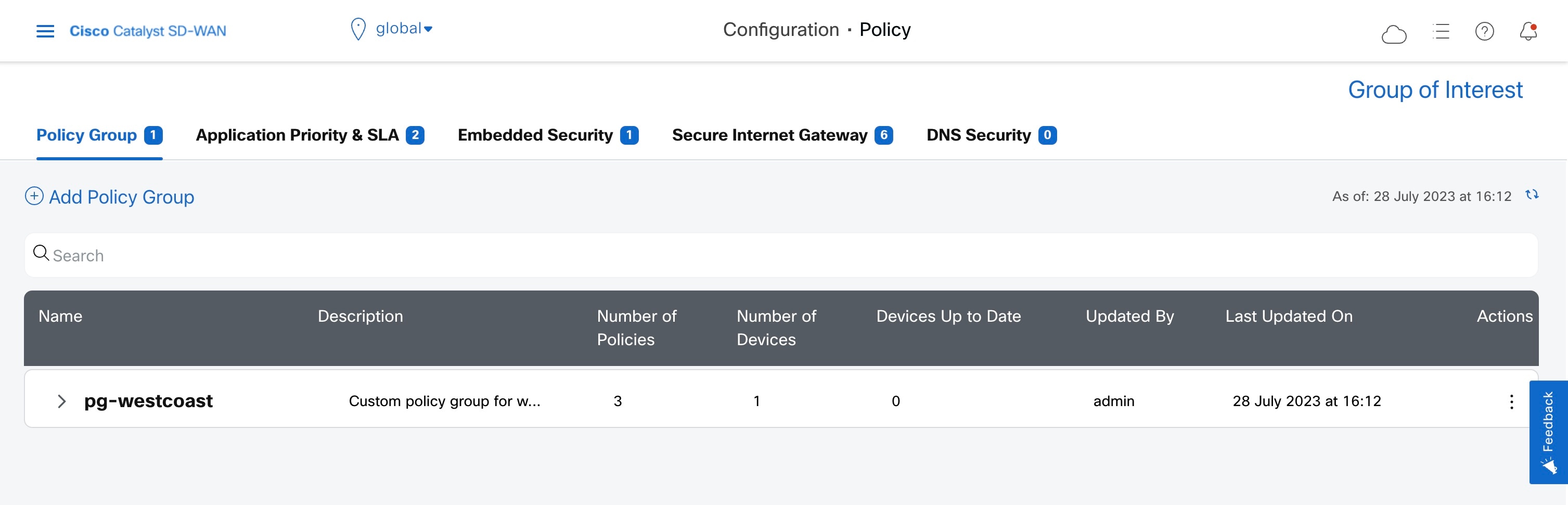

Policy Groups

This feature provides a simple, reusable, and structured approach for configuring policies in Cisco Catalyst SD-WAN. You can create a policy group, that is, a logical grouping of policies that is applied to one or more sites or a single device at the site in the network. To deploy the policy group to devices, the devices must be managed by a configuration group in Cisco Catalyst SD-WAN. You can configure policies based on features that are required, recommended, or uniquely used, and then combine them to complete a policy configuration.

Security Policy Using Policy Groups

This feature provides a simple, reusable, and structured approach for configuring security policies in Cisco Catalyst SD-WAN. You can create a security policy, that is, a logical grouping of policies that is applied to one or more sites or a single device at the site in the network. To deploy the policy group to devices, the devices must be managed by a configuration group in Cisco Catalyst SD-WAN. You can configure policies based on features that are required, recommended, or uniquely used, and then combine them to complete a policy configuration.

Topology

This feature allows you to provision a Mesh or a Hub and Spoke topology policy which is applied to Cisco Catalyst SD-WAN Controllers. This allows exchange of data traffic between two or more Cisco IOS XE Catalyst SD-WAN devices.

Cisco Catalyst SD-WAN Monitor and Maintain

Heatmap View for Alarms

In the heatmap view, a grid of colored bars displays the alarms as Critical, Major, or Medium & Minor. You can hover over a bar or click it to display additional details at a selected time interval.

The intensity of a color indicates the frequency of alarms in a severity level.

Heatmap View for Events

In the heatmap view, a grid of colored bars displays the events as Critical, Major, or Minor. You can hover over a bar or click it to display additional details at a selected time interval.

The intensity of a color indicates the frequency of events in a severity level.

Enhancements to Audit Logging

This feature introduces enhanced audit logging to monitor unauthorized activity.

To view these audit logs, from the Cisco SD-WAN Manager menu, choose Monitor > Logs > Audit Log.

Enhancements to Network-Wide Path Insight

This feature provides enhancements to the Network-Wide Path Insight feature to include support for multiple VPNs for traces, the ability to generate synthetic traffic for traces, options for grouping trace information, support for auto-on tasks, new information on insight displays, and expanded insight summaries.

Cisco Catalyst SD-WAN NAT

Support for multiple WAN Links for NAT66 DIA

You can configure NAT66 to use multiple WAN Links to direct local IPv6 traffic to exit directly to the internet.

Cisco Catalyst SD-WAN Remote Access

Cisco Catalyst SD-WAN Remote Access Configuration in SSL-VPN mode Using Cisco SD-WAN Manager

This feature enables you to configure Cisco Catalyst SD-WAN Remote Access for a device in SSL-VPN mode, using Cisco SD-WAN Manager.

User Login Options

Configure Inactivity Lockout

You can to configure Cisco SD-WAN Manager to lock out users who have not logged in for a designated number of consecutive days.

Configure Unsuccessful Login Attempts Lockout

You can configure Cisco SD-WAN Manager to lock out users who have made a designated number of consecutive unsuccessful login attempts within a designated period.

Configure Duo Multifactor Authentication

You can configure Cisco SD-WAN Manager to require Duo multifactor authentication (MFA) to verify the identity of users before they can log in to Cisco SD-WAN Manager.

Cisco IOS XE SD-WAN Qualified Command Reference

vDaemon Logging Commands

The following troubleshooting commands are added:

  • debug vdaemon

  • debug platform software sdwan vdaemon

  • set platform software trace vdaemon

  • show sdwan control connections

lockout-policy Command

This command allows you to lock out users who have made a designated number of consecutive unsuccessful login attempts within a designated period, or who have not logged in for a designated number of days

multi-factor-auth duo command

This command allows you to require Duo multifactor authentication (MFA) to verify the identity of users before they can log in.

Table 2. Cisco Catalyst SD-WAN Control Components Release 20.12.1
Feature Description

Cisco Catalyst SD-WAN Security

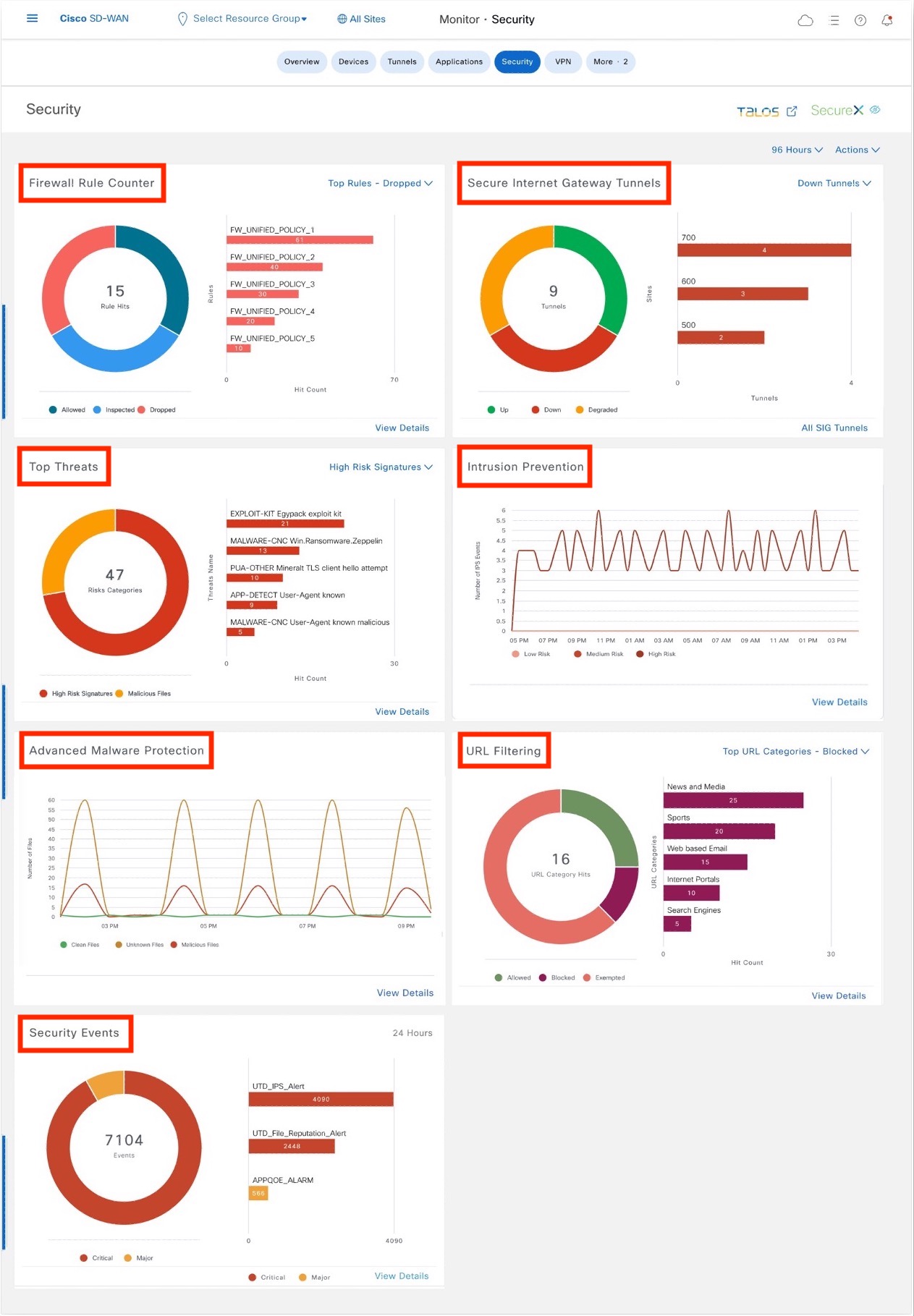

Security Dashboard Enhancements

This feature enhances the security dashboard to provide greater flexibility while troubleshooting security threats down to a device level in Cisco Catalyst SD-WAN.

Cisco Catalyst SD-WAN Analytics

Easy Onboarding of Cisco SD-WAN Analytics into Cisco Catalyst SD-WAN Manager

This feature enables you to easily onboard Cisco SD-WAN Analytics into Cisco SD-WAN Manager.

Cisco Catalyst SD-WAN Monitor and Maintain

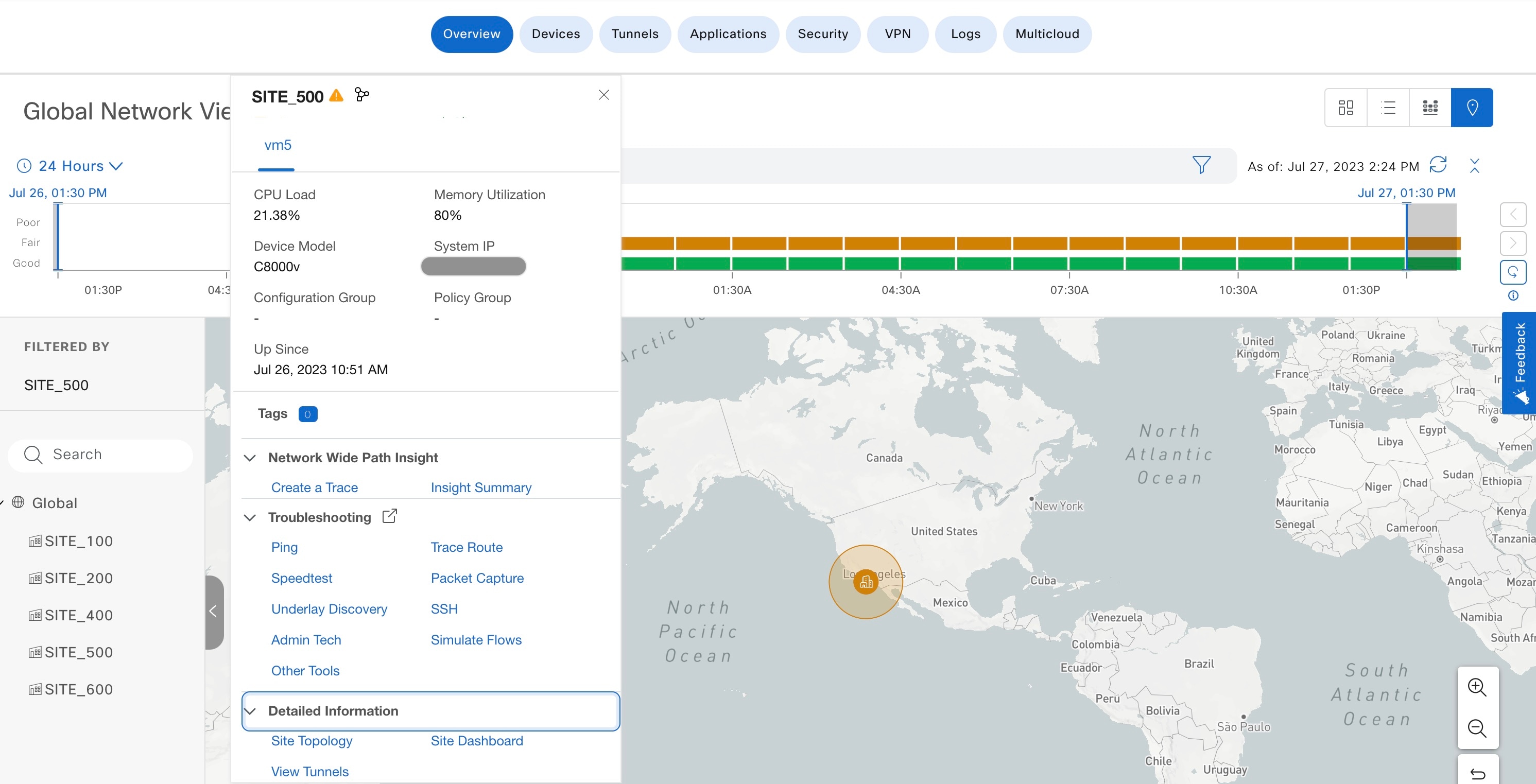

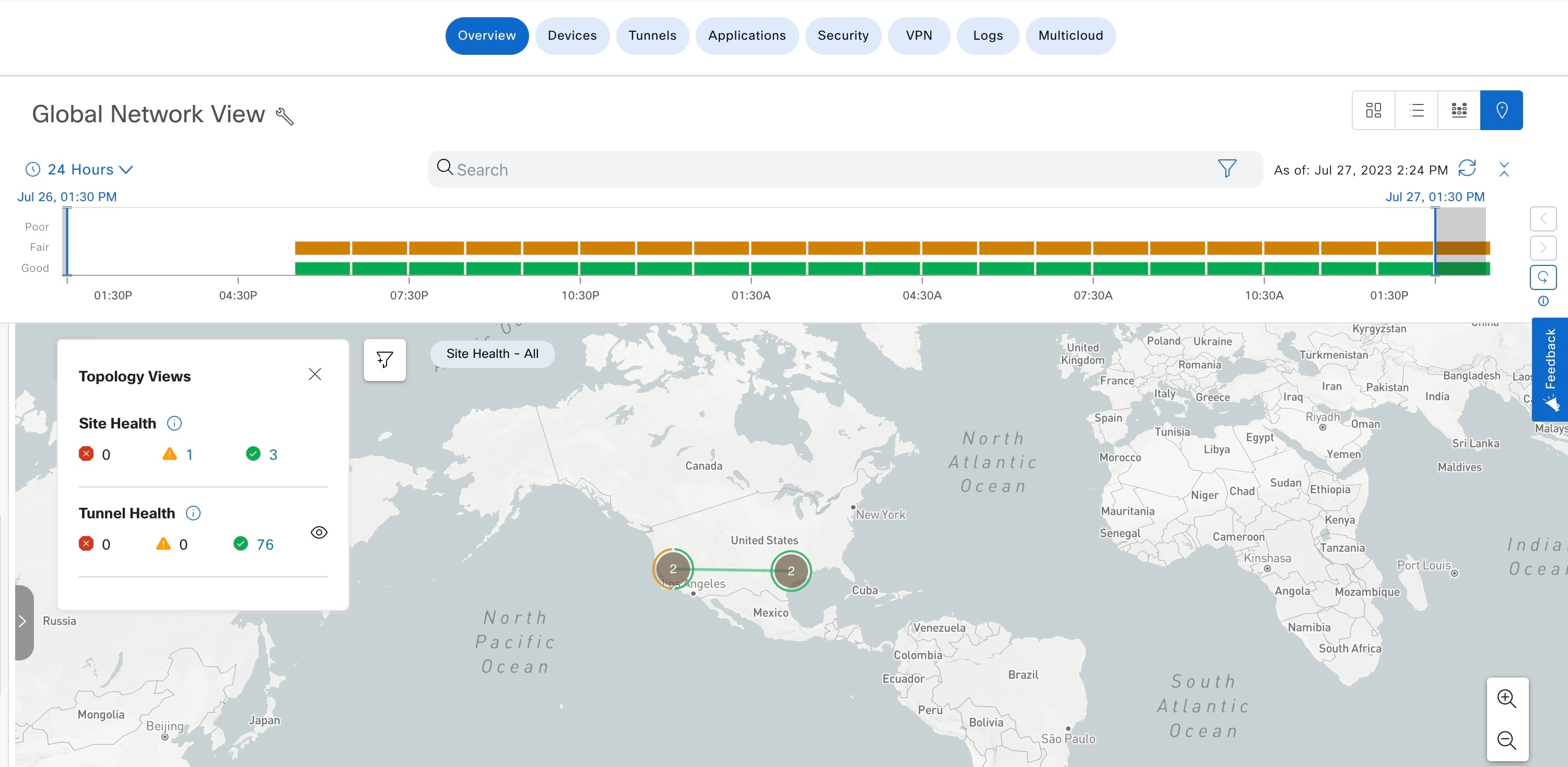

Global Network View with Network-Wide Path Insight Integration

Network-Wide Path Insight is now integrated with the global network view. This feature also introduces enhancements to the geomap view by providing real-time monitoring of the health of each site.

Global Topology View is now called as Global Network View in Cisco SD-WAN Manager.

Software and Hardware Behavior Changes in Cisco Catalyst SD-WAN Manager Release 20.12.x

Table 3. Software and Hardware Behavior Changes in Cisco IOS XE Catalyst SD-WAN Release 17.12.2

Behavior Change

Description

Added support for certificates that do not have a matching Organizational Unit (OU) field: When onboarding a device, if the associated enterprise certificate has one or more OU fields defined, Cisco Catalyst SD-WAN does not require that any of the OU fields match the organization name of the fabric.

The Configure Enterprise Certificates for Cisco SD-WAN Controllers section describes the behavior.

For all ISR1100 platforms, before changing the resource profile, you must reboot the device. Performing a reboot improves the perfomance of ISR1100 platforms.

The Supported Platforms section in the Unified Threat Defense Resource Profiles chapter describes the behavior.

Added an advanced telemetry option to enable Cisco SD-WAN Manager to collect anonymized data for the Cisco Catalyst SD-WAN Data Collection Service (DCS).

The Enable or Disable Cisco Catalyst SD-WAN Telemetry section describes the option.

Table 4. Software and Hardware Behavior Changes in Cisco IOS XE Catalyst SD-WAN Release 17.12.1a

Behavior Change

Description

You cannot include a comma in the Organization Name field of the bootstrap configuration file.

The Enable Reverse Proxy and Cisco Catalyst SD-WAN Overlay Network Bring-Up Process sections are updated twith a note on the new behavior.

The Viptela-User-Group and Viptela-Resource-Group tags are used in RADIUS and TACACs configurations for accounting and authorization.

The Configure the Authentication Order section is updated with a note on new tag definitions.

A restriction for rebooting a control manage is added.

The Connect Cisco SD-WAN Manager VM Instance to Cisco SD-WAN Manager Console section is updated with the restriction.

Device variable names can contain the following special characters dots (.), forward slashes (/) and square brackets ([]).

The Configure Device Values section is updated with the new support for special characters.

Bar chart to display changes from the previous time period.

The following sections are updated in the Cisco SD-WAN Manager Monitor Overview dashboard with information about the dashlets displaying a bar chart showing the changes from the last time period:

A new command to run diagnostics on a Cisco Catalyst SD-WAN Manager cluster.

The Troubleshooting Commands chapter has been updated with a new command vdiagnose vmanage cluster.

Change in the severity value of a few alarms.

The Alarms chapter has been updated with the change in the alarm severity value for the following alarms:
  • New CSR Generated

  • Root Cert Chain Installed

  • Root Cert Chain Uninstalled

New commands that display details of alarms that are generated in Cisco SD-WAN Manager. These commands provide better readability into the alarms.

The Troubleshooting Commands chapter has been updated with the show sdwan alarms detail and show sdwan alarms summary commands.

In addition to routers in controller mode, from Cisco Catalyst SD-WAN Manager Release 20.12.1, Cisco SD-WAN Manager can monitor routers that are in autonomous mode and not part of the Cisco Catalyst SD-WAN overlay network. These routers appear with the label SD-Routing in the Device Model column to distinguish them from routers that are part of the overlay network.

Updated the View Controller and Device Information section to describe the new behavior.

You can configure a global certificate authority using the Configuration > Certificate Authority option in Cisco SD-WAN Manager. In earlier releases, there was an Administration > Settings > Certificate Authority (CA) Settings option that provided the same functionality, but that option has been removed in this release.

See the Certificate Management section for information about certificates.

You can commit the configuration before rebooting a control manage device through Cisco Catalyst SD-WAN Manager.

The Cisco SD-WAN Manager Console section is updated to describe the new behavior.

In Cisco SD-WAN Manager, auth-no-priv authentication algorithm is not supported.

The Configure SNMP on Cisco IOS XE Catalyst SD-WAN Devices section is updated with the support details.

Use the tools consent-token command to authenticate the network administrator of an organization to access system shell. Starting Cisco Catalyst SD-WAN Manager Release 20.12.1, the request support ciscotac command is deprecated.

The Ciscotac User Access section is updated to describe the new behavior.

Authorization rule for vshell is limited to only netadmin users.

The User Authorization Rules table in the Role-Based Access Control chapter is updated with the new rule.

In a Microsoft Azure setup, to allow packets with IPv6 Unique Local Addresses (ULA) on the device, configure the enable-ipv6-unique-local-address command to enable or disable these addresses.

The Deploy Cisco Catalyst SD-WAN Controllers in Azure: Tasks section is updated to describe the new behavior.

If multiple Azure Virtual WAN hubs are there in a region, you can select a particular Azure Virtual WAN hub for that region. Once you choose the Azure Virtual WAN hub, all subsequent connections created for Azure Virtual WAN uses the same Azure Virtual WAN hub.

See the Virtual WAN Setting for Megaport and Virtual WAN Setting for Equinix sections for more information.

You have the option to choose to delete Express-Route and vWan at the time of deletion. When you delete a GCP connection, you can optionally select to delete the Google Cloud Router, or manage these resources as required.

See the Delete Connection section for more information.

The Application Monitoring feature is enabled with read and write permission.

See the User Group Permissions:Cisco IOS XE Catalyst SD-WAN devices for more information.

The mutual authentication option is enabled with read and write permission.

See the User Group Permissions:Cisco IOS XE Catalyst SD-WAN devices for more information.

Table 5. Software and Hardware Behavior Changes in Cisco Catalyst SD-WAN Manager Release 20.12.1

Behaviour Change

Description

IP Name Server Configuration in Cisco SD-WAN Manager Templates

Before upgrading to Cisco Catalyst SD-WAN Manager Release 20.12.1, update CLI templates to use the ip name-server vrf <vrf> server-ip-list <ip_address> command syntax. See the Command Reference Guide for more information.

Hostname Configuration in Cisco SD-WAN Manager Templates

CLI template push may fail when the host-name is in the system block. Remove the hostname configuration from the system block within templates. The hostname should be configured under /native (IOS CLI) instead.

The attachfeature API now requires the isEdited and isMasterEdited flags to be set to 'True' as appropriate when attaching a Device Template. Set isMasterEdited to 'True' for Master Template edits and isEdited to 'True' for Feature Template edits to ensure changes are correctly applied.

For more information, see Feature Template

Table 6. Software and Hardware Behavior Changes in Cisco Catalyst SD-WAN Manager Release 20.12.6

Behaviour Change

Description

SecureX ribbon deprecated.

Starting with Cisco Catalyst SD-WAN Manager Release 20.12.6, the SecureX ribbon is no longer available in the Cisco SD-WAN Manager.

For more information, see View SecureX Ribbon.

Important Notes, Known Behaviors, and Workarounds

  • OMP hold timer default value

    From Cisco Catalyst SD-WAN Control Components Release 20.12.1, the default value of the OMP hold timer is 300 seconds.

    • If you upgrade from an earlier release, and you were using the previous default of 60 seconds, the upgrade changes the default to 300 seconds.

    • If you had configured a non-default value for the OMP hold timer in the earlier release, the upgraded system retains the previously configured value; it does not adopt the new default of 300 seconds.


    Note


    Note the following points regarding OMP hold time:

    • Reconfiguring the OMP hold time causes the OMP peering sessions to flap. This issue is resolved in Cisco Catalyst SD-WAN Control Components Release 20.16.1.

    • The OMP hold time affects the time it takes for VRRP switchover if the Track OMP functionality is configured for VRRP.


  • ConfigDB (Neo4j)

    If your ConfigDB (Neo4j) username contains a – (hyphen), the ConfigDB upgrade fails, for example, db-admin. Remove the hyphen before you upgrade the ConfigDB.

  • Unknown mandatory attributes from TACACS

    Starting from Cisco Catalyst SD-WAN Manager Release 20.12.x, the unknown mandatory attributes from TACACS are ignored.

  • Multiple IdPs for single sign-on

    The following enhancements are available in Cisco SD-WAN Manager while configuring multiple IdPs for single sign-on:

    • You can set one IdP as a default IDP.

    • While configuring a domain name, you have the option to enter a domain name with a wildcard (*), which will make that domain the default domain. If a default domain is configured, you can log in to a domain with just the user ID (john) without requiring you to enter an user ID in email address format (john@mystore.com).

  • HTTP POST requests for logging out

    From Cisco Catalyst SD-WAN Manager Release 20.12.x, Cisco SD-WAN Manager accepts only HTTP POST requests for logging out from Cisco SD-WAN Manager. It does not support the use of the GET method for this function.

    Refer to developer.cisco.com for more details.

Cisco SD-WAN Manager Upgrade Paths

For compatibility information and server recommendations, see Cisco Catalyst SD-WAN Controller Compatibility Matrix and Server Recommendations.

For information about Cisco SD-WAN Manager upgrade procedure, see Upgrade Cisco SD-WAN Manager Cluster.

Table 7. For Cisco Catalyst SD-WAN Control Components Releases 20.6.x and Later Releases
Starting Cisco SD-WAN Manager Version Destination Version

20.6.x

20.7.x

20.8.x

20.9.x

***

20.10.x

***

20.11.x

***

20.12.x

***

20.6.x

Not Supported

Direct Upgrade

Direct Upgrade

Direct Upgrade from 20.9.5.2 and later releases.

Step upgrade from 20.9.5.2 and later releases.

For cluster upgrade procedure using CLI: request nms configuration-db upgrade

Note



We recommend the data base size in the disk is less than or equal to 5GB. Use the request nms configuration-db diagnostic command to check the data base size. This is applicable only for upgrades of devices running Cisco SD-WAN Manager Release 20.1.1 and later.

Step upgrade from 20.9.5.2 and later releases.

For cluster upgrade procedure using CLI: request nms configuration-db upgrade

Note



We recommend the data base size in the disk is less than or equal to 5GB. Use the request nms configuration-db diagnostic command to check the data base size. This is applicable only for upgrades of devices running Cisco SD-WAN Manager Release 20.1.1 and later.

Step upgrade from 20.9.5.2 and later releases.

For cluster upgrade procedure using CLI: request nms configuration-db upgrade

Note



We recommend the data base size in the disk is less than or equal to 5GB. Use the request nms configuration-db diagnostic command to check the data base size. This is applicable only for upgrades of devices running Cisco SD-WAN Manager Release 20.1.1 and later.

20.7.x

Not Supported

Not Supported

Direct Upgrade

Direct Upgrade from 20.9.5.2 and later releases

Step upgrade from 20.9.5.2 and later releases.

For cluster upgrade procedure using CLI: request nms configuration-db upgrade

Note



We recommend the data base size in the disk is less than or equal to 5GB. Use the request nms configuration-db diagnostic command to check the data base size. This is applicable only for upgrades of devices running Cisco SD-WAN Manager Release 20.1.1 and later.

Step upgrade from 20.9.5.2 and later releases.

For cluster upgrade procedure using CLI: request nms configuration-db upgrade

Note



We recommend the data base size in the disk is less than or equal to 5GB. Use the request nms configuration-db diagnostic command to check the data base size. This is applicable only for upgrades of devices running Cisco SD-WAN Manager Release 20.1.1 and later.

Step upgrade from 20.9.5.2 and later releases.

For cluster upgrade procedure using CLI: request nms configuration-db upgrade

Note



We recommend the data base size in the disk is less than or equal to 5GB. Use the request nms configuration-db diagnostic command to check the data base size. This is applicable only for upgrades of devices running Cisco SD-WAN Manager Release 20.1.1 and later.

20.8.x

Not Supported

Not Supported

Not Supported

Direct Upgrade from 20.9.5.2 and later releases.

Step upgrade from 20.9.5.2 and later releases

For cluster upgrade procedure using CLI: request nms configuration-db upgrade

Note



We recommend the data base size in the disk is less than or equal to 5GB. Use the request nms configuration-db diagnostic command to check the data base size. This is applicable only for upgrades of devices running Cisco SD-WAN Manager Release 20.1.1 and later.

Step upgrade from 20.9.5.2 and later releases

For cluster upgrade procedure using CLI: request nms configuration-db upgrade

Note



We recommend the data base size in the disk is less than or equal to 5GB. Use the request nms configuration-db diagnostic command to check the data base size. This is applicable only for upgrades of devices running Cisco SD-WAN Manager Release 20.1.1 and later.

Step upgrade from 20.9.5.2 and later releases

For cluster upgrade procedure using CLI: request nms configuration-db upgrade

Note



We recommend the data base size in the disk is less than or equal to 5GB. Use the request nms configuration-db diagnostic command to check the data base size. This is applicable only for upgrades of devices running Cisco SD-WAN Manager Release 20.1.1 and later.

20.9.x

Not Supported

Not Supported

Not Supported

Not Supported

Direct upgrade from 20.9.5.2 and later releases.

For cluster upgrade procedure using CLI: request nms configuration-db upgrade

Note



We recommend the data base size in the disk is less than or equal to 5GB. Use the request nms configuration-db diagnostic command to check the data base size. This is applicable only for upgrades of devices running Cisco SD-WAN Manager Release 20.1.1 and later.

Direct Upgrade from 20.9.5.2 and later releases.

For cluster upgrade procedure using CLI: request nms configuration-db upgrade

Note



We recommend the data base size in the disk is less than or equal to 5GB. Use the request nms configuration-db diagnostic command to check the data base size. This is applicable only for upgrades of devices running Cisco SD-WAN Manager Release 20.1.1 and later.

Direct Upgrade from 20.9.5.2 and later releases.

For cluster upgrade procedure using CLI: request nms configuration-db upgrade

Note


  • We recommend the data base size in the disk is less than or equal to 5GB. Use the request nms configuration-db diagnostic command to check the data base size. This is applicable only for upgrades of devices running Cisco SD-WAN Manager Release 20.1.1 and later.

  • If your Cisco Catalyst SD-WAN Manager is running Cisco vManage Release 20.9.x and you are looking to upgrade to Cisco Catalyst SD-WAN Manager Release 20.12.x, we recommend you use the CLI mode of configuration for cluster upgrades.

    If Cisco Catalyst SD-WAN Manager UI is used for upgrading a cluster, the cluster's nms process fails when the new partition is activated. Continue to use the Cisco Catalyst SD-WAN Manager UI and CLI for standalone Cisco SD-WAN Manager upgrades.

20.10.x

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Direct Upgrade

Direct Upgrade

20.11.x

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Direct Upgrade

*To check the free disk space using CLI,

  1. Use the vshell command to switch to vshell.

  2. In vshell, use the df -kh | grep boot command.

**Cluster upgrade must be performed using CLI.

  • The cluster upgrade procedure must be performed only on one node in the cluster

  • Enter login credentials, if prompted. Login credentials are prompted if all Cisco SD-WAN Manager server establish control connection with each other. After a successful upgrade, all configuration-db services are UP across the cluster and the application-server is started.Enter login credentials, if prompted. Login credentials are prompted if all Cisco SD-WAN Manager server establish control connection with each other. After a successful upgrade, all configuration-db services are UP across the cluster and the application-server is started.

*** After upgrading to version 20.9.5.2 or later, the statistics-DB version migration process may take up to 4 hours. It is crucial to ensure that the migration is complete before proceeding with subsequent steps.

Steps to Verify Migration Completion:

  1. Execute Diagnostic Command:

    request nms statistics-db diagnostics

  2. Check Diagnostic Output: Ensure that there are 0 entries under the section titled "Indices with major version lesser than 6". This indicates that the migration is complete.

Resolved and Open Bugs for Cisco SD-WAN Controllers 20.12.x

Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.6

Resolved Bugs for Cisco IOS XE Catalyst SD-WAN Release 20.12.6

Identifier

Headline

CSCwm94648

Applying the AAR Policy to COR for SAAS removes the Color Group.

CSCwo59379

[20.12.4-761] Duplicates prevent modification of admin settings statistics database configuration.

CSCwp21356

Cisco SD-WAN Manager Reference Count does not display any attached policies.

CSCwo61632

Add REST API to toggle the adaptive statistics collection.

CSCwj65546

Cisco SD-WAN Manager is not generating alarms for interface shut/unshut events.

CSCwm02422

Dashboard doesn't show the left navigation bar on Cisco SD-WAN Manager.

CSCwd58323

Cisco SD-WAN Manager fixes Azure AD SSO maxAuthenticationAge at 7200 seconds.

CSCwn49053

Cisco SD-WAN Manager: If the DR leadership changes during export, replication breaks for the entire cycle.

CSCwm39910

There is a license count mismatch between Cisco SD-WAN Manager & CSSM portal using online reporting

CSCwp02180

After an upgrade, users cannot reference object groups under Cisco SD-WAN Manager Configuration > Security > Define Lists -> Rule Set.

CSCwn90550

SaaS/vQoE score page doesn't work without Settings feature Read

CSCwj49155

DNS Channel uses same source port in every connection.

CSCwo19515

TACACS users are unable to login to Cisco SD-WAN Manager via GUI or CLI after Cisco SD-WAN Manager upgrade to Release 20.12.x

CSCwp85929

Cisco Catalyst SD-WAN Controller: Changing sequence of the rules in centralized policy causes misprogramming.

CSCwn19880

Cisco SD-WAN Manager does not process stats files in 2 standby nodes.

CSCwo41540

The template push for a large number of devices is failing.

CSCwo61376

Customers report that they cannot SSH into Cisco SD-WAN Manager 4 with admin or local usernames.

CSCwm69595

The Cisco SD-WAN Manager UI menu does not reflect the Configuration > Devices post-cluster upgrade to Release 20.12.x.

CSCwk88410

AutoAn creates a defect for DeviceNat66Complete.

CSCwo08214

Cisco SD-WAN Manager crashes with the error "Software initiated - vdaemon-4 exited with 1".

CSCwo12289

20.12.4-687 : Cisco SD-WAN Manager is unable to change the controller Certificate authorization to manual in version 20.12.4-687.

CSCwp03947

The DR (secondary) cluster does not log out the replication user in the DC (primary) cluster after configuration database / stats sync.

CSCwo25708

Cisco SD-WAN Manager does not distribute BFD_TLOC_DOWN across all nodes in a 6-node cluster.

CSCwk74774

Local user cannot log in on Cisco SD-WAN Manager Release 20.12.3; auth-fallback fails when "priority" is configured.

CSCwo99100

Cisco Catalyst SD-WAN Controller running release 20.9.6.0.3 experiencing kernel panic

CSCwn03490

Cisco SD-WAN Manager processes all groups sent by SSO IDP resulting in delayed login

CSCwo08386

Creating a list name with more than 20 characters causes the button X to close the window to disappear.

CSCwe66021

Enhancement: The "Certificate Expiring" Alarm is not present on the Alarm notification.

CSCwo91297

In 20.9.5.2-li Cisco SD-WAN Manager, users see incorrect SIM status in the Monitor dashboard.

CSCwm91228

MTT : Tenant creation fails with the message "Failed to create tenant".

CSCwj09098

Cisco SD-WAN Manager DC-DR : Replication failure happens during import of vmanagedbSYSTEMDEVICESNODE.

CSCwp27897

20.12.5 upgrade failure- Unable to grow filesystem for new larger rootfs.rw partition:Boot failure.

CSCwo91814

Cisco SD-WAN Manager could experience high CPU with configuration database during Stats/Data collection.

CSCwm70543

Device is Displayed as 'Healthy' despite Missing 1+ Expected Cisco Catalyst SD-WAN Controller Control Connections.

CSCwi69034

Admin user doesnt have full privileges after password change.

CSCwm98627

The system receives Curl exit code 52 when a Cisco IOS XE Catalyst SD-WAN device attempts stats upload to vmddc.

CSCwi65359

Cisco SD-WAN Manager experiences replication failure because the import lock is not acquired on the Standby Nodes.

CSCwo70700

In 20.12.4 Cisco SD-WAN Manager, the rootfs.rw was filled 100%.

CSCwk67930

Cisco SD-WAN Manager GUI intermittently unavailable on 20.9.3 cluster in round robin fashion.

CSCwm53789

After configuring DR Cisco IOS XE Catalyst SD-WAN device goes to DISCONNECTED state.

CSCwo24776

NWPI trace does not provide the valid enduser name and ip address in Cisco SD-WAN Manager audit log.

CSCwm85276

Link alarms not synced/reconciled on standby after switchover.

CSCwn43011

QuickConnect utility in Cisco SD-WAN Manager will not accept any .csv files in Firefox.

CSCwo41233

Cisco SD-WAN Manager memory leak with SLA Violation events due to NWPI Auto-On Task running in the background.

CSCwn94652

64GB Cisco SD-WAN Manager neo4j off-heap memory keeps increasing, causing the oom-killer.

CSCwo00098

The neo4j database runs out of threads after switchover.

CSCwo87819

In 20.9 code, cluster config node credentials are double encrypted.

CSCwk78340

Messaging-server in a bad state after upgrade.

CSCwo55067

in 20.12.3.1, customer instance didn't boot after installing the web certificate and rebooting.

CSCwo75184

Cisco SD-WAN Manager sync smart or serial upload fails due to huge neo4j query getting invoked.

CSCwn82246

Even after completing on-demand troubleshooting, no data is displayed in SAIE.

CSCwo07182

Cisco SD-WAN Manager does not sort Enterprise Certificate Serial Numbers by Expiration Date.

CSCwo52495

Cisco SD-WAN Manager gives error "Input Json Payload validation failed" for service chain.

CSCwo72463

Template pull model creates HTTP session to Cisco SD-WAN Manager, session is not closed properly by device.

CSCwh89309

NFVIS 4.12.1 : Transport interfaces down after a FDR on NFVIS.

CSCwp28358

Cisco SD-WAN Manager : alarms not getting generated even though event is generated.

CSCwi01365

SAIE application for Provider Edge devices throws NullPointerException.

CSCwm92001

Underlay Measurement and Tracing Services modelling is not correct.

CSCwo31558

In multitenant environment Tunnel Endpoints names are displayed incorrectly.

CSCwq11939

OMP Site Down Alarms not clearing in timely manner.

CSCwo38793

Post 20.12.4 upgrade remote user with namelen &gt; 32 characters cannot access vshell.

CSCwo61632

Add REST API to toggle the adaptive statistics collection.

Open Bugs for Cisco IOS XE Catalyst SD-WAN Release 20.12.6

Identifier

Headline

CSCwq48395

Cisco Catalyst SD-WAN Controller retains exported routes after policy changes.

CSCwq65340

20.12.5 | Cisco SD-WAN Manager exhibits incorrect behavior when canceling a change to Centralized Policy after 'Topology' is added.

CSCwq58597

20.12.5 | Cisco SD-WAN Manager cannot properly "Change Device Values" for Cisco IOS XE Catalyst SD-WAN device after users change vSmart values

CSCwo44963

In 20.12.4, users cannot directly disable debugs on devices running Viptela OS after enabling them.

CSCwq84823

Cisco SD-WAN Manager Remote Repository fails to download Cisco IOS XE Catalyst SD-WAN device software when "relative path from homedir" is blank.

CSCwq84856

Users cannot configure TrustSec from a feature template for HundredGigE interfaces.

CSCwo81500

Rib-cache memory increases significantly on Cisco Catalyst SD-WAN Controller when users perform OMP shut/no-shut operations on spokes.

CSCwq77860

Viptela devices reject NTP server addresses ending with .255, considering them invalid unicast IP addresses.

CSCwq65412

vDaemon crashes in Release 20.12.5.

CSCwq79825

Users encounter errors when applying new Policy Groups due to PSK issues on SIG tunnels caused by the restricted ';' character.

CSCwp35976

Viptela devices experience intermittent login issues when AAA accounting is enabled.

CSCwj06854

Release 17.14 UX1.0 configuration preview displays partial output for Static NAT configuration, when interface is missing.

Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.5.2

Resolved Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.5.2

Identifier

Headline

CSCwp13820

Cisco SD-WAN Manager keeps crashing with reason 'Software initiated - cfgmgr got signal 11' .

CSCwo61376

Unable to SSH into Cisco SD-WAN Manager 4 using either the admin account or our local usernames.

Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.5.1

Resolved Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.5.1

Identifier

Headline

CSCwm52837

Neo4j direct memory metric files are not updated while other neo4j metrics are good.

CSCwo00098

[20.12] DR: neo4j database running out of threads after switchover.

CSCwn19880

[20.12.4-590] DR: stats files not being processed in 2 standby nodes.

CSCwj49155

DNS Channel uses same source port in every connection.

CSCwo75184

Cisco SD-WAN Manager Sync smart or serial upload is failing due to huge neo4j query getting invoked.

CSCwn82246

Even after completing on-demand troubleshooting, no data is displayed in SAIE.

CSCwn49053

Cisco SD-WAN Manager : DR leadership changing during Export causes replication to break for the whole cycle.

CSCwi69034

20.9.3.2: Admin user doesnt have full priviledges after password change.

CSCwm97560

Cisco SD-WAN Manager CG Variable API timeout for 1000 devices.

CSCwo38793

Post 20.12.4 upgrade remote user with namelen &gt; 32 characters cannot access vshell.

CSCwk67930

Cisco SD-WAN Manager GUI becomes intermittently unavailable on 20.9.3 cluster in round robin fashion.

CSCwm53789

[20.16] After configuring DR Cisco IOS XE Catalyst SD-WAN device goes to DISCONNECTED state.

CSCwo87819

In 20.9 code, Cluster config node credentials are double encrypted.

CSCwm85276

Link alarms do not synched/reconciled on standby after switchover.

CSCwm39910

Cisco SD-WAN Manager : License count mismatch between Cisco SD-WAN Manager & CSSM portal with Online reporting.

CSCwn94652

64GB Cisco SD-WAN Manager neo4j off-heap memory keeps increasing caused oom-killer.

CSCwo41233

Cisco SD-WAN Manager memory leak with SLA Violation events due to NWPI Auto-On Task running in the background.

CSCwo91814

Cisco SD-WAN Manager running 20.9.3.2 is experiencing high CPU with config-db during Stats/ Data collection.

Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.5

Resolved Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.5

Identifier

Headline

CSCwk09812

Cisco SD-WAN Manager upgrade to version 20.12.3 with 32vCPU on-prem High CPU alarms.

CSCwm71065

The SDWAN Controllers are experiencing a failure with SNMPv3 mibwalk because the EngineID is not compliant with RFC3411.

CSCwk20837

When a Control Policy for Traffic Engineering (TE) is applied, the route sent count in the OMP summary is incorrect.

CSCwi69572

High CPU alarms/ alerts are seen every 30 mins to one hour in 20.6.5.1.13 code.

CSCwk70669

Changes made to Cisco SD-WAN Manager resource groups time out.

CSCwj71974

"Enabled usage but prepaid consumption" still appears on CSSM with Cisco SD-WAN Manager 20.9.4.1

CSCwh89309

In NFVIS 4.12.1, the transport interfaces go down after a FDR on NFVIS.

CSCwk97594

Cisco SD-WAN Manager upgrade from 20.9.5.1 to 20.12.3 is failing with neo4j authentication failure.

CSCwk14972

Cisco SD-WAN Manager : Serviceproxy hitting UpstreamOverflow-503/RateLimited-429 causing GUI down issues.

CSCwk68236

Report generation with email recipients fails due to SMTP connection timeout.

CSCwk89844

Missing custom-apps after upgrading controllers from 20.9.4.1 to 20.12.3.

CSCwn34073

OSPFv2 and OSPFv3 data-sync causes device crash in scale setup.

CSCwi28960

Cisco Catalyst SD-WAN Validator crash with error "Software initiated - Daemon 'vbond_0' failed".

CSCwk09399

Cisco SD-WAN Manager active user session gets flushed out after a short period. This causes abrupt UI logouts.

CSCwm43112

In Cisco SD-WAN Manager running 20.12.1 code, the DE registration was stuck in pending state for several days.

CSCwm81635

CiscoHosted: Upon upgrade to 20.12.4, SDAVC custom apps are not pushed to sdavcSaas.

CSCwm72803

vManageDR: DR registration doesnt proceed and task is stuck for 12+ hours.

CSCwi90050

The unified SAML page is displayed even though there is only one IDP configured.

CSCwc67155

Cisco SD-WAN Manager : The HTTP proxy is not utilizing ICMP echo requests.

CSCwj67612

There is no logging generated for the 'direct memory allocation' error.

CSCwh88803

The deletion of the configuration group fails due to a configuration group validation error.

CSCwm47780

Cisco SD-WAN Manager rejects SAML responses that contain line breaks.

CSCwk66060

The OMP extranet policy is not exporting all the routes for the prefixes.

CSCwj06577

Modify the TAC module to redirect users to SCM for opening TAC cases.

CSCwk88478

The VRRP default timer displays as 1000ms in the GUI, but it shows 100ms in the preview and pushes 100ms to the device.

CSCwm85904

Cisco SD-WAN Manager: The control policy is getting removed during config sync.

CSCwn99313

Container Jenkins build needed for messaging service container.

CSCwh84250

Feature template update failure.

CSCwk37838

Copy of configuration group with dual device type is creating as single router type.

CSCwj85252

Cisco VPN Interface IPsec template does not send selected parameters to device.

CSCwi55998

No checks to see if a deployment will re-use a System-IP.

CSCwn83201

20.9.6 Cisco SD-WAN Manager keys are getting corrupted which is causing DR to break.

CSCwj32099

[20.14.0.08-13] ST-SIT: Email notifications not coming in

CSCwn34135

DCA folder grows, the volume size of /opt/data is affected.

CSCwk32515

Delayed notification (webhook) when one of the Webhook server is unreachable

CSCwk24744

Follow up on for CSCwj39594. 6-Node cluster DR Replication is not working in certain scenarios.

CSCwm98627

Curl exit code 52 received when Cisco IOS XE Catalyst SD-WAN device attempts stats upload to vmddc

CSCwj09098

Cisco SD-WAN Manager DC-DR : Replication failure happens during import of vmanagedbSYSTEMDEVICESNODE.

CSCwk23323

Cisco SD-WAN Manager Cluster: When device is deleted from UI, the NCS entry does not get cleared on all nodes

CSCwm28584

20.9: Cisco Catalyst SD-WAN Validator is sending control pkts with dscp 0 instead of dscp 48

CSCwm11848

Cisco SD-WAN Manager VPN templates are corrupted after upgrade to 20.12.x.

CSCwk14925

Cisco Catalyst SD-WAN Validator running 20.6.5.2 experiencing kernel panic.

CSCwm97589

Default route for VPN 0 is not programmed to FIB on Cisco SD-WAN Manager 20.12.4 hosted in AWS.

CSCwk91577

Azure vWAN NVA SKU Scale 10 changes instance type to D8_v5 instead of D4_v2

CSCwm72199

The 'service local' is not pushed to WAN Edges after upgrade from 20.9.5 to 20.12.4.

CSCwi65359

Cisco SD-WAN Manager Replication failure seen due to import Lock not acquired on the Standby Nodes

CSCwk92103

In Cisco NFVIS SD-Branch, the second device within the same site ID does not upgrade after the first device has been successfully upgraded.

CSCwm36264

IPv6 prefix push template fails.

CSCwm60082

CloudOps unable to leverage ciscotacrw for maintenance when DUO is configured.

CSCwn12834

vmanage.p12 was empty after Virtual Machine size upgrade.

CSCwm70614

Stats data not visible after upgrading to 20.12.3.1 MTT setup.

CSCwn20371

Negative values in FNF stats causes On Demand Troubleshooting to fail.

CSCwk31416

Integration Management page in UI can't populate device list intermittently : rendering issue

CSCwk27624

Control Policy is programmed incorrectly on Cisco SD-WAN Controller

.

CSCwm13281

Introduce transaction timeout in Neo4j.

CSCwj89979

FIS - GUI UX Slowness - CSCwh2830.

CSCwm54703

20.9.4.1 Cisco SD-WAN Manager app-server restarted due to app-server OOM Java heap space.

CSCwk78340

The messaging-server is in a bad state after upgrade.

CSCwk19371

Cisco SD-WAN Manager : Netconf errors and slow login.

CSCwm09715

The community exact-match is not removed from IOS-XE running config when changed via policy

CSCwn72244

Post DR switchover, edge serial list has to be pushed to all controllers.

CSCwm53003

Making messaging-server robust.

CSCwm35108

Neo4j getting killled due to OOM resulting in GUI being unavailable even with enough resources.

CSCwi72463

20.14 : Cisco SD-WAN Manager to vanalytics xlaunch Read RBAC issues

CSCwf44738

The export option for configuration devices is not working in Cisco SD-WAN Manager UI.

CSCwm27276

SDWAN Manager: Replication of statistics file causes Service-proxy 503 UH & GUI goes unreachable

CSCwm41465

Need to gracefully shutdown services during Cisco SD-WAN Manager upgrade

CSCwm34478

Cisco SD-WAN Manager 20.12.x, filling variables in device templates with "#" causes corruption in CSV file

CSCwm76848

Creation of customer policy configuration from API fails on latest 20.16

CSCwo15366

Lose control connection and MGMT tunnel interface remain Down when MGMT link flap.

CSCwn22891

[20.15.1] Neo4j query is taking longer time for BFD.

Open Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.5

Identifier

Headline

CSCwd33966

Unable to configure the local BGP as-path-list using Cisco SD-WAN Manager.

CSCwo59379

[20.12.4-761] Unable to modify admin settings for the statistics database configuration due to a duplicate entry.

CSCwo74545

A device reload during the signature update step of UTD deployment results in the device and Cisco SD-WAN Manager being out of sync.

CSCwo74300

After saving the protocol and port combination in the ruleset, the port list does not appear on the UI.

CSCwo47222

Updates done in a copied config group also updating the parent config group

CSCwn94652

64GB Cisco SD-WAN Manager neo4j off-heap memory keeps increasing caused oom-killer.

CSCwo38898

Cisco vEdge device syntax is switched to Cisco SD-WAN Validator even for keywords in configurations.

CSCwo76659

20.12 - Increased memory footprint with large sequence of control-policy while caching is enabled

Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.4.1

Resolved Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.4.1

Identifier

Headline

CSCwm81635

CiscoHosted: Upon upgrade to 20.12.4, sdavc custom apps are not pushed to sdavcSaas.

CSCwi90050

Unified saml page shown even though we have only one IDP configured.

CSCwi69572

High CPU alarms/ alerts are seen every 30 mins to one hour in 20.6.5.1.13 code.

CSCwm11848

Cisco SD-WAN Manager VPN templates corrupted after upgrade to 20.12.x

CSCwm72199

The 'service local' is not pushed to WAN Edges after upgrade from 20.9.5 to 20.12.4.

CSCwj89565

Template pushes are taking a lot of time for scale setup.

CSCwk88478

VRRP default timer shows 1000ms in GUI but it show 100ms in preview and pushed 100ms to device.

CSCwm70614

Stats data not visible after upgrading to 20.12.3.1 MTT setup.

CSCwi28960

Cisco SD-WAN Validator crash with error "Software initiated - Daemon 'vbond_0' failed".

CSCwk09399

Cisco SD-WAN Manager active user session gets flushed out after short period causing abrupt UI logouts.

CSCwn34073

OSPFv2 and OSPFv3 data-sync cause device crash in scale setup.

Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.4

Resolved Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.4

Identifier

Headline

CSCwi71976

UI changed needed for CSCwi56821 MT License Settings exposed at Tenant Level.

CSCwj39272

Site health shows yellow when circuit of last resort configured.

CSCwi56821

MT license settings exposed at Tenant Level.

CSCwf98797

Summary page of nfv CG workflows shows value of "color" for the field that is labeled as "Type"

CSCwh89309

NFVIS 4.12.1 : Transport interfaces down after a FDR on nfvis

CSCwi91313

1131x device shows as HSEC compatible NO in vManage &gt;&gt; license management.

CSCwh55434

Elastic search server CPU high due to JVM JIT deoptimization issue on getMonthOfYear()

CSCwf90168

False error "Subject serial num mistmatch" come up on ZTP server syslog.

CSCwj39215

Selecting 3-dots next to BGP feature does not save Edge01 or Edge02.

CSCwc04678

The data-policy-commit-failure notification promote to Alarm.

CSCwj34301

Cisco SD-WAN Manager custom group user is not able to run speed test with 'Forbidden Request: roleNotAllowed'

CSCwj23827

Cisco SD-WAN Manager DR : Replication stuck and not even attempting to create further exports

CSCwi72623

Change partition task stuck, during Cisco SD-WAN Manager upgrade activation from 20.12 to 20.14

CSCwi62044

SD-AVC container mount point change in Cisco SD-WAN Manager results in lost custom apps post-upgrade.

CSCwi10675

Devices with pull mode stats collection stops working after upgrade to Cisco Catalyst SD-WAN Manager Release 20.13.x latest.

CSCwi72111

/dataservice/device/action/install/devices/{deviceType} not working in apidocs page

CSCwi57614

Cisco SD-WAN Manager: Enterprise Feature Certificate Authorization domain name issue

CSCwj17284

The communication between Cisco SD-WAN Manager cluster gets break due to routes overlapping with Eth4 interface.

CSCwj29915

Preferred color group not available in traffic policy.

CSCwj39594

6-Node cluster DR Replication not working in certain scenario .

CSCwi43016

Need pop-up to display warning banner on 20.9 and 20.12 stating "SHA/AES-128 deprecation"

CSCwi45974

Unable to save the TACACS Server configuration when using Configuration Groups.

CSCwj04353

DCA is not sending device list data for MT Tenants.

CSCwj24314

[20.9.4] High memory utilization for wildfly.

CSCwj77415

Expanded Communities not populating in UI when creating Match sequence on pre-existing policies.

CSCwi21976

Cisco SD-WAN Manager API: User with only Interface read-only access can see the connected user list.

CSCwi85554

Cisco SD-WAN Manager cannot deploy a configuration group on a Cisco IOS XE Catalyst SD-WAN deviceadded by a tag rule

CSCwi75078

The banner issue on Cisco IOS XE Catalyst SD-WAN device from feature template Cisco SD-WAN Manager 20.9.4.1

CSCwi64908

The /dataservice/statistics/approute/fec/aggregation API takes much longer after upgrade

CSCwi99563

Unable to Edit Object Tracker on Static NAT Entries when there are a lot of entries.

CSCwi56971

Cisco SD-WAN Manager 20.12.2 / Search tool of Select smart/virtual accounts to fetch/sync licenses is not working

CSCwi95474

6 + 6 DR cluster elects replication leader which has no config-db and fails to connect to neo4j

CSCwi81830

20.12.3: unable to login to Cisco SD-WAN Manager after enabling proxy- AAAMgr auth req failed with exception.

CSCwk07246

Need to address collection thread issue.

CSCwi74398

DCA Rest: MT: If some tenant uploads fail, further tennats may be skipped.

CSCwj09144

Cisco SD-WAN Manager || Intermittent request time out while trying to access administration user groups

CSCwi49242

After upgrading Cisco SD-WAN Manager to 20.12.2, local/AAA users won't be able to login after 10-15 mns reboot

CSCwh36350

"/logout" method should be updated to POST in API Doc for 20.12 Cisco SD-WAN Manager

CSCwh24335

Manipulate driver of Neo4j and ES to use static logger instead of new logger (Cisco SD-WAN Manager Slowness 20.6)

CSCwi60266

Cisco IOS XE Catalyst SD-WAN device with enterprise certificates not forming control connections with controllers after upgrade

CSCwk05068

No space left on device error seen on Cisco SD-WAN Controller.

CSCwj82987

Cisco-Hosted Catalyst Manager - Custom apps not recovered after upgrade to 20.10+

CSCwi72014

CDCS Tenant - SSH tool not working

CSCwj75749

Edit of basic parcel fails with "Required But Missing Attributes for transportGateway.value"

Open Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.4

Identifier

Headline

CSCwk09812

Cisco SD-WAN Manager upgrade to version 20.12.3 with 32vCPU on-prem High CPU alarms

CSCwk20837

Route sent count is wrong in omp summary when Control Policy for TE is used.

CSCwh02871

Multiple alarms APIs RBAC is not working as expected.

CSCwb56080

Fail to deploy config group when AAA accounting "start stop" is set to False.

CSCwk14925

Cisco SD-WAN Validator running 20.6.5.2 experiencing kernel panic

CSCwk55344

Cisco SD-WAN Manager 20.12.3 Group of Interest not working properly when creating "Application List"

CSCwk37657

The devices brought up with PNP when pre deployed to a config group do not receive the full configuration

CSCwk37838

Copy of configuration group with Dual device type is creating as single router type.

CSCwk61283

Traffic class option not available when creating a traffic policy list.

CSCwk09399

Cisco SD-WAN Manager active user session gets flushed out after short period causing abrupt UI logouts.

Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.3.1

Resolved Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.3.1

Identifier

Headline

CSCwi49242

After upgrading Cisco SD-WAN Manager to 20.12.2, local/AAA users won't be able to login after 10-15 mns reboot.

CSCwj82987

Cisco-Hosted Catalyst Manager - Custom apps not recovered after upgrade to 20.10+

CSCwj39594

6-Node cluster DR Replication not working in certain scenario.

CSCwi95474

6 + 6 DR cluster elects replication leader which has no config-db and fails to connect to neo4j.

Open Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.3.1

Identifier

Headline

CSCwm70614

Stats data not visible after upgrading to 20.12.3.1 MTT setup.

Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.3

Resolved Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.3

Identifier

Headline

CSCwi29893

Unable to configure tracker group when object tracker is configured as route.

CSCwf68955

Cisco SD-WAN Manager Log Poisoning bypass

CSCwf68959

Cisco SD-WAN Manager Audit Log CSV payload injection

CSCwf75967

Cisco SD-WAN Manager Malicious File Upload vulnerability

CSCwi33594

The DCA folder is piling UP with small files which is exhausting the space.

CSCwi65635

Cisco SD-WAN Manager is creating config with 3 x "router eigrp" configs which is not supported.

CSCwh81907

APN profile password was found in plain text when Cellular profile template was configured.

CSCwd94839

Cisco SD-WAN Manager GUI becomes unavailable due to authentication errors against configuration-db.

CSCwi27589

Cloud on ramp for multicloud deploy fails with error : Azure Error: RequestDisallowedByPolicy

CSCwh46931

Cisco SD-Branch: Failed to create network design: Failed to update one or more device profiles

CSCwe80348

Cluster creation may fail due to store ID mismatch in neo4j.

CSCwh16901

The HSEC license installation from the workflow does not complete.

CSCwi83788

/var/log/vconfd is filled with repeated messages pointing to Python cb_get_object error.

CSCwi00334

LAN intf name in dual router config group workflow is getting modified after CG creation.

CSCwh83203

MT: Centralized policy push with overlapping sites is returing success but Cisco SD-WAN Controller rejects it.

CSCwi03952

Cisco SD-WAN Manager Template push failure | Failed to update configuration - CLI generation failed.

CSCwh04968

Control Session PPS increase and reset during the upgrade for Cisco vEdge device.

CSCwh18874

Replication takes 4+ hours to inject the 100MB of data on standby cluster-no make primary to switch

CSCwi80950

The Auto-Correct audit feature is deleting the cloudgateways in Multicloud after connectivity issues.

CSCwh02439

Cisco SD-WAN Manager - Unable to add devices to Cloud on Ramp for SaaS due to timeout while loading device list.

CSCwh87880

The usage of policy group for security configuration random push error.

CSCwi24780

Alarm:Analytics is enabled but relevant license is not present.

CSCwj05119

Cannot scroll up/down the drop down check list properly.

CSCwh85507

Fix error message on Cisco SD-WAN Manager when deploying configuration group have policy group attached.

CSCwh41461

Any new created Policy-Config will effact the update history of other Policy-Groups.

CSCwh80773

During periodic audit of Azure CoR if there is an AuthorizationFailed, Cisco SD-WAN Manager will remove CoR.

CSCwh38837

API call for dataservice/management/elasticsearch/index/size/estimate is failing.

CSCwf07155

"Set CSR Properties" for Controllers Cert Auth setting on Cisco SD-WAN Manager GUI is not getting disabled

CSCwi23113

Dual device site workflow is not generating correct key for vrrp IP address variable.

CSCwi62833

The SNMPv3 is not listening on IPv6 interface after Cisco SD-WAN Manager reload.

CSCwf95165

The vdaemon file is incomplete when generating a Cisco SD-WAN Manager admin-tech using GUI.

CSCwh29957

CLI Add-On Template's Config Diff shows wrong configuration.

CSCwh45608

20.9: IP Subnet Pool is not discovered when creating Azure CGW using existing vHUB.

CSCwi59963

The DCA process is continuously restarting after upgrade to 20.9.3.2

CSCwh73298

After upgrading the Cisco SD-WAN Manager from 20.6.x to 20.9.3 ES, the standby Cisco SD-WAN Manager reports down status.

CSCwh81740

API call (dataservice/device/tloc) retrieve an additional color which is not present on the device.

CSCwh46024

Cisco SD-WAN Manager is not starting new traces due to high scaled full mesh network.

CSCwi43409

20.9/20.12: enforce character length validation for user, usergroup, password via confD

CSCwh28301

Cisco SD-WAN Manager GUI becomes very slow when a large template.

CSCwf40110

The option to add Switchport in the Configuration Group Templates is not available.

CSCwi01270

Cannot overwrite a FW security policy with a CLI add-on template, configuration is not seen on device

CSCwh11161

Device template fails on 20.6.5.2 due to SNMP community string.

CSCwf66968

Solution: "Failed to create/initialize database : vmanagedb" and node1 UI is not accessible.

CSCwh73776

20.13: Missing control-connection CLI Generation in CG.

CSCwh12619

"Routing DNA Essentials: Tier 0: 05M" is not available to choose in Cisco SD-WAN Manager GUI

CSCwh62321

Cisco SD-WAN Manager 20.12.1 / admintech upload tool is failing.

CSCwh93441

Cisco SD-WAN Manager: Unable to login SSH including ciscotacro/ciscotacrw.

CSCwi21156

SDCI-Azure connection creation failsAzure Error:PublicIpWithBasicSkuNotAllowedOnExpressRouteGateways

CSCwh66310

Intermittently the SSO user with tenantadmin privilege only getting basic access.

CSCwi30235

Issue with accessing Cisco SD-WAN Manager 20.6.6 GUI using upper-case letter on TACACS username

CSCwi04213

On-prem: New cloud services OTP doesn't get updated via API if OTP is already present in db.

CSCwh62306

Cisco SD-WAN Manager DR fails in the event that a vBond is unreachable.

CSCwi05515

DR Replication taking 2 hours for ~100 MB Size

CSCwh18738

Licenses unapplied from License Management in Cisco SD-WAN Manager after DR failover/failback.

CSCwi07172

The ssh and ntp are enabled by default in config. groups

Open Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.3

Identifier

Headline

CSCwi72623

Change partition task stuck, during Cisco SD-WAN Manager upgrade activation from 20.12 to 20.14.

CSCwi53711

Cisco Catalyst SD-WAN Controller upgrade from 20.9.4.1-li to 20.12.2-li fails because of CDB boot error.

CSCwf34015

Unable to push template due to "no ip cef distributed"

CSCwb56080

Fail to deploy config group when AAA accounting "start stop" is set to False.

CSCwi16436

Lan Tracker: Configuration are not saved with correct ip address.

CSCwj09144

Cisco SD-WAN Manager || Intermittent request time out while trying to access administration user groups.

CSCwj12763

The ip name-server command not pushed to Cisco IOS XE Catalyst SD-WAN device.

CSCwj12589

Cisco IOS XE Catalyst SD-WAN device- dns-server addresses in dhcp config are pushed in wrong order.

CSCwh02871

Multiple alarms APIs RBAC is not working as expected.

CSCwj09324

Failed to deploy device with Policy Group. Connection event can be set for inspect action only.

CSCwi95474

6 + 6 DR cluster elects replication leader which has no config-db and fails to connect to neo4j

CSCwi99163

The statistics-database stops importing data with reason : Bulk insertion failur

CSCwj34301

Cisco SD-WAN Manager custom group user is not able to run speed test with 'Forbidden Request: roleNotAllowed'

Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.2

Resolved Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.2

Identifier Headline

CSCwh05956

20.12.2: Alarms corresponding to events are not showing up on Cisco SD-WAN Manager for few devices with DR configuration.

CSCwf75967

Cisco SD-WAN Manager Malicious File Upload vulnerability

CSCwh25000

Cannot overwrite a FW security policy with a CLI add on template.

CSCwh11913

SD-WAN workflows ST and MT VNF primary image path is missing additional file path specified in virtual image page.

CSCwf90207

Edit of variables in additional settings is not working.

CSCwf81695

Unable to add more than 30 VPN Interface SVI.

CSCwh84962

Cisco Catalyst SD-WAN Controller withdraws TLOC RIB out after going into GR.

CSCwf98777

Cisco Catalyst SD-WAN Controller policy is not sending the updated TLOC information.

CSCwh22127

Software initiated reboot due to OMPD crash (segmentation fault).

CSCwh32413

Fixed typo in diagnostics log filename.

CSCwd85558

The app-server java process is not initiating in 6 node 20.6 cluster .

CSCwh01870

Template push failed post Cisco SD-WAN Manager upgrade from 20.4 to 20.9 "udp udp-src-dst-port-list source range"

CSCwh24243

Suppress OMP advertisement of stale versioned TLOCs on Cisco Catalyst SD-WAN Controller

CSCwh11629

Template shows out of sync due to control flap caused by hardware Cisco Catalyst SD-WAN Edge device enterprise cert install.

CSCwf50089

Template push fails when ZBFW policy has sequences matching UDP ports 500/4500 in Cisco SD-WAN Manager 20.9

CSCwh26907

Cisco SD-WAN Manager GUI SaaS probe endpoint type URL is not allowing to use "-" character as value.

CSCwf93420

SD-WAN workflows/20.12.2: LAN OSPFv3 IPv4/IPv6: sub-feature parcel failed to be saved.

CSCwh88227

Application list with duplicate name entries in "Group of Interest".

CSCwf95317

Devices are not receiving the preference via the policy in a Multi-Tenant environment.

CSCwh30799

SD-WAN workflows missing nocloud property in payload when checked in Cisco SD-WAN Manager NFV config group UI.

CSCwh48782

TACACS netadmin users are not able to acess vshell on 20.12.

CSCwf83985

20.12:AWS-With Pure IPV6 overlay, vbond vpn 0 ge0/0 interface if-oper-status down after power off/on.

CSCwe90415

Massive update for feature template fails.

CSCwh24574

Application SLA traffic policy with base action allow without any match field is ignored.

CSCwf09036

Cisco SD-WAN Manager configures incorrect IKEv2 lifetime for IPSec tunnels.

CSCvt47226

Routes missing on a Cisco Catalyst SD-WAN Edge devices in a graceful-restart scenario.

CSCwf85996

In Multi-Tenant Cisco SD-WAN Manager, Equinix ICGW is stuck in LIVE state, and not changing to ACTIVE state.

CSCwh06082

Unable to create Azure CGW using NVA created from Azure Portal.

CSCwf86315

Error unlocking device configuration mode to CLI mode.

Open Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.2

Identifier Headline

CSCwh62321

Cisco SD-WAN Manager_20.12.1 / admintech upload tool is failing.

CSCwh02871

Multiple alarms APIs RBAC is not working as expected.

CSCwf34015

Unable to push template due to "no ip cef distributed".

CSCwh69041

20.13:SDCI connection using Multicloud TGW marked as success / traffic fails.

CSCwb56080

Failed to deploy configuartion group when AAA accounting "start stop" is set to False.

CSCwh87880

The usage of policy group for security configuration has random push error.

CSCwh62306

Cisco SD-WAN Manager DR fails in the event that a Cisco Catalyst SD-WAN Validator is unreachable.

CSCwh28301

Cisco SD-WAN Manager GUI becomes very slow when a large template with 1000+ variables is uploaded.

CSCwh97370

The NAT DIA interface &lt; name&gt; overload egress-interface &lt; interface&gt; is not pushed to Cisco IOS XE Catalyst SD-WAN device.

Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.1

Resolved Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.1

Identifier

Headline

CSCwe95606

Double GR_Additional log enablement defect

CSCwf68955

Cisco SD-WAN Manager Log Poisoning bypass

CSCwf68959

Cisco SD-WAN Manager Audit Log CSV payload injection

CSCwe66540

Cisco Catalyst SD-WAN : Decommissioning or deleting device did not release the license.

CSCwe95368

- AAR Default SLA values changing by the system

CSCwf68886

Cisco SD-WAN Manager deletes the custom folder whenever editing the IPS settings

CSCwf48674

Cisco IOS XE Catalyst SD-WAN device unified security policy template fails to enable geo database

CSCwf98724

20.11/12 ST/MT: updating app server logo via nms command is not working

CSCwf21372

Cisco SD-WAN Manager does not recognize the resource group for resource group admin login via TACACS

CSCwf63511

OSPFv3 - "Advertise" command not appearing on OSPFv3 for IPV4 address-family

CSCwe85177

Scroll up or down under feature template box change the values.

CSCwe83858

Unable to update DHCP Tunnel interface template if template was cloned from factory default template

CSCwe42158

Cisco SD-WAN Manager GUI : Incorrect Average Values for Latency/Jitter/Loss percentage for Edge Routers

CSCwe57259

Template pushed with wrong APN settings, Cisco SD-WAN Manager shows wrong APN config even after rollbacked.

CSCwe91258

Wireless Template cannot be attached to a C1113-8PLTELAWZ device

CSCwe88453

Cisco SD-WAN Manager not including net mask for BGP for a /32

CSCwf10147

Topology API showing only data links on Cisco Edge devices

CSCwe76283

Cloud Gateway Attachment is not shown for dedicated mode after tag is unmapped

CSCwf63112

Unable to edit the user group's created under Administration &gt; Manage Users.

CSCwf03555

Cisco SD-WAN Manager unable to parse certain timezones and is triggering certificate installation process

CSCwf45552

Cisco Catalyst SD-WAN CoR for SaaS - Enable O365 Application Error

CSCwf51992

Need to hide/remove "key" field in TACACS server configuration in AAA template

CSCwd90586

Cisco SD-WAN Manager scrollbar is executing several API calls that slow down the performance

CSCwe53624

Cisco SD-WAN Manager: cURL may flag error on ca cert file "Error in the time fields of certificate"

CSCwe31281

20.9 Autotunnel Ipsec tracker:Tracker does not come up at all on vedge

CSCwd54278

aaamgr process restarts unexpectedly

CSCwf67622

Cisco SD-WAN Manager is loading continuously when a new user access is created with Network Hierarchy.

CSCwf63504

OSPFv3 - "distance" command not showing under address-family ipv4

CSCwe87281

Cisco SD-WAN Manager pushing DH group (14,15,16) for SIG template for IKEv2 (unsupported by Umbrella)

CSCwf49674

Cisco SD-WAN Manager is modifying load_balance .json leading to the edges to be disconnected.

CSCwe63222

Certificate output is not getting changed on renew when Cloud Certificate Authorization is Automated

CSCwf28362

Cisco SD-WAN Manager is not generating alarm notifications to be sent to Webhooks server.

CSCwf34096

168 Cisco vEdge 5000 device inbuilt certificate expiring on 12th Nov 2023

CSCwd46383

Cisco SD-WAN Software Denial of Service Vulnerability

Open Bugs for Cisco Catalyst SD-WAN Control Components Release 20.12.1

Identifier

Headline

CSCwf82106

20.10 20.11- Localhost can't be modified to IP in Cluster management Page : GRPC error CO for ZK

CSCwq91481

DR: Scale configuration causes neo4j to crash and restart in secondary when deleting & importing SYSTEMDEVICESNODE.

CSCwh02871

Multiple alarms APIs RBAC is not working as expected

CSCwh16392

20.12-Tacacs server configuration broken for cloud-init config

CSCwh06082

Unable to create Azure CGW using NVA created from Azure Portal

CSCwh24574

Application SLA Traffic Policy with Base Action Allow without any match field is ignored

CSCwf98976

Cannot save application priority & SLA profile if intf value from drop down list is used first time

CSCwh18738

Licenses unapplied from License Management in Cisco SD-WAN Manager after DR failover/failback

CSCwf85996

In Multi-Tenant Cisco SD-WAN Manager, Equinix ICGW is stuck in LIVE state, not changing to ACTIVE state

CSCwh24857

Cisco SD-WAN Manager UI should show the error when Upper case letter present in " User Group Name"

CSCwh24921

17.12 OGREF: Add Cisco SD-WAN Manager restriction for OGREF toggle

CSCwh24577

IPv6 Neighbor doesn't establish with default Application SLA Traffic Policy Simple workflow

CSCwq33835

DR replication fails with large configuration - Neo4j OOM on standby

CSCwp05800

[20.12] Drop labels/nodes cause OOM on scaled setup

Cisco Catalyst SD-WAN Manager API

For information on Cisco SD-WAN Manager Release 20.12.x APIs, see Cisco SD-WAN Manager API.

Cisco SD-WAN Manager GUI Changes

This section presents a comparative summary of the significant GUI changes between Cisco vManage Release 20.11.1 and Cisco Catalyst SD-WAN Manager Release 20.12.1.

Monitor Overview Page

Cisco Catalyst SD-WAN Manager Release 20.12.1 includes the following GUI changes to the Monitor > Overview page. For more information about the Monitor > Overview page, see Cisco SD-WAN Manager Monitor Overview.

  • The Global Topology view is called as Global Network View in Cisco SD-WAN Manager.

    Figure 1. Global Network View in Monitor - Overview Page

    Click the eye icon to view the tunnel connection with aggregated tunnel health between the sites. Click the arrow on the left to open the network hierarchy menu.

    Figure 2. Device Details for the Selected Site in Global Network View
  • Cisco Catalyst SD-WAN Manager's security dashboard is enhanced to provide greater flexibility in troubleshooting security threats.

    Figure 3. Enhancements to the Security Dashboard Through Modified Dashlets in the Monitor - Security Page

Configuration Page

New submenus are added to the Configuration menu in Cisco Catalyst SD-WAN Manager menu.

Figure 4. New Submenus in the Configuration Menu

New menus are available in the Configuration > Policy Groups page to configure policy groups and security policies.

Figure 5. Policy Page for Configuring Policy Groups and Security Policies

In-product Help

In a single-tenant deployment, access help content for Cisco SD-WAN Manager UI pages by clicking the Help icon at the top-right corner of a page. The help content is displayed in a slide-in pane in the same browser window.

Starting from Cisco SD-WAN Manager Release 20.12.x, In-product help is available for a majority of the Cisco SD-WAN Manager UI pages.

Figure 6. Help Content in a Slide-in Pane
A slide-in pane displays the help content of a UI page.

Cisco DNA Sense

Access help content for Cisco SD-WAN Manager UI pages using Cisco DNA Sense by clicking the ? icon at the top-right corner and choose Online Documentation from the drop-down list.

Cisco DNA Sense is not enabled by default for all the users. You should enroll and configure your Cisco SD-WAN Manager using the instructions provided in the Online Documentation pane. The help content from Cisco DNA Sense is displayed across all major Cisco SD-WAN Manager pages once you enroll.

If your Cisco SD-WAN Manager is already enrolled to Cisco DNA Sense, choose Online Documentation from the ? drop-down.

Ask Cisco Networking Bot

To access the Cisco Networking Bot click the Help(?) icon and choose Ask Cisco Networking from the drop-down list.

You can use Cisco Networking Bot chat to get relevant answers to your questions.

Full Cisco Trademarks with Software License

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB's public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS" WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.

All printed copies and duplicate soft copies of this document are considered uncontrolled. See the current online version for the latest version.

Cisco has more than 200 offices worldwide. Addresses and phone numbers are listed on the Cisco website at www.cisco.com/go/offices.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: https://www.cisco.com/c/en/us/about/legal/trademarks.html. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1721R)
