Reports

About reports

Use data from the Reports feature to gain insights into your network and its operation. You can customize data and reports using various formats and flexible scheduling options to meet your operational needs.

The Reports feature supports these use cases:

  • Capacity planning: Understand how your network devices are used in the application.

  • Change of pattern: Track changes in usage pattern trends, including clients, devices, bands, or applications on the network.

  • Operational reporting: Review reports about network operations, such as upgrade completions or provisioning failures.

  • Network health: Use reports to determine the overall health of your network.


Note

Each report has a specific maximum row limit. If you try to generate a report that exceeds this limit, you will receive a notification in the GUI and must reduce the report's scope to proceed.

Run your first report

Follow this procedure to begin running specialized data reports about your network.

Before you begin

Run a successful Discovery job in Catalyst Center. You can check whether a Discovery job is successful in Device Inventory. From the main menu, choose Provision > Inventory to view the results.

Procedure

Step 1

From the main menu, choose Reports.

Step 2

In the Run Your First Report window, click Start.

The Report Templates window displays the supported reporting categories. A link represents each category. Click a link to view only the supported reports for that category.

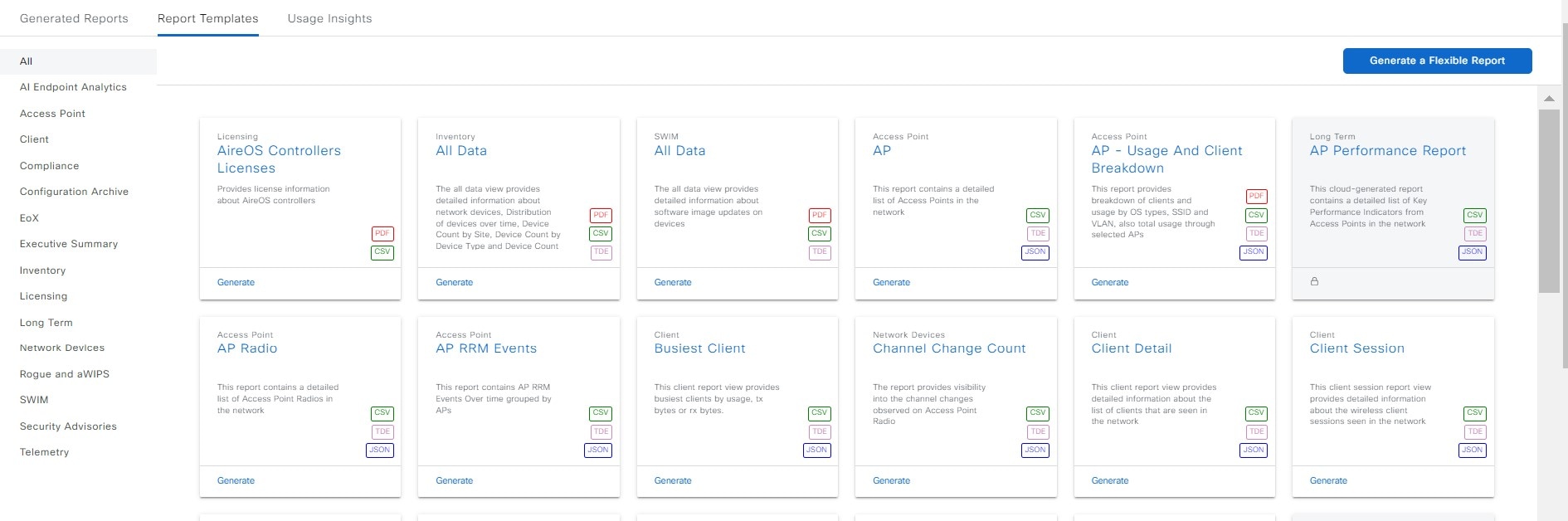

Figure 1. Report Templates window
Figure 22: Displays the Report Templates Window

Note



Available options depend on the type of report selected.

Step 3

After clicking a link, review the Report Templates window for the selected category.

Each tile represents a template and contains information about the report and links to generate a report. Determine which template you want to use to generate a report. Within each tile are icons that represent the supported file types for the reports (PDF, CSV, TDE, or JSON).

Step 4

In the tile, click the header to view a sample report.

A Preview window appears for the sample report. Use the side bar in the window to scroll down and review the entire sample report displaying this data:

  • Applied filters (data filters that are used in building the report).

  • Data metrics and summaries.

  • Graphical representation of the data (including line, bar, and pie graphs).

  • Tables that assist you in analyzing data.

Note



You can use the sample report to plan how you want your report to look.

Step 5

Click X to close the preview.

Step 6

In the tile, click the Generate link to configure parameters to build a report.

The Generate window lets you choose a format type for the report, apply data filters for your reports, and set up schedules for the actual report generation.

Step 7

In the Generate a New Report window, click Let's Do It to get started with the wizard.

Alternatively, click the menu icon and choose Workflows > Generating a New Report to launch the wizard for generating a new report.

Step 8

In the Select Report Template window, select the template for the report.

The Template consists of the individual report types within the categories for the release. You can review an autogenerated sample in the same window.

Click Next.

Step 9

In the Setup Report Scope window, enter a name for the report and select scope.

Enter a report name in the Report Name field and click the Scope field to display the available filter. Click the filter options that you want for the report.

Note



The Setup Report Scope options change depending upon the selected Template Group.

Click Next.

Step 10

In the Select File Type window, select the file type for the report.

Depending on the report that you are creating, these File Type options are available:

  • PDF

  • CSV

  • Tableau Data Extract

  • JSON

For the CSV, JSON, and Tableau Data Extract file types, use the Fields option to select attributes for the CSV, JSON, and Tableau Data Extract results.

Step 11

In the Schedule Report window, select the schedule for the report. Then, click Next.

Step 12

In the Delivery and Notification window, select the delivery mechanism for the report.

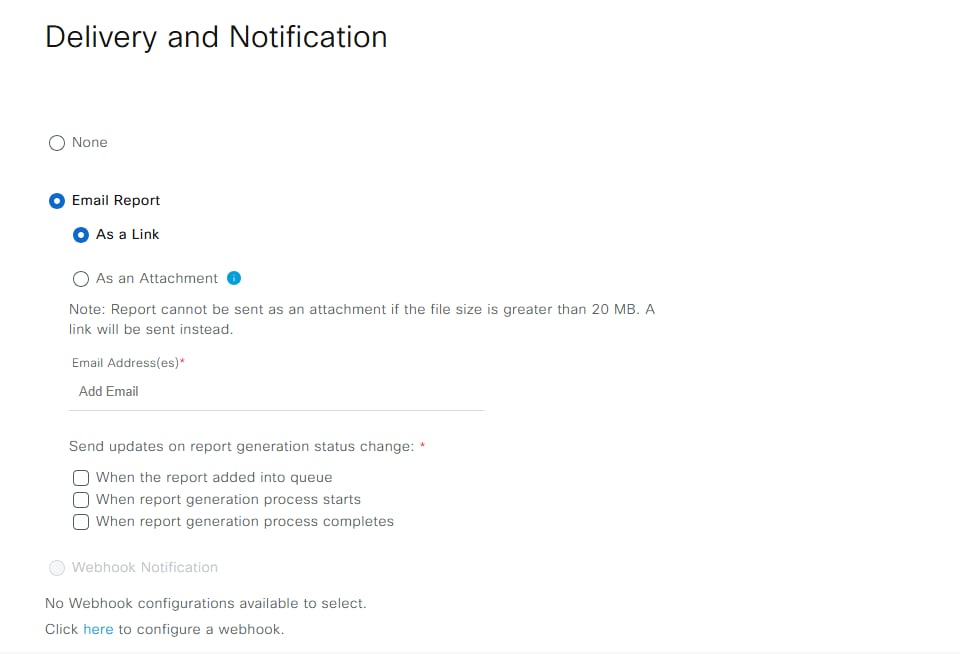

Figure 2. Delivery and Notification window
Displays the Delivery and Notification Window.

  • None: No email or webhook notifications sent.

  • Email Report: Receive the email report as a link or attachment.

    Note



    If you have not yet configured an SMTP server for the emails, you are prompted to configure one. Follow the prompts to the Email tab in the GUI to configure an SMTP server. Choose System > Settings > External Services > Destinations > Email.

    • Link: The email notification of a successfully compiled report has a link back to itself and the Generated Reports window under Reports. You can view and download the report from this link and location.

      Note



      Email notifications with embedded links to reports support up to 20 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    • Attachment: The Report is attached to the email notification.

      Note



      PDF reports support email notification attachments of up to 20 MB in size and up to 10 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    Catalyst Center sends these email notifications for the report:

    • Report is in the queue waiting to be processed.

    • Report processing is in progress.

    • Report has successfully been compiled and is completed.

    To reduce the number of notifications, you can uncheck the preceding check boxes, as needed.

  • Webhook Notification: Notification is sent as a webhook to the configured webhook URL address (callback URL). Select a webhook from the drop-down list (Subscription Profile field).

    Note



    If you have not yet created a webhook, you are prompted to create one. Follow the prompts to the Webhook tab in the GUI to configure a webhook. In general, to configure a webhook, choose System > Settings > External Services > Destinations > Webhook.

    You will receive the status for the report in the form of webhook notifications like "In Queue", "In Progress", and "Success". You can also view these notifications in the GUI.

Step 13

In the Summary window, review the configuration and edit any of the files, if necessary.

Click Generate Report.

After report generation, a success window appears.

Step 14

Click the View all Reports link.

The Generated Reports window shows instance details of the scheduled report.

You can download, review, edit, duplicate, or delete the report in the Generated Reports window. For more information, see View generated reports.

Run an access point report

Do this procedure to configure Access Point (AP) reports for your network.

Before you begin

Run a successful Discovery job in Catalyst Center. You can check whether a Discovery job is successful in Device Inventory. From the main menu, choose Provision > Inventory to view the results.

Procedure

Step 1

From the main menu, choose Reports > Report Templates.

The Report Templates window displays the supported reporting categories. A link represents each category. Click a link to view the supported reports for the selected category.

Step 2

After clicking a link, review the Report Templates window for the selected category.

Figure 3. AP report
Figure 23: Report Templates window.

Each template is represented by a tile and contains information about the report and links to generate a report. Determine the template that you want to use to generate a report.

Step 3

In the tile, click the header to view a sample report.

A window appears for the sample report. Use the side bar in the window to scroll down and review the entire sample report.

Note



You can use the sample report to plan how you want your report to look.

Step 4

Click X to close the preview.

Step 5

In the tile, click the Generate link to configure parameters to build a report.

The Generate window lets you choose a format type for the report, apply data filters for your reports, and set up schedules for the actual report generation.

Step 6

In the Generate a New Report window, click Let's Do It to get started.

To skip this screen in the future, check the Don't show this to me again check box.

Step 7

In the Select Report Template window, choose the template from Template drop-down list.

Note



The Template consists of the individual report types within the category for the release.

You can review an auto-generated sample in the same window.

Step 8

Click Next.

Step 9

In the Setup Report Scope window, name the report, choose the scope and choose the time range.

Enter a report name in the Report Name field and click Scope to display the available filter. Click the filter options that you want for the report and select the Time Range.

Note



The Setup Report Scope options change depending on the selected Template. The AP reports support up to 90 days of data retention.

Step 10

Click Next.

Step 11

In the Select File Type window, choose the file type for the report.

Depending on the report that you are creating, these File Type options may be available:

  • PDF

  • CSV

  • Tableau Data Extract

  • JSON

For the CSV, JSON, and Tableau Data Extract file types, a Fields option lets you choose attributes (additional fields) for the CSV, JSON, and Tableau Data Extract results.

Step 12

Click Next.

Step 13

In the Schedule Report window, choose the schedule for the report. Then, click Next.

Step 14

In the Delivery and Notification window, choose the delivery mechanism for the report:

  • None: No email or webhook notifications sent.

  • Email Report: Email report is sent as a link or attachment.

    Note



    If you have not yet configured an SMTP server for the emails, you are prompted to configure one. Follow the prompts to the Email tab in the GUI to configure an SMTP server. Choose System > Settings > External Services > Destinations > Email.

    • As a Link: The email notification of a successfully compiled report has a link back to itself and the Generated Reports window under Reports. You can view and download the report from this link and location.

      Note



      Email notifications with embedded links to reports support up to 20 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    • As an Attachment: Report is attached to the email notification.

      Note



      PDF reports support email notification attachments of up to 20 MB in size and up to 10 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    Catalyst Center sends these email notifications for the report:

    • Report is in the queue waiting to be processed.

    • Report processing is in progress.

    • Report has successfully been compiled and is completed.

    To reduce the number of notifications, you can uncheck the preceding check boxes, as desired.

  • Webhook Notification: Notification is sent as a webhook to the configured webhook URL address (callback URL). Choose a webhook from the drop-down list (Subscription Profile field).

    Note



    If you have not yet created a webhook, you are prompted to create one. Follow the prompts to the Webhook tab in the GUI to configure a webhook. In general, to configure a webhook, choose System > Settings > External Services > Destinations > Webhook.

    Catalyst Center sends these status webhook notifications for the report:

    • In Queue

    • In Progress

    • Success

Step 15

Click Next.

Step 16

In the Summary window, review the configuration and edit any of the files, if necessary.

Click Generate Report.

After the report is generated, a success window appears.

Step 17

Click the View the Generated Reports link.

The Generated Reports window shows instance details of the report that was scheduled.

You can download, review, edit, duplicate, or delete the report in the Generated Reports window. For more information, see View generated reports.

Run an audit log report

Follow this procedure to configure Audit Log reports for your network.

Before you begin

Run a successful Discovery job in Catalyst Center. You can check whether a Discovery job is successful in Device Inventory. From the main menu, choose Provision > Inventory to view the results.

Procedure

Step 1

From the main menu, choose Reports > Report Templates.

The Report Templates window displays the supported reporting categories. A link represents each category. Click a link to view the supported reports for the selected category.

Step 2

After clicking a link, review the Report Templates window for the selected category.

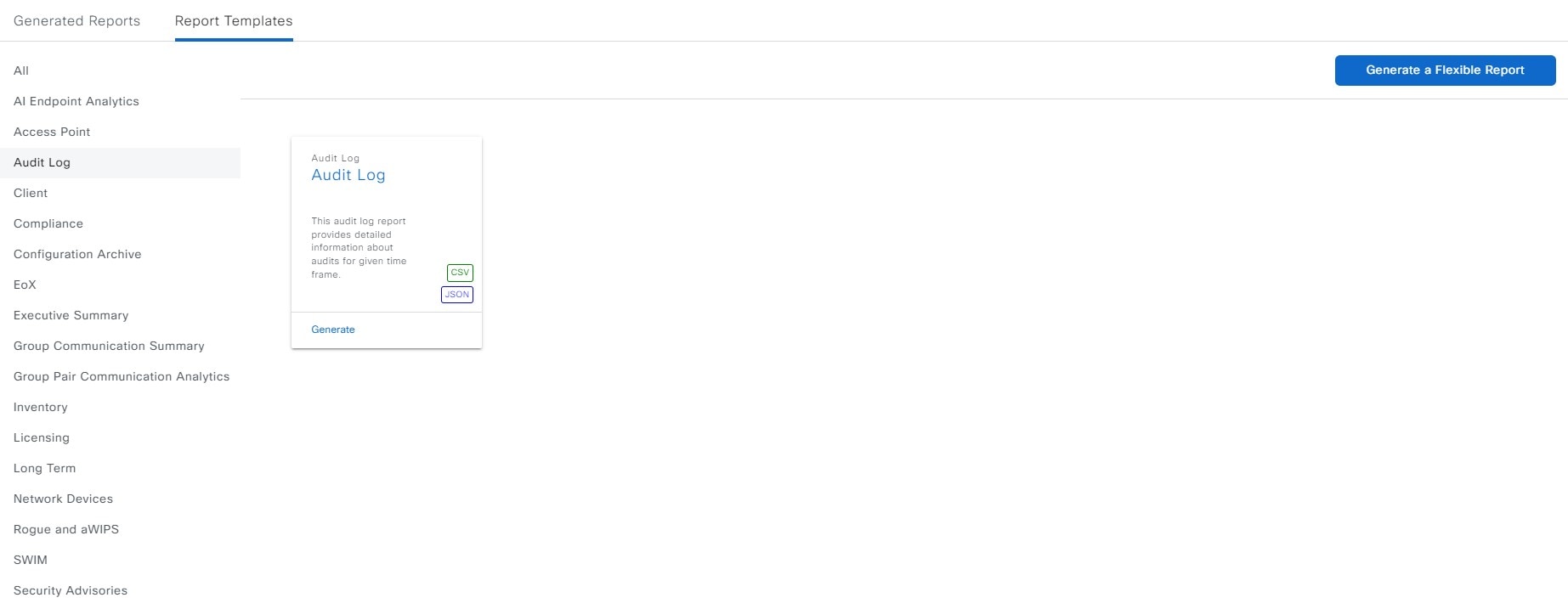

Figure 4. Audit Log report
Displays Audit Log report template.

Each template is represented by a tile and contains information about the report and links to generate a report. Determine which template you want to use to generate a report.

Step 3

In the tile, click the header to view a sample report.

A window displays with the sample report. Use the side bar in the window to scroll down and review the entire sample report.

Note



You can use the sample report to plan how you want your report to look.

Step 4

Click X to close the preview.

Step 5

In the tile, click the Generate link to configure parameters to build a report.

Step 6

In the Generate a New Report window, click Let's Do It to get started.

To skip this screen in the future, check the Don't show this to me again check box.

Step 7

In the Select Report Template window, select the template for the report.

select the Template from the drop-down lists.

Note



The Template list consists of the individual report types within the categories for the release.

You can review an auto-generated sample in the same window.

Step 8

Click Next.

Step 9

In the Setup Report Scope window, name the report and select the scope.

Enter a report name in the Report Name field and click in the Scope field to display the available filter. Click the filter options that you want for the report and select the Time Range.

Note



The Setup Report Scope options change depending on the selected Template.

Click Next.

Step 10

In the Select File Type window, select the file type for the report.

Catalyst Center displays these File Type options for the Audit Log report type:

  • CSV

  • JSON

For the CSV and JSON file types, a Fields option lets you select attributes for the CSV and JSON results.

Step 11

Click Next.

Step 12

In the Schedule Report window, select the schedule for the report. Then, click Next.

Step 13

In the Delivery and Notification window, select the delivery mechanism for the report:

  • None: No email or webhook notifications sent.

  • Email Report: Email report is sent as a link or attachment.

    Note



    If you have not yet configured an SMTP server for the emails, you are prompted to configure one. Follow the prompts to the Email tab in the GUI to configure an SMTP server. Choose System > Settings > External Services > Destinations > Email.

    • Link: The email notification of a successfully compiled report has a link back to itself and the Generated Reports window under Reports. You can view and download the report from this link and location.

      Note



      Email notifications with embedded links to reports support up to 20 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    • Attachment: Report is attached to the email notification.

      Note



      PDF reports support email notification attachments of up to 20 MB in size and up to 10 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    Catalyst Center sends these email notifications for the report:

    • Report is in the queue waiting to be processed.

    • Report processing is in progress.

    • Report has successfully been compiled and is completed.

    To reduce the number of notifications, you can uncheck the preceding check boxes, as needed.

  • Webhook Notification: Notification is sent as a webhook to the configured webhook URL address (callback URL). select a webhook from the drop-down list (Subscription Profile field).

    Note



    If you have not yet created a webhook, you are prompted to create one. Follow the prompts to the Webhook tab in the GUI to configure a webhook. In general, to configure a webhook, choose System > Settings > External Services > Destinations > Webhook.

    You will receive status webhook notifications for the report. For example, you will receive "In Queue," "In Progress," and "Success" webhook notifications. You will also be able to view these notifications in the GUI.

Step 14

Click Next.

Step 15

In the Summary window, review the configuration and edit any of the files, if necessary.

Click Generate Report.

After the report is generated, a success window displays.

Step 16

Click the View the Generated Reports link.

The Generated Reports window shows instance details of the report that was scheduled.

You can download, review, edit, duplicate, or delete the report in the Generated Reports window. For more information, see View generated reports.

Run a client report

Perform this procedure to configure specialized Client reports for your network.

Before you begin

Run a successful Discovery job in Catalyst Center. You can check whether a Discovery job is successful in Device Inventory. From the main menu, choose Provision > Inventory to view the results.

Procedure

Step 1

From the main menu, choose Reports > Report Templates.

The Report Templates window displays the supported reporting categories. A link represents each category. Click a link to view the supported reports for the selected category.

Step 2

After clicking a link, review the Report Templates window for the selected category.

Figure 5. Client Report
Figure 24: Displays Client report templates

Each template is represented by a tile and contains information about the report and links to generate a report. Determine which template you want to use to generate a report.

Step 3

In the tile, click the header to view a sample report.

A window displays for the sample report. Use the side bar in the window to scroll down and review the entire sample report. For some of the client reports, this data is presented:

  • Applied filters (data filters that were used to build the report).

  • Data metrics and summaries.

  • Graphical representation of the data (including line, bar, and pie graphs).

  • Tables that assist you in analyzing the data.

Note



You can use the sample report to plan how you want your report to look.

Step 4

Click X to close the preview.

Step 5

In the tile, click the Generate link to configure parameters to build a report.

The Generate window lets you select a format type for the report, apply data filters for your reports, and set up schedules for the actual report generation.

Step 6

In the Generate a New Report window, click Let's Do It to get started.

To skip this screen in the future, check the Don't show this to me again check box.

Step 7

In the Select Report Template window, select the template for the report.

Select the Template from the drop-down lists.

Note



The Template consists of the individual report types within the categories for the release.

You can review an auto-generated sample in the same window.

Step 8

Click Next.

Step 9

In the Setup Report Scope window, name the report and select the scope.

Enter a report name in the Report Name field and click in the Scope field to display the available filter. Click the filter options that you want for the report and select the Time Range.

Note



The Setup Report Scope options change depending on the selected Template. You can generate the Client Trend, Unique Clients and Users Summary, Client Summary, and Client Detail reports for the past 180 days. Other report types support up to 90 days of data.

Click Next.

Step 10

In the Select File Type window, select the file type for the report.

Depending on the report that you are creating, these File Type options may be available:

  • PDF

  • CSV

  • Tableau Data Extract

  • JSON

For the CSV, JSON, and Tableau Data Extract file types, a Fields option lets you select attributes (additional fields) for the CSV, JSON, and Tableau Data Extract results.

Step 11

Click Next.

Step 12

In the Schedule Report window, select the schedule for the report. Then, click Next.

Step 13

In the Delivery and Notification window, select the delivery mechanism for the report:

  • None: No email or webhook notifications sent.

  • Email Report: Email report is sent as a link or attachment.

    Note



    If you have not yet configured an SMTP server for the emails, you are prompted to configure one. Follow the prompts to the Email tab in the GUI to configure an SMTP server. Choose System > Settings > External Services > Destinations > Email.

    • Link: The email notification of a successfully compiled report has a link back to itself and the Generated Reports window under Reports. You can view and download the report from this link and location.

      Note



      Email notifications with embedded links to reports support up to 20 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    • Attachment: Report is attached to the email notification.

      Note



      PDF reports support email notification attachments of up to 20 MB in size and up to 10 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    Catalyst Center sends these email notifications for the report:

    • Report is in the queue waiting to be processed.

    • Report processing is in progress.

    • Report has successfully been compiled and is completed.

    To reduce the number of notifications, you can uncheck the preceding check boxes, as desired.

  • Webhook Notification: Notification is sent as a webhook to the configured webhook URL address (callback URL). Select a webhook from the drop-down list (Subscription Profile field).

    Note



    If you have not yet created a webhook, you are prompted to create one. Follow the prompts to the Webhook tab in the GUI to configure a webhook. In general, to configure a webhook, choose System > Settings > External Services > Destinations > Webhook.

    You will receive status webhook notifications for the report. For example, you will receive "In Queue," "In Progress," and "Success" webhook notifications. You will also be able to view these notifications in the GUI.

Step 14

Click Next.

Step 15

In the Summary window, review the configuration and edit any of the files, if necessary.

Click Generate Report.

After the report is generated, a success window displays.

Step 16

Click the View the Generated Reports link.

The Generated Reports window shows instance details of the report that was scheduled.

You can download, review, edit, duplicate, or delete the report in the Generated Reports window. For more information, see View generated reports.

Run a compliance report

Catalyst Center allows you to retrieve a consolidated compliance audit report that shows the compliance status of individual network devices. With this report, you can get complete visibility of your network.

This procedure describes how to configure a Compliance report for your network.

Procedure

Step 1

From the main menu, choose Reports > Report Templates.

The Report Templates window displays the supported reporting categories.

Step 2

From the left pane, click Compliance to display the Compliance templates.

Each template is represented by a tile and contains information about the report and links to generate a report.

Figure 6. Compliance report
In the Report Templates window, Compliance is selected, and the Network Device Compliance template is displayed.

Step 3

In the tile, click the header to view a sample report.

A window displays for the sample report. Use the side bar in the window to scroll down and review the entire sample report.

Step 4

Click X to close the preview.

Step 5

In the tile, click the Generate link to configure parameters to build a report.

Step 6

In the Generate a New Report window, click Let's Do It to get started.

To skip this screen in the future, check the Don't show this to me again check box.

Step 7

In the Select Report Template window, you can change the template from Template drop-down list.

Note



You can review an automatically generated sample in the same window.

Step 8

Click Next.

The Setup Report Scope window appears.

Step 9

In the Report Name field, enter a report name.

Step 10

In the Scope area, choose the Compliance Status, Compliance Category, Device Family and Device Type to include in the report.

Note



The Setup Report Scope options change depending on the selected template.

Step 11

Click Next.

Step 12

In the Select File Type window, select the file type for the report.

Catalyst Center displays these File Type options for the Compliance report type:

  • PDF

  • CSV

  • JSON

For the CSV and JSON file types, a Fields option lets you select attributes for the CSV and JSON results.

Step 13

Click Next.

Step 14

When the Schedule Report window appears, select the schedule for the report. Then, click Next.

Step 15

In the Delivery and Notification window, select the delivery mechanism for the report:

  • None: No email or webhook notifications sent.

  • Email Report: Email report is sent as a link or attachment.

    If an SMTP server is not configured for emails, Catalyst Center prompts you to configure one. Click the link to configure the email destination in System > Settings > External Services > Destinations > Email.

    • As a Link: The email notification of a successful compiled report contains a link back to itself and the Generated Reports page under Reports. You can view and download the report from this link and location.

      Note



      Email notifications with embedded links to reports support up to 20 email addresses. To add multiple email addresses, you must add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    • As an Attachment: Report is attached to the email notification.

      Note



      PDF reports support email notification attachments of up to 20 MB in size and up to 10 email addresses. To add multiple email addresses, you must add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    Catalyst Center sends these email notifications for the report:

    • Report is in the queue waiting to be processed.

    • Report processing is in progress.

    • Report has successfully been compiled and is completed.

    To reduce the number of notifications, you can uncheck the preceding check boxes, as desired.

  • Webhook Notification: Notification is sent as a webhook to the configured webhook URL address (callback URL).

    Note



    If a webhook is not created, Catalyst Center prompts you to create one. Click the link to configure a webhook in Webhook tab in System > Settings > External Services > Destinations > Webhook.

    Catalyst Center sends you these status webhook notifications for the report:

    • In Queue

    • In Progress

    • Success

    You can view the event notification status in Platform > Runtime Dashboard > Event Summary.

Step 16

Click Next.

Step 17

In the Summary window, review the configuration and edit any of the files, if necessary.

Step 18

Click Generate Report.

After the report is generated, a success window appears.

Step 19

Click the View the Generated Reports link.

The Generated Reports window displays with instance details of the report that was scheduled.

You can download, review, edit, duplicate, or delete the report in the Generated Reports window. For more information, see View Generated Reports.

Run a configuration archive report

Use this procedure to get a consolidated report of configuration changes on your network devices.

Procedure

Step 1

From the main menu, choose Reports > Report Templates.

The Report Templates window displays the supported reporting categories.

Step 2

From the left pane, click Configuration Archive to display the template.

Figure 7. Configuration Archive report
Displays Configuration Archive report template.

Each template is represented by a tile and contains information about the report and links to generate a report.

Step 3

In the tile, click the header to view a sample report.

A window displays for the sample report. Use the side bar in the window to scroll down and review the entire sample report.

Step 4

Click X to close the preview.

Step 5

In the tile, click the Generate link to configure parameters to build a report.

Step 6

In the Generate a New Report window, click Let's Do It to get started.

To skip this screen in the future, check the Don't show this to me again check box.

Step 7

In the Select Report Template window, you can change the template from the Template drop-down list.

Note



You can review an automatically generated sample in the same window.

Step 8

Click Next.

The Setup Report Scope window appears.

Step 9

In the Report Name field, enter a report name.

Step 10

In the Scope area, select Category from the drop-down list.

In band refers to configuration changes done by Catalyst Center.

Out Of Band refers to the configuration changes done outside Catalyst Center.

Step 11

Select the Device Family and Device Type to include in the report.

Note



The Setup Report Scope options change depending on the selected template.

Step 12

Click Next.

Step 13

In the Select File Type window, select the file type for the report.

Catalyst Center displays these File Type options for the Configuration Archive report type:

  • PDF

  • CSV

  • JSON

For the CSV and JSON file types, a Fields option lets you select attributes for the CSV and JSON results.

Step 14

Click Next.

Step 15

When the Schedule Report window appears, select the schedule for the report. Then, click Next.

Step 16

In the Delivery and Notification window, select the delivery mechanism for the report:

  • None: No email or webhook notifications sent.

  • Email Report: Email report is sent as a link or attachment.

    If an SMTP server is not configured for emails, Catalyst Center prompts you to configure one. Click the link to configure the email destination in System > Settings > External Services > Destinations > Email.

    • As a Link: The email notification of a successful compiled report contains a link back to itself and the Generated Reports page under Reports. You can view and download the report from this link and location.

      Note



      Email notifications with embedded links to reports support up to 20 email addresses. To add multiple email addresses, you must add each email address separately and click Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    • As an Attachment: Report is attached to the email notification.

      Note



      PDF reports support email notification attachments of up to 20 MB in size and up to 10 email addresses. To add multiple email addresses, you must add each email address separately and click Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    Catalyst Center sends these email notifications for the report:

    • Report is in the queue waiting to be processed.

    • Report processing is in progress.

    • Report has successfully been compiled and is completed.

    To reduce the number of notifications, you can uncheck the preceding check boxes, as needed.

  • Webhook Notification: Notification is sent as a webhook to the configured webhook URL address (callback URL).

    Note



    If a webhook is not created, Catalyst Center prompts you to create one. Click the link to configure a webhook in the Webhook tab in System > Settings > External Services > Destinations > Webhook.

    Catalyst Center sends you these status webhook notifications for the report:

    • In Queue

    • In Progress

    • Success

You can view the event notification status in Platform > Runtime Dashboard > Event Summary.

Step 17

Click Next.

Step 18

In the Summary window, review the configuration and edit any of the files, if necessary.

Step 19

Click Generate Report.

After the report is generated, a success window appears.

Step 20

Click the View the Generated Reports link.

The Generated Reports window displays with instance details of the report that was scheduled.

You can download, review, edit, duplicate, or delete the report in the Generated Reports window. For more information, see View Generated Reports.

Run an end-of-life report

This procedure describes how to configure an End of Life (EoX) report for your network.

Before you begin

  • You must accept the end-user license agreement (EULA) before downloading software or provisioning a device. For more information, see the Accept the License Agreement topic in the Cisco Catalyst Center Administrator Guide.

  • Ensure that the Cisco CX cloud connection is enabled. For more information, see the Update the Machine Reasoning Knowledge Base topic in the Cisco Catalyst Center Administrator Guide.

  • Run a successful Discovery job in Catalyst Center. You can check whether a Discovery job is successful in Device Inventory. From the main menu, choose Provision > Inventory to view the results.

Procedure

Step 1

From the main menu, choose Reports > Report Templates.

The Report Templates window opens and displays the supported reporting categories. A link represents each category.

In the Report Templates window, each template is represented by a tile and contains information about the report and links to generate a report. Decide which template you want to use to generate a report.

Step 2

In the tile, click the header to view a sample report.

A window displays for the sample report. Use the side bar in the window to scroll down and review the entire sample report.

Step 3

Click X to close the preview.

Step 4

In the tile, click the Generate link to configure parameters to build a report.

Figure 8. EoX report
Figure 26: Displays EoX report templates

Step 5

In the Generate a New Report window, click Let's Do It to get started.

To skip this screen in the future, check the Don't show this to me again check box.

Step 6

In the Select Report Template window, select the template from Template drop-down list.

Note



The Template consists of the individual report types within the categories for the release.

You can review an automatically generated sample in the same window.

Step 7

Click Next.

The Setup Report Scope window displays.

Step 8

In the Report Name field, enter a report name.

Step 9

In the Scope area, select the Device Type and Location to include in the report.

Note



The Setup Report Scope options change depending on the selected template.

Step 10

Click Next.

Step 11

In the Select File Type window, select the file type for the report.

Based on your report, Catalyst Center displays these File Type options:

  • PDF

  • CSV

  • Tableau Data Extract

For the CSV and Tableau Data Extract file types, a Fields option lets you select attributes (additional fields) for the CSV and Tableau Data Extract results.

Step 12

Click Next.

In the Schedule Report window, select the schedule for the report.

Step 13

Click Next.

Step 14

In the Delivery and Notification window, select the delivery mechanism for the report:

  • None: No email or webhook notifications sent.

  • Email Report: Email report is sent as a link or attachment.

    Follow the prompts to the Email tab in the Catalyst Center GUI to configure an SMTP server.

    If an SMTP server is not configured for emails, Catalyst Center prompts you to configure one.

    • As a Link: The email notification of a successful compiled report contains a link back to itself and the Generated Reports page under Reports. You can view and download the report from this link and location.

      Note



      Email notifications with embedded links to reports support up to 20 email addresses. To add multiple email addresses, you must add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    • As an Attachment: Report is attached to the email notification.

      Note



      PDF reports support email notification attachments of up to 20 MB in size and up to 10 email addresses. To add multiple email addresses, you must add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

Catalyst Center sends these email notifications for the report:

  • Report is in the queue waiting to be processed.

  • Report processing is in progress.

  • Report been has successfully compiled and is completed.

To reduce the number of notifications, you can uncheck the preceding check boxes, as needed.

  • Webhook Notification: Notification is sent as a webhook to the configured webhook URL address (callback URL).

Note



If a webhook is not created, Catalyst Center prompts you to create one. Follow the prompts to the Webhook tab in the Catalyst Center GUI to configure a webhook.

Catalyst Center sends you these status webhook notifications for the report:

  • In Queue

  • In Progress

  • Success

You can view these notifications in the GUI.

Step 15

Click Next.

Step 16

In the Summary window, review the configuration and edit any of the files, if necessary.

Step 17

Click Generate Report.

After the report is generated, a success window appears.

Step 18

Click the View the Generated Reports link.

The Generated Reports window displays with instance details of the report that was scheduled.

You can download, review, edit, duplicate, or delete the report in the Generated Reports window. For more information, see View Generated Reports.

Run an executive summary report

Follow this procedure to configure Executive Summary reports for your network.

Before you begin

Run a successful Discovery job in Catalyst Center. You can check whether a Discovery job is successful in Device Inventory. From the main menu, choose Provision > Inventory to view the results.

Procedure

Step 1

From the main menu, choose Reports > Report Templates.

The Report Templates window displays the supported reporting categories. A link represents each category. Click a link to view only the supported reports for that category.

Step 2

After clicking a link, review the Report Templates window for that selected category.

Figure 9. Executive Summary report
Figure 27: Executive Summary Report window for the selected category.

Each template is represented by a tile and contains information about the report and links to generate a report. Determine which template you want to use to generate a report. Within the tile are icons that represent the supported file types for the reports.

Step 3

In the tile, click the header to view a sample report.

A window displays for the sample report. Use the side bar in the window to scroll down and review the entire sample report. This data is presented:

  • Data metrics and summaries.

  • Graphical representation of the data (including line, bar, and pie graphs).

  • Tables that assist you in analyzing the data.

Note



You can use the sample report to plan how you want your report to look.

Step 4

Click X to close the preview.

Step 5

In the tile, click the Generate link to configure parameters to build a report.

The Generate window lets you select a format type for the report, apply data filters for your reports, and set up schedules for the actual report generation.

Step 6

In the Generate a New Report window, click Let's Do It to get started.

Step 7

In the Select Report Template window, select the template for the report.

Select the Template from the drop-down lists.

Note



The Template consists of the individual report types within the categories for the release.

You can review an auto-generated sample in the same window.

Click Next.

Step 8

In the Setup Report Scope window, name the report and select the scope and the time range.

Enter a report name in the Report Name field and click in the Scope field to display the available filter. Click the filter options that you want for the report and select the Time Range.

Note



The Setup Report Scope options change depending on the selected Template. The Executive Summary reports support up to 90 days of data retention.

Click Next.

Step 9

In the Select File Type window, select the file type for the report.

Depending on the report that you are creating, these File Type options may be available:

  • PDF

  • CSV

  • Tableau Data Extract

  • JSON

For the CSV, JSON, and Tableau Data Extract file types, a Fields option lets you select attributes (additional fields) for the CSV, JSON, and Tableau Data Extract results.

Click Next.

Step 10

In the Schedule Report window, select the schedule for the report. Then, click Next.

Step 11

In the Delivery and Notification window, select the delivery mechanism for the report:

  • None: No email or webhook notifications sent.

  • Email Report: Email report is sent as a link or attachment.

    Note



    If you have not yet configured an SMTP server for the emails, you are prompted to configure one. Follow the prompts to the Email tab in the GUI to configure an SMTP server. Select System > Settings > External Services > Destinations > Email.

    • Link: The email notification of a successfully compiled report has a link back to itself and the Generated Reports window under Reports. You can view and download the report from this link and location.

      Note



      Email notifications with embedded links to reports support up to 20 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    • Attachment: Report is attached to the email notification.

      Note



      PDF reports support email notification attachments of up to 20 MB in size and up to 10 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    Catalyst Center sends these email notifications for the report:

    • Report is in the queue waiting to be processed.

    • Report processing is in progress.

    • Report has successfully been compiled and is completed.

    To reduce the number of notifications, you can uncheck the preceding check boxes, as needed.

  • Webhook Notification: Notification is sent as a webhook to the configured webhook URL address (callback URL). Select a webhook from the drop-down list (Subscription Profile field).

    Note



    If you have not yet created a webhook, you are prompted to create one. Follow the prompts to the Webhook tab in the GUI to configure a webhook. In general, to configure a webhook, choose System > Settings > External Services > Destinations > Webhook.

    You will receive status webhook notifications for the report. For example, you will receive "In Queue," "In Progress," and "Success" webhook notifications. You will also be able to view these notifications in the GUI.

Click Next.

Step 12

In the Summary window, review the configuration and edit any of the files, if necessary.

Click Generate Report.

After the report is generated, a success window appears.

Step 13

Click the View the Generated Reports link.

The Generated Reports window shows instance details of the report that was scheduled.

You can download, review, edit, duplicate, or delete the report in the Generated Reports window. For more information, see View generated reports.

Run an inventory report

Follow this procedure to configure Inventory reports for your network.

Before you begin

Run a successful Discovery job in Catalyst Center. You can check whether a Discovery job is successful in Device Inventory. From the main menu, choose Provision > Inventory to view the results.

Procedure

Step 1

From the main menu, choose Reports > Report Templates.

The Report Templates window displays the supported reporting categories. A link represents each category. Click a link to view only the supported reports for that category.

Step 2

After clicking a link, review the Report Templates window for that selected category.

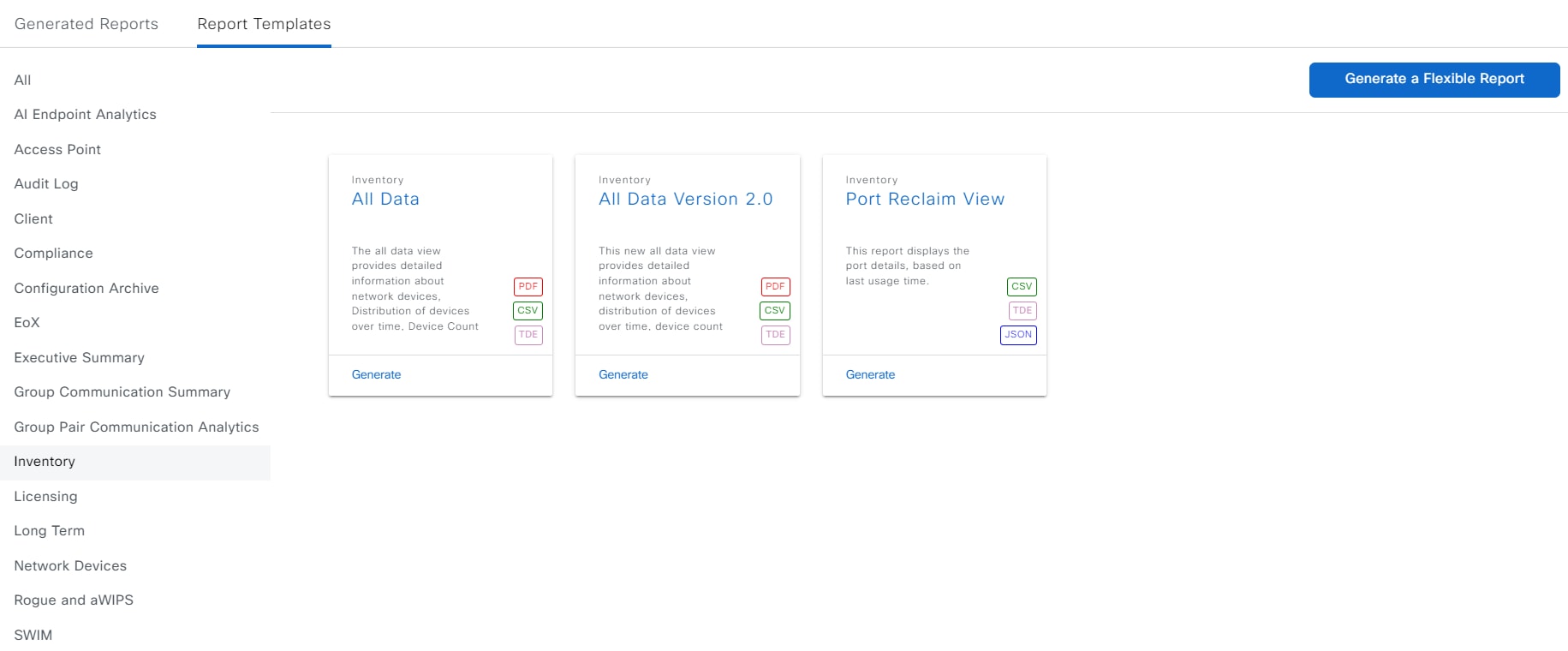

Figure 10. Inventory report
Figure 28: Window displays Inventory report templates

Each template is represented by a tile and contains information about the report and links to generate a report. Determine which template you want to use to generate a report. Within the tile are icons that represent the supported file types for the reports.

Step 3

In the tile, click the header to view a sample report.

A window displays with the sample report. Use the side bar in the window to scroll down and review the entire sample report. This data is presented:

  • Applied filters (data filters that were used to build the report).

  • Data metrics and summaries

  • Graphical representation of the data (including line, bar, and pie graphs).

  • Tables that assist you in analyzing the data.

Note



You can use the sample report to plan how you want your report to look.

Step 4

Click X to close the preview.

Step 5

In the tile, click the Generate link to configure parameters to build a report.

The Generate window lets you select a format type for the report, apply data filters for your reports, and set up schedules for the actual report generation.

Step 6

In the Generate a New Report window, click Let's Do It to get started.

To skip this screen in the future, check the Don't show this to me again check box.

Step 7

In the Select Report Template window, select the template for the report.

Select the Template from the drop-down lists.

Note



The Template consists of the individual report types within the categories for the release.

You can review an auto-generated sample in the same window.

Click Next.

Step 8

In the Setup Report Scope window, name the report and select the scope.

Enter a report name in the Report Name field and click in the Scope field to display the available filter. Click the filter options that you want for the report.

Note



The Setup Report Scope options change depending on the selected Template.

Click Next.

Step 9

In the Select File Type window, select the file type for the report.

Step 10

Click Next.

Step 11

In the Schedule Report window, select the schedule for the report.

Click Next.

Step 12

In the Delivery and Notification window, select the delivery mechanism for the report:

  • None: No email or webhook notifications sent.

  • Email Report: Email report is sent as a link or attachment.

    Note



    If you have not yet configured an SMTP server for the emails, you are prompted to configure one. Follow the prompts to the Email tab in the GUI to configure an SMTP server. Choose System > Settings > External Services > Destinations > Email.

    • Link: The email notification of a successfully compiled report has a link back to itself and the Generated Reports window under Reports. You can view and download the report from this link and location.

      Note



      Email notifications with embedded links to reports support up to 20 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    • Attachment: Report is attached to the email notification.

      Note



      PDF reports support email notification attachments of up to 20 MB in size and up to 10 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    Catalyst Center sends these email notifications for the report:

    • Report is in the queue waiting to be processed.

    • Report processing is in progress.

    • Report has successfully been compiled and is completed.

    To reduce the number of notifications, you can uncheck the preceding check boxes, as desired.

  • Webhook Notification: Notification is sent as a webhook to the configured webhook URL address (callback URL). Select a webhook from the drop-down list (Subscription Profile field).

    Note



    If you have not yet created a webhook, you are prompted to create one. Follow the prompts to the Webhook tab in the GUI to configure a webhook. In general, to configure a webhook, choose System > Settings > External Services > Destinations > Webhook.

    You will receive status webhook notifications for the report. For example, you will receive "In Queue," "In Progress," and "Success" webhook notifications. You will also be able to view these notifications in the GUI.

Click Next.

Step 13

In the Summary window, review the configuration and edit any of the files, if necessary.

Click Generate Report.

After the report is generated, a success window appears.

Step 14

Click the View the Generated Reports link.

The Generated Reports window shows instance details of the report that was scheduled.

You can download, review, edit, duplicate, or delete the report in the Generated Reports window. For more information, see View generated reports.

Run a licensing report

Follow this procedure to configure Licensing reports about your network.

Before you begin

Run a successful Discovery job in Catalyst Center. You can check whether a Discovery job is successful in Device Inventory. From the main menu, choose Provision > Inventory to view the results.

Procedure

Step 1

From the main menu, choose Reports > Report Templates.

The Report Templates window displays the supported reporting categories. A link represents each category. Click a link to view only the supported reports for that category.

Step 2

After clicking a link, review the Report Templates window for that selected category.

Figure 11. Licensing report
Figure 29: Window displays Licensing report templates

Each template is represented by a tile and contains information about the report and links to generate a report. Determine which template you want to use to generate a report. Within the tile are icons that represent the supported file types for the reports.

Step 3

In the tile, click the header to view a sample report.

A window displays for the sample report. Use the side bar in the window to scroll down and review the entire sample report. This data is presented:

  • Applied filters (data filters that were used to build the report).

  • Data metrics and summaries.

  • Tables that assist you in analyzing the data.

Note



You can use the sample report to plan how you want your report to look.

Step 4

Click X to close the preview.

Step 5

In the tile, click the Generate link to configure parameters to build a report.

The Generate window lets you select a format type for the report, apply data filters for your reports, and set up schedules for the actual report generation.

Step 6

In the Generate a New Report window, click Let's Do It to get started.

To skip this screen in the future, check the Don't show this to me again check box.

Step 7

In the Select Report Template window, select the template for the report.

select the Template from the drop-down lists.

Note



The Template consists of the individual report types within the categories for the release.

You can review an auto-generated sample in the same window.

Click Next.

Step 8

In the Setup Report Scope window, name the report and select the scope and the time range.

In the Report Name field, enter a report name and click inside the Scope field to display the available filter. Click the filter options that you want for the report and select the Time Range.

Note



The Setup Report Scope options change depending on the selected Template.

Click Next.

Step 9

In the Select File Type window, select the file type for the report.

Depending on the report that you are creating, these File Type options may be available:

  • PDF

  • CSV

  • Tableau Data Extract

  • JSON

For the CSV, JSON, and Tableau Data Extract file types, a Fields option lets you select attributes (additional fields) for the CSV, JSON, and Tableau Data Extract results.

Click Next.

Step 10

In the Schedule Report window, select the schedule for the report.

Click Next.

Step 11

In the Delivery and Notification window, select the delivery mechanism for the report:

  • None: No email or webhook notifications sent.

  • Email Report: Email report is sent as a link or attachment.

    Note



    If you have not configured an SMTP server for the emails, you are prompted to configure one. Follow the prompts to the Email tab in the GUI to configure an SMTP server. Choose System > Settings > External Services > Destinations > Email.

    • Link: The email notification of a successfully compiled report has a link to the report and to the Generated Reports window under Reports. You can view and download the report from this location.

      Note



      Email notifications with embedded links to reports support up to 20 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    • Attachment: Report is attached to the email notification.

      Note



      PDF reports support email notification attachments of up to 20 MB in size and up to 10 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    Catalyst Center sends these email notifications for the report:

    • Report is in the queue waiting to be processed.

    • Report processing is in progress.

    • Report has successfully been compiled and is completed.

    To reduce the number of notifications, you can uncheck the preceding check boxes, as desired.

  • Webhook Notification: Notification is sent as a webhook to the configured webhook URL address (callback URL). Select a webhook from the drop-down list (Subscription Profile field).

    Note



    If you have not yet created a webhook, you are prompted to create one. Follow the prompts to the Webhook tab in the GUI to configure a webhook. In general, to configure a webhook, choose System > Settings > External Services > Destinations > Webhook.

    You receive status webhook notifications for the report, for example, In Queue, In Progress, and Success. You are also able to view these notifications in the GUI.

Click Next.

Step 12

In the Summary window, review the configuration and edit the files, if necessary.

Click Generate Report.

After the report is generated, a success window appears.

Step 13

Click the View the Generated Reports link.

The Generated Reports window shows instance details of the report that was scheduled.

You can download, review, edit, duplicate, or delete the report in the Generated Reports window. For more information, see View generated reports.

Run a network devices report

Follow this procedure to configure Network Devices reports for your network.

Before you begin

Run a successful Discovery job in Catalyst Center. You can check whether a Discovery job is successful in Device Inventory. From the main menu, choose Provision > Inventory to view the results.

Procedure

Step 1

From the main menu, choose Reports > Report Templates.

The Report Templates window displays the supported reporting categories. Each category is represented by link. Click a link to view only the supported reports for that category.

Step 2

After clicking a link, review the Report Templates window for that selected category.

Figure 12. Network Devices report
Figure 30: Window displays Network Devices report templates

Each template is represented by a tile and contains information about the report and links to configure (generate) a report. Determine which template you want to use to generate a report. Within the tile are icons that represent the supported file types for the reports.

Step 3

In the tile, click the header to view a sample report.

A window displayss for the sample report. Use the side bar in the window to scroll down and review the entire sample report. This data is presented:

  • Applied filters (data filters that were used to build the report)

  • Data metrics and summaries

  • Graphical representation of the data (including line, bar, and pie graphs)

  • Tables that assist you in analyzing the data

Note



You can use the sample report to plan how you want your report to look.

Step 4

Click X to close the preview.

Step 5

In the tile, click the Generate link to configure parameters to build a report.

The Generate window lets you select a format type for the report, apply data filters for your reports, and set up schedules for the actual report generation.

Step 6

In the Generate a New Report window, click Let's Do It to get started.

Step 7

In the Setup the Report Template window, select the template for the report.

Select the Template from the drop-down menus.

Note



The Template consists of the individual report types within the categories for the release.

You can review an autogenerated sample in the same window.

Click Next.

Step 8

In the Setup Report Scope window, name the report and select the scope and the time range.

Enter a report name in the Report Name field and click in the Scope field to display the available filter. Click the filter options that you want for the report and select the Time Range.

Note



The Setup Report Scope options change depending on the selected Template.

Click Next.

Step 9

In the Select File Type window, select the file type for the report.

Depending on the report that you are creating, these File Type options may be available:

  • PDF

  • CSV

  • Tableau Data Extract

  • JSON

For the CSV, JSON, and Tableau Data Extract file types, a Fields option lets you select attributes (additional fields) for the CSV, JSON, and Tableau Data Extract results.

Click Next.

Step 10

In the Schedule Report window, select the schedule for the report.

Click Next.

Step 11

In the Delivery and Notification window, select the delivery mechanism for the report:

  • None: No email or webhook notifications sent.

  • Email Report: Email report is sent as a link or attachment.

    Note



    If you have not yet configured an SMTP server for the emails, you are prompted to configure one. Follow the prompts to the Email tab in the GUI to configure an SMTP server. Choose System > Settings > External Services > Destinations > Email.

    • Link: The email notification of a successfully compiled report will have a link back to itself and the Generated Reports window under Reports. You can view and download the report from this link and location.

      Note



      Email notifications with embedded links to reports support up to 20 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    • Attachment: Report is attached to the email notification.

      Note



      PDF reports support email notification attachments of up to 20 MB in size and up to 10 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    Catalyst Center sends this email notifications for the report:

    • Report is in the queue waiting to be processed.

    • Report processing is in progress.

    • Report has successfully been compiled and is completed.

    To reduce the number of notifications, you can uncheck the preceding check boxes, as desired.

  • Webhook Notification: Notification is sent as a webhook to the configured webhook URL address (callback URL). Select a webhook from the drop-down menu (Subscription Profile field).

    Note



    If you have not yet created a webhook, you are prompted to create one. Follow the prompts to the Webhook tab in the GUI to configure a webhook. In general, to configure a webhook, choose System > Settings > External Services > Destinations > Webhook.

    You will receive status webhook notifications for the report. For example, you will receive "In Queue," "In Progress," and "Success" webhook notifications. You will also be able to view these notifications in the GUI.

Click Next.

Step 12

In the Summary window, review the configuration and edit any of the files, if necessary.

Click Generate Report.

After the report is generated, a success window appears.

Step 13

Click the View the Generated Reports link.

The Generated Reports window shows instance details of the report that was scheduled.

You can download, review, edit, duplicate, or delete the report in the Generated Reports window. For more information, see View generated reports.

Run a rogue and aWIPS report

Follow this procedure to configure Rogue and aWIPS reports for your network.

Before you begin

Run a successful Discovery job in Catalyst Center. You can check whether a Discovery job is successful in Device Inventory. From the main menu, choose Provision > Inventory to view the results.

Procedure

Step 1

From the main menu, choose Reports > Report Templates.

The Report Templates window displays the supported reporting categories. A link represents each category. Click a link to view only the supported reports for that category.

Step 2

After clicking a link, review the Report Templates window for that selected category.

Figure 13. Rogue and aWIPS report
Figure 31: Window displays Rogue and aWIPS report templates.

Each template is represented by a tile and contains information about the report and links to generate a report. Determine which template you want to use to generate a report. Within the tile are icons that represent the supported file types for the reports.

Step 3

In the tile, click the header to view a sample report.

A window appears for the sample report. Use the side bar in the window to scroll down and review the entire sample report. This data is presented:

  • Applied filters (data filters that were used to build the report).

  • Data metrics and summaries

  • Graphical representation of the data (including line, bar, and pie graphs).

  • Tables that assist you in analyzing the data.

Note



You can use the sample report to plan how you want your report to look.

Step 4

Click X to close the preview.

Step 5

In the tile, click the Generate link to configure parameters to build a report.

The Generate window lets you select a format type for the report, apply data filters for your reports, and set up schedules for the actual report generation.

Step 6

In the Generate a New Report window, click Let's Do It to get started.

Step 7

In the Select Report Template window, select the template for the report.

select the Template from the drop-down lists.

Note



The Template consists of the individual report types within the categories for the release.

You can review an auto-generated sample in the same window.

Click Next.

Step 8

In the Setup Report Scope window, name the report and select the scope and the time range.

Enter a report name in the Report Name field and click in the Scope field to display the available filter. Click the filter options that you want for the report and select the Time Range.

Note



  • The Setup Report Scope options change depending on the selected Template.

  • If all the APs in your network are not assigned to a floor and you select Global in the Location filter, the Rogue and aWIPS report displays only the threats associated with assigned APs under the global hierarchy. To view the threats associated with unassigned APs, you must keep the location filter empty.

Click Next.

Step 9

In the Select File Type window, select the file type for the report.

Depending on the report that you are creating, these File Type options may be available:

  • PDF

  • CSV

  • Tableau Data Extract

  • JSON

For the CSV, JSON, and Tableau Data Extract file types, a Fields option lets you select attributes (additional fields) for the CSV, JSON, and Tableau Data Extract results.

Click Next.

Step 10

In the Schedule Report window, select the schedule for the report.

Click Next.

Step 11

In the Delivery and Notification window, select the delivery mechanism for the report:

  • None: No email or webhook notifications sent.

  • Email Report: Email report is sent as a link or attachment.

    Note



    If you have not yet configured an SMTP server for the emails, you are prompted to configure one. Follow the prompts to the Email tab in the GUI to configure an SMTP server. Choose System > Settings > External Services > Destinations > Email.

    • Link: The email notification of a successfully compiled report has a link back to itself and the Generated Reports window under Reports. You can view and download the report from this link and location.

      Note



      Email notifications with embedded links to reports support up to 20 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    • Attachment: Report is attached to the email notification.

      Note



      PDF reports support email notification attachments of up to 20 MB in size and up to 10 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    Catalyst Center sends these email notifications for the report:

    • Report is in the queue waiting to be processed.

    • Report processing is in progress.

    • Report has successfully been compiled and is completed.

    To reduce the number of notifications, you can uncheck the preceding check boxes, as desired.

  • Webhook Notification: Notification is sent as a webhook to the configured webhook URL address (callback URL). select a webhook from the drop-down list (Subscription Profile field).

    Note



    If you have not yet created a webhook, you are prompted to create one. Follow the prompts to the Webhook tab in the GUI to configure a webhook. In general, to configure a webhook, choose System > Settings > External Services > Destinations > Webhook.

    You will receive status webhook notifications for the report. For example, you will receive "In Queue," In Progress," and "Success" webhook notifications. You will also be able to view these notifications in the GUI.

Click Next.

Step 12

In the Summary window, review the configuration and edit any of the files, if necessary.

Click Generate Report.

After the report is generated, a success window appears.

Step 13

Click the View the Generated Reports link.

The Generated Reports window shows instance details of the report that was scheduled.

You can download, review, edit, duplicate, or delete the report in the Generated Reports window. For more information, see View generated reports.

Run an ROI report

The Catalyst Center platform ROI Insights report is a customized report that shows the productivity improvement of network operations with Catalyst Center and comparative ROI insights with a traditional NMS.

This procedure describes how to configure an ROI report for a network operation.

Procedure

Step 1

From the main menu, choose Reports > Usage Insights.

The Usage Insights window displays this information:

  • SAVINGS: Displays the time and cost saved on network operation with Catalyst Center for a selected time range.

  • ROI Insights: Lists the ROI Insights report that is created based on features, time and cost saved, usage KPIs, traditional NMS time, and actions.

  • Savings Trends: Displays the savings trend of Cost and Time for an ROI Insights report.

    Note



    The Savings Trends area appears only if the selected time range is more than a month.

Step 2

In the Campus Network Assurance, Network Device Onboarding, Campus Software Image Management, and Campus Network Segmentation areas, enter the time savings in the Hours and Minutes name fields for a traditional NMS and Catalyst Center.

  • Traditional NMS: Average time to detect and resolve an issue in the network without Catalyst Center.

  • Catalyst Center: Average time to detect and resolve an issue in the network with Catalyst Center.

Step 3

To modify the Cost Inputs and IT Inputs, click Customize ROI Insights and make the changes.

The Customize ROI Insights area displays the preconfigured Avg. Cost per IT Staff, Currency, No. of IT Staff, and Avg. Annual Hrs Worked.

Step 4

To edit the time savings for a feature, click the corresponding Edit link under the Actions column and update the time in the subsequent pop-up window.

Step 5

To select the time range for which you want to see the ROI report, click the time range drop-down list below the Customize ROI Insights pane and click a time range radio button.

  1. Select from the available time range options: 1 Month, 3 Months, 6 Months, and 1 Year.

  2. To customize the time range of ROI reports, click the time range drop-down list, click Custom, and define the Start Date and End Date.

Figure 14. Usage Insights report dashboard
Figure 32: Window displays usage insights report dashboard.

Step 6

Click Learn how these numbers are calculated above the ROI Insights table in the middle pane to see the calculation details.

The Calculation Details window shows how to calculate Time Saved and Cost Saved.

Step 7

To export the ROI report, click Export.

The supported file types for the reports are PDF and CSV.

Run a security advisories report

Perform this procedure to configure a Security Advisories report about your network.

Before you begin

Run a successful Discovery job in Catalyst Center. You can check whether a Discovery job is successful in Device Inventory. From the main menu, choose Provision > Inventory to view the results.

Procedure

Step 1

From the main menu, choose Reports > Report Templates.

The Report Templates window displays the supported reporting categories. A link represents each category. Click a link to view only the supported reports for that category.

Step 2

After clicking a link, review the Report Templates window for that selected category.

Figure 15. Security Advisories report
Figure 33: Window displays Security advisories report templates.

Each template is represented by a tile and contains information about the report and links to generate a report. Determine which template you want to use to generate a report. Within the tile are icons that represent the supported file types for the reports.

Step 3

In the tile, click the header to view a sample report.

A window appears for the sample report. Use the side bar in the window to scroll down and review the entire sample report. This data is presented:

  • Applied filters (data filters that were used to build the report).

  • Data metrics and summaries.

  • Tables that assist you in analyzing the data.

Note



You can use the sample report to plan how you want your report to look.

Step 4

Click X to close the preview.

Step 5

In the tile, click the Generate link to configure parameters to build a report.

The Generate window lets you select a format type for the report, apply data filters for your reports, and set up schedules for the actual report generation.

Step 6

In the Generate a New Report window, click Let's Do It to get started.

Step 7

In the Select Report Template window, select the template for the report.

Select the Template from the drop-down lists.

Note



The Template consists of the individual report types within the categories for the release.

You can review an auto-generated sample in the same window.

Click Next.

Step 8

In the Setup Report Scope window, name the report and select the scope and time range.

Enter a report name in the Report Name field and click in the Scope field to display the available filter. Click the filter options that you want for the report and select the Time Range.

Note



The Setup Report Scope options change depending on the selected Template.

Click Next.

Step 9

In the Select File Type window, select the file type for the report.

Depending on the report that you are creating, these File Type options may be available:

  • PDF

  • CSV

  • Tableau Data Extract

  • JSON

For the CSV, JSON, and Tableau Data Extract file types, a Fields option lets you select attributes (additional fields) for the CSV, JSON, and Tableau Data Extract results.

Click Next.

Step 10

In the Schedule Report window, select the schedule for the report.

Click Next.

Step 11

In the Delivery and Notification window, select the delivery mechanism for the report:

  • Email Report: Email report is sent as a link or attachment.

    Note



    If you have not yet configured an SMTP server for the emails, you are prompted to configure one. Follow the prompts to the Email tab in the GUI to configure an SMTP server. Choose System > Settings > External Services > Destinations > Email.

    • Link: The email notification of a successfully compiled report has a link back to itself and the Generated Reports window under Reports. You can view and download the report from this link and location.

      Note



      Email notifications with embedded links to reports support up to 20 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    • Attachment: Report is attached to the email notification.

      Note



      PDF reports support email notification attachments of up to 20 MB in size and up to 10 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    Catalyst Center sends thse email notifications for the report:

    • Report is in the queue waiting to be processed.

    • Report processing is in progress.

    • Report has successfully been compiled and is completed.

    To reduce the number of notifications, you can uncheck the preceding check boxes, as desired.

  • Webhook Notification: Notification is sent as a webhook to the configured webhook URL address (callback URL). Select a webhook from the drop-down list (Subscription Profile field).

    Note



    If you have not yet created a webhook, you are prompted to create one. Follow the prompts to the Webhook tab in the GUI to configure a webhook. In general, to configure a webhook, choose System > Settings > External Services > Destinations > Webhook.

    You will receive status webhook notifications for the report. For example, you will receive "In Queue," "In Progress," and "Success" webhook notifications. You will also be able to view these notifications in the GUI.

Click Next.

Step 12

In the Summary window, review the configuration and edit any of the files, if necessary.

Click Generate Report.

After the report is generated, a success window appears.

Step 13

Click the View the Generated Reports link.

The Generated Reports window shows instance details of the report that was scheduled.

You can download, review, edit, duplicate, or delete the report in the Generated Reports window. For more information, see View generated reports.

Run a SWIM report

Follow this procedure to configure SWIM reports about your network.

Before you begin

Run a successful Discovery job in Catalyst Center. You can check whether a Discovery job is successful in Device Inventory. From the main menu, choose Provision > Inventory to view the results.

Procedure

Step 1

From the main menu, choose Reports > Report Templates.

The Report Templates window displays the supported reporting categories. A link represents each category. Click a link to view only the supported reports for that category.

Step 2

After clicking a link, review the Report Templates window for that selected category.

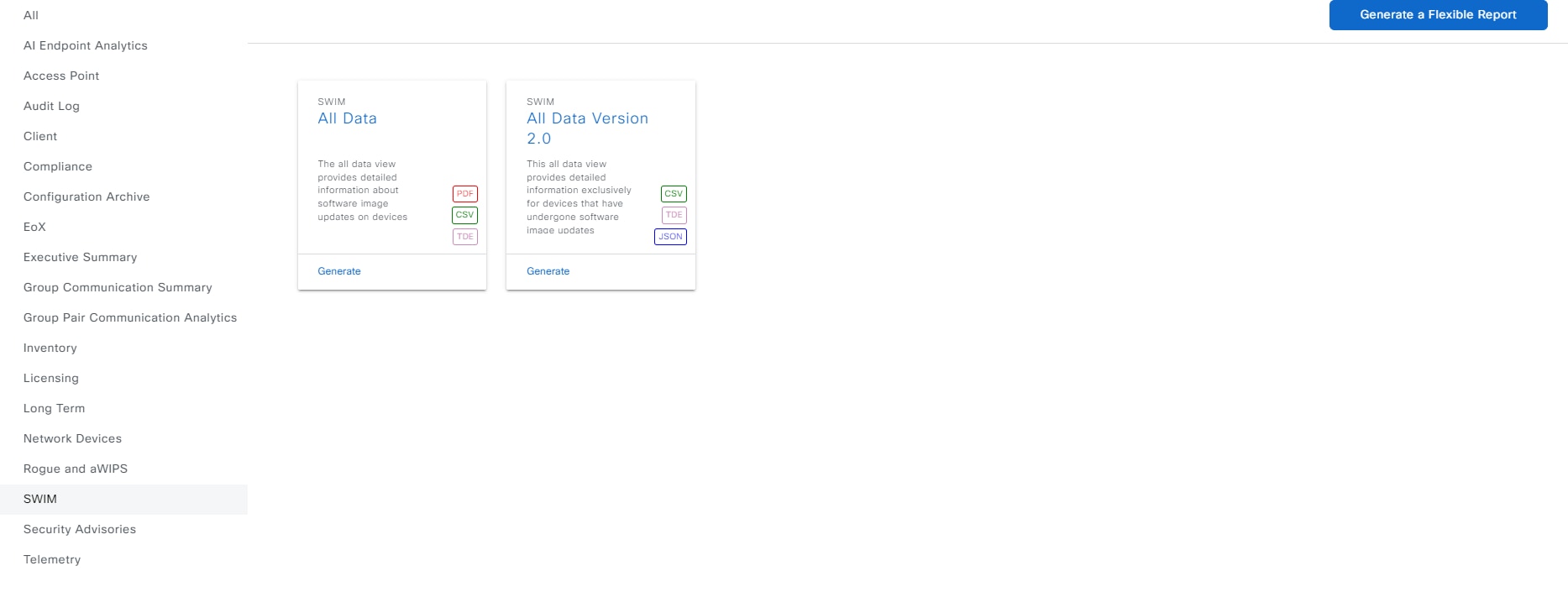

Figure 16. SWIM report
Figure 34: SWIM Report for selected category.

Each template is represented by a tile and contains information about the report and links to generate a report. Determine which template you want to use to generate a report. Within the tile are icons that represent the supported file types for the reports.

Step 3

In the tile, click the header to view a sample report.

A window appears for the sample report. Use the side bar in the window to scroll down and review the entire sample report. This data is presented:

  • Applied filters (data filters that were used to build the report).

  • Data metrics and summaries.

  • Tables that assist you in analyzing the data.

Note



You can use the sample report to plan how you want your report to look.

Step 4

Click X to close the preview.

Step 5

In the tile, click the Generate link to configure parameters to build a report.

The Generate window lets you select a format type for the report, apply data filters for your reports, and set up schedules for the actual report generation.

Step 6

In the Generate a New Report window, click Let's Do It to get started.

To skip this screen in the future, check the Don't show this to me again check box.

Step 7

In the Select Report Template window, select the template for the report.

Select the Template from the drop-down lists.

Note



The Template consists of the individual report types within the categories for the release.

You can review an auto-generated sample in the same window.

Click Next.

Step 8

In the Setup Report Scope window, name the report and select the scope and time range.

Enter a report name in the Report Name field and click in the Scope field to display the available filter. Click the filter options that you want for the report and select the Time Range.

Note



The Setup Report Scope options change depending on the selected Template.

Click Next.

Step 9

In the Select File Type window, select the file type for the report.

Depending on the report that you are creating, these File Type options may be available:

  • PDF

  • CSV

  • Tableau Data Extract

  • JSON

For the CSV, JSON, and Tableau Data Extract file types, a Fields option lets you select attributes (additional fields) for the CSV, JSON, and Tableau Data Extract results.

Click Next.

Step 10

In the Schedule Report window, select the time range and schedule for the report.

Click Next.

Step 11

In the Delivery and Notification window, select the delivery mechanism for the report:

  • None: No email or webhook notifications sent.

  • Email Report: Email report is sent as a link or attachment.

    Note



    If you have not yet configured an SMTP server for the emails, you are prompted to configure one. Follow the prompts to the Email tab in the GUI to configure an SMTP server. Choose System > Settings > External Services > Destinations > Email.

    • Link: The email notification of a successfully compiled report has a link back to itself and the Generated Reports window under Reports. You can view and download the report from this link and location.

      Note



      Email notifications with embedded links to reports support up to 20 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    • Attachment: Report is attached to the email notification.

      Note



      PDF reports support email notification attachments of up to 20 MB in size and up to 10 email addresses. To add multiple email addresses, you need to add each email address separately and press Enter (on your keyboard) after each addition. Catalyst Center platform validates the email addresses and notifies you if the syntax is incorrect.

    Catalyst Center sends these email notifications for the report:

    • Report is in the queue waiting to be processed.

    • Report processing is in progress.

    • Report has successfully been compiled and is completed.

    To reduce the number of notifications, you can uncheck the preceding check boxes, as desired.

  • Webhook Notification: Notification is sent as a webhook to the configured webhook URL address (callback URL). Select a webhook from the drop-down list (Subscription Profile field).

    Note



    If you have not yet created a webhook, you are prompted to create one. Follow the prompts to the Webhook tab in the GUI to configure a webhook. In general, to configure a webhook, choose System > Settings > External Services > Destinations > Webhook.

    You will receive status webhook notifications for the report. For example, you will receive "In Queue," "In Progress," and "Success" webhook notifications. You will also be able to view these notifications in the GUI.

Click Next.

Step 12

In the Summary window, review the configuration and edit any of the files, if necessary.

Click Next.

After the report is generated, a success window appears.

Step 13

Click the View the Generated Reports link.

The Generated Reports window shows instance details of the report that was scheduled.

You can download, review, edit, duplicate, or delete the report in the Generated Reports window. For more information, see View generated reports.

Generate a flexible report

Catalyst Center allows you the flexibility to generate customized reports for your wired and wireless networks. This procedure describes how to configure Flexible reports based on your choice of entity, attributes, aggregation, and filters.

You can configure Flexible reports using the Reports window in the Catalyst Center GUI.

Before you begin

Run a successful Discovery job in Catalyst Center. You can check whether a Discovery job is successful in Device Inventory. From the main menu, choose Provision > Inventory to view the results.

Procedure

Step 1

From the main menu, choose Reports > Report Templates.

Figure 17. Generate a flexible report
Figure 35: Window displays the Generate a Flexible Report option

Step 2

Click Generate a Flexible Report.

Note



Alternatively, click the menu icon and choose Workflows > Flexible Report.

Step 3

In the Flexible Report window, click Let’s Do it to get started.

The Name Your Report and Select a Time Range for this Report window appears.

Note



To skip the Flexible Report dialog box in the future, check the Don't show this to me again check box.

Step 4

In the Report Name field, enter the name of your report. Select the Time Range.

Note



  • The supported time range for Client reports is 90 days.

  • For Network Device, PoE and AP reports, the supported time range is 30 days.

Step 5

Click Next.

Step 6

In the Create a Subreport window, enter the Subreport Name and select the entity, report type, filter criteria, and respective attributes.

In this release, these options are available in the Select an entity drop-down list:

  • Network Device

  • PoE

  • AP

  • SWIM

  • Client

These Report Type options are available:

  • Trend

  • Summary

  • Top N

  • Distribution

Select the filter criteria for the selected report type.

For example, for a Trend report type, select Trending Interval from the drop-down list.

Select the attributes from the Attributes available for this report type area.

You can configure groups based on the group-by, sort-by, and aggregate options available for each attribute.

Note


Selection of attributes supporting group-by and aggregate options is mandatory for Trend and Distribution report types. Selection of an attribute supporting the sort-by option is mandatory for Top N report type.

Step 7

Click Next.

Step 8

In the Configure Group By, Aggregates and Sorting Options as Applicable window, do these tasks

  • Select Configure Group By.

    Note



    Configure Group By is required or optional based on the chosen report type.

  • Select Aggregate Options for each of the supported attributes from the drop-down list.

  • In Configure Sorting Option, you can select either Target Attributes or Sort Type for each subreport, and then select respective options from the drop-down list.

Step 9

Click Next.

The Filters for the Current Subreport window opens.

  • Select a filter option from the drop-down list and set corresponding filter values.

    Check the Apply this filter for the entire report check box, if necessary.

  • Configure the field filters available for the report.

    Select a filter from the drop-down list. Based on the selection, configure the Operator and Value options, or select a range, and then select the corresponding Unit.

    Note



    In this release, the operator-based filter options are available for the Client, AP and Network Device entities.

Step 10

Click Next.

The Would you like to add another Subreport window opens.

Step 11

Select Yes to add another subreport.

In the Subreports Created area, you can edit the parameters of any subreport, if necessary.

Click Next.

Step 12

In the Schedule the Report, Select Output Format and Choose the Delivery Method window, do these tasks:

  • Select the schedule for the report.

  • Select the output file format.

    Note



    In this release, the supported report file format is CSV. The flexible report allows you to generate or view separate CSV files for each subreport, or download or view related subreports together as a ZIP file.

  • Select the delivery mechanism for the report.

    Note



    You can configure Integration Settings using the link available to enable delivery options.

    The report delivery options include:

    • None: You can select to only view the report.

    • Email Report: Email report is sent as a link or attachment.

      Note



      If you have not yet configured an SMTP server for the emails, you are prompted to configure one. Follow the prompts to the Email tab in the GUI to configure an SMTP server. Choose System > Settings > External Services > Destinations > Email.

    • Webhook Notification: Notification is sent as a webhook to the configured webhook URL address (callback URL). Select a webhook from the drop-down list (Subscription Profile field).

      Note



      If you have not yet created a webhook, you are prompted to create one. Follow the prompts to the Webhook tab in the GUI to configure a webhook. In general, to configure a webhook, choose System > Settings > External Services > Destinations > Webhook.

      Catalyst Center sends these status webhook notifications for the report:

      • In Queue

      • In Progress

      • Success

    You can also view these notifications in the GUI.

Step 13

Click Next.

In the Summary window, you can review the subreports and edit the parameters, if necessary.

Step 14

Click Generate Report.

After you generate the report, a success window appears with these options:

  • Create Another Flexible Report

  • View the Generated Reports

Step 15

Click View the Generated Reports.

The Generated Reports window shows details of the new flexible report.

You can download, review, edit, duplicate, or delete the report in the Generated Reports window. For more information, see View generated reports.

View generated reports

Follow this procedure to download, review, edit, duplicate, or delete a previously generated report.

Figure 18. Generated reports
Figure 36: Window displays generated reports.

Before you begin

  • Run a successful Discovery job in Catalyst Center. You can check whether a Discovery job is successful in Device Inventory. From the main menu, choose Provision > Inventory to view the results.

  • Create a report using the Schedule functionality in the Catalog.

Procedure

Step 1

From the main menu, choose Reports.

Step 2

Click Generated Reports.

This information appears:

  • Report Name: Name of the report.

    If you did not give the report a name, a default name is given to the report that contains the report type with the date and time of the report.

    Note



    The report name is a link that opens up a view of the report itself within the Generated Reports window. Use the Download link to download a copy of the report.

  • Schedule: One-time generated report or reoccurring report. Also displayed is a brief description of the schedule that generated the report.

  • Last Run: Displays report execution status and details. These report execution status types may appear:

    • Not Initiated: Report scheduled but not yet started.

    • In Queue: Report scheduled and in the processing queue to be executed.

    • In Progress: Report currently being executed.

    • Completed: Report execution completed displaying the date and time.

      Clicking on the icon (downward pointing arrow) downloads the last generated report.

    • Expired: Report expired and no longer available in Catalyst Center.

    • Error: Report execution failed.

  • Reports: Number of reports up to a total of seven.

    Hover (mouse) over the displayed report number and View Report List appears. Click View Report List to display a reports dialog box. The reports dialog box lists all the report executions, their status (Not Initiated, In Queue, In Progress, Completed, Expired, and Error) and a Download button to download a copy. Clicking Error displays any errors and warnings for the report execution.

    Important



    Catalyst Center retains a total of seven reports. Specifically, Catalyst Center retains the last seven reports that are executed, as well as the last seven reports executed over the last seven days (week). For example, if you run eight reports in a single day, Catalyst Center only retains the last seven reports. If you schedule one report for each day, Catalyst Center retains only the most recent seven reports over the last seven days (week). You can export the reports in their various formats from Catalyst Center and archive them to a safe location.

  • Format: File format type, such as PDF or CSV.

  • Template Category: Type of report based on the catalog options (Client, Executive Summary, SWIM, or Inventory).

  • Report Template: Template used when generating the report.

  • Actions: List of tasks you can perform with the reports.

You can adjust the downloads that display in the GUI by clicking the Filter icon and using the filter, or by entering a keyword in the Find field.

Step 3

Click Actions to do one or more of these tasks:

  • View Config: Opens a window where the configured parameters for the report are displayed (including the schedule). You can review the configured report parameters in this window. You cannot make any changes to the report configuration in this read-only window. If you must edit the configuration, click Edit. You can both view and edit a report configuration by clicking Edit.

  • Edit: Opens a window where configured parameters for the report are displayed (including the schedule). You can review the parameters and also edit them in this window. Click Save after making any edits to the report.

    Important



    After you edit and update the report configuration, any future report executions reflect this new configuration. This is important if reports are being generated on a reoccurring schedule. Also, if you edit and update a report configuration, all the previous reports in Catalyst Center will be deleted. The GUI displays a warning about the deletion when clicking Save. You do not have to make any edits in the configuration to click Save and delete all previous reports.

  • Duplicate: Opens the Duplicate window, where you can either view or configure the parameters for the report. Click Generate Report to generate the report again.

    Note



    If you want to create a new report based on an existing report and its configuration, use the Duplicate option and make changes to the configuration. This lets you create a new report similar to the existing one, while retaining the existing report and its configuration. If you want to discard the existing report and completely replace it with a new report, use the View Config and Edit options as described previously.

  • Run Now: Starts the process to execute the report. A success message appears after a successful report execution.

    Note



    If you try to execute a report and there are seven previous reports, the GUI displays a warning that only the last seven reports are saved. You use the Run Now option when you must generate a report outside of an existing schedule for the reports.

  • Delete: Deletes the report. You are prompted to confirm the action before the report is deleted.
