Cisco wireless access point product family

Ordering information

Tables 1 through 4 provide ordering information for the Cisco® wireless access points. To place an order, visit the Cisco Ordering homepage. To download software, visit the Cisco Software Center.

Note:

     Customers are responsible for verifying approval for use in their individual countries. To verify approval that corresponds to a particular country or the regulatory domain used in a specific country, visit https://www.cisco.com/go/compliance.

     Regulatory domain approval occurs in phases. As they are approved, the part numbers will be available on the Cisco Global Price List (GPL).

     Regulatory domains: (x=regulatory domain)

Table 1.           Indoor access points

Product name

Part number

Description

Cisco Catalyst 9136 Series

C9136I-x

Cisco Catalyst 9136I Access Point, Wi-Fi 6E, Internal Antennas, 4x4+8x8+4x4 MIMO

Cisco Catalyst9130AX Series

C9130AXI-x

Cisco Catalyst 9130AXI Access Point, internal antennas; 802.11ax; 8x8:8 MIMO

C9130AXE-x

Cisco Catalyst 9130AXE Access Point, external antennas; 802.11ax; 8x8:8 MIMO

C9130AXE-STA-x

Cisco Catalyst 9130AXE Stadium Antenna Access Point, external antennas (C-ANT9104); 802.11ax; dual 5GHz MIMO

Cisco Catalyst 9120AX Series

C9120AXI-x

Cisco Catalyst 9120AXI Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO

C9120AXE-x

Cisco Catalyst 9120AXE Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO

C9120AXP-x

Cisco Catalyst 9120AXP Access Point, external antennas; professional install; Wi-Fi 6; 4x4:4 MIMO

Cisco Catalyst 9115AX Series

C9115AXI-x

Cisco Catalyst 9115AXI Access Point, internal antenna; Wi-Fi 6; 4x4:4 MIMO

C9115AXE-x

Cisco Catalyst 9115AXE Access Point, external antenna; Wi-Fi 6; 4x4:4 MIMO

Cisco Catalyst 9105AX Series

C9105AXI-x

Cisco Catalyst 9105AX Access Point, internal antenna; ceiling mount, Wi-Fi 6; 2x2:2 MIMO

C9105AXW-x

Cisco Catalyst 9105AX Access Point, internal antenna; wall mount, Wi-Fi 6; 2x2:2 MIMO

Cisco Aironet® 4800

AIR-AP4800-x-K9

Cisco Aironet 4800 Access Point, internal antenna, 802.11ac Wave 2; 4x4:3 MIMO; mGig; 3rd Radio

Cisco Aironet 3800 Series

AIR-AP3802I-x-K9

Cisco Aironet 3800i Access Point, internal antenna, 802.11ac Wave 2; 4x4:3 MIMO; mGig

AIR-AP3802E-x-K9

Cisco Aironet 3800e Access Point, external antenna, 802.11ac Wave 2; 4x4:3 MIMO; mGig

AIR-AP3802P-x-K9

Cisco Aironet 3800p Access Point, pro external antenna, 802.11ac Wave 2; 4x4:3 MIMO; mGig

Cisco Aironet 2800 Series

AIR-AP2802I-x-K9

Cisco Aironet 2800i Access Point, internal antenna, 802.11ac Wave 2; 4x4:3 MIMO

AIR-AP2802E-x-K9

Cisco Aironet 2800e Access Point, external antenna, 802.11ac Wave 2; 4x4:3 MIMO

Cisco Aironet 1850 Series

AIR-AP1852I-x-K9

Cisco Aironet 1850i Access Point, internal antenna, 802.11ac Wave 2; 4x4:4 MIMO

AIR-AP1852E-x-K9

Cisco Aironet 1850e Access Point, external antenna, 802.11ac Wave 2; 4x4:4 MIMO

Cisco Aironet 1840 Series

AIR-AP1840I-x-K9

Cisco Aironet 1840i Access Point, internal antenna, 802.11ac Wave 2; 4x4:4 MIMO

Cisco Aironet 1830 Series

AIR-AP1832I-x-K9

Cisco Aironet 1830i Access Point, internal antenna, 802.11ac Wave 2; 3x3:2 MIMO

Cisco Aironet 1815i

AIR-AP1815i-x-K9

Cisco Aironet 1815i Access Point, internal antenna, 802.11ac Wave 2; 2x2:2 MIMO; BLE

Cisco Aironet 1815w

AIR-AP1815w-x-K9

Cisco Aironet 1815w Wall Plate Access Point, internal antenna, 802.11ac Wave 2; 2x2:2 MIMO; BLE

Cisco Aironet 1815t

AIR-AP1815t-x-K9

Cisco Aironet 1815t Access Point, internal antenna, 802.11ac Wave 2; 2x2:2 MIMO; Teleworker

Cisco Aironet 1815m

AIR-AP1815m-x-K9

Cisco Aironet 1815m Access Point, internal antenna, 802.11ac Wave 2; 2x2:2 MIMO; High Tx Power

Table 2.           Outdoor access points

Product name

Part number

Description

Cisco Catalyst 9124AX Series

C9124AXI-x

Cisco Catalyst 9124AX Outdoor Access Point, internal omnidirectional antenna; Wi-Fi 6; 4x4:4 MIMO

C9124AXD-x

Cisco Catalyst 9124AX Outdoor Access Point, internal directional antenna; Wi-Fi 6; 4x4:4 MIMO

C9124AXE-x

Cisco Catalyst 9124AX Outdoor Access Point, external omnidirectional antenna; Wi-Fi 6; 4x4:4 MIMO

Cisco Aironet 1560 Series

AIR-AP1562I-x-K9

Cisco Aironet 1562I Outdoor Access Point, internal antenna, 802.11ac Wave 2; 3x3:3 MIMO; IP67; Fiber SFP

AIR-AP1562E-x-K9

Cisco Aironet 1562E Outdoor Access Point, external antenna, 802.11ac Wave 2; 2x2:2 MIMO; IP67; Fiber SFP

AIR-AP1562D-x-K9

Cisco Aironet 1562D Outdoor Access Point, directional antenna, 802.11ac Wave 2; 2x2:2 MIMO; IP67; SFP

Cisco Aironet 1540 Series

AIR-AP1542I-x-K9

Cisco Aironet 1540I Outdoor Access Point, internal antenna, 802.11ac Wave 2; 2x2:2 MIMO; IP67

AIR-AP1542D-x-K9

Cisco Aironet 1540D Outdoor Access Point, directional antenna, 802.11ac Wave 2; 2x2:2 MIMO; IP67

Table 3.           Sensor

Product name

Part number

Description

Cisco Aironet Active Sensor

AIR-AP1800S-x-K9

Cisco Aironet 1800 Active Sensor, internal antenna, 802.11ac Wave 2; 2x2:2 MIMO

Table 4.           Mobility Express access points

Product name

Part number

Description

Cisco Aironet 4800 Series

AIR-AP4800-x-K9C

Cisco Aironet 4800 Access Point, internal antenna, 802.11ac Wave 2; 4x4:3 MIMO, Mobility Express

Cisco Aironet 3800 Series

AIR-AP3802I-x-K9C

Cisco Aironet 3800i Access Point, internal antenna, 802.11ac Wave 2; 4x4:3 MIMO, Mobility Express

AIR-AP3802E-x-K9C

Cisco Aironet 3800e Access Point, external antenna, 802.11ac Wave 2; 4x4:3 MIMO, Mobility Express

AIR-AP3802P-x-K9C

Cisco Aironet 3800p Access Point, pro external antenna, 802.11ac Wave 2; 4x4:3 MIMO, Mobility Express

Cisco Aironet 2800 Series

AIR-AP2802I-x-K9C

Cisco Aironet 2800i Access Point, internal antenna, 802.11ac Wave 2; 4x4:3 MIMO, Mobility Express

AIR-AP2802E-x-K9C

Cisco Aironet 2800e Access Point, external antenna, 802.11ac Wave 2; 4x4:3 MIMO, Mobility Express

Cisco Aironet 1850 Series

AIR-AP1852I-x-K9C

Cisco Aironet 1850i Access Point, internal antenna, 802.11ac Wave 2; 4x4:4 MIMO, Mobility Express

AIR-AP1852E-x-K9C

Cisco Aironet 1850e Access Point, external antenna, 802.11ac Wave 2; 4x4:4 MIMO, Mobility Express

Cisco Aironet 1840 Series

AIR-AP1840I-x-K9

Cisco Aironet 1840i Access Point, internal antenna, 802.11ac Wave 2; 4x4:4 MIMO

Cisco Aironet 1830 Series

AIR-AP1832I-x-K9C

Cisco Aironet 1830i Access Point, internal antenna, 802.11ac Wave 2; 3x3:2 MIMO, Mobility Express

Cisco Aironet 1815 Series

AIR-AP1815i-x-K9C

Cisco Aironet 1815i Access Point, internal antenna, 802.11ac Wave 2; 2x2:2 MIMO, Mobility Express

AIR-AP1815w-x-K9C

Cisco Aironet 1815w Wall Plate Access Point, internal antenna, 802.11ac Wave 2; 2x2:2 MIMO; ME

AIR-AP1815t-x-K9C

Cisco Aironet 1815t Access Point, internal antenna, 802.11ac Wave 2; 2x2:2 MIMO; Teleworker, ME

AIR-AP1815m-x-K9C

Cisco Aironet 1815m Access Point, internal antenna, 802.11ac Wave 2; 2x2:2 MIMO; High Tx Power, ME

Note:      Embedded Wireless Controller part numbers can be found under Table 7 of Catalyst 9800 wireless platform part numbers.

Note:      “x” is a placeholder for the regulatory domain designator. Visit https://www.cisco.com/go/aironet/compliance to determine which regulatory domain is used in your country. The regulatory domain used in your country may differ depending on access point model, and some models are not available for all countries.

Cisco Catalyst 9100 Indoor Access Points ordering steps

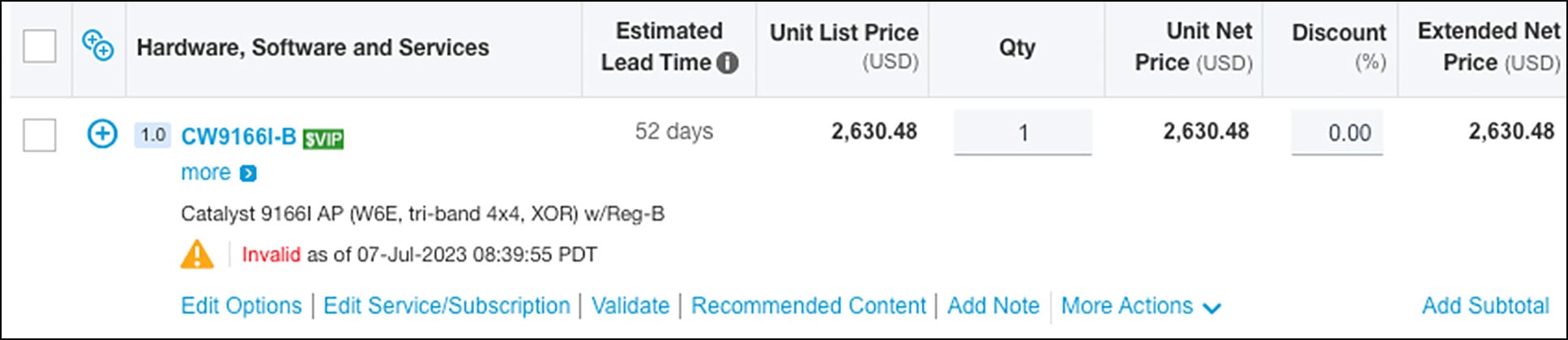

1.     Select the access point model based on requirements and as per the correct country’s regulatory domain.

Table 5.           Access Points

AP part number

Description

C9136I-x

Cisco Catalyst 9136I Access Point, Wi-Fi 6E, Internal Antennas, 4x4+8x8+4x4 MIMO

C9130AXI-x

Cisco Catalyst 9130AXI Access Point, internal antennas; 802.11ax; 8x8:8 MIMO

C9130AXE-x

Cisco Catalyst 9130AXE Access Point, external antennas; 802.11ax; 8x8:8 MIMO

C9130AXE-STA-x

Cisco Catalyst 9130AXE Access Point, C-9104 Stadium Antenna; 802.11ax; Dual 5GHz MIMO

C9120AXI-x

Cisco Catalyst 9120AXI Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO

C9120AXE-x

Cisco Catalyst 9120AXE Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO

C9120AXP-x

Cisco Catalyst 9120AXP Access Point, external antennas; professional install; Wi-Fi 6; 4x4:4 MIMO

C9115AXI-x

Cisco Catalyst 9115AXI Access Point, internal antenna; Wi-Fi 6; 4x4:4 MIMO

C9115AXE-x

Cisco Catalyst 9115AXE Access Point, external antenna; Wi-Fi 6; 4x4:4 MIMO

C9105AXI-x

Cisco Catalyst 9105AX Access Point, internal antenna; ceiling mount, Wi-Fi 6; 2x2:2 MIMO

C9105AXW-x

Cisco Catalyst 9105AX Access Point, internal antenna; wall mount, Wi-Fi 6; 2x2:2 MIMO

Note:      When customers order the Cisco Catalyst 9130AXE Access Point, the following instructions need to be adhered to:

2.     Customer either has to order new cables and bracket (see below) and use current antennas:

Table 6.           Antenna Connector and Brackets

AP part number

Description

AIR-CAB002-D8-R=

8-Port Smart antenna connector to RP-TNC connectors, 2ft

AIR-CAB003-D8-N=

8-Port Smart antenna connector to N-Type connectors, 3ft

3.     Or purchase one of the newly released 8x8 antennas, which has the DART cables attached, and bracket:

Table 7.           8-Port Antenna and Brackets

AP part number

Description

C-ANT9101=

2.4/5/6 GHz Ceiling mount omni antenna, 8-port, DART, Self ID

C-ANT9102=

2.4/5/6 GHz Multi mount omni antenna, 8-port, DART, Self ID

C-ANT9103=

2.4/5/6 GHz Directional antenna, 8-port, DART, Self ID

AIR-AP-BRACKET-9=

C9130AXE antenna bracket

4.     The Cisco Embedded Wireless Controller is now available for the Cisco Catalyst access points.

1.    Select appropriate software.

Table 8.           Software

Software part number

Description

SWxxxx-CAPWAP-K9

CAPWAP software

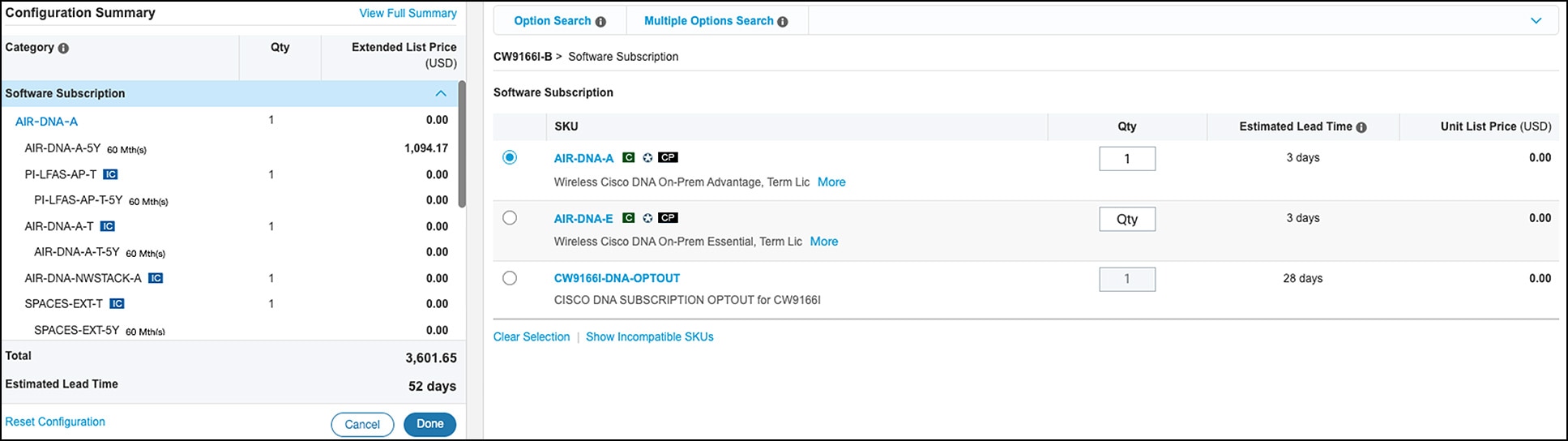

5.     Cisco DNA License are required when using APs with the Catalyst 9800 Series Controllers and Cisco DNA Center (On-Prem). Select your required Cisco DNA license and subscription duration from the following licensing tier options:

     Essentials (-E) - AIR-DNA-E

     Advantage (-A) - AIR-DNA-A

When ordering the Catalyst 9100, Aironet 4800 or 1815w one of the following Cisco DNA options must be selected in 3-year, 5-year, or 7-year subscription terms:

Table 9.           Cisco DNA Subscription

Cisco DNA part number

Subscription option

Description

AIR-DNA-E

AIR-DNA-E-3Y

Cisco DNA Essentials license with 3-year subscription

AIR-DNA-E-5Y

Cisco DNA Essentials license with 5-year subscription

AIR-DNA-E-7Y

Cisco DNA Essentials license with 7-year subscription

AIR-DNA-A

AIR-DNA-A-3Y

Cisco DNA Advantage license with 3-year subscription

AIR-DNA-A-5Y*

Cisco DNA Advantage license with 5-year subscription (default option)

AIR-DNA-A-7Y

Cisco DNA Advantage license with 7-year subscription

* Note: AIR-DNA Advantage with a 5-year subscription option is selected by default.

6.     Select 2.4/5 GHz dual-band external antennas (applicable if the external antenna version of the access point is selected).

Table 10.       External Antennas

Antenna part number

Description

AIR-ANT2524DW-RS

Cisco Aironet dual-band dipole antenna; White; Peak Gain 2 dBi at 2.4. GHz and 4 dBi at 5 GHz

AIR-ANT2535SDW-RS

Cisco Aironet short dual-band omni antenna, Peak Gain 3 dBi at 2.4. GHz and 5 dBi at 5 GHz

AIR-ANT2524V4C-RS=

Cisco Aironet omni antenna, ceiling mount, Peak Gain 2 dBi at 2.4. GHz and 4 dBi at 5 GHz

AIR-ANT2544V4M-RS=

Cisco Aironet omni antenna, wall/pole mount, Peak Gain 2 dBi at 2.4 GHz and 4 dBi at 5 GHz

AIR-ANT2566P4W-RS=

Cisco Aironet patch antenna, wall/pole mount, Peak Gain 6 dBi at 2.4 GHz and 6 dBi at 5 GHz

AIR-ANT2566D4M-RS=

Cisco Aironet directional antenna, wall/pole mount, Peak Gain 6 dBi at 2.4 GHz and 6 dBi at 5 GHz

AIR-ANT2513P4M-NS=

Cisco Aironet directional antenna, wall/pole mount, Peak Gain 13 dBi at 2.4 GHz and 13 dBi at 5 GHz

AIR-ANT2566P4W-DS=

Cisco Aironet patch antenna, wall/pole mount, Peak Gain 6 dBi at 2.4 GHz and 6 dBi at 5 GHz, 4-port DART connector

AIR-ANT2566D4M-DS=

Cisco Aironet directional antenna, wall/pole mount, Peak Gain 6 dBi at 2.4 GHz and 6 dBi at 5 GHz, 4-port DART connector

7.     Select access point mounting brackets.

Table 11.       Mounting Brackets

Part number

Description

AIR-AP-NO-BRACKET

Select this option if no bracket is required

AIR-AP-BRACKET-1

Low-profile access point mounting bracket, default option

AIR-AP-BRACKET-2

Universal bracket for access point mounting

AIR-AP-BRACKET-W4

Bracket for Cisco Catalyst 9105w access point mounting

AIR-AP-BRACKET-8

Bracket for Cisco Catalyst 9105i access point mounting

8.     Select ceiling grid clips.

Table 12.       Ceiling grid clips

Part number

Description

AIR-AP-T-RAIL-R

Ceiling grid clip (recessed mounting); this is the default option

AIR-AP-T-RAIL-F

Ceiling grid clip (flush mounting)

AIR-CHNL-ADAPTER

Optional adapter for channel-rail ceiling grid profile

9.     Select the access point powering options (to be ordered separately, as per the requirement).

Table 13.       Powering options

Source

Description

AIR-PWRINJ7=

802.3bt Cisco Power Injector, 5Gbps Ethernet

AIR-PWRINJ6=

802.3at Cisco Power Injector

AIR-PWRINJ5=

802.3af Cisco Power Injector

PoE+ via switch port

Any 802.3at (30.0 W) compliant switch port

Note:      Please check access point data sheets for power requirements. In some applications, if AIR-PWRINJ5 is used the access point will work with reduced features. For more details, refer to the respective access point data sheet.

Cisco Catalyst 9100 Outdoor Access Points ordering steps

1.     Select the access point model based on requirements and as per the correct country’s regulatory domain.

Table 14.       Access points

AP part number

Description

C9124AXI-x

Cisco Catalyst 9124AX Outdoor Access Point, internal omnidirectional antenna; Wi-Fi 6; 4x4:4 MIMO

C9124AXD-x

Cisco Catalyst 9124AX Outdoor Access Point, internal directional antenna; Wi-Fi 6; 4x4:4 MIMO

C9124AXE-x

Cisco Catalyst 9124AX Outdoor Access Point, external antenna; Wi-Fi 6; 4x4:4 MIMO

Note:      When customers order a Cisco Catalyst 9124AX Series Access Point, the following instructions need to be adhered to.

Note:      Some components are available as a “configurable” option or as a “spare.”

     A “configurable” option ships in the same main box as the access point. For example, AIR-MNT-VERT1 is a “configurable” option and, if ordered, is shipped with the access point in the same box.

     A “spare” option is denoted with an equal (=) sign at the end of the part number. For example, AIR-MNT-ART1 = is a “spare” and, if ordered, is shipped in separate packaging.

2.     Select appropriate software.

Table 15.       Software

Software part number

Description

SW9124AX-CAPWAP-K9

CAPWAP software

3.     Cisco DNA software licenses are required when using APs with the Catalyst 9800 Series wireless controllers and Cisco DNA Center (on-premises). Select your required Cisco DNA license and subscription duration from the following licensing tier options:

    Essentials (-E) - AIR-DNA-E

    Advantage (-A) - AIR-DNA-A

When ordering the Catalyst 9100, one of the following Cisco DNA options must be selected in 3-year, 5-year, or 7-year subscription terms:

Table 16.       Cisco DNA Subscription

Cisco DNA part number

Subscription option

Description

AIR-DNA-E

AIR-DNA-E-3Y

Cisco DNA Essentials license with 3-year subscription

AIR-DNA-E-5Y

Cisco DNA Essentials license with 5-year subscription

AIR-DNA-E-7Y

Cisco DNA Essentials license with 7-year subscription

AIR-DNA-A

AIR-DNA-A-3Y

Cisco DNA Advantage license with 3-year subscription

AIR-DNA-A-5Y*

Cisco DNA Advantage license with 5-year subscription (default option)

AIR-DNA-A-7Y

Cisco DNA Advantage license with 7-year subscription

* Note: AIR-DNA Advantage with a 5-year subscription option is selected by default.

4.     Select 2.4- and 5-GHz dual-band external antennas (applicable if the external antenna version of the access point is selected).

Table 17.       External configurable antennas

Part number

Generation

Qty

Description

AIR-ANT2568VG-NS

SIA

4

2.4GHz 6dBi / 5GHz 8dBi Omnidirectional Antenna, Connectors N-Male

AIR-ANT2547VG-NS

SIA

4

2.4GHz 4dBi / 5GHz 7dBi Omnidirectional Colinear Array Antenna, Connectors N-Male

Table 18.       External spare antennas

Part number

Generation

Qty

Description

AIR-ANT2568VG-NS=

SIA

4

2.4GHz 6dBi / 5GHz 8dBi Omnidirectional Antenna, Connectors N-Male

AIR-ANT2547VG-NS=

SIA

4

2.4GHz 4dBi / 5GHz 7dBi Omnidirectional Colinear Array Antenna, Connectors N-Male

AIR-ANT2588P4M-NS=

SIA

1

2.4GHz 8dBi / 5GHz 8dBi 4-Element Dual-Polarized Patch Antenna, Connectors N-Female Bulkhead(4x RF Coaxial Cable needed)

AIR-ANT2513P4M-NS=

SIA

1

2.4GHz 13dBi / 5GHz 13dBi Dual-Band Polarization Diverse Patch Array Antenna, Connectors N-Female Bulkhead(4x RF Coaxial Cable needed)

AIR-ANT2547V-N=

Legacy

4

2.4GHz 4dBi / 5GHz 7dBi Omnidirectional Colinear Array Antenna, Connectors N-Male

AIR-ANT2547VG-N=

Legacy

4

2.4GHz 4dBi / 5GHz 7dBi Omnidirectional Colinear Array Antenna, Connectors N-Male (Grey Color)

AIR-ANT2588P3M-N=

Legacy

1

2.4GHz 8dBi / 5GHz 8dBi 3-Element Dual-Polarized Patch Antenna, Connectors N-Female Bulkhead(3x RF Cable Coaxial needed)

AIR-ANT2450V-N=

Legacy

4

2.4GHz 5dBi Omnidirectional Colinear Array Antenna, Connectors N-Male

AIR-ANT2480V-N=

Legacy

4

2.4GHz 8dBi Omnidirectional Colinear Array Antenna, Connectors N-Male

AIR-ANT5180V-N=

Legacy

4

5GHz 8dBi 2-Element Omnidirectional Colinear Array Antenna, Connectors N-Male

AIR-ANT2513P4M-N=

Legacy

1

2.4GHz 13dBi / 5GHz 13dBi Dual-Band Polarization Diverse Patch Array Antenna, Connectors N-Female Bulkhead(4x RF Coaxial Cable needed)

Note:

     The Catalyst 9124AXI access point has four internal dual-band (2.4- and 5-GHz) antennas that reside under a sealed radome and cannot be accessed.

     The Catalyst 9124AXD access point has four internal directional dual-band (2.4- and 5-GHz) antennas that reside under a sealed radome and cannot be accessed.

5.     Select the access point RF Cables and Lightning Arrestor (to be ordered separately when remote antennas are connected, as per the requirement)

Table 19.       RF Cables and Lightning Arrestor

Part number

Description

AIR-CAB005LL-N=

RF Cable, 5 ft Low-loss, N Connectors

AIR-CAB010LL-N=

RF Cable, 10 ft Low-loss, N Connectors

AIR-ACC245LA-N

Lightening Arrestor (If C9124AXE is connected to remote antenna through cable)

6.     Select the access point powering options (to be ordered separately, as per the requirement). The Catalyst 9124AX Series Access Points can be powered by multiple sources: AC, DC, or Power over Ethernet (PoE). For AC powering, an external AC-to-DC power adapter is required. For DC powering, a 2-pin DC connector is included with every access point. The access point can also be powered by Cisco Universal Power over Ethernet (Cisco UPOE®) or PoE+ (802.3at) directly from a switch or power injector.

Table 20.       Powering options

Part number

Description

Use case

AIR-PWRINJ-60RGD1=

Power injector, 60W, outdoor, North America plug

Outdoor-rated 60W power injector with North American AC plug

AIR-PWRINJ-60RGD2=

Power injector, 60W, outdoor, un-connectorized

Outdoor-rated 60W power injector, unterminated AC cable for international use

AIR-PWRINJ-60-PMK=

Pole mount kit for AIR-PWRINJ-60

Required for pole mounting for AIR-PWRINJ-60RGD1= or AIR-PWRINJ-60RGD2=

AIR-PWRINJ6=

Power injector, 802.3at, indoor

Indoor-rated, 802.3at-compliant power injector

Note:      Please check access point data sheets for power requirements. If AIR-PWRINJ6 is used, the access point will work with reduced features. For more details, refer to the respective access point data sheet.

7.     Select the access point SFP options (to be ordered separately, as per the requirement).

8.     Catalyst 9124AX Series outdoor access points support fiber backhaul. The SFP port is built into the access point, but the mechanical interface is external to the access point. A special SFP adapter/gland kit is needed to interface the fiber cable to the access point.

Table 21.       SFP options

Adaptor Part number

Description

Use case

GLC-LX-SM-RGD

1000BASE-LX single-mode rugged SFP

Long-distance fiber backhaul on single-mode fiber

GLC-SX-MM-RGD

1000BASE-SX multi-mode rugged SFP

Shorter-distance fiber backhaul on multimode fiber

GLC-T-RGD

1000BASE-T SFP, industrial temp

GE electrical interface for bridging wired clients such as video cameras or switches

9.     Select access point mounting brackets

Table 22.       Mounting backets

Part number

Description

AIR-AP-NO-BRACKET

Select this option if no bracket is required

AIR-MNT-VERT1

Vertical mounting bracket for Cisco Catalyst 9124AXD access point, will be option in CCW

AIR-MNT-VERT1=

Vertical mounting bracket for Cisco Catalyst 9124AXD access point

AIR-MNT-ART1=

Articulating mounting bracket for Cisco Catalyst 9124AXD access point

AIR-MNT-HORZ1=

Horizontal mounting bracket for Cisco Catalyst 9124AXI/AXD access point

AIR-MNT-VERT2=

Vertical mounting bracket for Cisco Catalyst 9124AXD access point with AC/DC PSU

AIR-MNT-STRAND1=

Strand mounting bracket for Cisco Catalyst 9124AXI/AXD access point

10.  Select the access point powering options (to be ordered separately, as per the requirement).

Table 23.       Accessories

Accessories Part number

Description

C9124-CVR1=

Paintable cover for Catalyst 9124AX

AIR-SFP-KIT1=

SFP installation kit for Catalyst 9124AX (QTY 5)

AIR-ACC-PS-MNT1=

AC/DC adapter mount bracket for AIR-MNT-HORZ1=

AIR-ACC-KIT1=

5x ethernet, 2 dust cap, ground lug, DC plug kit

AIR-ACC-CAT6=

CAT 6/6A Ethernet Cable Gland Assembly kit*

* Note: AIR-ACC-CAT6= is mandatory if C9124 is to be installed with Cat6/6a ethernet cable

Cisco Capital financing

Flexible payment solutions to help you achieve your objectives

The significant benefits offered by Cisco wireless access points make them the natural choice for providing best-in-class wireless connectivity. As with any technology investment, the question is the affordability of the new system. The answer is financing from Cisco Capital®. Whether through flexible repayments to match expenditures to benefit and help mitigate cash flow issues, or an operating lease to help negate capital expenditure, we can give customers the financing solution that works best for them.

Cisco Capital can help remove or reduce the barriers preventing organizations from obtaining the technology they need. Total solution financing programs help customers and partners:

     Achieve business objectives

     Accelerate growth

     Acquire technology to match current strategies and future needs

     Remain competitive

Cisco Capital makes it easier to get the right technology to achieve your objectives, enable business transformation, and help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services, and complementary third-party equipment in easy, predictable payments. Learn more.

Cisco DNA software subscriptions for access wireless

Cisco Networking

Cisco Networking is your team’s bridge to an intent-based network. It is an open, extensible, software-driven portfolio that helps to accelerate and simplify your enterprise network operations while lowering costs and reducing your risk. Only Cisco provides a single-network fabric that is powered by deep intelligence and integrated security to deliver automation and assurance across your entire network organization at scale. Cisco Networking gives IT time back from time-consuming, repetitive network configuration tasks so you can focus on the innovations your business needs.

Cisco DNA software subscriptions provide customers with four key benefits:

     Investment protection of software purchases through software services-enabled license portability

     Software suites that address typical customer use case scenarios at an attractive price

     Flexible licensing models to smoothly distribute software spending over time

     Access to new technology from Cisco

Table 24 outlines common IT management challenges and the ways that Cisco DNA software helps customers to address them.

Table 24.       IT management challenges and Cisco DNA software benefits

IT management challenges

Cisco DNA software benefits

Shrinking IT budgets

Budgets are shrinking while IT demands continue to accelerate. As the costs of IT and downtime skyrocket, companies need to balance shrinking budgets with easy-to-deploy networks that enhance operation efficiency.

Deliver more value for your money

Cisco DNA software is designed for typical customer use scenarios and is offered at a better-together price, making it easier and less expensive for you to deploy complete solutions.

Increase investment protection

Software services-enabled license portability lets your software licenses stay current through hardware upgrades and replacements at no additional cost.

Infrastructure inflexibility

IT organizations lack an automated way to keep pace with changing business needs and demands for more resources. It often takes months or weeks to procure and provision a new network service.

Enhance business agility

Cisco DNA software delivers critical business solutions and provides you with the tools you need to deploy, maintain, and manage your software.

Lack of buying options

Organizations need more options for buying software to improve their flexibility, reduce risk, and cut costs.

Supplies flexible licensing models

Evenly distribute your software spending over time with subscription- based and other flexible purchasing models.

Implementation obstacles

Deploying software and implementing new use cases can often cause major disruptions in your current operations.

Reduce risk

Cisco’s technical and professional services provide the expertise, smart tools, and proven processes that reduce risk and downtime.

Excessive time and costs for maintenance

The majority of your IT budget and most of your workloads are focused on routine maintenance, limiting your ability to innovate and grow your business.

Accelerate ROI and time to value

Optimize the performance of your networks to get the most from your technology investments. Accelerate your business outcomes with expert guidance from Cisco technical and professional services.

Benefits of software subscriptions

Software subscriptions provide a number of benefits:

     Faster access to innovation

    Frequent access to the latest features: New features are being released more often than in the past. Subscriptions give you regular, real-time access to the latest features and accelerate your journey to the cloud.

    Up-to-date security protection: Software subscriptions help you to stay current with changing security requirements through access to the latest features.

    Software refresh independent of hardware: Subscriptions free the software refresh cycle from the hardware for ongoing access to innovation.

     Enhanced agility

    Capability to renew and scale what you want: Stay synchronized with the dynamic nature of your business. Easily update your technology capabilities as your business needs change.

    License portability for flexibility: Subscriptions enable shorter planning cycles and help avoid the overspending associated with long-term capacity planning.

     Better financial planning

    Linear, predictable budget spending: Subscriptions give you more spending predictability and linearity and help avoid spending peaks and valleys.

    Shift from Capital Expenditures (CapEx) to Operating Expenses (OpEx): Be OpEx-centric in the cloud and consumption economy era. In addition, you lower your initial investment.

    Keep vendors focused on value: Subscriptions keep vendors more focused on growing value, a key decision-making factor at renewal time.

Product overview

Cisco DNA Software delivers an unbound network on an open and extensible architecture to help you navigate the digital journey. Benefits include lower initial costs, investment protection, agility to respond more quickly to business needs, and better budget predictability. These 3-, 5-, and 7-year subscriptions include full Cisco capabilities supported by Cisco Software-Defined Access (SD-Access) analytics, automation, and security. Wireless subscription offers are categorized into two tiers, Cisco DNA Essentials and Cisco DNA Advantage.

All Cisco DNA subscription offers include embedded support with the Cisco Technical Assistance Center (TAC), knowledge base access, and software downloads. Additional services, such as Cisco Solution Support with Smart Net Total Care® and Cisco Solution Support with Software Support Services, are available for purchase separately.

More details about the available features in each tier can be found at https://www.cisco.com/go/dnawireless.

Cisco platforms supported by Cisco DNA wireless subscription

The following access point platforms are supported:

     All Cisco Aironet 802.11ac Wave 2 access points and Cisco Catalyst 9100 Access Points are fully supported.

     Cisco Aironet 802.11ac Wave 1 access points are supported with limited capabilities.

The following Wireless LAN Controller (WLC) platforms are supported:

     Cisco 3504, 5520, and 8540.

     Cisco Catalyst 9800 Series Wireless Controllers.

How to order a Cisco DNA wireless subscription

Cisco DNA software subscription for access wireless can be ordered through the following two methods:

     Cisco DNA software subscription, along with an access point order

     Standalone Cisco DNA software subscription

1. Ordering Cisco DNA subscriptions along with an access point order:

     Cisco DNA software subscriptions are available to order along with all Cisco access points.

     For convenience, Cisco DNA Advantage 5-year is preselected as the default option with Cisco Aironet 802.11ac Wave 2 and Cisco Catalyst 9100 Access Points.

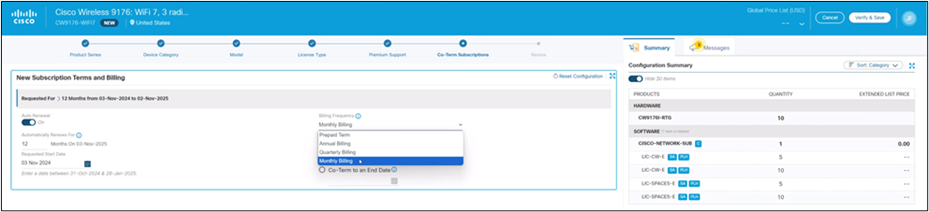

To order a Cisco DNA subscription with access points in Cisco Commerce Workspace, follow these steps:

1.     Enter the access point SKU. For example, AIR-AP4800-X-K9.

2.     Select the appropriate AIR-DNA (AIR-DNA-A or AIR-DNA-E) license type.

3.     Choose the Cisco DNA license term (3, 5, or 7 years).

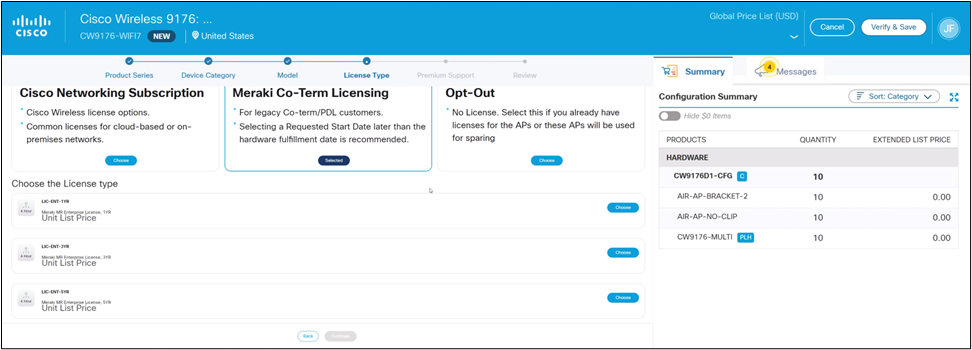

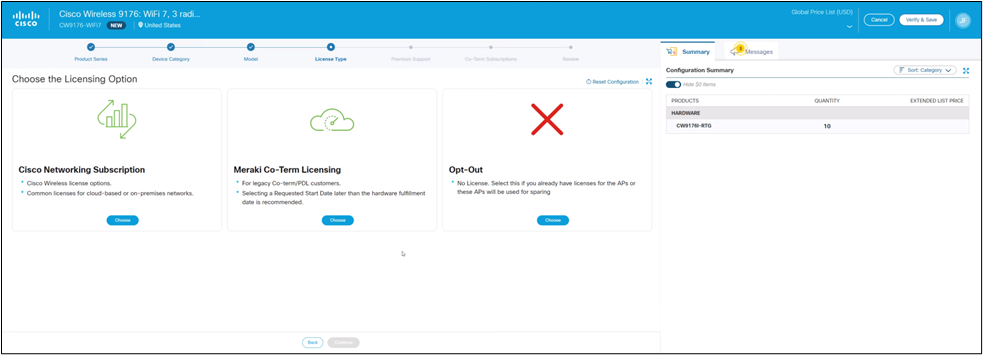

Ordering the access points

Figure 1.

Ordering the access points

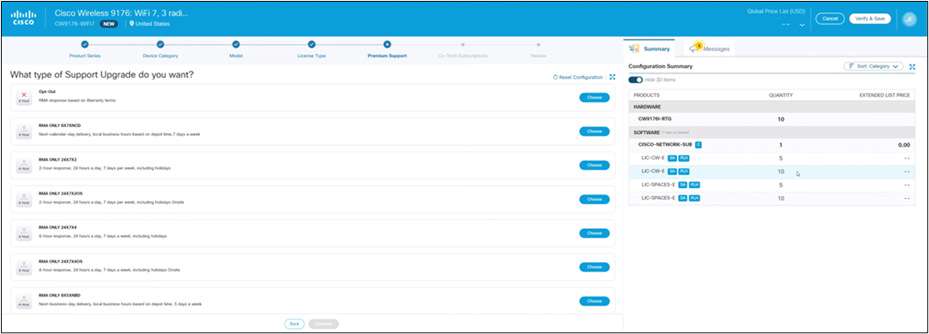

Selecting a Cisco DNA subscription

Selecting a Cisco DNA subscription

Cisco DNA standalone SKUs for ordering

Table 25.

SKU



Description

AIR-DNA



CISCO DNA licenses for wireless

AIR-DNA-A

CISCO DNA Advantage term licenses

AIR-DNA-E

CISCO DNA Essentials term licenses

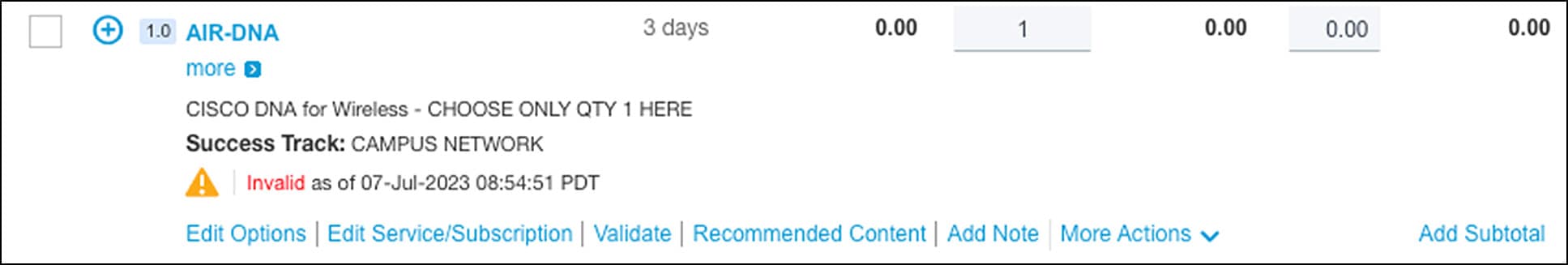

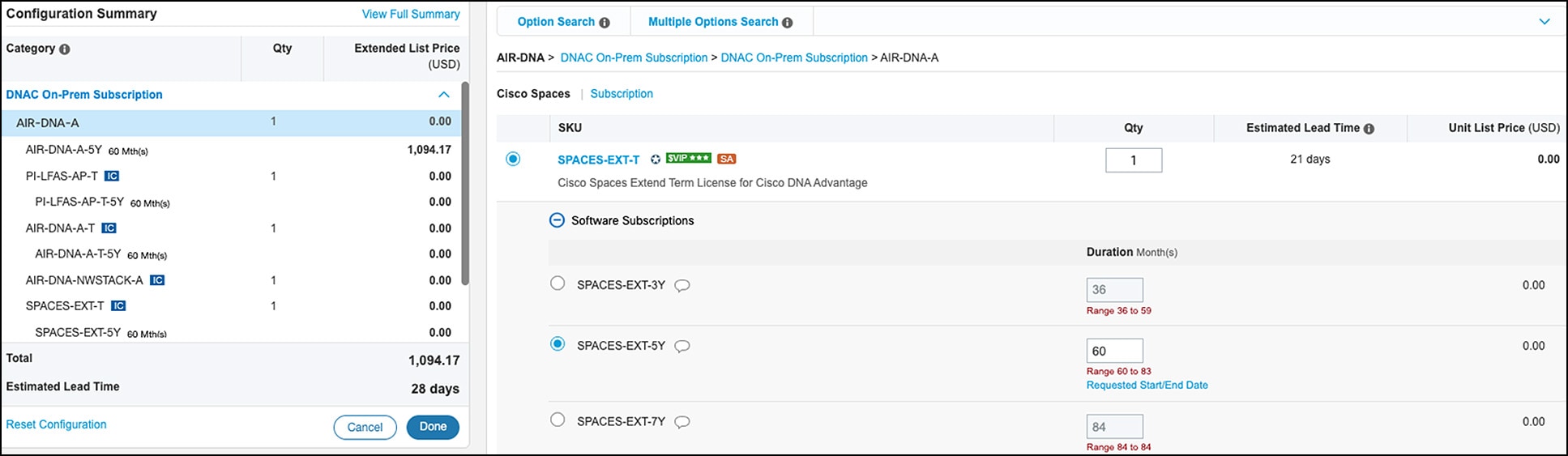

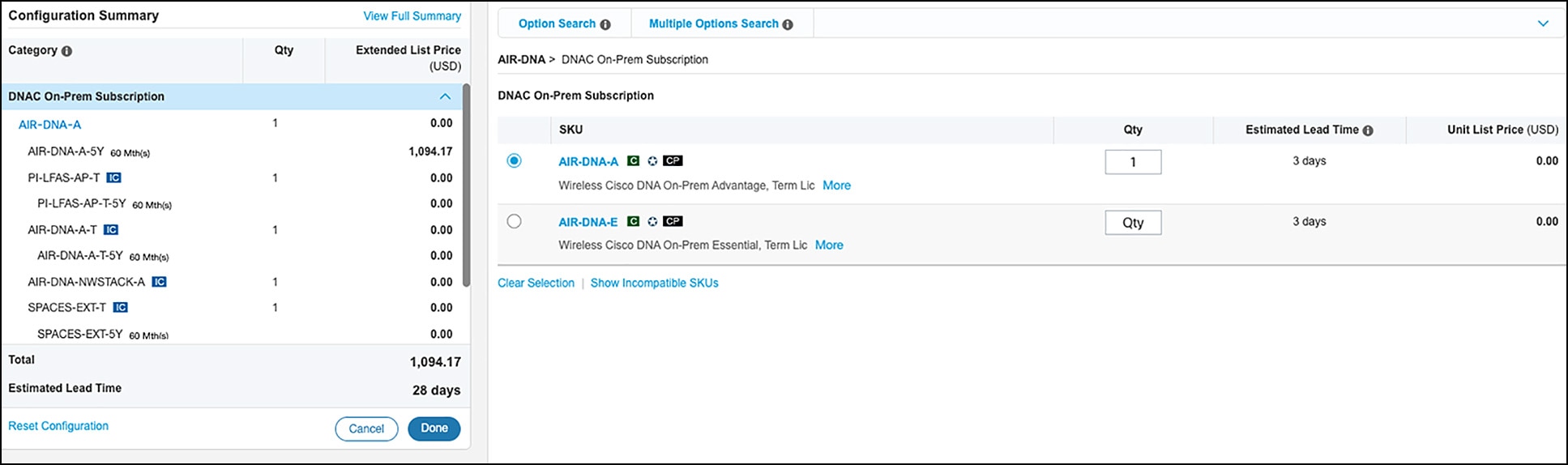

To order in Cisco Commerce Workspace, follow these steps:

4.     Enter AIR-DNA.

5.     Select the appropriate AIR-DNA license type.

6.     Choose the Cisco DNA term license (3, 5, or 7 years).

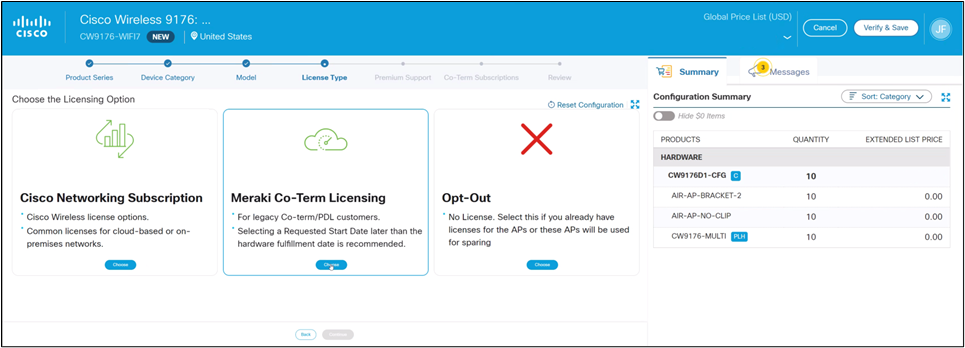

Specifying AIR-DNA

Figure 3.

Specifying AIR-DNA

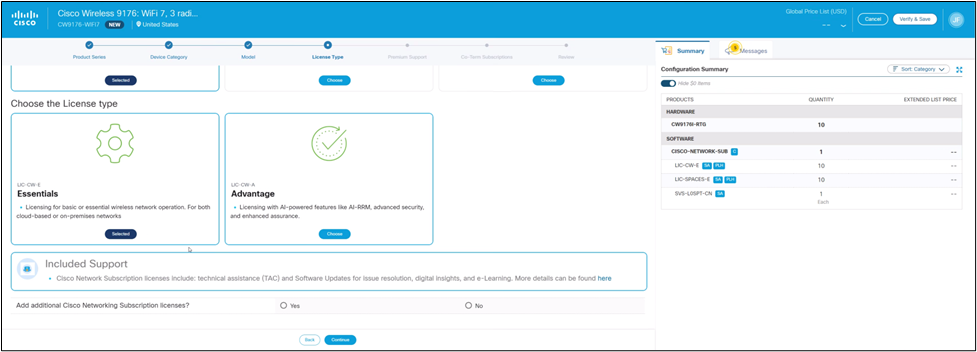

Choosing a license type

Figure 4.

Choosing a license type

Choosing a license term

Choosing a license term

Cisco Catalyst 9800 Series highlights

Built from the ground up for intent-based networking and Cisco DNA, the Cisco Catalyst 9800 Series Wireless Controllers bring together the magic of Cisco IOS® XE and Cisco RF excellence, to create a best-in-class wireless experience for your evolving and growing organization. The 9800 Series wireless controllers are built on an open and programmable architecture with built-in security, streaming telemetry, and rich analytics.

The Cisco Catalyst 9800 Series Wireless Controllers are feature rich and enterprise ready to power your business-critical operations and transform end-customer experiences:

     High availability and seamless software updates, enabled by hot patching, keep your clients and services always on during planned and unplanned events.

     Secure the air, devices, and users with the 9800 Series controllers. Wireless infrastructure becomes the strongest first line of defense with Cisco Encrypted Traffic Analytics (ETA) and SD-Access. The controllers come with built-in security features such as secure boot, runtime defenses, image signing, integrity verification, and hardware authenticity.

     Deploy anywhere to enable wireless connectivity everywhere. Whether on-premises, in a public or private cloud, or embedded on a switch or access point, the Cisco Catalyst 9800 Series has multiple deployment and scale options to best meet your organization’s needs.

     Built on a modular operating system, the 9800 Series’ open and programmable APIs enable automation of your day-0 to day-N network operations. Model-driven streaming telemetry provides deep insights into the health of your network and clients.

Cisco Catalyst 9800 Series Wireless Controllers are available in multiple form factors to best suit your deployment preference:

     Cisco Catalyst 9800 Series Wireless Controller appliances (C9800-L, C9800-40, and C9800-80)

     Cisco Catalyst 9800 Wireless Controllers for Cloud

     Cisco Catalyst 9800 Embedded Wireless for Switch

     Cisco Embedded Wireless Controller on Catalyst 9100 Access Point

https://www.cisco.com/c/dam/en/us/products/collateral/wireless/catalyst-9800-series-wireless-controllers/nb-06-cat9800-ser-aag-ctp-en.pdf

Wireless platform support summary and part numbers

Table 26.       Wireless platform support summary

Product family

Product name

Description

Cisco Catalyst 9800 Series Wireless Controller appliances

Cisco Catalyst 9800-L Wireless Controller

9800-L: Perfect for small organizations, this controller offers seamless software updates

Cisco Catalyst 9800-40 Wireless Controller

9800-40: Fixed wireless controller with seamless software updates

Cisco Catalyst 9800-80 Wireless Controller

9800-80: Modular wireless controller with 100G modular uplink and seamless software updates

Cisco Catalyst 9800 Wireless Controllers for Cloud

Cisco Catalyst 9800-CL Wireless Controller for Cloud

(Private cloud: VMware ESXI, KVM, Cisco NFVIS on ENCS)

(Public cloud: AWS Marketplace)

Wireless controller that can be deployed in a private cloud or in a public cloud as Infrastructure as a Service (IaaS)

Cisco Catalyst 9800 SD-Access Embedded Wireless

Cisco Catalyst 9800 Embedded Wireless for Switch

Cisco Catalyst 9800 software sub-package for Cisco Catalyst 9000 switching platform

Cisco Embedded Wireless Controller on Catalyst Access Point

Cisco Embedded Wireless Controller on Catalyst 9100 Access Point

Cisco Embedded Wireless Controller on Catalyst Access Point

Table 27.       Wireless platform part numbers

Product family

Part numbers

Description

Cisco Catalyst 9800-L Wireless Controller

C9800-L-C-K9

C9800-L-F-K9

C9800-AC-110W

C9800-AC-110W=

LIC-C9800-DTLS-K9

C9800L-RMNT

C9800L-RMNT=

C4948E-BKT-KIT=

Cisco Catalyst 9800-L-C Wireless Controller_Copper Uplink

Cisco Catalyst 9800-L-F Wireless Controller_Fiber Uplink

Cisco Catalyst 9800-L Wireless Controller Power Adapter

Cisco Catalyst Wireless Controller 110W AC Power Adapter Spare

Cisco Catalyst 9800 Wireless Controller DTLS license

C9800 Wireless Controller Rack Mount Tray

Spare C9800 Wireless Controller Rack Mount Tray

C49xxE front and rear mount brackets

Cisco Catalyst 9800-40 Wireless Controller

C9800-40-K9

Cisco Catalyst 9800-40 Wireless Controller

C9800-AC-750W-R

Cisco Catalyst 9800-40 750W AC Power Adapter Reverse Air (part of the system configuration)

C9800-AC-750W-R=

Cisco Catalyst 9800-40 750W AC Power Adapter Reverse Air (spare)

LIC-C9800-DTLS-K9

Cisco 9800 Wireless Controller DTLS license

Cisco Catalyst 9800-80 Wireless Controller

C9800-80-K9

Cisco Catalyst 9800-80 Wireless Controller

C9800-AC-1100W

Cisco Catalyst Wireless Controller 1100W AC Power Adapter (part of the system configuration)

C9800-AC-1100W=

Cisco Catalyst Wireless Controller 1100W AC Power Adapter (spare)

C9800-DC-950W

Cisco Catalyst Wireless Controller 950W DC Power Adapter (part of the system configuration)

C9800-DC-950W=

Cisco Catalyst Wireless Controller 950W DC Power Adapter (spare)

LIC-C9800-DTLS-K9

Cisco Catalyst 9800 Wireless Controller DTLS license

Cisco Catalyst 9800-CL Wireless Controller for Cloud

L-C9800-CL-K9

Cisco Catalyst 9800-CL Wireless Controller

Cisco Embedded Wireless Controller on Catalyst 9100 Access Point

C9115AXI-EWC-X

C9115AXE-EWC-X

C9117AXI-EWC-X

C9120AXI-EWC-X

C9120AXE-EWC-X

C9120AXP-EWC-X

9130AXI-EWC-X

9130AXE-EWC-X

Cisco 9115 with embedded Catalyst 9800 Wireless Controller

Cisco 9115 with embedded Catalyst 9800 Wireless Controller

Cisco 9117 with embedded Catalyst 9800 Wireless Controller

Cisco 9120 with embedded Catalyst 9800 Wireless Controller

Cisco 9120 with embedded Catalyst 9800 Wireless Controller

Cisco 9120 with embedded Catalyst 9800 Wireless Controller

Cisco 9130 with embedded Catalyst 9800 Wireless Controller

Cisco 9130 with embedded Catalyst 9800 Wireless Controller

Cisco Catalyst 9800 Embedded Wireless

Cisco Catalyst 9300 Series Switch

Cisco Catalyst 9400 Series Switch

Cisco Catalyst 9500 Series Switch

Cisco Catalyst 9800 software sub-package for Catalyst 9000 switching platform

Cisco Catalyst 9800 software sub-package for Catalyst 9000 switching platform

Cisco Catalyst 9800 software sub-package for Catalyst 9000 switching platform

Modules

Modules

C9800-18X1GE (=)

C9800-10X10GE (=)

C9800-1X40GE (=)

C9800-2X40GE (=)

C9800-1X100GE (=)

Cisco Catalyst 9800-80 GE module

Cisco Catalyst 9800-80 10 GE module

Cisco Catalyst 9800-80 1-port 40 GE module

Cisco Catalyst 9800-80 2-port 40 GE module

Cisco Catalyst 9800-80 1-port 100 GE module



Product family

Part numbers

Product family

Part numbers

Small Form-Factor Pluggable (SFP)

Small Form-Factor Pluggable

GLC-BX-D

GLC-BX-U

GLC-LH-SMD

GLC-SX-MMD

GLC-ZX-SMD

GLC-TE

Enhanced SFP (SFP+)

Enhanced SFP

SFP-10G-SR

SFP-10G-SR-X

SFP-10G-LR

SFP-10G-LRM

SFP-10G-LR-X

SFP-10G-ER

SFP-10G-ZR

SFP-H10GB-ACU7M

SFP-H10GB-ACU10M

DWDM-SFP10G-30.33 –DWDM-SFP10G-61.41

Note:      SFP and SFP+ need to be ordered separately.

Cisco Catalyst 9800 Series Wireless Controller ordering steps

Cisco Catalyst 9800 Series Wireless Controllers can be ordered from Cisco Commerce Workspace.

C9800-L-F-K9 and C9800-L-C-K9 ordering steps

Table 28.

1. Type “C9800-L-C-K9/ C9800-L-F-K9,” then add “C9800-L-C-K9/ C9800-L-F-K9”and select “Edit Options.”

Part number

Description

C9800-L-C-K9

Cisco Catalyst 9800-L-C Wireless Controller_Copper Uplink (ships with one AC power adapter)

C9800-L-F-K9

Cisco Catalyst 9800-L-F Wireless Controller_Fiber Uplink (ships with one AC power adapter)

Table 29.

2. Click “Data Encryption” and select DTLS license if encryption of client data is required (optional).

Part number

Description

LIC-C9800-DTLS-K9

Cisco Catalyst 9800 Wireless Controller DTLS license

Table 30.

3. The software image is auto selected.

Part number

Description

SC9800LK9-1612

Software image

Table 31.

4. The power adapter is auto selected.

Part number

Description

C9800-AC-110W

Cisco Catalyst 9800-L 110W AC power adapter

Table 32.

5. Choose the country-specific power cable (presented after selecting the power adapter).

Part number

Description

Part number

Description

CAB-AC-C5

AC Power Cord, Type C5, US, Canada

CAB-AC-C5-ITA

AC Power Cord, Type C5, Italy

CAB-AC-C5-ARG

AC Power Cord, Type C5, Argentina

CAB-AC-C5-JAP

AC Power Cord, Type C5, Japan

CAB-AC-C5-AUS

AC Power Cord, Type C5, Australia

CAB-AC-C5-KOR

AC Power Cord, Type C5, Korea

CAB-AC-C5-BR

AC Power Cord, Type C5, Brazil

CAB-AC-C5-SAF

AC Power Cord, Type C5, South Africa

CAB-AC-C5-BRA

AC Power Cord, Type C5, Brazil

CAB-AC-C5-SWI

AC Power Cord, Type C5, Switzerland

CAB-AC-C5-CHI

AC Power Cord, Type C5, China

CAB-AC-C5-TWN

AC Power Cord, Type C5, Taiwan

CAB-AC-C5-EUR

AC Power Cord, Type C5, Europe

CAB-AC-C5-UK

AC Power Cord, Type C5, UK

CAB-AC-C5-IND

AC Power Cord, Type C5, India

CAB-AC-C5-ITA

AC Power Cord, Type C5, Italy

CAB-AC-C5

AC Power Cord, Type C5, US, Canada





C9800-40-K9 ordering steps

Table 33.

1. Type “C9800-40-K9,” then add “C9800-40-K9”and select “Edit Options.”

Part number

Description

C9800-40-K9

Cisco Catalyst 9800-40 Wireless Controller (ships with one AC power adapter)

Table 34.

2. Click “Data Encryption” and select DTLS license if encryption of client data is required (optional).

Part number

Description

LIC-C9800-DTLS-K9

Cisco Catalyst 9800 Wireless Controller DTLS license

Table 35.

3. The software image is auto selected.

Part number

Description

SC980040K9-1610

Software image

Table 36.

4. The power adapter is auto selected.

Part number

Description

C9800-AC-750W-R

Cisco Catalyst 9800-40 750W AC power adapter

Table 37.

5. Choose the country-specific power cable (presented after selecting the power adapter).

Part number

Description

Part number

Description

CAB-ACC

China AC Type A Power Cable

CAB-IND

India AC Type A Power Cable

CAB-ACR

Argentina AC Type A Power Cable

CAB-L620P-C13-JPN

Japan AC Type A Power Cable

CAB-ACU

UK AC Type A Power Cable

CAB-AC

North America AC Type A Power Cable

CAB-C13-C14-2M

Cabinet Jumper Power Cord, 250 VAC 10 A, C13-C14 Connectors

CAB-ACA

Australia AC Type A Power Cable

CAB-C13-C14-AC

Cabinet Jumper Power Cord, 250 VAC 10 A, C13-C14 Connectors

CAB-L620P-C13-US

US Standard Power Cable

CAB-C13-C14-JMPRCAB-ACS

Cisco Power Cable

CAB-JPN

Japan AC Type A Power Cable

CAB-ACI

Italy AC Type A Power Cable

CAB-C13-CBN

Cabinet Jumper Power Cord, 250 VAC 10 A, C13-C14 Connectors

CAB-C15-ACB

Brazil AC Type A Power Cable

CAB-ACE

Continental Europe AC Type A Power Cable

CAB-ACS

Switzerland AC Type A Power Cable





C9800-80-K9 ordering steps

Table 38.

1. Type “C9800-80-K9,” then add “C9800-80-K9”and select “Edit Options.”

Part number

Description

C9800-80-K9

Cisco Catalyst 9800-80 Wireless Controller

Table 39.

2. Click “Data Encryption” and select DTLS license if encryption of client data is required (optional).

Part number

Description

LIC-C9800-DTLS-K9

Cisco Catalyst 9800 Wireless Controller DTLS license

Table 40.

3. Click “Software,” and SC980040K9-1610 is auto selected.

Part number

Description

SC980080K9-1610

Software image

Table 41.

4. Click “Power” and choose from the options below.

Part number

Description

C9800-AC-1100W

Cisco Catalyst Wireless Controller 1100W AC power adapter

C9800-DC-950W

Cisco Catalyst Wireless Controller 950W DC power adapter

Table 42.

5. Select the presented power cable type from the list below after clicking the AC power adapter.

Part number

Description

Part number

Description

CAB-ACC

China AC Type A Power Cable

CAB-IND

India AC Type A Power Cable

CAB-ACR

Argentina AC Type A Power Cable

CAB-L620P-C13-JPN

Japan AC Type A Power Cable

CAB-ACU

UK AC Type A Power Cable

CAB-AC

North America AC Type A Power Cable

CAB-C13-C14-2M

Cabinet Jumper Power Cord, 250 VAC 10 A,

C13-C14 Connectors

CAB-ACA

Australia AC Type A Power Cable

CAB-C13-C14-AC

Cabinet Jumper Power Cord, 250 VAC 10 A,

C13-C14 Connectors

CAB-L620P-C13-US

US Standard Power Cable

CAB-C13-C14-JMPR

Cisco Power Cable

CAB-JPN

Japan AC Type A Power Cable

CAB-ACI

Italy AC Type A Power Cable

CAB-C13-CBN

Cabinet Jumper Power Cord, 250 VAC 10 A, C13-C14 Connectors

CAB-C15-ACB

Brazil AC Type A Power Cable

CAB-ACE

Continental Europe AC Type A Power Cable

CAB-ACS

Switzerland AC Type A Power Cable





Note:      No cable option is presented when the DC power adapter is selected.

Table 43.

6. Click “Modules” and select one of the following uplink modules.

Part number

Description

C9800-18X1GE

Cisco Catalyst 9800-80 GE Module

C9800-10X10GE

Cisco Catalyst 9800-80 10 GE Module

C9800-1X40GE

Cisco Catalyst 9800-80 1 Port 40 GE Module

C9800-2X40GE

Cisco Catalyst 9800-80 2 Port 40 GE Module

C9800-1X100GE

Cisco Catalyst 9800-80 1 Port 100 GE Module

Note:      If none of the uplink modules is chosen, C9800-BLANK module will automatically be added to the configuration.

Cisco Catalyst 9800-CL Wireless Controller for Cloud ordering steps

Table 44.

1. Type “C9800-CL-K9,” then add “C9800-CL-K9”and select “Edit Options.”

Part number

Description

C9800-CL-K9

Cisco Catalyst 9800 Wireless Controller for Cloud

Table 45.

2. Click “Data Encryption” and select DTLS license if encryption of client data is required (optional).

Part number

Description

LIC-C9800-DTLS-K9

Cisco Catalyst 9800-CL Wireless Controller DTLS license

Table 46.

3. Click “Software” and choose one of the following software images.

Part number

Description

SC9800CLTARK9-1610

Cisco Catalyst 9800-CL Wireless Controller – ENFV

SC9800CLOVAK9-1610

Cisco Catalyst 9800-CL Wireless Controller – VMware ESXi

SC9800CLQCOK9-1610

Cisco Catalyst 9800-CL Wireless Controller – KVM

SC9800CLAMIK9-1610

Cisco Catalyst 9800-CL Wireless Controller – AWS

1.     After submission you will get an eDelivery Order Notification email.

2.     After placing your order on CCW, do one of the following, based on your software selection in step 3.

     Private cloud

     Go to software.cisco.com.

     Download the appropriate image as selected in CCW.

     Public cloud

     Go to AWS Marketplace, and search for “C9800-CL.”

     Continue to subscribe and instantiate the C9800 wireless controller for AWS.

Catalyst 9800 SD-Access embedded wireless ordering steps

3.     Prerequisite: Customer has or will buy a Cisco Catalyst 9300, 9400 or 9500 Series Switch and the required Cisco DNA Advantage or Cisco DNA Essentials licenses.

4.     Prerequisite: Customer has or will buy Cisco access points with a Cisco DNA Advantage or Cisco DNA licenses for each access point.

1.    Navigate to the Cisco Catalyst 9300, 9400 or 9500 downloads section on software.cisco.com.

2.    Download the “C9800-SW” sub-package.

3.    Install the sub-package on the Cisco Catalyst 9300, 9400 or 9500 Series Switch.

Cisco Embedded Wireless Controller (EWC) on Catalyst® 9100 Access Points ordering steps

1.     Select the access point model based on requirements and as per the correct country’s regulatory domain.

Table 47.

AP part number

Description

C9130AXI-EWC-x

Cisco Catalyst 9130AXI Access Point, internal antennas; 802.11ax; 8x8:8 MIMO

C9130AXE-EWC-x

Cisco Catalyst 9130AXE Access Point, external antennas; 802.11ax; 8x8:8 MIMO

C9120AXI-EWC-x

Cisco Catalyst 9120AXI Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO

C9120AXE-EWC-x

Cisco Catalyst 9120AXE Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO

C9120AXP-EWC-x

Cisco Catalyst 9120AXP Access Point, external antennas; professional install; Wi-Fi 6; 4x4:4 MIMO

C9117AXI-EWC-x

Cisco Catalyst 9117AXI Access Point, internal antenna; Wi-Fi 6; 8x8:8 MIMO

C9115AXI-EWC-x

Cisco Catalyst 9115AXI Access Point, internal antenna; Wi-Fi 6; 4x4:4 MIMO

C9115AXE-EWC-x

Cisco Catalyst 9115AXE Access Point, external antenna; Wi-Fi 6; 4x4:4 MIMO

C9105AXI-EWC-X

Cisco Catalyst 9105AX Access Point, internal antenna; ceiling mount, Wi-Fi 6; 2x2:2 MIMO

C9124AXI-EWC-X

Cisco Catalyst 9124AX Outdoor Access Point, internal omnidirectional antenna; Wi-Fi 6; 4x4:4 MIMO

C9124AXD-EWC-X

Cisco Catalyst 9124AX Outdoor Access Point, internal directional antenna; Wi-Fi 6; 4x4:4 MIMO

C9124AXE-EWC-X

Cisco Catalyst 9124AX Outdoor Access Point, external antenna; Wi-Fi 6; 4x4:4 MIMO

2.     License-free for single-site management up to 100 APs when using Dashboard/Mobile App. For this option, use Cisco DNA Opt-Out when ordering EWC APs

For multi-site management a Cisco DNA license is required. Select your Cisco DNA license and subscription duration from the following options

Cisco DNA licenses come in two licensing tier options:

     Essentials (-E) - AIR-DNA-E

     Advantage (-A) - AIR-DNA-A

When ordering the EWC on Catalyst 9100, one of the following Cisco DNA options must be selected in 3-year, 5-year, or 7-year subscription terms:

Table 48.

Cisco DNA part number

Subscription option

Description

AIR-DNA-E

AIR-DNA-E-3Y

Cisco DNA Essentials license with 3-year subscription

AIR-DNA-E-5Y

Cisco DNA Essentials license with 5-year subscription

AIR-DNA-E-7Y

Cisco DNA Essentials license with 7-year subscription

AIR-DNA-A

AIR-DNA-A-3Y

Cisco DNA Advantage license with 3-year subscription

AIR-DNA-A-5Y*

Cisco DNA Advantage license with 5-year subscription (default option)

AIR-DNA-A-7Y

Cisco DNA Advantage license with 7-year subscription

* Note: AIR-DNA Advantage with a 5-year subscription option is selected by default.

Note:      Some components are available as a “configurable” option or as a “spare.”

     A “configurable” option ships in the same main box as the access point. For example, AIR-MNT-VERT1 is a “configurable” option and, if ordered, is shipped with the access point in the same box.

     A “spare” option is denoted with an equal (=) sign at the end of the part number. For example, AIR-MNT-ART1 = is a “spare” and, if ordered, is shipped in separate packaging.

3.     Select 2.4/5 GHz dual-band external antennas (applicable if the C9130 or C9120 or C9115 external antenna version of the access point is selected).

Table 49.

Antenna part number

Description

C-ANT9101=

2.4/5/6 GHz Ceiling mount omni antenna, 8-port, DART, Self ID

C-ANT9102=

2.4/5/6 GHz Multi mount omni antenna, 8-port, DART, Self ID

C-ANT9103=

2.4/5/6 GHz Directional antenna, 8-port, DART, Self ID

AIR-AP-BRACKET-9=

C9130AXE antenna bracket

AIR-ANT2524DW-R

Cisco Aironet dual-band dipole antenna; White; Peak Gain 2 dBi at 2.4. GHz and 4 dBi at 5 GHz

AIR-ANT2535SDW-R

Cisco Aironet short dual-band omni antenna, Peak Gain 3 dBi at 2.4. GHz and 5 dBi at 5 GHz

AIR-ANT2524DG-R

Cisco Aironet dual-band dipole antenna; Grey; Peak Gain 2 dBi at 2.4. GHz and 4 dBi at 5 GHz

AIR-ANT2524DB-R

Cisco Aironet dual-band dipole antenna; Black; Peak Gain 2 dBi at 2.4. GHz and 4 dBi at 5 GHz

AIR-ANT2524DW-RS

Cisco Aironet dual-band dipole antenna; White; Peak Gain 2 dBi at 2.4. GHz and 4 dBi at 5 GHz

AIR-ANT2535SDW-RS

Cisco Aironet short dual-band omni antenna, Peak Gain 3 dBi at 2.4. GHz and 5 dBi at 5 GHz

AIR-ANT2524V4C-RS=

Cisco Aironet omni antenna, ceiling mount, Peak Gain 2 dBi at 2.4. GHz and 4 dBi at 5 GHz

AIR-ANT2544V4M-RS=

Cisco Aironet omni antenna, wall/pole mount, Peak Gain 2 dBi at 2.4 GHz and 4 dBi at 5 GHz

AIR-ANT2566P4W-RS=

Cisco Aironet patch antenna, wall/pole mount, Peak Gain 6 dBi at 2.4 GHz and 6 dBi at 5 GHz

AIR-ANT2566D4M-RS=

Cisco Aironet directional antenna, wall/pole mount, Peak Gain 6 dBi at 2.4 GHz and 6 dBi at 5 GHz

AIR-ANT2513P4M-NS=

Cisco Aironet directional antenna, wall/pole mount, Peak Gain 13 dBi at 2.4 GHz and 13 dBi at 5 GHz

AIR-ANT2566P4W-DS=

Cisco Aironet patch antenna, wall/pole mount, Peak Gain 6 dBi at 2.4 GHz and 6 dBi at 5 GHz, 4-port DART connector

AIR-ANT2566D4M-DS=

Cisco Aironet directional antenna, wall/pole mount, Peak Gain 6 dBi at 2.4 GHz and 6 dBi at 5 GHz, 4-port DART connector

4.     Select 2.4- and 5-GHz dual-band external configurable or spare antennas (applicable if C9124AXE access point is selected).

Table 50.

Part number

Generation

Qty

Description

AIR-ANT2568VG-NS

SIA

4

2.4GHz 6dBi / 5GHz 8dBi Omnidirectional Antenna, Connectors N-Male

AIR-ANT2547VG-NS

SIA

4

2.4GHz 4dBi / 5GHz 7dBi Omnidirectional Colinear Array Antenna, Connectors N-Male



Part number

Generation

Qty

Description

AIR-ANT2568VG-NS=

SIA

4

2.4GHz 6dBi / 5GHz 8dBi Omnidirectional Antenna, Connectors N-Male

AIR-ANT2547VG-NS=

SIA

4

2.4GHz 4dBi / 5GHz 7dBi Omnidirectional Colinear Array Antenna, Connectors N-Male

AIR-ANT2588P4M-NS=

SIA

1

2.4GHz 8dBi / 5GHz 8dBi 4-Element Dual-Polarized Patch Antenna, Connectors N-Female Bulkhead(4x RF Coaxial Cable needed)

AIR-ANT2513P4M-NS=

SIA

1

2.4GHz 13dBi / 5GHz 13dBi Dual-Band Polarization Diverse Patch Array Antenna, Connectors N-Female Bulkhead(4x RF Coaxial Cable needed)

AIR-ANT2547V-N=

Legacy

4

2.4GHz 4dBi / 5GHz 7dBi Omnidirectional Colinear Array Antenna, Connectors N-Male

AIR-ANT2547VG-N=

Legacy

4

2.4GHz 4dBi / 5GHz 7dBi Omnidirectional Colinear Array Antenna, Connectors N-Male (Grey Color)

AIR-ANT2588P3M-N=

Legacy

1

2.4GHz 8dBi / 5GHz 8dBi 3-Element Dual-Polarized Patch Antenna, Connectors N-Female Bulkhead(3x RF Cable Coaxial needed)

AIR-ANT2450V-N=

Legacy

4

2.4GHz 5dBi Omnidirectional Colinear Array Antenna, Connectors N-Male

AIR-ANT2480V-N=

Legacy

4

2.4GHz 8dBi Omnidirectional Colinear Array Antenna, Connectors N-Male

AIR-ANT5180V-N=

Legacy

4

5GHz 8dBi 2-Element Omnidirectional Colinear Array Antenna, Connectors N-Male

AIR-ANT2513P4M-N=

Legacy

1

2.4GHz 13dBi / 5GHz 13dBi Dual-Band Polarization Diverse Patch Array Antenna, Connectors N-Female Bulkhead(4x RF Coaxial Cable needed)

5.     RF Cables and Lightning Arrestor (applicable if the C9124 access point is selected, to be ordered separately, as per the requirement)

Table 51.

Part number

Description

AIR-CAB005LL-N=

RF Cable, 5 ft Low-loss, N Connectors

AIR-CAB010LL-N=

RF Cable, 10 ft Low-loss, N Connectors

AIR-ACC245LA-N

Lightening Arrestor (If C9124AXE is connected to remote antenna through cable)

6.     Select access point mounting brackets (applicable if the C9130 or C9120 or C9115 or C9105 access point is selected).

Table 52.

Part number

Description

AIR-AP-NO-BRACKET

Select this option if no bracket is required

AIR-AP-BRACKET-1

Low-profile access point mounting bracket, default option

AIR-AP-BRACKET-2

Universal bracket for access point mounting

AIR-AP-BRACKET-W4

Bracket for 9105w access point wall mounting

AIR-AP-BRACKET-8

Bracket for 9105i access point mounting

7.     Select access point mounting brackets. (applicable if the C9124 access point is selected).

Table 53.

Part number

Description

AIR-AP-NO-BRACKET

Select this option if no bracket is required

AIR-MNT-VERT1

Vertical mounting bracket for Cisco Catalyst 9124AXD/AXE access point, will be option in CCW

AIR-MNT-VERT1=

Vertical mounting bracket for Cisco Catalyst 9124AXD/AXE access point

AIR-MNT-ART1=

Articulating mounting bracket for Cisco Catalyst 9124AXD access point

AIR-MNT-HORZ1=

Horizontal mounting bracket for Cisco Catalyst 9124AXI/AXD access point

AIR-MNT-VERT2=

Vertical mounting bracket for Cisco Catalyst 9124AXD/AXE access point with AC/DC PSU

AIR-MNT-STRAND1=

Strand mounting bracket for Cisco Catalyst 9124AXI/AXD access point

8.     Select ceiling grid clips (applicable if the C9130 or C9120 or C9115 or C9105 access point is selected).

Table 54.

Part number

Description

AIR-AP-T-RAIL-R

Ceiling grid clip (recessed mounting); this is the default option

AIR-AP-T-RAIL-F

Ceiling grid clip (flush mounting)

AIR-CHNL-ADAPTER

Optional adapter for channel-rail ceiling grid profile

9.     Select the access point powering options (applicable if the C9130 or C9120 or C9115 or C9105 access point is selected, to be ordered separately, as per the requirement).

Table 55.

Source

Description

AIR-PWRINJ6=

802.3at Cisco Power Injector 802.3af

AIR-PWRINJ5=

Cisco Power Injector

PoE+ via switch port

Any 802.3at (30.0 W) compliant switch port

10.  Select the access point powering options (applicable if the C9124 access point is selected, to be ordered separately, as per the requirement).

The Catalyst 9124AX Series Access Points can be powered by multiple sources: AC, DC, or Power over Ethernet (PoE). For AC powering, an external AC-to-DC power adapter is required. For DC powering, a 2-pin DC connector is included with every access point. The access point can also be powered by Cisco Universal Power over Ethernet (Cisco UPOE®) or PoE+ (802.3at) directly from a switch or power injector

Table 56.

Part number

Description

Use case

AIR-PWRINJ-60RGD1=

Power injector, 60W, outdoor, North America plug

Outdoor-rated 60W power injector with North American AC plug

AIR-PWRINJ-60RGD2=

Power injector, 60W, outdoor, un-connectorized

Outdoor-rated 60W power injector, unterminated AC cable for international use

AIR-PWRINJ-60-PMK=

Pole mount kit for AIR-PWRINJ-60

Required for pole mounting for AIR-PWRINJ-60RGD1= or AIR-PWRINJ-60RGD2=

AIR-PWRINJ6=

Power injector, 802.3at, indoor

Indoor-rated, 802.3at-compliant power injector

Note:      Please check access point data sheets for power requirements. If AIR-PWRINJ5 is used, the access point will work with reduced features. For more details, refer to the respective access point data sheet.

11.  Catalyst 9124AX Series outdoor access points support fiber backhaul.

The SFP port is built into the access point, but the mechanical interface is external to the access point.

A special SFP adapter/gland kit is needed to interface the fiber cable to the access point

Table 57.

Adaptor Part number

Description

Use case

AIR-ACC-KIT1=

Accessory kit for Catalyst 9124AX

Contains 5x SFP glands

GLC-LX-SM-RGD

1000BASE-LX single-mode rugged SFP

Long-distance fiber backhaul on single-mode fiber

GLC-SX-MM-RGD

1000BASE-SX multi-mode rugged SFP

Shorter-distance fiber backhaul on multimode fiber

GLC-T-RGD

1000BASE-T SFP, industrial temp

GE electrical interface for bridging wired clients such as video cameras or switches

12.  Accessories (applicable if the C9124 access point is selected, to be ordered separately, as per the requirement)

Table 58.

Accessories Part number

Description

AIR-ACC-KIT1=

Accessory kit for Catalyst 9124AX (5x ethernet, 2 dust cap, ground lug, DC plug kit)

C9124-CVR1=

Paintable cover for Catalyst 9124AX

AIR-SFP-KIT1=

SFP installation kit for Catalyst 9124AX

AIR-ACC-PS-MNT1=

AC/DC adapter mount bracket for AIR-MNT-HORZ1=

Default accessories shipped with the box

The Cisco Catalyst 9800 Series Wireless Controllers ship with the components shown in Figure 7.

C9800-L accessories kit

74-1151990-XX

TPASY WIRELESS MECHANICAL ACCESSORY KIT

78-101471-XX

CDOC; PNTR CARD C9800-L



Components shipped with the controllers

Figure 6.

Components shipped with the controllers

C9800-40 accessories kit

Figure 7.

C9800-40 accessories kit

C9800-40 accessories kit

69-1937-01_C0

MECHKIT, MOUNTING BRACKETS,1RU

47-20184-01_A0

LBL, EPUP, 10YR, China RoHS

72-4334-02_B0

CABLE, ROUND, RJ45 TO D9 FEMALE,3000mm,FTP,SERIAL

79-0087-01_A0

STRAP, DISPOSABLE ESD WRIST, CLIP TERMINATION

69-2016-01_A0

MECHKIT, CABLE RETAINER, 1RU, JACKPOT, MCP

78-21649-xx

CDOC; PNTR_CARD

502-00275-01_A0

PKG, BAG,10"X15",2MIL, PE,NC



C9800-80 accessories kit

Figure 8.

C9800-80 accessories kit

C9800-80 accessories kit

32-0629-01 (Qty:2pcs)

LUG TWO HOLE#6AWG#10 STUD BLUE

48-0700-01 (Qty:4pcs)

SCR, M, THS, PH10-32X038” L, ZNwPCH

72-4334-02_B0

CABLE, ROUND, RJ45 TO D9 FEMALE,3000mm,FTP,SERIAL

78-21649-xx

CDOC; PNTR_CARD

79-0087-01_A0

STRAP, DISPOSABLE ESD WRIST, CLIP TERMINATION

502-00275-01_A0

PKG, BAG,10"X15",2MIL,PE,NC

Licensing

The Cisco Catalyst 9800 Series Wireless Controllers require mandatory Smart Licensing. This provides ease of use for Cisco DNA license management, consumption, and tracking.

No licenses are required to boot up a Cisco Catalyst 9800 Series Wireless Controller. However, in order to connect any access points to the controller, Cisco DNA licenses are required. Each access point that connects to the wireless controller requires a Cisco DNA license to be entitled to connect. See Figure 9.

Cisco DNA license entitlement steps

Figure 9.

Cisco DNA license entitlement steps

Two modes of licensing are available:

     Cisco Smart Licensing is a flexible licensing model that provides you with an easier, faster, and more convenient way to purchase and manage software across the Cisco portfolio and across your organization. And it’s secure, you control what users can access. With Smart Licensing you get:

    Easy Activation: Smart licensing establishes a pool of software licenses that can be used across the entire organization-no more PAKs (Product Activation Keys).

    Unified Management: My Cisco Entitlements (MCE) provides a complete view into all of your Cisco Products and services in an easy-to-use portal, so you always know what you have and what you are using.

    License Flexibility: Your software is not node-locked to your hardware, so you can easily use and transfer licenses as needed.

     To use Smart Licensing, you must first set up a Smart Account on Cisco Software Central (software.cisco.com).

For more detailed overview on Cisco Licensing, go to cisco.com/go/licensingguide.

     SLR mode

     Specific License Reservation (SLR) is a feature used in highly secure networks. It provides a method for customers to deploy a software license on a device (product instance) without communicating usage information to Cisco. There will be no communication with Cisco or a satellite. A license is reserved for every controller. It is node-based licensing.

Four levels of license are supported on the Cisco Catalyst 9800 Series Wireless Controllers. The controllers can be configured to function at any one of the four levels.

     Cisco DNA Essentials: At this level the Cisco DNA Essentials feature set will be supported.

     Cisco DNA Advantage: At this level the Cisco DNA Advantage feature set will be supported.

     NE: At this level the Network Essentials feature set will be supported.

     NA: At this level the Network Advantage feature set will be supported.

     For customers who purchase Cisco DNA Essentials, Network Essentials will be supported and will continue to function even after term expiration. And for customers who purchase Cisco DNA Advantage, Network Advantage will be supported and will continue to function even after term expiration.

     Initial bootup of the controller will be at the Cisco DNA Advantage level.

Smart Accounts

A Smart Account is a central data repository that provides visibility and access control to all the Cisco software licenses and entitlements across an organization. Smart Accounts allow customers to store, manage, and move assets across locations and devices and begin to use them immediately. Smart Accounts are required for enabling Cisco Smart Software Licensing.

After a Smart Account has been set up, customers have the flexibility to create subaccounts (virtual accounts) to help manage licenses for departments, areas, or locations within their organization. Licenses can be pooled within virtual accounts as needed. Smart Accounts support role-based user access controls, which allow the delegation of authority to account administrators at the Smart Account level or at the virtual account level. In addition, customers can assign partner visibility and management rights to their virtual or enterprise-level accounts.

After purchasing a Cisco Catalyst controller up to day 1:

1)   Create a Smart Account.

a)   Please use the following link to create a Smart Account:

https://software.cisco.com/software/company/smartaccounts/home#accountcreation-account.

b)   Go to Cisco Software Central at software.cisco.com.

c)   An editable profile appears.

d)   An email is automatically sent to the customer Smart Account administrator.

2)   Register the Cisco Catalyst controller using the Smart Account.

Existing customers:

a)   Deposit existing Cisco DNA licenses, if any, into the Smart Account.

b)   Leverage offers to migrate existing perpetual licenses to Cisco DNA licenses.

New customers:

a)   Purchase Cisco DNA licenses for access points connecting to the Cisco Catalyst controller.

3)   Configure the license level on the box after bootup.

Additional information

Operations Exchange site featuring Smart Account overviews and training sessions: Navigate to the Smart Account Resources panel on the page.

Smart Licensing

Smart Licensing is a cloud-based approach to licensing. The solution simplifies the purchase, deployment, and management of Cisco software assets. Entitlements are immediately deposited into the customer’s virtual account for use. This eliminates the need to install license files on every device. Products that are smart enabled communicate with Cisco to report license consumption. The primary location for managing product registration and monitoring Smart License consumption is the Cisco Smart Software Manager. License ownership and consumption are readily available to help customers make better purchase decisions based on consumption or other business needs.

Smart Licensing for Cisco Catalyst 9800 Series Wireless Controllers is enabled starting with the 16.10.1 release.

Cisco enterprise wireless licenses

Tables 8 and 9 list the product IDs for ordering Cisco DNA licenses for access points.

Table 59.    A la carte part numbers for Cisco DNA for access points

License type

Product ID

Description

A la carte part numbers



Wireless Cisco DNA Essentials





AIR-DNA-E-3Y (greenfield)

AIR-DNA-E-5Y (greenfield)

AIR-DNA-E-7Y (greenfield)

Wireless Cisco DNA Essentials Term License, per AP



Wireless Cisco DNA Essentials 3-year term license, per AP

Wireless Cisco DNA Essentials 5-year term license, per AP

Wireless Cisco DNA Essentials 7-year term license, per AP

Wireless Cisco DNA Advantage

AIR-DNA-A-3Y (greenfield)

AIR-DNA-A-5Y (greenfield)

AIR-DNA-A-7Y (greenfield)

Wireless Cisco DNA Advantage Term License, per AP

Wireless Cisco DNA Advantage 3-year term license, per AP

Wireless Cisco DNA Advantage 5-year term license, per AP

Wireless Cisco DNA Advantage 7-year term license, per AP

Cisco Software-Defined Access (SD-Access)

SD-Access enables policy-based automation from edge to cloud with foundational capabilities using controller-based architecture, including design with validated templates, simplified device deployment, unified management of wired and wireless, network virtualization with segmentation, group-based policies, and context-based analytics.

SD Access can be enabled via Cisco DNA Advantage. The solution needs Cisco Identity Services Engine (ISE) licenses, which can be bought a-la-carte or through the Cisco DNA Expansion Pack. The Cisco DNA Expansion Pack is a flexible way to purchase Cisco ISE, Cisco DNA Spaces, Cisco ThousandEyes, Cisco Secure Network Analytics (Stealthwatch) and other licenses, appliances, and services to enhance your Cisco Networking solutions.

Services and warranty

The Solution Support service option is strongly recommended; it delivers centralized support across the Cisco and solution partner products in your deployment and resolves complex issues an average of 43 percent faster than traditional support. Additional product-level hardware support options are available: Cisco Smart Net Total Care Service and Partner Support Service. Software support for Cisco DNA is included in your Cisco DNA subscription. A 1-year limited warranty is included for the hardware.

It is strongly recommended that the term of the hardware support contract match the software subscription license term to avoid any service support gaps for the duration of the term. Figures 12 and 13 describe the various service options for the Cisco Catalyst 9800 Series Wireless Controllers.

Cisco Technical Services features comparison for 9800 Series controllers

Cisco Technical Services features comparison for 9800 Series controllers

Cisco Technical Services feature comparison for Cisco Catalyst 9800-CL Wireless Controller for Cloud

Cisco Technical Services feature comparison for Cisco Catalyst 9800-CL Wireless Controller for Cloud

Cisco 1-year limited hardware warranty terms

The following are terms applicable to the hardware warranty. The embedded software is subject to the Cisco End User License Agreement (EULA) (link available below) and/or any Supplemental End User License Agreement (SEULA) or specific software warranty terms for additional software products loaded on the device.

Duration of hardware warranty

One (1) year.

Replacement, repair, or refund procedure for hardware

Cisco or its service center will use commercially reasonable efforts to ship a replacement part within ten (10) working days after receipt of the RMA request. Actual delivery times may vary depending on customer location.

Cisco reserves the right to refund the purchase price as its exclusive warranty remedy.

Restrictions. This limited warranty does not apply if the hardware (a) has been altered, except by Cisco or its authorized representative; (b) has not been installed, operated, repaired, or maintained in accordance with instructions supplied by Cisco; (c) has been subjected to abnormal physical or electrical stress, abnormal environmental conditions, misuse, negligence, or accident; or (d) is licensed for beta, evaluation, testing, or demonstration purposes.

Return materials authorizations

To receive a Return Materials Authorization (RMA) number:

     Please contact the party from whom you purchased the product.

     If you purchased the product directly from Cisco, call Cisco TAC by phone to start a validation of your warranty claim.

To obtain a directory of toll-free Cisco TAC telephone numbers for your country, go to this URL: https://www.cisco.com/go/DirTAC.

If you are instructed to return your product under the terms of your warranty and are issued an RMA number, follow these steps:

     Return the unit to Cisco or your network supplier as instructed.

     Your unit will be replaced per the applicable warranty guidelines.

     If you cannot locate your network supplier, you may return the unit to Cisco.

IMPORTANT NOTE: All material returned to Cisco must be accompanied by an RMA number. This number is necessary so that the factory can ensure proper tracking and handling of returned material.

If you do not have an RMA number, Cisco reserves the right to refuse receipt of returned units.

Service assistance

If you have a Cisco Smart Net Total Care Service program or other maintenance agreement, request service under your agreement. You can purchase maintenance contracts from your local network supplier or from Cisco directly.

Call the Cisco TAC line if you have contracted for this service. TAC support is not available as part of the warranty alone.

To obtain a directory of toll-free Cisco TAC telephone numbers for your country, go to https://www.cisco.com/go/DirTAC.

Online resources

     Cisco End User License Agreement (EULA)

The Cisco EULA governing software use is available at:

https://www.cisco.com/go/softwareterms

     Warranty online

Product warranty terms and other information applicable to Cisco products are available at:

https://www.cisco.com/go/warranty

Consult the above website or your Cisco sales and service representative for a complete listing of Cisco products and applicable warranties.

Important links

Smart Accounts: All you need to know

     Operations Exchange: Partner and distributor software training: A comprehensive list of external software training resources. Detailed training modules for ordering and license management.

     Smart Account Leading Practices for Customers: A leading practices guide that can help customers decide how to structure their Smart Accounts or if they need multiple Smart Accounts.

     Smart Account Decision Tree: A short branching survey that helps partners and customers understand what types of Smart Accounts to create.

     Cisco Smart Accounts site: The primary Cisco.com site for Smart Accounts.







Learn more

Upgrade your network to function at the speed of light. See how Cisco Catalyst 9100 Access Points give you the reliability, security, and capacity your business needs when deploying a Wi-Fi 6/6E solution.
