Cisco® 1100 Series Integrated Services Routers (ISRs) with Cisco IOS® XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The routers are easy to deploy and manage, with cutting-edge, scalable, multicore separate data and control plane capabilities.

The Cisco 1100 Series ISRs are well suited for deployment as Customer Premises Equipment (CPE) in enterprise branch offices, in service provider managed environments as well as smaller form factor and M2M use cases.

Note:    Not all 1100 series SKU variants are available in every region with different technologies (check on CCW pricelist for your region).

Description: C:\Users\kevhuynh\Documents\#1722 TSN 1100 STAR Part 1\PNGs\high\KT12148.png

Figure 1.

Cisco 1100 Product Family Series

Figure 2.

Cisco 1100-8P ISR with LTE Advanced, Back and Front View

Figure 3.

Cisco 1100-4P ISR with DSL, Back and Front View

Figure 4.

Cisco 1101-4P and 1101-4PLTEP with LTE Advanced Pluggable

Figure 5.

Cisco 1109-2PLTE with fixed CAT4 LTE (Available late October, 2018)

Primary Features and Benefits

Table 1.             Business Benefits

Business need

Features/description

Lightweight, compact size with low power consumption

  Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors (Including Cisco Pluggable smaller form factor technology).

High performance to run concurrent services

  High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services.

High availability and business continuity

  Redundant WAN connections for failover protection and load balancing.
  Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP).

Consistent, high application performance levels

  The router can run multiple services simultaneously with minimal performance degradation.

Risk mitigation with multilevel security

  Network perimeter security with integrated application inspection firewall.
  Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption.
  High-performance VPNs: DMVPN, FlexVPN, GETVPN.
  Encrypted Traffic Analytics (ETA) to identify malware communications in encrypted traffic using passive monitoring, extraction of relevant data elements, and supervised machine learning with cloud-based global visibility.
  Cisco Umbrella is a cloud security platform that provides the first line of defense against threats on the internet wherever users go.
  Security hardware acceleration.
  Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor.

Unified control of wired and wireless networks from a common console for streamlined operations

  Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.
  Supports Mobility Express for WLAN-enabled routers.

Remote configuration and management to keep local IT staff lean

  Supports separate console and USB ports. Can be configured to work with optional USB token.
  Supports TR-069.

Performance

  Throughput
  Service reliability
  ISR 1100 can provide encrypted traffic performance greater than 350 Mbps.
  A distributed multicore architecture with the dedicated control plane and service plane.
  Remote installation of application-aware services that run identically to their counterparts in dedicated appliances (Future roadmap).

Lower WAN expenditures

  Cisco Software-Defined WAN (SD-WAN) support for optimized WAN connection.
  Smaller form factor and Cisco Pluggable technology provide additional protection investment and flexibility.

Pay as you grow: IPsec performance upgrade model

  Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings and CapEx budget management.

IT consolidation, space savings, and improved Total Cost of Ownership (TCO)

  Single converged branch platform integrates routing, switching, security, and performance management capabilities.

Business continuity and increased resiliency

  The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints (Not available on C1101 smaller form factor series).

Table 2.             Support for Software-Defined WAN on ISR 1100

Cisco SD-WAN offers an entirely new way to manage and operate your WAN infrastructure. Cisco SD-WAN is a cloud delivered architecture that offers secure, flexible and rich services with the following key benefits:

Cisco SD-WAN

Cisco SD-WAN capability can be enabled on ISR 1100 platform

Better user experience

  The ability to deploy applications in minutes, on any platform, with a consistent user experience. Deliver predictable performance for applications residing in the data center or in the cloud.

Greater agility

  Faster, easier deployment and operation of your WAN, and get faster performance using less bandwidth. Add new revenue generating services in minutes not months.

Advanced threat protection

  Securely connect your users to applications in minutes and protect your data from the WAN edge to the cloud. Secure segmentation for critical assets and multi-layer, robust security that encrypts all data.

IOS XE SD-WAN software enables important steps towards IBN for WAN, i.e.

     Centralized management and operational simplicity

     Secure connectivity on the hybrid WAN

     Optimized access to SaaS and Public Cloud

     Predictable Application Quality of Experience with policy-based automation

Platform Architecture and Capabilities

Table 3.             Architectural Highlights

Architectural feature

Benefits/description

Multicore processors

  High-performance multicore processors support high-speed WAN connections. The data plane uses a flow processor that delivers Application-Specific Integrated Circuit (ASIC)-like performance that does not degrade as services are added.

Embedded IPsec VPN hardware acceleration

  Increases scalability when combined with an optional Cisco IOS XE Software Security license, enables WAN link security and VPN services.

Integrated Gigabit Ethernet ports

  Provides up to 10 built-in 10/100/1000 Ethernet ports for WAN or LAN (1100-8P: 2 WAN and 8 LAN ports, 1100-4P: 2 WAN and 4 LAN ports, 1101-4P: 1WAN and 4 LAN ports, and 1109-2P M2M : 1 WAN and 2 LAN ports).
  All 1100-8P and 1100-4P platforms model have one 10/100/1000 Ethernet port that can support Small Form-Factor Pluggable (SFP)-based connectivity in addition to RJ-45 connections, enabling fiber or copper connectivity.
  Depending on the platform, PoE/PoE+ can be enabled on Gigabit Ethernet interfaces (4 PoE or 2 PoE+ ports on the 1100-8P and 2 PoE or 1 PoE+ ports on the 1100-4P), to provide power to external devices such as video endpoints and 802.11ac access points (Not available on C1101 and C1109 M2M smaller form factor models).
  Smaller form factor 1101-4P and 1109-4P with Cisco Pluggable technology option.
  An additional dedicated Gigabit Ethernet port is provided for device management.

USB-based console access

  A mini type B USB console port supports management connectivity when traditional serial ports are not available. Traditional console port are also available.

Optional integrated power supply for distribution of PoE

  An optional upgrade to the internal power supply provides inline power (802.3af-compliant PoE or 802.3at-compliant PoE+) to integrated switch modules based on the external power supply selected.
  PoE conversion capability provides an additional layer of fault tolerance (Not available on C1101 and C1109 M2M smaller form factor models).

Flash memory support

  The 1100 Series ISRs ship with a fixed 4GB flash memory.
  USB type A 2.0 ports provide capabilities for convenient storage.

DRAM

  The 1100 Series comes with 4 GB fixed DRAM. C1111X-8P has 8 GB fixed DRAM for advanced SD-WAN security features.

Table 4.             Network Management Solutions

Operational phase

Application

Description

Device staging and configuration

WebUI

  A GUI-based device-management tool for Cisco IOS and Cisco IOS XE Software-based access routers. This tool simplifies routing, firewall, VPN, unified communications, and WAN and LAN configuration through easy-to-use wizards.

Networkwide deployment, configuration, monitoring, and troubleshooting

Cisco Prime®Infrastructure

  Offers comprehensive lifecycle management of wired and wireless access, campus, and branch-office networks; rich visibility into end-user connectivity; and application performance assurance.
  Provides wired lifecycle functions such as inventory, configuration, and image management; automated deployment; compliance reporting; integrated best practices; and reporting.

Context-aware security configuration and monitoring

Cisco Prime Security Manager

  Management tool for configuring and managing context-aware security. The application supports both single- and multidevice manager form factors.
  Provides the ability to write and enforce granular context-aware security policies.

Digitalized applications to become inherently network-aware and Application Policy Infrastructure Controller Enterprise Module

Cisco Digital Network Architecture (DNA-C) with APIC-EM

  DNA centers around a network infrastructure that is not only fully programmable and open to third–party innovation, but can also fully and seamlessly integrates the cloud as an infrastructure component.
  The DNA controller factilitatest simple, automated and programmatic deployment of network services. It brings the notion of user–and application–aware policies into the foreground of network operations.
  With DNA, the network can provide continuous feedback to simplify and optimize network operations.
  Automate network configuration and setup APIC-EM is a central part of Cisco Digital Network Architecture. It delivers software-defined networking to the enterprise branch, campus, and WAN.

Table 5.             Embedded Management Capabilities

Feature

Description

Cisco IOS Embedded Event Manager (EEM)

  A distributed and customized approach to event detection and recovery.
  Offers the ability to monitor events and take informational, corrective, or any desired EEM action when the monitored events occur or when a threshold is reached.

Cisco IOS XE IP Service-Level Agreements
(IP SLAs)

  Helps assure the performance of new business-critical IP applications as well as IP services that use data and voice in an IP network.

Simple Network Management Protocol (SNMP), Remote Monitoring (RMON), syslogNetFlow, IP Flow Information Export (IPFix)

  Network monitoring and accounting tools. Enhanced 3G MIB with 4G MIB extension.

LTE network management and diagnostics

  In-band and out-of-band management using Telnet (Cisco IOS XE Software Command-Line Interface [CLI]) and SNMP, including MIB II and other extensions.
  Industry-standard LTE diagnostics and monitoring tools (Qualcomm CDMA Air Interface Tester [CAIT] and Spirent Universal Diagnostic Monitor [UDM]).

Table 6.            Software Features and Protocols

Feature

Description

Protocols

IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast Sparse Mode (PIM SM), PIM Source-Specific Multicast (SSM), Resource Reservation Protocol (RSVP), Cisco Discovery Protocol, Encapsulated Remote Switched Port Analyzer (ERSPAN), Cisco IOS IP Service-Level Agreements (IPSLA), Call Home, Cisco IOS Embedded Event Manager (EEM), Internet Key Exchange (IKE), Access Control Lists (ACL), Ethernet Virtual Connections (EVC), Dynamic Host Configuration Protocol (DHCP), Frame Relay (FR), DNS, Locator ID Separation Protocol (LISP), Hot Standby Router Protocol (HSRP), RADIUS, Authentication, Authorization, and Accounting (AAA), Application Visibility and Control (AVC), Distance Vector Multicast Routing Protocol (DVMRP), IPv4-to-IPv6 Multicast, Multiprotocol Label Switching (MPLS), Layer 2 and Layer 3 VPN, IPsec, Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE 802.1ag, and IEEE 802.3ah.

Encapsulations

Generic Routing Encapsulation (GRE), Ethernet, 802.1q VLAN, Point-to-Point Protocol (PPP), Multilink Point-to-Point Protocol (MLPPP), Frame Relay, Multilink Frame Relay (MLFR) (FR.15 and FR.16), High-Level Data Link Control (HDLC), Serial (RS-232, RS-449, X.21, V.35, and EIA-530), and PPP over Ethernet (PPPoE).

Traffic management

Quality of Service (QoS), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Hierarchical QoS, Policy-Based Routing (PBR), Performance Routing (PfR), and Network-Based Application Recognition (NBAR).

Cryptographic algorithms

Encryption: DES, 3DES, AES-128 or AES-256 (in CBC and GCM modes).

Authentication: RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA-512.

Product Specifications

Table 7.             Cisco 1100 Series ISRs DSL and LTE SKUs

Model

WAN

Wi-Fi

LAN switch

Integrated USB 3.0 console

Pluggable

GE

GE/SFP combo

ADSL2/VDSL2+ or G.FAST or G.SHDSL

LTE Advanced (CAT6)

802.11ac

GE

PoE or PoE+

C1101-4P

1

NA

NA

NA

NA

4

NA

NA

Yes (No AUX)

NA

C1109-2PLTEVZ

1

NA

NA

NA

NA

2

NA

NA

Yes (No AUX)

NA

Same CAT4 technology as P-LTE-VZ

C1109-2PLTEUS

1

NA

NA

NA

NA

2

NA

NA

Yes (No AUX)

NA

Same CAT4 technology as P-LTE-US

C1109-2PLTEGB

1

NA

NA

NA

NA

2

NA

NA

Yes (No AUX)

NA

Same CAT4 technology as P-LTE-GB

C1111-8P (C1111X-8P with 8 GB memory and flash)

1

1

NA

NA

NA

8

4

2

Yes

NA

C1111-4P

1

1

NA

NA

NA

4

2

1

Yes

NA

C1112-8P

NA

1

1 G.FAST (Annex B)

NA

NA

8

4

2

Yes

NA

C1113-8P

NA

1

1 G.FAST (Annex A)

NA

NA

8

4

2

Yes

NA

C1113-8PM

NA

1

1 G.FAST (Annex M)

NA

NA

8

4

2

Yes

NA

C1116-4P

NA

1

1 VA-DSL (Annex B/J)

NA

NA

4

2

1

Yes

NA

C1117-4P

NA

1

1 VA-DSL (Annex A)

NA

NA

4

2

1

Yes

NA

C1117-4PM

NA

1

1 VA-DSL (Annex M)

NA

NA

4

2

1

Yes

NA

C1101-4PLTEP

1

NA

NA

NA

NA

4

NA

NA

Yes (No AUX)

Yes (All)

C1111-8PLTEEA

1

1

NA

1 EMEAR & North America

NA

8

4

2

Yes

NA

C1111-8PLTELA

1

1

NA

1 LATAM & APAC

NA

8

4

2

Yes

NA

C1111-4PLTEEA

1

1

NA

1 EMEAR & North America

NA

4

2

1

Yes

NA

C1111-4PLTELA

1

1

NA

1 LATAM & APAC

NA

4

2

1

Yes

NA

C1112-8PLTEEA

NA

1

1 G.FAST (Annex B)

1 EMEAR & North America

NA

8

4

2

Yes

NA

C1113-8PLTEEA

NA

1

1 G.FAST (Annex A)

1 EMEAR & North America

NA

8

4

2

Yes

NA

C1113-8PLTELA

NA

1

1 G.FAST (Annex A)

1 LATAM & APAC

NA

8

4

2

Yes

NA

C1113-8PMLTEEA

NA

1

1 G.FAST (Annex M)

1 EMEAR & North America

NA

8

4

2

Yes

NA

C1116-4PLTEEA

NA

1

1 ADSL2/VDSL2+ (Annex B/J)

1 EMEAR & North America

NA

4

2

1

Yes

NA

C1117-4PLTEEA

NA

1

1 ADSL2/VDSL2+ (Annex A)

1 EMEAR & North America

NA

4

2

1

Yes

NA

C1117-4PLTELA

NA

1

1 ADSL2/VDSL2+ (Annex A)

1 LATAM & APAC

NA

4

2

1

Yes

NA

C1117-4PMLTEEA

NA

1

1 ADSL2/VDSL2+ (Annex M)

1 EMEAR & North America

NA

4

2

1

Yes

NA

C1118-8P

NA

1

1 G.SHDSL

NA

NA

4

2

1

Yes

NA

Table 8.            Cisco 1100 Series ISRs DSL and Wi-Fi SKUs

Model

WAN

Wi-Fi

LAN switch

Integrated USB 3.0 console

GE

GE/SFP combo

ADSL2/VDSL2+

LTE Advanced (CAT6)

802.11ac

GE

PoE or PoE+

C1111-8PWY*

1

1

NA

NA

2X2 MIMO

8

4

2

Yes

C1111-4PWX**

1

1

NA

NA

2X2 MIMO

4

2

1

Yes

C1112-8PWE

NA

1

1 G.FAST (Annex B)

NA

2X2 MIMO

8

4

2

Yes

C1113-8PWA

NA

1

1 G.FAST (Annex A)

NA

2X2 MIMO

8

4

2

Yes

C1113-8PWB

NA

1

1 G.FAST (Annex A)

NA

2X2 MIMO

8

4

2

Yes

C1113-8PWE

NA

1

1 G.FAST (Annex A)

NA

2X2 MIMO

8

4

2

Yes

C1113-8PWZ

NA

1

1 G.FAST (Annex A)

NA

2X2 MIMO

8

4

2

Yes

C1113-8PMWE

NA

1

1 G.FAST (Annex M)

NA

2X2 MIMO

8

4

2

Yes

C1116-4PWE

1

1

1 ADSL2/VDSL2+ (ISDN) Annex B/J

NA

2X2 MIMO

4

2

1

Yes

C1117-4PWE

1

1

1 ADSL2/VDSL2+ (POTS) Annex A

NA

2X2 MIMO

4

2

1

Yes

C1117-4PWA

1

1

1 ADSL2/VDSL2+ (POTS) Annex A

NA

2X2 MIMO

4

2

1

Yes

C1117-4PWZ

1

1

1 ADSL2/VDSL2+ (POTS) Annex A

NA

2X2 MIMO

4

2

1

Yes

C1117-4PMWE

1

1

1 ADSL2/VDSL2+ (POTS) Annex M

NA

2X2 MIMO

4

2

1

Yes

* WiFi domain WY; Y = A, B, E, F, H, N, Q, R, Z
** WiFi domain WX; X = A, B, D, E, F, H, N, Q, R, Z

Cisco WLAN Country Compliance Lookup
https://www.cisco.com/c/dam/assets/prod/wireless/wireless-compliance-tool/index.html

Table 9.            Cisco 1100 Series ISRs LTE, Wi-Fi, and DSL SKUs

Model

WAN

Wi-Fi

LAN switch

Integrated USB 3.0 console

Pluggable

GE

GE/SFP combo

ADSL2/VDSL2+

LTE Advanced (CAT6)

802.11ac

GE

PoE or PoE+

C1111-8PLTEEAWX*

1

1

NA

1 EMEAR & North America

2X2 MIMO

8

4

2

Yes

NA

C1111-8PLTELAWY**

1

1

NA

1 LATAM & APAC

2X2 MIMO

8

4

2

Yes

NA

C1112-8PLTEAWE

NA

1

1 G.FAST (Annex B)

1 EMEAR & North America

2X2 MIMO

8

4

2

Yes

NA

C1113-8PLTEEAWA

NA

1

1 G.FAST (Annex A)

1 EMEAR & North America

2X2 MIMO

8

4

2

Yes

NA

C1113-8PLTEEAWB

NA

1

1 G.FAST (Annex A)

1 EMEAR & North America

2X2 MIMO

8

4

2

Yes

NA

C1113-8PLTEEAWE

NA

1

1 G.FAST (Annex A)

1 EMEAR & North America

2X2 MIMO

8

4

2

Yes

NA

C1113-8PLTELAWZ

NA

1

1 G.FAST (Annex A)

1 LATAM & APAC

2X2 MIMO

8

4

2

Yes

NA

C1116-4PLTEEAWE

NA

1

1 ADSL2/VDSL2+ (ISDN) Annex B/J

1 EMEAR & North America

2X2 MIMO

4

2

1

Yes

NA

C1117-4PMLTEEA

NA

1

1 ADSL2/VDSL2+ (POTS) Annex M

1 EMEAR & North America

2X2 MIMO

4

2

1

Yes

NA

C1117-4PLTEEAWE

NA

1

1 ADSL2/VDSL2+ (POTS) Annex A

1 EMEAR & North America

2X2 MIMO

4

2

1

Yes

NA

C1117-4PLTEEAWA

NA

1

1 ADSL2/VDSL2+ (POTS) Annex A

1 EMEAR & North America

2X2 MIMO

4

2

1

Yes

NA

C1117-4PLTELAWZ

NA

1

1 ADSL2/VDSL2+ (POTS) Annex A

1 LATAM & APAC

2X2 MIMO

4

2

1

Yes

NA

C1117-4PMLTEEAWE

NA

1

1 ADSL2/VDSL2+ (POTS) Annex M

1 EMEAR & North America

2X2 MIMO

4

2

1

Yes

NA

C1101-4PLTEPWX*

1

NA

NA

NA

2X2 MIMO

4

NA

NA

Yes (No AUX)

Yes (All)

C1111-8PLTEEAWX *
* WiFi domain WX; X = A, B, E, R
C1111-8PLTELAWY **
** WiFi domain WY; Y = D, F, H, N, Q, Z
C1101-4PLTEPWX *
* WiFi domain WX; X = A, B, D, E, Z

Cisco WLAN Country Compliance Lookup
https://www.cisco.com/c/dam/assets/prod/wireless/wireless-compliance-tool/index.html

System Specifications

Table 10.          LTE (3GPP Category 4) Pluggable Bands Supported

Region or theater

Cisco LTE 2.5 for P-LTE-VZ

Cisco LTE 2.5 for P-LTE-US

Cisco LTE 2.5 for P-LTE-GB

Bands

LTE bands 4, 13.

FDD LTE 700 MHz (band 13), 1700 MHz and 2100 MHz (band 4 AWS).

LTE bands 2, 4, 5, 12.

FDD LTE 700 MHz (band 17), 700 MHz (band 12), 850 MHz (band 5 CLR), 1700 MHz and 2100 MHz (band 4 AWS).

LTE bands 1, 3, 7, 8, 20, 28.

FDD LTE 700 MHz (band 28), 800 MHz (band 20), 900 MHz (band 8), 1800 MHz (band 3), 2100 MHz (band 1), and 2600 MHz (band 7).

Theoretical Category 4 download/upload speeds

150 Mbps/50 Mbps

150 Mbps/50 Mbps

150 Mbps/50 Mbps

United States

  Verizon
  ATT and T-Mobile

Europe

Table 11.          LTE Advanced (3GPP Category 6) Pluggable Bands Supported (with Dying Gasp)

Region or theater

Cisco LTE Advanced 3.0 Pluggable P-LTEA-EA

Cisco LTE Advanced 3.0 Pluggable P-LTEA-LA

Bands

LTE bands 1-5, 7, 12, 13, 20, 25, 26, 29, 30, and 41.

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 MHz and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7).

TDD LTE 2500 MHz (band 41).

Carrier aggregation band combinations:

1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29); 7+(7,20); 12+30, 5+30, and 41+41.

LTE bands 1, 3, 5, 7, 8, 18, 19, 21, 28, 38, 39, 40, and 41.

FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 850 MHz (bands 18 and 19 Low), 900 MHz (band 8), 1500 MHz (band 21), 1800 MHz (band 3), 2100 MHz (band 1), or 2600 MHz (band 7).

TDD LTE 1900 MHz (band 39), 2300 MHz (band 40), 2500 MHz (band 41), or 2600 MHz (band 38).

Carrier aggregation band combinations:

1+(8,18,19,21); 3+(5,7,19,28); 7+(5,7,28); 19+21, 38+38, 39+39,40+40, and 41+41.

Theoretical Category 6 download/upload speeds

300 Mbps/50 Mbps

300 Mbps/50 Mbps

United States

Europe

Canada

Australia



India



Table 12.          LTE Advanced Bands Supported

Region or theater

Cisco LTE Advanced 3.0 LTEEA (Category 6)

Cisco LTE Advanced 3.0 LTELA (Category 6)

Bands

LTE bands 1-5, 7, 12, 13, 20, 25, 26, 29, 30, and 41.

FDD LTE 700 MHz (band 12), 700 MHz (band 29), 800 MHz (band 20), 850 MHz (band 5 CLR), 850 MHz (band 26 Low), 900 MHz (band 8), 1800 MHz (band 3), 1900 MHz (band 2), 1900 MHz (PCS band 25), 1700 MHz and 2100 MHz (band 4 AWS), 2100 MHz (band 1), 2300 MHz (band 30), or 2600 MHz (band 7).

TDD LTE 2500 MHz (band 41).

Carrier aggregation band combinations:

1+8; 2+(2,5,12,13,29); 3+(7,20); 4+(4,5,12,13,29); 7+(7,20); 12+30, 5+30, and 41+41.

LTE bands 1, 3, 5, 7, 8, 18, 19, 21, 28, 38, 39, 40, and 41.

FDD LTE 700 MHz (band 28), 850 MHz (band 5 CLR), 850 MHz (bands 18 and 19 Low), 900 MHz (band 8), 1500 MHz (band 21), 1800 MHz (band 3), 2100 MHz (band 1), or 2600 MHz (band 7).

TDD LTE 1900 MHz (band 39), 2300 MHz (band 40), 2500 MHz (band 41), or 2600 MHz (band 38).

Carrier aggregation band combinations:

1+(8,18,19,21); 3+(5,7,19,28); 7+(5,7,28); 19+21, 38+38, 39+39,40+40, and 41+41.

Theoretical Category 6

download/upload speeds

300 Mbps/50 Mbps

300 Mbps/50 Mbps

United States

Europe

Canada

Middle East with specific LTE bands/frequencies

Australia

Japan

China

India

Southeast Asia

Latin America

  Dependent upon specific operators supporting the LTE bands listed above.

South Korea

Table 13.          Cisco LTE Advanced 3.0 (3GPP Category 6) Specifications

Item

Specification

LTE modem form factor

  Embedded (included with the router).
  Cisco IOS Software feature set: Universal Cisco IOS XE 16.6.1 Software image or later. C1101 series support starting with IOS XE 16.8.1 Software image or later.
  Cisco LTE Advanced 3.0 LTEEA (CAT6) and Pluggable P-LTEA-EA SKU: FW-7455-LTE-VZ (Verizon) or FW-7455-LTE-AT (ATT) or FW-7455-LTE-ST (Sprint) or FW-7455-LTE-BE (Bell) or FW-7455-LTE-RO (Rogers) or FW-7455-LTE-TE (Telus) or FW-7455-LTE-GN (generic for T-Mobile, Europe, and Middle East) selection option.
  Cisco LTE Advanced 3.0 LTELA (CAT6) and Pluggable P-LTEA-LA SKU: FW-7430-LTE-AU (Australia) or FW-7430-LTE-JN (Japan) or FW-7430-LTE-GN (generic) selection option.

Important LTE features

  Automatic switch failover between primary and backup link.
  Multichannel-Interface-Processor (MIP) profile configuration.
  Remotely initiated data callback using voice.or Short Message Service (SMS).
  Remote firmware upgrade over LTE.
  SIM lock and unlock capabilities.

Dual SIM support

  High reliability, and cellular multihoming support for dual micro (3FF) SIMs card socket; compliant with ISO-7816-2 (SIM mechanical), Auto SIM carrier capability with correct firmware selection (Fast SIM failover).

SMS and GPS

  GPS antenna: SMA connector (separate active GPS antenna with SMA option).
  Send and receive SMS (maximum 160 characters).
  Standalone GPS and Assisted GPS (AGPS); needs line of sight.

Modem information

Modem form factor: M.2 EM7455 or M.2 EM7430 series for Cisco LTE Advanced 3.0., WP7600 series for Cisco LTE 2.5.

Wireless technologies supported (performance and throughput)

Cisco LTE Advanced 3.0 LTEEA and LTELA (Refer to above Table 9: LTE Advanced Bands Supported)

Backward compatibility:

  UMTS and HSPA+.
  DC-HSPA+ speed download with Category 24 (42 Mbps) and upload up to Category 8 (11.5 Mbps). LTELA supports DC-HSPA+ band 1, 5, 6, 8, 9, 19. LTEEA supports DC-HSPA+ band 1, 2, 3, 4, 5, 8.
  TD-SCDMA 39 (LTELA China Mobile supports).

Cisco LTE 2.5 (Refer to Table 10: LTE Bands Supported)

Backward compatibility:

  P-LTE-US: HSPA+ (Band 2, 4, 5).
  P-LTE-GB: UMTS, HSPA+ (Band 1, 8), EDGE, GSM, GPRS (900/1800).

Included antenna

  Two multiband swivel-mount dipole antennas (LTE-ANTM-D) are included with all Cisco LTE Advanced 3.0 Pluggables and 1100 Series routers. Two multiband swivel-mount dipole antennas (LTE-ANTM-SMA-D) are included with all Cisco LTE 2.5 Pluggables 1101 and 1109 Series routers.

For –N antenna and cable installation guidance, view the Connected Grid Antennas Installation Guide.

Carrier support

  For a list of carriers that offer services on the Cisco 1100 Series LTE Advanced 3.0, please visit theWireless Carrier Partners page.

Table 14.          Cisco 1100 Series ISRs System Specifications

Feature

Specification

Memory (default and maximum)

DRAM: 4 GB

Only C1111X-8P model have 8GB DRAM

Flash: 4 GB

Only C1111X-8P model have 8GB Flash

Console

  Micro USB console (USB 3.0).

Mini-USB port (reserved)

  Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0).

WLAN interfaces

  Multiuser Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU‑MIMO).
  802.11ac Wave 2 with 2x2:2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points.
  Flexible deployment through the Mobility Express solution is ideal for small to medium-sized deployments. Easy setup allows the 1100 Series (similar to 1815i) to be deployed on networks without a physical controller.
  For more information, view theCisco Aironet 1815i Access Point Data Sheet.

Maximum clients

  Maximum number of associated wireless clients: 200 per Wi-Fi radio; in total 400 clients per access point.

Authentication and security

  AES for Wi-Fi Protected Access 2 (WPA2).
  802.1X, RADIUS AAA.
  802.11r and 802.11i.

802.11ac

  2x2 SU-MIMO/MU-MIMO with two spatial streams.
  Maximal Ratio Combining (MRC).
  20-, 40-, and 80-MHz channels.
  PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz).
  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx).
  802.11 Dynamic Frequency Selection (DFS).
  Cyclic Shift Diversity (CSD) support.

Software

  Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 (8.8 for 1101 and 1109 Models) MR1 or later.

DSL interfaces

C1116 & C1117

  Dying gasp.
  ITU G.993.2 (VDSL2) and supported profiles: 8a, 8b, 8c, 8d, 12a, 12b, and 17a.
  VDSL2 Vectoring.
  ADSL Annex A and Annex B ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+).
  ADSL Annex M G.992.3 (ADSL2) and G.992.5 (ADSL2+).

C1112 & C1113

  G.FAST (spectrum up to 106MHz) Annex A, Annex B, Annex M and compatible with ADSL2/2+ and VDSL2.
  ITU G.993.2 (VDSL2) and supported profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 35b.
  ITU G.9700/9701/997.2 G.FAST and supported profiles: 106a, and 106b.

C1118

  G.SHDSL.

Inline PoE

  Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access points; 802.3af-compliant PoE or 802.3at-compliant PoE+.

External power supply

Product power specifications:

C111X Models

  AC input voltage: Universal 100 to 240 VAC.
  Frequency: 50 to 60 Hz.
  Maximum output power: 66W (default).
  Output voltages: 12 VDC.
  Optional PoE and PoE+:
   Single 150W power supply required for Cisco 1100-8P series router
   Single 115W power supply required for Cisco 1100-4P series router
  External output voltage: 48 VDC.

C1101-4PLTEPWX Models:

  AC input voltage: Universal 100 to 240 VAC.
  Frequency: 50 to 60 Hz.
  Maximum output power: 66W (default).
  Output voltages: 12 VDC.

C1101-4P, C1101-4PLTEP, and C1109-2PLTE Models:

  AC input voltage: Universal 100 to 240 VAC.
  Frequency: 50 to 60 Hz.
  Maximum output power: 30W (default iTemp).
  Output voltages: 12 VDC.

USB 3.0

  USB devices supported:
   USB eTokens and USB flash memory
  Devices USB 3.0 supports to be connected externally. View theUSB Device Support Data Sheet.

LEDs

  WWAN (green/amber).
  SIM status (green/amber).
  Received signal strength indication (RSSI) bar (green).
  3G/LTE service (green/amber).
  GPS (green/amber).
  Speed and link for Gigabit Ethernet WAN port (green).
  Speed and link for all Fast Ethernet LAN ports (green).

Physical dimensions
(H x W x D)

C111X Models

  1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet on LTE models).
  1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet on non-LTE models).

C1101-4PLTEP and C1101-4PLTEPWX Models

  1.73 x 9.75 x 6.6 in. (43.9 x 247.6 x 167.6 mm) (includes rubber feet models).

C1101-4P Models

  1.1 x 7.5 x 6.0 in. (27.9 x 190.5 x 152.4 mm) (includes rubber feet models).

C1109-2PLTE Models

  1.15 x 7.6 x 6.3 in. (29.2 x 193.0 x 160.0mm) (includes rubber feet models).

Pluggable

  .85 x 2.5 x 3.88 in. (21.6 x 63.5 x 98.5 mm).

Weight

C111X Models

  1.94 lb to 4.59 lb (1.94kg to 2.08 kg).
  4.50 lb (2.04 kg) with LTE Advanced.
  4.76 lb (2.16 kg) with Wave 2 802.11ac Dual Radio.
  4.89 lb (2.22 kg) with LTE Advanced plus Wave 2 802.11ac Dual Radio.

C1101-4PLTEPWX Models

  3.34 lb (1.51kg).

C1101-4PLTEP Models

  3.78 lb (1.71kg).

C1101-4P Models

  1.89 lb (.86kg).

C1102-2PLTE Models

  2.25 lb (1.02kg).

Pluggable

  EM74XX .44 lb (.20kg).
  WP76XX .40 lb (.18kg).

Standard safety certifications

  UL 60950-1.and EN 60950-1.
  CAN/CSA C22.2 No. 60950-1.
  CB to IEC 60950-1, 2nd edition with all group differences and national deviations.

EMC emissions

  EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1.

EMC immunity

  EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), and EN300-386.

Radio immunity

  EN301 489-1, EN 301 489-7, and EN301 489-24.

Cellular radio

  EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, and EN 301 908-13.

Environmental operating range

  Nonoperating temperature: -4° to 149°F (-0° to 65°C).
  Nonoperating humidity: 5% to 95% relative humidity (noncondensing).
  Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m).
  Operating temperature: 32° to 104°F (0° to 40°C). C1101 support 32° to 113°F (0° to 45°C). C1109-2PLTE support 32° to 122°F (0° to 50°C).
  Operating humidity: 10% to 85% relative humidity (noncondensing).
  Operating altitude: 0 to 10,000 ft (0 to 3000 m).

Cisco IOS Software Licensing and Packaging

Universal Cisco IOS XE Image

A single Cisco IOS XE Universal image encompassing all functions is delivered with the platform. Advanced features can be enabled simply by activating a software license on the Universal image. Technology packages and feature licenses, enabled through right-to-use licenses, simplify software delivery and decrease the operational costs of deploying new features.

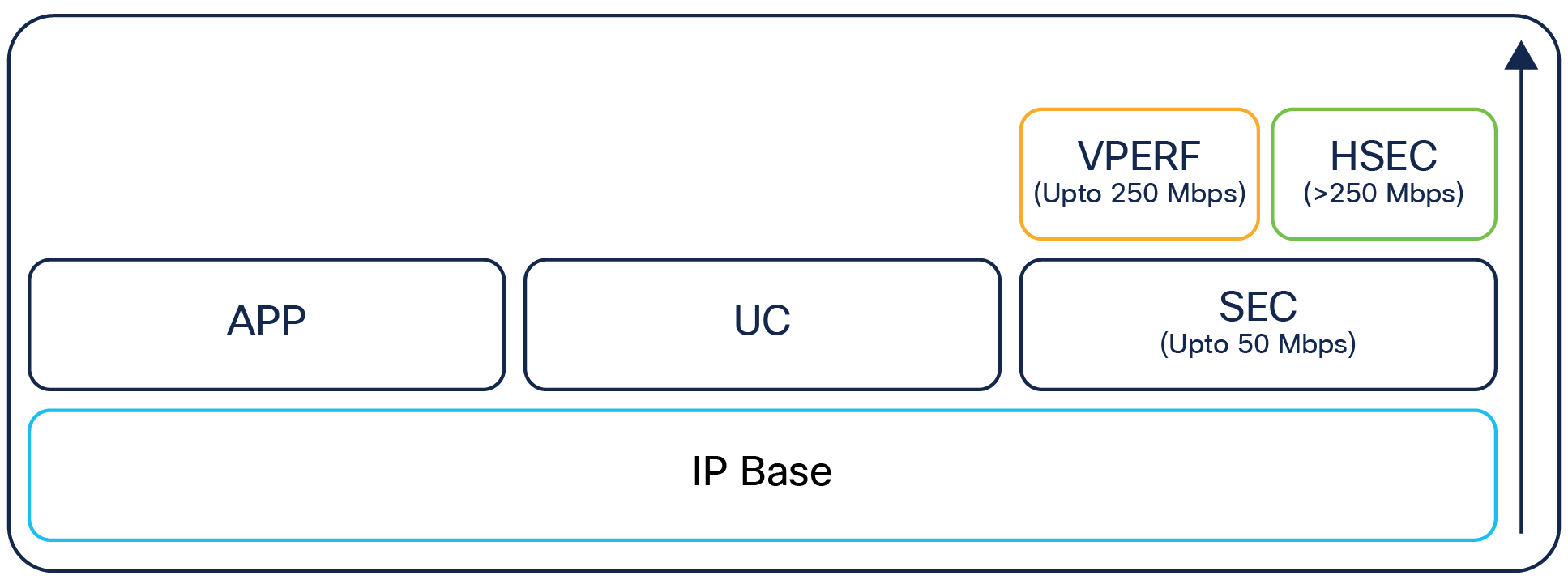

Four major technology licenses are available on the Cisco 1100 Series; these licenses can be activated through the Cisco software activation process identified at https://www.cisco.com/go/sa. The following licenses are available:

     IP Base: This technology package is available as the default.

     Application Experience (APP): This license includes data and application performance features.

     Security (SEC) or Security with No Payload Encryption (SEC-NPE): This license includes features for securing network infrastructure.

     IP Security (IPSEC): This license includes features that improve IP security performance multifold.

The Cisco SD-WAN subscriptions are aligned across three subscription licenses of DNA Essentials, DNA Advantage and Cisco ONE Advantage, each expanding functionally. The DNA Essentials covers all types of connectivity & router life cycle management, support for Network & application visibility coupled with basic premise and transport security. The DNA Advantage provides for Advanced WAN topologies, Application aware policies supported by enhanced network security. The Cisco ONE Advantage provides for Cloud connectivity with unlimited segmentation, Advanced Application optimization & Network Analytics, secured by advanced threat protection.

For more information on Cisco SD-WAN please refer to: https://www.cisco.com/c/en/us/products/software/one-wan-subscription/index.html

Table 15.          Cisco 1100 Series Licenses

Part number

Bundles

Features

SL-1100-8P-IPB

SL-1100-4P-IPB

SL-1100-2P-IPB

IP Base (default)

Routing protocols, ACL, NAT, QoS, BFD, VRF Lite, IP SLA Responder.

SL-1100-8P-APP(=)

SL-1100-4P-APP(=)

SL-1100-2P-APP(=)

Application Experience (APP)

IP Base + advanced networking protocols: L2TPv3, MPLS.

Application Experience: PfRv3, NBAR2, AVC, IPSLA Initiator.

Hybrid Cloud Connectivity: LISP, Virtual Private LAN Services (VPLS), Ethernet over MPLS.

SL-1100-8P-SEC(=)

SL-1100-8P-SECNPE(=)

SL-1100-4P-SEC(=)

SL-1100-4P-SECNPE(=)

SL-1100-2P-SEC(=)

SL-1100-2P-SECNPE(=)

Security (SEC)

IP Base + Advanced Security: Zone-based firewall, IPsec VPN, Dynamic Multipoint VPN (DMVPN), FlexVPN, GETVPN.

Provides up to 50 Mbps IPsec performance.

FL-VPERF-8P-200(=)

FL-VPERF-4P-100(=)

FL-VPERF-2P-100(=)

IPSec Performance (VPERF)

IPsec Performance: Additional 100 Mbps for ISR 1100-4P and 200 Mbps for ISR 1100-8P.

FL-1100-8P-HSEC(=)

FL-1100-4P-HSEC(=)

FL-1100-2P-HSEC(=)

IPSec HSEC

IPSEC HSEC License for Cisco ISR 1100 8P and ISR 1100 4P. Support with IOS XE 16.7.1 or later releases.

C1F1PISR1100S8PK9

C1F1PISR1100S4PK9

Cisco One S/W Bundle

APP, SEC, PRIME licenses (SL-1100-8P-IPB, C1-SL-1100-8P-APP, C1-SL-1100-8P-SEC or C1-SL-1100-8P-SECNPE, C1-PI-LFAS-ISR-K9, C1F1VISR1100S8P-01, C1-SL-1100-PAK) or (SL-1100-4P-IPB, C1-SL-1100-4P-APP, C1-SL-1100-4P-SEC or C1-SL-1100-4P-SECNPE, C1-PI-LFAS-ISR-K9, C1F1VISR1100S4P-01, C1-SL-1100-PAK).

Table 16.         Product Part Numbers and Software Images

Product part number

Description

Router software images

SISR1100UK9-166(=)

SISR1100NPEUK9-166(=)

SISR1100UK9-167(=)

SISR1100NPEUK9-167(=)

SISR1100UK9-168(=)

SISR1100NPEUK9-168(=)

SISR1100UK9-169(=)

SISR1100NPEUK9-169(=)

Cisco 1100 ISR Universal Image and Non-Pay load Encryptions Image.

SD-WAN image

SISR1100UCMK9-169

SD-WAN Image for ISR 1100 platforms.

(Currently supported platforms: ISR 1111-8P and ISR 1117-4P only)

Access point software images

AIR-AP1815-K9-ME-8-5-110-0.tar

Cisco 111X Models AP delivers industry-leading wireless performance with support for the latest Wi-Fi standard, IEEE’s 802.11ac Wave 2 and Mobility Express.

AIR-AP1815-K9-ME-8-8-110-0.tar

Cisco 1101 and 1109 Models AP delivers industry-leading wireless performance with support for the latest Wi-Fi standard, IEEE’s 802.11ac Wave 2 and Mobility Express.

DSL firmware options

A2pvbF039t.d26d

Annex A & M.

B2pv6F039g1.d26d

Annex B & J.

A2pvfbH043j

G.FAST Annex A & M.

B2pvfbH043j

G.FAST Annex B.

Umbrella Security Services

UMB-PROFESSIONAL

Cisco Umbrella Professional.

UMB-INSIGHTS-K9

Cisco Umbrella Insights.

UMB-PLATFORM-K9

Cisco Umbrella Platform.

Power over Ethernet options (module MUST order upfront with system)

ISR-1100-POE2(=)

1100-4P with 115W PSU (2 PoE or 1 PoE+). Spare available late October.

ISR-1100-POE4(=)

1100-8P with 125W PSU (4 PoE or 2 PoE+). Spare available late October. Ship with 150W starting May, 2018.

Rack mount kit and RJ Console Adapter

ACS-1100-RM-19(=)

Rack-mount kit for all 111X Series ISRs.

CAB-CON-USBRJ45(=)

Micro USB to RJ5 Console Adapter (Only for 1101 and 1109 Models).

Pluggable

P-LTEA-EA(=)

System and spare CAT6 LTE Advanced Pluggable for North American and Europe.

P-LTEA-LA(=)

System and spare CAT6 LTE Advanced Pluggable for APAC, ANZ, and LATAM.

P-LTE-VZ(=)

System and spare CAT4 LTE Advanced Pluggable for Verizon. Single SIM slot. Spare need antenna selection option.

P-LTE-US(=)

System and spare CAT6 LTE Advanced Pluggable for ATT and T-Mobile. Spare need antenna selection option.

P-LTE-GB(=)

System and spare CAT6 LTE Advanced Pluggable for Europe. Spare need antenna selection option.



Small Form-Factor Pluggable

ISR 1100 8P

ISR 1100 4P

Description

GLC-EX-SMD

Yes

Yes

1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM.

GLC-LH-SM

Yes

Yes

GE SFP, LC connector LX/LH transceiver.

GLC-LH-SMD

Yes

Yes

GE SFP, LC connector LX/LH transceiver; with DOM.

GLC-SX-MM

Yes

Yes

GE SFP, LC connector SX transceiver.

GLC-SX-MMD

Yes

Yes

GE SFP, LC connector SX transceiver; with DOM.

GLC-ZX-SM

Yes

Yes

1000BASE-ZX SFP.

GLC-ZX-SMD

Yes

Yes

1000BASE-ZX SFP; with DOM.

GLC-FE-100FX

Yes

Yes

100BASE-FX SFP for FE port.

GLC-FE-100LX

Yes

Yes

100BASE-LX SFP for FE port.

GLC-FE-100ZX

Yes

Yes

100BASE-ZX SFP (80km).

GLC-FE-100EX

Yes

Yes

100BASE-EX SFP (40km).

GLC-FE-100BX-D

Yes

Yes

100BASE-BX10-D SFP.

GLC-FE-100BX-U

Yes

Yes

100BASE-BX10-U SFP.

GLC-GE-100FX

Yes

Yes

100FX SFP on GE ports.

GLC-BX80-D-I

Yes

Yes

1000BASE-BX80 SFP, 1570NM.

GLC-BX80-U-I

Yes

Yes

1000BASE-BX80 SFP, 1490NM.

GLC-BX40-D-I

Yes

Yes

1000BASE-BX40 SFP, 1550NM.

GLC-BX40-U-I

Yes

Yes

1000BASE-BX40 SFP, 1310NM.

GLC-BX-D

Yes

Yes

1000BASE-BX SFP, 1490NM.

GLC-BX-U

Yes

Yes

1000BASE-BX SFP, 1310NM.

GLC-TE

Yes

Yes

10/100/1000BASE-T.

GLC-T

Yes

Yes

10/100/1000BASE-T.

SFP-GE-S

Yes

Yes

1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector.

SFP-GE-T

Yes

Yes

10/100/1000BASE-T SFP (NEBS 3 ESD).

For additional information and details about Cisco IOS Software licensing and packaging on the Cisco 1100 Series, please visit:

https://www.cisco.com/c/en/us/support/routers/1100-series-integrated-services-routers-isr/products-licensing-information-listing.html

For the Cisco 1100 ISR Hardware and Software Installation Guide, Go to:

https://www.cisco.com/c/en/us/support/routers/1100-series-integrated-services-routers-isr/products-installation-guides-list.html

https://www.cisco.com/c/en/us/support/routers/1100-series-integrated-services-routers-isr/products-installation-and-configuration-guides-list.html

Cisco and Partner Services

Services from Cisco and our certified partners can help you reduce the cost and complexity of branch-office deployments. Cisco Smart Net Total Care technical support for the Cisco 1100 Series ISRs is available on a one-time or annual contract basis. Support options range from help-desk assistance to proactive, onsite consultation.

For more information, visit https://www.cisco.com/go/services.

Ordering Information

To place an order, visit the Cisco Ordering Home Page. To download software, visit the Cisco Software Center.

For More Information

For more information about the Cisco 1100 Series ISRs, visit https://www.cisco.com/go/ISR1000 or contact your local Cisco account representative.

Cisco Capital

Flexible Payment Solutions to Help You Achieve Your Objectives

Cisco Capital makes it easier to get the right technology to achieve your objectives, enable business transformation and help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services and complementary third-party equipment in easy, predictable payments. Learn more.

Document History

New or revised topic

Described In

Date

Add support for new platforms, add available date

C1118-8, C1111X-8P, C1109-2PLTEXX

10/5/2018

Learn more
