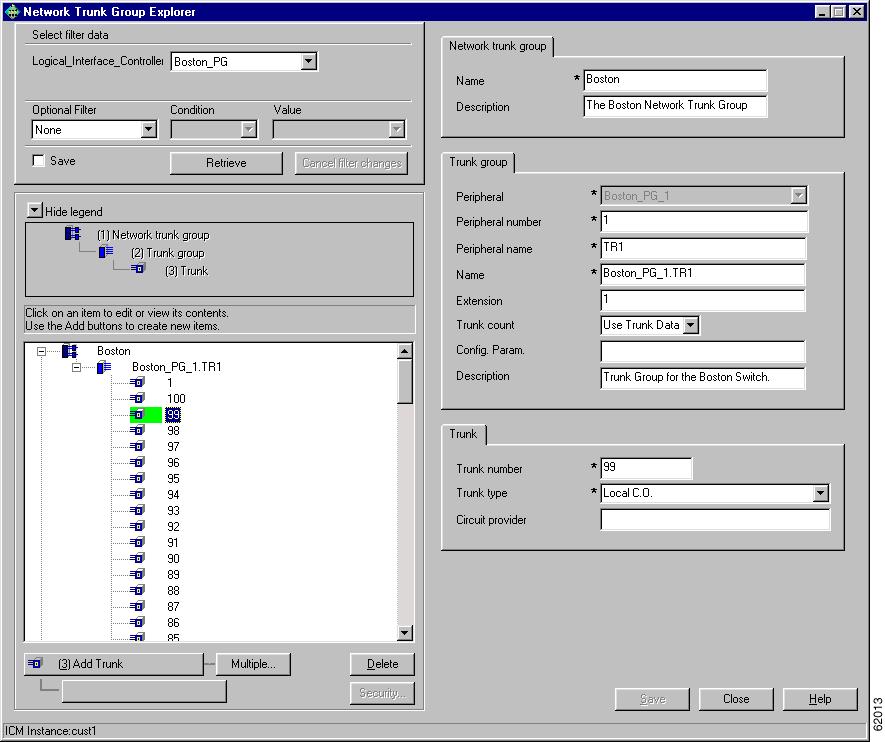

- View a network trunk group, its trunk groups, and trunks
- Network Trunk Group tab descriptions
- Trunk Group tab descriptions
- Trunk tab descriptions
- Edit a network trunk group, its trunk groups, and trunks
- Define a network trunk group, its trunk groups, and trunks
- Delete a network trunk group, its trunk groups, and trunks

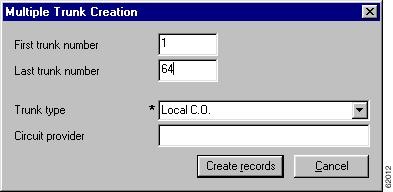

- Define multiple trunks
Peripherals and Trunk Groups
This chapter describes how to configure peripherals and the trunk groups associated with them.
It includes:
Note
See Peripheral Terminology for more details.Peripheral subsystem
A peripheral is a switch, such as an ACD, PBX, VRU, or Unified Communications Manager (Unified CM). Calls arrive at the peripheral through trunks that are organized into trunk groups. The Unified Intelligent Contact Management (Unified ICM) system software monitors activity at each peripheral and can route calls to targets at each peripheral.
The logical interface controller and physical interface controller represent the peripheral gateway (PG) through which the peripheral communicates with the system.

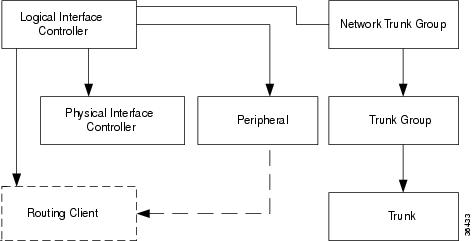

To view the elements in a peripheral subsystem, see the following figure.
The routing client figures into this subsystem only if the peripheral acts as a routing client (that is, if it sends routing requests to the system software).
Related References
Peripheral gateways
Each peripheral communicates with the system software through a peripheral gateway (PG). The PG is a computer that communicates directly with the ACD, PBX, VRU, or Unified CM at a contact center, monitoring status information from the peripheral and sending it to the Central Controller. If the peripheral acts as a routing client, the PG sends routing requests to the system software.
The PG can be a single simplexed computer or a pair of duplexed computers. A single PG can service more than one peripheral; however, each peripheral uses one, and only one, PG.
Note
Although a PG can consist of a pair of duplexed computers, only one of them is active at a time, so that the system software sees it as a single, logical and physical PG.Peripheral Gateway records
Use the PG Explorer to view, define, modify, or delete Peripheral Gateway records.
The PG Explorer generates and maintains PG records for a logical interface controller, a physical interface controller, associated peripherals, and, if appropriate, an associated routing client.
Note
If you are configuring a PG for a duplexed pair, you need to define the information only once.The following figure shows the records generated by the PG Explorer.
- View PG records
- PG Explorer tab descriptions
- PGs and Peripherals definition
- Unified CCE System Peripheral Gateways
- PG or peripheral modification
- PG or peripheral deletion
- Agent Targeting Rules
View PG records
Procedure
The peripheral configuration information displays in the window on the right. For field descriptions, see the PG Explorer Tab Descriptions section.
PG Explorer tab descriptions
The following tables describe the tabbed property fields and buttons that configure a PG. Use these fields to define and update PGs and their associated peripherals.
- Logical Controller tab
- Peripheral tab
- Advanced tab
- Skill Group Mask tab
- Routing Client tab
- Peripheral Monitor tab
- Default Route tab
- Agent Distribution tab
Logical Controller tab
Use the Logical Controller tab to view, define, and update PG definitions. In the Unified ICM database, a PG is identified by its logical controller.
Peripheral tab
Use the Peripheral tab and its associated tabs to view, define, and update the peripherals associated with a PG.
Table 2 Peripheral tab field descriptions Field
Description
Peripheral ID (required)
A unique identifier for the peripheral. This is a read-only field. When you create a new PG, the system places UNASSIGNED in this field and automatically creates an ID when you save your edits.
Note If you change the Agent ID (Peripheral ID), you must cycle the PG to populate the new agent ID and information in the computer telephony integration (CTI OS) Supervisor Desktop. Name (required)
An enterprise name for this peripheral. The name must be unique among all peripherals in the enterprise.
Peripheral name (required)
The name of the peripheral as it is known at the local site. Unlike the Enterprise Name field, the value of this field does not have to be unique. For example, at each site you might label the peripherals Switch1, Switch2, and so forth.
Client type (required)
The type of peripheral. The value for this field comes from the Logical Controller Client Type field.
Note Once a client type is selected and saved in the database, the selection box options change and you are limited on how you can change that type. If the client type is PG Generic, you may be able to change that type from the Peripheral tab. However, if the peripheral is online and agents are logged onto it, the agents will be automatically logged off when the peripheral's client type is changed. Location
The peripheral's location; for example: the name of a city, building, or department.
Abandoned call wait time (required)
Minimum time in seconds an incoming call must be queued before being considered an abandoned call if the caller hangs up.
Configuration parameters
A string containing any parameters that must be sent to the device to initialize it. In most cases, leave this string blank.
Call control variable map
A string that describes the mappings of the peripheral's call control variables to the system software's call control variables.
Default desk settings
(selection list) Default desk settings for agents associated with the peripheral.
Note If NONE is the only option in the selection list, you need to create desk settings. To create desk settings, use the Configuration Manager's Agent Desk Settings List tool.
Peripheral service level type (required)
The default type of service level calculation to be performed by the peripheral for its associated services.
Specify one of the following:
Agent Phone Line Control (required)
Indicates whether this agent peripheral supports multi-line control for all agents with more than one line configured on the phone.
Specify one of the following agent phone line control options:
Non ACD Line Impact (required)
Indicates how many non-ACD calls the agent initiated on one of the non-ACD lines. (This field is populated only when the All Lines option is enabled.)
Specify one of the following non-ACD line impact options:
Description
Additional information about the peripheral.
Enable post routing
If checked, indicates that post-routing is enabled. When this is enabled, the Routing Client tab is also enabled.
If you check Enable post-routing in the Peripheral tab, also enter the properties in the Routing Client tab.
Note If an existing PG does not have post-routing enabled and its type supports it, you can enable it. However, if an existing PG has post-routing enabled, you cannot disable it. Peripheral auto-configured
Checked, indicates peripheral is auto configured.
Advanced tab
The Advanced tab allows you to view (and define or edit, if you have maintenance access) the advanced properties of the selected peripheral.
Table 3 Advanced tab field descriptions Field
Description
Available holdoff delay (required)
The number of seconds to wait after the end of a call before recording the agent as available. The value you enter here is the default for all skill groups associated with the peripheral. You can change the value for individual skill groups.
Default route
The default route associated with this peripheral.
Answered short calls threshold
The maximum length, in seconds, for a short call to the peripheral. Any calls with a duration below the threshold are considered short. You might then choose to factor out short calls from handle times you calculate.
Network VRU
The type of network VRU. If the peripheral is a VRU, that is, used as a network VRU, select the name of the network VRU from the drop-down list.
Agent auto-configuration
Specifies whether agent auto-configuration is enabled for the peripheral.
Note Agent Reporting implies Auto Configuration. Agent Reporting without auto-configuration is NOT supported. Unified ICM does not support Agent Reporting on manually configured agents with auto-configuration off.
Internal IPTA only
Specifies whether the peripheral belongs to internal IPTA.
Skill Group Mask tab
This tab allows you to view (and define or edit, if you have maintenance access) the default number of sub-skill groups associated with the selected peripheral.
Important: Sub-skill groups are not supported in Unified Contact Center Enterprise (Unified CCE) 9.0. Support for sub-skill groups continues, however, for Unified ICM 9.0 - and thus for TDM peripheral gateways (as configured in Avaya PG, Symposium PG, Spectrum PG and NEC PG peripherals). Sub-skill groups are also not supported for non-voice skill groups. That is, you cannot create sub-skill groups for these media classes: single-session chat, multi-session chat, blended collaboration, and email.
Note
For some peripherals, the Configuration Manager can automatically create subgroups (primary, secondary, and so on) for each skill group.Sub-Skill Group check boxes
Note
These check boxes are enabled only for Avaya PG, Symposium PG, Spectrum PG, and NEC PG TDM peripherals.The maximum number of subgroups that may be created depends on the peripheral's client type, and may be none. Where subgroups are available, a default selection has been made. You may change this default, either to none or any number up to the maximum number allowed for this client type.
If you later edit the subgroup selection, removing any previously used subgroups may cause loss of reporting information and must be done carefully. Changes done here will be reflected in all skill group entries that currently exist for this peripheral, which do not explicitly override the settings in the peripheral.
Check a box for each sub-skill group for each non-enterprise skill group you want to be associated by default with the peripheral. For each box you check, a skill group record is created in the database if the primary skill group uses the peripheral's default.
The number of sub-skill groups used by a primary skill group is specified in the Subgroup Mask tab of the Skill Group Explorer. There, you can add more sub-skill groups than are defined for the peripheral if the selected skill group requires additional ones.
Note
The Sub-Skill group check boxes are dimmed for enterprise skill groups.Routing Client tab
A routing client represents an entity that sends routing requests to the system software through a logical interface controller. Use the Routing Client tab to view, define, or update a PG's routing clients.
Table 4 Routing client tab field descriptions Field
Description
Name (required)
An enterprise name for this routing client. The name must be unique among all routing clients in the enterprise.
Timeout threshold (required)
The maximum time, in milliseconds, the routing client can wait for a response to a routing request. The NIC sends a default response slightly before this threshold.
Late threshold (required)
The threshold value, in milliseconds, for classifying responses as late. Any response that exceeds this threshold is considered late even if it does not exceed the TimeoutThreshold.
Timeout limit (required)
The number of seconds to wait for routing responses before the routing client terminates communication with the system software. When a response from the CallRouter exceeds the time-out threshold, the routing client starts a timer. If the timer reaches the specified time-out limit before the routing client receives any responses from the CallRouter, the routing client assumes the Unified ICM system is off-line and stops sending it routing requests.
Default MR domain ID (required)
(selection list) The MRD associated with the routing client.
Default call type
The call type to be used for any route request that does not match a defined call type mapping. The drop-down list contains all configured call types.
The system software uses the default call type for any routing request from the routing client that does not otherwise map to a call type. If you do not define a default call type for the routing client, the system software uses a general default call type.
Configuration parameters
An optional string containing the configuration parameters to be used by the controller to initialize the routing client. For a public network client, this field normally specifies the subsystem for the NIC to use.
Use DN/Label map
Indicates that the Dialed Number (DN) Label table is used to determine which labels are valid for each dialed number (if checked), or that all labels for the routing client are valid for all dialed numbers (if not checked). Normally, leave this field unchecked.
Client type
Indicates the type of client. For an incoming-call-reply (ICRP) NIC, this is the type of the ultimate client on the network Unified ICM. In all other cases, it is the same as the PG's Client Type.
Description
Additional information about the routing client.
Network routing client
A name used to associate routing clients across instances.
Network transfer preferred
Checked, indicates network transfer is preferred. When the target of a call transfer is reachable by both a label defined for the requesting routing client and by another label defined for the network routing client that pre-routed the call, this option indicates which choice is preferred.
Congestion Treatment Mode
Congestion treatment mode for routing clients. The default value is 0 when you add a new routing client.
The congestion treatment mode definitions are as follows:
- 0 - Use Congestion Control settings.
- 1 - Use Dialed Number (DN) as default label for call treatment.
- 2 - Use routing client as a default label for call treatment.
- 3 - Use global user-defined label for call treatment.
Note To configure a user-defined label, use the Congestion Setting Configuration tool.
- 4 - Dialog fail with an appropriate error code.
- 5 - Release message to the routing client.
Default Label
Indicates the default label for the routing client to treat the call when the system is congested. Peripheral Monitor tab
A peripheral monitor is an entity that you want to monitor at the peripheral. Not all peripherals require Peripheral Monitor records.
You must configure Peripheral Monitor records for Extension numbers on a Definity switch.
Table 5 Peripheral Monitor tab field descriptions Field
Description
Current peripheral monitor entries
Lists the current peripheral monitor data (Type, Extension, and Configuration Parameter) entered for the selected PG.
Note The Peripheral monitor records are initially sorted by PeripheralMonitorID (the default sort order). Click any column header to reverse the sort order (ascending-to-descending or descending-to-ascending). The indicator to the right always points to the lowest item in the current list order. Type (required)
The type of entity to be monitored: ACD Directory Number (ACD DN), Meridian Position, Queue, Route Control Group (RCG), Routing Device, Station, Symposium CDN, Trunk, Vector Directory Number (VDN), or Virtual Routing Device.
Extension
Extensions are:
Configuration Parameters
A parameter string to be passed to the peripheral along with the extension string to start monitoring on the specified extension:
New
Click this button to enter new monitor data. Then select a type from the Type selection list, fill in any other appropriate field information, and press the Enter key.
Delete
Click this button to delete the selected row item from the list of Current peripheral monitor entries.
Extension
Displays the extension of the selected Current peripheral monitor entries for editing purposes. Click Save when you finish editing to save your changes.
Configuration Parameter
Displays the Configuration Parameter of the selected Current peripheral monitor entries for editing purposes. Click Save when you are done editing to save your changes.
Type
Displays the Type of the selected Current peripheral monitor entries for editing purposes. Click Save when you are done editing to save your changes.
Default Route tab
Use this tab to create a default route for each MRD that is associated with a peripheral.
Table 6 Default Route tab descriptions Field/Button
Description
Current default route entries
Media routing domain
The media routing domain configured for the selected default route entry.
Route
The default route configured for the media routing domain of the selected default route entry.
Note The default route configured for the media routing domain of the selected default route entry. Click any column header to reverse the sort order (ascending-to-descending or descending-to-ascending). The indicator to the right always points to the lowest item in the current list order. New
Click to enter new default route data. Then, enter a media routing domain and a route.
Delete
Click to delete the selected row item from the list of current default route entries.
Media routing domain (required)
Enter the media routing domain when creating a new default route entry.
Route
Enter the route when creating a new default route entry.
Agent Distribution tab
Use the Agent Distribution tab to list and view the agent distributions currently defined in the Unified ICM database and (if you have maintenance access) to define new agent distributions and edit or delete existing ones. This data is stored in the database Agent Distribution table.
Note
The PG Explorer (and the assigning of agent distribution) is not available on a limited Administration and Data Server.
Table 7 Agent Distribution tab field descriptions Field
Description
Enable agent reporting
Specifies whether agent reporting is enabled for the peripheral. Select this option if you want the peripheral to report agent-level statistics to the system software.
Note Agent Reporting implies Auto Configuration. Agent Reporting without auto-configuration is NOT supported. Unified ICM does not support Agent Reporting on manually configured agents with auto-configuration off.
Note If the peripheral's client type is CUCM, you must select an agent desk setting in the PG Explorer's Peripheral tab before you can enable agent reporting. The peripheral's client type is indicated in the PG Explorer's Peripheral tab.
Agent event detail
Specifies whether agent event detail reporting is enabled for the peripheral. This check box is enabled only if the Enable agent reporting checkbox is selected. Making this selection results in agent reason codes being added to agent reporting.
Note This checkbox is enabled by default if you are adding a CUCM PG. Agent distribution entries
Lists the agent distributors (Administration Clients or Administration & Data Servers) available for distributing agent report data for the selected peripheral.
Site name
One or more names of agent distribution sites associated with the selected peripheral.
Agent real-time data
N indicates that agent real time data is not enabled. Y indicates that agent real time data is enabled.
Agent historical data
N indicates that agent historical data is not enabled. Y indicates that agent historical data is enabled.
Currently selected site
Administration & Data Server site name
The name of the currently selected site in the agent distribution entries list.
Agent real time data
If checked, enables the flow of agent real time data from the peripheral to the Administration & Data Server. Unchecked, disables the flow of agent real time data.
Agent historical data
If checked, enables the flow of agent historical data from the peripheral to the Administration & Data Server. If unchecked, disables the flow of agent historical data.
New
Click to add a new Administration & Data Server site. This places *NEW* in the Administration & Data Server site name input box and in the Agent Distribution Entries list. Replace *NEW* in the Administration & Data Server site name input box with the name you want. Then check the check box if you want to enable it, and click Save.
Delete
To delete an Administration & Data Server site, select that site's name in the Agent Distribution Entries list and click this button. Then click Save.
Note
For information on how to use the agentcfg.exe command line utility to import agent data, see Agents.PGs and Peripherals definition
Use the PG Explorer to define a PG and its associated peripherals.
Define a PG
Procedure
Note
Unified CCE System Peripheral Gateways contains an example of how to define a PG on a child deployment, which is documented in the Cisco Contact Center Gateway Deployment Guide for Cisco Unified ICME/CCE/CCX.To define a PG, perform the following:
Step 1 From the Configuration Manager menu, select . The PG Explorer window appears. Step 2 In the Select filter data box, click Retrieve. This enables the Add PG button. Step 3 Click Add PG. A new PG appears in the tree list box with a To Be Inserted icon next to it. Tabbed fields also appear on the right for the new PG's configuration information.
Step 4 Fill in the tabbed fields. Step 5 If desired, set security settings on the records. Step 6 Click Save to save the newly defined PG in the database.
Define a peripheral
Procedure
Step 1 Follow the steps for viewing a PG. The selected PG's configuration information appears in the fields on the right.
Step 2 In the tree list box, select the PG to which you want to add a peripheral. This enables the Add Peripheral button. Step 3 Click Add Peripheral. A peripheral is added to the selected PG in the tree list box. Also, a new set of tabbed fields appear on the right for the new PG's configuration information. Step 4 Enter the needed peripheral configuration information in the fields on the right. Step 5 If desired, set security settings on the records. Step 6 Click Save. After you have defined a peripheral, you can define the trunks, agents, groups, and services associated with that peripheral.
Related Tasks
Related References
Unified CCE System Peripheral Gateways
Configure Unified CCE system PGs
Add instance
ProcedureThis task is performed on the Child System Peripheral Gateway computers BELO-5A (PG1A) and BELO-5B (PG1B).
To add the instance with the Web Setup Tool after the reboot:
Step 1 Enter http://BELO-5B/setup (or BELO-5A, as applicable) and log in to the Web Setup Tool to add the Instance. The main Web Setup Tool window appears. Step 2 Click Instance Management, then click Add. The Add Instance dialog appears.
Step 3 Select BELO (the Facility), then bh03 (the Instance to add). Step 4 Click Save. Step 5 Click Log Out.
PG or peripheral modification
Use the PG Explorer to modify a PG or a peripheral.
Modify PG and peripheral records
Procedure
Step 1 Follow the steps for viewing a PG. The selected PG's configuration information displays in the fields on the right.
Step 2 Edit the configuration information.
Note You cannot modify fields that are greyed out.
Table 8 Rules for changing a PG client type If the PG Client Type is
Then it can be
Non–Generic (ACD or VRU)
Changed to Generic.
Generic
Changed to VRU or a specific ACD type if and only if all peripherals configured for that PG are of the same type.
Table 9 Rules for changing a PG peripheral If the PG Client Type is...
Then...
Generic
A VRU peripheral can always be added.
Generic
An ACD peripheral cannot be changed to a VRU peripheral or vice versa. The peripheral must be deleted and re-added.
Generic with only VRU peripherals
Any type of ACD peripheral can be added.
Generic with at least one ACD peripheral
Any additional ACDs must be of the same type.
When you make a modification, the Changed icon
appears next to the selected item (PG or peripheral) in the tree list box.
Step 3 Click Save. The modified data is saved in the Unified ICM database and the Changed icon is removed from the PG or peripheral in the tree list box.
Related References
Related Information
PG or peripheral deletion
Use the PG Explorer to delete a PG or a peripheral.
Delete a PG or peripheral
Procedure
Step 1 Follow the steps for viewing a PG. The selected PG's configuration information displays in the fields on the right.
Step 2 In the tree list box, select the PG or peripheral whose records you want to delete.
Note If you select a PG, the records for all peripherals associated with it will also be deleted. If you select a peripheral, only its records will be deleted. Step 3 Click Delete. This places a Marked for Deletion icon next to the selected item in the tree list box. This also toggles the Delete button to Undelete.
To undelete an item marked for deletion, select it in the tree list box and click Undelete.
Step 4 Click Save. This deletes from the database the PG or peripheral marked for deletion and removes it from the tree list box. Once you do this, you cannot undelete the deleted item.
Related Information
Agent Targeting Rules
To configure call routing in system PG deployments, you must use an Agent Targeting Rule to specify the agent extension range versus configuring device targets and labels for every phone and routing client. Using Agent Targeting Rules to configure call routing for Unified CCE agent PGs is simpler and significantly reduces the amount of time spent on configuration. Based on configured agent targeting rules, if an agent attempts to log into an extension to which the router cannot target a call, the peripheral gateway rejects the login request and returns an error that includes why the login request failed.
Agent Targeting Rules are supported for System PGs, CallManager PGs, and Generic PGs in Unified Contact Center Enterprise/Unified Contact Center Hosted (Unified CCE/Unified CCH) deployments: standalone Unified CCE/CCH, Unified CCE/CCH child of a Unified ICM parent, or a Unified ICM Unified CCE/CCH Enterprise in a network analysis module (NAM) deployment.
In a NAM environment, Agent Targeting Rules can be used on the Unified ICM side in a Unified CCH deployment to target agents. However, if label validation is required on the NAM side, you must either define all the labels that can be generated by the Agent Targeting Rules at the CICM on the NAM side, or you must turn label validation off. The Validate Returned Labels checkbox in the ICM Gateway node must be unchecked for calls routed using Agent Targeting Rules to work. Not defining the labels, and turning label validation on, results in calls failing at the NAM even though a response with a valid label was sent from the CICM.
Configure Agent Targeting Rules
ProcedureYou can define one or more rules for a peripheral. However, each rule must cover a different agent extension range for the same routing client. In other words, if there are multiple rules that a routing client can use to target a peripheral, there must be no overlapping extension ranges in those rules.
Note
To use Agent Targeting Rules, you must have both the Central Controller and the PGs upgraded to the same version of Unified ICM that supports the Agent Targeting Rules feature.To configure agent targeting rules:
Step 1 Using the PG Explorer tool, define a PG that directly targets an agent. On the Advanced tab, select the Rules Preferred option, which indicates that the CallRouter will use the Agent Targeting Rule (if one exists). Save the PG. Step 2 Using the Agent Targeting Rule List tool, create the rule:
When the CallRouter routes a call, it will check if there is a rule for that routing client. The CallRouter decides which rule to use based on routing client, PG, and extension range. When the CallRouter finds a rule, it uses the rule type to decide how to construct a label to send to the routing client.
Note
When configuring an Agent Targeting Rule for a Translation Route, if you are using Agent Targeting Rule Type 3 (Translation Route), you must also configure the Translation Route DNIS as dialed numbers associated with the target agent's peripheral routing client in Unified ICM. The dialed numbers must be mapped to the route points that are configured in Unified CM and associated with the Java Telephony API (JTAPI) user. This is necessary to complete the Translation Route Rule.Trunk groups and trunks
Every peripheral has one or more associated trunk groups, with each trunk group containing one or more physical trunks. Trunk groups map to trunk sets defined by the peripheral.
A peripheral dispatches a call to the appropriate skill target based on the trunk group on which the call arrives and the DNIS value that accompanies it. The peripheral treats all trunks with a particular trunk group the same, but it might treat trunks within another trunk group differently.
When setting up trunk groups and trunks, you must specify:
- Each trunk group that can receive calls
- How many trunks are in each trunk group, or configuration information for each trunk in the group
This section describes how to configure the trunk groups and trunks that will be used by routing clients and peripherals.
Network trunk groups, trunk groups, and trunks
- View a network trunk group, its trunk groups, and trunks
- Network Trunk Group tab descriptions
- Trunk Group tab descriptions
View a network trunk group, its trunk groups, and trunks
Procedure
Step 1 From the Configuration Manager menu, select . The Network Trunk Group Explorer window appears. Step 2 In the Select filter data box, select the filters you want. Step 3 Click Retrieve. This enables the Add button and displays a list of the retrieved network trunk groups in a tree list box on the left side of the Explorer window. Step 4 In the tree list box, select the network trunk group whose records you want to view or modify. The selected network trunk group's configuration information displays in the tabbed fields on the right. Step 5 To view trunk group or trunk data, expand the tree and select the tree item whose properties you want to view or edit. In the above figure, Trunk 99 is selected. This trunk belongs to the Boston_PG_1 trunk group, which belongs to the Boston network trunk group.
The property tabs on the right side of the Explorer window display the properties of the item selected in the tree list box. Properties with an asterisk are required. If you have maintenance access, you can define or edit these properties.
Network Trunk Group tab descriptions
The network trunk group tab allows you to view (and define or edit, if you have maintenance access) the properties of the selected network trunk group.
Trunk Group tab descriptions
The trunk group tab allows you to view (and define or edit, if you have maintenance access) the properties of the selected trunk group.
Table 11 Trunk Group tab descriptions Property
Description
Peripheral (required)
(selection list) The enterprise name of the peripheral with which the trunk group is associated.
Note Once you have saved a trunk group record to the Unified ICM database, you cannot update this field. Peripheral number (required)
The number of this trunk group as understood by the peripheral.
This value must be unique among all trunk groups connected to the same peripheral, but not throughout the entire system. Once you install the data to the central database, you cannot change this field.
Peripheral name (required)
The name of this trunk group as understood by the peripheral.
This value must be unique among all trunk groups connected to the same peripheral, but not throughout the entire system.
Name (required)
The enterprise name for the trunk group. This name must be unique among all trunk groups in the entire system. If you click in this field when entering a new trunk group, the system by default creates a name from the peripheral and the peripheral name. For example: Boston_PG.TrunkGroup2 where Boston_PG is the peripheral and TrunkGroup2 is the peripheral name.
Extension
The description is:
Trunk count
(selection list) The number of trunks in this trunk group or Use Trunk Data.
If Use Trunk Data is selected, the system software determines the trunk count dynamically by counting the associated records in the Trunk table.
Config. Param.
A parameter string that the system software must send to the ACD to configure the trunk group.
Description
A description for the trunk group.
Trunk tab descriptions
The Trunk tab allows you to view (and define or edit, if you have maintenance access) the properties of the selected trunk.
Table 12 Trunk tab descriptions Property
Description
Trunk number (required)
The number of this trunk within the trunk group.
Trunk type (required)
(selection list) The trunk's trunk type: DID/DNIS, Foreign Exchange, Interflow, Local Central Office, PRI, Tie Line, or WATS.
Note The following table lists the types of trunks that the system software supports.
Circuit provider
The name of the carrier that provides the circuit for this trunk. The provider is either a local phone company or an interexchange carrier.
Table 13 Trunk types Trunk Type
Description
Local CO
Connects the peripheral directly to the local telephone company's central office (CO).
Foreign exchange
Connects the peripheral directly to the central office of a non–local central office.
WATS
Dedicated to Wide Area Telecommunication Service (WATS). This is a special service that allows a peripheral to place or receive calls from specific regions at a discounted price.
DID/DNIS
Supports Direct Inside Dial (DID) or Dialed Number Identification Service (DNIS). A code to identify the number dialed by the caller accompanies each call. The peripheral can then dispatch the call to a specific target.
PRI
Supports ISDN Primary Rate Interface (PRI). This mode typically provides 23 channels for voice or data and one channel for signaling information (23B + 1D).
Tie-line
Connects one peripheral directly with another across a wide area.
Interflow
Dedicated line that allows one peripheral to off-load calls to another peripheral.
- Edit a network trunk group, its trunk groups, and trunks
- Define a network trunk group, its trunk groups, and trunks
- Delete a network trunk group, its trunk groups, and trunks
- Define multiple trunks
Edit a network trunk group, its trunk groups, and trunks
Procedure
Step 1 From the Configuration Manager menu, select . The Network Trunk Group Explorer window appears. Step 2 In the Select filter data box, select the filters you want. Step 3 Click Retrieve. This displays a list of retrieved network trunk groups in a tree list box on the left side of the Explorer window. Step 4 In the tree list box, select the item you want to edit. Expand the tree if necessary. This displays the selected item's property tab on the right side of the window. Step 5 Edit the appropriate properties. Step 6 Click Save.
Related References
Define a network trunk group, its trunk groups, and trunks
Procedure
Step 1 From the Configuration Manager menu, select . The Network Trunk Group Explorer window appears. Step 2 In the Select filter data box, select the filters you want. Step 3 Click Retrieve. This displays a list of the retrieved trunk groups and enables the add functionality. Step 4 This step depends on what you want to do: Step 5 Enter the appropriate values in the tabbed property fields on the right side of the window. Step 6 Click Save.
Related References
Delete a network trunk group, its trunk groups, and trunks
Procedure
Step 1 From the Configuration Manager menu, select . The Network Trunk Group Explorer window appears. Step 2 In the Select filter data box, select the filters you want. Step 3 Click Retrieve. This displays a list of the retrieved network trunk groups. Step 4 In the tree list box, select the network trunk group, trunk group, or trunk whose records you want to delete.
Note If you select a network trunk group, the records for all trunk groups and trunks associated with it will also be deleted. If you select a trunk, only its records will be deleted. Step 5 Click Delete. Step 6 This places a Marked for Deletion icon To undelete an item marked for deletion, select it in the tree list box and click Undelete.
Step 7 Click Save. This deletes from the database the item marked for deletion and removes it from the tree list box. Once you do this, you cannot undelete the deleted item.
Define multiple trunks
ProcedureYou can quickly define multiple trunks of the same type for a specific trunk group by using the Multiple button in the Network Trunk Group Explorer window.
To define multiple trunks:
Step 1 From within the Network Trunk Group Explorer, select the trunk group to which you want to add trunks. This enables the Multiple button.
Note You must have an existing trunk from the peripheral defined before you click Multiple. Step 2 Click Multiple. The Multiple Trunk Creation dialog appears. Step 3 Set the First trunk number and the Last trunk number fields so that you define the range of trunks you want. Step 4 In the Trunk type field, select the trunk type. Step 5 (optional) In the Circuit provider field, enter the name of the carrier that provides the circuit for this trunk. Step 6 Click Create records. The tree list box will display a list of the numbered trunks beneath the selected trunk group and the Trunk tab on the right side of the window will display the properties of the trunk at the end of the series of numbers. Step 7 In the Network Trunk Group Explorer window, click Save.
Note
If a trunk number in the range you specified has already been used, that trunk number is selected in the tree list box and a message displays. Before you can save the data, you must edit the trunk number.Related References
