Track Task Routing Events in a Contact Center Enterprise Environment

Introduction

This document describes the message flow for a new task being routed to an agent in a Contact Center Enterprise environment.

Prerequisites

Requirements

Cisco recommends that you have knowledge of these topics:

• Cisco Customer Collaboration Platform (CCP)
• Cisco Finesse
• Cisco Packaged Contact Center Enterprise (PCCE)
• Cisco Unified Contact Center Enterprise (UCCE)

Components Used

The information in this document is based on these software and hardware versions:

• ICM Version: 12.6(1)
• Finesse Version: 12.6(1)
• CCP Version: 12.5(1) SU1

The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.

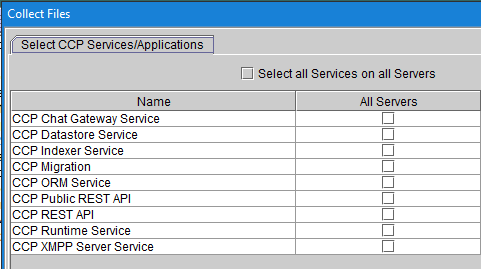

Logs Required

• CCP Public REST API (CCBU-ccppublicapps)
• CCP REST API (CCBU-ccpapi)
• CCP Runtime Service (CCBU-runtime)
• Finesse Desktop WebServices
• ICM CTI Server (ctisvr)
• ICM Media Routing PIM (mr pim)
• ICM Router (rtr)

Note:

• For detailed tracking of the tasks in the WebServices log, enable higher trace level within Finesse WebServices using the command: utils finesse log configuration update webservices ROOT TRACE
• Updating the log configuration level to DEBUG or TRACE can affect the performance of the Finesse system.

Background Information

Task Routing describes the systems' ability to route requests from different media channels to any agents in a contact center.
Third-party multichannel applications can use the universal queue by integrating with CCE through the Task Routing APIs.
Task Routing APIs provide a standard way to request, queue, route, and handle third-party multichannel tasks in CCE.

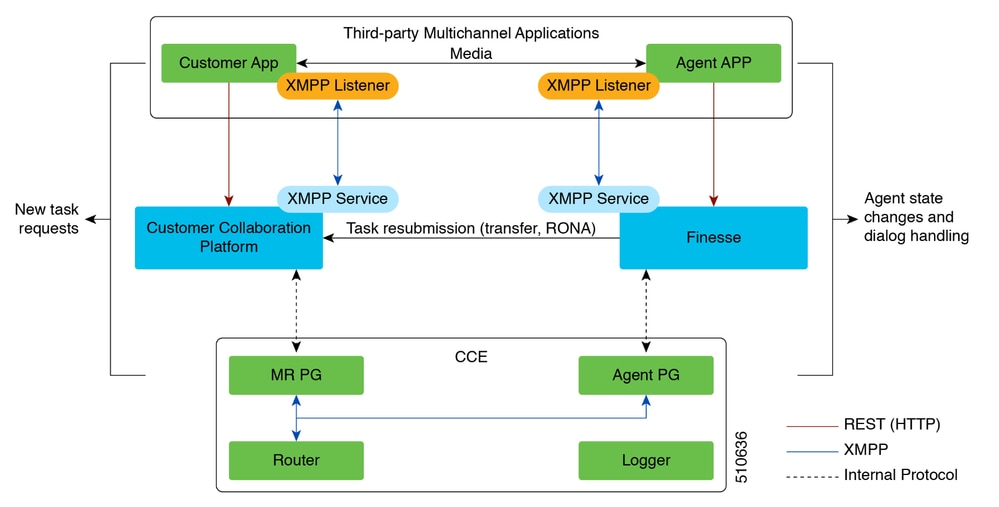

CCP and Task Routing

Third-party multichannel applications use CCPs' Task API to submit non-voice tasks to CCE.
The API works in conjunction with CCP task feeds, campaigns, and notifications to pass task requests to the contact center for routing.
The Task API supports the use of Call variables and ECC variables for task requests. Use these variables to send user-specific information with the request, including attributes of the media such as the chat room URL or the email handle.

Log Analysis

Simple Message Flow

1. Third party Multichannel Application sends a NEW_TASK event to the MR PG.

2. MR PG consumes this NEW_TASK request and sends a 'Route' request to the Router with the configured Dialed Number (DN)

3. Based off the DN, Router runs the associated script and an available agent is selected.

4. Router then sends a DEVICE_TARGET_PRE_CALL_IND to the Agent PGs' opc; based off which, ctisvr places the agent in a RESERVED state.

• At the same time, the Router also sends a CONNECT message to the MR PG.

5. MR PG now sends a DO_THIS_WITH_TASK event to the application.

6. The application sends a OFFER_TASK_IND to the ctisvr, indicating that the agent has been offered a task.

• In response, the ctisvr sends back a OFFER_TASK_EVENT confirming that the specified agent has been reserved to handle the specified task

7. Next, the application sends a START_TASK_IND to the ctisvr indicating that the agent has begun.

• Ctisvr responds back with the START_TASK_EVENT confirming that the specified agent has started handling the task.

8. While processing these START_TASK_IND event, ctisvr updates the Agent status to ACTIVE for the non-voice MRD and the session is now active.

9. Once the session ends, END_TASK_IND message is received by the ctisvr indicating that the task has ended, and a END_TASK_EVENT message is then sent in response.

Agent States for non-voice Media Routing Domains (MRD):

• NOT READY - Agent is logged into the MRD, but is in the Not Ready state
• NOT ACTIVE - Agent is logged into the MRD, and is in the Ready state
• RESERVED - Task is presented to the Agent.
• ACTIVE - Task has been accepted and Agent is actively engaged in handling the task.

CTISVR

Agent is logged into Finesse and is in the ready status for Task Management:
08:54:27:874 cg3A-ctisvr Trace: AGENT_EVENT: ID=1080 Periph=5000 Ext=1080 Inst=1080 Sig=Finesse UniqueInstID= SGSt=LOGIN SGDur=0 St=NOT_READY Dur=0 Reason=0 MRDID=5011 NumTasks=0 MaxTaskLimit=3 MaxBeyondTaskLimit=0 AgtMode=1 AGTAvailStatus=0 ICMAgtID=5172 STID=5172 SGID=0xbb6bd5 SGSTID=5199 NumLines=0 CurLine=0 ClientStatus=0x1 Dir=0 TerminalName=UCSFSJEFFERS
08:54:34:531 cg3A-ctisvr Trace: AGENT_EVENT: ID=1080 Periph=5000 Ext=1080 Inst=1080 Sig=Finesse UniqueInstID= SGSt=NOT_ACTIVE SGDur=0 St=NOT_ACTIVE Dur=0 Reason=0 MRDID=5011 NumTasks=0 MaxTaskLimit=3 MaxBeyondTaskLimit=0 AgtMode=1 AGTAvailStatus=1 ICMAgtID=5172 STID=5172 SGID=0xbb6bd5 SGSTID=5199 NumLines=0 CurLine=0 ClientStatus=0x1 Dir=0 TerminalName=UCSFSJEFFERS

CCBU-CCPPUBLICAPPS

CCPPublicapps submits a SocialContact Create Request to CCBU-Runtime for a new task:
0000000078: 192.168.1.1: Jan 30 2024 08:55:49.233 -0500: %CCBU__CCPPUBLICAPPS-6-REQUEST_INITIATED: %[Description=Report Lost Credit Card][FeedId=100080][HttpMethod=GET][Name=user@email][Title=Report Lost Credit Card]: Request initiated
0000000011: 192.168.1.1: Jan 30 2024 08:55:49.235 -0500: %CCBU_________CCPAPI-6-CREATE_SOCIAL_CONTACT: Submitting SocialContact Create Request with requestId:OTPW4p

CCBU-RUNTIME

CCBU-Runtime receives the request to create a SocialContact for a new task:
0000000056: 192.168.1.1: Jan 30 2024 08:55:49.243 -0500: %CCBU__________FEEDS-6-MSG_INCOMING_FROM_BUS: %[correlation_id=2][mid=ID:sm1.dcloud.cisco.com-38977-1706611030181-4:2:2:1:3][msg_kind=ActiveMQMapMessage][msg_type=PUSH.PushSocialContactRequest]: A message has been received by the message bus
0000000057: 192.168.1.1: Jan 30 2024 08:55:49.246 -0500: %CCBU__________FEEDS-6-CREATE_SOCIAL_CONTACT: Got Request to Create Social Contact with RequestId:ZgjHyn

CCBU-RUNTIME

SocialContact is created and a SocialContactID is generated:
In this step, note down the the SocialContactID and use it to track the task through the rest of the logs.
0000000062: 192.168.1.1: Jan 30 2024 08:55:49.272 -0500: %CCBU__________FEEDS-6-SOCIAL_CONTACT_CREATED: %[SOCIAL_CONTACT_ID=5AA797871000018D0000004139ED7AD5][SOCIAL_CONTACT_LINK=http://ccp-ip/ccp/socialcontact/5AA797871000018D0000004139ED7AD5]: A new social contact was created
0000000063: 192.168.1.1: Jan 30 2024 08:55:49.273 -0500: %CCBU__________FEEDS-6-SOCIAL_CONTACT_PROCESSOR: SocialContactProcessor processSocialContact Exit with requestId:ZgjHyn
0000000064: 192.168.1.1: Jan 30 2024 08:55:49.273 -0500: %CCBU__________FEEDS-6-SOCIAL_CONTACT_CREATED: %[id=5AA797871000018D0000004139ED7AD5][timestamp=Tue Jan 30 08:55:49 EST 2024]: SC created and sent confirmation message back to webapp

CCBU-RUNTIME

SocialContact is currently in the unread status:
// Campaign ID and the SocialContact tags are associated with the SocialContact.
0000000140: 192.168.1.1: Jan 30 2024 08:55:49.329 -0500: %CCBU_____CCP-DS-API-6-CCP_DS_API_MESSAGE: Read from Cassandra before update Solr index returned for scId=5AA797871000018D0000004139ED7AD5 ;status= unread
0000000072: 192.168.1.1: Jan 30 2024 08:55:49.343 -0500: %CCBU_______CAMPAIGN-6-RECEIVED_FILTER_SOCIAL_CONTACT_RESPONSE: %[FILTER_ID=90001][FILTER_RESPONSE=100][SOCIAL_CONTACT_ID=5AA797871000018D0000004139ED7AD5]: A social contact filter response was received.
0000000073: 192.168.1.1: Jan 30 2024 08:55:49.344 -0500: %CCBU_______CAMPAIGN-6-SC_FILTER_CACHE_UPDATE: %[CAMPAIGN_ID=100081][FILTER_ID=90001][SOCIAL_CONTACT_ID=5AA797871000018D0000004139ED7AD5]: Updated task with the particular filter result in cache
0000000074: 192.168.1.1: Jan 30 2024 08:55:49.349 -0500: %CCBU_______CAMPAIGN-6-UPDATING_SOCIAL_CONTACT_CAMPAIGN_STATUS: %[CAMPAIGN_ID=100081][CAMPAIGN_NAME=Cumulus Task][CAMPAIGN_STATUS=IN][SOCIAL_CONTACT_ID=5AA797871000018D0000004139ED7AD5][SOCIAL_CONTACT_LINK=http://ccp-ip/ccp/socialcontact/5AA797871000018D0000004139ED7AD5]: Updating the social contact's status in the campaign
0000000141: 192.168.1.1: Jan 30 2024 08:55:49.366 -0500: %CCBU_____CCP-DS-API-6-CCP_DS_API_MESSAGE: Read from Cassandra before update Solr index returned for scId=5AA797871000018D0000004139ED7AD5 ;status= unread
0000000047: 192.168.1.1: Jan 30 2024 08:55:49.398 -0500: %CCBU___NOTIFICATION-6-NOTIFICATION_REQUEST: %[CampaignID=[100081]][SocialContactID=5AA797871000018D0000004139ED7AD5][Tags=[cisco_uq_tag, discard_on_recovery]]: A Notification Request received

MR PIM

MR PIM receives the NEW_TASK event from CCP:
08:55:49:391 PG2A-pim3 Trace: Application->PG:
Message = NEW_TASK; Length = 201 bytes
DialogueID = (4) Hex 00000004
SendSeqNo = (1) Hex 00000001
MRDomainID = Undefined
PreviousTask = -1:-1:-1
PreferredAgent = Undefined
Service = (0) Hex 00000000
CiscoReserved = (0) Hex 00000000
ScriptSelector: CumulusTask
ApplicationString1: ae93f5ad-452d-4c52-8057-8d23864a8a8a
ApplicationString2: 5AA797871000018D0000004139ED7AD5
ServiceRequested = (0) Hex 00000000

MR PIM sends a NEW_CALL event to the Router for this new task:
08:55:49:391 PG2A-pim3 Trace: Send INRCMSGNewCall to Router : :
NEW_CALL RCID=5004 PID=5001 DID=4 DIDRelSeq#=1 GrpDelKey=5004 CRS(RtrDate=-1,RtrCID=-1) RCKSeq#=-1 NICCallID={N/A} PGCallID={N/A} OperationCode=CLASSIC OperationFlags=COOP_NONE CalledParty#=CumulusTask CallingParty#=ae93f5ad-452d-4c52-8057-8d23864a8a8a CED=5AA797871000018D0000004139ED7AD5 MsgOrigin=1 RouteDevType=6 Originator=sm1 NICCalledParty#= NetDelay=0 Priority=0 OrigType=0 atVRU=T CLIDRestrict=F PrefAGSTID=-1 MRDomainID=-1 LegacyPreCallMsgEnabled=F CID=0, ServiceReq=0 QueueType=-1 QueueID=0

RTR

Router receives the NewCall event and then runs the associated script, which then picks an available agent:
08:55:49:401 ra-rtr Trace: (4 x 0 : 0 0) NewCall: CID=(154526,37051928), DN=CumulusTask, ANI=ae93f5ad-452d-4c52-8057-8d23864a8a8a, CED=5AA797871000018D0000004139ED7AD5, RCID=5004, MRDID=5011, CallAtVRU=1, OpCode=0, CallGUID=, CCAIConfigParam=, OpType=0
08:55:49:401 ra-rtr Trace: (4 x 0 : 0 0) CID=(154526,37051928):CumulusTask:Step 1 sending call to Agent 5172

Once an agent picked, the Router sends a Device PreCallIndicator message to the cti server in order to reserve the agent:
08:55:49:401 ra-rtr Trace: (4 x 0 : 0 0) DeviceTargetPreCall_V14: CID=(154526,37051928), PerID=5000, PQID=5034, StepOrder=1, AGSTID=5172 NetworkCallFlags=0, InvokeID=635, GREET=, NumEnabledServices=2, EnabledServiceTypes=[ 1 2 ], CCAIConfigParam=4f62417b-bbea-44b9-9ba0-ba3e51ad8272
08:55:49:401 ra-rtr Trace: DN=CumulusTask, ANI=ae93f5ad-452d-4c52-8057-8d23864a8a8a, CED=5AA797871000018D0000004139ED7AD5, CustDBProvidedDigits=, RouteID=0, NetworkTargetID=0
08:55:49:401 ra-rtr Trace: RCKSeqNum=0, DelayQTime=0, DelayRouterTime=0, SGDelayQTime=0
08:55:49:401 ra-rtr Trace: CallGUID=, CustomrID=1 ServiceRequested=0
08:55:49:401 ra-rtr Trace: LocationParamPKID=, LocationParamName=, SIPHeader=
08:55:49:401 ra-rtr Trace: NIC_CalledPartyNumber=CumulusTask ECCPayloadID=1
08:55:49:401 ra-rtr Trace: OrigRCCallID{PhyCtrlID=0, RCID=0, DlgID=0x0} OrigOperationType=0

At the same time, Router also sends a CONNECT message to the MR PG:
08:55:49:401 ra-rtr Trace: (4 x 0 : 0 0) Connect: CID=(154526,37051928), EventSelect=0x0, ServiceType=0, RCID=5004, ECCPayloadID=1 Label(s)= InvokeID=635
08:55:49:401 ra-rtr Trace: (4 x 0 : 0 0) Deleting Dialog.
08:55:50:448 ra-rtr Trace: Agent 5172 from PG domain 5011. [na-0:3[0],RA*] to [res-0+1:3[0],R]

MR PIM

MR PIM receives the CONNECT message from the Router and then sends a DO_THIS_WITH_TASK event to the CCP Server:
08:55:49:391 PG2A-pim3 Trace: MR_Peripheral::On_Router_Connect:
CONNECT RCID=5004 PID=5001 DID=4 DIDRelSeq#=0 CRS(RtrDate=154526,RtrCID=37051928) RCKSeq#=0 ErrorCode=0 TRTargetID=-1 CorrID= EventSel=0 SvcType=0 NICCallID={N/A} PGCallID={N/A} OperationCode=CLASSIC OperationFlags=COOP_NONE NetworkTransferEnabled=F ECCPayloadID=1 InvokeID=635 NICCalledParty#=CumulusTask SGSTID=5199 PQID=5034 SvcSTID=-1 AGSTID=5172 AGInfo=5172, MRDID=5011 Interruptible=1

08:55:49:391 PG2A-pim3 Trace: PG->Application:
Message = DO_THIS_WITH_TASK; Length = 135 bytes
DialogueID = (4) Hex 00000004
SendSeqNo = (1) Hex 00000001
IcmTaskID = 154526:37051928: 1
SkillGroup = (5199) Hex 0000144f
Service = Undefined
Agent = (5172) Hex 00001434
AgentInfo: 5172
Label:
ApplicationString2:
MRDID = (5011) Hex 00001393
Interruptible = (1) Hex 00000001

CTISVR

Agent is RESERVED:
08:55:49:391 cg3A-ctisvr Trace: AGENT_EVENT: ID=1080 Periph=5000 Ext=1080 Inst=1080 Sig=Finesse UniqueInstID= SGSt=RESERVED SGDur=0 St=RESERVED Dur=0 Reason=0 MRDID=5011 NumTasks=1 MaxTaskLimit=3 MaxBeyondTaskLimit=0 AgtMode=1 AGTAvailStatus=1 ICMAgtID=5172 STID=5172 SGID=0xbb6bd5 SGSTID=5199 NumLines=0 CurLine=0 ClientStatus=0x1 Dir=0 TerminalName=UCSFSJEFFERS
08:55:49:391 cg3A-ctisvr Trace: DEVICE_TARGET_PRE_CALL_IND - Instrument=1080 RouterCallKey=154526 37051928 1 NetworkTargetID=0 SvSkTargID=-1(-1) SkGroupSkTarID=5199(12282837) AgSkTargID=5172 ANI=ae93f5ad-452d-4c52-8057-8d23864a8a8a CED=5AA797871000018D0000004139ED7AD5 CallTypeID=5053 PreCallInvokeID=635 ProtocolReferenceGUID= NumEnabledServices=2 EnabledServiceTypes=[ 1 2 ] CCAIConfigParam=4f62417b-bbea-44b9-9ba0-ba3e51ad8272

CCBU-CCPAPI

SocialContact State = queued:
0000000114: 192.168.1.1: Jan 30 2024 08:55:49.508 -0500: %CCBU_______EVENTING-6-DS_NOTIFICATION_EVENT: %[DSNotificationEvent=com.cisco.ccbu.ccp.interfaces.nfy.NotificationEvent@183bcad[author=user@email,title=Report Lost Credit Card,campaignIds=[100081],eventType=SC_STATUS_CHANGE,notificationRuleId=0,notificationRuleName=,mediaRoutingDomainId=0,newTags=[cisco_uq_tag, discard_on_recovery],oldTags=[cisco_uq_tag, discard_on_recovery],screenPopUrl=,socialContactExtensionFields={cv_1=Scott McTominay, cv_3=123456789, mrdID=5011, cv_2=Report Lost Credit Card, scriptSelector=CumulusTask, mrdIsInterruptible=true, cv_4=user@email, taskID=154526_37051928_1},socialContactId=5AA797871000018D0000004139ED7AD5,socialContactChatIsInvited=false,socialContactChatInviteStatus=none,socialContactIntegrationAuthTokenGuid=,socialContactIsSoftLocked=false,socialContactPublishedDate=Tue Jan 30 08:55:49 EST 2024,socialContactScriptSelector=,socialContactShortUrlIds=[],socialContactStatus=queued,socialContactStatusDate=Tue Jan 30 08:55:49 EST 2024,socialContactStatusReason=externally_routed,socialContactStatusUserId=system,socialContactTags=[],sourceType=task,hasMoreContacts=false,numContactsResend=0,numQueuedContact=0,originalRequestTimeStamp=0]]: A DSNotificationEvent received
0000000115: 192.168.1.1: Jan 30 2024 08:55:49.509 -0500: %CCBU_______EVENTING-6-SOCIAL_CONTACT_PUBLISH_START: %[Contact=5AA797871000018D0000004139ED7AD5][Node=ccp.campaign.updates.WCS_Campaign]: Publishing contact
0000000116: 192.168.1.1: Jan 30 2024 08:55:49.511 -0500: %CCBU_______EVENTING-6-SOCIAL_CONTACT_PUBLISH_END: %[Contact=5AA797871000018D0000004139ED7AD5][Node=ccp.campaign.updates.WCS_Campaign][Payload=<SocialContact><author>user@email</author><campaignPublicId>WCS_Campaign</campaignPublicId><chatIsInvited>false</chatIsInvited><extensionFields><extensionField><name>mrdIsInterruptible</name><value>true</value></extensionField><extensionField><name>cv_4</name><value>user@email</value></extensionField><extensionField><name>cv_1</name><value>Scott McTominay</value></extensionField><extensionField><name>cv_3</name><value>123456789</value></extensionField><extensionField><name>mrdID</name><value>5011</value></extensionField><extensionField><name>cv_2</name><value>Report Lost Credit Card</value></extensionField><extensionField><name>scriptSelector</name><value>CumulusTask</value></extensionField><extensionField><name>taskID</name><value>154526_37051928_1</value></extensionField></extensionFields><id>5AA797871000018D0000004139ED7AD5</id><publishedDate>1706622949233</publishedDate><refURL>http://sm1.dcloud.cisco.com/ccp-webapp/ccp/socialcontact/5AA797871000018D0000004139ED7AD5</refURL><sourceType>task</sourceType><status>queued</status><statusReason>externally_routed</statusReason><statusTimestamp>1706622949256</statusTimestamp><statusUserId>system</statusUserId><tags><tag>cisco_uq_tag</tag><tag>discard_on_recovery</tag></tags><title>Report Lost Credit Card</title></SocialContact>]: Published contact

SocialContact State = reserved:
0000000118: 192.168.1.1: Jan 30 2024 08:55:49.573 -0500: %CCBU_______EVENTING-6-DS_NOTIFICATION_EVENT: %[DSNotificationEvent=com.cisco.ccbu.ccp.interfaces.nfy.NotificationEvent@3d6d46[author=user@email,title=Report Lost Credit Card,campaignIds=[100081],eventType=SC_STATUS_CHANGE,notificationRuleId=0,notificationRuleName=,mediaRoutingDomainId=0,newTags=[cisco_uq_tag, discard_on_recovery],oldTags=[cisco_uq_tag, discard_on_recovery],screenPopUrl=,socialContactExtensionFields={cv_1=Scott McTominay, cv_3=123456789, mrdID=5011, cv_2=Report Lost Credit Card, scriptSelector=CumulusTask, mrdIsInterruptible=true, cv_4=user@email, taskID=154526_37051928_1},socialContactId=5AA797871000018D0000004139ED7AD5,socialContactChatIsInvited=false,socialContactChatInviteStatus=none,socialContactIntegrationAuthTokenGuid=,socialContactIsSoftLocked=false,socialContactPublishedDate=Tue Jan 30 08:55:49 EST 2024,socialContactScriptSelector=,socialContactShortUrlIds=[],socialContactStatus=reserved,socialContactStatusDate=Tue Jan 30 08:55:49 EST 2024,socialContactStatusReason=externally_routed,socialContactStatusUserId=5172,socialContactTags=[],sourceType=task,hasMoreContacts=false,numContactsResend=0,numQueuedContact=0,originalRequestTimeStamp=0]]: A DSNotificationEvent received
0000000119: 192.168.1.1: Jan 30 2024 08:55:49.573 -0500: %CCBU_______EVENTING-6-SOCIAL_CONTACT_PUBLISH_START: %[Contact=5AA797871000018D0000004139ED7AD5][Node=ccp.campaign.updates.WCS_Campaign]: Publishing contact
0000000120: 192.168.1.1: Jan 30 2024 08:55:49.574 -0500: %CCBU_______EVENTING-6-SOCIAL_CONTACT_PUBLISH_END: %[Contact=5AA797871000018D0000004139ED7AD5][Node=ccp.campaign.updates.WCS_Campaign][Payload=<SocialContact><author>user@email</author><campaignPublicId>WCS_Campaign</campaignPublicId><chatIsInvited>false</chatIsInvited><extensionFields><extensionField><name>mrdIsInterruptible</name><value>true</value></extensionField><extensionField><name>cv_4</name><value>user@email</value></extensionField><extensionField><name>cv_1</name><value>Scott McTominay</value></extensionField><extensionField><name>cv_3</name><value>123456789</value></extensionField><extensionField><name>mrdID</name><value>5011</value></extensionField><extensionField><name>cv_2</name><value>Report Lost Credit Card</value></extensionField><extensionField><name>scriptSelector</name><value>CumulusTask</value></extensionField><extensionField><name>taskID</name><value>154526_37051928_1</value></extensionField></extensionFields><id>5AA797871000018D0000004139ED7AD5</id><publishedDate>1706622949233</publishedDate><refURL>http://sm1.dcloud.cisco.com/ccp-webapp/ccp/socialcontact/5AA797871000018D0000004139ED7AD5</refURL><sourceType>task</sourceType><status>reserved</status><statusReason>externally_routed</statusReason><statusTimestamp>1706622949256</statusTimestamp><statusUserId>5172</statusUserId><tags><tag>cisco_uq_tag</tag><tag>discard_on_recovery</tag></tags><title>Report Lost Credit Card</title></SocialContact>]: Published contact

WEBSERVICES and CTISVR

OFFER_TASK_IND sent to cti server by Finesse:
103624: [INFO]: [call-id ] [agent-id ]: [Jan 30 2024 08:55:58.952 -0500]: [COMMAND_POOL-1-worker-9]: [c.c.c.f.a.a.c.CCECTIWriter]: [MESSAGE_TO_CTI_SERVER] Message going to the backend cti server cti_message_name: OfferTaskIndication, invokeId :35464 , mrdId: 5011, icmAgentId : 5172, taskId: 154526_37051928_1, skillGropupId : 5199, armServiceId : -1

08:55:58:923 cg3A-ctisvr Session 3: MsgType:OFFER_TASK_IND (InvokeID:0x8a88 MRDID:5011 ICMAgentID:5172
08:55:58:923 cg3A-ctisvr Session 3: TaskID:154526/37051928/1ARMSkillGroupID:5199 ARMServiceID:N/A )
08:55:58:923 cg3A-ctisvr Trace: ProcessOfferTaskInd - sessionID 3
08:55:58:923 cg3A-ctisvr Trace: SendARMMsg: ARM_OFFER_TASK_IND-- InvokeID = 35464, ClientInvokeID = 35464, MRDID = 5011, ICMAgentID = 5172, TaskID = 154526/37051928/1
SkillGroupID = 5199, ServiceID = -1, SessionID = 3

In response, OFFER_TASK_EVENT is sent to Finesse:
08:55:58:923 cg3A-ctisvr Trace: OFFER_TASK_EVENT: PeripherlID=5000 PeripherlType=4 MRDomainID=5011
08:55:58:923 cg3A-ctisvr Trace: TaskID=154526:37051928:1 ICMAgentID=5172 SkillGroupID=5199
08:55:58:923 cg3A-ctisvr Trace: ServiceID=2671908 ApplicationRouted

WEBSERVICES

OfferTaskEvent received by Finesse:
103629: [INFO]: [call-id ] [agent-id ]: [Jan 30 2024 08:55:58.953 -0500]: [EVENT_POOL-1-worker-17]: [c.c.c.f.a.a.m.RunnableHandler]: [MESSAGE_FROM_CTI_SERVER] Message coming to Finesse from backend cti server Name of the CTI Message: OfferTaskEvent, Entire cti message payload: CTIOfferTaskEvent [ invokeID=null, cti_sequence_id=43400, msgID=194, msgName=OfferTaskEvent, deploymentType=CCE, monitorId=0, peripheralId=5000, peripheralType=4, mrdId=5011, icmAgentID=5172, taskId=154526_37051928_1, skillGroupID=5199, serviceID=-1, applicationRouted=true]
103630: [INFO]: [call-id [154526_37051928_1]] [agent-id [1080]]: [Jan 30 2024 08:55:58.954 -0500]: [EVENT_POOL-1-worker-17]: [c.c.c.f.c.XMPPPublishUtils]: [XMPP_PUBLISH_ASYNCHRONOUS] Publishing XMPP Message Asynchronously. node_id: /finesse/api/User/1080/Dialogs/Media, payload: <notification xmlns='http://jabber/protocol/pubsub'><Update><data><dialog><taskId><routerCallKeyDay>154526</routerCallKeyDay><routerCallKeyCallID>37051928</routerCallKeyCallID><routerCallKeySequenceNum>1</routerCallKeySequenceNum></taskId><id>154526_37051928_1</id><mediaProperties><mediaId>5011</mediaId><dialedNumber>CumulusTask</dialedNumber><queueNumber>12282837</queueNumber><queueName>CumulusTask</queueName><callKeyCallId>37051928</callKeyCallId><callKeyPrefix>154526</callKeyPrefix><callKeySequenceNum>1</callKeySequenceNum></mediaProperties><mediaType>Tasks</mediaType><participants><Participant><actions><action>UPDATE_CALL_DATA</action><action>TRANSFER</action><action>START</action><action>CLOSE</action></actions><mediaAddress>1080</mediaAddress><mediaAddressType></mediaAddressType><startTime>2024-01-30T13:55:49.426Z</startTime><state>ACCEPTED</state><stateCause></stateCause><stateChangeTime>2024-01-30T13:55:58.953Z</stateChangeTime></Participant></participants><state>ACCEPTED</state><uri>/finesse/api/Dialog/154526_37051928_1</uri></dialog></data><event>PUT</event><requestId></requestId><source>/finesse/api/Dialog/154526_37051928_1</source></Update></notification>
103631: [INFO]: [call-id [154526_37051928_1]] [agent-id [1080]]: [Jan 30 2024 08:55:58.954 -0500]: [EVENT_POOL-1-worker-17]: [c.c.c.f.c.c.d.CommandDispatcher]: [[COMMAND_DISPATCHER]] DnE-CHECKPOINT-5 - SEQS: [154526_37051928_1], dispatch_stats: CTI_CMD_QUEUE_TIME: 0, CTI_CMD_DISPATCH_TIME: 0, CTI_CMD_EXECUTION_TIME: 1, CTI_CMD_TOTAL_EXECUTION_TIME: 1, message_overall_stats: CTI_MSG_RCV_TIME:Jan 30 2024 08:55:58.953,CTI_MSG_TOTAL_PROCESSING_TIME:1,CTI_MSG_QUEUED_FOR_DECODING_TIME:0,CTI_MSG_DECODE_TIME:0,CTI_MSG_ACMI_NOTIFY_TIME:0,CTI_MSG_DISPATCH_TIME:0,CTI_MSG_PROCESSING_TIME:1,CTI_MSG_LATENCY:-1,CTI_SOCKET_WAIT_TIME:-1, payload: CTIOfferTaskEvent [ invokeID=null, cti_sequence_id=43400, msgID=194, msgName=OfferTaskEvent, deploymentType=CCE, monitorId=0, peripheralId=5000, peripheralType=4, mrdId=5011, icmAgentID=5172, taskId=154526_37051928_1, skillGroupID=5199, serviceID=-1, applicationRouted=true]

Finesse now sends START_TASK_IND to cti server:
104059: [INFO]: [call-id ] [agent-id ]: [Jan 30 2024 08:56:53.772 -0500]: [COMMAND_POOL-1-worker-11]: [c.c.c.f.a.a.c.CCECTIWriter]: [MESSAGE_TO_CTI_SERVER] Message going to the backend cti server cti_message_name: StartTaskIndication, invokeId=35655, mrdId=5011, icmAgentId=5172, taskId=154526_37051928_1, armSkillGroupId=5199, armServiceId=-1

CTISVR

START_TASK_IND received from Finesse:
08:56:53:745 cg3A-ctisvr Session 3: MsgType:START_TASK_IND (InvokeID:0x8b47 MRDID:5011 ICMAgentID:5172
08:56:53:745 cg3A-ctisvr Session 3: TaskID:154526/37051928/1ARMSkillGroupID:5199 ARMServiceID:N/A )
08:56:53:745 cg3A-ctisvr Trace: ProcessStartTaskInd - sessionID 3
08:56:53:745 cg3A-ctisvr Trace: SendARMMsg: ARM_START_TASK_IND-- InvokeID = 35655, ClientInvokeID = 35655, MRDID = 5011, ICMAgentID = 5172, TaskID = 154526/37051928/1
SkillGroupID = 5199, ServiceID = -1, SessionID = 3

Agent is now in the ACTIVE state:
08:56:53:745 cg3A-ctisvr Trace: AGENT_EVENT: ID=1080 Periph=5000 Ext=1080 Inst=1080 Sig=Finesse UniqueInstID= SGSt=ACTIVE SGDur=0 St=ACTIVE Dur=0 Reason=0 MRDID=5011 NumTasks=1 MaxTaskLimit=3 MaxBeyondTaskLimit=0 AgtMode=1 AGTAvailStatus=1 ICMAgtID=5172 STID=5172 SGID=0xbb6bd5 SGSTID=5199 NumLines=0 CurLine=0 ClientStatus=0x1 Dir=1 TerminalName=UCSFSJEFFERS

START_TASK_EVENT is sent to Finesse:
// Once the agent is moved to the ACTIVE state and the START_TASK_EVENT is sent to Finesse, this is when the agent is actively working on the task:
08:56:53:745 cg3A-ctisvr Trace: START_TASK_EVENT: PeripherlID=5000 PeripherlType=4 MRDomainID=5011
08:56:53:745 cg3A-ctisvr Trace: TaskID=154526:37051928:1 ICMAgentID=5172 SkillGroupID=5199
08:56:53:745 cg3A-ctisvr Trace: ServiceID=2671908 ApplicationRouted

WEBSERVICES

StartTaskEvent received by Finesse:
104066: [INFO]: [call-id ] [agent-id ]: [Jan 30 2024 08:56:53.774 -0500]: [EVENT_POOL-1-worker-19]: [c.c.c.f.a.a.m.RunnableHandler]: [MESSAGE_FROM_CTI_SERVER] Message coming to Finesse from backend cti server Name of the CTI Message: StartTaskEvent, Entire cti message payload: CTIStartTaskEvent [ invokeID=null, cti_sequence_id=43634, msgID=195, msgName=StartTaskEvent, deploymentType=CCE, monitorId=0, peripheralId=5000, peripheralType=4, mrdId=5011, icmAgentID=5172, taskId=154526_37051928_1, skillGroupID=5199, serviceID=-1, applicationRouted=true]
104067: [INFO]: [call-id ] [agent-id ]: [Jan 30 2024 08:56:53.774 -0500]: [EVENT_POOL-1-worker-19]: [c.c.c.f.c.XMPPPublishUtils]: [XMPP_PUBLISH_ASYNCHRONOUS] Publishing XMPP Message Asynchronously. node_id: /finesse/api/User/1080/Dialogs/Media, payload: <notification xmlns='http://jabber/protocol/pubsub'><Update><data><dialog><taskId><routerCallKeyDay>154526</routerCallKeyDay><routerCallKeyCallID>37051928</routerCallKeyCallID><routerCallKeySequenceNum>1</routerCallKeySequenceNum></taskId><id>154526_37051928_1</id><mediaProperties><mediaId>5011</mediaId><dialedNumber>CumulusTask</dialedNumber><queueNumber>12282837</queueNumber><queueName>CumulusTask</queueName><callKeyCallId>37051928</callKeyCallId><callKeyPrefix>154526</callKeyPrefix><callKeySequenceNum>1</callKeySequenceNum></mediaProperties><mediaType>Tasks</mediaType><participants><Participant><actions><action>PAUSE</action><action>UPDATE_CALL_DATA</action><action>WRAP_UP</action><action>TRANSFER</action><action>CLOSE</action></actions><mediaAddress>1080</mediaAddress><mediaAddressType></mediaAddressType><startTime>2024-01-30T13:55:49.426Z</startTime><state>ACTIVE</state><stateCause></stateCause><stateChangeTime>2024-01-30T13:56:53.774Z</stateChangeTime></Participant></participants><state>ACTIVE</state><uri>/finesse/api/Dialog/154526_37051928_1</uri></dialog></data><event>PUT</event><requestId></requestId><source>/finesse/api/Dialog/154526_37051928_1</source></Update></notification>
104068: [INFO]: [call-id ] [agent-id ]: [Jan 30 2024 08:56:53.774 -0500]: [EVENT_POOL-1-worker-19]: [c.c.c.f.c.c.d.CommandDispatcher]: [[COMMAND_DISPATCHER]] DnE-CHECKPOINT-5 - SEQS: [154526_37051928_1], dispatch_stats: CTI_CMD_QUEUE_TIME: 0, CTI_CMD_DISPATCH_TIME: 0, CTI_CMD_EXECUTION_TIME: 0, CTI_CMD_TOTAL_EXECUTION_TIME: 0, message_overall_stats: CTI_MSG_RCV_TIME:Jan 30 2024 08:56:53.774,CTI_MSG_TOTAL_PROCESSING_TIME:0,CTI_MSG_QUEUED_FOR_DECODING_TIME:0,CTI_MSG_DECODE_TIME:0,CTI_MSG_ACMI_NOTIFY_TIME:0,CTI_MSG_DISPATCH_TIME:0,CTI_MSG_PROCESSING_TIME:0,CTI_MSG_LATENCY:-1,CTI_SOCKET_WAIT_TIME:-1, payload: CTIStartTaskEvent [ invokeID=null, cti_sequence_id=43634, msgID=195, msgName=StartTaskEvent, deploymentType=CCE, monitorId=0, peripheralId=5000, peripheralType=4, mrdId=5011, icmAgentID=5172, taskId=154526_37051928_1, skillGroupID=5199, serviceID=-1, applicationRouted=true]

When the task is ended, END_TASK_IND is forwarded to the cti server by Finesse:
104611: [INFO]: [call-id ] [agent-id ]: [Jan 30 2024 08:58:10.565 -0500]: [COMMAND_POOL-1-worker-13]: [c.c.c.f.a.a.c.CCECTIWriter]: [MESSAGE_TO_CTI_SERVER] Message going to the backend cti server cti_message_name: EndTaskIndication, Invoke id :35884 , mrdId: 5011, icmAgentId : 5172, taskId : 154526_37051928_1, icmDispositionCode: 38, appDispositionCode : 38

CTISVR

END_TASK_IND received from Finesse:
08:58:10:536 cg3A-ctisvr Session 3: MsgType:END_TASK_IND (InvokeID:0x8c2c MRDID:5011 ICMAgentID:5172
08:58:10:536 cg3A-ctisvr Session 3: TaskID:154526/37051928/1ICMDisposition:38 ApplicationDisposition:38 WrapupData:"" )
08:58:10:536 cg3A-ctisvr Trace: Decode string length error: element "WrapupData", strlen 0, fieldlen 2 ("")
08:58:10:536 cg3A-ctisvr Trace: ProcessEndTaskInd - sessionID 3
08:58:10:536 cg3A-ctisvr Trace: SendARMMsg: ARM_END_TASK_IND-- InvokeID = 35884, ClientInvokeID = 35884, TaskID = 154526/37051928/1, ICMDisposition = 38, ApplicationDisposition = 38, SessionID = 3
WrapupData = , ApplicationData =
08:58:10:536 cg3A-ctisvr Trace: MDSIO::ProcessOPCMessage: received msgtype 97 (CTI_END_TASK_EVENT) ...

Agent is moved to NOT_ACTIVE status and END_TASK_EVENT is send back to Finesse:
08:58:10:536 cg3A-ctisvr Trace: AGENT_EVENT: ID=1080 Periph=5000 Ext=1080 Inst=1080 Sig=Finesse UniqueInstID= SGSt=NOT_ACTIVE SGDur=0 St=NOT_ACTIVE Dur=0 Reason=0 MRDID=5011 NumTasks=1 MaxTaskLimit=3 MaxBeyondTaskLimit=0 AgtMode=1 AGTAvailStatus=1 ICMAgtID=5172 STID=5172 SGID=0xbb6bd5 SGSTID=5199 NumLines=0 CurLine=0 ClientStatus=0x1 Dir=0 TerminalName=UCSFSJEFFERS
08:58:10:536 cg3A-ctisvr Trace: END_TASK_EVENT: PeripherlID=5000 PeripherlType=4 MRDomainID=5011
08:58:10:536 cg3A-ctisvr Trace: TaskID=154526:37051928:1 PreviousTaskID=-1:-1:-1
08:58:10:536 cg3A-ctisvr Trace: ICMAgentID=5172

WEBSERVICES

EndTaskEvent received on Finesse from the CTISVR:
104624: [INFO]: [call-id ] [agent-id ]: [Jan 30 2024 08:58:10.568 -0500]: [EVENT_POOL-1-worker-16]: [c.c.c.f.a.a.m.RunnableHandler]: [MESSAGE_FROM_CTI_SERVER] Message coming to Finesse from backend cti server Name of the CTI Message: EndTaskEvent, Entire cti message payload: CTIEndTaskEvent [ invokeID=null, cti_sequence_id=43904, msgID=199, msgName=EndTaskEvent, deploymentType=CCE, monitorId=0, peripheralId=5000, mrdId=5011, agentSkillTargetID=5172, previousICMTaskId=-1_-1_-1, taskId=154526_37051928_1, icmDispositionCode=38, applicationDispositionCode=38, wrapUpData=null, applicationData=null]

END_TASK_EVENT_HANDLER update sent to the Finesse client:
104625: [INFO]: [call-id ] [agent-id ]: [Jan 30 2024 08:58:10.568 -0500]: [EVENT_POOL-1-worker-16]: [c.c.c.f.a.a.m.EndTaskEventHandler]: [END_TASK_EVENT_HANDLER] EndTaskEventHandler : Received CTIEndTaskEvent with ARMTaskDispositionCode : 38
104626: [INFO]: [call-id [154526_37051928_1]] [agent-id [1080]]: [Jan 30 2024 08:58:10.569 -0500]: [EVENT_POOL-1-worker-16]: [c.c.c.f.c.XMPPPublishUtils]: [XMPP_PUBLISH_ASYNCHRONOUS] Publishing XMPP Message Asynchronously. node_id: /finesse/api/User/1080/Dialogs/Media, payload: <notification xmlns='http://jabber/protocol/pubsub'><Update><data><dialogs><Dialog><taskId><routerCallKeyDay>154526</routerCallKeyDay><routerCallKeyCallID>37051928</routerCallKeyCallID><routerCallKeySequenceNum>1</routerCallKeySequenceNum></taskId><id>154526_37051928_1</id><mediaProperties><mediaId>5011</mediaId><dialedNumber>CumulusTask</dialedNumber><queueNumber>12282837</queueNumber><queueName>CumulusTask</queueName><callKeyCallId>37051928</callKeyCallId><callKeyPrefix>154526</callKeyPrefix><callKeySequenceNum>1</callKeySequenceNum></mediaProperties><mediaType>Tasks</mediaType><participants><Participant><actions></actions><mediaAddress>1080</mediaAddress><mediaAddressType></mediaAddressType><startTime>2024-01-30T13:55:49.426Z</startTime><state>CLOSED</state><stateCause></stateCause><stateChangeTime>2024-01-30T13:58:10.569Z</stateChangeTime></Participant></participants><dispositionCode>CD_NORMAL_END_DIALOG</dispositionCode><state>CLOSED</state><uri>/finesse/api/Dialog/154526_37051928_1</uri></Dialog></dialogs></data><event>DELETE</event><requestId></requestId><source>/finesse/api/User/1080/Media/5011/Dialogs</source></Update></notification>
104627: [INFO]: [call-id [154526_37051928_1]] [agent-id [1080]]: [Jan 30 2024 08:58:10.569 -0500]: [EVENT_POOL-1-worker-16]: [c.c.c.f.c.c.d.CommandDispatcher]: [[COMMAND_DISPATCHER]] DnE-CHECKPOINT-5 - SEQS: [154526_37051928_1], dispatch_stats: CTI_CMD_QUEUE_TIME: 1, CTI_CMD_DISPATCH_TIME: 0, CTI_CMD_EXECUTION_TIME: 1, CTI_CMD_TOTAL_EXECUTION_TIME: 2, message_overall_stats: CTI_MSG_RCV_TIME:Jan 30 2024 08:58:10.567,CTI_MSG_TOTAL_PROCESSING_TIME:-1,CTI_MSG_QUEUED_FOR_DECODING_TIME:0,CTI_MSG_DECODE_TIME:0,CTI_MSG_ACMI_NOTIFY_TIME:0,CTI_MSG_DISPATCH_TIME:0,CTI_MSG_PROCESSING_TIME:-1,CTI_MSG_LATENCY:-1,CTI_SOCKET_WAIT_TIME:-1, payload: CTIEndTaskEvent [ invokeID=null, cti_sequence_id=43904, msgID=199, msgName=EndTaskEvent, deploymentType=CCE, monitorId=0, peripheralId=5000, mrdId=5011, agentSkillTargetID=5172, previousICMTaskId=-1_-1_-1, taskId=154526_37051928_1, icmDispositionCode=38, applicationDispositionCode=38, wrapUpData=null, applicationData=null]

Finesse now makes a REST call to CCP for the EndTask event:
104632: [INFO]: [call-id ] [agent-id ]: [Jan 30 2024 08:58:10.569 -0500]: [SM-TASK-NOTIFIER-POOL-1]: [c.c.c.f.c.u.s.EndTaskSmRestJob]: [SM_REST_OPERATION_MSG] agent_id: 1080, task_id: 154526_37051928_1, sm_contact_id: 5AA797871000018D0000004139ED7AD5. EndTaskSmRestJob : About to make a REST call to SM for EndTask.

CCP returns a successful response indicating that the SocialContact is closed and marked as Handled:
104633: [INFO]: [call-id ] [agent-id ]: [Jan 30 2024 08:58:10.679 -0500]: [SM-TASK-NOTIFIER-POOL-1]: [c.c.c.f.c.s.SMRestClientImpl]: [SOCIALMINER_HTTP_RESPONSE] Received HTTP Response from SOCIAL-MINER. Status: 200
104634: [INFO]: [call-id ] [agent-id ]: [Jan 30 2024 08:58:10.679 -0500]: [SM-TASK-NOTIFIER-POOL-1]: [c.c.c.f.c.u.s.EndTaskSmRestJob]: [SM_REST_OPERATION_MSG] agent_id: 1080, task_id: 154526_37051928_1, sm_contact_id: 5AA797871000018D0000004139ED7AD5. EndTaskSmRestJob : Done making call to SM for EndTask with Response Status- 200.

CCBU-CCAPI

CCP receives a request from Finesse to close the SocialContact:
0000001461: 192.168.1.1: Jan 30 2024 08:58:10.641 -0500: %CCBU_________CCPAPI-6-REST_API_INFO: CONTACT_CLOSE: Received Close Request for SocialContact with ID: 5AA797871000018D0000004139ED7AD5

SocialContact status is updated to Handled:
0000001462: 192.168.1.1: Jan 30 2024 08:58:10.650 -0500: %CCBU_________CCPAPI-6-REST_API_INFO: CONTACT_CLOSE: SocialContact ID: 5AA797871000018D0000004139ED7AD5 is valid for Close Operation
0000000165: 192.168.1.1: Jan 30 2024 08:58:10.655 -0500: %CCBU_____CCP-DS-API-6-CCP_DS_API_MESSAGE: Write to Cassandra for scId=5AA797871000018D0000004139ED7AD5 ;status= handled
0000000166: 192.168.1.1: Jan 30 2024 08:58:10.665 -0500: %CCBU_____CCP-DS-API-6-CCP_DS_API_MESSAGE: Read from Cassandra before update Solr index returned for scId=5AA797871000018D0000004139ED7AD5 ;status= handled
0000001463: 192.168.1.1: Jan 30 2024 08:58:10.676 -0500: %CCBU_________CCPAPI-6-REST_API_INFO: CONTACT_CLOSE: Status for SocialContact: 5AA797871000018D0000004139ED7AD5 is updated to HANDLED
0000000121: 192.168.1.1: Jan 30 2024 08:58:10.680 -0500: %CCBU_______EVENTING-6-MSG_INCOMING_FROM_BUS: %[correlation_id=null][mid=ID:sm1.dcloud.cisco.com-35391-1706611083984-3:2:2:1:6][msg_kind=ActiveMQMapMessage][msg_type=NFY.NotificationEvent]: A message has been received by the message bus
0000000122: 192.168.1.1: Jan 30 2024 08:58:10.694 -0500: %CCBU_______EVENTING-6-DS_NOTIFICATION_EVENT: %[DSNotificationEvent=com.cisco.ccbu.ccp.interfaces.nfy.NotificationEvent@35210f[author=user@email,title=Report Lost Credit Card,campaignIds=[100081],eventType=SC_STATUS_CHANGE,notificationRuleId=0,notificationRuleName=,mediaRoutingDomainId=0,newTags=[cisco_uq_tag, discard_on_recovery],oldTags=[cisco_uq_tag, discard_on_recovery],screenPopUrl=,socialContactExtensionFields={cv_1=Scott McTominay, cv_3=123456789, mrdID=5011, cv_2=Report Lost Credit Card, scriptSelector=CumulusTask, mrdIsInterruptible=true, cv_4=user@email, taskID=154526_37051928_1},socialContactId=5AA797871000018D0000004139ED7AD5,socialContactChatIsInvited=false,socialContactChatInviteStatus=none,socialContactIntegrationAuthTokenGuid=,socialContactIsSoftLocked=false,socialContactPublishedDate=Tue Jan 30 08:55:49 EST 2024,socialContactScriptSelector=,socialContactShortUrlIds=[],socialContactStatus=handled,socialContactStatusDate=Tue Jan 30 08:55:49 EST 2024,socialContactStatusReason=externally_handled,socialContactStatusUserId=5172,socialContactTags=[],sourceType=task,hasMoreContacts=false,numContactsResend=0,numQueuedContact=0,originalRequestTimeStamp=0]]: A DSNotificationEvent received
0000000034: 192.168.1.1: Jan 30 2024 08:58:10.694 -0500: %CCBU_______MSGPROXY-6-MSG_INCOMING_FROM_BUS: %[correlation_id=null][mid=ID:sm1.dcloud.cisco.com-35391-1706611083984-3:2:2:1:6][msg_kind=ActiveMQMapMessage][msg_type=NFY.NotificationEvent]: A message has been received by the message bus
0000000123: 192.168.1.1: Jan 30 2024 08:58:10.694 -0500: %CCBU_______EVENTING-6-SOCIAL_CONTACT_PUBLISH_START: %[Contact=5AA797871000018D0000004139ED7AD5][Node=ccp.campaign.updates.WCS_Campaign]: Publishing contact
0000000124: 192.168.1.1: Jan 30 2024 08:58:10.696 -0500: %CCBU_______EVENTING-6-SOCIAL_CONTACT_PUBLISH_END: %[Contact=5AA797871000018D0000004139ED7AD5][Node=ccp.campaign.updates.WCS_Campaign][Payload=<SocialContact><author>user@email</author><campaignPublicId>WCS_Campaign</campaignPublicId><chatIsInvited>false</chatIsInvited><extensionFields><extensionField><name>mrdIsInterruptible</name><value>true</value></extensionField><extensionField><name>cv_4</name><value>user@email</value></extensionField><extensionField><name>cv_1</name><value>Scott McTominay</value></extensionField><extensionField><name>cv_3</name><value>123456789</value></extensionField><extensionField><name>mrdID</name><value>5011</value></extensionField><extensionField><name>cv_2</name><value>Report Lost Credit Card</value></extensionField><extensionField><name>scriptSelector</name><value>CumulusTask</value></extensionField><extensionField><name>taskID</name><value>154526_37051928_1</value></extensionField></extensionFields><id>5AA797871000018D0000004139ED7AD5</id><publishedDate>1706622949233</publishedDate><refURL>http://sm1.dcloud.cisco.com/ccp-webapp/ccp/socialcontact/5AA797871000018D0000004139ED7AD5</refURL><sourceType>task</sourceType><status>handled</status><statusReason>externally_handled</statusReason><statusTimestamp>1706622949256</statusTimestamp><statusUserId>5172</statusUserId><tags><tag>cisco_uq_tag</tag><tag>discard_on_recovery</tag></tags><title>Report Lost Credit Card</title></SocialContact>]: Published contact

Download CCP Logs

Using RTMT

Using CCP command line

List directories and files:

file list activelog mmca/logs/*
OR
file list activelog mmca/logs/* detail

admin:file list activelog mmca/logs/*
<dir> ccp-chat-gateway
<dir> ccp-ds-indexer
<dir> ccp-ds-storage
<dir> ccp-xmpp-server
<dir> ccpapi
<dir> ccppublicapps
<dir> certMgmt
<dir> orm
<dir> runtime
<dir> tomcat
informix-stats.out install_report_server.sh.out
mmca-drs-reg.log sm1_mmca_dbsetup.log
dir count = 10, file count = 4

Download Log files:

CCP Chat Gateway Service
file get activelog mmca/logs/ccp-chat-gateway/*

CCP Datastore Service
file get activelog mmca/logs/ccp-ds-storage/*

CCP Indexer Service
file get activelog mmca/logs/ccp-ds-indexer/*

CCP ORM Service
file get activelog mmca/logs/orm/*

CCP Public REST API
file get activelog mmca/logs/ccppublicapps/*

CCP REST API
file get activelog mmca/logs/ccpapi/*

CCP Runtime Service
file get activelog mmca/logs/runtime/*

CCP XMPP Server Service
file get activelog mmca/logs/ccp-xmpp-server/*

CCP Tomcat
file get activelog mmca/logs/tomcat/*

Related Information

12.6(1)
UCCE Features Guide - Task Routing

12.6(2)
UCCE Features Guide - Task Routing

Technical Support & Documentation - Cisco Systems
