This chapter describes how to install the Cisco ASR 903 Router.
Before installing the Cisco ASR 903 Router, it is important to prepare for the installation by:
For more instructions on how to prepare for the installation of the Cisco ASR 903 Router, see Preparing for Installation.
The following sections describe how to install the Cisco ASR 903 Router in a rack:

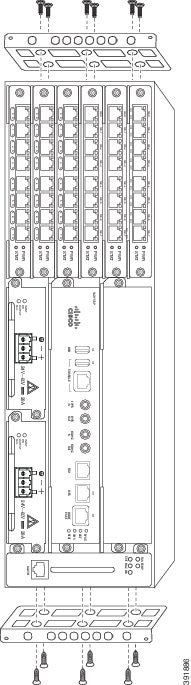

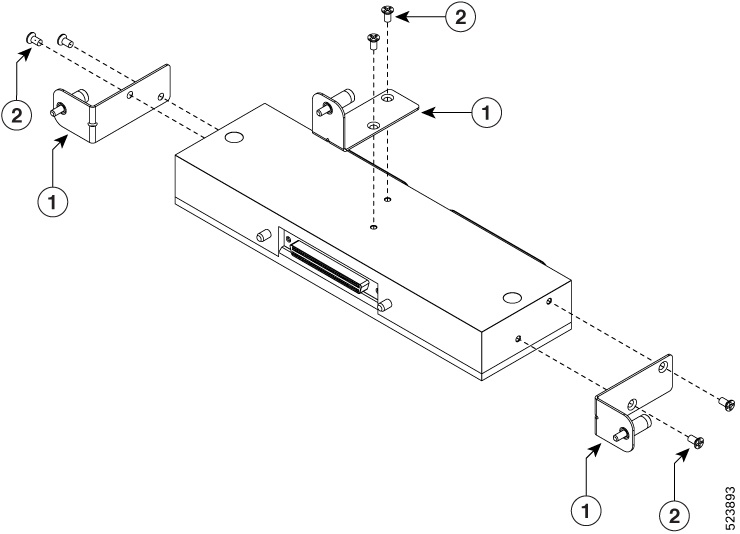

The chassis is shipped with mounting brackets that can be installed on the front or rear of the chassis. To install the brackets on the front of the chassis, perform these steps:
|
Step 1 |
Remove the rack-mount brackets from the accessory kit and position them beside the router chassis. The figure below hows how to attach the brackets on the Cisco ASR 903 Router for a 19-inch EIA rack.  The figure below shows how to attach the brackets on the Cisco ASR 903 Router for a 300 mm ETSI cabinet.  |
|
Step 2 |
Position one of the brackets against the chassis side, and align the screw holes. |
|
Step 3 |
Secure the bracket to the chassis with the screws removed when performing Step 1 . The recommended maximum torque is 28 in.-lb (3.16 N-m). The A903-FAN-E fan tray with filter (A903-FAN-F) cannot be mounted using the mounting screws that are supported for A903-FAN fan tray. This is not an issue with the FAN tray filter blank panel (A903-FAN-F-B). We recommend that you use the short screws provided in the following rack mount kits to avoid interference of the air filter during rack mounting and while replacing the fan tray (A903-FAN) with the fan tray (A903-FAN-E):
|
The procedures in this section apply to both horizontal and vertical mounting of the router in a rack.
To install the router chassis in the equipment rack, perform these steps:
|
Step 1 |
Position the chassis in the rack as follows:
|
||||||
|
Step 2 |
Align the mounting holes in the bracket (and optional cable guide) with the mounting holes in the equipment rack.

|
||||||
|
Step 3 |
Install the 8 or 12 (4 or 6 per side) 12-24 x 3/4-inch or 10-32 x 3/4-inch screws through the holes in the bracket and into the threaded holes in the equipment rack posts. |
||||||
|
Step 4 |
Use a tape measure and level to verify that the chassis is installed straight and level. |

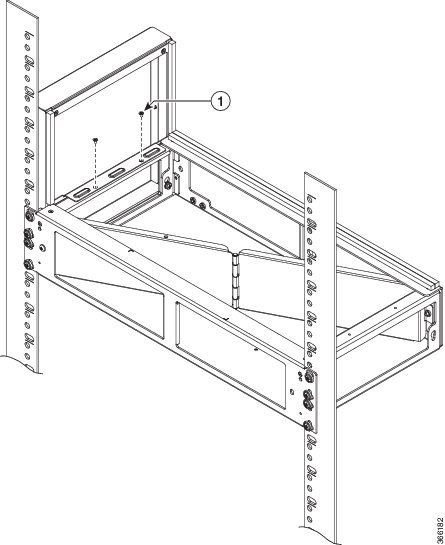

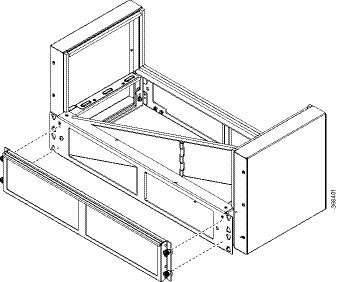

Following steps help you to install the plenum assembly irrespective of the chassis and rack size.
 Note |
The 19-inches bracket (A903-RCKMNT-19IN3) is an integral part of the plenum base. Ensure to select the 21-inches or 23-inches adapter for your plenum based on your rack size. |
|
Step 1 |

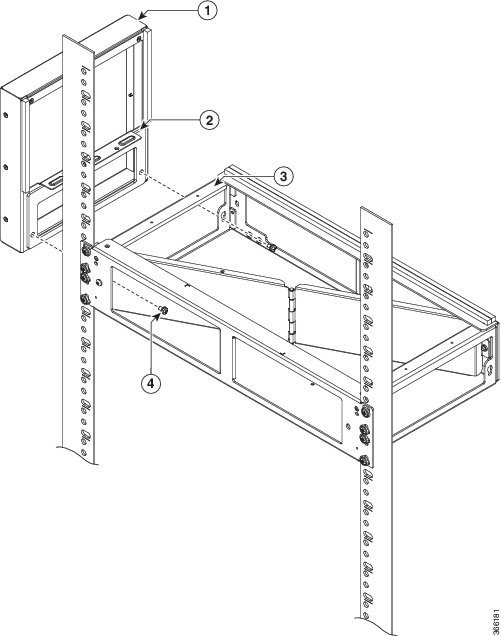

Position the air baffle and the side plate to the plenum. See figure below.
|
||||||||||||||||||||
|
Step 2 |
Secure the air baffle and the side plate using a maximum torque of 11.5 in.-lb (1.3 N-m). See figure below. |
||||||||||||||||||||
|
Step 3 |
Repeat Step-1 and Step-2 to complete the plenum assembly on the other side of the plenum base. |
||||||||||||||||||||
|
Step 4 |
Position the air filter (A903-F2B-AIR-F or A903-S2B-AIR) assembly on the plenum deflector. Secure the front cover using a recommended torque of 11.5 in.-lb (1.3 N-m). See figure below.
|
||||||||||||||||||||
|
Step 5 |

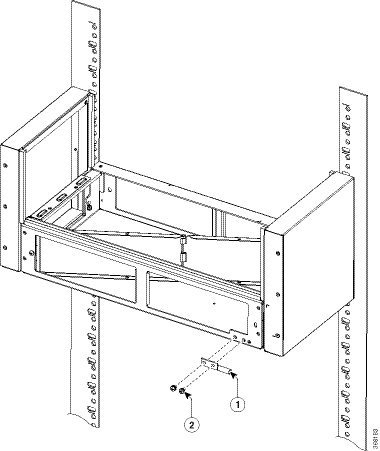

Using a crimping tool (as specified by the ground lug manufacturer), crimp the ground lug to the ground wire and connect the other end of the ground wire to a suitable grounding point at your site. See figure below.
|
||||||||||||||||||||
|
Step 6 |

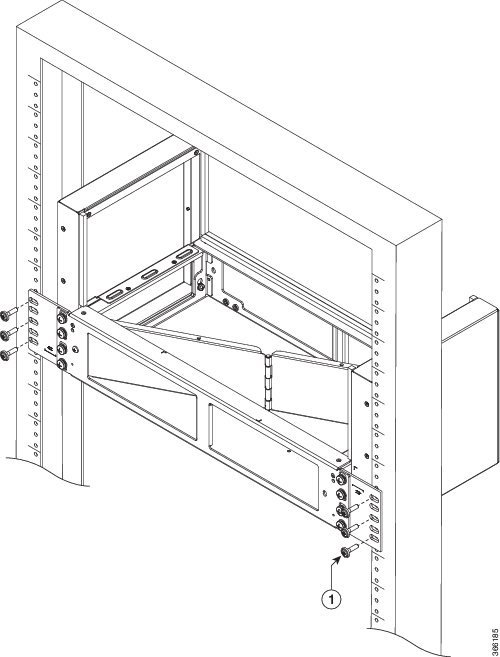

Position the plenum assembly to the rack and secure the cable brackets to the rack using a torque of 11.5 in.-lb (1.3 N-m). See figure below.

|
Note |
Ensure that the router is not installed in the air plenum while mounting it on the rack. |

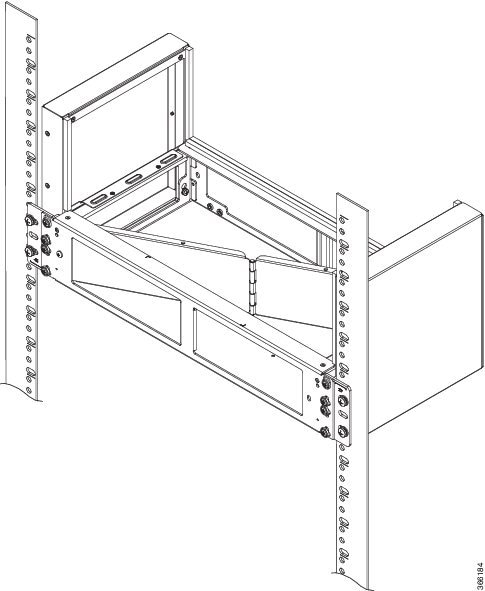

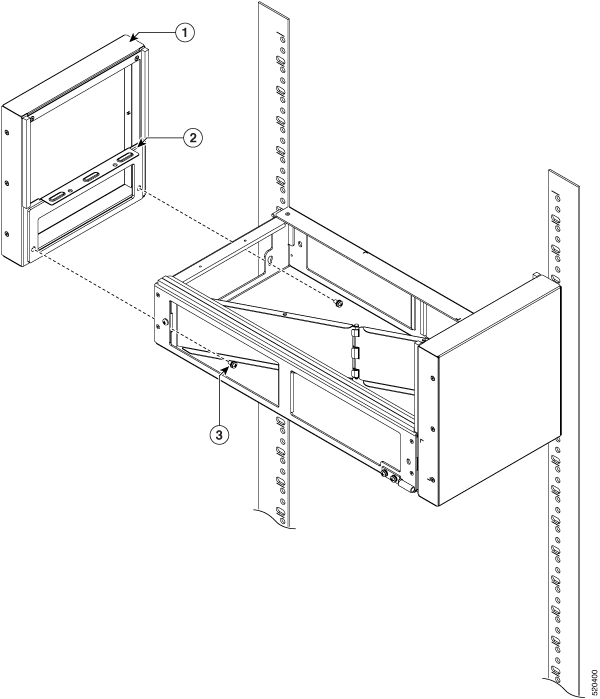

For instructions on mounting the air plenum on the rack, (see Table A-2).
|
Step 1 |
Position the chassis so that the rear of the chassis is at the front of the plenum. See the figure below. |
||||
|
Step 2 |
Slide the chassis into the plenum so that the front of the chassis is in flush with the mounting rails and brackets.
|
The router supports the following brackets:
Note |
The mounting brackets and cable mounting brackets are assembled together. We recommend that the brackets are installed before the chassis is installed in the Air Plenum. |
To install the optional cable management brackets, perform these steps:
|
Step 1 |
Position the cable management brackets against the front of the chassis and align the four screw holes, as shown in the figure below.   |
|
Step 2 |
Secure the cable management brackets with four M4 screws. The recommended maximum torque is 10 in.-lb (1.12 N-m). |
Before you connect the power or turn on the power to the Cisco ASR 903 Router, you must provide an adequate chassis ground (earth) connection to your router.
This section describes how to ground the Cisco ASR 903 Router chassis. The router provides two locations for attaching a 2-hole grounding lug according to the rack-mounting brackets you use to install the router. The Cisco ASR 903 Router supports the following rack-mounting types:
|
1 |
Grounding lug (19-inch EIA rack) |
|
1 |
Grounding lug (300 mm ETSI cabinet) |
To ensure that the chassis ground connection that you provide is adequate, you need the following parts and tools:
 Caution |
Before making connections to the Cisco ASR 903 Router, ensure that you disconnect the power at the circuit breaker. Otherwise, severe injury to you or damage to the router may occur. |
 Warning |
This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available. Statement 1024 |
Warning |
Use copper conductors only. Statement 1025 |
Warning |
When installing the unit, the ground connection must always be made first and disconnected last. Statement 42 |
This unit is to be installed in a restrictive access location and must be permanently grounded to minimum 6 AWG copper ground wire.
Perform the following procedure to ground the Cisco ASR 903 Router using a 2-hole lug and the corresponding mounting point. Most carriers require a minimum 6 AWG ground connection. Verify your carrier’s requirements for the ground connection.
|
Step 1 |
If your ground wire is insulated, use a wire-stripping tool to strip the ground wire to 0.5 inch ± 0.02 inch (12.7 mm ±0.5 mm) ( as shown in the figure below).  |
|
Step 2 |
Slide the open end of your 2-hole ground lug over the exposed area of the ground wire. |
|
Step 3 |
Using a crimping tool (as specified by the ground lug manufacturer), crimp the ground lug to the ground wire as shown in the figure below.  |
|
Step 4 |
Use a Phillips head screwdriver to attach the 2-hole ground lug and wire assembly to the router with the 2 pan-head Phillips head screws. For a 19-inch EIA rack, attach the 2-hole ground lug to the rear of the router. |
|
Step 5 |
Connect the other end of the ground wire to a suitable grounding point at your site. |
The fan tray is a modular unit that provides cooling to the Cisco ASR 903 Router. Follow these steps to install the fan tray in the chassis:
|
Step 1 |
Orient the fan tray so that the captive screws are on the left side of the fan tray’s front panel. The figure below shows how to orient the fan tray.  |
||||
|
Step 2 |
Guide the fan tray into the chassis until it is fully seated.
|
||||
|
Step 3 |
Secure the fan tray to the chassis using the attached captive installation screws. The recommended maximum torque is 5.5 in.-lb (.62 N-m). This completes the procedure for installing or replacing the fan tray in a Cisco ASR 903 Router. For information about connecting cables to the fan tray alarm port, see Connecting the Fan Tray Alarm Port. For a summary of the LEDs on the fan tray, see LED Summary. For more information about air flow guidelines, see Air Flow Guidelines. |
|
Step 1 |
Follow the steps for removing the fan tray (if installed) from the chassis. See Removing and Replacing the Fan Tray. |
|
Step 2 |
Remove the dummy cover from the fan tray. See the figure in section Fan Tray (A903-FAN-E). |
|
Step 3 |
Slide the dust filter onto the fan tray. See the figure in section Fan Tray (A903-FAN-E). |
|
Step 4 |
Insert the dummy cover on the fan tray to secure the filter within the chassis. |
|
Step 5 |
Follow the steps to install the fan tray in the chassis. See Installing the Fan Tray. |
Remove the dust filter for a replacement.
Note |
|
A periodic health check of the filter, every three months based on the level of dust in the environment, helps in avoiding over clogging of the filters and provide a better life. This product's filter is used as a single-use component. If the product is installed in a controlled environment, check and replace the filter every three months, otherwise replace the filter every month with PID (A903-FAN-F=) or equivalent.
|
Step 1 |
Remove the dummy cover from the fan tray. |
||
|
Step 2 |
Remove the dust filter from the fan.
|
||
|
Step 3 |
Slide the replacement dust filter onto the fan tray |
||
|
Step 4 |
Insert the dummy cover onto the fan tray to secure the filter within the chassis. |
The fan tray supports online insertion and removal (OIR). There is no need to power down the Cisco ASR 903 Router to remove or replace the fan tray. However, there is a finite time to replace the fan tray. This time depends upon the specific RSP and fan tray combination and also the ambient temperature. The following table provides the time interval for replacing the fan tray. At higher ambient temperatures, the replacement time is lower.
Note |
If a fan tray is removed, and not replaced within the stipulated time the system will automatically power-off. The actual shutdown time depends on few parameters like the total traffic load, ambient temperature, type of fan tray that is used and the dust filter condition (if a filter is present). If the system is powered with PSUs other than 900W DC or 1200W AC and if the system is powered off, then the system should be completely powered off for 30 seconds with all the PSU in the system simultaneously, and then turned on for the system to power on. |
Note |
If the system shuts down due to overheating, the removed fan tray must be reinserted before powering up the system. After the system is online, the alarms generated before the shutdown must be cleared in the Cisco Evolved Programmable Network Manager (EPNM) or any other server manager used to manage the device. |
|
RSP Module |
Fan Tray |
Replacement Time at 25°C Ambient |
|---|---|---|
|
RSP2 |
A903-FAN, A903-FAN-E |
5 minutes |
|
RSP3-200 |
A903-FAN |
2 minutes 15 seconds |
|
RSP3-200 |
A903-FAN-E |
2 minutes 15 seconds |
|
RSP3-200 |
A903-FAN-H |
3 minutes 30 seconds |
|
RSP3-400 |
A903-FAN |
1 minute |
|
RSP3-400 |
A903-FAN-E |
35 seconds |
|
RSP3-400 |
A903-FAN-H |
2 minutes |
Caution |
To avoid erroneous failure messages, allow at least 2 minutes for the system to reinitialize, after the fan tray has been removed or replaced. This is applicable when the RSP2 modules are installed in the chassis. |
Follow these steps to remove and replace the fan tray on the Cisco ASR 903 Router:
|
Step 1 |
Using a No. 2 Phillips screwdriver or your fingers, loosen the captive installation screw that secures the fan tray to the chassis. The following figure shows the front of the fan tray, including the handle and the captive installation screws.  |
||
|
Step 2 |
Grasp the fan tray handle with one hand and the outside of the chassis with the other hand.
|
||
|
Step 3 |
Pull the fan tray backward toward you no more than 1 inch to disengage it from the power receptacle on the midplane, as shown in the following figure.  |
||
|
Step 4 |
Wait at least 5 seconds to allow the fans to stop spinning. Then, pull the fan tray backward toward you and out of the chassis.
This completes the steps for removing the fan tray from the chassis. To install the new fan tray, follow the steps in Installing the Fan Tray. |
Follow these steps on handling an RSP module in the Cisco ASR 903 Router:
To install an RSP module in the router chassis, perform the following steps:
|
Step 1 |
Choose a slot for the module. Make sure that there is enough clearance to accommodate any equipment that will be connected to the ports on the module. If a blank module filler plate is installed in the slot in which you plan to install the module, remove the plate by removing its 2 Phillips pan-head screws. |
||||||||
|
Step 2 |
Fully open both the ejector levers on the new module, as shown in the figure below.
|
||||||||
|
Step 3 |
Position the module in the slot. Make sure that you align the sides of the module with the guides on each side of the slot, as shown in the figure below .  |
||||||||
|
Step 4 |
Carefully slide the module into the slot until the EMI gasket on the module makes contact with the module in the adjacent slot and both the ejector levers have closed to approximately 45 degrees with respect to the module faceplate.
|
||||||||
|
Step 5 |
While pressing down, simultaneously close both the ejector levers to fully seat the module in the backplane connector. The ejector levers are fully closed when they are flush with the module faceplate. |
||||||||
|
Step 6 |
Tighten the two captive installation screws on the module. The recommended maximum torque is 5.5 in.-lb (.62 N-m).
|
||||||||
|
Step 7 |
Verify that the captive installation screws are tightened on all of the modules installed in the chassis. This step ensures that the EMI gaskets on all the modules are fully compressed in order to maximize the opening space for the new or replacement module.
|
Before you remove an RSP from the router, you should save the current configuration using the write {host file | network | terminal} command. This saves you time when bringing the module back online.
If the module is running Cisco IOS software, save the current running configuration by entering the copy running-config startup-config command.
Warning |
Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. Statement 1034 |
Warning |
Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051 |
To remove an RSP module, perform the following steps:
|
Step 1 |
Disconnect any cables attached to the ports on the module. |
||
|
Step 2 |
Verify that the captive installation screws on all the modules in the chassis are tight. This step ensures that the space created by the removed module is maintained.
|
||
|
Step 3 |
Loosen the two captive installation screws on the module you plan to remove from the chassis. |
||
|
Step 4 |
Place your thumbs on the ejector levers (see the figure Cisco ASR 903 Router RSP Installation ) and simultaneously rotate the ejector levers outward to unseat the module from the backplane connector. |
||
|
Step 5 |
Grasp the front edge of the module and slide the module straight out of the slot. If the chassis has horizontal slots, place your hand under the module to support its weight as you slide it out from the slot. Do not touch the module circuitry.
|
||
|
Step 6 |
Place the module on an antistatic mat or antistatic foam, or immediately reinstall the module in another slot. |
||
|
Step 7 |
Install blank module filler plates (Cisco part number A900-RSPA-BLANK) in empty slots, if any.
|
The Cisco ASR 903 Router provides a feature that allows you to remove and replace a redundant RSP module without powering down the router. This feature is called hot-swapping or OIR, allows you to remove and replace a redundant module without disrupting router operation.
When two redundant modules are installed in the router, only one of the modules is active. The other one runs in standby mode, ready to take over processing if the active module fails.
When you remove or insert a redundant module while the router is powered on and running, the router does the following:
Determines if there’s sufficient power for the module
Scans the backplane for configuration changes.
Initializes the newly inserted module In addition, the system notes any removed modules and places those modules in the administrative shutdown state.
Places any previously configured interfaces on the module to the state that they were in when they were removed. Any newly inserted interfaces are put in the administrative shutdown state as if they were present (but unconfigured) at boot time. If you insert the same type of module into a slot, its ports are configured and brought online up to the port count of the original module.
Note |
Before performing a hot-swap of the redundant RSP module, ensure the following to avoid system failure:
|
The router runs diagnostic tests on any new interfaces and the test results indicate the following:
If the tests pass, the router is operating normally.
If the new module is faulty, the router resumes normal operation but leaves the new interfaces disabled.
If the diagnostic tests fail, the router stops operating, which usually indicates that the new module has a problem in the bus and should be removed.
The following sections describe the various tasks of associated with interface module installation on the Cisco ASR 903 Router:
|
Step 1 |
Before inserting an interface module, make sure that the chassis is grounded. |
||||||||
|
Step 2 |
To insert the interface module, carefully align the edges of the interface module between the upper and lower edges of the router slot. |
||||||||
|
Step 3 |
Carefully slide the interface module into the router slot until the interface module makes contact with the backplane. The figure below shows how to install the interface module.
|
||||||||
|
Step 4 |
Tighten the locking thumbscrews on both sides of the interface module. The recommended maximum torque is 5.5 in.-lb (.62 N-m). |
||||||||
|
Step 5 |
Connect all the cables to each interface module.
|
|
Step 1 |
To remove an interface module, disconnect all the cables from each interface module. |
|
Step 2 |
Loosen the locking thumbscrews on both sides of the interface module. |
|
Step 3 |
Slide the interface module out of the router slot by pulling on the handles. If you are removing a blank filler plate, pull the blank filler plate completely out of the router slot using the captive screws. |
The Cisco ASR 903 Router provides a feature that allows you to remove and replace an interface module without powering down the router. This feature, called hot-swapping or OIR, allows you to remove and replace a redundant module without disrupting router operation.
Use the following guidelines when performing an OIR on an IM:
The following interface modules take around 60 to 70 seconds to reach OK state after a soft OIR is performed:
If you perform OIR on an interface module and move the module to a different slot, the router does not retain the module configuration; you must reconfigure the interface module.
Replacing a configured interface module with a different interface module in the same slot is not supported on the router.
When you remove or insert a redundant module while the router is powered on and running, the router does the following:
The router runs diagnostic tests on any new interfaces and the test results indicate the following:
Caution |
To avoid erroneous failure messages, note the current configuration of all interfaces before you remove or replace an interface module, and allow at least 2 minutes for the system to reinitialize after a module has been removed or replaced. This time is recommended in order to allow for synchronization between components within the interface module and for synchronization with the standby RSP. |
The Ethernet interface modules support swapping on the Cisco A900-RSP2A module.
8-port Gigabit Ethernet SFP Interface Module (8X1GE)
8-port Gigabit Ethernet RJ45 (Copper) Interface Module (8X1GE)
1-port 10 Gigabit Ethernet XFP Interface Module (1X10GE)
SFP Combo IM—8-port Gigabit Ethernet (8X1GE) + 1-port 10 Gigabit Ethernet (1X10GE)
Copper Combo IM—8-port Gigabit Ethernet (8X1GE) + 1-port 10 Gigabit Ethernet Interface Module(1X10GE)
2-port 10 Gigabit Ethernet Interface Module(2X10GE)
Use the hw-module subslot default command before performing a swap of the modules. to default the interfaces on the interface module.
Note |
The hw-module subslot default command is not supported on the TDM and OC-3 interface modules. |
Note |
Always refer to Interface Module compatibility matrix tables in the Data Sheet before you swap any IM. |
|
Interface Module |
A900-RSP2A-64 and A900-RSP2A-128 |
A900-RSP3C-400-S |
|---|---|---|
|
— |
Cisco IOS Release 3.13 |
Cisco IOS Release 3.16 |
|
8-port Gigabit Ethernet SFP Interface Module (8X1GE) |
Swapping allowed on all Ethernet Interface Modules |
Swapping allowed on all Ethernet Interface Modules |
|
8-port Gigabit Ethernet RJ45 (Copper) Interface Module (8X1GE) |
||
|
SFP Combo IM—8-port Gigabit Ethernet (8X1GE) + 1-port 10 Gigabit Ethernet (1X10GE) |
||
|
Copper Combo IM—8-port Gigabit Ethernet (8X1GE) + 1-port 10 Gigabit Ethernet Interface Module(1X10GE |
||
|
1-port 10 Gigabit Ethernet XFP Interface Module (1X10GE) |
||
|
2-port 10 Gigabit Ethernet Interface Module(2X10GE) |
||
|
8-port 10 Gigabit Ethernet Interface Module (8X10GE) |
No support |
|
|
1-port 100 Gigabit Ethernet Interface Module (1X100GE) |
No support |
|
|
2-port 100 Gigabit Ethernet (QSFP) Interface Module (2X100GE)1 |
No support |
|
|
2-port 40 Gigabit Ethernet QSFP Interface Module (2X40GE) |
No support |
|
|
48-port T1/E1 Interface Module |
No support |
|
|
48-port T3/E3 Interface Module |
No support |
|
|
1-port OC-192 Interface Module + 8-port Low Rate Interface Module |
No support |
|
|
16 x T1/E1 Interface Module |
16 T1/E1 |
No support |
|
32 x T1/E1 Interface Module |
32 T1/E1 |
|
|
8 X T1/E1 Interface Module |
8 T1/E1 |
|
|
8/16-port 1 Gigabit Ethernet (SFP/SFP) + 1-port 10 Gigabit Ethernet (SFP+) / 2-port 1 Gigabit Ethernet (CSFP) Interface Module |
No support |
Swapping allowed on all Ethernet Interface Modules |
|
1-port OC482/ STM-16 or 4-port OC-12/OC-3 / STM-1/STM-4 + 12-port T1/E1 + 4-Port T3/E3 CEM Interface Module |
Swapping allowed on all Ethernet Interface Modules3 |
Failure in executing the command may cause the interface to enter the Out of Service state. To recover from out of service state, perform the following:
Insert the original IM and execute the hw-module subslot 0/bay default command. Swap the module. For more information, see Cisco IOS Interface and Hardware Component Command Reference.
If the module does not come up, perform a reload of the router.
The Cisco ASR 903 Router provides the choice of following power supplies:
The DC power supply provides option to connect with two different sources (dual feed); positive (+) and negative (-) are marked on the PSU terminals.
The DC power supply uses 3 position terminal block-style connector with positive latching/securing and labeled connections for +24/48V, GRD, -24/48V. The terminal block connector is of suitable size to carry the appropriate AWG wire size to handle the input current of the power supply. No ON/OFF switch is provided.
900 W power: –40VDC to –72VDC
550 W power: 19.2VDC to -72VDC
1200 W power: 19.2VDC to -72VDC
The AC power supply has an IEC 320-type power receptacle and a 15 Amp service connector. You can use standard right angle power cords with the AC power supply. The power supply includes a power cord retainer. No ON/OFF switch is provided.
Each power supply provides a dual primary input power connection.
AC power supply
550 W power: 85VAC to -264VAC
1200 W power: 85VAC to -264VAC
Caution |
The power supply must be wired before plugging the power supply in the chassis. Ensure the branch circuit breaker is turned off. Only after installing the power supply in the chassis, should the branch circuit breaker be turned on. The branch circuit breaker must be turned off before unplugging the power supply.Read the installation instructions before connecting the system to the power source. Statement 10 |
Caution |
Do not use interface module and power supply ejector handles to lift the chassis; using the handles to lift the chassis can deform or damage the handles. |
Use the following guidelines to prevent power loss to the router.
Use the information in the DC Power Specifications to estimate the power requirements and heat dissipation of a Cisco ASR 903 Router based on a given configuration of the router. Determining power requirements is useful for planning the power distribution system needed to support the router.
This section provides guidelines for connecting the Cisco ASR 903 Router power supplies to the site power source.
Warning |
Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available. Statement 213 |
Warning |
The plug-socket combination must be accessible at all times because it serves as the main disconnecting device. Statement 1019 |
Warning |
This product requires short-circuit (overcurrent) protection, to be provided as part of the building installation. Install only in accordance with national and local wiring regulations. Statement 1045 |
Basic guidelines for DC-powered systems include the following:
Basic guidelines for AC-powered systems include the following:
Note |
This equipment is suitable for installation in Network Telecommunications Facilities and locations where the NEC applies. |
Note |
This equipment is suitable for installations utilizing the Common Bonding Network (CBN). |
Note |
The grounding architecture of this product is DC-Isolated (DC-I) for DC-powered products. DC-powered products have a nominal operating DC voltage of 48 VDC. |

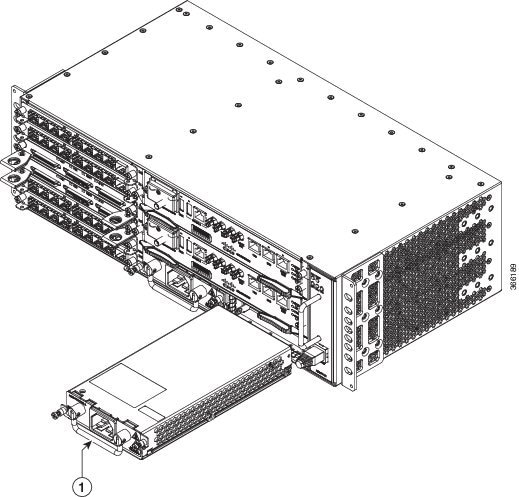

Perform the following procedure to install the power supply module:
|
Step 1 |
Ensure that the system (earth) ground connection has been made. For ground connection installation instructions, see Installing the Chassis Ground Connection. |
|
Step 2 |
If necessary, remove the blank power supply filler plate from the chassis power supply bay opening by loosening the captive installation screws. |
|
Step 3 |
Verify that power to the DC circuit connected to the power supply you are installing is off. To ensure that power has been removed from the DC circuits, locate the circuit breakers for the DC circuits, switch the circuit breakers to the OFF position, and tape the circuit-breaker switches in the OFF position. |
|
Step 4 |
Grasp the power supply handle with one hand. Place your other hand underneath the power supply, as shown in the figure below . Slide the power supply into the power supply bay. Make sure that the power supply is fully seated in the bay.  |
|
Step 5 |
Tighten the captive installation screws of the power supply. The recommended maximum torque is 25 in.-lb (2.82 N-m). If you are installing a redundant DC power supply, repeat these steps for the second power source. |
A900-PWR900-D2 is a dual feed 900W DC PSU. The DC power supply accepts a dual-hole type lug. The lug must be a UL listed, CSA certified and rated to accept the 8 AWG cable. The lug is assembled on the unit with two nuts.
Warning |
Before performing any of the following procedures, ensure that power is removed from the DC circuit. |

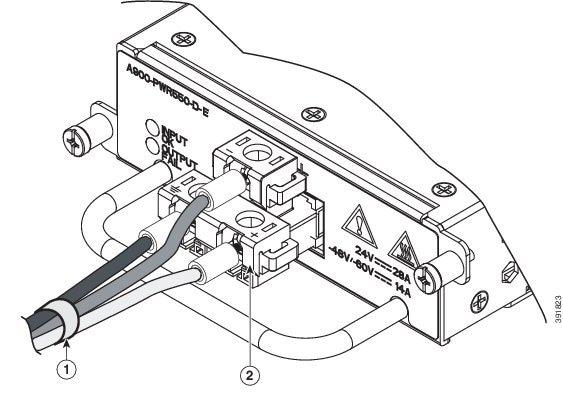

Perform the following procedure to install the terminal block.
|
Step 1 |
Locate the terminal block plug. |
||||||||||
|
Step 2 |
Use a wire-stripping tool to strip the ends of each of the two wires coming from the DC-input power source to 0.27 inch (6.6 mm) ± 0.02 inch (0.5 mm) and the wire for grounding. Do not strip more than 0.29 inch (7.4 mm) of insulation from the wire. Stripping more than the recommended amount of wire can leave behind exposed wire from the terminal block plug after installation. |
||||||||||
|
Step 3 |

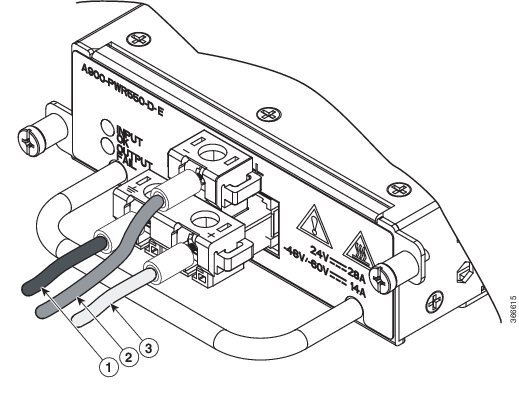

Identify the ground, positive, and negative feed positions for the terminal block connection. The recommended wiring sequence is (see the figure below ):
|
||||||||||
|
Step 4 |
Insert the exposed wire of one of the three DC-input power source wires into the terminal block plug. Make sure that you cannot see any wire lead. Only wire with insulation should extend from the terminal block.
|
||||||||||
|
Step 5 |
Use a ratcheting torque screwdriver to torque the terminal block plug captive screw (above the installed wire lead) from 4.425 in.-lb (.5 N-m) to 5.310 in-lb (.6 N-m) as shown in the figure below .
|
||||||||||
|
Step 6 |
Repeat Step 4 through Step 5 for the remaining DC input power source wire and the ground wire. The figure below shows the wiring completed for a terminal block plug.
|
||||||||||
|
Step 7 |
Ensure that the terminal block plug is fully seated in the terminal block header on the DC power supply panel. The plug has a locking feature. You should hear a snap or click when it is installed properly. |
||||||||||
|
Step 8 |
Use a tie wrap to secure the wires to the rack, so that the wires are not pulled from the terminal block plug by casual contact. Make sure the tie wrap allows for some slack in the ground wire, as shown in the figure below .
|
||||||||||
|
Step 9 |
Use a tie wrap to secure the wires to the handle. Leave a service loop on the ground wire between the handle and the connector such that it is the last to receive strain if the wires are pulled. This completes the procedure for connecting the DC power supply in the Cisco ASR 903 Router. If you are installing a redundant DC power supply, repeat these steps for the second power source. |
The following tools are required:
Cables of suitable gauge required for each type of PSU
10 AWG to 12 AWG for 550 W PSU
10 AWG to 12 AWG for 1200 W PSU
Lugs fork-type or ring-type (Burndy, see Table A-2)—TP10 -6 or TP10-8F (recommended)
Note |
Fork type lug can be used with A900-PWR550-D-E and A900-PWR1200-D PSUs. |
Note |
The PSU load sharing can be guaranteed only if the system load is higher than 10% of the total PSU capacity. You can observe one of the PSUs with 0A output condition if there are three PSUs in the system and load is <10% of total PSU load. |
|
Step 1 |
Follow the steps to remove the power supply unit if installed in the chassis. See Removing and Replacing the DC Power Supply. |
||||||||
|
Step 2 |
Locate the T-shaped terminal block plug on the DC power supply unit. See the figure below.
|
||||||||
|
Step 3 |
Use a wire-stripping tool to strip the ends of each of the two wires coming from the DC-input power source to 0.27 inch (6.6 mm) ± 0.02 inch (0.5 mm) and the wire for grounding. Do not strip more than 0.29 inch (7.4 mm) of insulation from the wire. Stripping more than the recommended amount of wire can leave behind exposed wire from the terminal block after installation. |
||||||||
|
Step 4 |
Prepare the cables by attaching the lugs to the cables. |
||||||||
|
Step 5 |
Identify the ground, positive, and negative feed positions for the terminal block connection (see the figure below). The recommended wiring sequence is:
|
||||||||
|
Step 6 |
Insert the lugged end of the cables to the connector and secure the cables using the captive screws.
|
||||||||
|
Step 7 |
Ensure that the terminal block plug is fully seated in the terminal block header (see the figure below) on the DC power supply panel. See Installing the DC Power Supply for installing the power supply unit into the chassis.
|
Dual-hole lugs
Double barrel with inspection hole
Hole spacing is 5/8 in.
Lug tab width max 0.46 in.
Nuts
PSU can accommodate 10 – 6 AWG
Number 2 Phillips Screwdriver
7 mm nut driver or 7 mm socket on a torque wrench
|
Step 1 |
Locate the terminal block on the power supply unit. |
||||||
|
Step 2 |
Flap open the front protective cover on the power supply unit. |
||||||
|
Step 3 |
Use a wire-stripping tool to strip the ends of each of the two wires coming from the DC-input power source as recommended by the lug manufacturer.
|
||||||
|
Step 4 |
Identify the positive and negative feed positions for the terminal block. The recommended wiring sequence is as in the figure below. |
||||||
|
Step 5 |
Attach the lugs on the terminal block, see the figure below.
|
||||||
|
Step 6 |
Use a tie wrap to secure the wires to the rack, so that the wires are not pulled from the terminal block by casual contact. Make sure the tie wrap allows for some slack in the wire. |
Perform the following procedure to activate the DC power supply:
|
Step 1 |
Remove the tape from the circuit-breaker switch handle, and restore power by moving the circuit-breaker switch handle to the On (|) position. |
|
Step 2 |
Verify power supply operation by checking if the power supply front panel LEDs are in the following states:
If the LEDs indicate a power problem, see Troubleshooting. If you are installing a redundant DC power supply, ensure that each power supply is connected to a separate power source in order to prevent power loss in the event of a power failure. If you are installing a redundant DC power supply, repeat these steps for the second power source. |
This section provides information about removing and replacing the DC power supply in the Cisco ASR 903 Router.
Note |
The Cisco ASR 903 Router power supplies are hot-swappable. If you have installed redundant power supply modules, you can replace a single power supply without interrupting power to the router. |
Caution |
To avoid erroneous failure messages, allow at least 2 minutes for the system to reinitialize after a power supply has been removed or replaced. |
Follow these steps to remove and replace the DC power supply on the Cisco ASR 903 Router:
|
Step 1 |
Verify the circuit breaker connected to the power supply that has to be replaced. |
||
|
Step 2 |
Before servicing the power supply, switch off the circuit breaker in your equipment area. As an additional precaution, tape the circuit-breaker switch in the Off position. |
||
|
Step 3 |
Slip on the ESD-preventive wrist strap that was included in the accessory kit.
|
||
|
Step 4 |
Measure the DC voltage on the failed power supply input, thus ensuring that the correct unit has been powered off. |
||
|
Step 5 |
Loosen the captive screws on the DC power supply. |
||
|
Step 6 |
Grasping the power supply handle with one hand, pull the power supply out from the chassis while supporting it with the other hand. |
||
|
Step 7 |
Remove the lugs from the PSU. |
||
|
Step 8 |
Replace the new DC PSU and connect the DC leads to the power supply as before |
||
|
Step 9 |
Turn on the circuit breaker or the reinstall the fuse. |
||
|
Step 10 |
Verify the power supply by checking if the front panel LEDs are as below:
|
Warning |
This product requires short-circuit (over current) protection, to be provided as part of the building installation. Install only in accordance with national and local wiring regulations. |
Follow these steps to install the power supply module:
|
Step 1 |
Ensure that the system (earth) ground connection has been made. For ground connection installation instructions, see the Installing the Chassis Ground Connection. |
||
|
Step 2 |
If necessary, remove the blank power supply filler plate from the chassis power supply bay opening by loosening the captive installation screws. |
||
|
Step 3 |
Grasp the power supply handle with one hand. Place your other hand underneath the power supply, as shown in the figure below. Slide the power supply into the power supply bay. Make sure that the power supply is fully seated in the bay.   |
||
|
Step 4 |
Tighten the captive installation screws of the power supply. The recommended maximum torque is 25 in.-lb (2.82 N-m).
|
We recommend the following power cables for Cisco ASR 903 routers:
|
PID |
Description |
|---|---|
|
CAB-AC |
AC POWER CORD, UNITED STATES, 125V, 10A, 2.5m, C13,NEMA, 5-15P |
|
CAB-AC-RA |
AC POWER CORD, UNITED STATES, 125V, 10A, 2.5m, RA-C13, NEMA, 5-15P |
|
CAB-ACA |
AC Power Cord (Australia), C13, AS 3112, 2.5m |
|
CAB-ACA-RA |
AC Power Cord, Australian, 10A, Right Angle |
|
CAB-ACC |
AC Power Cord (China), C13, GB15934, CCC, 2.5m |
|
CAB-ACC-RA |
AC Power Cord China, Right Angle |
|
CAB-ACE |
AC Power Cord (Europe), C13, CEE 7, 1.5M |
|
CAB-ACE-RA |
AC Power Cord Europe, Right Angle |
|
CAB-ACI |
AC Power Cord (Italy), C13, CEI 23-16, 2.5m |
|
CAB-ACI-RA |
AC Power Cord, Italian, Right Angle |
|
CAB-ACR |
AC Power Cord (Argentina), C13, EL 219 (IRAM 2073), 2.5m |
|
CAB-ACR-RA |
AC POWER CORD ARGENTINA, Right Angle |
|
CAB-ACS |
AC Power Cord (Switzerland), C13, IEC 60884-1, 2.5m |
|
CAB-ACS-RA |
AC Power Cord, Switzerland, Right Angle |
|
CAB-ACU |
AC Power Cord (UK), C13, BS 1363, 2.5m |
|
CAB-ACU-RA |
AC Power Cord UK, Right Angle |
|
CAB-IND |
AC Power Cord (India), C13 |
|
CAB-IND-RA |
AC Power Cord (India), RA-C13 |
|
CAB-JPN |
AC Power Cord (Japan), C13, JIS C 8303, 2.5m |
|
CAB-JPN-RA |
AC Power Cord (Japan), RA-C13, JIS C 8303, 2.5m |
|
PID |
Description |
|---|---|
|
PWR-CAB-AC-USA520 |
US AC Power Cord for Cisco ASR 900, NEMA 5-20 |
|
PWR-CAB-AC-USA |
Power Cord for AC V2 Power Module (USA), NEMA L6-20P |
|
PWR-CAB-AC-AUS |
Power Cord for AC V2 Power Module (Australia), AS 3112 |
|
PWR-CAB-AC-EU |
Power Cord for AC V2 Power Module (Europe), CEE 7/7 |
|
PWR-CAB-AC-ITA |
Power Cord for AC V2 Power Module (Italy), CEI-23-50 |
|
PWR-CAB-AC-SA |
Power Cord for AC V2 Power Module (South Africa), SABS 164 |
|
PWR-CAB-AC-UK |
Power Cord for AC V2 Power Module (UK), EN 60309-2 |
|
PWR-CAB-AC-ISRL |
Power Cord for AC V2 Power Module (Israel), SI 32 |
|
PWR-CAB-AC-CHN |
Power Cord for AC V2 Power Module (China), GB2099.1/GB1002 |
|
PWR-CAB-AC-BRA |
Power Cord for AC V2 Power Module (Brazil), NBR 14136 |
|
PWR-CAB-AC-SUI |
Power Cord for AC V2 Power Module (Swiss), SEV 1011 |
|
PWR-CAB-AC-JPN |
Power Cord for AC V2 Power Module (Japan), JIS C8303 |
|
PWR-CAB-AC-IND |
India AC Power Cord for Cisco ASR 900, IS:1293 |
|
PWR-CAB-AC-ARG |
AC POWER CORD, WIRE HARNESS, Argentina, IRAM 2073, IEC60320 C21, ST, 4M, 30 AWG, STRANDED, 250.0 V, 16.0 A |
Follow these steps to activate the AC power supply:
|
Step 1 |
Plug the power cord into the power supply. |
||
|
Step 2 |
Connect the other end of the power cord to an AC-input power source. |
||
|
Step 3 |
Verify power supply operation by checking that the power supply LEDs are in the following states:
|
||
|
Step 4 |
If the LEDs indicate a power problem, see Troubleshooting for troubleshooting information. |
||
|
Step 5 |
If you are installing a redundant power supply, repeat these steps for the second power source.
|
This section describes how to remove and replace the AC power supply.
Note |
The Cisco ASR 903 Router power supplies are hot-swappable. If you have installed redundant power supply modules, you can replace a single power supply without interrupting power to the router. |
Caution |
To avoid erroneous failure messages, allow at least 2 minutes for the system to reinitialize after a power supply has been removed or replaced. |
Warning |
When you install the unit, the ground connection must always be made first and disconnected last. Statement 1046 |
Warning |
Before performing any of the following procedures, ensure that power is removed from the DC circuit. Statement 1003 |
Warning |
Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030 |
Warning |
Installation of the equipment must comply with local and national electrical codes. Statement 1074 |
Follow these steps to remove and replace the AC power supply:
|
Step 1 |
Disconnect the power cord from the power source. Do not touch the metal prongs on the power cord when it is still connected to the power supply. |
|
Step 2 |
Remove the power cord from the power connection on the power supply. Do not touch the metal prongs embedded in the power supply. |
|
Step 3 |
Loosen the captive installation screws. |
|
Step 4 |
Grasp the AC power supply with one hand, and slide it part of the way out of the chassis. Place your other hand underneath the power supply, and slide it completely out of the chassis. |
|
Step 5 |
If the power supply bay is to remain empty, install a blank filler plate (Cisco part number A900-PWR-BLANK) over the opening, and secure it with the captive installation screws. |
The following list provides the product IDs (PIDs) for the dust caps that are available for each port type:
RJ-45—A900-DCAP-RJ45-S= (24 dust caps per package) or A900-DCAP-RJ45-L= (240 caps per package)
SFP—A900-DCAP-SFP-S= (24 caps per package) or A900-DCAP-SFP-L= (240 caps per package)
USB—A900-DCAP-USB-S= (12 dust caps per package) or A900-DCAP-USB-L= (120 dust caps per package)
XFP/QSFP—A900-DCAP-XFP-S= (12 dust caps per package) or A900-DCAP-XFP-L= (120 dust caps per package)
|
1 |
Dust cap |
— |
To install the dust cap:
Hold the dust cap by its handle.
Insert the dust cap in to the appropriate unused ports (RJ-45, SFP, USB, or XFP/QSFP) on the chassis front panel.
Note |
When installing the cabling to the RSPs, we recommend that you leave a service loop of extra cabling sufficient to allow for fan tray removal. |
Note |
You cannot use the USB and RS232 console ports at the same time; if you insert the USB cable into the router, the RS232 port is disabled. |
This procedure shows how to connect to the serial port using Microsoft Windows.
Note |
Install the USB device driver before establishing a physical connection between the router and the PC, by using the USB Console cable plugged into the USB serial port. Otherwise, the connection will fail. For more information, see the Installing the Cisco Microsoft Windows USB Device Driver section in the Cisco ASR 903 and ASR 903U Aggregation Services Router Hardware Installation Guide. |
|
Step 1 |
Connect the end of the console cable with the RJ45 connector to the light blue console port on the router. or Connect a USB Type A-to-Type A cable to the USB console port as shown in the figure below . If you are using the USB serial port for the first time on a Windows-based PC, install the USB driver now according to the instructions in the following sections.
|
||||||||
|
Step 2 |
Connect the end of the cable with the DB-9 connector (or USB Type-A) to the terminal or PC. If your terminal or PC has a console port that does not accommodate a DB-9 connector, you must provide an appropriate adapter for that port. |
||||||||
|
Step 3 |
To communicate with the router, start a terminal emulator application, such as Microsoft Windows HyperTerminal. This software should be configured with the following parameters:
|
This procedure describes how to connect a Mac OS X system USB port to the console using the built in OS X Terminal utility.
|
Step 1 |
Use the Finder to go to Applications > Utilities > Terminal. |
|
Step 2 |
Connect the OS X USB port to the router. |
|
Step 3 |
Enter the following commands to find the OS X USB port number: Example: |
|
Step 4 |
Connect to the USB port with the following command followed by the router USB port speed Example:To disconnect the OS X USB console from the Terminal window Enter Ctrl-a followed by Ctrl-\ |
This procedure shows how to connect a Linux system USB port to the console using the built in Linux Terminal utility.
|
Step 1 |
Open the Linux Terminal window. |
|
Step 2 |
Connect the Linux USB port to the router. |
|
Step 3 |
Enter the following commands to find the Linux USB port number Example: |
|
Step 4 |
Connect to the USB port with the following command followed by the router USB port speed Example:To disconnect the Linux USB console from the Terminal window Enter Ctrl-a followed by : then quit |
A USB device driver must be installed the first time a Microsoft Windows-based PC is connected to the USB serial port on the router.
This procedure shows how to install the Microsoft Windows XP USB driver. Download the driver for your router model from the Tools and Resources Download Software site, USB Console Software category, at the following URL:
|
Step 1 |
Unzip the file Cisco_usbconsole_driver_X_X.zip (where X is a revision number). |
|
Step 2 |
If using 32-bit Windows XP double-click the file setup.exe from the Windows_32 folder, or if using 64-bit Windows XP double-click the file setup(x64).exe from the Windows_64 folder. |
|
Step 3 |
The Cisco Virtual Com InstallShield Wizard begins. Click Next. |
|
Step 4 |
The Ready to Install the Program window appears, Click Install. |
|
Step 5 |
The InstallShield Wizard Completed window appears. Click Finish. |
|
Step 6 |
Connect the USB cable to the PC and router USB console ports. The EN LED for the USB console port turns green, and within a few moments the Found New Hardware Wizard appears. Following the instructions to complete the installation of the driver. |
|
Step 7 |
The USB console is ready for use. |
This procedure shows how to install the Microsoft Windows 2000 USB driver.
|
Step 1 |
Obtain the file Cisco_usbconsole_driver.zip from the Cisco.com web site and unzip it. |
|
Step 2 |
Double-click the file setup.exe. |
|
Step 3 |
The Cisco Virtual Com InstallShield Wizard begins. Click Next. |
|
Step 4 |
The Ready to Install the Program window appears, Click Install. |
|
Step 5 |
The InstallShield Wizard Completed window appears. Click Finish. |
|
Step 6 |
Connect the USB cable to the PC and router USB console ports. The EN LED for the USB console port turns green, and within a few moments a series of Found New Hardware Wizard windows appear. Following the instructions to complete the installation of the driver. |
|
Step 7 |
The USB console is ready for use. |
This procedure shows how to install the Microsoft Windows Vista USB driver.
|
Step 1 |
Obtain the file Cisco_usbconsole_driver.zip from the Cisco.com web site and unzip it. |
||
|
Step 2 |
If using 32-bit Windows Vista double-click the file setup.exe from the Windows_32 folder, or if using 64-bit Windows Vista double-click the file setup(x64).exe from the Windows_64 folder. |
||
|
Step 3 |
The Cisco Virtual Com InstallShield Wizard begins. Click Next. |
||
|
Step 4 |
The Ready to Install the Program window appears, Click Install.
|
||
|
Step 5 |
The InstallShield Wizard Completed window appears. Click Finish. |
||
|
Step 6 |
Connect the USB cable to the PC and router USB console ports. The EN LED for the USB console port turns green, and within a few moments a pop up window stating “Installing device driver software” appears. Following the instructions to complete the installation of the driver. |
||
|
Step 7 |
The USB console is ready for use. |
Note |
Disconnect the chassis console terminal before uninstalling the driver. |
|
Step 1 |
Click Start > Control Panel > Add or Remove Programs. |
|
Step 2 |
Scroll to Cisco Virtual Com and click Remove. |
|
Step 3 |
When the Program Maintenance window appears, select the Remove radio button. Click Next. |
Note |
Disconnect the chassis console terminal before uninstalling the driver. |
|
Step 1 |
Run the setup.exe for Windows 32-bit or setup(x64).exe for Windows-64bit. Click Next. |
|
Step 2 |
The InstallShield Wizard for Cisco Virtual Com appears. Click Next. |
|
Step 3 |
When the Program Maintenance window appears, select the Remove radio button. Click Next. |
|
Step 4 |
When the Remove the Program window appears, click Remove. |
|
Step 5 |
When the InstallShield Wizard Completed window appears click Finish. |
This procedure shows you how to uninstall the Microsoft Windows Vista USB driver.
Note |
Disconnect the router console terminal before uninstalling the driver. |
|
Step 1 |
Run the setup.exe for Windows 32-bit or setup(x64).exe for Windows-64bit. Click Next. |
||
|
Step 2 |
The InstallShield Wizard for Cisco Virtual Com appears. Click Next. |
||
|
Step 3 |
When the Program Maintenance window appears, select the Remove radio button. Click Next. |
||
|
Step 4 |
When the Remove the Program window appears, click Remove.
|
||
|
Step 5 |
When the InstallShield Wizard Completed window appears click Finish. |
When a modem is connected to the auxiliary port, a remote user can dial in to the router and configure it. Use a light blue console cable and the DB-9-to-DB-25 connector adapter.
Note |
The console cable and DB-9-to-DB-25 connector are not included with the Cisco ASR 903 Router; they are ordered separately. |
To connect a modem to the router, follow these steps:
|
Step 1 |
Connect the RJ45 end of the adapter cable to the black AUX port on the router, as shown in the figure below .
|
||||||||
|
Step 2 |
Connect the DB-9 end of the console cable to the DB-9 end of the modem adapter. |
||||||||
|
Step 3 |
Connect the DB-25 end of the modem adapter to the modem. |
||||||||
|
Step 4 |
Make sure that your modem and the router auxiliary port are configured for the same transmission speed (up to 115200 bps is supported) and for mode control with data carrier detect (DCD) and data terminal ready (DTR) operations. |
When using the Ethernet Management port in the default mode (speed-auto and duplex-auto) the port operates in auto-MDI/MDI-X mode. The port automatically provides the correct signal connectivity through the Auto-MDI/MDI-X feature. The port automatically senses a crossover or straight-through cable and adapts to it.
However, when the Ethernet Management port is configured to a fixed speed (10 or 100 Mbps) through command-line interface (CLI) commands, the port is forced to MDI mode.
When in a fixed-speed configuration and MDI mode:
Use a crossover cable to connect to an MDI port
Use a straight-through cable to connect to an MDI-X port
Warning |
To comply with the Telcordia GR-1089 NEBS standard for electromagnetic compatibility and safety, connect the Management Ethernet ports only to intra-building or unexposed wiring or cable. The intrabuilding cable must be shielded and the shield must be grounded at both ends. The intra-building port(s) of the equipment or subassembly must not be metallically connected to interfaces that connect to the OSP or its wiring. These interfaces are designed for use as intra-building interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE) and require isolation from the exposed OSP cabling. The addition of Primary Protectors is not sufficient protection in order to connect these interfaces metallically to OSP wiring. |
The Cisco ASR 903 Router supports a variety of SFP and XFP modules, including optical and Ethernet modules. For information on how to install and remove SFP and XFP modules, see the documentation for the SFP or XFP module at:
http://www.cisco.com/en/US/partner/products/hw/modules/ps5455/prod_installation_guides_list.html
For information about inspecting and cleaning fiber-optic connections, seehttp://www.cisco.com/en/US/partner/tech/tk482/tk876/technologies_white_paper09186a0080254eba.shtml
Caution |
We recommend that you wait 30 seconds between removal and insertion of an SFP on an interface module. This time is recommended to allow the transceiver software to initialize and synchronize with the standby RSP. Changing an SFP more quickly could result in transceiver initialization issues that disable the SFP. |
To connect a USB flash device to the Cisco ASR 903 Router, insert the memory stick in the USB port labeled MEM. The Flash memory module can be inserted in only one way, and can be inserted or removed regardless of whether the router is powered up or not.
The figure below shows the USB port connector on the Cisco ASR 903 Router.
To remove and then replace a USB flash token memory stick from a Cisco ASR 903 Router, follow these steps:
|
Step 1 |
Execute the eject usb0: command before removing the USB from the router. Example:If you do not run this command before removing the USB, the following error message is displayed: |
||
|
Step 2 |
Pull the memory stick from the USB port. |
||
|
Step 3 |
To replace a Cisco USB Flash memory stick, simply insert the module into the USB port labeled MEM as shown in the figure below . The Flash memory module can be inserted in only one way, and can be inserted or removed regardless of whether the router is powered up or not.
This completes the USB Flash memory installation procedure. |
Note |
When installing the cabling to the RSPs, we recommend that you leave a service loop of extra cabling sufficient to allow for fan tray removal. |
The following steps describe how to connect a cable to the router BITS port:
|
Step 1 |
Confirm that the router is powered off. |
||||
|
Step 2 |
Connect one end of the cable to the BITS port using a straight-through, shielded RJ48C-to-RJ48C cable. |
||||
|
Step 3 |
Connect the other end to the BTS patch or demarcation panel at your site. |
||||
|
Step 4 |
Turn on power to the router. For information about the BITS port pinouts, see Troubleshooting.
|
Note |
A Y-cable is required to connect to a primary and backup RSP in order to ensure that the router continues to transmit timing signals in the event of a network failure. For a mini-coax connection, this Y-cable can be part number CAB-BNC-7INY (7 inch BNC Y-cable). For an Ethernet connection, this Y-cable can be a RJ45 Cat5 1-to-2 splitter (3 female port RJ45 connector). |
Note |
When installing the cabling to the RSPs, we recommend that you leave a service loop of extra cabling sufficient to allow for fan tray removal. |
|
Step 1 |
Connect one end of a mini-coax Y-cable to the GPS unit. |
|
Step 2 |
Connect one end of the split-side Y-cable mini-coax to the 10Mhz or 1PPS port on the primary RSP of the Cisco ASR 903 Router. |
|
Step 3 |
Connect the other end of the split-side Y-cable mini-coax to the 10Mhz or 1PPS port on the backup RSP of the Cisco ASR 903 Router. |
|
Step 1 |
Connect one end of a mini-coax Y-cable to the Slave unit. |
|
Step 2 |
Connect one end of the split-side Y-cable mini-coax to the 10Mhz or 1PPS port on the primary RSP of the Cisco ASR 903 Router. |
|
Step 3 |
Connect the other end of the split-side Y-cable mini-coax to the 10Mhz or 1PPS port on the backup RSP of the Cisco ASR 903 Router. |
|
Step 1 |
Connect one end of a straight-through Ethernet cable to the GPS unit. |
||||||
|
Step 2 |
Connect one end of the split-side Y-cable Ethernet to the ToD port on the primary RSP of the Cisco ASR 903 Router. |
||||||
|
Step 3 |
Connect the other end of the split-side Y-cable Ethernet to the ToD port on the backup RSP of the Cisco ASR 903 Router.
|

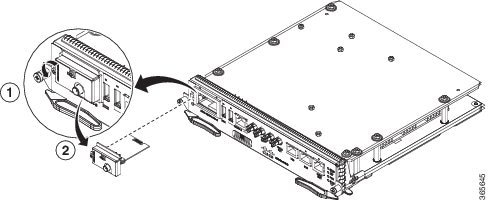

Note |
The GNSS module is not hot swappable. |
|
Step 1 |
Connect one end of a shielded coaxial cable to the GNSS RF IN port. |
||||||
|
Step 2 |
Connect the other end of the shielded coaxial cable to the GNSS antenna after the primary protector.
|
The Cisco ASR 903 Router interface modules support RJ45 or SFP Ethernet ports. For instructions on how to connect cables to Ethernet SFP ports, see Connecting Cables to SFP Modules.
The RJ45 port supports standard straight-through and crossover Category 5 unshielded twisted-pair (UTP) cables. Cisco Systems does not supply Category 5 UTP cables; these cables are available commercially.
Warning |
To comply with the Telcordia GR-1089 NEBS standard for electromagnetic compatibility and safety, connect the Gigabit Ethernet ports only to intra-building or unexposed wiring or cable. The intrabuilding cable must be shielded and the shield must be grounded at both ends. The intra-building port(s) of the equipment or subassembly must not be metallically connected to interfaces that connect to the OSP or its wiring. These interfaces are designed for use as intra-building interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE) and require isolation from the exposed OSP cabling. The addition of Primary Protectors is not sufficient protection in order to connect these interfaces metallically to OSP wiring. |
Note |
When installing the cabling to the RSPs, we recommend that you leave a service loop of extra cabling sufficient to allow for fan tray removal. |
Follow these steps to connect the cable to a copper Gigabit Ethernet port:
|
Step 1 |
Confirm that the router is powered off. |
|
Step 2 |
Connect one end of the cable to the Gigabit Ethernet port on the router. |
|
Step 3 |
Connect the other end to the BTS patch or demarcation panel at your site. |
For information on connecting cables to Cisco optical and Ethernet SFP interfaces, see
http://www.cisco.com/en/US/partner/products/hw/modules/ps5455/prod_installation_guides_list.html.
The physical layer interface for the Cisco ASR 903 Router T1/E1 port is a customer-installed high-density connector. The high-density connector has thumbscrews which should be screwed into the interface when the cable is installed.
Note |

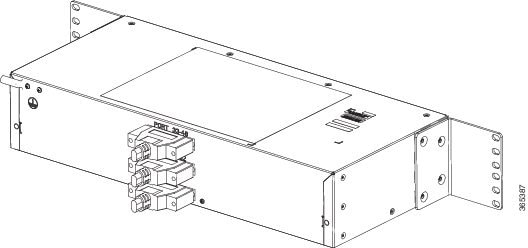

Patch panels are required in order to connect the high-density interface connectors to individual T1/E1 lines. |
The 16 x T1/E1 interface module requires a patch cable (see Recommended Patch Panel). One end of the cable (see the figure below ) has a 100-pin connector that plugs into the T1/E1 interface module. Use the thumbscrews on either side of the connector to secure the cable to the interface.
The other end of the cable has two 50-pin Telco connectors that attach to the rear of a 24-port RJ45 patch panel. Both connectors are identical: one is for Transmit (TX) and the other is for Receive (RX).
The figure below shows how the cable is connected between the 16 x T1/E1 interface module and the patch panel.
|
1 |
Patch panel interfaces |
For information about the pinout of the cable connecting the T1/E1 interface to the rear of the patch panel, see the T1/E1 Port Pinout.
The 32 x T1/E1 interface module requires two patch cables (see Recommended Patch Panel). Each patch cable (see the figure below ) has a 68-pin connectors that connects with each connector port on the front panel of the 32 x T1/E1 interface module.
Use the thumbscrews on either side of the connectors to secure the cable to the interface.
The other end of the cable has two 50-pin Telco connectors that attach to the rear of a 24-port RJ45 patch panel. Both connectors are identical: one is for Transmit (TX) and the other is for Receive (RX).
The figure below shows how the cable is connected between the 32 x T1/E1 interface module and the patch panel.
|
1 |
Patch panel interfaces |
One end of the cable (see the figure above) has a 68-pin connector that plugs into the T1/E1 interface module and the other end of the cable with a 68-pin connector is connected to a RJ48, AMP64 or a DIN patch panel. Use the thumbscrews on either side of the connector to secure the cable to the interface.
For information about the pinout of the cable connecting the T1/E1 interface to the rear of the patch panel, see T1/E1 Port Pinout.

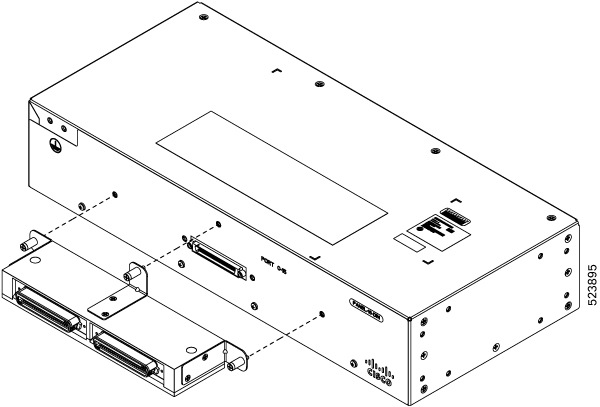

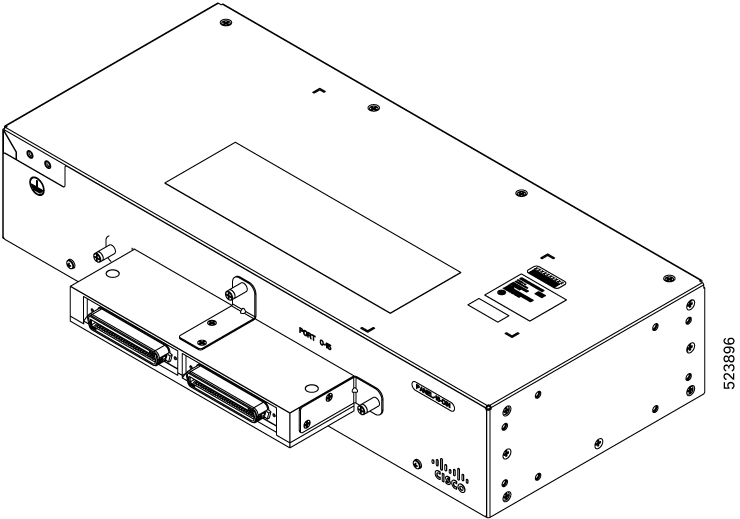

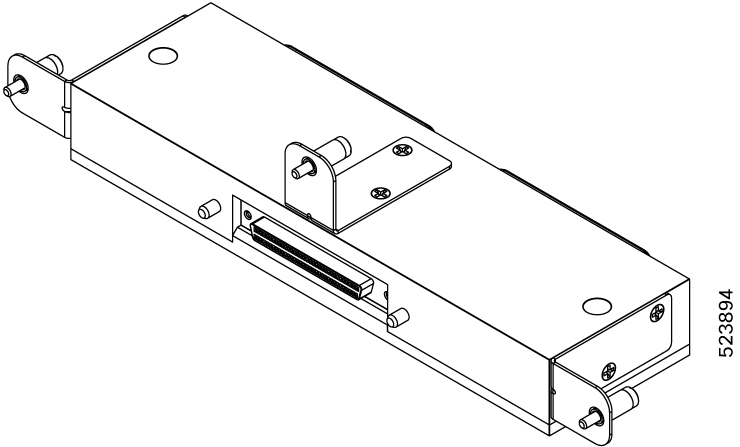

You can connect the patch panels with the interface modules for redundancy, using the Y-cables. The Y-cable stub lengths are reduced, so that the cable does not exceed from the rack spacer. The Y-cables are numbered based on the different stub length. Cable lengths differ for even numbered and odd numbered slots in the chassis.
|
Bundle PID |
Cable Marking |
Description |
|---|---|---|
|
CABLE-16TDM-R1EL1 |
T1/E1-Cable S-3 |
16-port cable for TDM CEM Interface Module, 42 inches cable length and 10 inches stub length, even slot |
|
T1/E1 Cable S-2 |
16-port cable for TDM CEM Interface Module, 42 inches cable length and 7.5 inches stub length, even slot |
|
|
T1/E1 Cable S-1 |
16-port cable for TDM CEM Interface Module, 42 inches cable length and 6.5 inches stub length, even slot |
|
|
CABLE-16TDM-R1EL2 |
T3/E3-Cable M-3 |
16-port cable for TDM CEM Interface Module, 62 inches cable length and 10 inches stub length, even slot |
|
T3/E3-Cable M-2 |
16-port cable for TDM CEM Interface Module, 62 inches cable length and 7.5 inches stub length, even slot |
|
|
T3/E3-Cable M-1 |
16-port cable for TDM CEM Interface Module, 62 inches cable length and 6.5 inches stub length, even slot |
|
|
CABLE-16TDM-R1EL3 |
T1/E1-Cable L-3 |
16-port cable for TDM CEM Interface Module, 78 inches cable length and 10 inches stub length, even slot |
|
T1/E1 Cable L-2 |
16-port cable for TDM CEM Interface Module, 78 inches cable length and 7.5 inches stub length, even slot |
|
|
T1/E1 Cable L-1 |
16-port cable for TDM CEM Interface Module, 78 inches cable length and 6.5 inches stub length, even slot |
|
|
CABLE-16TDM-R3EL1 |
T3/E3-Cable S-3 |
16-port cable for TDM CEM Interface Module, 42 inches cable length and 10 inches stub length, even slot |
|
T3/E3-Cable S-2 |
16-port cable for TDM CEM Interface Module, 42 inches cable length and 7.5 inches stub length, even slot |
|
|
T3/E3-Cable S-1 |
16-port cable for TDM CEM Interface Module, 42 inches cable length and 6.5 inches stub length, even slot |
|
|
CABLE-16TDM-R3EL2 |
T3/E3-Cable M-3 |
16-port cable for TDM CEM Interface Module, 62 inches cable length and 10 inches stub length, even slot |
|
T3/E3-Cable M-2 |
16-port cable for TDM CEM Interface Module, 62 inches cable length and 7.5 inches stub length, even slot |
|
|
T3/E3-Cable M-1 |
16-port cable for TDM CEM Interface Module, 62 inches cable length and 6.5 inches stub length, even slot |
|
|
CABLE-16TDM-R3EL3 |
T3/E3-Cable L-3 |
16-port cable for TDM CEM Interface Module, 78 inches cable length and 10 inches stub length, even slot |
|
T3/E3-Cable L-2 |
16-port cable for TDM CEM Interface Module, 78 inches cable length and 7.5 inches stub length, even slot |
|
|
T3/E3-Cable L-1 |
16-port cable for TDM CEM Interface Module, 78 inches cable length and 6.5 inches stub length, even slot |
T1 lines from individual subscribers are attached to RJ45 connectors on the front of the 24-port patch panel. Each RJ45 port accommodates an individual T1 subscriber line.
For the T1/E1 ports, see T1/E1 Port Pinout.
If you are connecting two T1/E1 interfaces to each other, you must cable both interfaces’ patch panels together using a T1 cross-over cable or a T1 straight-through cable. Use shielded cables. The type of cable you use (cross-over or straight-through) depends on how the T1/E1 interfaces are cabled to their patch panels:
Warning |
To comply with the Telcordia GR-1089 NEBS standard for electromagnetic compatibility and safety, connect the T1/E1 ports only to intra-building or unexposed wiring or cable. The intrabuilding cable must be shielded and the shield must be grounded at both ends. The intra-building port(s) of the equipment or subassembly must not be metallically connected to interfaces that connect to the OSP or its wiring. These interfaces are designed for use as intra-building interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE) and require isolation from the exposed OSP cabling. The addition of Primary Protectors is not sufficient protection in order to connect these interfaces metallically to OSP wiring. |
The PANEL-48-1-DIN and PANEL-48-3-DIN provide 48 DIN 1.0/2.3 connectors on the front side of the patch panel. These connectors terminate to 75 ohm coaxial cable through the DIN plug.
The PANEL-48-1-RJ48 provide 48 RJ45 connector on the front side of the patch panel. These connectors terminate to 110 ohm T1/E1 cable through a RJ45 connector.
We recommend using the following T1/E1 patch panels:
The following patch panels are introduced:
Also, the following patch panels are available from Optical Cable Corporation (http://www.occfiber.com).
To order a patch panel, contact the Sales and Marketing Support staff at Optical Cable Corporation:
To install the brackets on the rear of the patch panel, perform these steps:
|
Step 1 |
Remove the larger (M4) rack mount screws (as indicated in the Rack Mount Screws figure below) from both sides. To secure the brackets, follow the instructions in Step-3. |
||||||||
|
Step 2 |
Remove the patch panel rack-mount brackets from the accessory kit and position them beside the patch panel. |
||||||||
|
Step 3 |
Position the brackets against the patch panel sides, and align with the screw holes. Secure the rack mount bracket to patch panel using a torque of 13.2 in.-lb (1.5 N-m) see the figure below.
 |
||||||||
|
Step 4 |
Position the cable management guides against the mounting brackets on the patch panel, see the figure below.   |
||||||||
|
Step 5 |
Secure the guides to the brackets with the screws. The recommended maximum torque is 28 in.-lb (3.16 N-m). |
||||||||
|
Step 6 |
Position the patch panel with brackets and guide onto the rack and secure with screws provided. The recommended maximum torque is 28 in.-lb (3.16 N-m), see the figure below.


The following table shows details of the 120⁰ exit cable hood:
|
Perform the following procedure to install the adapter brackets and the adapter on the patch panel:
|
Step 1 |
Position the brackets against the adapter (as shown in the following figure).
|
|
Step 2 |
Secure the brackets with the screws. The recommended maximum torque is 6.8 in-lb (0.75N-m).
|
|
Step 3 |
Position the adapter with the brackets against the patch panel (as shown in the following figure).
|
|
Step 4 |
Secure the adapter with the screws. The recommended maximum torque is 6.8 in-lb (0.75N-m).
|
To ensure that the chassis ground connection that you provide is adequate, you need the following parts and tools:
Warning |
This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available. Statement 1024 |
Warning |
Use copper conductors only. Statement 1025 |
Warning |
When installing the unit, the ground connection must always be made first and disconnected last. Statement 42 |
Grounding points on patch panel may vary between different PIDs.
You can choose to either set up the Cisco ASR 903 3G patch panel on a rack or wall mount it.
|
Step 1 |
Connect the grounding lugs using a crimping tool (as specified by the ground lug manufacturer), crimp the ground lug to the ground wire. |
|
Step 2 |
Use a 6 AWG ground wire to connect the other end to a suitable grounding point at your site.   |
|
Step 3 |
Position the patch panel in the rack as follows:
|
|
Step 4 |
Align the mounting holes in the bracket with the mounting holes in the equipment rack.       |
|
Step 5 |
Secure the brackets to the chassis with the screws. The recommended maximum torque is 28 in.-lb (3.16 N-m).
|
To install the optional cable management brackets, perform these steps:
|
Step 1 |
Position the cable management brackets against the front of the chassis and align the screw holes, as shown in the figure. |
|
Step 2 |
Secure the cable management brackets with the screws. The recommended maximum torque is 10 in.-lb (1.12 N-m).             |
You must first install the mounting brackets and cable guides on to the patch panel before you mount it on the wall. You can use the same rack mount brackets (700-113653-01) for wall mount.
|
Step 1 |
Remove the mounting brackets from the accessory kit and position them beside the device.
  |
||
|
Step 2 |
Secure the bracket to the device with the recommended maximum torque of 10 inch-pounds (1.1 newton meters). |
||
|
Step 3 |
Position the device vertically on the wall.
|
||
|
Step 4 |
Use a tape measure and level to verify that the device is installed straight and on level. |
Following are the various patch panel dimensions.
Given below are the pinout information for the regular crossover and the straight-through cable patch panel.
|
Pin # |
Crossover |
Straight-through |
|---|---|---|
|
1 |
Receive Tip |
Transmit Tip |
|
2 |
Receive Ring |
Transmit Ring |
|
3 |
— |
— |
|
4 |
Transmit Tip |
Receive Tip |
|
5 |
Transmit Ring |
Receive Ring |
|
6 |
— |
— |
|
7 |
— |
— |
|
8 |
— |
— |
|
Panel |
Bracket Description |
|---|---|
|
PANEL-3G-COMBO-1 |
Single 12E1 + 4xDS3 patch panel for 3G CEM/IMSG IM (requires crossover cable) |
|
PANEL-3G-COMBO-2 |
Double 12E1 + 4xDS3 patch panel for 3G CEM/IMSG IM (requires crossover cable) |
|
PANEL-3G-COMBO-1S |
Single 12E1 + 4xDS3 patch panel for 3G CEM/IMSG (requires a straight-through cable) |
|
PANEL-3G-COMBO-2S |
Double 12E1 + 4xDS3 patch panel for 3G CEM/IMSG IM (requires a straight-through cable) |
|
P3G1-RCKMNT-19IN |
EIA 19 inches mounting brackets for single 3G CEM/IMSG IM patch panel |
|
P3G1-RCKMNT-ETSI |
ETSI 21 inches mounting brackets for single 3G CEM/IMSG IM patch panel |
|
P3G1-RCKMNT-23IN |
EIA 23 inches mounting brackets for single 3G CEM/IMSG IM patch panel |
|
P3G2-RCKMNT-19IN |
EIA 19 inches mounting brackets for double 3G CEM/IMSG IM patch panel |
|
P3G2-RCKMNT-ETSI |
ETSI 21 inches mounting brackets for double 3G CEM/IMSG IM patch panel |
|
P3G2-RCKMNT-23IN |
EIA 23 inches mounting brackets for double 3G CEM/IMSG IM patch panel |
The tables below detail the supported cables with the Cisco ASR 903 Router.
Note |
The Cisco ASR 903 Router currently only supports the EIA/TIA-232 connector. |
|
Cable Type |
Product Number |
Length |
Male/Female |
Connector |
|---|---|---|---|---|
|
V.35 DTE |
CAB-SS-V35MT |
10 ft. |
Male |
M34 |
|
V.35 DCE |
CAB-SS-V35FC |
10 ft. |
Female |
M34 |
|
EIA/TIA-232 DTE |
CAB-SS-232MT |
10 ft. |
Male |
DB-25 |
|
EIA/TIA-232 DCE |
CAB-SS-232FC |
10 ft. |
Female |
DB-25 |
|
EIA/TIA-449 DTE |
CAB-SS-449MT |
10 ft. |
Male |
DB-37 |
|
EIA/TIA-449 DCE |
CAB-SS-449FC |
10 ft. |
Female |
DB-37 |
|
X.21 DTE |
CAB-SS-X21MT |
10 ft. |
Male |
DB-15 |
|
X.21 DCE |
CAB-SS-X21FC |
10 ft. |
Female |
DB-15 |
|
EIA/TIA-530 DTE |
CAB-SS-530MT |
10 ft. |
Male |
DB-25 |
|
EIA/TIA-530 DTE |
CAB-SS-530FC |
10 ft. |
Female |
DB-25 |
|
Cable Type |
Product Number |
Length |
Male/Female |
Connector |
|---|---|---|---|---|
|
4-port EIA-232 DTE |
CAB-HD4-232MT |
10 ft. |
Male |
DB-25 |
|
4-port EIA-232 DCE |
CAB-HD4-232FC |
10 ft. |
Female |
DB-25 |
|
4-port EIA-232 DTE |
CAB-QUAD-ASYNC-F |
10 ft. |
Female |
RJ-45 |
|
4-port EIA-232 DTE |
CAB-QUAD-ASYNC-M |
10 ft. |
Male |
RJ-45 |
|
4-port EIA-232 DTE |
CAB-9AS-M |
10 ft. |
Male |
DB-9 |
The fan tray includes an alarm port that maps to 4 dry contact alarm inputs.
The pins on the alarm port are passive signals and can be configured as Normally Open (an alarm generated when current is interrupted) or Normally Closed (an alarm is generated when a circuit is established) alarms. You can configure each alarm input as critical, major, or minor. An alarm triggers alarm LEDs and alarm messages. The relay contacts can be controlled through any appropriate third-party relay controller. The open/close configuration is an option controlled in IOS.
Warning |
To comply with the Telcordia GR-1089 NEBS standard for electromagnetic compatibility and safety, connect the alarm ports only to intra-building or unexposed wiring or cable. The intrabuilding cable must be shielded and the shield must be grounded at both ends. The intra-building port(s) of the equipment or subassembly must not be metallically connected to interfaces that connect to the OSP or its wiring. These interfaces are designed for use as intra-building interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE) and require isolation from the exposed OSP cabling. The addition of Primary Protectors is not sufficient protection in order to connect these interfaces metallically to OSP wiring. |
Only Pins 1, 2, 4, 5, and 8 are available for customer use. The remaining pins are for Cisco manufacturing test, and should not be connected. Use a shielded cable for connection to this port for EMC protection. Table 5-6 summarizes the pinouts on the alarm port in Troubleshooting.
|
Step 1 |
Attach an RJ45 cable to the alarm port. |
|
Step 2 |
Attach the other end of the RJ45 cable to the relay controller. |
For information about how to map alarm inputs to critical, major, and minor alarm conditions, see the Cisco ASR 903 Router Software Configuration Guide.
For more information on cable specifications and pinouts, see Troubleshooting.
Feedback
