Overview
The Cisco UCS C220 M7 server is a one-rack unit server that can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture. Cisco UCS also enables end-to-end server visibility, management, and control in both bare metal and virtualized environments. Each Cisco UCS C220 M7 has two CPU sockets that can support the following Intel® Xeon® Scalable Processors:
-
Fourth Generation Intel Xeon Scalable Server Processors
-
Fifth Generation Intel Xeon Scalable Server Processors
Additionally, the server supports the following features with one CPU or two identical CPUs:
-
32 DDR5 DIMMs (RDIMM), 4400 MHz (2 DPC), up to 5600 MHz (1DPC) support for RDIMMs.
16 DIMMs are supported per CPU for a total system memory of 4 TB (up to 128 GB DDR5 DIMMs)
-
DDR5 DIMM capacities vary based on the CPU type for the compute node:
-
Intel Fourth Generation Xeon Scalable Processors support 16, 32, 64, and 128 GB DDR5 DIMMs
-
Intel Fifth Generation Xeon Scalable Processors support 16, 32, 64, 96, and 128 GB DDR5 DIMMs
-
-
The server's DIMM configuration differs depending on which generation of CPU is populated on the server:
-
With Fourth Generation Intel Xeon Scalable Server Processors, the compute node supports DDR5 DIMMs up to 4800 MT/s with 1DPC, and up to 4400 MT/s with 2DPC
-
With Fifth Generation Intel Xeon Scalable Server Processors, the compute node supports DDR5 DIMMs up to 5600 MT/s with 1 DPC, and up to 4400 MT/s with 2DPC
-
-

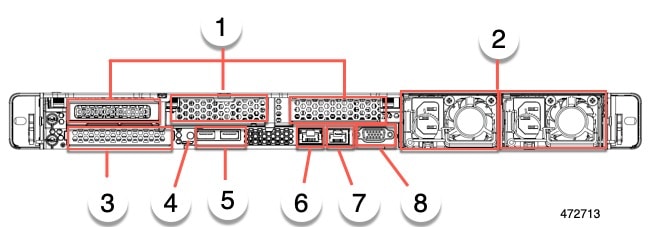

3 PCI Express riser connectors, which provide slots for full-height and half-height PCIe adapters in rear mezzanine slots.
-
Two power supplies (PSUs) with support for 1+1 and cold redundancy power redundancy modes. For supported PSUs, see Power Specifications.
-
One 1 Gigabit Ethernet dedicated management port.
-
Internal storage consisting of one M.2 daughter slot.
-
Rear mezzanine connectivity options include:
-
One mLOM card provides 2 100 Gig Ethernet ports.
-
An optional Intel X710 OCP 3.0 card is supported in the mLOM slot through the use of an interposer card.
-
-
One mLOM/VIC slot provides 10G/25G/40G/50G/100G/200G connectivity. Supported cards are:
-
Cisco UCS VIC 15428 mLOM with four 10G/25G/50G SFP+/SFP28/SFP56/QSFP56 ports that support Ethernet or Fibre Channel over Ethernet (FCoE).
-
Cisco UCS VIC 15427 Quad Port CNA MLOM (UCSC-M-V5Q50GV2) supports:
-
a x16 PCIe Gen4 Host Interface to the rack server
-
four 10G/25G/50G SFP+/SFP28/SFP56 ports
-
4GB DDR4 Memory, 3200 MHz
-
Integrated blower for optimal ventilation
-
Secure boot support
-
-
Cisco UCS VIC 15425 Quad Port 10G/25G/50G SFP56 CNA PCIe (UCSC-P-V5Q50G-D)
-
a x16 PCIe Gen4 Host Interface to the rack server
-
Four 10G/25G/50G QSFP56 ports
-
4GB DDR4 Memory, 3200MHz
-
Integrated blower for optimal ventilation
-
-
Cisco UCS VIC 15237 Dual Port 40G/100G/200G QSFP56 mLOM (UCSC-M-V5D200GV2) supports:
-
a x16 PCIe Gen4 Host Interface to the rack server
-
two 40G/100G/200G QSFP/QSFP28/QSFP56 ports
-
4GB DDR4 Memory, 3200 MHz
-
Integrated blower for optimal ventilation
-
Secure boot support
-
-
Cisco VIC 15238 mLOM with two 40G/100G/200G QSFP/QSFP28 ports that support Ethernet or Fibre Channel over Ethernet (FCoE).
-
Cisco UCS VIC 15235 Dual Port 40G/100G/200G QSFP56 CNA PCIe (UCSC-P-V5D200G-D)
-
a x16 PCIe Gen4 Host Interface to the rack server
-
two 40G/100G/200G QSFP56 ports
-
4GB DDR4 Memory, 3200MHz
-
Integrated blower for optimal ventilation
-
-
-
Two KVM ports, one on the front of the server and on the rear
-
Modular Trusted Platform Module (TPM 2.0)
-
Two different front-loading hardware configurations are available:
-
The Cisco UCS C220 M7 SFF (UCSC-C220-M7S): This model supports only small form-factor (SFF) drives and has a 10-drive backplane. Supports up to 10 front-loading 2.5-inch SAS/SATA drives, and up to 4 of the drives can be NVMe.
When this model is configured with the Cisco 24G Tri-Mode RAID controller (UCSC-RAID-HP), up to 10 NVMe drives are supported.
-
The Cisco UCS C220 M7 NVMe (UCSC-C220-M7N): This model supports only small form-factor (SFF) drives and has a 10-drive backplane. Supports up to 10 front-loading 2.5-inch NVMe-only SSDs.
-
-
Rear PCI risers are supported as one to three half-height half-length (HHHL) PCIe risers, or one to two full-height ¾ length PCIe risers.
-
The server provides an internal slot for one of the following:
-
SATA Interposer to control SATA drives from the PCH (AHCI), or
-
Cisco 12G RAID controller with cache backup to control SAS/SATA drives, or
-
Cisco 12G SAS pass-through HBA to control SAS/SATA drives
-
Cisco 24G Tri-Mode Raid Controller with cache backup to control SAS/SATA/NVMe drives
-
