This chapter includes regular firewall Firewall Threat Defense interface configuration including EtherChannels, VLAN subinterfaces, IP addressing, and more.
 Note |
For initial interface configuration on the Firepower 4100/9300, see Configure Interfaces. |
Threat Defense
Admin
Access Admin
Network Admin
For supported platforms, you can configure each interface to run as a regular firewall interface or as a Layer 2 hardware switch port. This section includes tasks for starting your switch port configuration, including enabling or disabling the switch mode and creating VLAN interfaces and assigning them to switch ports. This section also describes how to customize Power over Ethernet (PoE) on supported interfaces.
This section describes the switch ports for models with Layer 2 switches.
For each physical interface, you can set its operation as a firewall interface or as a switch port. See the following information about physical interface and port types as well as logical VLAN interfaces to which you assign switch ports:
Physical firewall interface—In routed mode, these interfaces forward traffic between networks at Layer 3, using the configured security policy to apply firewall and VPN services. In transparent mode, these interfaces are bridge group members that forward traffic between the interfaces on the same network at Layer 2, using the configured security policy to apply firewall services. In routed mode, you can also use Integrated Routing and Bridging with some interfaces as bridge group members and others as Layer 3 interfaces. By default, the Ethernet 1/1 interface is configured as a firewall interface. You can also configure these interfaces to be IPS-only (inline sets and passive interfaces).
Physical switch port—Switch ports forward traffic at Layer 2, using the switching function in hardware. Switch ports on the same VLAN can communicate with each other using hardware switching, and traffic is not subject to the Firewall Threat Defense security policy. Access ports accept only untagged traffic, and you can assign them to a single VLAN. Trunk ports accept untagged and tagged traffic, and can belong to more than one VLAN. By default, Ethernet 1/2 and higher are configured as access switch ports on VLAN 1. You cannot configure the Management interface as a switch port.
Logical VLAN interface—These interfaces operate the same as physical firewall interfaces, with the exception being that you cannot create subinterfaces, IPS-only interfaces (inline sets and passive interfaces), or EtherChannel interfaces. When a switch port needs to communicate with another network, then the Firewall Threat Defense device applies the security policy to the VLAN interface and routes to another logical VLAN interface or firewall interface. You can even use Integrated Routing and Bridging with VLAN interfaces as bridge group members. Traffic between switch ports on the same VLAN are not subject to the Firewall Threat Defense security policy, but traffic between VLANs in a bridge group are subject to the security policy, so you may choose to layer bridge groups and switch ports to enforce the security policy between certain segments.
PoE is available on the following ports:
Firepower 1010—Ethernet 1/7 and 1/8 using IEEE 802.3af (PoE) and 802.3at (PoE+) up to 30 watts per port, up to a combined 60 watts.
Secure Firewall 1210CP—Ethernet 1/5, 1/6, 1/7, and 1/8 using IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++ and Hi-PoE) up to 90 watts per port, up to a combined 120 watts.
Note |
PoE is not supported on the 1010E, 1210CE, and 1220CX. |
PoE+ or higher uses Link Layer Discovery Protocol (LLDP) to negotiate the power level. Power is only supplied when needed.
If you shut down the interface, then you disable power to the device.
For all switch ports, the default auto-negotiation setting also includes the Auto-MDI/MDIX feature. Auto-MDI/MDIX eliminates the need for crossover cabling by performing an internal crossover when a straight cable is detected during the auto-negotiation phase. Either the speed or duplex must be set to auto-negotiate to enable Auto-MDI/MDIX for the interface. If you explicitly set both the speed and duplex to a fixed value, thus disabling auto-negotiation for both settings, then Auto-MDI/MDIX is also disabled. When the speed and duplex are set to 1000 and full, then the interface always auto-negotiates; therefore Auto-MDI/MDIX is always enabled and you cannot disable it.
Firepower 1010
Secure Firewall 1210/1220
No cluster support.
You should not use the switch port functionality when using High availability. Because the switch ports operate in hardware, they continue to pass traffic on both the active and the standby units. High availability is designed to prevent traffic from passing through the standby unit, but this feature does not extend to switch ports. In a normal High availability network setup, active switch ports on both units will lead to network loops. We suggest that you use external switches for any switching capability. Note that VLAN interfaces can be monitored by failover, while switch ports cannot. Theoretically, you can put a single switch port on a VLAN and successfully use High availability, but a simpler setup is to use physical firewall interfaces instead.
You can only use a firewall interface as the failover link.
If you also use VLAN subinterfaces on a firewall interface, you cannot use the same VLAN ID as for a logical VLAN interface. VLAN 1 is reserved for the logical VLAN interface.
MAC Addresses:
Routed firewall mode—All VLAN interfaces share a MAC address. Ensure that any connected switches can support this scenario. If the connected switches require unique MAC addresses, you can manually assign MAC addresses. See Configure the MAC Address.
Transparent firewall mode—Each VLAN interface has a unique MAC address. You can override the generated MAC addresses if desired by manually assigning MAC addresses. See Configure the MAC Address.
You cannot mix logical VLAN interfaces and physical firewall interfaces in the same bridge group.
VLAN interfaces and switch ports do not support:
Dynamic routing
Multicast routing
Equal-Cost Multi-Path routing (ECMP)
Inline sets or Passive interfaces
EtherChannels—Switch ports cannot be part of an EtherChannel. PoE is also not supported on a port in an EtherChannel.
Failover and state link
Security group tagging (SGT)
You can configure a maximum of 60 named interfaces.
You cannot configure the Management interface as a switch port.
Ethernet 1/1 is a firewall interface.
On 1010, Ethernet 1/2 through Ethernet 1/8 are switch ports assigned to VLAN 1.
On 1210, Ethernet 1/2 through Ethernet 1/8 are switch ports assigned to VLAN 1.
On 1220, Ethernet 1/2 through Ethernet 1/10 are switch ports assigned to VLAN 1.
Default Speed and Duplex—By default, the speed and duplex are set to auto-negotiate.
To configure switch ports and PoE, complete the following tasks.
You can set each interface independently to be either a firewall interface or a switch port. By default, Ethernet 1/1 is a firewall interface, and the remaining Ethernet interfaces are configured as switch ports.
|
Step 1 |
Select and click Edit ( |
|
Step 2 |
Set the switch port mode by clicking the slider in the SwitchPort column so it shows as Slider enabled ( By default, switch ports are set to access mode in VLAN 1. You must manually add a logical VLAN 1 interface (or whichever VLAN you set for these switch ports) for traffic to be routed and to participate in the Firewall Threat Defense security policy (see Configure a VLAN interface). You cannot set the Management interface to switch port mode. When you change the switch port mode, all unsupported configuration is removed:  In addition, the interface is disabled if it was already enabled. Be sure to reenable the interface. |
This section describes how to configure VLAN interfaces for use with associated switch ports. By default, switch ports are assigned to VLAN1; however, you must manually add the logical VLAN1 interface (or whichever VLAN you set for these switch ports) for traffic to be routed and to participate in the Firewall Threat Defense security policy.
|
Step 1 |
Select and click Edit ( |
|
Step 2 |
Click . |
|
Step 3 |
On General, set the following VLAN-specific parameters:  If you are editing an existing VLAN interface, the Associated Interface table shows switch ports on this VLAN. |
|
Step 4 |
To complete the interface configuration, see one of the following procedures: |
|
Step 5 |
Click OK. |
|
Step 6 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |
To assign a switch port to a single VLAN, configure it as an access port. Access ports accept only untagged traffic. The interfaces that are enabled with switch ports and assigned to VLAN1 are as follows:
|
Device Models |
Switch Port Interfaces |
|---|---|
|
Firepower 1010 |
Ethernet 1/2 through Ethernet 1/8 |
|
Secure Firewall 1210 |
Ethernet 1/2 through Ethernet 1/8 |
|
Secure Firewall 1220 |
Ethernet 1/2 through Ethernet 1/10 |
Note |
The device does not support Spanning Tree Protocol for loop detection in the network. Therefore you must ensure that any connection with the Firewall Threat Defense does not end up in a network loop. |
|
Step 1 |
Select and click Edit ( |
||
|
Step 2 |
Click Edit (
|
||
|
Step 3 |
Enable the interface by checking the Enabled check box. |
||
|
Step 4 |
(Optional) Add a description in the Description field. The description can be up to 200 characters on a single line, without carriage returns. |
||
|
Step 5 |
Set the Port Mode to Access. |
||
|
Step 6 |
In the VLAN ID field, set the VLAN for this switch port, between 1 and 4070. The default VLAN ID is 1. |
||
|
Step 7 |
(Optional) Check the Protected check box to set this switch port as protected, so you can prevent the switch port from communicating with other protected switch ports on the same VLAN. You might want to prevent switch ports from communicating with each other if: the devices on those switch ports are primarily accessed from other VLANs; you do not need to allow intra-VLAN access; and you want to isolate the devices from each other in case of infection or other security breach. For example, if you have a DMZ that hosts three web servers, you can isolate the web servers from each other if you enable Protected on each switch port. The inside and outside networks can both communicate with all three web servers, and vice versa, but the web servers cannot communicate with each other. |
||
|
Step 8 |
(Optional) Set the duplex and speed by clicking Hardware Configuration.
Check the Auto-negotiation check box (the default) to auto-detect the speed and duplex. If you uncheck it, you can set the speed and duplex manually:
|
||
|
Step 9 |
Click OK. |
||
|
Step 10 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |
This procedure describes how to create a trunk port that can carry multiple VLANs using 802.1Q tagging. Trunk ports accept untagged and tagged traffic. Traffic on allowed VLANs pass through the trunk port unchanged.
When the trunk receives untagged traffic, it tags it to the native VLAN ID so that the Firewall Threat Defense device can forward the traffic to the correct switch ports or can route it to another firewall interface. When the Firewall Threat Defense device sends native VLAN ID traffic out of the trunk port, it removes the VLAN tag. Be sure to set the same native VLAN on the trunk port on the other switch so that the untagged traffic will be tagged to the same VLAN.
|
Step 1 |
Select and click Edit ( |
|
Step 2 |
Click Edit (
|
|
Step 3 |
Enable the interface by checking the Enabled check box. |
|
Step 4 |
(Optional) Add a description in the Description field. The description can be up to 200 characters on a single line, without carriage returns. |
|
Step 5 |
Set the Port Mode to Trunk. |
|
Step 6 |
In the Native VLAN ID field, set the native VLAN for this switch port, between 1 and 4070. The default native VLAN ID is 1. Each port can only have one native VLAN, but every port can have either the same or a different native VLAN. |
|
Step 7 |
In the Allowed VLAN IDs field, enter the VLANs for this trunk port between 1 and 4070. You can identify up to 20 IDs in one of the following ways:
If you include the native VLAN in this field, it is ignored; the trunk port always removes the VLAN tagging when sending native VLAN traffic out of the port. Moreover, it will not receive traffic that still has native VLAN tagging. |
|
Step 8 |
(Optional) Check the Protected check box to set this switch port as protected, so you can prevent the switch port from communicating with other protected switch ports on the same VLAN. You might want to prevent switch ports from communicating with each other if: the devices on those switch ports are primarily accessed from other VLANs; you do not need to allow intra-VLAN access; and you want to isolate the devices from each other in case of infection or other security breach. For example, if you have a DMZ that hosts three web servers, you can isolate the web servers from each other if you enable Protected on each switch port. The inside and outside networks can both communicate with all three web servers, and vice versa, but the web servers cannot communicate with each other. |
|
Step 9 |
(Optional) Set the duplex and speed by clicking Hardware Configuration.  Check the Auto-negotiation check box (the default) to auto-detect the speed and duplex. If you uncheck it, you can set the speed and duplex manually:
If a peer switch connecting to the port over a 50G cable does not support auto-negotiation, ensure to disable auto-negotiation on the switch and the Threat Defense interface as well. For example, N9K-C93400LD-H1 does not support auto-negotiation on a 50G cable. Hence, you must disable the default auto-negotiation on the platform and the switch for the port to be connected. |
|
Step 10 |
Click OK. |
|
Step 11 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |
Power over Ethernet (PoE) ports provide power for devices such as IP phones or wireless access points. PoE is enabled by default. This procedure describes how to disable and enable PoE and how to set optional parameters.
|
Step 1 |
Select and click Edit ( |
|
Step 2 |
Click Edit ( |
|
Step 3 |
Click PoE.
|
|
Step 4 |
Check the Enable PoE check box. PoE is enabled by default. |
|
Step 5 |
Choose autonegotiation or manual power.
|
|
Step 6 |
Click OK. |
|
Step 7 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |
This section tells how to configure loopback interfaces.
A loopback interface is a software-only interface that emulates a physical interface. This interface is reachable on IPv4 and IPv6 through multiple physical interfaces. The loopback interface helps to overcome path failures; it is accessible from any physical interface, so if one goes down, you can access the loopback interface from another.
Loopback interfaces can be used for:
AAA
BGP
DNS
HTTP
ICMP
IPsec flow offload—Secure Firewall 1200/3100/4200 only
NetFlow
SNMP
SSH
Static and dynamic VTI tunnels
Syslog
The Firewall Threat Defense can distribute the loopback address using dynamic routing protocols, or you can configure a static route on the peer device to reach the loopback IP address through one of the Firewall Threat Defense's physical interfaces. You cannot configure a static route on the Firewall Threat Defense that specifies the loopback interface.
Supported in routed mode only.
No clustering support.
TCP sequence randomization is always disabled for traffic from the physical interface to the loopback interface.
To add a loopback interface for a device:
|
Step 1 |
Select and click Edit ( |
|
Step 2 |
From the Add Interfaces drop-down list, choose . |
|
Step 3 |
In the General tab, configure the following parameters:
|
|
Step 4 |
Configure the routed mode interface parameters. See Configure Routed Mode Interfaces. |
You should rate-limit traffic going to the loopback interface IP address to prevent excessive load on the system. You can add a connection limit rule to the global service policy.
|
Step 1 |

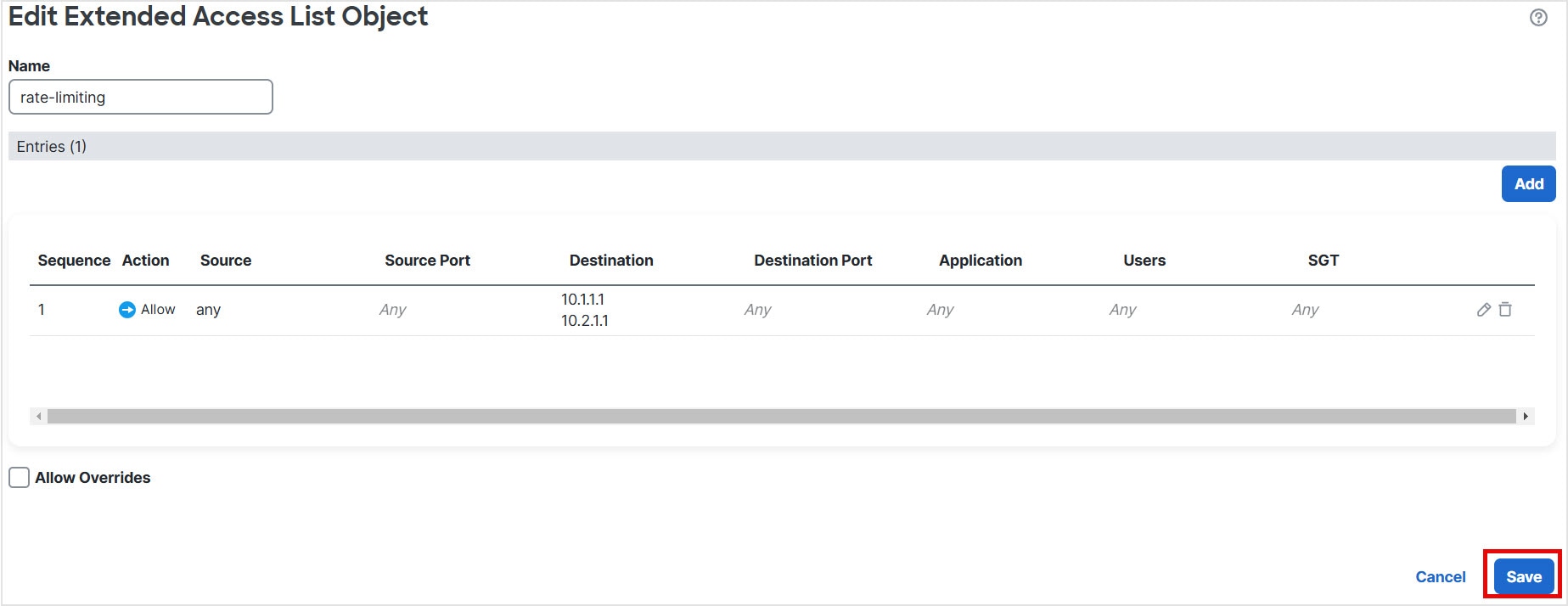

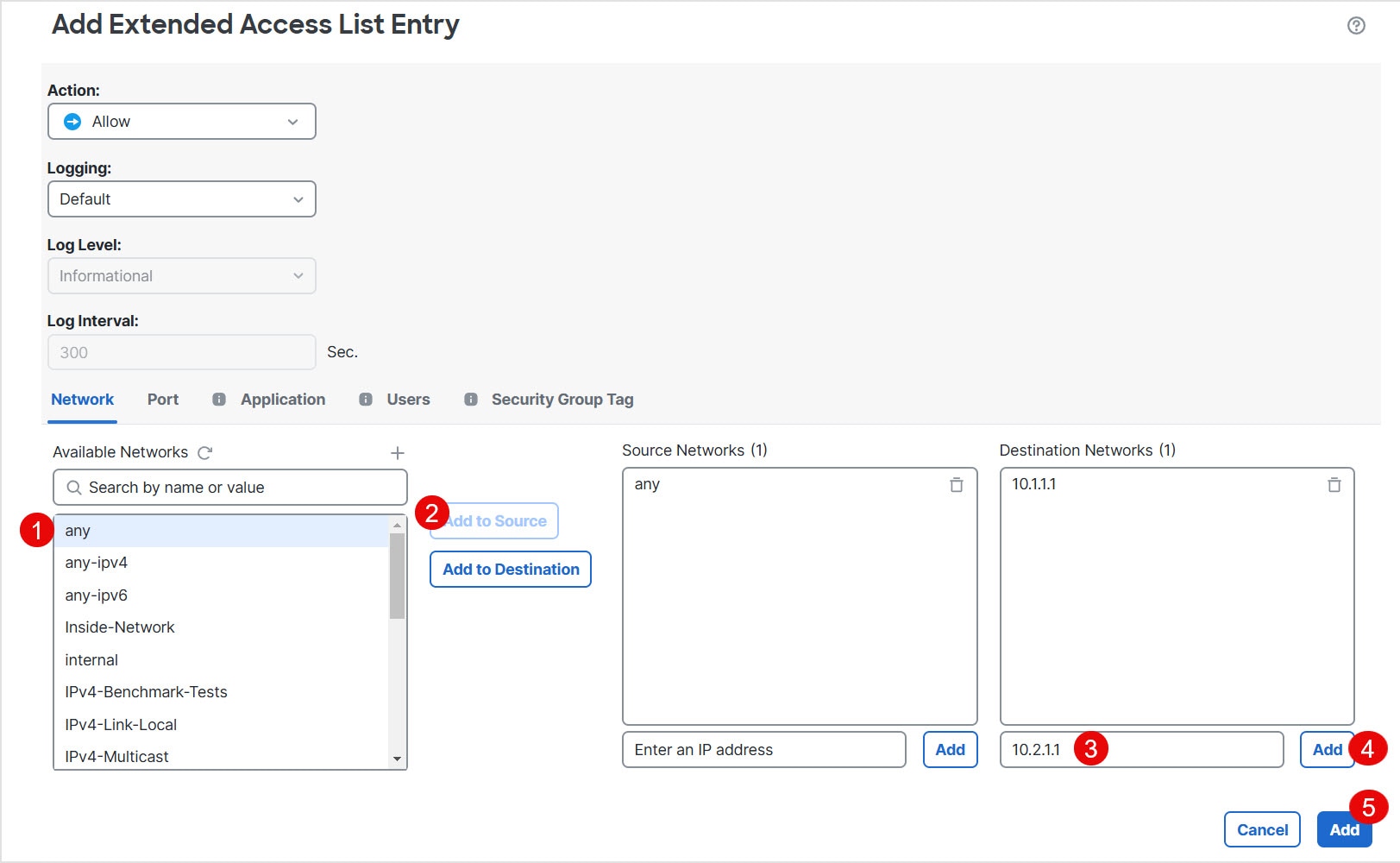

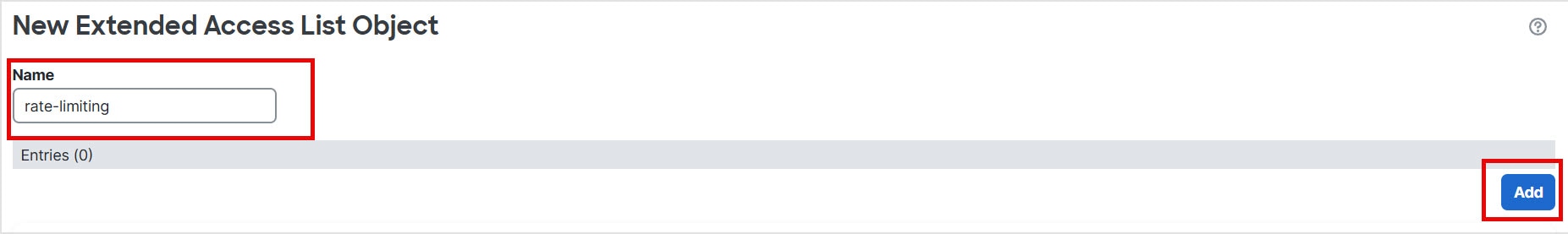

Create an extended access list identifying traffic to the loopback interface IP address(es).
|
||
|
Step 2 |
Choose , and click Edit ( |
||
|
Step 3 |

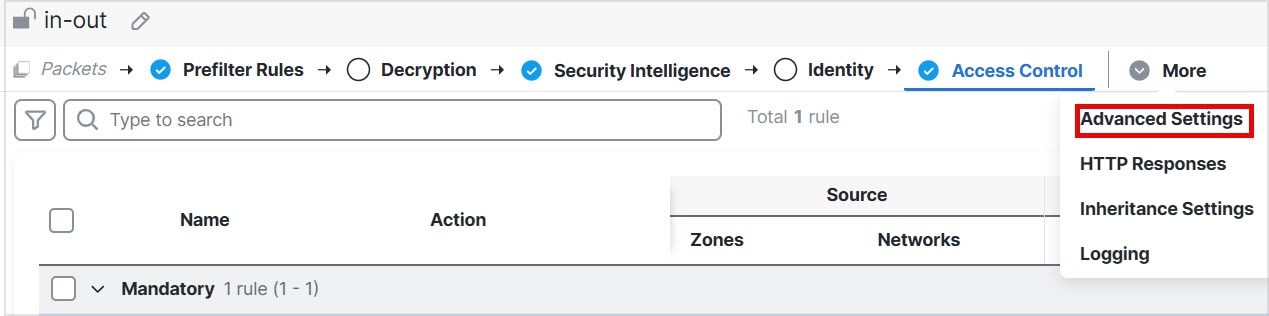

Click Advanced Settings from the More drop-down arrow at the end of the packet flow line.
|
||
|
Step 4 |

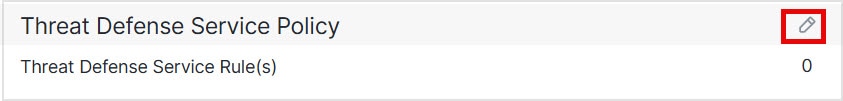

Click Edit (
|
||
|
Step 5 |

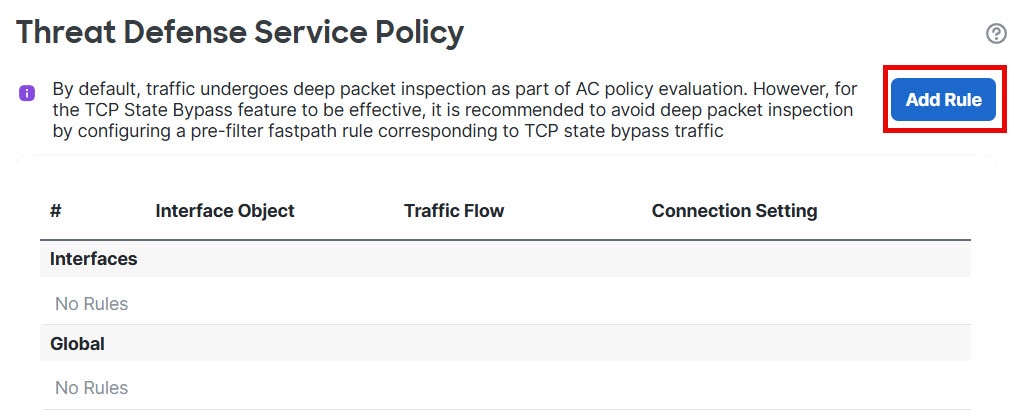

Click Add Rule to create a new rule.
The service policy rule wizard opens to step you through the process of configuring the rule. |
||
|
Step 6 |

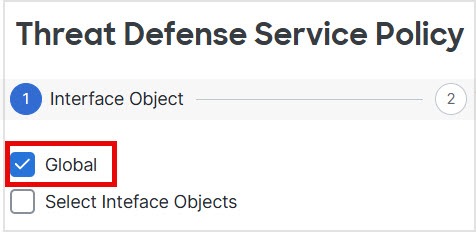

In the Interface Object step, click Global to create a global rule, which applies to all interfaces, then click Next.
|
||
|
Step 7 |

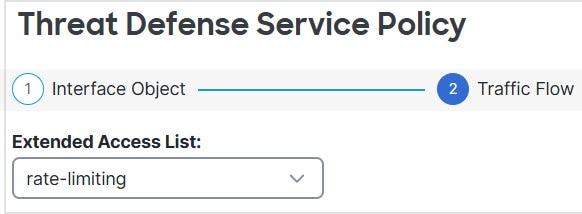

In the Traffic Flow step, select the extended access list object you created in Step 1, and then click Next.
|
||
|
Step 8 |

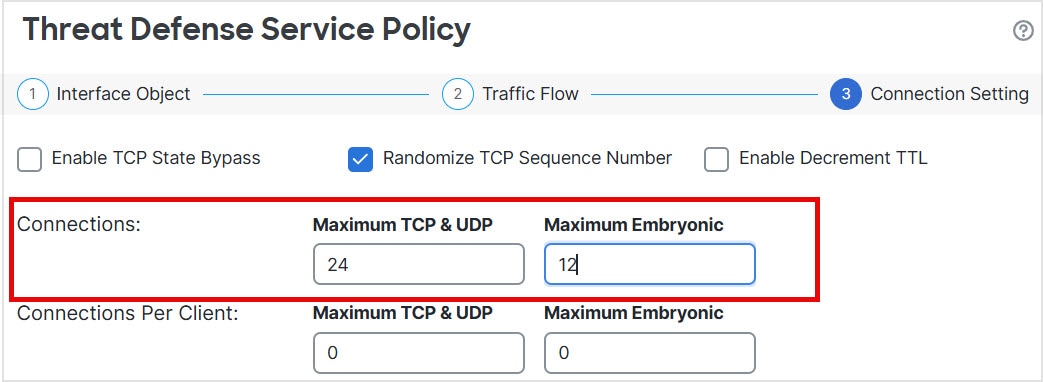

In the Connection Setting step, set the Connections limits.
Set the Maximum TCP & UDP connections to the expected number of connections for the loopback interface, and the Maximum Embryonic connections to a lower number. For example, you can set it to 5/2, or 10/5, or 1024/512, depending on the expected loopback interface sessions you need. Setting the embryonic connection limit enables TCP Intercept, which protects the system from a DoS attack perpetrated by flooding an interface with TCP SYN packets. |
||
|
Step 9 |
Click Finish to save your changes. |
||
|
Step 10 |
Click OK. |
||
|
Step 11 |
Click Save on the Advanced Settings window. |
||
|
Step 12 |
You can now deploy the changes to the affected devices. |
VLAN subinterfaces let you divide a physical, redundant, or EtherChannel interface into multiple logical interfaces that are tagged with different VLAN IDs. An interface with one or more VLAN subinterfaces is automatically configured as an 802.1Q trunk. Because VLANs let you keep traffic separate on a given physical interface, you can increase the number of interfaces available to your network without adding additional physical interfaces or devices.
1010/1210/1220—VLAN subinterfaces are not supported on switch ports or VLAN interfaces.
You cannot use a subinterface for the failover or state link or for the cluster control link. The exception is for multi-instance mode: you can use a chassis-defined subinterface for these links.
Preventing untagged packets on the physical interface—If you use subinterfaces, you typically do not also want the physical interface to pass traffic, because the physical interface passes untagged packets. This property is also true for the active physical interface in a redundant interface pair and for EtherChannel links. Because the physical, redundant, or EtherChannel interface must be enabled for the subinterface to pass traffic, ensure that the physical, redundant, or EtherChannel interface does not pass traffic by not configuring a name for the interface. If you want to let the physical, redundant, or EtherChannel interface pass untagged packets, you can configure the name as usual.
You cannot configure subinterfaces on the Management interface, either the dedicated Management interface configured at the CLI nor a data interface used for manager access.
All subinterfaces on the same parent interface must be either bridge group members or routed interfaces; you cannot mix and match.
The Firewall Threat Defense does not support the Dynamic Trunking Protocol (DTP), so you must configure the connected switch port to trunk unconditionally.
You might want to assign unique MAC addresses to subinterfaces defined on the Firewall Threat Defense, because they use the same burned-in MAC address of the parent interface. For example, your service provider might perform access control based on the MAC address. Also, because IPv6 link-local addresses are generated based on the MAC address, assigning unique MAC addresses to subinterfaces allows for unique IPv6 link-local addresses, which can avoid traffic disruption in certain instances on the Firewall Threat Defense.
Note |
If you manually assign a MAC address, be sure to assign MAC addresses to all subinterfaces on the same physical interface to avoid unexpected behavior and outages. |
The device model limits the maximum number of VLAN subinterfaces that you can configure. Note that you can configure subinterfaces on data interfaces only, you cannot configure them on the management interface.
The following table explains the limits for each device model.
|
Model |
Maximum VLAN Subinterfaces |
|---|---|
|
Firepower 1010 |
60 |
|
Firepower 1120 |
512 |
|
Firepower 1140, 1150 |
1024 |
|
Secure Firewall 1200 |
1024 |
|
Secure Firewall 3100 |
1024 |
|
Secure Firewall 4200 |
1024 |
|
Firepower 4100 |
1024 |
|
Firepower 9300 |
1024 |
|
Firewall Threat Defense Virtual |
50 |
|
ISA 3000 |
100 |
Add one or more subinterfaces to a physical, redundant, or port-channel interface.
For the Firepower 4100/9300, you can configure subinterfaces in FXOS for use with container instances; see Add a VLAN Subinterface for Container Instances. These subinterfaces appear in the Firewall Management Center interface list. You can also add subinterfaces in Firewall Management Center, but only on parent interfaces that do not already have subinterfaces defined in FXOS.
Note |
The parent physical interface passes untagged packets. You may not want to pass untagged packets, so be sure not to include the parent interface in your security policy. |
|
Step 1 |
Select and click Edit ( |
|
Step 2 |
Enable the parent interface according to Enable the Physical Interface and Configure Ethernet Settings. |
|
Step 3 |
Click . |
|
Step 4 |

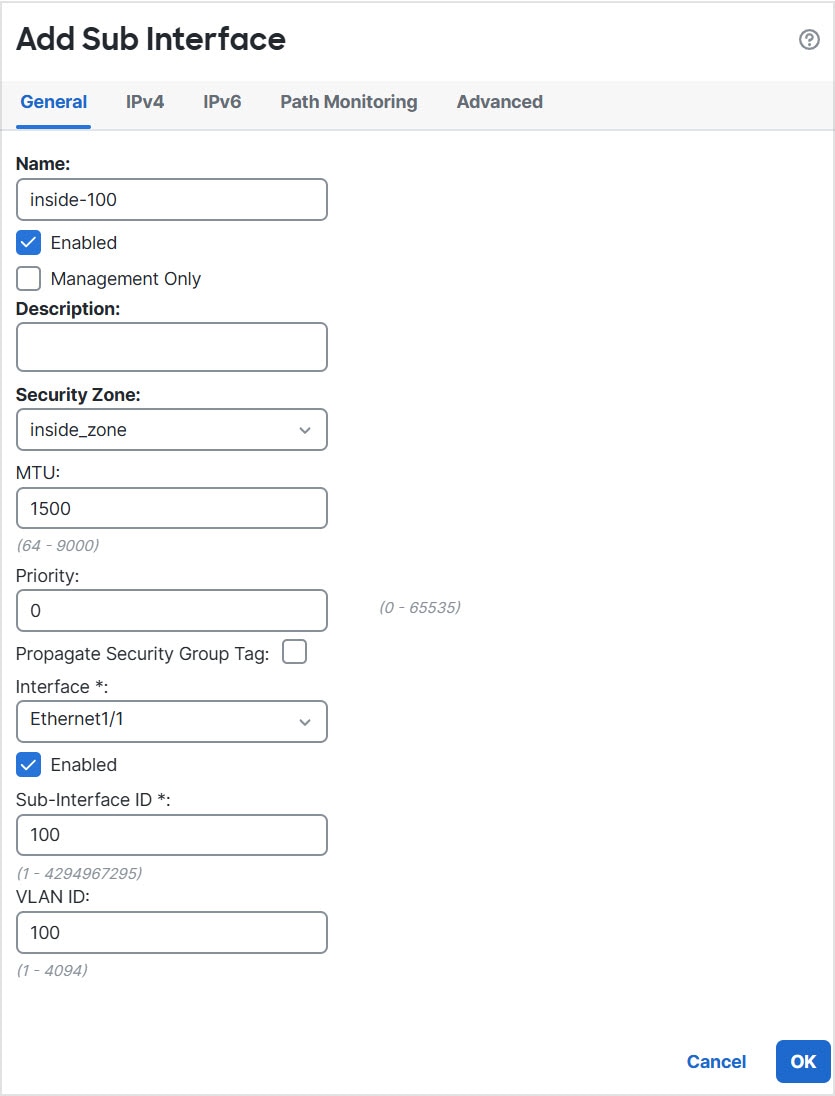

On General, set the following parameters:
|
|
Step 5 |
Click OK. |
|
Step 6 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |
|
Step 7 |
Configure the routed or transparent mode interface parameters. See Configure Routed Mode Interfaces or Configure Bridge Group Interfaces. |
This chapter tells how to configure Virtual eXtensible LAN (VXLAN) interfaces. VXLAN interfaces act as Layer 2 virtual networks over Layer 3 physical networks to stretch Layer 2 networks.
VXLAN provides the same Ethernet Layer 2 network services as VLAN does, but with greater extensibility and flexibility. Compared to VLAN, VXLAN offers the following benefits:
Flexible placement of multitenant segments throughout the data center.
Higher scalability to address more Layer 2 segments: up to 16 million VXLAN segments.
This section describes how VXLAN works. For detailed information about VXLAN, see RFC 7348. For detailed information about Geneve, see RFC 8926.
The Firewall Threat Defense supports two types of VXLAN encapsulation:
VXLAN (all models)—VXLAN uses MAC Address-in-User Datagram Protocol (MAC-in-UDP) encapsulation. The original Layer 2 frame has a VXLAN header added and is then placed in a UDP-IP packet.
Geneve (Firewall Threat Defense Virtual only)—Geneve has a flexible inner header that is not limited to the MAC address. Geneve encapsulation is required for transparent routing of packets between an Amazon Web Services (AWS) Gateway Load Balancer and appliances, and for sending extra information.
VXLAN tunnel endpoint (VTEP) devices perform VXLAN encapsulation and decapsulation. Each VTEP has two interface types: one or more virtual interfaces called VXLAN Network Identifier (VNI) interfaces to which you apply your security policy, and a regular interface called the VTEP source interface that tunnels the VNI interfaces between VTEPs. The VTEP source interface is attached to the transport IP network for VTEP-to-VTEP communication.
The following figure shows two Firewall Threat Defenses and Virtual Server 2 acting as VTEPs across a Layer 3 network, extending the VNI 1, 2, and 3 networks between sites. The Firewall Threat Defenses act as bridges or gateways between VXLAN and non-VXLAN networks.
The underlying IP network between VTEPs is independent of the VXLAN overlay. Encapsulated packets are routed based on the outer IP address header, which has the initiating VTEP as the source IP address and the terminating VTEP as the destination IP address. For VXLAN encapsulation: The destination IP address can be a multicast group when the remote VTEP is not known. With Geneve, the Firewall Threat Defense only supports static peers. The destination port for VXLAN is UDP port 4789 by default (user configurable). The destination port for Geneve is 6081.
The VTEP source interface is a regular interface (physical, EtherChannel, or even VLAN) with which you plan to associate all VNI interfaces. You can configure one VTEP source interface per Firewall Threat Defense Virtual. Because you can only configure one VTEP source interface, you cannot configure both VXLAN and Geneve interfaces on the same device. There is an exception for Firewall Threat Defense Virtual clustering on AWS or Azure, where you can have two VTEP source interfaces: a VXLAN interface is used for the cluster control link, and a Geneve (AWS) or VXLAN (Azure) interface can be used for the Gateway Load Balancer.
The VTEP source interface can be devoted wholly to VXLAN traffic, although it is not restricted to that use. If desired, you can use the interface for regular traffic and apply a security policy to the interface for that traffic. For VXLAN traffic, however, all security policy must be applied to the VNI interfaces. The VTEP interface serves as a physical port only.
In transparent firewall mode, the VTEP source interface is not part of a BVI, and you do configure an IP address for it, similar to the way the management interface is treated.
VNI interfaces are similar to VLAN interfaces: they are virtual interfaces that keep network traffic separated on a given physical interface by using tagging. You apply your security policy directly to each VNI interface.
You can only add one VTEP interface, and all VNI interfaces are associated with the same VTEP interface. There is an exception for Firewall Threat Defense Virtual clustering on AWS or Azure. For AWS clustering, you can have two VTEP source interfaces: a VXLAN interface is used for the cluster control link, and a Geneve interface can be used for the AWS Gateway Load Balancer. For Azure clustering, you can have two VTEP source interfaces: a VXLAN interface is used for the cluster control link, and a second VXLAN interface can be used for the Azure Gateway Load Balancer.
Traffic entering and exiting the VTEP source interface is subject to VXLAN processing, specifically encapsulation or decapsulation.
Encapsulation processing includes the following tasks:
The VTEP source interface encapsulates the inner MAC frame with the VXLAN header.
The UDP checksum field is set to zero.
The Outer frame source IP is set to the VTEP interface IP.
The Outer frame destination IP is decided by a remote VTEP IP lookup.
Decapsulation; the Firewall Threat Defense only decapsulates a VXLAN packet if:
It is a UDP packet with the destination port set to 4789 (this value is user configurable).
The ingress interface is the VTEP source interface.
The ingress interface IP address is the same as the destination IP address.
The VXLAN packet format is compliant with the standard.
Traffic entering and exiting the VTEP source interface is subject to Geneve processing, specifically encapsulation or decapsulation.
Encapsulation processing includes the following tasks:
The VTEP source interface encapsulates the inner MAC frame with the Geneve header.
The UDP checksum field is set to zero.
The Outer frame source IP is set to the VTEP interface IP.
The Outer frame destination IP is set the peer IP address that you configured.
Decapsulation; the Firewall Threat Defense only decapsulates a Geneve packet if:
It is a UDP packet with the destination port set to 6081 (this value is user configurable).
The ingress interface is the VTEP source interface.
The ingress interface IP address is the same as the destination IP address.
The Geneve packet format is compliant with the standard.
When the Firewall Threat Defense sends a packet to a device behind a peer VTEP, the Firewall Threat Defense needs two important pieces of information:
The destination MAC address of the remote device
The destination IP address of the peer VTEP
The Firewall Threat Defense maintains a mapping of destination MAC addresses to remote VTEP IP addresses for the VNI interfaces.
There are two ways in which the Firewall Threat Defense can find this information:
A single peer VTEP IP address can be statically configured on the Firewall Threat Defense.
For IPv4: The Firewall Threat Defense then sends a VXLAN-encapsulated ARP broadcast to the VTEP to learn the end node MAC address.
For IPv6: The Firewall Threat Defense then sends an IPv6 Neighbor Solicitation message to the IPv6 solicited-node multicast address. The peer VTEP responds with an IPv6 Neighbor Advertisement message with its link-local address.
A group of peer VTEP IP addresses can be statically configured on the Firewall Threat Defense.
For IPv4: The Firewall Threat Defense then sends a VXLAN-encapsulated ARP broadcast to the VTEP to learn the end node MAC addresses.
For IPv6: The Firewall Threat Defense then sends an IPv6 Neighbor Solicitation message to the IPv6 solicited-node multicast address. The peer VTEP responds with an IPv6 Neighbor Advertisement message with its link-local address.
A multicast group can be configured on each VNI interface (or on the VTEP as a whole).
For IPv4: The Firewall Threat Defense sends a VXLAN-encapsulated ARP broadcast packet within an IP multicast packet through the VTEP source interface. The response to this ARP request enables the Firewall Threat Defense to learn both the remote VTEP IP address along with the destination MAC address of the remote end node.
For IPv6: The Firewall Threat Defense sends a Multicast Listener Discovery (MLD) Report message through the VTEP source interface to indicate that the Firewall Threat Defense is listening on the VTEP interface for the multicast address traffic.
This option is not supported with Geneve.
The Firewall Threat Defense Virtual only supports statically defined peers. You can define the Firewall Threat Defense Virtual peer IP address on the AWS Gateway Load Balancer. Because the Firewall Threat Defense Virtual never initiates traffic to the Gateway Load Balancer, you do not also have to specify the Gateway Load Balancer IP address on the Firewall Threat Defense Virtual; it learns the peer IP address when it receives Geneve traffic. Multicast groups are not supported with Geneve.
This section describes the use cases for implementing VXLAN on the Firewall Threat Defense.
Each Firewall Threat Defense VTEP acts as a bridge or gateway between end nodes such as VMs, servers, and PCs and the VXLAN overlay network. For incoming frames received with VXLAN encapsulation over the VTEP source interface, the Firewall Threat Defense strips out the VXLAN header and forwards it to a physical interface connected to a non-VXLAN network based on the destination MAC address of the inner Ethernet frame.
The Firewall Threat Defense always processes VXLAN packets; it does not just forward VXLAN packets untouched between two other VTEPs.
When you use a bridge group (transparent firewall mode, or optionally routed mode), the Firewall Threat Defense can serve as a VXLAN bridge between a (remote) VXLAN segment and a local segment where both are in the same network. In this case, one member of the bridge group is a regular interface while the other member is a VNI interface.
The Firewall Threat Defense can serve as a router between VXLAN and non-VXLAN domains, connecting devices on different networks.
With a VXLAN-stretched Layer 2 domain, a VM can point to an Firewall Threat Defense as its gateway while the Firewall Threat Defense is not on the same rack, or even when the Firewall Threat Defense is far away over the Layer 3 network.
See the following notes about this scenario:
For packets from VM3 to VM1, the destination MAC address is the Firewall Threat Defense MAC address, because the Firewall Threat Defense is the default gateway.
The VTEP source interface on Virtual Server 2 receives packets from VM3, then encapsulates the packets with VNI 3’s VXLAN tag and sends them to the Firewall Threat Defense.
When the Firewall Threat Defense receives the packets, it decapsulates the packets to get the inner frames.
The Firewall Threat Defense uses the inner frames for route lookup, then finds that the destination is on VNI 2. If it does not already have a mapping for VM1, the Firewall Threat Defense sends an encapsulated ARP broadcast on the multicast group IP on VNI 2.
Note |
The Firewall Threat Defense must use dynamic VTEP peer discovery because it has multiple VTEP peers in this scenario. |
The Firewall Threat Defense encapsulates the packets again with the VXLAN tag for VNI 2 and sends the packets to Virtual Server 1. Before encapsulation, the Firewall Threat Defense changes the inner frame destination MAC address to be the MAC of VM1 (multicast-encapsulated ARP might be needed for the Firewall Threat Defense to learn the VM1 MAC address).
When Virtual Server 1 receives the VXLAN packets, it decapsulates the packets and delivers the inner frames to VM1.
Note |
This use case is the only currently supported use case for Geneve interfaces. |
The AWS Gateway Load Balancer combines a transparent network gateway and a load balancer that distributes traffic and scales virtual appliances on demand. The Firewall Threat Defense Virtual supports the Gateway Load Balancer centralized control plane with a distributed data plane (Gateway Load Balancer endpoint). The following figure shows traffic forwarded to the Gateway Load Balancer from the Gateway Load Balancer endpoint. The Gateway Load Balancer balances traffic among multiple Firewall Threat Defense Virtuals, which inspect the traffic before either dropping it or sending it back to the Gateway Load Balancer (U-turn traffic). The Gateway Load Balancer then sends the traffic back to the Gateway Load Balancer endpoint and to the destination.
Note |
This use case is the only supported use case for Geneve interfaces. |
The Firewall Threat Defense Virtual supports the Gateway Load Balancer centralized control plane with a distributed data plane (Gateway Load Balancer endpoint) in single-arm and dual-arm mode. The following figure shows outbound traffic (traffic inspected by Firewall Threat Defense Virtual) directly forwarded to the destination (internet) without the need for traffic hop to the GWLB and GWLB endpoint. The Firewall Threat Defense Virtual inspect the outbound traffic and perform NAT before either dropping it or sending it back to the internet through NAT gateway. Dual-arm proxy provides a common egress path for multi-VPC deployment. The firewall inspects the outbound traffic from multiple VPCs, and it exits from a single point to the internet, making it a cost-effective infrastructure solution.
In an Azure service chain, Firewall Threat Defense Virtuals act as a transparent gateway that can intercept packets between the internet and the customer service. The Firewall Threat Defense Virtual defines an external interface and an internal interface on a single NIC by utilizing VXLAN segments in a paired proxy.
The following figure shows traffic forwarded to the Azure Gateway Load Balancer from the Public Gateway Load Balancer on the external VXLAN segment. The Gateway Load Balancer balances traffic among multiple Firewall Threat Defense Virtuals, which inspect the traffic before either dropping it or sending it back to the Gateway Load Balancer on the internal VXLAN segment. The Azure Gateway Load Balancer then sends the traffic back to the Public Gateway Load Balancer and to the destination.
VXLAN encapsulation is supported on all models.
Geneve encapsulation is supported for the following models:
Firewall Threat Defense Virtual in Amazon Web Services (AWS)
VXLAN in paired proxy mode is supported for the following models:
Firewall Threat Defense Virtual in Azure
Firepower 1010 and Secure Firewall 1210/1220 switch ports and VLAN interfaces are not supported as VTEP interfaces.
Geneve interfaces are only supported in routed firewall mode.
Paired proxy VXLAN interfaces are only supported in routed firewall mode.
The VNI interface supports both IPv4 and IPv6 traffic.
For VXLAN encapsulation, the VTEP source interface supports both IPv4 and IPv6. The Firewall Threat Defense Virtual cluster control link VTEP source interface only supports IPv4.
For Geneve, the VTEP source interface only supports IPv4.
Clustering does not support VXLAN in Individual Interface mode except for the cluster control link (Firewall Threat Defense Virtual only) Only Spanned EtherChannel mode supports VXLAN.
An exception is made for AWS, which can use an additional Geneve interface for use with the GWLB and for Azure, which can use an additional paired proxy VXLAN interface for use with the GWLB.
Only static routing or Policy Based Routing is supported on the VNI interface; dynamic routing protocols are not supported.
You cannot configure the VTEP source interface for VPN or use it as a VTI.
VXLAN encapsulation—If the source interface MTU is less than 1554 bytes for IPv4 or 1574 bytes for IPv6, then the Firewall Threat Defense automatically raises the MTU to 1554 bytes or 1574 bytes. In this case, the entire Ethernet datagram is being encapsulated, so the new packet is larger and requires a larger MTU. If the MTU used by other devices is larger, then you should set the source interface MTU to be the network MTU + 54 bytes for IPv4 or +64 bytes for IPv6. For the Firewall Threat Defense Virtual, this MTU requires a restart to enable jumbo frame reservation.
Geneve encapsulation—If the source interface MTU is less than 1806 bytes, then the Firewall Threat Defense automatically raises the MTU to 1806 bytes. In this case, the entire Ethernet datagram is being encapsulated, so the new packet is larger and requires a larger MTU. If the MTU used by other devices is larger, then you should set the source interface MTU to be the network MTU + 306 bytes. This MTU requires a restart to enable jumbo frame reservation.
You can configure either VXLAN or Geneve interfaces.
To configure VXLAN, perform the following steps.
Note |
You can configure either VXLAN or Geneve (Firewall Threat Defense Virtual only). For Geneve interfaces, see Configure Geneve Interfaces. |
Note |
For Azure GWLB, the VXLAN interface is configured when you deploy the VM using the ARM template. You can use this section to change your configuration. |
You can configure one VTEP source interface per Firewall Threat Defense device. The VTEP is defined as a Network Virtualization Endpoint (NVE). VXLAN is the default encapsulation type. An exception is made for clustering on the Firewall Threat Defense Virtual in Azure, where you can use one VTEP source interface for the cluster control link and a second one for the data interface connected to the Azure GWLB.
|
Step 1 |
If you want to specify a group of peer VTEPs, add a network object with the peer IP addresses. See Creating Network Objects. |
|
Step 2 |
Choose . |
|
Step 3 |
Click Edit ( |
|
Step 4 |
(Optional) Specify that the source interface is NVE-only. This setting is optional for routed mode where this setting restricts traffic to VXLAN and common management traffic only on this interface. This setting is automatically enabled for transparent firewall mode.
|
|
Step 5 |
Click VTEP if it is not already displaying. |
|
Step 6 |
Check Enable NVE. |
|
Step 7 |
Click Add VTEP. |
|
Step 8 |
For the Encapsulation Type, choose VxLAN. For AWS, you can choose between VxLAN and Geneve. Other platforms have VxLAN chosen automatically. |
|
Step 9 |
Enter the value for the Encapsulation port within the specified range. The default value is 4789. |
|
Step 10 |
Select the VTEP Source Interface. Select from the list of available physical interfaces present on the device. If the source interface MTU is less than 1554 bytes for IPv4 or 1574 bytes for IPv6, then the Firewall Management Center automatically raises the MTU to 1554 bytes or 1574 bytes. |
|
Step 11 |
Select the Neighbor Address. The available options are:
|
|
Step 12 |
Click OK. |
|
Step 13 |
Click Save. |
|
Step 14 |
Configure the routed interface parameters. See Configure Routed Mode Interfaces. |
Add a VNI interface, associate it with the VTEP source interface, and configure basic interface parameters.
For the Firewall Threat Defense Virtual in Azure, you can configure either a regular VXLAN interface, or you can configure a paired proxy mode VXLAN interface for use with the Azure GWLB. Paired proxy mode is the only supported mode with clustering.
|
Step 1 |
Choose . |
|
Step 2 |
Click Edit ( |
|
Step 3 |
Click Interfaces. |
|
Step 4 |
Click Add Interfaces, and then choose VNI Interface. |
|
Step 5 |
Enter the interface Name and Description. |
|
Step 6 |
From the Security Zone drop-down list, choose a security zone or add a new one by clicking New. |
|
Step 7 |
Enter a value for the Priority field within the specified range. By default, 0 is selected. |
|
Step 8 |
Enter a value for the VNI ID between 1 and 10000. This ID is only an internal interface identifier. |
|
Step 9 |
(Paired Proxy VXLAN for Azure GWLB) Enable proxy paired mode and set the required parameters.
|
|
Step 10 |
(Regular VXLAN) Enter a value for the VNI Segment ID between 1 and 16777215. The segment ID is used for VXLAN tagging. |
|
Step 11 |
Enter the Multicast Group IP Address. If you do not set the multicast group for the VNI interface, the default group from the VTEP source interface configuration is used, if available. If you manually set a VTEP peer IP for the VTEP source interface, you cannot specify a multicast group for the VNI interface. |
|
Step 12 |
Check NVE Mapped to VTEP Interface. This option associates this interface with the VTEP source interface. |
|
Step 13 |
Click OK. |
|
Step 14 |
Click Save to save the interface configuration. |
|
Step 15 |
Configure the routed or transparent interface parameters. See Configure Routed and Transparent Mode Interfaces. |
To configure Geneve interfaces for Firewall Threat Defense Virtual, perform the following steps.
Note |
You can configure either VXLAN or Geneve. For information about VXLAN interfaces, see Configure VXLAN Interfaces. |
You can configure one VTEP source interface per Firewall Threat Defense Virtual device. The VTEP is defined as a Network Virtualization Endpoint (NVE).
|
Step 1 |
Choose . |
|
Step 2 |
Click Edit ( |
|
Step 3 |
Click VTEP. |
|
Step 4 |
Check Enable NVE. |
|
Step 5 |
Click Add VTEP. |
|
Step 6 |
For the Encapsulation Type, choose Geneve. |
|
Step 7 |
Enter the value for the Encapsulation port within the specified range. We do not recommend changing the Geneve port; AWS requires a port of 6081. |
|
Step 8 |
Select the VTEP Source Interface. You can select from the list of available physical interfaces present on the device. If the source interface MTU is less than 1806 bytes, then the Firewall Management Center automatically raises the MTU to 1806 bytes. |
|
Step 9 |
Click OK. |
|
Step 10 |
Click Save. |
|
Step 11 |
Configure the routed interface parameters. See Configure Routed Mode Interfaces. |
Add a VNI, associate it with (VTEP) source interface, and configure basic interface parameters.
|
Step 1 |
Choose . |
||
|
Step 2 |
Click Edit ( |
||
|
Step 3 |
Click Interfaces. |
||
|
Step 4 |
Click Add Interfaces, and then choose VNI Interface. |
||
|
Step 5 |
In the Name and Description fields, provide relevant information. |
||
|
Step 6 |
In the VNI ID field, enter a value between 1 and 10000.
|
||
|
Step 7 |
Check the Enable Proxy check box.
This option enables single-arm proxy mode or dual-arm proxy mode. Single-arm proxy mode allows traffic to exit the same interface it entered (U-turn traffic) while the dual-arm proxy mode enables the virtual devices to perform the NAT of the inspected traffic and then directly forward the outbound traffic to the internet without returning it to the GWLB and GWLB endpoint. If you edit the interface later, you cannot disable single-arm proxy mode or dual-arm proxy mode. To do that, you need to delete the existing interface and create a new VNI. This option is only available for a Geneve VTEP. |
||
|
Step 8 |
From the Proxy type drop-down list, choose the proxy mode you want to enable for the interface. If you do not specify the proxy mode for the interface, then by default, single-arm proxy mode is considered. |
||
|
Step 9 |
Select NVE Mapped to VTEP Interface. This option associates this interface with the VTEP source interface. |
||
|
Step 10 |
Click OK. |
||
|
Step 11 |
Click Save. |
The AWS or Azure GWLB requires appliances to answer a health check properly. The GWLB will only send traffic to appliances that are considered healthy. You must configure the Firewall Threat Defense Virtual to respond to an SSH, HTTP, or HTTPS health check.
Configure one of the following methods.
|
Step 1 |
Configure SSH. See Configure Secure Shell Allow SSH from the GWLB IP address. The GWLB will attempt to establish a connection to the Firewall Threat Defense Virtual, and the Firewall Threat Defense Virtual's prompt to log in is taken as proof of health. An SSH login attempt will time out after 1 minute. You will need to configure a longer health check interval on the GWLB to accommodate this timeout. |
|
Step 2 |
Configure HTTP(S) Redirection Using Static Interface NAT with Port Translation. You can configure the Firewall Threat Defense Virtual to redirect health checks to a metadata HTTP(S) server. For HTTP(S) health checks, the HTTP(S) server must reply to the GWLB with a status code in the range 200 to 399. Because the Firewall Threat Defense Virtual has limits on the number of simultaneous management connections, you may choose to offload the health check to an external server. Static interface NAT with port translation lets you redirect a connection to a port (such as port 80) to a different IP address. For example, translate an HTTP packet from the GWLB with a destination of the Firewall Threat Defense Virtual outside interface so that it appears to be from the Firewall Threat Defense Virtual outside interface with a destination of the HTTP server. The Firewall Threat Defense Virtual then forwards the packet to the mapped destination address. The HTTP server responds to the Firewall Threat Defense Virtual outside interface, and then the Firewall Threat Defense Virtual forwards the response back to the GWLB. You need an access rule that allows traffic from the GWLB to the HTTP server.
|
This section includes tasks to complete the regular interface configuration for all models in routed or transparent firewall mode.
Firewall mode interfaces subject traffic to firewall functions such as maintaining flows, tracking flow states at both IP and TCP layers, IP defragmentation, and TCP normalization. You can also optionally configure IPS functions for this traffic according to your security policy.
The types of firewall interfaces you can configure depends on the firewall mode set for the device: routed or transparent mode. See Transparent or Routed Firewall Mode for more information.
Routed mode interfaces (routed firewall mode only)—Each interface that you want to route between is on a different subnet.
Bridge group interfaces (routed and transparent firewall mode)—You can group together multiple interfaces on a network, and the Firewall Threat Defense device uses bridging techniques to pass traffic between the interfaces. Each bridge group includes a Bridge Virtual Interface (BVI) to which you assign an IP address on the network. In routed mode, the Firewall Threat Defense device routes between BVIs and regular routed interfaces. In transparent mode, each bridge group is separate and cannot communicate with each other.
The Firewall Threat Defense device supports both IPv6 and IPv4 addresses on an interface. Make sure you configure a default route for both IPv4 and IPv6.
For routed interfaces, you can configure an IP address on a 31-bit subnet for point-to-point connections. The 31-bit subnet includes only 2 addresses; normally, the first and last address in the subnet is reserved for the network and broadcast, so a 2-address subnet is not usable. However, if you have a point-to-point connection and do not need network or broadcast addresses, a 31-bit subnet is a useful way to preserve addresses in IPv4. For example, the failover link between 2 Firewall Threat Defenses only requires 2 addresses; any packet that is transmitted by one end of the link is always received by the other, and broadcasting is unnecessary. You can also have a directly-connected management station running SNMP or Syslog.
You can use a 31-bit subnet mask for cluster interfaces, excluding the management interface and the Cluster Control Link.
For failover, when you use a 31-bit subnet for the Firewall Threat Defense interface IP address, you cannot configure a standby IP address for the interface because there are not enough addresses. Normally, an interface for failover should have a standby IP address so the active unit can perform interface tests to ensure standby interface health. Without a standby IP address, the Firewall Threat Defense cannot perform any network tests; only the link state can be tracked.
For the failover and optional separate state link, which are point-to-point connections, you can also use a 31-bit subnet.
If you have a directly-connected management station, you can use a point-to-point connection for SSH or HTTP on the Firewall Threat Defense, or for SNMP or Syslog on the management station.
The following features do not support the 31-Bit subnet:
BVI interfaces for bridge groups—The bridge group requires at least 3 host addresses: the BVI, and two hosts connected to two bridge group member interfaces. you must use a /29 subnet or smaller.
Multicast Routing
Do not configure failover links with the procedures in this chapter. See the High availability chapter for more information.
For cluster interfaces, see the clustering chapter for requirements.
For multi-instance mode, shared interfaces are not supported for bridge group member interfaces (in transparent mode or routed mode).
When you use High availability, you must set the IP address and standby address for data interfaces manually; DHCP and PPPoE are not supported. Set the standby IP addresses on the tab in the Monitored Interfaces area. See the High availability chapter for more information.
IPv6 is supported on all interfaces.
You can only configure IPv6 addresses manually in transparent mode.
The Firewall Threat Defense device does not support IPv6 anycast addresses.
DHCPv6 and prefix delegation options are not supported with transparent mode, clustering, or High availability.
For the Firewall Threat Defense Virtual on VMware with bridged ixgbevf interfaces, bridge groups are not supported.
You can create up to 250 bridge groups, with 64 interfaces per bridge group.
Each directly-connected network must be on the same subnet.
The Firewall Threat Defense device does not support traffic on secondary networks; only traffic on the same network as the BVI IP address is supported.
An IP address for the BVI is required for each bridge group for to-the-device and from-the-device management traffic, as well as for data traffic to pass through the Firewall Threat Defense device. For IPv4 traffic, specify an IPv4 address. For IPv6 traffic, specify an IPv6 address.
You can only configure IPv6 addresses manually.
The BVI IP address must be on the same subnet as the connected network. You cannot set the subnet to a host subnet (255.255.255.255).
Management interfaces are not supported as bridge group members.
For multi-instance mode, shared interfaces are not supported for bridge group member interfaces (in transparent mode or routed mode).
For the Firewall Threat Defense Virtual on VMware with bridged ixgbevf interfaces, transparent mode is not supported, and bridge groups are not supported in routed mode.
For the / 1010/ 1210// 1220, you cannot mix logical VLAN interfaces and physical firewall interfaces in the same bridge group.
For the Firepower 4100/9300, data-sharing interfaces are not supported as bridge group members.
In transparent mode, you must use at least 1 bridge group; data interfaces must belong to a bridge group.
In transparent mode, do not specify the BVI IP address as the default gateway for connected devices; devices need to specify the router on the other side of the Firewall Threat Defense as the default gateway.
In transparent mode, the default route, which is required to provide a return path for management traffic, is only applied to management traffic from one bridge group network. This is because the default route specifies an interface in the bridge group as well as the router IP address on the bridge group network, and you can only define one default route. If you have management traffic from more than one bridge group network, you need to specify a regular static route that identifies the network from which you expect management traffic.
Transparent mode is not supported on threat defense virtual instances deployed on Amazon Web Services, Microsoft Azure, Google Cloud Platform, and Oracle Cloud Infrastructure.
In routed mode, to route between bridge groups and other routed interfaces, you must name the BVI.
In routed mode, Firewall Threat Defense-defined EtherChannel interfaces are not supported as bridge group members. EtherChannels on the Firepower 4100/9300 can be bridge group members.
Bidirectional Forwarding Detection (BFD) echo packets are not allowed through the Firewall Threat Defense when using bridge group members. If there are two neighbors on either side of the Firewall Threat Defense running BFD, then the Firewall Threat Defense will drop BFD echo packets because they have the same source and destination IP address and appear to be part of a LAND attack.
The Firewall Threat Defense supports only one 802.1Q header in a packet and does not support multiple headers (known as Q-in-Q support) for firewall interfaces.Note: For inline sets and passive interfaces, the FTD supports Q-in-Q up to two 802.1Q headers in a packet, with the exception of the Firepower 4100/9300, which only supports one 802.1Q header.
Interface problems, such as frequent up/down status changes, can prevent the floating connection timer from applying correctly to the connections going through the interface. If you have problems with an interface’s status, consider clearing all connections after the status becomes stable to clear invalid connections.
This procedure describes how to set the name, security zone, and IPv4 address.
Note |
Not all fields are supported for all interface types. |
Firepower 4100/9300
(Optional) Configure any special interfaces.
Add a Subinterface in Firewall Management Center
(Optional) All other models:
Firewall Threat Defense Virtual on AWS: Configure Geneve Interfaces
Firepower 1010 and Secure Firewall 1210/1220: Configure a VLAN interface
|
Step 1 |
Select and click Edit ( |
||||||||||||||||||||||||||||
|
Step 2 |
Click Edit ( |
||||||||||||||||||||||||||||
|
Step 3 |
In the Name field, enter a name up to 48 characters in length. You cannot start the name with the phrase "cluster". It is reserved for internal use. |
||||||||||||||||||||||||||||
|
Step 4 |
Enable the interface by checking the Enabled check box. |
||||||||||||||||||||||||||||
|
Step 5 |
(Optional) Set this interface to Management Only to limit traffic to management traffic; through-the-box traffic is not allowed. |
||||||||||||||||||||||||||||
|
Step 6 |
(Optional) Add a description in the Description field. The description can be up to 200 characters on a single line, without carriage returns. |
||||||||||||||||||||||||||||
|
Step 7 |
In the Mode drop-down list, choose None. Regular firewall interfaces have the mode set to None. The other modes are for IPS-only interface types. |
||||||||||||||||||||||||||||
|
Step 8 |
From the Security Zone drop-down list, choose a security zone or add a new one by clicking New. The routed interface is a Routed-type interface, and can only belong to Routed-type zones. |
||||||||||||||||||||||||||||
|
Step 9 |
See Configure the MTU for information about the MTU. |
||||||||||||||||||||||||||||
|
Step 10 |
In the Priority field, enter a number ranging from 0–65535. This value is used in the policy based routing configuration. The priority is used to determine how you want to route the traffic across multiple egress interfaces. For more information, see Configure Policy-Based Routing Policy. |
||||||||||||||||||||||||||||
|
Step 11 |
Click the IPv4 tab. To set the IP address, use one of the following options from the IP Type drop-down list. High Availability, clustering, and loopback interfaces only support static IP address configuration; DHCP and PPPoE are not supported.
|
||||||||||||||||||||||||||||
|
Step 12 |
(Optional) See Configure IPv6 Addressing to configure IPv6 addressing on the IPv6 tab. |
||||||||||||||||||||||||||||
|
Step 13 |
(Optional) See Configure the MAC Address to manually configure the MAC address on the Advanced tab. |
||||||||||||||||||||||||||||
|
Step 14 |
(Optional) Set the duplex and speed by clicking .
|
||||||||||||||||||||||||||||
|
Step 15 |

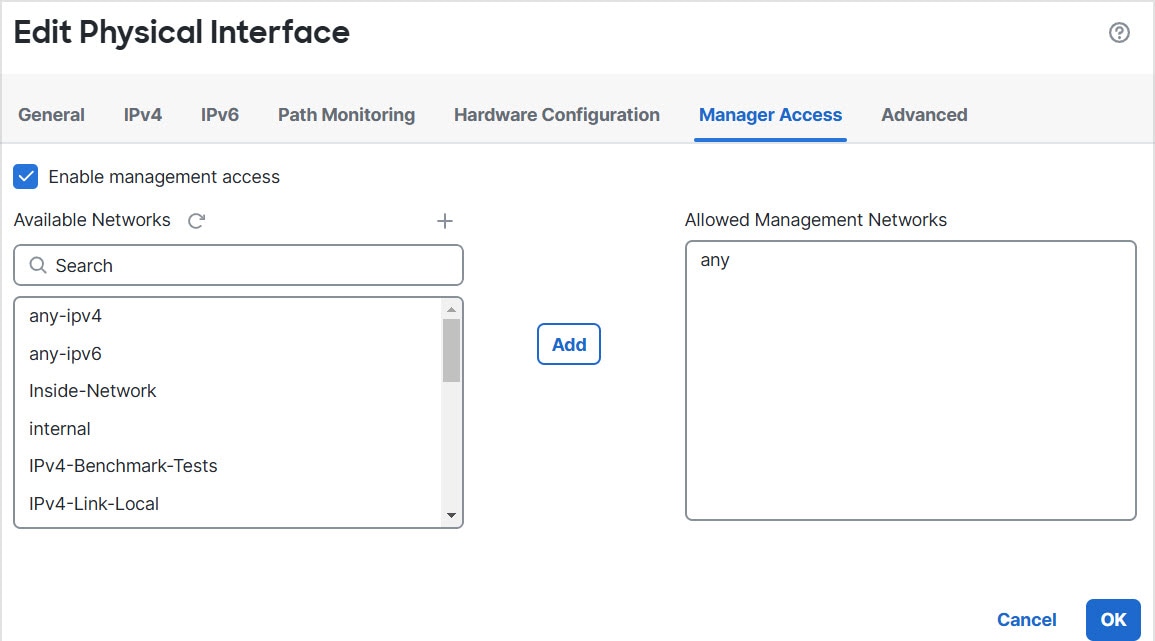

(Optional) Enable Firewall Management Center manager access on a data interface on the Manager Access page. You can enable manager access from a data interface when you first setup the Firewall Threat Defense. If you want to enable or disable manager access after you added the Firewall Threat Defense to the Firewall Management Center, see:
If you want to change the manager access interface from one data interface to another data interface, you must disable manager access on the original data interface, but do not disable the interface itself yet; the original data interface must be used to perform the deployment. If you want to use the same IP address on the new manager access interface, you can delete or change the IP configuration on the original interface; this change should not affect the deployment. If you use a different IP address for the new interface, then also change the device IP address shown in the Firewall Management Center; see Update the Hostname or IP Address in the Firewall Management Center. Be sure to also update related configuration to use the new interface such as static routes, DDNS, and DNS settings. Manager access from a data interface has the following limitations:
|
||||||||||||||||||||||||||||
|
Step 16 |
Click OK. |
||||||||||||||||||||||||||||
|
Step 17 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |
A bridge group is a group of interfaces that the Secure Firewall Threat Defense device bridges instead of routes. Bridge groups are supported in both transparent and routed firewall mode. For more information about bridge groups, see About Bridge Groups.
To configure bridge groups and associated interfaces, perform these steps.
This procedure describes how to set the name and security zone for each bridge group member interface. The same bridge group can include different types of interfaces: physical interfaces, VLAN subinterfaces, Firepower 1010 and Secure Firewall 1210/1220 VLAN interfaces, EtherChannels, and redundant interfaces. The Management interface is not supported. In routed mode, EtherChannels are not supported. For the Firepower 4100/9300, data-sharing type interfaces are not supported.
Firepower 4100/9300
(Optional) Configure any special interfaces.
Add a Subinterface in Firewall Management Center
(Optional) All other models:
Firepower 1010 and Secure Firewall 1210/1220: Configure a VLAN interface
|
Step 1 |
Select and click Edit ( |
||||||||||||||||||||||||||||
|
Step 2 |
Click Edit ( |
||||||||||||||||||||||||||||
|
Step 3 |
In the Name field, enter a name up to 48 characters in length. You cannot start the name with the phrase "cluster". It is reserved for internal use. |
||||||||||||||||||||||||||||
|
Step 4 |
Enable the interface by checking the Enabled check box. |
||||||||||||||||||||||||||||
|
Step 5 |
(Optional) Set this interface to Management Only to limit traffic to management traffic; through-the-box traffic is not allowed. |
||||||||||||||||||||||||||||
|
Step 6 |
(Optional) Add a description in the Description field. The description can be up to 200 characters on a single line, without carriage returns. |
||||||||||||||||||||||||||||
|
Step 7 |
In the Mode drop-down list, choose None. Regular firewall interfaces have the mode set to None. The other modes are for IPS-only interface types. After you assign this interface to a bridge group, the mode will show as Switched. |
||||||||||||||||||||||||||||
|
Step 8 |
From the Security Zone drop-down list, choose a security zone or add a new one by clicking New. The bridge group member interface is a Switched-type interface, and can only belong to Switched-type zones. Do not configure any IP address settings for this interface. You will set the IP address for the Bridge Virtual Interface (BVI) only. Note that the BVI does not belong to a zone, and you cannot apply access control policies to the BVI. |
||||||||||||||||||||||||||||
|
Step 9 |
See Configure the MTU for information about the MTU. |
||||||||||||||||||||||||||||
|
Step 10 |
(Optional) Set the duplex and speed by clicking .
|
||||||||||||||||||||||||||||
|
Step 11 |
(Optional) See Configure IPv6 Addressing to configure IPv6 addressing on the IPv6 tab. |
||||||||||||||||||||||||||||
|
Step 12 |
(Optional) See Configure the MAC Address to manually configure the MAC address on the Advanced tab. |
||||||||||||||||||||||||||||
|
Step 13 |
Click OK. |
||||||||||||||||||||||||||||
|
Step 14 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |
Each bridge group requires a BVI for which you configure an IP address. The Firewall Threat Defense uses this IP address as the source address for packets originating from the bridge group. The BVI IP address must be on the same subnet as the connected network. For IPv4 traffic, the BVI IP address is required to pass any traffic. For IPv6 traffic, you must, at a minimum, configure the link-local addresses to pass traffic, but a global management address is recommended for full functionality, including remote management and other management operations.
For routed mode, if you provide a name for the BVI, then the BVI participates in routing. Without a name, the bridge group remains isolated as in transparent firewall mode.
You cannot add the BVI to a security zone; therefore, you cannot apply Access Control policies to the BVI. You must apply your policy to the bridge group member interfaces based on their zones.
|
Step 1 |
Select and click Edit ( |
|
Step 2 |
Choose . |
|
Step 3 |
(Routed Mode) In the Name field, enter a name up to 48 characters in length. You must name the BVI if you want to route traffic outside the bridge group members, for example, to the outside interface or to members of other bridge groups. The name is not case-sensitive. |
|
Step 4 |
In the Bridge Group ID field, enter the bridge group ID between 1 and 250. |
|
Step 5 |
In the Description field, enter a description for this bridge group. |
|
Step 6 |
On the Interfaces tab, click an interface and then click Add to move it to the Selected Interfaces area. Repeat for all interfaces that you want to make members of the bridge group. |
|
Step 7 |
(Transparent Mode) Click the IPv4 tab. In the IP Address field, enter the IPv4 address and subnet mask. Do not assign a host address (/32 or 255.255.255.255) to the BVI. Also, do not use other subnets that contain fewer than 3 host addresses (one each for the upstream router, downstream router, and transparent firewall) such as a /30 subnet (255.255.255.252). The Firewall Threat Defense device drops all ARP packets to or from the first and last addresses in a subnet. For example, if you use a /30 subnet and assign a reserved address from that subnet to the upstream router, then the Firewall Threat Defense device drops the ARP request from the downstream router to the upstream router. For High Availability, set the standby IP address on the page, click the High Availability tab in the Monitored Interfaces area. If you do not set the standby IP address, the active unit cannot monitor the standby interface using network tests; it can only track the link state. |
|
Step 8 |
(Routed Mode) Click the IPv4 tab. To set the IP address, use one of the following options from the IP Type drop-down list. High Availability and clustering interfaces only support static IP address configuration; DHCP is not supported.
|
|
Step 9 |
(Optional) See Configure IPv6 Addressing to configure IPv6 addressing. |
|
Step 10 |
(Optional) See Add a Static ARP Entry and Add a Static MAC Address and Disable MAC Learning for a Bridge Group (for transparent mode only) to configure the ARP and MAC settings. |
|
Step 11 |
Click OK. |
|
Step 12 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |
This section describes how to configure IPv6 addressing in routed and transparent mode.
This section includes information about IPv6.
You can configure two types of unicast addresses for IPv6:
Global—The global address is a public address that you can use on the public network. For a bridge group, this address needs to be configured for the BVI, and not per member interface. You can also configure a global IPv6 address for the management interface in transparent mode.
Link-local—The link-local address is a private address that you can only use on the directly-connected network. Routers do not forward packets using link-local addresses; they are only for communication on a particular physical network segment. They can be used for address configuration or for the Neighbor Discovery functions such as address resolution. In a bridge group, only member interfaces have link-local addresses; the BVI does not have a link-local address.
At a minimum, you need to configure a link-local address for IPv6 to operate. If you configure a global address, a link-local address is automatically configured on the interface, so you do not also need to specifically configure a link-local address. For bridge group member interfaces, when you configure the global address on the BVI, the Firewall Threat Defense device automatically generates link-local addresses for member interfaces. If you do not configure a global address, then you need to configure the link-local address, either automatically or manually.
RFC 3513: Internet Protocol Version 6 (IPv6) Addressing Architecture requires that the interface identifier portion of all unicast IPv6 addresses, except those that start with binary value 000, be 64 bits long and be constructed in Modified EUI-64 format. The Firewall Threat Defense device can enforce this requirement for hosts attached to the local link.
When this feature is enabled on an interface, the source addresses of IPv6 packets received on that interface are verified against the source MAC addresses to ensure that the interface identifiers use the Modified EUI-64 format. If the IPv6 packets do not use the Modified EUI-64 format for the interface identifier, the packets are dropped and the following system log message is generated:
325003: EUI-64 source address check failed.
The address format verification is only performed when a flow is created. Packets from an existing flow are not checked. Additionally, the address verification can only be performed for hosts on the local link.
The Firewall Threat Defense can act as a DHPCv6 Prefix Delegation client so that the client interface, for example the outside interface connected to a cable modem, can receive one or more IPv6 prefixes that the Firewall Threat Defense can then subnet and assign to its inside interfaces.
The Firewall Threat Defense can act as a DHPCv6 Prefix Delegation client so that the client interface, for example the outside interface connected to a cable modem, can receive one or more IPv6 prefixes that the Firewall Threat Defense can then subnet and assign to its inside interfaces. Hosts connected to the inside interfaces can then use StateLess Address Auto Configuration (SLAAC) to obtain global IPv6 addresses. Note that the inside Firewall Threat Defense interfaces do not in turn act as Prefix Delegation servers; the Firewall Threat Defense can only provide global IP addresses to SLAAC clients. For example, if a router is connected to the Firewall Threat Defense, it can act as a SLAAC client to obtain its IP address. But if you want to use a subnet of the delegated prefix for the networks behind the router, you must manually configure those addresses on the router's inside interfaces.
The Firewall Threat Defense includes a light DHCPv6 server so the Firewall Threat Defense can provide information such as the DNS server and domain name to SLAAC clients when they send Information Request (IR) packets to the Firewall Threat Defense. The Firewall Threat Defense only accepts IR packets, and does not assign addresses to the clients. You will configure the client to generate its own IPv6 address by enabling IPv6 autoconfiguration on the client. Enabling stateless autoconfiguration on a client configures IPv6 addresses based on prefixes received in Router Advertisement messages; in other words, based on the prefix that the Firewall Threat Defense received using Prefix Delegation.
The following example shows the Firewall Threat Defense receiving an IP address on the outside interface using the DHCPv6 address client. It also gets a delegated prefix using the DHCPv6 Prefix Delegation client. The Firewall Threat Defense subnets the delegated prefix into /64 networks and assigns global IPv6 addresses to its inside interfaces dynamically using the delegated prefix plus a manually configured subnet (::0, ::1, or ::2) and IPv6 address (0:0:0:1) per interface. SLAAC clients connected to those inside interfaces obtain IPv6 addresses on each /64 subnet.
The following example shows the Firewall Threat Defense subnetting the prefix into 4 /62 subnets: 2001:DB8:ABCD:1230::/62, 2001:DB8:ABCD:1234::/62, 2001:DB8:ABCD:1238::/62, and 2001:DB8:ABCD:123C::/62. The Firewall Threat Defense uses one of 4 available /64 subnets on 2001:DB8:ABCD:1230::/62 for its inside network (::0). You can then manually use additional /62 subnets for downstream routers. The router shown uses 3 of 4 available /64 subnets on 2001:DB8:ABCD:1234::/62 for its inside interfaces (::4, ::5, and ::6). In this case, the inside router interfaces cannot dynamically obtain the delegated prefix, so you need to view the delegated prefix on the Firewall Threat Defense, and then use that prefix for your router configuration. Usually, ISPs delegate the same prefix to a given client when the lease expires, but if the Firewall Threat Defense receives a new prefix, you will have to modify the router configuration to use the new prefix. The DHCP unique identifier (DUID) is persistent across reboots.
Enable the DHCPv6 Prefix Delegation client on one or more interfaces. The Firewall Threat Defense obtains one or more IPv6 prefixes that it can subnet and assign to inside networks. Typically, the interface on which you enable the prefix delegation client obtains its IP address using the DHCPv6 address client; only other Firewall Threat Defense interfaces use addresses derived from the delegated prefix.
This feature is only supported in routed mode. This feature is not supported in clustering or High Availability.
When you use Prefix Delegation, you must set the Firewall Threat Defense IPv6 neighbor discovery router advertisement interval to be much lower than the preferred lifetime of the prefix assigned by the DHCPv6 Server to prevent IPv6 traffic interruption. For example, if the DHCPv6 server sets the preferred Prefix Delegation lifetime to 300 seconds, you should set the Firewall Threat Defense RA interval to be 150 seconds. To set the preferred lifetime, use the show ipv6 general-prefix command. To set the Firewall Threat Defense RA interval, see Configure IPv6 Neighbor Discovery; the default is 200 seconds.
|
Step 1 |
Select and click Edit ( |
|
Step 2 |
Click Edit ( |
|
Step 3 |

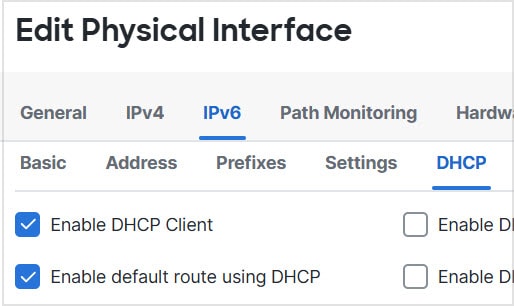

Click the IPv6 page, and then click DHCP. |
|
Step 4 |

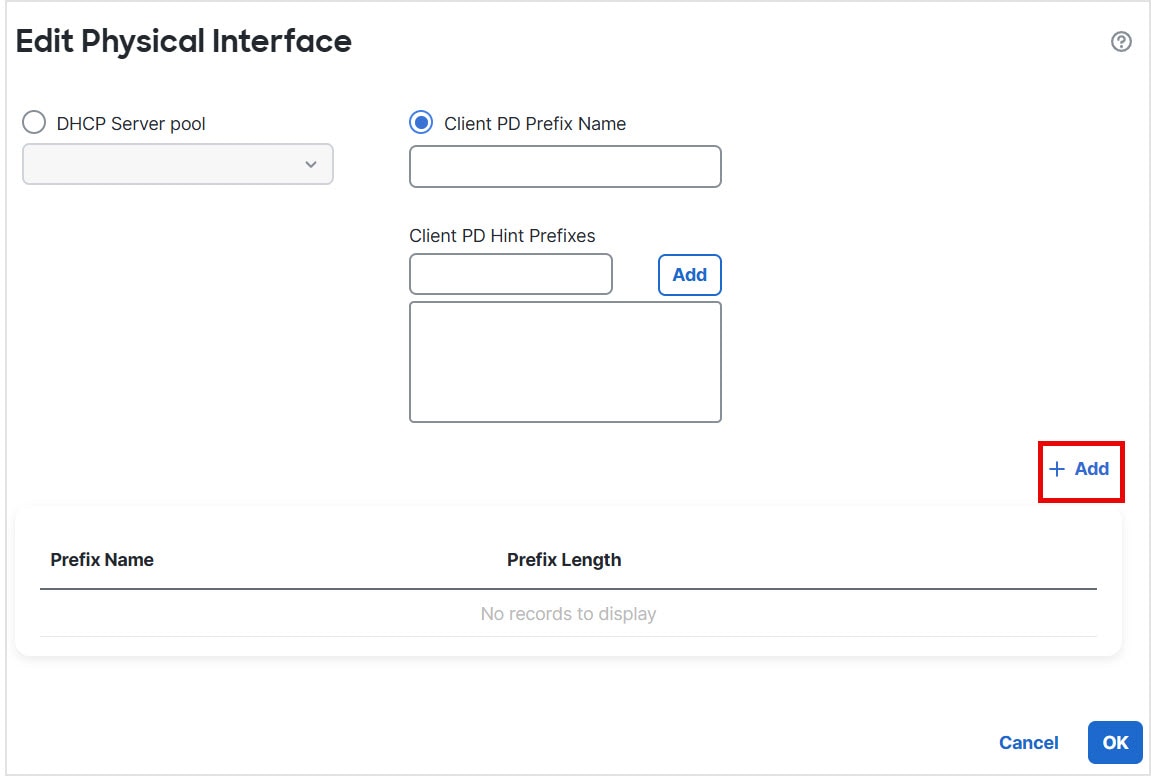

Click Client PD Prefix Name and enter a name for this prefix.
The name can be up to 200 characters. |
|
Step 5 |

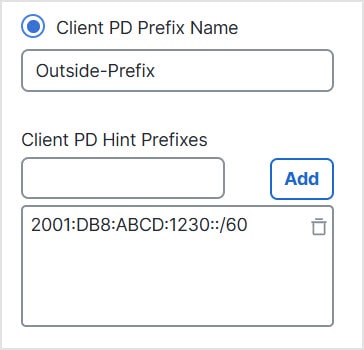

(Optional) Enter the prefix and prefix length in the Client PD Hint Prefixes field to provide one or more hints to the DHCP server about the delegated prefix you want to receive, then click Add. Typically you want to request a particular prefix length, such as ::/60, or if you have received a particular prefix before and want to ensure you get it again when the lease expires, you can enter the whole prefix as the hint. If you enter multiple hints (different prefixes or lengths), then it is up to the DHCP server which hint to honor, or whether to honor the hint at all. |
|
Step 6 |
Click OK. |
|
Step 7 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |

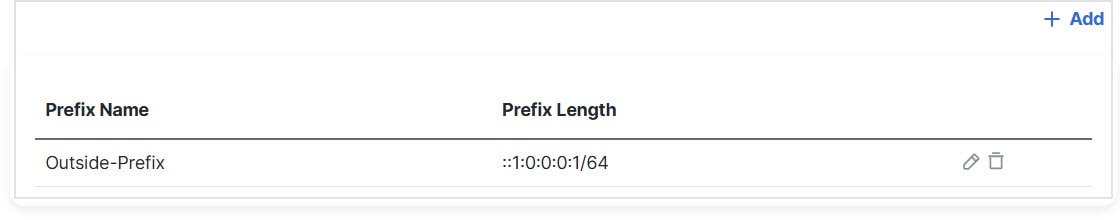

To configure a global IPv6 address for any routed mode interface and for the transparent or routed mode BVI, perform the following steps.
Note |
Configuring the global address automatically configures the link-local address, so you do not need to configure it separately. For bridge groups, configuring the global address on the BVI automatically configures link-local addresses on all member interfaces. For subinterfaces defined on the Firewall Threat Defense, we recommend that you also set the MAC address manually, because they use the same burned-in MAC address of the parent interface. IPv6 link-local addresses are generated based on the MAC address, so assigning unique MAC addresses to subinterfaces allows for unique IPv6 link-local addresses, which can avoid traffic disruption in certain instances on the Firewall Threat Defense. See Configure the MAC Address. |
For IPv6 neighbor discovery for bridge groups, you must explicitly allow Neighbor Solicitation (ICMPv6 type 135) and Neighbor Advertisement (ICMPv6 type 136) packets through the Firewall Threat Defense bridge group member interfaces using a bidirectional access rule.
|
Step 1 |
Select and click Edit ( |
|
Step 2 |
Click Edit ( |
|
Step 3 |
Click the IPv6 page. For routed mode, the Basic page is selected by default. For transparent mode, the Address page is selected by default. |
|
Step 4 |
(Optional) On the Basic page, check Enable IPv6. Use this option if you want to only configure the link-local addresses. Otherwise, configuring an IPv6 address enabled IPv6 processing automatically. |
|
Step 5 |
Configure the global IPv6 address using one of the following methods. For failover and clustering, and for loopback interfaces, you must set the IP address manually. For clustering, manually configuring the link-local address is also not supported.
|
|
Step 6 |
For Routed interfaces, you can optionally set the following values on the Basic page:
|
|
Step 7 |
For Routed interfaces, you can optionally set the following values on the DHCP page:
|
|
Step 8 |
For Routed interfaces, see Configure IPv6 Neighbor Discovery to configure settings on the Prefixes and Settings pages. For BVI interfaces, see the following parameters on the Settings page:
|
|
Step 9 |
Click OK. |
|
Step 10 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |
The IPv6 neighbor discovery process uses ICMPv6 messages and solicited-node multicast addresses to determine the link-layer address of a neighbor on the same network (local link), verify the readability of a neighbor, and keep track of neighboring routers.
Nodes (hosts) use neighbor discovery to determine the link-layer addresses for neighbors known to reside on attached links and to quickly purge cached values that become invalid. Hosts also use neighbor discovery to find neighboring routers that are willing to forward packets on their behalf. In addition, nodes use the protocol to actively keep track of which neighbors are reachable and which are not, and to detect changed link-layer addresses. When a router or the path to a router fails, a host actively searches for functioning alternates.
Supported in Routed mode only. For IPv6 neighbor settings supported in transparent mode, see Configure a Global IPv6 Address.
|
Step 1 |
Select and click Edit ( |
|
Step 2 |
Click Edit ( |
|
Step 3 |
Click IPv6, and then Prefixes. |
|
Step 4 |
(Optional) To configure which IPv6 prefixes are included in IPv6 router advertisements, perform the following steps:
|
|
Step 5 |
Click Settings. |
|
Step 6 |
(Optional) Set the maximum number of DAD attempts, between 1 and 600. 1 attempt is the default. Set the value to 0 to disable duplicate address detection (DAD) processing. This setting configures the number of consecutive neighbor solicitation messages that are sent on an interface while DAD is performed on IPv6 addresses. During the stateless autoconfiguration process, Duplicate Address Detection verifies the uniqueness of new unicast IPv6 addresses before the addresses are assigned to interfaces. When a duplicate address is identified, the state of the address is set to DUPLICATE, the address is not used, and the following error message is generated: If the duplicate address is the link-local address of the interface, the processing of IPv6 packets is disabled on the interface. If the duplicate address is a global address, the address is not used. |
|
Step 7 |
(Optional) Configure the interval between IPv6 neighbor solicitation retransmissions in the NS Interval field, between 1000 and 3600000 ms. The default value is 1000 ms. Neighbor solicitation messages (ICMPv6 Type 135) are sent on the local link by nodes attempting to discover the link-layer addresses of other nodes on the local link. After receiving a neighbor solicitation message, the destination node replies by sending a neighbor advertisement message (ICPMv6 Type 136) on the local link. After the source node receives the neighbor advertisement, the source node and destination node can communicate. Neighbor solicitation messages are also used to verify the reachability of a neighbor after the link-layer address of a neighbor is identified. When a node wants to verifying the reachability of a neighbor, the destination address in a neighbor solicitation message is the unicast address of the neighbor. Neighbor advertisement messages are also sent when there is a change in the link-layer address of a node on a local link. |
|
Step 8 |
(Optional) Configure the amount of time that a remote IPv6 node is considered reachable after a reachability confirmation event has occurred in the Reachable Time field, between 0 and 3600000 ms. The default value is 0 ms. When 0 is used for the value, the reachable time is sent as undetermined. It is up to the receiving devices to set and track the reachable time value. The neighbor reachable time enables detecting unavailable neighbors. Shorter configured times enable detecting unavailable neighbors more quickly, however, shorter times consume more IPv6 network bandwidth and processing resources in all IPv6 network devices. Very short configured times are not recommended in normal IPv6 operation. |
|
Step 9 |
(Optional) To suppress the router advertisement transmissions, uncheck the Enable RA check box. If you enable router advertisement transmissions, you can set the RA lifetime and interval. Router advertisement messages (ICMPv6 Type 134) are automatically sent in response to router solicitation messages (ICMPv6 Type 133). Router solicitation messages are sent by hosts at system startup so that the host can immediately autoconfigure without needing to wait for the next scheduled router advertisement message. You may want to disable these messages on any interface for which you do not want the Firewall Threat Defense to supply the IPv6 prefix (for example, the outside interface).
|
|
Step 10 |
Click OK. |
|
Step 11 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |
This section describes how to configure MAC addresses for regular firewall mode interfaces, how to set the maximum transmission unit (MTU), and how to set other advanced parameters.
This section describes advanced interface settings.
You can manually assign MAC addresses to override the default. For container instances, the FXOS chassis automatically generates unique MAC addresses for all interfaces.
Note |
You might want to assign unique MAC addresses to subinterfaces defined on the Firewall Threat Defense, because they use the same burned-in MAC address of the parent interface. For example, your service provider might perform access control based on the MAC address. Also, because IPv6 link-local addresses are generated based on the MAC address, assigning unique MAC addresses to subinterfaces allows for unique IPv6 link-local addresses, which can avoid traffic disruption in certain instances on the Firewall Threat Defense device. |
Note |
For container instances, even if you are not sharing a subinterface, if you manually configure MAC addresses, make sure you use unique MAC addresses for all subinterfaces on the same parent interface to ensure proper classification. |
For native instances:
Default MAC address assignments depend on the type of interface.
Physical interfaces—The physical interface uses the burned-in MAC address.
VLAN interfaces (Firepower 1010 and Secure Firewall 1210/1220)—Routed firewall mode: All VLAN interfaces share a MAC address. Ensure that any connected switches can support this scenario. If the connected switches require unique MAC addresses, you can manually assign MAC addresses. See Configure the MAC Address.
Transparent firewall mode: Each VLAN interface has a unique MAC address. You can override the generated MAC addresses if desired by manually assigning MAC addresses. See Configure the MAC Address.
EtherChannels (Firepower Models)—For an EtherChannel, all interfaces that are part of the channel group share the same MAC address. This feature makes the EtherChannel transparent to network applications and users, because they only see the one logical connection; they have no knowledge of the individual links. The port-channel interface uses a unique MAC address from a pool; interface membership does not affect the MAC address.
EtherChannels (ASA Models)—The port-channel interface uses the lowest-numbered channel group interface MAC address as the port-channel MAC address. Alternatively you can configure a MAC address for the port-channel interface. We recommend configuring a unique MAC address in case the group channel interface membership changes. If you remove the interface that was providing the port-channel MAC address, then the port-channel MAC address changes to the next lowest numbered interface, thus causing traffic disruption.
Subinterfaces (Firewall Threat Defense-defined)—All subinterfaces of a physical interface use the same burned-in MAC address. You might want to assign unique MAC addresses to subinterfaces. For example, your service provider might perform access control based on the MAC address. Also, because IPv6 link-local addresses are generated based on the MAC address, assigning unique MAC addresses to subinterfaces allows for unique IPv6 link-local addresses, which can avoid traffic disruption in certain instances on the Firewall Threat Defense.
For container instances:
MAC addresses for all interfaces are taken from a MAC address pool. For subinterfaces, if you decide to manually configure MAC addresses, make sure you use unique MAC addresses for all subinterfaces on the same parent interface to ensure proper classification. See Automatic MAC Addresses for Container Instance Interfaces.
The MTU specifies the maximum frame payload size that the Firewall Threat Defense device can transmit on a given Ethernet interface. The MTU value is the frame size without Ethernet headers, VLAN tagging, or other overhead. For example, when you set the MTU to 1500, the expected frame size is 1518 bytes including the headers, or 1522 when using VLAN. Do not set the MTU value higher to accommodate these headers.
For Geneve, the entire Ethernet datagram is being encapsulated, so the new IP packet is larger and requires a larger MTU: you should set the Firewall Threat Defense device VTEP source interface MTU to be the network MTU + 306 bytes.
The Firewall Threat Defense device supports Path MTU Discovery (as defined in RFC 1191), which lets all devices in a network path between two hosts coordinate the MTU so they can standardize on the lowest MTU in the path.
The default MTU on the Firewall Threat Defense device is 1500 bytes. This value does not include the 18-22 bytes for the Ethernet header, VLAN tagging, or other overhead.
For IPv4, if an outgoing IP packet is larger than the specified MTU, it is fragmented into 2 or more frames. Fragments are reassembled at the destination (and sometimes at intermediate hops), and fragmentation can cause performance degradation. For IPv6, packets are typically not allowed to be fragmented at all. Therefore, your IP packets should fit within the MTU size to avoid fragmentation.
For TCP packets, the endpoints typically use their MTU to determine the TCP maximum segment size (MTU - 40, for example). If additional TCP headers are added along the way, for example for site-to-site VPN tunnels, then the TCP MSS might need to be adjusted down by the tunneling entity. See About the TCP MSS.
For UDP or ICMP, the application should take the MTU into account to avoid fragmentation.
Note |
The Firewall Threat Defense device can receive frames larger than the configured MTU as long as there is room in memory. |
A larger MTU lets you send larger packets. Larger packets might be more efficient for your network. See the following guidelines:
Matching MTUs on the traffic path—We recommend that you set the MTU on all Firewall Threat Defense interfaces and other device interfaces along the traffic path to be the same. Matching MTUs prevents intermediate devices from fragmenting the packets.
Accommodating jumbo frames—You can set the MTU 9000 bytes or higher when you enable jumbo frames. The maximum depends on the model.
The TCP maximum segment size (MSS) is the size of the TCP payload before any TCP and IP headers are added. UDP packets are not affected. The client and the server exchange TCP MSS values during the three-way handshake when establishing the connection.
You can set the TCP MSS on the Firewall Threat Defense device for through traffic using the Sysopt_Basic object in FlexConfig; see FlexConfig Policies; by default, the maximum TCP MSS is set to 1380 bytes. This setting is useful when the Firewall Threat Defense device needs to add to the size of the packet for IPsec VPN encapsulation. However, for non-IPsec endpoints, you should disable the maximum TCP MSS on the Firewall Threat Defense device.
If you set a maximum TCP MSS, if either endpoint of a connection requests a TCP MSS that is larger than the value set on the Firewall Threat Defense device, then the Firewall Threat Defense device overwrites the TCP MSS in the request packet with the Firewall Threat Defense device maximum. If the host or server does not request a TCP MSS, then the Firewall Threat Defense device assumes the RFC 793-default value of 536 bytes (IPv4) or 1220 bytes (IPv6), but does not modify the packet. For example, you leave the default MTU as 1500 bytes. A host requests an MSS of 1500 minus the TCP and IP header length, which sets the MSS to 1460. If the Firewall Threat Defense device maximum TCP MSS is 1380 (the default), then the Firewall Threat Defense device changes the MSS value in the TCP request packet to 1380. The server then sends packets with 1380-byte payloads. The Firewall Threat Defense device can then add up to 120 bytes of headers to the packet and still fit in the MTU size of 1500.
You can also configure the minimum TCP MSS; if a host or server requests a very small TCP MSS, the Firewall Threat Defense device can adjust the value up. By default, the minimum TCP MSS is not enabled.
For to-the-box traffic, including for SSL VPN connections, this setting does not apply. The Firewall Threat Defense device uses the MTU to derive the TCP MSS: MTU - 40 (IPv4) or MTU - 60 (IPv6).
By default, the maximum TCP MSS on the Firewall Threat Defense device is 1380 bytes. This default accommodates IPv4 IPsec VPN connections where the headers can equal up to 120 bytes; this value fits within the default MTU of 1500 bytes.
The default TCP MSS assumes the Firewall Threat Defense device acts as an IPv4 IPsec VPN endpoint and has an MTU of 1500. When the Firewall Threat Defense device acts as an IPv4 IPsec VPN endpoint, it needs to accommodate up to 120 bytes for TCP and IP headers.
If you change the MTU value, use IPv6, or do not use the Firewall Threat Defense device as an IPsec VPN endpoint, then you should change the TCP MSS setting using the Sysopt_Basic object in FlexConfig.
Note |
Even if you explicitly set an MSS, if a component such as TLS/SSL decryption or server discovery needs a particular MSS, it will set that MSS based on the interface MTU and ignore your MSS setting. |
See the following guidelines:
Normal traffic—Disable the TCP MSS limit and accept the value established between connection endpoints. Because connection endpoints typically derive the TCP MSS from the MTU, non-IPsec packets usually fit this TCP MSS.
IPv4 IPsec endpoint traffic—Set the maximum TCP MSS to the MTU - 120. For example, if you use jumbo frames and set the MTU to 9000, then you need to set the TCP MSS to 8880 to take advantage of the new MTU.
IPv6 IPsec endpoint traffic—Set the maximum TCP MSS to the MTU - 140.
By default, all ARP packets are allowed between bridge group members. You can control the flow of ARP packets by enabling ARP inspection.
ARP inspection prevents malicious users from impersonating other hosts or routers (known as ARP spoofing). ARP spoofing can enable a “man-in-the-middle” attack. For example, a host sends an ARP request to the gateway router; the gateway router responds with the gateway router MAC address. The attacker, however, sends another ARP response to the host with the attacker MAC address instead of the router MAC address. The attacker can now intercept all the host traffic before forwarding it on to the router.
ARP inspection ensures that an attacker cannot send an ARP response with the attacker MAC address, so long as the correct MAC address and the associated IP address are in the static ARP table.
When you enable ARP inspection, the Firewall Threat Defense device compares the MAC address, IP address, and source interface in all ARP packets to static entries in the ARP table, and takes the following actions:
If the IP address, MAC address, and source interface match an ARP entry, the packet is passed through.
If there is a mismatch between the MAC address, the IP address, or the interface, then the Firewall Threat Defense device drops the packet.
If the ARP packet does not match any entries in the static ARP table, then you can set the Firewall Threat Defense device to either forward the packet out all interfaces (flood), or to drop the packet.
Note |
The dedicated Management interface never floods packets even if this parameter is set to flood. |
When you use bridge groups, the Firewall Threat Defense learns and builds a MAC address table in a similar way as a normal bridge or switch: when a device sends a packet through the bridge group, the Firewall Threat Defense adds the MAC address to its table. The table associates the MAC address with the source interface so that the Firewall Threat Defense knows to send any packets addressed to the device out the correct interface. Because traffic between bridge group members is subject to the Firewall Threat Defense security policy, if the destination MAC address of a packet is not in the table, the Firewall Threat Defense does not flood the original packet on all interfaces as a normal bridge does. Instead, it generates the following packets for directly-connected devices or for remote devices:
Packets for directly-connected devices—The Firewall Threat Defense generates an ARP request for the destination IP address, so that it can learn which interface receives the ARP response.
Packets for remote devices—The Firewall Threat Defense generates a ping to the destination IP address so that it can learn which interface receives the ping reply.
The original packet is dropped.
If you enable ARP inspection, the default setting is to flood non-matching packets.
The default timeout value for dynamic MAC address table entries is 5 minutes.
By default, each interface automatically learns the MAC addresses of entering traffic, and the Firewall Threat Defense device adds corresponding entries to the MAC address table.
Note |
Secure Firewall Threat Defense device generates a reset packet to reset a connection that is denied by a stateful inspection engine. Here, the destination MAC address of the packet is not determined based on the ARP table lookup but instead it is taken directly from the packets (connections) that are being denied. |
ARP inspection is only supported for bridge groups.
MAC address table configuration is only supported for bridge groups.
Customize the MTU on the interface, for example, to allow jumbo frames.
For the ISA 3000 and the Firewall Threat Defense Virtual: Changing the MTU above 1500 bytes automatically enables jumbo-frame reservation. You must restart the system before you can use jumbo frames. For the Firewall Threat Defense Virtual that supports clustering, you can enable jumbo-frame reservation in the Day0 configuration, so in that case, you do not need to restart. After you restart, you cannot disable jumbo-frame reservation. An exception is for the Firewall Threat Defense Virtual, where you can disable jumbo-frame reservation in the Day0 configuration, if supported. If you use an interface in an inline set, the MTU setting is not used. However, the jumbo-frame reservation setting is relevant to inline sets; jumbo frames enable the inline interfaces to receive packets up to 9000 bytes. To enable jumbo-frame reservation, you must set the MTU of any interface above 1500 bytes.
Jumbo frames are enabled by default on other platforms.
 Caution |
Changing the highest MTU value on the device for a data interface restarts the Snort process when you deploy configuration changes, temporarily interrupting traffic inspection. Inspection is interrupted on all data interfaces, not just the interface you modified. Whether this interruption drops traffic or passes it without further inspection depends on the model of the managed device and the interface type. This caution does not apply to management-only interfaces. See Snort Restart Traffic Behavior for more information. |
|
Step 1 |
Select and click Edit ( |
|
Step 2 |
Click Edit ( |
|
Step 3 |
On the General tab, set the MTU. The minimum and maximum depends on your platform. The default is 1500 bytes. |
|
Step 4 |
Click OK. |
|
Step 5 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |
|
Step 6 |
For the ISA 3000 and the Firewall Threat Defense Virtual, if you set the MTU above 1500 bytes, restart the system to enable jumbo-frame reservation. See Shut Down or Restart the Device. |
You might need to manually assign a MAC address. You can also set the Active and Standby MAC addresses on the window by choosing High Availability from the Add drop-down list. If you set the MAC address for an interface on both screens, the addresses on the tab take precedence.
Note |
For container instances, even if you are not sharing a subinterface, if you manually configure MAC addresses, make sure you use unique MAC addresses for all subinterfaces on the same parent interface to ensure proper classification. |
|
Step 1 |
Select and click Edit ( |
|
Step 2 |
Click Edit ( |
|
Step 3 |
Click the Advanced tab. |
|
Step 4 |
(For clustering in individual interface mode) Choose a MAC address pool from the drop-down list. You can add MAC address pools according to Address Pools. |
|
Step 5 |
(For other modes) Set the active and standby MAC addresses. |
|
Step 6 |
Click OK. |
|
Step 7 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |
By default, all ARP packets are allowed between bridge group members. You can control the flow of ARP packets by enabling ARP inspection (see ARP Inspection). ARP inspection compares ARP packets with static ARP entries in the ARP table.
For routed interfaces, you can enter static ARP entries, but normally dynamic entries are sufficient. For routed interfaces, the ARP table is used to deliver packets to directly-connected hosts. Although senders identify a packet destination by an IP address, the actual delivery of the packet on Ethernet relies on the Ethernet MAC address. When a router or host wants to deliver a packet on a directly connected network, it sends an ARP request asking for the MAC address associated with the IP address, and then delivers the packet to the MAC address according to the ARP response. The host or router keeps an ARP table so it does not have to send ARP requests for every packet it needs to deliver. The ARP table is dynamically updated whenever ARP responses are sent on the network, and if an entry is not used for a period of time, it times out. If an entry is incorrect (for example, the MAC address changes for a given IP address), the entry needs to time out before it can be updated with the new information.
For transparent mode, the Firewall Threat Defense only uses dynamic ARP entries in the ARP table for traffic to and from the Firewall Threat Defense device, such as management traffic.
This screen is only available for named interfaces.
|
Step 1 |
Select and click Edit ( |
|
Step 2 |
Click Edit ( |
|
Step 3 |
Click the Advanced tab, and then click the ARP tab (called ARP and MAC for transparent mode). |
|
Step 4 |
Click ( |
|
Step 5 |
In the IP Address field, enter the IP address of the host. |
|
Step 6 |
In the MAC Address field, enter the MAC address of the host; for example, 00e0.1e4e.3d8b. |
|
Step 7 |
To perform proxy ARP for this address, check the Enable Alias check box. If the Firewall Threat Defense device receives an ARP request for the specified IP address, then it responds with the specified MAC address. |
|
Step 8 |
Click OK, and then click OK again to exit the Advanced settings. |
|
Step 9 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |
Normally, MAC addresses are added to the MAC address table dynamically as traffic from a particular MAC address enters an interface. You can disable MAC address learning; however, unless you statically add MAC addresses to the table, no traffic can pass through the Firewall Threat Defense device. You can also add static MAC addresses to the MAC address table. One benefit to adding static entries is to guard against MAC spoofing. If a client with the same MAC address as a static entry attempts to send traffic to an interface that does not match the static entry, then the Firewall Threat Defense device drops the traffic and generates a system message. When you add a static ARP entry (see Add a Static ARP Entry), a static MAC address entry is automatically added to the MAC address table.
This screen is only available for named BVIs in transparent mode.
|
Step 1 |
Select and click Edit ( |
|
Step 2 |
Click Edit ( |
|
Step 3 |
Click the Advanced tab, and then click the ARP and MAC tab. |
|
Step 4 |
(Optional) Disable MAC learning by unchecking the Enable MAC Learning check box. |
|
Step 5 |
To add a static MAC address, click Add MAC Config. |
|
Step 6 |
In the MAC Address field, enter the MAC address of the host; for example, 00e0.1e4e.3d8b. Click OK. |
|
Step 7 |
Click OK to exit the Advanced settings. |
|
Step 8 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |
This section describes how to prevent IP spoofing, allow full fragment reassembly, and override the default fragment setting set for at the device level in Platform Settings .
Anti-Spoofing
This section lets you enable Unicast Reverse Path Forwarding on an interface. Unicast RPF guards against IP spoofing (a packet uses an incorrect source IP address to obscure its true source) by ensuring that all packets have a source IP address that matches the correct source interface according to the routing table.
Normally, the Firewall Threat Defense device only looks at the destination address when determining where to forward the packet. Unicast RPF instructs the device to also look at the source address; this is why it is called Reverse Path Forwarding. For any traffic that you want to allow through the Firewall Threat Defense device, the device routing table must include a route back to the source address. See RFC 2267 for more information.
For outside traffic, for example, the Firewall Threat Defense device can use the default route to satisfy the Unicast RPF protection. If traffic enters from an outside interface, and the source address is not known to the routing table, the device uses the default route to correctly identify the outside interface as the source interface.
If traffic enters the outside interface from an address that is known to the routing table, but is associated with the inside interface, then the Firewall Threat Defense device drops the packet. Similarly, if traffic enters the inside interface from an unknown source address, the device drops the packet because the matching route (the default route) indicates the outside interface.
Unicast RPF is implemented as follows:
ICMP packets have no session, so each packet is checked.
UDP and TCP have sessions, so the initial packet requires a reverse route lookup. Subsequent packets arriving during the session are checked using an existing state maintained as part of the session. Non-initial packets are checked to ensure they arrived on the same interface used by the initial packet.
Fragment per Packet
By default, the Firewall Threat Defense device allows up to 24 fragments per IP packet, and up to 200 fragments awaiting reassembly. You might need to let fragments on your network if you have an application that routinely fragments packets, such as NFS over UDP. However, if you do not have an application that fragments traffic, we recommend that you do not allow fragments through the Firewall Threat Defense device. Fragmented packets are often used as DoS attacks.
Fragment Reassembly
The Firewall Threat Defense device performs the following fragment reassembly processes:
IP fragments are collected until a fragment set is formed or until a timeout interval has elapsed.
If a fragment set is formed, integrity checks are performed on the set. These checks include no overlapping, no tail overflow, and no chain overflow.
IP fragments that terminate at the Firewall Threat Defense device are always fully reassembled.
If Full Fragment Reassembly is disabled (the default), the fragment set is forwarded to the transport layer for further processing.
If Full Fragment Reassembly is enabled, the fragment set is first coalesced into a single IP packet. The single IP packet is then forwarded to the transport layer for further processing.
This screen is only available for named interfaces.
|
Step 1 |
Select and click Edit ( |
|
Step 2 |
Click Edit ( |
|
Step 3 |
Click the Advanced tab, and then click the Security Configuration tab. |
|
Step 4 |
To enable Unicast Reverse Path Forwarding, check the Enable Anti Spoofing check box. |
|
Step 5 |
To enable full fragment reassembly, check the Allow Full Fragment Reassembly check box. |
|
Step 6 |
To change the number of fragments allowed per packet, check the Override Default Fragment Setting check box, and set the following values:
|
|
Step 7 |
Click OK. |
|
Step 8 |
Click Save. You can now go to and deploy the policy to assigned devices. The changes are not active until you deploy them. |
|
Feature |
Minimum Firewall Management Center |
Minimum Firewall Threat Defense |
Details |
||
|---|---|---|---|---|---|
|
Secure Firewall 1210CP IEEE 802.3bt support (PoE++ and Hi-PoE) |
7.7.0 |
7.7.0 |
See the following improvements related to support for IEEE 802.3bt:
New/Modified screens: New/Modified commands: show power inline |
||
|
For models with built-in-switches, subinterfaces can't use VLAN 1 |
7.6 | 7.6 |
For models with built-in switches, you cannot create a subinterface using VLAN 1. VLAN 1 is reserved for the logical VLAN interface for switch ports. If you upgrade a 1010 to 7.6 or later, and you have assigned VLAN 1 to a subinterface, you must change the VLAN ID for your subinterface to a new VLAN. You will not be able to deploy the configuration using VLAN 1. |
||
|
Secure Firewall supports Dual-Arm Deployment Mode on AWS with GWLB |
7.6 | 7.6 | The Secure Firewall supports the dual-arm deployment mode on AWS with GWLB. This mode enables the firewall to directly forward internet-bound traffic to the internet through the internet gateway after traffic inspection, while also performing network address translation (NAT). | ||
|
Secure Firewall 1210/1220 hardware switch support |
7.6 |
7.6 |
The Secure Firewall 1210/1220 supports setting each Ethernet interface to be a switch port or a firewall interface |
||
|
Secure Firewall 1210CP PoE+ support on Ethernet ports 1/5-1/8 |
7.6 |
7.6 |
The Secure Firewall 1210CP supports Power over Ethernet+ (PoE+) on Ethernet ports 1/5-1/8. |
||
|
VXLAN VTEP IPv6 support |
7.4 |
Any |
You can now specify an IPv6 address for the VXLAN VTEP interface. IPv6 is not supported for the threat defense virtual cluster control link or for Geneve encapsulation. New/Modified screens: Requires Firewall Threat Defense version 7.4. |
||
|
Loopback interface support for BGP and management traffic |
7.4 |
Any |
You can use a loopback interface for:
Requires Firewall Threat Defense version 7.4. |
||
|
Loopback interface support for VTI |
7.3 |
Any |
You can now add a loopback interface. The loopback interface helps to overcome path failures. If an interface goes down, you can access all interfaces through the IP address assigned to the loopback interface. For VTI, in addition to setting a loopback interface as the source interface, support has also been added to inherit the IP address from a loopback interface instead of a statically configured IP address. New/Modified screens:
|
||
|
IPv6 DHCP |
7.3 |
Any |
The Firewall Threat Defense now supports the following features for IPv6 addressing:
New/Modified screens: New/Modified commands: show bgp ipv6 unicast, show ipv6 dhcp, show ipv6 general-prefix |
||
|
Paired proxy VXLAN for the Firewall Threat Defense Virtual for the Azure Gateway Load Balancer |
7.3 |
Any |
You can configure a paired proxy mode VXLAN interface for the Firewall Threat Defense Virtual in Azure for use with the Azure Gateway Load Balancer (GWLB). The Firewall Threat Defense Virtual defines an external interface and an internal interface on a single NIC by utilizing VXLAN segments in a paired proxy. New/Modified screens: Supported platforms: Firewall Threat Defense Virtual in Azure |
||
|
VXLAN support |
7.2 |
Any |
VXLAN encapsulation support was added. New/Modified screens:
Supported platforms: All. |
||
|
Geneve support for the Firewall Threat Defense Virtual |
7.1 |
Any |
Geneve encapsulation support was added for the Firewall Threat Defense Virtual to support single-arm proxy for the Amazon Web Services (AWS) Gateway Load Balancer. The AWS Gateway Load Balancer combines a transparent network gateway (with a single entry and exit point for all traffic) and a load balancer that distributes traffic and scales Firewall Threat Defense Virtual to match the traffic demand. This feature requires Snort 3. New/Modified screens:
Supported platforms: Firewall Threat Defense Virtual in AWS |
||
|
31-bit Subnet Mask |
7.0 |
Any |
For routed interfaces, you can configure an IP address on a 31-bit subnet for point-to-point connections. The 31-bit subnet includes only 2 addresses; normally, the first and last address in the subnet is reserved for the network and broadcast, so a 2-address subnet is not usable. However, if you have a point-to-point connection and do not need network or broadcast addresses, a 31-bit subnet is a useful way to preserve addresses in IPv4. For example, the failover link between 2 FTDs only requires 2 addresses; any packet that is transmitted by one end of the link is always received by the other, and broadcasting is unnecessary. You can also have a directly-connected management station running SNMP or Syslog. This feature is not supported for BVIs for bridge groups or with multicast routing. New/Modified screens:
|
||
|
Synchronization between the Firewall Threat Defense operational link state and the physical link state for the Firepower 4100/9300 |
6.7 |
Any |
The Firepower 4100/9300 chassis can now synchronize the Firewall Threat Defense operational link state with the physical link state for data interfaces. Currently, interfaces will be in an Up state as long as the FXOS admin state is up and the physical link state is up. The Firewall Threat Defense application interface admin state is not considered. Without synchronization from Firewall Threat Defense, data interfaces can be in an Up state physically before the Firewall Threat Defense application has completely come online, for example, or can stay Up for a period of time after you initiate an Firewall Threat Defense shutdown. For inline sets, this state mismatch can result in dropped packets because external routers may start sending traffic to the Firewall Threat Defense before the Firewall Threat Defense can handle it. This feature is disabled by default, and can be enabled per logical device in FXOS.
New/Modified Firepower Chassis Manager screens: New/Modified FXOS commands: set link-state-sync enabled, show interface expand detail Supported platforms: Firepower 4100/9300 |
||
|
Firepower 1010 hardware switch support |
6.5 |
Any |
The Firepower 1010 supports setting each Ethernet interface to be a switch port or a firewall interface. New/Modified screens: |
||
|
Firepower 1010 PoE+ support on Ethernet 1/7 and Ethernet 1/8 |
6.5 |
Any |
The Firepower 1010 supports Power over Ethernet+ (PoE+) on Ethernet 1/7 and Ethernet 1/8 when they are configured as switch ports. New/Modified screens:
|
||
|
VLAN subinterfaces for use with container instances |
6.3.0 |
Any |
To provide flexible physical interface use, you can create VLAN subinterfaces in FXOS and also share interfaces between multiple instances. New/Modified Secure Firewall Management Center screens: icon > Interfaces tab New/Modified Secure Firewall Chassis Manager screens: drop-down menu Subinterface New/Modified FXOS commands: create subinterface, set vlan, show interface,show subinterface Supported platforms: Firepower 4100/9300 |
||
|
Data-sharing interfaces for container instances |
6.3.0 |
Any |
To provide flexible physical interface use, you can share interfaces between multiple instances. New/Modified Secure Firewall Chassis Manager screens:
New/Modified FXOS commands: set port-type data-sharing, show interface Supported platforms: Firepower 4100/9300 |
||
|
Integrated Routing and Bridging |
6.2.0 |
Any |
Integrated Routing and Bridging provides the ability to route between a bridge group and a routed interface. A bridge group is a group of interfaces that the Firewall Threat Defense bridges instead of routes. The Firewall Threat Defense is not a true bridge in that the Firewall Threat Defense continues to act as a firewall: access control between interfaces is controlled, and all of the usual firewall checks are in place. Previously, you could only configure bridge groups in transparent firewall mode, where you cannot route between bridge groups. This feature lets you configure bridge groups in routed firewall mode, and to route between bridge groups and between a bridge group and a routed interface. The bridge group participates in routing by using a Bridge Virtual Interface (BVI) to act as a gateway for the bridge group. Integrated Routing and Bridging provides an alternative to using an external Layer 2 switch if you have extra interfaces on the Firewall Threat Defense to assign to the bridge group. In routed mode, the BVI can be a named interface and can participate separately from member interfaces in some features, such as access rules and DHCP server. The following features that are supported in transparent mode are not supported in routed mode: clustering. The following features are also not supported on BVIs: dynamic routing and multicast routing. New/Modified screens: Supported platforms: All except for the Firepower 2100 and the Firewall Threat Defense Virtual |
Feedback
