Release Notes for NX-OS Live Protect Shield-LP00071, Release 10.6(3)



CVE-2026-76486 - Cisco Nexus 3000 and 9000 Series Switches VXLAN OAM (NGOAM) Remote Code Execution Vulnerability ​

Live Protect Shield

Cisco has released Live Protect shield for CVE-2026-76486 to temporarily mitigate this vulnerability in Cisco NX-OS Software.

For information about Live Protect for Cisco NX-OS Software, see Cisco Nexus 9000 Series NX-OS Security Configuration Guide.

Note: Live Protect shield is a temporary mitigation to bridge the gap until software updates can be scheduled. To fully remediate this vulnerability, upgrade to a fixed software release, which can be found using the Cisco Software Checker.

Overview

A vulnerability in the VXLAN Operation, Administration, and Maintenance (OAM) feature of Cisco NX-OS Software, known as NGOAM, could allow an unauthenticated, remote attacker to execute arbitrary code with root privileges or cause a Denial-of-Service (DoS) on an affected device.



For additional information refer to the security advisory at the following link.

https://sec.cloudapps.cisco.com/security/center/content/CiscoSecurityAdvisory/cisco-sa-ngoam-rce-LWKQ4BU



Requirements

●      Hardware:

●       N9K-C92348GC-FX3

●       N9K-C9336C-FX2

●       N9K-C9332D-H2R

●       N9K-C9332D-GX2B

●       N9K-C9408

●       N9K-C93180YC-FX

●       N9K-C93108TC-FX

●       N9K-C9348GC-FXP

●       N9K-C93240YC-FX2

●       N9K-C93360YC-FX2

●       N9K-C93216TC-FX2

●       N9K-C93180YC-FX3S

●       N9K-C93180YC-FX3H

●       N9K-C93180YC-FX3

●       N9K-C93180YC-FX-24

●       N9K-C93108TC-FX-24

●       N9K-C93108TC-FX3

●       N9K-C93108TC-FX3H

●       N9K-C93108TC-FX3P

●       N9K-C9348D-GX2A

●       N9K-C9364D-GX2A

●       N9K-C9364C-H1

●       N9K-C9364C-GX

●       N9K-C9348GC-FX3PH

●       N9K-C9348GC-FX3

●       N9K-C93400LD-H1

●       N9K-C9336C-FX2-E

●       N9K-C9316D-GX

●       N9K-C9336C

●       N9K-C93600CD-GX



●      Access: SSH Telnet or NXAPI access required for shield deployment.

Supported Release(s)

Cisco NX-OS Release 10.6(3)

Shield behavior during Upgrade and Downgrade

Upgrade: When upgrading to NX-OS 10.6(4) or higher shield operational mode transitions to N/A.

Downgrade: When downgrading to NX-OS 10.6(2) shield will not be removed. User must remove the shied prior to downgrade using nxsecure policy remove method. Refer to Live Protect Configuration Guide.

Verification & Deployment Flow

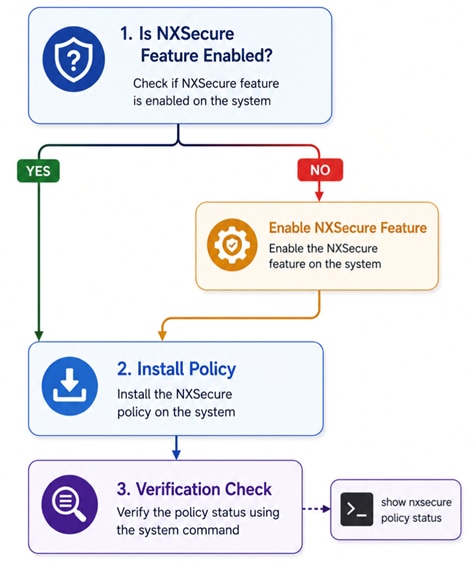

The following process map outlines the validation path after policy deployment:



Verification Details



Policy Status

Use the following command to confirm the shield is in enforce mode:



Shield Log Output

To inspect the hit events use:

Shield Syslog

A syslog is received for every hit:



Reference

For detailed installation steps about Live Protect for Cisco NX-OS Software, see Cisco Nexus 9000 Series NX-OS Security Configuration Guide.
