Release Notes for NX-OS Live Protect Shield-LP00030, Release 10.6(3)



CVE-2026-20032 - Cisco NX-OS Software Python Sandbox Escape Vulnerability​

Live Protect Shield

Cisco has released Live Protect shield for CVE-2026-20032 to temporarily mitigate this vulnerability in Cisco NX-OS Software.

For information about Live Protect for Cisco NX-OS Software, see Cisco Nexus 9000 Series NX-OS Security Configuration Guide.

Note: Live Protect shield is a temporary mitigation to bridge the gap until software updates can be scheduled. To fully remediate this vulnerability, upgrade to a fixed software release, which can be found using the Cisco Software Checker.

Overview

A vulnerability in the Python interpreter of Cisco NX-OS Software could allow an authenticated, local attacker with low privileges to escape the Python sandbox and gain unauthorized access to the underlying operating system of an affected device.

For additional information, refer to the security advisory at the following link.

https://sec.cloudapps.cisco.com/security/center/content/CiscoSecurityAdvisory/cisco-sa-nxos-mppe-dhKZAFgb



Requirements

·       Hardware:

●        N9K-C92348GC-FX3

●        N9K-C9336C-FX2

●        N9K-C9332D-H2R

●        N9K-C9332D-GX2B

●        N9K-C9408

●        N9K-C93180YC-FX

●        N9K-C93108TC-FX

●        N9K-C9348GC-FXP

●        N9K-C93240YC-FX2​

●        N9K-C93360YC-FX2​

●        N9K-C93216TC-FX2​

●        N9K-C93180YC-FX3S​

●        N9K-C93180YC-FX3H​

●        N9K-C93180YC-FX3​

●        N9K-C93180YC-FX-24​

●        N9K-C93108TC-FX-24​

●        N9K-C93108TC-FX3​

●        N9K-C93108TC-FX3H​

●        N9K-C93108TC-FX3P​

●        N9K-C9348D-GX2A​

●        N9K-C9364D-GX2A​

●        N9K-C9364C-H1

●        N9K-C9364C-GX

●        N9K-C9364C-GX1

●        N9K-C9348GC-FX3PH

●        N9K-C9348GC-FX3

●        N9K-C93400LD-H1

●        N9K-C9336C-FX2-E

●        N9K-9336C-SE1

●        N9K-C9316D-GX

●        N9K-C9336C

●        N9K-C93600CD-GX

●        N9396T12C-SE1

●        N9324C-SE1U

●        N9348Y2C6D-SE1U

●        N9396Y12C-SE1 ​

●        N9348Y12C-SE1

●        N9364E-SG2-O

●        N9364E-SG2-Q

●        N9336C-SE





●      Access: SSH, Telnet, or NXAPI access required for shield deployment.

Supported Release(s)

Cisco NX-OS Release 10.6(3)

Shield behavior during Upgrade and Downgrade

Upgrade: When upgrading to NX-OS 10.6(4) or higher, shield operational mode transitions to N/A.

Downgrade: When downgrading to NX-OS 10.6(2), shield will not be removed. User must remove the shied prior to downgrade using nxsecure policy remove method. Refer to Live Protect Configuration Guide.

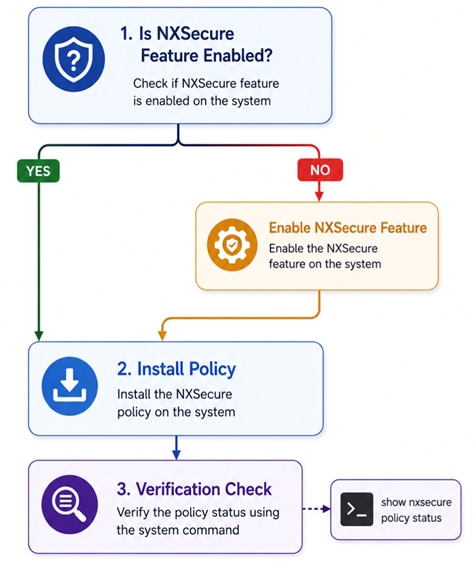

Verification & Deployment Flow

The following process map outlines the validation path after policy deployment:



Verification Details

Policy Status

Use the following command to confirm the shield is in enforce mode:



Shield Log Output

To inspect the hit events, use:

Shield Syslog

A syslog is received for every hit:



Reference

For detailed installation steps about Live Protect for Cisco NX-OS Software, see Cisco Nexus 9000 Series NX-OS Security Configuration Guide.
