Cisco 200G QSFP56 Cables and Transceiver Modules Data Sheet



The Cisco^® family of QSFP modules provide solutions for AI/ML data center applications, Network Interface Cards (NICs) on servers, and for data center switches, while leveraging the breakout capabilities and backward compatibility to lower-speed QSFP pluggable modules and cables.

Product overview

The Cisco 200GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of super high-density transceiver modules and the flexibility of 200 Gigabit Ethernet connectivity options for data center, AI/ML, high performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP56 modules and cables are part of Cisco Optics complete portfolio of QSFP-based pluggable solutions.

Table 1.           Feature and Benefits of Cisco QSFP56 Modules

Table 2.           Cisco 200G QSFP56 portfolio

Note:       Only connections with patch cords with PC or Ultra-Physical Contact (UPC) connectors are supported.

All cables and cable assemblies used must be compliant with the standards specified in the standards section of this datasheet. For more information and references on QSFP cable guides, please click on the following link: Cisco Transceiver Modules – Brochures – Cisco.

Cisco 200G QSFP56 transceiver prominent features and differentiators

Cisco QSFP-200-CuxM

QSFP-200-CuxM

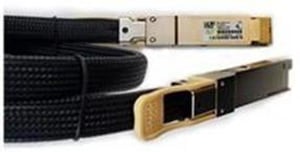

The Cisco 200G QSFP-200-CuxM module (Figure 1) primarily enables high-bandwidth 200G links and supports 200G & 100G Ethernet rates. It provides a port-to-port passive copper direct-attach solution. QSFP-200-CuxM cables are suitable for very short links and offer a cost-effective way to establish a 200-Gigabit link between ports of switches/routers within racks and across adjacent racks. Cisco currently offers 200G QSFP-200-CuxM passive copper cables in lengths of 1, 2, and 3 meters. Forward Error Correction (FEC) is performed on the host platform.

Cisco QSFP-4S50-CUxM

QSFP-4S50-CUxM

The Cisco 200G QSFP-4S50-CUxM passive copper cable (Figure 2) enables high-bandwidth breakout from a 200G port to four SFP56 50GE links. It provides a QSFP56 to 4x SFP56 50GBASE-CR copper direct-attach solution. QSFP-4S50-CuxM cables are suitable for very short links and offer a cost-effective way to establish a 4x 50-Gigabit link between a QSFP 200G port and four SFP56 50GE ports on switches or servers within or between adjacent racks. Cisco currently offers 200G QSFP-4S50-CUxM passive copper cables in lengths of 1, 2, and 3 meters. FEC is performed on the host platform.

Cisco QDD-4ZQ100-CUxM

QDD-4ZQ100-CUxM

The Cisco 400G QDD-4ZQ100-CUxM passive copper cable (Figure 3) enables high-bandwidth breakout from a 400G port to four QSFP56 100GE links. It provides a QSFP-DD-to-4x QSFP56 100GBASE-CR2 copper direct-attach solution. QDD-4ZQ100-CuxM cables are suitable for very short links and offer a cost-effective way to establish a 4x 100-Gigabit link between a QSFP-DD 400G port and four 100GE ports on switch or servers within or between adjacent racks. Cisco currently offers 400G QDD-4ZQ100-CUxM passive copper cables in lengths of 1, 2, 2.5, and 3 meters. FEC is performed on the host platform.

Cisco QDD-2Q200-CU3M

QDD-2Q200-CU3M

The Cisco QDD-2Q200-CU3M passive copper cable (Figure 4) provides high-bandwidth breakout from a 400G port to two 200GE links. It provides a QSFP-DD-to-2x QSFP56 200GBASE-CR4 copper direct-attach solution. QDD-2Q200-Cu3M cables are suitable for very short links and offer a cost-effective way to establish a 2x 200- Gigabit link between a QSFP-DD 400G port and two 200GE ports on switches or servers within or between adjacent racks. Cisco currently offers QDD-2Q200-CU3M passive copper cables in 3 meters lengths. FEC is performed on the host platform.

Cisco QSFP-200G-SR4-S

QSFP-200G-SR4-S

The Cisco QSFP-200G-SR4-S Module (Figure 5) supports 200GE links and up to two 100GBASE-SR2 breakout links or four 50GBASE-SR lengths of up to 100m over OM4 MMF. The module has four pairs of Multi-Mode Fiber (MMF) with an MPO-12 UPC connector. It is compliant to the IEEE 802.3bm protocol and 200GAUI-4/CEI-56G-VSR-PAM4 standards. The 200 Gigabit Ethernet signal is carried over four parallel pairs of fibers at a nominal wavelength of 850nm at 50Gbps per fiber. It can also be used as 2x100GE breakout to 100GBASE-SR2 modules. FEC is performed on the host platform.

Cisco QSFP-200G-SL4

QSFP-200G-SL4

The Cisco QSFP-200G-SR4 Short Link QSFP Module (Figure 6) supports 200GE links and up to two 100GBASE-SR2 breakout links or four 50GBASE-SR lengths of up to 30m over OM4 MMF. The module has four pairs of MMF with an MPO-12 UPC connector. It is compliant to the 200GAUI-4/CEI-56G-VSR-PAM4 standards. The 200 Gigabit Ethernet signal is carried over four parallel pairs of fibers by two 50Gbps at a nominal wavelength of 850nm. FEC is performed on the host platform.

QDD-200G-FR4-S

QSFP-200G-FR4-S

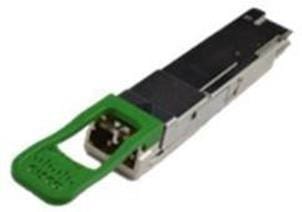

The Cisco QSFP-200G-FR4-S Module (Figure 7) supports link lengths of up to 2km SMF with a duplex LC connector. It is compliant to IEEE 802.3 for 200GBASE-FR4 requirements, and 200GAUI-4/CEI-56G-VSR-PAM4 standards. The 200 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. FEC is performed on the host platform.

Table 3.           QSFP port and cabling specifications

Platform support

Cisco QSFP modules are supported on Cisco switches, routers and NICs as well as third-party host platforms and NICs. For more details, refer to the Cisco Transceiver Modules Compatibility Matrix.

Specifications

Table 4.           Electrical specifications

Table 5.           Optical specifications

Table 6.           Mechanical specifications

QSFP Breakout Capability and Module Interoperation

Some of Cisco’s QSFP modules have the capability to be operated in breakout mode on specific platforms. This allow the QSFP port to be configured as if it were two 100G or four 50GE ports. This function provides users the ability to use the latest 200G or 400G ports platforms with the latest features while still providing connectivity to existing 50GE or 100GE platforms that are already in the network. This eases the migration to higher speeds on a port-by-port basis while providing very-high density Ethernet interfaces. These modules will interoperate with Cisco as well as 3rd party modules that comply with the same standards. Tables 7-10 provides brief overview of the various optical breakout options, compatibility and reach to 100GE modules. Module optical interoperability can also be verified with the Cisco Module Interoperability Matrix.

Table 7.           QSFP56 MMF PAM4 Breakout Interoperation and Link Reach

Table 8.           Ordering information

Regulatory and standards compliance

Standards

●     OIF CEI-56G-VSR-PAM4

●     QSFP56 MSA

●     QSFP-DD MSA hardware Rev 4.1, QSFP-DD hardware specification for QSFP double-density 8X pluggable transceiver

●     GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable

●     GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies

●     GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment

●     GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors

●     Common Management Specification (CMIS) Rev 4.0

●     IEEE Std 802.3^™-2022 IEEE Standard for Ethernet

Safety

●     Laser Class 1 21CFR-1040 LN#50

●     Laser Class 1 IEC60825-1

●     Cable jacket can be certified to UL or CSA jacketed appliance wiring material, rated VW-1 or FT-1

●     All cables must be type CM, CMG, CMP, or CMR. If cable is type CL2 (USA type of cable), it must also be type LVT or ELC (Canadian type of cable)

●     Compliance with North American (FCC/ICES), European (CENELEC), Japanese (VCCI), and Telcordia NEBS standards

●     GR-1089 EMC and Electrical Safety - Generic Criteria for Network Telecommunications Equipment

●     EMI compliance on FCC Part 15 (30 MHz – 40 GHz) and CISPR32/CISPR22 (30-6000 MHz)

●     RFI compliance on EN/IEC 61000-4-3 and GR-1089-CORE (10k to 10 GHz)

●     ESD compliance on EN/IEC 61000-4-2 and GR-1089

●     Certification to IEC/EN 60825-1 +A2

●     RoHS 6 compliance

Table 9.           Laser class for QSFP modules

Product sustainability

Information about Cisco’s Environmental, Social and Governance (ESG) initiatives and performance is provided in Cisco’s CSR and sustainability reporting.

Table 10.       Cisco environmental sustainability information

Warranty

Standard warranty: 5 years

Expedited replacement available via a Cisco SMARTnet^® Service support contract.

Cisco Capital

Flexible payment solutions to help you achieve your objectives

Cisco Capital makes it easier to get the right technology to achieve your objectives, enable business transformation and help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services and complementary third-party equipment in easy, predictable payments. Learn more.

Additional information

For more information about Cisco 200G QSFP copper cables and modules, contact your sales representative or visit Cisco Optics.
