Cisco’s 25G transceivers and cables enable 25 Gigabit Ethernet for next generation switch and server applications

 Optimal choices for next generation 25 Gigabit Ethernet applications.

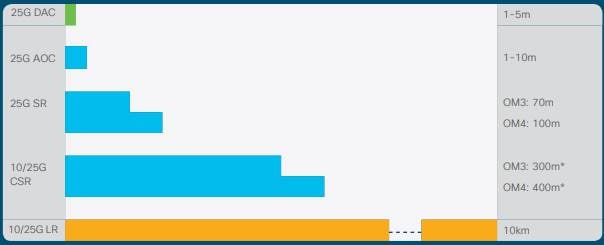

Related image, diagram or screenshot

*depends upon fiber quality

Benefits

     25G is the next logical migration from 10G to reduce the cost per Gbit/sec

     25G provides 2.5 times the bandwidth of 10G using in the same SFP form factor

     25G is ideal for datacenter top of rack, wireless backhaul and enterprise interconnect applications

     25G meets the newest server adapter requirements

     10/25G transceivers are compatible with 10G, 25G, 40G and 100G transceivers

SFP-H25G-CUxM Direct Attached Cables (DAC) SFP-25G-AOC-xM Active Optical Cables (AOC)

25G DACs provide the lowest cost fixed length 1 to 5 meter interconnect in data center “Top of Rack” consolidation applications where high performance servers are increasing application density on virtualized servers using 25G Sever Adapters driving network capacity demands to levels previously unimagined using Twin-AX passive copper Ethernet technology.

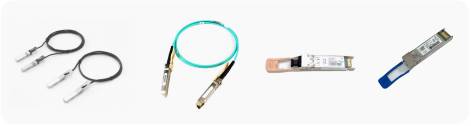

Figure 1.                      Cisco 25G DAC, 25G AOC and 10/25G CSR & 10/25G LR and 25G-SR Transceivers

Related image, diagram or screenshot

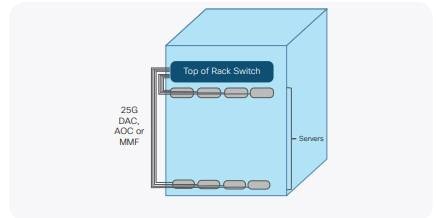

Figure 2.                      Top of Rack

Related image, diagram or screenshot

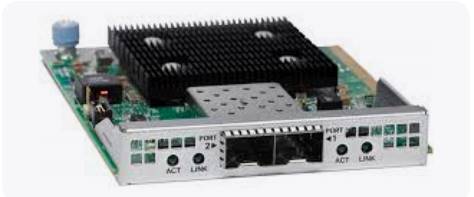

Figure 3.                      25G Server Adapters

Related image, diagram or screenshot

SFP-25G-AOC-xM Active Optical Cables (AOC)

25G AOC’s provides a cost effect solution for those same data center applications that require longer distance fixed length 1 to 10 meter interconnect using active optical Ethernet technology.

SFP-25G-SR-S Transceivers

SFP-25G-SR-S transceiver are an ideal solution for those same data center applications that require up 100 meters over OM4 fiber or 70 meters over OM3 fiber interconnect using optical (Multi Mode Fiber) MMF Ethernet technology.

SFP-10/25G-CSR-S Transceivers

SFP-10/25-CSR-S provides an ideal solution for many enterprise campus backbones where the distances are less than 300 meters for OM4 fiber or 400 meters for OM3 fiber. (Distance is dependent upon fiber quality)

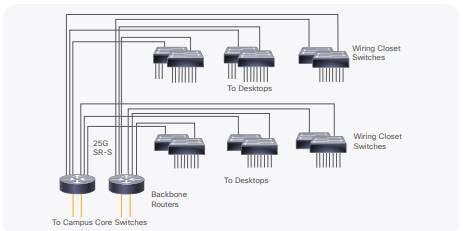

Figure 4.                      Campus Backbone



Related image, diagram or screenshot



SFP-10/25G-LR-S Transceivers



SFP-10/25G-LR-S transceivers provide an ideal solution for service provider applications that require up to 10km reach using SMF (Single Mode Fiber). In addition SFP-10/25G-LR can also be used in the data center applications requiring SMF Ethernet technology

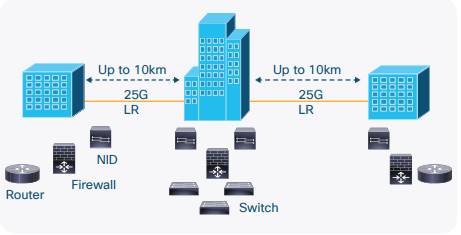

Figure 5.                      25G SMF application



Related image, diagram or screenshot

Breakout Configurations

Cisco’s SFP-25G-SR-S transceivers can be used with Cisco’s QSFP-100GSR4-S using 3rd party MMF break-out cables.*,#



Figure 6.                      25G SR-S Breakout configuration



Related image, diagram or screenshot

Cisco’s SFP-10/25G-CSR-S transceivers can be used with Cisco’s QSFP40G-SR4-S and Cisco’s QSFP-100G-SR4-S using 3rd party MMF break-out cables.*,#

Figure 7.                      10/25G CSR-S Breakout configuration



Related image, diagram or screenshot

Cisco’s SFP-10/25G-LR-S transceivers can be used with Cisco’s QSFP100G-PSM4-S at 25Gbps using 3rd party SMF break-out cables. Please note both hosts require RS-FEC. Or, Cisco’s SFP-10/25G-LR-S transceivers can be used with Cisco’s QSFP4x10G-S at 10Gbps using 3rd party SMF break-out cables.*,#

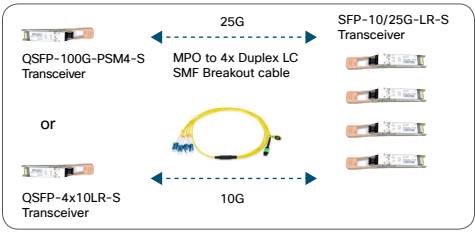

Figure 8.                      10/25G LR-S Breakout configuration



Related image, diagram or screenshot

Interfacing with 10G

When configured Cisco’s SFP-10/25-LR-S can interoperable with Cisco’s SFP-10G-LR-S at 10Gbps.#

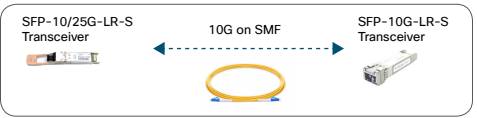

Figure 9.                      10/25G LR-S interoperates with 10G-LR-S



Related image, diagram or screenshot



When configured Cisco’s SFP-10/25-CSR-S can interoperable with Cisco’s SFP-25G-SR-S at 25Gbps.#

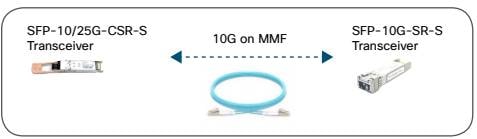

Figure 10.                   10/25G CSR-S interoperates with 10G-SR-S



Related image, diagram or screenshot



* Please note both hosts require RS-FEC

# Please see compatibility matrix: https://www.cisco.com/c/en/us/support/interfaces-modules/transceiver-modules/products-device-support-tables-list.html

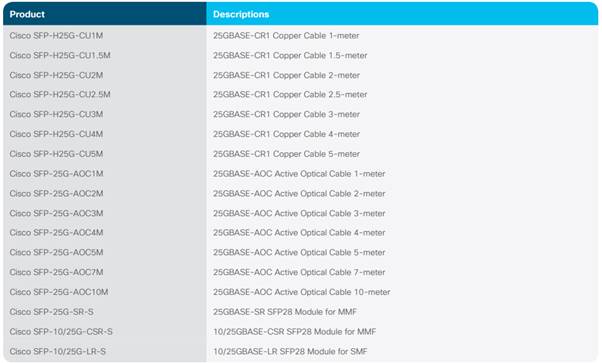

Table 1. Cisco 25G Portfolio

Related image, diagram or screenshot
