Product overview

The Cisco® 50GBASE SFP56 (Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 50G and 25G Gigabit Ethernet connectivity options for data center and high-performance computing network applications. The 50G Modules are based on SFP56 form factor.

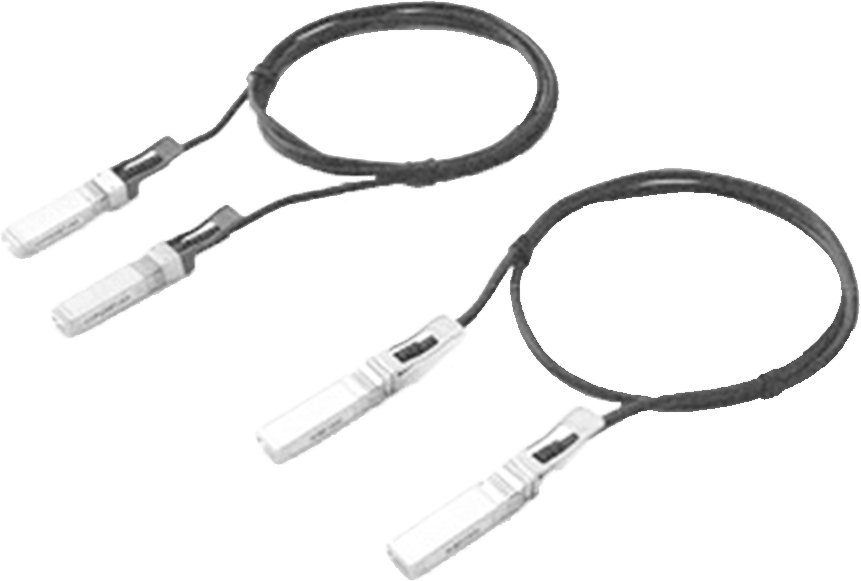

50G Direct Attached Cables (DAC)

50G Direct Attached Cables (DAC)

50G Short Link (SL) Module

50G Short Link (SL) Module

50G Short Reach (SR) Module

50G Short Reach (SR) Module

50G Long Reach (LR) Module

50G Long Reach (LR) Module

Features and benefits of Cisco 50G Modules

      Interoperable with other IEEE-compliant 50G and 25G interfaces where applicable

      Certified and tested on Cisco SFP56 ports for superior performance, quality, and reliability

      Provides connectivity with 50G PAM4 or 25G NRZ optical interfaces

      High-speed connectivity compliant to IEEE 802.3cc, IEEE 802.3cn, IEEE 802.3cd, IEEE 802.3by, CPRI V7.0

Table 1.        Cisco 50G portfolio

Product

Descriptions

Cisco SFP-50G-CU0.5M

25/50GBASE-CR1 SFP56 Copper Cable ½-meter, LSZH

Cisco SFP-50G-CU1M

25/50GBASE-CR1 SFP56 Copper Cable 1-meter, LSZH

Cisco SFP-50G-CU1.5M

25/50GBASE-CR1 SFP56 Copper Cable 1.5-meter, LSZH

Cisco SFP-50G-CU2M

25/50GBASE-CR1 SFP56 Copper Cable 2-meter, LSZH

Cisco SFP-50G-CU2.5M

25/50GBASE-CR1 SFP56 Copper Cable 2.5-meter, LSZH

Cisco SFP-50G-CU3M

25/50GBASE-CR1 SFP56 Copper Cable 3-meter, LSZH

Cisco SFP-50G-CU4M

25/50GBASE-CR1 SFP56 Copper Cable 4-meter, LSZH

Cisco SFP-50G-CU5M

25/50GBASE-CR1 SFP56 Copper Cable 5-meter, LSZH

Cisco SFP-50G-SL

25/50G-SL SFP56 Short Link Module

Cisco SFP-50G-SR-S

25/50GBASE-SR SFP56 Module for MMF

Cisco SFP-50G-LR-S

25/50GBASE-LR SFP56 Module for SMF

Cisco SFP-50G copper cables

Cisco SFP56 to SFP56 copper direct-attach 25/50GBASE-CR1 cables are suitable for very short links and offer a highly cost-effective way to establish a 25 and 50 Gigabit link between SFP56 ports found switches, routers, or other platforms within a rack and across adjacent racks. Cisco offers passive copper cables in lengths of 0.5, 1, 1.5, 2, 2.5, 3, 4, and 5 meters.

For 50G mode, all cable lengths require RS-FEC (544,514) also known as KP1-FEC on host ports.

For 25G mode, the 0.5, 1, 1.5, and 2m cables do not require FEC on the host ports; 2.5 and 3m cables require BASE-R FEC (also known as FC-FEC) on the host ports; 4 and 5m cables require RS-FEC (528,514) also known as KR1-FEC on the host ports.

The SFP-50G copper cables feature an LSZH (Low Smoke Zero Halogen) jacket.

Cisco SFP-50G-SL

Cisco SFP-50G-SL Short Link Modules are a replacement for traditional AOCs (Active Optical Cables). They are suitable for very short distances and offer a cost-effective way to connect within a rack and across adjacent racks at up to 30 meters.

For 50G operation, the module requires KP1-FEC on the host port for link lengths of 20/30/30 m on OM3/4/5 MMF.

For 25G operation, the module supports:

      20/30/30 m on OM3/4/5 with KR1-FEC,

      10/16/16 m on OM3/4/5 with FC-FEC, and

      7/10/10 m on OM3/4/5 with No-FEC.

Cisco SFP-50G-SR-S

For 50G mode, the Cisco 50GBASE-SR-S module supports a link length of 70/100/100 m on OM3/4/5 MMF with KP1-FEC on the host port.

For 25G mode, the Cisco 50GBASE-SR-S module supports a link length of:

      70/100/100 m on OM3/4/5 MMF with KR1-FEC,

      10/16/16 m on OM3/4/5 MMF with FC-FEC, and

      7/10/10 m on OM3/4/5 MMF with No-FEC.

Cisco SFP-50G-LR-S

The Cisco SFP-50G-LR-S Module supports a link length of 10/15 km on standard Single-Mode Fiber (SMF) G.652 at both 25G and 50G.

For 50G mode, the module requires KP1-FEC on the host ports, and for 25G mode, the module requires
KR1-FEC on the host ports.

Technical specifications

Platform support

Cisco 50G transceivers are supported on Cisco switches. For more details, refer to Transceiver Module Group (TMG) Compatibility Matrix.

Table 2.        50G DAC specifications

Cisco SFP-50G

Cable type

Cable distance

Max power consumption (W)

Pull tab/color

Cisco SFP-50G-CU0.5M



Direct-attach copper cable assembly

0.5 m

1/10

Beige

Cisco SFP-50G-CU1M

1 m

Beige

Cisco SFP-50G-CU1.5M

1.5 m

Black

Cisco SFP-50G-CU2M

2 m

Brown

Cisco SFP-50G-CU2.5M

2.5 m

Yellow

Cisco SFP-50G-CU3M

3 m

Orange

Cisco SFP-50G-CU4M

4 m

Green

Cisco SFP-50G-CU5M

5 m

Gray

Table 3.        50G Transceiver specifications

Cisco SFP-50G

Wavelength (nm)

Cable type

Core size (microns)

Max Power Consumption (W)

Modal bandwidth

Cable distance

Bail latch color

Cisco SFP-50G-SL

850

MMF

50.0

1.2

2000 (OM3)

20 m

Violet

4700 (OM4)

30 m

4700 (OM5)

30 m

Cisco SFP-50G-SR-S

850

MMF

50.0

1.2

2000 (OM3)

70 m

Beige

4700 (OM4)

100 m

4700 (OM5)

100 m

Cisco SFP-50G-LR-S

1310

SMF

G.652

1.5

-

10/15 km*

Blue

*Links with up to 15-km reach are supported as engineered links as long as channel insertion loss is <8dB.

Table 4.        Optical transmit and receive specifications

Product

Type

Transmit power (dBm)*

Receive power (dBm)*

Max Channel Insertion Loss dB

Transmit and receive wavelength (nm)

Maximum

Minimum

Maximum

Minimum

Cisco SFP-50G-SL

25G

+2.4

-8.4

+2.4

-10

1.6

840 to 860

50G

+4

-6.5

+2.4

-8.1

1.6

840 to 860

Cisco SFP-50G-SR-S

25G

+2.4

-8.4

+2.4

-10.3

1.9

840 to 860

50G

+4

-6.5

+4

-8.4

1.9

840 to 860

Cisco SFP-50G-LR-S

25G

+2.0

-7.0

+2.0

-14.8

8

1295 to 1325

50G

+4.2

-4.5

+4.2

-12.5

8

1304 to 1317

*Transmitter and receiver power is in average, unless specified.
**The launch power shall be the lesser of the class 1 safety limit or the maximum receive power. Class 1 laser requirements are defined by IEC 60825-1: 2001.

Connectors and Cabling: dual LC/PC connector (SFP-50G-SL, SFP-50G-SR-S, and SFP-50G-LR-S)

Note:     Only connections with patch cords with PC or UPC connectors are supported. Patch cords with APC connectors are not supported. All cables and cable assemblies used must be compliant with the standards specified in the standards section.

Table 5 provides the cable dimensions, bend radius, face place distance, and jacket material and jacket color for the DACs.

Table 5.        Cable dimension

AWG

SFP end

Jacket material

Weight (grams)

Jacket color

Diameter (mm)

Bend radius (mm)

Face plate distance (mm)

SFP-50G-CU0.5M

30, 32

5

45

70

LSZH

40

Black

SFP-50G-CU1M

30

5

45

70

70

SFP-50G-CU1.5M

30

5

45

70

100

SFP-50G-CU2M

26, 28

5

45

70

130

SFP-50G-CU2.5M

26, 28

5

45

70

150

SFP-50G-CU3M

26, 28

5

45

70

170

SFP-50G-CU4M

24

5

45

70

220

SFP-50G-CU5M

24

5

45

70

275

Cisco SFP connector modules typically weigh 100 grams or less.

Module dimensions and Weight

      Dimensions (H x W x D): 8.5 x 13.4 x 56.5mm

      Weight: Typically 75 grams or less

Environmental conditions

Operating temperature range:

      Commercial temperature range: 0 to 70°C (32 to 158°F)

      Industrial temperature range: -40 to 85°C (-40 to 185°F)

      Storage temperature range: -40 to 85°C (-40 to 185°F)

Warranty

      Standard warranty: 5 years

      Expedited replacement available via a Cisco SMARTnet® service support contract

Product sustainability

Table 6.        Product sustainability

Sustainability topic

Reference



General

Information on product-material-content laws and regulations

Materials

Information on electronic waste laws and regulations, including our products, batteries, and packaging

WEEE compliance

Information on product takeback and reuse program

Cisco Takeback and Reuse Program

Sustainability Inquiries

Contact: csr_inquiries@cisco.com

Countries and regions supported

Regulatory compliance

Power

Power (including pluggable)

Power consumption

Material

Product packaging weight and materials

Contact: environment@cisco.com

Ordering information

Table 7 provides the ordering information for Cisco 50G cables and transceivers.

Table 7.        Ordering information

Description

Product number

Cisco 25/50GBASE-CR1 SFP56 Passive Copper Cable, 1/2-meter, LSZH

SFP-50G-CU0.5M

Cisco 25/50GBASE-CR1 SFP56 Passive Copper Cable, 1-meter, LSZH

SFP-50G-CU1M

Cisco 25/50GBASE-CR1 SFP56 Passive Copper Cable 1.5-meter, LSZH

SFP-50G-CU1.5M

Cisco 25/50GBASE-CR1 SFP56 Passive Copper Cable, 2-meter, LSZH

SFP-50G-CU2M

Cisco 25/50GBASE-CR1 SFP56 Passive Copper Cable 2.5-meter, LSZH

SFP-50G-CU2.5M

Cisco 25/50GBASE-CR1 SFP56 Passive Copper Cable, 3-meter, LSZH

SFP-50G-CU3M

Cisco 25/50GBASE-CR1 SFP56 Passive Copper Cable 4-meter, LSZH

SFP-50G-CU4M

Cisco 25/50GBASE-CR1 SFP56 Passive Copper Cable, 5-meter, LSZH

SFP-50G-CU5M

Cisco 25/50GBASE-SL SFP56 Module for MMF

SFP-50G-SL

Cisco 25/50GBASE-SR SFP56 Module for MMF

SFP-50G-SR-S

Cisco 25/50GBASE-LR SFP56 Module for SMF

SFP-50G-LR-S

Regulatory and standards compliance

Standards:

      SFF-8402: SFP+ 28 Gb/s 1x Pluggable Transceiver Solution (SFP28) - Rev 1.0 March 30, 2014

      SFF-8472: Diagnostic Monitoring Interface for Optical Transceivers - Rev 12 August 29, 2014

      IEEE 802.3- 2015 IEEE Standard for Ethernet

      IEEE P802.3by - 2016 Amendment 2: Media Access Control Parameters, Physical Layers, and Management Parameters for 50Gb/s Operation

      IEEE P802.3cc - 2017 Amendment 11: Physical Layer and Management Parameters for Serial 50 Gb/s Ethernet Operation Over Single-Mode Fiber

      IEEE 802.3bj Amendment of IEEE Std 802.3-2012 (D3.2, 11 April 2014)

      IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.3, 12 November 2014)

      IEEE P802.3cd Amendment of IEEE Std 802.3-2012 (5 December 2018)

      IEEE P802.3cn Amendment of IEEE Std 802.3-2012 (7 November 2019)

      CPRI Specification V7.0 (2015-10-09)

      RoHS 6

Safety:

      Laser Class 1 21CFR-1040 LN#50 7/2001

      Laser Class 1 IEC60825-1

      Cable jacket of SFP copper modules is UL E116441 compliant.

      SFP copper cables are ELV compliant.
