FlashStack for SAP HANA TDI

FlashStack for SAP HANA TDI PDF

NOTE: Works with document’s Advanced Properties “First Published” property. Click File | Properties | Advanced Properties | Custom.

Last Updated: November 29, 2018



NOTE: Works with document’s Advanced Properties “Last Updated” property. Click File | Properties | Advanced Properties | Custom.

About the Cisco Validated Design Program

The Cisco Validated Design (CVD) program consists of systems and solutions designed, tested, and documented to facilitate faster, more reliable, and more predictable customer deployments. For more information, see:

http://www.cisco.com/go/designzone.

ALL DESIGNS, SPECIFICATIONS, STATEMENTS, INFORMATION, AND RECOMMENDATIONS (COLLECTIVELY, "DESIGNS") IN THIS MANUAL ARE PRESENTED "AS IS," WITH ALL FAULTS.  CISCO AND ITS SUPPLIERS DISCLAIM ALL WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.  IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THE DESIGNS, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

THE DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE.  USERS ARE SOLELY RESPONSIBLE FOR THEIR APPLICATION OF THE DESIGNS.  THE DESIGNS DO NOT CONSTITUTE THE TECHNICAL OR OTHER PROFESSIONAL ADVICE OF CISCO, ITS SUPPLIERS OR PARTNERS.  USERS SHOULD CONSULT THEIR OWN TECHNICAL ADVISORS BEFORE IMPLEMENTING THE DESIGNS.  RESULTS MAY VARY DEPENDING ON FACTORS NOT TESTED BY CISCO.

CCDE, CCENT, Cisco Eos, Cisco Lumin, Cisco Nexus, Cisco StadiumVision, Cisco TelePresence, Cisco WebEx, the Cisco logo, DCE, and Welcome to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn and Cisco Store are service marks; and Access Registrar, Aironet, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unified Computing System (Cisco UCS), Cisco UCS B-Series Blade Servers, Cisco UCS C-Series Rack Servers, Cisco UCS S-Series Storage Servers, Cisco UCS Manager, Cisco UCS Management Software, Cisco Unified Fabric, Cisco Application Centric Infrastructure, Cisco Nexus 9000 Series, Cisco Nexus 7000 Series. Cisco Prime Data Center Network Manager, Cisco NX-OS Software, Cisco MDS Series, Cisco Unity, Collaboration Without Limitation, EtherFast, EtherSwitch, Event Center, Fast Step, Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS, iPhone, iQuick Study,  LightStream, Linksys, MediaTone, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, Network Registrar, PCNow, PIX, PowerPanels, ProConnect, ScriptShare, SenderBase, SMARTnet, Spectrum Expert, StackWise, The Fastest Way to Increase Your Internet Quotient, TransPath, WebEx, and the WebEx logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0809R)

© 2018 Cisco Systems, Inc. All rights reserved.



Table of Contents

Executive Summary. 7

Solution Overview.. 8

Introduction. 8

Audience. 8

Goals and Objectives of this Document. 8

FlashStack System Overview.. 9

Design Principles. 10

FlashStack Solution Benefits. 10

Infrastructure Requirements for the SAP HANA Database. 12

CPU.. 12

Memory. 12

CPU and Memory Combinations. 12

Network. 13

Storage. 14

Filesystem Layout. 15

Operating System.. 16

High Availability. 16

Technology Overview.. 17

Cisco Unified Computing System.. 17

Cisco Unified Computing System Components. 18

Cisco UCS Manager. 19

Cisco UCS Service Profile. 20

Cisco UCS 6300 Unified Fabric Interconnects. 24

Cisco UCS 6300 Series Fabric Interconnect Models. 25

Cisco UCS 2304XP Fabric Extender. 26

Cisco UCS Blade Chassis. 26

Cisco UCS B480 M5 Blade Server. 26

Cisco VIC Interface Card. 27

Cisco VIC 1380 Virtual Interface Card. 28

Cisco Nexus 9336C-FX2 Switches. 28

Cisco MDS 9148S 16G FC Switches. 29

Pure Storage FlashArray //X R2. 30

Purity Operating Environment. 32

Pure1®.. 33

Experience Evergreen™ Storage. 33

Solution Architecture. 34

Physical Topology. 34

Considerations. 35

Solution components and Software Revisions. 35

Configuration Guidelines. 36

Management Pod Installation. 41

Management PoD Cisco Nexus 9000 Series Switch Network Configuration. 41

Device Cabling. 41

Cisco Nexus 9000 Series Switches ─ Network Initial Configuration Setup. 43

Enable Appropriate Cisco Nexus 9000 Series Switches─Features and Settings. 46

Create VLANs for SAP HANA Management Traffic. 47

Configure Virtual Port-Channel Domain. 47

Configure Network Interfaces for the VPC Peer Links. 48

Direct Connection of Management Pod to FlashStack Infrastructure. 49

Dual-Homed FEX Topology (Active/Active FEX Topology) for 1 GE Management Access. 51

Configure Interfaces to Cisco Nexus 2248 Fabric Extender Switch. 52

Configure Interfaces to Cisco UCS C220 Management Server. 52

Management Server Installation. 53

Server Configuration. 53

CIMC Configuration. 54

Storage Configuration. 55

VMware ESXi Installation. 59

Install ESXi 60

Set Up Management Networking for ESXi Hosts. 61

VMware ESXi Host ESXi-Mgmt-01. 62

SAP HANA PoD Cisco Nexus 9000 Series Switch Network Configuration. 66

Device Cabling. 66

Cisco Nexus 9000 A Initial Configuration. 70

Cisco Nexus 9000 B Initial Configuration. 71

Enable Appropriate Cisco Nexus 9000 Series Switches─Features and Settings. 73

Create VLANs for SAP HANA Traffic. 73

Configure Virtual Port-Channel Domain. 74

Configure Network Interfaces for the VPC Peer Links. 75

Configure vPCs with Cisco UCS Fabric Interconnect. 76

Configure Ports Connecting to Pure Storage iSCSI Ports. 79

Configure Cisco MDS 9148S Switches. 81

Cisco MDS Initial Configuration. 82

Configure the Management Port and Enable Essential Features. 86

Configure Fibre Channel Ports and Port Channels. 86

Configure VSANs. 87

Cisco UCS Configuration Overview.. 87

High-Level Steps to Configure Cisco Unified Computing System.. 88

Initial Setup of Cisco UCS 6332-16UP Fabric Interconnects. 88

Log in to Cisco UCS Manager. 89

Chassis Discovery Policy. 91

Configure Server Ports. 92

Configure FC SAN Uplink Ports. 93

Configure Ethernet Uplink Ports. 94

Acknowledge Cisco UCS Chassis and Rack-Mount Servers. 95

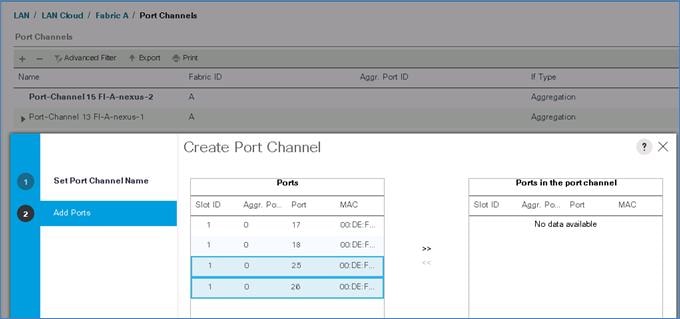

Create LAN Uplink Port Channels. 96

Create FC Port Channels. 102

Create New Organization. 106

Create MAC Address Pools. 107

Create WWNN Pool 110

Create WWPN Pool 111

Create UUID Suffix Pool 114

Add Block of IP Addresses for KVM Access. 115

Power Policy. 116

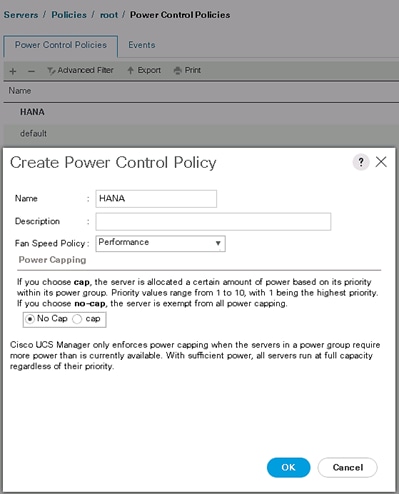

Power Control Policy. 117

Create Host Firmware Package. 118

Create Server BIOS Policy. 119

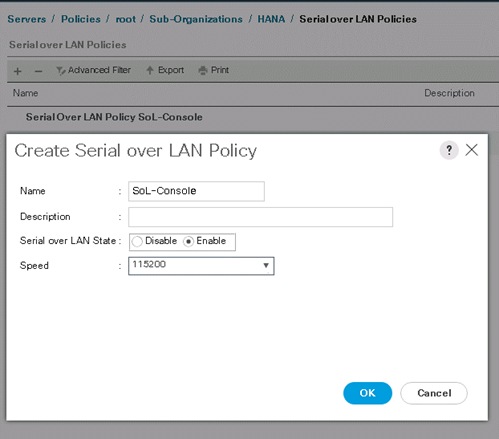

Create Serial over LAN Policy. 124

Update Default Maintenance Policy. 125

Set Jumbo Frames in Cisco UCS Fabric. 126

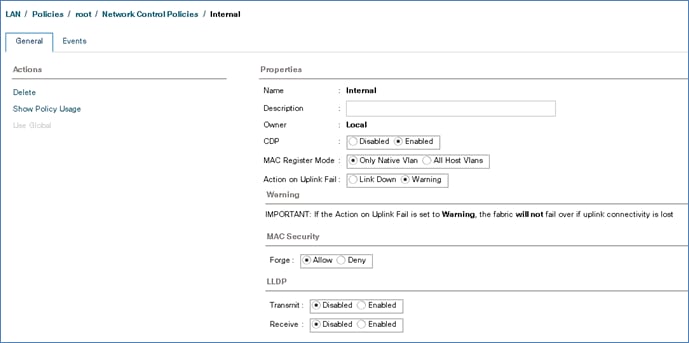

Network Control Policy. 127

LAN Configurations. 129

SAN Configurations. 150

Create Boot Policy for SAN Boot. 160

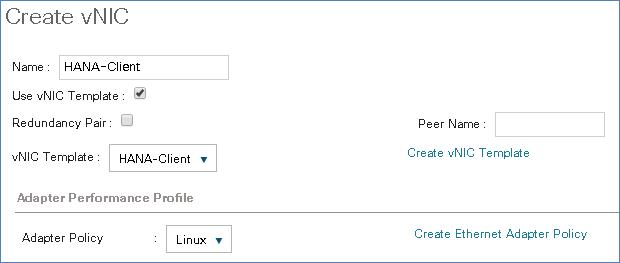

Create Service Profile Templates for SAP HANA Nodes. 167

Create Service Profile from the Template. 181

Create and Configure Fiber Channel Zoning. 183

Configure Pure Storage. 189

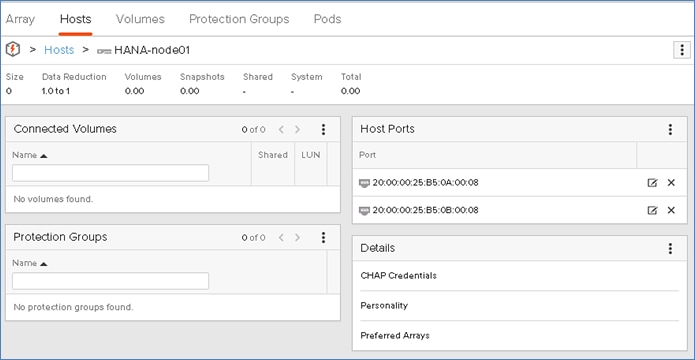

Configure Host. 189

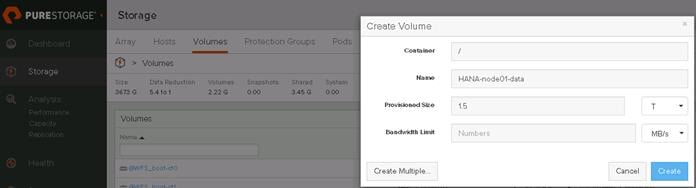

Configure Volume. 192

Configure NFS share for /hana/shared. 197

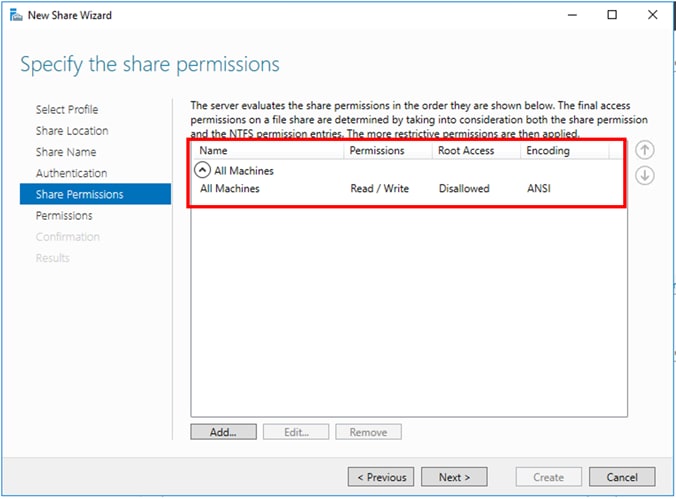

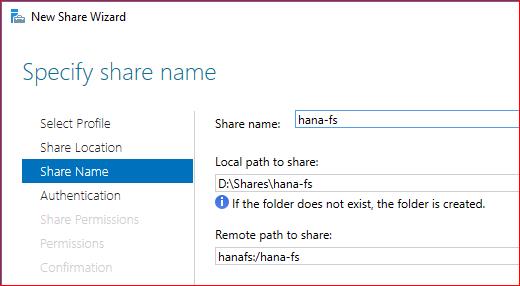

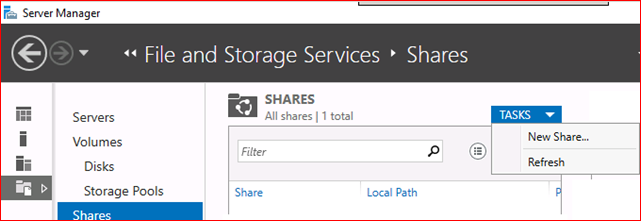

Creating NFS Share. 204

Reference Workloads and Use Cases. 215

SAP HANA Node OS Preparation – SLES for SAP SP3. 215

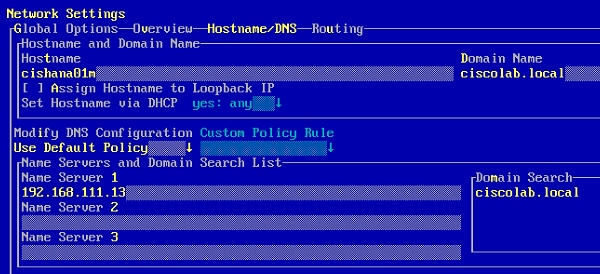

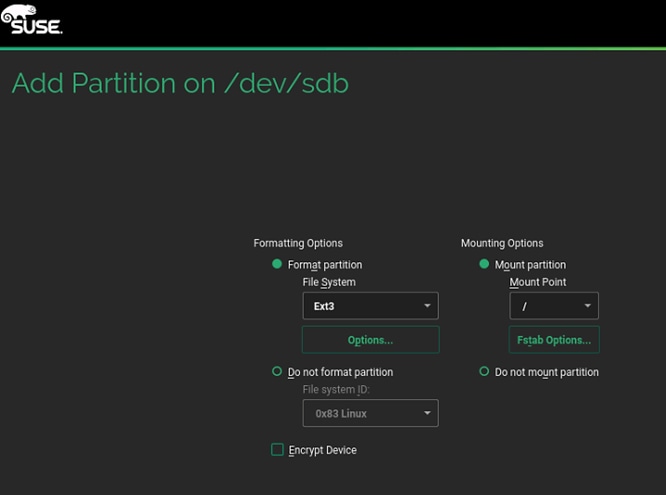

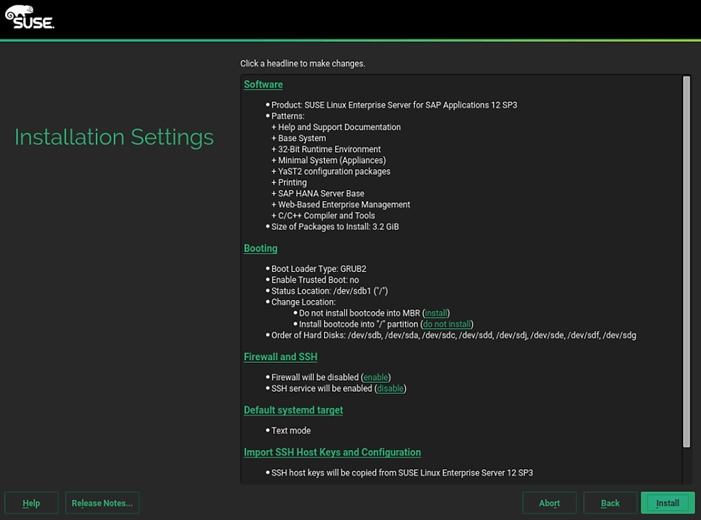

OS Installation. 215

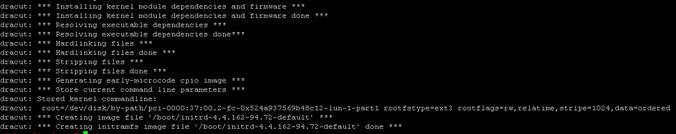

Post Installation Steps. 231

SAP Notes Recommended Implementation. 241

SAP HANA Node OS Preparation – RHEL for SAP HANA 7.4. 243

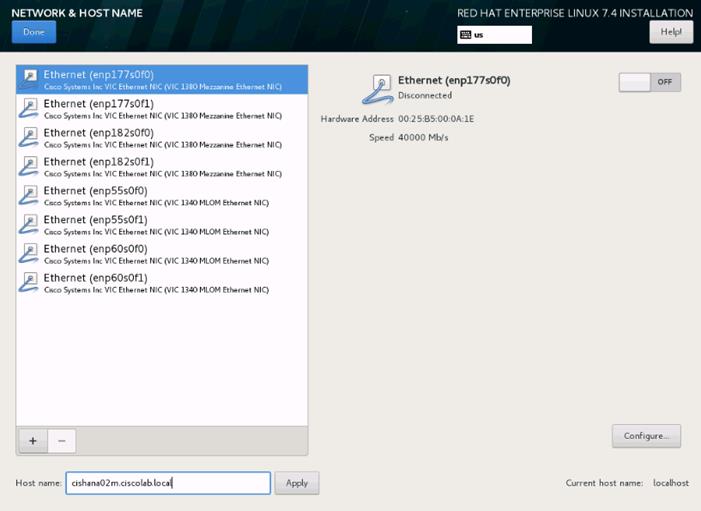

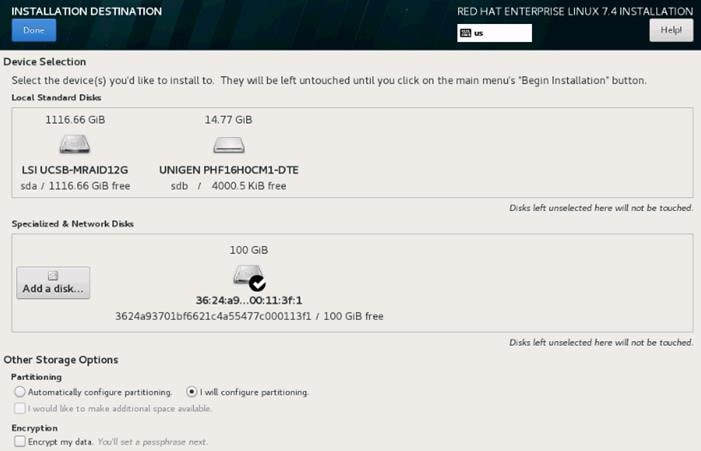

OS Installation. 243

Post Installation steps. 254

SAP Notes Recommendation Implementation. 260

System preparation for SAP HANA Scale-Up use-case. 261

Workload Definition. 261

Requirements. 261

Configure Storage. 262

Configure System for Storage Access. 264

System preparation for SAP HANA Scale-Out Use Case. 266

Workload Definition. 267

Requirements. 267

Configure Storage. 267

Configure System for Storage Access. 269

SSH Keys. 274

SAP HANA Nodes Access to DATA and LOG LUNs. 274

SAP HANA Installation. 275

Important SAP Notes. 275

HWCCT: fsperf paramaters. 277

SAP HANA 1.0. 277

SAP HANA 2.0. 277

Pure Storage: Sizing Guidelines. 278

References. 280

Certified SAP HANA Hardware Directory. 280

SAP HANA TDI Documentation. 280

SAP Notes. 280

Cisco and Pure: FlashStack. 280

Summary. 281

About the Author. 282

Acknowledgements. 282





Cisco Unified Computing System™ (Cisco UCS®) is a next-generation data center platform that unites computing, network, storage access, and virtualization into a single cohesive system. Cisco UCS is an ideal platform for the architecture of mission critical database workloads. The combination of the Cisco UCS platform, Pure Storage®, and SAP HANA can accelerate your IT transformation by enabling faster deployments, greater flexibility of choice, efficiency, and lower risk.

This Cisco Validated Design (CVD) describes a FlashStack reference architecture for deploying SAP HANA TDI on Pure Storage FlashArray//X using Cisco UCS compute servers, Cisco MDS Switches and Cisco Nexus Switches. Cisco and Pure Storage has validated the reference architecture with SAP HANA workload in its lab. This document presents the hardware and software configuration of the components involved and offers implementation and best practices guidance.

FlashStack for SAP is a converged infrastructure solution that brings the benefits of an all-flash storage platform to your converged infrastructure deployments. Built on best of breed components from Cisco and Pure Storage, FlashStack provides a converged infrastructure solution that is simple, flexible, efficient, and costs less than legacy converged infrastructure solution based on traditional disk. FlashStack is designed to increase IT responsiveness to business demands while reducing the overall cost of computing. FlashStack components are integrated and standardized to help you achieve timely, repeatable, consistent deployments.

FlashStack embraces the latest technology and efficiently simplifies the data center workloads that redefine the way IT delivers value;

·         Better performance (3min HANA reload times, 2.3x data reduction) - Faster time to deployment, fully tested, validated, and documented for rapid deployment and reduced management complexity.

·         54 percent lower storage cost (IDC) Lowers overall IT costs by dramatic savings in power, cooling, and space with 100 percent Flash storage.

·         Scales easily without disruption - Consolidate hundreds of enterprise-class applications in a single rack.

·         Delivers flexibility to support your most intensive workloads - Suitable for both SAP and associated workloads such as Big Data and real-time Analytics.

·         Integrated, holistic system and data management across your entire infrastructure whether on-premise, in a Cloud, or a hybrid combination of both.

·         Pure’s Evergreen solution allows customers to move storage costs from CapEx to OpEx with consumption-based pricing and cloud-like flexibility, even on-prem.  Storage never goes out of date and you never run short of capacity.

·         IDC confirms – no unplanned downtime Reduces operational risk- Highly available, six 9’s architecture with no single point of failure, non-disruptive operations, and no downtime.

Introduction

The current industry trend in data center design is towards shared infrastructures featuring multi-tenant workload deployments. Cisco® and Pure Storage have partnered to deliver FlashStack, which uses best-in-class storage, server, and network components to serve as the foundation for a variety of workloads, enabling efficient architectural designs that can be quickly and confidently deployed. FlashStack solution provides the advantage of having the compute, storage, and network stack integrated with the programmability of Cisco Unified Computing System and the on-demand growth and expandability of Evergreen storage from Pure.  Users experience appliance-level simplicity with cloud-like efficiencies and economics while maintaining their SAP TDI-based re-deployment/re-use options as their landscape evolves.

SAP HANA is SAP SE’s implementation of in-memory database technology. The SAP HANA database combines transactional and analytical SAP workloads and hereby takes advantage of the low cost main memory (RAM), data-processing capabilities of multicore processors, and faster data access. SAP HANA offers a multi-engine, query-processing environment that supports relational data (with both row- and column-oriented physical representations in a hybrid engine) as well as a graph and text processing for semi-structured and unstructured data management within the same system. As an appliance, SAP HANA combines software components from SAP optimized for certified hardware. However, this solution has a preconfigured hardware set-up and preinstalled software package that is very inflexible and costly due to its dedicated SAP HANA hardware. In 2013, SAP introduced SAP HANA Tailored Datacenter Integration (TDI) option; TDI solution offers a more open and flexible way for integrating SAP HANA into the data center by reusing existing enterprise storage hardware, thereby reducing hardware costs. Competitor solutions often require “forklift replacements” which drive up user costs and reduce ROI. However SAP HANA TDI option enables organizations to run multiple SAP HANA production systems on a shared infrastructure. It also enables customers to run the SAP application servers and SAP HANA database hosted on the same infrastructure.

In this specific setup, the solution includes Windows File Services running on the FlashArray for the shared file system, providing out-of-the-box file sharing capabilities without compromise.

For more information about SAP HANA, see the SAP help portal: http://help.sap.com/hana/.

The reference architecture detailed in this document highlights the resiliency, cost benefit, and ease of deployment of an SAP HANA Storage TDI solution. This document describes the infrastructure installation and configuration to run SAP HANA Storage TDI in the FlashStack environment. It also addresses two very important use cases namely Scale-Up and Scale-Out system installation and configuration.

Audience

The target audience for this document includes, but is not limited to, storage administrators, data center architects, database administrators, field consultants, IT managers, SAP solution architects and customers who want to implement SAP HANA on FlashStack Converged Infrastructure solution. A working knowledge of SAP HANA Database, Linux, server, storage, networks is assumed but is not a prerequisite to read this document.

Goals and Objectives of this Document

SAP HANA TDI deployments are complicated and generally mission critical with high availability requirements. Customers face challenges maintaining these landscapes both in terms of time, available resources and operational cost.  .

The goal of this CVD is to show case the scalability, manageability and simplicity of the FlashStack Converged Infrastructure solution for deploying SAP HANA mission critical applications.

The following are the objectives of this reference architecture document:

1.        Provide reference architecture design guidelines for the FlashStack based SAP HANA implementation.

2.       Implement and validate SAP HANA single-node Scale-Up and 3+1 Scale-Out system design.

FlashStack System Overview

The FlashStack platform, is a flexible, integrated infrastructure solution that delivers pre-validated storage, networking, and server technologies. Cisco and Pure Storage have carefully validated and verified the FlashStack architecture and its many use cases while creating a portfolio of detailed documentation, information, and references to assist customers in transforming their data centers to this shared infrastructure model.

This portfolio includes, but is not limited to, the following items:

·         Best practice architectural design

·         Implementation and deployment instructions and provide application sizing based on the results

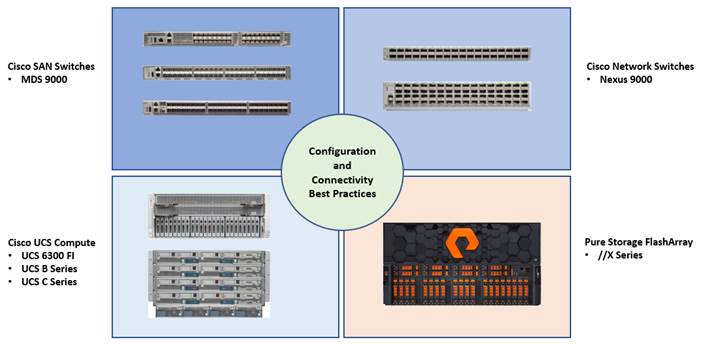

Figure 1        FlashStack System Components

As shown in Figure 1, these components are connected and configured according to best practices of both Cisco and Pure Storage and provide the ideal platform for running a variety of enterprise workloads with confidence. FlashStack can scale up for greater performance and capacity (adding compute, network, or storage resources individually as needed), or it can scale out for environments that require multiple consistent deployments.

The reference architecture covered in this document leverages the Pure Storage FlashArray//X, Cisco Nexus 9000 series and Cisco MDS 9100 series for the switching element and Cisco Fabric Interconnects 6300 series for System Management. As shown in Figure 1, FlashStack Architecture can maintain consistency at scale. Each of the component families shown in (Cisco UCS, Cisco Nexus, Cisco MDS, Cisco FI and Pure Storage) offers platform and resource options to scale the infrastructure up or down, while supporting the same features and functionality that are required under the configuration and connectivity best practices of FlashStack.

Design Principles

The FlashStack for SAP HANA solution addresses the following primary design principles:

·         Repeatable: Create a scalable building block that can be easily replicated at any customer site. Publish the version of various firmware under test and weed out any issues in the lab before customers deploy this solution.

·         Available: Create a design that is resilient and not prone to failure of a single component. For example, we include best practices to enforce multiple paths to storage, multiple NICs for connectivity, and high availability (HA) clustering.

·         Efficient: Take advantage of inline data reduction, higher bandwidth and low latency of the Pure Storage FlashArray//m used in the FlashStack solution.

·         Simple: Avoid unnecessary and/or complex tweaks to make the results look better than a normal out-of-box environment.

FlashStack Solution Benefits

Key Benefits of the FlashStack solution are:

·         Consistent Performance and Scalability

—     Consistent sub-millisecond latency with 100 percent flash storage

—     Consolidate hundreds of enterprise-class applications in a single rack

—     Scalability through a design for hundreds of discrete servers and thousands of virtual machines, and the capability to scale I/O bandwidth to match demand without disruption

—     Repeatable growth through multiple FlashStack CI deployments

·          Operational Simplicity

—     Fully tested, validated, and documented for rapid deployment

—     Reduced management complexity

—     No storage tuning or tiers necessary

—     Auto-aligned 512b architecture eliminates storage alignment headaches

·         Improved TCO

—     Dramatic savings in power, cooling and space with Cisco UCS and 100 percent Flash
Industry leading data reduction

·         Enterprise Grade Resiliency

—     Highly available architecture and redundant components

—     Non-disruptive operations

—     Upgrade and expand without downtime or performance loss

—     Native data protection: snapshots and replication

Cisco and Pure Storage have also built a robust and experienced support team focused on FlashStack solutions, from customer account and technical sales representatives to professional services and technical support engineers. The support alliance between Pure Storage and Cisco gives customers and channel services partners direct access to technical experts who collaborate with cross vendors and have access to shared lab resources to resolve potential issues.

There are hardware and software requirements defined by SAP to run SAP HANA systems in Tailored Datacenter Integration (TDI) option. This Cisco Validated Design uses guidelines provided by SAP.

Additional information is available at: http://saphana.com

CPU

SAP HANA2.0 (TDI) supports servers equipped with Intel Xeon processor E7-8880v3, E7-8890v3, E7-8880v4, E7-8890v4 and all Skylake CPU’s > 8 cores. In addition, the Intel Xeon processor E5-26xx v4 is supported for scale-up systems with the SAP HANA TDI option.

Memory

SAP HANA is supported in the following memory configurations:

·         Homogenous symmetric assembly of dual in-line memory modules (DIMMs) for example, DIMM size or speed should not be mixed

·         Maximum use of all available memory channels

·         SAP HANA 2.0 Memory per socket up to 768 GB for SAP NetWeaver Business Warehouse (BW) and DataMart

·         SAP HANA 2.0 Memory per socket up to 1536 GB for SAP Business Suite on SAP HANA (SoH) on 2- or 4-socket server

CPU and Memory Combinations

SAP HANA allows for a specific set of CPU and memory combinations. Table 1  lists the certified Cisco UCS servers for SAP HANA with supported Memory and CPU configuration for different use cases.

Table 1       List of Cisco UCS Servers Defined in FlashStack Solution for SAP

Network

A SAP HANA data center deployment can range from a database running on a single host to a complex distributed system. Distributed systems can get complex with multiple hosts located at a primary site having one or more secondary sites; supporting a distributed multi-terabyte database with full fault and disaster recovery.

SAP HANA has different types of network communication channels to support the different SAP HANA scenarios and setups:

·         Client zone: Channels used for external access to SAP HANA functions by end-user clients, administration clients, and application servers, and for data provisioning through SQL or HTTP

·         Internal zone: Channels used for SAP HANA internal communication within the database or, in a distributed scenario, for communication between hosts

·         Storage zone: Channels used for storage access (data persistence) and for backup and restore procedures

Table 2 lists all the networks defined by SAP or Cisco or requested by customers.

Table 2       List of Known Networks

Details about the network requirements for SAP HANA are available in the white paper from SAP SE at: http://www.saphana.com/docs/DOC-4805.

The network needs to be properly segmented and must be connected to the same core/ backbone switch as shown in Figure 2 based on your customer’s high-availability and redundancy requirements for different SAP HANA network segments.

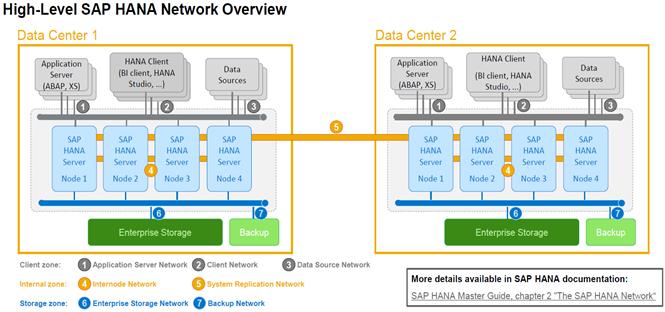

Figure 2        High-Level SAP HANA Network Overview

Based on the listed network requirements, every server must be equipped with 2x 10 Gigabit Ethernet for scale-up systems to establish the communication with the application or user (Client Zone) and a 10 GbE Interface for Storage access.

For Scale-Out solutions, an additional redundant network for SAP HANA node to node communication with 10 GbE is required (Internal Zone).

Storage

As an in-memory database, SAP HANA uses storage devices to save a copy of the data, for the purpose of startup and fault recovery without data loss. The choice of the specific storage technology is driven by various requirements like size, performance and high availability. To use Storage system in the Tailored Datacenter Integration option, the storage must be certified for SAP HANA TDI option at: https://www.sap.com/dmc/exp/2014-09-02-hana-hardware/enEN/enterprise-storage.html.

All relevant information about storage requirements is documented in this white paper: https://www.sap.com/documents/2015/03/74cdb554-5a7c-0010-82c7-eda71af511fa.html.

Refer to section SAP HANA Hardware Configuration Check Tool for Tailored Data Center Integration of the SAP HANA Administration Guide for more information.

Filesystem Layout

Figure 3 illustrates the file system layout and the required storage sizes to install and operate SAP HANA.  For the Linux OS installation (/root) 10 GB of disk size is recommended.  Additionally, 50 GB must be provided for the /usr/sap since the volume used for SAP software that supports SAP HANA.

While installing SAP HANA on a host, specify the mount point for the installation binaries (/hana/shared/<sid>), data files (/hana/data/<sid>) and log files (/hana/log/<sid>), where sid is the instance identifier of the SAP HANA installation.

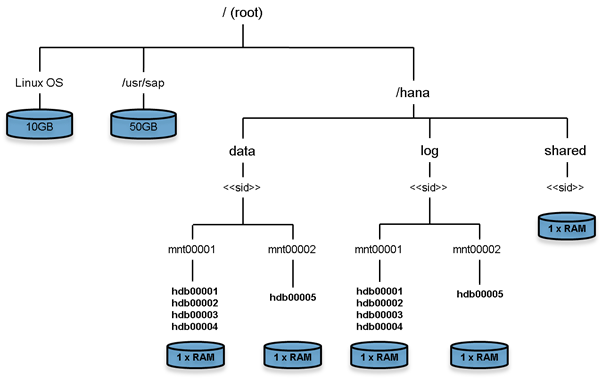

Figure 3        File System Layout for 2 Node Scale-Out System

Below is a sample filesystem size for a single system appliance configuration:

Root-FS:                        100 GB inclusive of space required for /usr/sap

/hana/shared:                1x RAM or 1TB whichever is less

/hana/data:                    1 x RAM

/hana/log:                      ½ of the RAM size for systems <= 256GB RAM and min ½ TB for all other systems

With a distributed installation of SAP HANA Scale-Out, each server will have the following:

Root-FS:        100 GB inclusive of space required for /usr/sap

The installation binaries, trace and configuration files are stored on a shared filesystem, which should be accessible for all hosts in the distributed installation. The size of shared filesystem should be 1 X RAM of a worker node for each 4 nodes in the cluster. For example, in a distributed installation with three hosts with 512 GB of memory each, shared file system should be 1 x 512 GB = 512 GB, for 5 hosts with 512 GB of memory each, shared file system should be 2 x 512 GB = 1024GB.

For each SAP HANA host there should be a mount point for data and log volume. The size of the file system for data volume with TDI option is one times the host memory:

/hana/data/<sid>/mntXXXXX:  1x RAM

For solutions based on Intel Skylake 81XX CPU the size of the Log volume must be as follows:

·         Half of the server RAM size for systems with ≤ 512 GB RAM

·         512 GB for systems with > 512 GB RAM

Operating System

The supported operating systems for SAP HANA are as follows:

·         SUSE Linux Enterprise Server for SAP Applications

·         RedHat Enterprise Linux for SAP HANA

High Availability

The infrastructure for a SAP HANA solution must not have single point of failure. To support high-availability, the hardware and software requirements are:

·         Internal storage: A RAID-based configuration is preferred

·         External storage: Redundant data paths, dual controllers, and a RAID-based configuration are required

·         Ethernet switches: Two or more independent switches should be used

SAP HANA Scale-Out comes with in integrated high-availability function. If a SAP HANA system is configured with a stand-by node, a failed part of SAP HANA will start on the stand-by node automatically. For automatic host failover, storage connector API must be properly configured for the implementation and operation of the SAP HANA.

For detailed information from SAP see: http://saphana.com or http://service.sap.com/notes.

This section provides a technical overview of products used in this solution.

Cisco Unified Computing System

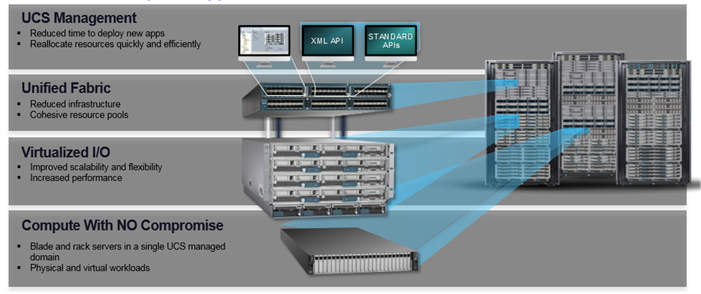

Figure 4        Cisco UCS System

Cisco Unified Computing System™ is a next-generation data center platform that unites compute, network, storage access, and virtualization into a cohesive system designed to reduce total cost of ownership (TCO) and increase business agility. The system integrates a low-latency, lossless 10 and 40 Gigabit Ethernet unified network fabric with enterprise-class, x86-architecture servers. The system is an integrated, scalable, multi-chassis platform in which all resources participate in a unified management domain. Cisco UCS is a next-generation solution for blade and rack server computing.

Cisco UCS unites the following main components:

·         Computing

The system is based on an entirely new class of computing system that incorporates rack mount and blade servers based on Intel Xeon Processor E5 and E7. The Cisco UCS Servers offer the patented Cisco Extended Memory Technology to support applications with large datasets and allow more virtual machines per server.

·         Network

The system is integrated onto a low-latency, lossless, 10 and 40-Gbps unified network fabric. This network foundation consolidates LAN, SAN and high-performance computing networks which are separate networks today. The unified fabric lowers costs by reducing the number of network adapters, switches, and cables, and by decreasing the power and cooling requirements.

·         Virtualization

The system unleashes the full potential of virtualization by enhancing the scalability, performance, and operational control of virtual environments. Cisco security, policy enforcement, and diagnostic features are now extended into virtualized environments to better support changing business and IT requirements.

·         Storage Access

The system provides consolidated access to both SAN storage and Network Attached Storage (NAS) over the unified fabric. By unifying the storage access, the Cisco Unified Computing System can access storage over Ethernet (NFS or iSCSI) and Fibre Channel over Ethernet (FCoE). This provides customers with choice for storage access and investment protection. In addition, the server administrators can pre-assign storage-access policies for system connectivity to storage resources, simplifying storage connectivity, and management for increased productivity.

·         Management

The system uniquely integrates all system components to enable the entire solution to be managed as a single entity by the Cisco UCS Manager. The Cisco UCS Manager has an intuitive graphical user interface (GUI), a command-line interface (CLI), and a powerful scripting library module for Microsoft PowerShell built on a robust application programming interface (API) to manage all system configuration and operations.

Cisco UCS fuses access layer networking and servers. This high-performance, next-generation server system provides a data center with a high degree of workload agility and scalability. Cisco UCS accelerates the delivery of new services simply, reliably, and securely through end-to-end provisioning and migration support for both virtualized and non-virtualized systems.

Cisco Unified Computing System Components

·         Cisco UCS 6300 Series Fabric Interconnects

(http://www.cisco.com/c/en/us/products/servers-unified-computing/ucs-6300-series-fabric-interconnects/index.html)

Cisco UCS 6300 Series Fabric Interconnects provides line-rate, low-latency, lossless, 10 and 40-Gigabit Ethernet (varies by model) and Fibre Channel over Ethernet (FCoE). Cisco UCS 6300 Series Fabric provides management and communication backbone for Cisco UCS B-Series Blade Servers, Cisco UCS 5100 Series Blade Server Chassis, Cisco UCS C-Series Rack Servers.

·         Cisco UCS 5100 Series Blade Server Chassis

(http://www.cisco.com/c/en/us/products/servers-unified-computing/ucs-5100-series-blade-server-chassis/index.html)

Cisco UCS 5108 Blade Server Chassis is a six rack units (6RU) high, can mount in an industry-standard 19-inch rack, and uses standard front-to-back cooling. A chassis can accommodate up to eight half-width, or four full-width Cisco UCS B-Series Blade Servers form factors within the same chassis.

·         Cisco UCS 2300 Series Fabric Extender

(http://www.cisco.com/c/en/us/products/collateral/servers-unified-computing/ucs-6300-series-fabric-interconnects/datasheet-c78-675243.html)

Cisco UCS 2300 series Fabric Extender brings the unified fabric into the blade server enclosure, providing multiple 10 and 40 Gigabit Ethernet connections between blade servers and the fabric interconnect, simplifying diagnostics, cabling, and management.

·         Cisco UCS B-Series Blade Servers and C Series Rack Servers

(http://www.cisco.com/c/en/us/products/servers-unified-computing/ucs-b-series-blade-servers/index.html)

(http://www.cisco.com/c/en/us/products/servers-unified-computing/ucs-c-series-rack-servers/index.html)

Based on Intel® Xeon® processor E7 and E5 product families and the latest Skylake processors, Cisco UCS Servers work with virtualized and non-virtualized applications to increase:

—     Performance

—     Energy efficiency

—     Flexibility

—     Administrator productivity

·         Cisco UCS Adapters

(http://www.cisco.com/c/en/us/products/interfaces-modules/unified-computing-system-adapters/index.html)

The Cisco Unified Computing System supports Converged Network Adapters (CNAs) obviate the need for multiple network interface cards (NICs) and host bus adapters (HBAs) by converging LAN and SAN traffic in a single interface.

·         Cisco UCS Manager

(http://www.cisco.com/c/en/us/products/servers-unified-computing/ucs-manager/index.html)

Streamline many of your most time-consuming daily activities, including configuration, provisioning, monitoring, and problem resolution with Cisco UCS Manager. It reduces TCO and simplifies daily operations to generate significant savings.

·         Cisco Nexus 9000 Series Switches

(http://www.cisco.com/c/en/us/products/switches/nexus-9000-series-switches/index.html)

The 9000 Series offers modular 9500 switches and fixed 9300 and 9200 switches with 1/10/25/50/40/100 Gigabit Ethernet switch configurations. 9200 switches are optimized for high performance and density in NX-OS mode operations.

·         Cisco MDS 9100 Series Multilayer Fabric Switches

(http://www.cisco.com/c/en/us/products/storage-networking/mds-9100-series-multilayer-fabric-switches/index.html)

The Cisco MDS 9100 Series Multilayer Fabric Switches consists of Cisco MDS 9148S, a 48-port, 16 Gbps Fibre Channel switch, and the Cisco MDS 9148, a 48-port 8 Gbps Fibre Channel switch.

Cisco UCS Manager

Cisco UCS Manager (UCSM) provides unified, centralized, embedded management of all Cisco UCS software and hardware components across multiple chassis and thousands of virtual machines. Administrators use the software to manage the entire Cisco UCS as a single logical entity through an intuitive GUI, a command-line interface (CLI), or an XML API.

Cisco UCS Manager manages Cisco UCS systems through an intuitive HTML 5 or Java user interface and a command-line interface (CLI) enabling centralized management of distributed systems scaling to thousands of servers. Cisco UCS Manager is embedded on a pair of Cisco UCS 6300 Series Fabric Interconnects using a clustered, active-standby configuration for high availability. The manager gives administrators a single interface for performing server provisioning, device discovery, inventory, configuration, diagnostics, monitoring, fault detection, auditing, and statistics collection.

Cisco UCS management software provides a model-based foundation for streamlining the day-to-day processes of updating, monitoring, and managing computing resources, local storage, storage connections, and network connections. By enabling better automation of processes, Cisco UCS Manager allows IT organizations to achieve greater agility and scale in their infrastructure operations while reducing complexity and risk.

Cisco UCS Manager provides an easier, faster, more flexible, and unified solution for managing firmware across the entire hardware stack than traditional approaches to server firmware provisioning. Using service profiles, administrators can associate any compatible firmware with any component of the hardware stack. After the firmware versions are downloaded from Cisco, they can be provisioned within minutes on components in the server, fabric interconnect, and fabric extender based on the required network, server, and storage policies for each application and operating system. The firmware’s auto-installation capability simplifies the upgrade process by automatically sequencing and applying upgrades to individual system elements.

Some of the key elements managed by Cisco UCS Manager include:

·         Cisco UCS Integrated Management Controller (IMC) firmware

·         RAID controller firmware and settings

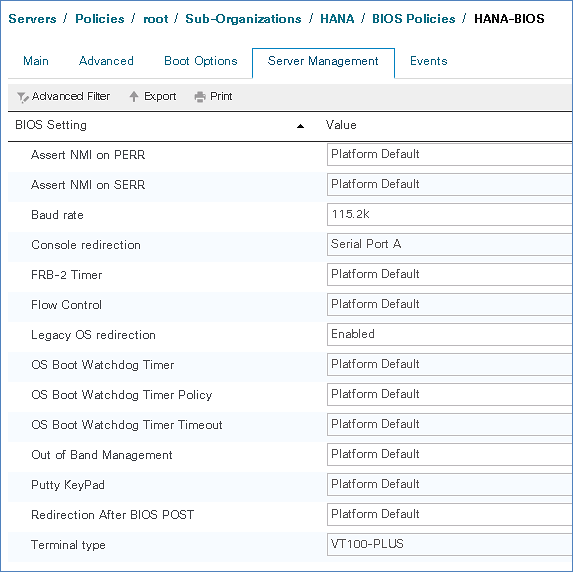

·         BIOS firmware and settings, including server universal user ID (UUID) and boot order

·         Converged network adapter (CNA) firmware and settings, including MAC addresses and worldwide names (WWNs) and SAN boot settings

·         Virtual port groups used by virtual machines, using Cisco Data Center VM-FEX technology

·         Interconnect configuration, including uplink and downlink definitions, MAC address and WWN pinning, VLANs, VSANs, quality of service (QoS), bandwidth allocations, Cisco Data Center VM-FEX settings, and Ether Channels to upstream LAN switches

Cisco UCS Manager provides end-to-end management of all the devices in the Cisco UCS domain it manages. Devices that are uplinked from the fabric interconnect must be managed by their respective management applications.

Cisco UCS Manager is provided at no additional charge with every Cisco UCS platform.

For more information on Cisco UCS Manager, see:

http://www.cisco.com/c/en/us/products/servers-unified-computing/ucs-manager/index.html

Cisco UCS Service Profile

Service profiles are essential to the automation functions in Cisco UCS Manager. They provision and manage Cisco UCS systems and their I/O properties within a Cisco UCS domain. Infrastructure policies are created by server, network, and storage administrators and are stored in the Cisco UCS Fabric Interconnects. The infrastructure policies needed to deploy applications are encapsulated in the service profiles templates, which are collections of policies needed for the specific applications. The service profile templates are then used to create one or more service profiles, which provide the complete definition of the server. The policies coordinate and automate element management at every layer of the hardware stack, including RAID levels, BIOS settings, firmware revisions and settings, server identities, adapter settings, VLAN and VSAN network settings, network quality of service (QoS), and data center connectivity.

A server’s identity is made up of many properties such as UUID, boot order, IPMI settings, BIOS firmware, BIOS settings, RAID settings, disk scrub settings, number of NICs, NIC speed, NIC firmware, MAC and IP addresses, number of HBAs, HBA WWNs, HBA firmware, FC fabric assignments, QoS settings, VLAN assignments, remote keyboard/video/monitor etc. I think you get the idea. It’s a LONG list of “points of configuration” that need to be configured to give this server its identity and make it unique from every other server within your data center. Some of these parameters are kept in the hardware of the server itself (like BIOS firmware version, BIOS settings, boot order, FC boot settings, etc.) while some settings are kept on your network and storage switches (like VLAN assignments, FC fabric assignments, QoS settings, ACLs, etc.). This results in following server deployment challenges:

·         Every deployment requires coordination among server, storage, and network teams

·         Need to ensure correct firmware and settings for hardware components

·         Need appropriate LAN and SAN connectivity

The service profile consists of a software definition of a server and the associated LAN and SAN connectivity that the server requires. When a service profile is associated with a server, Cisco UCS Manager automatically configures the server, adapters, fabric extenders, and fabric interconnects to match the configuration specified in the service profile. Service profiles improve IT productivity and business agility because they establish the best practices of your subject-matter experts in software. With service profiles, infrastructure can be provisioned in minutes instead of days, shifting the focus of IT staff from maintenance to strategic initiatives. Service profiles enable pre-provisioning of servers, enabling organizations to configure new servers and associated LAN and SAN access settings even before the servers are physically deployed.

Cisco UCS Service Profiles contain values for a server's property settings, including virtual network interface cards (vNICs), MAC addresses, boot policies, firmware policies, fabric connectivity, external management, and HA information. By abstracting these settings from the physical server into a Cisco Service Profile, the Service Profile can then be deployed to any physical compute hardware within the Cisco UCS domain. Furthermore, Service Profiles can, at any time, be migrated from one physical server to another. This logical abstraction of the server personality separates the dependency of the hardware type or model and is a result of Cisco’s unified fabric model (rather than overlaying software tools on top).

Figure 5        Traditional Components

Service profiles benefit both virtualized and non-virtualized environments. Workloads may need to be moved from one server to another to change the hardware resources assigned to a workload or to take a server offline for maintenance. Service profiles can be used to increase the mobility of non-virtualized servers. They also can be used in conjunction with virtual clusters to bring new resources online easily, complementing existing virtual machine mobility. Service profiles are also used to enable Cisco Data Center Virtual Machine Fabric Extender (VM‑FEX) capabilities for servers that will run hypervisors enabled for VM-FEX.

Cisco UCS has uniquely addressed these challenges with the introduction of service profiles that enables integrated, policy based infrastructure management. Cisco UCS Service Profiles hold the DNA for nearly all configurable parameters required to set up a physical server. A set of user defined policies (rules) allow quick, consistent, repeatable, and secure deployments of Cisco UCS servers.

This innovation is still unique in the industry despite competitors claiming to offer similar functionality. In most cases, these vendors must rely on several different methods and interfaces to configure these server settings. Furthermore, Cisco is the only hardware provider to offer a truly unified management platform, with Cisco UCS Service Profiles and hardware abstraction capabilities extending to both blade and rack servers.

Figure 6        Cisco UCS Management

Some of key features and benefits of Cisco UCS service profiles are detailed below:

Service profiles and templates. Service profile templates are stored in the Cisco UCS 6300 Series Fabric Interconnects for reuse by server, network, and storage administrators. Service profile templates consist of server requirements and the associated LAN and SAN connectivity. Service profile templates allow different classes of resources to be defined and applied to a number of resources, each with its own unique identities assigned from predetermined pools.

The Cisco UCS Manager can deploy the service profile on any physical server at any time. When a service profile is deployed to a server, the Cisco UCS Manager automatically configures the server, adapters, fabric extenders, and fabric interconnects to match the configuration specified in the service profile. A service profile template parameterizes the UIDs that differentiate between server instances.

This automation of device configuration reduces the number of manual steps required to configure servers, Network Interface Cards (NICs), Host Bus Adapters (HBAs), and LAN and SAN switches.

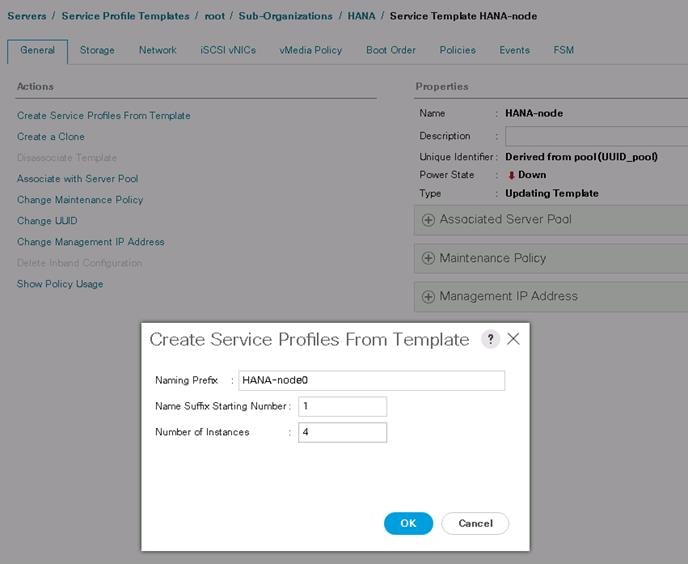

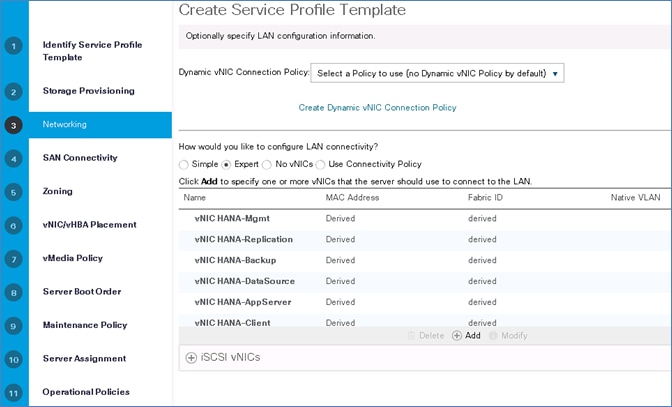

Service profile templates are used to simplify the creation of new service profiles, helping ensure consistent policies within the system for a given service or application. Whereas a service profile is a description of a logical server and there is a one-to-one relationship between the profile and the physical server, a service profile template can be used to define multiple servers. The template approach enables you to configure hundreds of servers with thousands of virtual machines as easily as you can configure one server. This automation reduces the number of manual steps needed, helping reduce the opportunities for human error, improve consistency, and further reducing server and network deployment times.

Programmatically deploying server resources. Cisco UCS Manager provides centralized management capabilities, creates a unified management domain, and serves as the central nervous system of the Cisco UCS. Cisco UCS Manager is embedded device management software that manages the system from end-to-end as a single logical entity through an intuitive GUI, CLI, or XML API. Cisco UCS Manager implements role- and policy-based management using service profiles and templates. This construct improves IT productivity and business agility. Now infrastructure can be provisioned in minutes instead of days, shifting IT’s focus from maintenance to strategic initiatives.

Dynamic provisioning. Cisco UCS resources are abstract in the sense that their identity, I/O configuration, MAC addresses and WWNs, firmware versions, BIOS boot order, and network attributes (including QoS settings, ACLs, pin groups, and threshold policies) all are programmable using a just-in-time deployment model. A service profile can be applied to any blade server to provision it with the characteristics required to support a specific software stack. A service profile allows server and network definitions to move within the management domain, enabling flexibility in the use of system resources. Service profile templates allow different classes of resources to be defined and applied to a number of resources, each with its own unique identities assigned from predetermined pools.

Cisco UCS 6300 Unified Fabric Interconnects

The Cisco UCS 6300 Series Fabric Interconnects are a core part of Cisco UCS, providing both network connectivity and management capabilities for the system. The Cisco UCS 6300 Series offers line-rate, low-latency, lossless 10 and 40 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), and Fibre Channel functions.

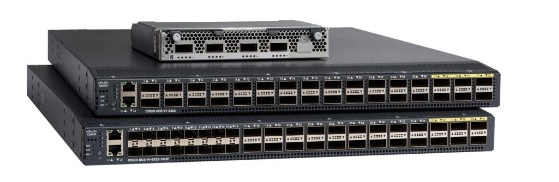

Figure 7        Cisco UCS 6300 Series Fabric Interconnect

The Cisco UCS 6300 Series provides the management and communication backbone for the Cisco UCS B-Series Blade Servers, 5100 Series Blade Server Chassis, and C-Series Rack Servers managed by Cisco UCS. All servers attached to the fabric interconnects become part of a single, highly available management domain. In addition, by supporting unified fabric, the Cisco UCS 6300 Series provides both LAN and SAN connectivity for all servers within its domain.

From a networking perspective, the Cisco UCS 6300 Series uses a cut-through architecture, supporting deterministic, low-latency, line-rate 10 and 40 Gigabit Ethernet ports, switching capacity of 2.56 terabits per second (Tbps), and 320 Gbps of bandwidth per chassis, independent of packet size and enabled services. The product family supports Cisco® low-latency, lossless 10 and 40 Gigabit Ethernet unified network fabric capabilities, which increase the reliability, efficiency, and scalability of Ethernet networks. The fabric interconnect supports multiple traffic classes over a lossless Ethernet fabric from the server through the fabric interconnect. Significant TCO savings can be achieved with an FCoE optimized server design in which network interface cards (NICs), host bus adapters (HBAs), cables, and switches can be consolidated.

Lower Total Cost of Ownership

The Cisco UCS 6300 Series offers several key features and benefits that can lower TCO. Some examples include:

·         Bandwidth up to 2.56 Tbps

·         Centralized unified management with Cisco UCS Manager software

Highly Scalable Architecture

Cisco Fabric Extender technology scales up to 20 chassis in just one unified system without additional complexity. The result is that customers can eliminate dedicated chassis management and blade switches, as well as reduce cabling.

Cisco UCS 6300 Series Fabric Interconnect Models

Cisco UCS 6332 and 6332-16UP Fabric Interconnects

These top-of-rack (ToR) switches manage domains of up to 160 servers.

Table 3       Fabric Interconnect Specifications

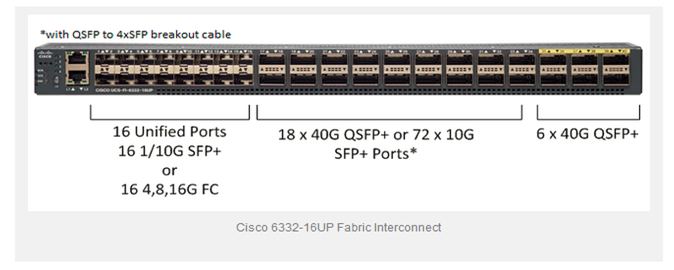

Figure 8        Cisco UCS 6332-16UP Fabric Interconnect

For this SAP HANA solution we have used FI 6332-16UP. As shown in Figure 8, FI 6332-16UP is a one-rack-unit (1RU) 40 Gigabit Ethernet/FCoE switch and 1/10 Gigabit Ethernet, FCoE and Fiber Channel switch offering up to 2.24 Tbps throughput and up to 40 ports. The switch has 24 40Gbps fixed Ethernet/FCoE ports and 16 1/10Gbps Ethernet/FCoE or 4/8/16G Fiber Channel ports. This Fabric Interconnect is targeted for FC storage deployments requiring high performance 16G FC connectivity to MDS switches.

Cisco UCS 2304XP Fabric Extender

The Cisco UCS 2304 Fabric Extender has four 40 Gigabit Ethernet, FCoE-capable, Quad Small Form-Factor Pluggable (QSFP+) ports that connect the blade chassis to the fabric interconnect. Each Cisco UCS 2304 has four 40 Gigabit Ethernet ports connected through the midplane to each half-width slot in the chassis. Typically configured in pairs for redundancy, two fabric extenders provide up to 320 Gbps of I/O to the chassis.

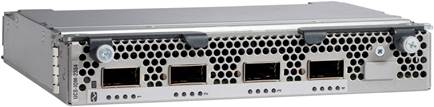

Figure 9        Cisco UCS 2304 XP

Cisco UCS Blade Chassis

The Cisco UCS 5100 Series Blade Server Chassis is a crucial building block of Cisco Unified Computing System, delivering a scalable and flexible blade server.

The Cisco UCS 5108 Blade Server Chassis is six rack units (6RU) high and can mount in an industry standard 19-inch rack. A single chassis can house up to eight half-width Cisco UCS B-Series Blade Servers and can accommodate both half-width and full-width blade form factors. Four hot-swappable power supplies are accessible from the front of the chassis, and single-phase AC, –48V DC, and 200 to 380V DC power supplies and chassis are available. These power supplies are up to 94 percent efficient and meet the requirements for the 80 Plus Platinum rating. The power subsystem can be configured to support nonredundant, N+1 redundant, and grid-redundant configurations. The rear of the chassis contains eight hot-swappable fans, four power connectors (one per power supply), and two I/O bays that can support either Cisco UCS 2000 Series Fabric Extenders or the Cisco UCS 6324 Fabric Interconnect. A passive midplane provides up to 80 Gbps of I/O bandwidth per server slot and up to 160 Gbps of I/O bandwidth for two slots.

The Cisco UCS Blade Server Chassis is shown in Figure 10.

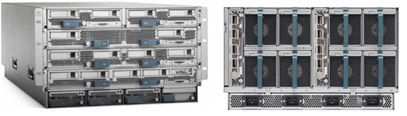

Figure 10     Cisco Blade Server Chassis (front and back view)

Cisco UCS B480 M5 Blade Server

The enterprise-class Cisco UCS B480 M5 Blade Server delivers market-leading performance, versatility, and density without compromise for memory-intensive mission-critical enterprise applications and virtualized workloads, among others. With the Cisco UCS B480 M5, you can quickly deploy stateless physical and virtual workloads with the programmability that Cisco UCS Manager and Cisco® SingleConnect technology enable.

The Cisco UCS B480 M5 is a full-width blade server supported by the Cisco UCS 5108 Blade Server Chassis. The Cisco UCS 5108 chassis and the Cisco UCS B-Series Blade Servers provide inherent architectural advantages:

·         Through Cisco UCS, gives you the architectural advantage of not having to power, cool, manage, and purchase excess switches (management, storage, and networking), Host Bus Adapters (HBAs), and Network Interface Cards (NICs) in each blade chassis

·         Reduces the Total Cost of Ownership by removing management modules from the chassis, making the chassis stateless

·         Provides a single, highly available Cisco Unified Computing System™ management domain for all system chassis and rack servers, reducing administrative tasks

The Cisco UCS B480 M5 Blade Server offers:

·         Four Intel® Xeon® Scalable CPUs (up to 28 cores per socket)

·         2666-MHz DDR4 memory and 48 DIMM slots with up to 6 TB using 128-GB DIMMs

·         Cisco FlexStorage® storage subsystem

·         Five mezzanine adapters and support for up to four GPUs

·         Cisco UCS Virtual Interface Card (VIC) 1340 modular LAN on Motherboard (mLOM) and upcoming fourth-generation VIC mLOM

·         Internal Secure Digital (SD) and M.2 boot options

Figure 11      Cisco UCS B480 M5 Blade Server

Cisco VIC Interface Card

The Cisco UCS blade server has various Converged Network Adapters (CNA) options.

The Cisco UCS Virtual Interface Card (VIC) 1340 is a 2-port 40-Gbps Ethernet or dual 4 x 10-Gbps Ethernet, Fibre Channel over Ethernet (FCoE)-capable modular LAN on motherboard (mLOM) designed exclusively for the Cisco UCS B-Series Blade Servers. When used in combination with an optional port expander, the Cisco UCS VIC 1340 capabilities is enabled for two ports of 40-Gbps Ethernet.

Figure 12     Cisco UCS 1340 VIC Card

The Cisco UCS VIC 1340 enables a policy-based, stateless, agile server infrastructure that can present over 256 PCIe standards-compliant interfaces to the host that can be dynamically configured as either network interface cards (NICs) or host bus adapters (HBAs). In addition, the Cisco UCS VIC 1340 supports Cisco® Data Center Virtual Machine Fabric Extender (VM-FEX) technology, which extends the Cisco UCS fabric interconnect ports to virtual machines, simplifying server virtualization deployment and management.

Cisco VIC 1380 Virtual Interface Card

The Cisco UCS Virtual Interface Card (VIC) 1380 is a dual-port 40-Gbps Ethernet, or dual 4 x 10 Fibre Channel over Ethernet (FCoE)-capable mezzanine card designed exclusively for the M5 generation of Cisco UCS B-Series Blade Servers. The card enables a policy-based, stateless, agile server infrastructure that can present over 256 PCIe standards-compliant interfaces to the host that can be dynamically configured as either network interface cards (NICs) or host bus adapters (HBAs). In addition, the Cisco UCS VIC 1380 supports Cisco® Data Center Virtual Machine Fabric Extender (VM-FEX) technology, which extends the Cisco UCS fabric interconnect ports to virtual machines, simplifying server virtualization deployment and management.

Figure 13      Cisco UCS 1380 VIC Card

Cisco Nexus 9336C-FX2 Switches

Powered by cloud-scale technology, the Cisco Nexus 9336C-FX2 offers flexible port speeds supporting 1/10/25/40/100 Gbps in a compact 1 RU form factor. Designed to meet the changing needs of data centers, big data applications, and automated cloud environments, this powerful switch supports both Cisco ACI and standard Cisco Nexus switch environments (NX-OS mode). This grants you access to industry-leading programmability (Cisco NX-OS) and the most comprehensive automated, policy-based, systems-management approach (Cisco ACI).Cisco Nexus 9336-FX2 Switch

Figure 14     Cisco Nexus 9336C-FX2

The Cisco Nexus 9336C-FX2 switch benefits are listed below:

Architectural Flexibility

·         Support for Cisco ACI architecture and NX-OS

·         All 36 ports support 10/25/40/100 Gbps QSFP28 and wire-rate MACsec encryption

·         Supports 7.2 Tbps of bandwidth and over 2.8 bpps



Feature Rich

·         Automated, policy-based systems management with Cisco ACI

·         Build programmable SDN fabrics leveraging open APIs and over 65 Cisco ACI global technology partners

·         Enhanced Cisco NX-OS Software designed for performance, resiliency, scalability, manageability, and programmability

·         Real-time buffer utilization per port and per queue, for monitoring traffic micro-bursts and application traffic patterns

Cisco MDS 9148S 16G FC Switches

The Cisco^® MDS 9148S 16G Multilayer Fabric Switch (Figure 15) is the next generation of the highly reliable, flexible, and low-cost Cisco MDS 9100 Series switches. It combines high performance with exceptional flexibility and cost effectiveness. This powerful, compact one rack-unit (1RU) switch scales from 12 to 48 line-rate 16 Gbps Fibre Channel ports.

Figure 15      Cisco MDS 9148S 16G FC Switch

The Cisco MDS 9148S is excellent for:

·         A standalone SAN in small departmental storage environments

·         A top-of-the-rack switch in medium-sized redundant fabrics

·         An edge switch in enterprise data center core-edge topologies

The Cisco MDS 9148S is powered by Cisco NX-OS and Cisco Prime™ Data Center Network Manager (DCNM) software. It delivers advanced storage networking features and functions with ease of management and compatibility with the entire Cisco MDS 9000 Family portfolio for reliable end-to-end connectivity.

The Cisco MDS 9148S features and benefits are as below:

·         Port speed: 2/4/8/16-Gbps autosensing with 16 Gbps of dedicated bandwidth per port

·         Enhance reliability, speed problem resolution, and reduce service costs by using Fibre Channel ping and traceroute to identify exact path and timing of flows, as well as Cisco Switched Port Analyzer (SPAN) and Remote SPAN (RSPAN) and Cisco Fabric Analyzer to capture and analyze network traffic.

·         Automate deployment and upgrade of software images.

·         Reduce consumption of hardware resources and administrative time needed to create and manage zones.

·         Optimize bandwidth utilization by aggregating up to 16 physical ISLs into a single logical Port-Channel bundle with multipath load balancing.

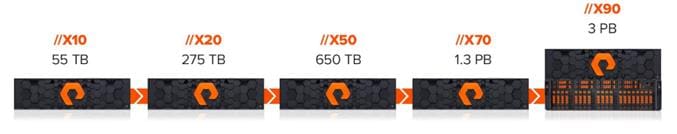

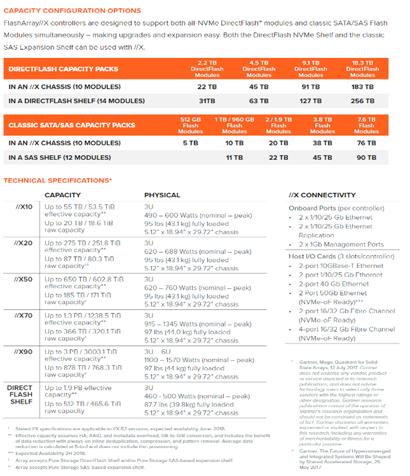

Pure Storage FlashArray //X R2

FlashArray//X R2 makes server and workload investments more productive, while also lowering storage spend. With FlashArray, organizations can dramatically reduce the complexity of storage to make IT more agile and efficient, accelerating your journey to the cloud.

FlashArray//X R2 performance can also make your business smarter by unleashing the power of real-time analytics, driving customer loyalty, and creating new, innovative customer experiences that simply weren’t possible with disk. All by Transforming Your Storage with FlashArray//X R2.

FlashArray//X R2  enables you to transform your data center, cloud, or entire business with an affordable all-flash array capable of consolidating and accelerating all your key applications.

Mini Size—Reduce power, space and complexity by 90 percent:

·         3U base chassis with 15-1500+ TBs usable

·         ~1kW of power

·         6 cables

Mighty Performance—Transform your datacenter, cloud, or entire business:

·         Up to 600,000 32K IOPS

·         Up to 18.5 GB/s bandwidth

·         <1ms average latency

Modular Scale—Scale FlashArray//X R2 inside and outside of the chassis for generations:

·         Expandable to 3 PB usable via expansion shelves

·         Upgrade controllers and drives to expand performance and/or capacity

Meaningful Simplicity—Appliance-like deployment with worry-free operations:

·         Plug-and-go deployment that takes minutes, not days

·         Non-disruptive upgrades and hot-swap everything

·         Less parts = more reliability

The FlashArray//X R2 expands upon the FlashArray’s modular, stateless architecture, designed to enable expandability and upgradability for generations. The FlashArray//X R2 leverages a chassis-based design with customizable modules, enabling both capacity and performance to be independently improved over time with advances in compute and flash, to meet your business’ needs today and tomorrow.

The Pure Storage FlashArray is ideal for:

Accelerating Databases and Applications Speed transactions by 10x with consistent low latency, enable online data analytics across wide datasets, and mix production, analytics, dev/test, and backup workloads without fear.

Virtualizing and Consolidating Workloads Easily accommodate the most IO-hungry Tier 1 workloads, increase consolidation rates (thereby reducing servers), simplify VI administration, and accelerate common administrative tasks.

Delivering the Ultimate Virtual Desktop Experience Support demanding users with better performance than physical desktops, scale without disruption from pilot to >1000’s of users, and experience all-flash performance

Protecting and Recovering Vital Data Assets Provide an always-on protection for business-critical data, maintain performance even under failure conditions, and recover instantly with FlashRecover.

Pure Storage FlashArray sets the benchmark for all-flash enterprise storage arrays. It delivers:

Consistent Performance FlashArray delivers consistent <1ms average latency. Performance is optimized for the real-world applications workloads that are dominated by I/O sizes of 32K or larger vs. 4K/8K hero performance benchmarks. Full performance is maintained even under failures/updates.

Lower Cost than Disk Inline de-duplication and compression deliver 5 – 10x space savings across a broad set of I/O workloads including Databases, Virtual Machines and Virtual Desktop Infrastructure.

Mission-Critical Resiliency FlashArray delivers >99.9999% proven availability, as measured across the Pure Storage installed base and does so with non-disruptive everything without performance impact.

Disaster Recovery Built-In FlashArray offers native, fully-integrated, data reduction-optimized backup and disaster recovery at no additional cost. Setup disaster recovery with policy-based automation within minutes. And, recover instantly from local, space-efficient snapshots or remote replicas.

Simplicity Built-In FlashArray offers game-changing management simplicity that makes storage installation, configuration, provisioning and migration a snap. No more managing performance, RAID, tiers or caching. Achieve optimal application performance without any tuning at any layer. Manage the FlashArray the way you like it: Web-based GUI, CLI, VMware® vCenter, Rest API, or OpenStack.

Figure 16     FlashArray//X R2 Specifications

Purity Operating Environment

Purity implements advanced data reduction, storage management and flash management features, and all features of Purity are included in the base cost of the FlashArray//X R2.

Storage Software Built for Flash—The FlashCare technology virtualizes the entire pool of flash within the FlashArray, and allows Purity to both extend the life and ensure the maximum performance of consumer- grade MLC flash.

Granular and Adaptive—Purity Core is based upon a 512-byte variable block size metadata layer. This fine-grain metadata enables all of Purity’s data and flash management services to operate at the highest efficiency.

Best Data Reduction Available—FlashReduce implements five forms of inline and post-process data reduction to offer the most complete data reduction in the industry. Data reduction operates at a 512-byte aligned variable block size, to enable effective reduction across a wide range of mixed workloads without tuning.

Highly Available and Resilient—FlashProtect implements high availability, dual-parity RAID-HA, non- disruptive upgrades, and encryption, all of which are designed to deliver full performance to the FlashArray during any failure or maintenance event.

Backup and Disaster Recovery Built In—FlashRecover combines space-saving snapshots, replication, and protection policies into an end-to-end data protection and recovery solution that protects data against loss locally and globally. All FlashProtect services are fully-integrated in the FlashArray and leverage the native data reduction capabilities.

Pure1®

Pure1 Manage—By combining local web-based management with cloud-based monitoring, Pure1 Manage allows you to manage your FlashArray wherever you are – with just a web browser.

Pure1 Connect—A rich set of APIs, plugin-is, application connectors, and automation toolkits enable you to connect FlashArray//X R2 to all your data center and cloud monitoring, management, and orchestration tools.

Pure1 Support—FlashArray//X R2 is constantly cloud- connected, enabling Pure Storage to deliver the most proactive support experience possible. Highly trained staff combined with big data analytics help resolve problems before they start.

Pure1 Collaborate—Extend your development and support experience online, leveraging the Pure1 Collaborate community to get peer-based support, and to share tips, tricks, and scripts.

Experience Evergreen™ Storage

Get storage that behaves like SaaS and the cloud. Deploy it once and keep expanding and improving performance, capacity, density and/or features for 10 years or more – without downtime, performance impact, or data migrations. Our “Right Size” capacity guarantee ensures you get started knowing you will have the effective capacity you need. And our Capacity Consolidation program keeps your storage modern and dense as you expand. With Evergreen Storage, you will never re-buy a TB you already own.

Physical Topology

The SAP HANA on FlashStack provides an end-to-end architecture with Cisco Hardware and Pure Storage that demonstrates support for multiple SAP HANA workloads with high availability and redundancy. The architecture uses Cisco UCS managed Cisco UCS C-Series Servers. The C-Series Rack Servers are connected directly to Cisco UCS Fabric Interconnect with single-wire management feature, the data traffic between HANA servers and Storage will be contained in the Cisco UCS Fabric Interconnect. The FC storage access, management and zoning are provided by the Cisco MDS switches. The Ethernet traffic and uplink to customer network is handled by the Cisco Nexus switches.

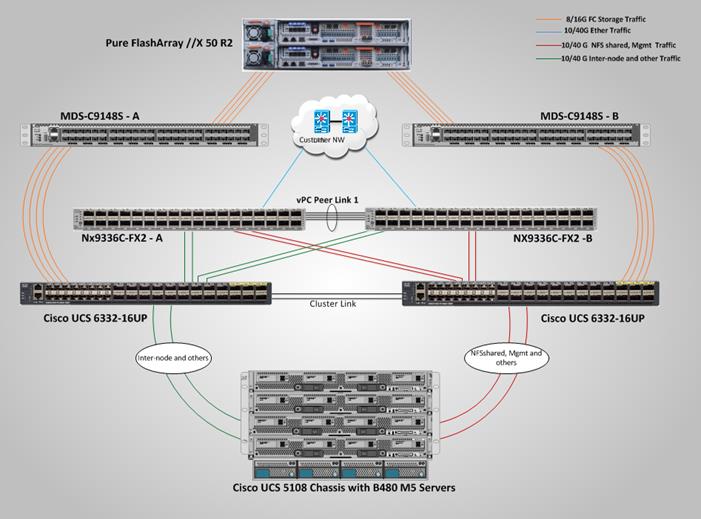

Figure 17 shows the FlashStack for SAP HANA, described in this Cisco Validation Design. It highlights the Cisco UCS Integrated Infrastructure hardware components and the network connections.

Figure 17      FlashStack for SAP HANA

Considerations

Scale

Although this is the base design, each of the components can be scaled easily to support specific business requirements. Additional servers or even blade chassis can be deployed to increase compute capacity without additional Network components.

Performance

The solution is designed to meet SAP HANA performance requirement defined by SAP SE. All the data traffic between HANA nodes is contained in the UCS Fabric Interconnect. Each HANA Server is equipped with a minimum of 1 x 40GbE capable Cisco Virtual Interface Cards, the storage network provides dedicated bandwidth between HANA servers and Storage Subsystem. For HANA node-to-node network, 40 Gb dedicated network bandwidth is provided with non-blocking mode.

Solution components and Software Revisions

This section describes the design considerations for the SAP HANA TDI deployment on FlashStack. Table 4  lists the inventory of the components used in the FlashStack solution.

Table 4       Inventory and Bill of Material of the Validation Setup

Table 5  lists the software revisions used for validating various components of the FlashStack for SAP HANA.

Table 5       Hardware and Software Components of the FlashStack for SAP HANA Validated in this Design Guide

Configuration Guidelines

This information in this section is intended to enable you to fully configure the customer environment. In this process, various steps require you to insert customer-specific naming conventions, IP addresses, and VLAN schemes, as well as to record appropriate MAC addresses. Table 6  lists the configuration variables that are used throughout this document. This table can be completed based on the specific site variables and used in implementing the document configuration steps.

The Cisco UCS Fabric Interconnects are similarly configured. Additionally, this document details the steps for provisioning multiple Cisco UCS hosts, and these are identified sequentially: HANA-Server01, HANA-Server02, and so on. Finally, to indicate that you should include information pertinent to your environment in a given step, <text> appears as part of the command structure. Review the following example for the network port vlan create command:

Usage:

Example:

This document is intended to enable you to fully configure the customer environment. In this process, various steps require you to insert customer-specific naming conventions, IP addresses, and VLAN schemes, etc. Table 6  lists the configuration variables that are used throughout this document. This table can be completed based on the specific site variables and used in implementing the document configuration steps.

Table 6       Configuration Variables

This section describes the configuration of the Management Pod to manage the multiple FlashStack environments for SAP HANA.  In this reference architecture, the Management Pod includes a pair of Cisco Nexus 9000 Switches in standalone mode for out of band management network and a pair of Cisco UCS C220 M5 Rack-Mount Servers. The rack-mount servers for management are built on VMware ESXi. In the current validation setup, ESXi hosts run Windows Server jump host providing ADS, DNS and NTP services for Management. A Linux based VM running internet proxy services is providing for online updates of HANA nodes. The next sections outline the configurations of each component in the Management Pod.

Management PoD Cisco Nexus 9000 Series Switch Network Configuration

The following section provides a detailed procedure for configuring the Cisco Nexus 9000 Switches of the Mgmt PoD for SAP HANA environment. The switch configuration in this section based on cabling plan described in the Device Cabling section. If the systems are connected on different ports, configure the switches accordingly following the guidelines described in this section.

The following section provides a detailed procedure for configuring the Cisco Nexus 9000 Switches of the Mgmt PoD for SAP HANA environment. The switch configuration in this section based on cabling plan described in the device cabling section below. If the systems are connected on different ports in customer setup, configure the switches accordingly following the guidelines described in this section

Device Cabling

Table 7 through Table 10 provide the details of the connections used for Management Pod.

In this reference design the Management Pod is directly connected to FlashStack as shown in Figure 18 by back-to-back vPCs.

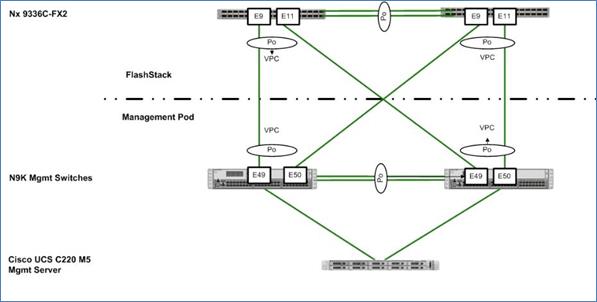

Figure 18     Management POD Connectivity

Table 7       Cisco Nexus 9K-A Management Pod Cabling Information

Table 8       Cisco Nexus 9K-B Management Pod Cabling Information

Table 9       Cisco UCS C-Series Management Server

Table 10    Cisco Nexus 2248 Management Pod Cabling Information

These steps provide the details for the initial Cisco Nexus 9000 Series Switch setup.

Cisco Nexus 9000 Series Switches ─ Network Initial Configuration Setup

This section provides the steps for the initial Cisco Nexus 9000 Series Switch setup.

Cisco Nexus 9000 A

To set up the initial configuration for the first Cisco Nexus switch, complete the following steps:

Cisco Nexus 9000 B

To set up the initial configuration for the second Cisco Nexus switch, complete the following steps:

Enable Appropriate Cisco Nexus 9000 Series Switches─Features and Settings

Cisco Nexus 9000 A and Cisco Nexus 9000 B

To enable the IP switching feature and set the default spanning tree behaviors, complete the following steps:

1.        On each Nexus 9000, enter configuration mode:

2.       Use the following commands to enable the necessary features:

3.        Configure spanning tree defaults:

4.       Save the running configuration to start-up:

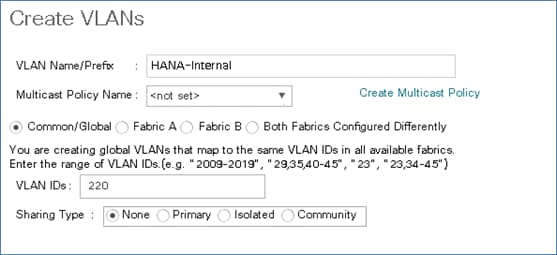

Create VLANs for SAP HANA Management Traffic

Cisco Nexus 9000 A and Cisco Nexus 9000 B

To create the necessary VLANs, complete the following step on both switches:

1.        From the configuration mode, run the following commands:

Configure Virtual Port-Channel Domain

Cisco Nexus 9000 A

To configure vPCs for switch A, complete the following steps:

1.        From the global configuration mode, define the vPC domain:

2.       Make Nexus 9000A the primary vPC peer by defining a low priority value:

3.        Use the management interfaces on the supervisors of the Nexus 9000s to establish a keepalive link:

4.       Enable following features for this vPC domain:

Cisco Nexus 9000 B

To configure vPCs for switch B, complete the following steps:

1.        From the global configuration mode, define the vPC domain:

2.       Make Cisco Nexus 9000 B the secondary vPC peer by defining a higher priority value than that of the Nexus 9000 A:

3.        Use the management interfaces on the supervisors of the Cisco Nexus 9000s to establish a keepalive link:

4.       Enable following features for this vPC domain:

Configure Network Interfaces for the VPC Peer Links

Cisco Nexus 9000 A

1.        Define a port description for the interfaces connecting to VPC Peer <<var_nexus_B_hostname>>.

2.       Apply a port channel to both VPC Peer links and bring up the interfaces.

3.        Define a description for the port-channel connecting to <<var_nexus_B_hostname>>.

4.       Make the port-channel a switchport, and configure a trunk to allow HANA management VLANs

5.        Make this port-channel the VPC peer link and bring it up.

Cisco Nexus 9000 B

1.        Define a port description for the interfaces connecting to VPC peer <<var_nexus_A_hostname>>.

2.       Apply a port channel to both VPC peer links and bring up the interfaces.

3.        Define a description for the port-channel connecting to <<var_nexus_A_hostname>>.

4.       Make the port-channel a switchport, and configure a trunk to allow HANA VLANs.

5.        Make this port-channel the VPC peer link and bring it up.

Direct Connection of Management Pod to FlashStack Infrastructure

This section describes the configuration steps for Cisco Nexus 9000 switches in the Management Pod connected to each FlashStack instance’s switches with back-to-back vPCs.

Cisco Nexus 9000 A

1.        Define a port description for the interface connecting to <<var_nexus_A_hostname>>.

2.       Define a port description for the interface connecting to <<var_nexus_B_hostname>>.

3.        Assign both ports a port channel and bring up the interface.

4.       Define a description for the port-channel connecting to FlashStack Switch.

5.        Make the port-channel a switchport, and configure a trunk to allow all Management VLANs.

6.       Make the port channel and associated interfaces spanning tree network ports.

7.        Set the MTU to be 9216 to support jumbo frames.

8.       Make this a VPC port-channel and bring it up.

9.       Save the running configuration to start-up.

Cisco Nexus 9000 B

1.        Define a port description for the interface connecting to <<var_nexus_A_hostname>>.

2.       Define a port description for the interface connecting to <<var_nexus_B_hostname>>.

3.        Assign both the interfaces to a port channel and bring up the interface.

4.       Define a description for the port-channel connecting to FlashStack Switch.

5.        Make the port-channel a switchport, and configure a trunk to allow all Management VLANs.

6.       Make the port channel and associated interfaces spanning tree network ports.

7.        Set the MTU to be 9216 to support jumbo frames.

8.       Make this a VPC port-channel and bring it up.

9.       Save the running configuration to start-up.

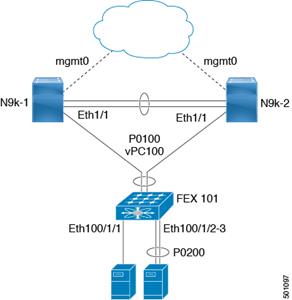

Dual-Homed FEX Topology (Active/Active FEX Topology) for 1 GE Management Access

A Nexus 2248 switch in dual-homed topology with management Nexus 9000 series switches is used for having the 1GE management access to all elements of the reference infrastructure.

The dual-homed FEX (Active/Active) topology is supported with NX-OS 7.0(3)I5(2) and later using Cisco Nexus 9300 and Nexus 9300-EX Series switches. The following topology shows that each FEX is dual-homed with two Cisco Nexus 9300 Series switches.

The FEX-fabric interfaces for each FEX are configured as a vPC on both peer switches. The host interfaces on the FEX appear on both peer switches.

A sample high-level connectivity/configuration is shown below:

Configure Interfaces to Cisco Nexus 2248 Fabric Extender Switch

Cisco Nexus 9000 A and 9000 B

1.        Define a port-channel for fex fabric connect

2.       Define a port description for the interface connecting to <<var_nexus_B_hostname>>.

Configure Interfaces to Cisco UCS C220 Management Server

Cisco Nexus 9000 A

1.        Define a port description for the interface connecting to <<var_c220-mgmt-srv>>-A and <<var_c220-mgmt-srv>>-B.

2.       Make the switchport and configure a trunk to allow NFS, PXE, Management, VM traffic VLANs.

Cisco Nexus 9000 B

1.        Define a port description for the interface connecting to <<var_c220-mgmt-srv>>-A and <<var_c220-mgmt-srv>>-B.

2.       Make the switchport and configure a trunk to allow NFS, PXE, Management, VM traffic VLANs.

Management Server Installation

The Cisco UCS C220 M5 Server acts as a management server for this solution. It requires VMware ESXi 6.5 for the Cisco UCS C220 M5 Servers and for the proxy services, either a SLES or Redhat Server in a VM. Windows based system VM can also be considered to host the Network services such as Domain Controller, DNS and NTP for use by the HANA nodes.

Server Configuration

The Cisco UCS C220 M5 Rack-Mount Servers are recommended for use as management servers in the FlashStack environment.

Cisco Integrated Management Controller (CIMC) of Cisco UCS C220 M5 Servers and both the Cisco UCS VIC card ports must be connected to Cisco Nexus 9000 Series Switches in the management network, as defined in the Cabling Section.  Three IP addresses are necessary for each of the server; one each for the CIMC, ESXi console and PXE boot VM networks.

CIMC Configuration

To configure the IP-Address on the CIMC, complete the following steps:

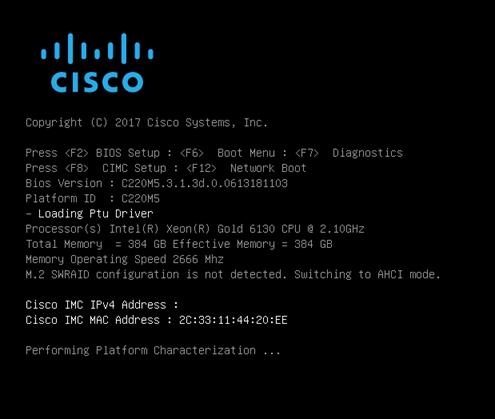

1.        With a direct attached monitor and keyboard press F8 when the following screen appears:

2.       Configure the CIMC as required to be accessible from the Management LAN.

3.        When connecting the  CIMC to Management Switch, complete the following steps:

a.        Choose Dedicated under NIC mode

b.       Enter the IP address for CIMC which is accessible from the Management Network

c.        Enter the Subnet mask for CIMC network

d.       Enter the Default Gateway for CIMC network

e.       Choose NIC redundancy as None

f.         Enter the Default password for admin user under Default User (Basic) and Reenter password

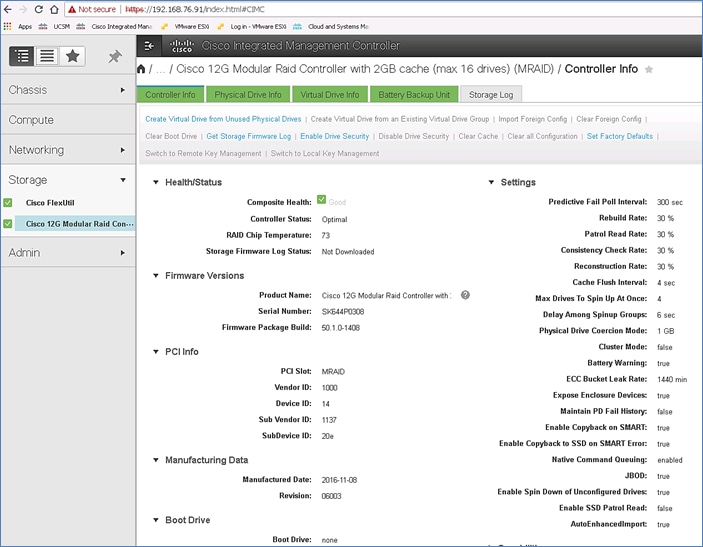

Storage Configuration

To create a redundant virtual drive (RAID 1) on the internal disks to host ESXi and VMs, complete the following steps:

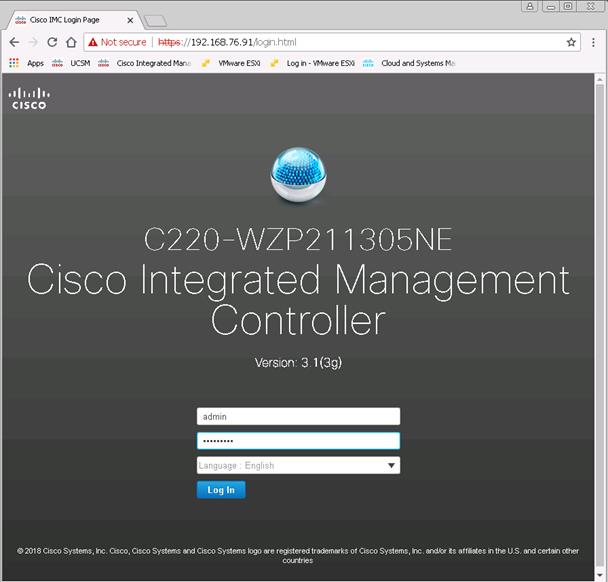

1.        Open a web browser and navigate to the Cisco C220-M5 CIMC IP address.

2.       Enter admin as the user name and enter the administrative password, which was previously set.

3.        Click Login to log in to CIMC.

4.       On the Navigation Pane click the Storage tab. Select Cisco 12G Modular Raid Controller.

5.        Click Create Virtual Drive from Unused Physical Drives.

6.       Choose RAID Level 1 and Select the Disks and click >> to add them in the Drive Groups.

7.        Click Create Virtual Drive to create the virtual drive.

8.       Click the Virtual Drive Info tab.

9.       Select the Virtual Drive created and Click Initialize.

10.    Click Initialize VD.

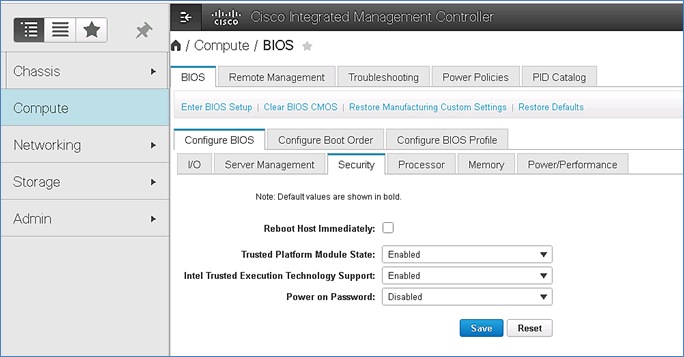

11.     As a prerequisite for ESXi installation, under Compute BIOS setting’s Security sub-tab, make sure Intel Trusted Execution Technology Support is Enabled.

VMware ESXi Installation

Install VMware ESXi 6.5d on the Cisco UCS M5 C-Series server and configure both Cisco UCS VIC interfaces as the ESX Management Network by completing the following steps.

Download Cisco Custom Image for ESXi 6.5a

1.        Click the following link vmware login page.

2.       Type your email or customer number and the password and then click Log in.

3.        Click the following link Cisco ESXi 6.5U2 GA Install CD Download.

4.       Click Download.

5.        Save it to your destination folder.

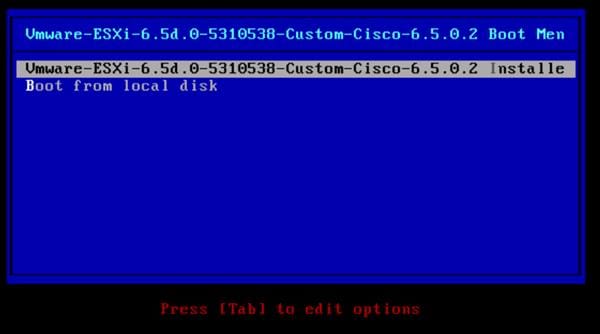

VMware ESXi Hosts ESXi-Mgmt-01 and ESXi-Mgmt-02

To prepare the server for the OS installation, complete the following steps on each ESXi host:

1.        On your Browser go to IP address Set for CIMC.

2.       In the Navigation Pane Server > Summary.

3.        Click Launch KVM Console.

4.       Open with Java JRE installed.

5.        Click the Virtual Media tab.

6.       Click Map CD/DVD.

7.        Browse to the ESXi installer ISO image file and click Open.

8.       Select the Mapped checkbox to map the newly added image.

9.       Under Power tab select Power Cycle System to reboot the server.

Install ESXi

Management Server ESXi-Mgmt-01 and ESXi-Mgmt-02

To install VMware ESXi on the local disk, complete the following steps on each host:

1.        On reboot, the machine detects the presence of the ESXi installation media. Select the ESXi installer from the menu that is displayed.

2.       After the installer is finished loading, press Enter to continue with the installation.

3.        Read and accept the end-user license agreement (EULA). Press F11 to accept and continue.

4.       Select the local disk which was previously created for ESXi and press Enter to continue with the installation.

5.        Select the appropriate keyboard layout and press Enter.

6.       Enter and confirm the root password and press Enter.

7.        The installer issues a warning that existing partitions will be repartitioned. Press F11 to continue with the installation.

8.       After the installation is complete, clear the Mapped checkbox (located in the Virtual Media tab of the KVM console) to unmap the ESXi installation image.

9.       The ESXi installation image must be unmapped to make sure that the server reboots into ESXi and not into the installer.

10.    The Virtual Media window might issue a warning stating that it is preferable to eject the media from the guest. Click Yes to unmap the image.

11.     From the KVM tab, press Enter to reboot the server.

Set Up Management Networking for ESXi Hosts

Adding a management network for each VMware host is necessary for managing the host. To add a management network for the VMware hosts, complete the following steps on each ESXi host.

Configure Management Access

To configure the ESXi-Mgmt-01 ESXi host with access to the management network, complete the following steps:

1.        After the server has finished rebooting, press F2 to customize the system.

2.       Log in as root and enter the corresponding password.

3.        Select the Configure the Management Network option and press Enter.

4.       Select the VLAN (Optional) option and press Enter.

5.        Enter the <<var_oob_vlan_id>> and press Enter.

6.       From the Configure Management Network menu, select IP Configuration and press Enter.

7.        Select the Set Static IP Address and Network Configuration option by using the space bar.

8.       Enter the IP address for managing the first ESXi host: <<var_vm_host_mgmt_01_ip>>.

9.       Enter the subnet mask for the first ESXi host.

10.    Enter the default gateway for the first ESXi host.

11.     Press Enter to accept the changes to the IP configuration.

12.    Select the IPv6 Configuration option and press Enter.

13.     Using the spacebar, unselect Enable IPv6 (restart required) and press Enter.

14.    Select the DNS Configuration option and press Enter.

15.     Because the IP address is assigned manually, the DNS information must also be entered manually.

16.    Enter the IP address of the primary DNS server.

17.     Optional: Enter the IP address of the secondary DNS server.

18.    Enter the fully qualified domain name (FQDN) for the first ESXi host.

19.    Press Enter to accept the changes to the DNS configuration.

20.    Press Esc to exit the Configure Management Network submenu.

21.    Press Y to confirm the changes and return to the main menu.

22.    The ESXi host reboots. After reboot, press F2 and log back in as root.

23.    Select Test Management Network to verify that the management network is set up correctly and press Enter.

24.    Press Enter to run the test.

25.    Press Enter to exit the window.

26.    Press Esc to log out of the VMware console.

VMware ESXi Host ESXi-Mgmt-01

Set Up VMkernel Ports and Virtual Switch

To set up the VMkernel ports and the virtual switches on the ESXi-Mgmt-01 ESXi host, complete the following steps:

1.        From each Web client, select the host in the inventory.

2.       Click the Networking in the main pane.

3.        Select Standard Switch: vSwith0

4.       Select Network Adapters tab and add vmnic2 and vmnic3 to the vSwitch and click Save.

Configure Additional Port Groups on this New vSwitch.

1.        Select Networking in the main pane.

2.       Click properties of vSwitch0 and Select Ports tab.

3.        Select VM port group.

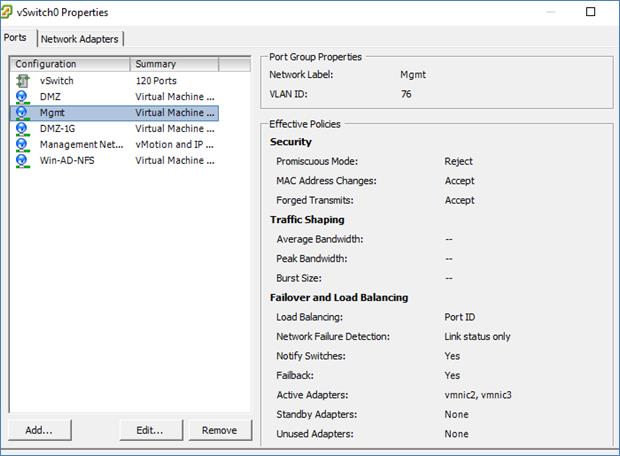

4.       For Network Label enter Mgmt. Enter VLAN ID for HANA-Mgmt.

5.        Click Finish.

6.       Add additional port groups for the Management network as well to the vSwitch.

7.        Repeat the last section for the Win-AD-NFS network which is the DC, DNS services network used by the Pure Storage’s WFS services.



8.       Click Finish.

Configure NTP on ESXi Hosts

To configure Network Time Protocol (NTP) on the ESXi hosts, complete the following steps on each host:

1.        From each vSphere Client, select the host in the inventory.

2.       Click the Configuration tab to enable configurations.

3.        Click Time Configuration in the Software pane.

4.       Click Properties at the upper right side of the window.

5.        At the bottom of the Time Configuration dialog box, click Options.

6.       In the NTP Daemon Options dialog box, complete the following steps:

a.        Click General in the left pane, select Start and stop with host.

b.       Click NTP Settings in the left pane and click Add.

7.        In the Add NTP Server dialog box, enter <<var_global_ntp_server_ip>> as the IP address of the NTP server and click OK.

8.       In the NTP Daemon Options dialog box, select the Restart NTP Service to Apply Changes checkbox and click OK.

9.       In the Time Configuration dialog box, complete the following steps:

a.        Select the NTP Client Enabled checkbox and click OK.

b.       Verify that the clock is now set to approximately the correct time.

10.    The NTP server time may vary slightly from the host time.

The following section provides a detailed procedure for configuring the Cisco Nexus 9000 Switches of the Production PoD for SAP HANA environment. The switch configuration in this section based on cabling plan described in the Device Cabling section. If the systems connected on different ports, configure the switches accordingly following the guidelines described in this section

Device Cabling

The information in this section is provided as a reference for the IP connectivity part of the production PoD with Nexus 9336C-FX2 switches interconnecting the Cisco UCS B480 M5 nodes in chassis through FIs and storage for NFS file share access [/hana/shared]. Figure 19 shows the cabling topology for IP network configuration of FlashStack for SAP HANA

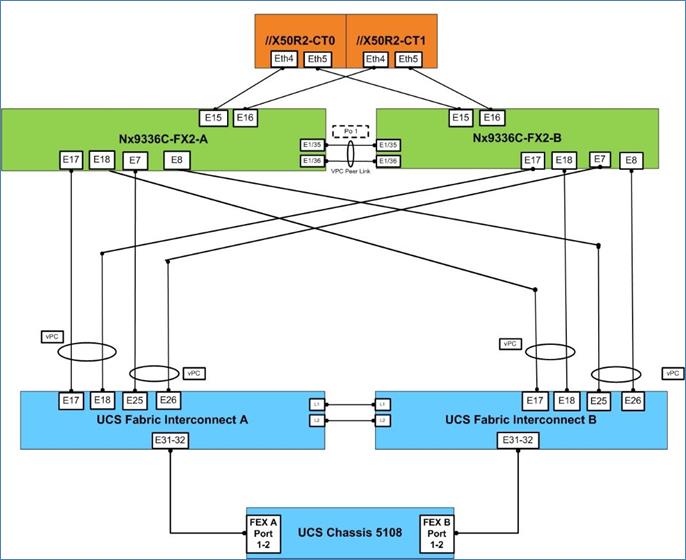

Figure 19     Cabling Topology for FlashStack for SAP HANA

The tables below include both local and remote device and port locations for easy reference. The tables also capture the out-of-band management ports connectivity into preexisting management infrastructure, Table 11   through Table 14 provide the details of all the connections.

Table 11     Cisco UCS Fabric Interconnect A - Cabling Information

Table 12    Cisco UCS Fabric Interconnect B - Cabling Information

Table 13     Cisco Nexus 9336C-FX2-A Cabling Information

Table 14    Cisco Nexus 9336C-FX2-B Cabling Information

Cisco Nexus 9000 A Initial Configuration

To set up the initial configuration for the first Cisco Nexus switch complete the following steps:

Cisco Nexus 9000 B Initial Configuration

To set up the initial configuration for the second Cisco Nexus switch, complete the following steps:

Enable Appropriate Cisco Nexus 9000 Series Switches─Features and Settings

Cisco Nexus 9000 A and Cisco Nexus 9000 B

To enable the IP switching feature and set the default spanning tree behaviors, complete the following steps:

1.        On each Nexus 9000, enter configuration mode:

2.       Use the following commands to enable the necessary features:

3.        Configure spanning tree defaults:

4.       Save the running configuration to start-up:

Create VLANs for SAP HANA Traffic

Cisco Nexus 9000 A and Cisco Nexus 9000 B

To create the necessary VLANs, complete the following step on both switches:

1.        From the configuration mode, run the following commands:

Configure Virtual Port-Channel Domain

Cisco Nexus 9000 A

To configure vPCs for switch A, complete the following steps:

1.        From the global configuration mode, create a new vPC domain:

2.       Make Nexus 9000A the primary vPC peer by defining a low priority value:

3.        Use the management interfaces on the supervisors of the Nexus 9000s to establish a keepalive link:

4.       Enable following features for this vPC domain:

Cisco Nexus 9000 B

To configure vPCs for switch B, complete the following steps:

1.        From the global configuration mode, define the same vPC domain in switch B:

2.       Make Cisco Nexus 9000 B the secondary vPC peer by defining a higher priority value than that of the Nexus 9000 A:

3.        Use the management interfaces on the supervisors of the Cisco Nexus 9000s to establish a keepalive link:

4.       Enable following features for this vPC domain:

1.

Configure Network Interfaces for the VPC Peer Links

Cisco Nexus 9000 A

1.        Define a port description for the interfaces connecting to VPC Peer <<var_nexus_B_hostname>>.

2.       Apply a port channel to both VPC Peer links and bring up the interfaces.

3.        Define a description for the port-channel connecting to <<var_nexus_B_hostname>>.

4.       Make the port-channel a switchport, and configure a trunk to allow HANA VLANs

5.        Make this port-channel the VPC peer link and bring it up.

Cisco Nexus 9000 B

1.        Define a port description for the interfaces connecting to VPC peer <<var_nexus_A_hostname>>.

2.       Apply a port channel to both VPC peer links and bring up the interfaces.

3.        Define a description for the port-channel connecting to <<var_nexus_A_hostname>>.

4.       Make the port-channel a switchport, and configure a trunk to allow HANA VLANs.

5.        Make this port-channel the VPC peer link and bring it up.

Configure vPCs with Cisco UCS Fabric Interconnect

To configure the vPCs for use by the Client zone, Admin zone, and internal zone traffic, complete the following steps:

Run on Cisco Nexus 9000 A and Cisco Nexus 9000 B

1.        Define a port description for the interfaces connecting to <<var_ucs_clustername>>-A.



2.       Apply it to a port channel and bring up the interface.

3.        Define a description for the port-channel connecting to <<var_ucs_clustername>>-A.

4.       Make the port-channel a switchport, and configure a trunk to allow all HANA VLANs.

5.        Make the port channel and associated interfaces spanning tree edge ports.

6.       Set the MTU to be 9216 to support jumbo frames.

7.        Make this a VPC port-channel and bring it up.

8.       Define a port description for the interface connecting to <<var_ucs_clustername>>-B.

9.       Apply it to a port channel and bring up the interface.

10.    Define a description for the port-channel connecting to <<var_ucs_clustername>>-B.

11.     Make the port-channel a switchport, and configure a trunk to allow all HANA VLANs.

12.    Make the port channel and associated interfaces spanning tree edge ports.

13.     Set the MTU to be 9216 to support jumbo frames.

14.    Make this a VPC port-channel and bring it up.

Configure SAP HANA Backup and NFS /hana/shared Networks to Use Separate vPCs

Configure additional vPCs to be used exclusively by the Storage zone networks namely, NFS hana/shared and HANA node backup networks. The following example configures two ports Ethernet 1/7 and Et/hernet1/8 connected to Eth1/25 and Eth1/26 on the UCS Fabric Interconnects.

Run on Cisco Nexus 9000 A and Cisco Nexus 9000 B

1.        Define a port description for the interface connecting to <<var_node01>>.

2.       Apply it to a port channel and bring up the interface.

3.        Define a description for the port-channel connecting to <<var_backup_node01>>.

4.       Make the port-channel a switchport, and configure a trunk to allow NFS VLAN for DATA.

5.        Make the port channel and associated interfaces spanning tree edge ports.

6.       Set the MTU to be 9216 to support jumbo frames.

7.        Make this a VPC port-channel and bring it up.

8.       Define a port description for the interface connecting to <<var_node02>>.

9.       Apply it to a port channel and bring up the interface.

10.    Define a description for the port-channel connecting to <<var_node02>>.

11.     Make the port-channel a switchport, and configure a trunk to allow NFS VLAN for DATA

12.    Make the port channel and associated interfaces spanning tree edge ports.

13.     Set the MTU to be 9216 to support jumbo frames.

14.    Make this a VPC port-channel and bring it up.

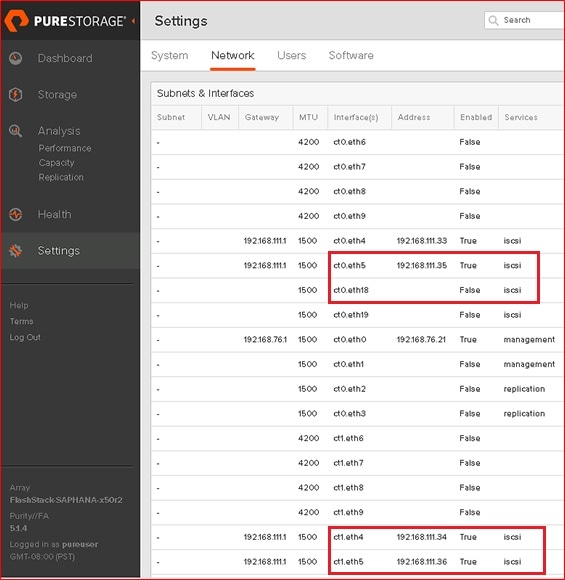

Configure Ports Connecting to Pure Storage iSCSI Ports

Pure Storage Purity RUN platform based WFS configuration that enables NFS filesystem provisioning uses iSCSI ports on the array controllers for southbound connectivity to consumer nodes via the Ethernet switches. The iSCSI ports work as uplink ports for the controller hosted Windows 2016 Server VMs configured as failover cluster. The iSCSI ports on the array side do not support LACP; they are configured as access ports with spanning-tree type edge.

In this section, you will configure the ports that connect to Pure Storage’s iSCSI ports that provide IP connectivity to NFS share for HANA nodes.

 Cisco Nexus 9000 A

1.        Define a port description for the interface connecting to iSCSI port eth4 on  array controller 0

2.       Configure it as access port and assign the NFS network VLAN.

3.        Define a port description for the interface connecting to iSCSI port eth4 on array controller 1

4.       Configure it as access port and assign the NFS network VLAN.

Cisco Nexus 9000 B

1.        Define a port description for the interface connecting to iSCSI port eth5 on  array controller 0

2.       Configure it as access port and assign the NFS network VLAN.

3.        Define a port description for the interface connecting to iSCSI port eth5 on array controller 1

4.       Configure it as access port and assign the NFS network VLAN

Configure Cisco MDS 9148S Switches

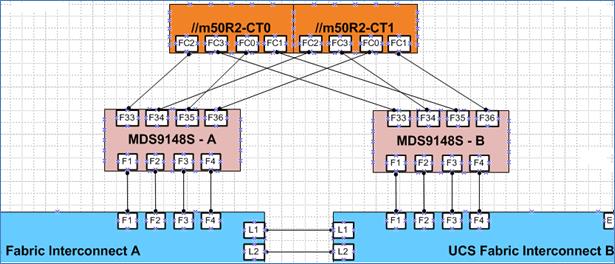

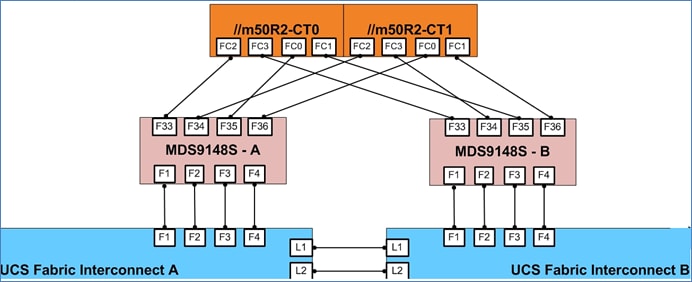

Figure 20 illustrates the connected MDS Switches to Fabric Interconnects and Pure Storage System.

Figure 20     MDS, FI and Pure Storage Layout

For this solution, we connected four ports (ports 1-4) of MDS Switch A to Fabric Interconnect A (ports 1-4). Similarly, we connected four ports (ports 1-4) of MDS Switch B to Fabric Interconnect B (ports 1-4). We connected four ports (ports 33-36) of MDS Switch A to Pure Storage System. Similarly, we connected four ports (ports 33-36) of MDS Switch B to Pure Storage System as shown in Table 15  . All ports carry 16 GB FC Traffic.

Table 15     MDS 9148S –A  Port Connection to Cisco UCS FI-A and Pure Storage

Table 16    MDS 9148S –B  Port Connection to Cisco UCS FI-B and Pure Storage

This section explains the fabric switch configuration required for the FlashStack for SAP HANA.

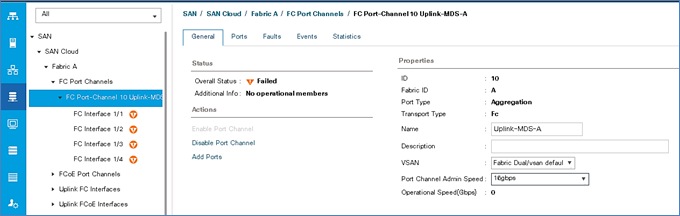

This example uses the Fibre Channel Port Channel between the Cisco MDS switches and the Cisco UCS Fabric Interconnects.

Cisco MDS Initial Configuration

Cisco MDS 9148S A

Cisco MDS 9148S B

Configure the Management Port and Enable Essential Features

On MDS 9148S A and B enter configuration mode and execute following commands:

Configure Fibre Channel Ports and Port Channels

1.        On MDS 9148S A enter the configuration mode and enable the required features as shown below:

2.       Use the following commands to configure the FC Port channel and add all FC ports connected to Cisco UCS Fabric Interconnect A:



3.        On MDS 9148S B enter the configuration mode and enable the required features as shown below:

4.       Use the following commands to configure the FC Port channel and add all FC ports connected to Cisco UCS Fabric Interconnect B:

Configure VSANs

1.        On MDS 9148S A enter the configuration mode and execute the following commands to configure the VSAN:





2.       On MDS 9148S B enter the configuration mode and execute the following commands to configure the VSAN:





Cisco UCS Configuration Overview

It is beyond the scope of this document to cover detailed information about the Cisco UCS infrastructure setup and connectivity. The documentation guides and examples are available at: http://www.cisco.com/en/US/products/ps10281/products_installation_and_configuration_guides_list.html.

High-Level Steps to Configure Cisco Unified Computing System

The following are the high-level steps involved for a Cisco UCS configuration:

1.        Configure Fabric Interconnects for a Cluster Setup

2.       Configure Fabric Interconnects for Chassis and Blade Discovery

a.        Configure Global Policies

b.       Configure Server Ports

3.        Configure LAN and SAN on Cisco UCS Manager

a.        Configure Ethernet LAN Uplink Ports

b.       Configure FC SAN Uplink Ports

c.        Configure VLAN

d.       Configure VSAN

4.       Configure UUID, IP, MAC, WWNN and WWPN Pools

a.        UUID Pool Creation

b.       IP and MAC Pool Creation

c.        WWNN and WWPN Pool Creation

5.        Configure vNIC and vHBA Template

a.        Create vNIC Template one each for Fabric A and B

b.       Create Storage vHBA Template one each for Fabric A and B

6.       Configure Ethernet Uplink Port-Channels

7.        Create Server Boot Policy for SAN Boot

Initial Setup of Cisco UCS 6332-16UP Fabric Interconnects

This section provides detailed procedures for configuring the Cisco Unified Computing System for use in SAP HANA Scale-Out Solution environment. The steps are necessary to provision the Cisco UCS C-Series servers to meet SAP HANA requirement.

Cisco UCS 6332-16UP Fabric Interconnect A

To configure the Cisco UCS Fabric Interconnect A, complete the following steps:

1.        Connect to the console port on the first Cisco UCS 6300 Fabric Interconnect.

Enter the configuration method: console

Enter the setup mode; setup newly or restore from backup.(setup/restore)? setup

You have chosen to setup a a new fabric interconnect? Continue? (y/n): y

Enforce strong passwords? (y/n) [y]: y

Enter the password for "admin": <<var_password>>

Enter the same password for "admin": <<var_password>>

Is this fabric interconnect part of a cluster (select 'no' for standalone)? (yes/no) [n]: y

Which switch fabric (A|B): A

Enter the system name: <<var_ucs_clustername>>

Physical switch Mgmt0 IPv4 address: <<var_ucsa_mgmt_ip>>

Physical switch Mgmt0 IPv4 netmask: <<var_ucsa_mgmt_mask>>

IPv4 address of the default gateway: <<var_ucsa_mgmt_gateway>>

Cluster IPv4 address: <<var_ucs_cluster_ip>>

Configure DNS Server IPv4 address? (yes/no) [no]: y

DNS IPv4 address: <<var_nameserver_ip>>

Configure the default domain name? y

Default domain name: <<var_dns_domain_name>>

Join centralized management environment (UCS Central)? (yes/no) [n]: Enter

2.       Review the settings printed to the console. If they are correct, answer yes to apply and save the configuration.

3.        Wait for the login prompt to make sure that the configuration has been saved.

Cisco UCS 6332-16UP Fabric Interconnect B

To configure the Cisco UCS Fabric Interconnect B, complete the following steps:

1.        Connect to the console port on the second Cisco UCS 6332 Fabric Interconnect.

Enter the configuration method: console
Installer has detected the presence of a peer Fabric interconnect. This Fabric interconnect will be added to the cluster.  Do you want to continue {y|n}? y
Enter the admin password for the peer fabric interconnect: <<var_password>>

Physical switch Mgmt0 IPv4 address: <<var_ucsb_mgmt_ip>>

Apply and save the configuration (select ‘no’ if you want to re-enter)? (yes/no): y

2.       Wait for the login prompt to make sure that the configuration has been saved.

Log in to Cisco UCS Manager

To log in to the Cisco Unified Computing System environment, complete the following steps:

1.        Open a web browser and navigate to the Cisco UCS 6332 Fabric Interconnect cluster address.

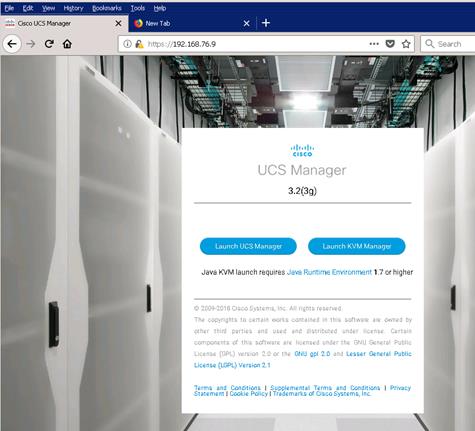

Figure 21     Accessing Cisco UCS Manager

2.       Click Launch UCS Manager.

3.        If prompted to accept security certificates, accept as necessary.

4.       When prompted, enter admin as the user name and enter the administrative password.

5.        Click Login to log in to the Cisco UCS Manager.

Figure 22     Cisco UCS Manager Page

Chassis Discovery Policy

Setting the discovery policy aids the discovery of Cisco UCS B-Series chassis and of Cisco UCS C-Series server connectivity.

To modify the chassis discovery policy, complete the following steps:

1.        In Cisco UCS Manager, click the Equipment tab in the navigation pane and select Equipment in the list on the left.

2.       In the right pane, click the Policies tab.

3.        Under Global Policies, set the Chassis/FEX Discovery Policy to match the number of uplink ports that are cabled between the chassis or fabric extenders (FEXes) and the fabric interconnects. Set the Link Grouping Preference to Port Channel.

4.       Select Immediate for Rack Server Discovery Policy.

5.        Click Save Changes.

6.       Click OK.

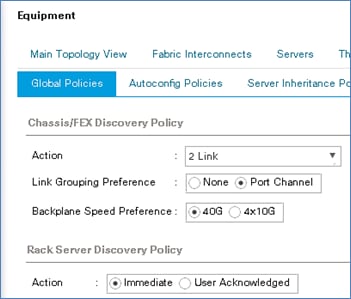

Figure 23     Chassis/FEX and Rack Server Discovery Policy

Configure Server Ports

To enable server and uplink ports, complete the following steps:

1.        In Cisco UCS Manager, click the Equipment tab in the navigation pane.

2.       Select Equipment > Fabric Interconnects > Fabric Interconnect A (primary) > Fixed Module.

3.        Expand Ethernet Ports.

4.       Select the ports that are connected to the chassis and / or to the Cisco C-Series Server (two per FI), right-click them, and select Configure as Server Port.

5.        Click Yes to confirm server ports and click OK.

6.       Verify that the ports connected to the chassis and / or to the Cisco C-Series Server are now configured as server ports.

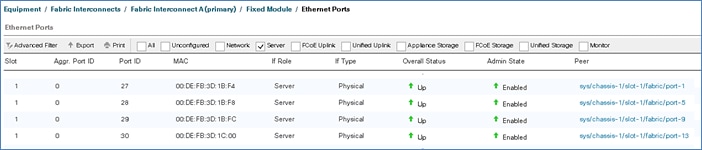

Figure 24     Cisco UCS – Server Port Configuration Example

7.        Select Equipment > Fabric Interconnects > Fabric Interconnect B (subordinate) > Fixed Module.

8.       Expand Ethernet Ports.

9.       Select the ports that are connected to the chassis or to the Cisco C-Series Server (two per FI), right-click them, and select Configure as Server Port.

10.    Click Yes to confirm server ports and click OK.

Configure FC SAN Uplink Ports

To configure the FC SAN Uplink ports, complete the following steps:

1.        Configure the ports connected to the MDS as FC SAN Uplink Ports. This step creates the first set of ports from the left for example, ports 1-6 of the Fixed Module for FC uplinks and the rest for Ethernet uplinks to N9Ks.

2.       Select Equipment > Fabric Interconnects > Fabric Interconnect A and on the right pane, General > Under Actions > Configure Unified Ports. Choose Yes for the warning pop-up In Cisco UCS Manager, click the Equipment tab in the navigation pane. Move the slider bar to right to enable the first set of 6 ports for FC Uplink Role. Click OK.

Figure 25     Cisco UCS – Configure Fixed Module Ports

3.        Select Equipment > Fabric Interconnects > Fabric Interconnect B and on the right pane, General > Under Actions > Configure Unified Ports. Choose Yes for the warning pop-up In Cisco UCS Manager, click the Equipment tab in the navigation pane. Move the slider bar to right to enable the first set of 6 ports for FC Uplink Role. Click OK.

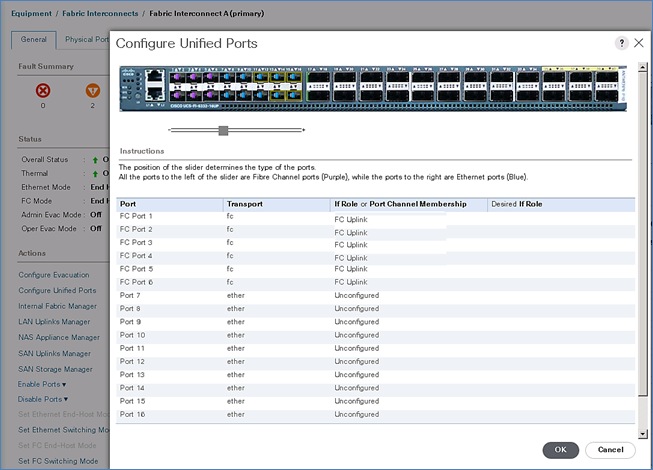

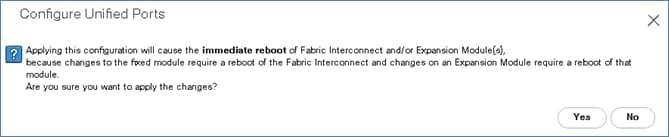

Figure 26     Configure Unified Ports

4.       After the FIs are accessible after reboot, re-login to Cisco UCS Manager.

5.        In Cisco UCS Manager, click the Equipment tab in the navigation pane.

6.       Select Equipment > Fabric Interconnects > Fabric Interconnect A (primary) > Fixed Module.

7.        Expand FC Ports.

8.       Select ports that are connected to the Cisco MDS switch, right-click them, and select Enable.

9.       Click Yes to confirm enabling and click OK.

Figure 27     Cisco UCS – FC Uplink Port Configuration Example

10.    Select Equipment > Fabric Interconnects > Fabric Interconnect B (subordinate) > Fixed Module.

11.     Expand FC Ports.

12.    Select ports that are connected to the Cisco MDS switch, right-click them, and select Enable.

13.     Click Yes to confirm enabling and click OK.

Configure Ethernet Uplink Ports

To configure the ethernet uplink ports, complete the following steps:

1.        Configure the ports connected to the N9Ks Ethernet Uplink Ports. Select the set of ports to the right of the 16 UP Fixed Module for Ethernet Uplink ports.

2.       In Cisco UCS Manager, click the Equipment tab in the navigation pane.

3.        Select Equipment > Fabric Interconnects > Fabric Interconnect A (primary) > Fixed Module.

4.       Expand Ethernet Ports.

5.        Select ports that are connected to the Cisco Nexus switches, right-click them, and select Configure as Uplink Port.

6.       Click Yes to confirm uplink ports and click OK.

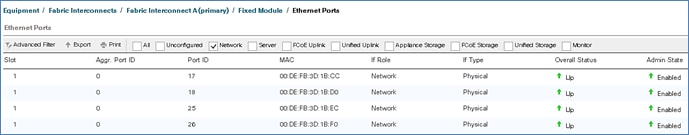

Figure 28     Cisco UCS – Ethernet Uplink Port FI-A Configuration Example

7.        Select Equipment > Fabric Interconnects > Fabric Interconnect B (subordinate) > Fixed Module.

8.       Expand Ethernet Ports.

9.       Select ports that are connected to the Cisco Nexus switches, right-click them, and select Configure as Uplink Port.

10.    Click Yes to confirm the uplink ports and click OK.

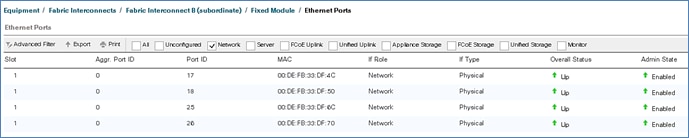

Figure 29     Cisco UCS – Ethernet Uplink Port FI-B Configuration Example

Acknowledge Cisco UCS Chassis and Rack-Mount Servers

To acknowledge all Cisco UCS chassis and/or Rack Mount Servers, complete the following steps:

1.        In Cisco UCS Manager, click the Equipment tab in the navigation pane.

2.       Expand Chassis and select each chassis that is listed. Right-click each chassis and select Acknowledge Chassis.

3.        Expand Rack-Mounts to the list the discovered servers. The servers automatically go into “Discovery” phase.

4.       After a while, ensure the Discovery completes successfully and there are no major or critical faults reported for any of the servers.

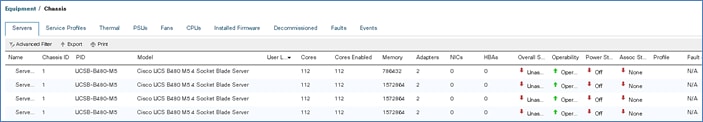

Figure 30     Servers Discovery Status Complete

Create LAN Uplink Port Channels

Configure the LAN uplinks from FI-A and FI-B towards northbound Nexus Switches, in port-channel, for use by all of the network zones as prescribed by SAP. For example, we create port-channel 13 on FI-A and port-channel 14 on FI- B. This port channel pair will have corresponding vPCs defined on N9Ks that ensures seamless redundancy and failover for the north-south network traffic in case of IOM / VIC port failure situations [which are very rare].

It would suffice to have a port-channel pair on FI with corresponding vPC pair on N9Ks to handle traffic of all network zones provided we have enough ports to account for the desired bandwidth. In the current example, we have used two pairs of 2 x 40GE ports for the FI<->N9K connectivity for port-channels. You could add more based on the need or use-case.

We create port channel pair 13 and 14 with two 40GE ports from FIs to the Nexus switches to cater to SAP HANA’s Client, Admin and Internal zones.

We create another port channel pair 15 and 16 with two 40GE ports from FIs to the Nexus switches that could exclusively handle bandwidth intensive SAP HANA Storage zone traffic comprising of HANA node backup network and SAP HANA NFS /hana/shared network.

To configure the necessary port channels out of the Cisco UCS environment, complete the following steps:

1.        In this procedure, two port channels are created: one each from FI-A to and FI-B to uplink Cisco Nexus switches.

2.       In Cisco UCS Manager, click the LAN tab in the navigation pane

3.        Under LAN > LAN Cloud, expand the Fabric A tree.

4.       Right-click Port Channels.

5.        Select Create Port Channel.

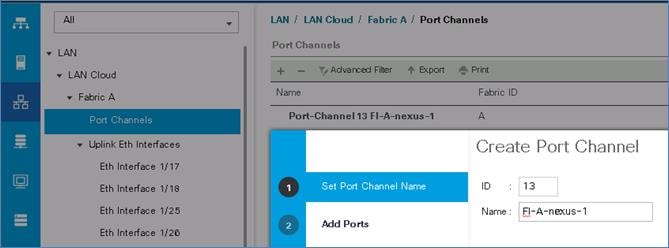

Figure 31      Cisco UCS – Creating Ethernet Port Channel

6.       Enter 13 as the unique ID of the port channel.

7.        Enter FI-A-nexus-1 as the name of the port channel.

8.       Click Next.

9.       Select the following ports to be added to the port channel:

—     Slot ID 1 and port 17

—     Slot ID 1 and port 18

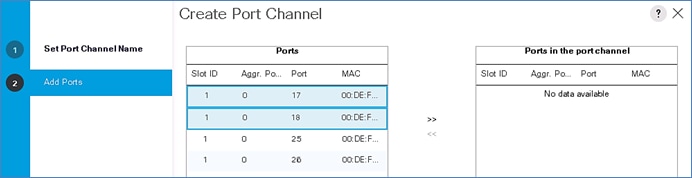

Figure 32     Cisco UCS Port Channel – Add ports

10.    Click >> to add the ports to the port channel.

11.     Click Finish to create the port channel.

12.    Click OK.

13.     In the navigation pane, under LAN > LAN Cloud, expand the Fabric B tree.

14.    Right-click Port Channels.

15.     Select Create Port Channel.

16.    Enter 14 as the unique ID of the port channel.

17.     Enter FI-B-nexus-1 as the name of the port channel.

Figure 33      Cisco UCS Port Channel – Add Ports

18.    Click Next.

19.    Select the following ports to be added to the port channel:

—     Slot ID 1 and port 17

—     Slot ID 1 and port 18

20.    Click >> to add the ports to the port channel.

21.    Click Finish to create the port channel.

22.    Click OK.

23.    In Cisco UCS Manager, click the LAN tab in the navigation pane

24.    Under LAN > LAN Cloud, expand the Fabric A tree.

25.    Right-click Port Channels.

26.    Select Create Port Channel.

Figure 34     Cisco UCS – Creating Ethernet Port Channel

27.    Enter 15 as the unique ID of the port channel.

28.    Enter FI-A-nexus-2 as the name of the port channel.

29.    Click Next.

30.    Select the following ports to be added to the port channel:

—     Slot ID 1 and port 25

—     Slot ID 1 and port 26

Figure 35      Cisco UCS Port Channel – Add Ports

31.     Click >> to add the ports to the port channel.

32.    Click Finish to create the port channel.

33.     Click OK.

34.    In the navigation pane, under LAN > LAN Cloud, expand the Fabric B tree.

35.     Right-click Port Channels.

36.    Select Create Port Channel.

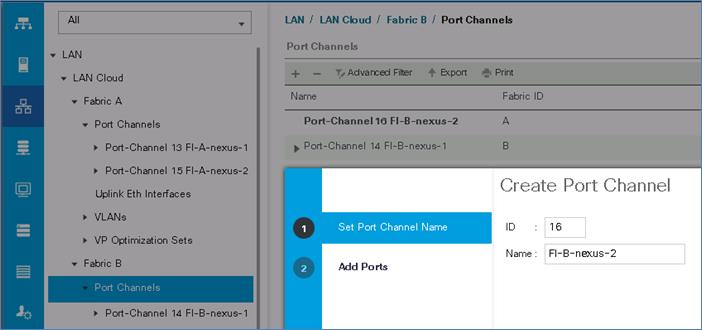

Figure 36     Cisco UCS Port Channel – Add Ports

37.     Enter 16 as the unique ID of the port channel.

38.    Enter FI-B-nexus-2 as the name of the port channel.

39.    Click Next.

40.    Select the following ports to be added to the port channel:

—     Slot ID 1 and port 25

—     Slot ID 1 and port 26

41.    Click >> to add the ports to the port channel.

42.    Click Finish to create the port channel.

43.    Click OK.

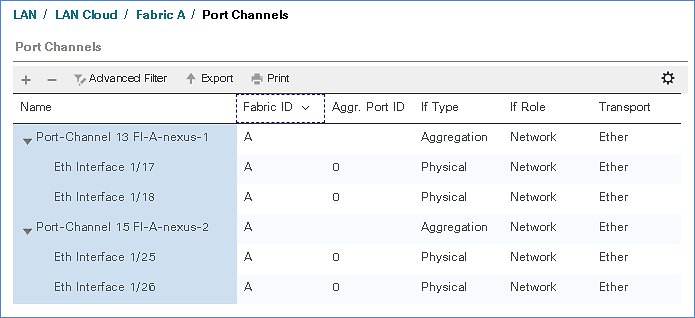

Figure 37      Cisco UCS – FI-A Ethernet Port Channel Summary

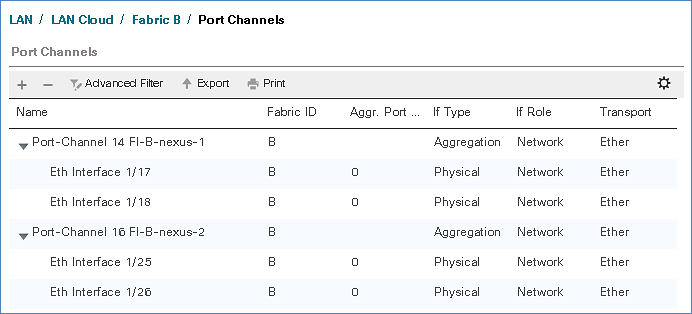

Figure 38     Cisco UCS – FI-B Ethernet Port Channel Summary

Create FC Port Channels

Create a port-channel on FIs A and B for the uplink FC interfaces that connect to respective MDS Fabric Switches, for use by all of the specific VSAN traffic we created earlier in MDS. This port channel pair will have corresponding F-port-channel-trunks defined on MDS switches that would allow for the fabric logins from NPV enabled FIs to be virtualized over the port channel. This provides non-disruptive redundancy should individual member links fail.

To configure the necessary port channels out of the Cisco UCS environment, complete the following steps:

1.        In this procedure, two port channels are created: one from fabric A to both Cisco Nexus switches and one from fabric B to both Cisco Nexus switches.

2.       In Cisco UCS Manager, click the SAN tab in the navigation pane

3.        Under SAN > SAN Cloud, expand the Fabric A tree.

4.       Right-click FC Port Channels.

5.        Select Create FC Port Channel.

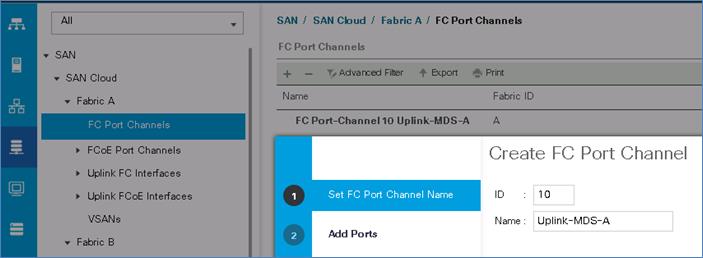

Figure 39     Cisco UCS – Creating FC Port Channel

6.       Enter 10 as the unique ID of the port channel.

7.        Enter uplink-to-MDS-A as the name of the port channel.

8.       Click Next.

9.       Set Port Channel Admin Speed to 16gbps. Select the following ports to be added to the port channel:

—     Slot ID 1 and port 1

—     Slot ID 1 and port 2

—     Slot ID 1 and port 3

—     Slot ID 1 and port 4

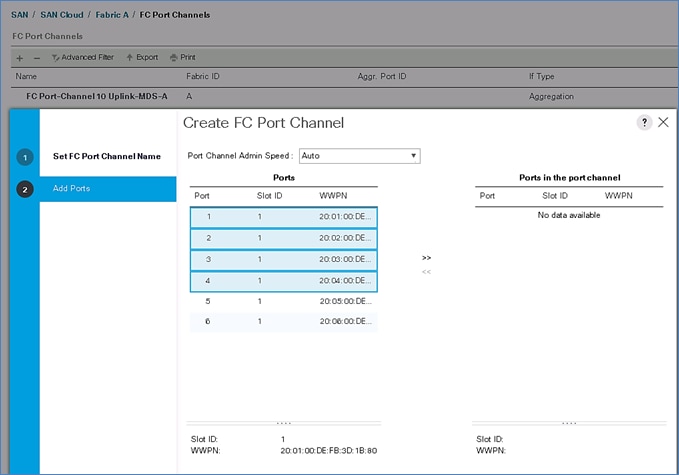

Figure 40     Cisco UCS – Port Channel – Add Ports

10.    Click >> to add the ports to the port channel.

11.     Click Finish to create the port channel.

12.    Click OK.

13.     In the navigation pane, under SAN > SAN Cloud > Fabric A > FC Port Channels, select the newly created FC Port-Channel 10 Uplink-MDS-A. Under General tab on the right pane, under Properties set Port Channel Admin Speed to 16gbps. Click Save changes. Click OK.

Figure 41     Cisco UCS – FC Port Channel – Set Admin Speed

14.    In the navigation pane, under SAN > SAN Cloud, expand the Fabric B tree.

15.     Right-click FC Port Channels.

16.    Select Create FC Port Channel.

17.     Enter 20 as the unique ID of the port channel.

18.    Enter Uplink-to-MDS-B as the name of the port channel.

19.    Click Next.

20.    Set Port Channel Admin Speed to 16gbps. Select the following ports to be added to the port channel:

—     Slot ID 1 and port 1

—     Slot ID 1 and port 2

—     Slot ID 1 and port 3

—     Slot ID 1 and port 4

21.    Click >> to add the ports to the port channel.

22.    Click Finish to create the port channel.

23.    Click OK.

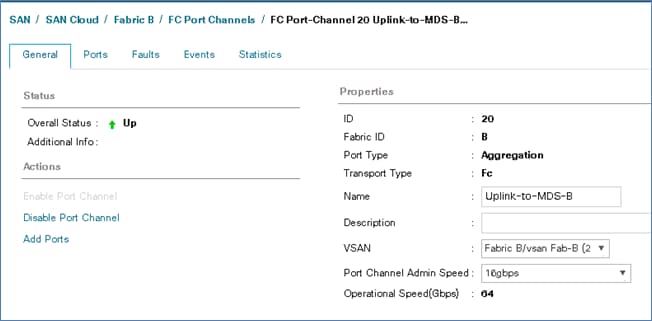

24.    In the navigation pane, under SAN > SAN Cloud > Fabric B > FC Port Channels, select the newly created FC Port-Channel 20 Uplink-MDS-B. Under General tab on the right pane, under Properties set Port Channel Admin Speed to 16gbps. Click Save changes. Click OK.

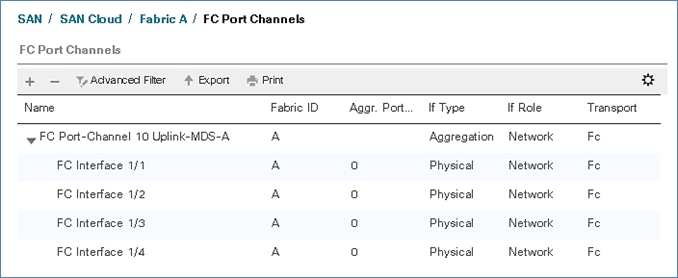

Figure 42     Cisco UCS – FI-A FC Port Channel Summary

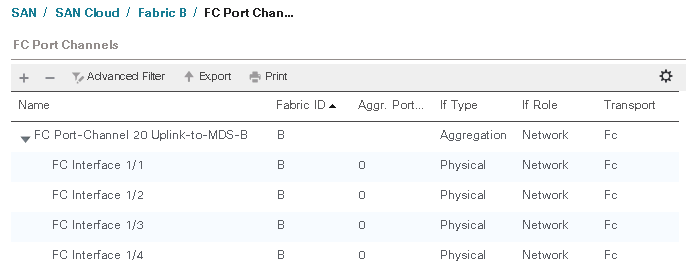

Figure 43     Cisco UCS – FI-B FC Port Channel Summary

Create New Organization

For secure multi-tenancy within the Cisco UCS domain, a logical entity known as organization is created.

To create organization unit, complete the following steps:

1.        In Cisco UCS Manager, on the Tool bar on right pane top click New.

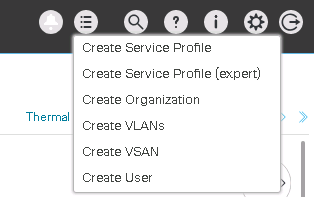

Figure 44     Cisco UCS – Create Organization

2.       From the drop-down menu select Create Organization.

3.        Enter the Name as HANA.

4.       (Optional) Enter the Description as Org for HANA.

5.        Click OK to create the Organization.

Create MAC Address Pools

To configure the necessary MAC address pools for the Cisco UCS environment, complete the following steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Select Pools > root > Sub-Organization > HANA.

3.        In this procedure, two MAC address pools are created, one for each switching fabric.

4.       Right-click MAC Pools under the HANA organization.

5.        Select Create MAC Pool to create the MAC address pool.

6.       Enter FI-A as the name of the MAC pool.

7.        (Optional) Enter a description for the MAC pool.

8.       Choose Assignment Order Sequential.

9.       Click Next.

10.    Click Add.

11.     Specify a starting MAC address.

12.    The recommendation is to place 0A in the second-last octet of the starting MAC address to identify all of the MAC addresses as Fabric Interconnect A addresses.

13.     Specify a size for the MAC address pool that is sufficient to support the available blade or server resources.

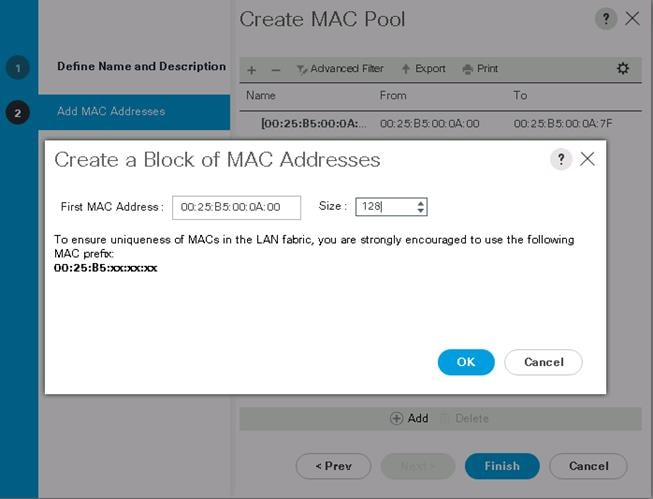

Figure 45     Cisco UCS – Create MAC Pool for Fabric A

14.    Click OK.

15.     Click Finish.

16.    In the confirmation message, click OK.

17.     Right-click MAC Pools under the HANA organization.

18.    Select Create MAC Pool to create the MAC address pool.

19.    Enter FI-B as the name of the MAC pool.

20.    (Optional) Enter a description for the MAC pool. Select ‘Sequential’ for Assignment order.

21.    Click Next.

22.    Click Add.

23.    Specify a starting MAC address.

24.    Specify a size for the MAC address pool that is sufficient to support the available blade or server resources.

Figure 46     Cisco UCS – Create MAC Pool for Fabric B

25.    Click OK.

26.    Click Finish.

27.    In the confirmation message, click OK.

Figure 47     Cisco UCS – MAC Pools Summary

Create WWNN Pool

To configure the necessary WWNN pool for the Cisco UCS environment, complete the following steps:

1.        In Cisco UCS Manager, click the SAN tab in the navigation pane.

2.       Select Pools > root > Sub-Organization > HANA.

3.        Right-click WWNN Pools under the HANA organization.

4.       Select Create WWNN Pool to create the WWNN address pool.

5.        Enter HANA-Nodes as the name of the WWNN pool.

6.       (Optional) Enter a description for the WWNN pool.

7.        Choose Assignment Order Sequential.

8.       Click Next.

9.       Click Add.

10.    Specify a starting WWNN address.

11.     The recommendation is to place AB in the third-last octet of the starting WWNN address to ensure uniqueness. .

12.    Specify a size for the WWNN pool that is sufficient to support the available blade or server resources.

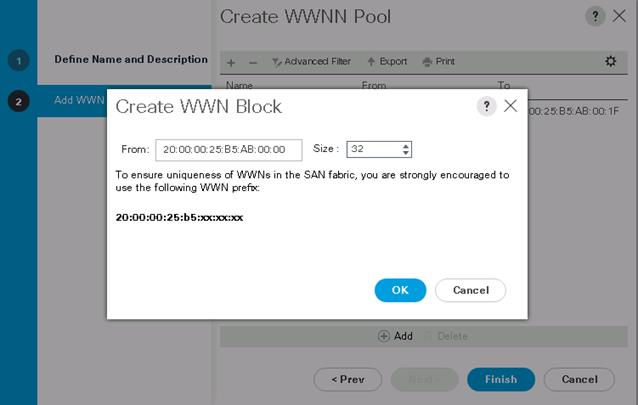

Figure 48     Cisco UCS – Create WWNN Pool

13.     Click OK.

14.    Click Finish.

15.     In the confirmation message, click OK.

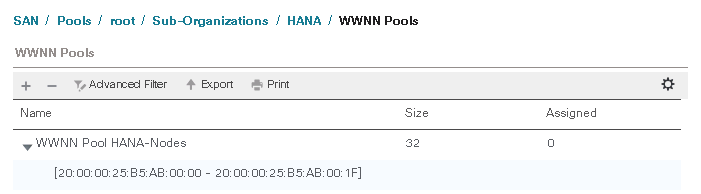

Figure 49     Cisco UCS – WWNN Pool Summary

Create WWPN Pool

To configure the necessary WWPN pool for the Cisco UCS environment, complete the following steps:

1.        In Cisco UCS Manager, click the SAN tab in the navigation pane.

2.       Select Pools > root > Sub-Organization > HANA.

3.        In this procedure, two WWPN pools are created, one for each switching fabric.

4.       Right-click WWPN Pools under the HANA organization.

5.        Select Create WWPN Pool to create the WWPN address pool.

6.       Enter FI-A as the name of the WWPN pool.

7.        (Optional) Enter a description for the WWPN pool.

8.       Choose Assignment Order Sequential.

9.       Click Next.

10.    Click Add.

11.     Specify a starting WWNN address.

12.    The recommendation is to place 0A in the last bust one octet of the starting MAC address to identify all of the WWPN addresses as Fabric Interconnect A addresses.

13.     Specify a size for the WWPN address pool that is sufficient to support the available blade or server resources.

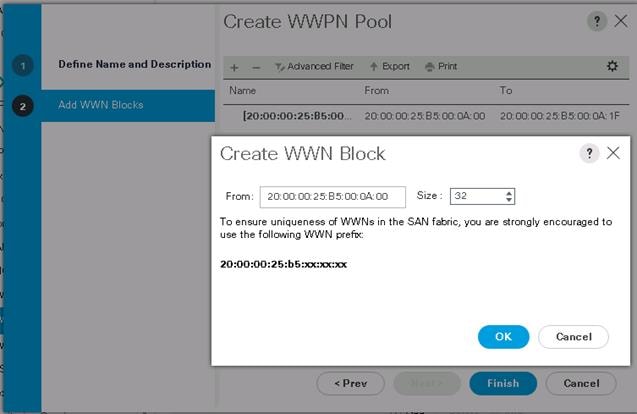

Figure 50     Cisco UCS – Create WWPN Pool for Fabric A

14.    Click OK.

15.     Click Finish.

16.    In the confirmation message, click OK.

17.     Right-click WWPN Pools under the HANA organization.

18.    Select Create WWPN Pool to create the WWNN address pool.

19.    Enter FI-B as the name of the WWPN pool.

20.    (Optional) Enter a description for the WWPN pool. Select ‘Sequential’ for Assignment order.

21.    Click Next.

22.    Click Add.

23.    Specify a starting WWPN address.

24.    Specify a size for the WWPN address pool that is sufficient to support the available blade or server resources.

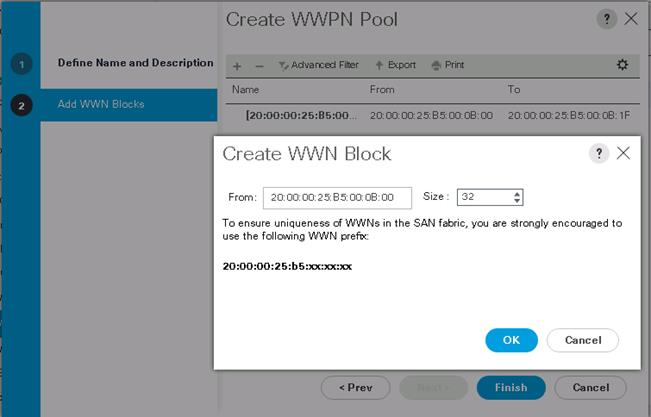

Figure 51      Cisco UCS – Create WWPN Pool for Fabric B

25.    Click OK.

26.    Click Finish.

27.    In the confirmation message, click OK.

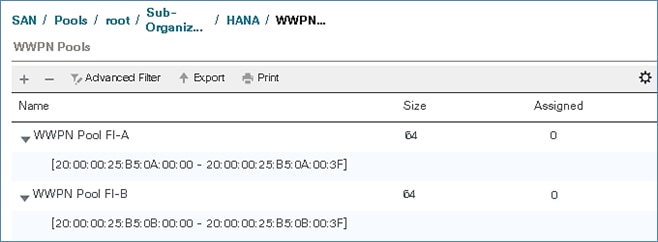

Figure 52     WWPN Pool Summary

Create UUID Suffix Pool

To configure the necessary universally unique identifier (UUID) suffix pool for the Cisco UCS environment, complete the following steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Pools > root > HANA

3.        Right-click UUID Suffix Pools.

4.       Select Create UUID Suffix Pool.

5.        Enter UUID_Pool as the name of the UUID suffix pool.

6.       (Optional) Enter a description for the UUID suffix pool.

7.        Keep the Prefix as the Derived option.

8.       Select Sequential for Assignment Order

9.       Click Next.

10.    Click Add to add a block of UUIDs.

11.     Keep the ‘From’ field at the default setting.

12.    Specify a size for the UUID block that is sufficient to support the available blade or server resources.

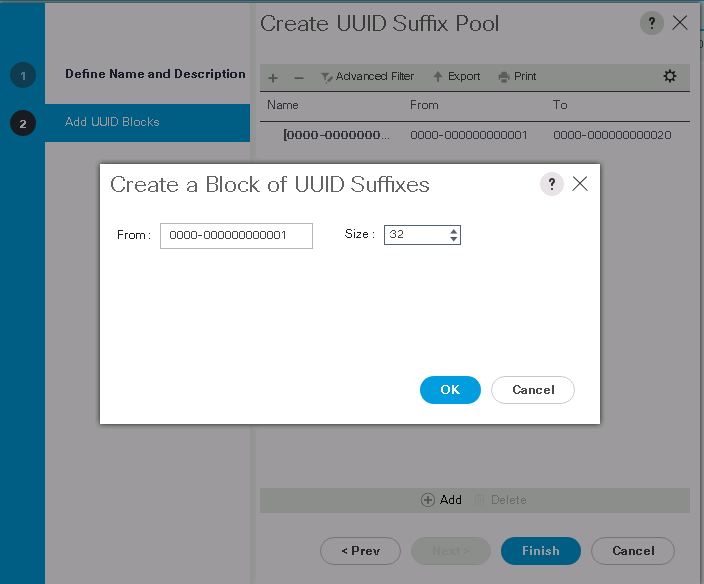

Figure 53      Cisco UCS – Create UUID Block

13.     Click OK.

14.    Click Finish.

15.     Click OK.

Add Block of IP Addresses for KVM Access

To create a block of IP addresses for server Keyboard, Video, Mouse (KVM) access in the Cisco UCS environment, complete the following steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Select Pools > root > IP Pools > IP Pool ext-mgmt.

3.        In the Actions pane, select Create Block of IP Addresses.

4.       Enter the starting IP address of the block and the number of IP addresses required, and the subnet and gateway information.

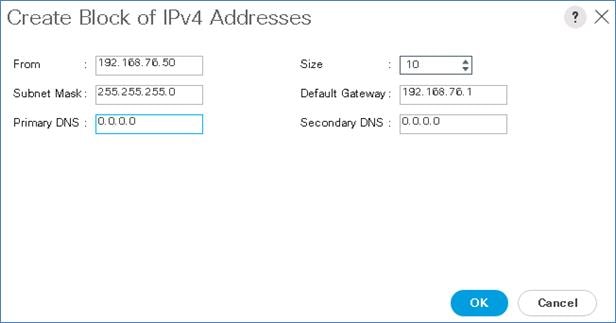

Figure 54     Cisco UCS - Create IP Pool

5.        Click OK to create the IP block.

6.       Click OK in the confirmation message.

Power Policy

To run Cisco UCS with two independent power distribution units, the redundancy must be configured as Grid. Complete the following steps:

1.        In Cisco UCS Manager, click the Equipment tab in the navigation pane and select Equipment in the list on the left.

2.       In the right pane, click the Policies tab.

3.        Under Global Policies, set the Redundancy field in Power Policy to Grid.

4.       Click Save Changes.

5.        Click OK.

Figure 55      Power Policy

Power Control Policy

The Power Capping feature in Cisco UCS is designed to save power with a legacy data center use cases. This feature does not contribute much to the high performance behavior of SAP HANA. By choosing the option “No Cap” for power control policy, the SAP HANA server nodes will not have a restricted power supply. It is recommended to have this power control policy to make sure sufficient power supply for high performance and critical applications like SAP HANA.

To create a power control policy for the Cisco UCS environment, complete the following steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Policies > root.

3.        Right-click Power Control Policies.

4.       Select Create Power Control Policy.

5.        Enter HANA as the Power Control Policy name. (Optional) provide description.

6.       Set Fan Speed Policy to Performance.

7.        Change the Power Capping setting to No Cap.

Figure 56     Power Control Policy for SAP HANA Nodes

8.       Click OK to create the power control policy.

9.       Click OK

Create Host Firmware Package

Firmware management policies allow the administrator to select the corresponding packages for a given server configuration. These policies often include packages for adapter, BIOS, board controller, FC adapters, host bus adapter (HBA) option ROM, and storage controller properties.

To create a firmware management policy for a given server configuration in the Cisco UCS environment, complete the following steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Policies > root.

3.        Right-click Host Firmware Packages.

4.       Select Create Host Firmware Package.

5.        Enter HANA-FW as the name of the host firmware package.

6.       Leave Simple selected.

7.        Select the version 3.2(3g) for both the Blade and Rack Packages.

8.       Click OK to create the host firmware package.

9.       Click OK.

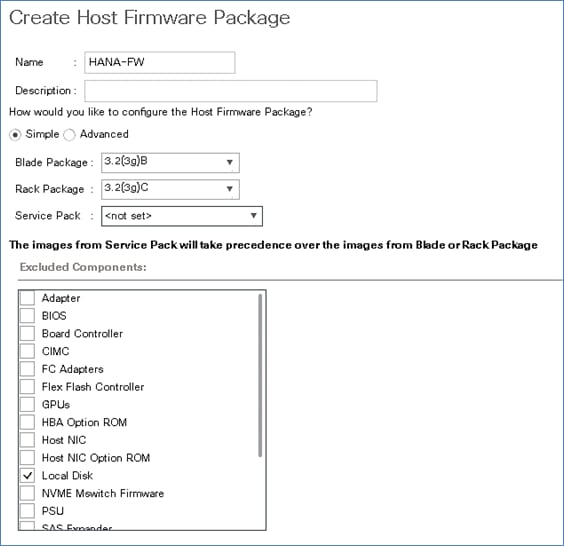

Figure 57      Host Firmware Package

Create Server BIOS Policy

To get best performance for HANA it is required to configure the Server BIOS accurately. To create a server BIOS policy for the Cisco UCS environment, complete the following steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Policies > root > Sub-Organization > HANA.

3.        Right-click BIOS Policies.

4.       Select Create BIOS Policy.

5.        Enter HANA-BIOS as the BIOS policy name.

6.       Select “Reboot on BIOS Settings Change”. Click OK.

7.        Select the BIOS policy selected on the navigation pane.

8.       On the ‘Main’ sub-heading, change the Quiet Boot setting to Disabled.

Figure 58     Create Server BIOS Policy

9.       Click Next.

10.    The recommendation from SAP for SAP HANA is to disable all Processor C States. This will force the CPU to stay on maximum frequency and allow SAP HANA to run with best performance. On the Advanced tab, under Processor sub-tab, make sure Processor C State is disabled.

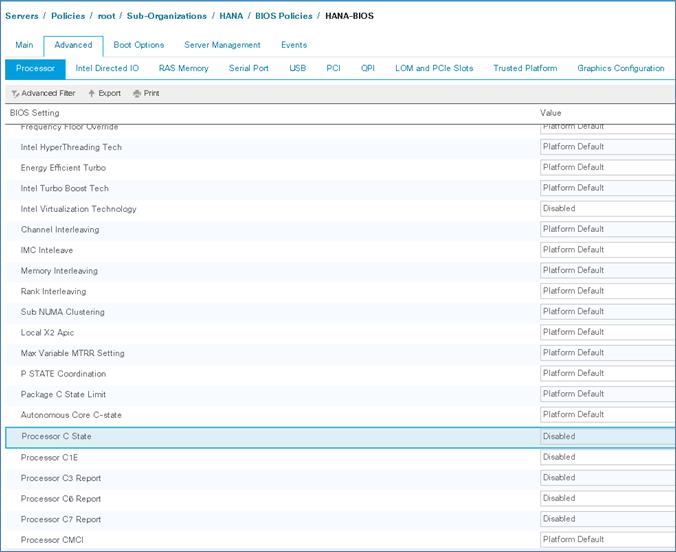

Figure 59     Processor Settings in BIOS Policy

11.     No changes required at the Intel Direct IO sub-tab.

12.    In the RAS Memory sub-tab select maximum-performance, enable NUMA and set LV DDR Mode to performance-mode.

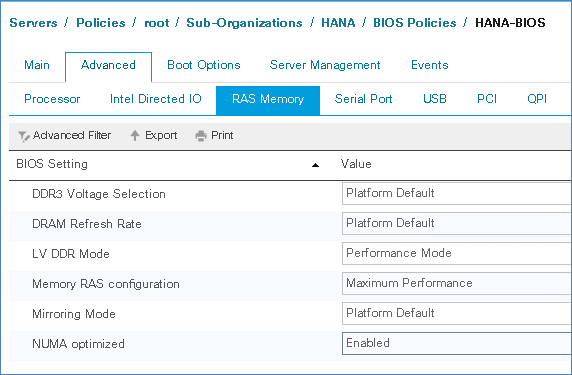

Figure 60     BIOS Policy – Advanced - RAS Memory

13.     Click Next.

14.    In the Serial Port sub-tab, the Serial Port A must be set to enabled.

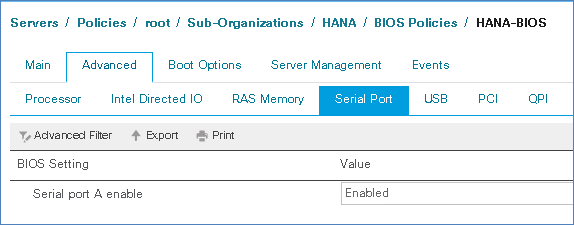

Figure 61     BIOS Policy – Advanced Serial Port

15.     No changes required at the USB, PCI, QPI, LOM and PCIe Slots, Trusted Platform as well as Graphics Configuration sub-tabs.

16.    No changes required at the Boot Options tab.

Figure 62     BIOS Policy – Boot Options

17.     On the Server Management tab, configure the Console Redirection to serial-port-a with the BAUD Rate 115200 and enable the feature Legacy OS redirect. This is used for Serial Console Access over LAN to all SAP HANA servers.

Figure 63     BIOS Policy – Server Management

18.    Click Finish to Create BIOS Policy.

19.    Click OK.

Create Serial over LAN Policy

The Serial over LAN policy is required to get console access to all the SAP HANA servers through SSH from the management network. This is used in case of the server hang or a Linux kernel crash, where the dump is required. To configure the speed in the Server Management Tab of the BIOS Policy, complete the following steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Policies > root > Sub-Organization > HANA.

3.        Right-click the Serial over LAN Policies.

4.       Select Create Serial over LAN Policy.

5.        Enter SoL-Console as the Policy name.

6.       Select Serial over LAN State to enable.

7.        Change the Speed to 115200.

8.       Click OK.

Figure 64     Serial Over LAN Policy

Update Default Maintenance Policy

It is recommended to update the default Maintenance Policy with the Reboot Policy “User Ack” for the SAP HANA server. This policy will wait for the administrator to acknowledge the server reboot for the configuration changes to take effect.

To update the default Maintenance Policy, complete the following steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Policies > root.

3.        Select Maintenance Policies > default.

4.       Change the Reboot Policy to User Ack.

5.        Click Save Changes.

6.       Click OK to accept the change.

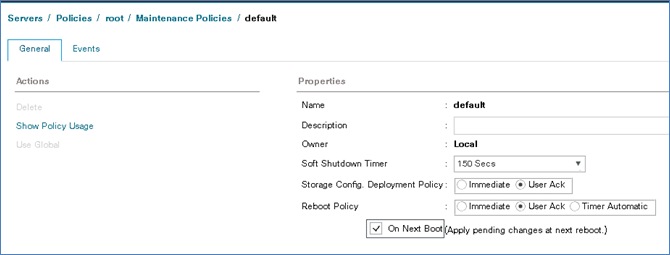

Figure 65     Maintenance Policy

Set Jumbo Frames in Cisco UCS Fabric

The core network requirements for SAP HANA are covered by Cisco UCS defaults. Cisco UCS is based on 40GbE and provides redundancy through the Dual Fabric concept. The Service Profile is configured to distribute the traffic across Fabric Interconnect A and B. During normal operation, the traffic in the inter-node flows on FI A and the NFS traffic on FI B. The inter-node traffic flows from a Blade Server to the Fabric Interconnect A and back to other Blade Server.

To configure jumbo frames and enable quality of service in the Cisco UCS fabric, complete the following steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Select LAN > LAN Cloud > QoS System Class.

3.        In the right pane, click the General tab.

4.       On the MTU Column, enter 9216 in the box.

5.        Check Enabled Under Priority for Silver.

6.       Click Save Changes in the bottom of the window.

7.        Click OK.

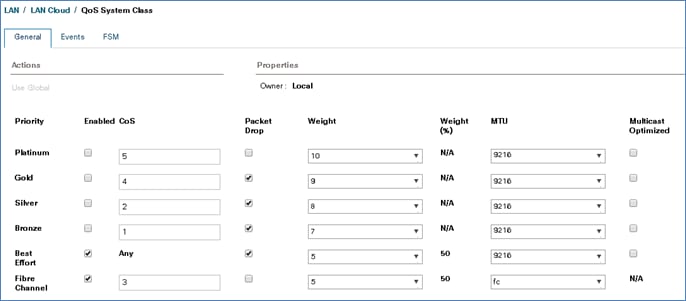

Figure 66     Cisco UCS – Setting Jumbo Frames

Network Control Policy

Update Default Network Control Policy to Enable CDP

CDP needs to be enabled to learn the MAC address of the End Point. To update default Network Control Policy, complete the following steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Select LAN > Policies > root > Network Control Policies > default.

3.        In the right pane, click the General tab.

4.       For CDP: select Enabled radio button.

5.        Click Save Changes in the bottom of the window.

6.       Click OK.

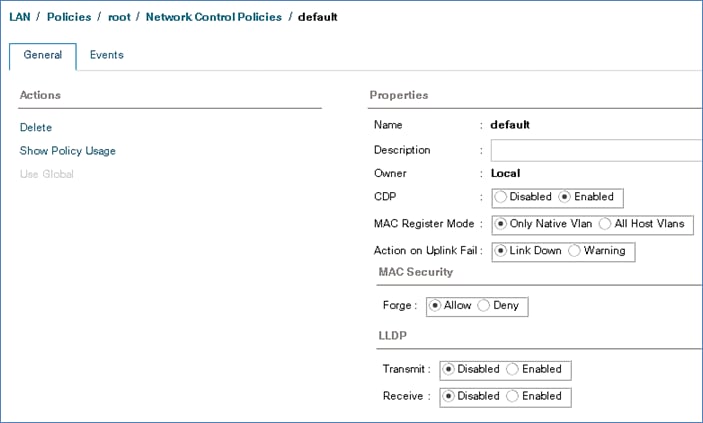

Figure 67     Network Control Policy to Enable CDP

Create Network Control Policy for Internal Network

In order to keep the vNIC links up in case there is a Nexus failure, you need to create the Network Control Policy for Internal Network. To create Network Control Policy for Internal Network, complete the following steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Select LAN > Policies > root > Network Control Policies > right-click and Select Create Network Control Policy.

3.        Enter Internal as the Name of the Policy.

4.       For CDP: select Enabled radio button.

5.        For Action on Uplink Fail: select Warning radio button.

6.       Click OK.

Figure 68     Network Control Policy

LAN Configurations

Within Cisco UCS, all the network types for an SAP HANA system are manifested by defined VLANs. Network design guideline from SAP recommends seven SAP HANA related networks and two infrastructure related networks.

Even though nine VLANs are defined, VLANs for all the networks are not necessary if the solution will not use those networks. For example if the Replication Network is not used in the solution, then VLAN ID 225 need not be created.

The VLAN IDs can be changed if required to match the VLAN IDs in the customer’s network – for example, ID 221 for backup should match the configured VLAN ID at the customer uplink network switches.

Create VLANs

To configure the necessary VLANs for the Cisco UCS environment, complete the following steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Select LAN > LAN Cloud.

3.        Right-click VLANs.

4.       Select Create VLANs.

5.        Enter HANA-Internal as the name of the VLAN to be used for HANA Node to Node network.

6.       Keep the Common/Global option selected for the scope of the VLAN.

7.        Enter <<var_internal_vlan_id>> as the ID of the HANA Node to Node network.

8.       Keep the Sharing Type as None.

9.       Click OK, and then click OK again.

Figure 69     Create VLAN for Internode

10.    Repeat the Steps 1-9 above for each VLAN creation.

11.     Create VLAN for HANA-AppServer.

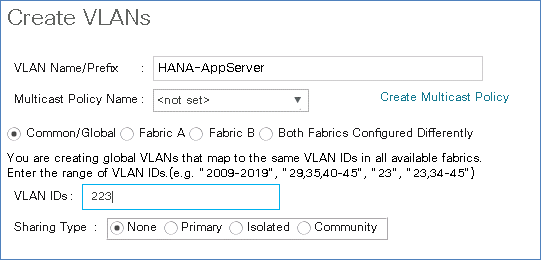

Figure 70     Create VLAN for AppServer

12.    Create VLAN for HANA-Backup.

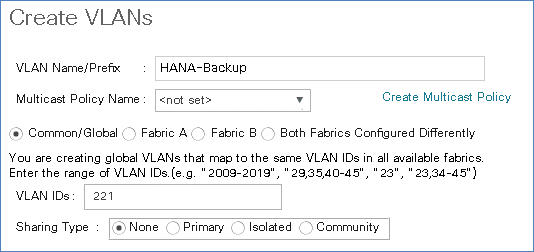

Figure 71      Create VLAN for Backup

13.     Create VLAN for HANA-Client.

Figure 72     Create VLAN for Client Network

14.    Create VLAN for HANA-DataSource.

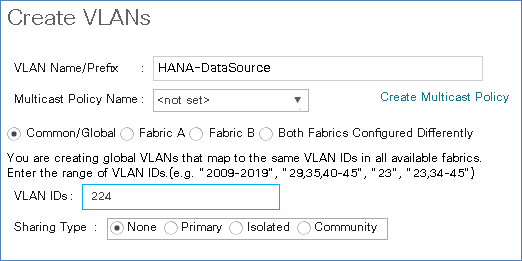

Figure 73      Create VLAN for Data Source

15.     Create VLAN for HANA-Replication.

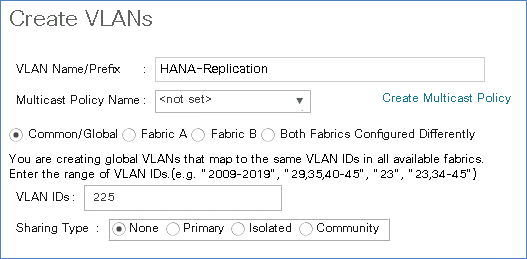

Figure 74     Create VLAN for Replication

16.    Create VLAN HANA-NFSshared for /hana/shared NFS network. The VLAN ID used defined here could be same as of that of the network providing Active Directory Services/DNS in the customer LAN. In the validation setup we have had a windows Server VM in Management PoD providing the management services and the same VLAN ID was used of this to make the solution design simpler.

Figure 75      Create VLAN for /hana/shared NFS Network

17.     Create VLAN for Management.

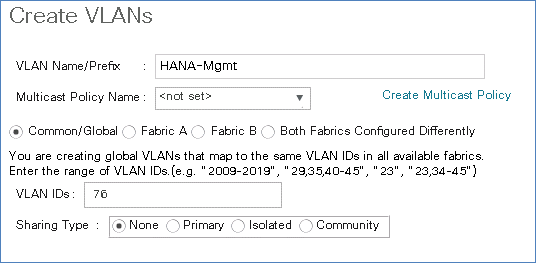

Figure 76     Create VLAN for Management

 The list of created VLANs is shown below:

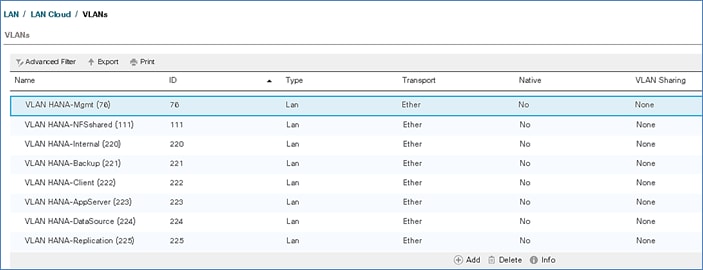

Figure 77      VLAN Definition in Cisco UCS

Create VLAN Groups

For easier management and bandwidth allocation to a dedicated uplink on the Fabric Interconnect, VLAN Groups are created within the Cisco UCS. SAP groups the networks needed by HANA system into following zones which could be translated to VLAN groups in Cisco UCS configuration:

·         Client Zone – including AppServer, Client and DataSource networks

·         Internal Zone – including Inter-node and System Replication networks

·         Storage Zone – including Backup and IP storage networks

·         And optional Admin zone – including Management, PXE Boot network, OS cluster network, if any

To configure the necessary VLAN Groups for the Cisco UCS environment, complete the following steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Select LAN > LAN Cloud.

3.        Right-click VLAN Groups.

4.       Select Create VLAN Groups.

5.        Enter Admin-Zone as the name of the VLAN Group used for Infrastructure network.

6.       Select HANA-Mgmt.

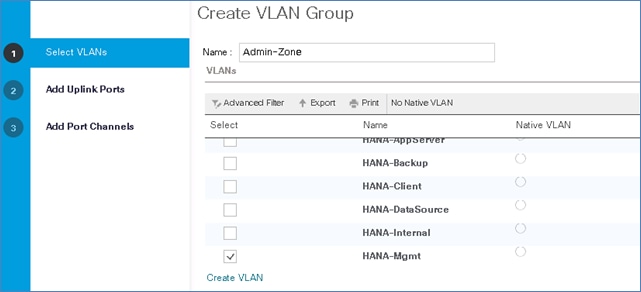

Figure 78     Create VLAN Group for Admin Zone

7.        Click Next

8.       Click Next on Add Uplink Ports, since you will use port-channel.

9.       Choose port-channels created [13 & 14 in this example configuration] for uplink network. Click >>

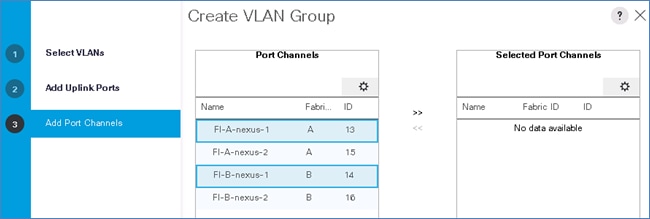

Figure 79     Add Port-Channel for VLAN Group Admin Zone

10.    Click Finish.

11.     Create VLAN Group for Client Zone. Select HANA-AppServer, HANA-Client and HANA-DataSource networks to be part of this VLAN group.

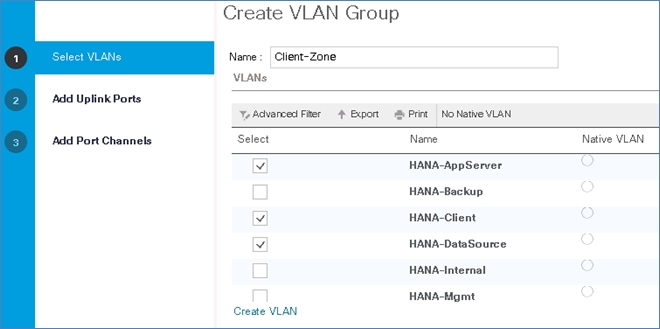

Figure 80     Create VLAN Group for Client Zone

12.    Click Next.

13.     Click Next on Add Uplink Ports, since you will use port-channel.

14.    Choose port-channels [13 & 14 in this example configuration] created for uplink network. Click >>

Figure 81     Add Port-Channel for VLAN Group Internal Zone

15.     Click Finish.

16.    Similarly, create VLAN Group for Internal Zone. Select HANA-Internal network. Optionally select the HANA-Replication, if used in the setup.

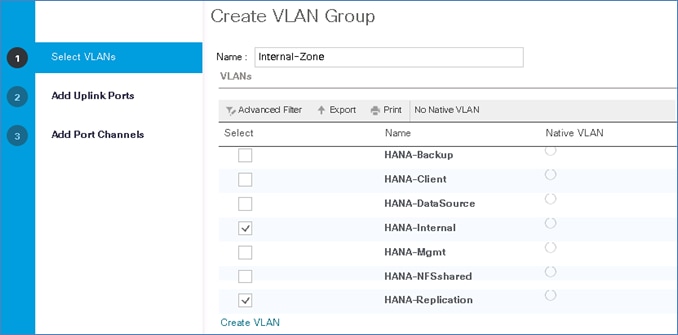

Figure 82     Create VLAN Group for Internal Zone

17.     Click Next.

18.    Click Next on Add Uplink Ports, since you will use port-channel.

19.    Choose port-channels (13 and 14 in this example configuration) created for uplink network. Click >>

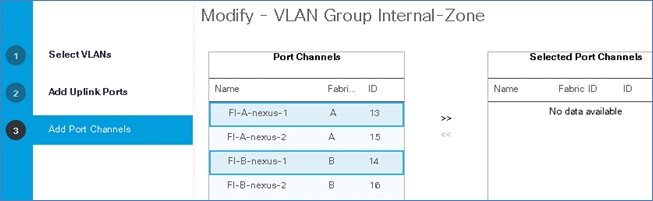

Figure 83     Add Port-Channel for VLAN Group Internal Zone

20.    Click Finish.

21.    Similarly, create VLAN Groups for Storage Zone. Select the HANA-NFSshared network. Optionally select HANA-Backup network, if used in the setup.

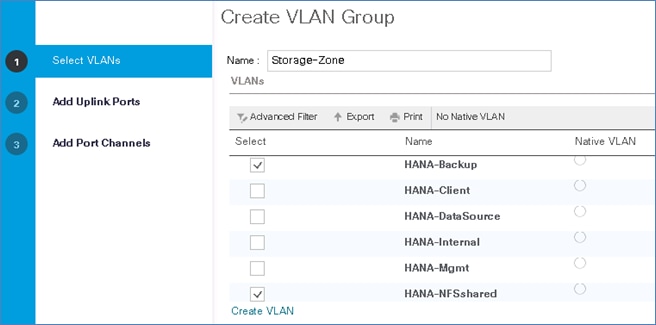

Figure 84     Create VLAN Group for Storage Zone

22.    Click Next.

23.    Click Next on Add Uplink Ports, since you will use port-channel.

24.    Choose other pair of port-channels (15 and 16 in this example configuration) created for Storage Zone.

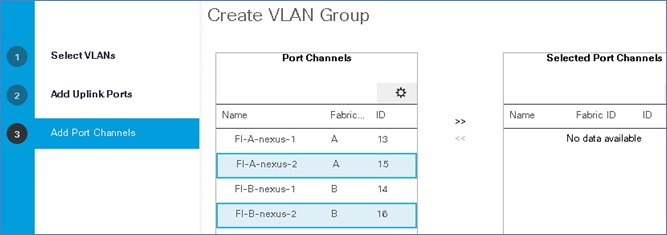

Figure 85     Add Port-Channel for VLAN Group Client Zone

25.    Click Finish.

26.    More VLAN groups, if needed could be created following the above steps. VLAN Groups created in the Cisco UCS.

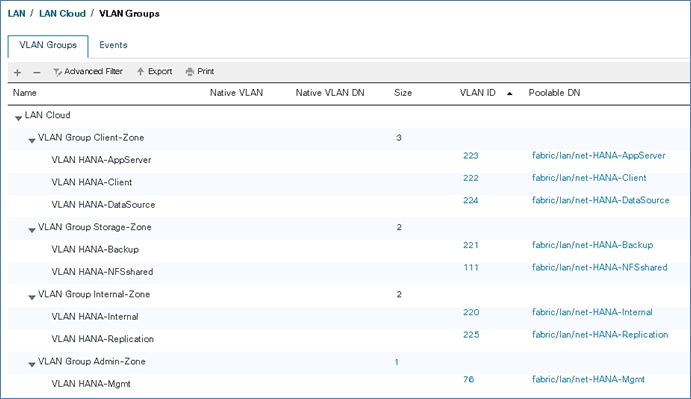

Figure 86     VLAN Groups in Cisco UCS

Create vNIC Template

Each VLAN is mapped to a vNIC template to specify the characteristic of a specific network. The vNIC template configuration settings include MTU size, Failover capabilities and MAC-Address pools.

To create vNIC templates for the Cisco UCS environment, complete the following steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Select Policies > root > Sub-Organization > HANA.

3.        Right-click vNIC Templates.

4.       Select Create vNIC Template.

5.        Enter HANA-Internal as the vNIC template name.

6.       Keep Fabric A selected.

7.        Check the Enable Failover checkbox.

8.       Under Target, make sure that the VM checkbox is unchecked.

9.       Select Updating Template as the Template Type.

10.    Under VLANs, check the checkboxes for HANA-Internal.

11.     Set HANA-Internal as the native VLAN.

12.    For MTU, enter 9000.

13.     In the MAC Pool list, select FI-A.

14.    For Network Control Policy Select Internal from drop-down list.

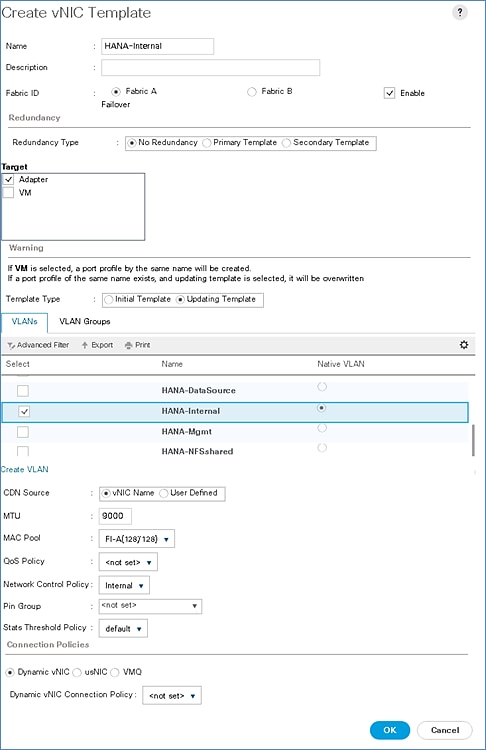

Figure 87     Create vNIC Template for HANA-Internal

15.     Click OK to create the vNIC template.

16.    Click OK.

17.     Similarly create vNIC template for each Network.

18.    Create a vNIC template for HANA Nodes OS Cluster network.

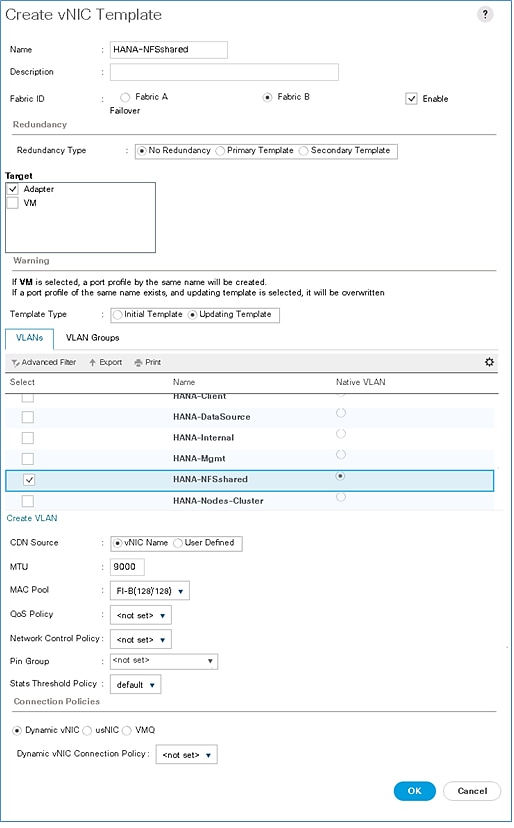

Figure 88     Create vNIC Template for HANA shared NFS Storage Access

19.    Create a vNIC template for AppServer Network.

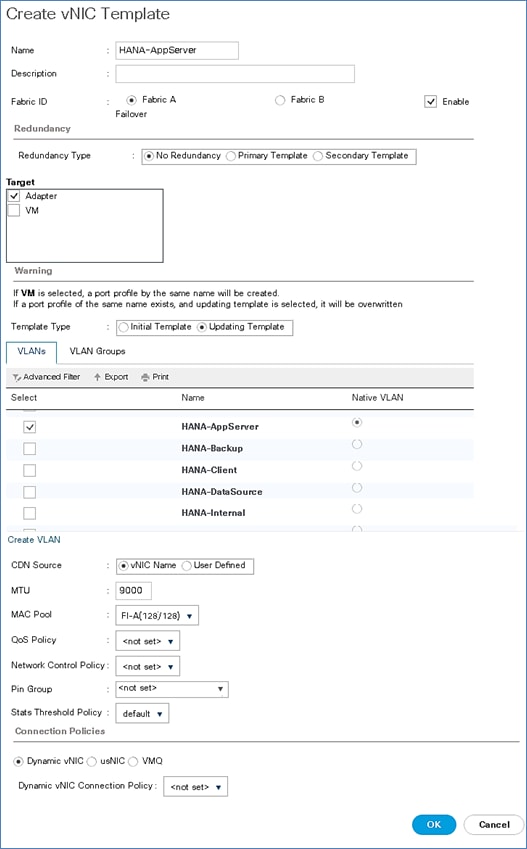

Figure 89     Create vNIC Template for AppServer Network

20.    Create a vNIC template for Backup Network.

Figure 90     Create vNIC Template for Backup Network

21.    Create a vNIC template for Client Network.

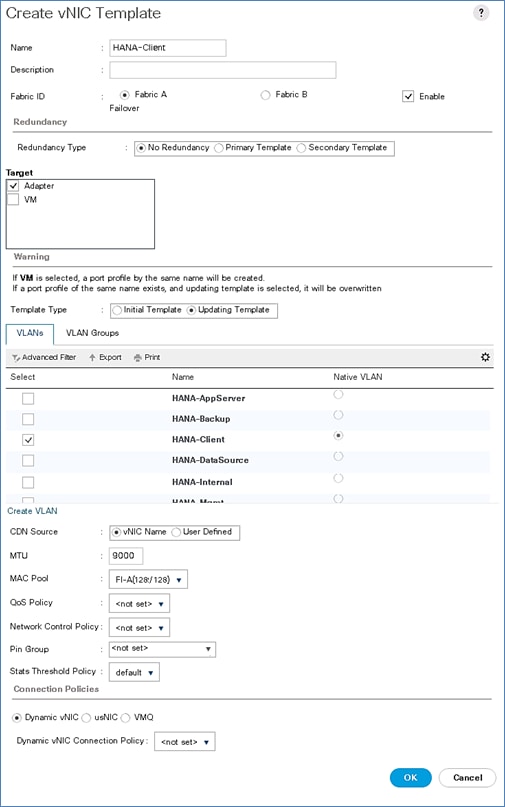

Figure 91     Create vNIC Template for Client Network

22.    Create a vNIC template for DataSource Network.

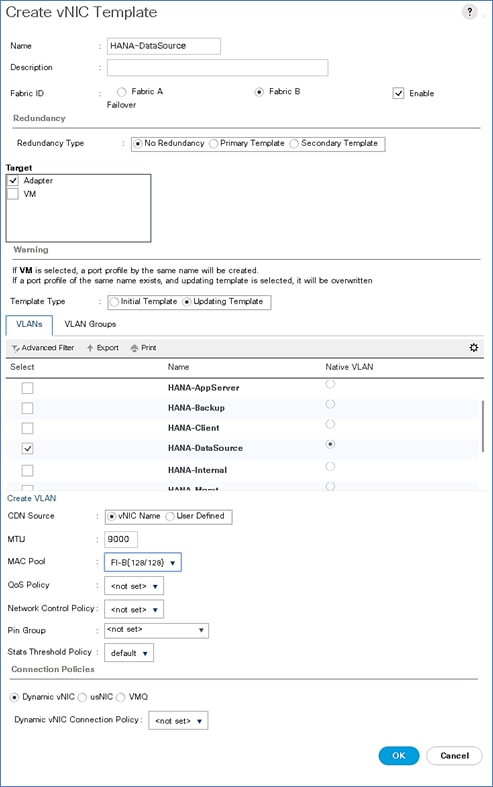

Figure 92     Create vNIC Template for DataSource Network

23.    Create a vNIC template for Replication Network.

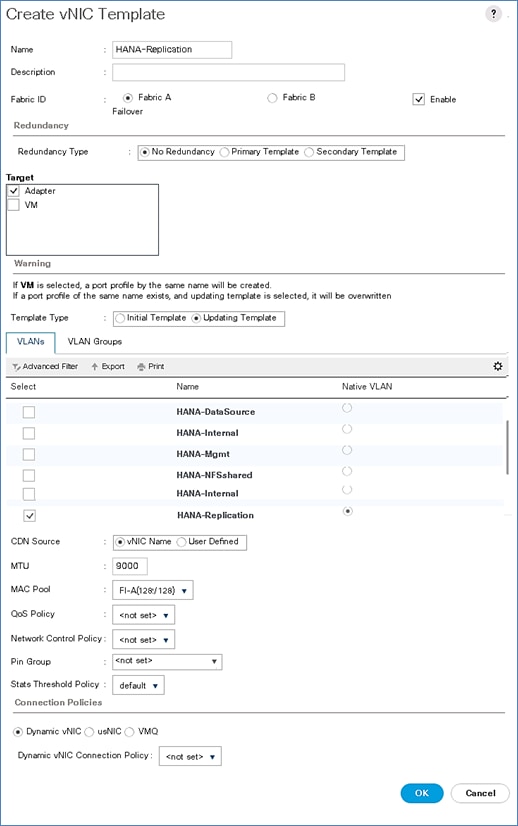

Figure 93     Create vNIC Template for Replication Network

24.    Create a vNIC template for Management Network.

Figure 94     Create vNIC Template for Management Network

The list of created vNIC Templates for SAP HANA is shown below:

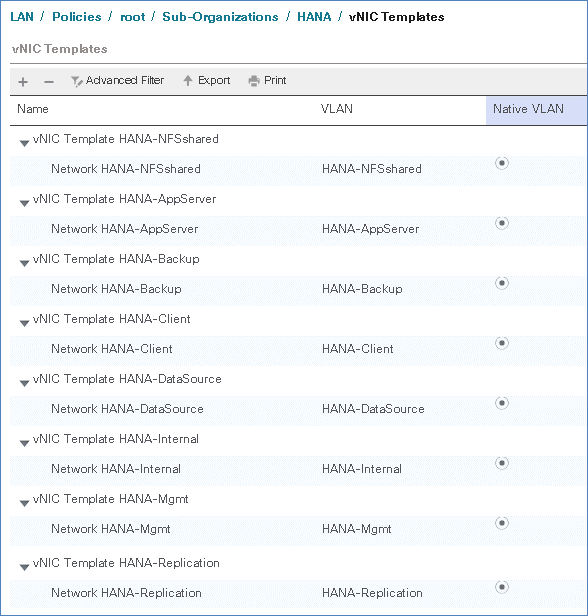

Figure 95     vNIC Templates Overview

SAN Configurations

VSAN is a security mechanism for storage which can be compared to VLANs for the networks.

The connectivity to the storage is achieved through northbound Cisco storage devices – MDS Fabric Switches. It is important to note that northbound storage physical connectivity does not support vPCs like LAN connectivity. For the same reason, FI-A connects via MDS-A and FI-B connects via MDS-B to the storage. Fabric Interconnects do not cross connect with MDS switches.

Port channel configuration to combine multiple storage FC uplink ports to provide physical link redundancy is possible.

The configurations are carried out in the SAN Cloud node on UCSM.

Create VSANs

To configure the necessary VSANs for the Cisco UCS environment, complete the following steps:

1.        In Cisco UCS Manager, click the SAN tab in the navigation pane.

2.       Select SAN > SAN Cloud.

3.        Right-click VSANs.

4.       Select Create VSAN.

5.        Enter Fab-A as the name of the VSAN to be used for Fabric-A.

6.       Retain ‘Disabled’ for FC Zoning option and select Fabric A. Enter <<var_fabric-A_vsan_id>> as the ID of the VSAN ID. Use the same value for FCOE VLAN ID.

7.        Click OK and then click OK again.

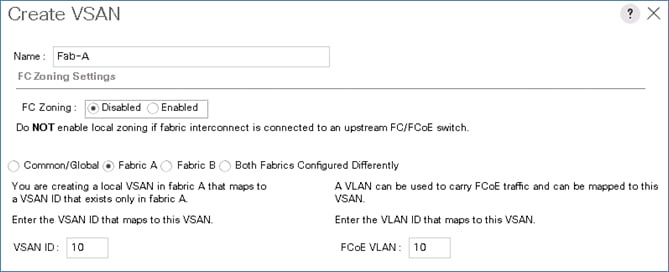

Figure 96     Create VSAN for Fabric A

8.       Select SAN > SAN Cloud.

9.       Right-click VSANs.

10.    Select Create VSANs.

11.     Enter Fab-B as the name of the VSAN to be used for Fabric-B.

12.    Retain ‘Disabled’ for FC Zoning option and select Fabric A. Enter <<var_fabric-B_vsan_id>> as the ID of the VSAN ID. Use the same value for FCOE VLAN ID.

13.     Click OK and then click OK again.

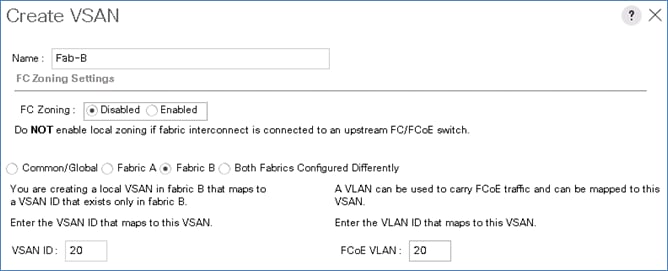

Figure 97     VSANs for Fabrics

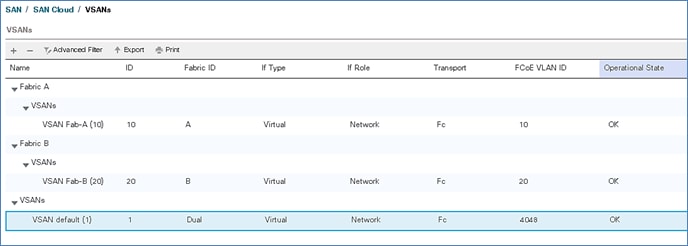

Figure 98     VSAN Summary

Assign Respective Fabric FC Channels to Created VSAN

To assign the fc port channels to respective fabric VSAN that we just created, complete the following steps:

1.        In Cisco UCS Manager, click the SAN tab > SAN Cloud > Fabric A> FC Port Channels>

2.       Select the configured FC Port Channel.

3.        On the right pane, change the VSAN information from default (1) to Fab-A VSAN 10 created for Fabric-A.

Figure 99     VSAN Membership for FI-A FC Uplink Port Channel

4.       Make sure 16gbps is selected for Port Channel Admin Speed. Select Save changes. Click Yes. Click OK. After the settings are saved, the Port Channel status changes to Up.

Figure 100  VSAN Membership for FI-A FC Uplink Port Channel  (continued)

5.        Click the SAN tab > SAN Cloud > Fabric B > FC Port Channels >.

6.       Select the configured FC Port Channel.

7.        On the right pane, change the VSAN information from default (1) to Fab-B VSAN 20 created for Fabric-B. Ensure Port Channel Admin Speed is set to 16gbps.

8.       Select Save changes. Click Yes and click OK.

Figure 101   VSAN Membership Setting for FI-B FC Uplink Port Channel

Create vHBA Template

1.        In Cisco UCS Manager, click on tab SAN > Policies > root > Sub-Organizations > HANA. Right-click vHBA Templates to “Create vHBA Template.”

2.       First create a template for Fabric A. Choose vHBA-A for name.

3.        Optionally provide a description.

4.       Select Fabric ID A

5.        Select VSAN Fab-A and Template Type as Updating template.

6.       Select WWPN Pool – FI-A.

7.         Click Ok and Click OK.

Figure 102  Fabric A - vHBA Template

8.       Create a template for Fabric B. Choose vHBA-B for name.

9.       In Cisco UCS Manager, click on tab SAN > Policies > root > Sub-Organizations > HANA. Right-click vHBA Templates to “Create vHBA Template.”

10.    Choose vHBA-B for name.

11.     Optionally provide a description.

12.    Select Fabric ID B.

13.     Select VSAN Fab-B and Template Type as Updating template.

14.    Select WWPN Pool as FI-B.

15.      Click Ok and Click OK.

Figure 103   Fabric B - vHBA Template

Create SAN Connectivity Policy

When the physical connectivity is established, the following will configure the zoning for the servers and SAN:

·         Storage connection policies: This configures the storage connectivity taking into account the WWPN Target numbers for the SAN. Since the Zoning is handled by the MDS switches and that FIs aren’t direct attached to the Storage, we do not configure this Storage side connection policy.

·         SAN connectivity policies configuration: This configures vHBAs for the servers which will provide WWPN Initiator numbers for the servers. This server side configuration is needed to prepare the servers for connection to storage.

To configure the storage connection policy, complete the following steps:

1.        Log into UCS Manager.

2.       Click the SAN tab in the Navigation pane.

3.        SAN tab > Policies > root > Sub-Organizations > HANA > SAN Connectivity Policies. Right-click SAN Connectivity Policies > Create SAN Connectivity Policy.

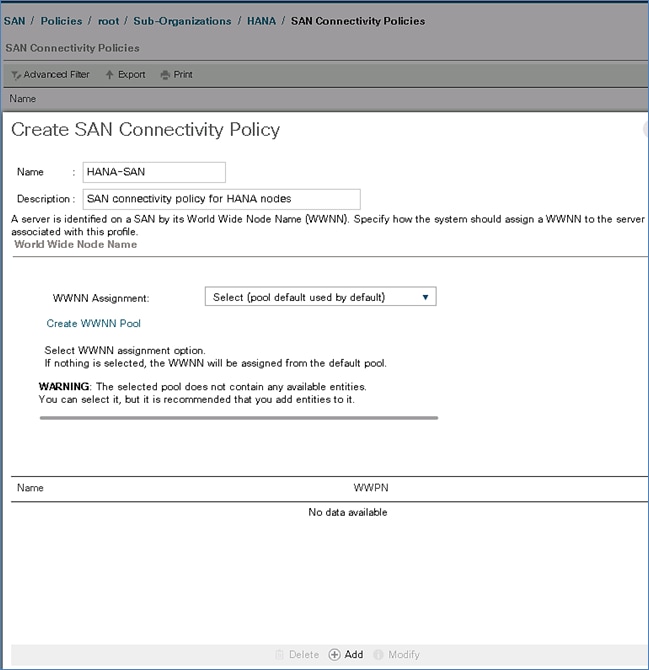

Figure 104  Create SAN Connectivity Policy

4.       Provide name as HANA-SAN.

5.        Optionally add a Description.

6.       Click Add to add the vHBAs from the vHBA templates previously created.

7.        In the Create vHBA window, provide a name as vhba-a and check “Use vHBA Template” option. Select vHBA-A from the vHBA Template dropdown and Linux for the Adapter Policy. Click OK.

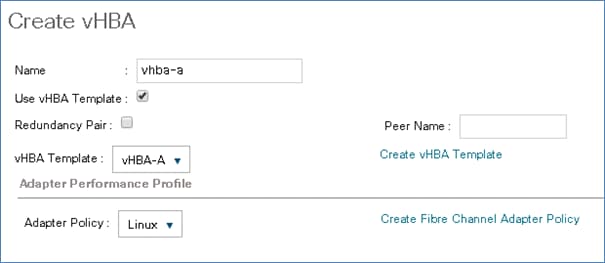

Figure 105   Create vHBA for Fabric A

8.       Click Add on the ‘Create SAN Connectivity Policy’ window to add another vHBA

9.       In the Create vHBA window, provide name as vhba-b and check “Use vHBA Template” option. Select vHBA-B from the vHBA Template drop-down list and Linux for the Adapter Policy.

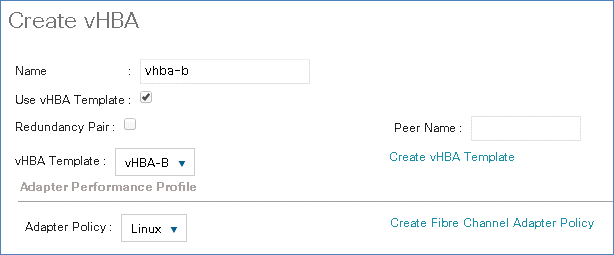

Figure 106  Create vHBA for Fabric B

10.    Click OK.

Figure 107   SAN Connectivity Policy (continued)

11.     Click OK.

Figure 108  SAN Connectivity Policy Summary

Create Boot Policy for SAN Boot

It is strongly recommend to use “Boot from SAN” to realize full benefits of Cisco UCS stateless computing feature such as service profile mobility.

The ports on the storage controllers of Pure Array are cross connected with the MDS switches so that we have alternate paths to the LUNs, in addition to the built-in redundancy and path management features of the storage array itself.

The SAN Ports CT0.FC0, CT0.FC2 of Pure Storage Controller 0 are connected to Cisco MDS 9148S Switch A and CT0.FC1, CT0.FC3 are connected to Cisco MDS 9148S Switch B. Similarly, the SAN Ports CT1.FC0, CT1.FC2 of Pure Storage Controller 1 are connected to Cisco MDS 9148S Switch A and CT1.FC1, CT1.FC3 are connected to Cisco MDS 9148S Switch B.

You can determine the WWPN information of these storage array target ports from the Pure Storage Administration GUI.

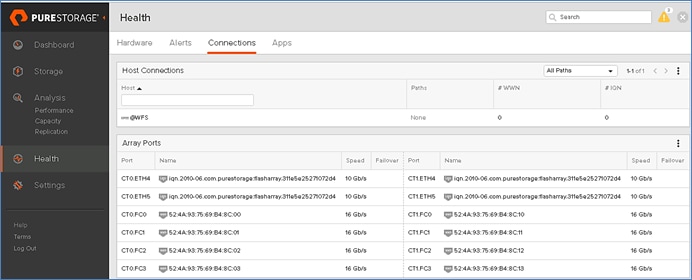

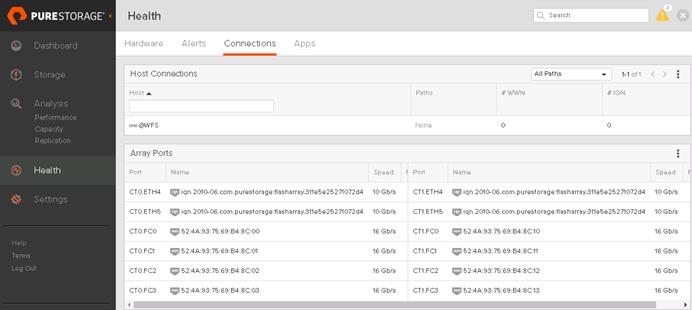

Figure 109  Pure Storage FC target Ports

For the SAN Boot policy configure the SAN primary's primary-target to be port CT0.FC0 and SAN primary's secondary-target to be port CT1.FC0 of the array. Similarly, the SAN secondary’s primary-target should be port CT1.FC1 and SAN secondary's secondary-target should be port CT0.FC1 of the array.

You have to create SAN Boot primary (hba0) and SAN Boot secondary (hba1) in create boot policy by entering WWPN of Pure Storage FC Ports.

To create boot policies for the Cisco UCS environments, complete the following steps:

1.        Go to tab Servers > Policies > root > Sub-Organizations > HANA > Boot Policies. Right-click and create HANA-sanboot as the name of the boot policy as shown in below figure.

2.       Expand the Local Devices drop-down menu and Choose Add CD-ROM. Expand the vHBA drop-down menu and Choose Add SAN Boot. In the Add SAN Boot dialog box, select type as ‘Primary’ and enter "hba0" in the vHBA field and make sure type is selected as “Primary”.

3.        Make sure the “Enforce vNIC/vHBA/iSCSI Name” option is unchecked.

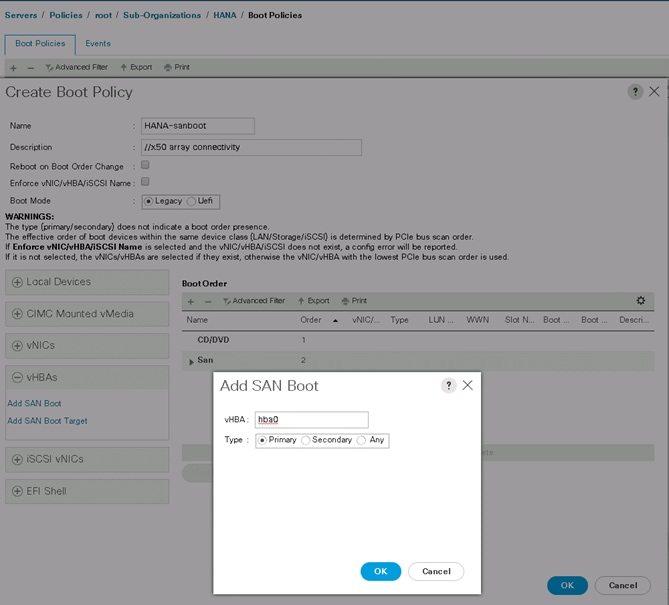

Figure 110   SAN Boot hba0

4.       Click OK to add SAN Boot. Then choose “Add SAN Boot Target.”

5.        Keep 1 as the value for Boot Target LUN. Enter the WWPN for FC port CT0.FC0 of Pure Storage and add click OK.

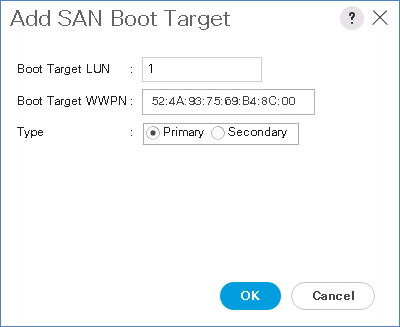

Figure 111   hba0 Primary Boot Target

6.       Add a secondary SAN Boot target into same hba0 and enter boot target LUN as 1 and WWPN for FC port CT1.FC0 of Pure Storage and add SAN Boot Secondary Target. Click OK.

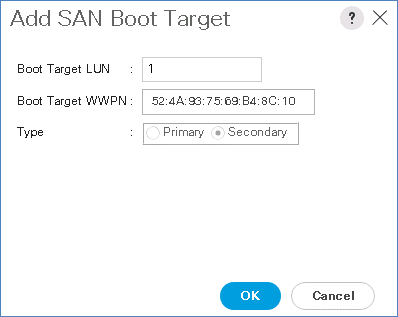

Figure 112   hba0 Secondary Boot Target

7.        From the vHBA drop-down list and Choose Add SAN Boot. In the Add SAN Boot dialog box, enter "hba1" in the vHBA field. Click OK.



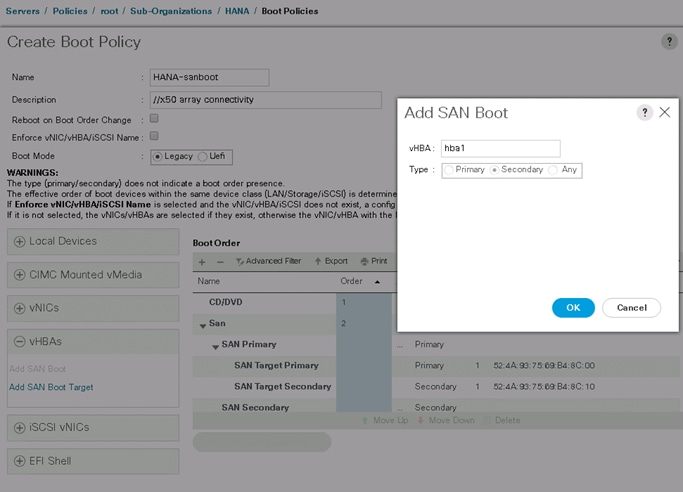

Figure 113   SAN Boot hba1

8.       Click OK to SAN Boot. Choose add SAN Boot Target.

9.       Keep 1 as the value for Boot Target LUN. Enter the WWPN for FC port CT1.FC1 of Pure Storage and add SAN Boot Primary Target. Click OK.

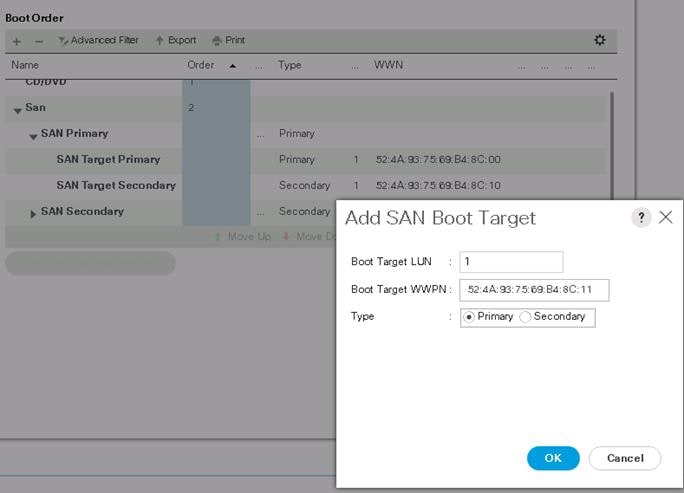

Figure 114   hba1 Primary Boot Target

10.    Add secondary SAN Boot target into same hba1 and enter boot target LUN as 1 and WWPN for FC port CT0.FC1 of Pure Storage and add SAN Boot Secondary Target. Click OK. Click OK.

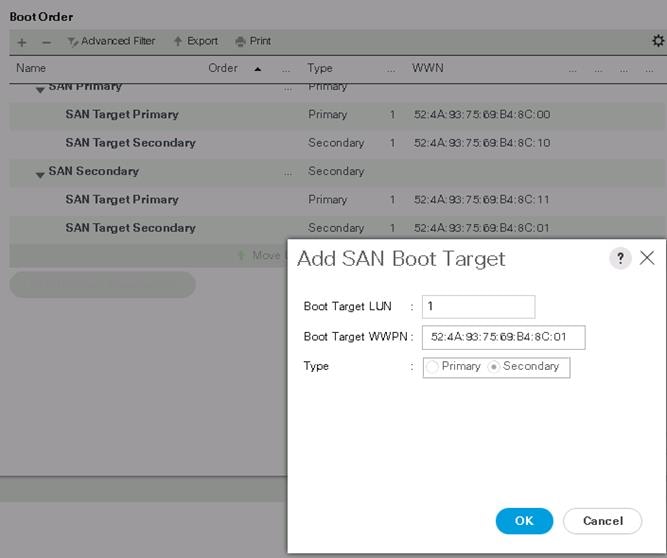

Figure 115   hba1 Secondary Boot Target

11.     Click OK and click OK for the Create Boot Policy pop-up.

12.    After creating the FC boot policies, you can view the boot order in the Cisco UCS Manager GUI. To view the boot order, navigate to Servers > Policies > root > Sub-Organizations > HANA > Boot Policies> HANA-sanboot to view the boot order in the right pane of the UCS Manager as shown below.

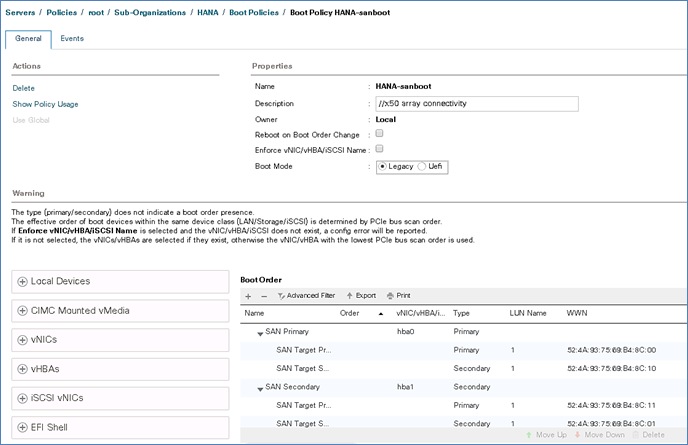

Figure 116   SAN Boot Policy

Create Service Profile Templates for SAP HANA Nodes

The LAN, SAN configurations and relevant SAP HANA policies must be defined prior to creating, a Service Profile Template.

To create the service profile template, complete the following steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Service Profile Templates > root > Sub-Organization > HANA.

3.        Right-click HANA.

4.       Select Create Service Profile Template to open the Create Service Profile Template wizard.

a.        Identify the service profile template:

                                    i.            Enter HANA-node as the name of the service profile template.

                                  ii.            Select the Updating Template option.

                                 iii.            Under UUID, select UUID_pool as the UUID pool. Optionally add a Description.

                                 iv.            Click Next.

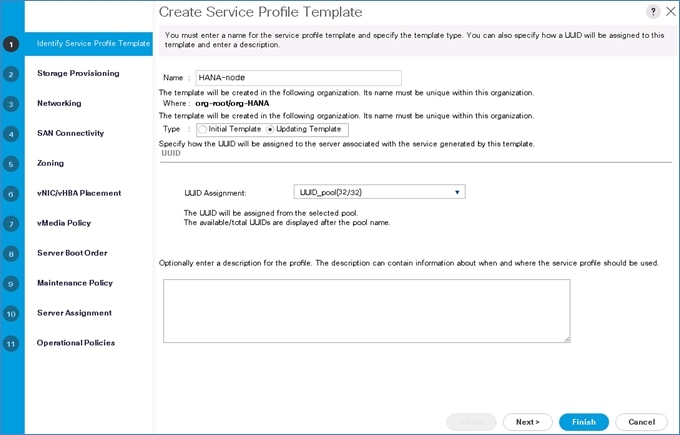

Figure 117   Service Profile Template UUID

5.        Storage Provisioning: Nothing to be done here.

6.       Click Next.

Figure 118   Service Profile Template - Storage Provisioning

7.        Networking:

a.        Keep the default settings for Dynamic vNIC Connection Policy.

Figure 119   Service Profile Template - Networking

b.       Select the Expert option for ‘How would you like to configure LAN connectivity’ question.

c.        Click the Add button to add a vNIC to the template.

d.       In the Create vNIC dialog box, enter HANA-Internal as the name of the vNIC.

e.       Check the Use vNIC Template checkbox.

f.         In the vNIC Template list, select HANA-Internal.

g.       In the Adapter Policy list, select Linux.

h.       Click OK to add this vNIC to the template.

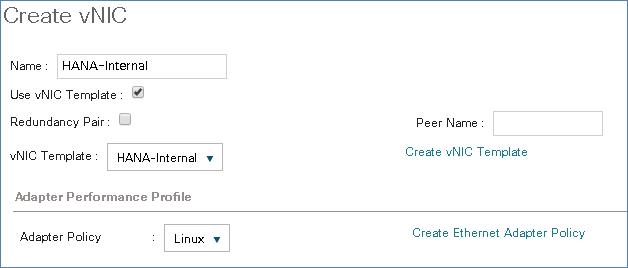

Figure 120  Service Profile Template vNIC Internal

8.       Repeat steps a-h for each vNIC.

9.       Add vNIC for HANA-NFSshared

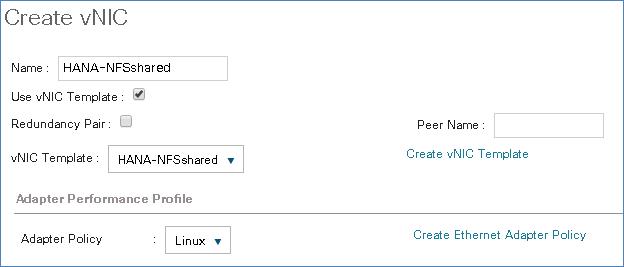

Figure 121   Service Profile Template vNIC HANA-NFSshared

.

10.    Add vNIC for HANA-Client.

Figure 122  Service Profile Template vNIC Hana-Client

11.     Add vNIC for HANA-AppServer.

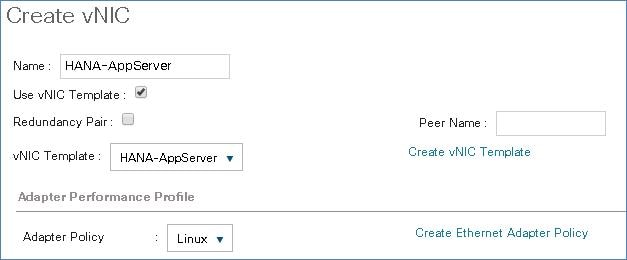

Figure 123   Service Profile Template vNIC AppServer

12.    Add vNIC for HANA-DataSource.

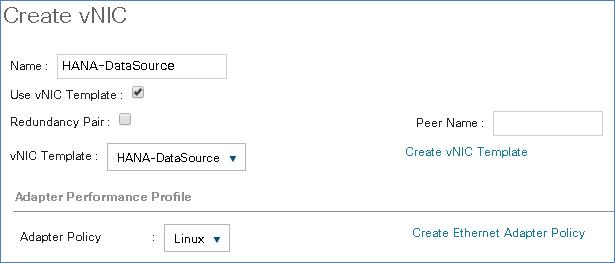

Figure 124  Service Profile Template vNIC DataSource

13.     Add vNIC for HANA-Backup.

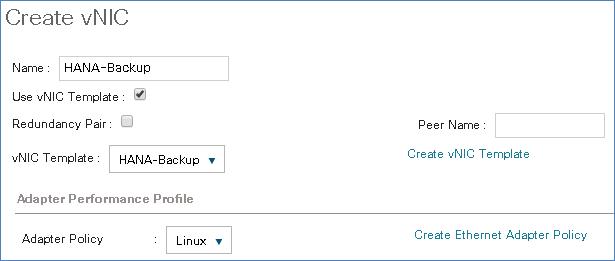

Figure 125   Service Profile Template vNIC Internal

14.    Add vNIC for HANA-Replication.

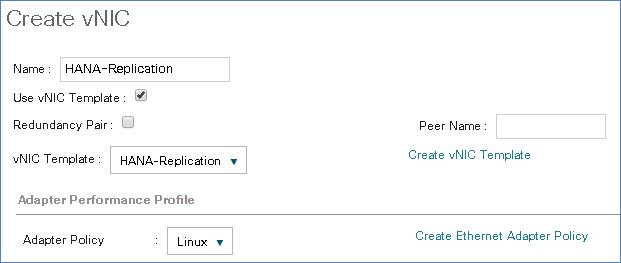

Figure 126  Service Profile Template vNIC Replication

15.     Add vNIC for Mgmt.

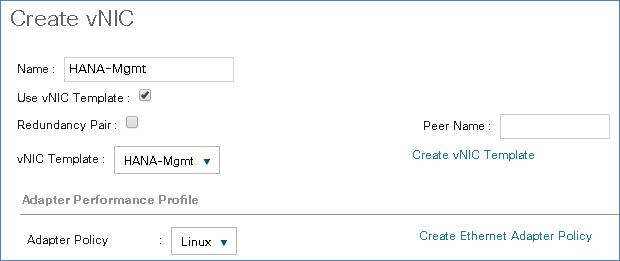

Figure 127   Service Profile Template vNIC Mgmt

16.    Review the table in the Networking page to make sure that all vNICs were created.

Figure 128  Service Profile Networking

17.     Click Next.

18.    Configure the SAN Connectivity: Select HANA-Nodes pool we created for World Wide Node Name.

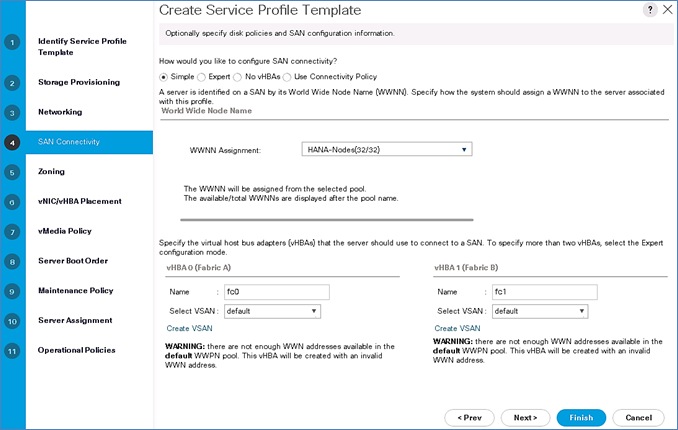

Figure 129  Service Profile Template - SAN Connectivity

19.    Select ‘Use Connectivity Policy’ option for the “How would you like to configure SAN connectivity?” field.

20.    Select HANA-SAN for SAN Connectivity Policy. Click Next.

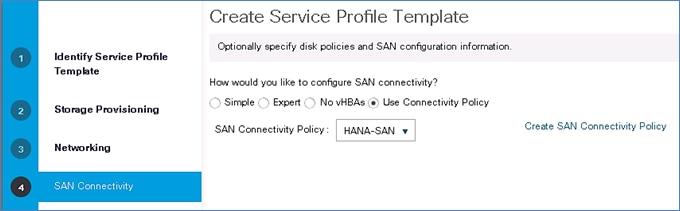

Figure 130   Service Profile Template - SAN Connectivity (continued)

21.    Zoning – Click Next.

22.    vNIC/vHBA Placement:

With the Cisco UCS B480 M5 populated with VIC 1340 + Port expander (treated as 1 adapter) and VIC 1380 as Adapter 3, they are recognized by UCS as Adapter1 and Adapter 3 respectively. The vCONs 1 and 2 are mapped to Adapter 1 and vCONs 3 and 4 are mapped to Adapter 3 for all the 4 slots available for Cisco UCS B480 M5 servers in the chassis.

Also, we used inks in Port-channel for chassis <-> FI connectivity that does not warrant different placements for each slot as the traffic flow is handled in a Port-channel.

So we create a one service-profile template using vCONs 1 and 3 for the vNIC/vHBA assignment for use by servers in any slot of the chassis.

a.        In the Select Placement list, choose the Specify Manually.

b.       From the vHBAs tab, assign vhba-a to vCON1

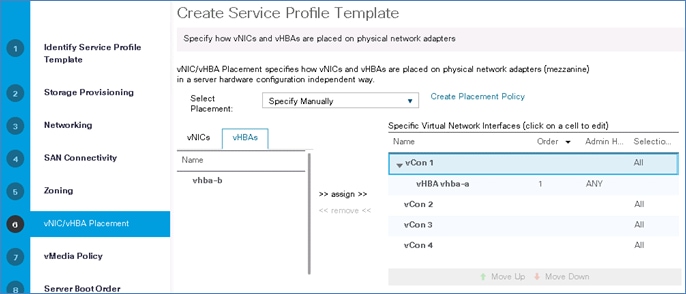

Figure 131   Service Profile Template – vNIC/vHBA Placement – vHBA Assignment to vCON1

c.        From the vNICs tab, choose vCon1 and assign the vNICs to the virtual network interfaces policy in the following order:

                                             i.            HANA-NFSshared

                                            ii.            HANA-AppServer

                                          iii.            HANA-Backup

                                          iv.            HANA-Mgmt

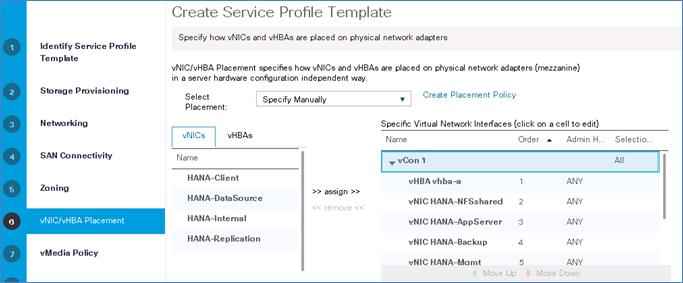

Figure 132   Service Profile Template – vNIC/vHBA Placement – vNIC Assignment to vCON1

d.       Select vCON3. From the vHBAs tab, assign vHBA-b to vCON3

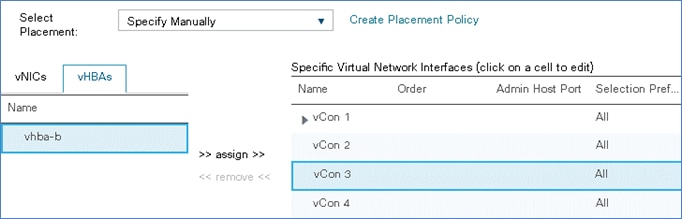

Figure 133         Service Profile Template – vNIC/vHBA Placement – vNIC Assignment to vCON3

e.       Choose vCon2 and assign the vNICs to the virtual network interfaces policy in the following order:

                                             i.            HANA-Internal

                                            ii.            HANA-Client

                                          iii.            HANA-DataSource

                                          iv.            HANA-Replication



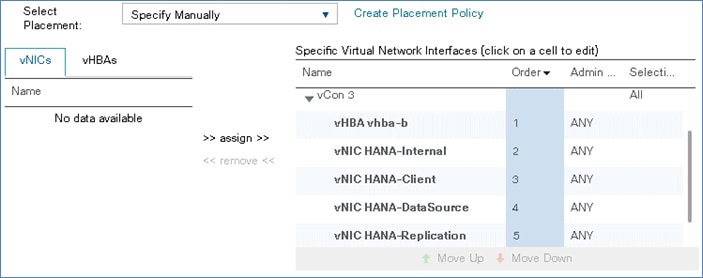

Figure 134         Service Profile Template – vNIC/vHBA Placement – vNIC Assignment to vCON2

f.         Review the table to verify that all vNICs are assigned to the policy in the appropriate order.

g.       Click Next.

23.    No Change required on the vMedia Policy, click Next.

24.    Set the server boot order:

a.        Select HANA-sanboot for Boot Policy.

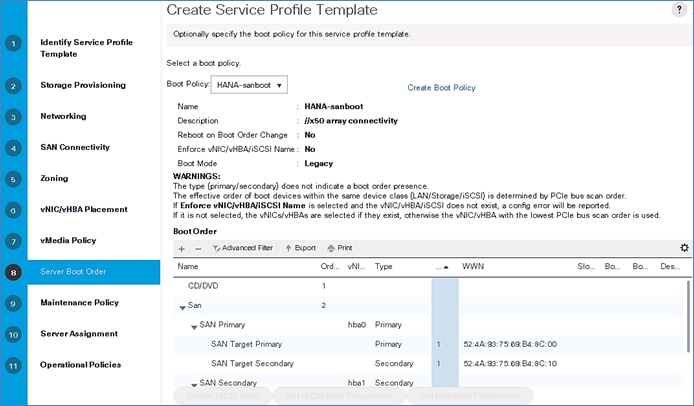

Figure 135   Service Profile Template – Server Boot Order

b.       Click Next.

25.    For Maintenance policy:

a.        Select the ‘default’ Maintenance Policy.  Click Next.

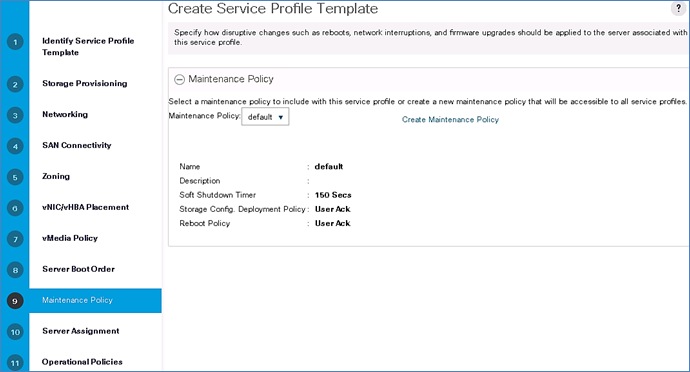

Figure 136   Maintenance Policy

26.    Specify the server assignment:

a.        Select Down as the power state to be applied when the profile is associated with the server.

b.       Expand Firmware Management at the bottom of the page and select HANA-FW from the Host Firmware list. Click Next.

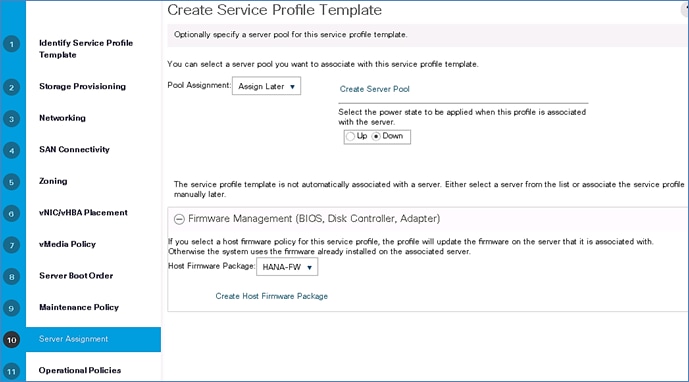

Figure 137   Service Profile Template Server Assignment

27.    For Operational Policies:

a.        BIOS Configuration - In the BIOS Policy list, select HANA-BIOS.

b.       External IPMI Management Configuration - Expand the External IPMI Management Configuration and select HANA-IPMI in the IPMI Access Profile. Select SoL-Console in the SoL Configuration Profile.

c.        Management IP Address - In the Outband IPv4 tab choose ext-mgmt in the Management IP Address Policy.

d.       Power Control Policy Configuration - Select HANA in the Power Control Policy list.

e.       Leave the Scrub policy, KVM Management Policy and Graphics Card Policy with default selections.



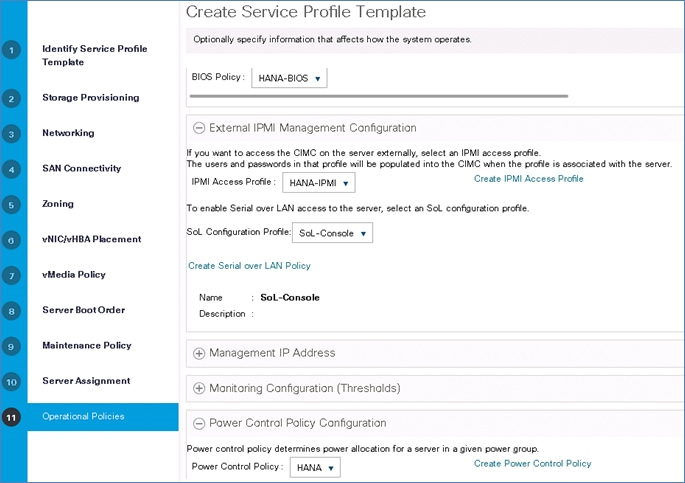

Figure 138   Service Profile Template Operational Policies

28.    Click Finish to create the service profile template.

29.    Click OK in the confirmation message.

Create Service Profile from the Template

To create service profiles from the service profile template, complete the following steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Service Profile Templates > root > Sub-Organization > HANA > Service Template HANA-node.

3.        Right-click Service Template HANA-node and select Create Service Profiles from Template

4.       Enter HANA-Server0 as the service profile prefix.

5.        Enter 1 as Name Suffix Starting Number.

6.       Enter 4 as the Number of Instances since in this setup there are 4 nodes.

7.        Click OK to create the service profile.

Figure 139   Creating Service Profiles from Template

To associate service profile created for a specific server, complete the following steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Service Profile > root > Sub-Organization > HANA > HANA-Server01.

3.        Right-click HANA-Server01 and select Change Service Profile Association.

4.       For Server Assignment Choose Select existing Server for the drop-down.

5.        Click Available Servers.

6.       Select the server, as recommended. Click OK. Click Yes for the Warning. Click OK.

Figure 140  Creating Service Profiles from Template

7.        Assign HANA-node02, HANA-node03, and HANA-node04 to the servers.

Create and Configure Fiber Channel Zoning

To create the Fibre Channel connections between the Cisco MDS 9148S switches, the Cisco UCS Fabric Interconnects, and the Pure Storage FlashArray systems, complete the following steps:

1.        Log in to the Cisco UCS Manager > Servers > Service Profiles > root > Sub-Organizations >HANA > Service Profile HANA – Server01. On the right hand pane, click the Storage tab and HBA's sub tab to get the WWPN of HBA's as shown in the figure below.

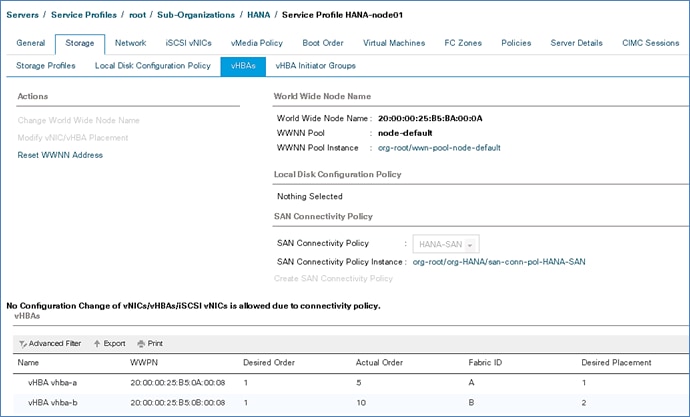

Figure 141   WWPN of a Server Node

2.       Note the WWPN of the all the configured Servers from their Service Profiles.

In the current example configuration, the WWPN numbers of four server nodes configured are 20:00:00:25:B5:0A:00:08 - 20:00:00:25:B5:0A:00:0B for the Fabric A and 20:00:00:25:B5:0B:00:08 - 20:00:00:25:B5:0B:00:0B

3.        Connect to the Pure Storage System and extract the WWPN of FC Ports connected to the Cisco MDS Switches. We have connected 8 FC ports from Pure Storage System to Cisco MDS Switches. FC ports CT0.FC0, CT1.FC0, CT0.FC2, CT1.FC2 are connected to MDS Switch-A and similarly FC ports CT0.FC1, CT1.FC1, CT0.FC3, CT1.FC3 are connected to MDS Switch-B.

Figure 142   WWPN of Pure Storage

Create Device Aliases for Fiber Channel Zoning

To configure device aliases and zones for the primary boot paths of MDS switch A, complete the following step:

1.        Login as admin user and run the following commands.

To configure device aliases and zones for the primary boot paths of MDS switch B, complete the following step:

1.        Login as admin user and run the following commands.

Create Zoning

To configure zones for the MDS switch A, complete the following steps:

1.        Create a zone for each service profile.

2.       Login as admin user and run the following commands.

3.        After the zone for the Cisco UCS service profile has been created, create the zone set and add the necessary members.

4.       Activate the zone set by running following commands.

To configure zones for the MDS switch B, complete the following steps:

1.        Create a zone for each service profile.

2.       Login as admin user and run the following commands.

3.        After the zone for the Cisco UCS service profile has been created, create the zone set and add the necessary members.

4.       Activate the zone set by running following commands.

Configure Host

The first step is to represent the host at the array level. A host can be setup by completing the following steps in the Pure FlashArray GUI.

1.        Log into Pure Storage dashboard.- http://<<var_purecluster_ip>

2.       In the navigation pane, select Storage.

3.        Under Hosts tab in the work pane, click the + sign and select Create Host.

4.       Enter the name of the host and click Create. This should create a Host entry under the Hosts category.

Figure 143   Create Host

5.        To update the host with the connectivity information by providing the Fibre Channel WWNs, select the Host that was created. Click the Host Ports tab and click the settings button and select “Configure WWNs.”

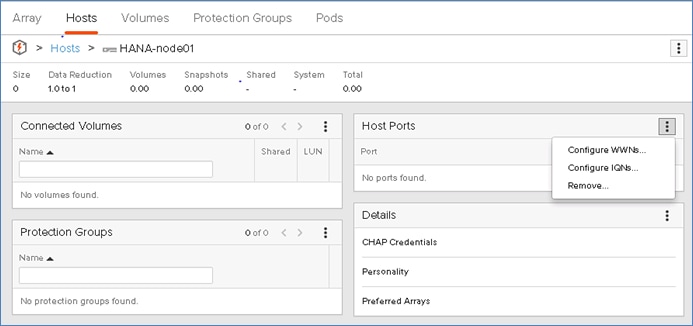

Figure 144  Configure Host Port WWNs

6.       Select the vhba-a and vhba-b pwwns from the listed WWNs for the host in question, by verifying this information from UCSM.

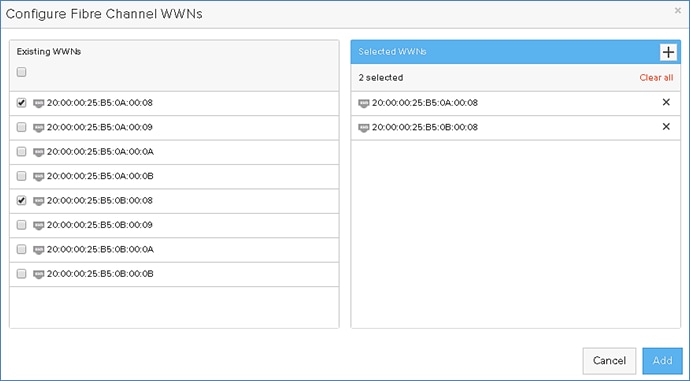

Figure 145   Assign Fabric –A PWWN  to Host

7.        Click Add.

Figure 146  Host WWNs Ports Summary

8.       Follow steps 1-7 to configure the Hosts – HANA-node02, HANA-node03 and HANA-node04, mapping their respective vHBAs Port WWNs.

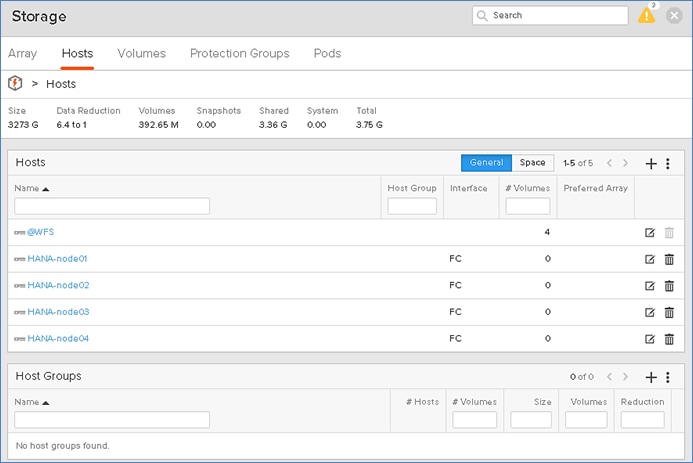

Figure 147   Host Summary

Configure Volume

To configure a volume, complete the following steps:

1.        Go to the Storage tab on the navigation pane. Select the Volumes tab in the work pane and click the + sign to create volumes.

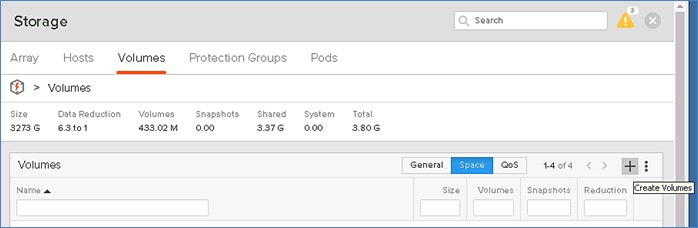

Figure 148  Create Boot Volume

2.       Provide the name of the volume, size, choose the size type (KB, MB, GB, TB, PB) and click Create to create the volume.

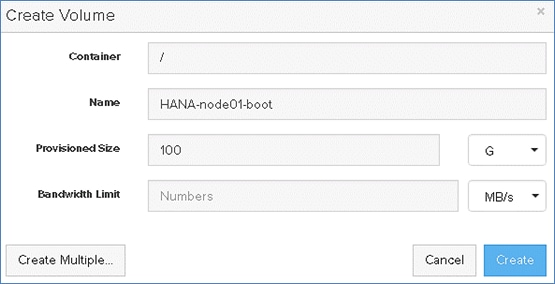

Figure 149  Create Boot Volume (continued)

3.        Click the created boot volume. Attach the volume to the respective host by going to the “Connected Hosts” tab under the volume context menu, click the Settings icon and select “Connect”. Select the host to which the volume should be attached, specify the LUN number for Boot LUN as 1 and click Confirm.

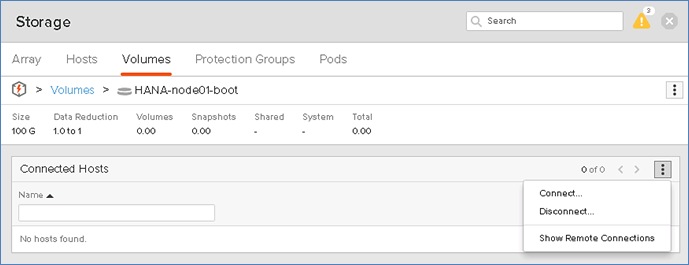

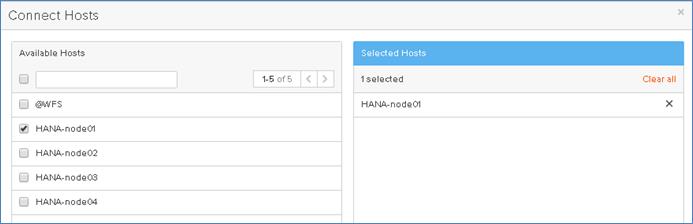

Figure 150    Connect Hosts to Volume

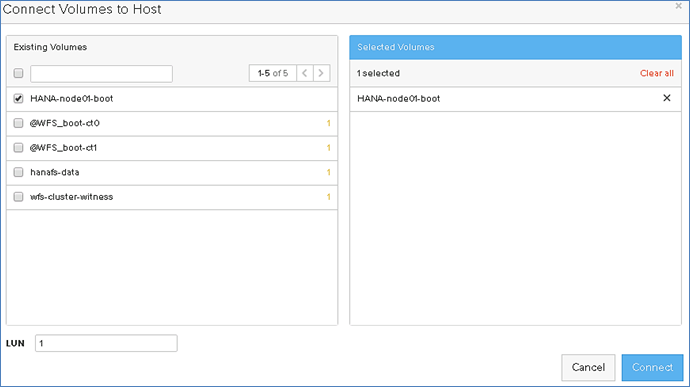

Figure 151   Connect Hosts to Volume (continued)

This completes the connectivity of the volume to the server node. We have created one boot volume (HANA-node01-boot) of 100GB and assigned this volume to the first HANA node “HANA-node01”. Install the OS and perform all prerequisites to be able to install SAP HANA on this LUN.

When there is a reference configuration of the OS, complaint with SAP Note recommendations, you could create clones of this volume for use with other hosts in the cluster. For example, HANA-node02-boot, HANA-node03-boot and HANA-node04-boot for use with HANA-node02, HANA-node03 and HANA-node04.

To create a volume clone, complete the following steps:

1.        Select the volume to be used as clone source under Storage> Volumes.

2.       In the right pane, use the menu bar to on the right to select ‘Copy volume’ option. Provide a name in the Copy Volume pop-up and click Create.

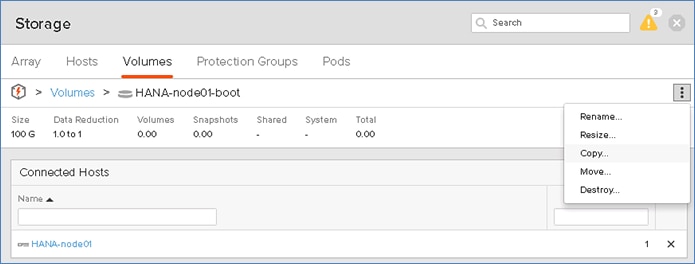

Figure 152   Select Volume for Clone

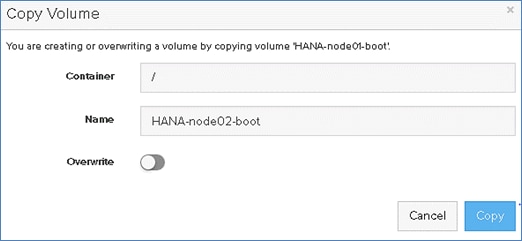

Figure 153   Copy Volume

3.        The clone generated volume can now be associated with the host. In the Connect Hosts pane, select the volume by clicking the > and right-click the menu bar to select Connect Host.

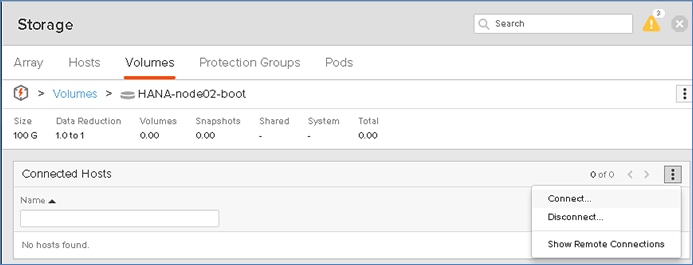

Figure 154   Connect Hosts to Volume

4.       In the left pane select the host to connect and select 1 for LUN ID and click Confirm.

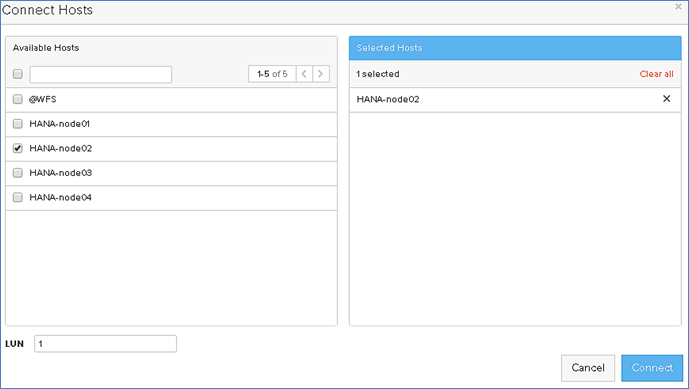

Figure 155   Connect Hosts to Volume (continued)

5.        Post OS installation and configuration of the HANA-node01 system, prepare clones of HANA-node01-boot volume as HANA-node02-boot, HANA-node03-boot, and HANA-node04-boot for use with hosts HANA-nodes02, HANA-node03 and HANA-node04.

Configure NFS share for /hana/shared

With Pure's Purity//FA 4.10.9 or higher, it is possible to have VM instance of Windows Server 2016 running in each of the controllers which will then form a Windows Failover Cluster. File Servers will then be created within the cluster to serve NFS shares.

Each WFS VM is installed on its own separate boot volume. For Windows clustering purposes, a default quorum witness volume is exported to both WFS VMs. Lastly, a default data volume is also created where file services data will reside. Subsequent data volumes can be created if additional capacity is required. Data volumes are also exported to both WFS VMs to ensure persistent data across WFS VM failovers.

For more information about the best practices for WFS on Purity RUN refer to the Support page.

Requirements for the WFS configuration:

·         The FlashArray must have two 10G iSCSI ports on each controller for cluster and file services client traffic

—     iSCSI ports eth4 and eth5 on controllers 0 and 1 are used for the same

·         Domain Controller: Microsoft Failover Cluster requires a domain controller in the environment, therefore, a working domain controller must exist in order to run WFS.

—     In the validation environment a Windows Server VM configured a Domain Controller with DNS was leveraged.

·         Domain Administrator Privileges: Customers must have appropriately elevated Domain Administrator privileges in order to perform many of the required setup steps like the following:

—     Configuring WFS VM IP addresses

—     Creating Microsoft Failover Clusters

—     Creating File Servers

·         DNS Server: There must be a functional DNS server in the environment in order to run file services with WFS.  The two WFS VMs, Failover Cluster, and File Servers will be given a default hostname as shown in Table A.  Customers have the option of using the given default hostnames or to specify their own hostnames.

·         IP Addresses: A minimum of six total IP addresses are required to run WFS.  Table 17 lists the required IP addresses.

Table 17     Required IP Addresses and Correlating Default DNS Names

With the above information, Pure Support team configures WFS and makes it available as host @WFS in the Pure GUI. They also create the required NFS fileserver role in the cluster.

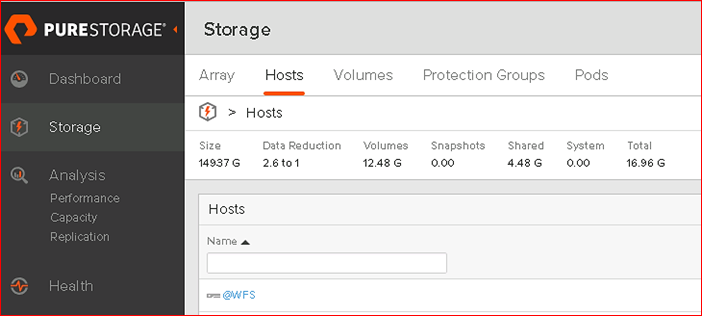

Similar to adding volumes to any external hosts connected to a FlashArray, adding volumes to WFS is as simple as creating a new volume and connecting it to the WFS host, aptly named @WFS.  Example configuration below shows 1TB hanafs-vol being added to the @WFS host.

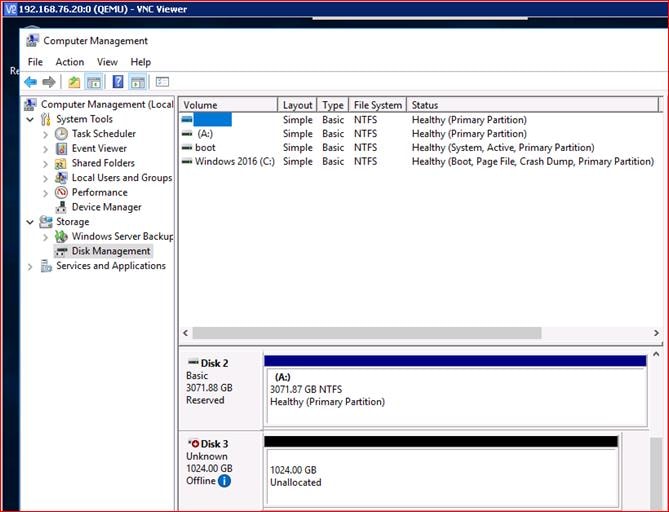

The new volume should be visible immediately after a disk rescan within the WFS VMs. 1TB drive is visible as below:

In order for the new volume to be used by the cluster, complete the following steps:

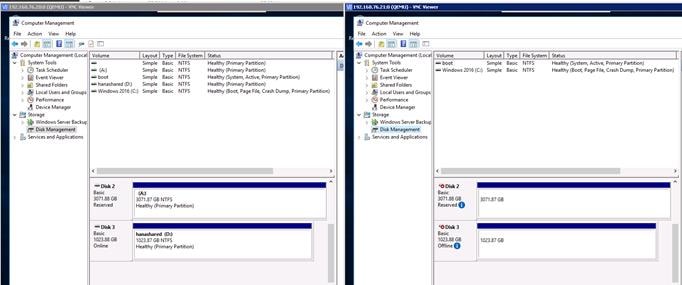

1.        Using Disk Management within a WFS VM, create an NTFS file system for the volume and ensure that both WFS VMs see the same drive letter. Form the validation setup, 1TB drive appears as Disk 3 in both VMs.

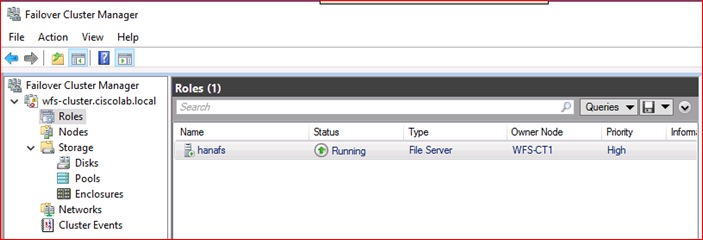

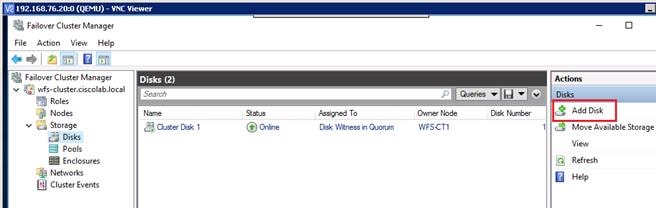

2.       In the Failover Cluster Manager on either WFS VM, expand the cluster tree, highlight Disks, and select Add Disk under the Actions menu.

3.        Select the newly created volume and click OK.  The new volume should be added and appear on the list of Disks.

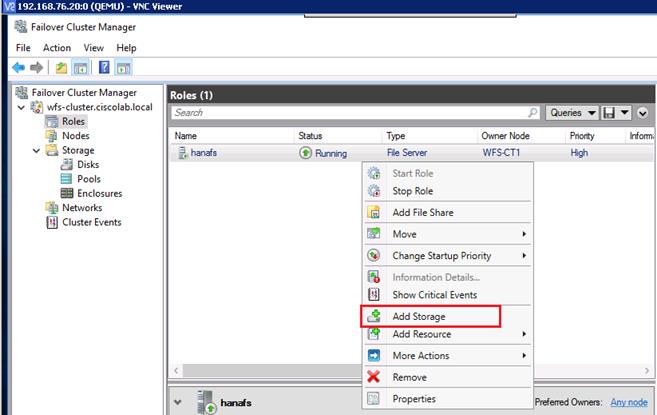

4.       In the Failover Cluster Manager on either WFS VM, example the cluster tree, highlight Roles, and right-click on the desired File Server to which the volume will be added.

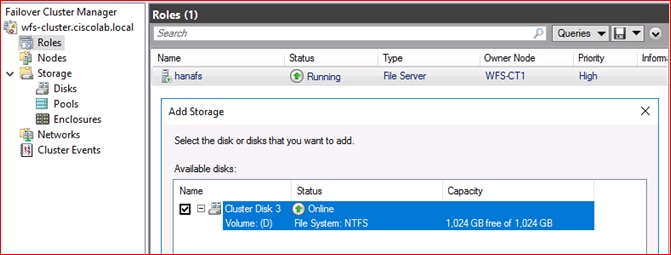

5.        Select Add Storage.

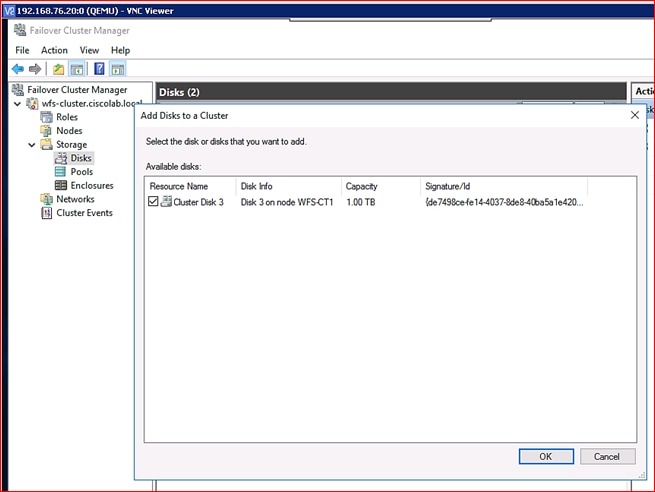

6.       Select desired volume(s) and click OK.

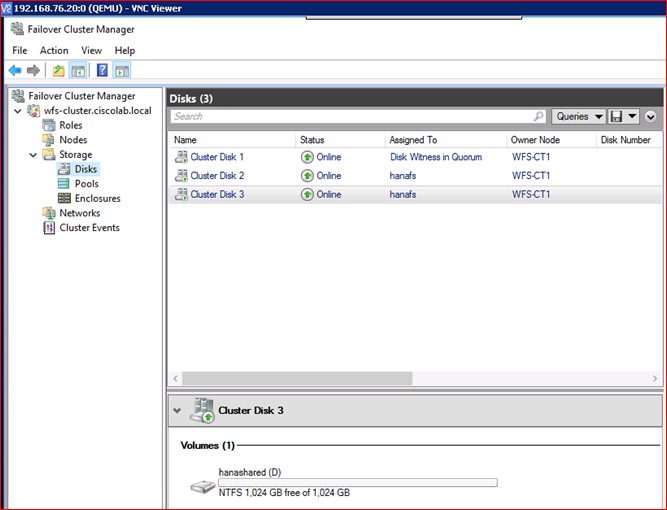

7.        Click OK. Confirm new volume has been added for the desired File Server.

Creating NFS Share

Creating NFS shares in WFS is simple and can be accomplished in several ways, including the Server Manager GUI or Windows PowerShell. To create a new NFS share creation using the Server Manager GUI, complete the following steps:

1.        Navigate to Files and Storage Services and highlight Shares.

2.       Click TASKS and select New Share…

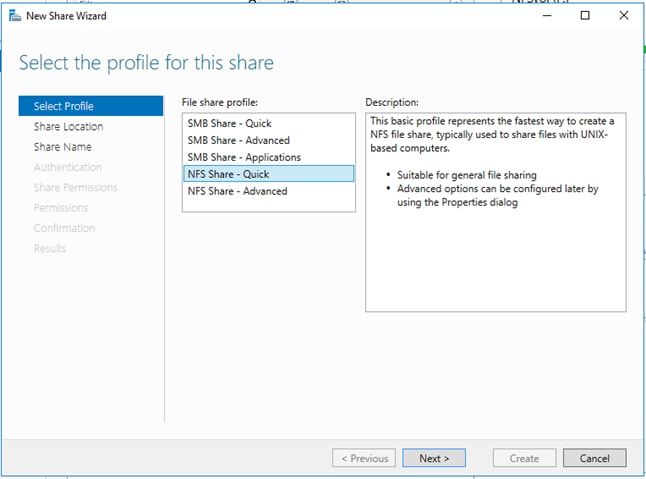

3.        Select NFS Share - Quick and click Next.

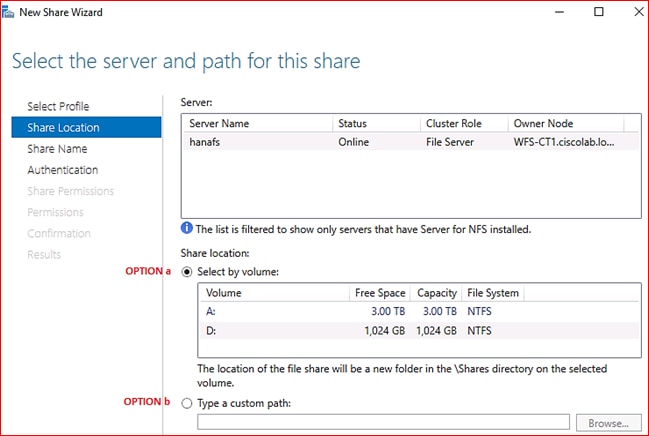

4.       Select the desired File Server. If the desired share is to be from a new folder, choose option a below and select the desired volume for the new folder. If the folder to be shared already exists, select option b and browse for the existing folder.

5.        Click Next.

6.       Give the share a name and click Next.

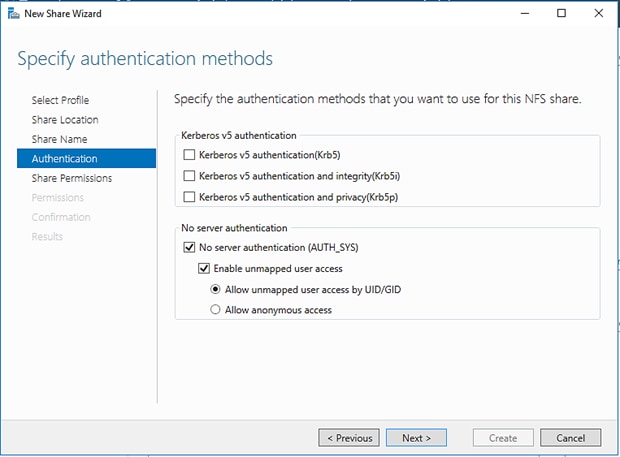

7.        Select the Authentication type for the client server. For simplicity, select No server authentication (AUTH_SYS).

8.       Select Enable unmapped user access and Allow unmapped user access by UID/GID.

9.       Click Next.

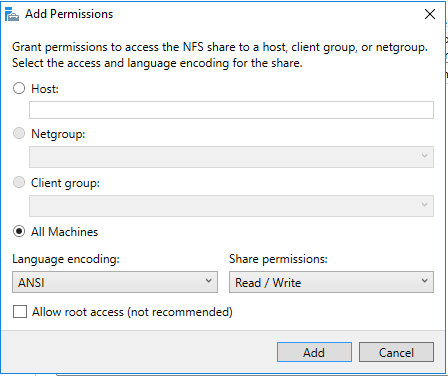

10.    Select the client hosts that are allowed to mount the NFS shares. You can select individual host names (or IP addresses), groups, or all host machines. For simplicity in this example, select All Machines.

11.     Set the share permissions to Read/Write.

12.    Click Add.

13.     Confirm the selected hosts, groups, or all machines appear. Click Next.

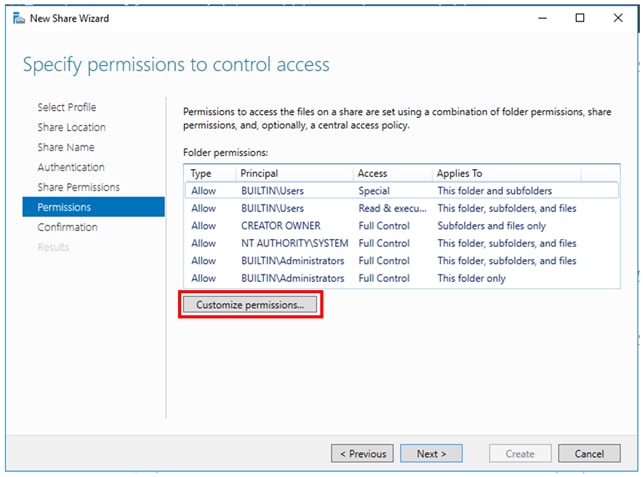

14.    In the next Permissions window, click Customized permissions...

15.     Click Add.

16.    Click Select a Principal.

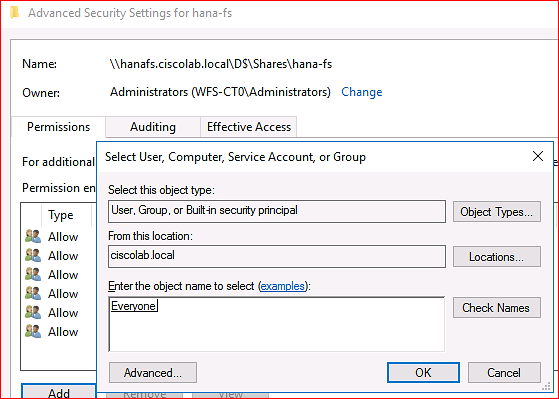

17.     In the empty box, type: Everyone and click Check Names. “Everyone” should be recognized by Windows Server. Click OK.

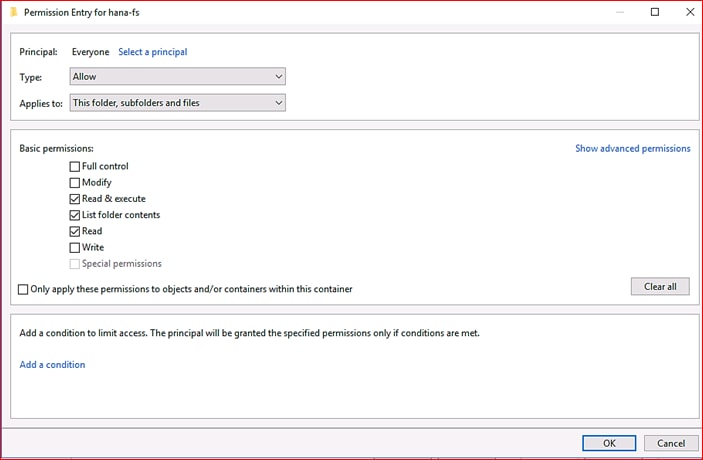

18.    Click OK again.

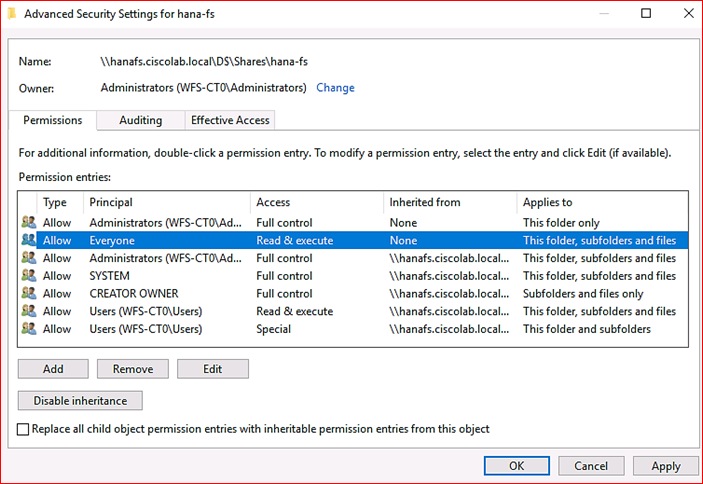

19.    Confirm Everyone was added to the Permissions entries. Click OK.

.

20.    Click Next.

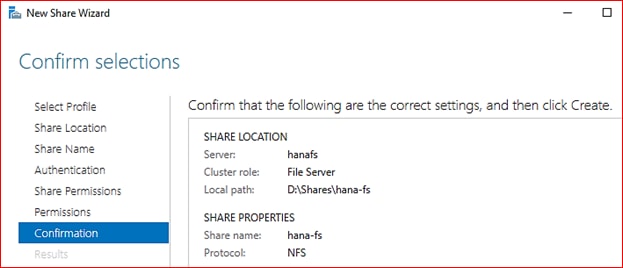

21.    Confirm the selections and click Create, then click Close.

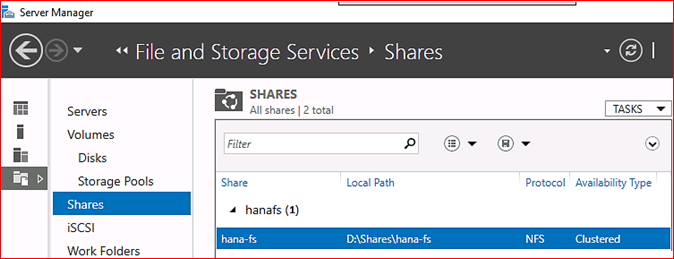

The new share should now appear in the Shares field of Server Manager.

This NFS share will be used for the /hana/shared filesystem during the scale-out system preparation of HANA.

In this CVD, two use cases are defined to illustrate the principles and the required steps to configure the FlashStack for SAP HANA in TDI mode. Firstly, we define the Operating System base configuration compliant with SAP recommendations for HANA install.

SAP HANA Node OS Preparation – SLES for SAP SP3

In this section the SLES for SAP 12 SP3 installation and configuration is detailed.

OS Installation

To install the OS, complete the following steps:

1.        On the UCSM page, Servers -> Service Profiles -> root -> Sub-Organizations -> HANA – Right-click HANA-node01 and select KVM console.

2.       After the KVM console is launched, click Boot Server.

3.        Choose Virtual Media > Activate Virtual Devices.

a.        For Unencrypted Virtual Media Session, select Accept this Session and then click Apply.

b.       Click Virtual Media and choose Map CD/DVD.

c.        Click Browse to navigate to the ISO media location. Select SLE-12-SP3-Sap-DVD-x86_64-GM-DVD1.iso. Click Open.

d.       Click Map Device.

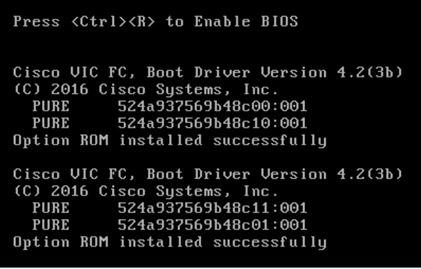

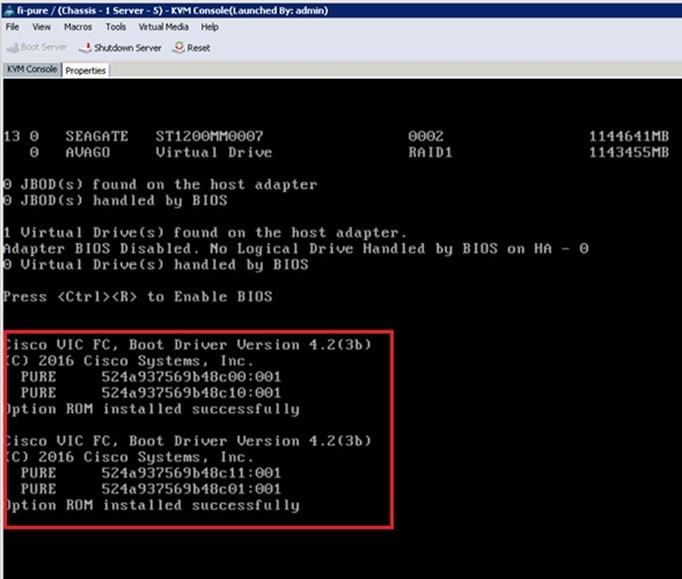

4.       At server boot time, during verification of VIC FC boot driver version, it recognizes the Pure array by its target WWPN numbers. This verifies the server to storage connectivity.

5.        The System will automatically boot from the ISO image. Select the Installation option.

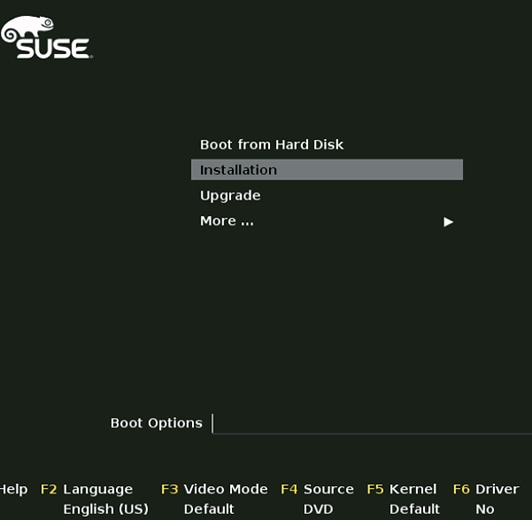

Figure 156   Booting to ISO image

6.       On the first “Language, Keyboard and License Agreement” page, select the Language of choice and Keyboard Layout, “I Agree to license terms” and click Next.

7.        Network Settings – Select Next. We will re-visit the network configuration as part of post-installation tasks.

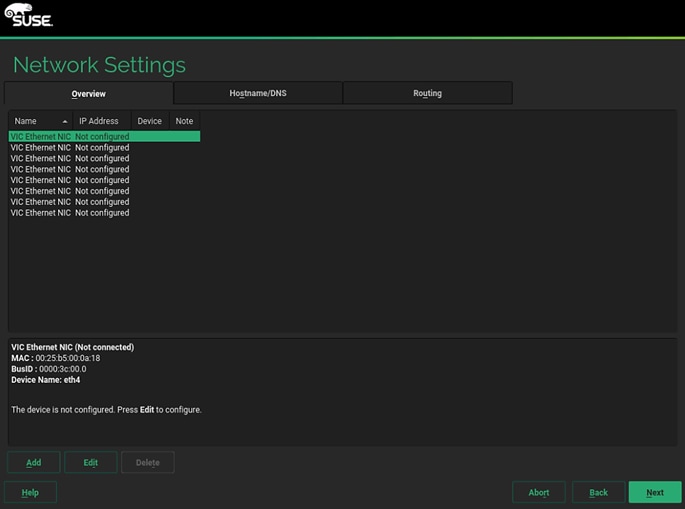

Figure 157    Network Settings

8.       System Probing – Select ‘No’ for the pop-up related to activation of multipath.

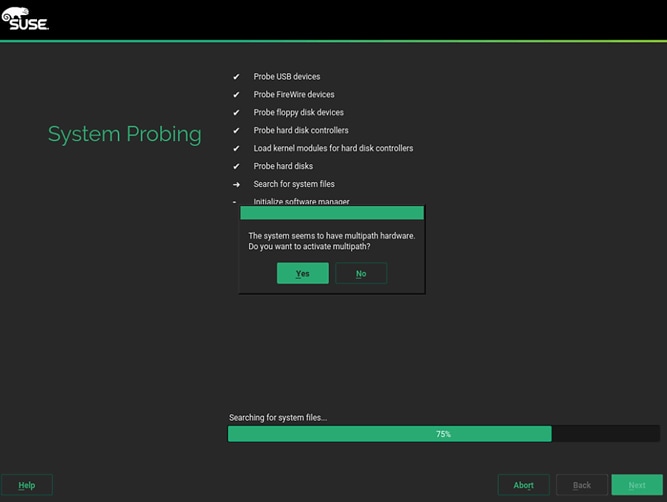

Figure 158   System Probing – Multipath Activation Choice

9.       Registration – Select Skip Registration. We will do this later as part of post-installation tasks. Click ‘Yes’ for the confirmation warning pop-up to proceed.

10.    Product Installation Mode – Select “Proceed with standard SLES for SAP Applications installation” option.

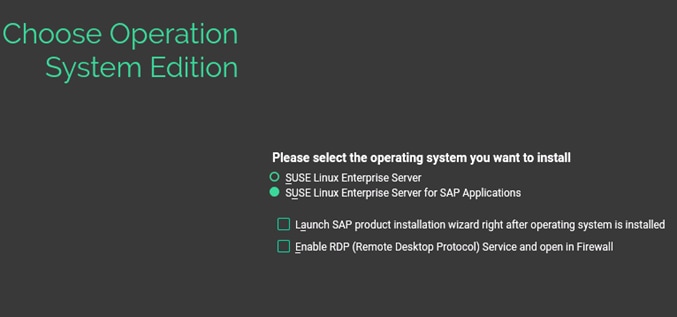

Figure 159   Choosing OS Edition

11.     Add On Product: Click Next. We don’t have any additional Add On Production to install.

Figure 160  Suggested Partitioning Initial Proposal -Example

12.    Select ‘Expert Partitioner’ > on the left ‘System View’ > Linux > Hard Disks > Select a device from the list which is 100G. In the navigation pane click ‘Delete’ if found with the suggested partitions which results in an Unpartitioned disk of 100GB.

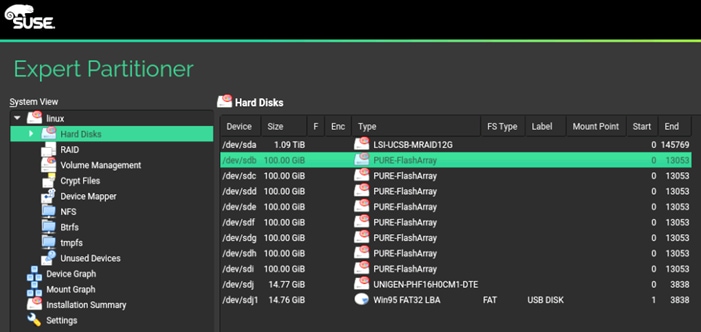

Figure 161   Expert Partitioner – Choose 100G Hard Disk Device

13.     On the right pane, under Partitions tab, select device, add a new Partition by selecting ‘Add’ under the Partitions tab for the device. Select Primary Partition for New Partition Type in the next step.

Figure 162  Expert Partitioner – Add Primary Partition on /dev/ device

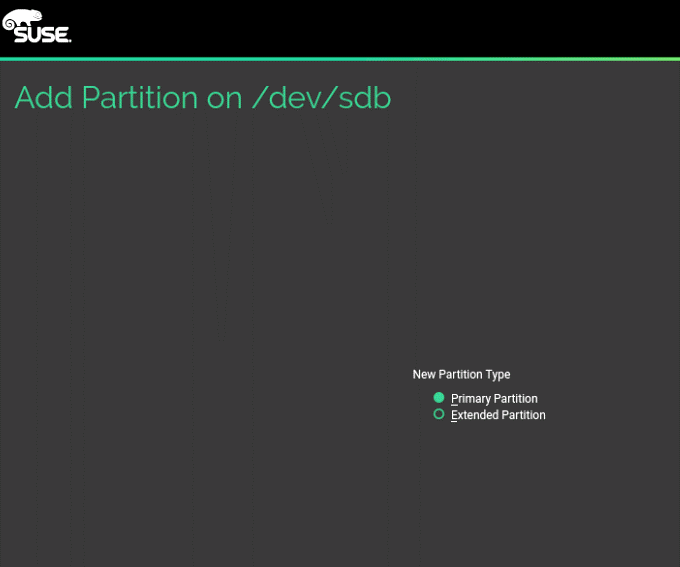

14.    Select Maximum Size. Click Next.

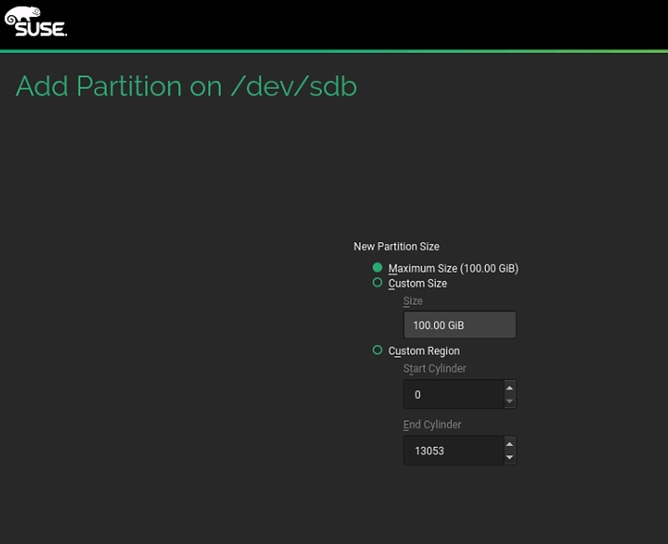

Figure 163   Add Partition – Specify New Partition Size

15.      Click Next.

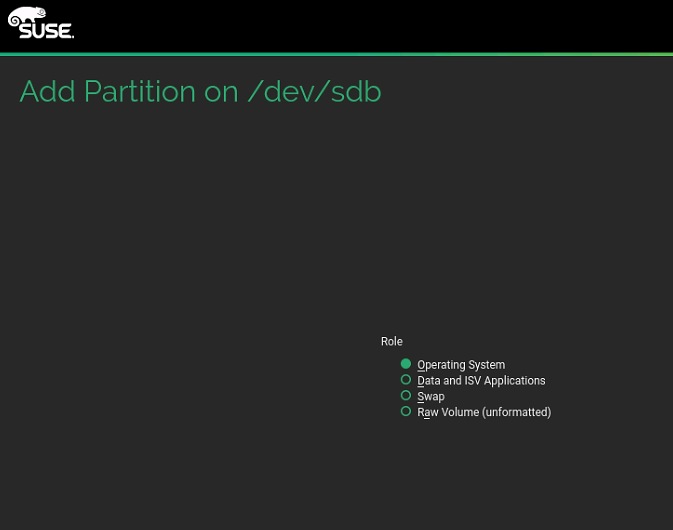

Figure 164  Add Partition – Specify Role

16.    Select Operating System Role and click Next.

Figure 165   Add Partition- Formatting and Mounting Options

17.     Select ext3 File system and / or mount point. Click Finish.

18.    Click Accept to come back to the Installation Settings page.

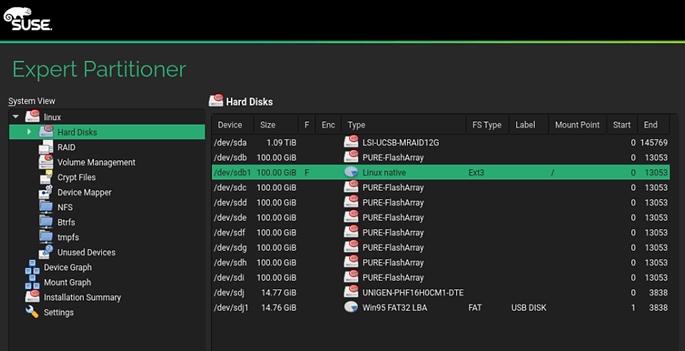

Figure 166  Expert Partitioner – Summary

19.    Click Yes to continue setup without swap partition. Click Accept.

20.    Click Next on the final Suggested Partition page.

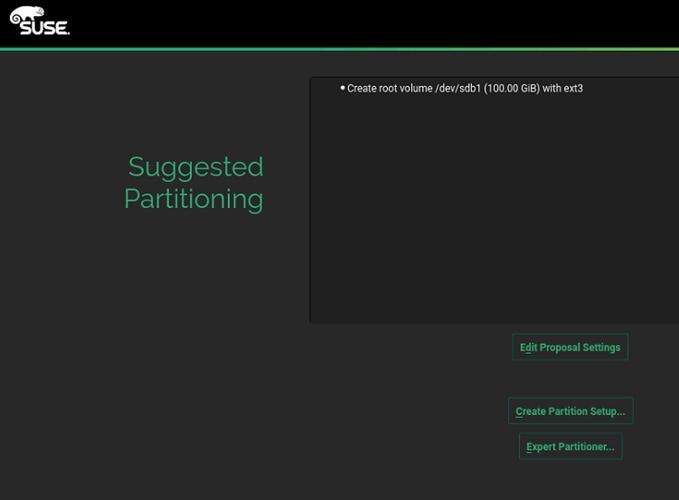

Figure 167   Suggested Partitioning – Summary

21.    Clock and Time Zone – choose the appropriate time zone and select Hardware clock set to UTC.

22.    Password for the System Administrator “root” – Key in appropriate password <<var_sys_root-pw>>

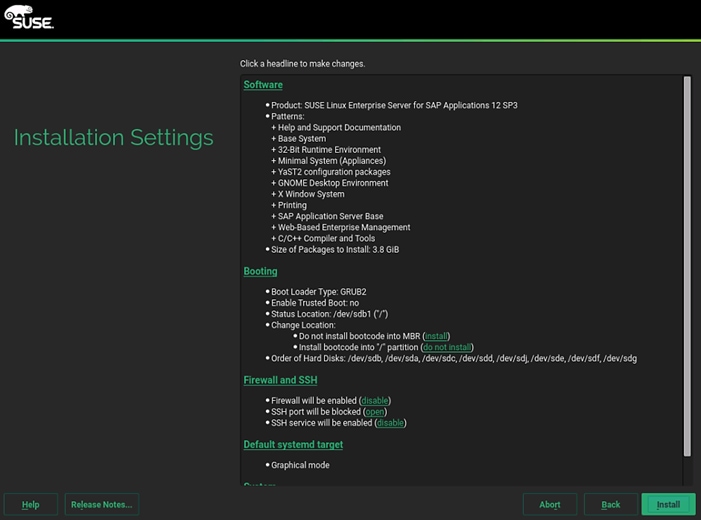

Figure 168  Installation Settings – Default Proposal

23.    Customize the software selection. Click Software headline to make the following changes:

a.        Deselect GNOME DE and X Window System

b.       Make sure C/C++ Compiler and Tools is selected.

c.        Select SAP HANA Server Base.

d.       Deselect SAP Application Sever Base.

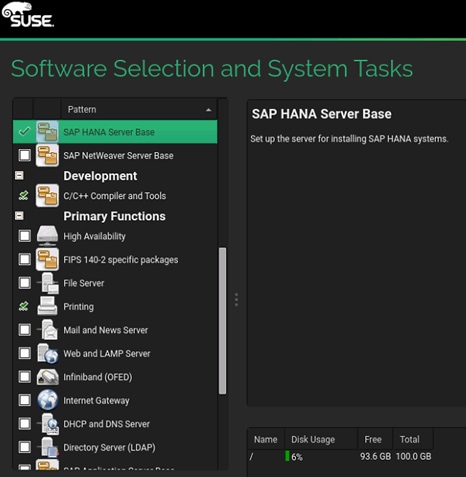

Figure 169  Software Selection and System Tasks - Customized



24.    Click OK.

25.    Under ‘Firewall and SSH’ headline: Click ‘disable’ for Firewall. This will automatically enable SSH service.

Figure 170   Firewall and SSH - Customized

26.    Leave the default selections unchanged.

Figure 171   Installation Settings – Final Selections

27.    Click Install and select Install again for the subsequent ‘Confirm Installation’ prompt. The installation is started and you can monitor the status.

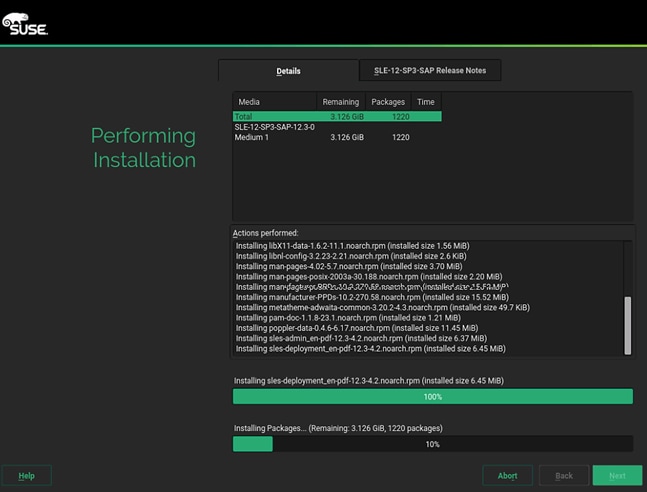

Figure 172   Perform Installation

28.    The system will reboot and “Boot from disk” on start-up presenting the login prompt.

Figure 173   Booting From Hard Disk

Post Installation Steps

As part of the post-install configuration, you will define the hostname, network configuration, kernel/packages update, and tuning as per the SAP Notes recommendations.

1.        Configure the hostname and disable IPV6.

#yast2.

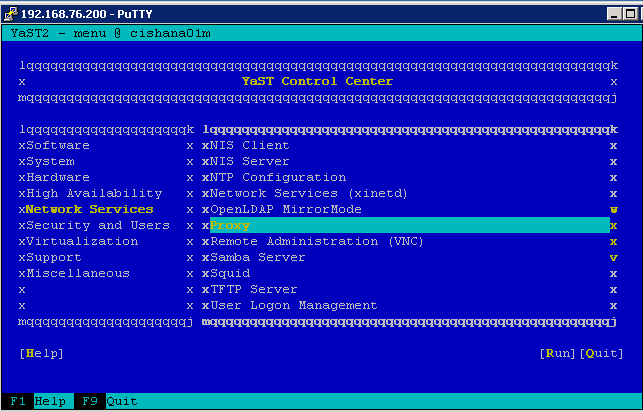

Figure 174   YaST Control Center - Network Settings

a.        System > Network Settings and select Run > Alt+s to select Hostname/DNS tab.

Figure 175   YaST Control Center – Hostname/DNS

b.       Input the <<var_hostname.domain>>. Also key in DNS server address of your network for resolution, if any and select Alt+o.

c.        On the Global Options tab with Alt+g, you can choose to disable IPV6, by unselecting the Enable IPV6 option as shown in the figure below. Changing the IPV6 setting requires a reboot to effect the changes.

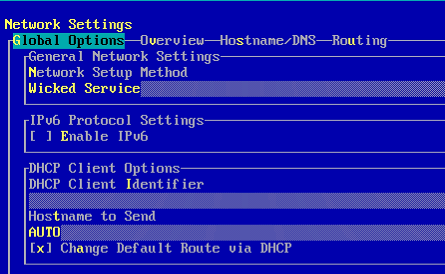

Figure 176   YaST - IPV6 Setting

d.       Select Alt+o to save the Network Configuration. Select Alt+q to quit the YaST Control center.

e.       Perform a reboot to effect the IPV6 selection and also the hostname settings.

#reboot

2.       Host networking configuration. The vNIC to MAC address mapping information for a host can be obtained from the network tab of that host’s Service Profile.

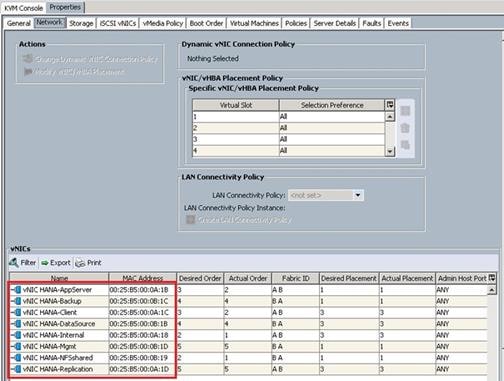

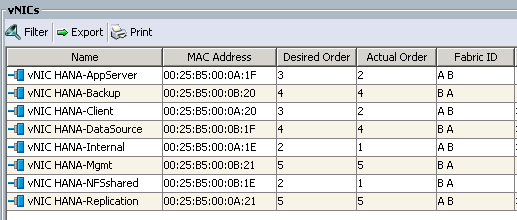

Figure 177   Network Interface and MAC Address From UCSM

3.        At the host OS level, the Ethernet interface to MAC address mapping can be ascertained with the ‘ifconfig’ command

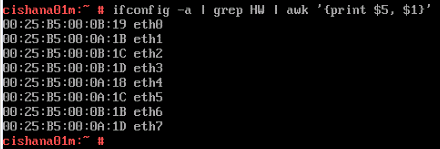

Figure 178   Network Interface and MAC Address at OS Level

4.       Co-relating the outputs in step a and b above, we are able to determine the right IP address/network that need to should be assigned to the Ethernet interface. For the same an IP addressing scheme cheat sheet, as below, can be quite handy.

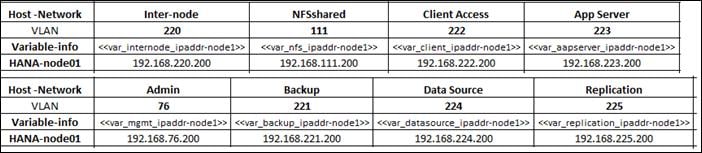

Figure 179   Sample IP/VLAN/Network Table Used for Sample Config

5.        Assign the IP address and subnet mask for the ethernet interfaces based on the al the information we have so far.

#cd /etc/sysconfig/network



#vi ifcfg-eth0
BOOTPROTO='static'

BROADCAST=''

ETHTOOL_OPTIONS=''

IPADDR='192.168.111.200/24'

MTU=''

NAME='VIC Ethernet NIC'

NETWORK=''

REMOTE_IPADDR=''

STARTMODE='auto'



#vi ifcfg-eth1
BOOTPROTO='static'

BROADCAST=''

ETHTOOL_OPTIONS=''

IPADDR='192.168.220.200/24'

MTU='9216'

NAME='VIC Ethernet NIC'

NETWORK=''

REMOTE_IPADDR=''

STARTMODE='auto'



#vi ifcfg-eth2
BOOTPROTO='static'

BROADCAST=''

ETHTOOL_OPTIONS=''

IPADDR='192.168.221.200/24'

MTU=''

NAME='VIC Ethernet NIC'

NETWORK=''

REMOTE_IPADDR=''

STARTMODE='auto'



#vi ifcfg-eth3
BOOTPROTO='static'

BROADCAST=''

ETHTOOL_OPTIONS=''

IPADDR='192.168.76.200/24'

MTU=''

NAME='VIC Ethernet NIC'

NETWORK=''

REMOTE_IPADDR=''

STARTMODE='auto'



#vi ifcfg-eth4
BOOTPROTO='static'

BROADCAST=''

ETHTOOL_OPTIONS=''

IPADDR='192.168.223.200/24'

MTU=''

NAME='VIC Ethernet NIC'

NETWORK=''

REMOTE_IPADDR=''

STARTMODE='auto'



#vi ifcfg-eth5
BOOTPROTO='static'

BROADCAST=''

ETHTOOL_OPTIONS=''

IPADDR='192.168.222.200/24'

MTU=''

NAME='VIC Ethernet NIC'

NETWORK=''

REMOTE_IPADDR=''

STARTMODE='auto



#vi ifcfg-eth6
BOOTPROTO='static'

BROADCAST=''

ETHTOOL_OPTIONS=''

IPADDR='192.168.224.200/24'

MTU=''

NAME='VIC Ethernet NIC'

NETWORK=''

REMOTE_IPADDR=''

STARTMODE='auto'



#vi ifcfg-eth7
BOOTPROTO='static'

BROADCAST=''

ETHTOOL_OPTIONS=''

IPADDR='192.168.225.200/24'

MTU=''

NAME='VIC Ethernet NIC'

NETWORK=''

REMOTE_IPADDR=''

STARTMODE='auto'



6.       Add the default gateway.

#cd /etc/sysconfig/network

# vi routes

default <<var_mgmt_gateway_ip>> - -

7.        Update the /etc/hosts with IP address of all networks and their alias hostnames:

cishana01m:~ # vi /etc/hosts

#

# hosts         This file describes a number of hostname-to-address

#               mappings for the TCP/IP subsystem.  It is mostly

#               used at boot time, when no name servers are running.

#               On small systems, this file can be used instead of a

#               "named" name server.

# Syntax:

#

# IP-Address  Full-Qualified-Hostname  Short-Hostname

#



127.0.0.1       localhost



# special IPv6 addresses

::1             localhost ipv6-localhost ipv6-loopback



fe00::0         ipv6-localnet



ff00::0         ipv6-mcastprefix

ff02::1         ipv6-allnodes

ff02::2         ipv6-allrouters

ff02::3         ipv6-allhosts

#

## Internal Network

#

192.168.220.200 cishana01.ciscolab.local cishana01

#

## NFS /hana/shared Network

#

192.168.111.200  cishana01s.ciscolab.local cishana01s

#

## Client Network

#

192.168.222.200  cishana01c.ciscolab.local cishana01c

#

## AppServer Network

#

192.168.223.200  cishana01a.ciscolab.local cishana01a

#

## Admin Network

#

192.168.76.200  cishana01m.ciscolab.local cishana01m

#

## Backup Network

#

192.168.221.200  cishana01b.ciscolab.local cishana01b

#

## DataSource Network

#

192.168.224.200  cishana01d.ciscolab.local cishana01d

#

## Replication Network

#

192.168.225.200 cishana01r.ciscolab.local cishana01r

##

8.       Create SWAP partition.

#dd if=/dev/zero of=/swap_01 bs=1024 count=2097152

#mkswap /swap_01

#chown root:disk /swap_01

#chmod 600 /swap_01

#swapon /swap_01

9.       Update the /etc/fstab with swap filesystem information by appending this line.

/swap_01   swap   swap    defaults        0 0

10.    Set up a proxy service, so that the appliance can reach the Internet.

YaST2 – Key in the proxy server and port details. Select OK and then quit YaST to save the configuration.

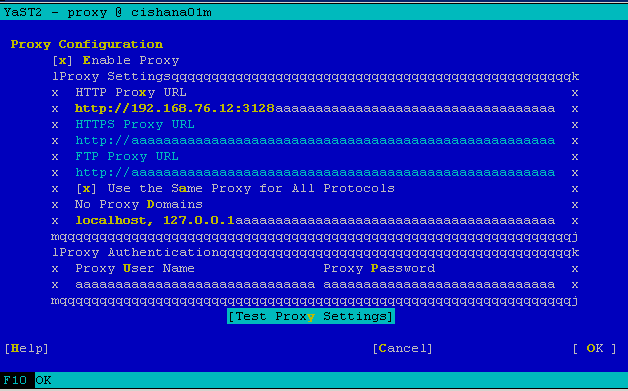

Figure 180  YaST – Proxy Configuration

11.     Select “Enable Proxy” > key in the <<proxy server IP address:port >> information and select “use same proxy for all Protocols” option.

12.    Test the Proxy Settings to make they are working.

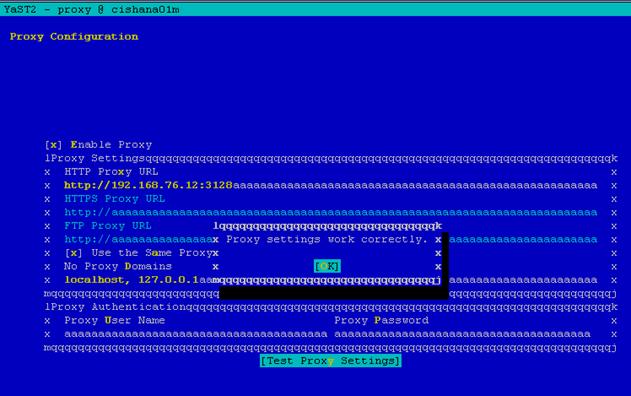

13.     Register the system with SUSE to get the latest patches. For more information refer SUSE KB article  https://www.suse.com/de-de/support/kb/doc?id=7016626

14.    The system must have access to the Internet to proceed with this step.

#SUSEConnect -r <<registration_code>>



15.     Update the system with the following command. Again, the system must have access to the Internet to proceed with this step.

  #zypper update

16.    Follow the on-screen instructions to complete the update process. Reboot the server and log in to the system again.

17.     Update fnic and enic drivers:

a.        Based on the serer type/model, processor version, OS release and version information download the Firmware bundle corresponding to the UCS Server firmware installed from the Cisco UCS Hardware and Software Compatibility site

b.       Extract the rpm files of the fnic and enic drivers from the bundle over to the node.

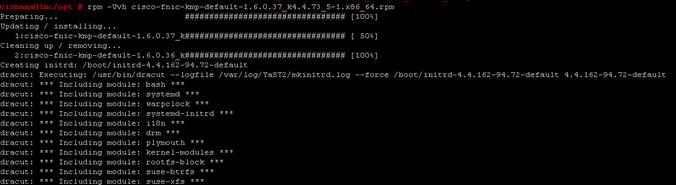

cishana01m:~ # rpm -Uvh <fnic.rpm>

cishana01m:~ # rpm -Uvh <enic.rpm>

18.    Configuration of udev rules:

The device manager of the kernel needs to be configured as shown below. The most important parameters to change are nr_requests and scheduler. Please set the parameters has for Pure Storage in the /etc/udev/rules.d directoy, as shown below:

#cd /etc/udev/rules.d

#vi 99-pure-storage.rules



# Recommended settings for Pure Storage FlashArray.

# Use noop scheduler for high-performance solid-state storage

ACTION=="add|change", KERNEL=="sd*[!0-9]", SUBSYSTEM=="block", ENV{ID_VENDOR}=="PURE", ATTR{queue/scheduler}="noop"

# Reduce CPU overhead due to entropy collection

ACTION=="add|change", KERNEL=="sd*[!0-9]", SUBSYSTEM=="block", ENV{ID_VENDOR}=="PURE", ATTR{queue/add_random}="0"



# Spread CPU load by redirecting completions to originating CPU

ACTION=="add|change", KERNEL=="sd*[!0-9]", SUBSYSTEM=="block", ENV{ID_VENDOR}=="PURE", ATTR{queue/rq_affinity}="2"

ACTION=="add|change", KERNEL=="sd*[!0-9]", SUBSYSTEM=="block", ENV{ID_VENDOR}=="PURE", ATTR{queue/nr_requests}="1024"

ACTION=="add|change", KERNEL=="sd*[!0-9]", SUBSYSTEM=="block", ENV{ID_VENDOR}=="PURE", ATTR{queue/nomerges}="1"

ACTION=="add|change", KERNEL=="sd*[!0-9]", SUBSYSTEM=="block", ENV{ID_VENDOR}=="PURE", ATTR{queue/rotational}="0"

ACTION=="add|change", ENV{DM_UUID}=="mpath-3624a937?*", ATTR{queue/scheduler}="noop"

ACTION=="add|change", ENV{DM_UUID}=="mpath-3624a937?*", ATTR{queue/rotational}="0"

ACTION=="add|change", ENV{DM_UUID}=="mpath-3624a937?*", ATTR{queue/nr_requests}="4096"

ACTION=="add|change", ENV{DM_UUID}=="mpath-3624a937?*", ATTR{queue/rq_affinity}="2"

ACTION=="add|change", ENV{DM_UUID}=="mpath-3624a937?*", ATTR{queue/nomerges}="1"

ACTION=="add|change", ENV{DM_UUID}=="mpath-3624a937?*", ATTR{queue/add_random}="0"

ACTION=="add|change",KERNEL=="dm-*", ATTR{queue/scheduler}="noop"

ACTION=="add|change", KERNEL=="dm-*", ATTR{queue/rotational}="0"

ACTION=="add|change", KERNEL=="dm-*", ATTR{queue/nr_requests}="4096"

ACTION=="add|change", KERNEL=="dm-*", ATTR{queue/rq_affinity}="2"

ACTION=="add|change", KERNEL=="dm-*", ATTR{queue/nomerges}="1"

ACTION=="add|change", KERNEL=="dm-*", ATTR{queue/add_random}="0"

# SCSI timeout in line with Customer Best Practices

ACTION=="add", SUBSYSTEM=="scsi", ATTRS{model}=="FlashArray      ", RUN+="/bin/sh -c 'echo 60 > /sys$DEVPATH/timeout'"

19.    Multipath configuration:

Multipathing needs to be setup to do round-robin for all PURE LUNs by setting it up in /etc/multipath.conf. The file contents of multipath.conf are shown here:

# vi /etc/multipath.conf

devices {

        device {

                vendor                  "PURE"

                path_selector           "round-robin 0"

                path_grouping_policy    multibus

                path_checker            tur

                fast_io_fail_tmo        10

                dev_loss_tmo            60

                no_path_retry           0

        }

}

SAP Notes Recommended Implementation

To optimize the use of HANA DB with SLES for SAP 12 SP3 apply the following settings as per the SAP Note 2205917:

1.        Linux kernel update: Please upgrade the Linux kernel to version 4.4.120-94.17.1 or newer.

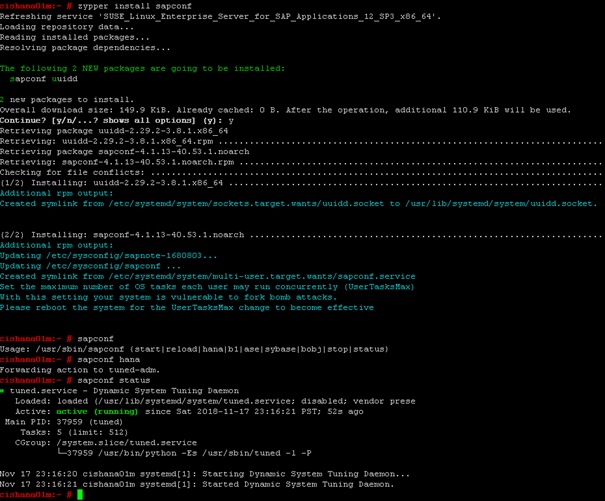

2.       Configure sapconf, saptune as in SAP Note 1275776



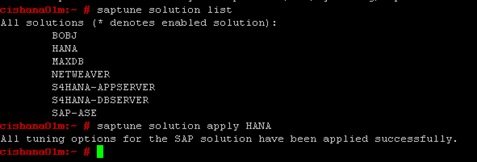

3.        Turn off autoNUMA, disable transparent HugePages, and configure C-states for lower latency:

4.       Use YaST2 bootloader, execute:

      # yast2 bootloader

a.        Choose "Kernel Parameters" tab (ALT-k) and edit the "Optional Kernel Command Line Parameter" section by appending:

numa_balancing=disable transparent_hugepage=never intel_idle.max_cstate=1 processor.max_cstate=1

b.       Press Alt+o to save and exit the yast2.

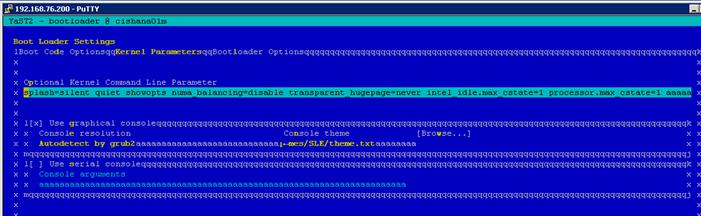

Figure 181   YaST – Kernel Command Line Parameters Configuration

5.        CPU frequency/voltage scaling and Energy Performance Bias (EPB) settings:

6.       Append “cpupower frequency-set -g performance” to /etc/init.d/boot.local to set it at system startup.

7.        Append “cpupower set -b 0” to the /etc/init.d/boot.local file to set EPB at boot time:

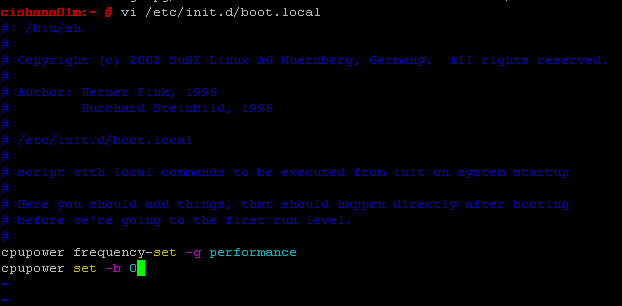

Figure 182  Configuring .local with EPB Settings

8.       4. Reboot the server.

#reboot

SAP HANA Node OS Preparation – RHEL for SAP HANA 7.4

This section details the RHEL 7.4 installation and configuration.

OS Installation

To install the OS, complete the following steps:

This section provides the procedure for RedHat Enterprise Linux 7.4 Operating System and customizing for SAP HANA requirement.

To install the RHEL 7.4 system, complete the following steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Choose Service Profile > root > Sub-Organization > HANA > HANA-node02.

3.        Click KVM Console.

4.       When the KVM Console is launched, click Boot Server.

5.        Click Virtual Media > Activate Virtual Devices:

a.        Choose the option Accept this Session for Unencrypted Virtual Media Session and then click Apply.

b.       Click Virtual Media and Choose Map CD/DVD.

c.        Click Browse to navigate ISO media location.

d.       Click Map Device.

6.       At server boot time, during verification of VIC FC boot driver version, it recognizes the Pure array by its target WWPN numbers. This verifies the server to storage connectivity.

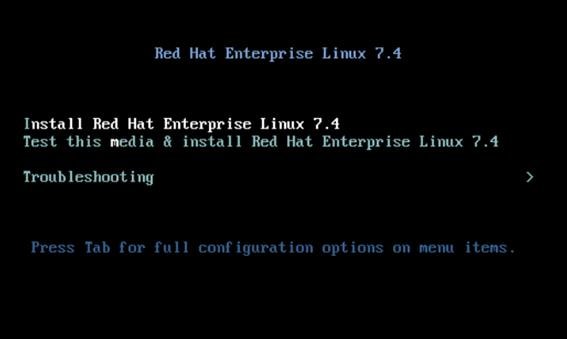

7.        On the Initial screen choose Install to begin the installation process.

8.       Choose Language and click Continue.

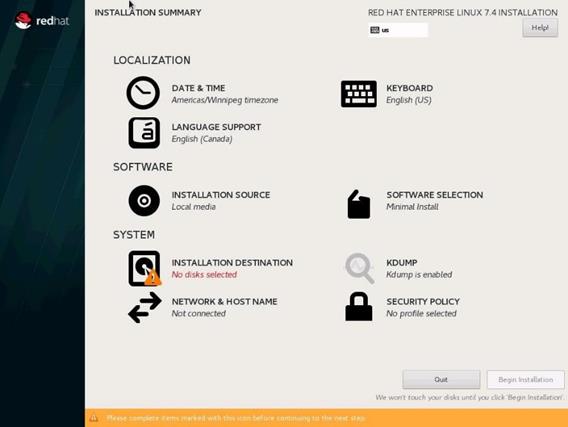

9.       The central Installation Summary page displays. Click Date & Time; choose the appropriate timezone and click Done.

10.    Click Keyboard; choose Keyboard layout and click Done.

11.     Under Software Menu, click Software selection.

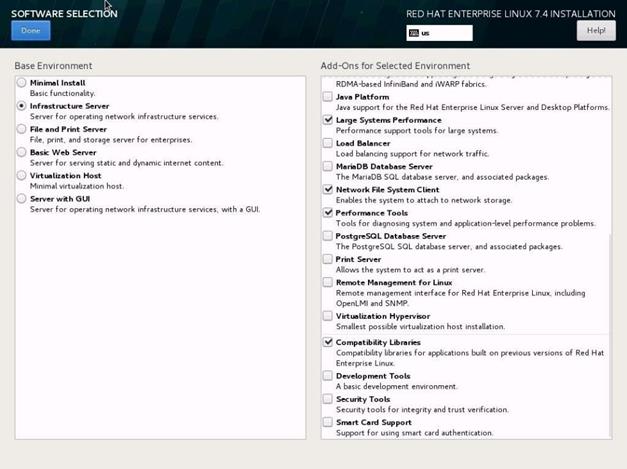

12.    In the Base Environment choose Infrastructure Server.

13.     For Add-Ons for Selected Environment choose Large Systems Performance, Network File System Client, Performance Tools, Compatibility Libraries and click Done.

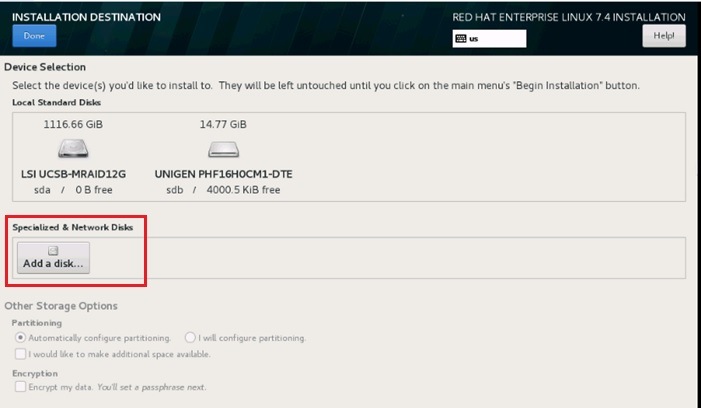

14.    Under System; click Installation destination. Select Specialized & Network Disks’s “Add a disk.”

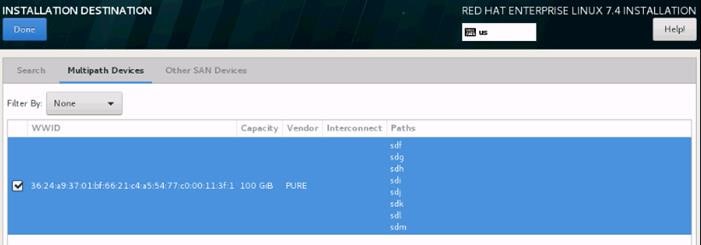

15.     Under Multipath Devices, select the lone 100G device identifies by its WWID. Click Done.

16.     From the Other Storage Options choose ‘I will configure partitioning’ and click Done.

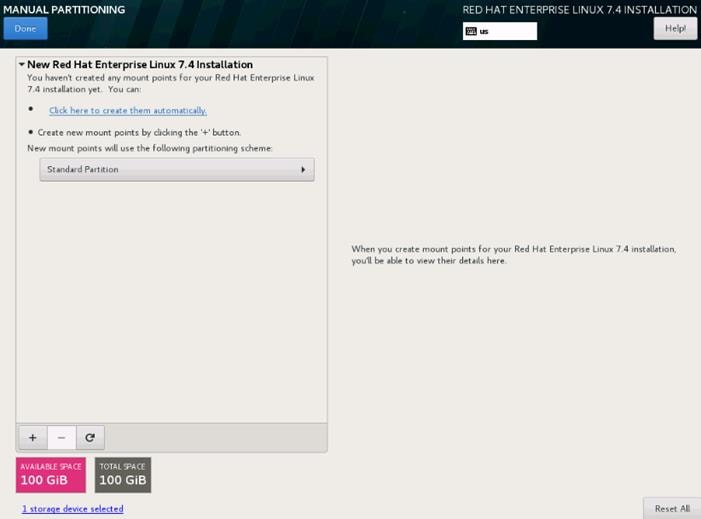

17.     In the Manual Partitioning Screen, choose Standard Partition for New mount points will use the following partitioning scheme.

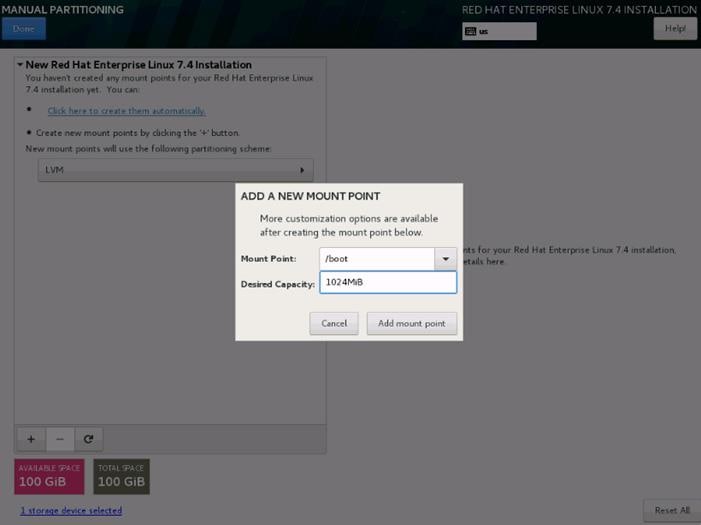

18.    Click the + symbol to add a new partition.

19.    Choose the mount point as ‘/boot.

20.    Enter the Desired capacity as 1024 MiB and click Add Mount Point.

21.    Choose the filesystem ext3.

22.    Click the + symbol to add a new partition.

23.    Choose the mount point swap.

24.    Enter the Desired capacity 2048 MiB and click Add Mount Point.

25.    Choose the filesystem swap.

26.    Click the + symbol to add / (root) partition.

27.    Choose the mount point as /.

28.    Enter the Desired capacity 97GiB and click Add Mount Point.

29.    Choose the filesystem ext3.



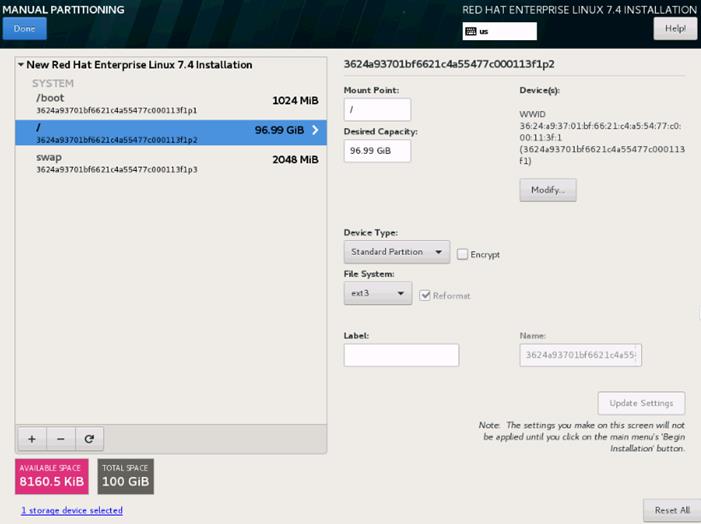

30.    Click Done on the top left corner of the screen.

31.     Review the partition layout and the size.

32.     Click Accept Changes to proceed to the next steps.

33.      Click KDUMP.

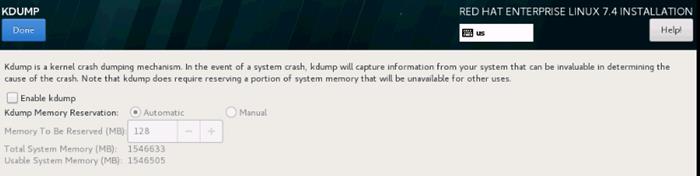

34.    Deselect Enable kdump.

35.     Click Security policy, choose Apply Security policy to OFF and click Done.

36.     Click Done on the top left corner of the screen.

37.     Click Network & Hostname.

38.    Enter the Host name and click Apply.

39.    IP address will be assigned once the OS is installed. Click Done.

40.    Click Done at the top left corner of the screen.

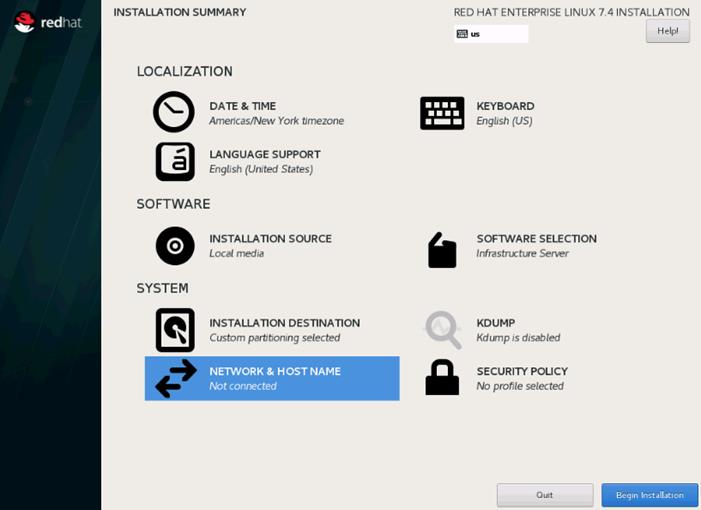

41.    Review the installation summary and click Begin Installation.

The next screen shows the start of the OS installation.

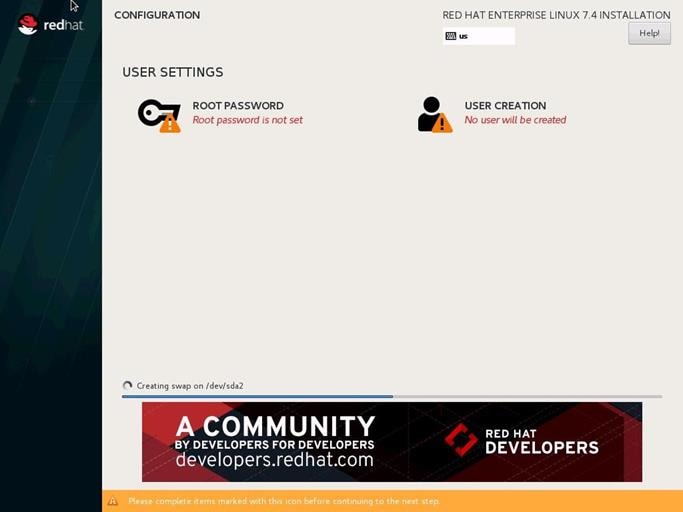

42.    Click Root Password.

43.    Enter the Root Password and Confirm.

44.    Click Done on the top left corner of the window.

45.    The installation will start and continue.

46.    When the installation is complete click Reboot to finish the installation.

Post Installation steps

In RHEL 7, systemd and udev support a number of different naming schemes. By default, fixed names are assigned based on firmware, topology, and location information, like ‘enp72s0’. With this naming convention, though names stay fixed even if hardware is added or removed it is often harder to read unlike traditional kernel-native ethX naming “eth0.”  Another way to name network interfaces, “biosdevnames”, is already available with installation.

1.        Configure boot parameters "net.ifnames=0 biosdevname=0" to disable both, to get the original kernel native network names.

2.       IPV6 support could be disabled at this time as we use IPV4 in the solution. This can be done by appending ipv6.disable=1 to GRUB_CMDLINE_LINUX as shown below:

3.        To Run the grub2-mkconfig command to regenerate the grub.cfg file:

4.       Finally reboot system to effect the changes.

To configure the network interface on the OS, it is required to identify the mapping of the ethernet device on the OS to vNIC interface on the Cisco UCS.

5.        From the OS, execute the following command to get list of Ethernet device with MAC Address:

6.       In Cisco UCS Manager, click the Servers tab in the navigation pane. Expand Servers > Service Profile > root > Sub-Organization > HANA > HANA-node02. Click + to Expand. Click vNICs. On the right pane list of the vNICs with MAC Address are listed.

7.        Go to network configuration directory and create a configuration for eth0:

8.       Derive and assign IP addresses for the rest of the interfaces.

9.       Add default gateway:

10.    Restart network to effect the IP address and gateway assignment.



11.     Domain Name Service configuration must be done based on the local requirements.

12.    Add DNS IP if it is required to access internet:

13.     Update fnic and enic drivers:

Based on the serer type/model, processor version, OS release and version information download the Firware bundle corresponding to the UCS Server firmware installed from the Cisco UCS Hardware and Software Compatibility site

Extract the rpm files of the fnic and enic drivers from the bundle over to the node.

cishana02m:~ # rpm -Uvh <fnic.rpm>

cishana02m:~ # rpm -Uvh <enic.rpm>

14.    Configure the udev rules:

The device manager of the kernel needs to be configured as shown below. Most important parameters to be changed are nr_requests and scheduler. Please set parameters has shown below for Pure Storage in the /etc/udev/rules.d directoy as shown below:

#cd /etc/udev/rules.d

#vi 99-pure-storage.rules



# Recommended settings for Pure Storage FlashArray.

# Use noop scheduler for high-performance solid-state storage

ACTION=="add|change", KERNEL=="sd*[!0-9]", SUBSYSTEM=="block", ENV{ID_VENDOR}=="PURE", ATTR{queue/scheduler}="noop"

# Reduce CPU overhead due to entropy collection

ACTION=="add|change", KERNEL=="sd*[!0-9]", SUBSYSTEM=="block", ENV{ID_VENDOR}=="PURE", ATTR{queue/add_random}="0"



# Spread CPU load by redirecting completions to originating CPU

ACTION=="add|change", KERNEL=="sd*[!0-9]", SUBSYSTEM=="block", ENV{ID_VENDOR}=="PURE", ATTR{queue/rq_affinity}="2"

ACTION=="add|change", KERNEL=="sd*[!0-9]", SUBSYSTEM=="block", ENV{ID_VENDOR}=="PURE", ATTR{queue/nr_requests}="1024"

ACTION=="add|change", KERNEL=="sd*[!0-9]", SUBSYSTEM=="block", ENV{ID_VENDOR}=="PURE", ATTR{queue/nomerges}="1"

ACTION=="add|change", KERNEL=="sd*[!0-9]", SUBSYSTEM=="block", ENV{ID_VENDOR}=="PURE", ATTR{queue/rotational}="0"

ACTION=="add|change", ENV{DM_UUID}=="mpath-3624a937?*", ATTR{queue/scheduler}="noop"

ACTION=="add|change", ENV{DM_UUID}=="mpath-3624a937?*", ATTR{queue/rotational}="0"

ACTION=="add|change", ENV{DM_UUID}=="mpath-3624a937?*", ATTR{queue/nr_requests}="4096"

ACTION=="add|change", ENV{DM_UUID}=="mpath-3624a937?*", ATTR{queue/rq_affinity}="2"

ACTION=="add|change", ENV{DM_UUID}=="mpath-3624a937?*", ATTR{queue/nomerges}="1"

ACTION=="add|change", ENV{DM_UUID}=="mpath-3624a937?*", ATTR{queue/add_random}="0"

ACTION=="add|change",KERNEL=="dm-*", ATTR{queue/scheduler}="noop"

ACTION=="add|change", KERNEL=="dm-*", ATTR{queue/rotational}="0"

ACTION=="add|change", KERNEL=="dm-*", ATTR{queue/nr_requests}="4096"

ACTION=="add|change", KERNEL=="dm-*", ATTR{queue/rq_affinity}="2"

ACTION=="add|change", KERNEL=="dm-*", ATTR{queue/nomerges}="1"

ACTION=="add|change", KERNEL=="dm-*", ATTR{queue/add_random}="0"

# SCSI timeout in line with Customer Best Practices

ACTION=="add", SUBSYSTEM=="scsi", ATTRS{model}=="FlashArray      ", RUN+="/bin/sh -c 'echo 60 > /sys$DEVPATH/timeout'"

15.     Multipath configuration:

Multipathing needs to be setup to do round-robin for all PURE LUNs by setting it up in /etc/multipath.conf. The file contents of multipath.conf are shown here:

# vi /etc/multipath.conf

devices {

        device {

                vendor                  "PURE"

                path_selector           "round-robin 0"

                path_grouping_policy    multibus

                path_checker            tur

                fast_io_fail_tmo        10

                dev_loss_tmo            60

                no_path_retry           0

        }

}

16.    Update the RedHat system:



17.     Update only the OS kernel and firmware packages to the latest release that appeared in RHEL 7.4. Set the release version to 7.4:

18.    Add the repos required for SAP HANA:

19.    Apply the latest updates for RHEL 7.4 Typically, the kernel is updated as well:

20.    Install dependencies in accordance with the SAP HANA Server Installation and Update Guide. Install the numactl package if the benchmark HWCCT is to be used:

21.    Disable SELinux:

22.    Sysctl.conf: The following parameters must be set in /etc/sysctl.conf:

23.    Add the following line into /etc/modprobe.d/sunrpc-local.conf. Create the file, if it does not exist:

sunrpc.tcp_max_slot_table_entries = 128

24.    For compatibility reasons, four symbolic links are required:

SAP Notes Recommendation Implementation

To optimize the use of HANA DB RHEL 7.4 apply the following settings as per SAP Note 2292690:

1.        Make sure the Kernel version is kernel-3.10.0-693.11.6 or newer and tuned profile is tuned-profiles-sap-hana-2.8.0-5.el7_4.2 or newer

2.       Configure tuned to use profile "sap-hana". The tuned profile "sap-hana", which is provided by Red Hat as part of RHEL 7 for SAP HANA, contains many of the configures some additional settings. Therefore the "sap-hana" tuned profile must be activated on all systems running SAP HANA:

3.        Turn off auto-numa balancing: SAP HANA is a NUMA (non-uniform memory access) aware database. Thus it does not rely on the Linux kernel's features to optimize NUMA usage automatically. Depending on the workload, it can be beneficial to turn off automatic NUMA balancing. For this purpose, add "kernel.numa_balancing = 0" to /etc/sysctl.d/sap_hana.conf (please create this file if it does not already exist) and reconfigure the kernel by running:

4.       Disable transparent hugepages and configure C-states for lower latency.

5.        Modify the file /etc/default/grub and append the following parameters to the line starting with GRUB_CMDLINE_LINUX:

6.       To implement these changes, rebuild the GRUB2 configuration:

grub2-mkconfig -o /boot/grub2/grub.cfg

7.        The "numad" daemon must be disable:

8.       Disable ABRT, Crash Dump:

9.       Disable core file creation. To disable core dumps for all users, open /etc/security/limits.conf, and add the line:

10.    Enable group "sapsys" to create an unlimited number of processes:

11.     Disable Firewall:

12.    Reboot the OS by issuing reboot command.

13.     Optional: old kernels can be removed after OS update:

package-cleanup --oldkernels --count=1 -y

System preparation for SAP HANA Scale-Up use-case

This is a common deployment methodology of SAP HANA on premise. The high-level steps for this use case are as follows:

·         Create the Boot, Data, Log, and Shared Filesystem LUNs

·         Install and Configure the Operating System

·         Install SAP HANA

·         Test the connection to the SAP HANA database

Workload Definition

As an example, Customer XX wants to implement SAP HANA with a requirement of a single system to start with and database growth not exceeding 1.5TB. Customer XX has the latest Skylake-based Cisco UCS B480 M5 servers and Pure Storage in his datacenter that he likes to leverage in a sharing mode. Since this is a TDI implementation, Customer XX can repurpose the FlashStack gear he has, making sure that HANA HWCCT TDI KPIs are met to receive SAP support.

Requirements

As a best practice, it is good to Scale-UP and then to Scale-Out based on the future growth requirements. For a SAP HANA database in a Scale-Up configuration, the required networks are the access network and the storage network. All other networks are optional.

Memory:        1.5 TB

CPU:               4x Intel Xeon Skylake CPUs 8176

Network:       1x Access Network with >=100Mbit/sec at a minimum. [At least 1GE]

Storage:       /hana/data Sizedata = 1 x RAM , so 1.5 TB

                        /hana/log [systems > 512GB ] Sizeredolog(min) = 512GB

                                /hana/shared Sizeinstallation(single-node) = MIN(1 x RAM; 1 TB), so 1TB



An average of 300 MB/sec throughput can be used as the baseline. Dependent on the use case it can be less (default analytics) or much more (heavy Suite on HANA).

Configure Storage

You will need a LUN for size 1.5TB for /hana/data, 512G LUN for /hana/log, both formatted with xfs and 1TB /hana/shared filesystem. Since this is scale-up system and /hana/shared is local to this system, we can use a block LUN formatted with xfs. A temporary software share of size 1 TB that would host all the installation DVDs could be used for this installation purpose.

You will use HANA-node01 host for this Scale-up system installation. The host at this point has a boot LUN HANA-node01-boot with OS preparation completed as detailed in previous sections – OS Installation and port-installation steps.

To create a 1.5 TB Data LUN, 512 GB Log LUN, 1 TB /hana/shared LUN in the array and associate them with the following:

1.        Data LUN: Click Storage on navigation pane > Volumes tab on the right working pane. Use HANA-node01-data as name and 1.5T for provisioned size and click Create.

Figure 183   Create Data Volume

2.       Assign this LUN to the host HANA-Server01. Select the created LUN on left pane and use menu bar on right pane to select ‘Connect’ option.

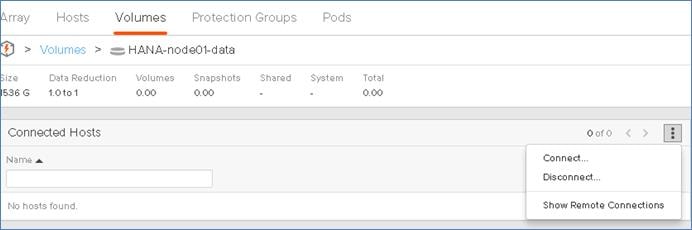

Figure 184  Connect LUN to Host

3.        Check the HANA-Server01 box and click Connect.

Figure 185   Connect LUN to Host- Cont’d

4.       Repeat steps 1-3 to create and add /hana/log and /hana/shared share LUNs.

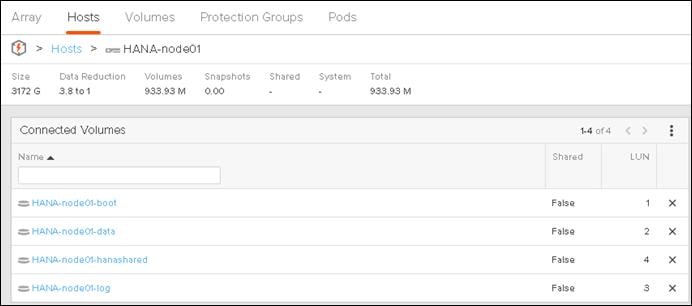

Figure 186  LUN list for HANA-Server01

Configure System for Storage Access

To configure the Operating systems on the SAP HANA node for /hana/data, /hana/log and /hana/shared filesystems access, complete the following steps:

1.        Follow the steps documented in the Section “SAP HANA NODE OS Preparation” to install the operating system on HANA-node01 host.

2.       Use a SSH client to login to the newly installed system as root

3.        Multipath configuration:

·         Rescan the scsi bus to detect devices added to the host.

            cishana01m:~ # rescan-scsi-bus.sh

·         Restart multipath daemon if required.

# systemctl stop multipathd

 # systemctl start multipathd

4.       List the available multipath disks:

cishana01m:~ # multipath -ll

3624a93701bf6621c4a55477c000113f4 dm-3 PURE,FlashArray

size=1.0T features='0' hwhandler='0' wp=rw

`-+- policy='round-robin 0' prio=1 status=active

  |- 1:0:0:2 sdi  8:128  active ready running

  |- 2:0:0:2 sdy  65:128 active ready running

  |- 1:0:1:2 sdm  8:192  active ready running

  |- 2:0:1:2 sdac 65:192 active ready running

  |- 1:0:2:2 sdq  65:0   active ready running

  |- 2:0:2:2 sdag 66:0   active ready running

  |- 1:0:3:2 sdu  65:64  active ready running

  `- 2:0:3:2 sdak 66:64  active ready running

3624a93701bf6621c4a55477c000113f3 dm-2 PURE,FlashArray

size=512G features='0' hwhandler='0' wp=rw

`-+- policy='round-robin 0' prio=1 status=active

  |- 1:0:0:5 sdl  8:176  active ready running

  |- 2:0:0:5 sdab 65:176 active ready running

  |- 1:0:1:5 sdp  8:240  active ready running

  |- 2:0:1:5 sdaf 65:240 active ready running

  |- 1:0:2:5 sdt  65:48  active ready running

  |- 2:0:2:5 sdaj 66:48  active ready running

  |- 1:0:3:5 sdx  65:112 active ready running

  `- 2:0:3:5 sdan 66:112 active ready running

3624a93701bf6621c4a55477c000113f4 dm-0 PURE,FlashArray

size=100G features='0' hwhandler='0' wp=rw

`-+- policy='round-robin 0' prio=1 status=active

  |- 1:0:0:1 sda  8:0    active ready running

  |- 2:0:0:1 sdc  8:32   active ready running

  |- 1:0:1:1 sdb  8:16   active ready running

  |- 2:0:1:1 sde  8:64   active ready running

  |- 1:0:2:1 sdd  8:48   active ready running

  |- 2:0:2:1 sdg  8:96   active ready running

  |- 1:0:3:1 sdf  8:80   active ready running

  `- 2:0:3:1 sdh  8:112  active ready running

3624a93701bf6621c4a55477c000113f2 dm-1 PURE,FlashArray

size=1.5T features='0' hwhandler='0' wp=rw

`-+- policy='round-robin 0' prio=1 status=active

  |- 1:0:0:4 sdk  8:160  active ready running

  |- 2:0:0:4 sdaa 65:160 active ready running

  |- 1:0:1:4 sdo  8:224  active ready running

  |- 2:0:1:4 sdae 65:224 active ready running

  |- 1:0:2:4 sds  65:32  active ready running

  |- 2:0:2:4 sdai 66:32  active ready running

  |- 1:0:3:4 sdw  65:96  active ready running

  `- 2:0:3:4 sdam 66:96  active ready running

5.        Referring to the sizes you can identify the devices to be used for boot, /hana/data, /hana/log and /hana/shared filesystems.

·         Create the file systems for SAP HANA.

·         Run this mkfs command with option to format the non-OS devices, such as DATA, LOG, /hana/shared LUN devices, as well as software share device.

·         From the listing above, the filesystems to be prepared are 6TB size /hanadata filesystem, 512Gb /hana/log filesystem both formatted in xfs. You can use xfs for the 2T size /hana/shared filesystem as well as 1Tb size temporary /software filesystem.

# mkfs.xfs -f /dev/mapper/3624a93701bf6621c4a55477c000113f4

# mkfs.xfs -f /dev/mapper/3624a93701bf6621c4a55477c000113f3

# mkfs.xfs -f /dev/mapper/3624a93701bf6621c4a55477c000113f2

6.       Create mount directories for the data, log, and HANA shared file systems.

#mkdir -p /hana/data

#mkdir -p /hana/log

#mkdir -p /hana/shared

7.        Mount options vary from the default Linux settings for XFS for SAP HANA data and log volumes. The following is a sample /etc/fstab entry. Make sure that you use the same mount options for the data and log file systems as shown in the following example:

UUID=cbd24bd0-3eae-41f6-bbac-e2db6d8f6c70 /                    ext3       acl,user_xattr        1 1

/dev/mapper/3624a93701bf6621c4a55477c000113f2     /hana/data     xfs   nobarrier,noatime,nodiratime,logbufs=8,logbsize=256k,async,swalloc,allocsize=131072k    1 2

/dev/mapper/3624a93701bf6621c4a55477c000113f3     /hana/log      xfs   nobarrier,noatime,nodiratime,logbufs=8,logbsize=256k,async,swalloc,allocsize=131072k    1 2

/dev/mapper/3624a93701bf6621c4a55477c000113f4     /hana/shared   xfs   defaults    1 2

8.       Use the following command to mount the file systems.

#mount -a

9.       Use the df –h command to check the status of all mounted volumes.

Filesystem                                     Size  Used Avail Use% Mounted on

devtmpfs                                       756G     0  756G   0% /dev

tmpfs                                          1.2T     0  1.2T   0% /dev/shm

tmpfs                                          756G   13M  756G   1% /run

tmpfs                                          756G     0  756G   0% /sys/fs/cgroup

/dev/mapper/3624a93701bf6621c4a55477c000113f0  99G  6.1G   92G   7% /

tmpfs                                          152G     0  152G   0% /run/user/0

/dev/mapper/3624a93701bf6621c4a55477c000113f2  1.5T   33M  1.5T   1% /hana/data

/dev/mapper/3624a93701bf6621c4a55477c000113f3  512G   33M  512G   1% /hana/log

/dev/mapper/3624a93701bf6621c4a55477c000113f4  1.0T   33M  1.0T   1% /hana/shared

10.    Change the directory permissions before you installing SAP HANA. Use the chown command on each SAP HANA node after the file systems are mounted.

#chmod -R 777 /hana/data

#chmod -R 777 /hana/log

#chmod –R 777 /hana/shared

System preparation for SAP HANA Scale-Out Use Case

This use case describes the setup N+1 Scale-Out HANA system.

The high-level steps for this use case are as follows:

1.        Create the Boot, Data and Log LUNs.

2.       Install and Configure the Operating System.

3.        Prepare the /hana/data and /hana/log devices with XFS filesystem

4.       Prepare NFS filesystem for /hana/shared

5.        Install SAP HANA.

6.       Test the connection to the SAP HANA database.

Workload Definition

Customer YY wants to implement SAP HANA with a requirement of a 4.5 TB with an option to scale as the need arises. Customer YY has the latest Skylake-based Cisco UCS B480 M5 servers and Pure Storage in his data center that he leverages in a sharing mode. Since this is a TDI, customer YY wants to repurpose his FlashStack gear. He must make sure that the HANA HWCCT TDI KPIs are met to receive SAP support. You could address this with 3+1 scale out system.

Requirements

For a SAP HANA Scale-Out system the networks mandatorily required are the access network and the Inter-Node communication network. This use case also requires a /hana/shared file system which is accessible to all nodes of the cluster. For this we leverage the NFS share made available by the WFS running on the array’s controllers in a highly-available manner.

Network:       1x Access Network with >=100 Mbit/sec

                        1x Inter-Node Network with 10 GBit/sec

                        1x NFS network for the HANA Nodes /hana/shared access preferably with 10 GBit/sec

Each HANA node has-

Memory:        1.5TB

CPU:               4x Intel Xeon Skylake CPUs 8176

Storage:      /hana/data Sizedata = 1 x RAM , so 1.5 TB per node

                                /hana/log [systems > 512GB ] Sizeredolog(min) = 512GB per node

                                /hana/shared Sizeinstallation(scale-out) = 1 x RAM_of_worker per 4 worker nodes, hence 1.5TB for the entire cluster

Configure Storage

You will need a LUN size 1.5TB for /hana/data, 512G LUN for /hana/log, both formatted with xfs for each node of the scale-out system. 1.5TB /hana/shared filesystem for the entire HANA system is presented as NFS share to all HANA Nodes You will use all the available nodes for this 3+1 scale-out system configuration.

With 3 worker nodes and 1 standby node, you will need 3 sets of 1.5TB DATA and 512GB LOG LUNs, one 1.5TB NFS share for use as /hana/shared.

1.        To create LUNs: Click Storage on the left navigation pane > Select Volumes tab on the right working pane. Provide suitable names and respective sizes for the LUNs as planned above.

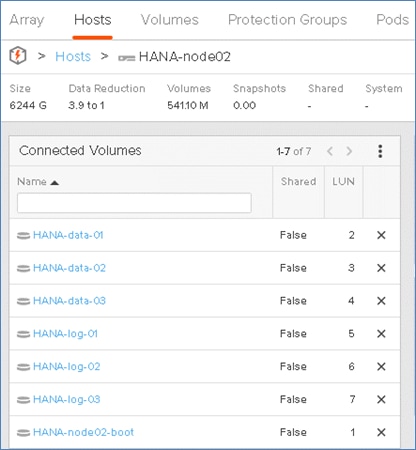

Figure 187    LUN List for Scale-Out Cluster

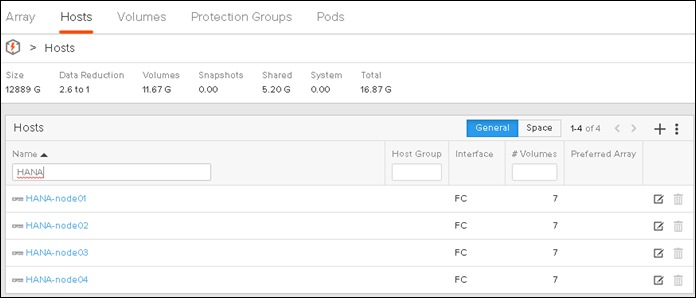

Figure 188  List of Hosts for Scale-Out Cluster

2.       Assign DATA and LOG LUNs all hosts. To assign LUNs to hosts:  Select the Storage > Volumes tab > LUN > use properties bar to select ‘Connect’ option. Select all nodes. Click Connect.

Configure System for Storage Access

To configure the OS on the SAP HANA node for /hana/data, /hana/log and /hana/shared filesystems access, complete the following steps:

1.        Multipath configuration: (Perform these steps on all nodes)

2.       Rescan the scsi bus to detect devices added to the host:

# rescan-scsi-bus.sh

3.        Restart multipath daemon if needed:

# systemctl stop multipathd

 # systemctl start multipathd

4.       List the available multipath disks:

cishana01m:~ # multipath -ll | more

3624a93701bf6621c4a55477c000113fa dm-11 PURE    ,FlashArray

size=512G features='0' hwhandler='0' wp=rw

`-+- policy='round-robin 0' prio=1 status=active

  |- 6:0:0:7 sdi  8:128  active ready running

  |- 8:0:0:7 sdae 65:224 active ready running

  |- 6:0:1:7 sdp  8:240  active ready running

  |- 8:0:1:7 sdar 66:176 active ready running

  |- 6:0:2:7 sdab 65:176 active ready running

  |- 8:0:2:7 sday 67:32  active ready running

  |- 6:0:3:7 sdaq 66:160 active ready running

  `- 8:0:3:7 sdbf 67:144 active ready running

3624a93701bf6621c4a55477c000113f9 dm-10 PURE    ,FlashArray

size=512G features='0' hwhandler='0' wp=rw

`-+- policy='round-robin 0' prio=1 status=active

  |- 6:0:0:6 sdh  8:112  active ready running

  |- 8:0:0:6 sdac 65:192 active ready running

  |- 6:0:1:6 sdo  8:224  active ready running

  |- 8:0:1:6 sdap 66:144 active ready running

  |- 6:0:2:6 sdz  65:144 active ready running

  |- 8:0:2:6 sdax 67:16  active ready running

  |- 6:0:3:6 sdao 66:128 active ready running

  `- 8:0:3:6 sdbe 67:128 active ready running

3624a93701bf6621c4a55477c000113f8 dm-9 PURE    ,FlashArray

size=512G features='0' hwhandler='0' wp=rw

`-+- policy='round-robin 0' prio=1 status=active

  |- 6:0:0:5 sdg  8:96   active ready running

  |- 8:0:0:5 sdaa 65:160 active ready running

  |- 6:0:1:5 sdn  8:208  active ready running

  |- 8:0:1:5 sdan 66:112 active ready running

  |- 6:0:2:5 sdx  65:112 active ready running

  |- 8:0:2:5 sdaw 67:0   active ready running

  |- 6:0:3:5 sdal 66:80  active ready running

  `- 8:0:3:5 sdbd 67:112 active ready running

3624a93701bf6621c4a55477c000113f7 dm-8 PURE    ,FlashArray

size=1.5T features='0' hwhandler='0' wp=rw

`-+- policy='round-robin 0' prio=1 status=active

  |- 6:0:0:4 sdf  8:80   active ready running

  |- 8:0:0:4 sdy  65:128 active ready running

  |- 6:0:1:4 sdm  8:192  active ready running

  |- 8:0:1:4 sdam 66:96  active ready running

  |- 6:0:2:4 sdu  65:64  active ready running

  |- 8:0:2:4 sdav 66:240 active ready running

  |- 6:0:3:4 sdaj 66:48  active ready running

  `- 8:0:3:4 sdbc 67:96  active ready running

3624a93701bf6621c4a55477c000113f6 dm-7 PURE    ,FlashArray

size=1.5T features='0' hwhandler='0' wp=rw

`-+- policy='round-robin 0' prio=1 status=active

  |- 6:0:0:3 sde  8:64   active ready running

  |- 8:0:0:3 sdw  65:96  active ready running

  |- 6:0:1:3 sdl  8:176  active ready running

  |- 8:0:1:3 sdak 66:64  active ready running

  |- 6:0:2:3 sdt  65:48  active ready running

  |- 8:0:2:3 sdau 66:224 active ready running

  |- 6:0:3:3 sdah 66:16  active ready running

  `- 8:0:3:3 sdbb 67:80  active ready running

3624a93701bf6621c4a55477c000113f5 dm-6 PURE    ,FlashArray

size=1.5T features='0' hwhandler='0' wp=rw

`-+- policy='round-robin 0' prio=1 status=active

  |- 6:0:0:2 sdd  8:48   active ready running

  |- 8:0:0:2 sdv  65:80  active ready running

  |- 6:0:1:2 sdk  8:160  active ready running

  |- 8:0:1:2 sdai 66:32  active ready running

  |- 6:0:2:2 sdr  65:16  active ready running

  |- 8:0:2:2 sdat 66:208 active ready running

  |- 6:0:3:2 sdaf 65:240 active ready running

  `- 8:0:3:2 sdba 67:64  active ready running

3624a93701bf6621c4a55477c000113f1 dm-0 PURE    ,FlashArray

size=100G features='0' hwhandler='0' wp=rw

`-+- policy='round-robin 0' prio=1 status=active

  |- 6:0:0:1 sdc  8:32   active ready running

  |- 8:0:0:1 sds  65:32  active ready running

  |- 6:0:1:1 sdj  8:144  active ready running

  |- 8:0:1:1 sdag 66:0   active ready running

  |- 6:0:2:1 sdq  65:0   active ready running

  |- 8:0:2:1 sdas 66:192 active ready running

  |- 6:0:3:1 sdad 65:208 active ready running

  `- 8:0:3:1 sdaz 67:48  active ready running



5.        Referring to the sizes you can identify the devices to be used for /hana/data and /hana/log devices..

6.       Create the file systems for SAP HANA [Step to be performed on one of the modes in the cluster only].

7.        Run this mkfs command with option to format the non-OS devices, i.e. DATA, and LOG LUN devices as well as software share device.

8.       From the listing above, the filesystems to be prepared are 1.5TB size /hanadata filesystem, 512GB /hana/log filesystem both formatted in xfs.

# mkfs.xfs -f /dev/mapper/3624a93701bf6621c4a55477c000113fa

# mkfs.xfs -f /dev/mapper/3624a93701bf6621c4a55477c000113f9

# mkfs.xfs -f /dev/mapper/3624a93701bf6621c4a55477c000113f8

# mkfs.xfs -f /dev/mapper/3624a93701bf6621c4a55477c000113f7

# mkfs.xfs -f /dev/mapper/3624a93701bf6621c4a55477c000113f6

# mkfs.xfs -f /dev/mapper/3624a93701bf6621c4a55477c000113f5

9.       Create mount directories for the data, log, and HANA shared file systems on all nodes:

#mkdir -p /hana/data/<SID>

#cd /hana/data/<SID>

#mkdir mnt00001 mnt00002 mnt00003



#mkdir -p /hana/log/<SID>

#cd /hana/log/<SID>

#mkdir mnt00001 mnt00002 mnt00003



#mkdir -p /hana/shared

10.    Change the directory permissions on all nodes before you installing SAP HANA. Use the chown command on each SAP HANA node after the file systems are mounted.

#chmod -R 777 /hana/data

#chmod -R 777 /hana/log

#chmod –R 777 /hana/shared

11.     Mount options vary from the default Linux settings for XFS for SAP HANA data and log volumes and NFS for /hana/shared. The following is a sample /etc/fstab entry. Make sure that you use the same mount options for the data, log and /hana/shared file systems as shown in the following example:

UUID=cbd24bd0-3eae-41f6-bbac-e2db6d8f6c70 /                    ext3       acl,user_xattr        1 1

/ /dev/mapper/3624a93701bf6621c4a55477c000113f5  /hana/data/ANA/mnt00001 xfs      nobarrier,noatime,nodiratime,logbufs=8,logbsize=256k,async,swalloc,allocsize=131072k    1 2

/dev/mapper/3624a93701bf6621c4a55477c000113f8   /hana/log/ANA/mnt00001  xfs      nobarrier,noatime,nodiratime,logbufs=8,logbsize=256k,async,swalloc,allocsize=131072k    1 2



/dev/mapper/3624a93701bf6621c4a55477c000113f6   /hana/data/ANA/mnt00002 xfs      nobarrier,noatime,nodiratime,logbufs=8,logbsize=256k,async,swalloc,allocsize=131072k    1 2

/dev/mapper/3624a93701bf6621c4a55477c000113f9   /hana/log/ANA/mnt00002  xfs      nobarrier,noatime,nodiratime,logbufs=8,logbsize=256k,async,swalloc,allocsize=131072k    1 2



/dev/mapper/3624a93701bf6621c4a55477c000113f7   /hana/data/ANA/mnt00003 xfs      nobarrier,noatime,nodiratime,logbufs=8,logbsize=256k,async,swalloc,allocsize=131072k    1 2

/dev/mapper/3624a93701bf6621c4a55477c000113fa   /hana/log/ANA/mnt00003  xfs      nobarrier,noatime,nodiratime,logbufs=8,logbsize=256k,async,swalloc,allocsize=131072k    1 2

192.168.111.25:/hana-fs                   /hana/shared    nfs4   rw,relatime,vers=4.1,rsize=1048576,wsize=1048576,namlen=255,hard,proto=tcp,port=0,timeo=600,retrans=2,sec=sys,local_lock=none 0 0

12.    Use the following command to mount the file systems:

#mount -a

13.     Use the df –h command to check the status of all mounted volumes:

[root@cishana01m ~]# df -h

Filesystem                                       Size  Used Avail Use% Mounted on

/dev/mapper/3624a93701bf6621c4a55477c000113f1p2   96G  1.8G   89G   2% /

devtmpfs                                         756G     0  756G   0% /dev

tmpfs                                            756G     0  756G   0% /dev/shm

tmpfs                                            756G   11M  756G   1% /run

tmpfs                                            756G     0  756G   0% /sys/fs/cgroup

/dev/mapper/3624a93701bf6621c4a55477c000113f1p1  976M  101M  824M  11% /boot

tmpfs                                            152G     0  152G   0% /run/user/0

192.168.111.25:/hanashared                       1.0T  227M  1.0T   1% /hana/shared

/dev/mapper/3624a93701bf6621c4a55477c000113f5    1.5T   33M  1.5T   1% /hana/data/ANA/mnt00001

/dev/mapper/3624a93701bf6621c4a55477c000113f8    512G   33M  512G   1% /hana/log/ANA/mnt00001

/dev/mapper/3624a93701bf6621c4a55477c000113f6    1.5T   33M  1.5T   1% /hana/data/ANA/mnt00002

/dev/mapper/3624a93701bf6621c4a55477c000113f9    512G   33M  512G   1% /hana/log/ANA/mnt00002

/dev/mapper/3624a93701bf6621c4a55477c000113f7    1.5T   33M  1.5T   1% /hana/data/ANA/mnt00003

/dev/mapper/3624a93701bf6621c4a55477c000113fa    512G   33M  512G   1% /hana/log/ANA/mnt00003

[root@cishana02m ~]#

14.    Enter the required information into the hosts file:

a.        Update the /etc/hosts file of all nodes with the IP addresses of different networks assigned to the hosts’ interfaces.

vi /etc/hosts

127.0.0.1       localhost

# special IPv6 addresses

::1             localhost ipv6-localhost ipv6-loopback

fe00::0         ipv6-localnet

ff00::0         ipv6-mcastprefix

ff02::1         ipv6-allnodes

ff02::2         ipv6-allrouters

ff02::3         ipv6-allhosts

192.168.76.12     linux-jumpbox

#

## Internal Network

#

192.168.220.201   cishana01.ciscolab.local cishana01

192.168.220.202   cishana02.ciscolab.local cishana02

192.168.220.203   cishana03.ciscolab.local cishana03

192.168.220.204   cishana04.ciscolab.local cishana04



#

## NFS-shared Network

#

192.168.111.201  cishana01s.ciscolab.local cishana01s

192.168.111.202  cishana02s.ciscolab.local cishana02s

192.168.111.203  cishana03s.ciscolab.local cishana03s

192.168.111.204  cishana04s.ciscolab.local cishana04s



#

## Client Network

#

192.168.222.201  cishana01c.ciscolab.local cishana01c

192.168.222.202  cishana02c.ciscolab.local cishana02c

192.168.222.203  cishana03c.ciscolab.local cishana03c

192.168.222.204  cishana04c.ciscolab.local cishana04c

#

## AppServer Network

#

192.168.223.201  cishana01a.ciscolab.local cishana01a

192.168.223.202  cishana02a.ciscolab.local cishana02a

192.168.223.203  cishana03a.ciscolab.local cishana03a

192.168.223.204  cishana04a.ciscolab.local cishana04a

#

## Admin Network

#

192.168.76.201  cishana01m.ciscolab.local cishana01m

192.168.76.202  cishana02m.ciscolab.local cishana02m

192.168.76.203  cishana03m.ciscolab.local cishana03m

192.168.76.204  cishana04m.ciscolab.local cishana04m

#

## Backup Network

#

192.168.221.201  cishana01b.ciscolab.local cishana01b

192.168.221.202  cishana02b.ciscolab.local cishana02b

192.168.221.203  cishana03b.ciscolab.local cishana03b

192.168.221.204  cishana04b.ciscolab.local cishana04b

#

## DataSource Network

#

192.168.224.201  cishana01d.ciscolab.local cishana01d

192.168.224.202  cishana02d.ciscolab.local cishana02d

192.168.224.203  cishana03d.ciscolab.local cishana03d

192.168.224.204  cishana04d.ciscolab.local cishana04d

#

## Replication Network

#

192.168.225.201  cishana01r.ciscolab.local cishana01r

192.168.225.202  cishana02r.ciscolab.local cishana02r

192.168.225.203  cishana03r.ciscolab.local cishana03r

192.168.225.204  cishana04r.ciscolab.local cishana04r

SSH Keys

The SSH Keys must be exchanged between all nodes in a SAP HANA Scale-Out system for user ‘root’ and user <sid>adm.

1.        Generate the rsa public key by executing the command:

2.       The SSH Keys must be exchanged between all nodes in a SAP HANA Scale-Out system for user ‘root’ and <sid>adm user.

3.        Exchange the rsa public key by executing the following command from the first server to rest of the servers in the scale-out system:

4.       Repeat steps 1- 3 for all the servers in the SAP HANA scale-out cluster.

SAP HANA Nodes Access to DATA and LOG LUNs

The next step is preparing the HANA nodes for access to DATA and LOG LUNs via SAP Storage Connector API

The SAP HANA Storage Connector API for Block is responsible for mounting and I/O fencing of the HANA persistent layer. It must be used in a HANA scale-out installation where the persistence resides on block-attached storage devices.

The API will be implemented by enabling the appropriate entry in the HANA global.ini file. This file resides in the /hana/shared/>SID>/global/hdb/custom/config directory.

The following is an example of a global.ini file for this 2+1 nodes scale out system.

The values for DATA and LOG partitions are its scsi-id which can be derived by doing a check on ls /dev/mapper/36* and a look at their capacity with fdisk –l on each of the device helps categorizing DATA and LOG partitions.

[communication]

listeninterface = .global



[persistence]

basepath_datavolumes = /hana/data/ <<SID>>

basepath_logvolumes = /hana/log/ <<SID>>

use_mountpoints = yes

basepath_shared=yes



[storage]

ha_provider = hdb_ha.fcClient

partition_*_*__prType = 5

partition_1_data__wwid = 3624a93701bf6621c4a55477c000113f5

partition_1_log__wwid  = 3624a93701bf6621c4a55477c000113f8

partition_2_data__wwid = 3624a93701bf6621c4a55477c000113f6

partition_2_log__wwid  = 3624a93701bf6621c4a55477c000113fa

partition_3_data__wwid = 3624a93701bf6621c4a55477c000113f7

partition_3_log__wwid  = 3624a93701bf6621c4a55477c000113f9



[trace]

ha_fcclient = info

SAP HANA Installation

Please refer to the official SAP documentation which describes the installation process with and without the SAP unified installer.

SAP HANA Server Installation Guide

All other SAP installation and administration documentation is available here: http://service.sap.com/instguides

Important SAP Notes

Read the following SAP Notes before you start the installation. These SAP Notes contain the latest information about the installation, as well as corrections to the installation documentation.

The latest SAP Notes can be found here: https://service.sap.com/notes.

SAP HANA IMDB Related Notes

SAP Note 1514967   - SAP HANA: Central Note

SAP Note 1523337   - SAP HANA Database: Central Note

SAP Note 2000003   - FAQ: SAP HANA

SAP Note 1730999 - Configuration changes in SAP HANA appliance

SAP Note 1514966 - SAP HANA 1.0: Sizing SAP In-Memory Database

SAP Note 1780950 - Connection problems due to host name resolution

SAP Note 1743225 - SAP HANA: Potential failure of connections with scale out nodes

SAP Note 1755396 - Released DT solutions for SAP HANA with disk replication

SAP Note 1890444 - HANA system slow due to CPU power save mode

SAP Note 1681092   - Support for multiple SAP HANA databases on a single SAP HANA appliance

SAP Note 1514966   - SAP HANA: Sizing SAP HANA Database

SAP Note 1637145   - SAP BW on HANA: Sizing SAP HANA Database

SAP Note 1793345   - Sizing for Suite on HANA

Linux Related Notes

SAP Note 2235581   - SAP HANA: Supported Operating Systems

SAP Note 2009879   - SAP HANA Guidelines for RedHat Enterprise Linux (RHEL)

SAP Note 2292690 - SAP HANA DB: Recommended OS settings for RHEL 7

SAP Note 2228351   - SAP HANA Database SPS 11 revision 110 (or higher) on RHEL 6 or SLES 11

SAP Note 1944799   - SAP HANA Guidelines for SLES Operating System

SAP Note 2205917   - SAP HANA DB: Recommended OS settings for SLES 12 / SLES for SAP Applications 12

SAP Note 1731000 - Non-recommended configuration changes

SAP Note 2382421 - Optimizing the Network Configuration on HANA- and OS-Level

SAP Note 1557506 - Linux paging improvements

SAP Note 1740136 - SAP HANA: wrong mount option may lead to corrupt persistency

SAP Note 1829651 - Time zone settings in SAP HANA scale out landscapes

SAP Application Related Notes

SAP Note 1658845 - SAP HANA DB hardware check

SAP Note 1637145 - SAP BW on SAP HANA: Sizing SAP In-Memory Database

SAP Note 1661202 - Support for multiple applications on SAP HANA

SAP Note 1681092 - Support for multiple SAP HANA databases one HANA aka Multi SID

SAP Note 1577128 - Supported clients for SAP HANA 1.0

SAP Note 1808450 - Homogenous system landscape for on BW-HANA

SAP Note 1976729   - Application Component Hierarchy for SAP HANA

SAP Note 1927949   - Standard Behavior for SAP Logon Tickets

SAP Note 1577128   - Supported clients for SAP HANA

SAP Note 2186744   - FAQ: SAP HANA Parameters

SAP Note 2267798   - Configuration of the SAP HANA Database during Installation Using hdbparam

SAP Note 2156526   - Parameter constraint validation on section indices does not work correctly with hdbparam

SAP Note 2399079   - Elimination of hdbparam in HANA 2

Third Party Software

SAP Note 1730928 - Using external software in a SAP HANA appliance

SAP Note 1730929 - Using external tools in an SAP HANA appliance

SAP Note 1730930 - Using antivirus software in an SAP HANA appliance

SAP Note 1730932 - Using backup tools with Backint for SAP HANA

SAP HANA Virtualization

SAP Note 1788665 - SAP HANA running on VMware vSphere VMs

HWCCT: fsperf paramaters

The following parameters were set for the new performance test tool from SAP HWCCT tool fsperf. This would change I/O behavior and to enhance the database to work with the file system and storage.

For Data Volumes use the following hdbparams:

·         async_read_submit=off

·         async_write_submit_blocks=auto

·         max_parallel_io_requests=128

·         async_write_submit_blocks=new

For Log Volumes use the following hdbparams:

·         async_read_submit=off

·         async_write_submit_blocks=new

SAP HANA 1.0

For more information regarding these parameters please refer to SAP Note 1943937. In order to use these parameters in SAP HANA you need to execute the following commands in the Linux shell as <sid>adm user.

hdbparam –paraset fileio “[<path>]”  async_write_submit_blocks=new

To set async_write_submit_blocks for Data persistence: (Check the select query on the view M_VOLUME_IO_TOTAL_STATISTICS shown below to get the information on the path and trigger ratios)

hdbparam –paraset fileio “[/hana/data/<SID>/mnt00001/hdb0000<n>/]”. async_write_submit_blocks=new

The command would return lines indicating the success of the parameter setting for all the services like NameServer, Preprocessor, IndexServer etc.

SAP HANA 2.0

Up to HANA1SP12, the hdbparam tool was part of the HANA installation and was used to manage a subset of HANA configuration parameters. With HANA 2.0, the hdbparam tool has been deprecated. It is no longer installed as part of HANA. When upgrading to HANA 2.0 from HANA 1.0, the tool and the binary files storing the configured parameter values will be removed.

The parameters managed by hdbparam have been moved to global.ini. All normal rules for Ini-file-parameters apply.

The parameters managed by hdbparam were:

·         fileio.num_submit_queues

·         fileio.num_completion_queues

·         fileio.size_kernel_io_queue

·         fileio.max_paralle_io_requests

·         fileio.min_submit_batch_size

·         fileio.max_submit_batch_size

·         fileio.async_write_submit_active

·         fileio.async_write_submit_blocks

·         fileio.async_read_submit

You can update these parameters directly in global.ini or see the example below.

For example, here only two parameters exported in step differ from the defaults in global.ini:

·         fileio.max_submit_batch_size = 64

·         fileio.async_read_submit[DATA] = off

Use ALTER SYSTEM ALTER CONFIGURATION as follows

ALTER SYSTEM ALTER CONFIGURATION ('global.ini', 'SYSTEM') SET ('fileio', 'max_submit_batch_size') = '64';

ALTER SYSTEM ALTER CONFIGURATION ('global.ini', 'SYSTEM') SET ('fileio', 'async_read_submit[DATA]') = 'off';

Add a "WITH RECONFIGURE" to all or at least the last ALTER SYSTEM ALTER CONFIGURATION command if you want to apply the parameter changes. If you have changed the fileio.size_kernel_io_queue parameter, you have to restart the database since the parameter change cannot be applied online.following parameters were set during tests with SAP HWCCT’s tool ‘fsperf’. This changes I/O behavior and tunes the database to work with the file system and storage.

async_read_submit=off

async_write_submit_blocks=new



For more information regarding these parameters please refer to SAP Note 1943937. In order to use these parameters in SAP HANA you need to execute the following commands in the Linux shell as <sid>adm user.

hdbparam –paraset fileio “[<path>]” . async_write_submit_blocks=new

To set async_write_submit_blocks for Data persistence: (Check the select query on the view M_VOLUME_IO_TOTAL_STATISTICS shown below to get the information on the path and trigger ratios)

hdbparam –paraset fileio “[/hana/data/<SID>/mnt00001/hdb00003/]”. async_write_submit_blocks=new

Pure Storage: Sizing Guidelines

Pure Storage recommends the following guidelines for sizing customer HANA environments. Please consult with your Pure Storage sales team for more detailed information.

Certified SAP HANA Hardware Directory

Certified SAP HANA Hardware Directory: Enterprise Storage

SAP HANA TDI Documentation

·         SAP HANA TDI: Overview

·         SAP HANA TDI: FAQ

·         SAP HANA TDI: Storage Requirements

·         SAP HANA TDI: Network Requirements

SAP Notes

SAP Note 1943937: Hardware Configuration Check Tool - Central Note

Cisco and Pure: FlashStack

·         Cisco UCS: Design Zone for SAP Applications (technical documentation)

·         Cisco UCS: Data Center Solutions for SAP (customer references)

·         Pure Storage: FlashArray //X series

·         Pure Storage: FlashArray //X for SAP applications

Cisco and Pure Storage have partnered to deliver the FlashStack solution, which uses best-in-class storage, server, and network components to serve as the foundation for a variety of workloads, enabling efficient architectural designs that can be quickly and confidently deployed. FlashStack Datacenter is predesigned to provide agility to the large enterprise data centers with high availability and storage scalability. With a FlashStack solution, customers can leverage a secure, integrated, and optimized stack that includes compute, network, and storage resources that are sized, configured and deployed in a flexible manner.

The following factors make the combination of Cisco UCS with Pure Storage so powerful for SAP environments:

·         Cisco UCS stateless computing architecture provided by the Service Profile capability of Cisco UCS allows for fast, non-disruptive workload changes to be executed simply and seamlessly across the integrated Cisco UCS infrastructure and Cisco x86 servers.

·         Hardware-level redundancy for all major components using Cisco UCS and Pure Storage availability features.

·         Integrated, holistic system and data management across your entire infrastructure whether on-premise, in a Cloud, or a hybrid combination of both.

·         Pure’s Evergreen solution allows customers to move storage costs from CapEx to OpEx with consumption-based pricing and cloud-like flexibility, even on-prem.  Storage never goes out of date and you never run short of capacity.

FlashStack is a flexible infrastructure platform composed of pre-sized storage, networking, and server components. It is designed to ease your IT transformation and operational challenges with maximum efficiency and minimal risk.

FlashStack differs from other solutions by providing:

·         Integrated, validated technologies from industry leaders and top-tier software partners.

·         A single platform built from unified compute, fabric, and storage technologies, allowing you to scale to large-scale data centers without architectural changes.

·         Centralized, simplified management of infrastructure resources, including end-to-end automation.

·         Evergreen storage so you will never pay for more storage than you need, but still have ample storage available on demand when you need it.

·         A flexible Cooperative Support Model that resolves issues rapidly and spans across new and legacy products.

Pramod Ramamurthy, Engineer, Technical Marketing, Cisco Systems, Inc.

Pramod is a Technical Marketing Engineer with Cisco UCS Solutions and Performance Group. Pramod has over 15 years of experience in the IT industry focusing on SAP technologies. Pramod is currently leading the Converged Infrastructure Solutions design, validation and associated marketing collaterals’ build for SAP applications and SAP HANA.

Acknowledgements

·         Shailendra Mruthunjaya, Cisco Systems Inc.

·         Erik Lillestolen, Cisco Systems, Inc.

·         Krishna Satyavarapu, Pure Storage

·         Van Phan, Pure Storage
