Secure Firewall 1210/20 Threat Defense Getting Started: Firewall Device Manager

PDF

Cable the firewall

Want to summarize with AI?

Log in

Overview

Learn how to cable the Secure Firewall 1210/20 so you can complete the initial hardware setup and prepare required ports for network connectivity before configuration.

  • For the Secure Firewall 1220, install SFPs into Ethernet 1/9 and 1/10—They are 1/10-Gb SFP+ ports that require SFP/SFP+ modules.

  • See the hardware installation guide for more information.

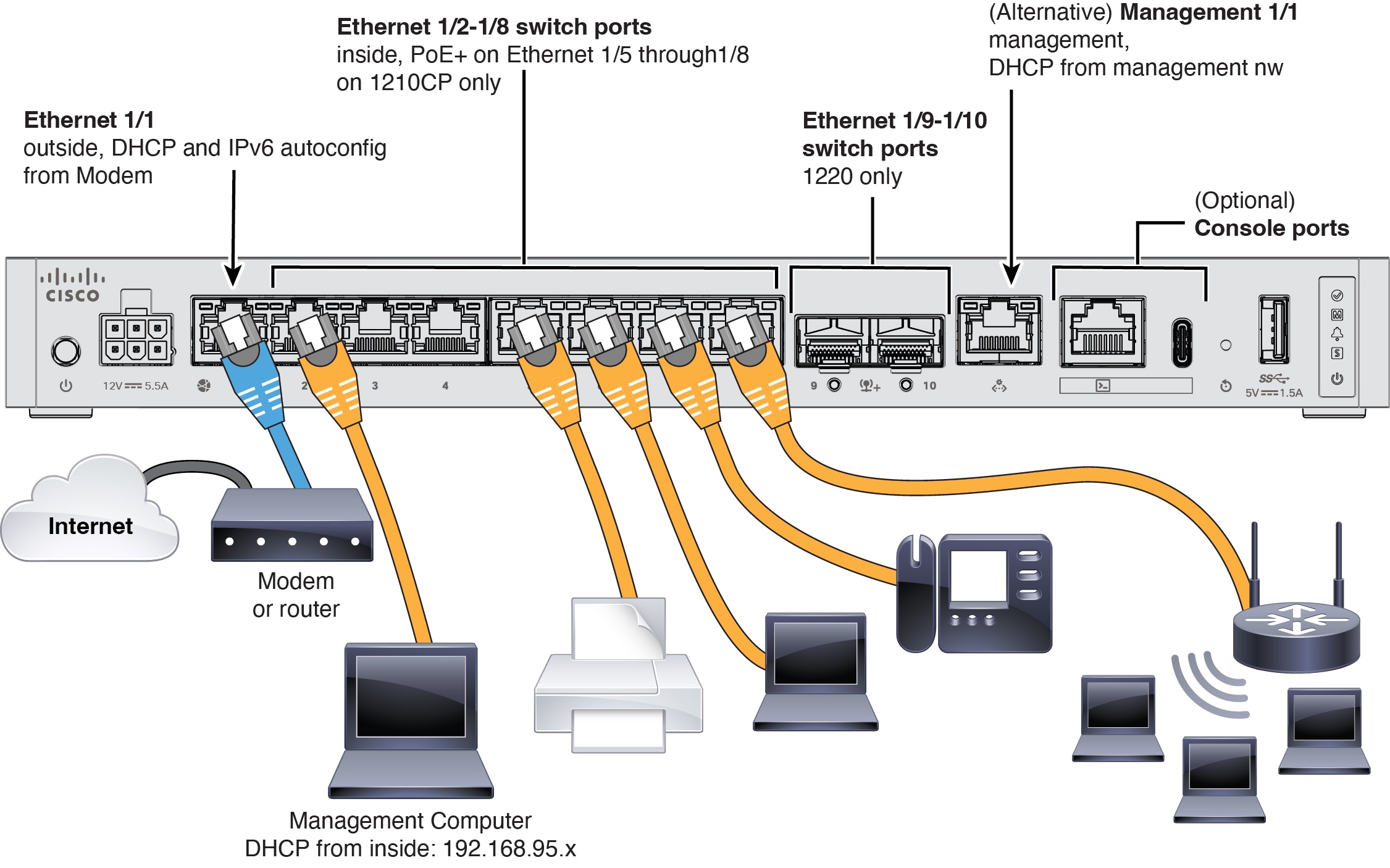

Cabling for the Device Manager
