5G Sub-6 GHz Pluggable Interface Module

This chapter contains the following sections:

5G Sub-6 GHz Support on IoT Routing

The 5G Sub-6 GHz Pluggable Interface Modules offer 5G capability to the IoT Industrial Router family.

The supported pluggable modules product IDs are:

PID

modem

First Release Support

P-5GS6-GL

FN980 Telit

IOS XE release 17.7.1

P-5GS6-R16SA-GL

EM9293

IOS XE release 17.15.1a

Features and Limitations

The following features and limitations apply across all IoT routing platforms unless specifically mentioned:

  • IoT routing platforms support a maximum of two pluggable modules, with a combination of 5G and 4G PIMs.

  • The pluggable module can be started or stopped through the CLI under exec mode. Also, it can be configured to power off the module to reduce power consumption as needed.

  • The capability to disable FDD Band 30 for vehicular applications is available.

The following are product specific:

  • On the with P-5GS6-GL module:

    • When plugged into the base, the module is accessible via Cellular 0/1/0, 0/1/1.

  • On the with the P-5GS6-R16SA-GL module:

    • The module is software and hardware supported on the base.

5G Pluggable Interface Module Overview

The following figure shows the face plate of P-5GS6-GL and P-5GS6-R16SA-GL pluggable modules:

Figure 1. 5G Pluggable Interface Module - P-5GS6-GL, P-5GS6-R16SA-GL

1

The printed PID

Note


Modules P-5GS6-GL, P-5GS6-R16SA-GL share the same face plate.

2

Antenna 1 (SMA)

3

GPS (SMA)

4

Antenna 3 (SMA)

5

Antenna 0 (SMA)

6

Antenna 2 (SMA)

7

Enable LED

8

SIM 0 LED

9

SIM 1 LED

10

GPS LED

11

M3.5 thumb-screw

12

Service LED

RF Band and Port Mapping for the P-5GS6-GL and P-5GS6-R16SA-GL Antenna

The following table lists the RF band mapping for antenna ports.

RF Band Mapping for Antenna Ports:

Table 1. RF Band Mapping for P-5GS6-GL Module

Antenna Port

Technology

TX

RX

ANT 0

3G WCDMA

B1, B2, B3, B4, B5, B6, B8, B9, B19

B1, B2, B3, B4, B5, B6, B8, B9, B19

4G LTE

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B34, B38, B39, B40, B41, B66, B71

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

5G NR FR1

n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71

n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79

ANT 1

3G WCDMA

—

B1, B2, B3, B4, B5, B6, B8, B9, B19

4G LTE

B5, B20, B42, B43, B48, B71

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

5G NR FR1

n5, n48, n77, n78, n79

n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79

ANT 2

3G WCDMA

—

—

4G LTE

B1, B2, B3, B4, B7, B41, B66

B1, B2, B3, B4, B7, B25, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66

5G NR FR1

n1, n2, n3, n7, n25, n41, n66, n77, n78, n79

n1, n2, n3, n7, n25, n38, n40, n41, n48, n66, n77, n78, n79

ANT 3

3G WCDMA

—

—

4G LTE

—

B1, B2, B3, B4, B7, B25, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66

5G NR FR1

—

n1, n2, n3, n7, n25, n38, n40, n41, n48, n66, n77, n78, n79

Table 2. RF Band Mapping for P-5GS6-R16SA-GL Module

Antenna Port

Technology

TX

RX

ANT 0

(Filtered)

3G WCDMA

B1, B2, B4, B5, B8, B19

B1, B2, B4, B5, B8, B19

4G LTE

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B32, B34, B38, B39, B40, B41, B66, B71

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

5G NR Sub-6G

n1, n2, n3, n5, n7, n8, n12, n13, n14, n17, n18, n20, n25, n26, n28, n30, (n38), n39, n40, (n41), n66, n70, n71

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79

ANT 1

3G WCDMA

—

—

4G LTE

(B42), (B43), (B48)

B1, B2, B3, B4, B7, B25, B30, B32, B38, B39, B40, B41, B42, B43, B48, B66

5G NR Sub-6G

(n48), (n77), (n78), (n79)

n1, n2, n3, n4, n7, n25, n30, n38, n40, n41, n48, n66, n70, n75, n76, n77, n78, n79

ANT 2

(Filtered)

3G WCDMA

—

B1, B2, B4, B5, B8, B19

4G LTE

(B41)

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B48, B66, B71

5G NR Sub-6G

n38, n41, (n77), (n78)

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79

ANT 3

3G WCDMA

—

—

4G LTE

B42, B43, B48

B1, B2, B3, B4, B7, B25, B30, B32, B38, B39, B40, B41, B42, B43, B46, B48, B66

5G NR Sub-6G

n48, n77, n78, n79

n1, n2, n3, n4, n7, n25, n30, n38, n40, n41, n48, n66, n70, n75, n76, n77, n78, n79

Note
Bands in parenthesis are used for EN-DC or CA.

Port Mappings for 5G-ANTM-0-4-B on the P-5GS6-GL and P-5GS6-R16SA-GL PIMs

The following table lists the port mappings using the 5G-ANTM-O-4-B antenna as an example, mapping to the ports on the P-5GS6-GL and P-5GS6-R16SA-GL pluggable module.

5G-ANTM-O-4-B

P-5GS6-GL, P-5GS6-R16SA-GL

MAIN 0 (LTE1)

ANT 0

MAIN 1 (LTE3)

ANT 1

DIV 0 (LTE2)

ANT 2

DIV 1 (LTE4)

ANT 3

GNSS

GPS

The following link contains the antenna specifications and installation instructions for 5G NR (5G-ANTM-O-4-B):

https://www.cisco.com/c/en/us/td/docs/routers/connectedgrid/antennas/installing-combined/b-cisco-industrial-routers-and-industrial-wireless-access-points-antenna-guide/m-5g-antm-04b.html#Cisco_Generic_Topic.dita_e780a6fe-fa46-4a00-bd9d-1c6a98b7bcb9

LED Behaviors

The following table lists the LED indicators and their behavior. The LEDs provide a visual indication of the status and the currently selected services.

LED Indicators:

LED

Color

Function

EN

Green, Yellow

Enable LED

  • Pluggable enable LED

  • Off: System power is off

  • Yellow: Module power is not functioning correctly

  • Green: Module power is on

SIM0

Green, Yellow

SIM0 LED/Activity

  • SIM0 LED status and WWAN activity

  • Off: SIM0 is not installed

  • Yellow: SIM0 is installed, but not active

  • Green: SIM0 installed and active

  • Green Flash: LTE data activity

SIM1

Green, Yellow

SIM1 LED/Activity

  • SIM1 LED status and WWAN activity

  • Off: SIM1 is not installed

  • Yellow: SIM1 is installed, but not active

  • Green: SIM1 installed and active

  • Green Flash: LTE data activity

GPS

Green, Yellow

GPS LED

  • Off: GPS not configured

  • Yellow: Software defined

  • Green: GPS configured

  • Green Flash: GPS acquiring (flashing done by SW)

Service

Green, Yellow, Blue

Service Indication LED

  • Yellow: 3G

  • Green: 4G LTE

  • Blue: 5G

Attaching an Antenna

To attach the antenna in the Pluggable Interface Module, perform the below steps:

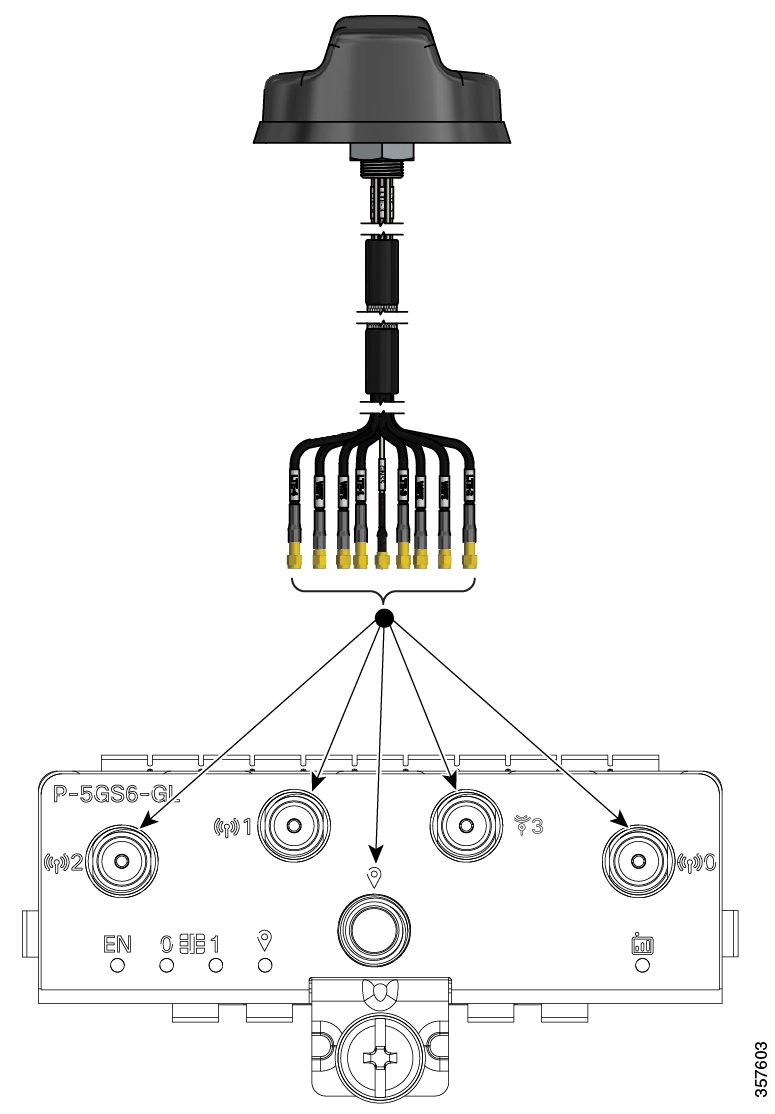

Figure 2. Attaching 5G NR Antenna (5G-ANTM-O4-B) to P-5GS6-GL, P-5GS6-R16SA-GL PIM

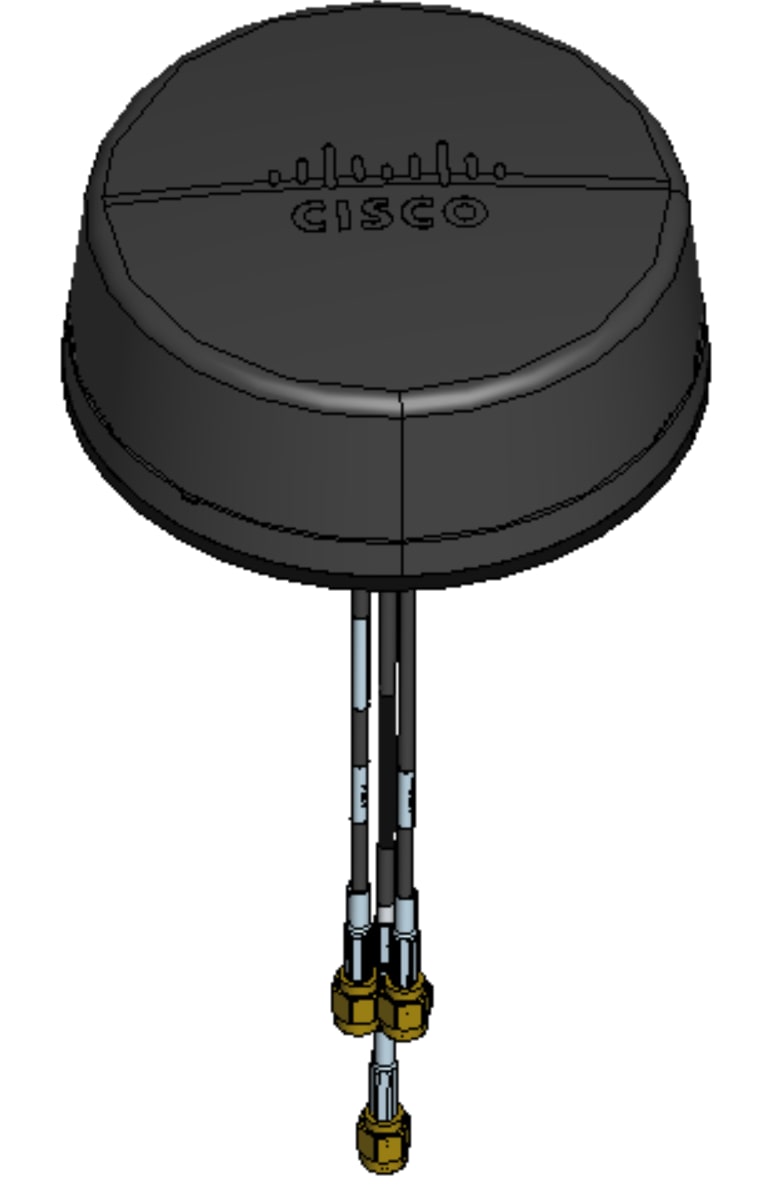

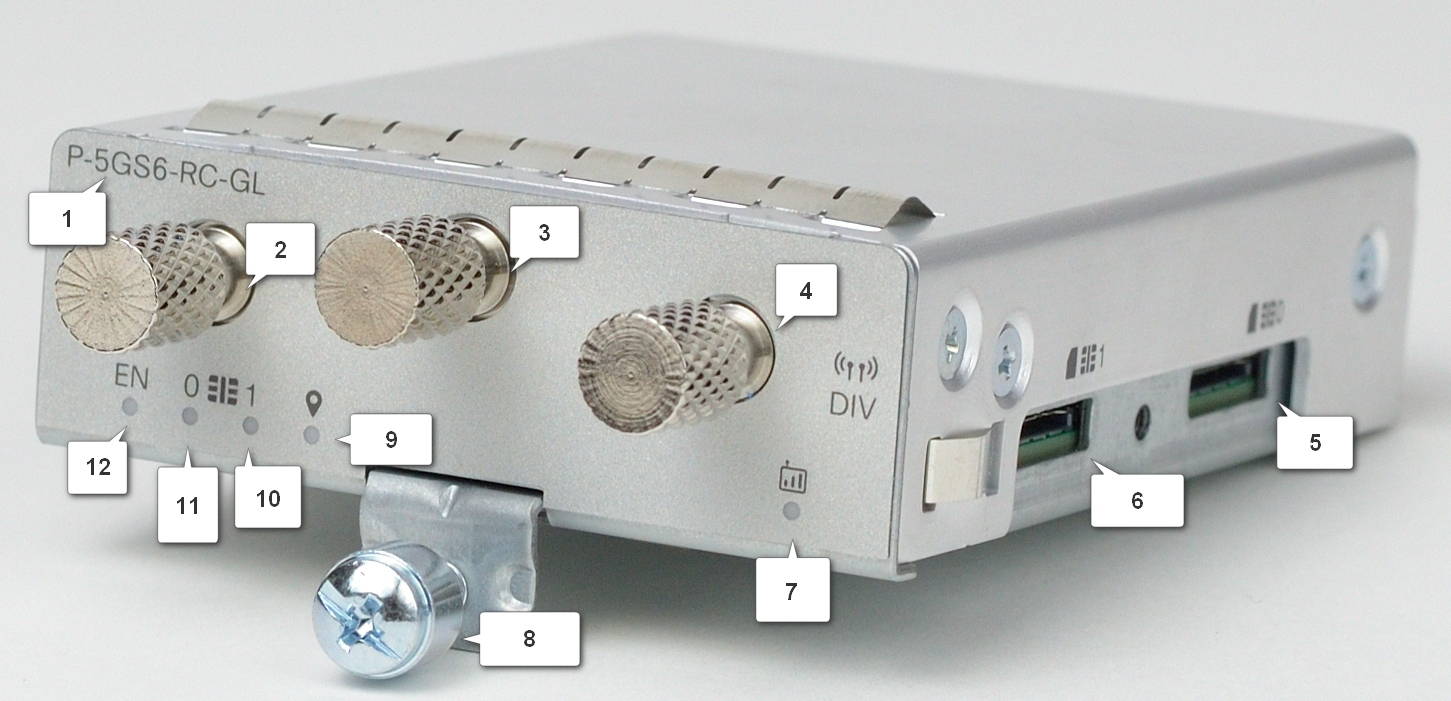

Figure 3. Attaching ** 3-in-1 Antenna** to P-5GS6-RC-GL PIM

  1. Attach each SMA cable to the ports as indicated in the table mappings.

  2. Ensure that you tighten and secure each SMA cable into the SMA connector on the PIM.
