Optimized Layer 2 Overlay Multicast

Multicast Layer 2 EVPN Type-6 routes

A multicast Layer 2 EVPN Type-6 route is a BGP route type that:

  • enables selective multicast traffic forwarding over a VXLAN fabric,

  • advertises interest in specific multicast groups from VTEPs using SMET routes, and

  • optimizes bandwidth by only replicating multicast traffic to VTEPs with interested receivers.

In data center topologies, many hosts can be attached to a VLAN or subnet, possibly spanning multiple PODs. In VXLAN-based data centers, VXLAN Tunnel Endpoints (VTEPs) are devices connected to the fabric that create VXLAN tunnels to send Layer 2 traffic between VLAN segments.

Sources located on a VTEP can send IP multicast (S,G) traffic toward receivers by encapsulating packets in VXLAN on the source VTEP and flooding to all remote VTEPs. Receiving VTEPs decapsulate and forward to interested receivers. However, indiscriminate flooding wastes bandwidth if no receivers are interested.

Type 6 EVPN Selective Multicast (SMET) Routes provide a solution to efficiently send IP multicast traffic between sources and receivers over the VXLAN fabric. Hosts attached to VTEPs express interest in multicast groups by sending membership reports on a VLAN; the VTEP snoops the IGMP reports and advertises a Type 6 EVPN SMET route to other remote VTEPs through BGP, enabling all VTEPs attached to the fabric to learn about receivers interested in specified multicast groups. VTEPs (leaf nodes) will only send IP multicast (S,G) traffic originated from locally connected sources over the VXLAN fabric if there is at least one receiver on a remote VTEP that is interested in the traffic, thereby optimizing the use of the fabric by not sending multicast traffic if there are no interested receivers. If ingress-replication is used in the underlay, the traffic can be further optimized by only sending multicast traffic to those VTEPs that have attached receivers.

RFC 9251 describes the procedures and NLRI formats for Type-6 EVPN SMET routes.


Note


Cisco NX-OS does not currently support selective multicast delivery over a unicast underlay.


Functionality of Multicast Layer 2 EVPN Type-6 routes

Layer 2 EVPN Route Type-6 (SMET) routes for IPv4 (IGMP) routes have been supported in NX-OS as L2TRM**.

Beginning with Cisco NX-OS Release 10.5(3)F, the Multicast Layer 2 EVPN Route Type-6 will support the following functionality:

  • IPv4 IGMP EVPN Type-6 SMET Routes using L2RIB instead of next-generation multicast VPN (NGMVPN).

  • IPv6 MLD Snooping EVPN Type-6 SMET Routes.

Generating IGMP EVPN routes using L2RIB

Starting from Cisco NX-OS Release 10.5(3)F, added the following capabilities to Type-6 EVPN SMET route functionality.

  • Multicast router or querier behind the EVPN domain, to support (*, *) route advertisement or receipt.

  • Multiversion (IGMPv2/v3/v2+v3) advertisement capability

These capabilities are in compliance with RFC 9251.

Generating MLD Snooping SMET route

Before Cisco NX-OS Release 10.5(3)F, SMET route generation was limited to IPv4 IGMP snooped entries. Beginning with Cisco NX-OS Release 10.5(3)F, Type-6 SMET route advertisement for MLD snooped routes is supported where L2RIB and BGP will handle IPv4 or IPv6 SMET routes from IGMP/MLD on the transmit side and receive side, filtering and forwarding routes appropriately. Multicast router and multiversion capability (MLDv1/v2/v1+v2) will be supported.

Topology of Multicast Layer 2 EVPN Type-6 routes (Reference)

EVPN Route Type-6 will support vPC, vPC Fabric peering, ESI and non-vPC topologies.

Sample topologies and associated control plane flow for these topologies are as mentioned below.

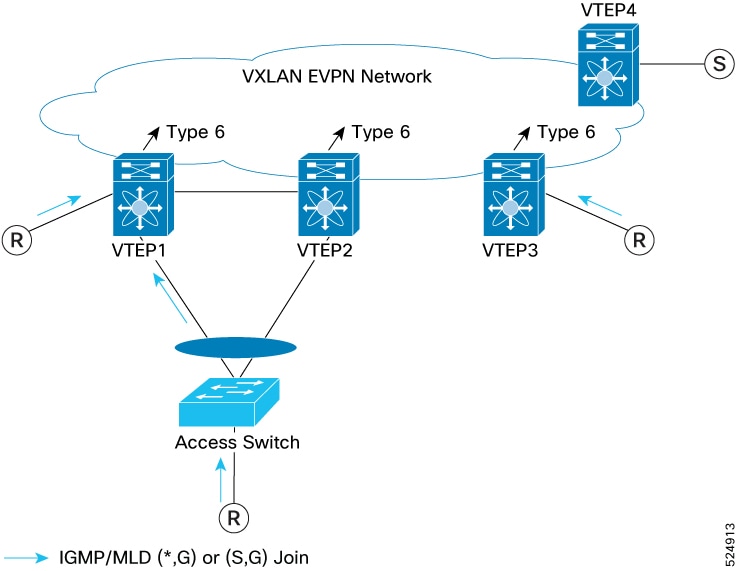

Layer 2 EVPN Network with vPC

In this example topology, there are 4 VTEPs - a pair of vPC VTEPs (VTEP1 and VTEP2), and two standalone VTEPs (VTEP3 and VTEP4). Receivers (R) are attached to

  • an orphan port behind VTEP1,

  • access switch behind VPC complex VTEP1 and VTEP2, and

  • standalone switch VTEP3.

When these receivers send (*, G) and/or (S,G) IGMP / MLD membership reports that are received by the VTEP1, VTEP2 and VTEP3, each VTEP with attached receiver originates a Type-6 EVPN SMET route type, which is received by all VTEPs, including VTEP4 to which the source is attached.

When the source ‘S’ behind VTEP4 sends multicast (S,G) traffic, the traffic is encapsulated in VXLAN by VTEP4 and sent over the fabric toward receivers; receiving VTEPs VTEP1, VTEP2 and VTEP3 decapsulate the VXLAN packet and forward toward local networks, as shown in the attached figure Note that VTEP4 will only forward multicast traffic if it receives at least one EVPN Type-6 EVPN SMET route from other VTEPs in the fabric.

Layer 2 EVPN Network with vPC and External Querier

In this example topology, there is an external querier attached to the orphan port, and an election is done between the VTEP1 and External Querier to determine the Querier for the network. For the case where the external querier wins the election, VTEP1 views the external querier as attached to an ‘mrouter’ port; VTEP1 advertises a (*,*) route toward the EVPN network. Any multicast traffic received from source ‘S’ is forwarded toward the external querier. Furthermore, reports received from VTEP3 over SMET are sent as a proxy report toward the querier. There are variants of the ‘external querier’ topology, where the querier is attached to a standalone node, or attached to the vPC complex, and the case where the VTEP wins the Querier election. These variants are supported, though the specific IGMP / MLD report and traffic flows depend on the specific querier location or querier election winner.

Layer 2 EVPN Network with vPC and PIM Enabled Router

In this example topology, there is a PIM enabled router to the orphan port. In this case, vPC VTEP1 receives PIM hellos from the PIM enabled router, and views the orphan port as a mrouter port; VTEP1 will advertise a (*,*) route toward the EVPN network. Any multicast traffic received from source ‘S’ is forwarded toward the PIM enabled router. Furthermore, reports received from VTEP3 over SMET are sent as a proxy report toward the PIM enabled router. There are variants of the ‘PIM router’ topology, where the PIM enabled router is attached to a standalone node; however, the PIM enabled router attached to the vPC complex access switch is not supported.


Note


PIM enabled router attached to vPC complex access switch is not supported.


Layer 2 EVPN with ESI

Beginning with Cisco NX-OS Release 10.6(1)F, the support for ESI port-channels has been added. For more information, see Supported L2 multicast topologies and IGMP control flows. Correspondingly, support for EVPN Type-6 SMET route generation for a receiver R attached to an ESI port channel is also supported, as shown.

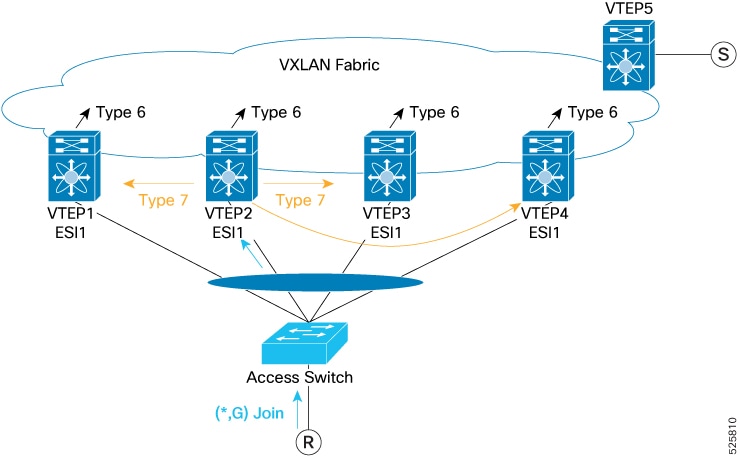

Figure 1. Layer 2 EVPN with ESI

In the ESI case, receivers can send a (*,G) and (S,G) IGMP or MLD membership report over the ESI port-channel. When the report is received by one of the VTEPs, this VTEP will originate a Type-6 EVPN SMET route across the EVPN network.Separately, the VTEP also sends an EVPN Type-7 Report-Sync route to ESI peers. When ESI peers receive the Type-7 routes, these VTEPs originate a Type-6 route to the EVPN network. Note that there is currently no support for the DF only to originate the Type-6 route, as is recommended in RFC 9251.

Guidelines and Limitations of Multicast Layer 2 EVPN Type-6 routes

Multicast Layer 2 EVPN route type 6 has the following configuration guidelines and limitations:

Generic

  • If advertise evpn multicast is configured, it is recommended to disable NVE as a static router port using the following command:

    • ip igmp snooping disable-nve-static-router-port

    • ipv6 mld snooping disable-nve-static-router-port

  • The advertise evpn multicast command is required for originating Type-6 SMET routes; IPv4 IGMP Snooped Routes are used for IPv4 and IPv6 MLD Snooped Routes are used for IPv6.


    Note


    If advertise evpn multicast is not configured, IPv4 IGMP will flood IGMP control packets in the fabric. However, IPv6 MLD will not flood MLD control packets in the fabric.


  • The NGMVPN feature is no longer necessary to originate Type-6 routes, though it can remain without impact. The configuration of “feature ngmvpn” was previously required as part of “L2TRM” for the Type-6 EVPN SMET route advertisement.

  • Beginning with Cisco NX-OS Release 10.5(3)F, show fabric multicast ipv4 l2-mroute command is deprecated, there are equivalent commands in L2RIB to view the route state in L2RIB component.

  • PIM packets will be flooded in the fabric.

  • Beginning with Cisco NX-OS Release 10.6(1)F, EVPN route Type-6, 7 and 8 supports interoperability through RFC6625 encoding.

Route Type Advertising and Receiving Support

  • Supports advertisement and receipt of IGMPv2, IGMPv3, and combinations of IGMPv2 and IGMPv3.

  • Supports advertisement and receipt of MLDv1, MLDv2, and combinations of MLDv1, MLDv2.

  • Supports advertisement and receipt of (*,G) IGMPv3 and (*,G) MLDv2 entries with the exclude flag

  • Does not support IGMPv1 SMET route origination (as per RFC 9251).

  • Does not support advertisement of S,G routes with the exclude flag; these are advertised as (*, G) exclude routes.

  • Supports receipt of (S,G) routes with the exclude flag by treating as (*,G) routes.

  • Supports advertisement of EVPN Type-6, 7 and 8 routes with multicast source length as 0 for (*, G) routes and both multicast source length and multicast group length set to 0 for (*, *) routes when the advertise evpn multicast format rfc6625 command is enabled.

Feature Support

  • Only supported in a Layer 2 fabric.

  • Supports IPv4 multicast and ingress-replication (IR) underlay. However, the IR implementation does not support sending multicast traffic to only VTEP nodes with associated receivers.

  • Does not support IPv6 multicast and IR underlay

  • Does not support Multisite Border Gateway.

  • Does not support MLD Snooping with VXLAN on EoR.

  • To ensure membership reports are received and processed by the VTEP, querier functionality must be enabled on VTEPs based on topology.

  • For successful downgrade from Cisco NX-OS Release 10.6(1)F to a prior release, ensure that format rfc6625 option is removed from advertise evpn multicast format rfc6625 configuration, otherwise downgrade is impacted.

Scale limitations

  • In case of vPC or vPC fabric peering, triggers like uplink flap, reload where the peer-link goes down, there can be momentary increase in platform programming resources causing exhaustion. If exhaustion occurs due to such triggers, follow these steps:

    • Use the clear ip igmp snooping groups * vlan all command to clear the respective IGMP and MLD snooping tables.

    • Use the no advertise evpn multicast command to disable the SMET route generation on the affected node to recover from any mis-programming.

    • Use the advertise evpn multicast command to enable the SMET route generation.

Supported Release and Platform of Multicast Layer 2 EVPN Route Type-6

Release Platform
10.5(3)F and later Cisco Nexus 9300-FX/FX2/FX3/GX/GX2/H2R/H1 Series switches and Nexus 9500 Series switches with 9700-FX/GX/FX3 line cards

Configure Multicast Layer 2 EVPN Route Type 6

The generation of EVPN Type 6 BGP EVPN SMET routes is done using the advertise evpn multicast command. The procedure is similar to Configuring Layer 2 Tenant Routed Multicast section.

IGMP Snooping Querier must be configured per multicast-enabled VXLAN VLAN on all Layer-2 leaf switches.

Configure IPv4 IGMP Snooping

Follow these steps to configure IPv4 IGMP Snooping.

Before you begin

Before you begin, ensure that VXLAN EVPN is configured.

Procedure


Step 1

Run the advertise evpn multicast command in global configuration mode, to advertise Layer 2 multicast capability.

Example:

switch# configure terminal
switch(config)# advertise evpn multicast

Step 2

(Optional) Run the advertise evpn multicast format rfc6625 command to enable RFC6625 encoding for EVPN route Type 6, 7 and 8, setting multicast source length to 0 for (*, G) routes and both multicast source length and multicast group length to 0 for (*, *) routes.

Example:

switch(config)# advertise evpn multicast format rfc6625

Note



Use the format rfc6625 option only if interoperability is required.

Use advertise evpn multicast command to revert to the original encoding method with multicast source length as 32/128 and multicast source address as 0.0.0.0/0::0 for (*, G) routes, and both lengths as 32/128 with addresses as 0.0.0.0/0::0 for (*, *) routes.

Step 3

Run the ip igmp snooping vxlan command to configure IGMP snooping for VXLANs.

Example:

switch(config)# ip igmp snooping vxlan

Step 4

Run the vlan configuration vlan-id command to enter configuration mode for VLAN 101.

Example:

switch(config)# vlan configuration 101
switch(config-vlan-config)#

Step 5

Run the ip igmp snooping querier querier-ip-address command to configure IGMP snooping querier for each multicast-enabled VXLAN VLAN.

Example:

switch(config-vlan-config)# ip igmp snooping querier 2.2.2.2

Querier must be configured on the switch.


Configure IPv6 MLD Snooping

Follow these steps to configure IPv6 MLD Snooping.

Before you begin

Before you begin, ensure that

  • VXLAN EVPN is configured.

  • The system mld snooping command must be configured, followed by a reload.

  • Use the hardware access-list tcam region ing-sup size command to enable the ACL TCAM ing-sup region as specified.
    switch(config)# hardware access-list tcam region ing-sup 768
    switch(config)# hardware access-list tcam region ing-racl 1024
  • Use the copy running-config startup-config command and reload the switch or line cards to apply the configuration changes.

Procedure


Step 1

Run the ipv6 mld snooping command in global configuration mode, to enable MLD snooping on the switch.

Example:

switch(config)# ipv6 mld snooping

Step 2

Run the ipv6 mld snooping vxlan command to configure MLD snooping for VXLANs.

Example:

switch(config)# ipv6 mld snooping vxlan

Step 3

Run the vlan configuration vlan-id command to enter configuration mode for VLAN 101.

Example:

switch(config)# vlan configuration 501
switch(config-vlan-config)#

Step 4

Run the ip mld snooping querier querier-ip-address command to configure the MLD snooping querier for each multicast-enabled VXLAN VLAN.

Example:

switch(config-vlan-config)# ipv6 mld snooping querier fe80:0:0:1::1

Querier must be configured on the switch.


Verification of Multicast Layer 2 EVPN Route Types Configuration

Perform one of the following tasks to display Multicast Layer 2 EVPN route type configuration information.

Command Purpose
show ip igmp snooping evpn Displays IGMP snooping information for IPv4 EVPN route type.
show ipv6 mld snooping evpn Displays MLD snooping information for IPv6 EVPN route type.
show ip igmp snooping evpn smet Displays IGMP snooping information for IPv4 SMET route type.
show ipv6 mld snooping evpn smet Displays MLD snooping information for IPv6 SMET route type.
show ip igmp snooping remote groups Displays IGMP snooping information for remote installed SMET and Joinsync routes.
show ipv6 mld snooping remote groups Displays MLD snooping information for IPv6 for remote installed SMET and Joinsync routes.
show ip igmp snooping mrouter Displays IGMP mrouter ports added by SMET.
show ipv6 mld snooping mrouter Displays MLD mrouter ports added by SMET.
show l2route smet {topology topo-id | all} [detail] Displays L2RIB state of the SMET routes.
Show bgp l2vpn evpn route-type 6 Displays BGP route Type 6 state.

Examples of Multicast Layer 2 EVPN Route Type 6

The following examples show outputs for IGMP (IPv4) EVPN, similar commands are also available for MLD (IPv6).

  • The following example shows the output of the show ip igmp snooping evpn command, where you can see whether the EVPN Route Type 6 SMET feature is configured.
    switch# show ip igmp snooping evpn
    IGMP Snoop EVPN Parameters:
    Advertise EVPN : Configured
    ESI-MH : Disabled
    L2RIB : UP [Initialized 1] [handle 0x42ac020]
    EVPN-RIB : UP
    Last Trigger : ADD AdvertiseEvpnMcast [id:101]
              : Start:00:02:13 [133914.65048] End:00:02:13 [133914.388186]

  • The following example shows the output of the show ip igmp snooping evpn smet command. This command shows locally originated and remotely received SMET routes and associated versions for this route on a VLAN.
    switch # show ip igmp snooping evpn smet

    VLAN       VNI        Group                    Source                   Local/Remote Flags
    11         1011       225.0.0.11               0.0.0.0                  Local        v2
    11         1011       225.0.0.11               0.0.0.0                  Remote       E v2 v3
    11         1011       225.0.0.11               11.1.1.108               Local        I v3
    11         1011       225.0.0.11               11.1.1.108               Remote       I v3
    11         1011       225.0.1.11               0.0.0.0                  Local        v2

  • The following example shows the output of the show ip igmp snooping remote groups command. This command is used to filter remotely learned groups.

    The show ip igmp snooping groups command provides the entire set of ports associated with an IGMP entry. Also, there is a detail option to show details of each route and associated ports.

    switch# show ip igmp snooping remote groups
    Type: S - Static, D - Dynamic, R - Router port, F - Fabricpath core port

    Vlan  Group Address      Ver  Type  Port list
    11    225.0.0.11         v2   S     nve1
            11.1.1.108            S     nve1
    11    225.0.1.11         v2   S     nve1

  • The following example shows the output of the show ip igmp snooping mrouter command. This command shows the router ports that are locally advertised or remotely learned. Remotely learned router port through SMET is marked as 'M' with NVE as the router port.


    Note


    • The "internally created" peer-link router port is not advertised in SMET.

    • If "ip igmp snooping disable-nve-router-port" is not configured, then NVE is added as a static router port.


    switch # show ip igmp snooping mrouter
    Type: S - Static, D - Dynamic, V - vPC Peer Link
          I - Internal, F - Fabricpath core port
          C - Co-learned, U - User Configured
          P - learnt by Peer, M - learnt by SMET
    Vlan  Router-port   Type      Uptime      Expires
    16    nve1          M         05:33:42    never
    17    nve1          M         05:49:10    never
    18    nve1          M         05:49:10    never
    19    nve1          M         05:49:10    never
    20    nve1          M         05:49:10    never

  • The following example shows the output of the show l2route smet all detail command. This command is used to provide visibility of the Type 6 SMET route data at the L2RIB level. Remotely learned routes show the associated route-originators for the route, and the flags from each router originator.
    switch# show l2route smet all detail
    V1: MLD version 1, V2: IGMP/MLD version 2, V3: IGMP version 3, I: Include Group Type, E: Exclude Group Type
    Topology    Source Group IP Addresses                 Producer
    ----------- ---------------------------------------------------------------------------
    11          (0.0.0.0, 225.0.0.11)                          None
                Sent To: IGMPSN
                Total Counters (V1/V2/V3/I/E): 0/1/1/0/1

    11          (0.0.0.0, 225.0.0.11)                          BGP
                Total Counters (V1/V2/V3/I/E): 0/2/1/0/1
                Originator router IP: 7.0.0.7, Flags: (V2)
                Originator router IP: 11.0.0.11, Flags: (V2,V3,E)

    11          (0.0.0.0, 225.0.0.11)                          IGMP
                Sent To: BGP
                Total Counters (V1/V2/V3/I/E): 0/1/0/0/0
                Originator router IP: Local, Flags: (V2)

    11          (11.1.1.108, 225.0.0.11)                       None
                Sent To: IGMPSN
                Total Counters (V1/V2/V3/I/E): 0/0/1/1/0

    11          (11.1.1.108, 225.0.0.11)                       BGP
                Total Counters (V1/V2/V3/I/E): 0/0/4/4/0
                Originator router IP: 7.0.0.7, Flags: (V3,I)
                Originator router IP: 11.0.0.11, Flags: (V3,I)
                Originator router IP: 13.0.0.13, Flags: (V3,I)
                Originator router IP: 14.0.0.14, Flags: (V3,I)

    Table 1. Route and Producer types
    Route type Producer Description
    Locally Advertised Routes IGMP These routes are locally advertised
    Remotely Learned Routes BGP These routes show the associated route-originators for the route.
    Routes Sent to IGMP None -
  • The following example shows the output of the show bgp l2vpn evpn route-type 6 command. This command is used to provide details of the received and advertised Type 6 EVPN routes at the BGP level.
    switch # show bgp l2vpn evpn route-type 6
    BGP routing table information for VRF default, address family L2VPN EVPN
    Route Distinguisher: 7.0.0.7:32778
    BGP routing table entry for [6]:[0]:[0]:[0.0.0.0]:[32]:[225.0.0.11]:[32]:[7.0.0.7]:[2]/144, version 204525
    Paths: (1 available, best #1)
    Flags: (0x000002) (high32 00000000) on xmit-list, is not in l2rib/evpn, is not in HW

      Advertised path-id 1
      Path type: internal, path is valid, is best path, no labeled nexthop, is extd
                 Imported to 1 destination(s)
                 Imported paths list: L2-1011
      AS-Path: NONE, path sourced internal to AS
        7.7.7.7 (metric 45) from 7.0.0.7 (7.0.0.7)
          Origin IGP, MED not set, localpref 100, weight 0
          Extcommunity: RT:100:1011 ENCAP:8

      Path-id 1 not advertised to any peer
    BGP routing table entry for [6]:[0]:[0]:[0.0.0.0]:[32]:[225.0.1.11]:[32]:[7.0.0.7]:[2]/144, version 203912
    Paths: (1 available, best #1)
    Flags: (0x000002) (high32 00000000) on xmit-list, is not in l2rib/evpn, is not in HW

      Advertised path-id 1
      Path type: internal, path is valid, is best path, no labeled nexthop, is extd
                 Imported to 1 destination(s)
                 Imported paths list: L2-1011
      AS-Path: NONE, path sourced internal to AS
        7.7.7.7 (metric 45) from 7.0.0.7 (7.0.0.7)
          Origin IGP, MED not set, localpref 100, weight 0
          Extcommunity: RT:100:1011 ENCAP:8
