Troubleshoot an Unresponsive Cisco Secure Firewall
Available Languages
Contents
Introduction
This document describes the recommended steps to troubleshoot a Cisco Secure Firewall Threat Defense (FTD) that is unresponsive on 1xxx, 12xx, 21xx, 31xx, 41xx, 42xx, and 93xx hardware platforms.
Prerequisites
Cisco recommends that you have knowledge of these topics:
- Cisco Secure FTD basics (installation/configuration).
Requirements
Cisco recommends that you have knowledge of these topics:
- Cisco Secure Firewall Threat Defense
- Cisco Secure Firewall Management Center
- Cisco Firepower eXtensible Operating System (FXOS)
Components Used
The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.
Background Information
In some cases, a Cisco FTD device can become unresponsive. Typical symptoms include:
- No SSH access.
- No console access.
- Console access is working, but login credentials are not.
- Transit traffic is not going through the device.
- Interfaces are down (data and or management).
- LEDs are off or amber (blinking or solid).
- Secure module (4100, 9300) becomes unresponsive.
Note that, depending on the situation, some of them are not going to be present. For example, you could have transit traffic going through, but only management access is not working.
Troubleshoot
This section covers the recommended steps and actions that you need to take. You can provide this information to Cisco TAC for further analysis.
Step 1: Visual Inspection (Front Panel)
Take a video or a picture of the front panel LEDs. Here are some examples where all the LEDs are clearly visible:
In the next photo, the SYS LED indicates a device problem:
You can consult the hardware guide of your device model to get additional information about the LED, for example:
|
Model |
LED info |
|
1010 |
|
|
1100 |
|
|
1210CE, 1210CP, 1220CX |
|
|
1230, 1240, 1250 |
|
|
2100 |
|
|
3100 |
|
|
4110, 4120, 4140, 4150 |
|
|
4112, 4115, 4125, 4145 |
|
|
4200 |
|
|
9300 |
Step 2: Visual Inspection (Rear Panel)

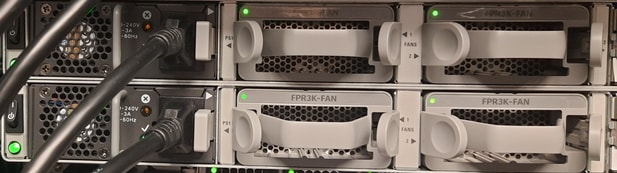

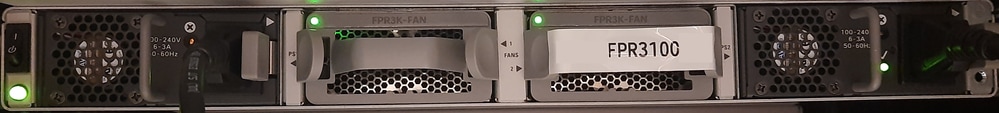

Take a video or a picture of the LEDs at the rear panel, for example:
If you don’t see any power LEDs on:
- Try to reseat the power supplies (whenever applicable).
- If possible, try to replace the power supply.
Step 3: Fan Checks
Verify if the fans in the back of the appliance are running.
Step 4: Physical Environment Checks
Verify if there is any noise or smell coming from the device.
Step 5: Console and Management Ports Checks
Make sure that the console and management ports are properly connected. If the problem is only on the management port, try to change the SFP (whenever applicable) and the network cable.
Step 6: Management IP Connectivity Test
Try to ping (ICMP) the management IP of the device.
Step 7: Adjacent Devices Checks
Check the port status of the adjacent devices, for example:
switch# show interface description | i FW-4215-1
Gi7/1 up up FW-4215-1 ETH1/1
Gi7/2 up up FW-4215-1 ETH1/2
Gi7/3 up up FW-4215-1 MGMT
Step 8: HA/Cluster Device Checks
In case of a high availability (HA) or a cluster setup, collect a troubleshoot bundle from the peer device(s).
Step 9: Collect Console Logs
Attach a laptop to the console port and copy any messages shown. Try to press the up/down keyboard keys or the PageUp to see all the messages on the screen.
Step 10: Perform a Cold Reboot
With a laptop attached to the console port:
- Unplug all power cables and wait a couple of minutes before plugging them back.
- In case of a failover setup or a cluster setup, to minimize any risk of Active/Active or Cluster instability, you can unplug or shutdown from the adjacent switch device all the data interfaces of the affected unit including the HA or CCL links.
- Then, re-plug the power cables and power on the device.
- Wait ~5 minutes.
- Collect the console output.
Note that if the device was not gracefully shut down and the device was operational (the front panel LEDs were on), the cold reboot can cause a database corruption. If the cold reboot brings up the device, collect a troubleshoot bundle and contact Cisco TAC.

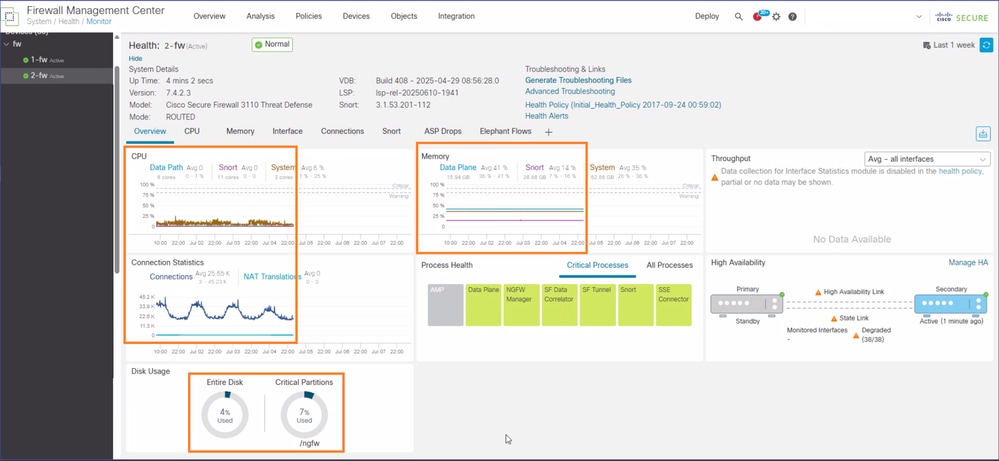

Step 11: Collect Health Monitor graphs from FMC
If the device recovers and is managed by an FMC, navigate to System> Health > Monitor, and select the device. Focus on the highlighted graphs to understand what the status of the device was before getting unresponsive (for example, high memory, high CPU, high disk utilization, and so on).
Step 12: Check for disk issues
Non-working scenario (4100):
FW4100# show server storage
Server 1/1:
RAID Controller 1:
Type: SATA
Vendor: Cisco Systems Inc
Model: FPR4K-PT-01
Serial: JAD12345678
HW Revision:
PCI Addr: 00:31.2
Raid Support:
OOB Interface Supported: No
Rebuild Rate: N/A
Controller Status: Unknown
Local Disk 1:
Vendor: Micron
Model: 5300 MTFD
Serial: MSA123456AB
HW Rev:
Operability: N/A
Presence: Missing <-----
Size (MB): 200000
Drive State: Online
Power State: Active
Link Speed: 6 Gbps
Device Type: SSD
Local Disk Config Definition:
Mode: NO RAID
Description:
Protect Configuration: No
Sample output from 3100 where disk is operational:
FW3105# show server storage
Server 1/1:
Disk Controller 1:
Type: SOFTRAID
Vendor: Cisco Systems Inc
Model: FPR_SOFTRAID
HW Revision:
PCI Addr:
Raid Support: raid1
OOB Interface Supported: No
Rebuild Rate: N/A
Controller Status: Optimal
Local Disk 1:
Presence: Equipped
Model: SAMSUNG MZQL2960HCJR-00A07
Serial: S64FNT0AB12345
Operability: Operable <---
Size (MB): 858306
Device Type: SSD
Firmware Version: GDC5A02Q
Virtual Drive 1:
Type: Raid
Blocks: 878906048
Operability: Degraded
Presence: Equipped
Size (MB): 858306
Drive State: Degraded
Sample output from 4100 where disk is operational:
FW4125# show server storage
Server 1/1:
RAID Controller 1:
Type: SATA
Vendor: Cisco Systems Inc
Model: FPR4K-PT-01
Serial: JAD1234567
HW Revision:
PCI Addr: 00:31.2
Raid Support:
OOB Interface Supported: No
Rebuild Rate: N/A
Controller Status: Unknown
Local Disk 1:
Vendor: TOSHIBA
Model: KHK61RSE
Serial: 11BS1234567AB
HW Rev: 0
Operability: Operable
Presence: Equipped
Size (MB): 800000
Drive State: Online
Power State: Active
Link Speed: 6 Gbps
Device Type: SSD
Local Disk Config Definition:
Mode: No RAID
Description:
Protect Configuration: No
Step 13: Log analysis
If the firewall device recovers and you would like to analyze the backend logs, generate a troubleshoot bundle and check the files mentioned in the table. Note that:
- On 1xxx, 12xx, 21xx (appliance mode), 31xx, 42xx platforms, the FTD troubleshoot bundle also contains the chassis (FPRM) bundle from FXOS in the \dir-archives\var-common-platform_ts\ path. You have to extract the contents of the FPRM bundle.
- On 3100/4200 in Multi-Instance (MI) mode collect chassis TS file from FMC UI or the chassis CLI (show tech-support fprm detail from the local-mgmt command scope) as described in https://www.cisco.com/c/en/us/support/docs/security/sourcefire-defense-center/117663-technote-SourceFire-00.html#toc-hId-2132091400.
- On 41xx, 93xx platforms, you have to generate the chassis bundle separately either from the chassis UI, or the FXOS CLI as described in https://www.cisco.com/c/en/us/support/docs/security/sourcefire-defense-center/117663-technote-SourceFire-00.html#toc-hId-2132091400
- For 4100 and 9300 device platforms, you need to collect FXOS and FTD troubleshoot bundles. For all the other platforms, the FTD troubleshoot bundle is enough since it also contains the FXOS troubleshoot bundle.
- For ASA the 'show tech-support' command output after the recovery is not be very helpful. You have to rely on the FXOS troubleshoot bundle.
- Compared to other platforms, on 41xx, 93xx you have two troubleshooting bundles: chassis (BC1) and module bundle.
- The chassis bundle (BC1) on 41xx, 93xx, contains among others the FPRM and CIMC bundles.
- The module bundle on 41xx, 93xx contains mainly FXOS logs from the blade.
- If you have an ASA installed, you have to rely only on the chassis, FPRM and module bundles (whenever applicable) and the ‘show tech-support’ command output from ASA.
- Depending on the platform and incident, not all files are going to be present.
|
File Path in the Troubleshoot Bundle |
Description/Tips |
Available on |
|
FTD TS bundle: /dir-archives/var-log/messages* |
The string ‘syslog-ng shutting down’ is shown during a graceful shutdown. The string ‘syslog-ng starting up’ is shown when the device starts. |
FTD |
|
FTD TS bundle: /dir-archives/var-log/ASAconsole.log In case of ASA on 4100/9300, you can also find the file in the Module bundle under /opt/cisco/platform/logs/ASAconsole.log |
Look for errors, faults, failures, and so on. |
ASA, FTD |
|
FTD TS bundle: /dir-archives/var-log/dmesg.log |
Look for errors, faults, failures, and so on. |
FTD |
|
FTD TS bundle: /dir-archives/var/log/ngfwManager.log* |
Look for errors, faults, failures, and so on. This file also contains information about HA/Cluster events. |
FTD |
|
FTD TS bundle: /command-outputs/LINA_troubleshoot/show_tech_output.txt |
The output of the ‘show failover history’ and 'show cluster' history' can provide additional insights of the sequence of the events. |
FTD |
|
FTD TS bundle: /command-outputs/ Filenames: · for CORE in `ls opt-cisco-csp-cores _ grep core`_ do file -opt-cisco-csp-cores-_{CORE}_ done.output · for CORE in `ls var-common _ grep core`_ do file var-common-_{CORE}_ done.output · for CORE in `ls var-data-cores _ grep core`_ do file -var-data-cores-_{CORE}_ done.output |
Check for potential core files (tracebacks). |
FTD |
|
FTD TS bundle: /dir-archives/var/log/crashinfo/snort3-crashinfo.* |
Check for Snort3 crashinfo files. |
FTD |
|
FTD TS bundle: /dir-archives/var/log/process_stderr.log* |
Check for Backtraces (for example Cisco bug ID CSCwh25406) |
FTD |
|
FTD TS bundle: /dir-archives/var/log/periodic_stats/ |
The directory contains multiple files that can provide insights for the time of the incident. |
FTD |
|
FPRM bundle: tech_support_brief |
Check the ‘show fault detail’ outputs. |
ASA, FTD |
|
FPRM bundle: /opt/cisco/platform/logs/kern.log |
Look for errors, faults, failures, and so on. |
ASA, FTD |
|
FPRM bundle: /opt/cisco/platform/logs/messages* |
Look for errors, faults, failures, and so on. |
ASA, FTD |
|
FPRM bundle: /opt/cisco/platform/logs/mce.log The same file also exists in the module bundle (41xx, 93xx). |
This is the Machine Check Exceptions (mce) file. Look for errors, faults, failures, and so on. |
ASA, FTD |
|
FPRM bundle: /opt/cisco/platform/logs/portmgr.out |
Look for errors, faults, failures, and so on. |
ASA, FTD |
|
FPRM bundle: /opt/cisco/platform/logs/sysmgr/logs/kp_init.log: |
Look for errors, faults, failures, and so on. |
ASA, FTD |
|
FPRM bundle: /opt/cisco/platform/logs/ssp-pm.log The same file also exists in the module bundle (41xx, 93xx). |
Look for errors, faults, failures, and so on. |
ASA, FTD |
|
FPRM bundle: /opt/cisco/platform/logs/sma.log The same file also exists in the module bundle (41xx, 93xx). |
Look for errors, faults, failures, and so on. |
ASA, FTD |
|
FPRM bundle: /opt/cisco/platform/logs/heimdall.log |
Look for errors, faults, failures, and so on. |
ASA, FTD |
|
FPRM bundle: /opt/cisco/platform/logs/ssp-shutdown.log The same file also exists in the module bundle (41xx, 93xx). |
It contains the output of ps, top and few lines from dmesg when reboot or shutdown is initiated. Available on 1000/2100/3100/4200. |
ASA, FTD |
|
FPRM bundle: /opt/cisco/platform/logs/sysmgr/sam_logs/svc_sam_dme.log* |
Look for errors, faults, failures, and so on. |
ASA, FTD |
|
FPRM bundle: /opt/cisco/platform/logs/sysmgr/sam_logs/svc_sam_envAG.log* |
Look for errors, faults, failures, and so on. |
ASA, FTD |
|
CIMC bundle (41xx, 93xx): /obfl/obfl-log* |
Look for errors, faults, failures, and so on. |
ASA, FTD |
|
CIMC bundle (41xx, 93xx): /CIMC1_TechSupport.tar.gz/CIMC1_TechSupport.tar/tmp/techsupport_pid*/CIMC1_TechSupport-nvram.tar.gz/CIMC1_TechSupport-nvram.tar/nv/etc/log/eng-repo/messages* |
Look for errors, faults, failures, and so on. Especially for CATERR |
ASA, FTD |
|
Module bundle (41xx, 93xx): /tmp/mount_media.log/mount_media.log |
Look for errors, faults, failures, and so on. |
ASA, FTD |
Step 14: Captures
If a specific interface becomes unresponsive take captures on the firewall and the adjacent device. You can refer to this document for details:
Additionally, ensure that the ARP and CAM tables of the adjacent devices are properly populated.
Step 15: Additional Information to Provide to Cisco TAC
In addition to the items mentioned above, it is highly recommended to also provide this information:
15a. If the device recovered collect a troubleshoot bundle (check step 13 for details).
15b. If the device is still unresponsive provide the this information:
- Hardware information (model).
- Software information.
- FMC software information (if applicable).
- Deployment (Standalone/HA/Cluster).
15c. Approximate time (date/time) when the device became unresponsive.
15d. Approximate uptime of the device before it became unresponsive.
15e. Is this a new setup or an existing one?
15f. What was the last action performed before the device becoming unresponsive?
15g. Firewall data plane (LINA) syslogs from the time the device got unresponsive (try to get logs starting ~5 minutes before the incident). As a best practice, it is recommended to configure syslogs at level 6 (Informational).
15h. In case you have configured a syslog server on the chassis (FXOS on 4100/9300) provide the logs (starting ~5 minutes before the incident).
15i. Syslogs from the adjacent devices from the time of the incident.
15j. Topology diagram that shows the physical connections between the firewall device and the adjacent devices.
Common Issues
Error: Timed out communicating with DME
If you connect to the console and see:
Software Error: Exception during execution: [Error: Timed out communicating with DME]
Most of the times, this indicates a software problem.
Recommended Action: Contact Cisco TAC

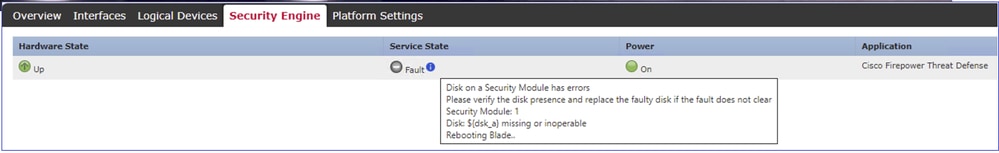

Disk error: missing or inoperable
This output is from a 4100/9300 hardware appliance where a disk-related fault is generated:
Recommended Action: Try reseating the SSD disk. If it does not help, collect chassis troubleshoot bundle and contact Cisco TAC.
Field Notice: FN72077 - FPR9300 and FPR4100
- The FPR9300 and FPR4100 Series security appliances no longer pass network traffic.
- Users with valid credentials are not able to log in to the management console.
- CLI shows error message: "Software Error: Exception during execution: [Error: Timed out communicating with DME]
Recommended Action: A power-cycle of the 4100/9300 chassis is required in order to temporarily recover from this issue. Check Cisco bug ID CSCvx99172 for details and a version that has a fix.
(Field Notice: FN72077 - FPR9300 and FPR4100 Series Security Appliances - Some Appliances Might Fail to Pass Traffic After 3.2 Years of Uptime).

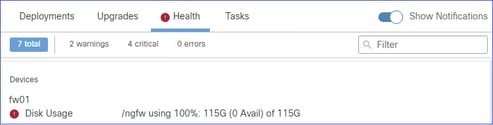

Disk Utilization 100%
Low disk space on the firewall can render the device unresponsive. If the device is managed by FMC you can get health alerts like this:
Recommended Action: If you have FMC and FTD running on software 7.7.0 and higher, try to clear some disk space using the procedure documented at https://www.cisco.com/c/en/us/td/docs/security/secure-firewall/management-center/admin/770/management-center-admin-77/health-troubleshoot.html#clear-disk-space
If this is not feasible or does not help, contact Cisco TAC.
CSF 3100 does not come up after a power outage
Recommended Action: Upgrade to a software release that has a fix for:
Cisco bug ID CSCwm14729 CSF 3100 series not rebooting after power outage, requiring manual power cycle.
Cisco Firepower 2100 Series Security Appliances: Some Units Can Experience Memory Failures
- DIMM failures within 5 years of service due to component process issues
- Related FN: https://www.cisco.com/c/en/us/support/docs/field-notices/741/fn74199.html
- Related Cisco bug ID CSCwb74948
Recommended Action: Replacement of DIMM components or replacement of the security appliance
References
- https://www.cisco.com/c/en/us/support/security/firepower-ngfw/products-installation-guides-list.html
- https://www.cisco.com/c/en/us/support/docs/security/sourcefire-defense-center/117663-technote-SourceFire-00.html#
- https://www.cisco.com/c/en/us/support/docs/field-notices/720/fn72077.html
- https://www.cisco.com/c/en/us/support/docs/security/adaptive-security-appliance-asa-software/216245-collection-of-core-files-from-a-firepowe.html#anc6
- https://www.cisco.com/c/en/us/support/docs/security/firepower-ngfw/212474-working-with-firepower-threat-defense-f.html
Revision History
| Revision | Publish Date | Comments |
|---|---|---|
1.0 |
17-Jul-2025
|
Initial Release |
FeedbackContact Cisco
- Open a Support Case
- (Requires a Cisco Service Contract)
