Verify Sender Domain Reputation change on 14.2.0 AsyncOS upgrade

Introduction

This document describes the changes in for Sender Domain Reputation (SDR) on the Secure Email platform for on-premise, virtual environment (ESA), and cloud environment (CES).

Q. What are the changes made on SDR AsyncOS 14.2.0?

Warning: SDR configurations of Reject action for Tainted and/or Weak Verdicts are automatically changed on upgrade to 14.2. The configuration changes the ESA SDR configuration to reject at Neutral Threat Level.

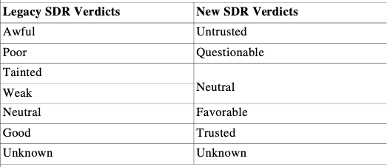

1) SDR Legacy Verdicts change of verdicts now named Threat Levels, as shown in the image:

Note: This is a change in SDR scan behavior with a different verdict decision mechanism. You must not expect the verdict to match the old solution for every set of sender information.

2)  'Message Tracking' by the advanced condition of SDR is replaced with the list shown:

3) SDR Threat Category Banking Fraud is changed to Ebanking Fraud, as shown in the image:

Note: All Untrusted does not have a category listed, however SDR categories such as, 'spam,' 'malicious,' etc, are flagged as either  Untrusted or Questionable.

4) mail_logs contains an additional log line for SDR verdicts, it is written after From logline if the senders reputation is not rejected. A second SDR line appears in the mail logs.

Info: Start MID 11 ICID 19884
Info: MID 11 ICID 19884 From: test@cisco.com
Info: MID 11 SDR: Domains for which SDR is requested: reverse DNS host: Not Present, helo: desktop-9pf6f2t, env-from: cisco.com, header-from: Not Present, reply-to: Not Present
Info: MID 11 SDR: Consolidated Sender Threat Level: Favorable, Threat Category: N/A, Suspected Domain(s) : N/A (other reasons for verdict). Sender Maturity: 30 days (or greater) for domain: cisco.com
Info: MID 11 ICID 19884 RID 0 To: test@cisco.com
Info: MID 11 Message-ID 'op.1m7bljjr8qfre9@desktop-9pf6f2t'
Info: MID 11 Subject "test 1"
Info: MID 11 SDR: Domains for which SDR is requested: reverse DNS host: Not Present, helo: desktop-9pf6f2t, env-from: cisco.com, header-from: cisco.com, reply-to: Not Present
Info: MID 11 SDR: Consolidated Sender Threat Level: Favorable, Threat Category: N/A, Suspected Domain(s) : N/A (other reasons for verdict). Sender Maturity: 30 days (or greater) for domain: cisco.com
Info: MID 11 SDR: Tracker Header : 629d04c8_DDZqM4buLke8/Do4MqUGdJEP9QZc73Ofsh9YLwqvKidy3M/WEb0fkQpwOOtRVhrhSJWgCv2NjL/JQMsjH5QzZw==

5) SDR configured to reject in the global settings occurs at the envelope phase of the SMTP conversation which is just after the envelope from the header is sent and no other data is sent yet.

Info: Start MID 9364 ICID 79
Info: MID 9364 ICID 79 From: <test@incomingtest.contentfilter.com>
Info: MID 9364 SDR: Domains for which SDR is requested: reverse DNS host: Not Present, helo: mail.cisco.com, env-from: lana.cf, header-from: Not Present, reply-to: Not Present
Info: MID 9364 SDR: Consolidated Sender Threat Level: Untrusted, Threat Category: N/A, Suspected Domain(s) : lana.cf. Sender Maturity: 1 day for domain: lana.cf
Info: MID 9364 ICID 79 Receiving Failed: Message rejected by Sender Domain Reputation engine
Info: MID 9364 SDR: Tracker Header : 629d5de5_JxmxzLXzbSob4h6Tqmxj2QFeN6eeb3J8CJ2zj9h8XgF/+e0YQVxd05lnVSwX9Gh37ISaiDHc0SJ5eRdyLYasmQ==
Info: MID 9364 Subject ""
Info: Message aborted MID 9364 Receiving aborted
Info: Message finished MID 9364 aborted

6) Due to the expected behavior explained as provided on 'Cisco bug ID CSCwb32685' and here Field Notice: FN - 72389 - Cisco Secure Email Gateway: Talos Domain Age Update you must not use the three conditions in your filters: less than, equal to, and less than and equal to, otherwise all the domains that hit the policy or policies matches the conditions, as shown in the image:

Note: Sender Maturity is set to a limit of 30 days, and beyond this limit, a domain is considered mature as an email sender, and no further details are provided.

Related Information

Cisco Secure Email AsyncOS 14.2 Release notes.

Cisco Secure Email and Web Manager AsyncOS 14.2 Release notes.

Field Notice: FN - 72389 - Cisco Secure Email Gateway: Talos Domain Age Update
