Troubleshoot vEdge Bidirectional Forwarding Detection and Data Plane Connections Issues
Available Languages
Contents
Introduction
This document describes vEdge data plane connection problems after a control plane connection however no data plane connectivity between sites.
Prerequisites
Requirements
Cisco recommends knowledge of Cisco Software Defined Wide Area Network (SDWAN) solution.
Components Used
This document is not restricted to specific software and hardware versions. This document is focused on vEdge platforms.
The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.
For Cisco Edge routers (Cisco IOS® XE routers in controller mode) , please read .
Control Plane Information
Check Control Local Properties
In order to check the status of the Wide Area Network (WAN) interfaces on a vEdge, use the command, show control local-properties wan-interface-list.
In this output, you can see the RFC 4787 Network Address Translation (NAT) Type.

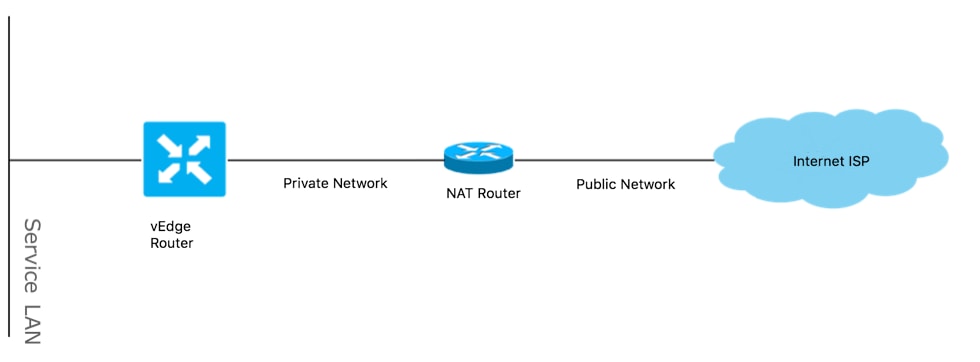

When the vEdge is behind a NAT device (Firewall, Router, etc), Public and Private IPv4 address, Public and Private source User Datagram Protocol (UDP) ports are used to build the data plane tunnels.
You can also find the state of the tunnel interface, color, and maximum number of control connections configured.
vEdge1# show control local-properties wan-interface-list
NAT TYPE: E -- indicates End-point independent mapping
A -- indicates Address-port dependent mapping
N -- indicates Not learned
Requires minimum two vbonds to learn the NAT type
PUBLIC PUBLIC PRIVATE PRIVATE PRIVATE MAX RESTRICT/ LAST SPI TIME NAT VM
INTERFACE IPv4 PORT IPv4 IPv6 PORT VS/VM COLOR STATE CNTRL CONTROL/ LR/LB CONNECTION REMAINING TYPE CON
STUN PRF
---------------------------------------------------------------------------------------------------------------------------------------------------------------
ge0/0 203.0.113.225 4501 10.19.145.2 :: 12386 1/1 gold up 2 no/yes/no No/No 7:02:55:13 0:09:02:29 N 5
ge0/1 10.20.67.10 12426 10.20.67.10 :: 12426 0/0 mpls up 2 yes/yes/no No/No 0:00:00:01 0:11:40:16 N 5
With this data, you can identify certain information about how the data tunnels must be built and what ports you can expect (from the routers perspective) to use when you form the data tunnels.
Check Control Connections
It is important to ensure that the color that does not form data plane tunnels has a control connection established with the controllers in the overlay.
Otherwise, the vEdge does not send the Transport Locator (TLOC) information to the vSmart via Overlay Management Protocol (OMP).
You can verify if it is operational with the use of show control connections command, and look for the connect state.
vEdge1# show control connections
PEER PEER CONTROLLER
PEER PEER PEER SITE DOMAIN PEER PRIV PEER PUB GROUP
TYPE PROT SYSTEM IP ID ID PRIVATE IP PORT PUBLIC IP PORT LOCAL COLOR STATE UPTIME ID
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
vsmart dtls 10.1.0.3 3 1 203.0.113.13 12446 203.0.113.13 12446 gold up 7:03:18:31 0
vbond dtls - 0 0 203.0.113.12 12346 203.0.113.12 12346 mpls connect 0
vmanage dtls 10.1.0.1 1 0 203.0.113.14 12646 203.0.113.14 12646 gold up 7:03:18:31 0 If the interface (that does not form data tunnels) tries to connect, solve it with a successful start-up of the control connections via that color.
Or, set the max-control-connections 0 in the selected interface under the tunnel interface section.
vpn 0 interface ge0/1 ip address 10.20.67.10/24 tunnel-interface encapsulation ipsec color mpls restrict max-control-connections 0 no allow-service bgp allow-service dhcp allow-service dns allow-service icmp no allow-service sshd no allow-service netconf no allow-service ntp no allow-service ospf no allow-service stun ! no shutdown !
Overlay Management Protocol
Verify OMP TLOCs are Advertised from the vEdges
OMP TLOCs cannot be sent because the interface tries to form control connections via that color and is not able to reach the controllers.
Check if the color (that the data tunnels) sends the TLOC for that particular color to the vSmarts.
Use the command show omp tlocs advertised in order to check the TLOCs that are sent to the OMP peers.
Example: Colors mpls and gold. No TLOC is sent to vSmart for color mpls.
vEdge1# show omp tlocs advertised
C -> chosen
I -> installed
Red -> redistributed
Rej -> rejected
L -> looped
R -> resolved
S -> stale
Ext -> extranet
Stg -> staged
Inv -> invalid
PUBLIC PRIVATE
ADDRESS PSEUDO PUBLIC PRIVATE PUBLIC IPV6 PRIVATE IPV6 BFD
FAMILY TLOC IP COLOR ENCAP FROM PEER STATUS KEY PUBLIC IP PORT PRIVATE IP PORT IPV6 PORT IPV6 PORT STATUS
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ipv4 10.1.0.5 gold ipsec 0.0.0.0 C,Red,R 1 203.0.113.225 4501 10.19.145.2 12386 :: 0 :: 0 up
10.1.0.2 mpls ipsec 10.1.0.3 C,I,R 1 10.20.67.20 12386 10.20.67.20 12386 :: 0 :: 0 down
10.1.0.2 blue ipsec 10.1.0.3 C,I,R 1 198.51.100.187 12406 10.19.146.2 12406 :: 0 :: 0 up
10.1.0.30 mpls ipsec 10.1.0.3 C,I,R 1 10.20.67.30 12346 10.20.67.30 12346 :: 0 :: 0 down
10.1.0.30 gold ipsec 10.1.0.3 C,I,R 1 192.0.2.129 12386 192.0.2.129 12386 :: 0 :: 0 up
10.1.0.4 mpls ipsec 10.1.0.3 C,I,R 1 10.20.67.40 12426 10.20.67.40 12426 :: 0 :: 0 down
10.1.0.4 gold ipsec 10.1.0.3 C,I,R 1 203.0.113.226 12386 203.0.113.226 12386 :: 0 :: 0 up
Example: Colors mpls and gold. TLOC is sent for both the colors.
vEdge2# show omp tlocs advertised
C -> chosen
I -> installed
Red -> redistributed
Rej -> rejected
L -> looped
R -> resolved
S -> stale
Ext -> extranet
Stg -> staged
Inv -> invalid
PUBLIC PRIVATE
ADDRESS PSEUDO PUBLIC PRIVATE PUBLIC IPV6 PRIVATE IPV6 BFD
FAMILY TLOC IP COLOR ENCAP FROM PEER STATUS KEY PUBLIC IP PORT PRIVATE IP PORT IPV6 PORT IPV6 PORT STATUS
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ipv4 10.1.0.5 gold ipsec 10.1.0.3 C,I,R 1 203.0.113.225 4501 10.19.145.2 12386 :: 0 :: 0 up
10.1.0.2 mpls ipsec 0.0.0.0 C,Red,R 1 10.20.67.20 12386 10.20.67.20 12386 :: 0 :: 0 up
10.1.0.2 blue ipsec 0.0.0.0 C,Red,R 1 198.51.100.187 12406 10.19.146.2 12406 :: 0 :: 0 up
10.1.0.30 mpls ipsec 10.1.0.3 C,I,R 1 10.20.67.30 12346 10.20.67.30 12346 :: 0 :: 0 up
10.1.0.30 gold ipsec 10.1.0.3 C,I,R 1 192.0.2.129 12386 192.0.2.129 12386 :: 0 :: 0 up
10.1.0.4 mpls ipsec 10.1.0.3 C,I,R 1 10.20.67.40 12426 10.20.67.40 12426 :: 0 :: 0 up
10.1.0.4 gold ipsec 10.1.0.3 C,I,R 1 203.0.113.226 12386 203.0.113.226 12386 :: 0 :: 0 up Verify vSmart Receives and Advertises the TLOCs
TLOCs are now advertised out to the vSmart. Confirm that it receives TLOCs from the correct peer and advertises it to the other vEdge.
Example: vSmart receives the TLOCs from 10.1.0.2 vEdge1.
vSmart1# show omp tlocs received
C -> chosen
I -> installed
Red -> redistributed
Rej -> rejected
L -> looped
R -> resolved
S -> stale
Ext -> extranet
Stg -> staged
Inv -> invalid
PUBLIC PRIVATE
ADDRESS PSEUDO PUBLIC PRIVATE PUBLIC IPV6 PRIVATE IPV6 BFD
FAMILY TLOC IP COLOR ENCAP FROM PEER STATUS KEY PUBLIC IP PORT PRIVATE IP PORT IPV6 PORT IPV6 PORT STATUS
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ipv4 10.1.0.5 gold ipsec 10.1.0.5 C,I,R 1 203.0.113.225 4501 10.19.145.2 12386 :: 0 :: 0 -
10.1.0.2 mpls ipsec 10.1.0.2 C,I,R 1 10.20.67.20 12386 10.20.67.20 12386 :: 0 :: 0 -
10.1.0.2 blue ipsec 10.1.0.2 C,I,R 1 198.51.100.187 12406 10.19.146.2 12406 :: 0 :: 0 -
10.1.0.30 mpls ipsec 10.1.0.30 C,I,R 1 10.20.67.30 12346 10.20.67.30 12346 :: 0 :: 0 -
10.1.0.30 gold ipsec 10.1.0.30 C,I,R 1 192.0.2.129 12386 192.0.2.129 12386 :: 0 :: 0 -
10.1.0.4 mpls ipsec 10.1.0.4 C,I,R 1 10.20.67.40 12426 10.20.67.40 12426 :: 0 :: 0 -
10.1.0.4 gold ipsec 10.1.0.4 C,I,R 1 203.0.113.226 12386 203.0.113.226 12386 :: 0 :: 0 - If you do not see the TLOCs or you see any other codes here, check these:
vSmart-vIPtela-MEX# show omp tlocs received
C -> chosen
I -> installed
Red -> redistributed
Rej -> rejected
L -> looped
R -> resolved
S -> stale
Ext -> extranet
Stg -> staged
Inv -> invalid
PUBLIC PRIVATE
ADDRESS PSEUDO PUBLIC PRIVATE PUBLIC IPV6 PRIVATE IPV6 BFD
FAMILY TLOC IP COLOR ENCAP FROM PEER STATUS KEY PUBLIC IP PORT PRIVATE IP PORT IPV6 PORT IPV6 PORT STATUS
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ipv4 10.1.0.5 gold ipsec 10.1.0.5 C,I,R 1 203.0.113.225 4501 10.19.145.2 12386 :: 0 :: 0 -
10.1.0.2 mpls ipsec 10.1.0.2 C,I,R 1 10.20.67.20 12386 10.20.67.20 12386 :: 0 :: 0 -
10.1.0.2 blue ipsec 10.1.0.2 Rej,R,Inv 1 198.51.100.187 12406 10.19.146.2 12406 :: 0 :: 0 -
10.1.0.30 mpls ipsec 10.1.0.30 C,I,R 1 10.20.67.30 12346 10.20.67.30 12346 :: 0 :: 0 -
10.1.0.30 gold ipsec 10.1.0.30 C,I,R 1 192.0.2.129 12386 192.0.2.129 12386 :: 0 :: 0 -
10.1.0.4 mpls ipsec 10.1.0.4 C,I,R 1 10.20.67.40 12426 10.20.67.40 12426 :: 0 :: 0 -
10.1.0.4 gold ipsec 10.1.0.4 C,I,R 1 203.0.113.226 12386 203.0.113.226 12386 :: 0 :: 0 -
Verify that there is no policy that blocks the TLOCs.
show run policy control-policy - look for any tloc-list that rejects your TLOCs as advertised or received in the vSmart.
vSmart1(config-policy)# sh config
policy
lists
tloc-list SITE20
tloc 10.1.0.2 color blue encap ipsec
!
!
control-policy SDWAN
sequence 10
match tloc
tloc-list SITE20
!
action reject ----> here we are rejecting the TLOC 10.1.0.2,blue,ipsec
!
!
default-action accept
!
apply-policy
site-list SITE20
control-policy SDWAN in -----> the policy is applied to control traffic coming IN the vSmart, it will filter the tlocs before adding it to the OMP table.
Ensure that a policy does not filter the TLOC when it is advertised from the vSmart. You can see that the TLOC is received on the vSmart, but you do not see it on the other vEdge.
Example 1: vSmart with TLOC in C,I,R.
vSmart1# show omp tlocs
C -> chosen
I -> installed
Red -> redistributed
Rej -> rejected
L -> looped
R -> resolved
S -> stale
Ext -> extranet
Stg -> staged
Inv -> invalid
PUBLIC PRIVATE
ADDRESS PSEUDO PUBLIC PRIVATE PUBLIC IPV6 PRIVATE IPV6 BFD
FAMILY TLOC IP COLOR ENCAP FROM PEER STATUS KEY PUBLIC IP PORT PRIVATE IP PORT IPV6 PORT IPV6 PORT STATUS
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ipv4 10.1.0.5 mpls ipsec 10.1.0.5 C,I,R 1 10.20.67.10 12406 10.20.67.10 12406 :: 0 :: 0 -
10.1.0.5 gold ipsec 10.1.0.5 C,I,R 1 203.0.113.225 4501 10.19.145.2 12386 :: 0 :: 0 -
10.1.0.2 mpls ipsec 10.1.0.2 C,I,R 1 10.20.67.20 12386 10.20.67.20 12386 :: 0 :: 0 -
10.1.0.2 blue ipsec 10.1.0.2 C,I,R 1 198.51.100.187 12426 10.19.146.2 12426 :: 0 :: 0 -
10.1.0.30 mpls ipsec 10.1.0.30 C,I,R 1 10.20.67.30 12346 10.20.67.30 12346 :: 0 :: 0 -
10.1.0.30 gold ipsec 10.1.0.30 C,I,R 1 192.0.2.129 12386 192.0.2.129 12386 :: 0 :: 0 -
10.1.0.4 mpls ipsec 10.1.0.4 C,I,R 1 10.20.67.40 12426 10.20.67.40 12426 :: 0 :: 0 -
10.1.0.4 gold ipsec 10.1.0.4 C,I,R 1 203.0.113.226 12386 203.0.113.226 12386 :: 0 :: 0 -
Example 2: vEdge1 does not see the TLOC from color blue that comes of vEdge2. It only sees MPLS TLOC.
vEdge1# show omp tlocs
C -> chosen
I -> installed
Red -> redistributed
Rej -> rejected
L -> looped
R -> resolved
S -> stale
Ext -> extranet
Stg -> staged
Inv -> invalid
PUBLIC PRIVATE
ADDRESS PSEUDO PUBLIC PRIVATE PUBLIC IPV6 PRIVATE IPV6 BFD
FAMILY TLOC IP COLOR ENCAP FROM PEER STATUS KEY PUBLIC IP PORT PRIVATE IP PORT IPV6 PORT IPV6 PORT STATUS
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ipv4 10.1.0.5 mpls ipsec 0.0.0.0 C,Red,R 1 10.20.67.10 12406 10.20.67.10 12406 :: 0 :: 0 up
10.1.0.5 gold ipsec 0.0.0.0 C,Red,R 1 203.0.113.225 4501 10.19.145.2 12386 :: 0 :: 0 up
10.1.0.2 mpls ipsec 10.1.0.3 C,I,R 1 10.20.67.20 12386 10.20.67.20 12386 :: 0 :: 0 up
10.1.0.30 mpls ipsec 10.1.0.3 C,I,R 1 10.20.67.30 12346 10.20.67.30 12346 :: 0 :: 0 up
10.1.0.30 gold ipsec 10.1.0.3 C,I,R 1 192.0.2.129 12386 192.0.2.129 12386 :: 0 :: 0 up
10.1.0.4 mpls ipsec 10.1.0.3 C,I,R 1 10.20.67.40 12426 10.20.67.40 12426 :: 0 :: 0 up
10.1.0.4 gold ipsec 10.1.0.3 C,I,R 1 203.0.113.226 12386 203.0.113.226 12386 :: 0 :: 0 up When you check the policy, you can see why the TLOC does not appear on the vEdge1.
vSmart1# show running-config policy
policy
lists
tloc-list SITE20
tloc 10.1.0.2 color blue encap ipsec
!
site-list SITE10
site-id 10
!
!
control-policy SDWAN
sequence 10
match tloc
tloc-list SITE20
!
action reject
!
!
default-action accept
!
apply-policy
site-list SITE10
control-policy SDWAN out
!
!Bidirectional Forwarding Detection
Understand the show bfd sessions command
These are the key things to look for in the output:
vEdge-2# show bfd sessions
SOURCE TLOC REMOTE TLOC DST PUBLIC DST PUBLIC DETECT TX
SYSTEM IP SITE ID STATE COLOR COLOR SOURCE IP IP PORT ENCAP MULTIPLIER INTERVAL(msec) UPTIME TRANSITIONS
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
10.1.0.5 10 down blue gold 10.19.146.2 203.0.113.225 4501 ipsec 7 1000 NA 7
10.1.0.30 30 up blue gold 10.19.146.2 192.0.2.129 12386 ipsec 7 1000 0:00:00:22 2
10.1.0.4 40 up blue gold 10.19.146.2 203.0.113.226 12386 ipsec 7 1000 0:00:00:22 1
10.1.0.4 40 up mpls mpls 10.20.67.10 10.20.67.40 12426 ipsec 7 1000 0:00:10:11 0
SYSTEM IP: Peers system-ipSOURCE and REMOTE TLOC COLOR: This is useful to know what TLOC is expected to receive and send.SOURCE IP: It is theprivatesource IP. If you are behind a NAT, this information is displayed here (it can be seen with the use ofshow control local-properties <wan-interface-list).DST PUBLIC IP: It is the destination that the vEdge uses to form theData Planetunnel, whether or not it is behind NAT. (Example: vEdges directly attached to the Internet, orMulti-Protocol Label Switching (MPLS)links)DST PUBLIC PORTPublic NAT-ed port that the vEdge uses in order to form theData Planetunnel to the remote vEdge.TRANSITIONS: Number of times the BFD session has changed its status, fromNAtoUPand vice versa.
Command show tunnel statistics
The show tunnel statistics can display information about the data plane tunnels. You can determine if you send or receive packets for a particular IPSEC tunnel between the vEdges.
This can help you understand if packets arrive on each end, and isolate connectivity issues between the nodes.
In the example, when you run the command multiple times, you can notice an increment or no increment in the tx-pkts or rx-pkts.
TCP vEdge2# show tunnel statistics
TUNNEL SOURCE DEST TUNNEL MSS PROTOCOL SOURCE IP DEST IP PORT PORT SYSTEM IP LOCAL COLOR REMOTE COLOR MTU tx-pkts tx-octets rx-pkts rx-octets ADJUST --------------------------------------------------------------------------------------------------------------------------------------------------------------- ipsec 172.16.16.147 10.88.244.181 12386 12406 10.1.0.5 public-internet default 1441 38282 5904968 38276 6440071 1361 ipsec 172.16.16.147 10.152.201.104 12386 63364 10.1.0.0 public-internet default 1441 33421 5158814 33416 5623178 1361 ipsec 172.16.16.147 10.152.204.31 12386 58851 10.1.0.7 public-internet public-internet 1441 12746 1975022 12744 2151926 1361 ipsec 172.24.90.129 10.88.244.181 12426 12406 10.1.0.5 biz-internet default 1441 38293 5906238 38288 6454580 1361 ipsec 172.24.90.129 10.152.201.104 12426 63364 10.1.0.0 biz-internet default 1441 33415 5157914 33404 5621168 1361 ipsec 172.24.90.129 10.152.204.31 12426 58851 10.1.0.7 biz-internet public-internet 1441 12750 1975622 12747 2152446 1361
TUNNEL SOURCE DEST TUNNEL MSS
PROTOCOL SOURCE IP DEST IP PORT PORT SYSTEM IP LOCAL COLOR REMOTE COLOR MTU tx-pkts tx-octets rx-pkts rx-octets ADJUST
---------------------------------------------------------------------------------------------------------------------------------------------------------------
ipsec 172.16.16.147 10.88.244.181 12386 12406 10.1.0.5 public-internet default 1441 39028 6020779 39022 6566326 1361
ipsec 172.16.16.147 10.152.201.104 12386 63364 10.1.0.0 public-internet default 1441 34167 5274625 34162 5749433 1361
ipsec 172.16.16.147 10.152.204.31 12386 58851 10.1.0.7 public-internet public-internet 1441 13489 2089069 13487 2276382 1361
ipsec 172.24.90.129 10.88.244.181 12426 12406 10.1.0.5 biz-internet default 1441 39039 6022049 39034 6580835 1361
ipsec 172.24.90.129 10.152.201.104 12426 63364 10.1.0.0 biz-internet default 1441 34161 5273725 34149 5747259 1361
ipsec 172.24.90.129 10.152.204.31 12426 58851 10.1.0.7 biz-internet public-internet 1441 13493 2089669 13490 2276902 1361
Another useful command is show tunnel statistics bfd that can be used to check the number of BFD packets sent and received within particular data plane tunnel:
vEdge1# show tunnel statistics bfd
BFD BFD BFD BFD
BFD BFD PMTU PMTU PMTU PMTU
TUNNEL SOURCE DEST ECHO TX ECHO RX BFD ECHO BFD ECHO TX RX TX RX
PROTOCOL SOURCE IP DEST IP PORT PORT PKTS PKTS TX OCTETS RX OCTETS PKTS PKTS OCTETS OCTETS
---------------------------------------------------------------------------------------------------------------------------
ipsec 192.168.109.4 192.168.109.5 4500 4500 0 0 0 0 0 0 0 0
ipsec 192.168.109.4 192.168.109.5 12346 12366 1112255 1112253 186302716 186302381 487 487 395939 397783
ipsec 192.168.109.4 192.168.109.7 12346 12346 1112254 1112252 186302552 186302210 487 487 395939 397783
ipsec 192.168.109.4 192.168.110.5 12346 12366 1112255 1112253 186302716 186302381 487 487 395939 397783 Access List
An access list is a useful and a necessary step after you look at the show bfd sessions output.
Now that the private, and public IPs and Ports are known, you can create an Access Control List (ACL) to match against the SRC_PORT, DST_PORT, SRC_IP, DST_IP.
This can help to verify sent and received BFD messages.
Here, you can find an example of an ACL configuration:
policy
access-list checkbfd-out
sequence 10
match
source-ip 192.168.0.92/32
destination-ip 198.51.100.187/32
source-port 12426
destination-port 12426
!
action accept
count bfd-out-to-dc1-from-br1
!
!
default-action accept
!
access-list checkbfd-in
sequence 20
match
source-ip 198.51.100.187/32
destination-ip 192.168.0.92/32
source-port 12426
destination-port 12426
!
action accept
count bfd-in-from-dc1-to-br1
!
!
default-action accept
!
vpn 0
interface ge0/0
access-list checkbfd-in in
access-list checkbfd-out out
!
!
!In the example, this ACL uses two sequences. The sequence 10 matches the BFD messages that are sent from this vEdge to the peer. Sequence 20 does the opposite.
It matches against the source (Private) port and destination (Public) ports. If the vEdge uses NAT, ensure to check the right source and destination ports.
To check the hits on each sequence counter issue the show policy access-list counters <access-list name>
vEdge1# show policy access-list-counters
NAME COUNTER NAME PACKETS BYTES
-----------------------------------------------------
checkbfd bfd-out-to-dc1-from-br1 10 2048
bfd-in-from-dc1-to-br1 0 0 Network Address Translation
How to Use tools stun-client to Detect NAT Maps and Filters.
If you have done all the steps and you are behind NAT, the next step is to identify the UDP NAT Traversal (RFC 4787) Map and Filter behavior.
This tool is used to discover the local vEdge external IP address when that vEdge is located behind a NAT device.
This command obtains a port mapping for the device and optionally discovers properties about the NAT between the local device and a server (public server: example google stun server).
vEdge1# tools stun-client vpn 0 options "--mode full --localaddr 192.168.12.100 12386 --verbosity 2 stun.l.google.com 19302" stunclient --mode full --localaddr 192.168.12.100 stun.l.google.com in VPN 0 Binding test: success
Local address: 192.168.12.100:12386
Mapped address: 203.0.113.225:4501
Behavior test: success
Nat behavior: Address Dependent Mapping
Filtering test: success
Nat filtering: Address and Port Dependent Filtering
On newer versions of software, syntax can be bit different:
vEdge1# tools stun-client vpn 0 options "--mode full --localaddr 192.168.12.100 --localport 12386 --verbosity 2 stun.l.google.com 19302"
In this example, you perform a full NAT detection test with the use of UDP source port 12386 to the Google STUN server.
The output of this command gives you NAT behavior and the NAT filter type based on RFC 4787.
vEdge1# show running-config vpn 0 interface ge0/0 vpn 0 interface ge0/0 ip address 10.19.145.2/30 ! tunnel-interface encapsulation ipsec color gold max-control-connections 1 no allow-service bgp allow-service dhcp allow-service dns no allow-service icmp no allow-service sshd no allow-service netconf no allow-service ntp no allow-service ospf allow-service stun ! no shutdown ! !
This shows the mapping between STUN terminology (Full-Cone NAT) and RFC 4787 (NAT Behavioral for UDP).
Supported NAT Types for Data Plane Tunnels“Sending” used in CLI
In most of the cases, your public colors like biz-internet or public-internet can be directly attached to the internet.
In other cases, there is a NAT device behind the vEdge WAN interface and the actual Internet Service Provider.
In this manner, the vEdge can have a private IP and the other device (Router, Firewall, etc) can be the device with the public facing IP addresses.
If you have an incorrect NAT type, then it could potentially be one of the most common reasons that do not allow the formation of Data Plane tunnels. These are the supported NAT types.
Firewalls
If you already checked the NAT and its not in the unsupported Source and Destination types, it is possible that a Firewall blocks the ports used to form the Data Plane tunnels.
Ensure that these ports are open in the Firewall for Data Plane connections: vEdge to vEdge Data Plane:
UDP 12346 to 13156
For control connections from vEdge to controllers:
UDP 12346 to 13156
TCP 23456 to 24156
Ensure that you open these ports in order to achieve successful connection of the Data Plane tunnels.
When you check the source and destination ports used for Data Plane tunnels, you can use show tunnel statistics or show bfd sessions | tab but not show bfd sessions.
It does not show any source ports, only destination ports as you can see:
vEdge1# show bfd sessions
SOURCE TLOC REMOTE TLOC DST PUBLIC DST PUBLIC DETECT TX
SYSTEM IP SITE ID STATE COLOR COLOR SOURCE IP IP PORT ENCAP MULTIPLIER INTERVAL(msec) UPTIME TRANSITIONS
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
192.168.30.105 50 up biz-internet biz-internet 192.168.109.181 192.168.109.182 12346 ipsec 7 1000 1:21:28:05 10
192.168.30.105 50 up private1 private1 192.168.110.181 192.168.110.182 12346 ipsec 7 1000 1:21:26:13 2
vEdge1# show bfd sessions | tab
SRC DST SITE DETECT TX
SRC IP DST IP PROTO PORT PORT SYSTEM IP ID LOCAL COLOR COLOR STATE MULTIPLIER INTERVAL UPTIME TRANSITIONS
---------------------------------------------------------------------------------------------------------------------------------------------------------------
192.168.109.181 192.168.109.182 ipsec 12346 12346 192.168.30.105 50 biz-internet biz-internet up 7 1000 1:21:28:05 10
192.168.110.181 192.168.110.182 ipsec 12346 12346 192.168.30.105 50 private1 private1 up 7 1000 1:21:26:13 2
Security
If you observe that the ACL counter increases inbound and outbound, check several iterations show system statistics diff and ensure there are no drops.
vEdge1# show policy access-list-counters
NAME COUNTER NAME PACKETS BYTES
-----------------------------------------------------
checkbfd bfd-out-to-dc1-from-br1 55 9405
bfd-in-from-dc1-to-br1 54 8478 In this output, rx_replay_integrity_drops increase with every iteration of the show system statistics diff command.
vEdge1#show system statistics diff
rx_pkts : 5741427
ip_fwd : 5952166
ip_fwd_arp : 3
ip_fwd_to_egress : 2965437
ip_fwd_null_mcast_group : 26
ip_fwd_null_nhop : 86846
ip_fwd_to_cpu : 1413393
ip_fwd_from_cpu_non_local : 15
ip_fwd_rx_ipsec : 1586149
ip_fwd_mcast_pkts : 26
rx_bcast : 23957
rx_mcast : 304
rx_mcast_link_local : 240
rx_implicit_acl_drops : 12832
rx_ipsec_decap : 21
rx_spi_ipsec_drops : 16
rx_replay_integrity_drops : 1586035
port_disabled_rx : 2
rx_invalid_qtags : 212700
rx_non_ip_drops : 1038073
pko_wred_drops : 3
bfd_tx_record_changed : 23
rx_arp_non_local_drops : 19893
rx_arp_reqs : 294
rx_arp_replies : 34330
arp_add_fail : 263
tx_pkts : 4565384
tx_mcast : 34406
port_disabled_tx : 3
tx_ipsec_pkts : 1553753
tx_ipsec_encap : 1553753
tx_pre_ipsec_pkts : 1553753
tx_pre_ipsec_encap : 1553753
tx_arp_replies : 377
tx_arp_reqs : 34337
tx_arp_req_fail : 2
bfd_tx_pkts : 1553675
bfd_rx_pkts : 21
bfd_tx_octets : 264373160
bfd_rx_octets : 3600
bfd_pmtu_tx_pkts : 78
bfd_pmtu_tx_octets : 53052
rx_icmp_echo_requests : 48
rx_icmp_network_unreach : 75465
rx_icmp_other_types : 47
tx_icmp_echo_requests : 49655
tx_icmp_echo_replies : 48
tx_icmp_network_unreach : 86849
tx_icmp_other_types : 7
vEdge1# show system statistics diff
rx_pkts : 151
ip_fwd : 157
ip_fwd_to_egress : 75
ip_fwd_null_nhop : 3
ip_fwd_to_cpu : 43
ip_fwd_rx_ipsec : 41
rx_bcast : 1
rx_replay_integrity_drops : 41
rx_invalid_qtags : 7
rx_non_ip_drops : 21
rx_arp_non_local_drops : 2
tx_pkts : 114
tx_ipsec_pkts : 40
tx_ipsec_encap : 40
tx_pre_ipsec_pkts : 40
tx_pre_ipsec_encap : 40
tx_arp_reqs : 1
bfd_tx_pkts : 40
bfd_tx_octets : 6800
tx_icmp_echo_requests : 1
vEdge1# show system statistics diff
rx_pkts : 126
ip_fwd : 125
ip_fwd_to_egress : 58
ip_fwd_null_nhop : 3
ip_fwd_to_cpu : 33
ip_fwd_rx_ipsec : 36
rx_bcast : 1
rx_implicit_acl_drops : 1
rx_replay_integrity_drops : 35
rx_invalid_qtags : 6
rx_non_ip_drops : 22
rx_arp_replies : 1
tx_pkts : 97
tx_mcast : 1
tx_ipsec_pkts : 31
tx_ipsec_encap : 31
tx_pre_ipsec_pkts : 31
tx_pre_ipsec_encap : 31
bfd_tx_pkts : 32
bfd_tx_octets : 5442
rx_icmp_network_unreach : 3
tx_icmp_echo_requests : 1
tx_icmp_network_unreach : 3
vEdge1# show system statistics diff
rx_pkts : 82
ip_fwd : 89
ip_fwd_to_egress : 45
ip_fwd_null_nhop : 3
ip_fwd_to_cpu : 24
ip_fwd_rx_ipsec : 22
rx_bcast : 1
rx_implicit_acl_drops : 1
rx_replay_integrity_drops : 24
rx_invalid_qtags : 2
rx_non_ip_drops : 14
rx_arp_replies : 1
tx_pkts : 62
tx_mcast : 1
tx_ipsec_pkts : 24
tx_ipsec_encap : 24
tx_pre_ipsec_pkts : 24
tx_pre_ipsec_encap : 24
tx_arp_reqs : 1
bfd_tx_pkts : 23
bfd_tx_octets : 3908
rx_icmp_network_unreach : 3
tx_icmp_echo_requests : 1
tx_icmp_network_unreach : 3
vEdge1# show system statistics diff
rx_pkts : 80
ip_fwd : 84
ip_fwd_to_egress : 39
ip_fwd_to_cpu : 20
ip_fwd_rx_ipsec : 24
rx_replay_integrity_drops : 22
rx_invalid_qtags : 3
rx_non_ip_drops : 12
tx_pkts : 66
tx_ipsec_pkts : 21
tx_ipsec_encap : 21
tx_pre_ipsec_pkts : 21
tx_pre_ipsec_encap : 21
bfd_tx_pkts : 21
bfd_tx_octets : 3571
First, perform a request security ipsec-rekey on the vEdge. Then, go through several iterations of show system statistics diff and see if you still see rx_replay_integrity_drops.
If you do, check your security configuration.
vEdge1# show running-config security security
ipsec
authentication-type sha1-hmac ah-sha1-hmac
!
!
ISP Problems with DSCP Marked Traffic
By default, all control and management traffic from the vEdge router to the controllers travels over DTLS or TLS connections and marked with a DSCP value of CS6 (48 decimal).
For data place tunnels traffic, vEdge routers use IPsec or GRE encapsulation to send data traffic to each other.
For data plane failure detection and performance measurement, routers periodically send each other BFD packets.
These BFD packets are also marked with a DSCP value of CS6 (48 decimal).
From the perspective of ISP, this type of traffic is seen as UDP traffic with DSCP value CS6 as well because vEdge routers and SD-WAN controllers copy DSCP that marks to the outer IP header by default.
Here is how it can look like if tcpdump runs on transit ISP router:
14:27:15.993766 IP (tos 0xc0, ttl 64, id 44063, offset 0, flags [DF], proto UDP (17), length 168)
192.168.109.5.12366 > 192.168.20.2.12346: [udp sum ok] UDP, length 140
14:27:16.014900 IP (tos 0xc0, ttl 63, id 587, offset 0, flags [DF], proto UDP (17), length 139)
192.168.20.2.12346 > 192.168.109.5.12366: [udp sum ok] UDP, length 111
14:27:16.534117 IP (tos 0xc0, ttl 63, id 0, offset 0, flags [DF], proto UDP (17), length 157)
192.168.109.5.12366 > 192.168.110.6.12346: [no cksum] UDP, length 129
14:27:16.534289 IP (tos 0xc0, ttl 62, id 0, offset 0, flags [DF], proto UDP (17), length 150)
192.168.110.6.12346 > 192.168.109.5.12366: [no cksum] UDP, length 122
As can be seen here, all packets are marked with TOS byte 0xc0 also known as DS field (that is equal to decimal 192, or 110 000 00 in binary.
First 6 high order bits correspond to DSCP bits value 48 in decimal or CS6).
First 2 packets in the output correspond to a control plane tunnel and the 2 that remain, to a data plane tunnel traffic.
Based on the packet length and the TOS mark, it can conclude with high confidence that it was BFD packets (RX and TX directions). These packets are marked with CS6 as well.
Sometimes some service providers (especially MPLS L3 VPN/MPLS L2 VPN service providers) maintain different SLA and can handle a different class of traffic based on DSCP marks differently.
For example, if you have premium service to prioritize DSCP EF and CS6 voice and signaling traffic.
Since priority traffic is almost always policed, even if the total bandwidth of an uplink is not exceeded, for this type of traffic packet loss can be seen and hence BFD sessions can be flapping as well.
It was seen in some cases that if dedicated priority queue on service provider router is starved, you do not see any drops for normal traffic (for example, when you run simple ping from vEdge router).
This is because such traffic is marked with default DSCP value 0 as can be seen here (TOS byte):
15:49:22.268044 IP (tos 0x0, ttl 62, id 0, offset 0, flags [DF], proto UDP (17), length 142)
192.168.110.5.12366 > 192.168.109.7.12346: [no cksum] UDP, length 114
15:49:22.272919 IP (tos 0x0, ttl 62, id 0, offset 0, flags [DF], proto UDP (17), length 142)
192.168.110.5.12366 > 192.168.109.7.12346: [no cksum] UDP, length 114
15:49:22.277660 IP (tos 0x0, ttl 62, id 0, offset 0, flags [DF], proto UDP (17), length 142)
192.168.110.5.12366 > 192.168.109.7.12346: [no cksum] UDP, length 114
15:49:22.314821 IP (tos 0x0, ttl 62, id 0, offset 0, flags [DF], proto UDP (17), length 142)
192.168.110.5.12366 > 192.168.109.7.12346: [no cksum] UDP, length 114
But at the same time, your BFD sessions flap:
show bfd history
DST PUBLIC DST PUBLIC RX TX
SYSTEM IP SITE ID COLOR STATE IP PORT ENCAP TIME PKTS PKTS DEL
---------------------------------------------------------------------------------------------------------------------------------------
192.168.30.4 13 public-internet up 192.168.109.4 12346 ipsec 2019-05-01T03:54:23+0200 127 135 0
192.168.30.4 13 public-internet up 192.168.109.4 12346 ipsec 2019-05-01T03:54:23+0200 127 135 0
192.168.30.4 13 public-internet down 192.168.109.4 12346 ipsec 2019-05-01T03:55:28+0200 140 159 0
192.168.30.4 13 public-internet down 192.168.109.4 12346 ipsec 2019-05-01T03:55:28+0200 140 159 0
192.168.30.4 13 public-internet up 192.168.109.4 12346 ipsec 2019-05-01T03:55:40+0200 361 388 0
192.168.30.4 13 public-internet up 192.168.109.4 12346 ipsec 2019-05-01T03:55:40+0200 361 388 0
192.168.30.4 13 public-internet down 192.168.109.4 12346 ipsec 2019-05-01T03:57:38+0200 368 421 0
192.168.30.4 13 public-internet down 192.168.109.4 12346 ipsec 2019-05-01T03:57:38+0200 368 421 0
192.168.30.4 13 public-internet up 192.168.109.4 12346 ipsec 2019-05-01T03:58:05+0200 415 470 0
192.168.30.6 13 public-internet up 192.168.109.4 12346 ipsec 2019-05-01T03:58:05+0200 415 470 0
192.168.30.6 13 public-internet down 192.168.109.4 12346 ipsec 2019-05-01T03:58:25+0200 464063 464412 0
And here nping comes handy in order to troubleshoot:
vedge2# tools nping vpn 0 options "--tos 0x0c --icmp --icmp-type echo --delay 200ms -c 100 -q" 192.168.109.7 Nping in VPN 0 Starting Nping 0.6.47 ( http://nmap.org/nping ) at 2019-05-07 15:58 CEST Max rtt: 200.305ms | Min rtt: 0.024ms | Avg rtt: 151.524ms Raw packets sent: 100 (2.800KB) | Rcvd: 99 (4.554KB) | Lost: 1 (1.00%) Nping done: 1 IP address pinged in 19.83 seconds
Debug BFD
If deeper investigation is required, run debugging of BFD on the vEdge router.
Forwarding Traffic Manager (FTM) is responsible for BFD operations on vEdge routers and hence you need debug ftm bfd.
All debugging output is stored in /var/log/tmplog/vdebug file and if you want to have those messages on the console (similar to Cisco IOS terminal monitor behavior), you can use monitor start /var/log/tmplog/vdebug.
In order to stop logging, you can use monitor stop /var/log/tmplog/vdebug
Here is how the output looks for BFD session that goes down because of the timeout (remote TLOC with IP address 192.168.110.6 is not reachable anymore):
log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_update_state[1008]: BFD-session TNL 192.168.110.5:12366->192.168.110.6:12346,l-tloc(32771)->r-tloc(32772),TLOC 192.168.30.5:biz-internet->192.168.30.6:public-internet IPSEC: BFD Session STATE update, New_State :- DOWN, Reason :- LOCAL_TIMEOUT_DETECT Observed latency :- 7924, bfd_record_index :- 8, Hello timer :- 1000, Detect Multiplier :- 7 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: ftm_proc_tunnel_public_tloc_msg[252]: tun_rec_index 13 tloc_index 32772 public tloc 0.0.0.0/0 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: ftm_increment_wanif_bfd_flap[2427]: BFD-session TNL 192.168.110.5:12366->192.168.110.6:12346, : Increment the WAN interface counters by 1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_update_state[1119]: BFD-session TNL 192.168.110.5:12366->192.168.110.6:12346,l-tloc(32771)->r-tloc(32772),TLOC 192.168.30.5:biz-internet->192.168.30.6:public-internet IPSEC BFD session history update, old state 3 new state 1 current flap count 1 prev_index 1 current 2 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: ftm_tloc_add[1140]: Attempting to add TLOC : from_ttm 0 origin remote tloc-index 32772 pub 192.168.110.6:12346 pub v6 :::0 system_ip 192.168.30.6 color 5 spi 333 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_set_del_marker_internal[852]: (32771:32772) proto 50 src 192.168.110.5:12366 dst 192.168.110.6:12346 ref_count 1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_set_del_marker_internal[852]: (32770:32772) proto 50 src 192.168.109.5:12366 dst 192.168.110.6:12346 ref_count 1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_create[238]: Attempting BFD session creation. Remote-tloc: tloc-index 32772, system-ip 192.168.30.6, color 5 encap 2from local WAN Interface ge0_0 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_clear_delete_marker[828]: (32771:32772) proto 50 src 192.168.110.5:12366 dst 192.168.110.6:12346 ref_count 1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_create[238]: Attempting BFD session creation. Remote-tloc: tloc-index 32772, system-ip 192.168.30.6, color 5 encap 2from local WAN Interface ge0_1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_clear_delete_marker[828]: (32770:32772) proto 50 src 192.168.109.5:12366 dst 192.168.110.6:12346 ref_count 1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_update_sa[1207]: BFD-session TNL 192.168.110.5:12366->192.168.110.6:12346,l-tloc(32771)->r-tloc(32772),TLOC 192.168.30.5:biz-internet->192.168.30.6:public-internet IPSEC: session sa index changed from 484 to 484 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: ftm_tloc_add[1653]: BFD (32771:32772) src 192.168.110.5:12366 dst 192.168.110.6:12346 record index 8 ref-count 1 sa-idx 484 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_update_sa[1207]: BFD-session TNL 192.168.109.5:12366->192.168.110.6:12346,l-tloc(32770)->r-tloc(32772),TLOC 192.168.30.5:public-internet->192.168.30.6:public-internet IPSEC: session sa index changed from 485 to 485 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: ftm_tloc_add[1653]: BFD (32770:32772) src 192.168.109.5:12366 dst 192.168.110.6:12346 record index 9 ref-count 1 sa-idx 485 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_update_state[1008]: BFD-session TNL 192.168.109.5:12366->192.168.110.6:12346,l-tloc(32770)->r-tloc(32772),TLOC 192.168.30.5:public-internet->192.168.30.6:public-internet IPSEC: BFD Session STATE update, New_State :- DOWN, Reason :- LOCAL_TIMEOUT_DETECT Observed latency :- 7924, bfd_record_index :- 9, Hello timer :- 1000, Detect Multiplier :- 7 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: ftm_proc_tunnel_public_tloc_msg[252]: tun_rec_index 14 tloc_index 32772 public tloc 0.0.0.0/0 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: ftm_increment_wanif_bfd_flap[2427]: BFD-session TNL 192.168.109.5:12366->192.168.110.6:12346, : Increment the WAN interface counters by 1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_update_state[1119]: BFD-session TNL 192.168.109.5:12366->192.168.110.6:12346,l-tloc(32770)->r-tloc(32772),TLOC 192.168.30.5:public-internet->192.168.30.6:public-internet IPSEC BFD session history update, old state 3 new state 1 current flap count 1 prev_index 1 current 2 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: ftm_tloc_add[1140]: Attempting to add TLOC : from_ttm 0 origin remote tloc-index 32772 pub 192.168.110.6:12346 pub v6 :::0 system_ip 192.168.30.6 color 5 spi 333 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_set_del_marker_internal[852]: (32771:32772) proto 50 src 192.168.110.5:12366 dst 192.168.110.6:12346 ref_count 1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_set_del_marker_internal[852]: (32770:32772) proto 50 src 192.168.109.5:12366 dst 192.168.110.6:12346 ref_count 1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_create[238]: Attempting BFD session creation. Remote-tloc: tloc-index 32772, system-ip 192.168.30.6, color 5 encap 2from local WAN Interface ge0_0 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_clear_delete_marker[828]: (32771:32772) proto 50 src 192.168.110.5:12366 dst 192.168.110.6:12346 ref_count 1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_create[238]: Attempting BFD session creation. Remote-tloc: tloc-index 32772, system-ip 192.168.30.6, color 5 encap 2from local WAN Interface ge0_1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_clear_delete_marker[828]: (32770:32772) proto 50 src 192.168.109.5:12366 dst 192.168.110.6:12346 ref_count 1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_update_sa[1207]: BFD-session TNL 192.168.110.5:12366->192.168.110.6:12346,l-tloc(32771)->r-tloc(32772),TLOC 192.168.30.5:biz-internet->192.168.30.6:public-internet IPSEC: session sa index changed from 484 to 484 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: ftm_tloc_add[1653]: BFD (32771:32772) src 192.168.110.5:12366 dst 192.168.110.6:12346 record index 8 ref-count 1 sa-idx 484 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_update_sa[1207]: BFD-session TNL 192.168.109.5:12366->192.168.110.6:12346,l-tloc(32770)->r-tloc(32772),TLOC 192.168.30.5:public-internet->192.168.30.6:public-internet IPSEC: session sa index changed from 485 to 485 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: ftm_tloc_add[1653]: BFD (32770:32772) src 192.168.109.5:12366 dst 192.168.110.6:12346 record index 9 ref-count 1 sa-idx 485 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: ftm_send_bfd_msg[499]: Sending BFD notification Down notification to TLOC id 32772 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: ftm_tloc_add[1140]: Attempting to add TLOC : from_ttm 1 origin remote tloc-index 32772 pub 192.168.110.6:12346 pub v6 :::0 system_ip 192.168.30.6 color 5 spi 333 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_set_del_marker_internal[852]: (32771:32772) proto 50 src 192.168.110.5:12366 dst 192.168.110.6:12346 ref_count 1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_set_del_marker_internal[852]: (32770:32772) proto 50 src 192.168.109.5:12366 dst 192.168.110.6:12346 ref_count 1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: ftm_tloc_add[1285]: UPDATE local tloc log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_create[238]: Attempting BFD session creation. Remote-tloc: tloc-index 32772, system-ip 192.168.30.6, color 5 encap 2from local WAN Interface ge0_0 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_clear_delete_marker[828]: (32771:32772) proto 50 src 192.168.110.5:12366 dst 192.168.110.6:12346 ref_count 1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_create[238]: Attempting BFD session creation. Remote-tloc: tloc-index 32772, system-ip 192.168.30.6, color 5 encap 2from local WAN Interface ge0_1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_clear_delete_marker[828]: (32770:32772) proto 50 src 192.168.109.5:12366 dst 192.168.110.6:12346 ref_count 1 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_update_sa[1207]: BFD-session TNL 192.168.110.5:12366->192.168.110.6:12346,l-tloc(32771)->r-tloc(32772),TLOC 192.168.30.5:biz-internet->192.168.30.6:public-internet IPSEC: session sa index changed from 484 to 484 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: ftm_tloc_add[1653]: BFD (32771:32772) src 192.168.110.5:12366 dst 192.168.110.6:12346 record index 8 ref-count 1 sa-idx 484 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: bfdmgr_session_update_sa[1207]: BFD-session TNL 192.168.109.5:12366->192.168.110.6:12346,l-tloc(32770)->r-tloc(32772),TLOC 192.168.30.5:public-internet->192.168.30.6:public-internet IPSEC: session sa index changed from 485 to 485 log:local7.debug: May 7 16:23:09 vedge2 FTMD[674]: ftm_tloc_add[1653]: BFD (32770:32772) src 192.168.109.5:12366 dst 192.168.110.6:12346 record index 9 ref-count 1 sa-idx 485 log:local7.info: May 7 16:23:09 vedge2 FTMD[674]: %Viptela-vedge2-ftmd-6-INFO-1400002: Notification: 5/7/2019 14:23:9 bfd-state-change severity-level:major host-name:"vedge2" system-ip:192.168.30.5 src-ip:192.168.110.5 dst-ip:192.168.110.6 proto:ipsec src-port:12366 dst-port:12346 local-system-ip:192.168.30.5 local-color:"biz-internet" remote-system-ip:192.168.30.6 remote-color:"public-internet" new-state:down deleted:false flap-reason:timeout log:local7.info: May 7 16:23:09 vedge2 FTMD[674]: %Viptela-vedge2-ftmd-6-INFO-1400002: Notification: 5/7/2019 14:23:9 bfd-state-change severity-level:major host-name:"vedge2" system-ip:192.168.30.5 src-ip:192.168.109.5 dst-ip:192.168.110.6 proto:ipsec src-port:12366 dst-port:12346 local-system-ip:192.168.30.5 local-color:"public-internet" remote-system-ip:192.168.30.6 remote-color:"public-internet" new-state:down deleted:false flap-reason:timeout
Another valuable debug in order to enable is Tunnel Traffic Manager (TTM) events debug is debug ttm events.
Here is how BFD DOWN event looks like from the perspective of TTM:
log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[194]: Received TTM Msg LINK_BFD, Client: ftmd, AF: LINK log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[413]: Remote-TLOC: 192.168.30.6 : public-internet : ipsec, Local-TLOC: 192.168.30.5 : biz-internet : ipsec, Status: DOWN, Rec Idx: 13 MTU: 1441, Loss: 77, Latency: 0, Jitter: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[194]: Received TTM Msg LINK_BFD, Client: ftmd, AF: LINK log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[413]: Remote-TLOC: 192.168.30.6 : public-internet : ipsec, Local-TLOC: 192.168.30.5 : public-internet : ipsec, Status: DOWN, Rec Idx: 14 MTU: 1441, Loss: 77, Latency: 0, Jitter: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[194]: Received TTM Msg BFD, Client: ftmd, AF: TLOC-IPV4 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[402]: TLOC: 192.168.30.6 : public-internet : ipsec, Status: DOWN log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_af_tloc_db_bfd_status[234]: BFD message: I SAY WHAT WHAT tloc 192.168.30.6 : public-internet : ipsec status is 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[194]: Sent TTM Msg TLOC_ADD, Client: ompd, AF: TLOC-IPV4 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[213]: TLOC: 192.168.30.6 : public-internet : ipsec, Index: 32772, Origin: REMOTE, Status: DOWN, LR enabled: 0, LR hold time: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[217]: Attributes: GROUP PREF WEIGHT GEN-ID VERSION TLOCv4-PUB TLOCv4-PRI TLOCv6-PUB TLOCv6-PRI SITE-ID CARRIER ENCAP RESTRICT log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[220]: Preference: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[223]: Weight: 1 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[226]: Gen-ID: 2147483661 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[229]: Version: 2 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[232]: Site-ID: 13 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[235]: Carrier: 4 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[241]: Restrict: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[249]: Group: Count: 1 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[262]: Groups: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[269]: TLOCv4-Public: 192.168.110.6:12346 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[273]: TLOCv4-Private: 192.168.110.6:12346 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[277]: TLOCv6-Public: :::0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[281]: TLOCv6-Private: :::0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[285]: TLOC-Encap: ipsec-tunnel log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[295]: Authentication: unknown(0x98) Encryption: aes256(0xc) SPI 334 Proto ESP log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[312]: SPI 334, Flags 0x1e Integrity: 1, encrypt-keys: 1 auth-keys: 1 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[317]: Number of protocols 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[328]: Number of encrypt types: 2 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[333]: Encrypt type[0] AES256-GCM log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[333]: Encrypt type[1] AES256-CBC log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[339]: Number of integrity types: 1 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[344]: integrity type[0] HMAC_SHA1 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[349]: #Paths: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[194]: Sent TTM Msg TLOC_ADD, Client: ftmd, AF: TLOC-IPV4 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[213]: TLOC: 192.168.30.6 : public-internet : ipsec, Index: 32772, Origin: REMOTE, Status: DOWN, LR enabled: 0, LR hold time: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[217]: Attributes: GROUP PREF WEIGHT GEN-ID VERSION TLOCv4-PUB TLOCv4-PRI TLOCv6-PUB TLOCv6-PRI SITE-ID CARRIER ENCAP RESTRICT log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[220]: Preference: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[223]: Weight: 1 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[226]: Gen-ID: 2147483661 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[229]: Version: 2 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[232]: Site-ID: 13 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[235]: Carrier: 4 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[241]: Restrict: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[249]: Group: Count: 1 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[262]: Groups: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[269]: TLOCv4-Public: 192.168.110.6:12346 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[273]: TLOCv4-Private: 192.168.110.6:12346 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[277]: TLOCv6-Public: :::0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[281]: TLOCv6-Private: :::0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[285]: TLOC-Encap: ipsec-tunnel log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[295]: Authentication: unknown(0x98) Encryption: aes256(0xc) SPI 334 Proto ESP log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[312]: SPI 334, Flags 0x1e Integrity: 1, encrypt-keys: 1 auth-keys: 1 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[317]: Number of protocols 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[328]: Number of encrypt types: 2 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[333]: Encrypt type[0] AES256-GCM log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[333]: Encrypt type[1] AES256-CBC log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[339]: Number of integrity types: 1 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[344]: integrity type[0] HMAC_SHA1 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[349]: #Paths: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[194]: Sent TTM Msg TLOC_ADD, Client: fpmd, AF: TLOC-IPV4 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[213]: TLOC: 192.168.30.6 : public-internet : ipsec, Index: 32772, Origin: REMOTE, Status: DOWN, LR enabled: 0, LR hold time: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[217]: Attributes: GROUP PREF WEIGHT GEN-ID VERSION TLOCv4-PUB TLOCv4-PRI TLOCv6-PUB TLOCv6-PRI SITE-ID CARRIER ENCAP RESTRICT log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[220]: Preference: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[223]: Weight: 1 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[226]: Gen-ID: 2147483661 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[229]: Version: 2 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[232]: Site-ID: 13 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[235]: Carrier: 4 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[241]: Restrict: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[249]: Group: Count: 1 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[262]: Groups: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[269]: TLOCv4-Public: 192.168.110.6:12346 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[273]: TLOCv4-Private: 192.168.110.6:12346 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[277]: TLOCv6-Public: :::0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[281]: TLOCv6-Private: :::0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[285]: TLOC-Encap: ipsec-tunnel log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[295]: Authentication: unknown(0x98) Encryption: aes256(0xc) SPI 334 Proto ESP log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[312]: SPI 334, Flags 0x1e Integrity: 1, encrypt-keys: 1 auth-keys: 1 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[317]: Number of protocols 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[328]: Number of encrypt types: 2 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[333]: Encrypt type[0] AES256-GCM log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[333]: Encrypt type[1] AES256-CBC log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[339]: Number of integrity types: 1 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[344]: integrity type[0] HMAC_SHA1 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[349]: #Paths: 0 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[194]: Sent TTM Msg DATA_DEVICE_ADD, Client: pimd, AF: DATA-DEVICE-IPV4 log:local7.debug: May 7 16:58:19 vedge2 TTMD[683]: ttm_debug_announcement[431]: Device: 192.168.30.6, Status: 2 log:local7.info: May 7 16:58:19 vedge2 FTMD[674]: %Viptela-vedge2-ftmd-6-INFO-1400002: Notification: 5/7/2019 14:58:19 bfd-state-change severity-level:major host-name:"vedge2" system-ip:192.168.30.5 src-ip:192.168.110.5 dst-ip:192.168.110.6 proto:ipsec src-port:12366 dst-port:12346 local-system-ip:192.168.30.5 local-color:"biz-internet" remote-system-ip:192.168.30.6 remote-color:"public-internet" new-state:down deleted:false flap-reason:timeout log:local7.info: May 7 16:58:20 vedge2 FTMD[674]: %Viptela-vedge2-ftmd-6-INFO-1400002: Notification: 5/7/2019 14:58:19 bfd-state-change severity-level:major host-name:"vedge2" system-ip:192.168.30.5 src-ip:192.168.109.5 dst-ip:192.168.110.6 proto:ipsec src-port:12366 dst-port:12346 local-system-ip:192.168.30.5 local-color:"public-internet" remote-system-ip:192.168.30.6 remote-color:"public-internet" new-state:down deleted:false flap-reason:timeout
Related Information
Revision History
| Revision | Publish Date | Comments |
|---|---|---|
2.0 |
28-Sep-2022 |
Initial Release |
1.0 |
13-Jun-2019 |
Initial Release |
FeedbackContact Cisco
- Open a Support Case
- (Requires a Cisco Service Contract)
